Condition: Used

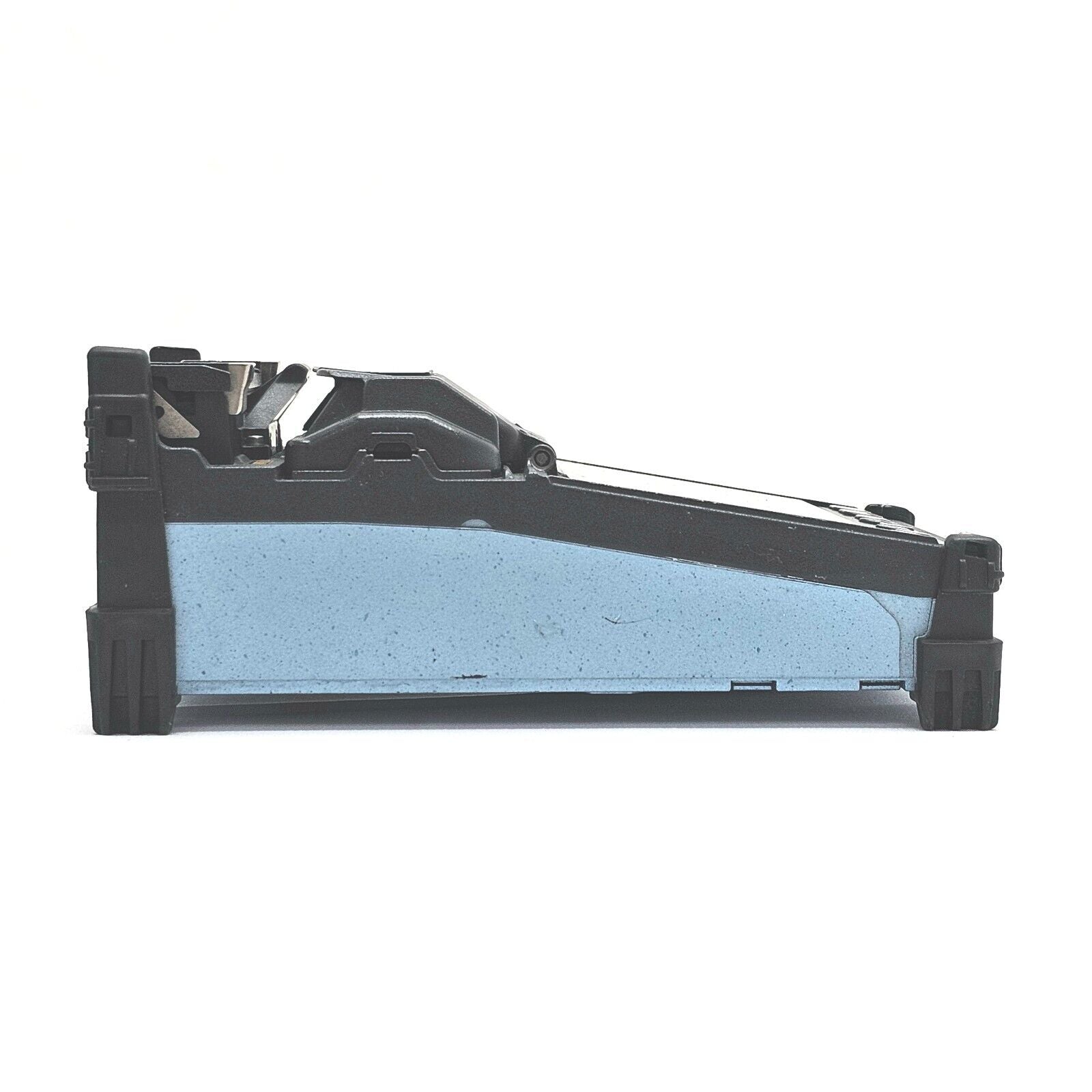

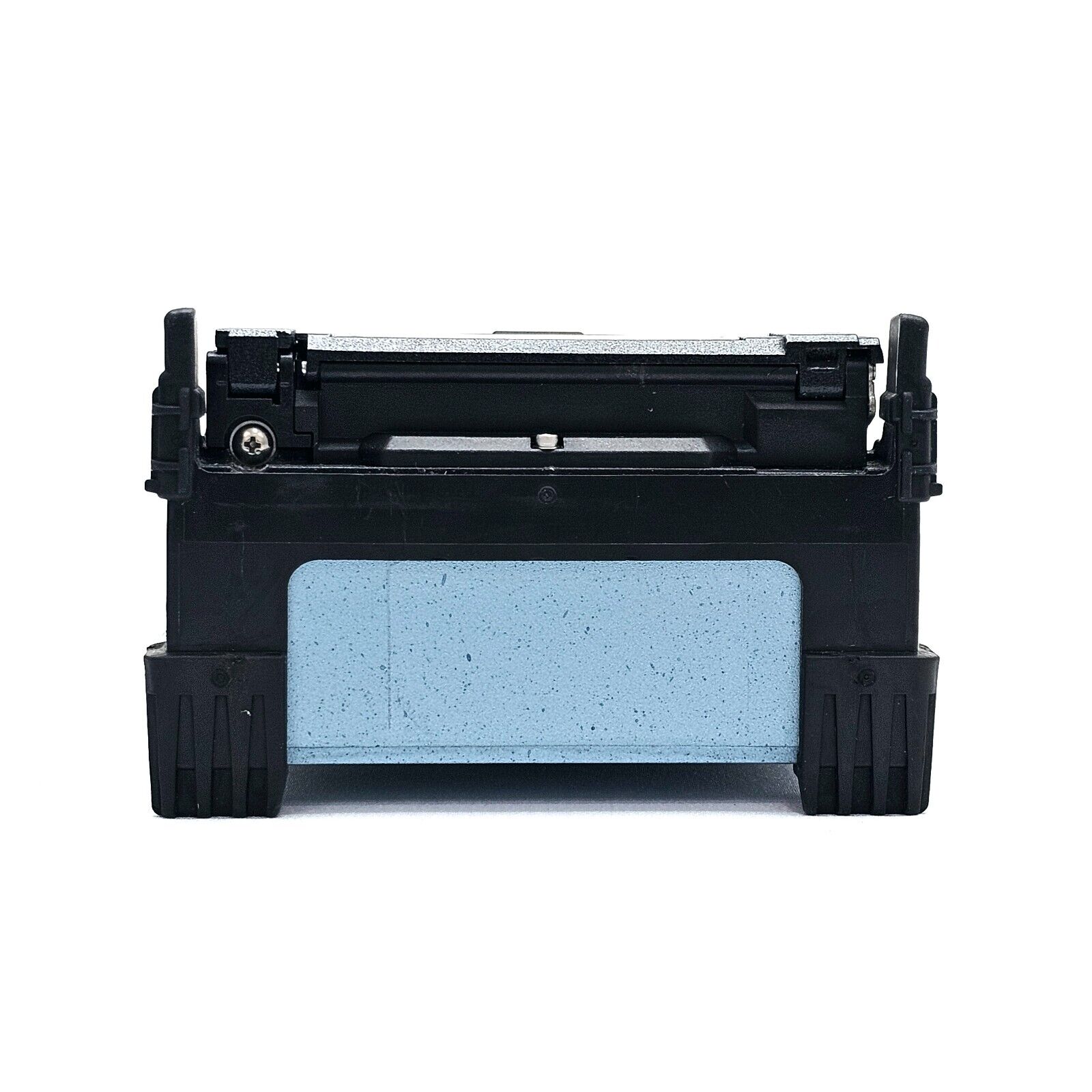

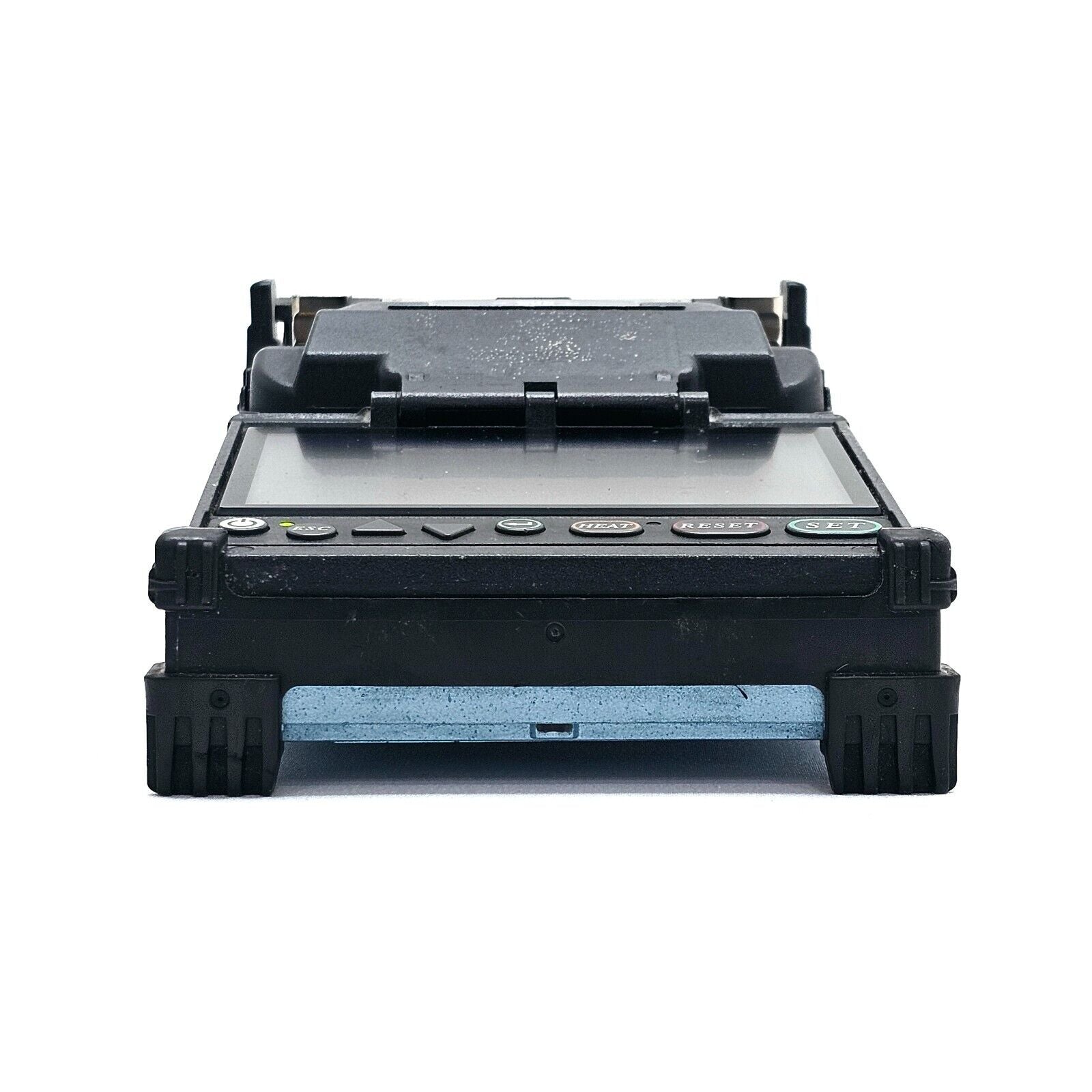

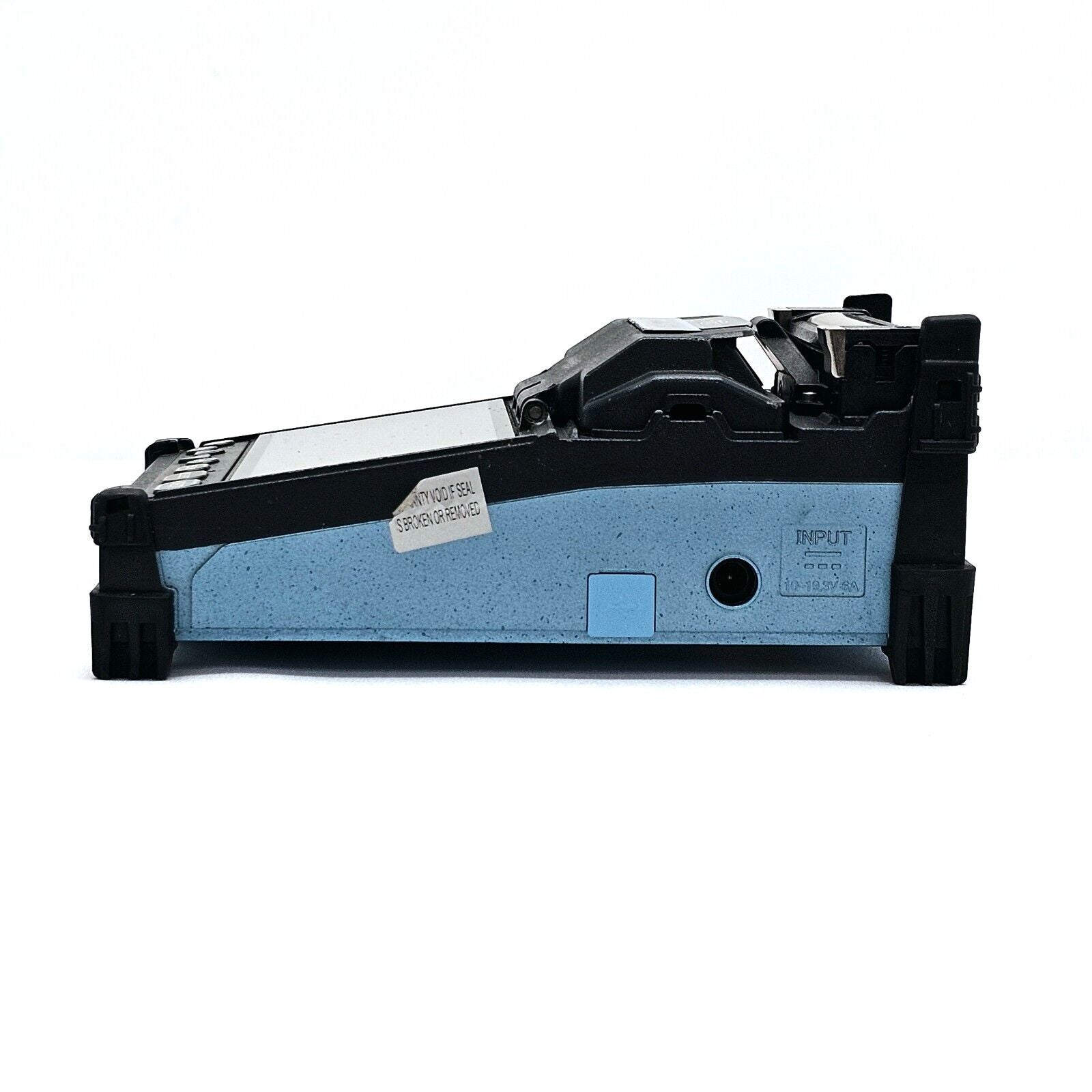

This Fujikura 22S fusion splicer has an ARC count of 6597 and is presented in used condition. The unit features active cladding alignment technology with moveable v-grooves, a 4.7" monitor, extended-life electrodes rated to 3,000 splices, and compatibility with FUSEConnect® fusion installable connectors.

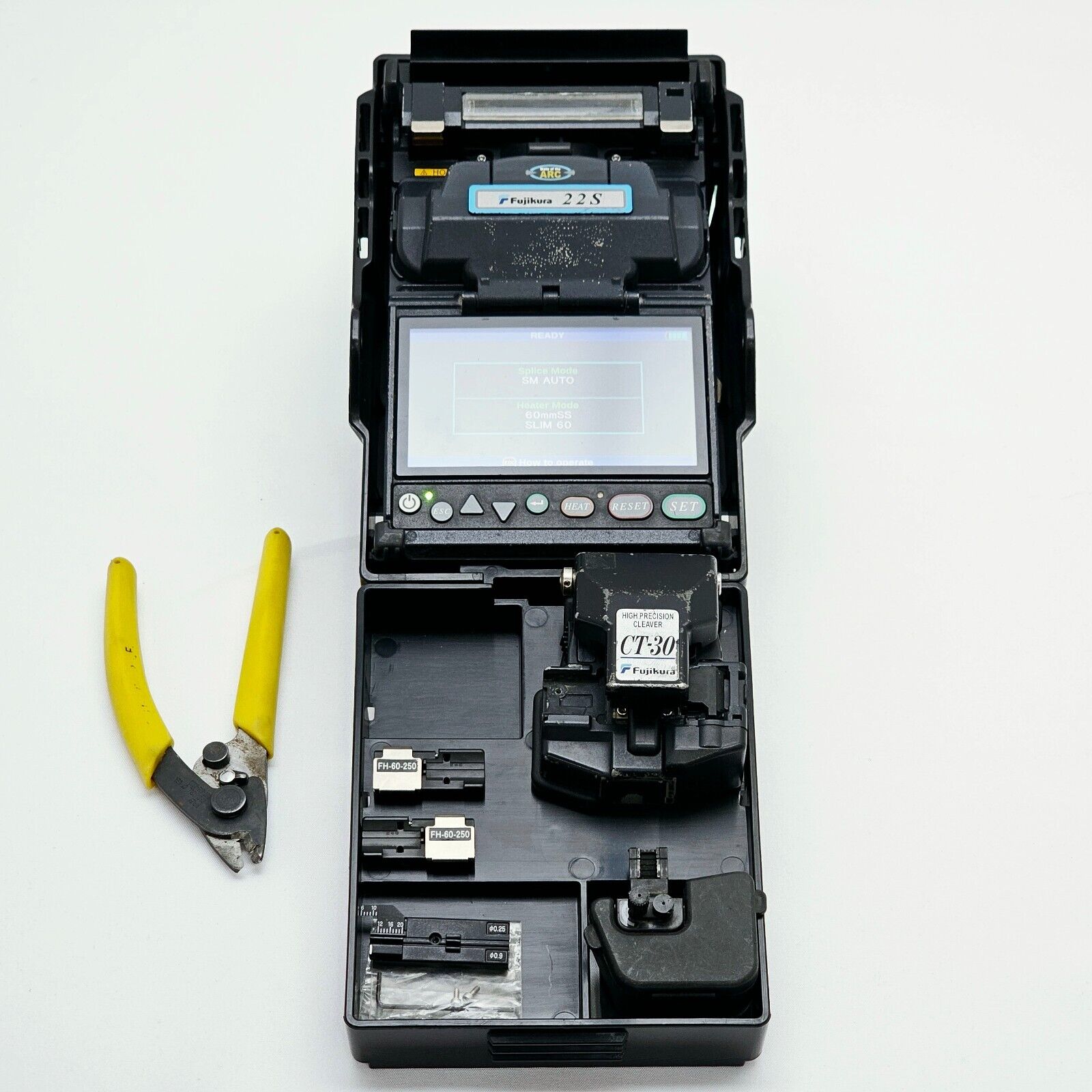

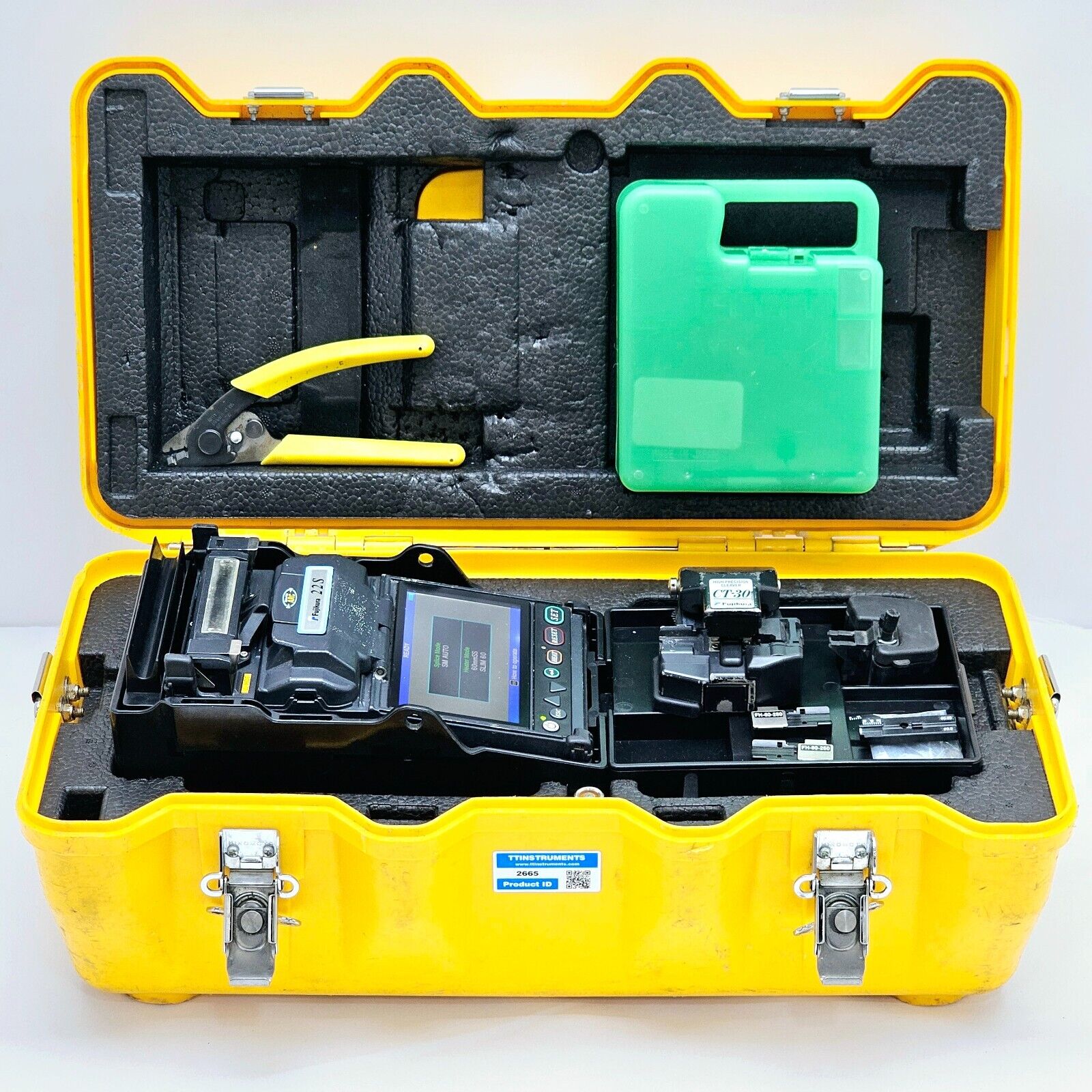

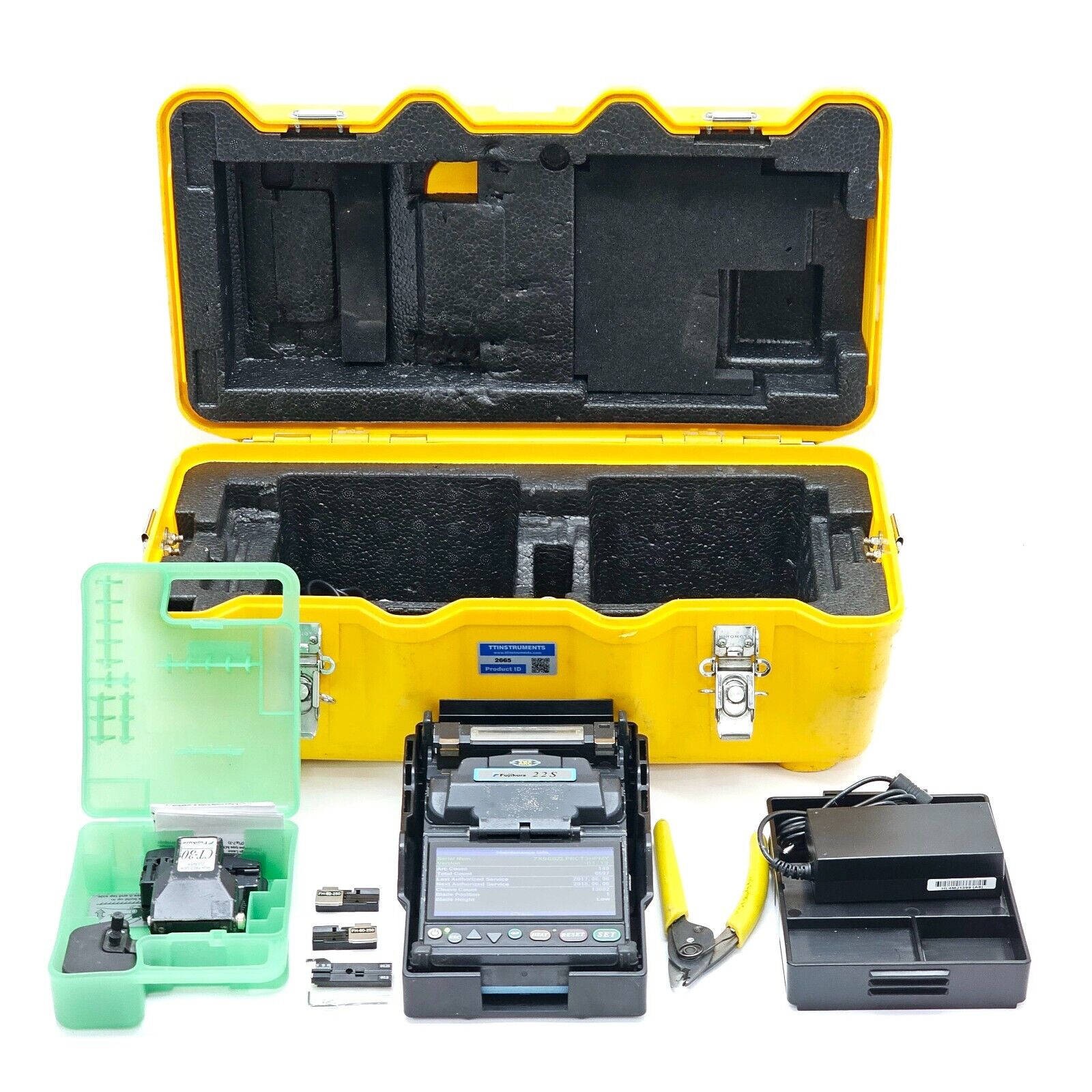

Included in the sale:

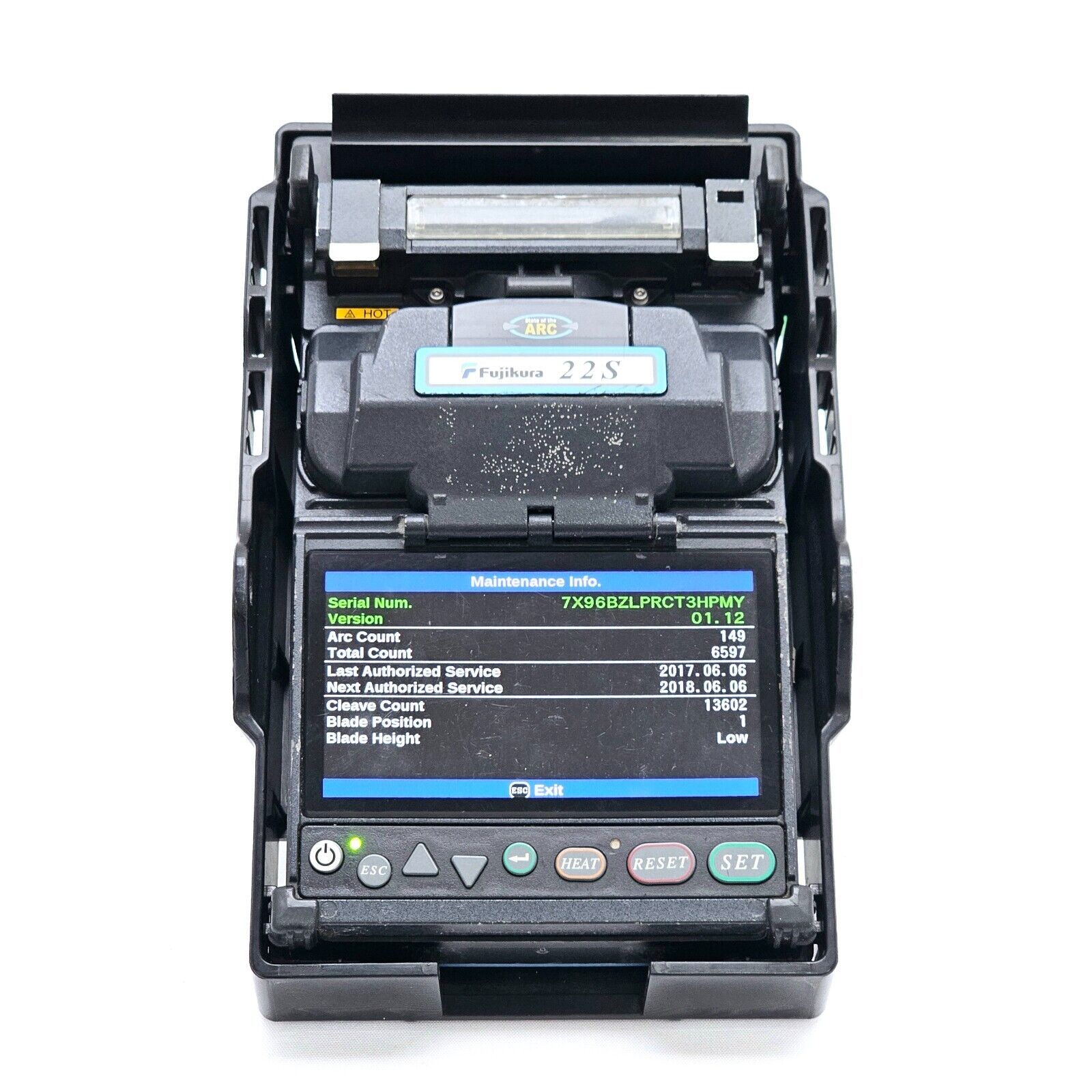

• Fujikura 22S Splicer (ARC count: 6597)

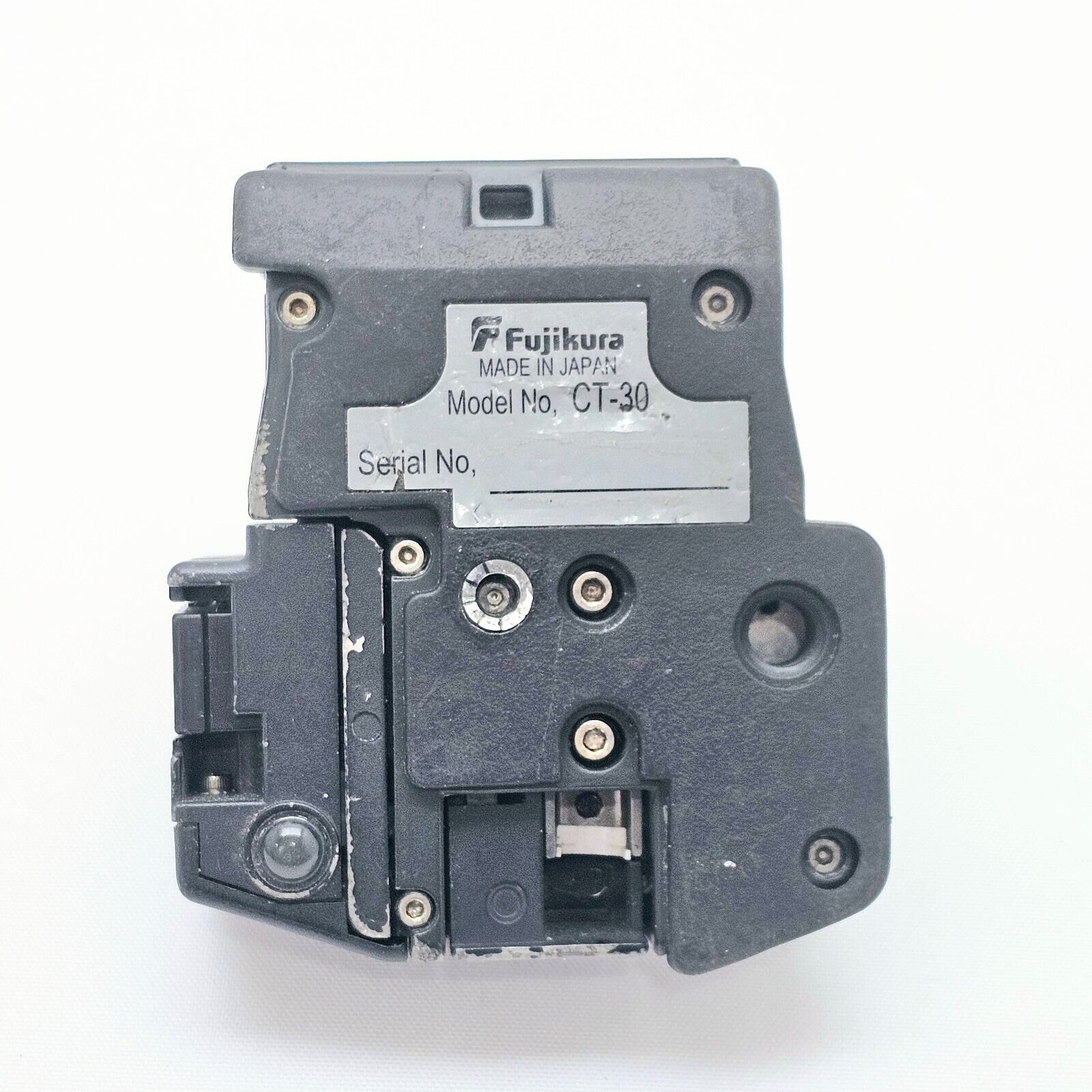

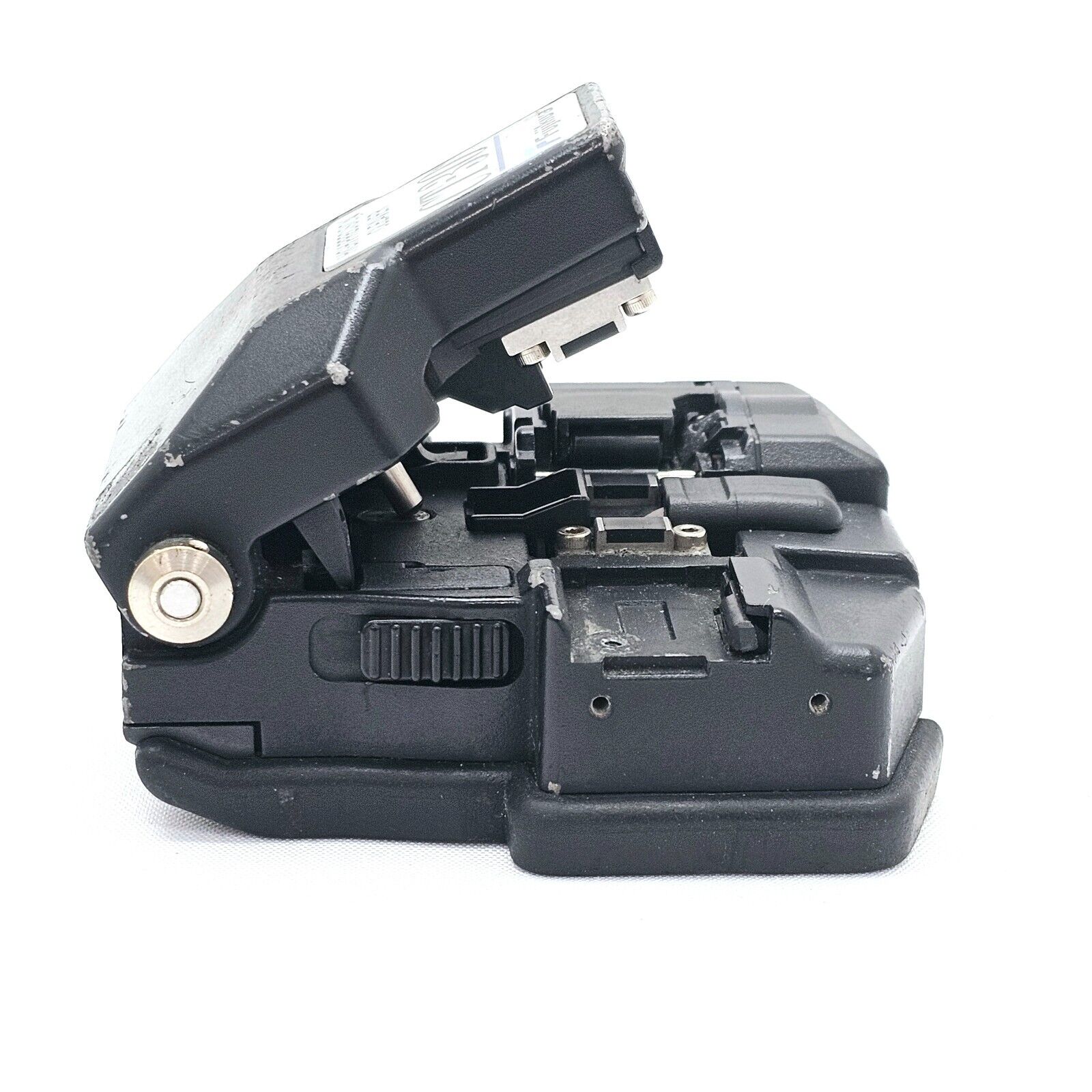

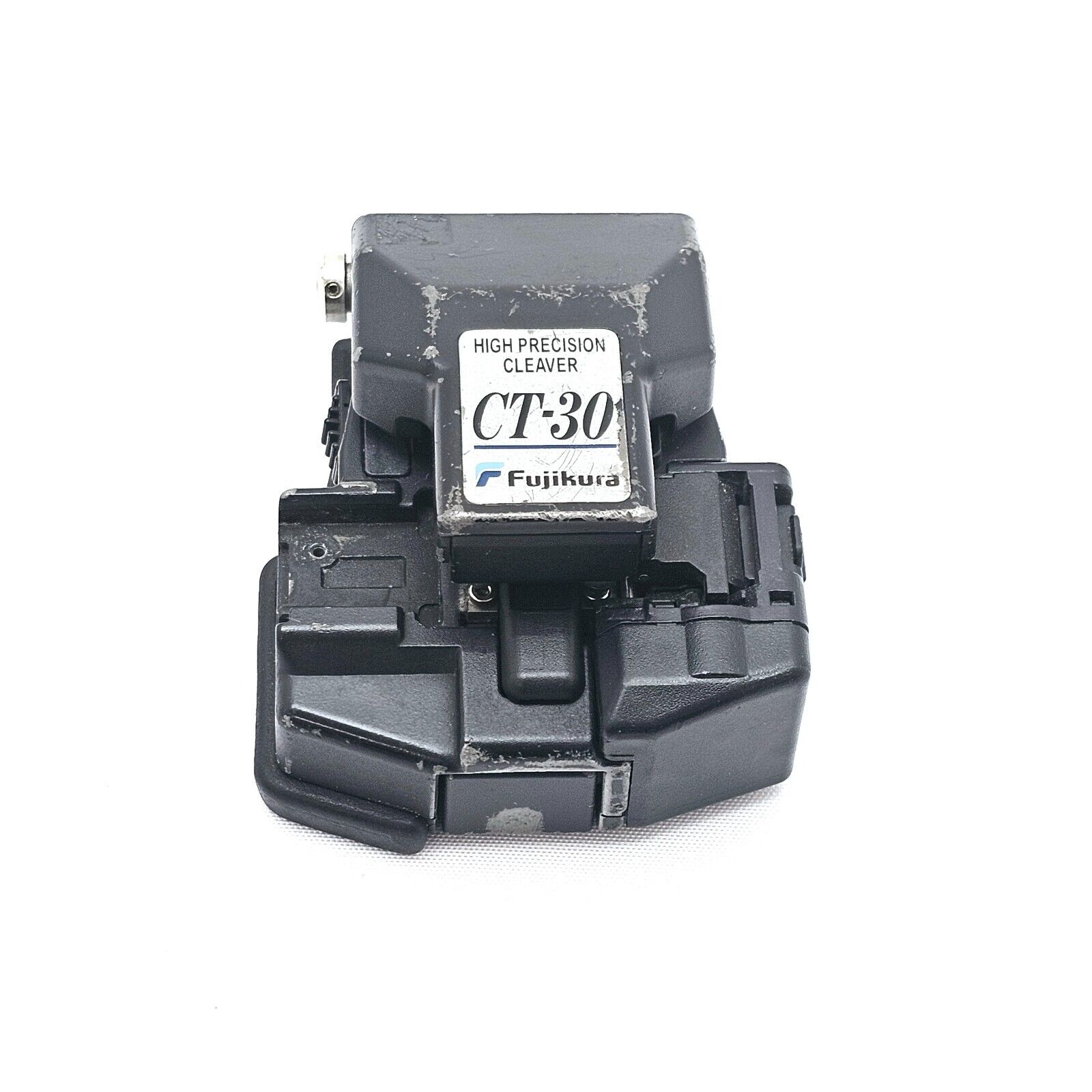

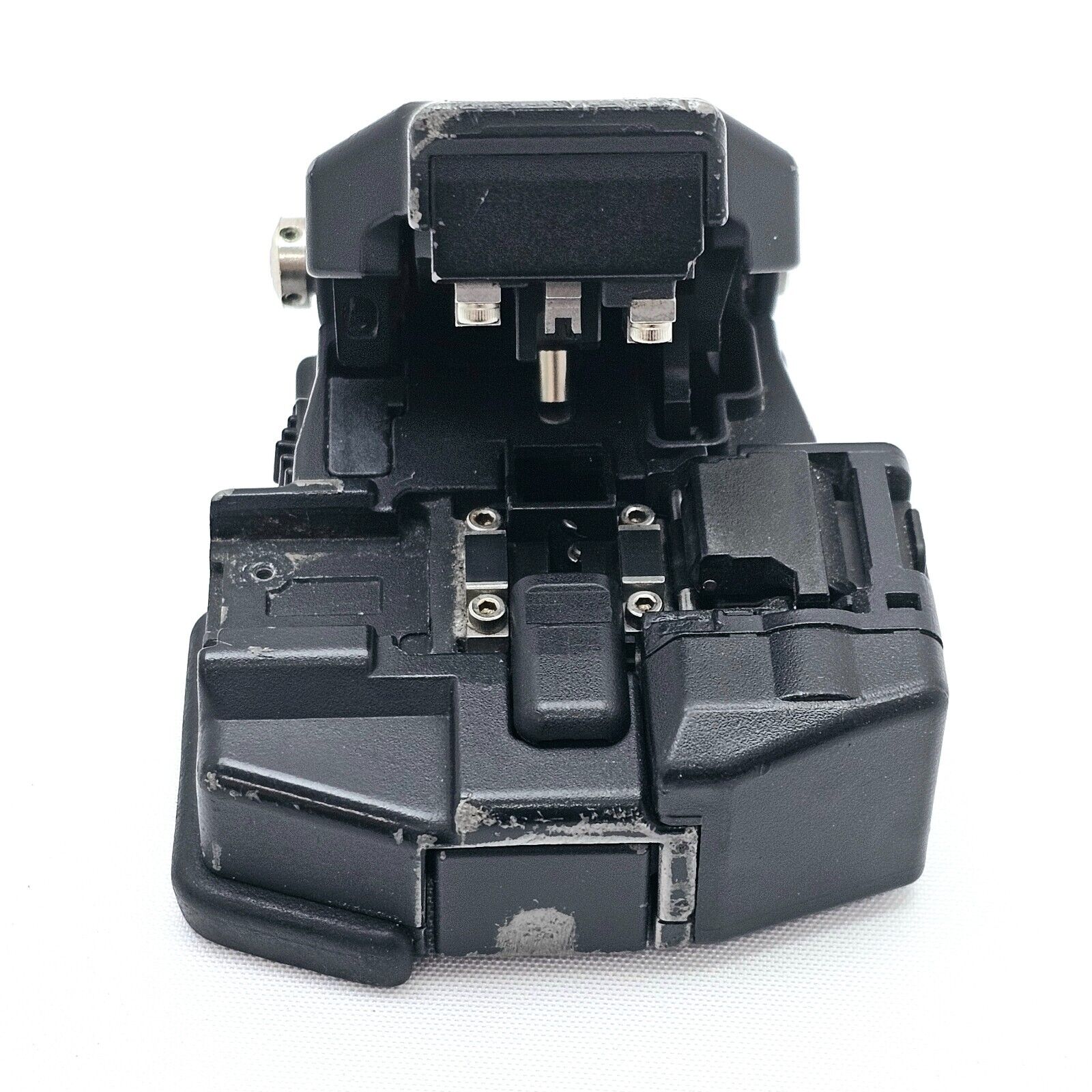

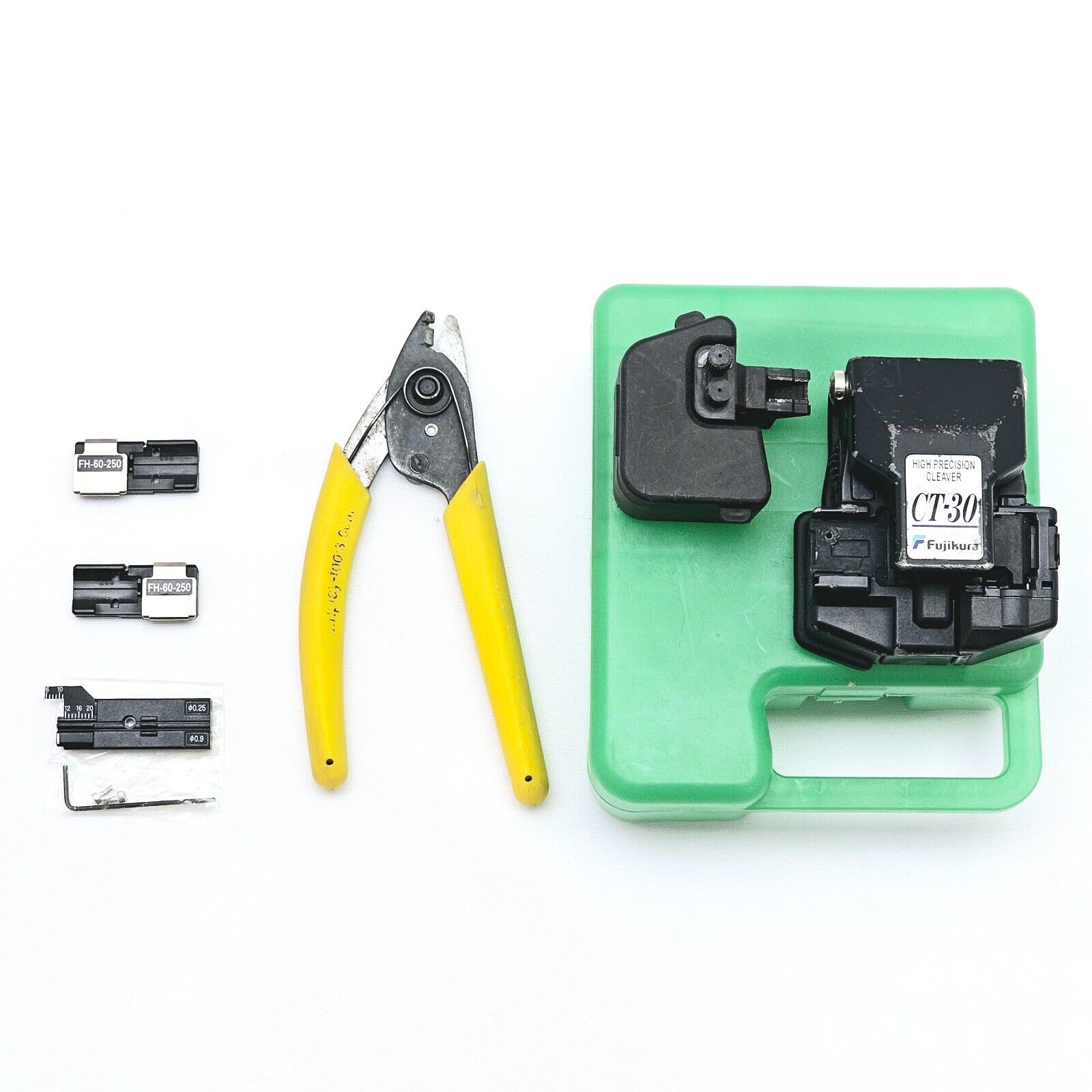

• CT-30 Cleaver with guide plate
• Fiber holders 250
• Stripper
• Power adapter
• Carry case with work tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

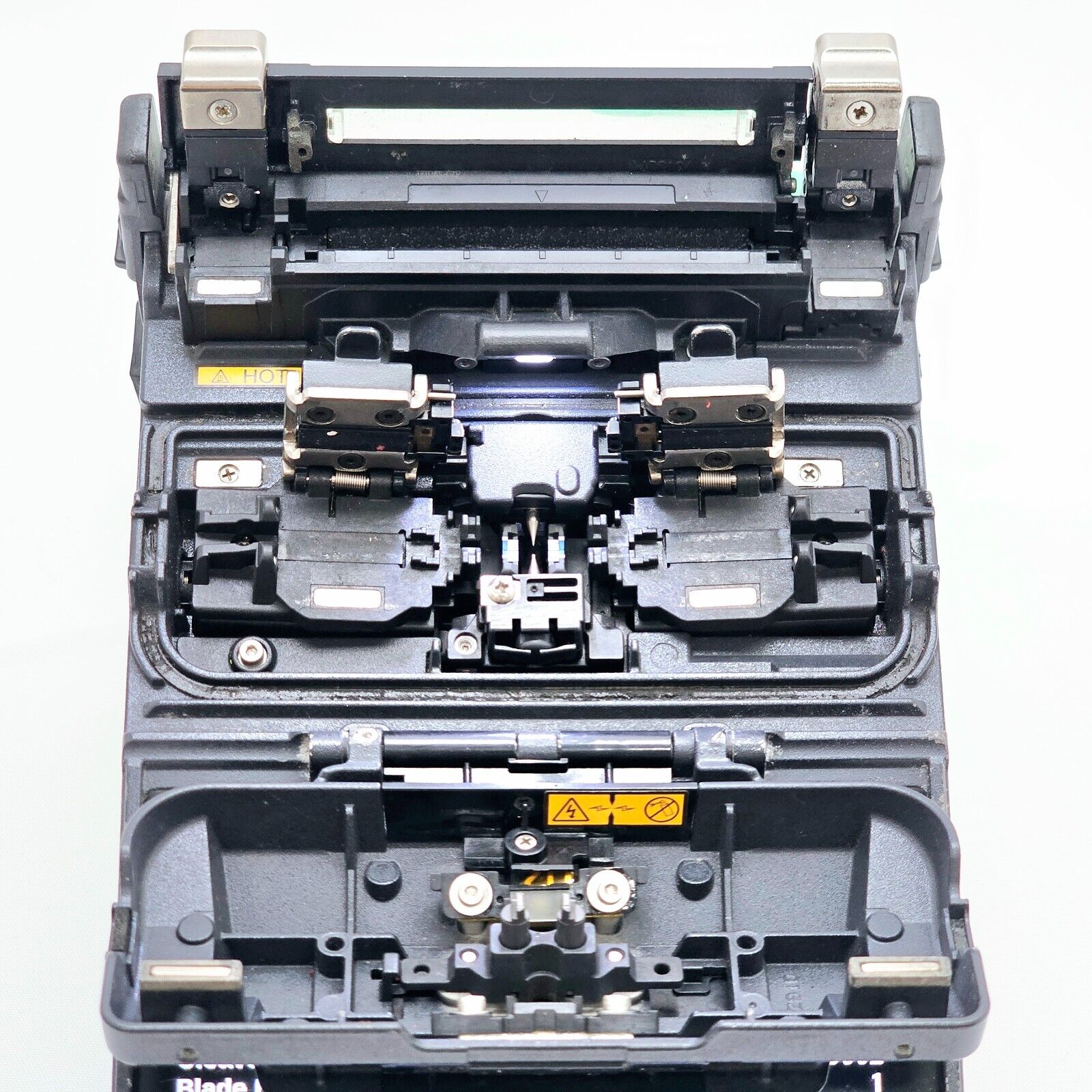

The Fujikura 22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice cycles including application of the splice protection sleeve. The Fujikura 22S incorporates features typically found only in more expensive models. Removable sheath clamps allow the use of fibre holders if desired.

The large 4.7" monitor provides a crystal-clear image, even in the brightest sunlight, for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update their software as new splice programmes become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system provides accurate fibre alignment and loss estimation calculations. The Fujikura 22S is also fully compatible with the FUSEConnect® line of fusion installable connectors.

Key Features:
Alignment Type: Active cladding alignment with dual-camera system
V-Groove Design: Moveable v-grooves to eliminate contamination errors
Dimensions: 4.72" W x 7.44" D x 2.8" H (world's smallest active cladding alignment splicer)
Monitor: 4.7" high-brightness display, sunlight readable
Battery Life: Up to 200 splice and shrink cycles per charge
Electrode Life: 3,000 splices
Heater: Auto-start tube heater
Fibre Compatibility: Single-mode (SM) and multimode (MM)
Ruggedisation: Shock, dust and moisture resistant chassis
Connector Compatibility: FUSEConnect® fusion installable connectors
Software Updates: Via internet connection

Fujikura 22S Fusion Splicer Product Brochure (PDF): Download PDF
