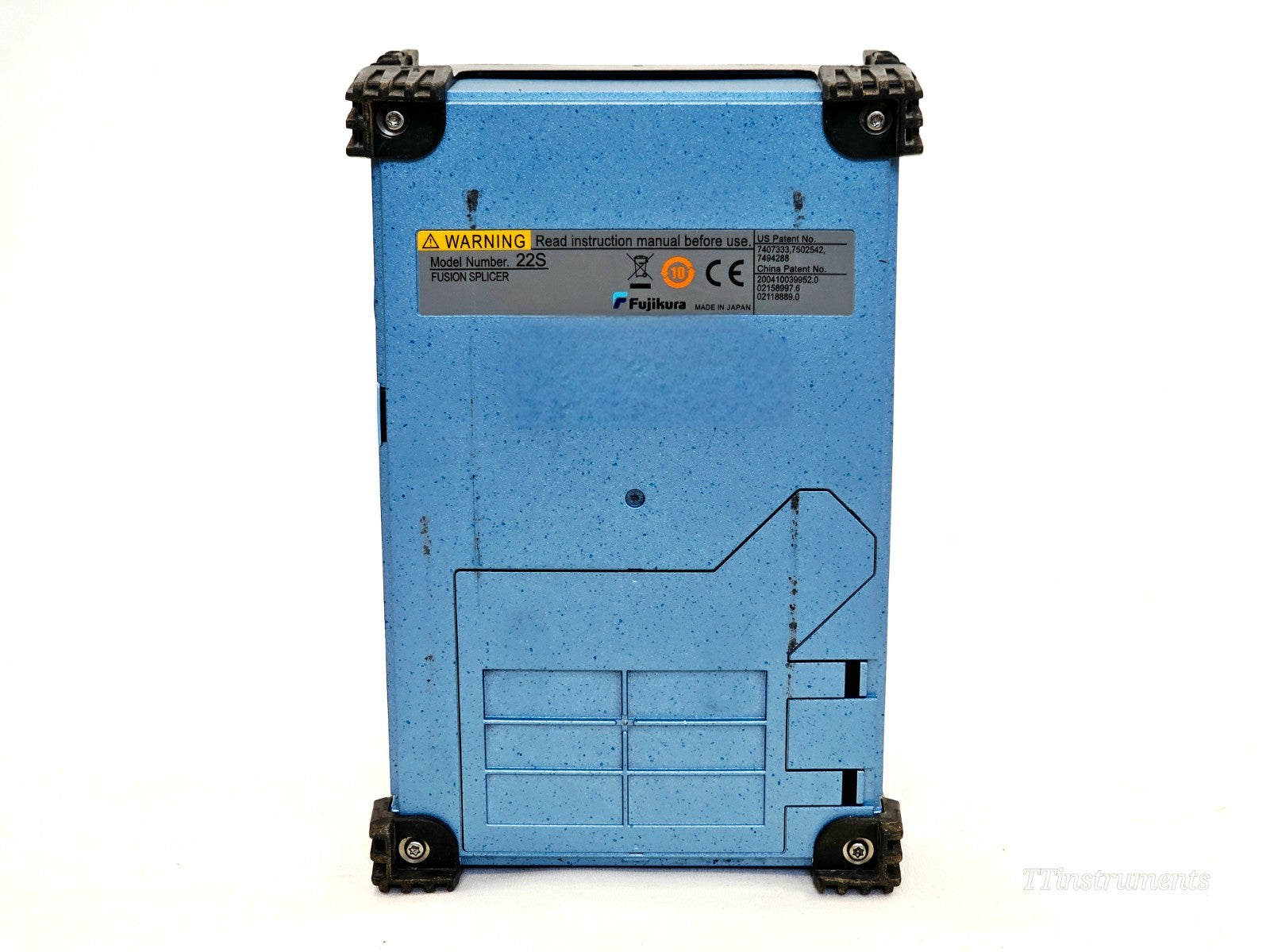

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Fujikura 22S fusion splicer is in very good cosmetic condition and is fully tested and working. The unit powers on, aligns, and splices correctly.

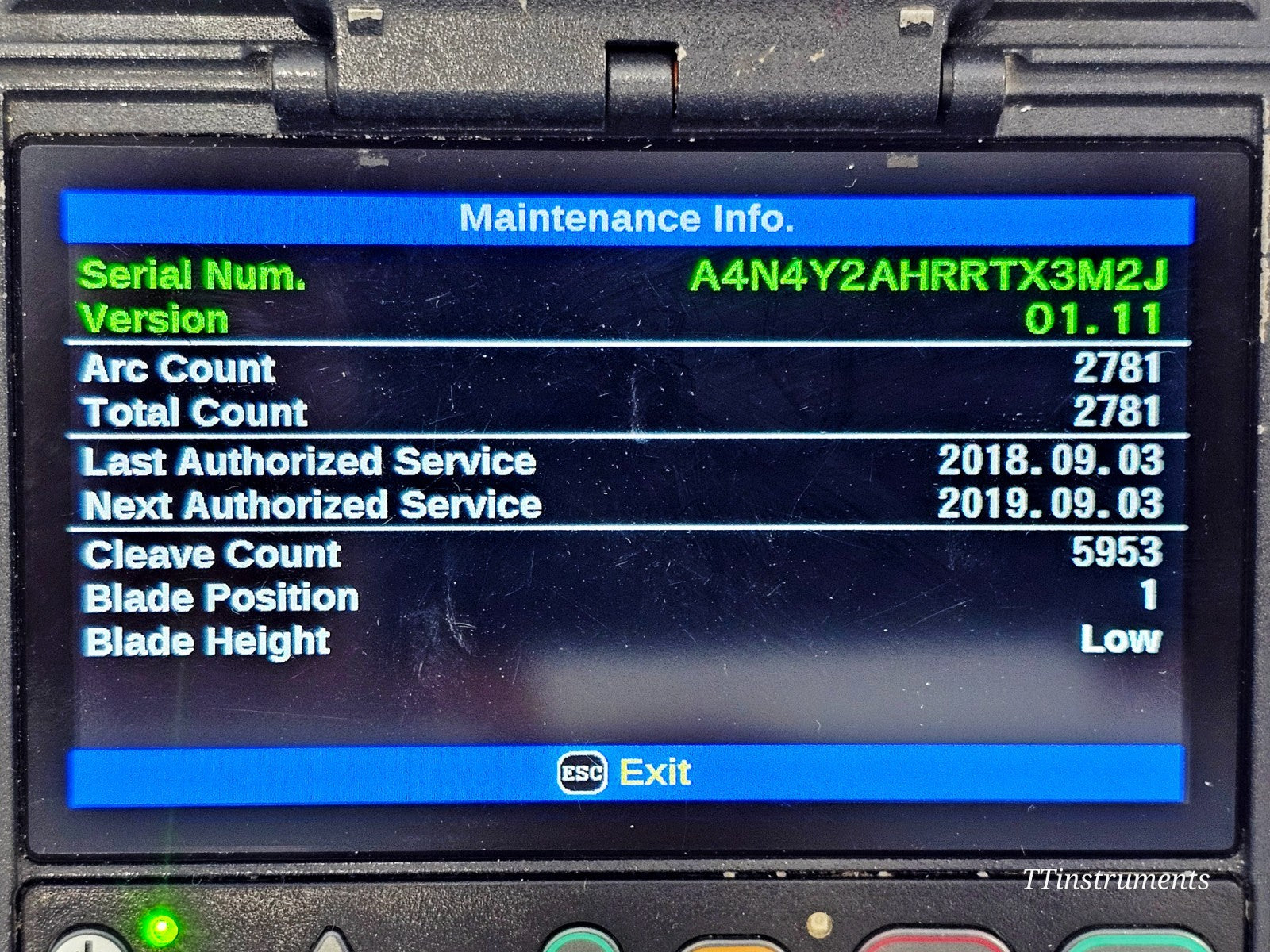

Maintenance screen data confirmed at time of testing:
• Arc Count: 2,781
• Total Splice Count: 2,781
• Firmware Version: 01.11

This unit is supplied with the Fujikura 22S fusion splicer and ADC-19 AC adapter.

The Fujikura 22S is an active V-groove alignment single-fibre fusion splicer designed for high-performance FTTH, FTTx, PON, LAN, and access network splicing applications. It is the world's smallest and lightest active V-groove splicer, bridging the gap between fixed V-groove and full core alignment technology.

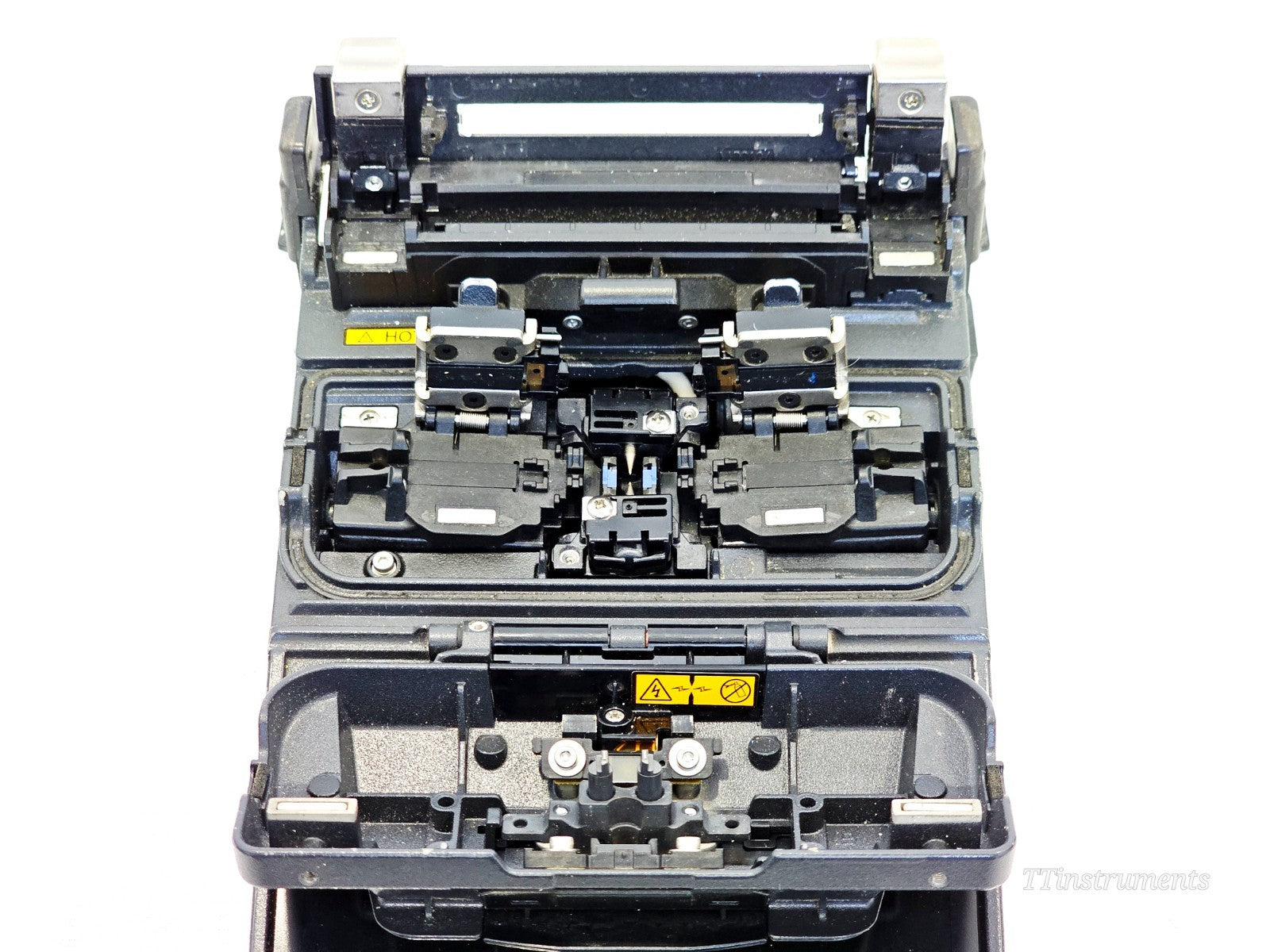

Moveable V-grooves eliminate splice errors caused by dust and other contaminants, while the dual-axis CMOS camera system provides accurate fibre alignment and loss estimation. Despite its compact form factor, the 22S is fully ruggedised for shock, dust, and rain resistance, making it ideal for field deployment.

Key highlights:
- Active V-groove cladding alignment — eliminates fixed-groove contamination errors
- 4.73" sunlight-readable colour LCD with 132× magnification
- Typical splice time of approximately 9 seconds (SM AUTO mode)
- Up to 200 splice and heat cycles per battery charge
- 10,000 splice record memory with USB PC connectivity for data management
- Compatible with FUSEConnect fusion-installable connectors
- Supports 60 mm, 40 mm, and Fujikura micro protection sleeves

Alignment method: Active V-groove (cladding alignment)
Applicable fibre: SM (G.652/G.657), MM (G.651), DSF (G.653), NZDSF (G.655)
Typical splice loss (SM): 0.03 dB
Typical splice loss (MM): 0.01 dB
Splice time (typical): ~9 s
Tube heating time: 16–30 s
Display: 4.73" colour LCD, 132× magnification
Battery life: 200 splice + heat cycles (BTR-11)
Electrode life: 3,000 splices (ELCT2-12)
Splice memory: 10,000 records
Splice programs: 100 splice / 30 heater modes
Tension test: 1.96–2.25 N
Dimensions: 120 × 189 × 72 mm
Weight (with battery): 1,140 g
Operating temperature: -10 °C to +50 °C
Operating altitude: 0 to 3,660 m
Shock resistance: 76 cm drop
Country of manufacture: Japan
