Fujikura 18S SM MM Fiber Optic Fusion Splicer + CT-30 Cleaver FSM 18S ARC 5125

Condition: Used — Good condition.

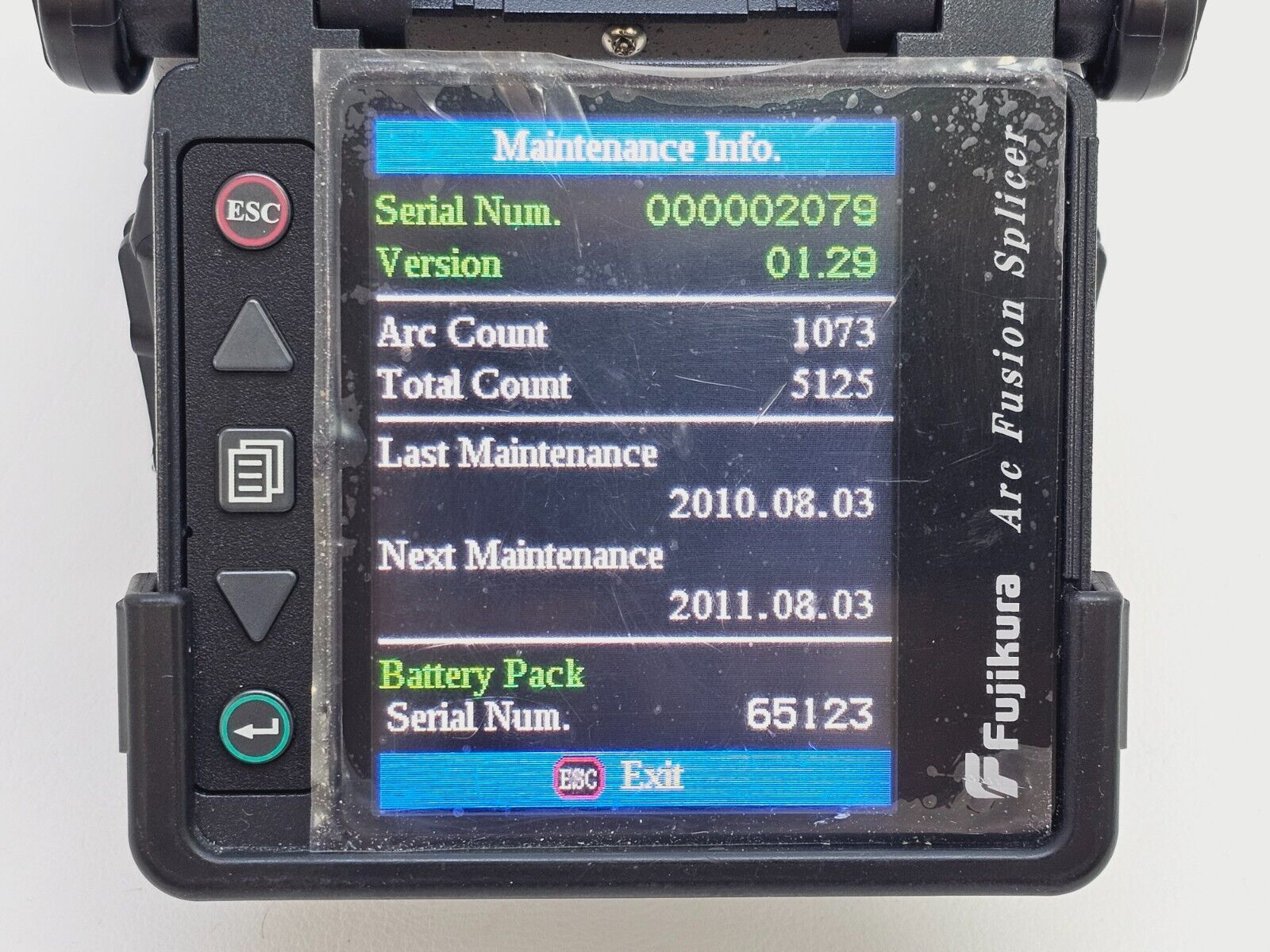

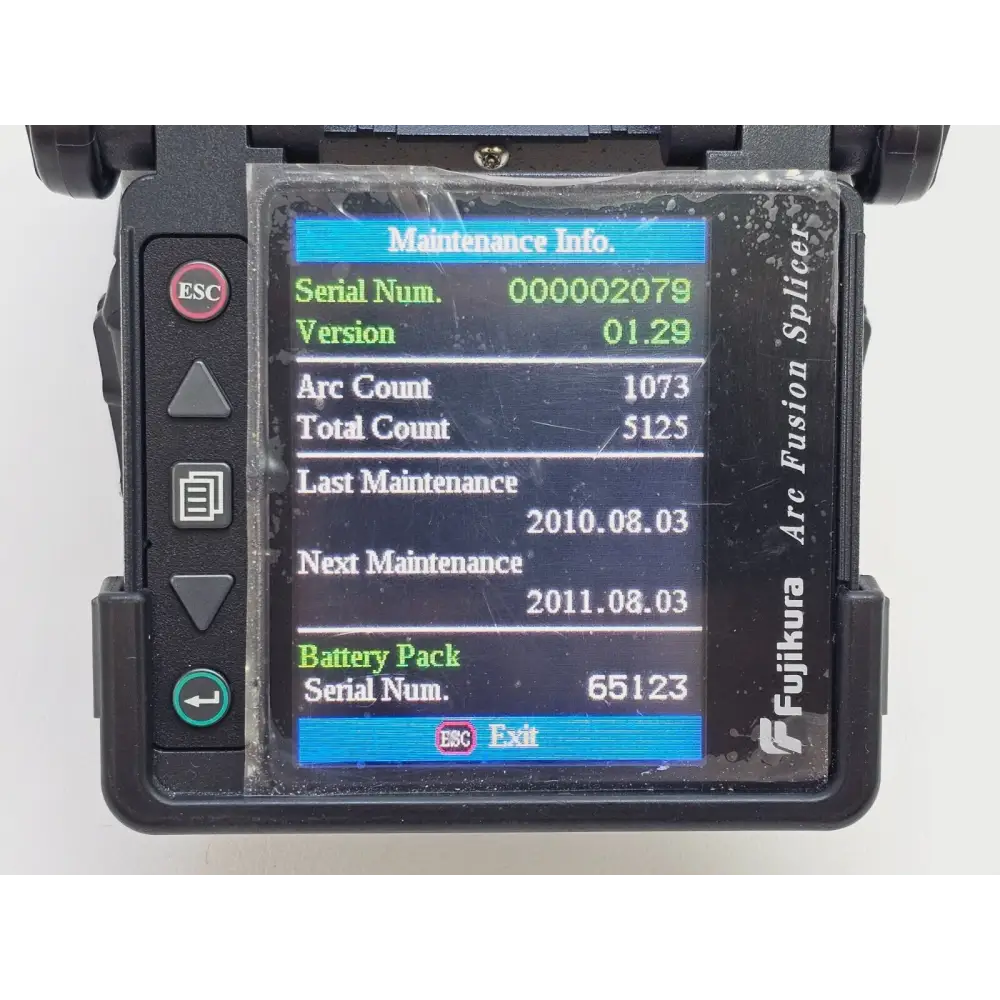

This Fujikura FSM-18S single fibre fusion splicer has an impressively low ARC count of only 5125, indicating very light use. It supports both single-mode (SM) and multimode (MM) fibres and features automatic arc calibration, dual monitor position with automatic image orientation, and simultaneous battery charging during operation. The splicer includes PC software for splice data download and remote firmware updates.

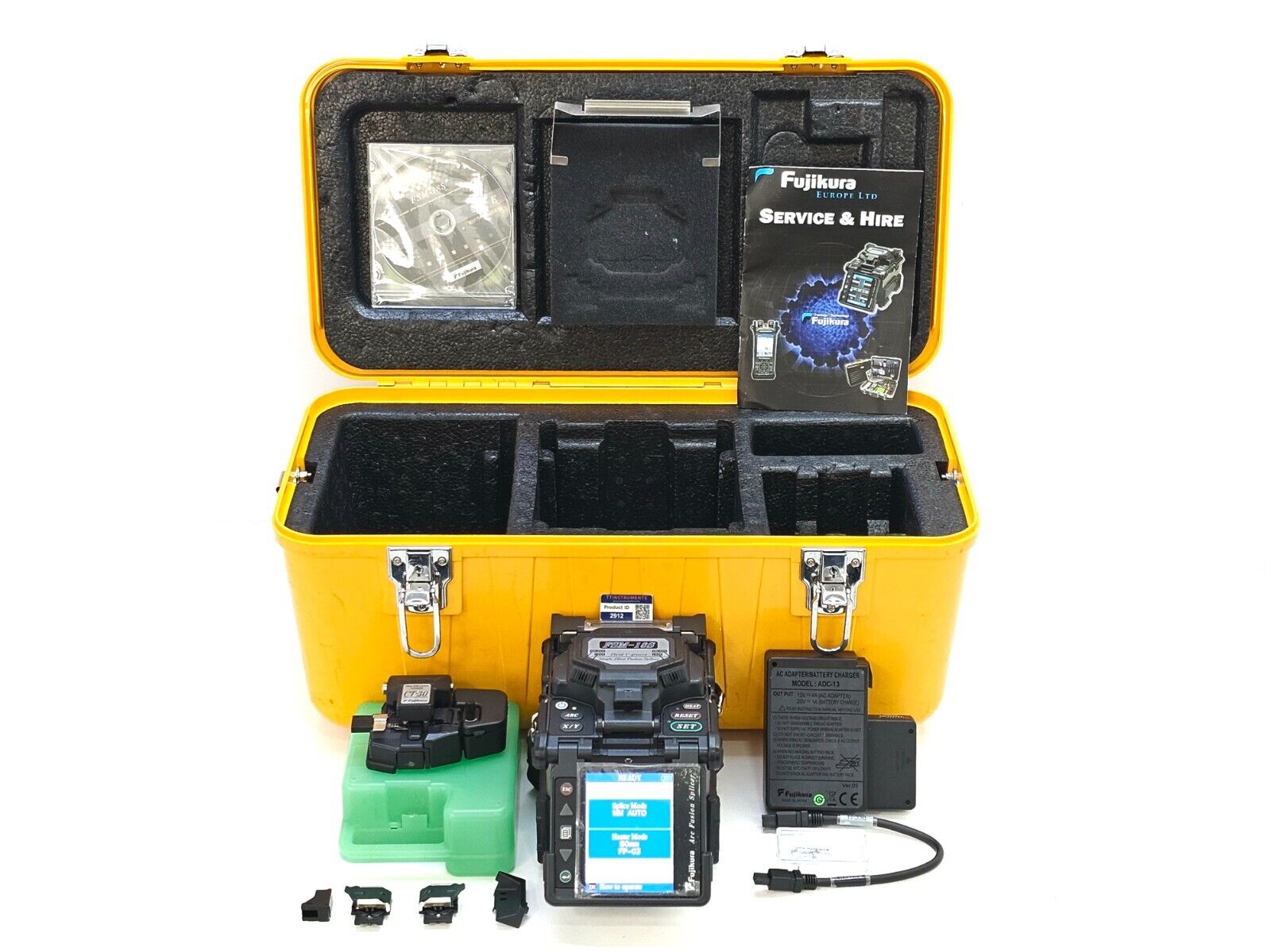

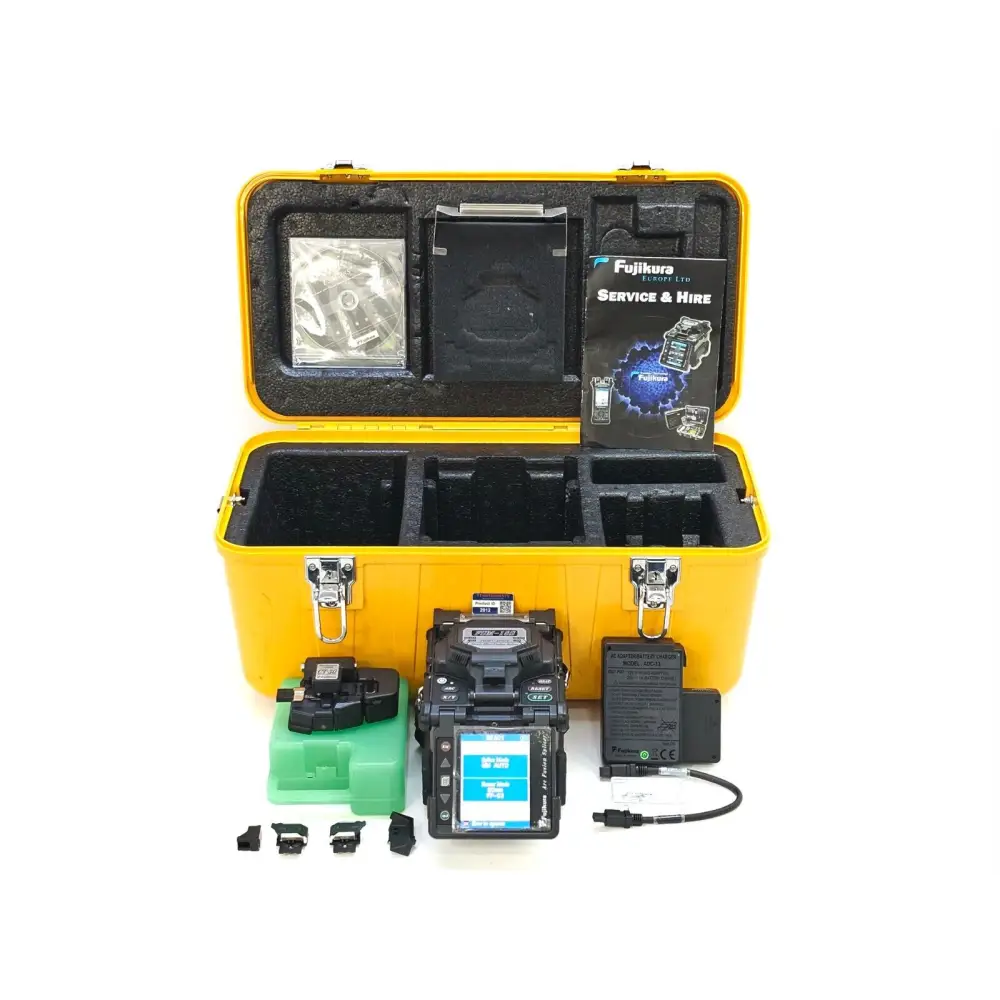

Included in the sale:

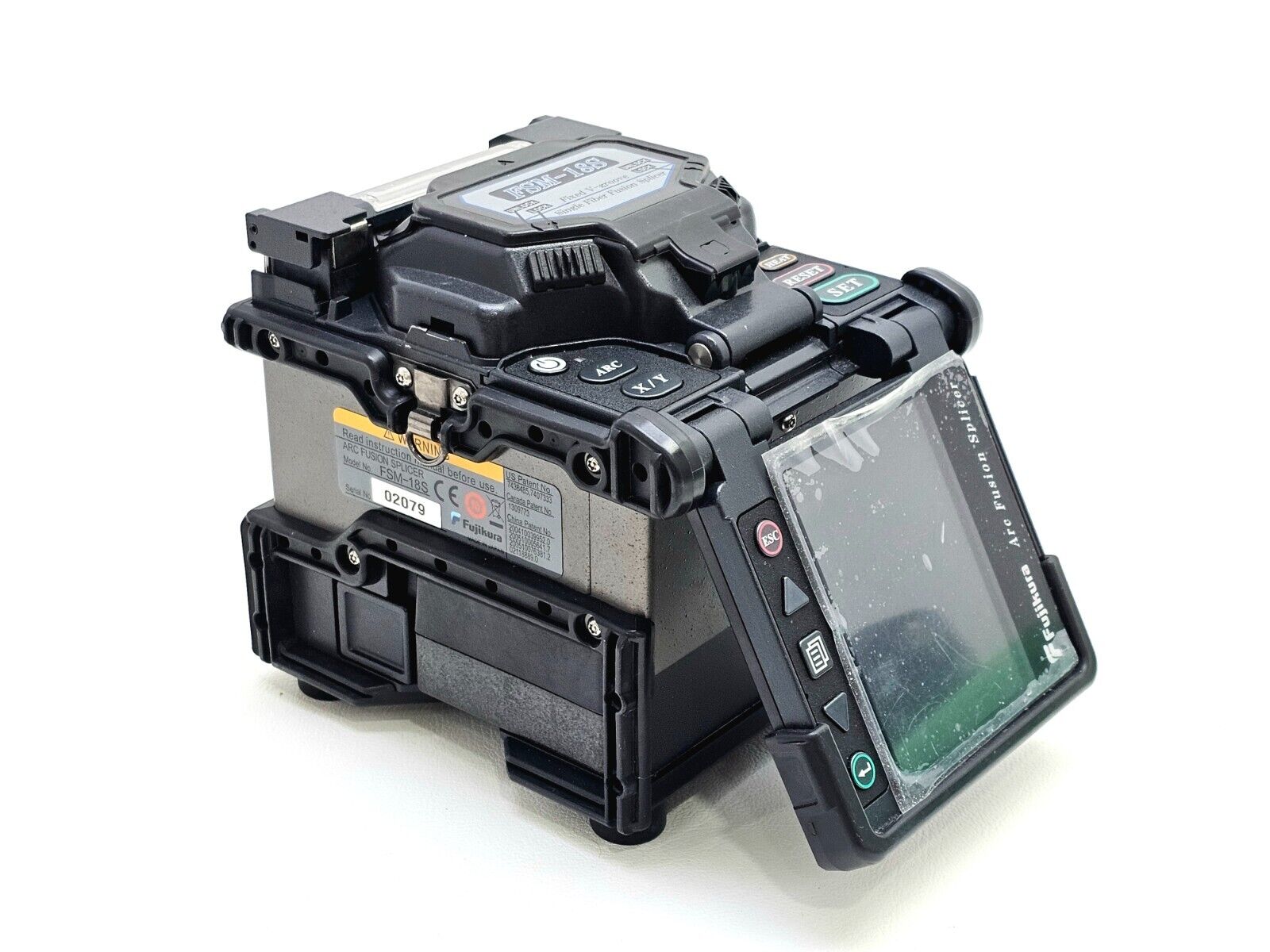

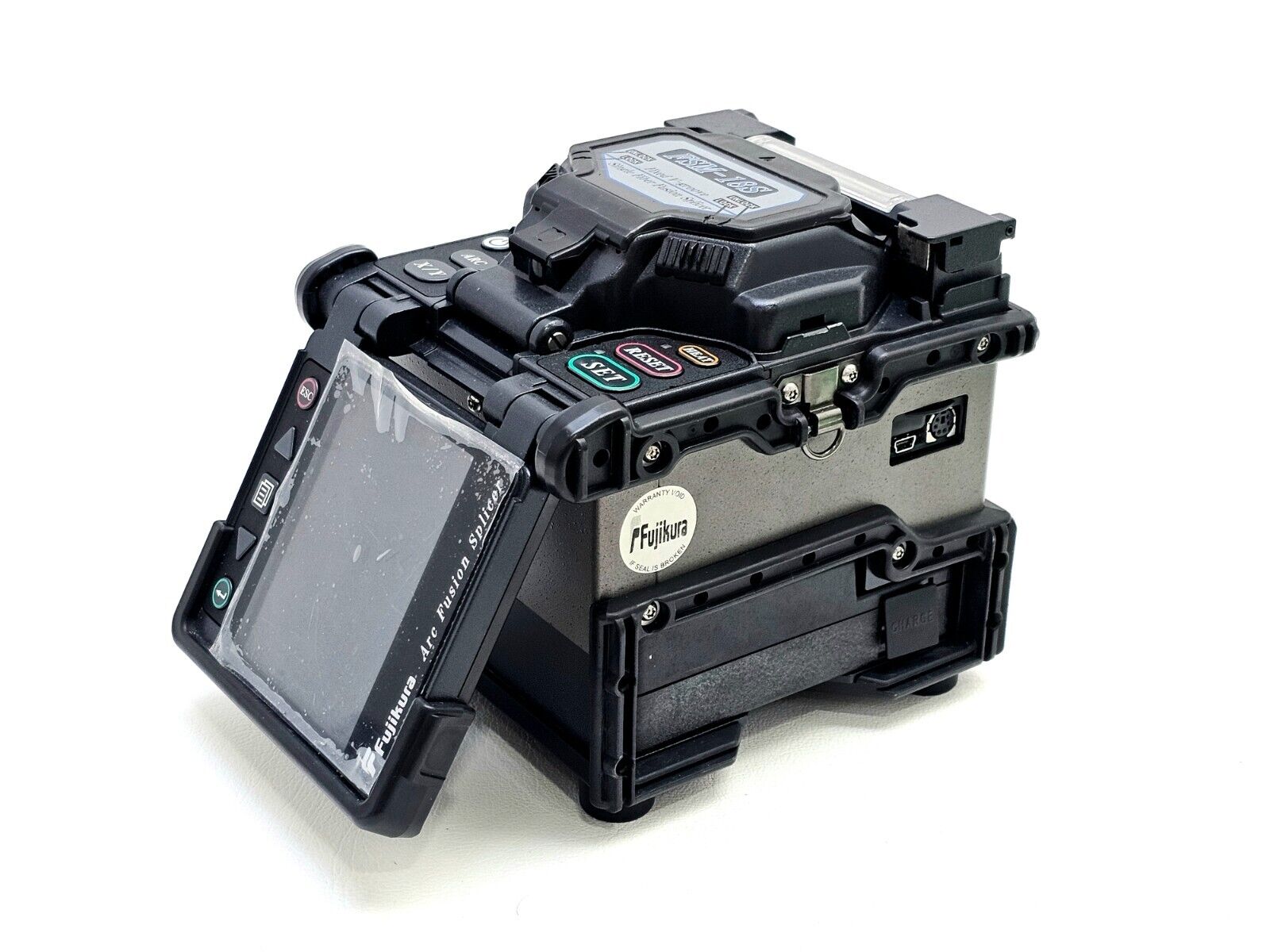

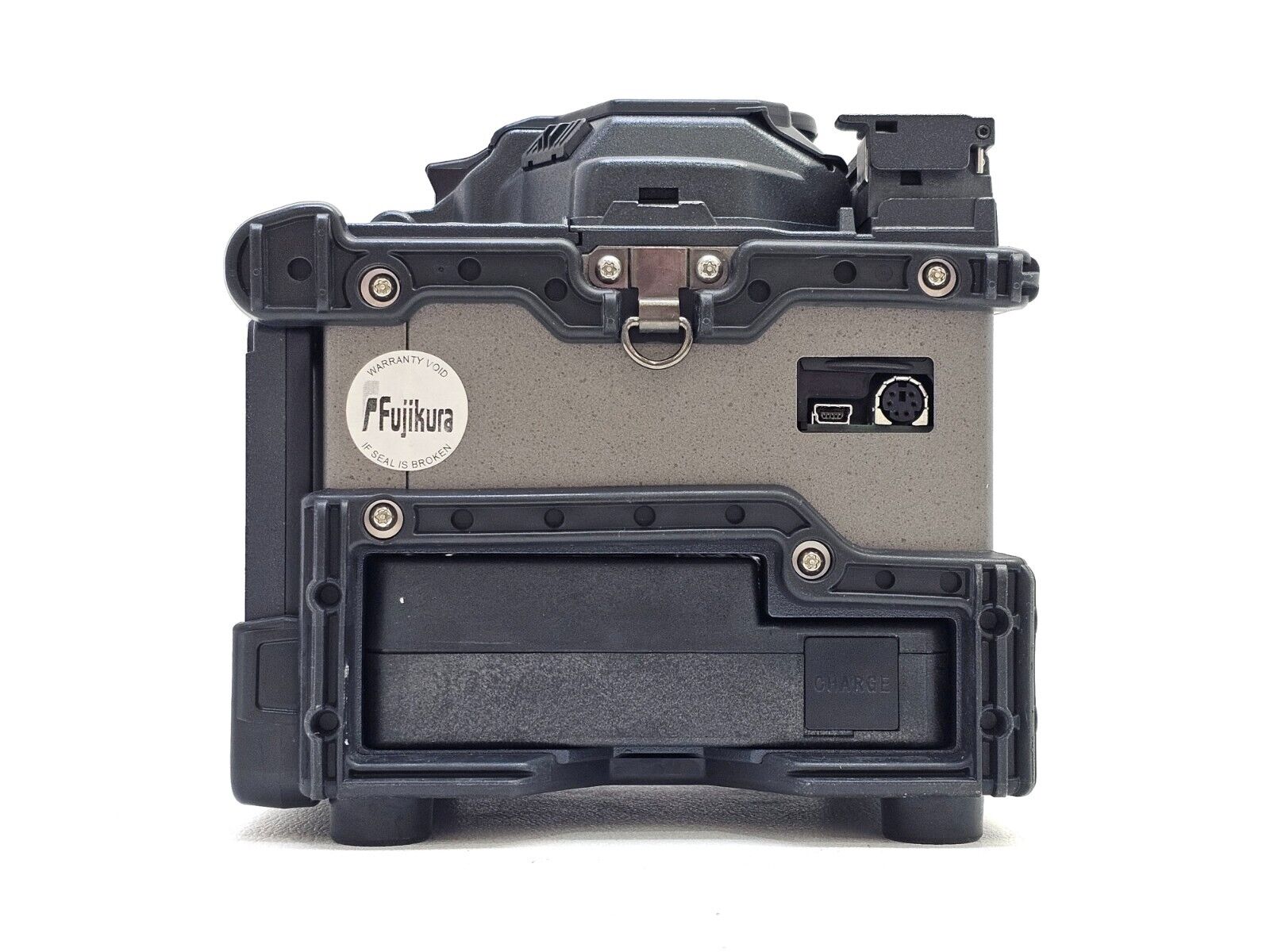

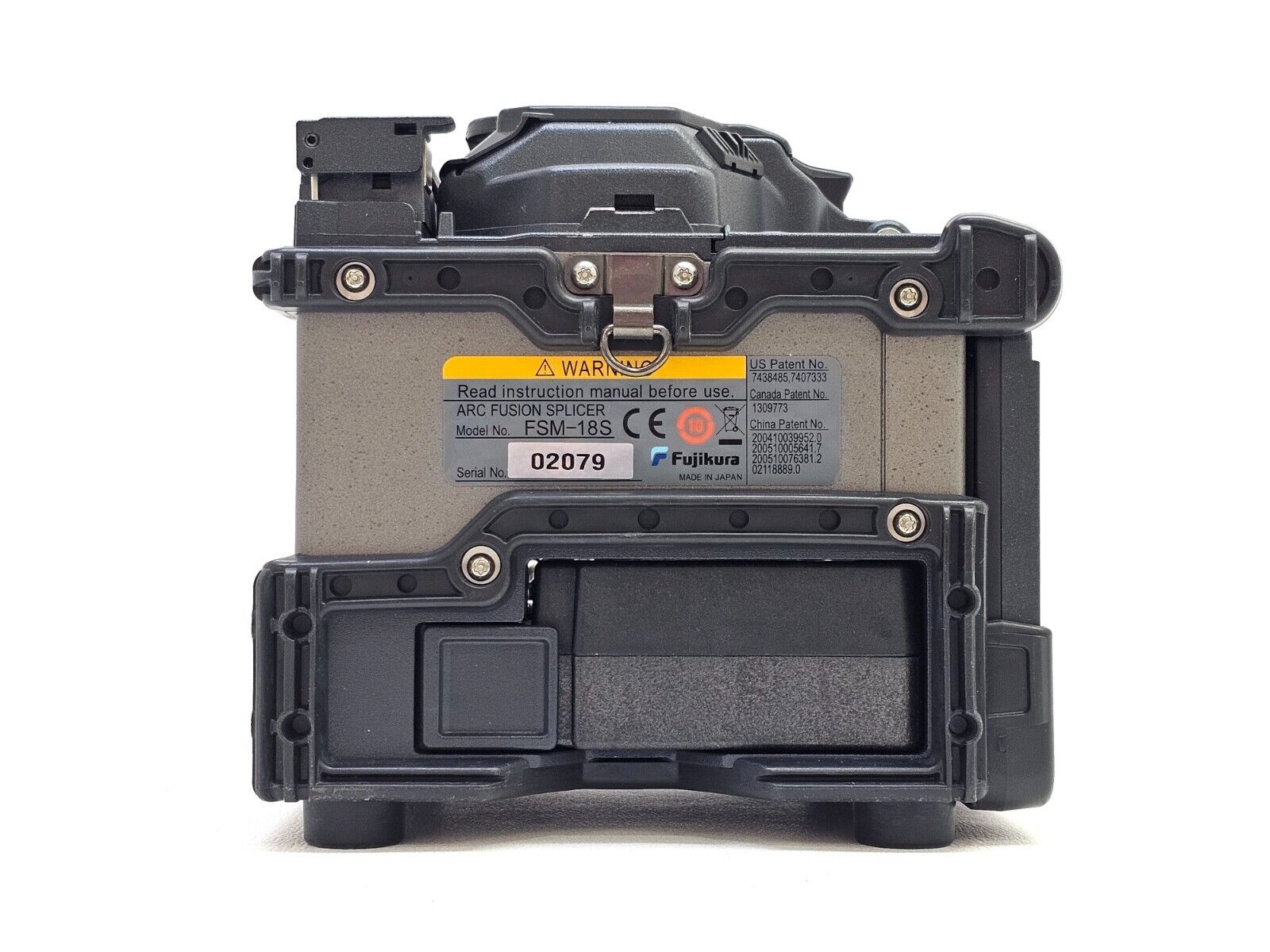

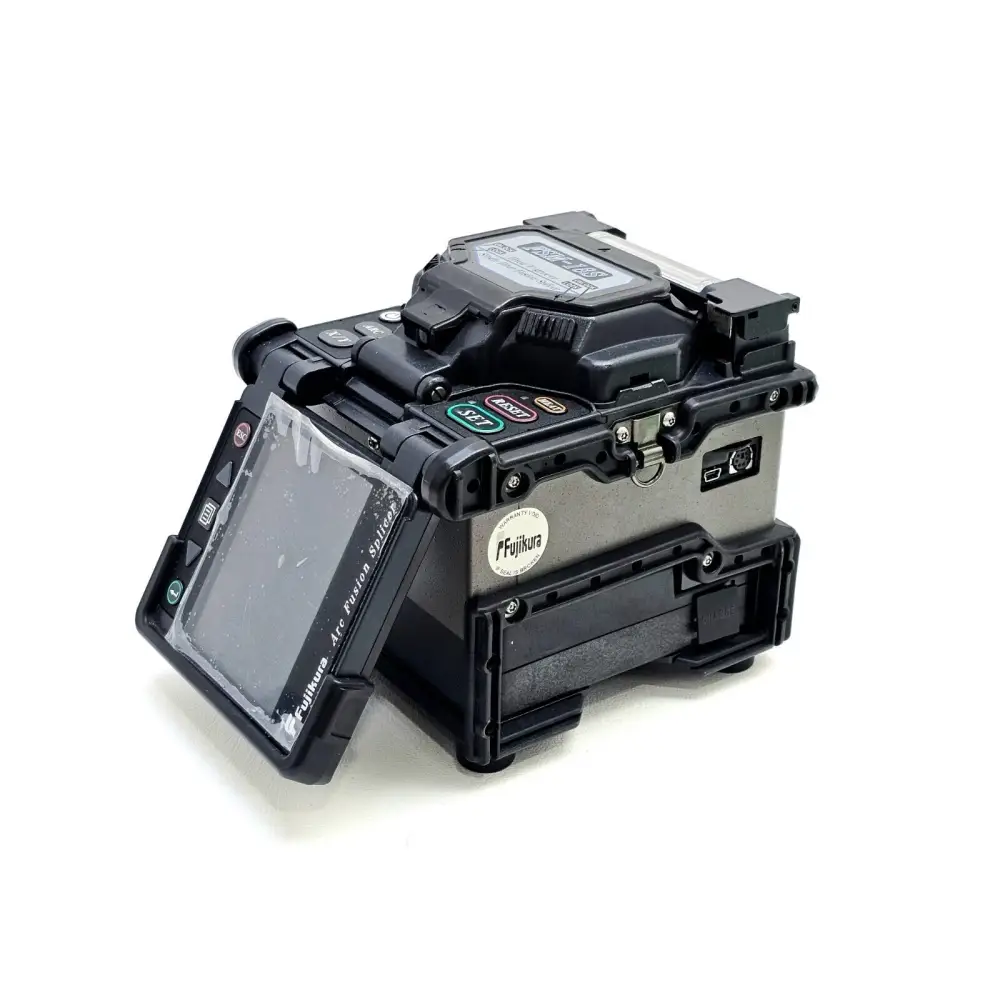

• Fujikura FSM-18S SM/MM fibre fusion splicer (ARC count 5125)

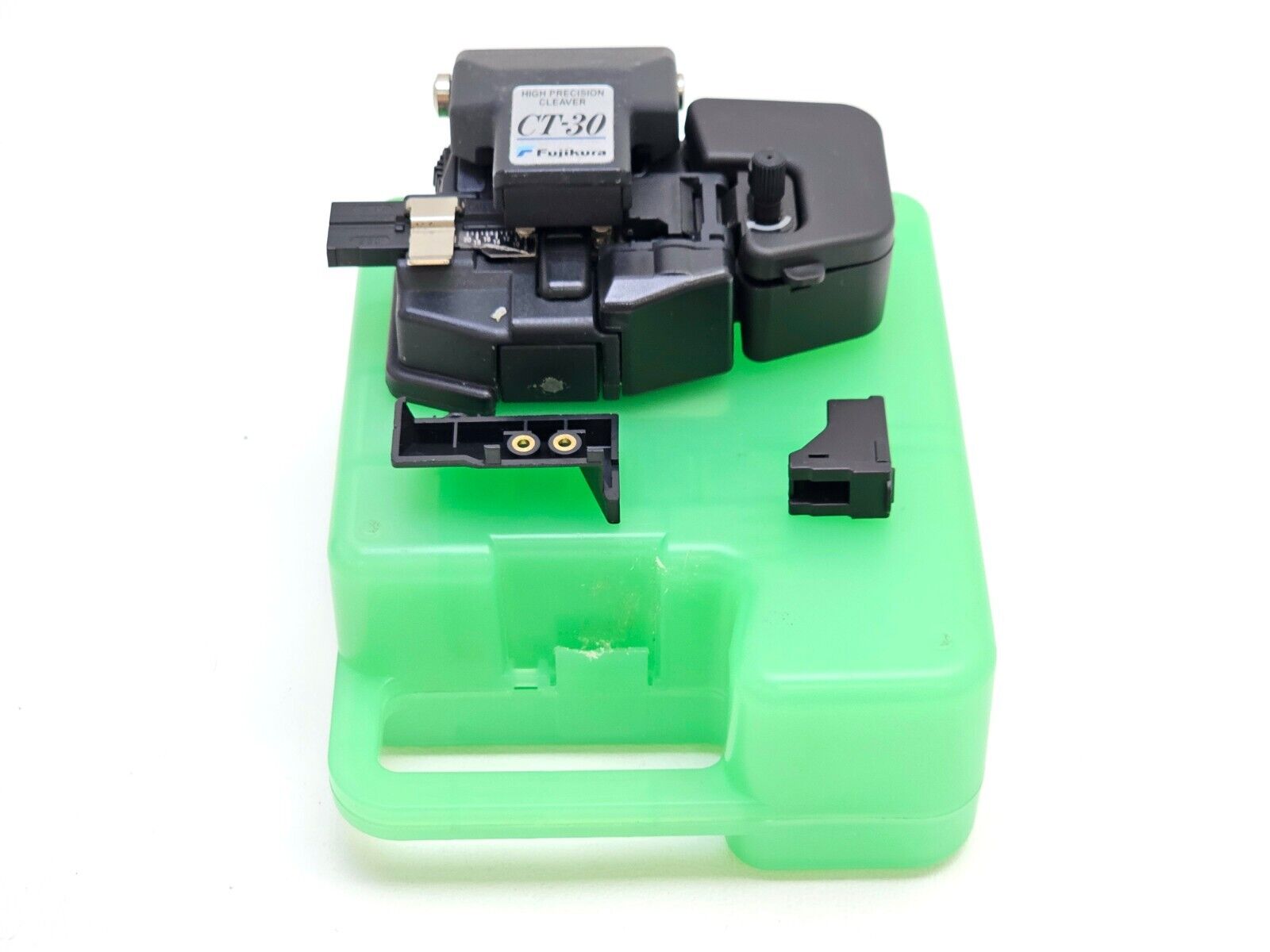

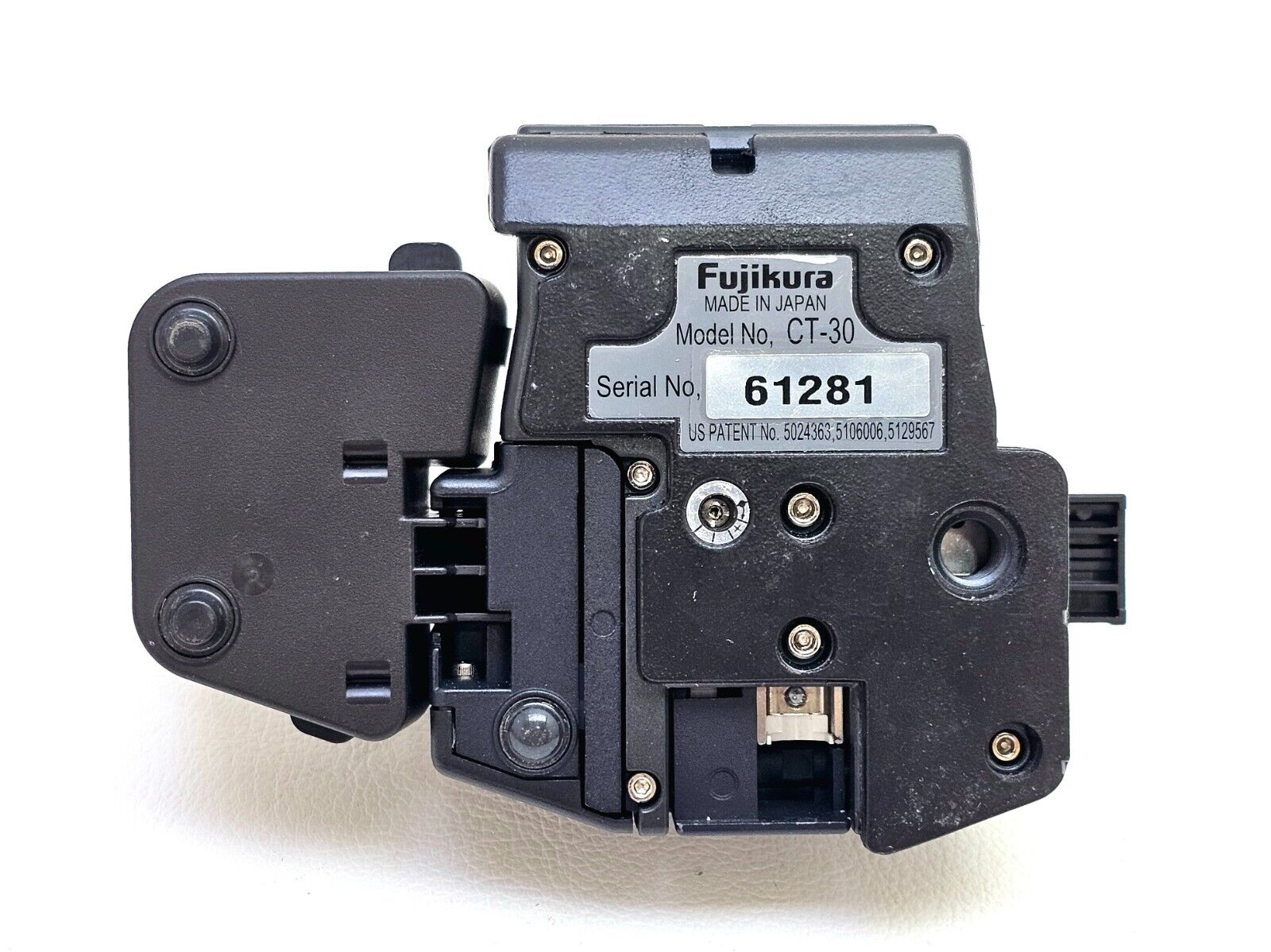

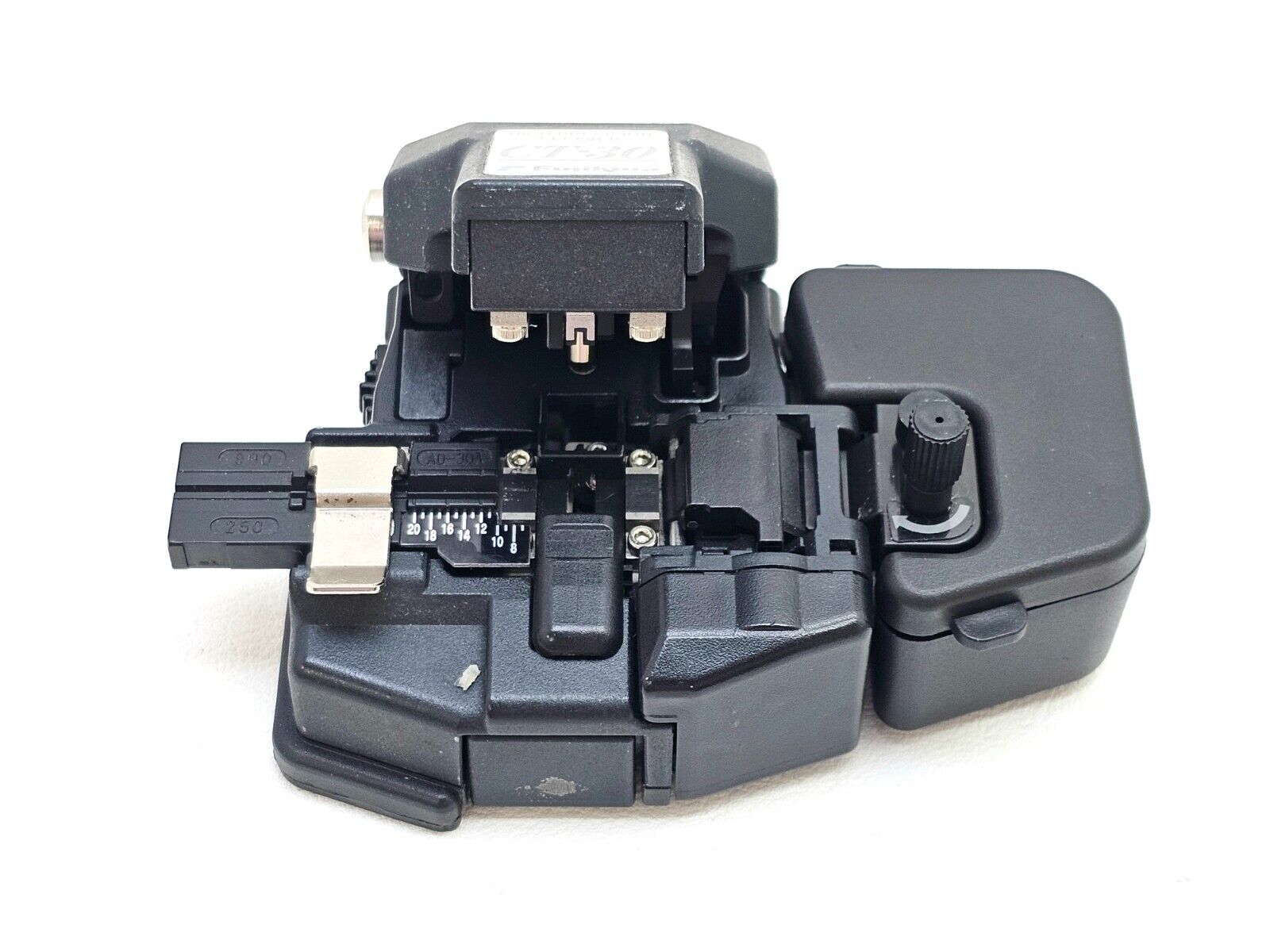

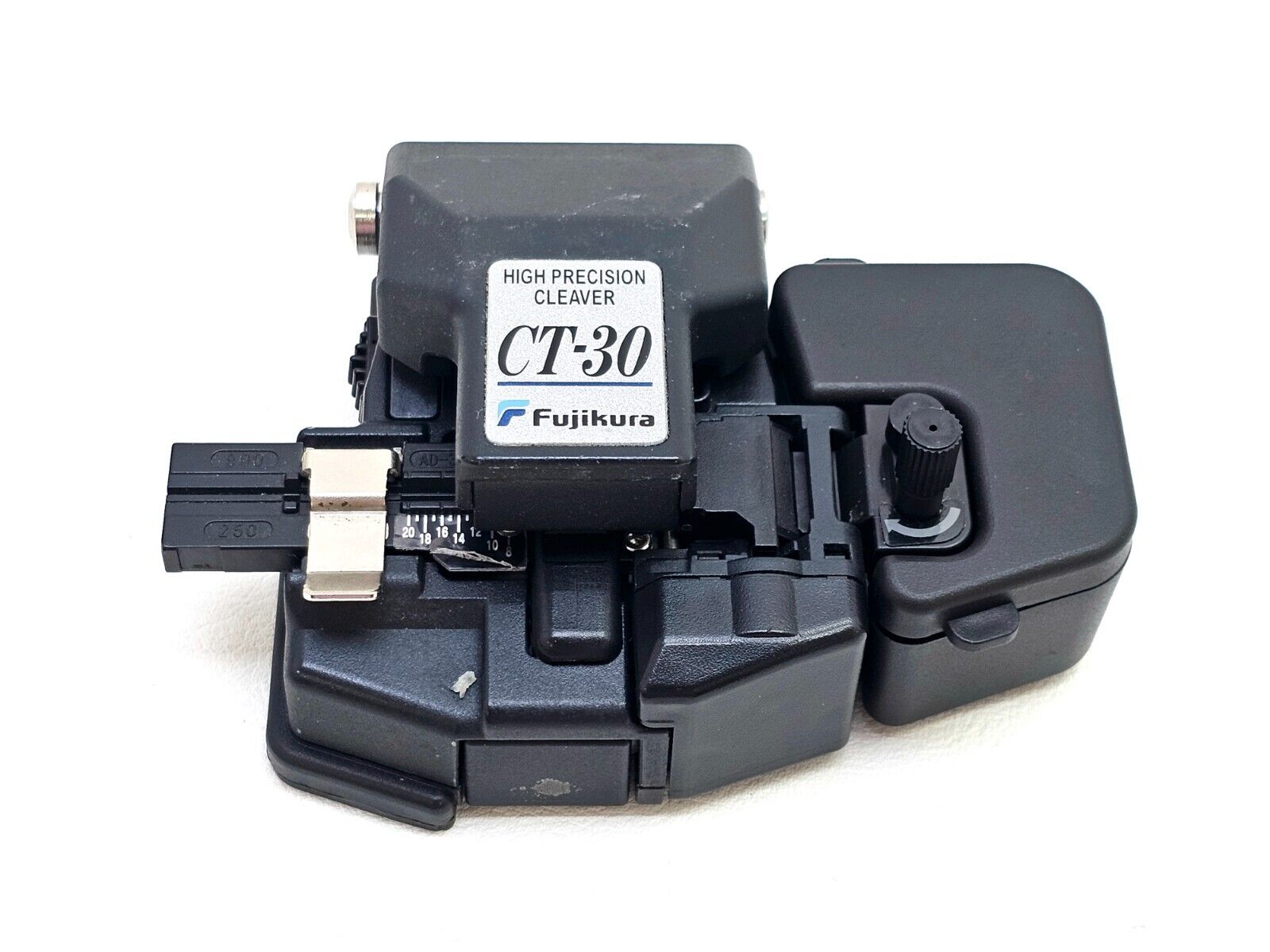

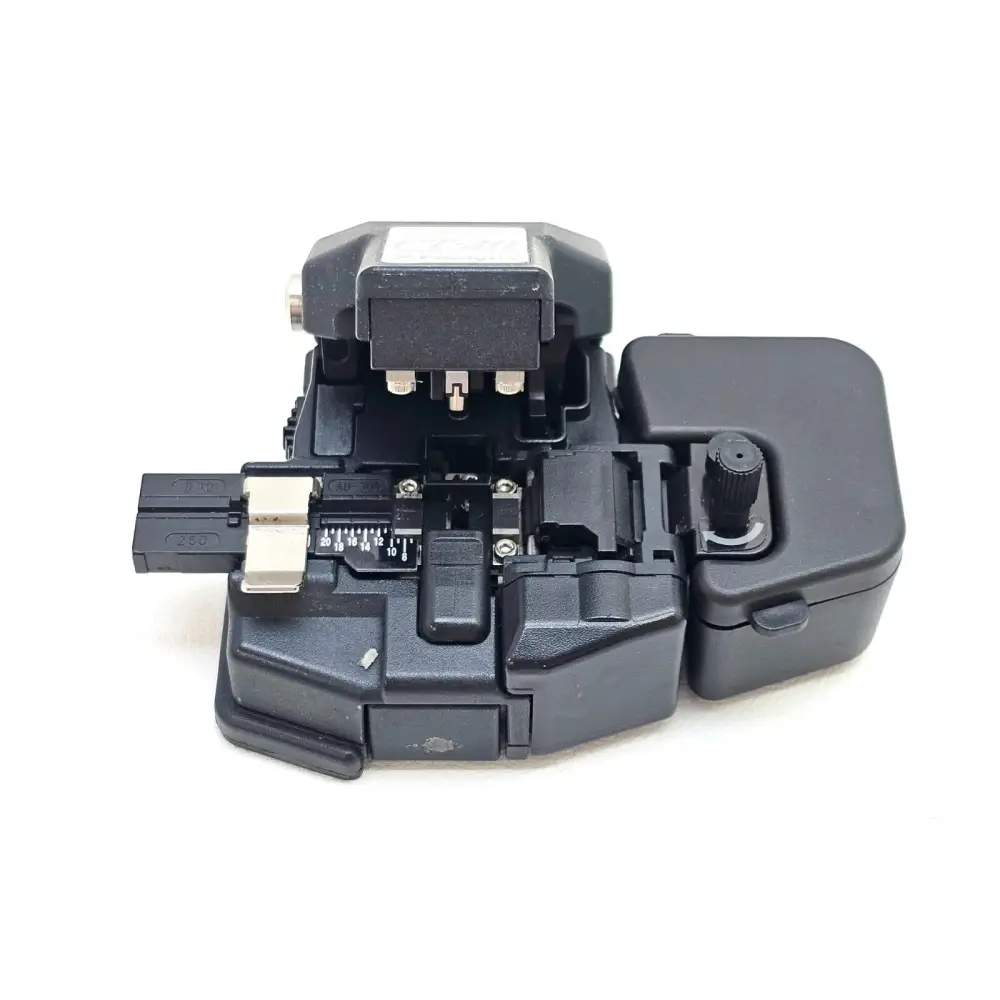

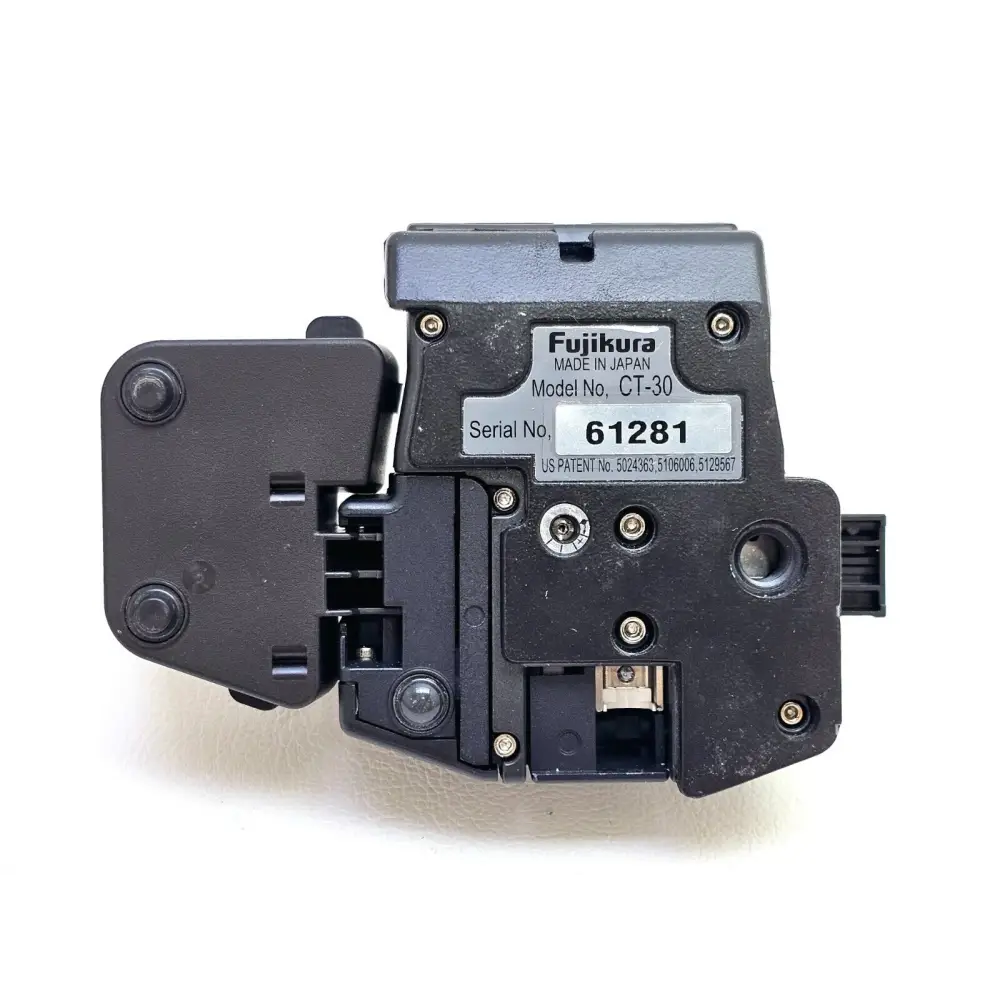

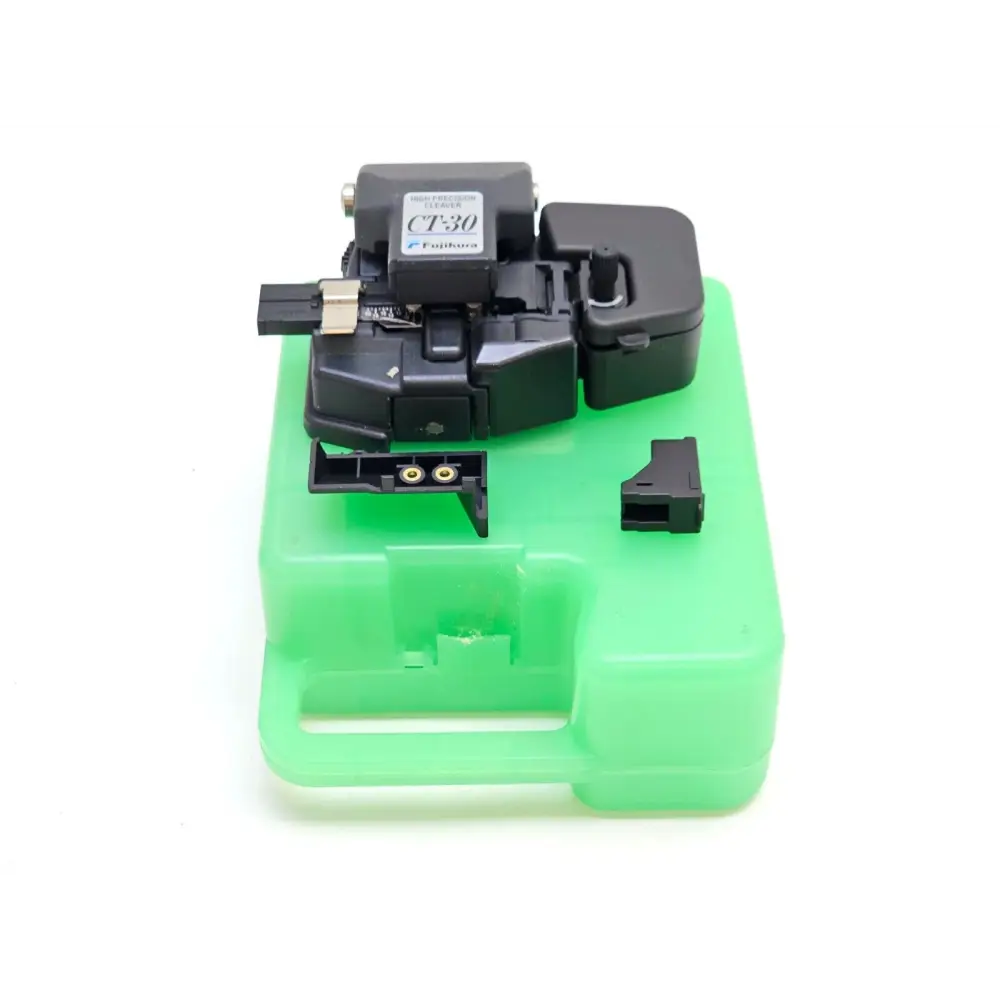

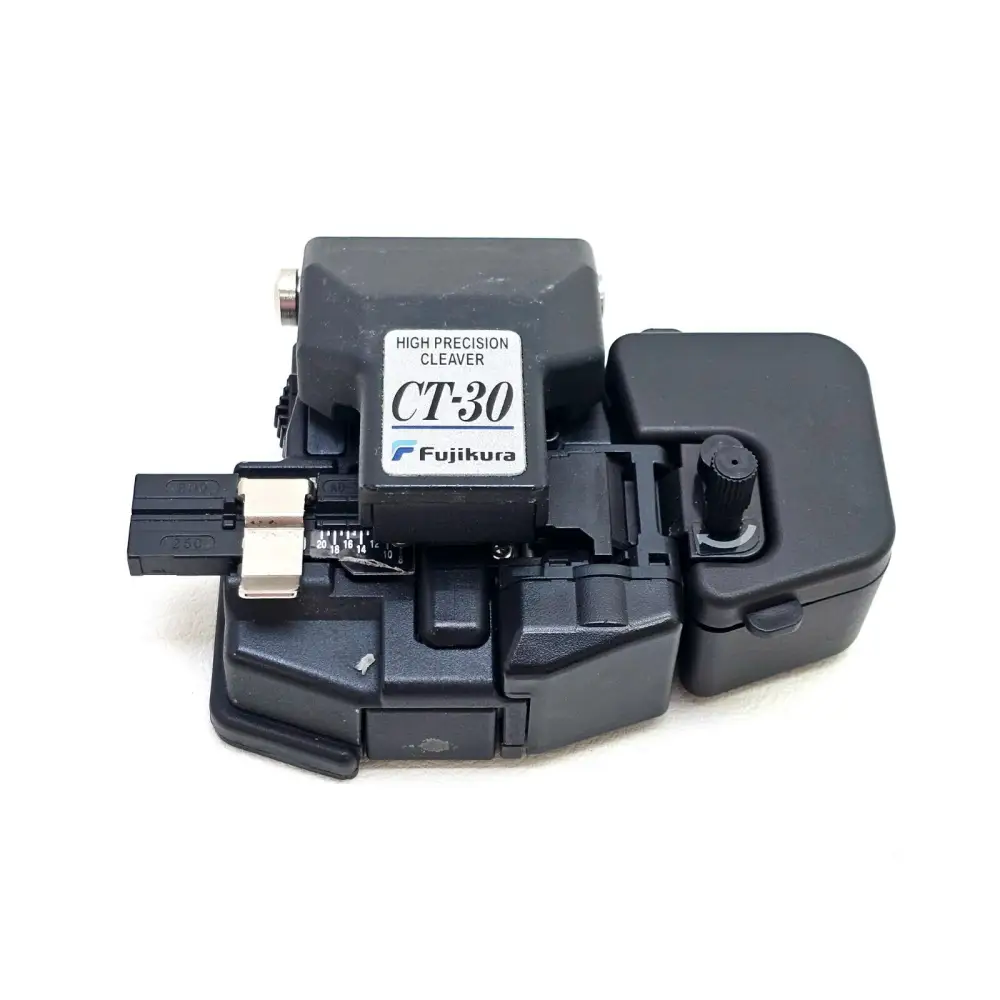

• Fujikura CT-30 high precision fibre cleaver with guide plate and case

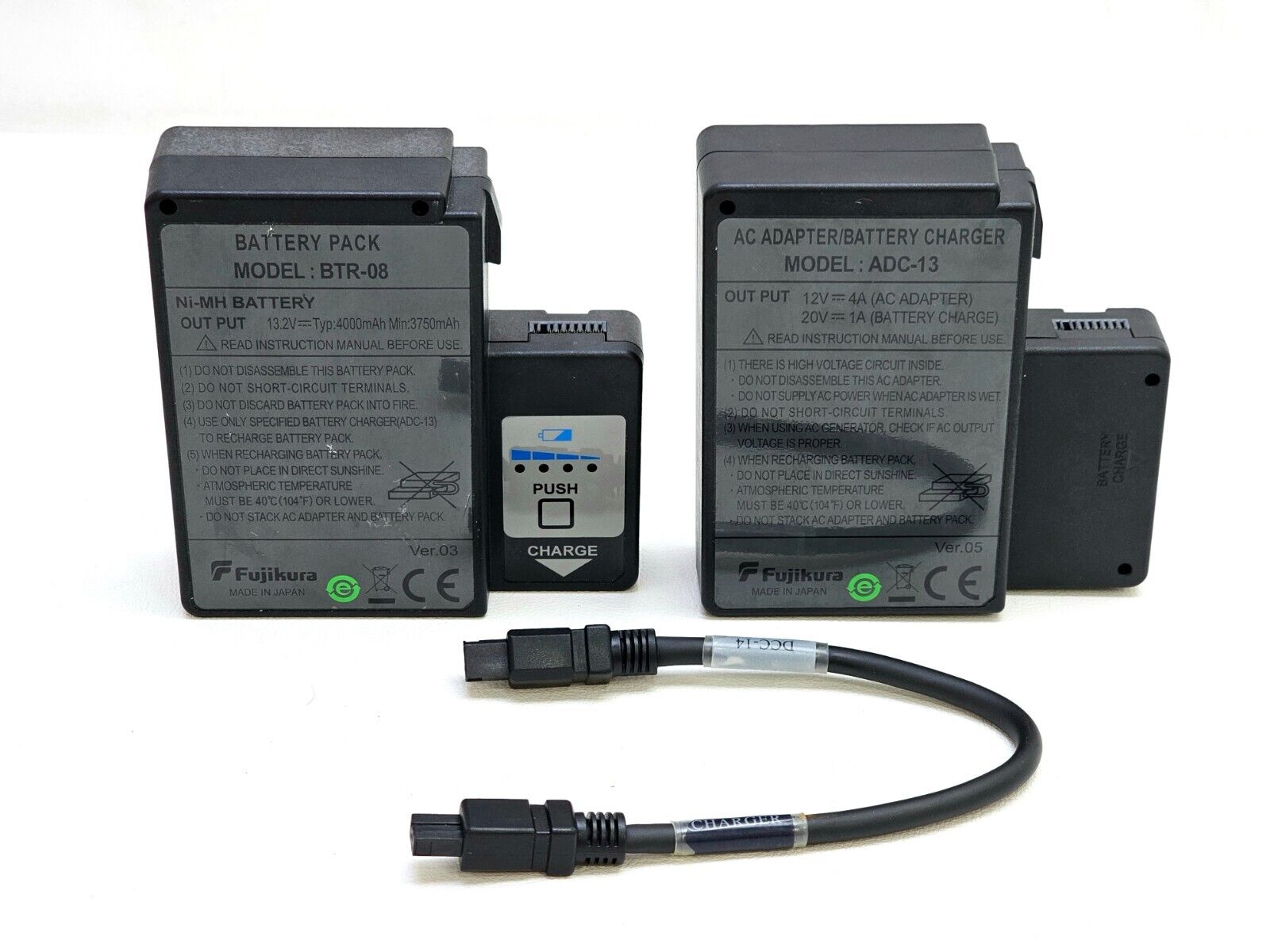

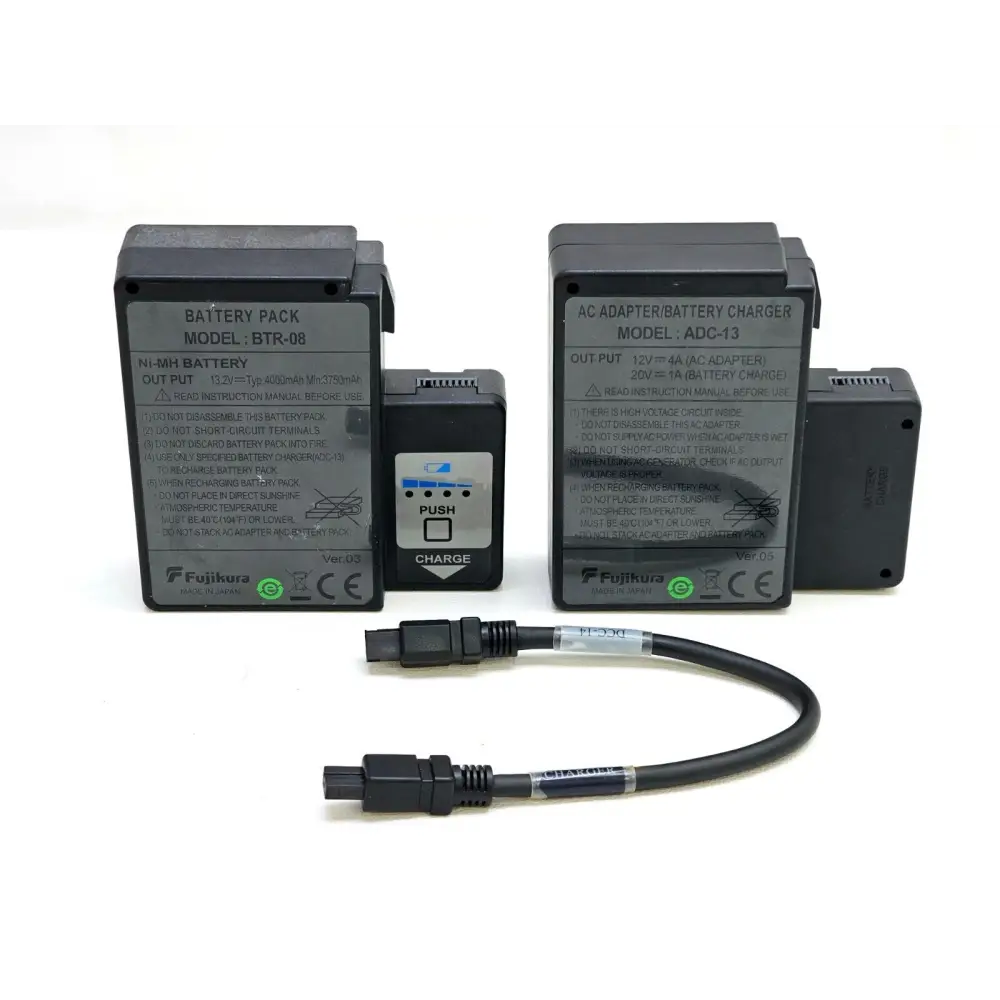

• AC adapter/charger

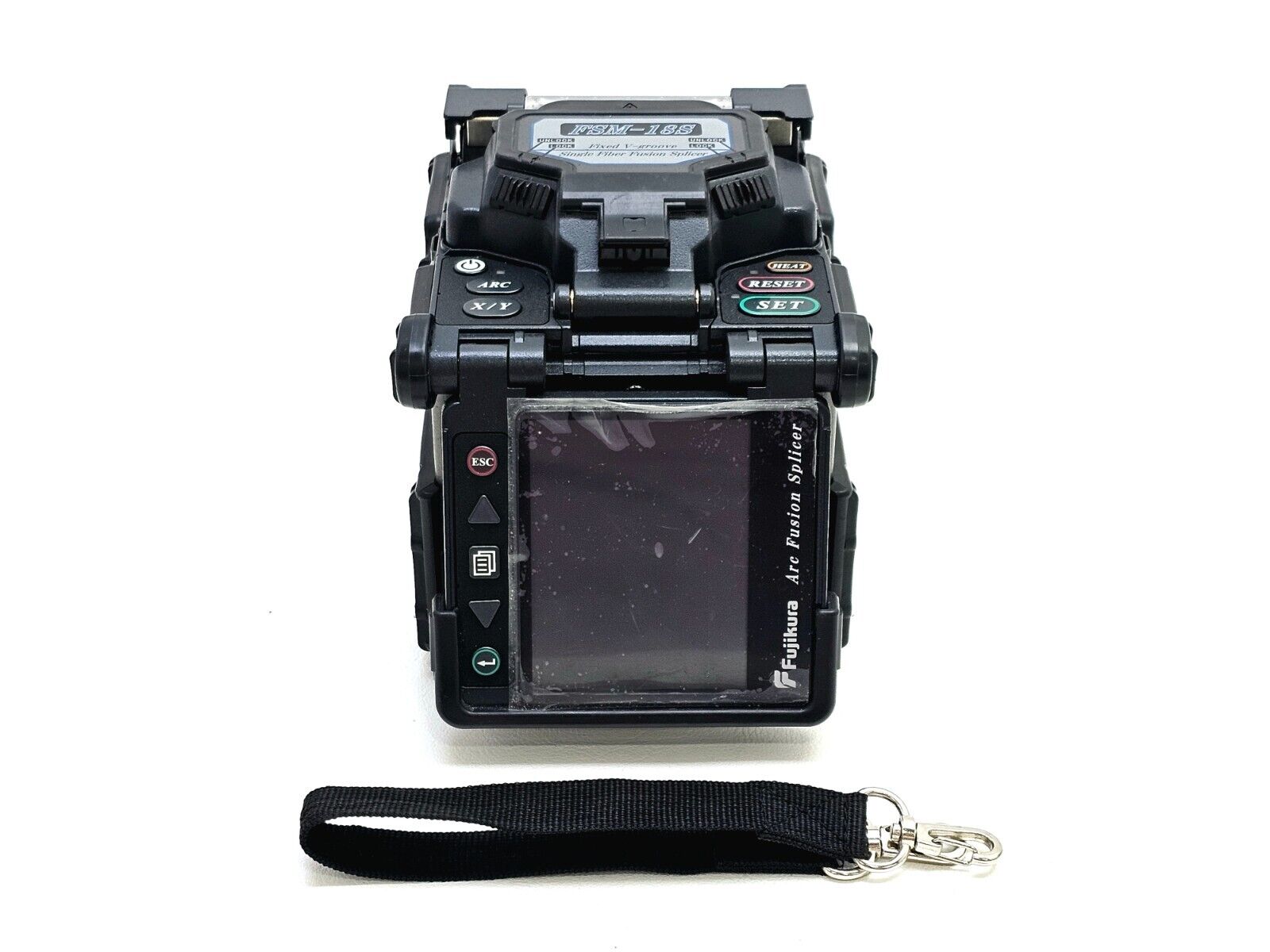

• Hard carrying case with strap

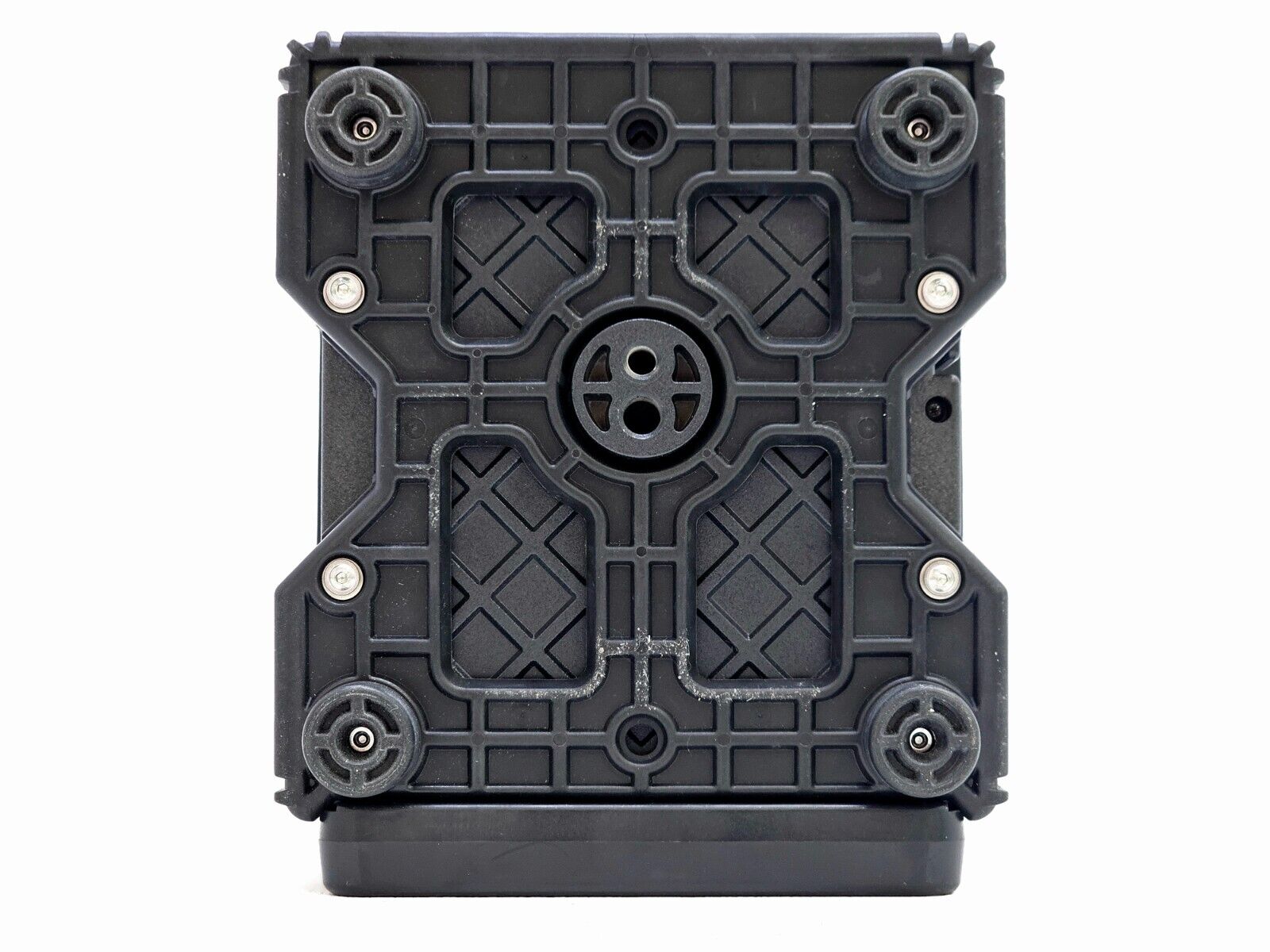

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

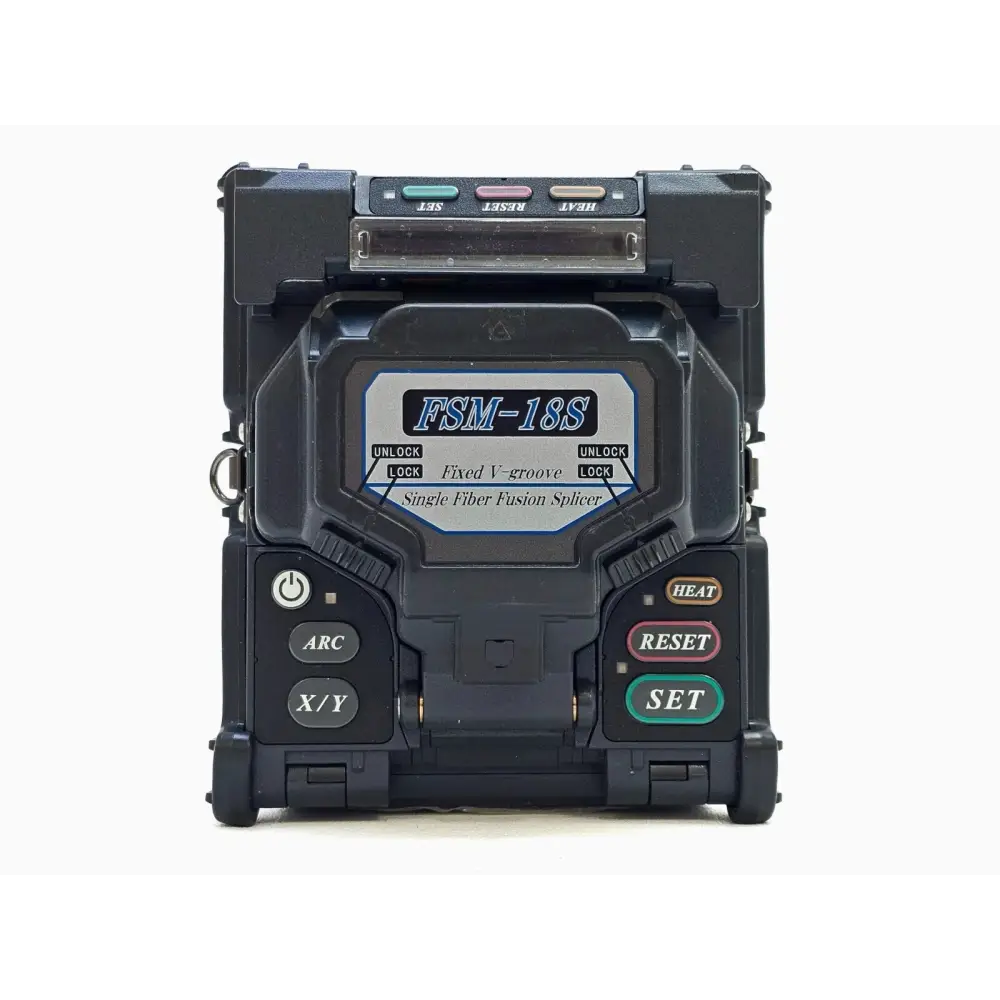

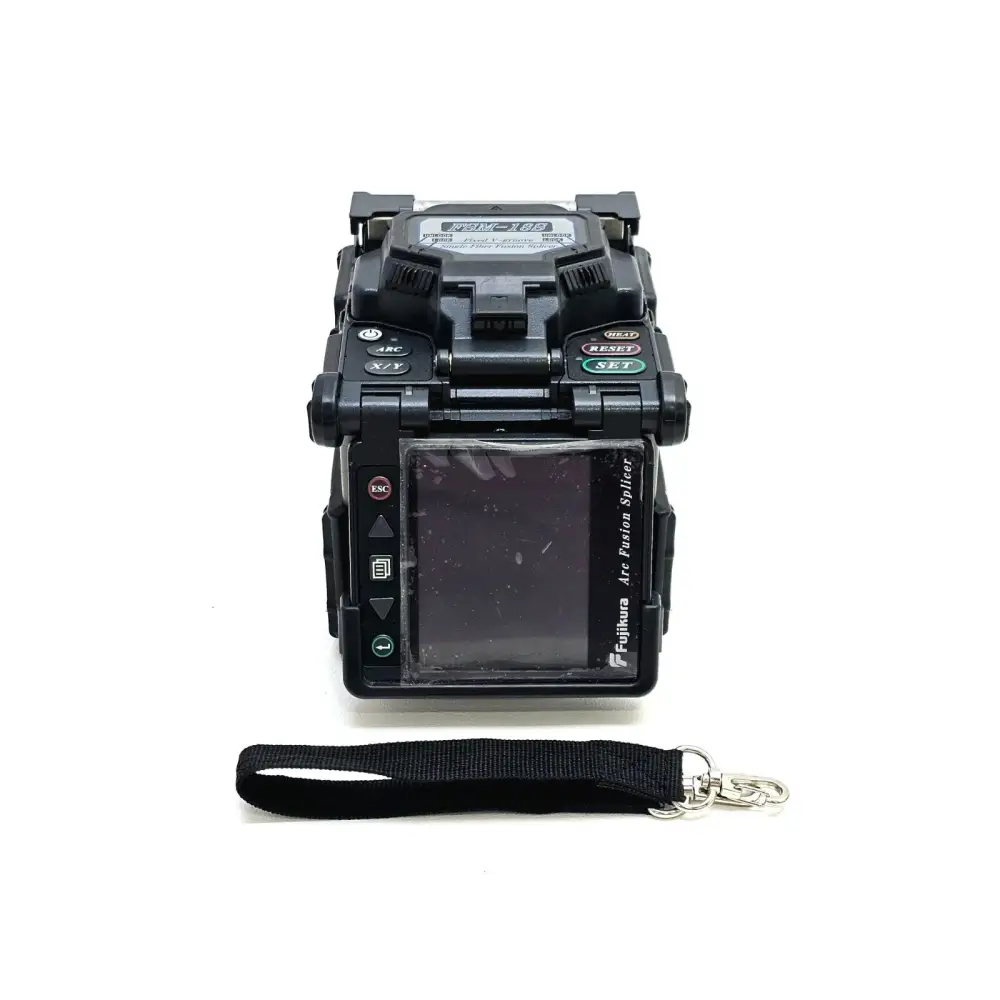

FSM-18S Fusion Splicer — Fujikura

The Fujikura FSM-18S is a low-cost, fixed V-groove, single fibre fusion splicer that delivers the same robust features found in higher-end models. Its rugged construction resists shock, dust, and moisture, and the unit is rated to withstand a 30cm drop test, making it a reliable choice for demanding field environments.

Key features include automatic tube heater operation, user-selectable fibre clamping (sheath clamp or fibre holder system), automated monitor image orientation, and the ability to charge the battery during splicer operation. Bundled PC software allows users to download splice data for reporting, update splicer firmware via the internet, and download video images from the splicer to assist with technical support.

Features:
• Rugged construction providing shock, dust, and moisture resistance

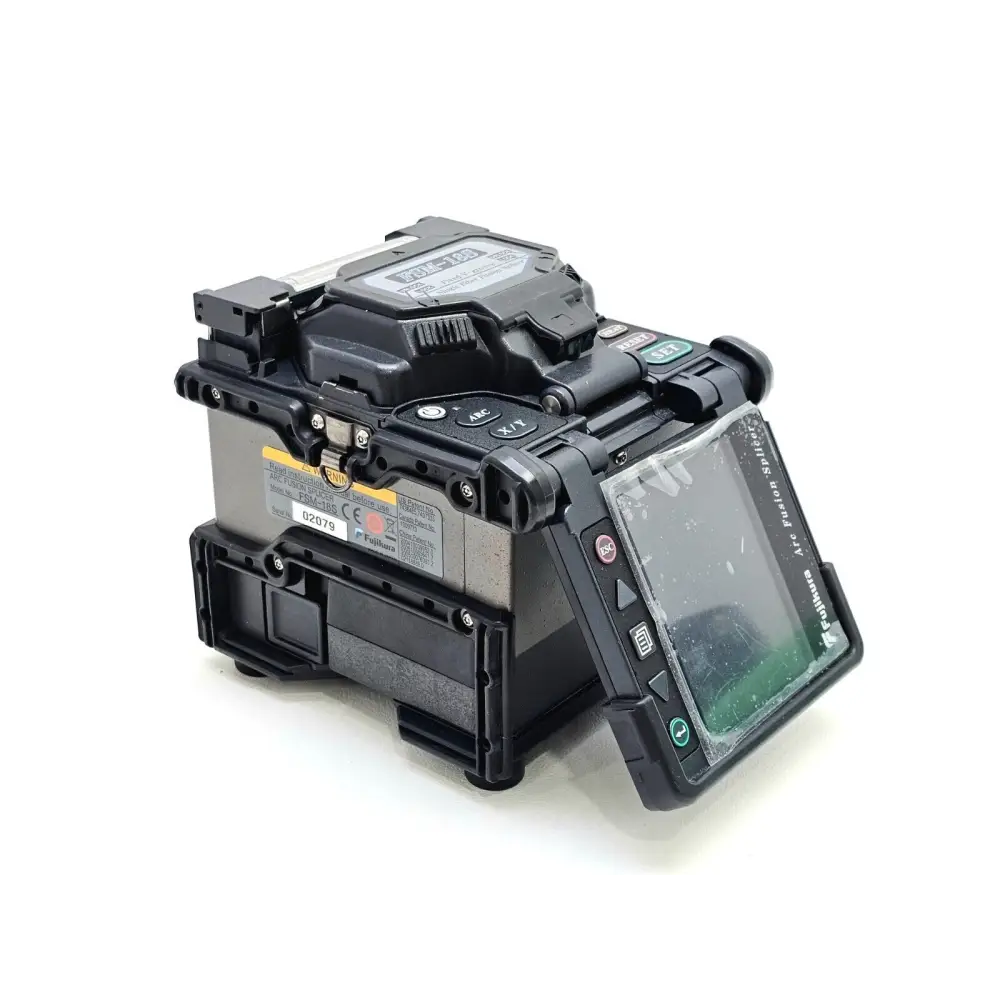

• Dual monitor position with automatic image orientation
• Automatic arc calibration

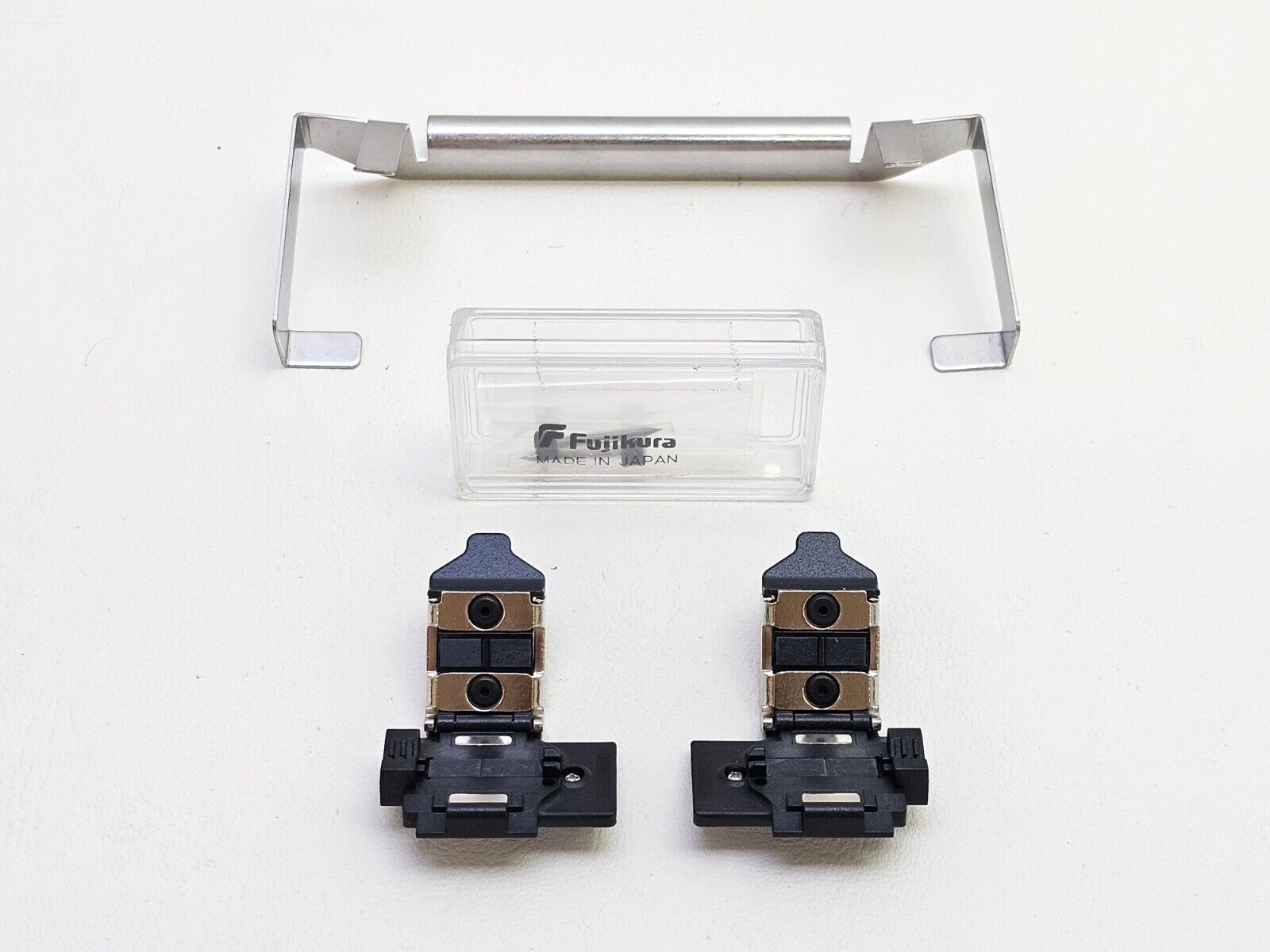

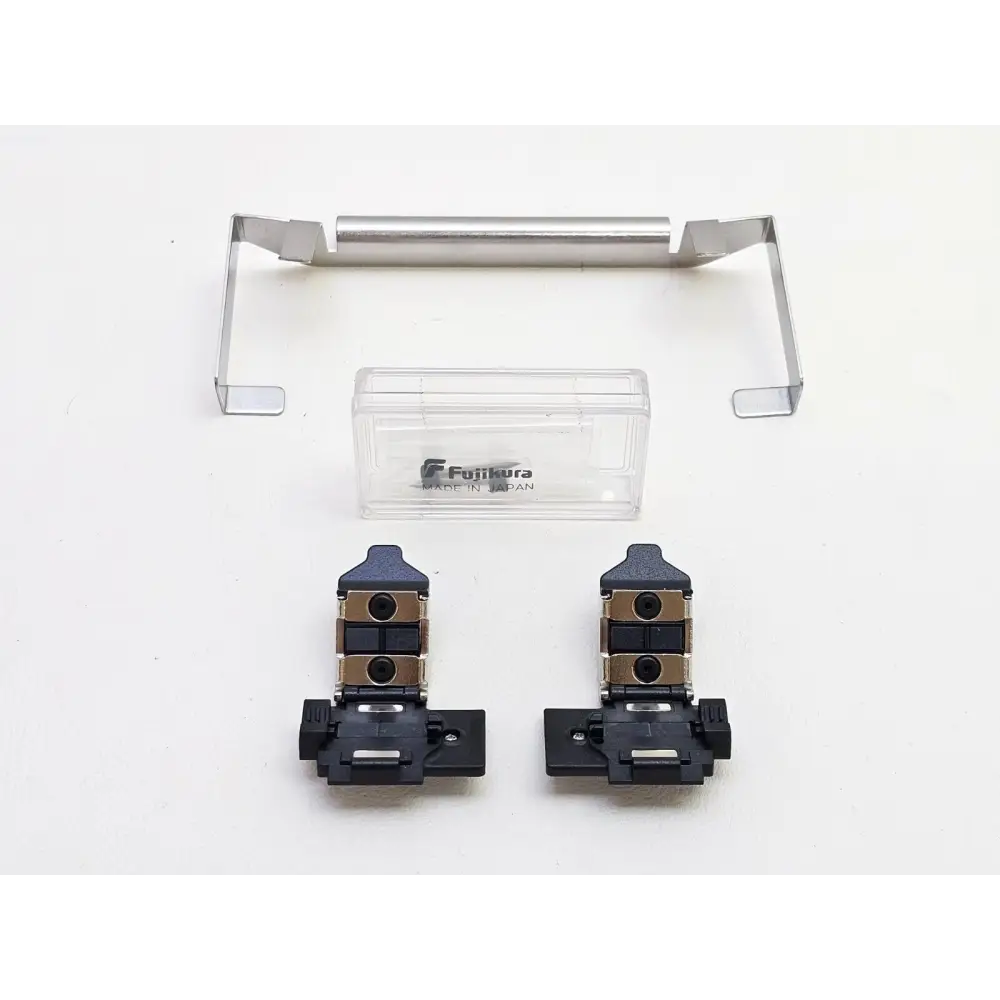

• User-selectable fibre clamping — sheath clamp or fibre holders
• Auto-start tube heater

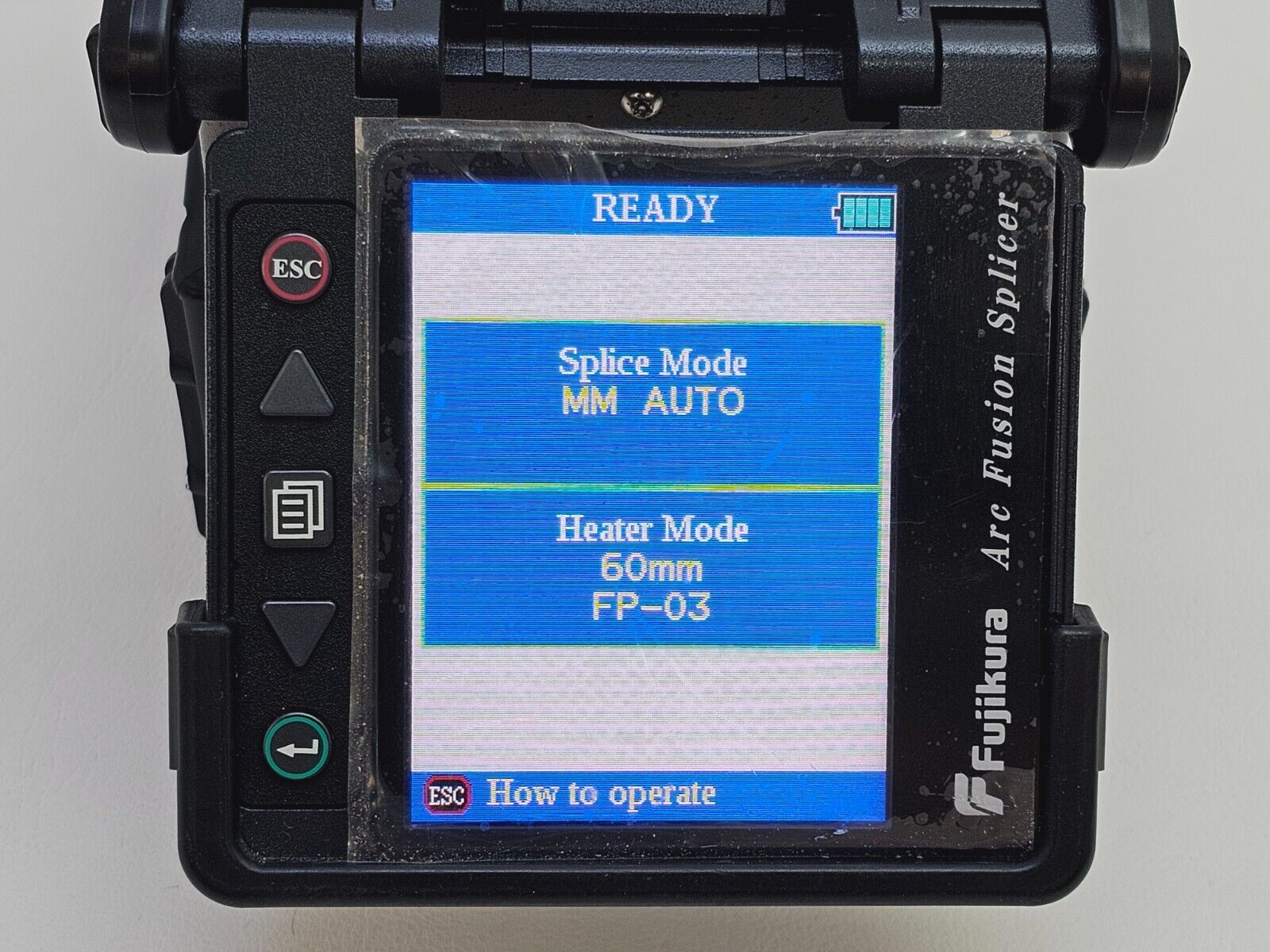

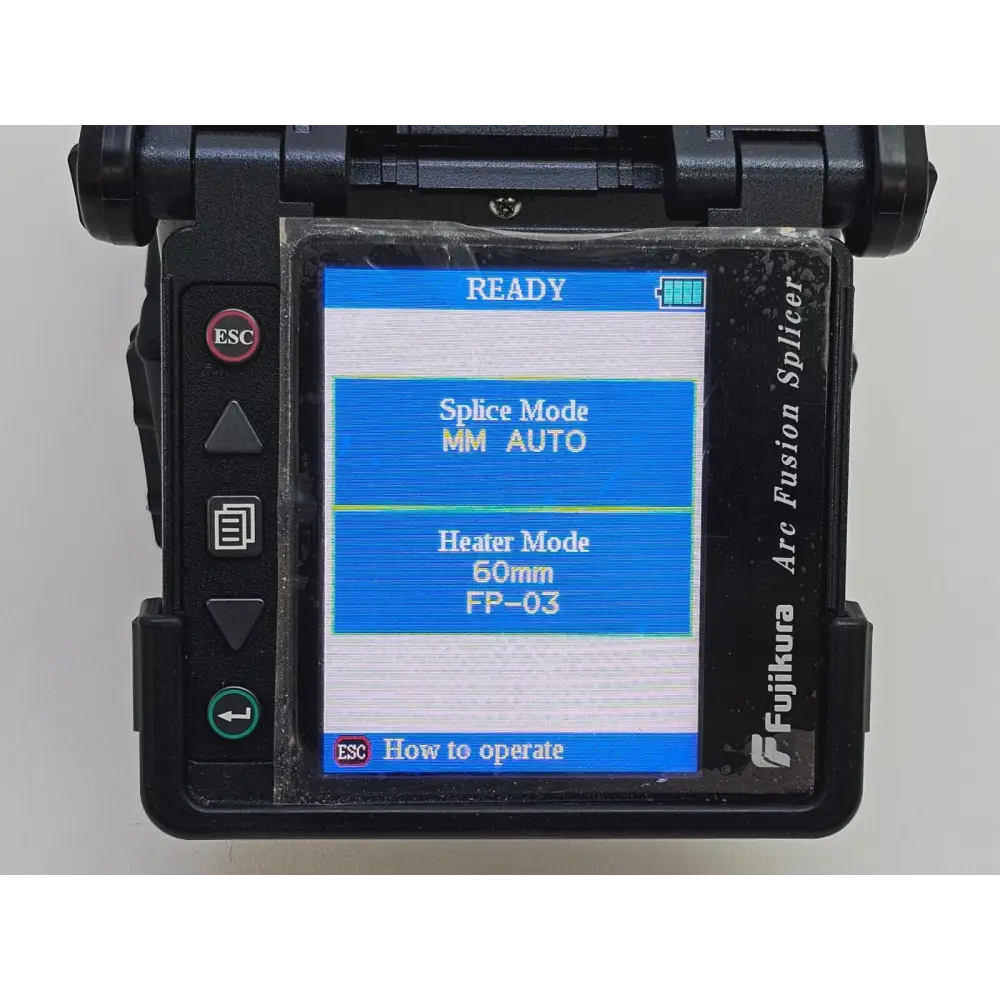

• Colour LCD display with anti-reflective coating for excellent visibility in bright sunlight
• Simultaneous battery charge and splicer operation

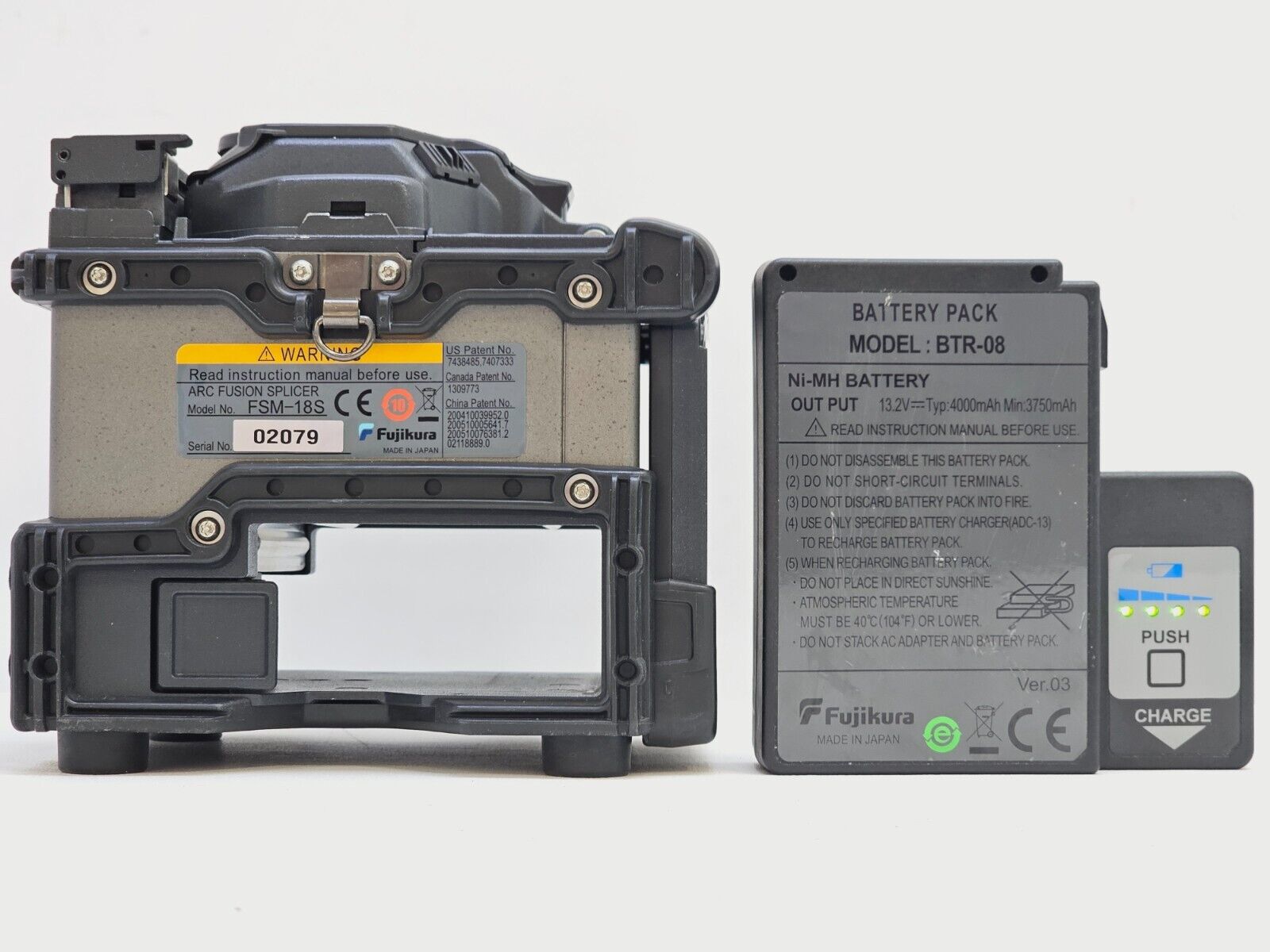

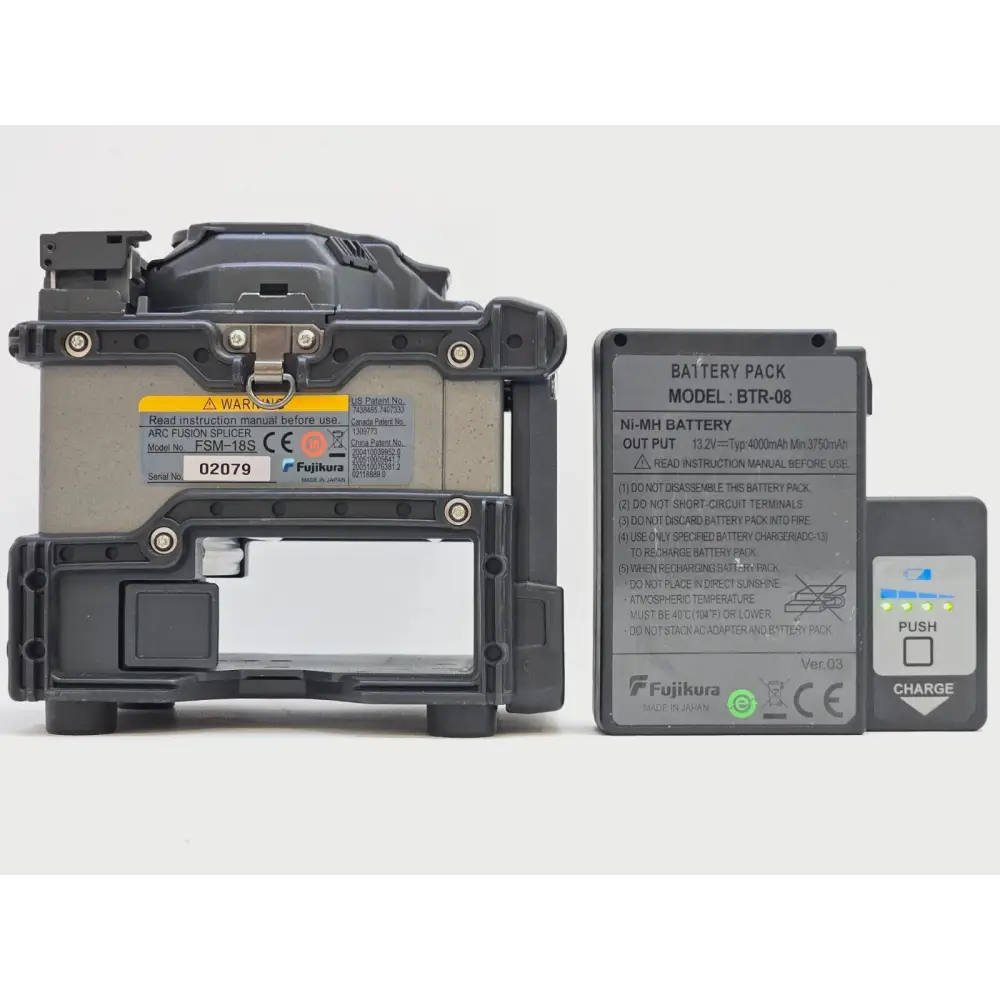

• Long-life battery — up to 150 splice/heat cycles per charge
• Detachable work table incorporated into the transit case
• RoHS and WEEE compliant

Typical Specifications:
Fibre Type: SM and MM
Splicing Method: Fixed V-groove
Splice Loss (SM): 0.02 dB typical
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Battery Life: Up to 150 splice/heat cycles per charge
Display: Colour LCD with anti-reflective coating
Drop Test: 30 cm
Compliance: RoHS, WEEE
