Condition: Used

Note we have multiple units so actual device may vary cosmetically.

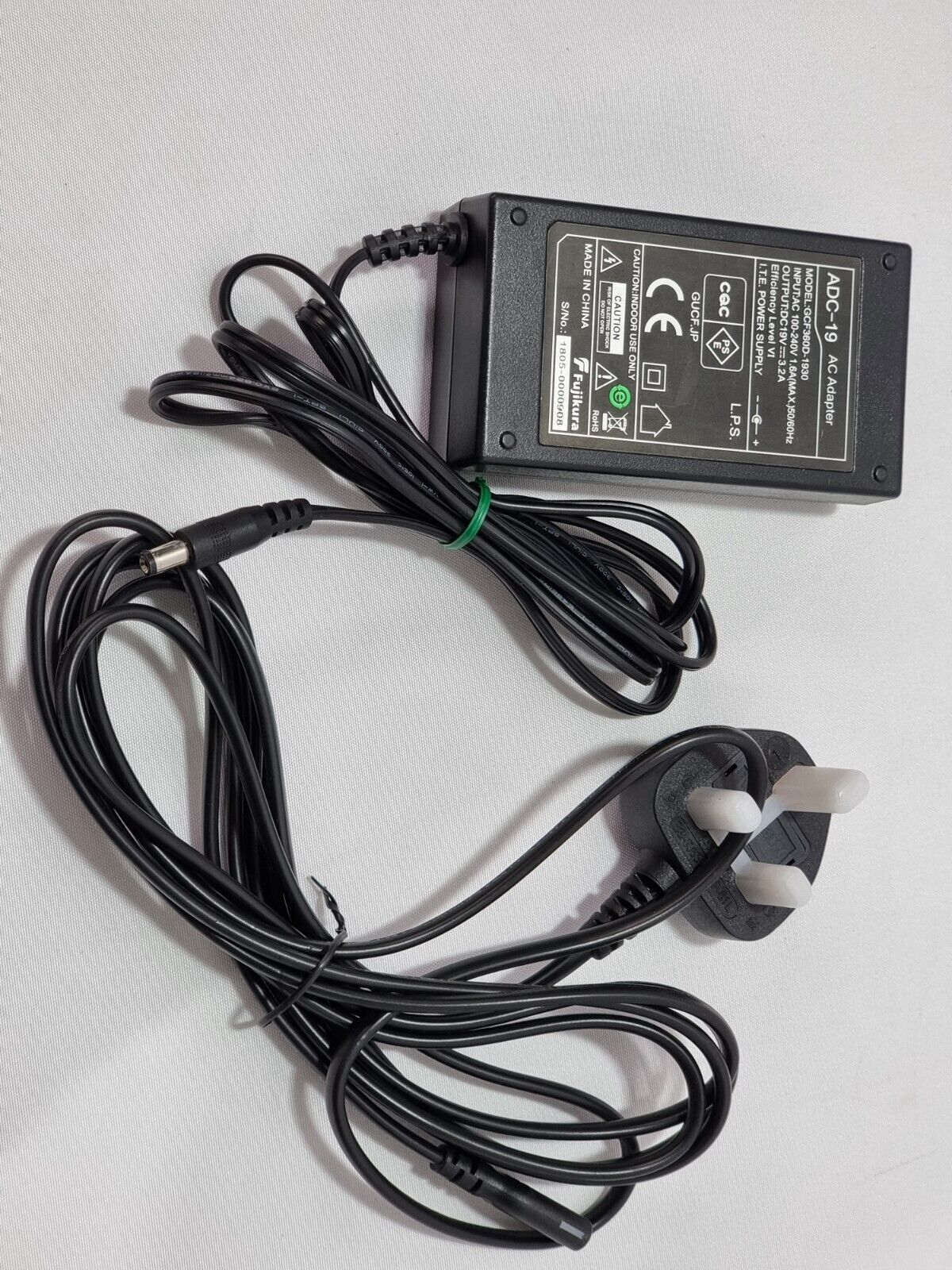

Splicer with 250 fiber holders and power adapter, NO other accessories.

ARC Counts will vary but will be below 2000.

If you wish to purchase cleavers, fiber holders (900) or the carry case, please search our shop.

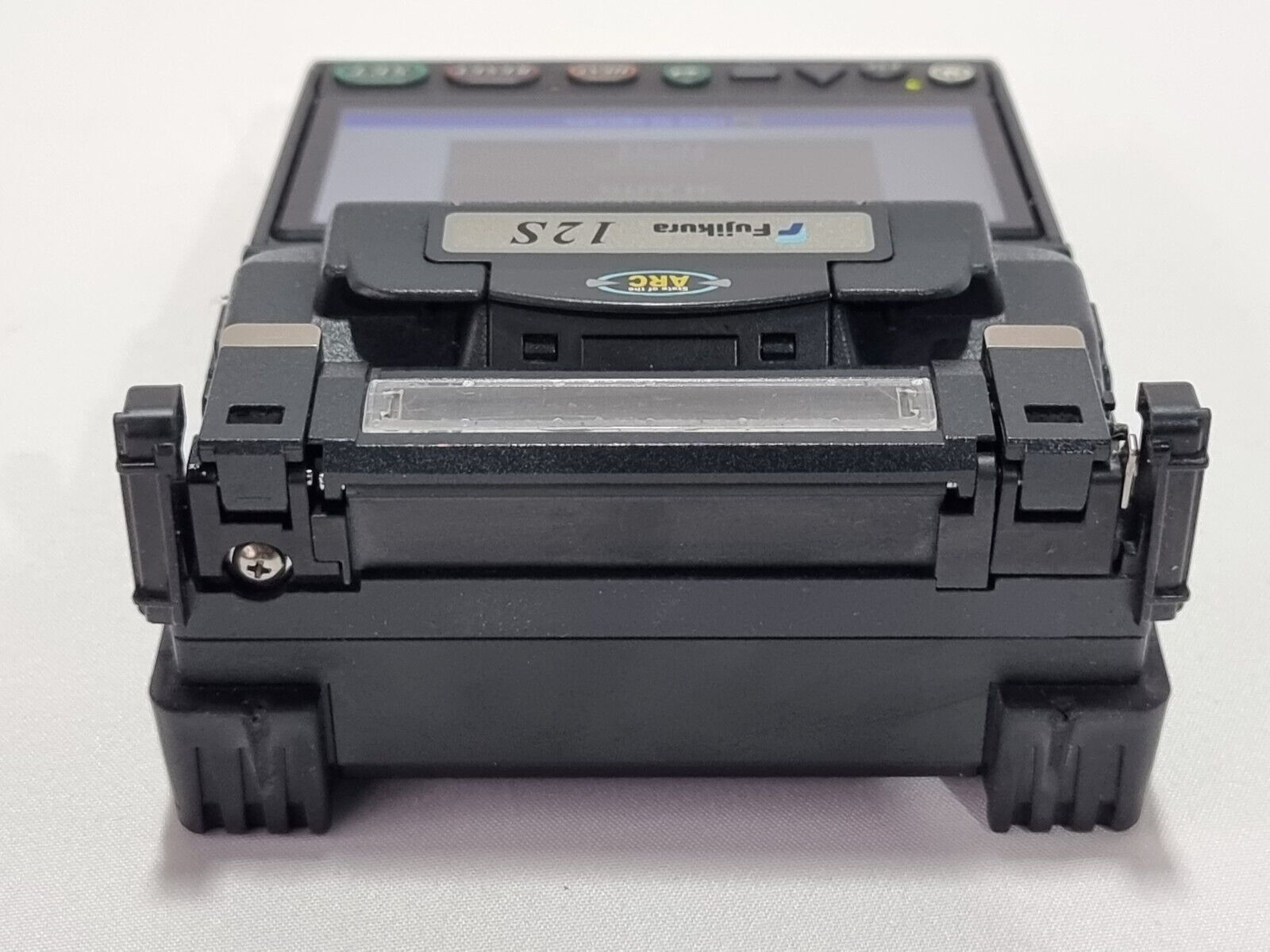

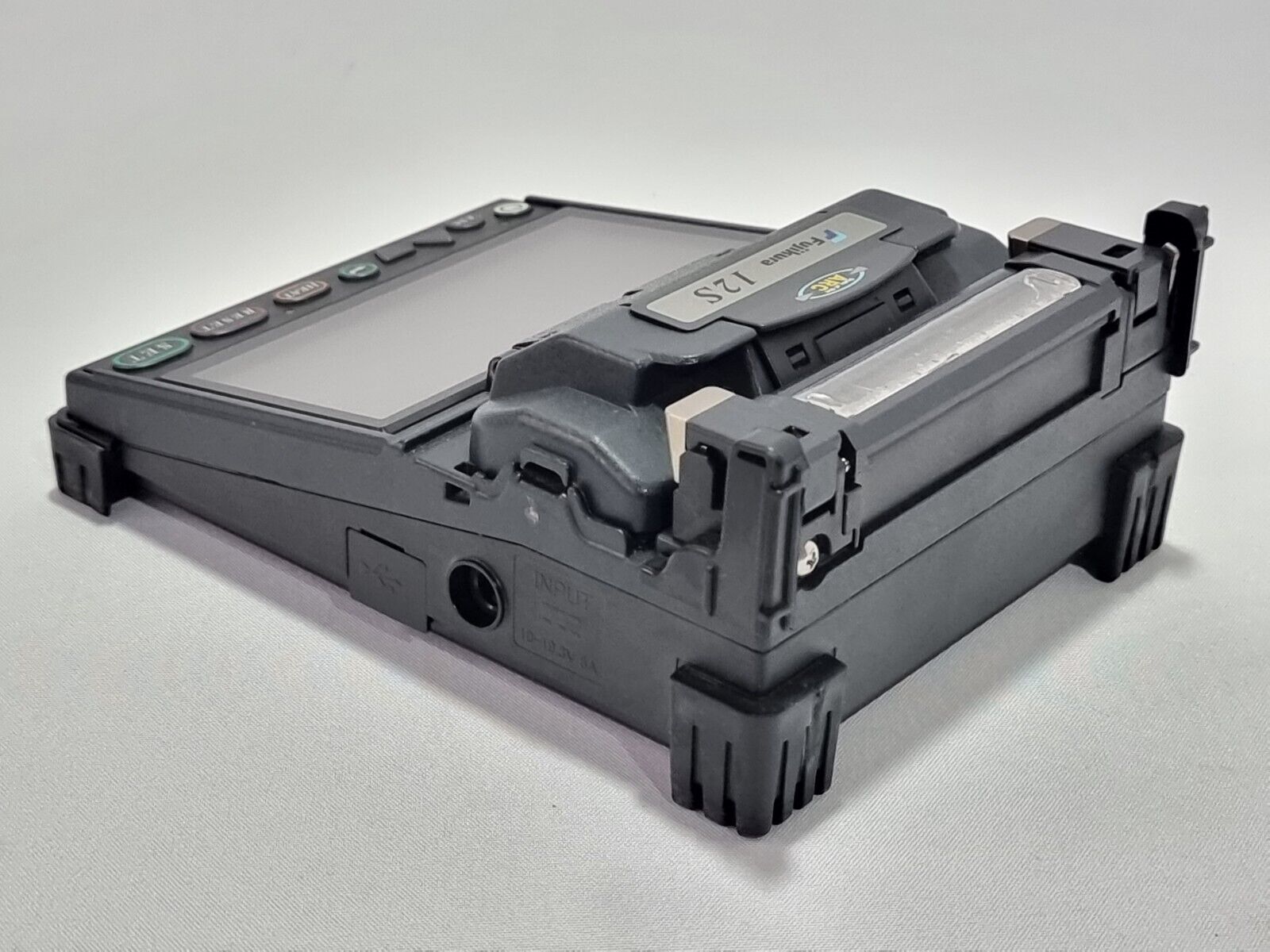

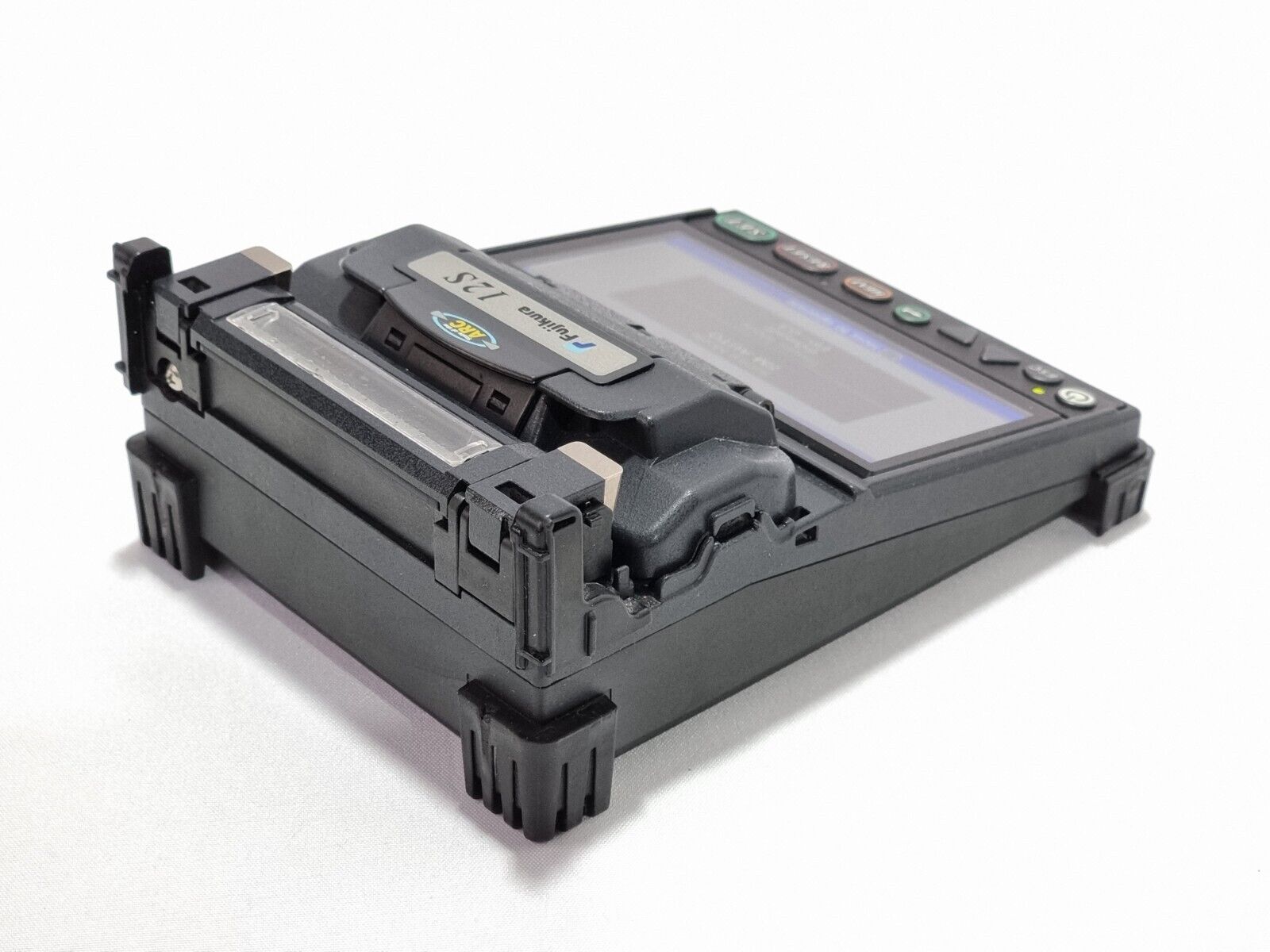

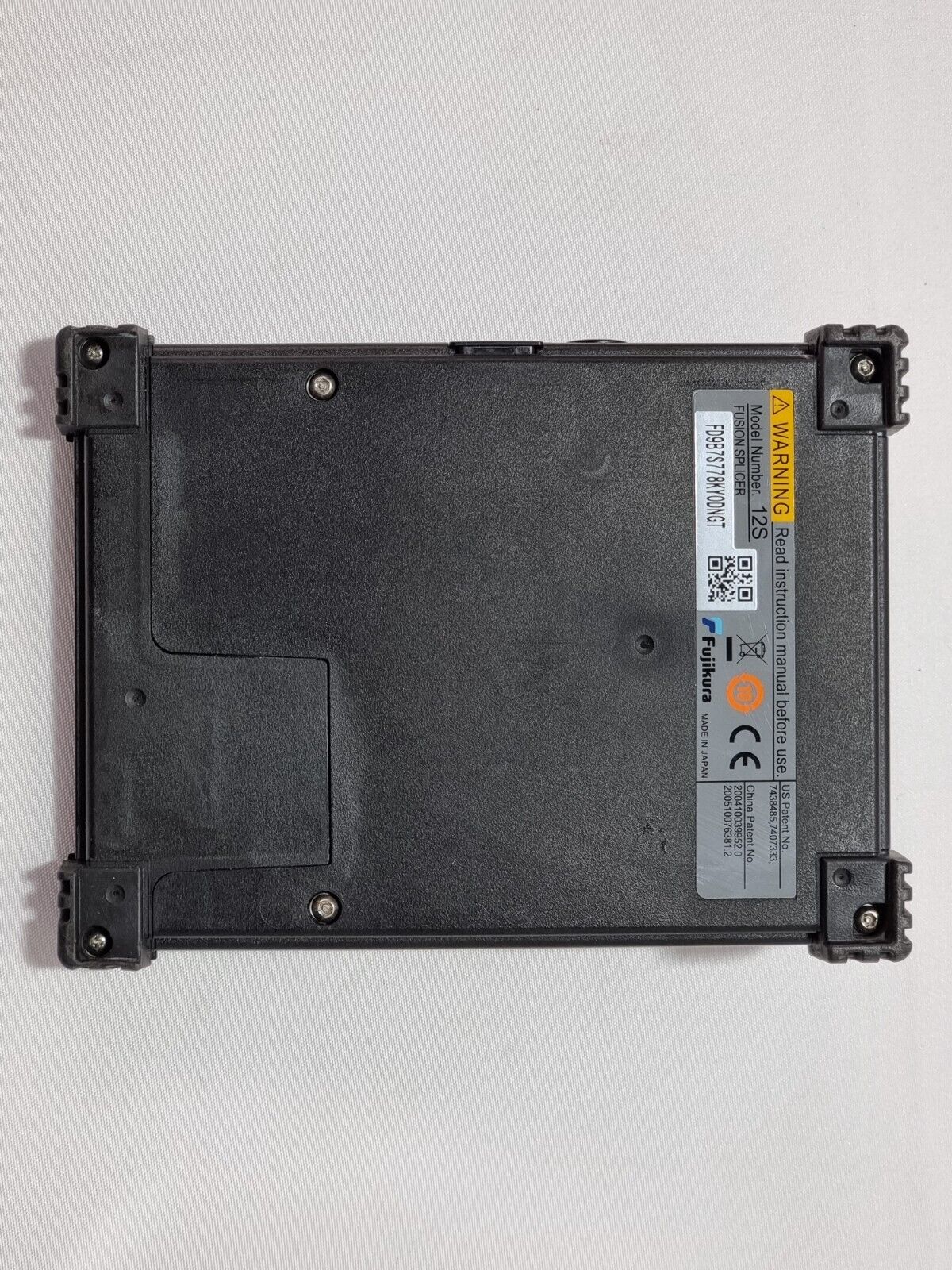

Fujikura 12S SM MM Fiber Fusion Splicer

The Fujikura 12S is the world?s smallest, lightest and most portable fusion splicer available today. Despite its incredibly small size, this ruggedized, full-featured unit offers unmatched versatility for splicing in the most challenging environments. The innovative transit case and work tray provide multiple options for the best utilization of available work space while the long life battery provides power for up to 100 splice cycles which include application of the splice protection sleeve.The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" monitor provides a crystal clear image, even in the brightest sunlight, for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimizing downtime for replacement and stabilization. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available. The fully ruggedized chassis provides for shock, dust and moisture protection while the two camera observation system provides for accurate fiber alignment and loss estimation calculations. The Fujikura 12S is also fully compatible with the FuseConnect line of fusion installable connectors.Backed by the best service team in the industry, the Fujikura 12S is the ideal splicer to use when portability, ruggedness, versatility and reliability are needed for your splicing application.

Features:

World?s smallest splicer at 4.76"W x 6.38"D x 2.24"H

Fully ruggedized for shock, moisture and dust resistance

Transit case converts to easy to use workstation

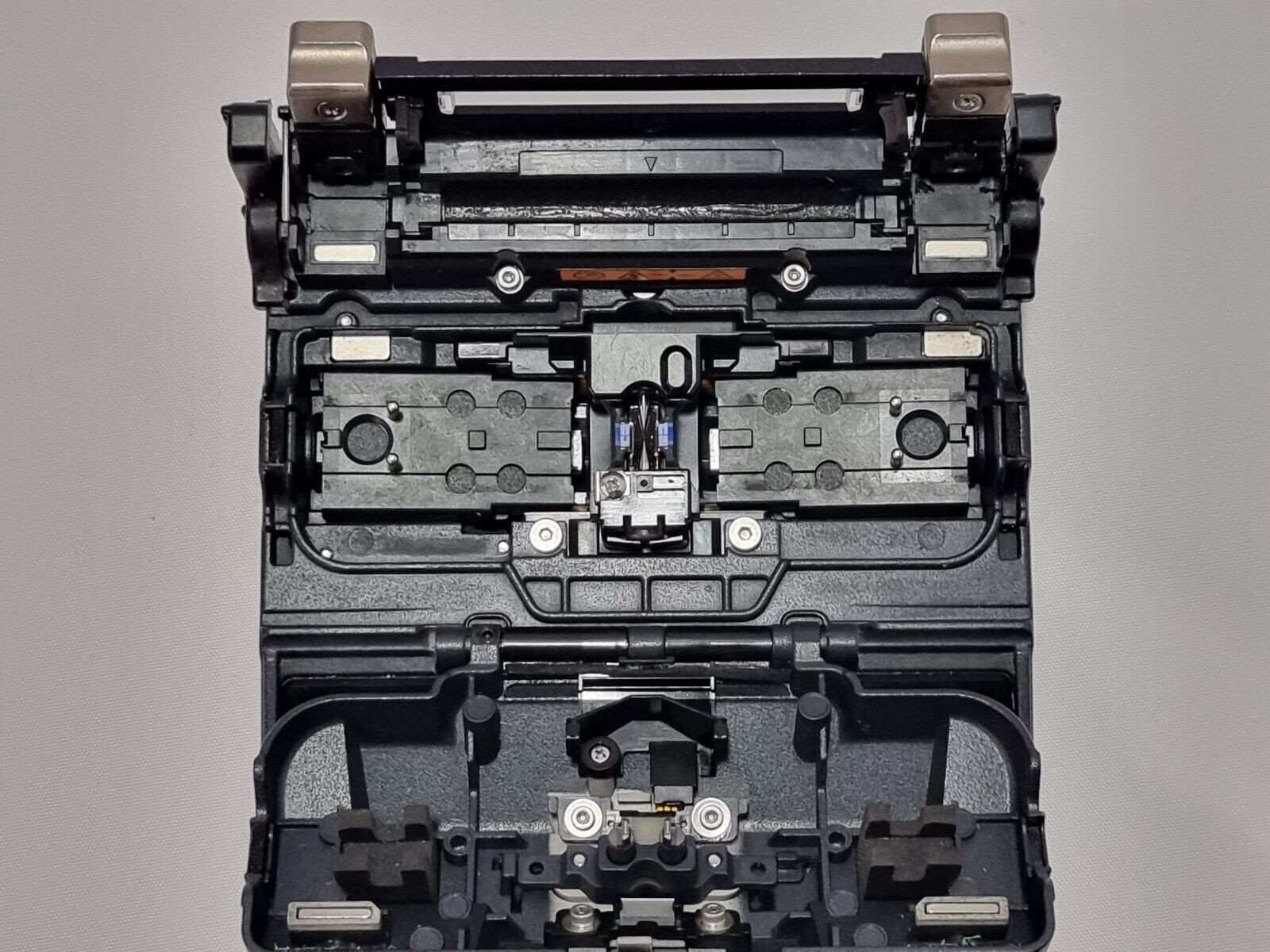

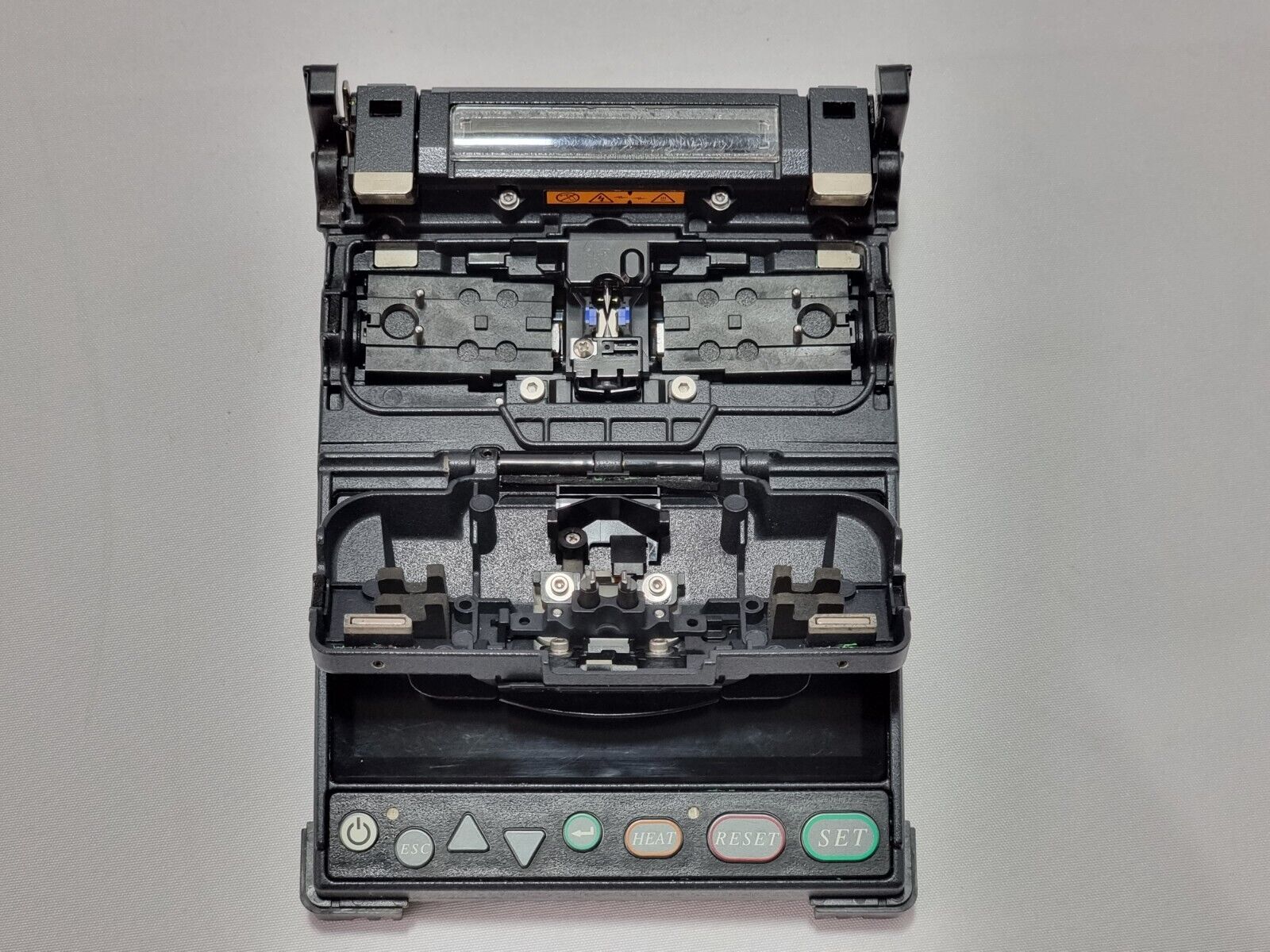

Dual camera, fixed v-groove alignment technology

Extended life electrodes

Long life battery (100 splices/shrinks per charge)

Applications:

FTTX

Remote locations

Specifications:

Model Fujikura 12S

Fusion Splicer Applicable Fibers Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)

Cladding Diameter 125 µm

Coating Diameter 250 µm or 900 µm

Fiber Cleave Length 5 mm to 13 mm

Typical Average Splice Loss 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS) and 0.08 dB (NZDS)Splicing Time

Typical 15 sec with SM

Arc Calibration Method Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available

Splicing Modes Total 100 splice modes

Splice Loss Estimate Based on dual camera cladding alignment data

Storage of Splice Result Last 2,000 splices

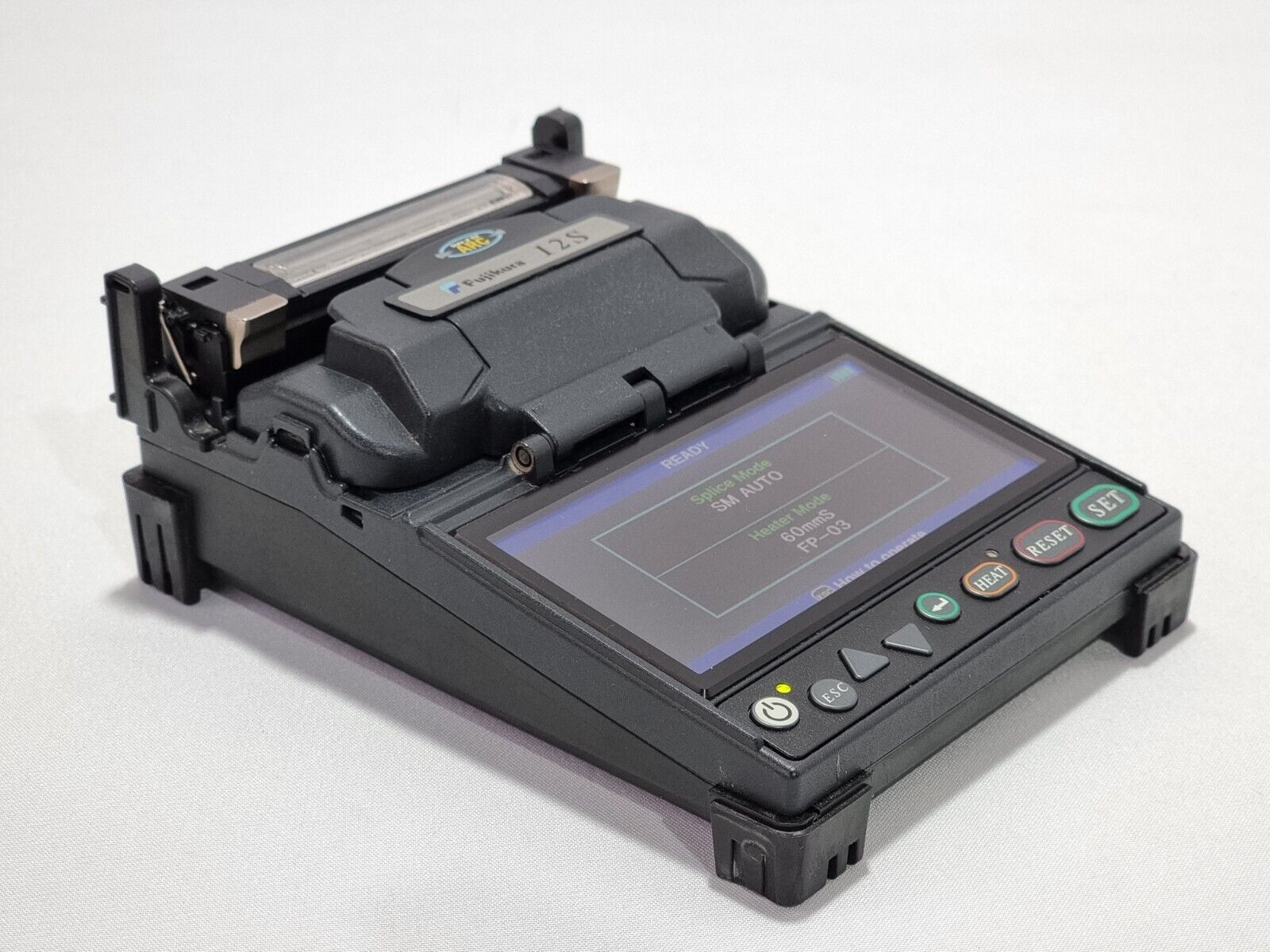

Fiber Display 4.5 inch TFT color LCD with X or Y view or both X and Y view simultaneously

Magnification 100X magnification for X/Y view

Viewing Method 2 axis CMOS camera

Operating Condition Altitude: 0 to 3,660 m above sea level, 10° to 50° C, Humidity: 0 to 95% RH, non-dew

Mechanical Proof Test 1.96 N

Tube Heater 30 heating modes

Tube Heating Time Typical 30 sec with FP-03 (60 mm) sleeve

Protection Sleeve Length 60 mm, 40 mm, micro

Splice/Heat Cycles with Battery Typical 100 cycles with BTR-10

Electrode Life 3,000 splices

Power supply Auto select from 100 V to 240 V with AC adapter, 14.8 V DC with installed battery

Terminals USB 2.0

Wind Protection Maximum wind velocity of 15 m/s. (34 mph)

Dimensions 121 x 162 x 57 (mm) / 4.76 x 6.38 x 2.24 (inches)

Weight. 776 kg (1.71 lbs) with battery
