Condition: Used — ARC count less than 2000 (exact count will vary between units but will not exceed 2000).

The Fujikura FSM-12S is a compact, portable single-mode and multimode fixed V-groove fiber fusion splicer, well-suited for FTTX deployment, remote locations, and field installation environments. Each unit in this listing has been used but carries an ARC count below 2000, indicating relatively light use. Multiple units are available.

Included in the sale:

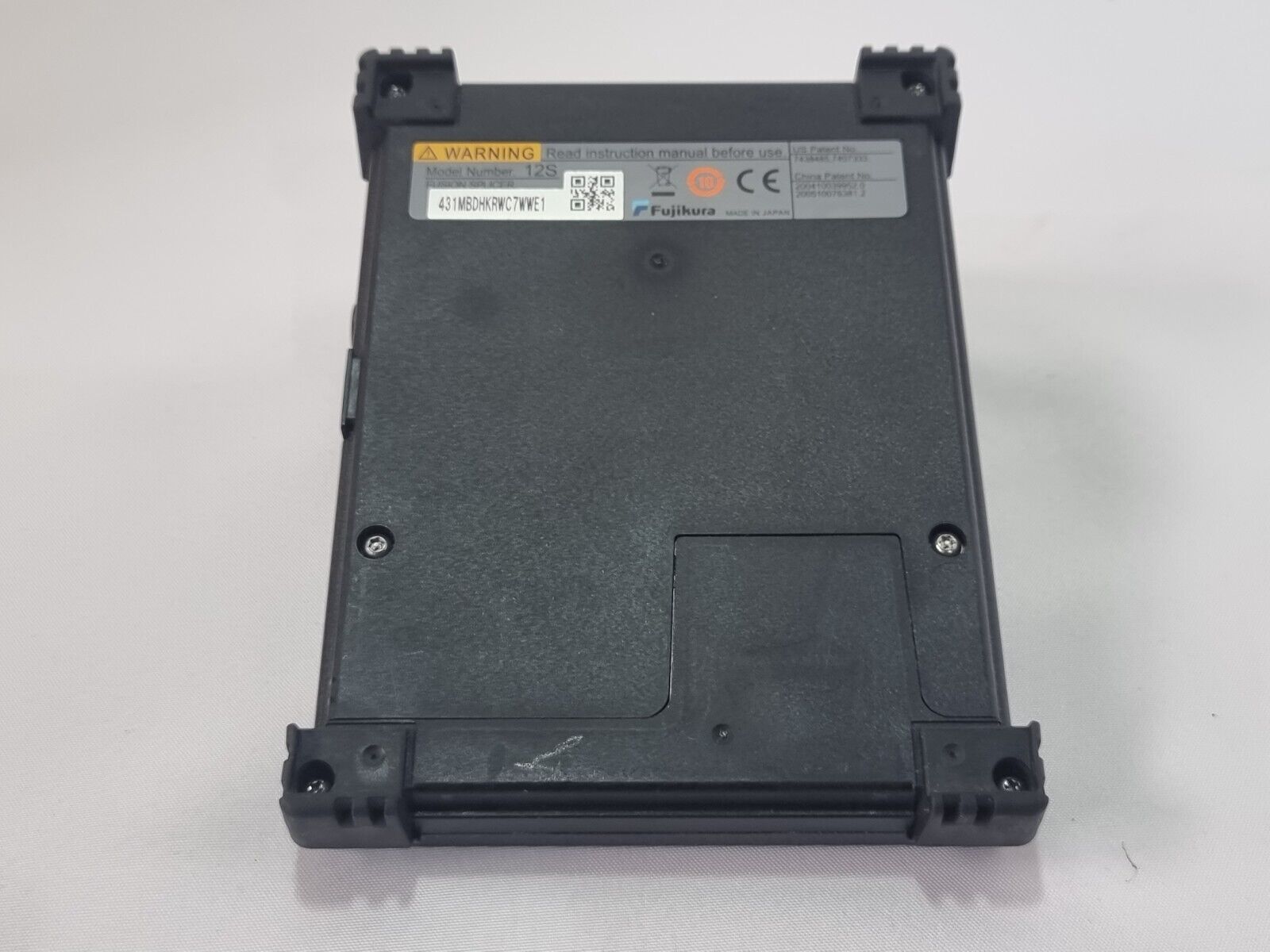

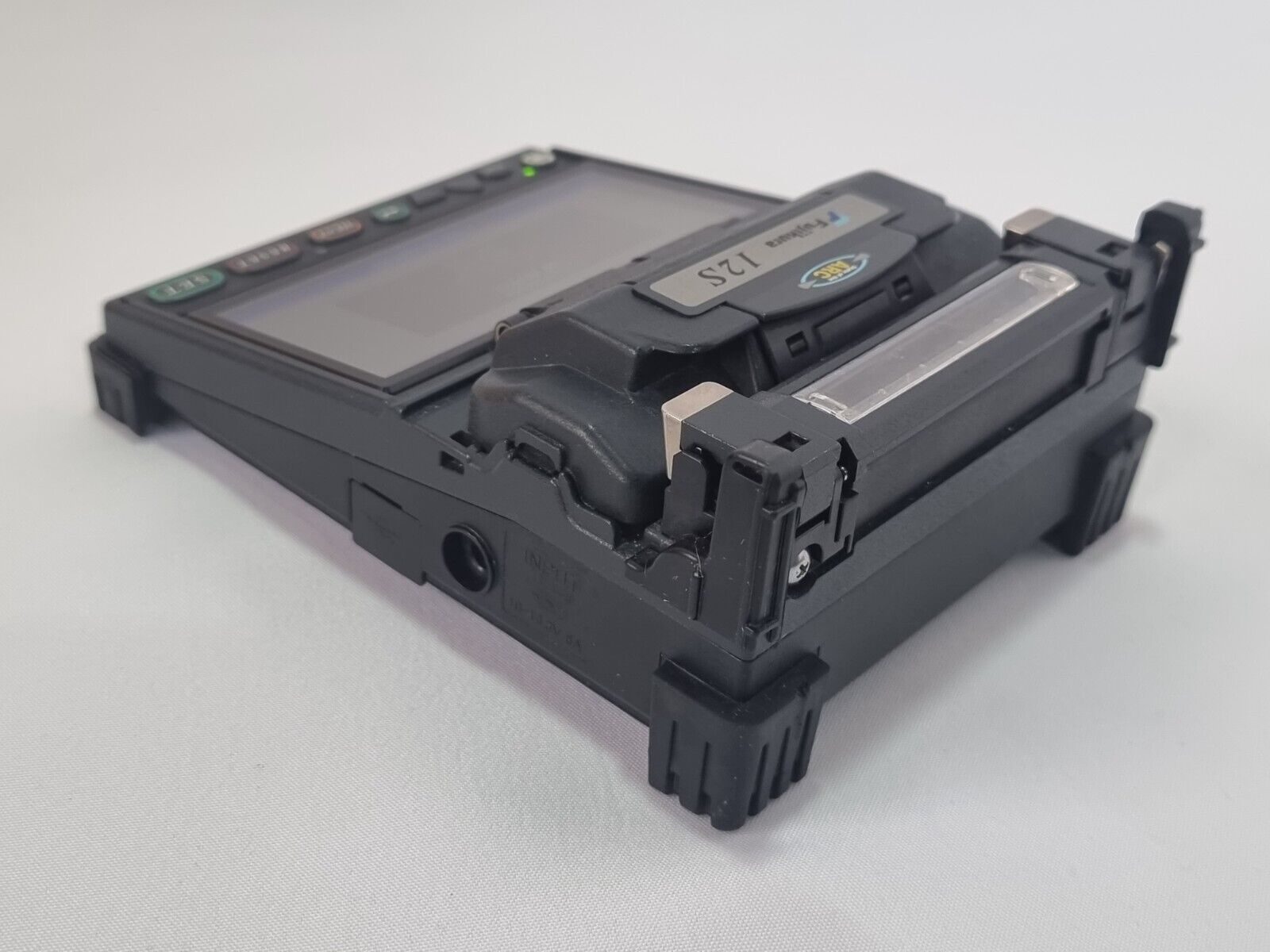

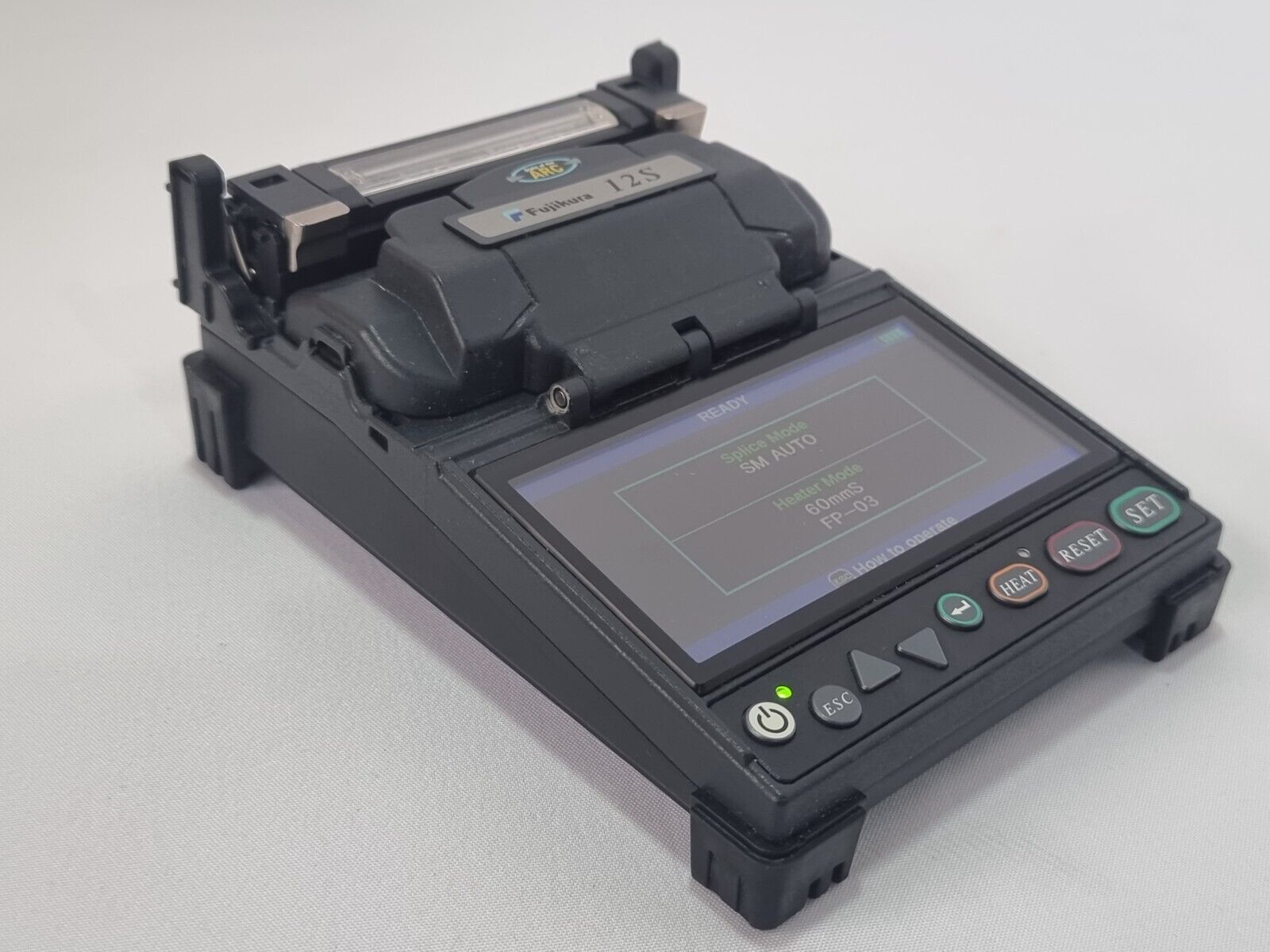

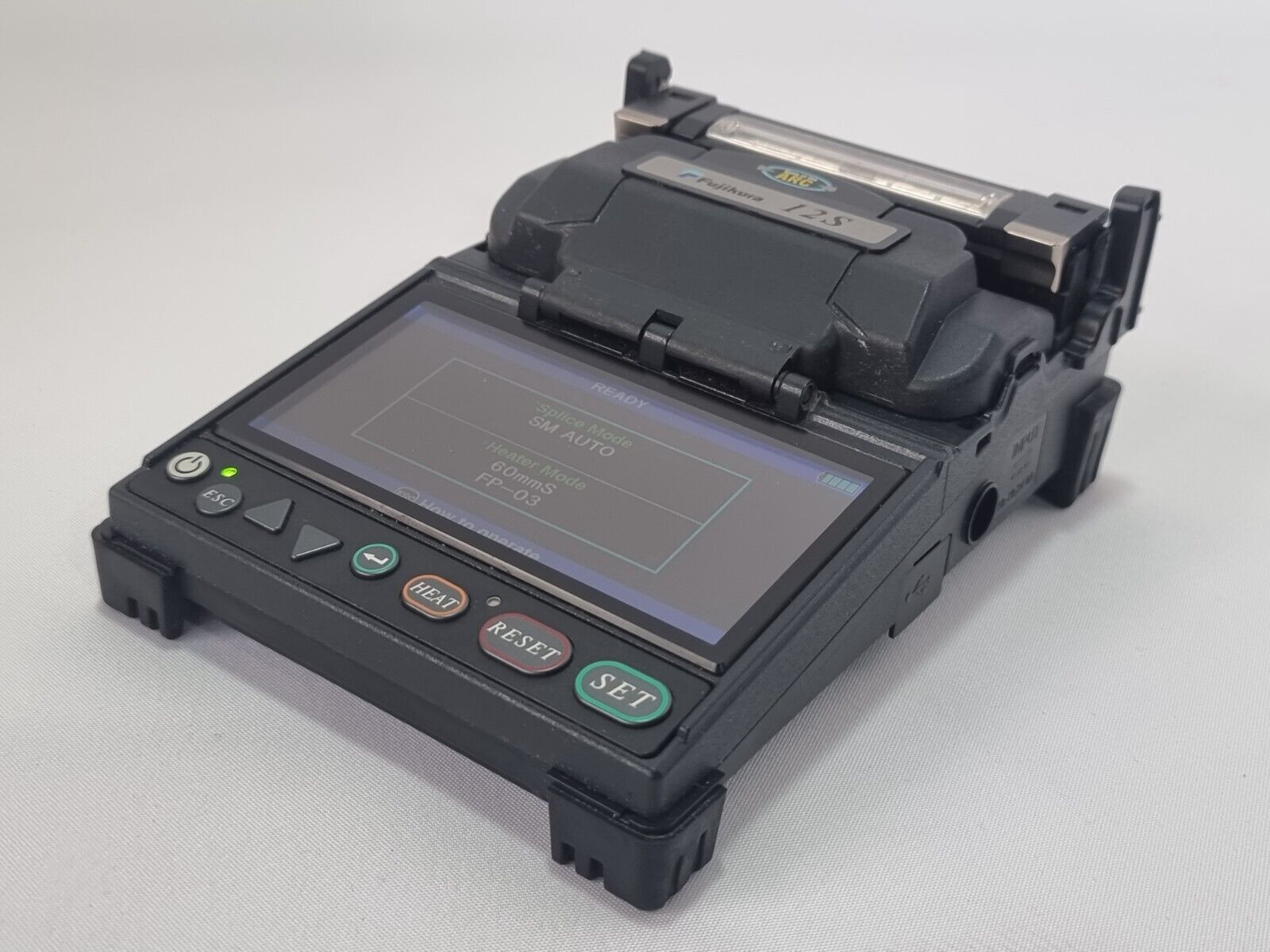

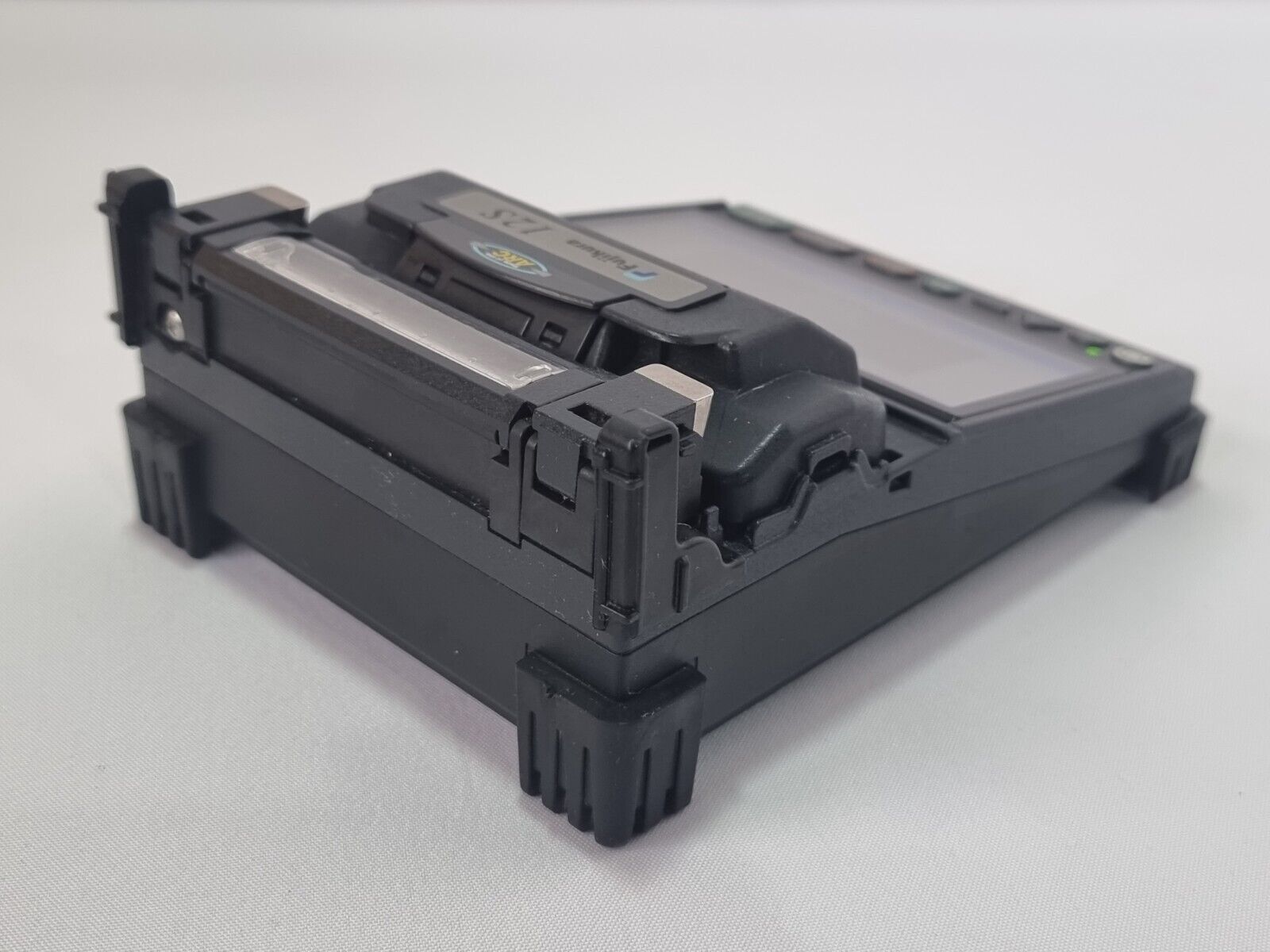

• Fujikura FSM-12S SM/MM Arc Fiber Fusion Splicer

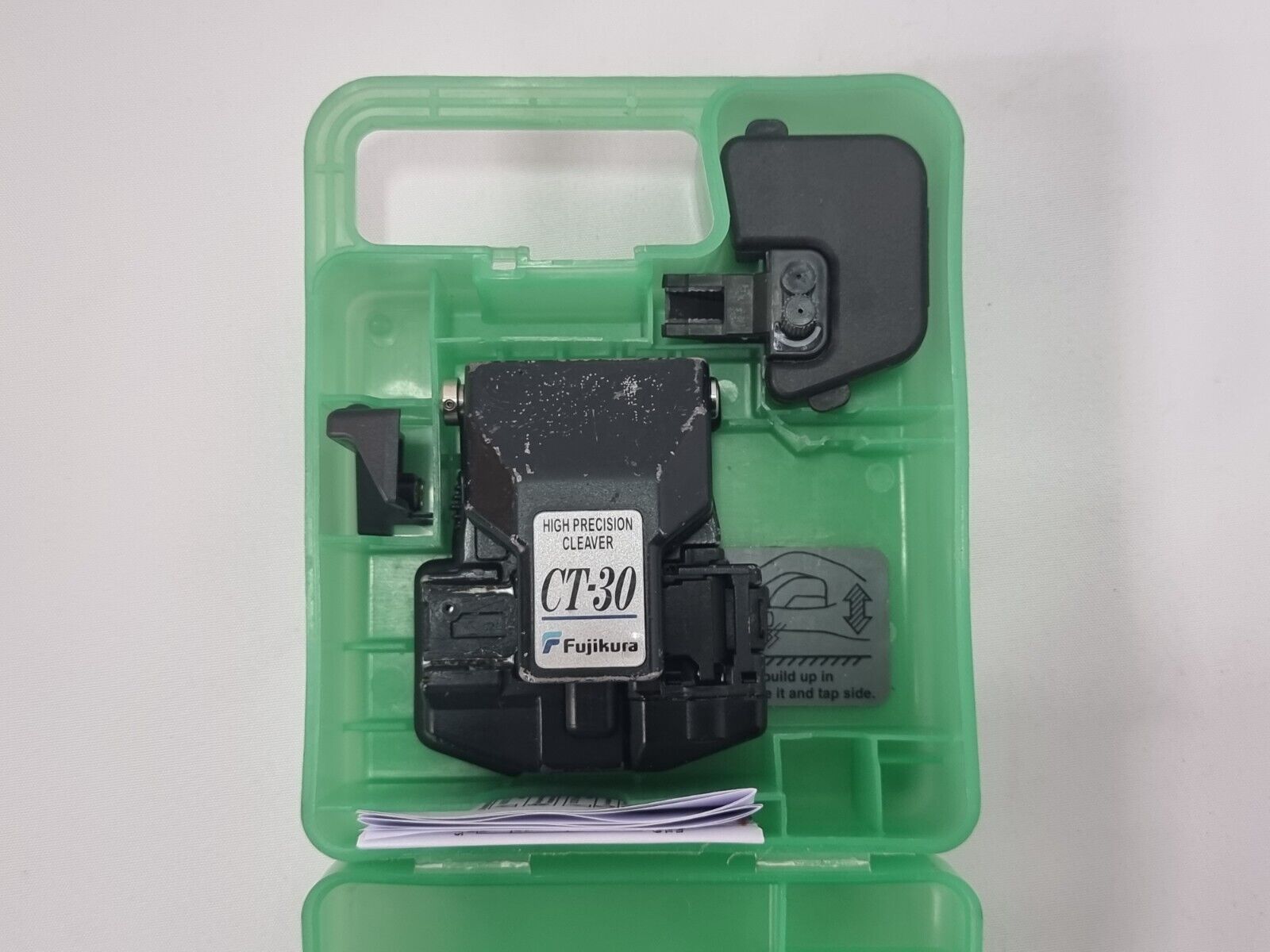

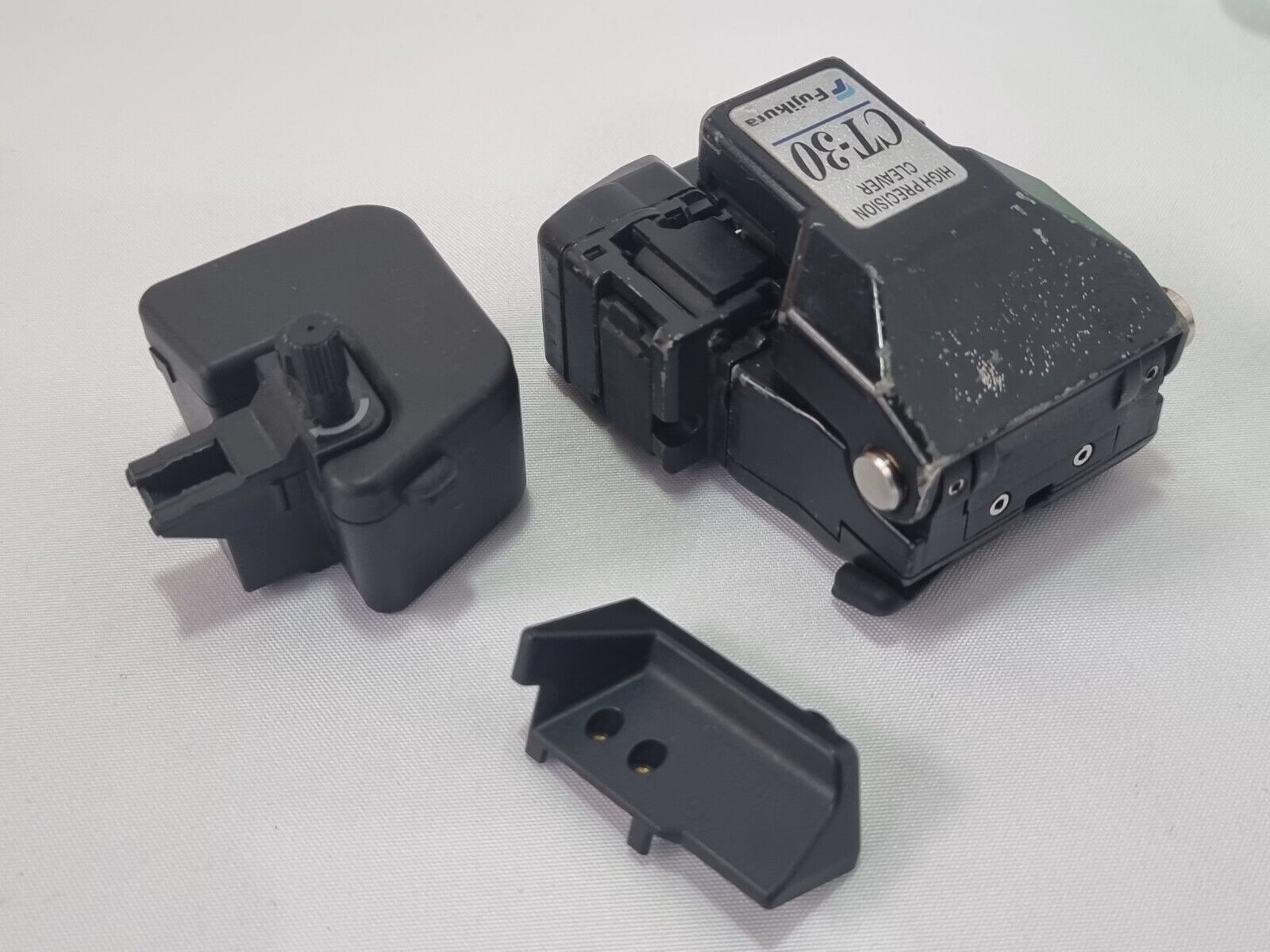

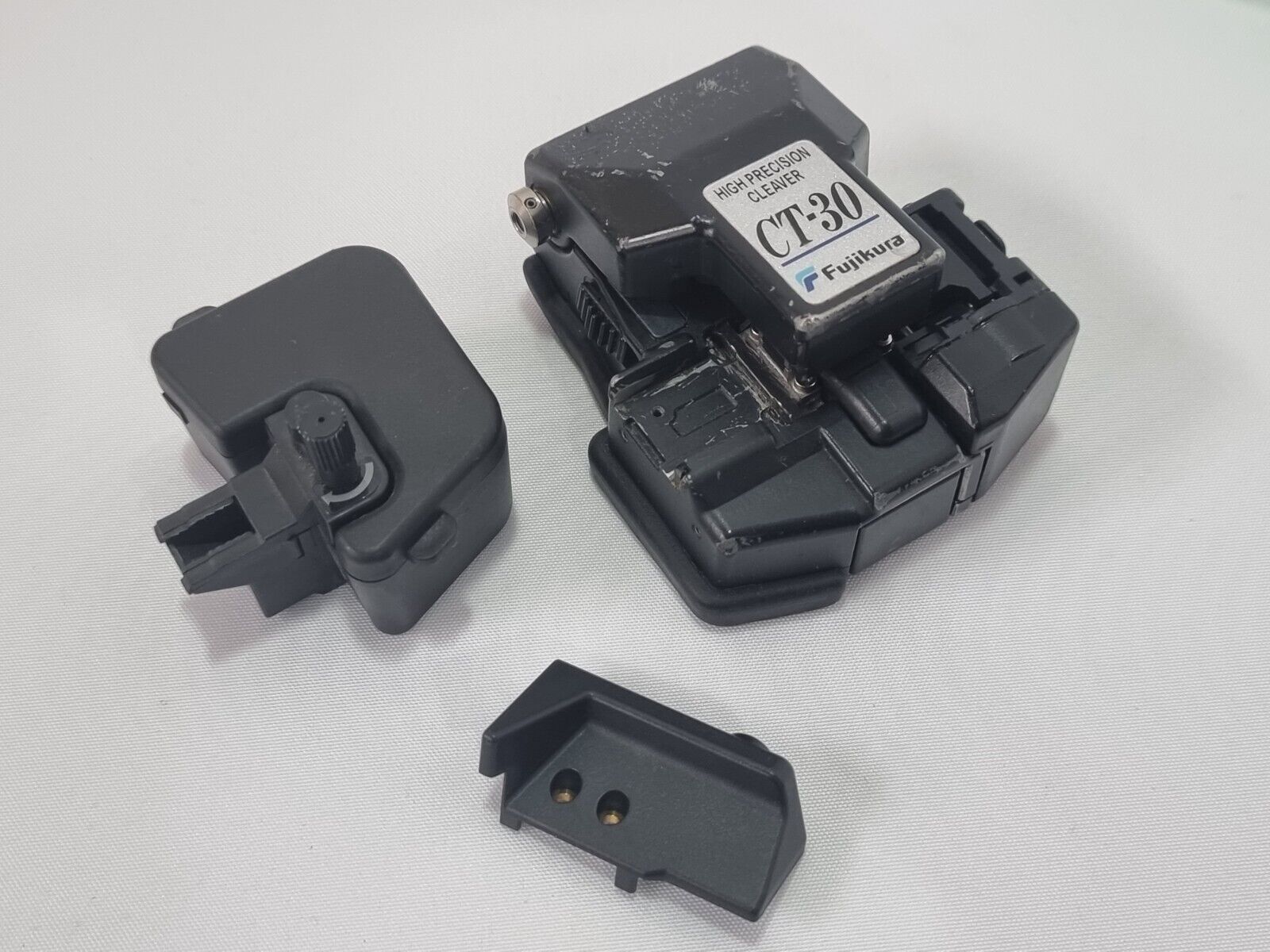

• Fujikura CT-30 High Precision Fiber Cleaver with Case

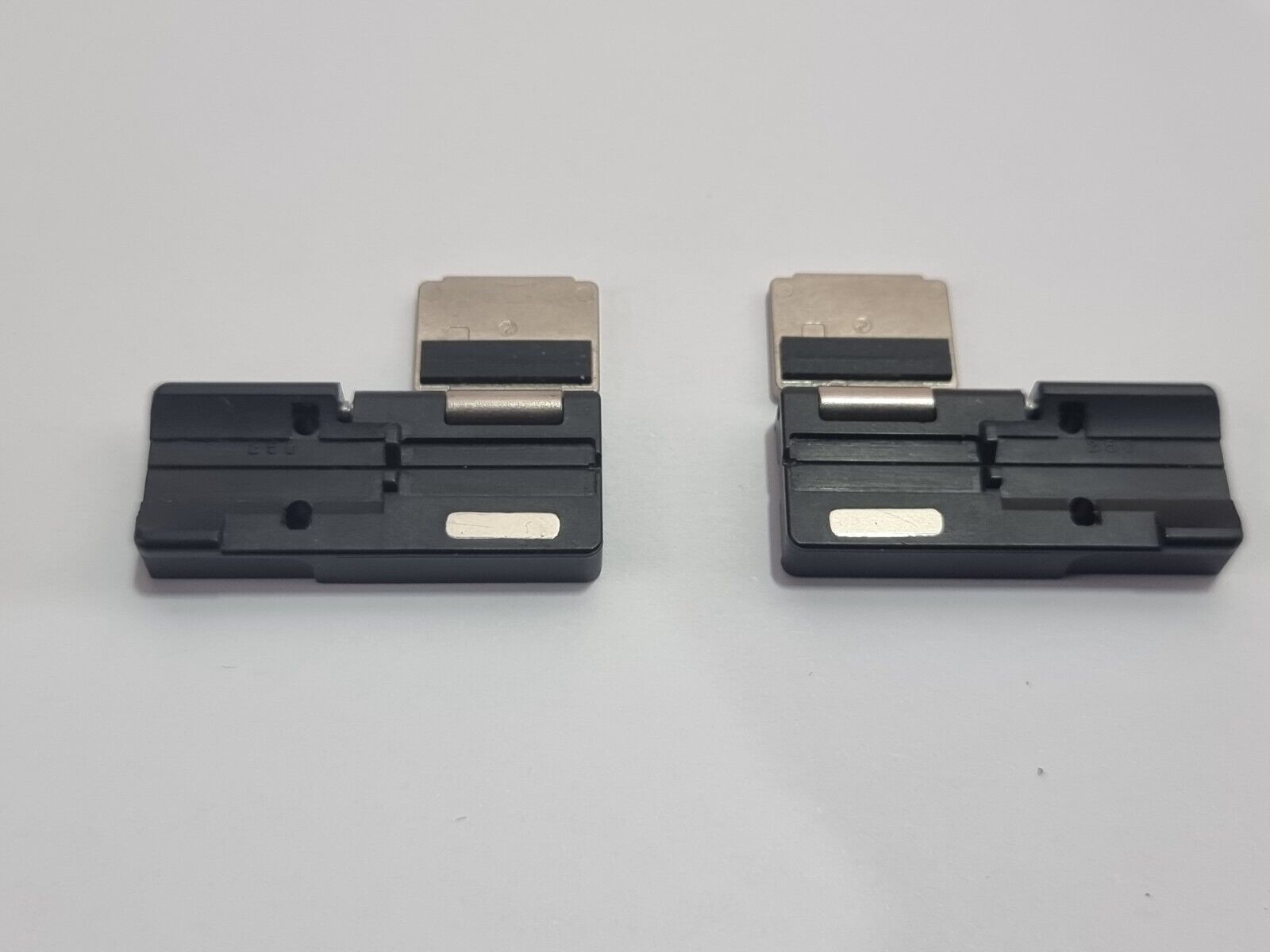

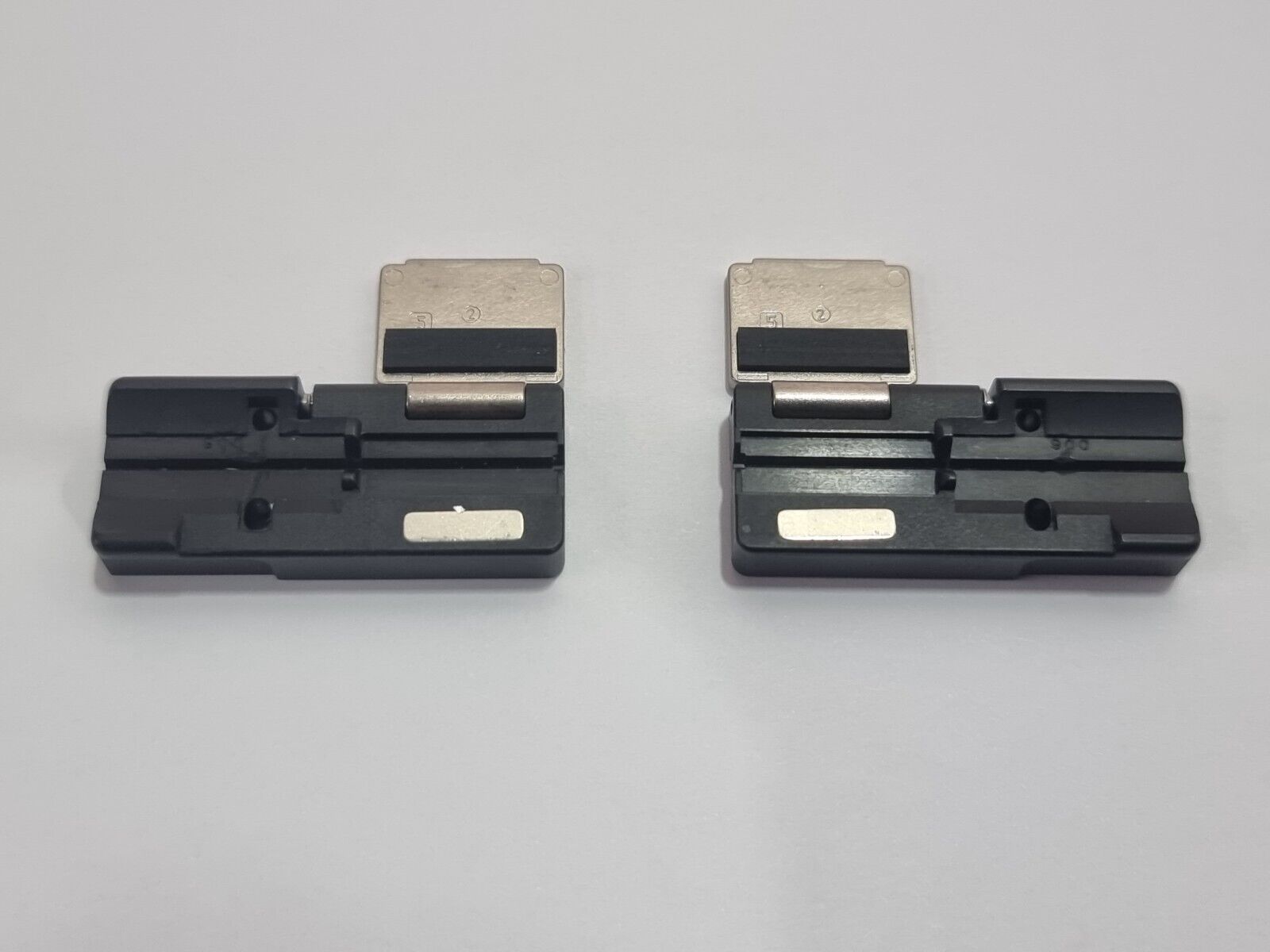

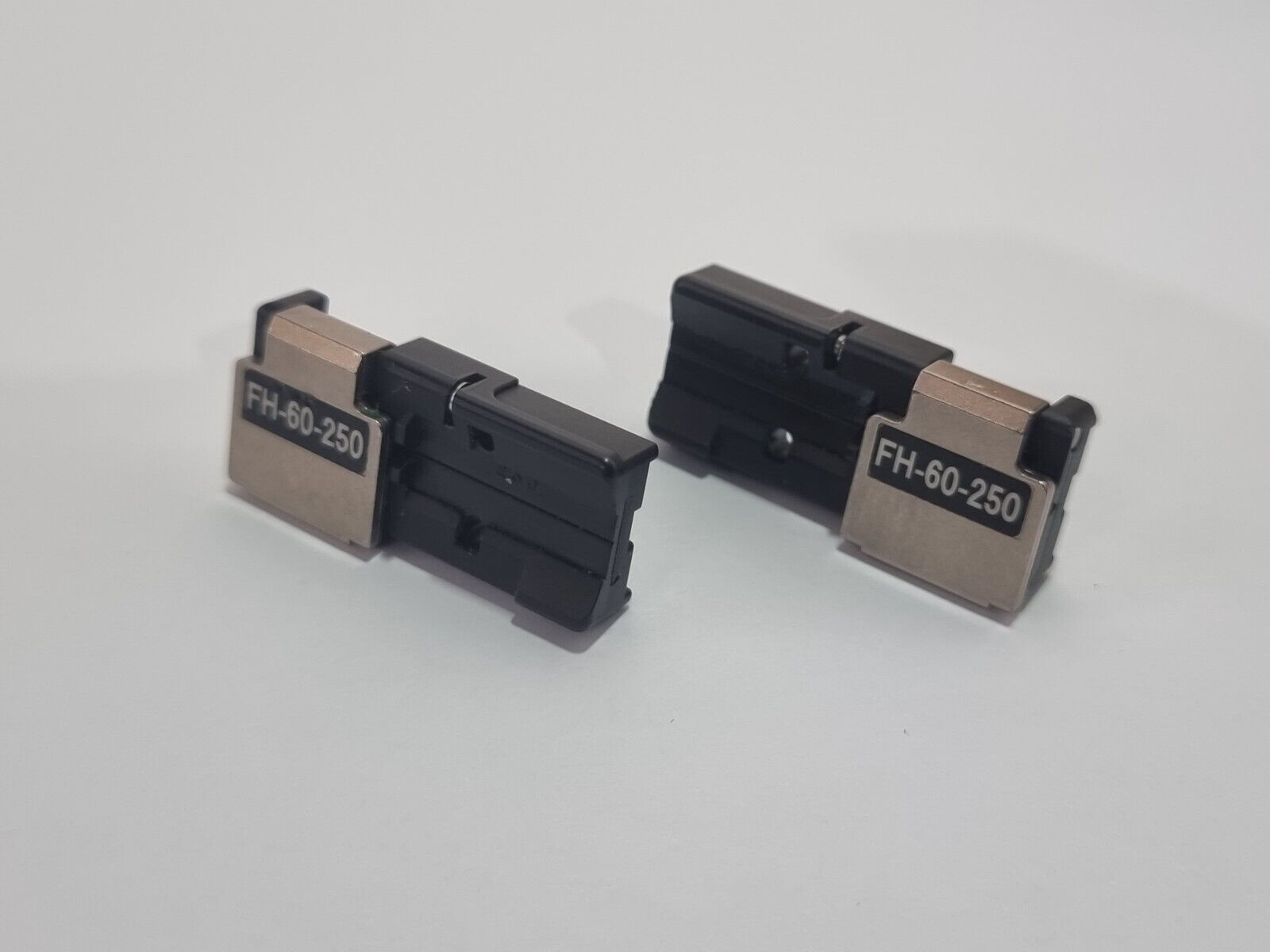

• FH-60-250 Fiber Holder Set

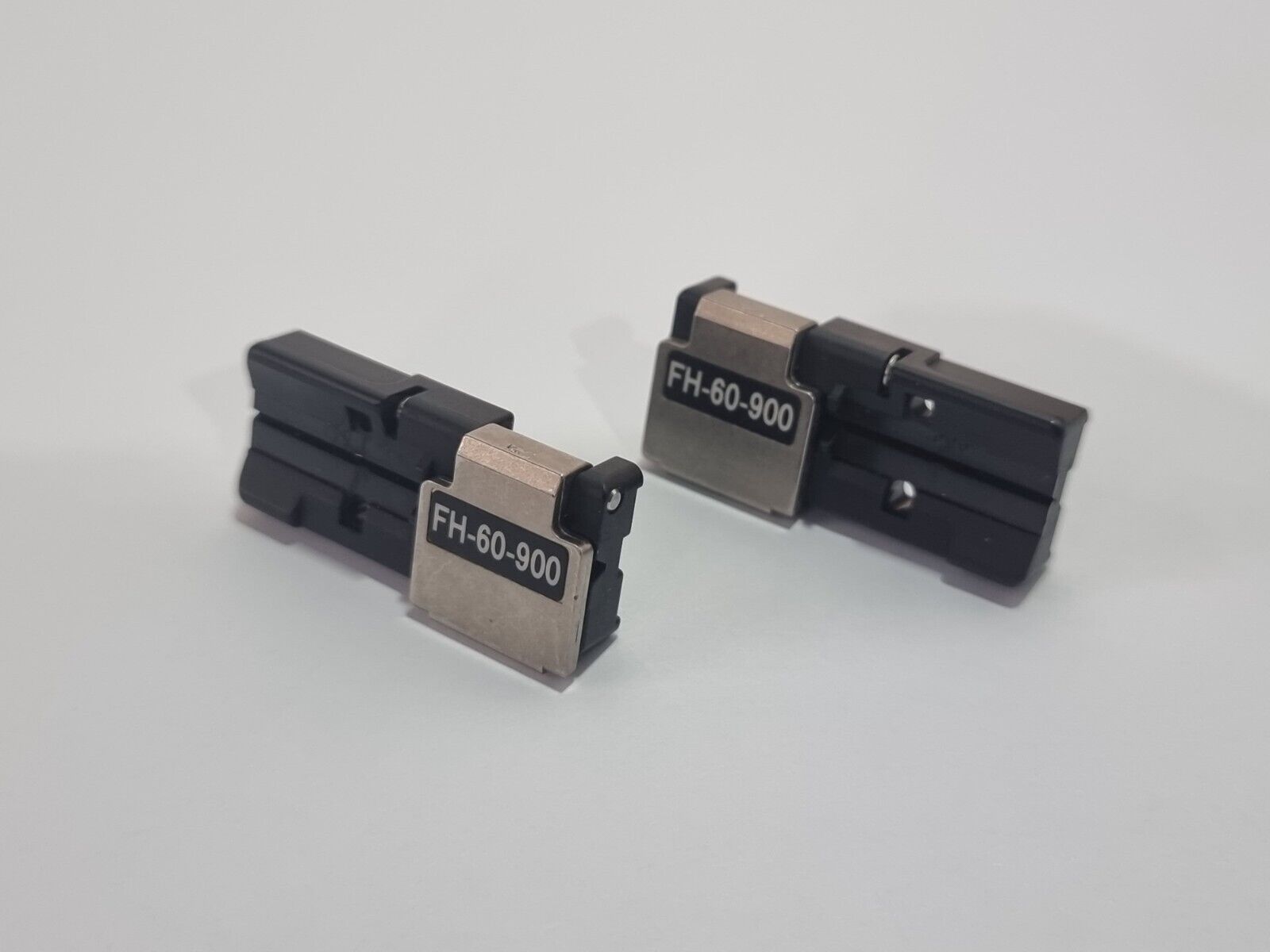

• FH-60-900 Fiber Holder Set
• AC Adapter/Charger

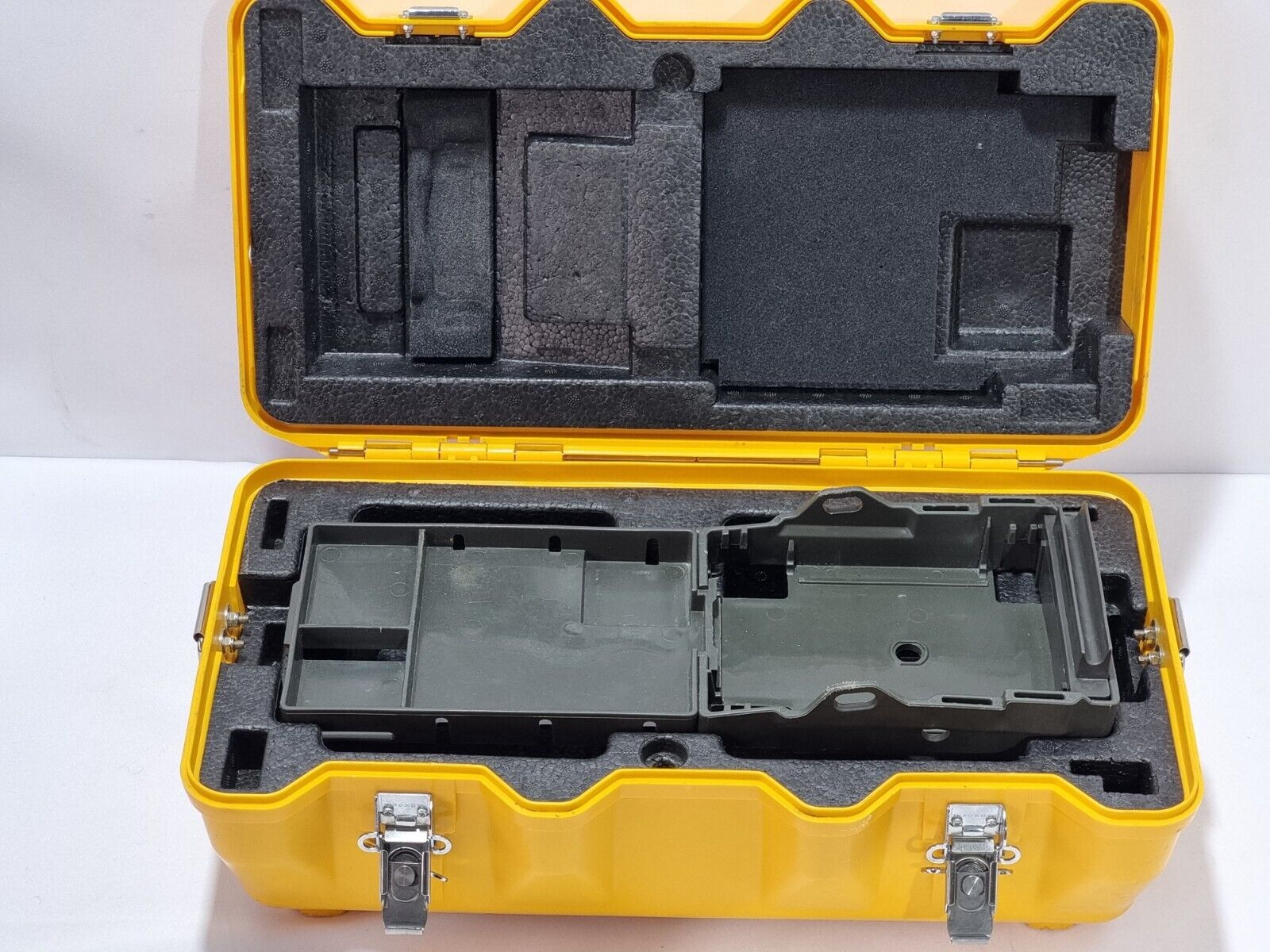

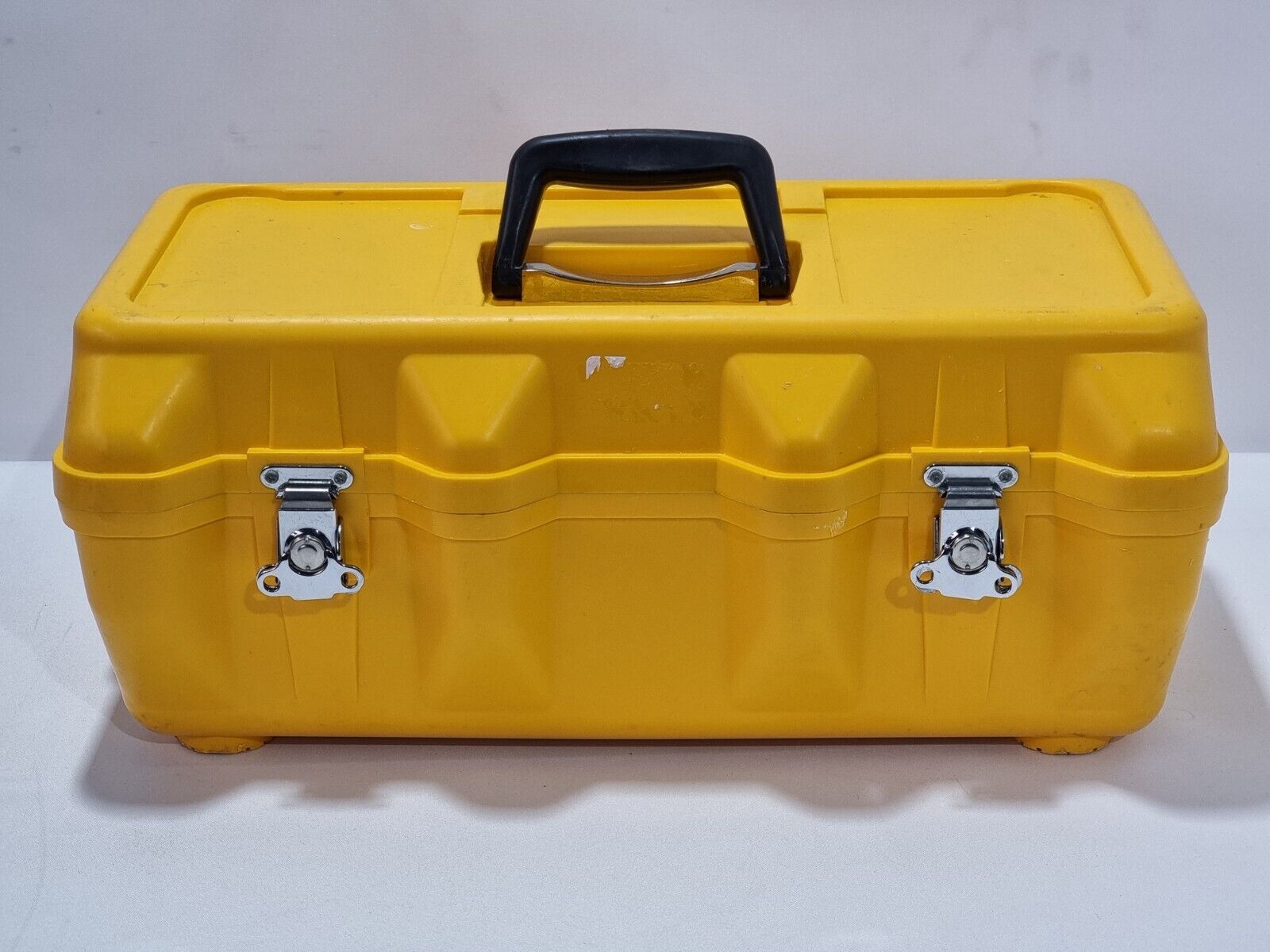

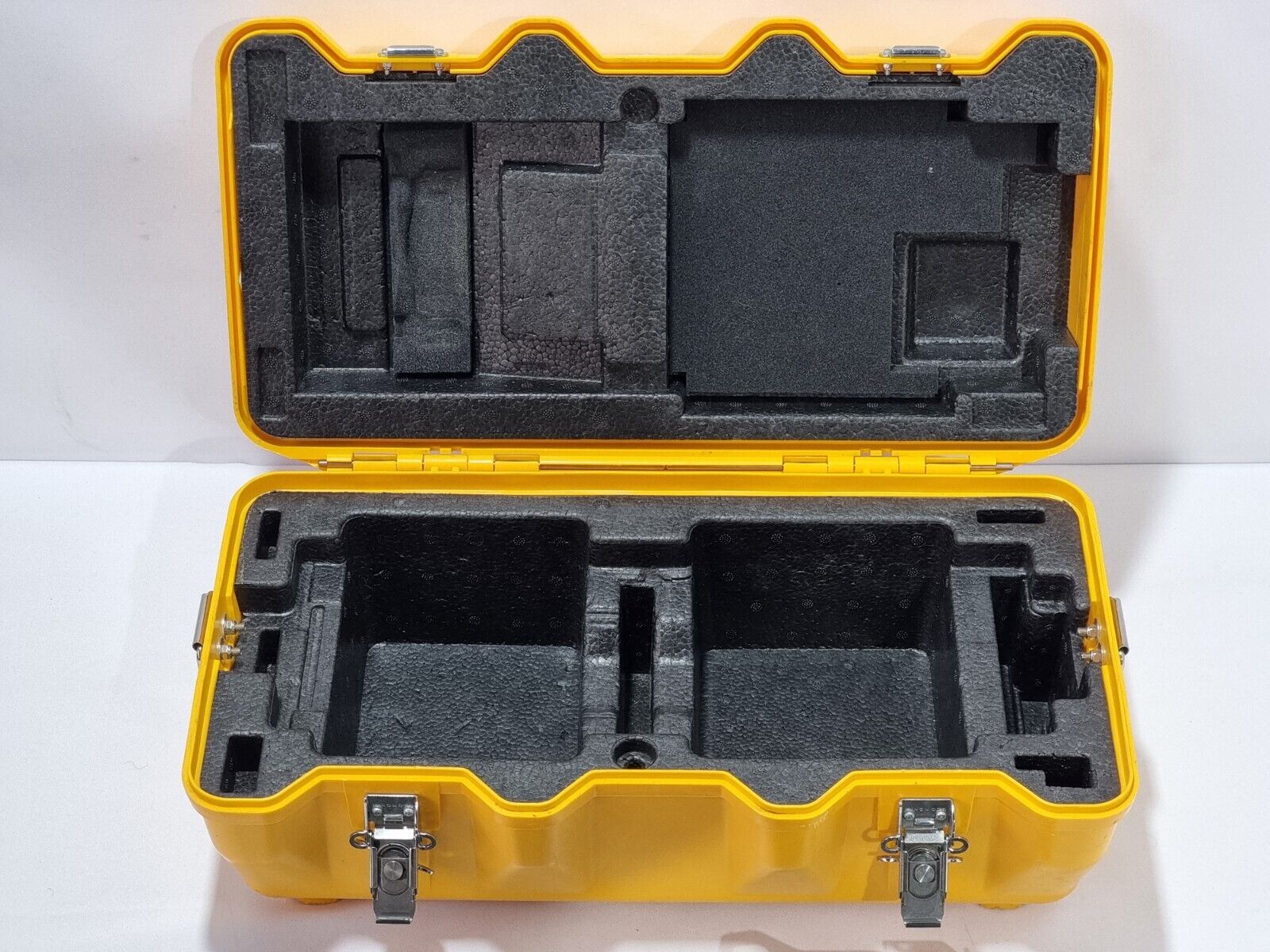

• Hard Carrying Case with Strap
• Work Tray
• Fiber Stripper
• Screwdriver
• 12S Quick Reference Guide

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Fujikura 12S SM/MM Fixed V-Groove Fiber Fusion Splicer

The Fujikura 12S is the world's smallest, lightest and most portable fusion splicer available. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments. The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 100 splice cycles including application of the splice protection sleeve.

The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" monitor provides a crystal-clear image, even in the brightest sunlight, for evaluating splice quality. Electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programs as new versions become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system provides accurate fibre alignment and loss estimation. The Fujikura 12S is also fully compatible with the FuseConnect line of fusion installable connectors.

Key Features:
• World's smallest splicer at 4.76" W x 6.38" D x 2.24" H
• Fully ruggedised for shock, moisture and dust resistance

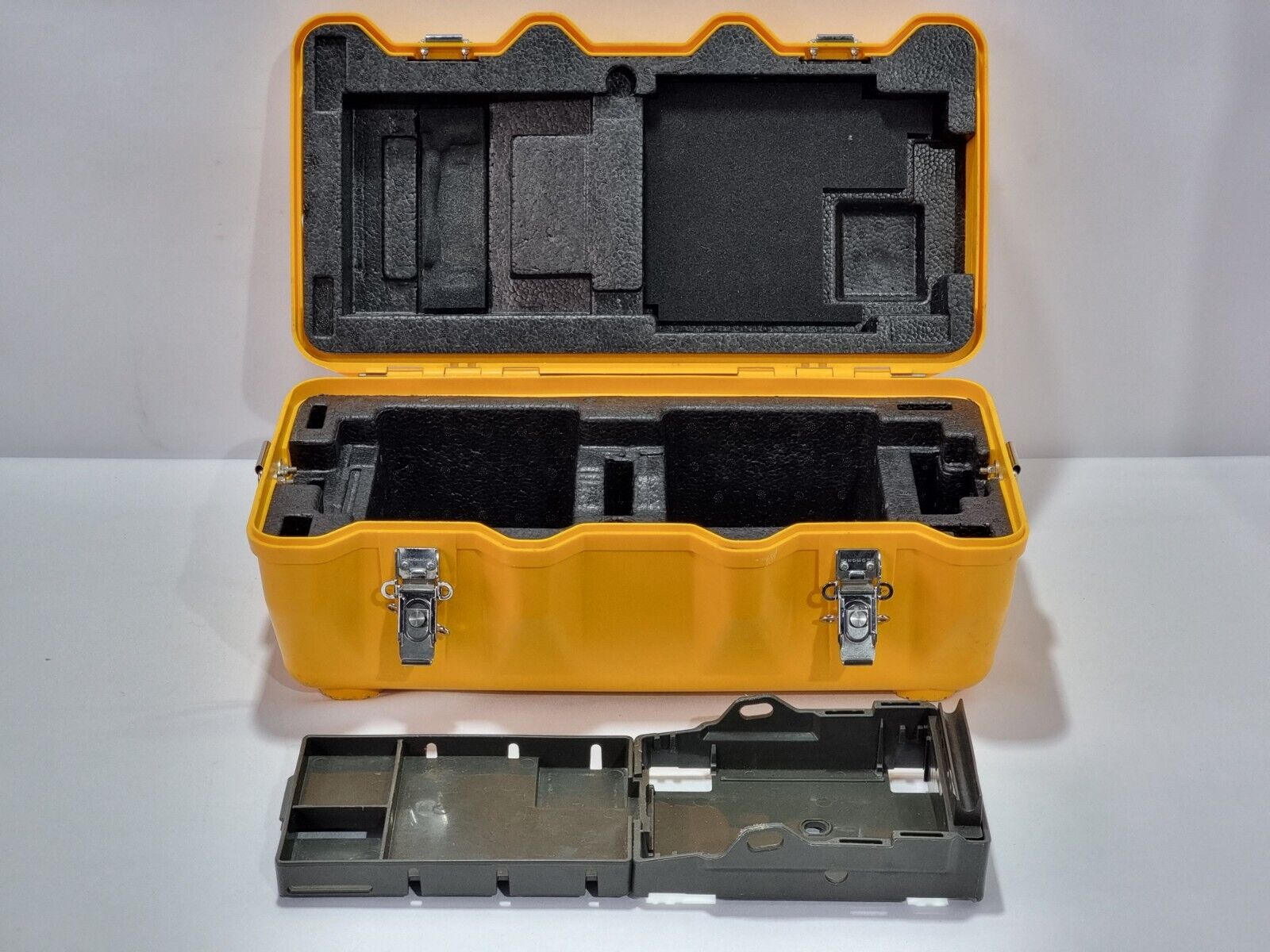

• Transit case converts to an easy-to-use workstation

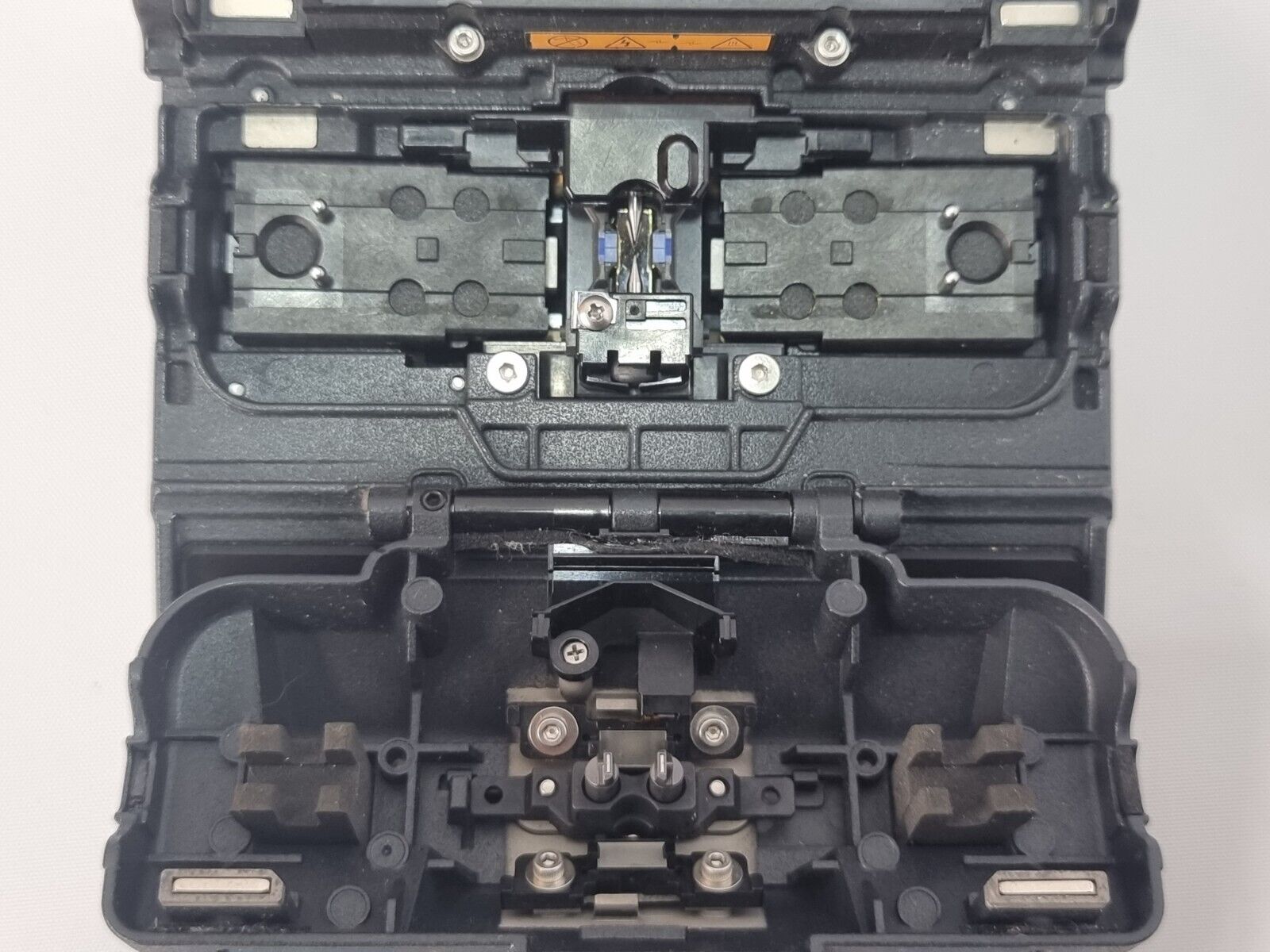

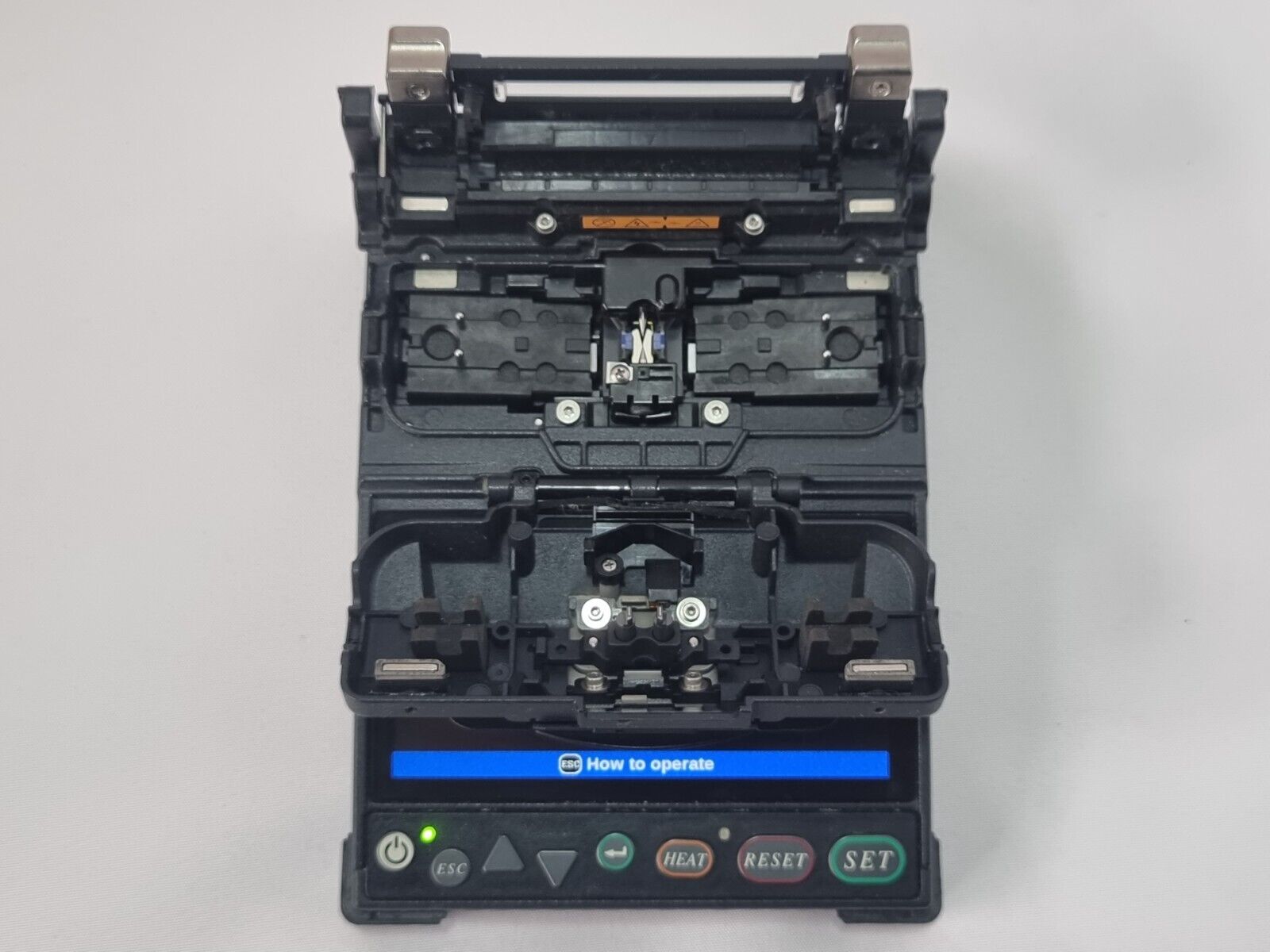

• Dual camera, fixed V-groove alignment technology
• Extended life electrodes (3,000 splices)
• Long-life battery — 100 splices/shrinks per charge

Applications:
• FTTX
• Remote locations
• Field installation and maintenance

Specifications:
Model: Fujikura 12S Fusion Splicer
Applicable Fibres: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter: 125 µm
Coating Diameter: 250 µm or 900 µm
Fibre Cleave Length: 5 mm to 13 mm
Typical Average Splice Loss: 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.08 dB (NZDS)
Splicing Time: Typical 15 sec (SM)
Arc Calibration Method: Automatic, real-time and by using results of previous splice in AUTO mode; manual arc calibration also available
Splicing Modes: 100 total splice modes
Splice Loss Estimate: Based on dual camera cladding alignment data
Storage of Splice Results: Last 2,000 splices
Fibre Display: 4.5 inch TFT colour LCD — X view, Y view, or simultaneous X and Y
Magnification: 100X for X/Y view
Viewing Method: 2-axis CMOS camera
Operating Conditions: Altitude 0–3,660 m; Temperature 10°C to 50°C; Humidity 0–95% RH non-condensing
Mechanical Proof Test: 1.96 N
Tube Heater: 30 heating modes
Tube Heating Time: Typical 30 sec with FP-03 (60 mm) sleeve
Protection Sleeve Length: 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery: Typical 100 cycles with BTR-10
Electrode Life: 3,000 splices
Power Supply: Auto-select 100–240 V AC adapter; 14.8 V DC with installed battery
Terminals: USB 2.0
Wind Protection: Maximum wind velocity 15 m/s (34 mph)
Dimensions: 121 x 162 x 57 mm / 4.76 x 6.38 x 2.24 inches
Weight: 0.776 kg (1.71 lbs) with battery

For the manufacturer datasheet, please click here
