Fujikura 12S SM MM Fiber Fusion Splicer w/ CT-06 Cleaver & Fiber Holders FSM 12S
Model: 12S
Condition: Used
In stock: 7
SKU: ARC <3000
- Fiber Optics
- Fusion Splicers
Choose options
Condition: Used
ARC Count Less than 3000.
Note the pictures are of one of the units, actual product may differ slightly as we have multiple units.
You should expect a level of wear and tear in line with the age and usage of these splicers, if you wish to receive one with less wear and tear then please purchase the other listings we have where the ARC counts are less than 1000.
Please message us if you require a large quantity of splicers, discounts will apply.
Included in the sale:

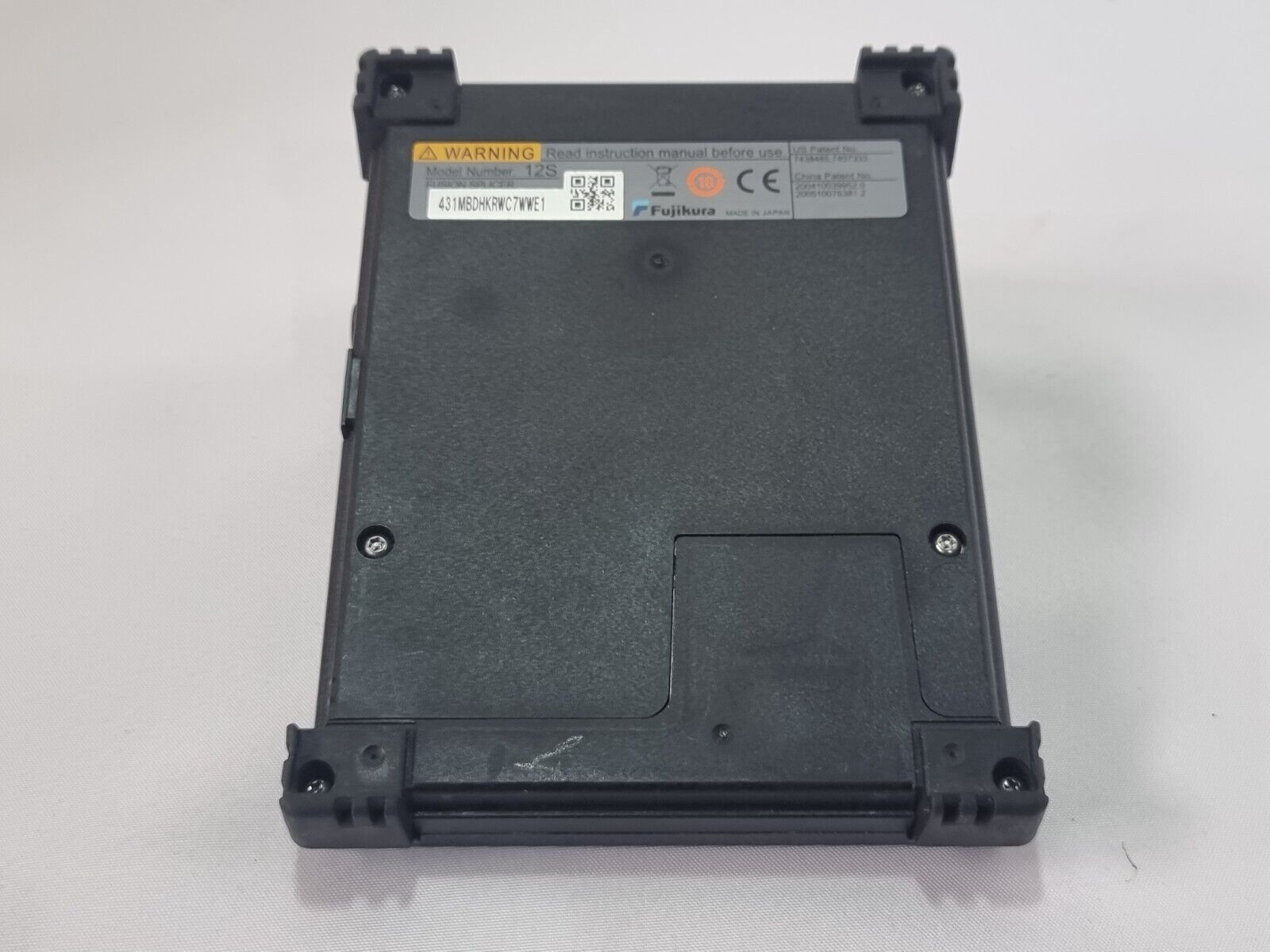

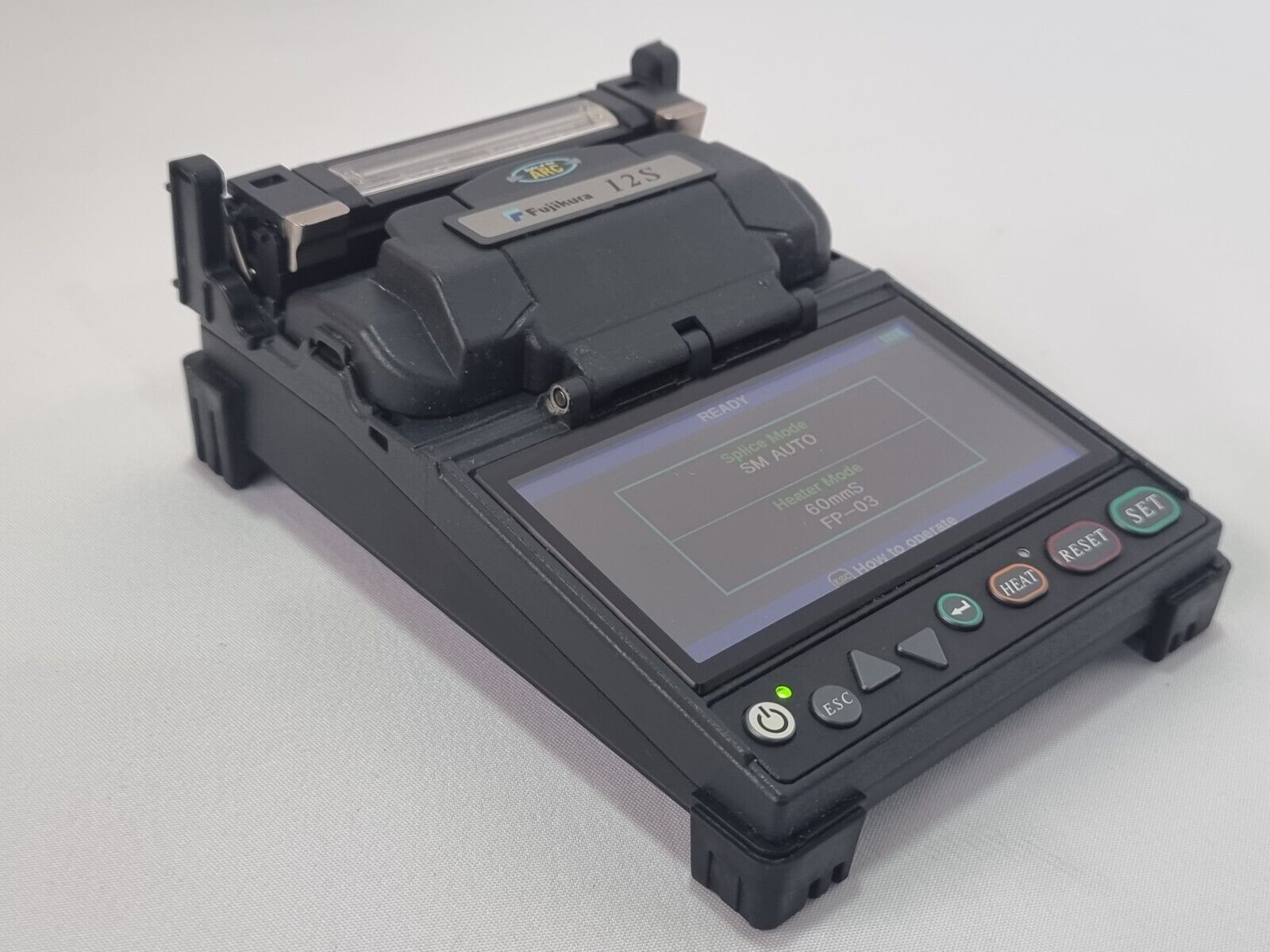

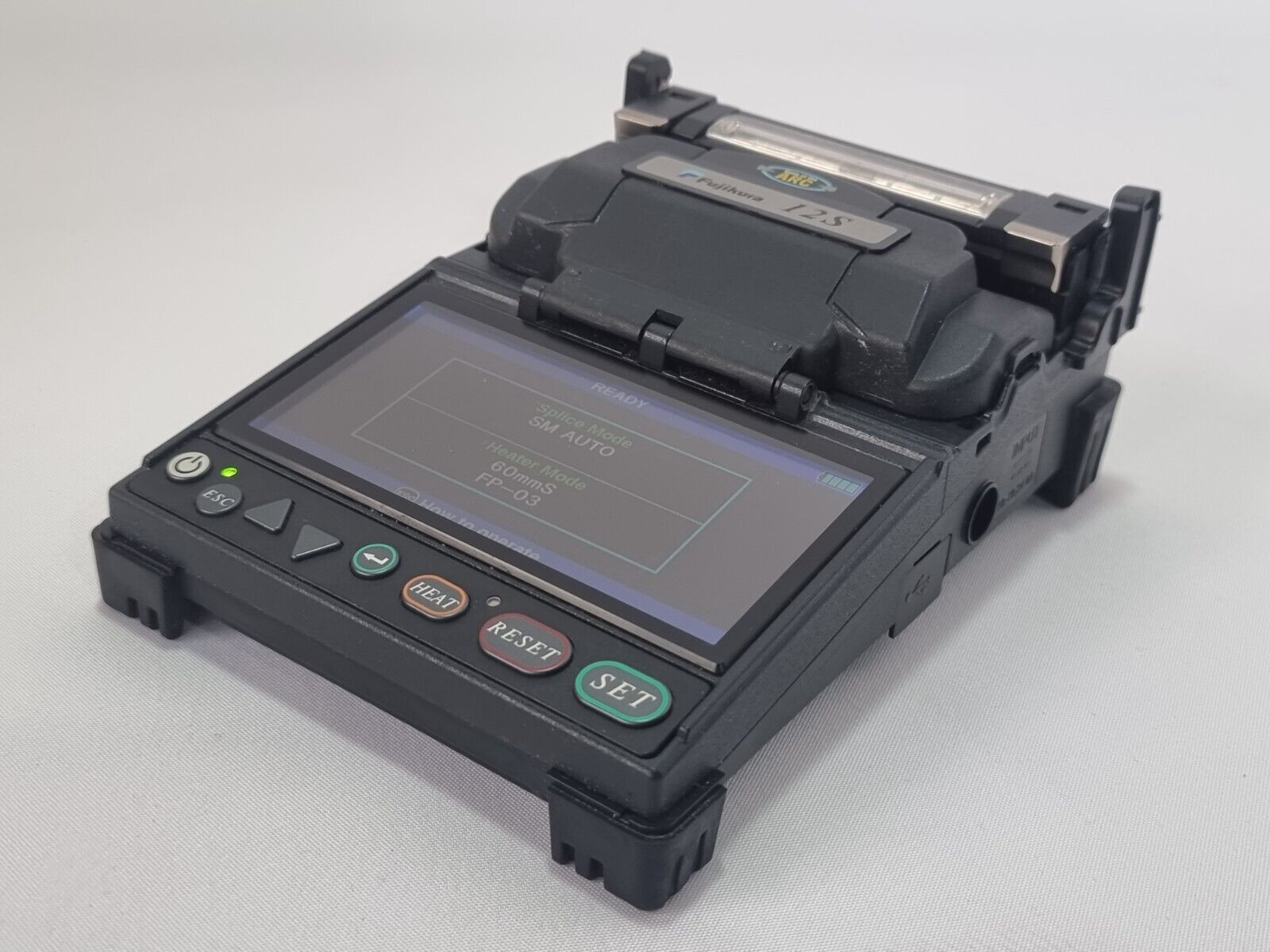

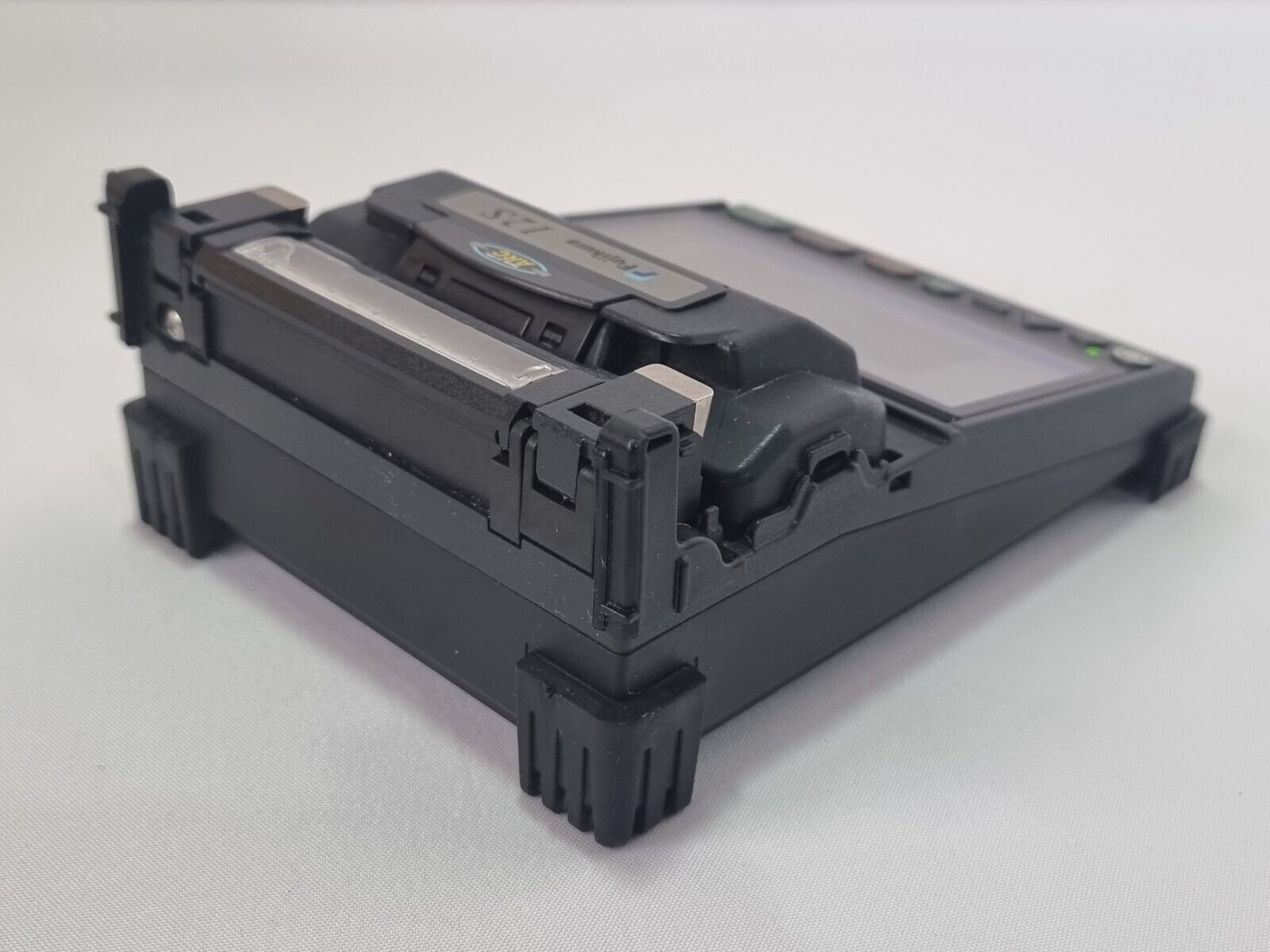

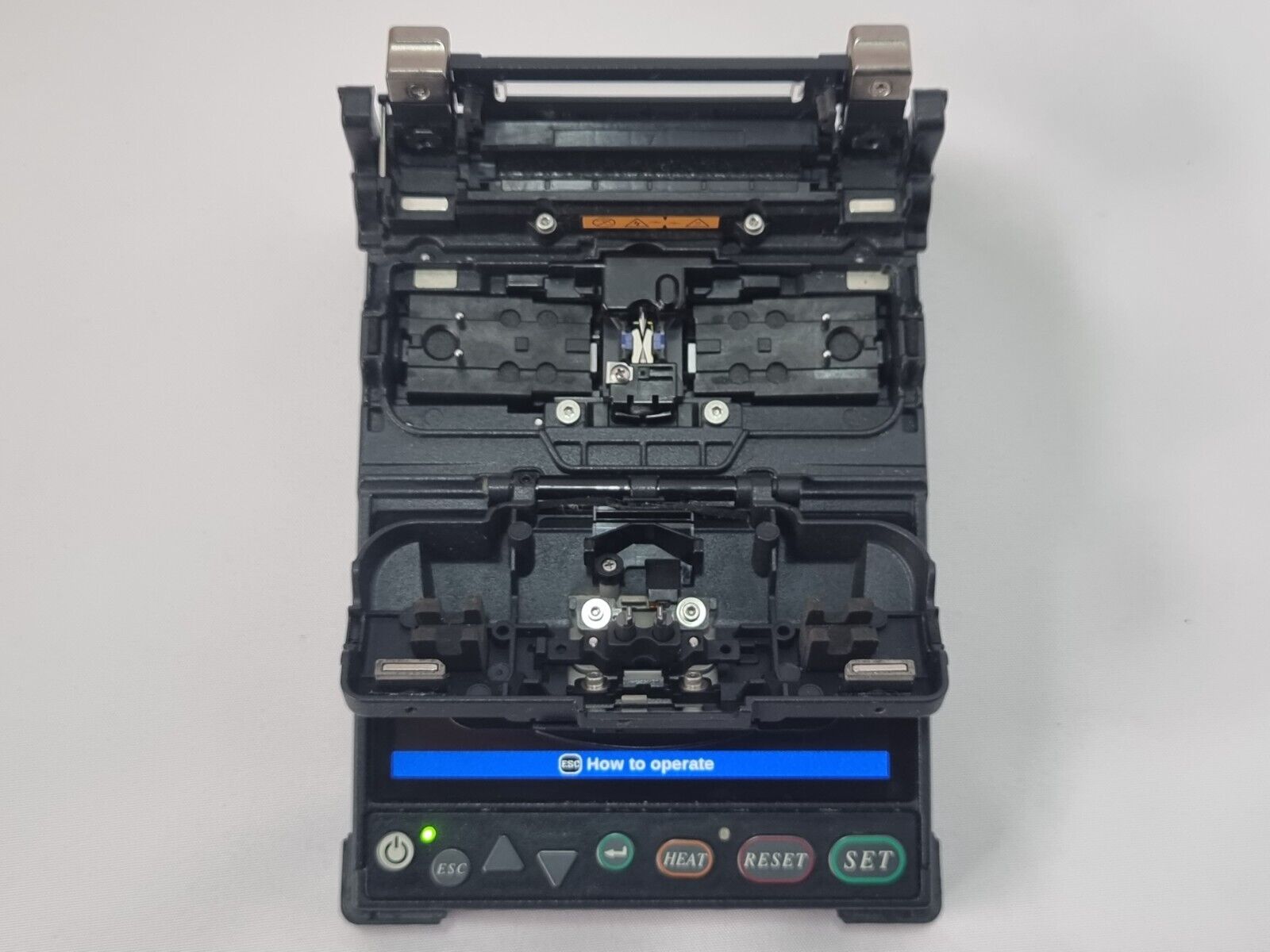

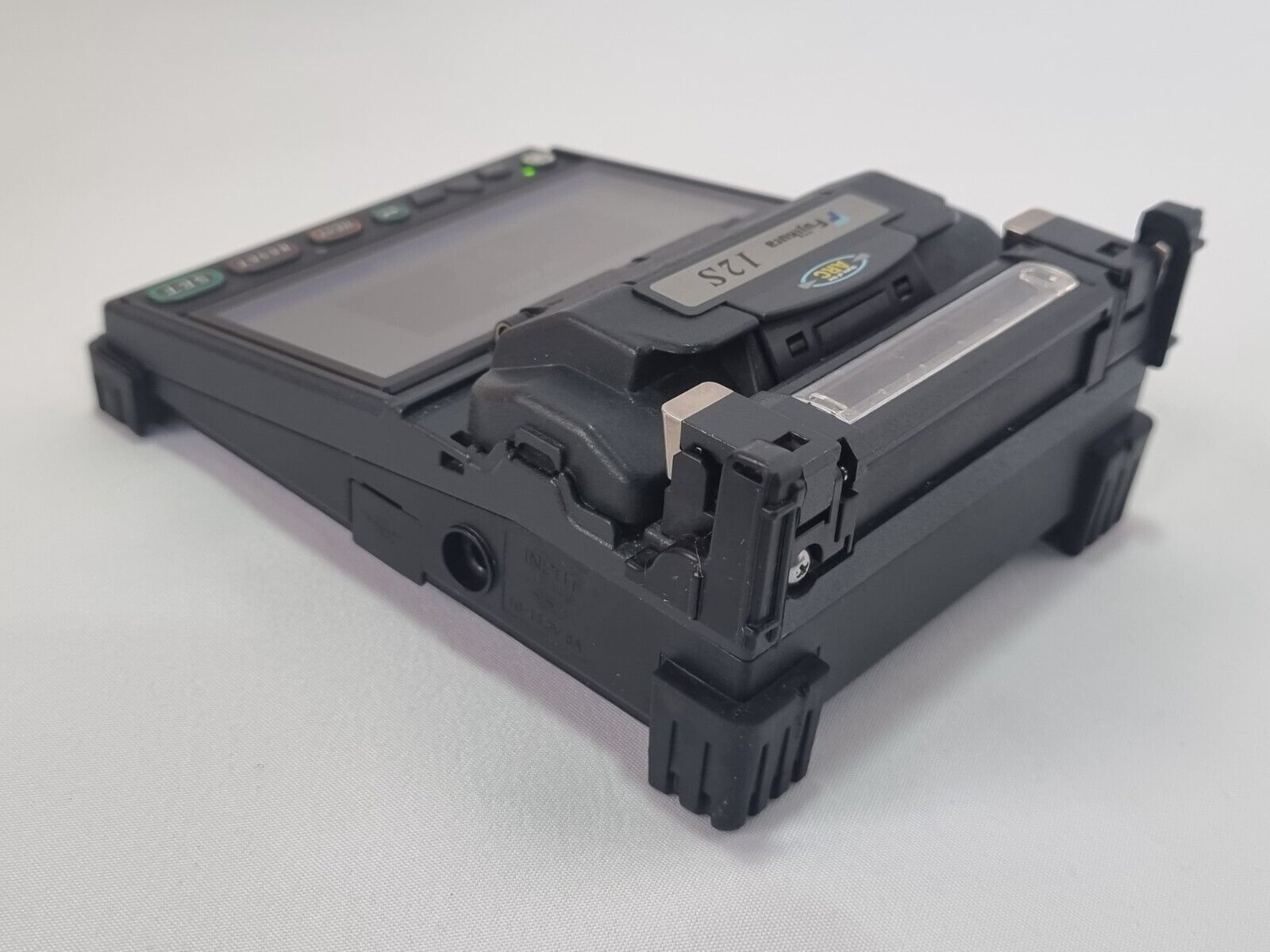

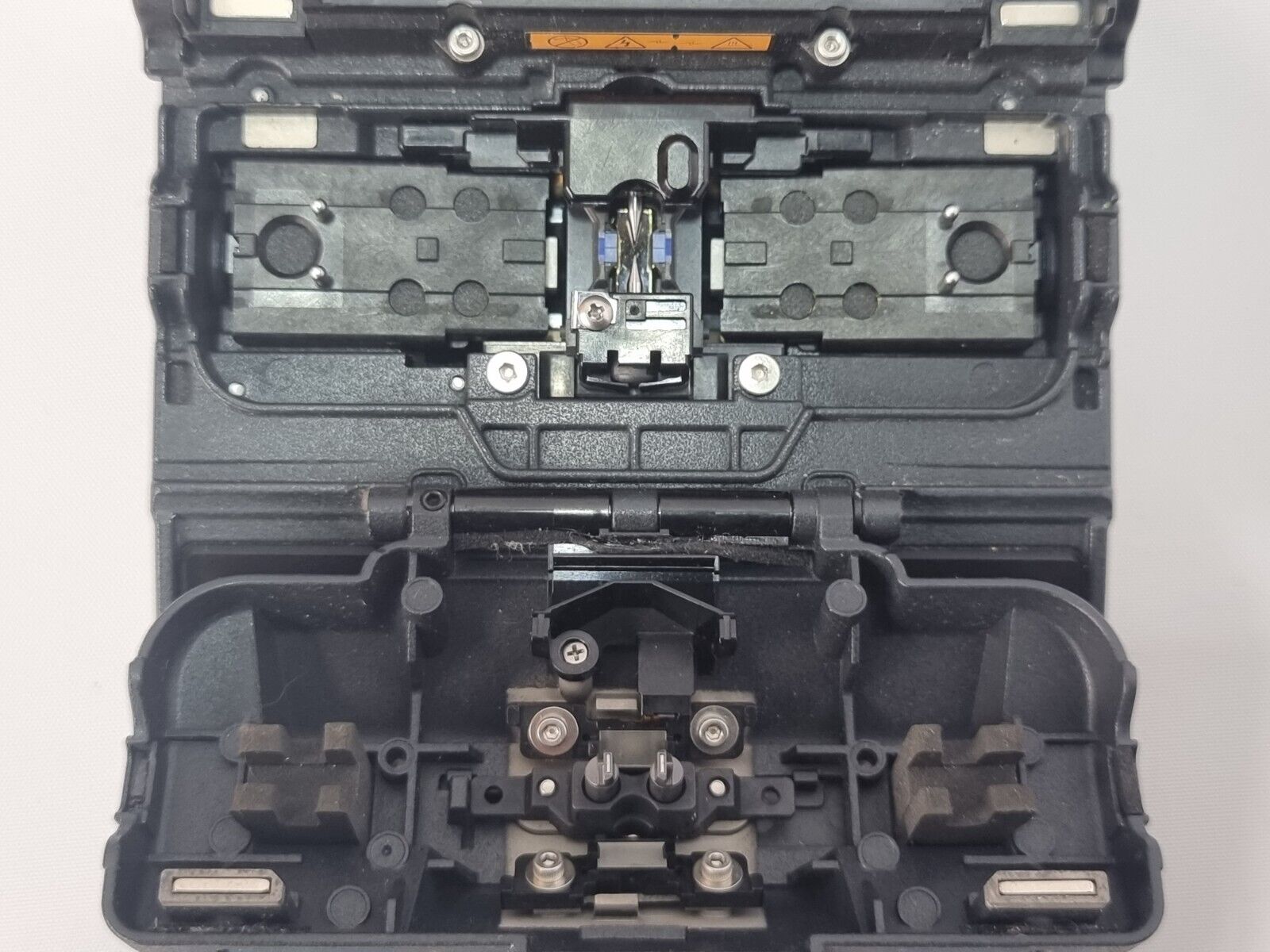

- Fujikura 12S SM MM Arc Fiber Fusion Splicer (ARC count will vary but will not be above 3000)

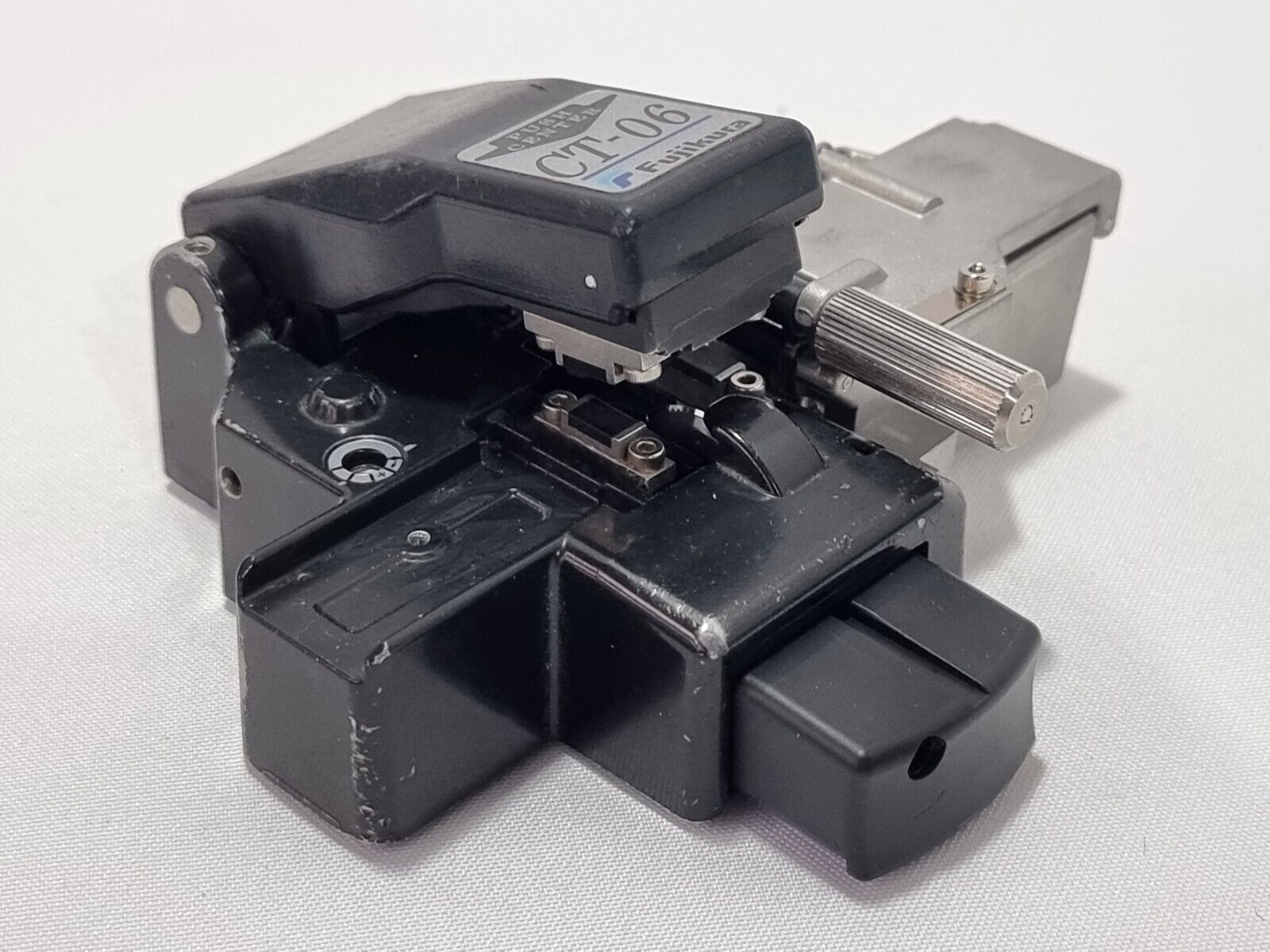

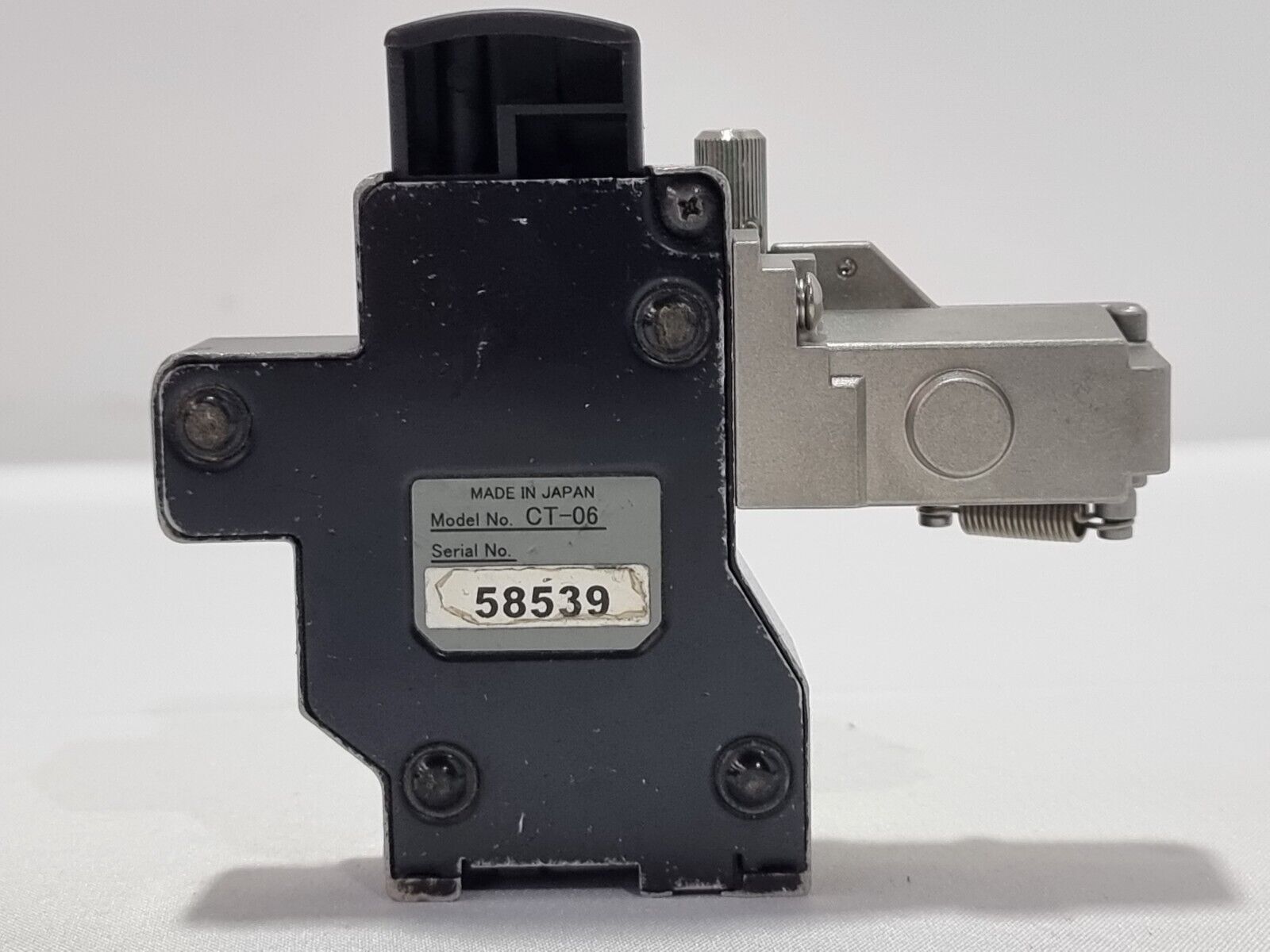

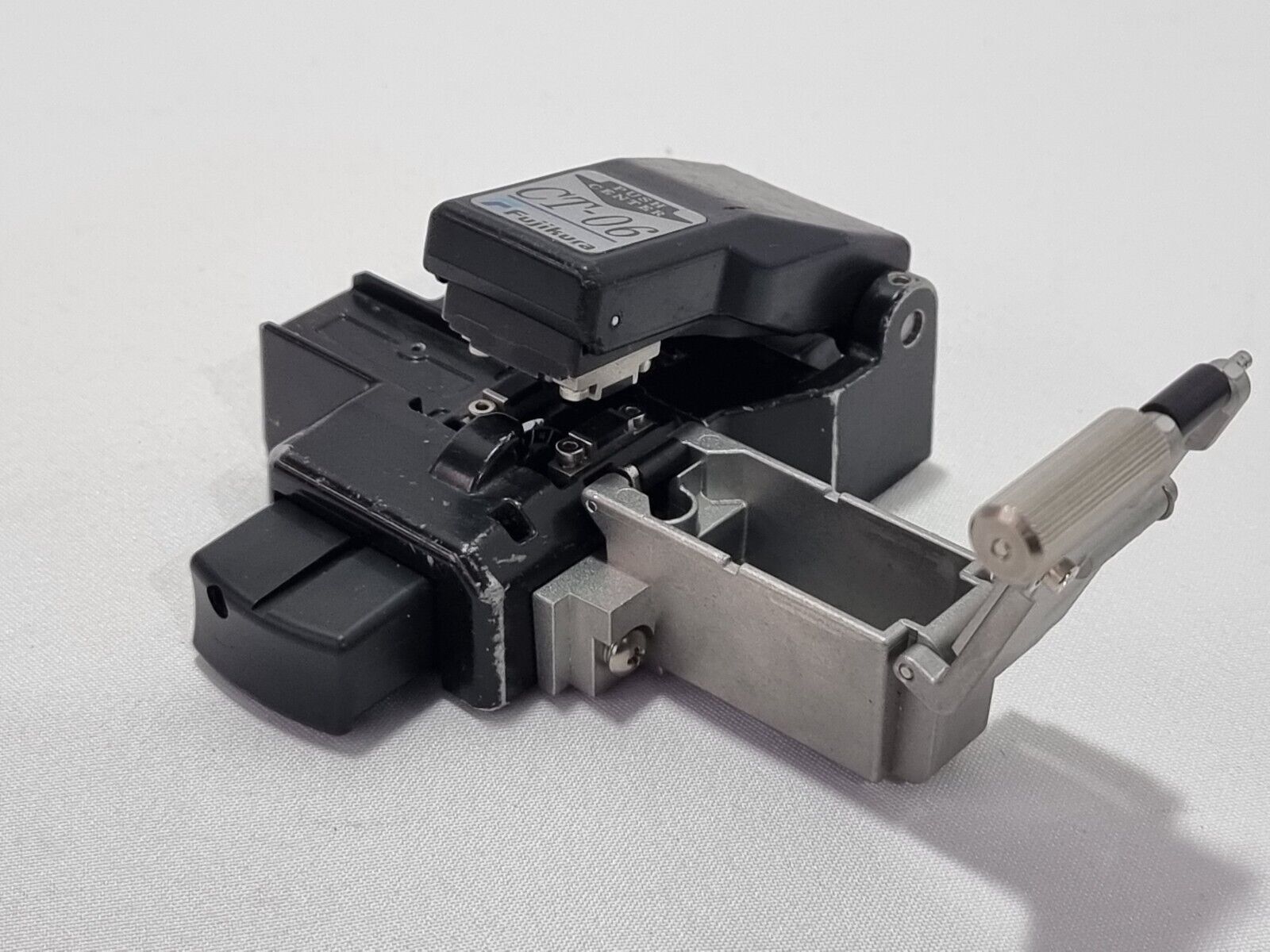

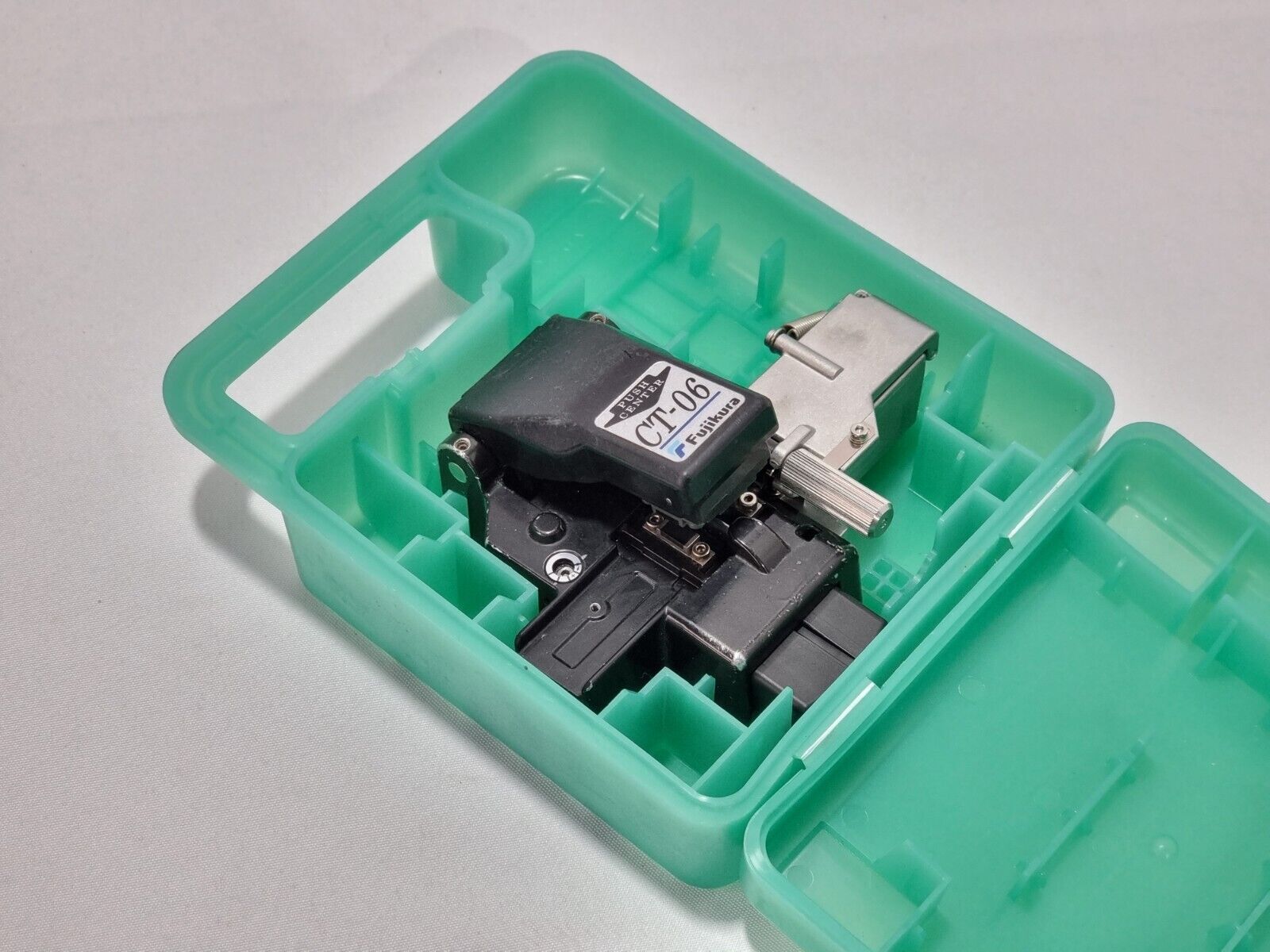

- Fujikura CT-06 High Precision Fiber Cleaver w/ Case

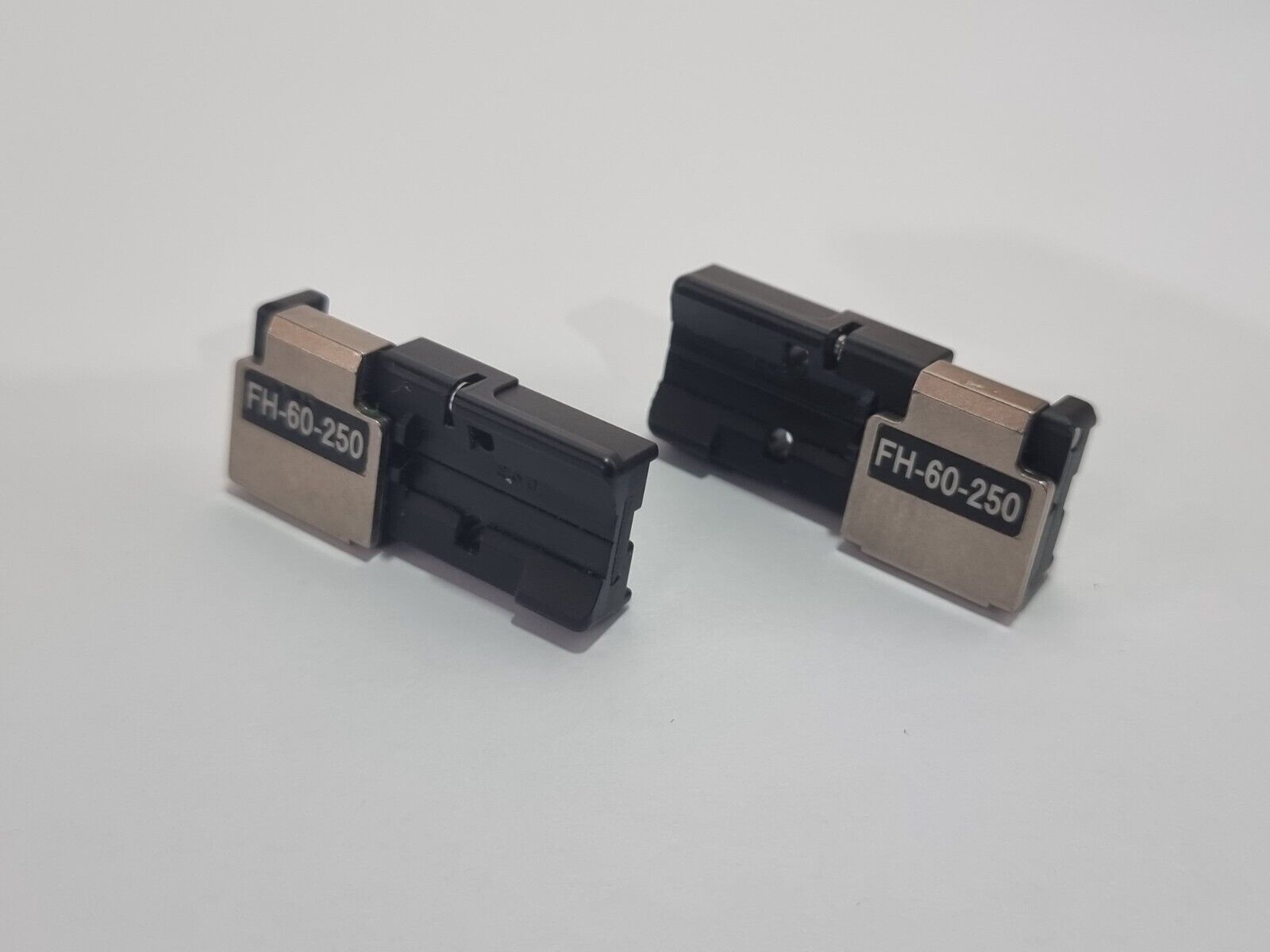

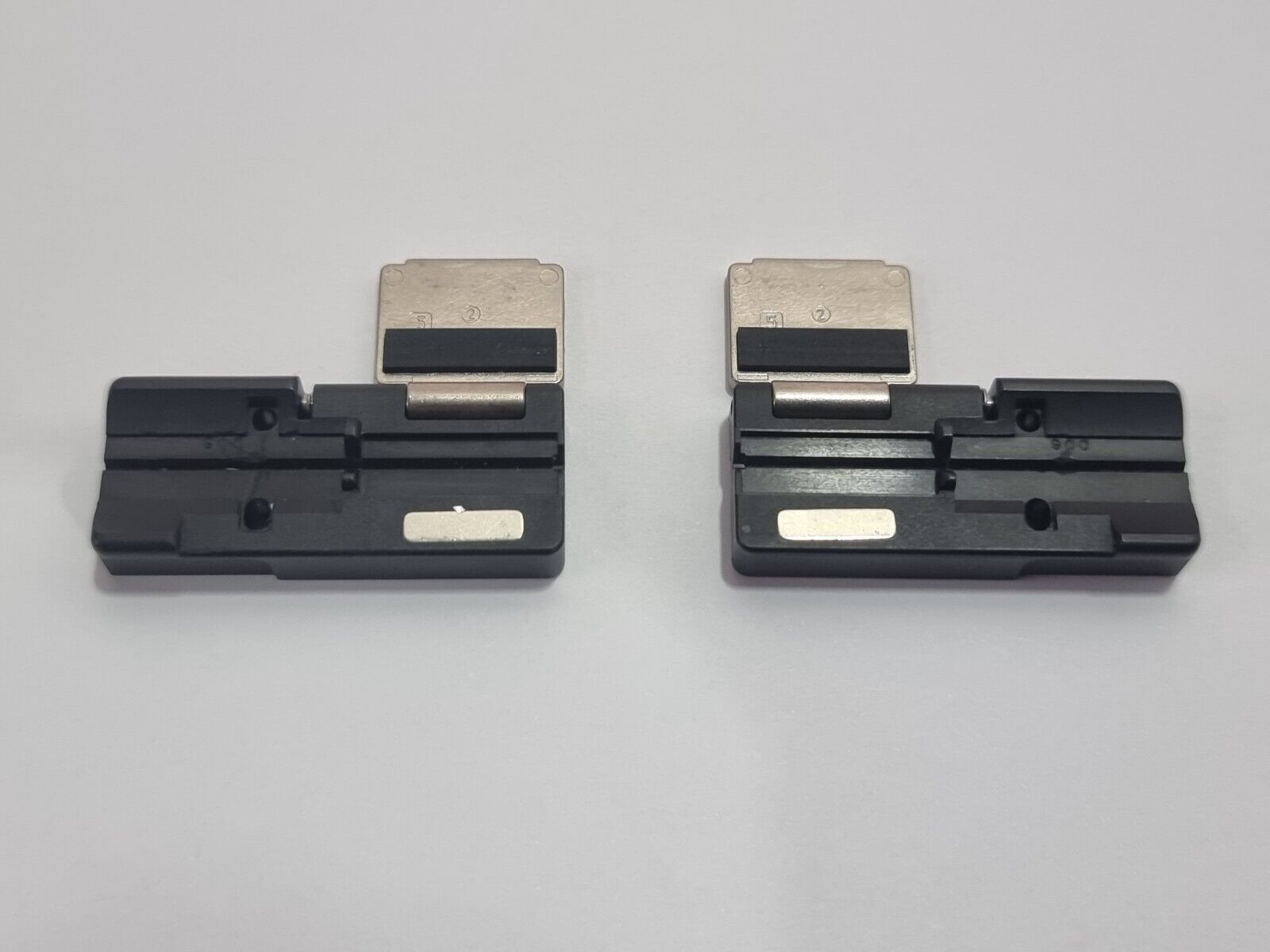

- FH-60-250 Fiber Holder Set

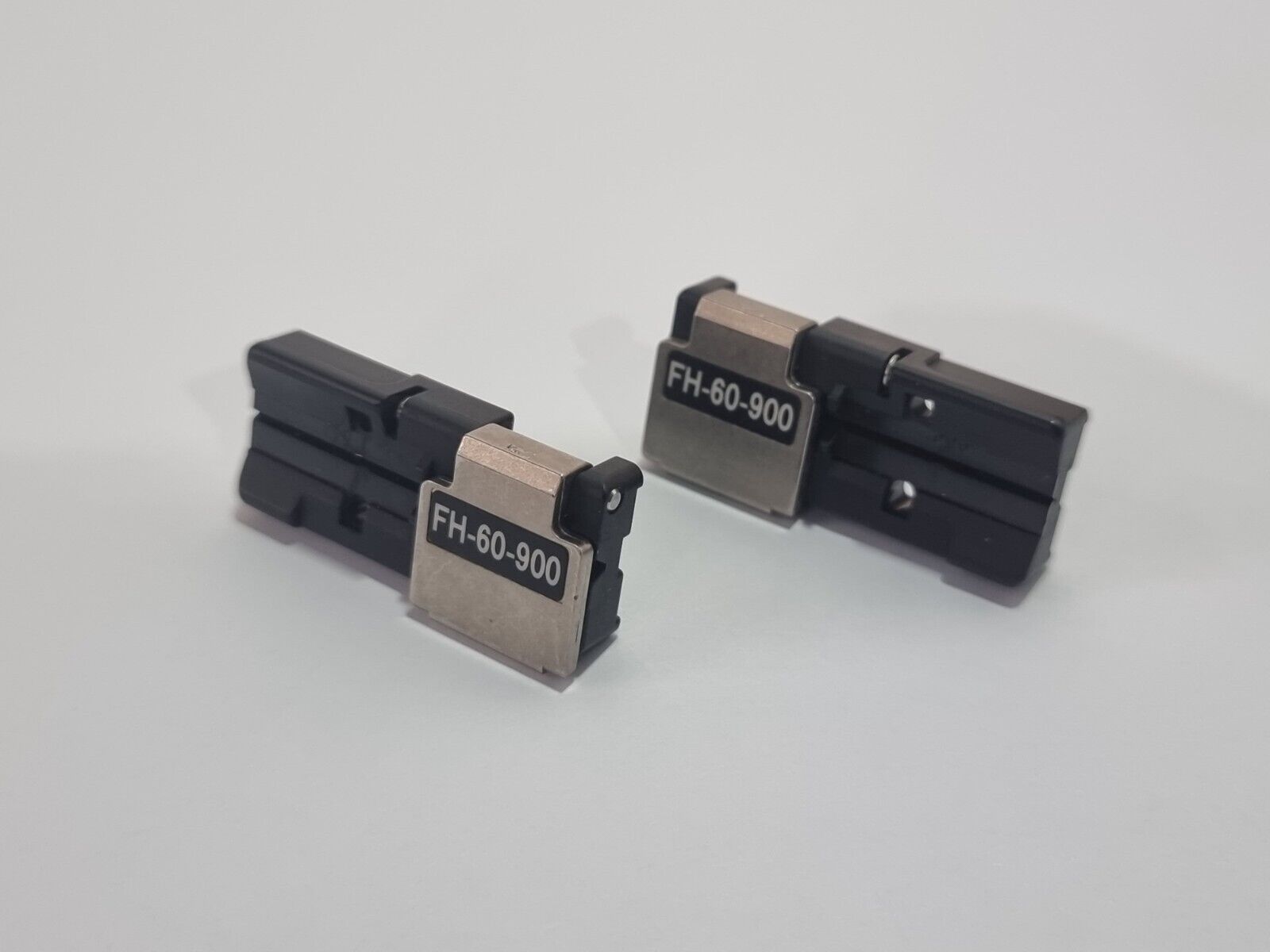

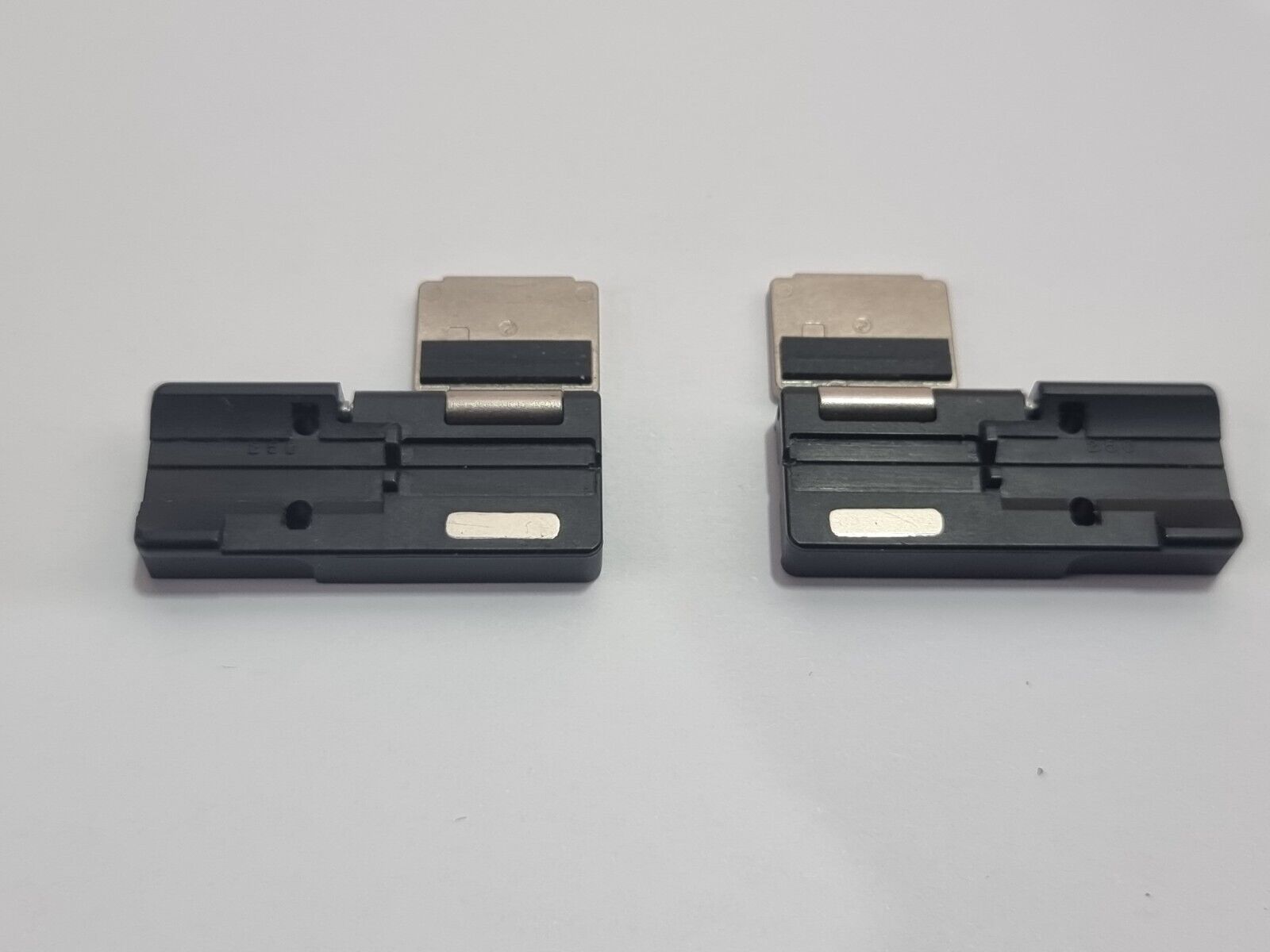

- FH-60-900 Fiber Holder Set
- AC Adapter/Charger

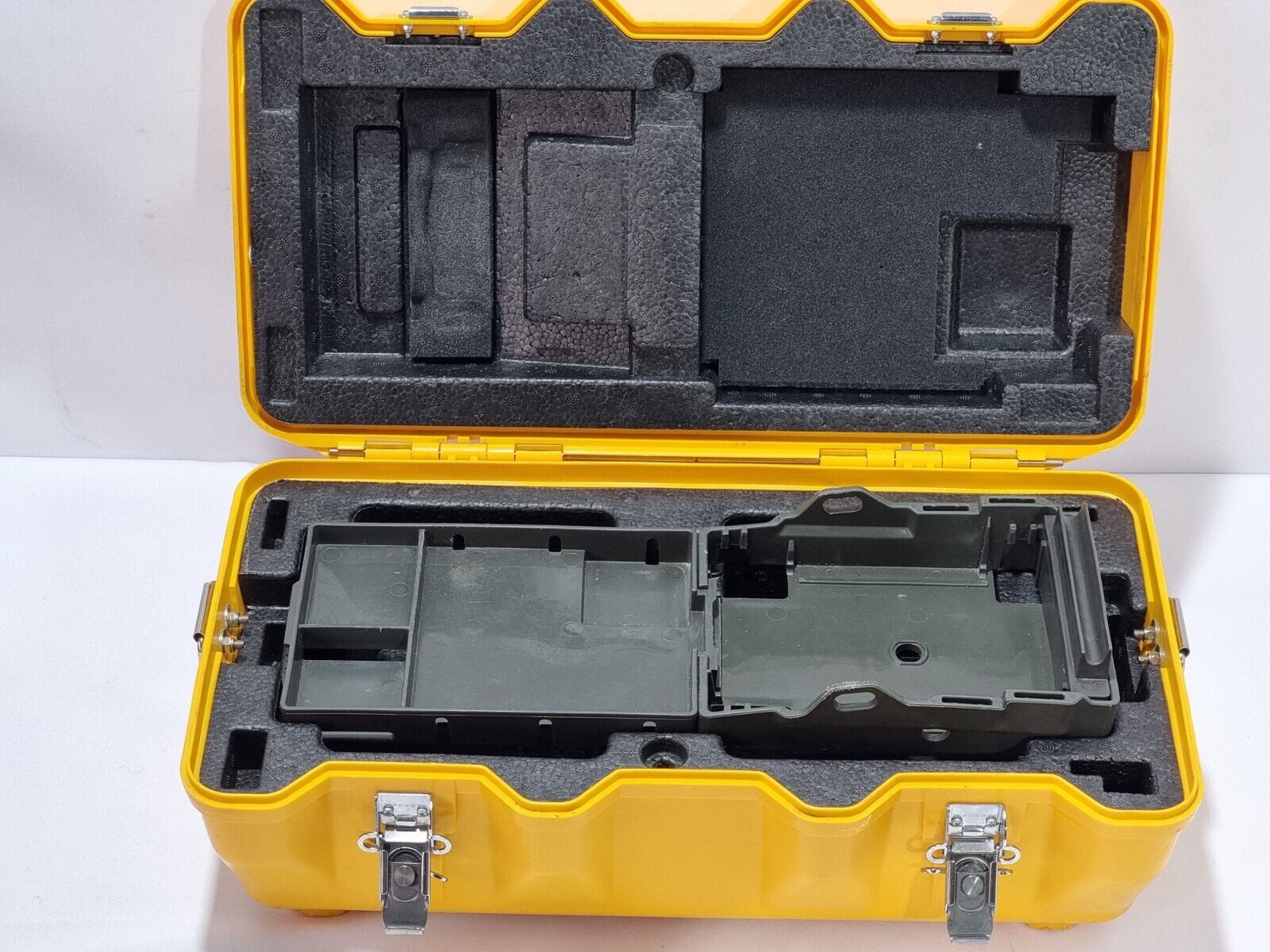

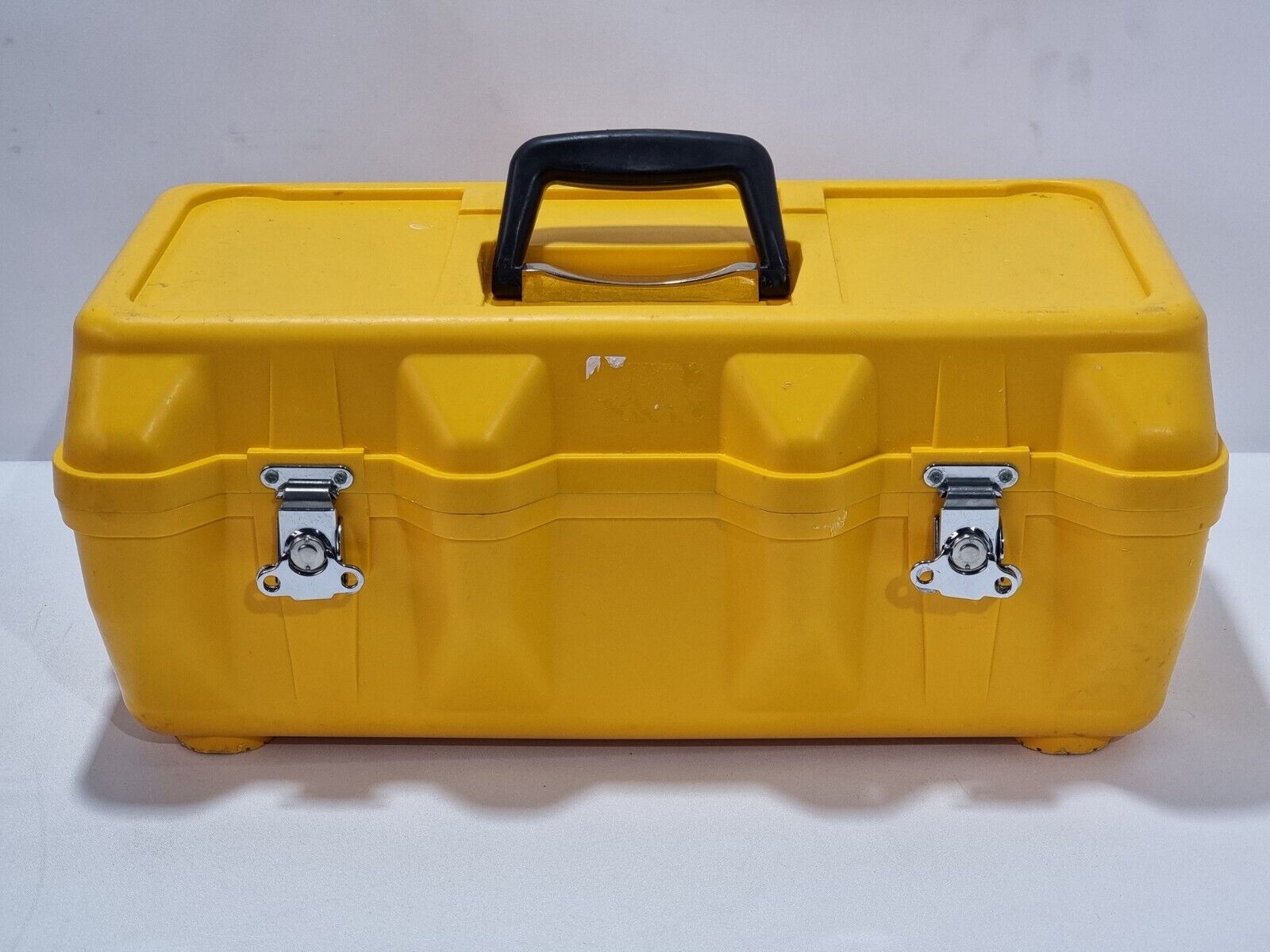

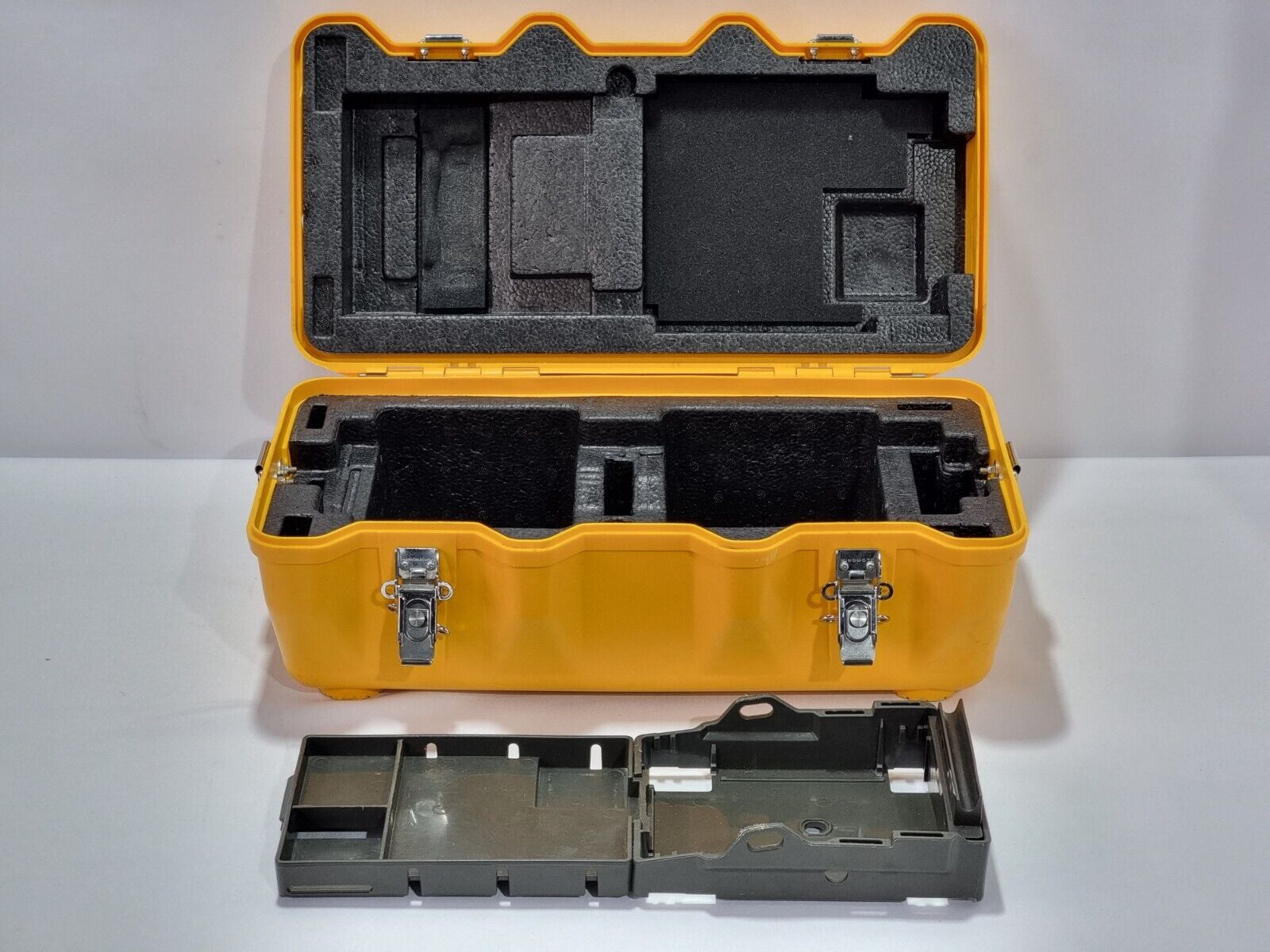

- Hard Carrying Case w/ Strap
- Work Tray
- Fiber Stripper
- Screwdriver
- 12S Quick Reference Guide
From the manufacturer:
Fujikura 12S SM MM Fixed V-Groove Fiber Fusion Splicer
Fujikura 12S SM MM Fiber Fusion Splicer
The Fujikura 12S is the world?s smallest, lightest and most portable fusion splicer available today. Despite its incredibly small size, this ruggedized, full-featured unit offers unmatched versatility for splicing in the most challenging environments. The innovative transit case and work tray provide multiple options for the best utilization of available work space while the long life battery provides power for up to 100 splice cycles which include application of the splice protection sleeve.
The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" monitor provides a crystal clear image, even in the brightest sunlight, for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimizing downtime for replacement and stabilization. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available. The fully ruggedized chassis provides for shock, dust and moisture protection while the two camera observation system provides for accurate fiber alignment and loss estimation calculations. The Fujikura 12S is also fully compatible with the FuseConnect line of fusion installable connectors.
Backed by the best service team in the industry, the Fujikura 12S is the ideal splicer to use when portability, ruggedness, versatility and reliability are needed for your splicing application.
Features:
World?s smallest splicer at 4.76"W x 6.38"D x 2.24"H
Fully ruggedized for shock, moisture and dust resistance
Transit case converts to easy to use workstation
Dual camera, fixed v-groove alignment technology
Extended life electrodes
Long life battery (100 splices/shrinks per charge)
Applications:
FTTX
Remote locations
Specifications:
Model Fujikura 12S Fusion Splicer
Applicable Fibers Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter 125 µm
Coating Diameter 250 µm or 900 µm
Fiber Cleave Length 5 mm to 13 mm
Typical Average Splice Loss 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS) and 0.08 dB (NZDS)
Splicing Time Typical 15 sec with SM
Arc Calibration Method Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes Total 100 splice modes
Splice Loss Estimate Based on dual camera cladding alignment data
Storage of Splice Result Last 2,000 splices
Fiber Display 4.5 inch TFT color LCD with X or Y view or both X and Y view simultaneously
Magnification 100X magnification for X/Y view
Viewing Method 2 axis CMOS camera
Operating Condition Altitude: 0 to 3,660 m above sea level, 10° to 50° C, Humidity: 0 to 95% RH, non-dew
Mechanical Proof Test 1.96 N
Tube Heater 30 heating modes
Tube Heating Time Typical 30 sec with FP-03 (60 mm) sleeve
Protection Sleeve Length 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery Typical 100 cycles with BTR-10
Electrode Life 3,000 splices
Power supply Auto select from 100 V to 240 V with AC adapter, 14.8 V DC with installed battery
Terminals USB 2.0
Wind Protection Maximum wind velocity of 15 m/s. (34 mph)
Dimensions 121 x 162 x 57 (mm) / 4.76 x 6.38 x 2.24 (inches)
Weight.776 kg (1.71 lbs) with battery
For the manufacturer datasheet, please click here
