Condition: Used — ARC count will be above 5000. These are fully tested and working units. Due to their age and usage, some wear and cosmetic imperfections should be expected; pricing is reflective of this. Multiple units are available — if you require a larger quantity, please get in touch as discounts may apply.

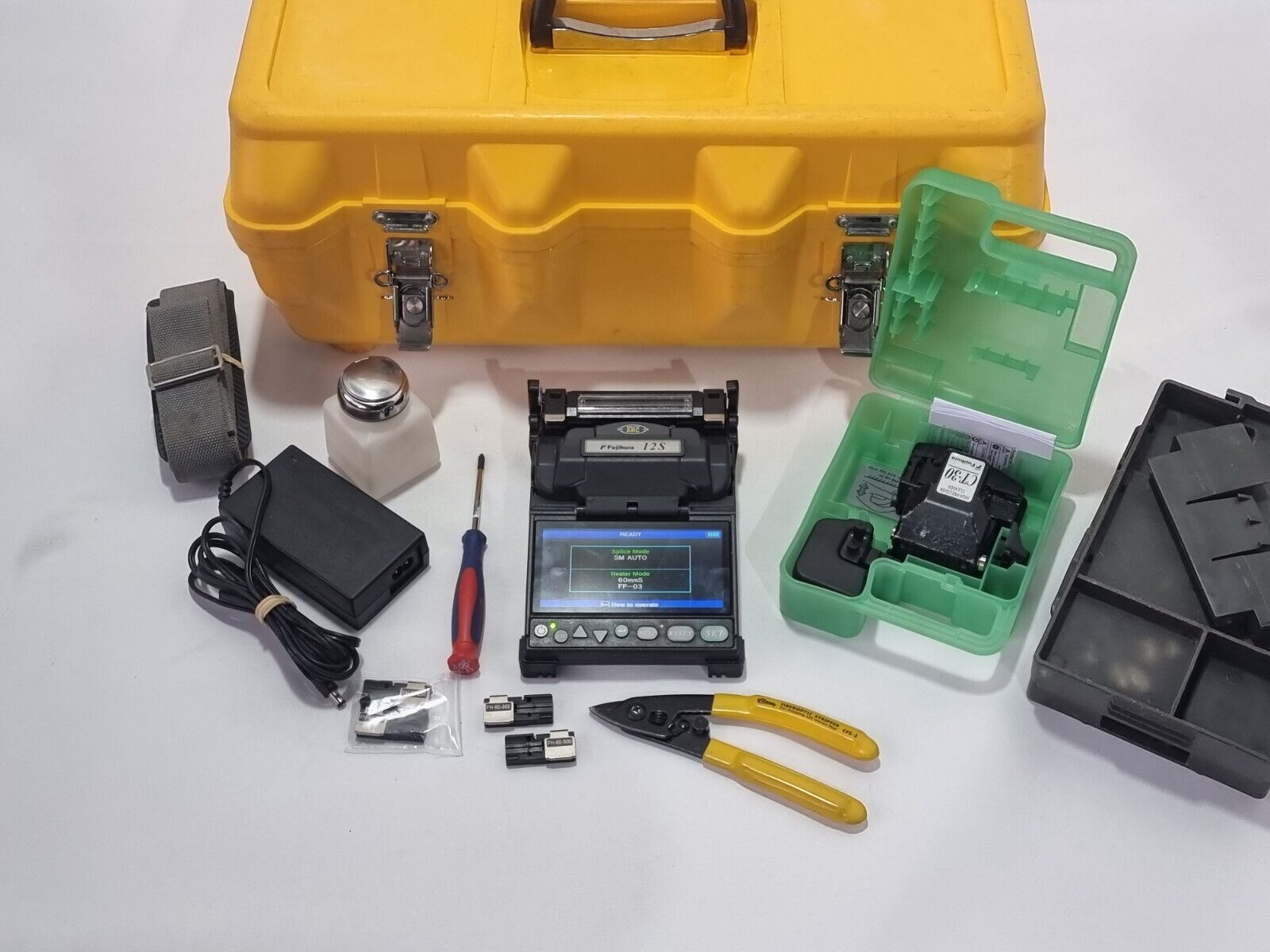

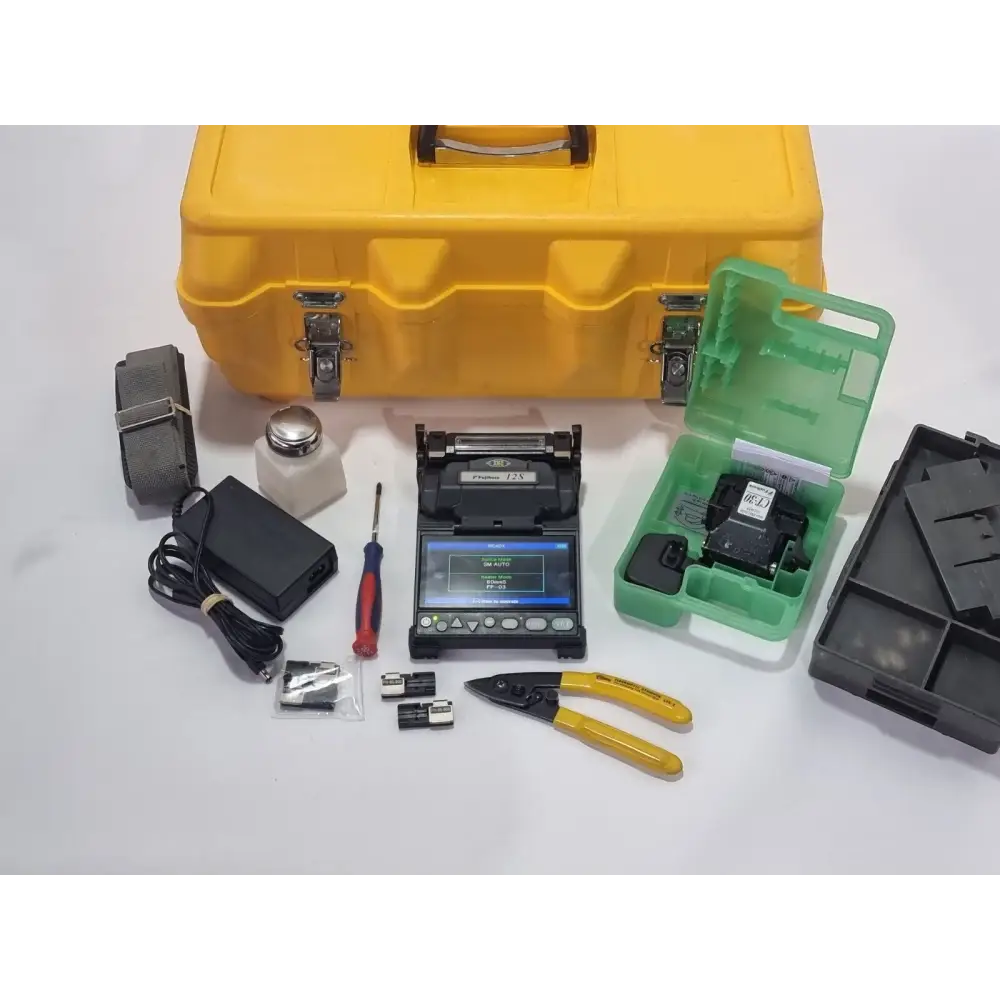

Included in the sale:

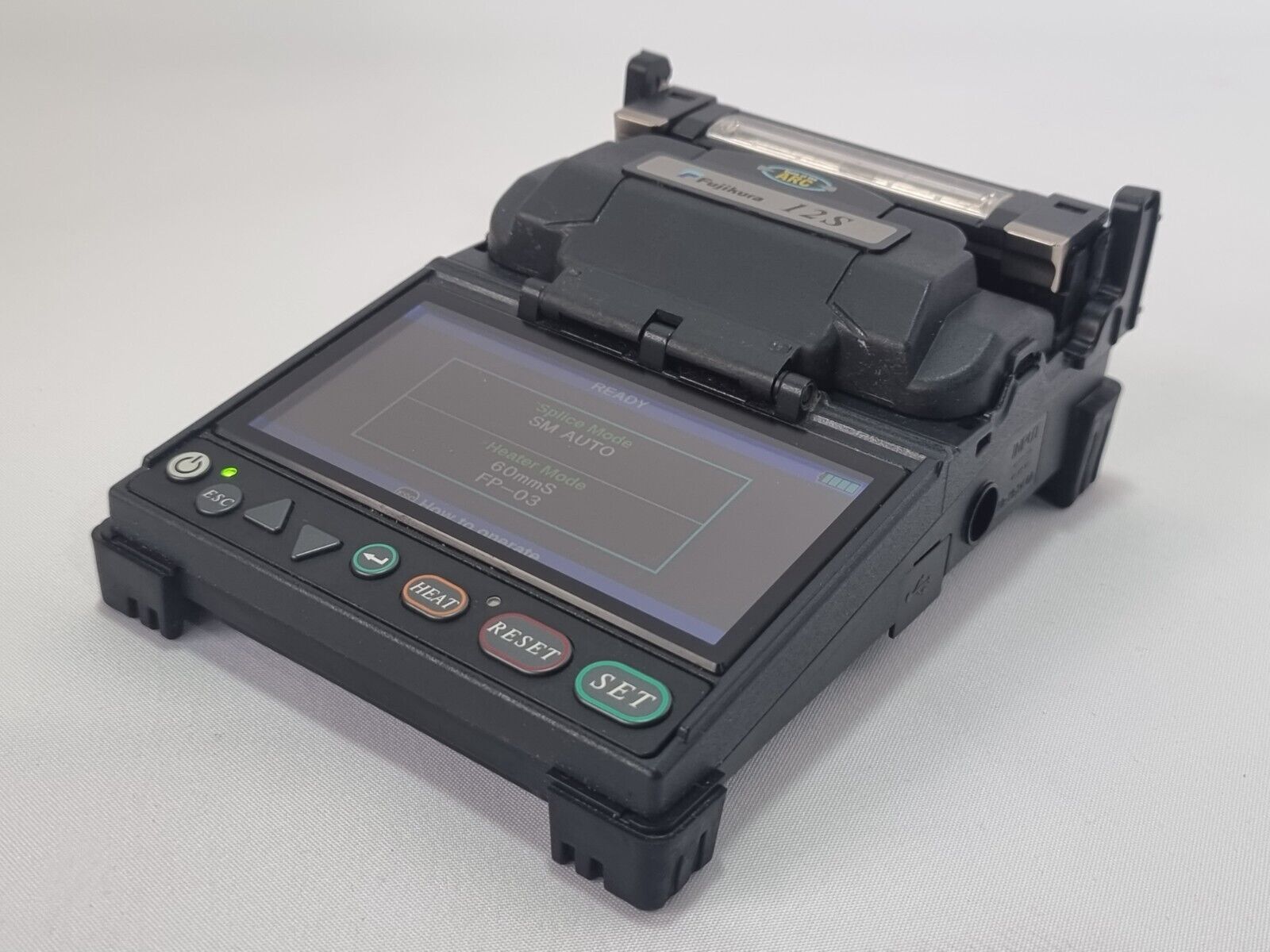

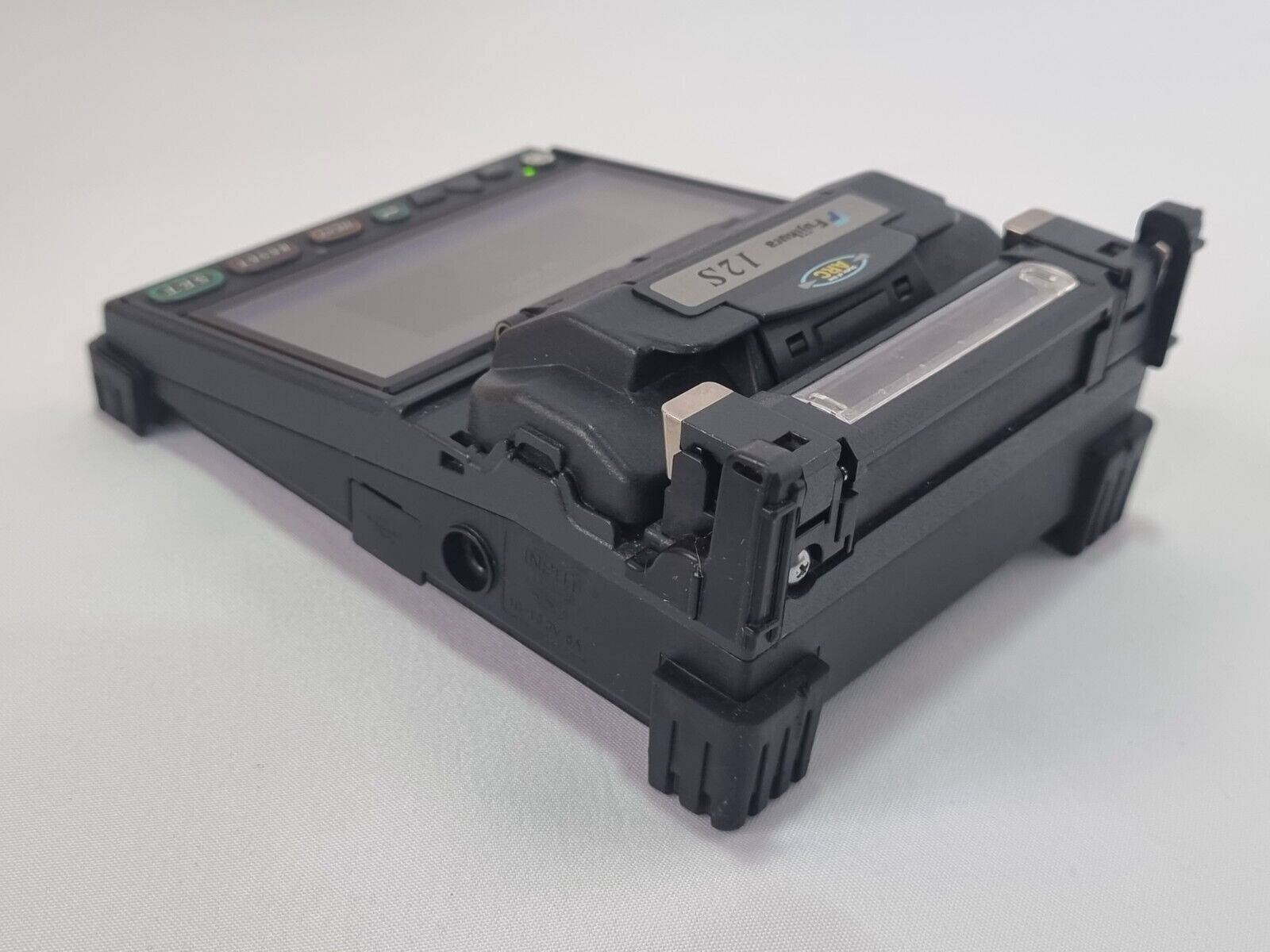

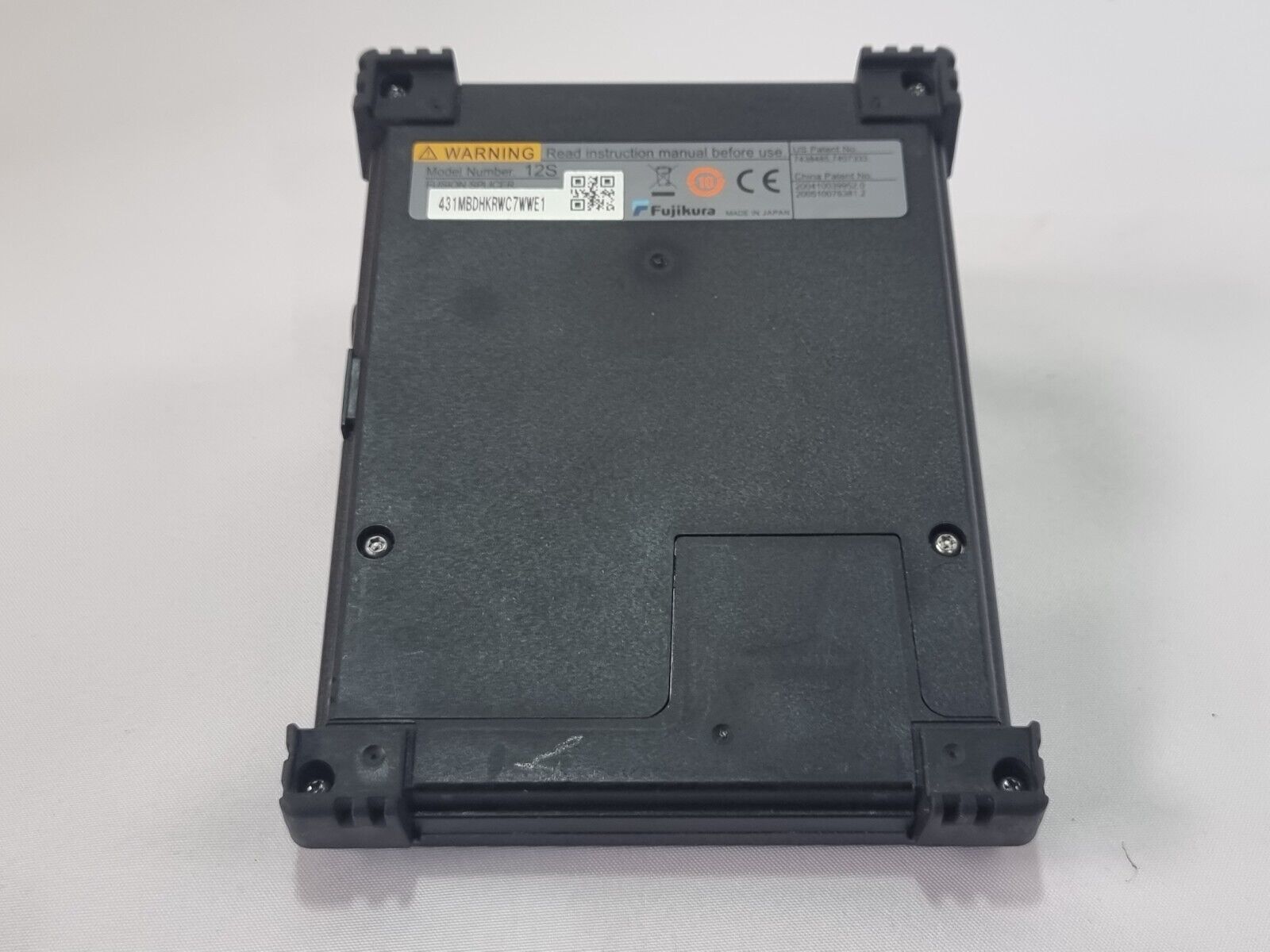

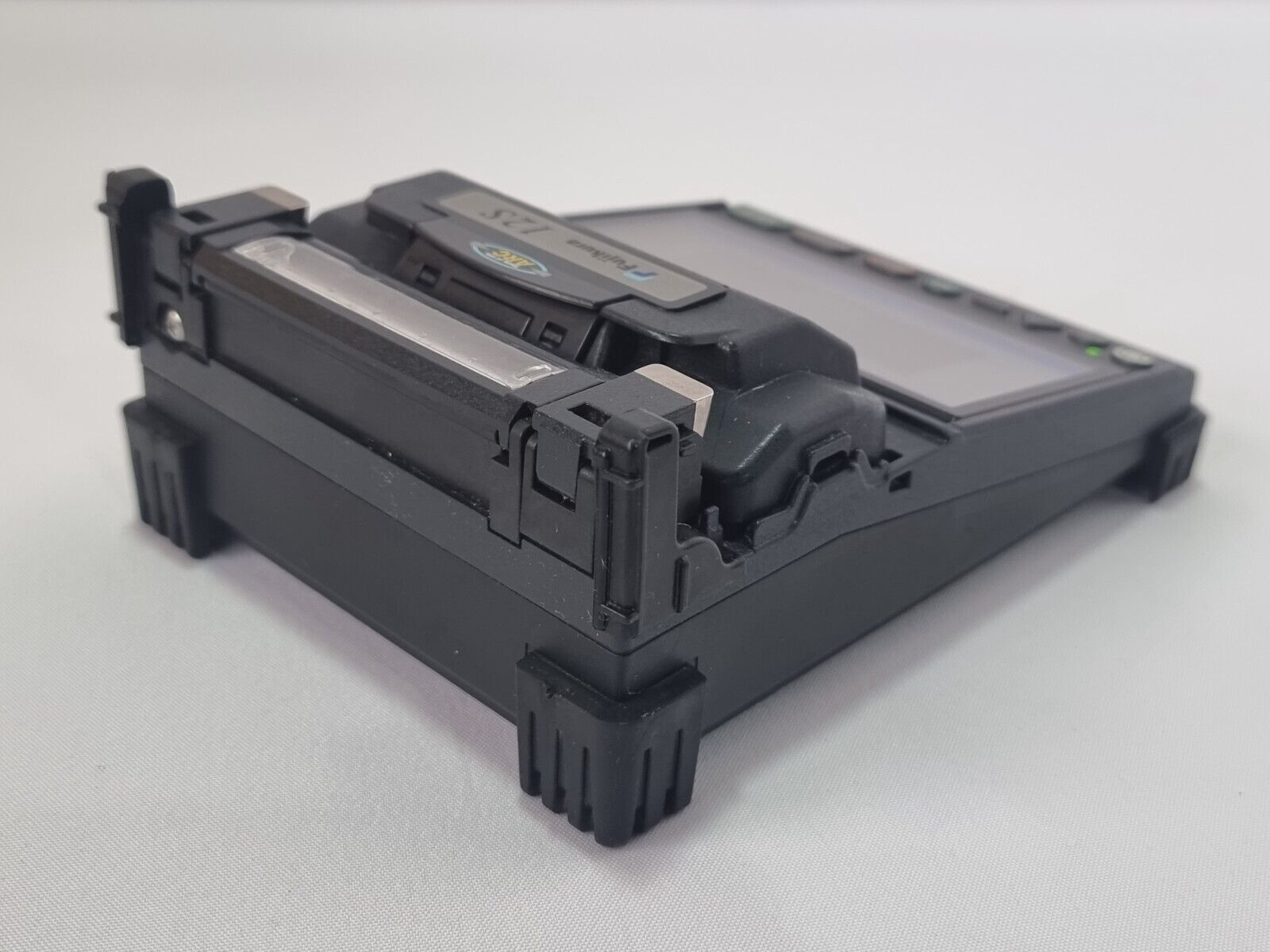

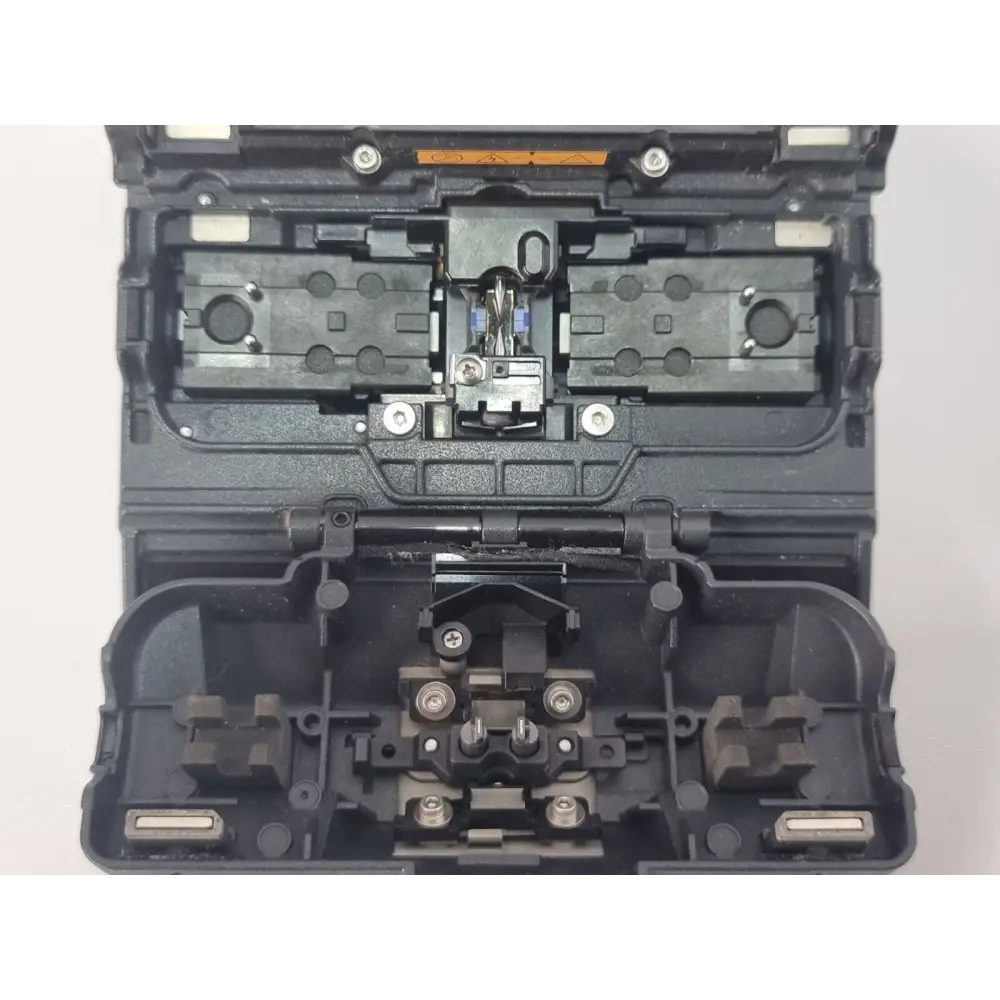

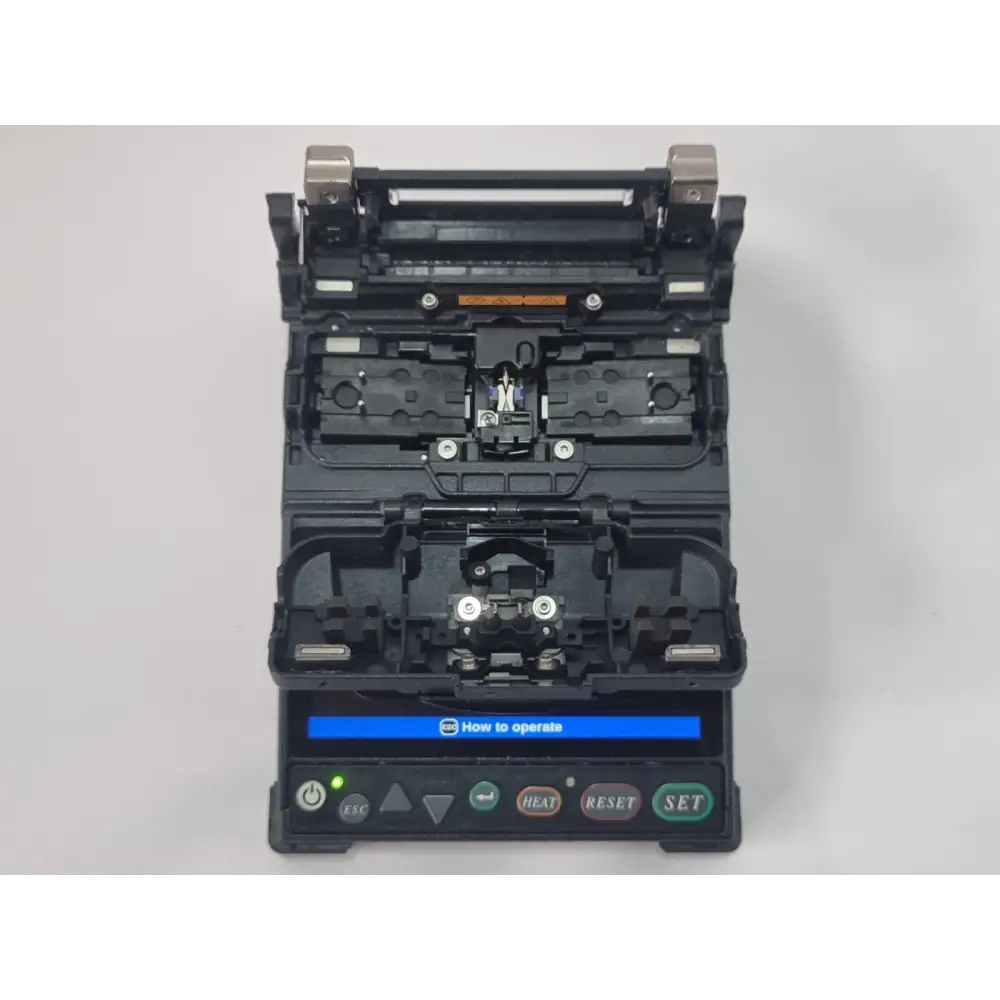

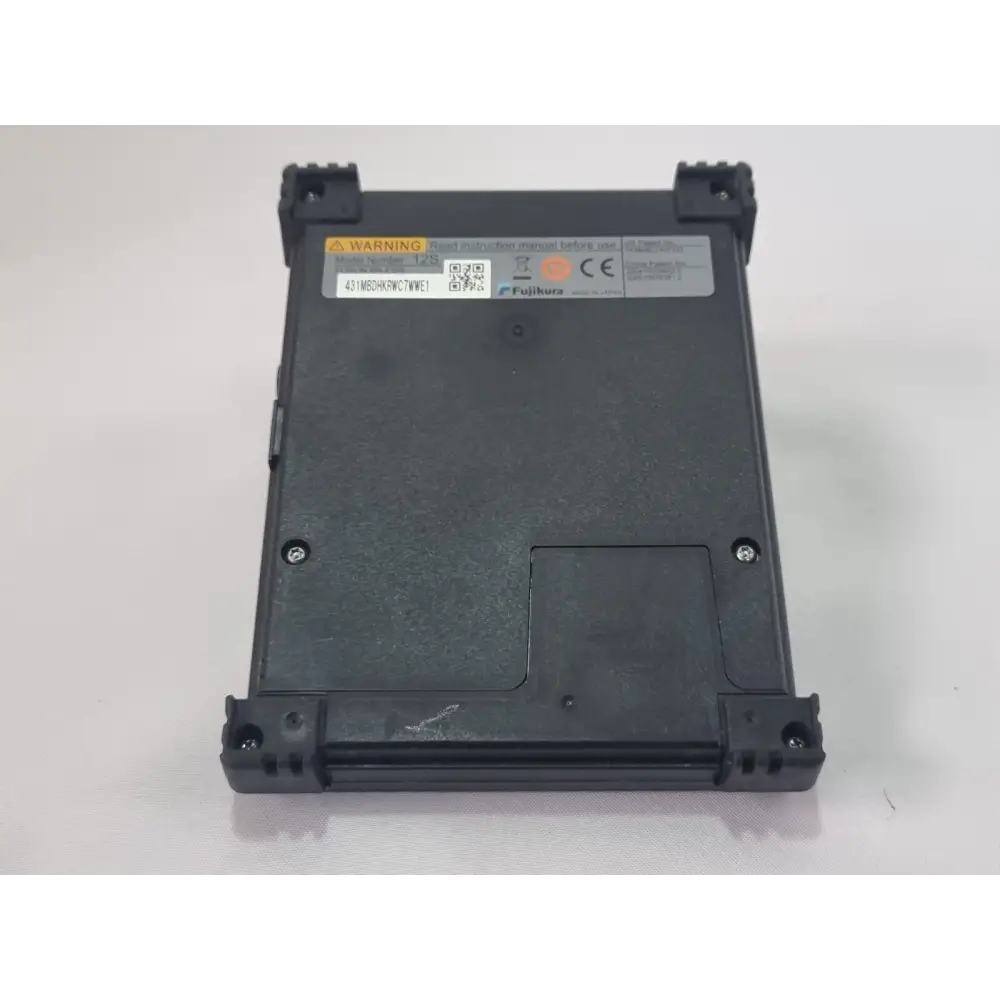

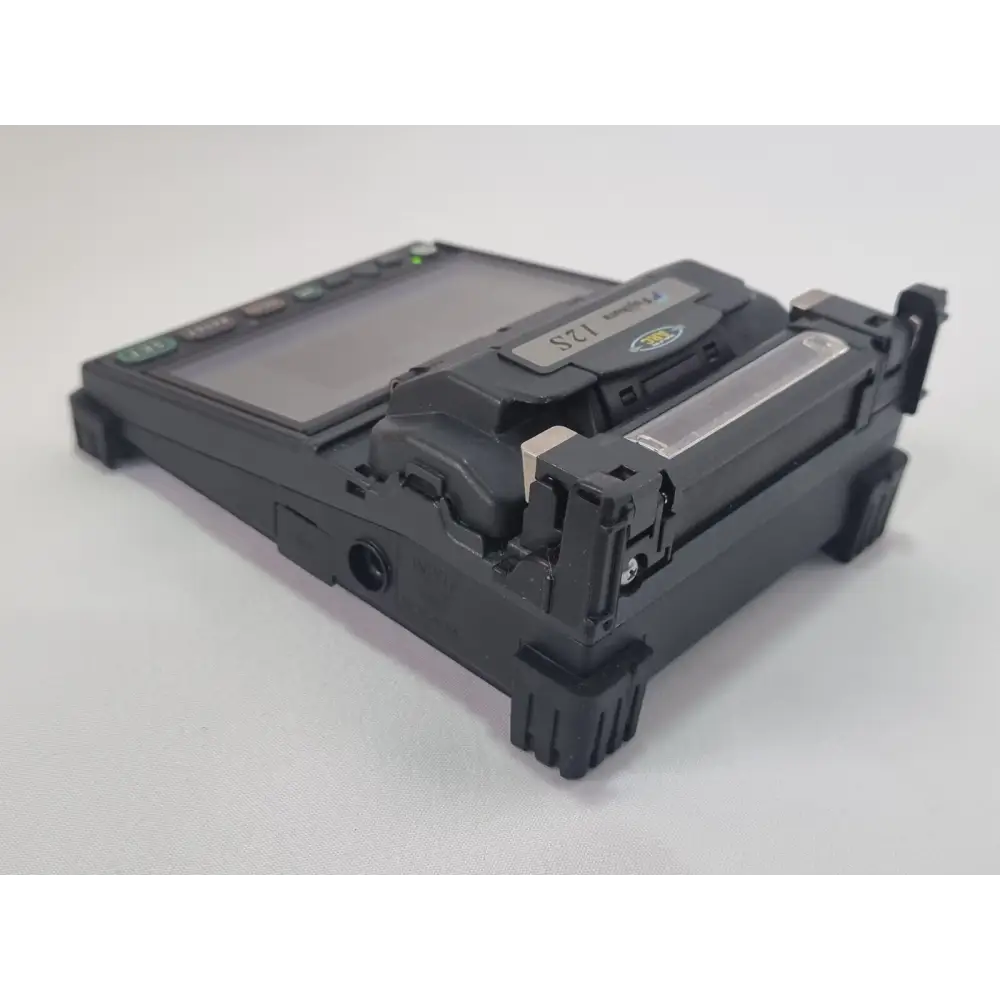

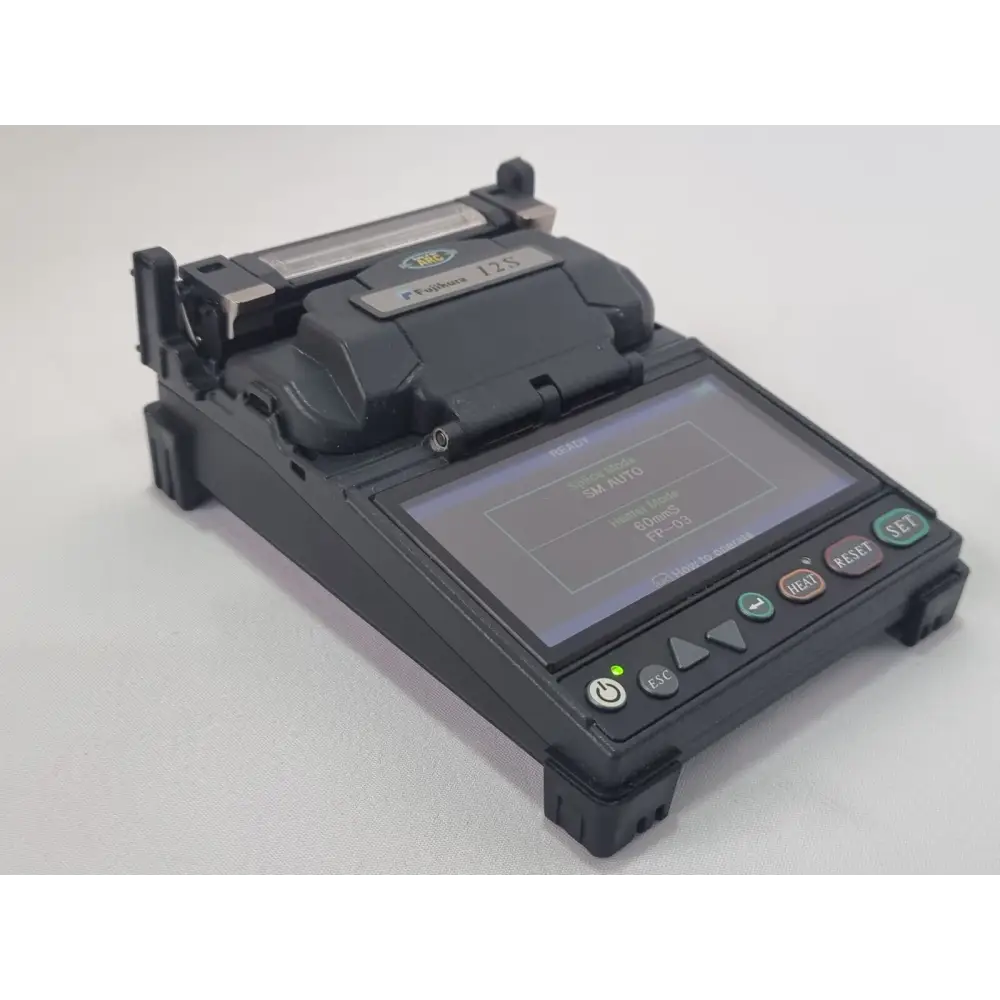

• Fujikura FSM-12S SM/MM Arc Fiber Fusion Splicer (ARC count above 5000)

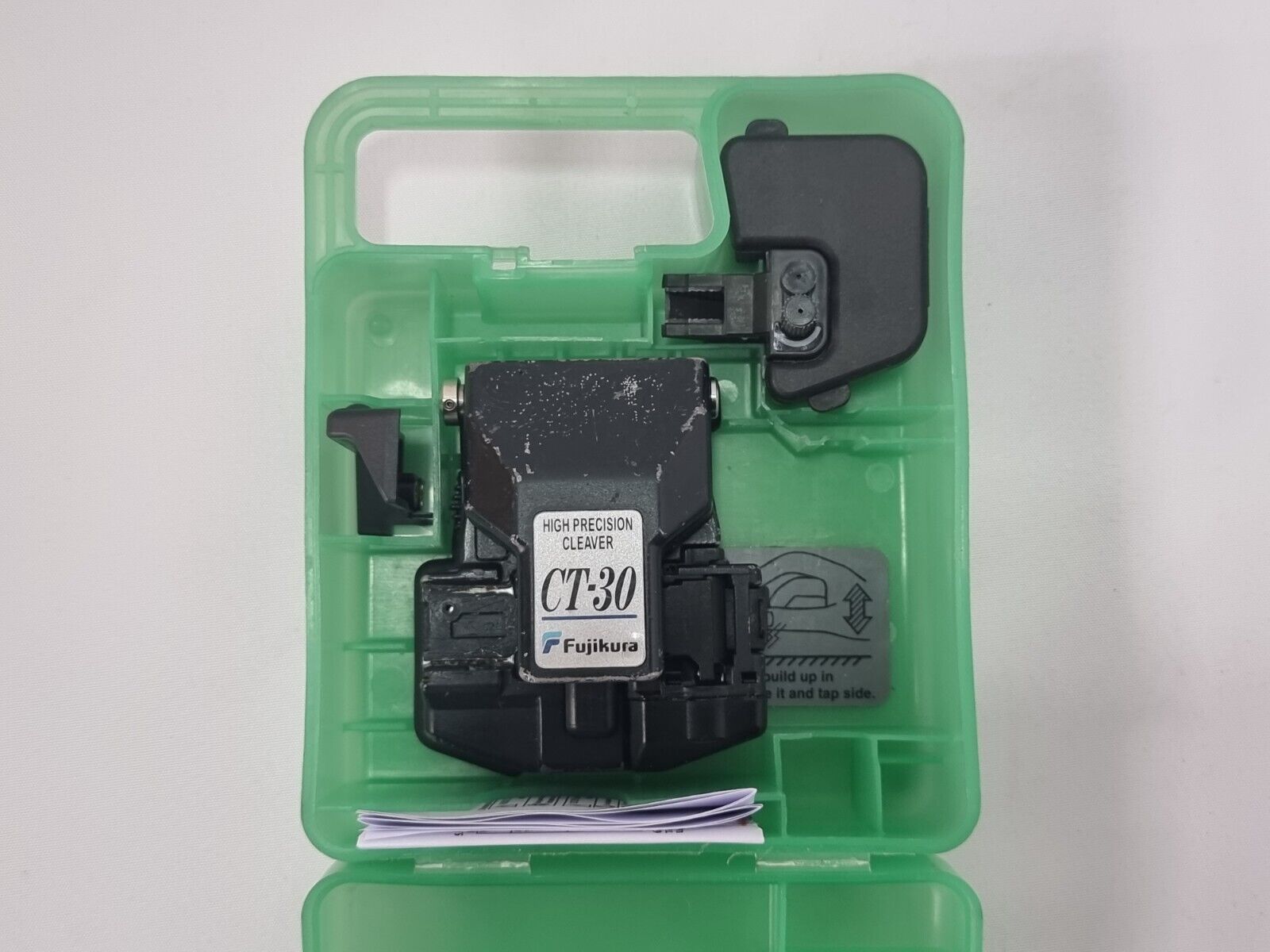

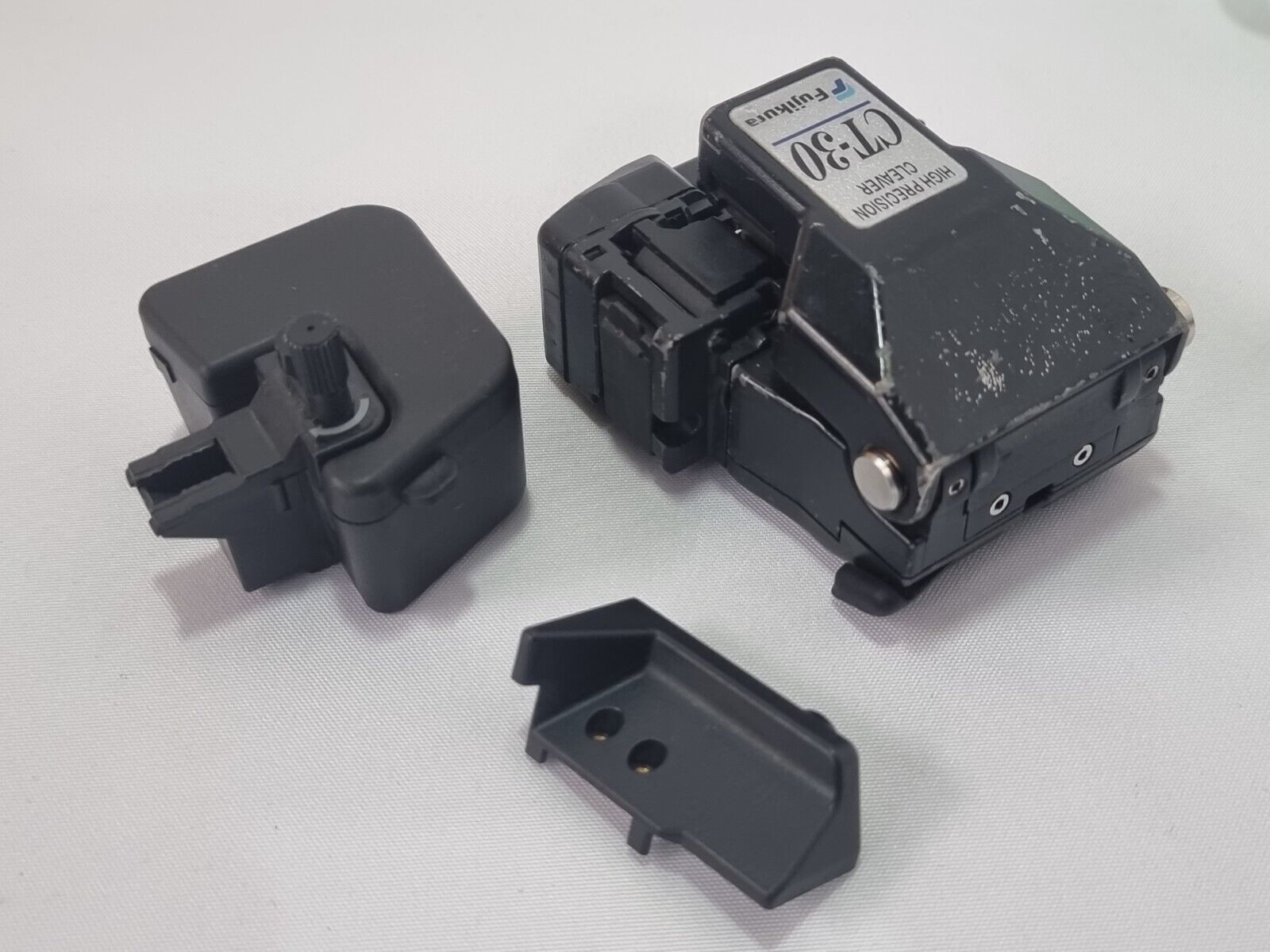

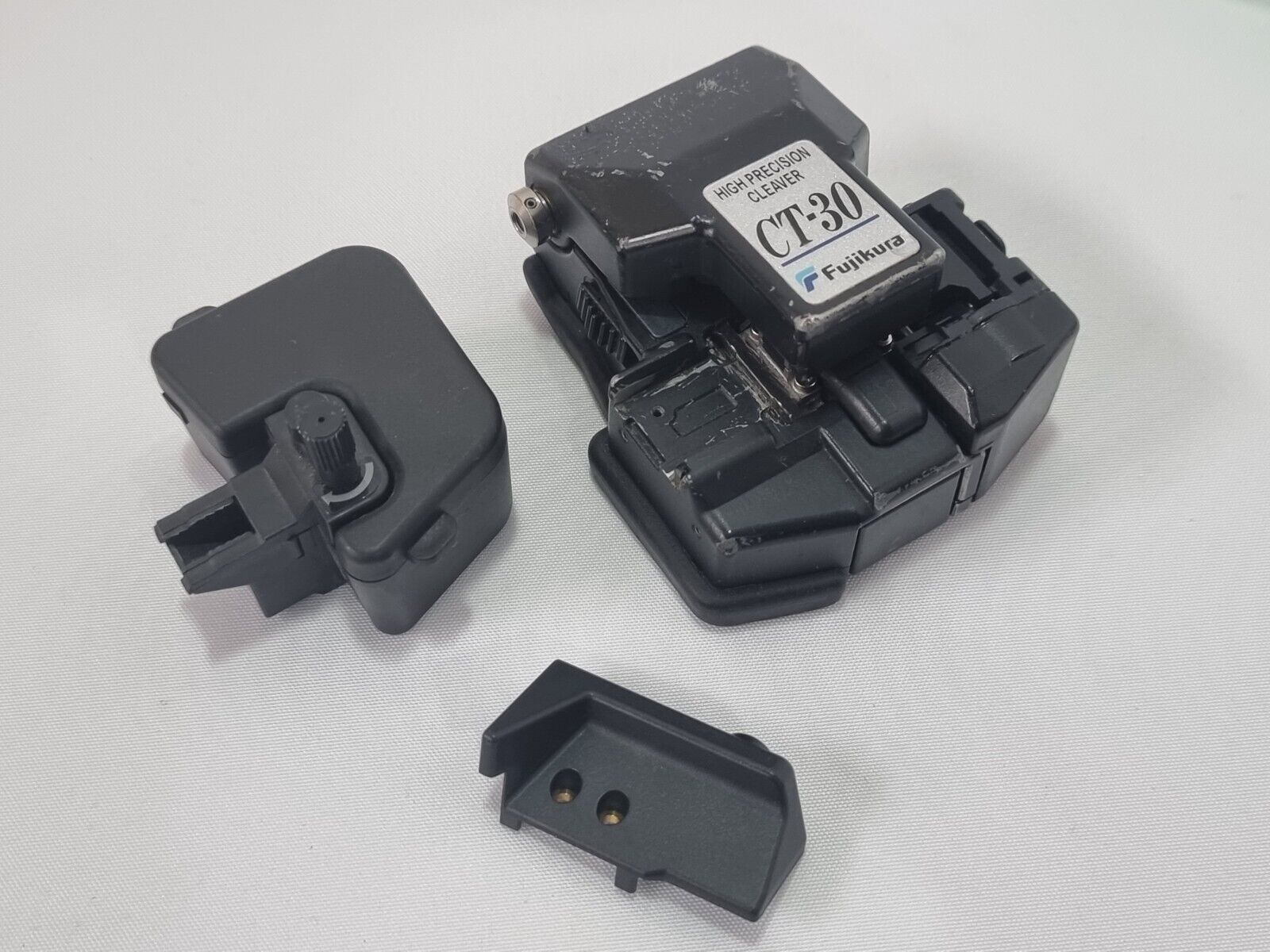

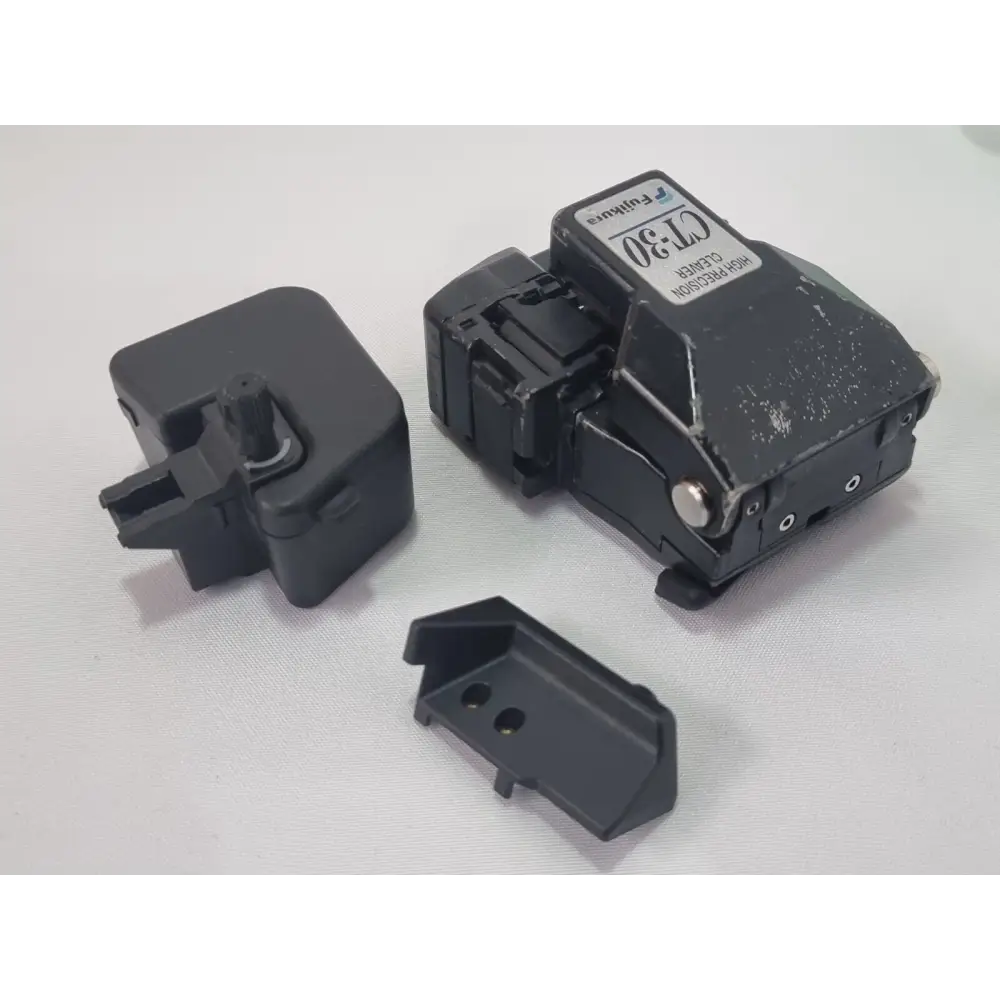

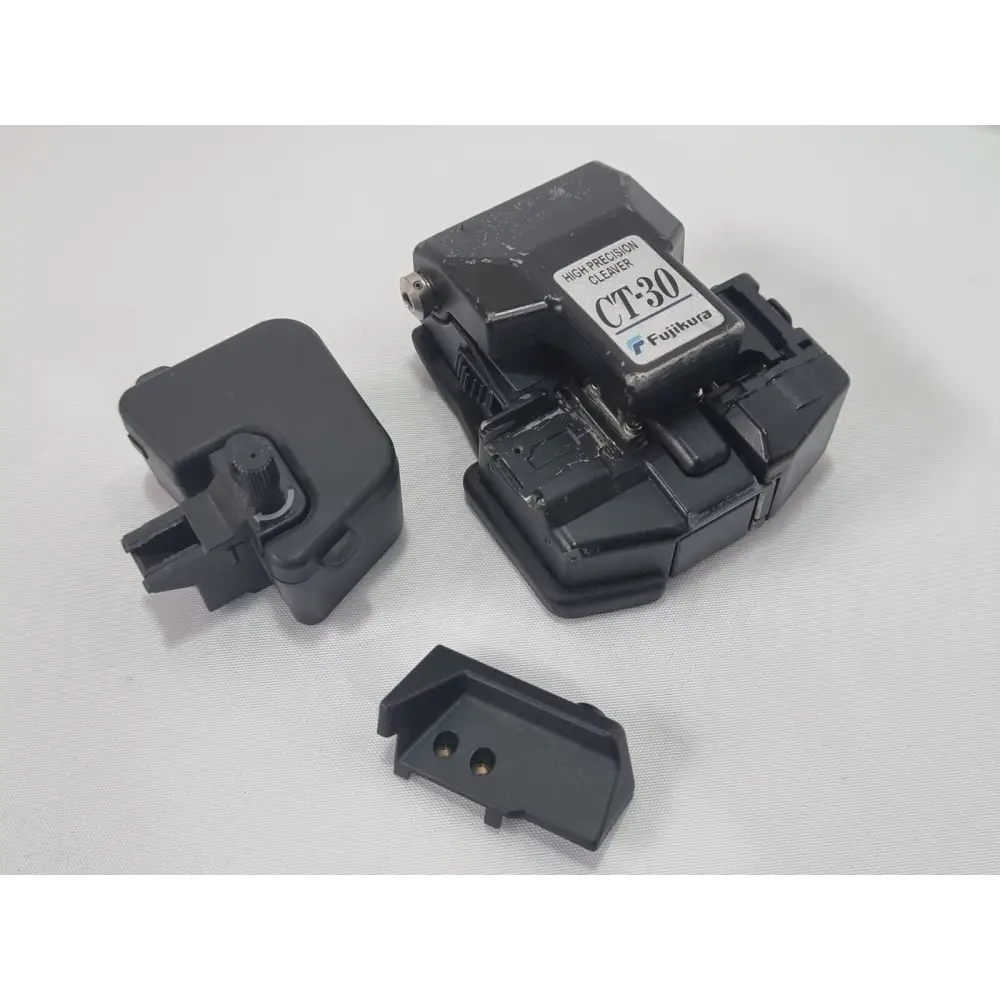

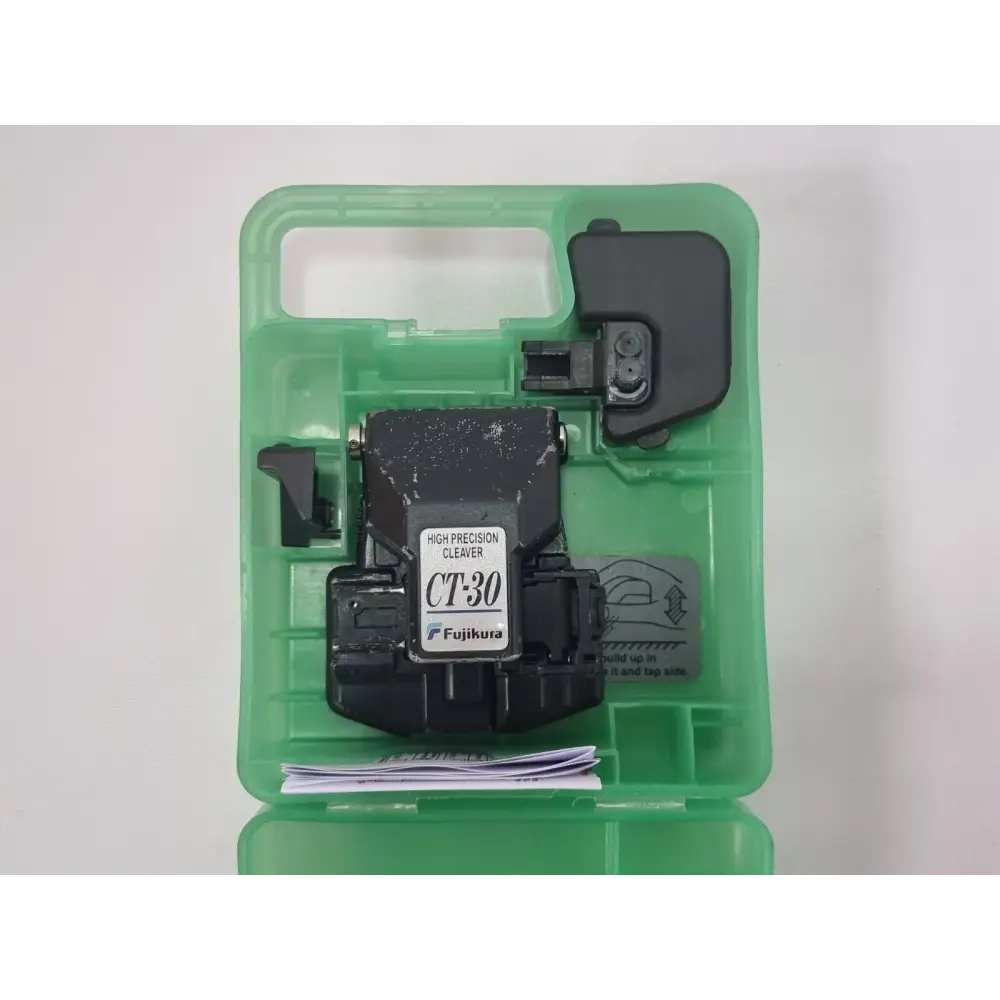

• Fujikura CT-30 High Precision Fiber Cleaver with Case

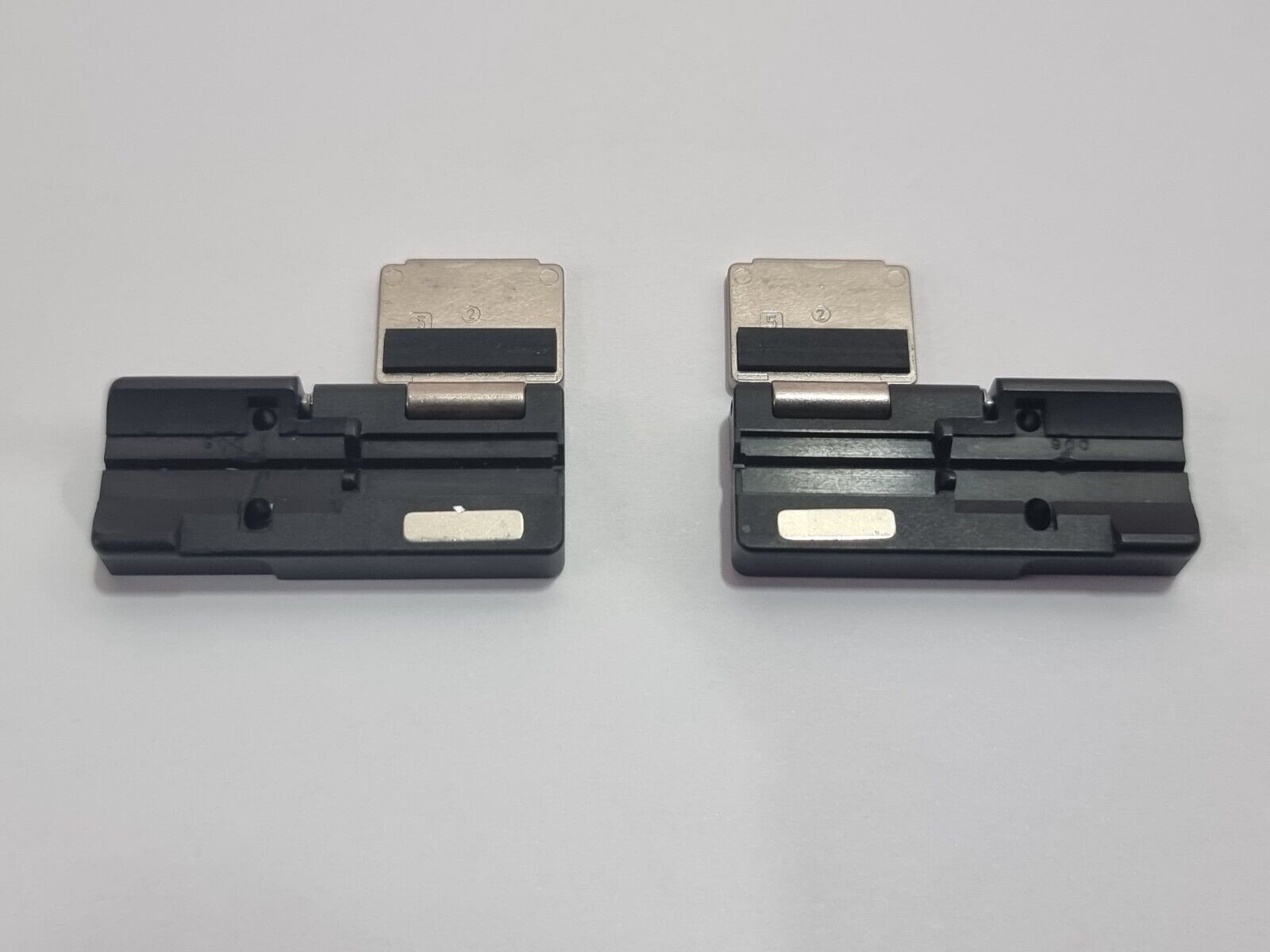

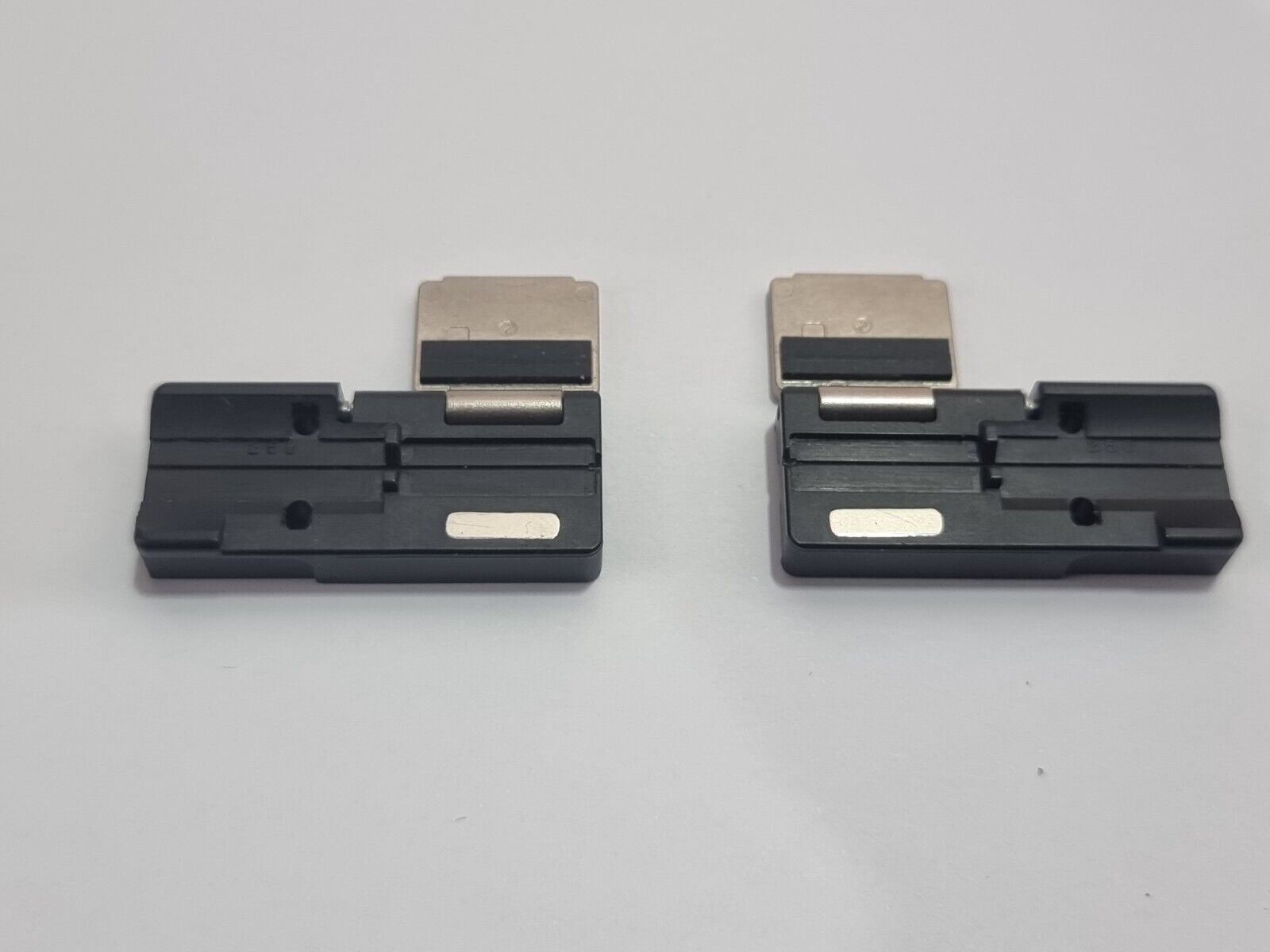

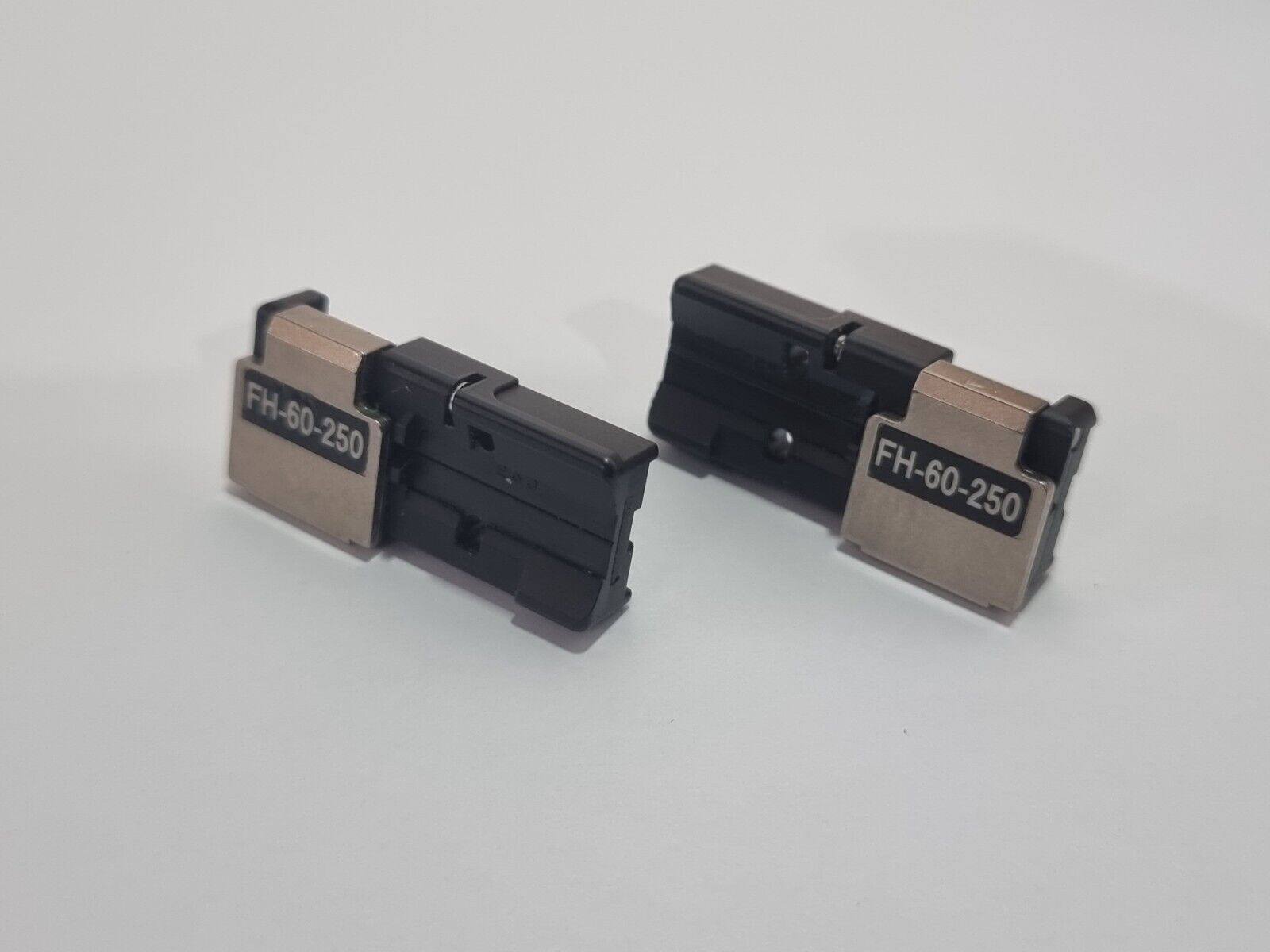

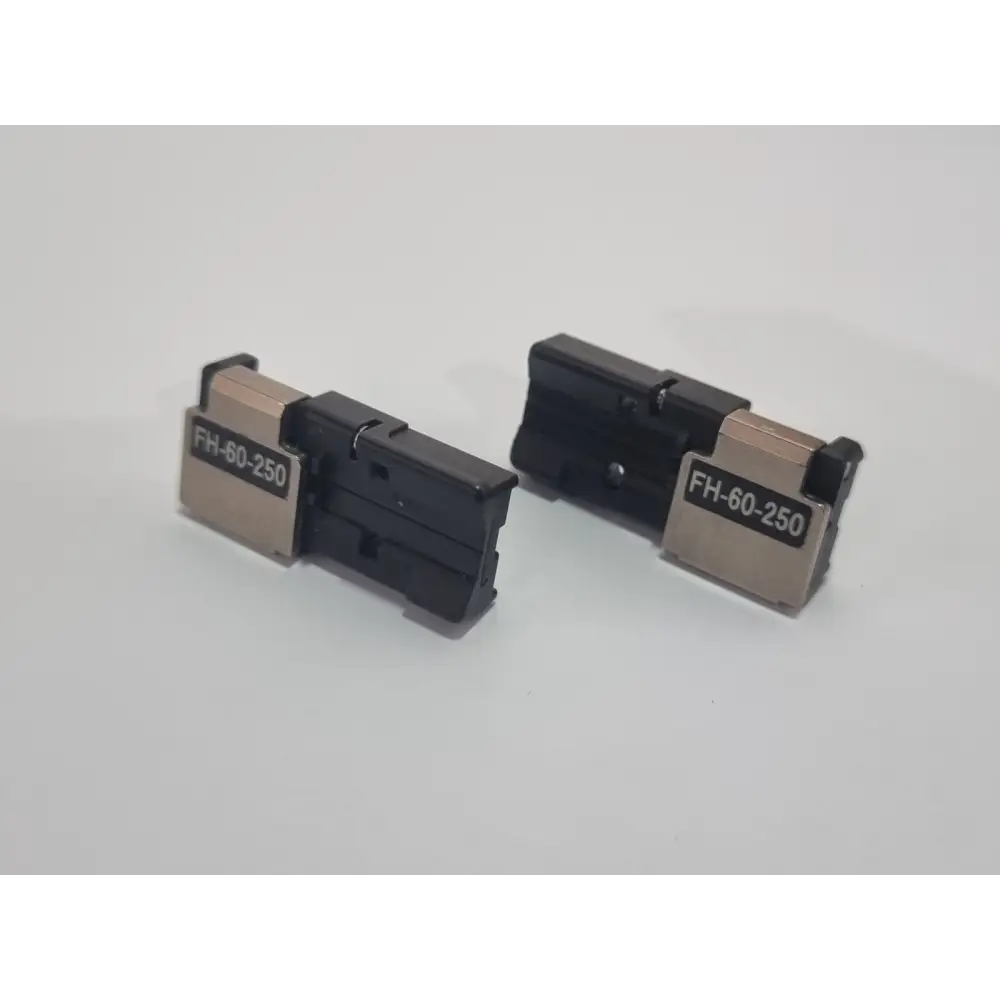

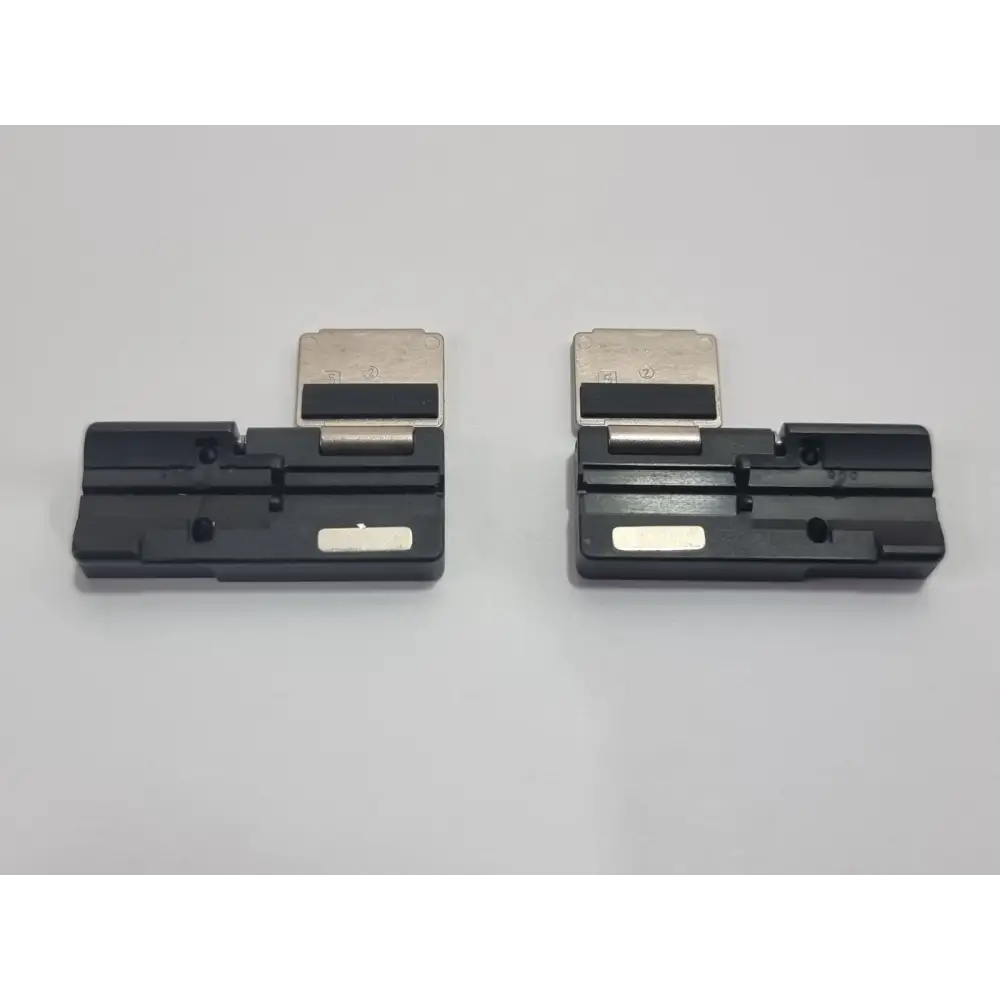

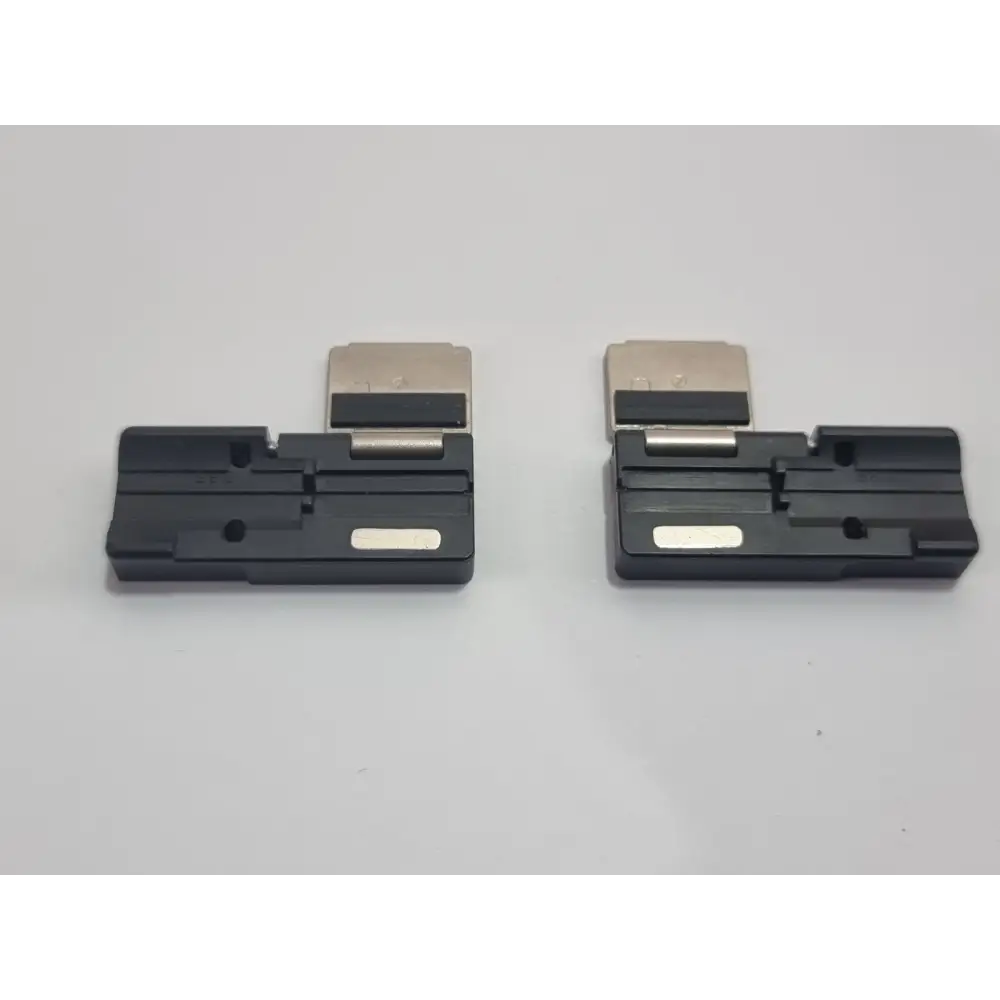

• FH-60-250 Fiber Holder Set

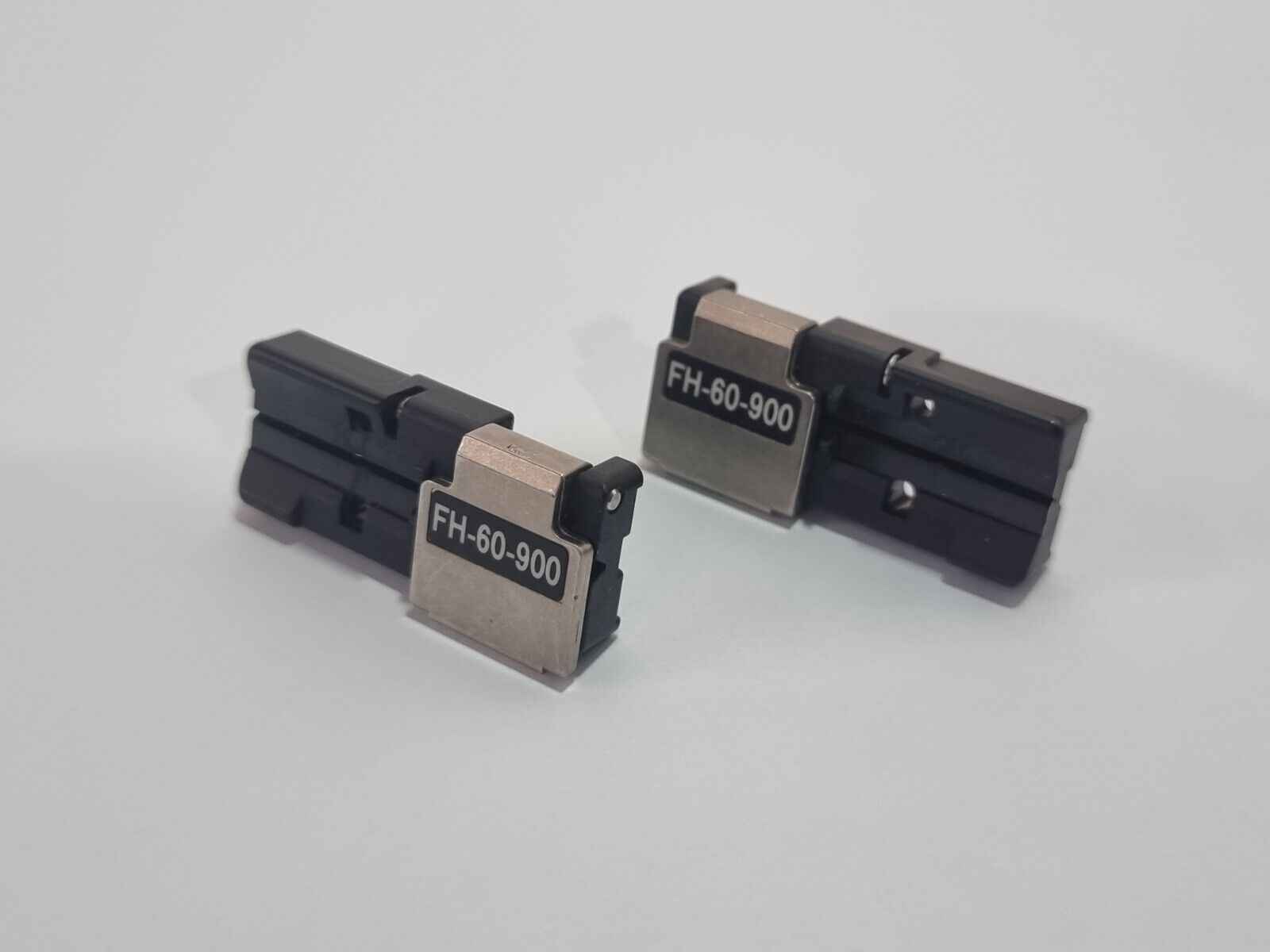

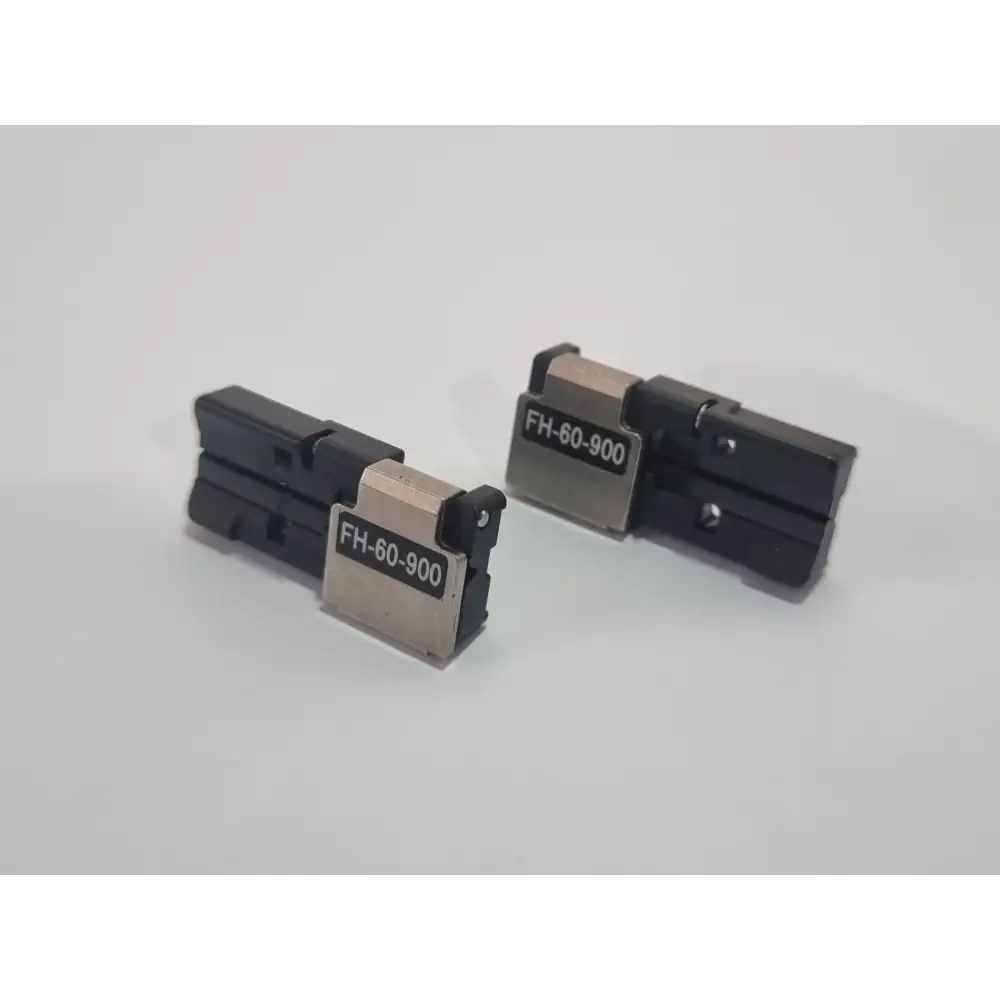

• FH-60-900 Fiber Holder Set
• AC Adapter/Charger

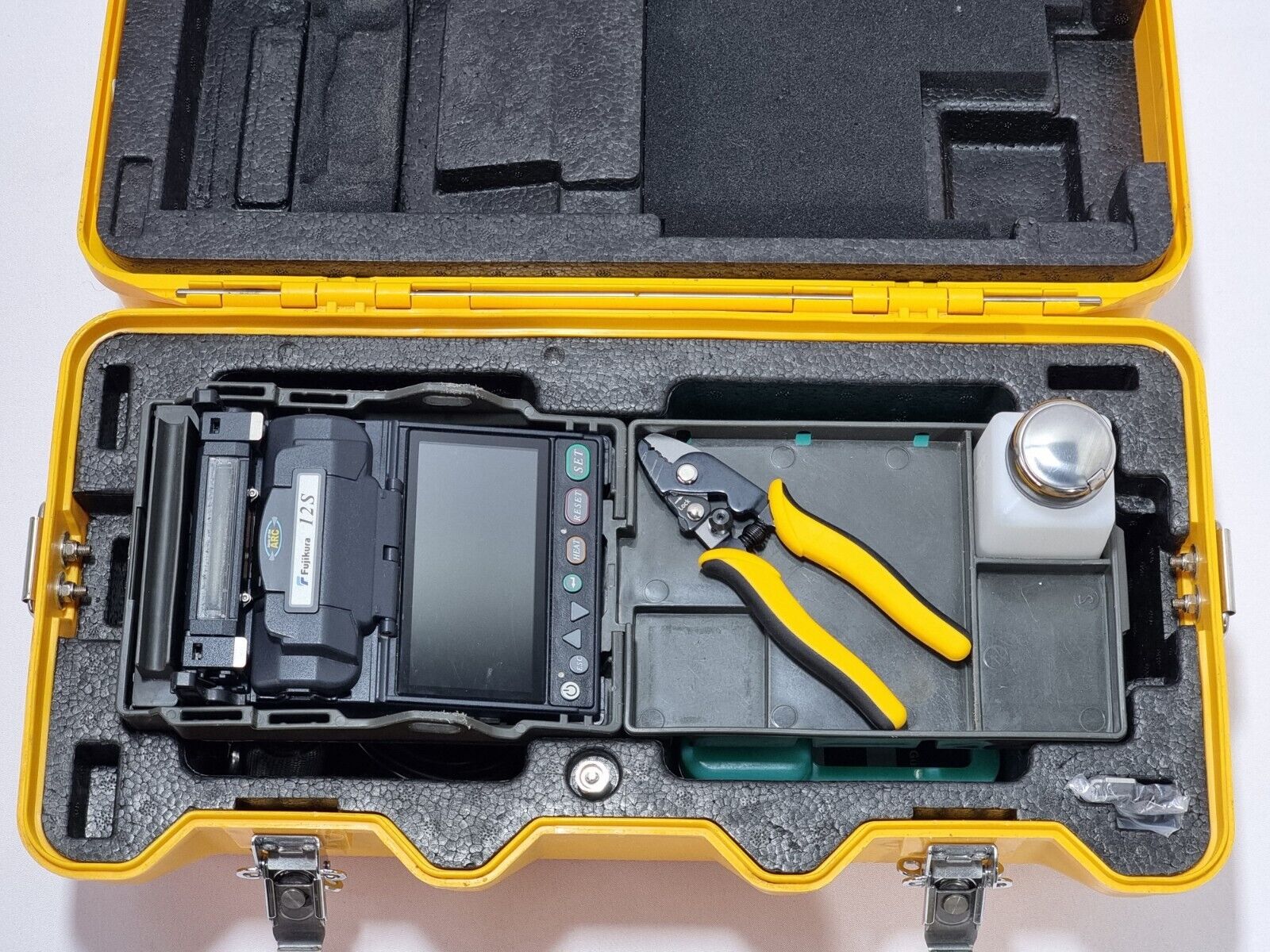

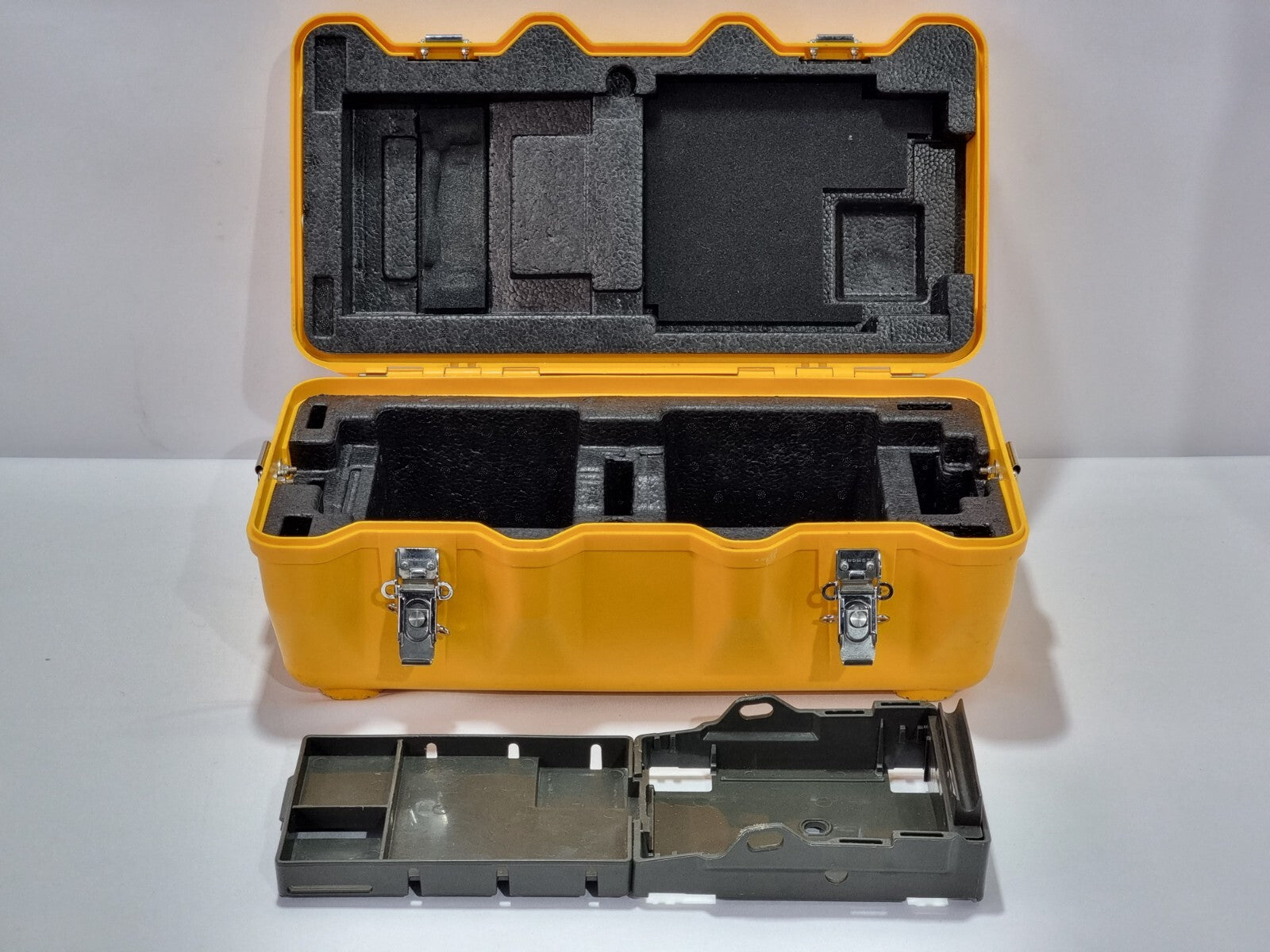

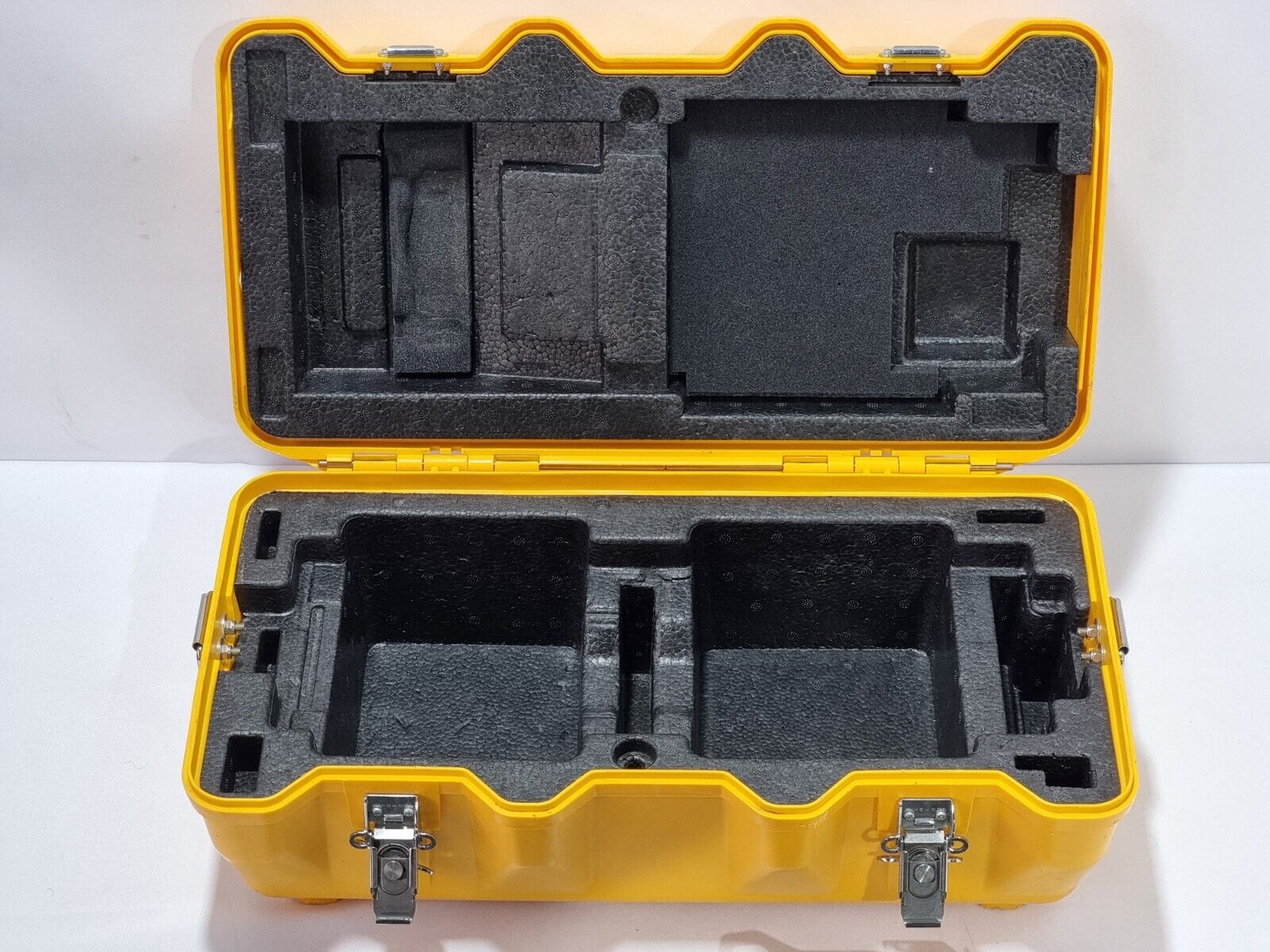

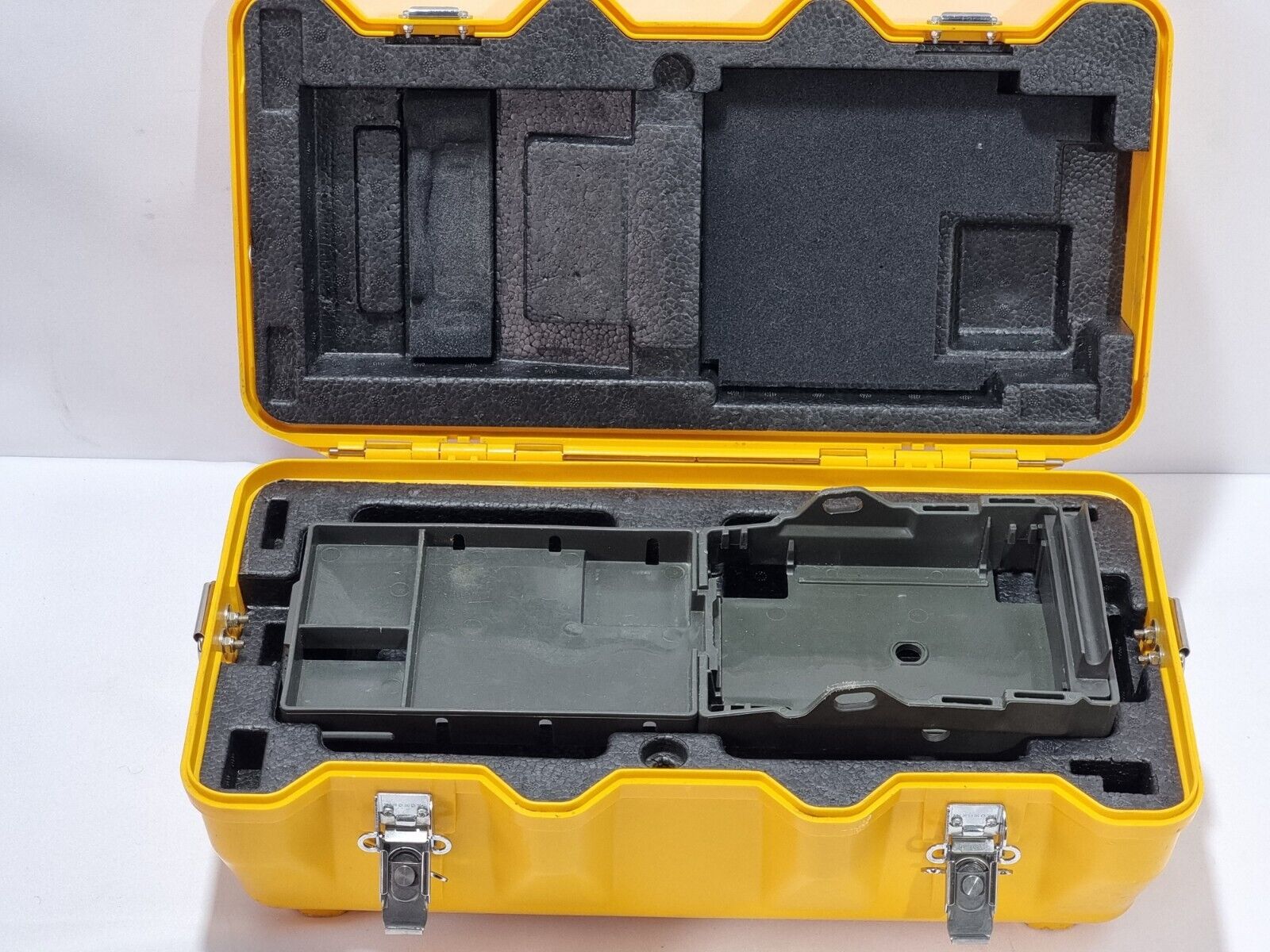

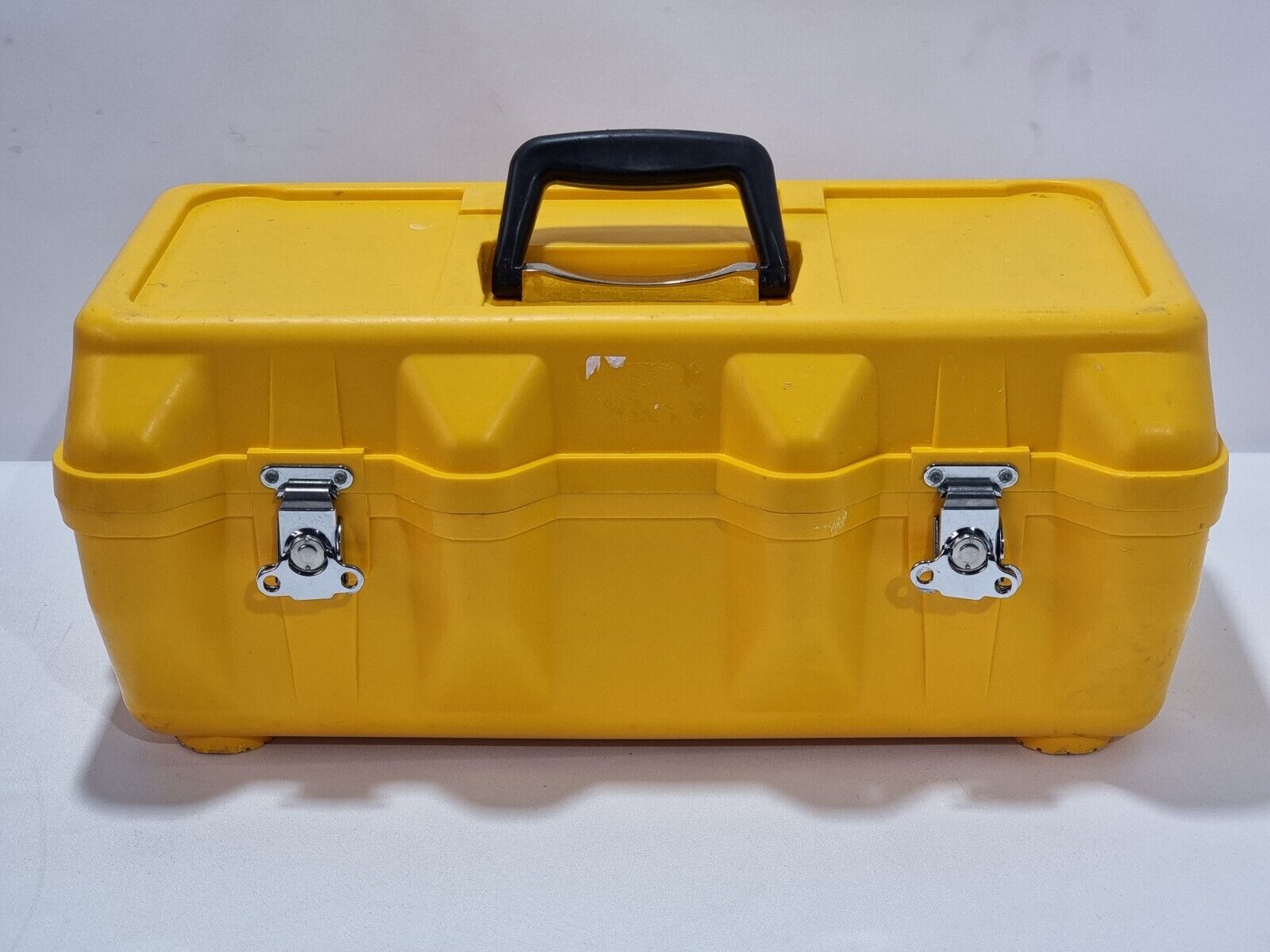

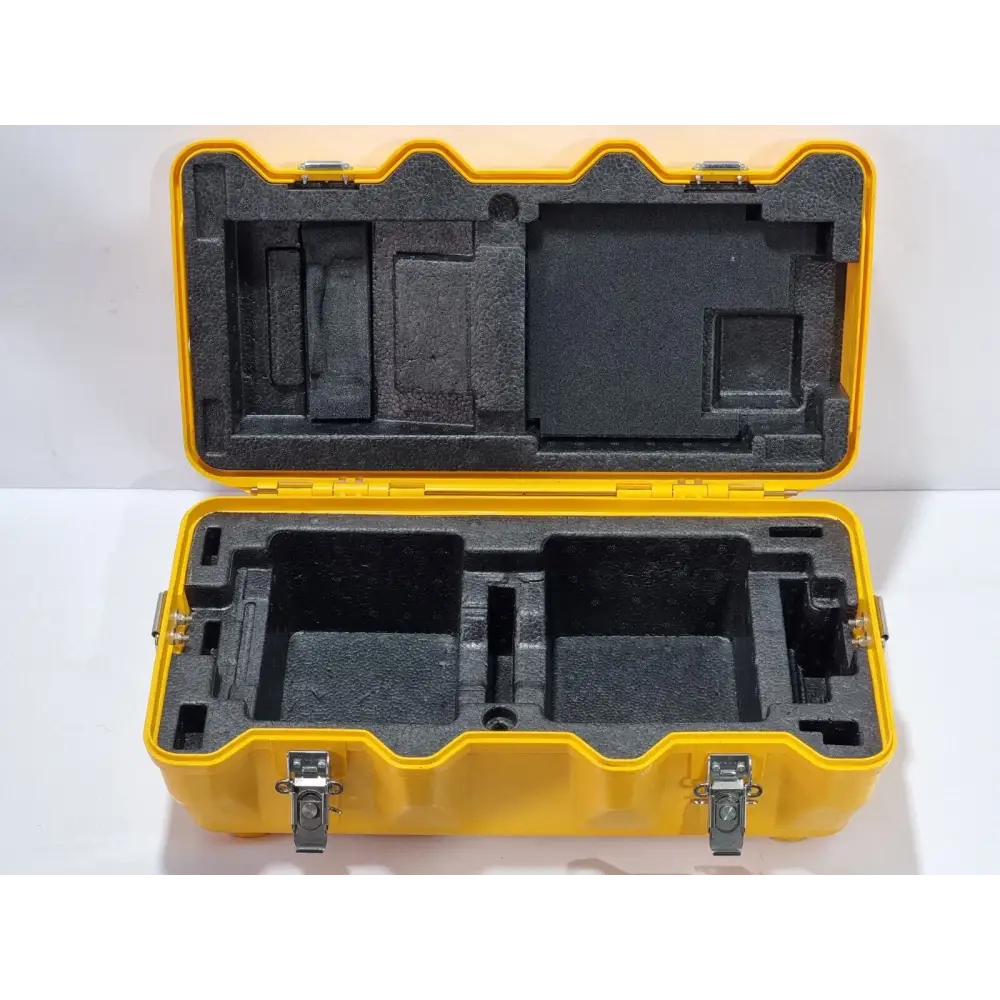

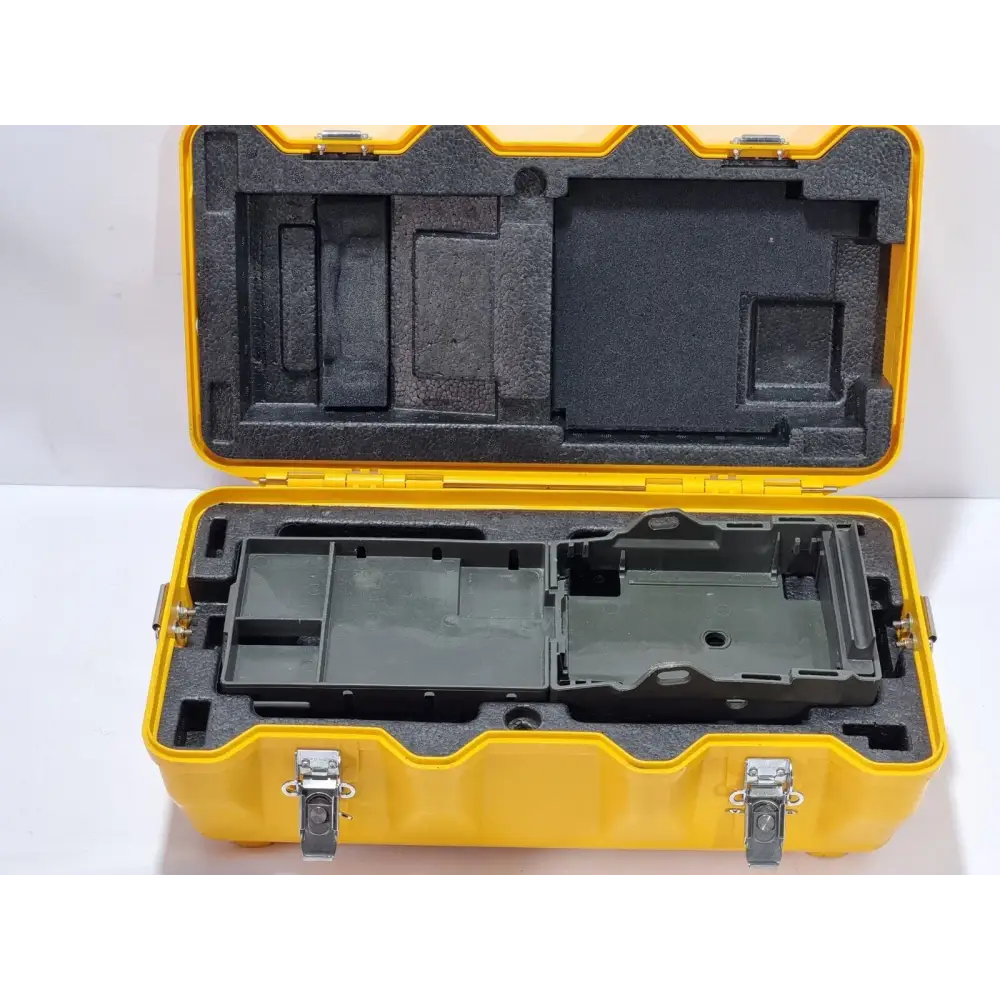

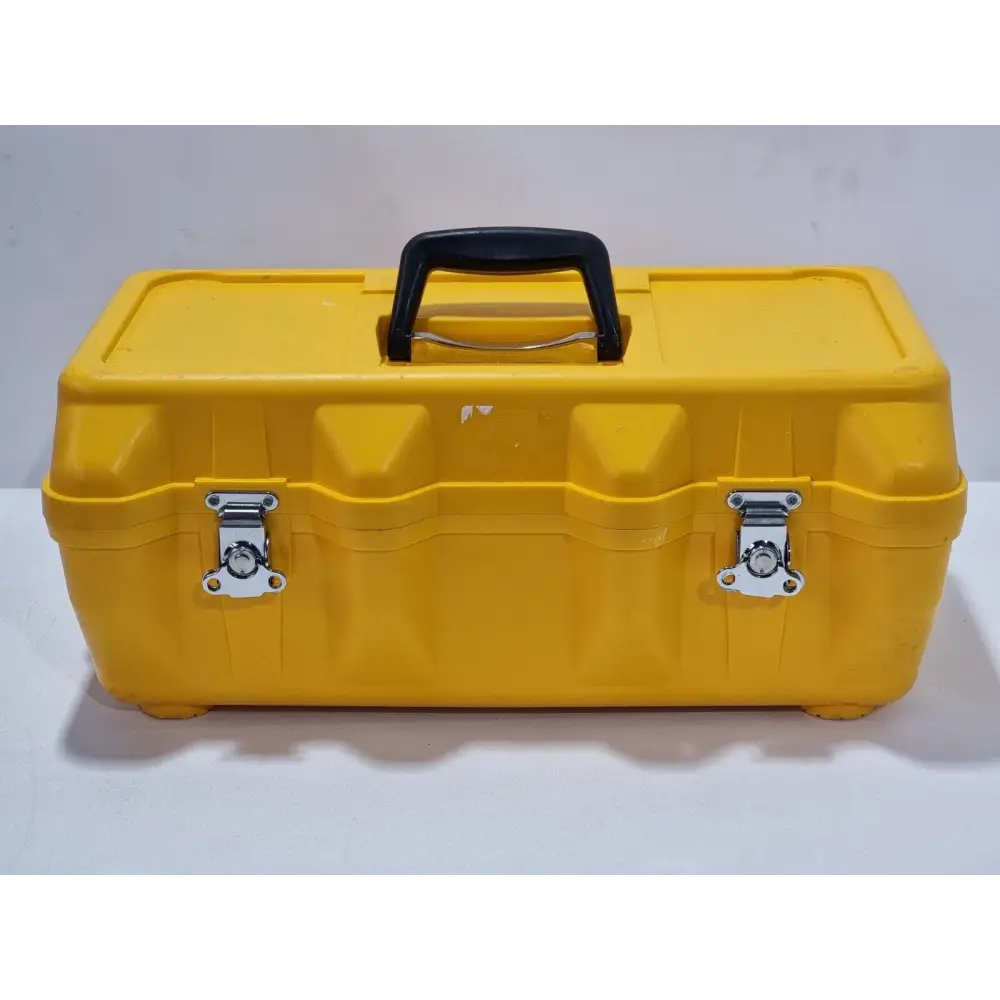

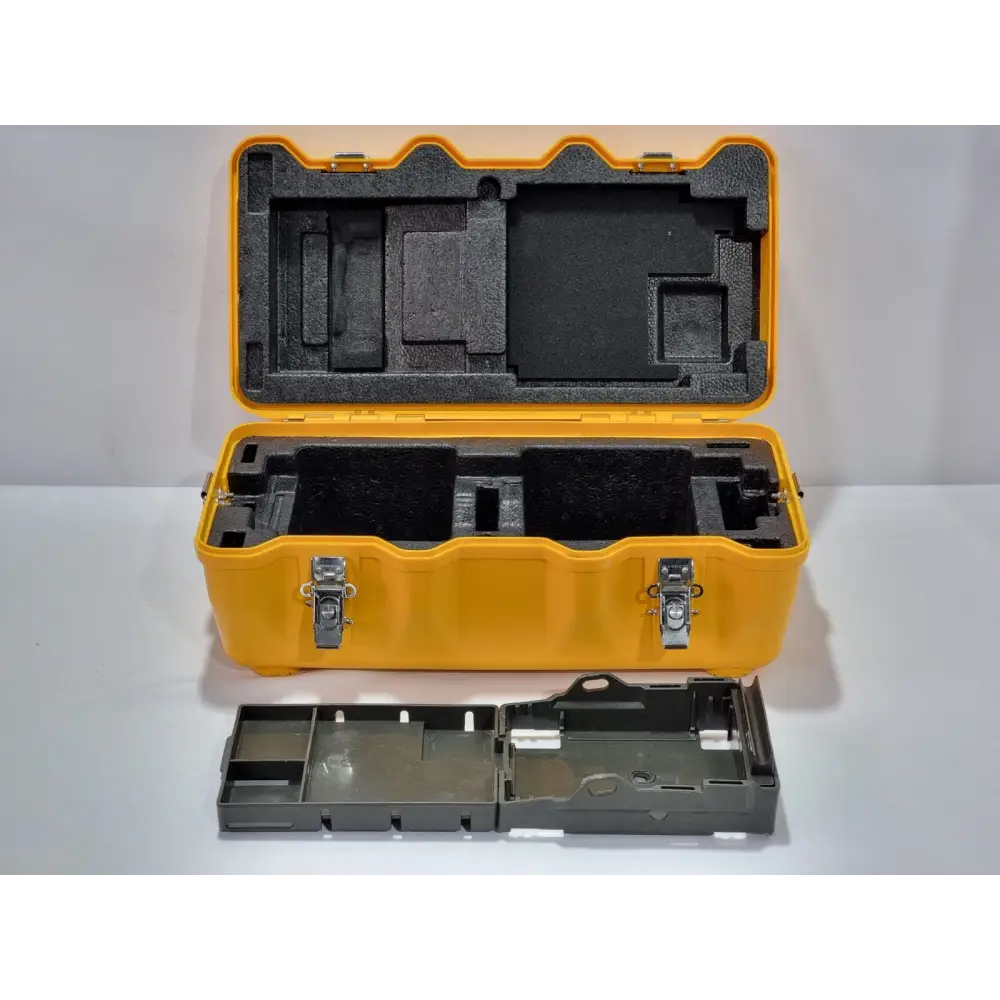

• Hard Carrying Case with Strap
• Work Tray
• Fiber Stripper
• Screwdriver
• 12S Quick Reference Guide

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

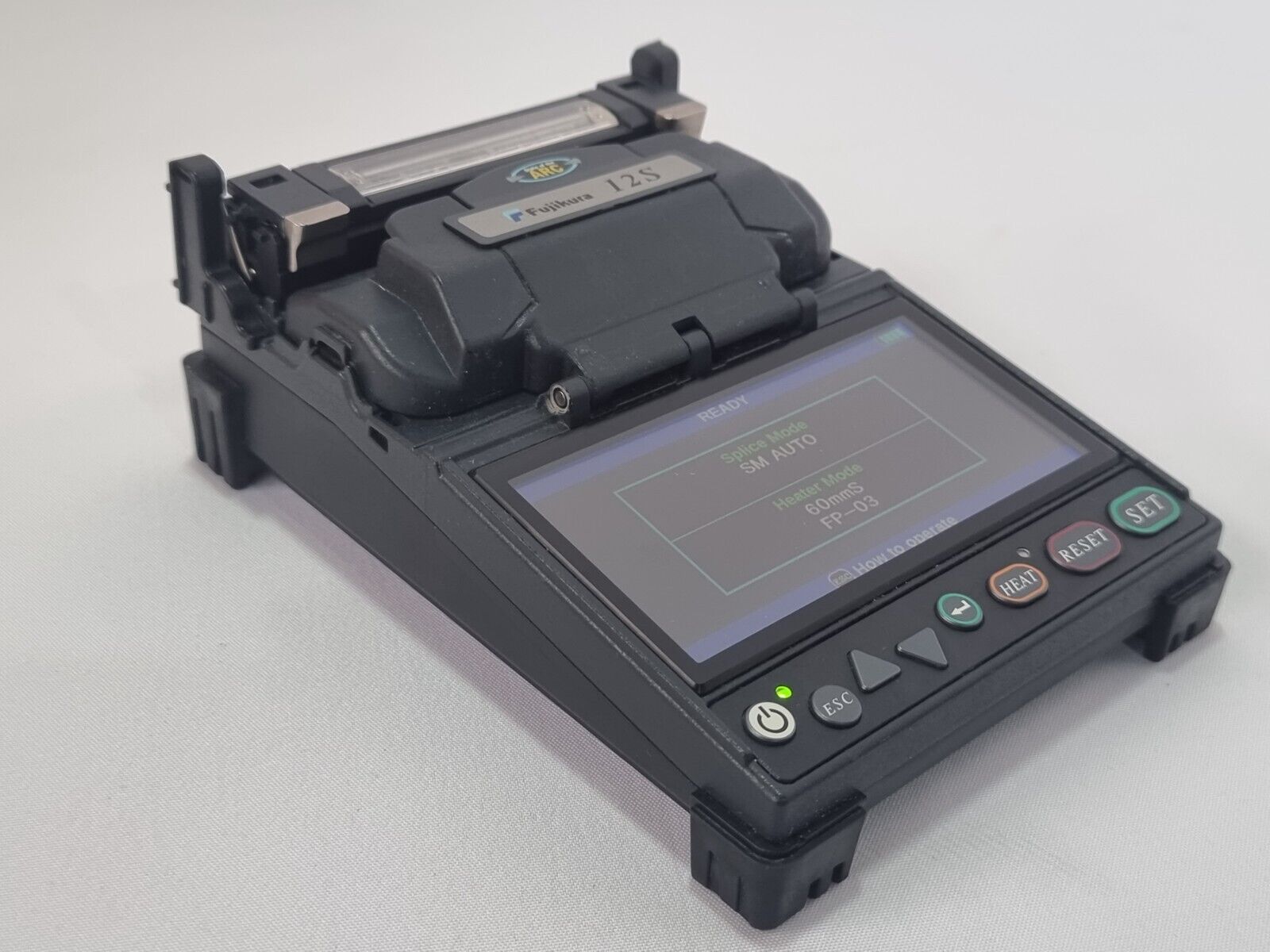

The Fujikura FSM-12S is widely regarded as one of the world's smallest, lightest, and most portable fusion splicers. Despite its compact and ruggedised form factor, it delivers professional-grade splicing performance with features typically found in higher-specification models. Designed for use in challenging field environments, the 12S is an ideal choice for FTTx installations, outside plant work, and remote locations where portability and reliability are paramount.

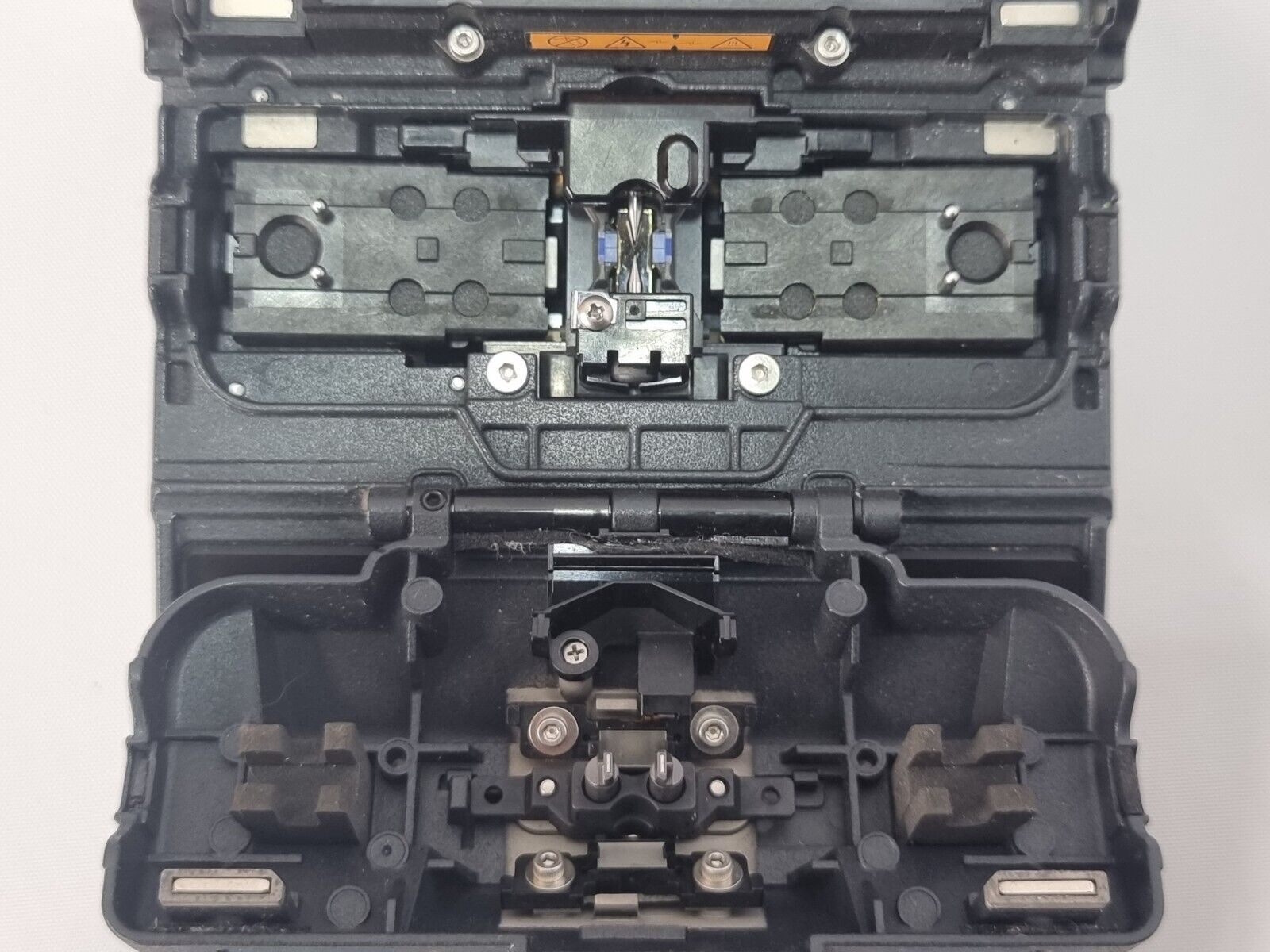

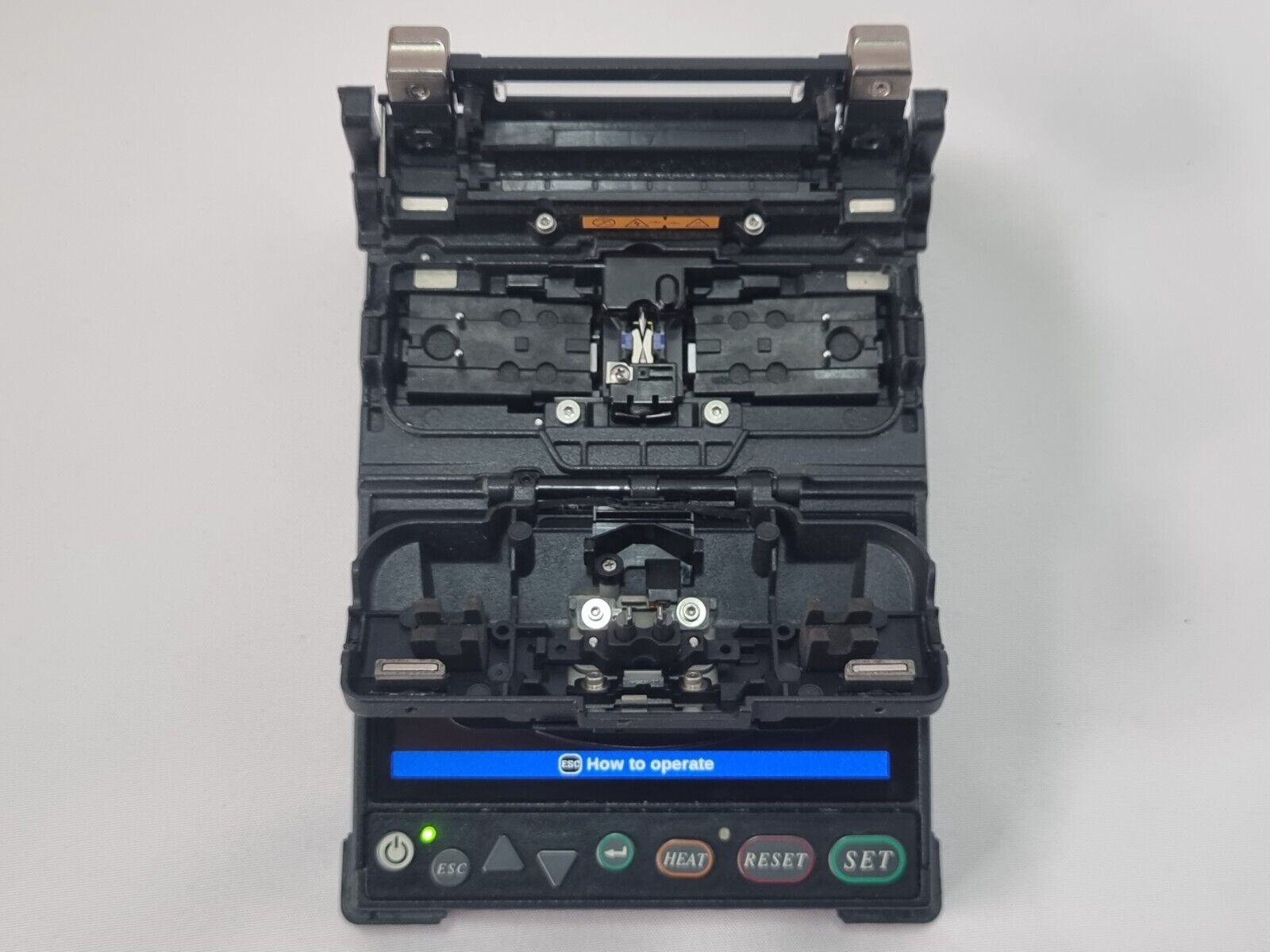

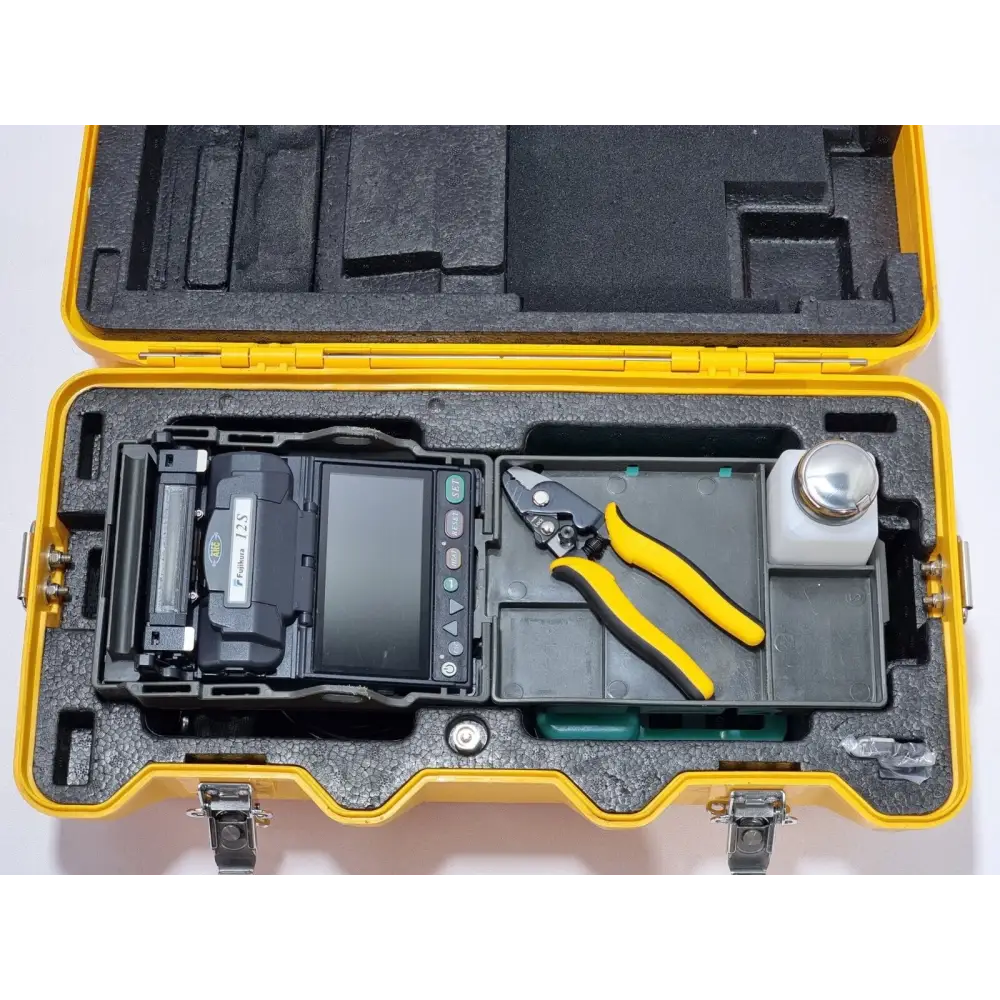

The innovative transit case doubles as a stable workstation, and the long-life battery provides up to 100 splice and heat cycles per charge. The dual-camera CMOS viewing system and fixed V-groove alignment deliver consistent, low-loss splices across a wide range of fibre types.

Model: Fujikura FSM-12S Fusion Splicer
Applicable Fibres: SM (G.652, G.657), MM (G.651), DSF (G.653), NZDSF (G.655)
Cladding Diameter: 125 μm
Coating Diameter: 250 μm or 900 μm
Fibre Cleave Length: 5 mm to 13 mm
Typical Splice Loss: SM 0.05 dB, MM 0.02 dB, DSF 0.08 dB, NZDSF 0.08 dB
Splicing Time: Approx. 15 seconds (SM)
Splice Modes: 100 programmable splice modes
Splice Result Storage: Last 2,000 splices
Arc Calibration: Auto real-time, based on previous splice results, or manual

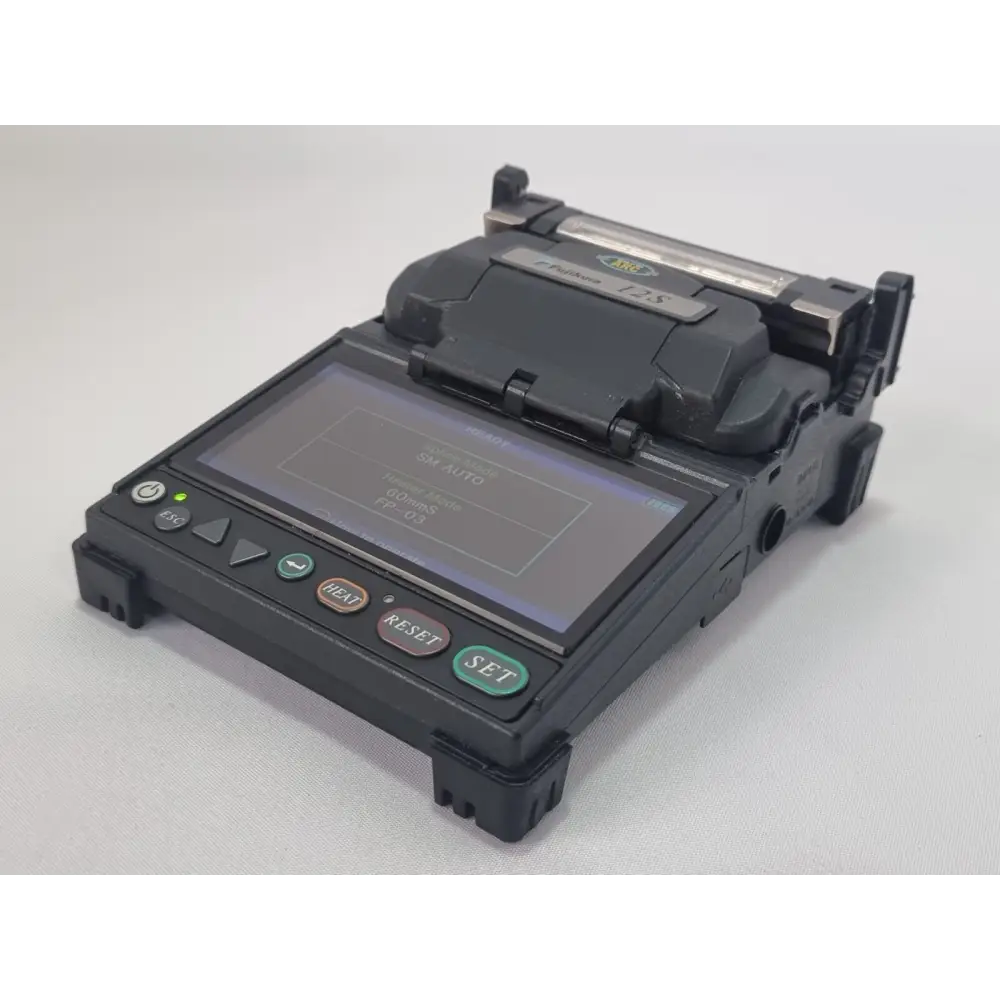

Display: 4.5-inch TFT colour LCD with X, Y, or combined X/Y views
Magnification: 100× for X/Y view
Viewing System: 2-axis CMOS camera
Tube Heater Modes: 30 heating modes
Tube Heating Time: Approx. 30 seconds with FP-03 (60 mm sleeve)
Sleeve Compatibility: 60 mm, 40 mm, and micro sleeves
Battery Capacity: Up to 100 splice and heat cycles (BTR-10)
Electrode Life: 3,000 splices
Mechanical Proof Test: 1.96 N
Wind Resistance: Up to 15 m/s (34 mph)
Operating Altitude: 0 to 3,660 m
Operating Temperature: -10 °C to 50 °C
Operating Humidity: 0 to 95% RH (non-condensing)
Power Supply: AC 100–240 V (auto-select), DC 14.8 V with battery
Terminals: USB 2.0
Dimensions: 121 × 162 × 57 mm
Weight: 0.776 kg (with battery)

Fujikura FSM-12S Fusion Splicer Product Brochure (PDF): Download PDF
