Fujikura 12S SM MM Fiber Fusion Splicer + CT-30 Cleaver & Fiber Holders ARC 1422

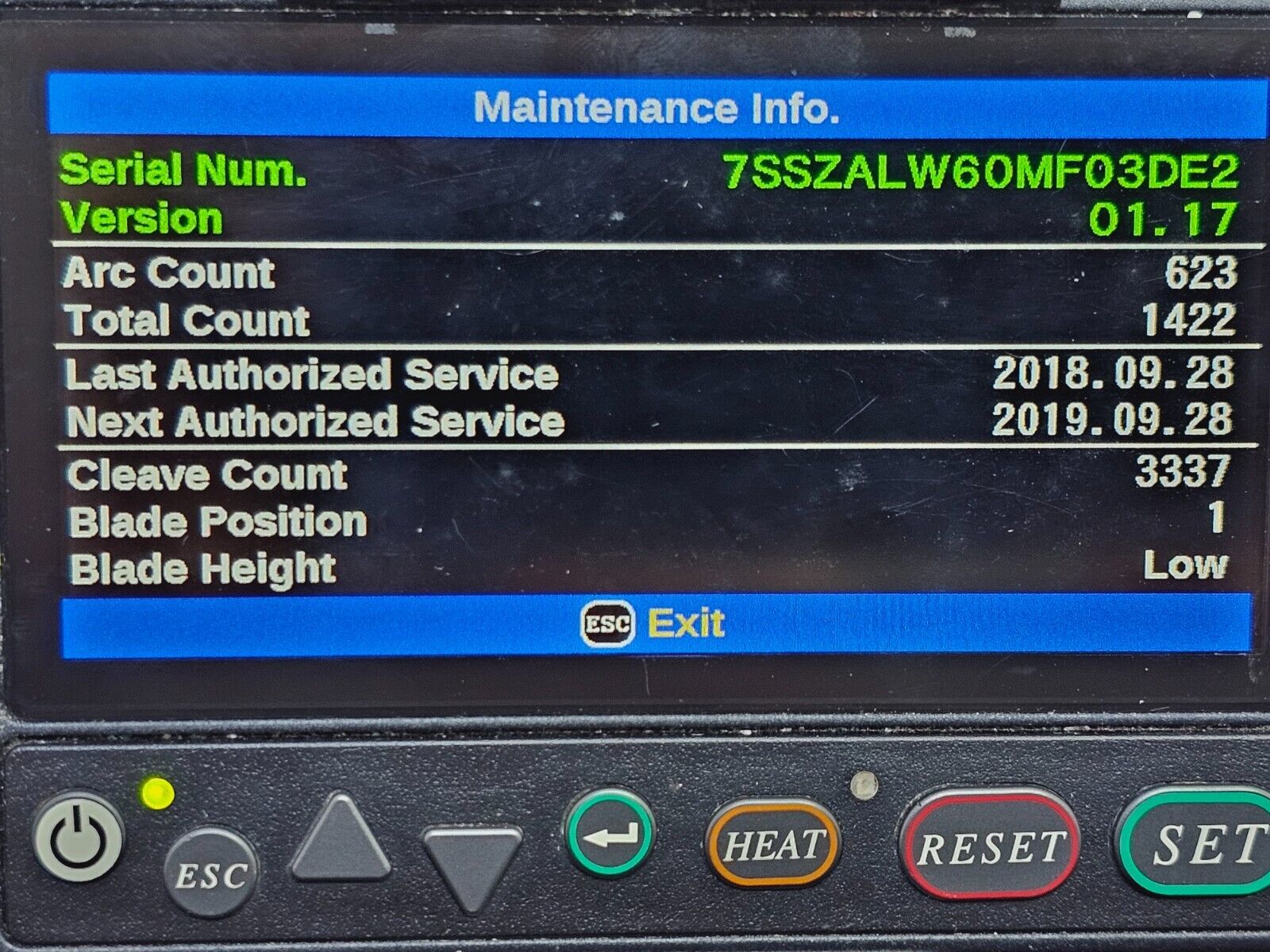

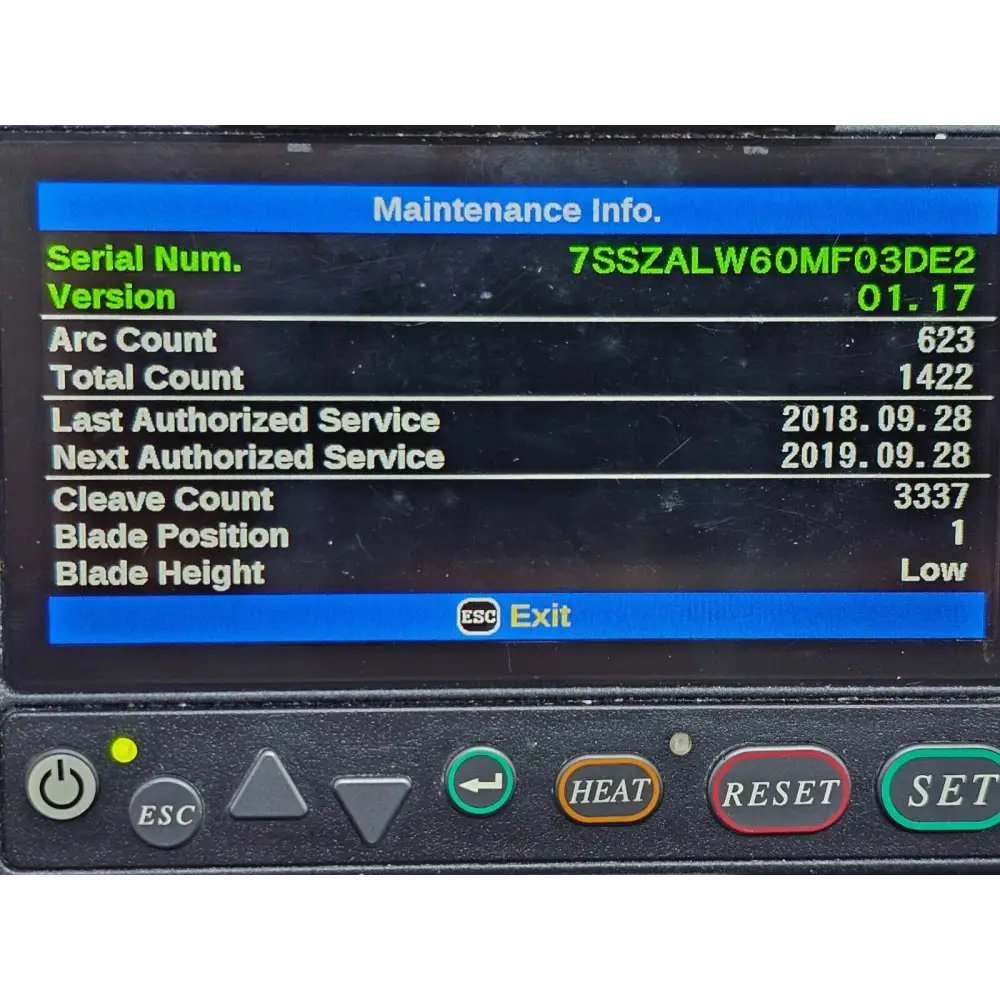

Condition: Used — ARC Count 1422.

This Fujikura 12S SM/MM Fixed V-Groove Fiber Fusion Splicer is a compact, ruggedised unit offering professional splicing capability in an ultra-portable form factor. With an ARC count of 1422, this unit has significant remaining electrode life and is well-suited for field and installation use.

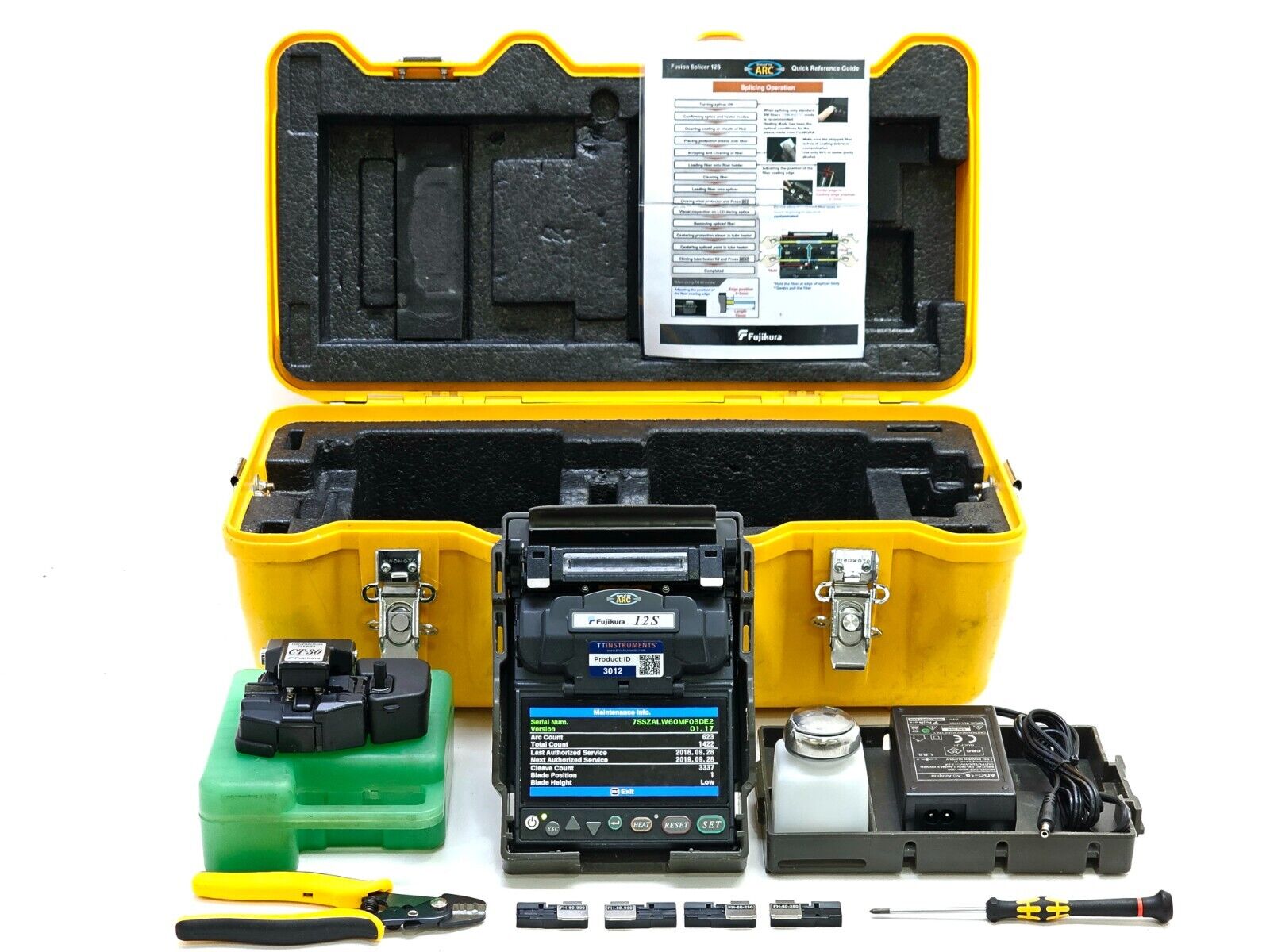

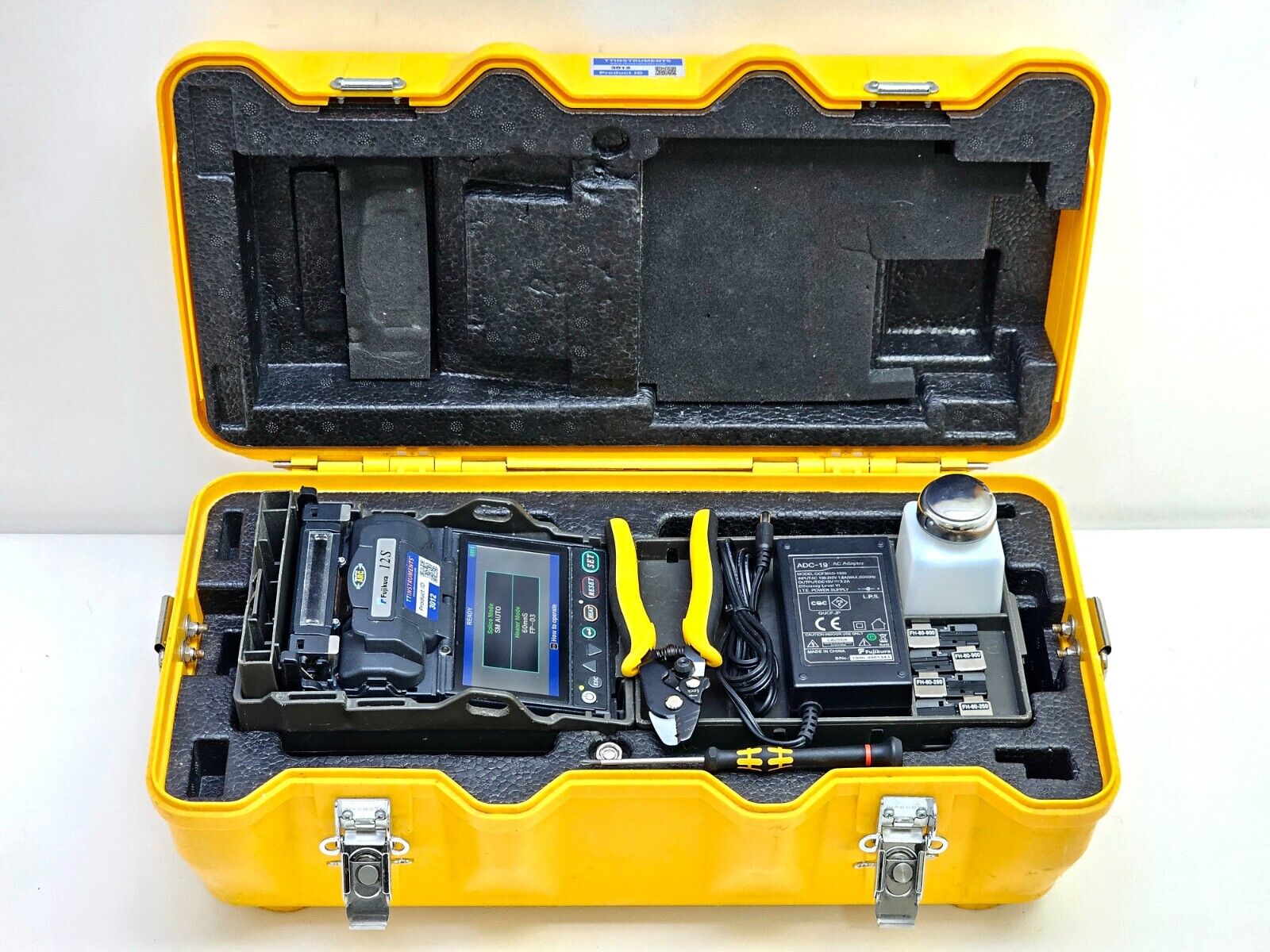

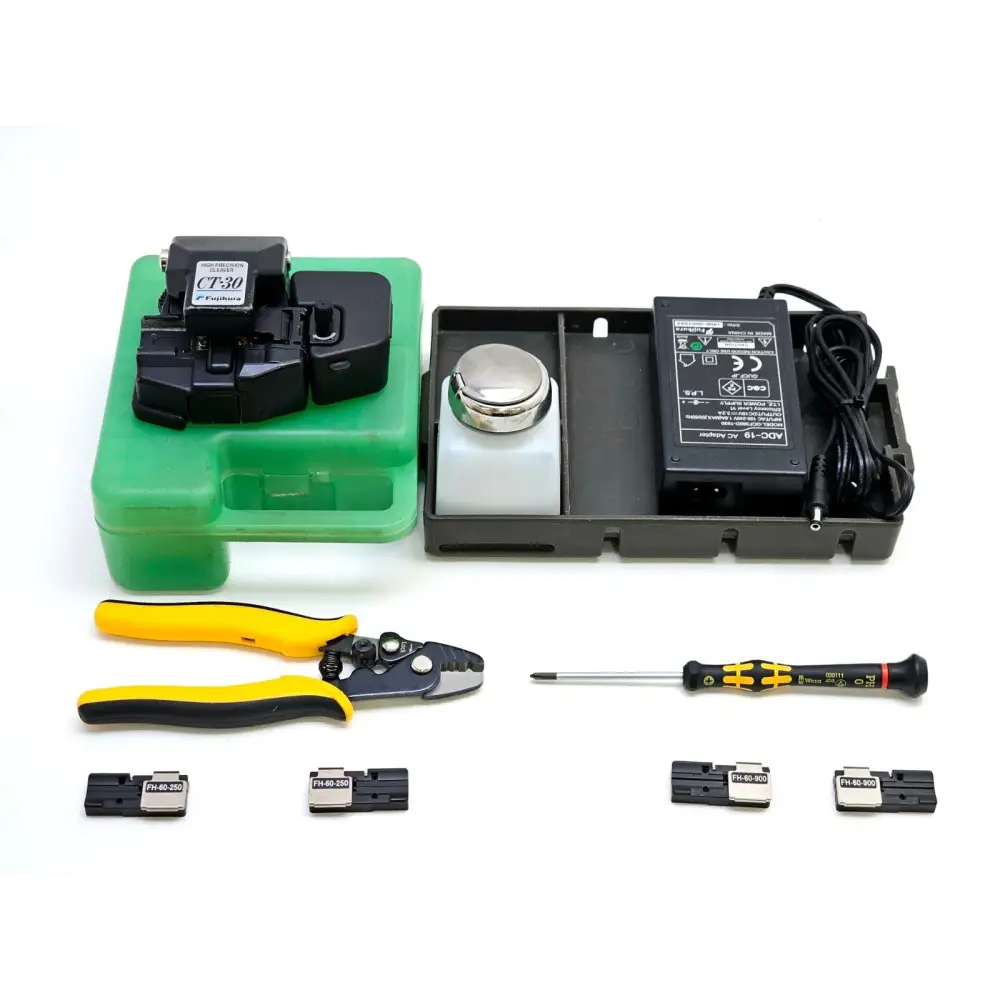

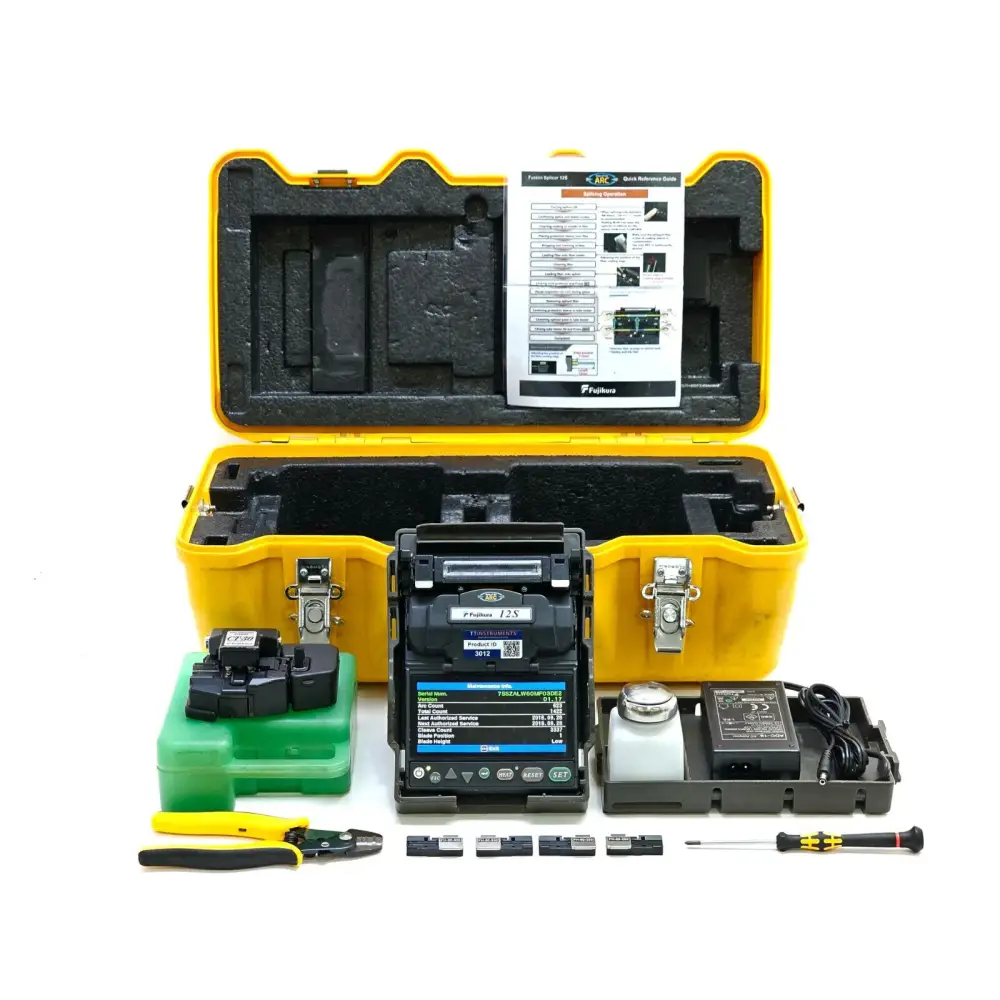

Included in the sale:
• Fujikura 12S SM/MM Arc Fiber Fusion Splicer (ARC count 1422)

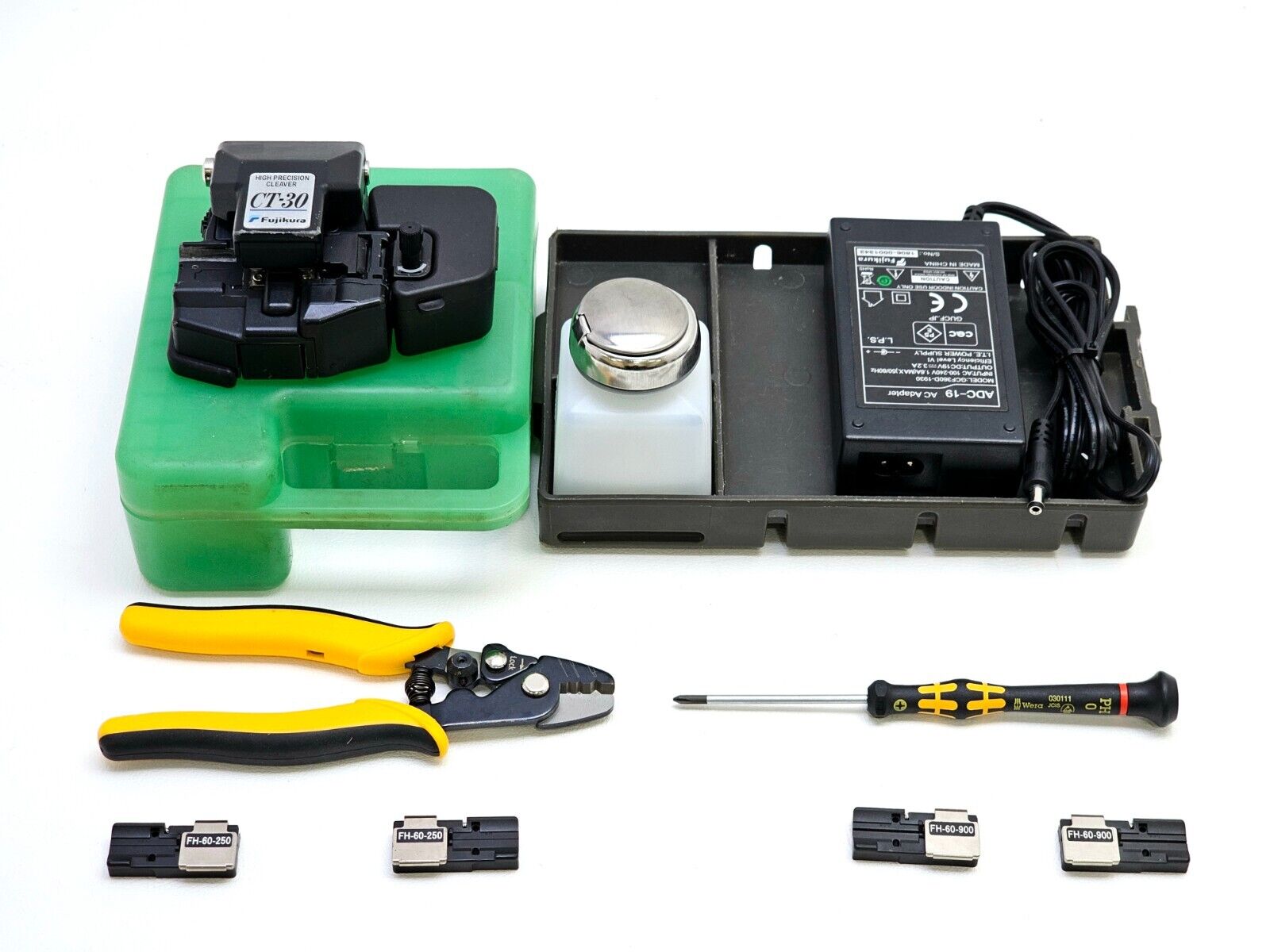

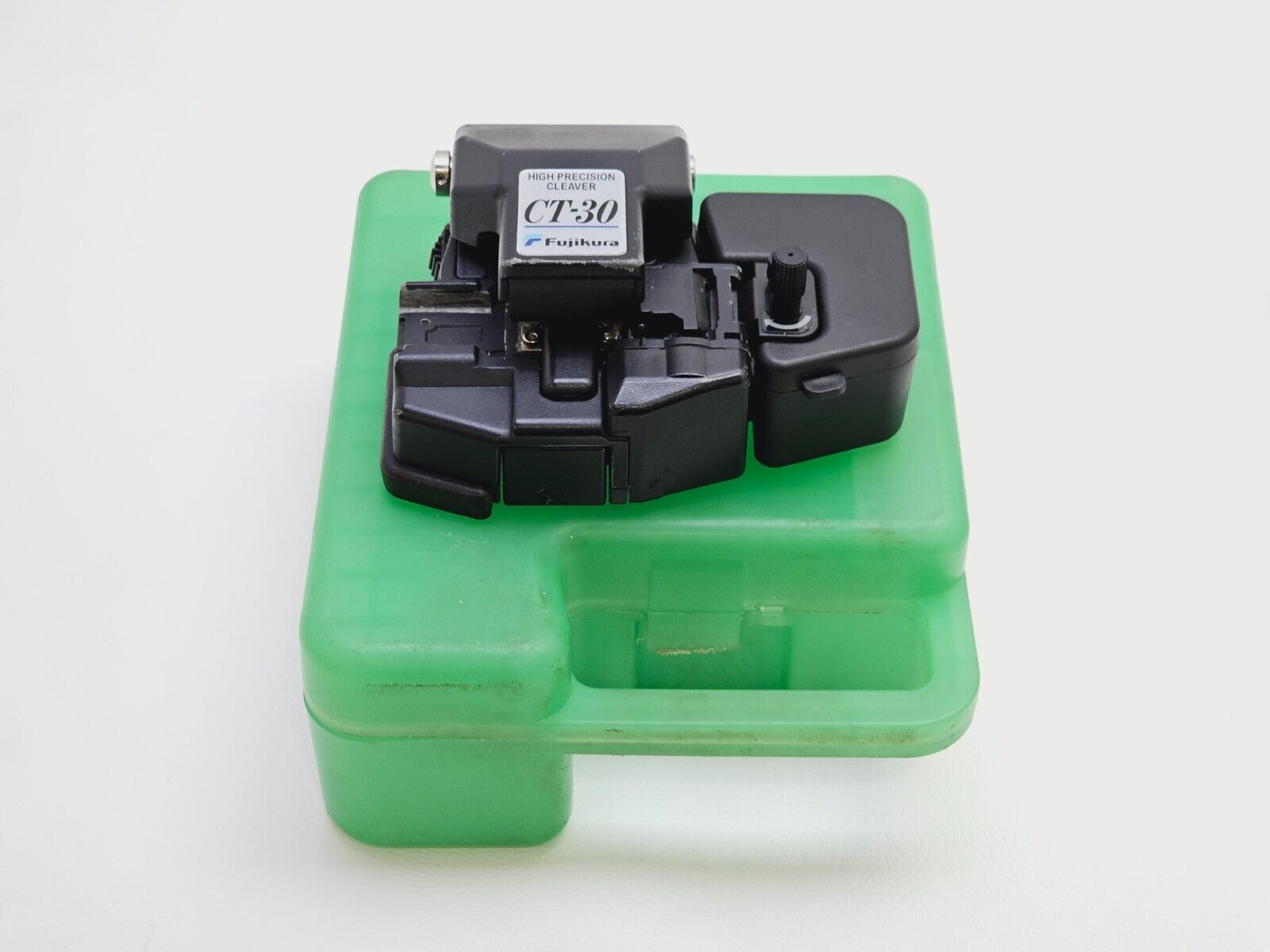

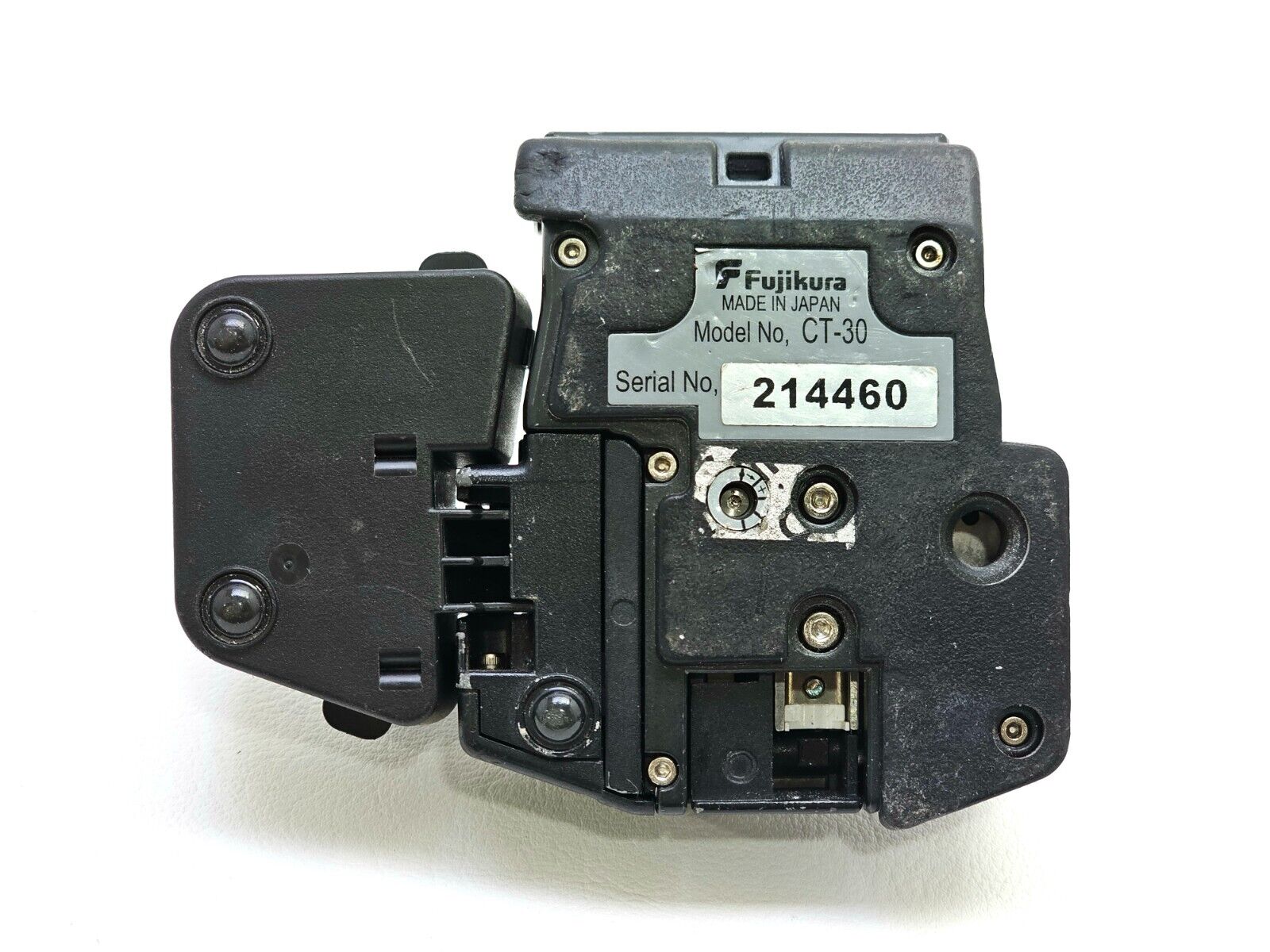

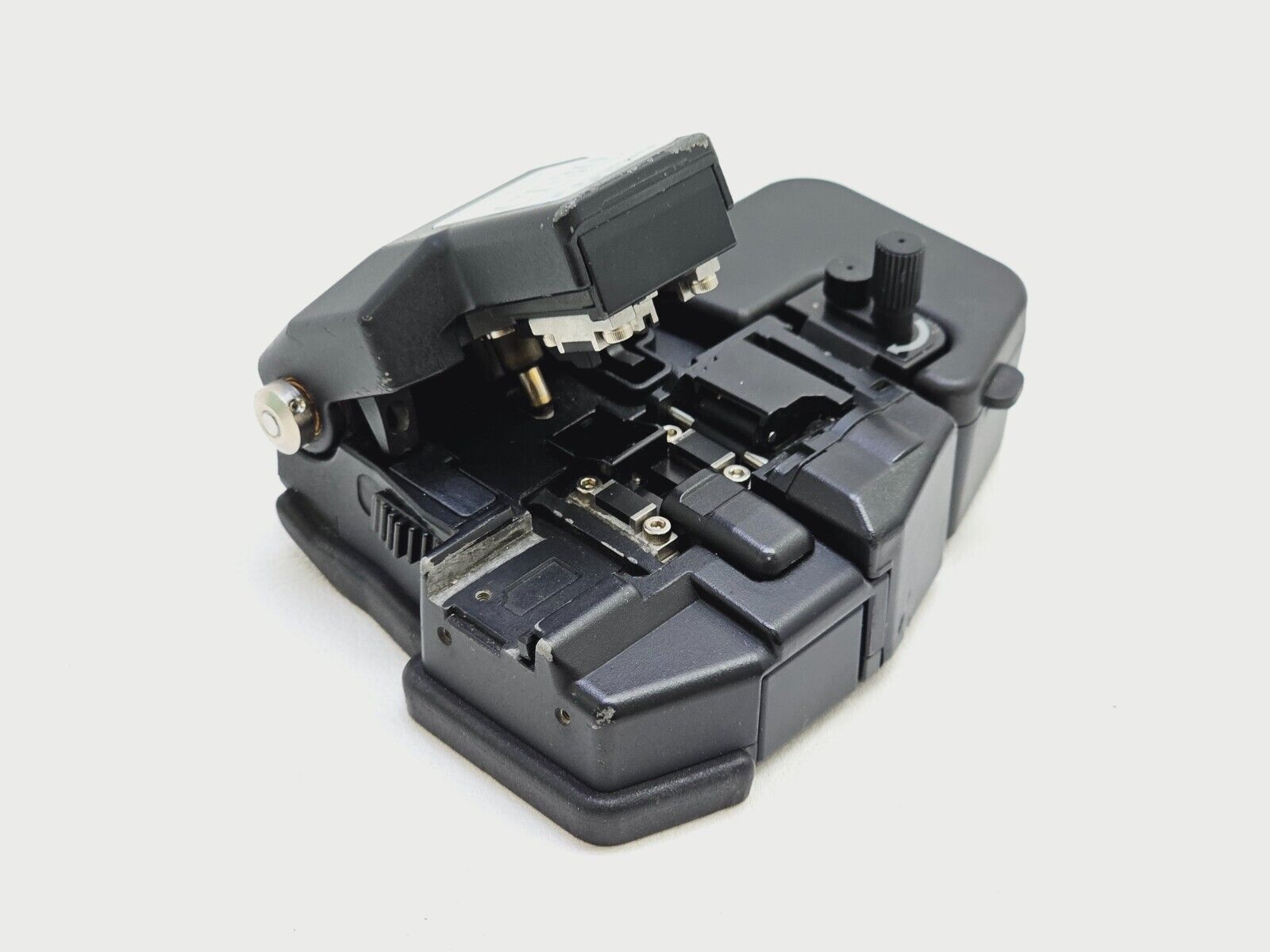

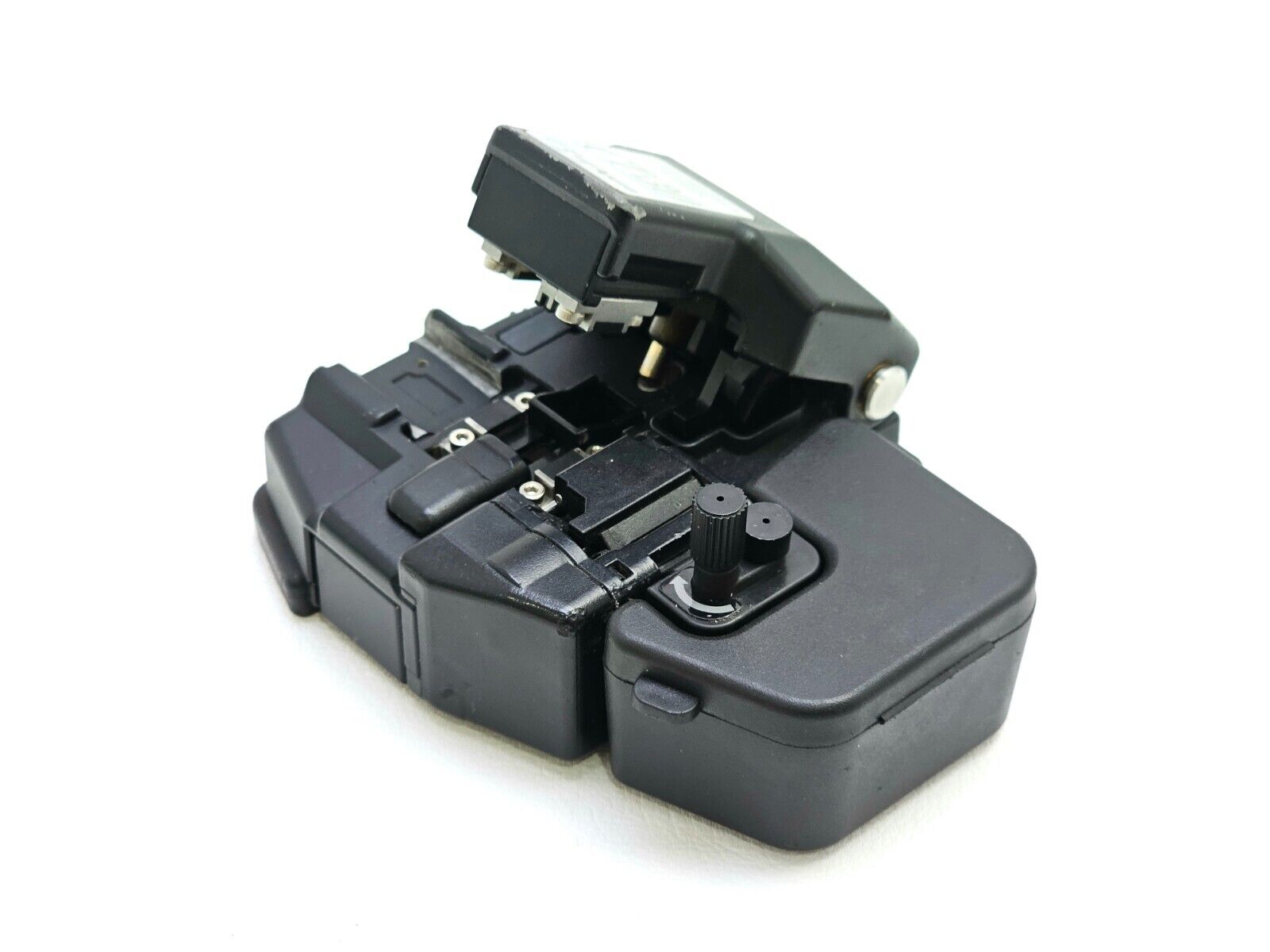

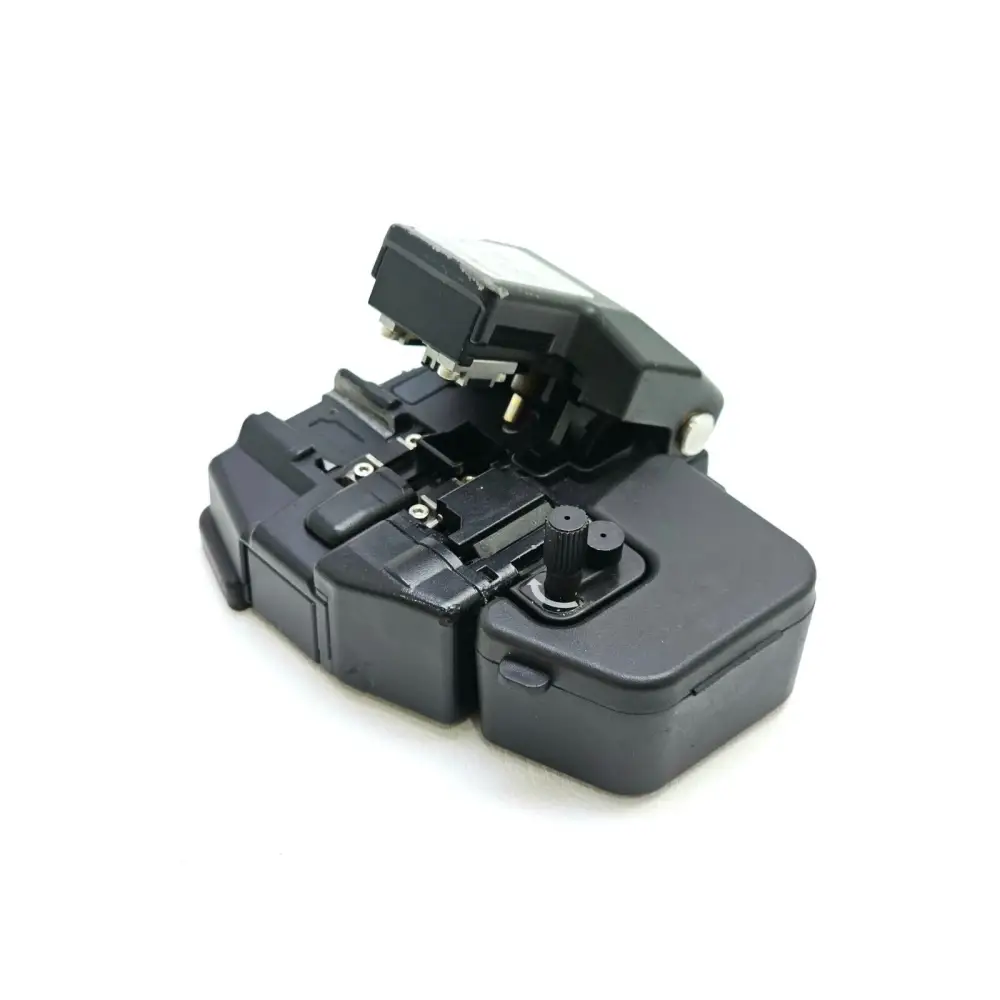

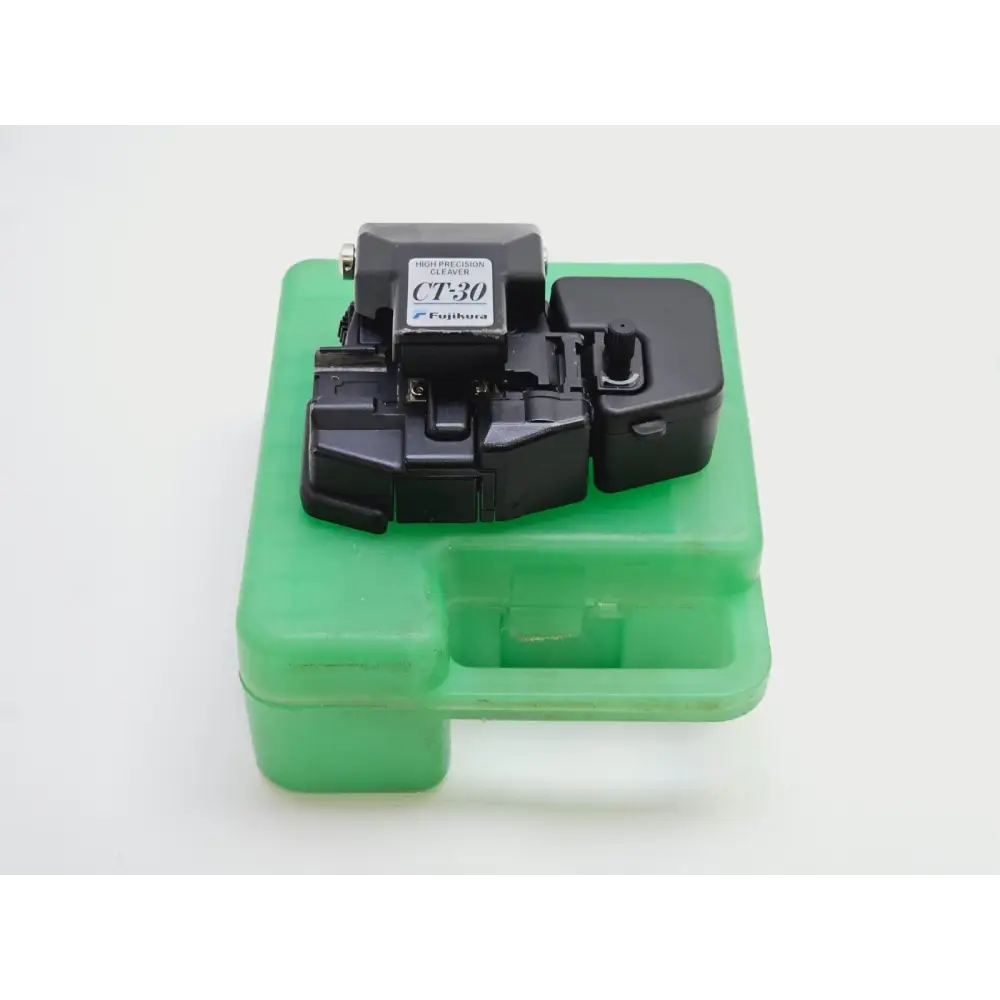

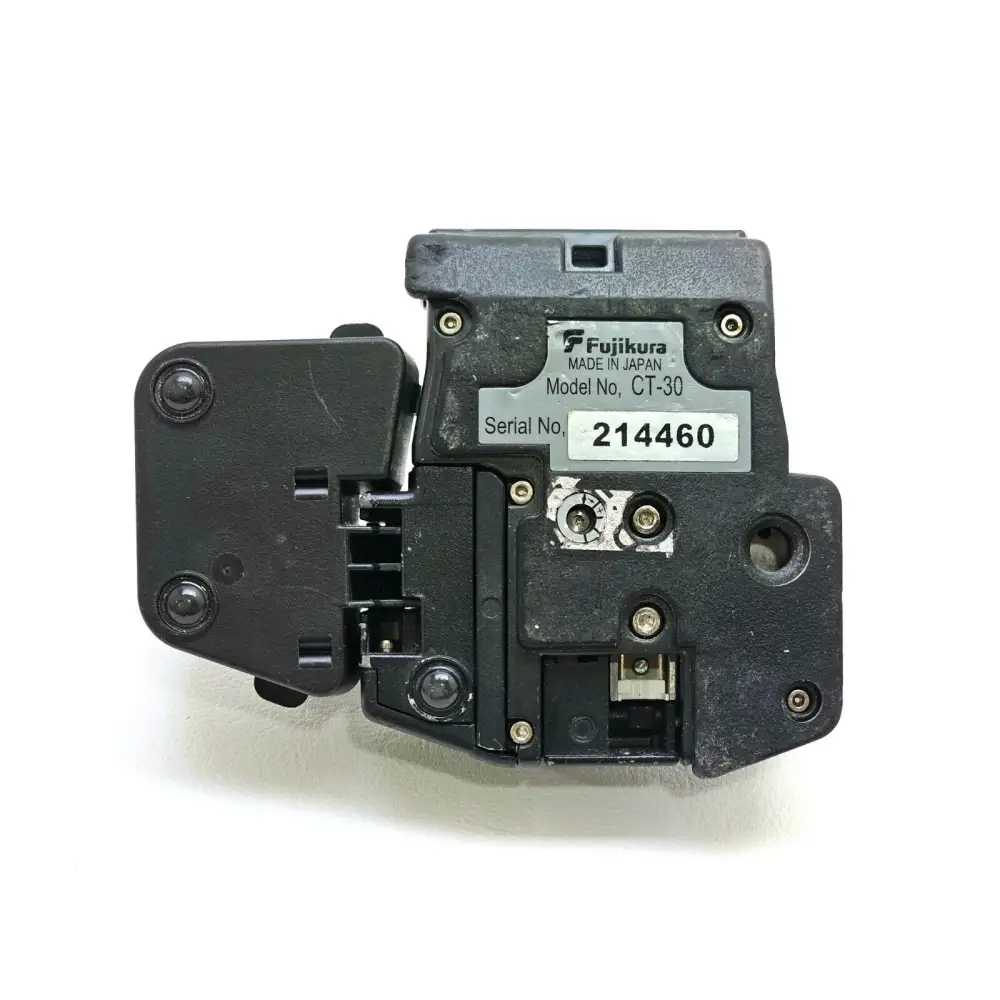

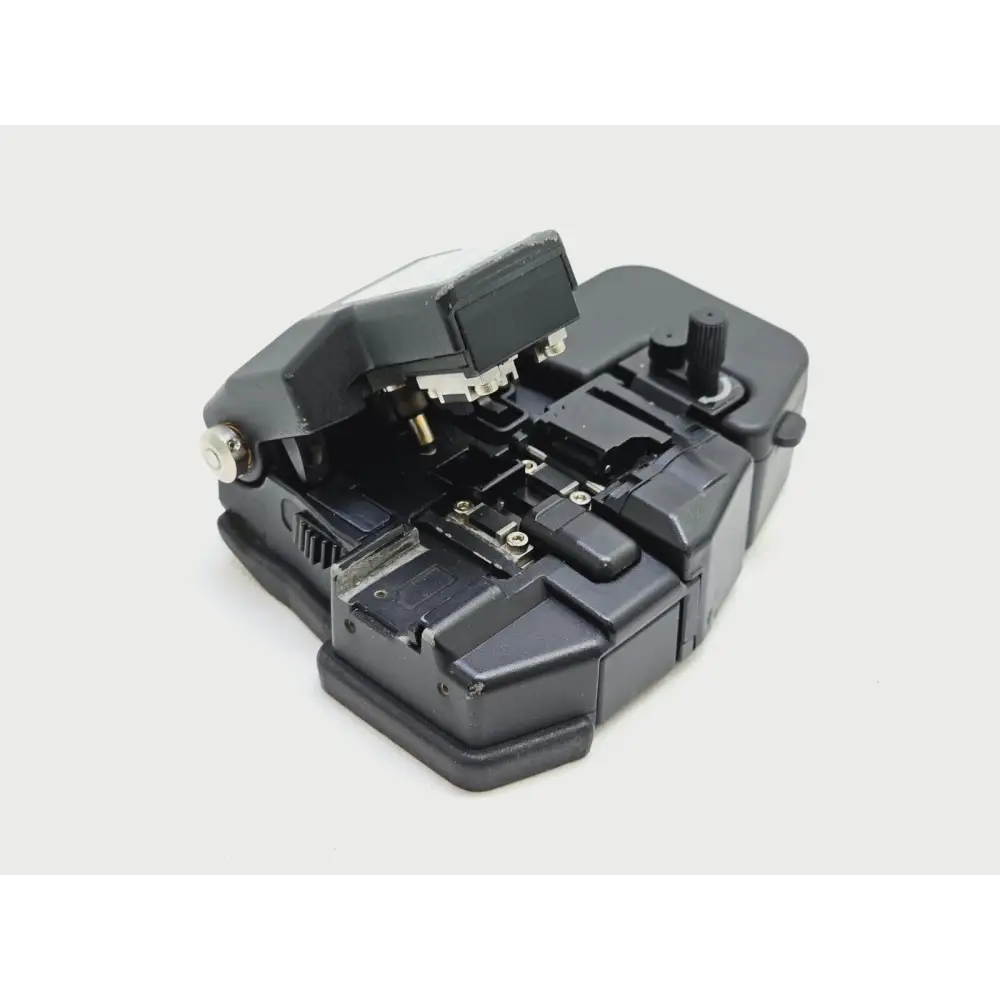

• Fujikura CT-30 High Precision Fiber Cleaver with Case
• FH-60-250 Fiber Holder Set
• FH-60-900 Fiber Holder Set
• AC Adapter/Charger

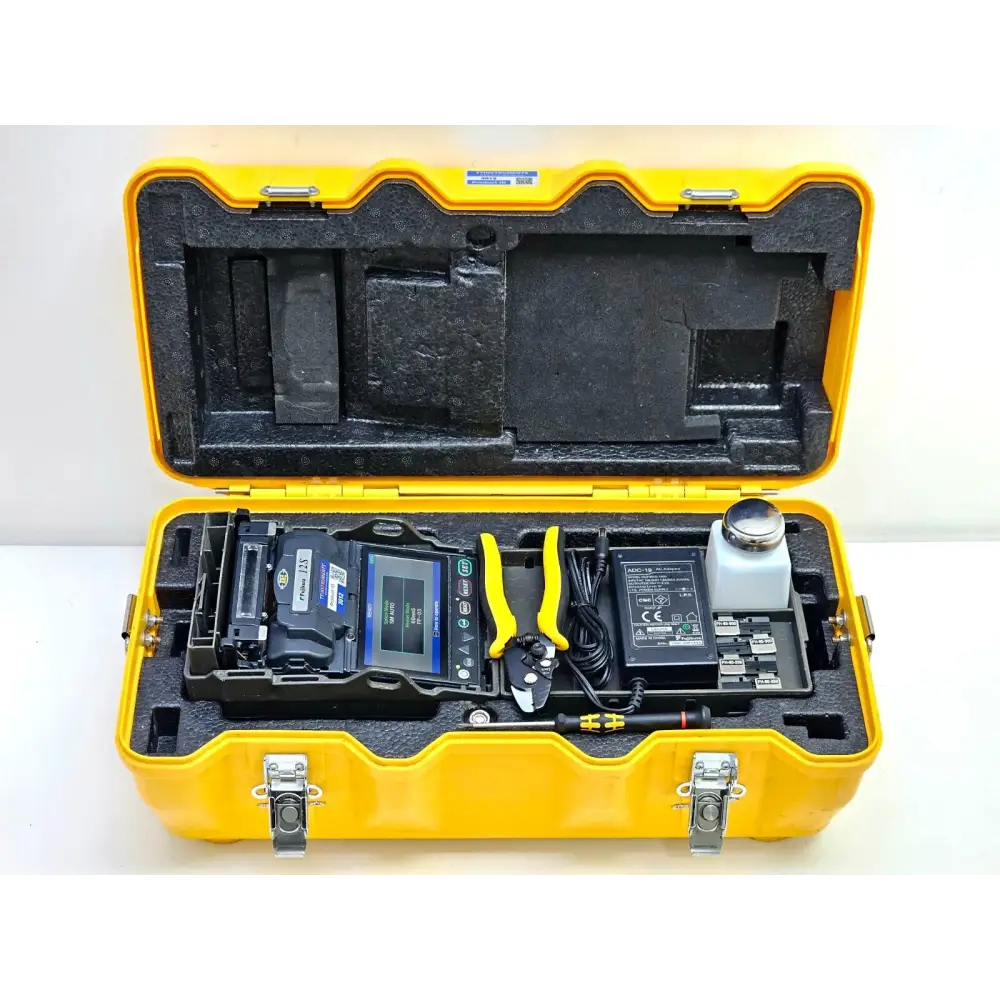

• Hard Carrying Case
• Alcohol Pot
• Work Tray
• Fiber Stripper
• Screwdriver

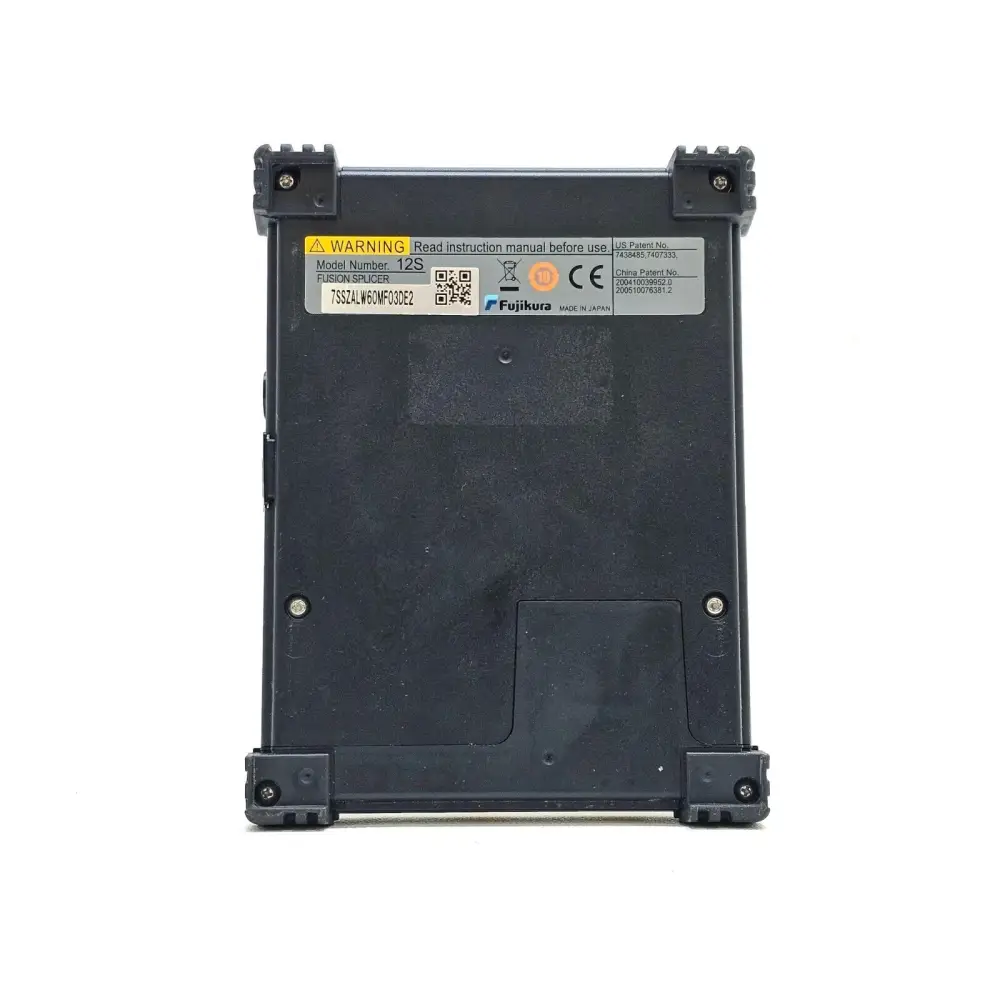

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

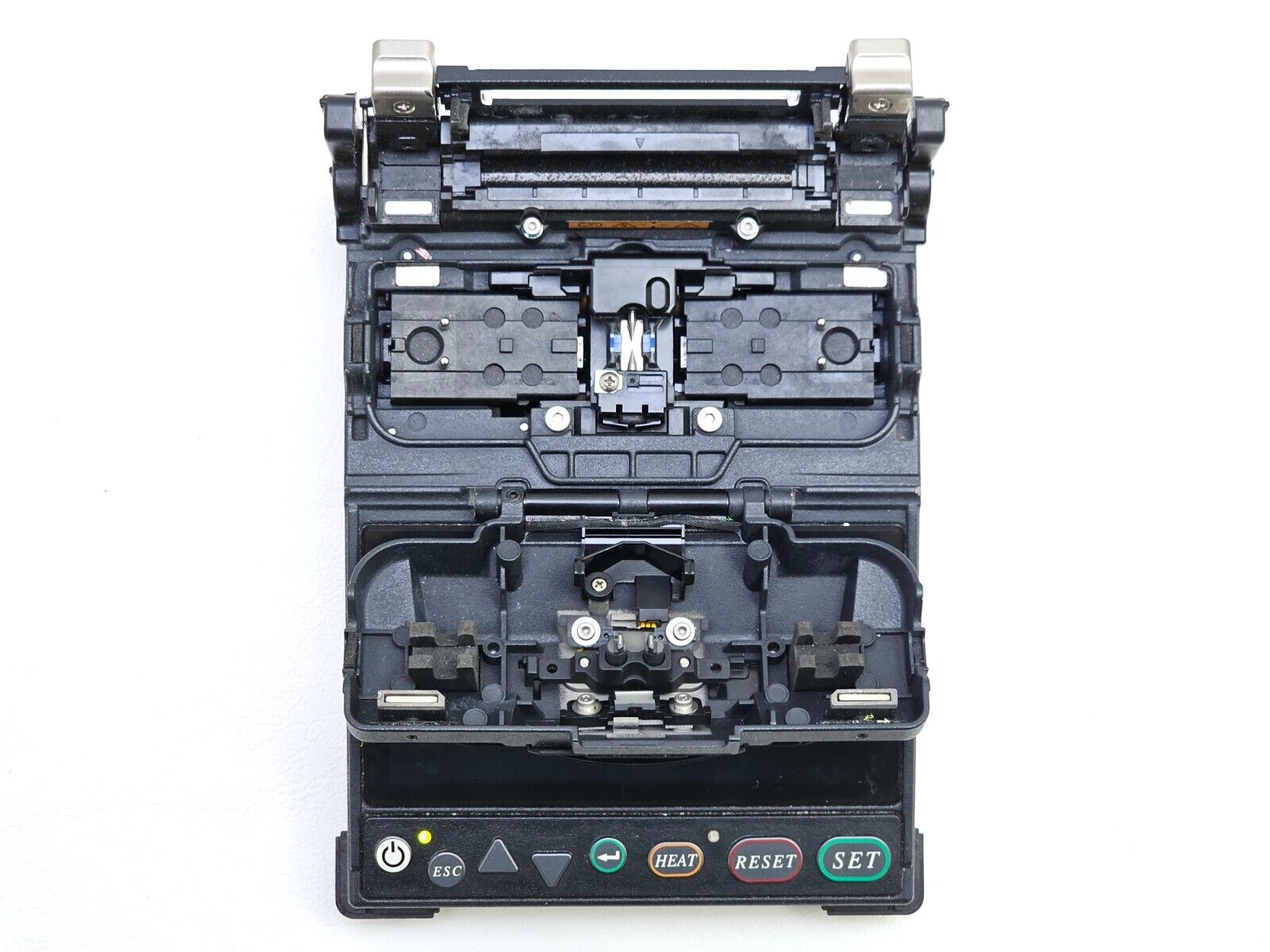

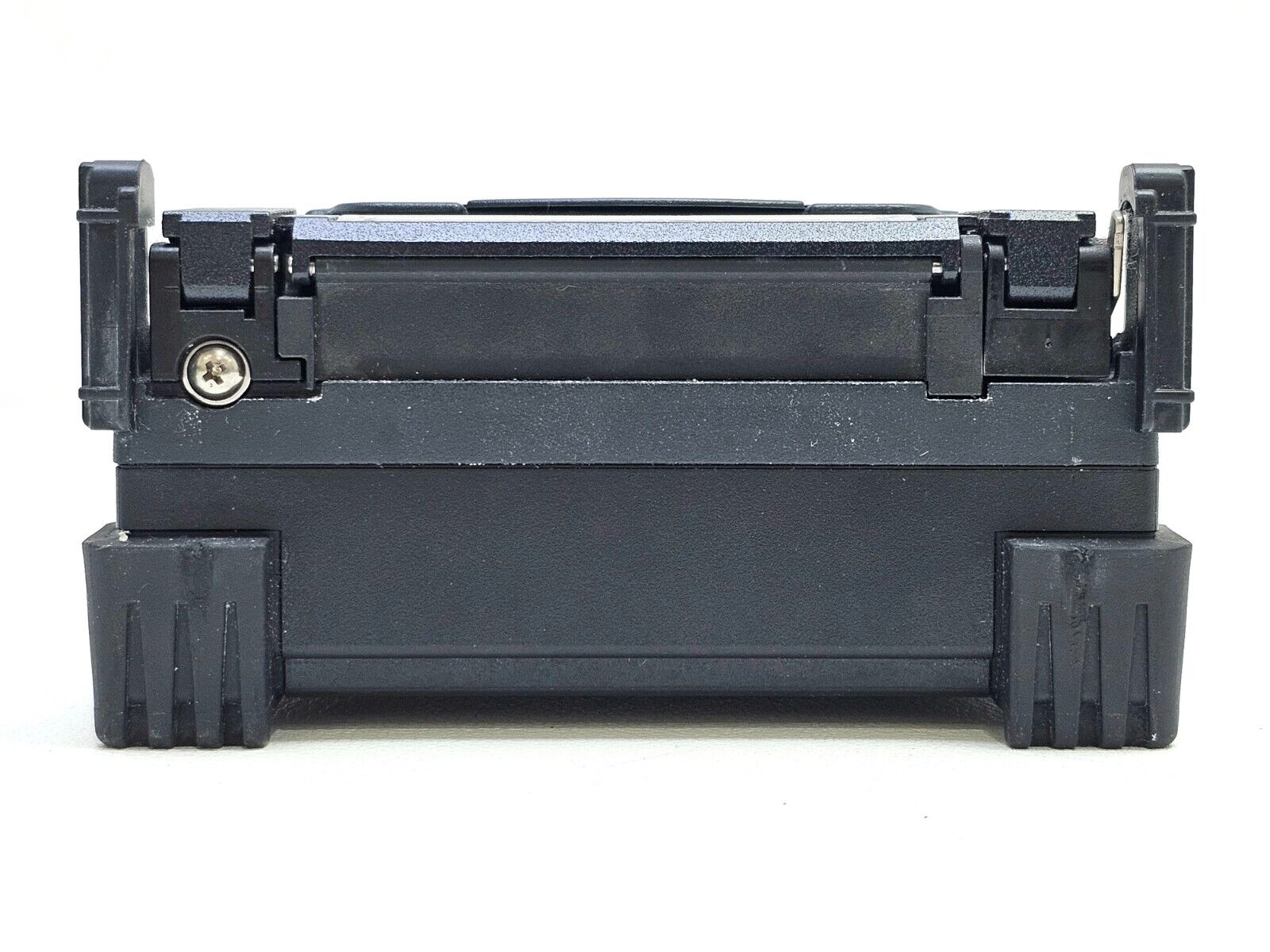

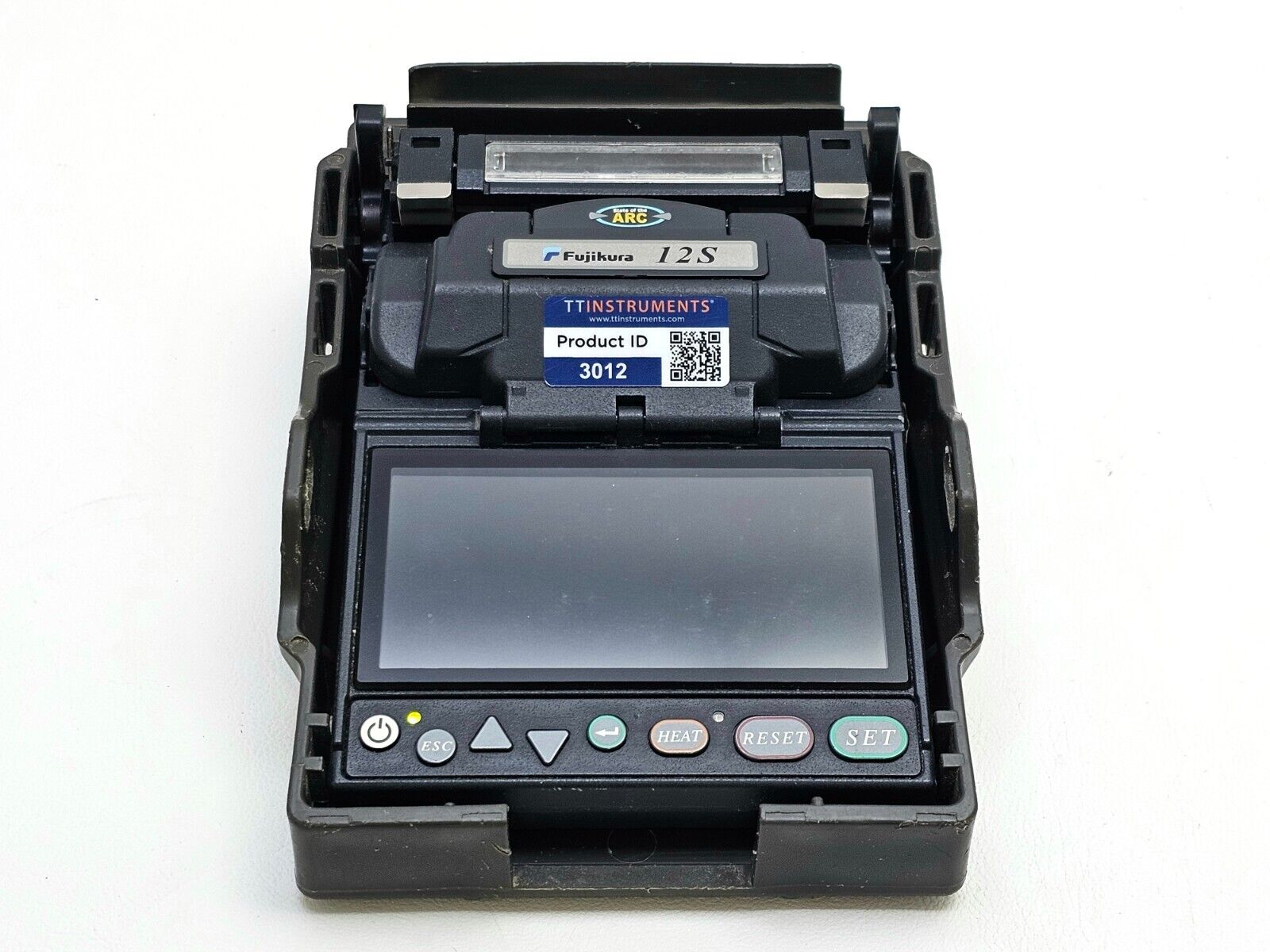

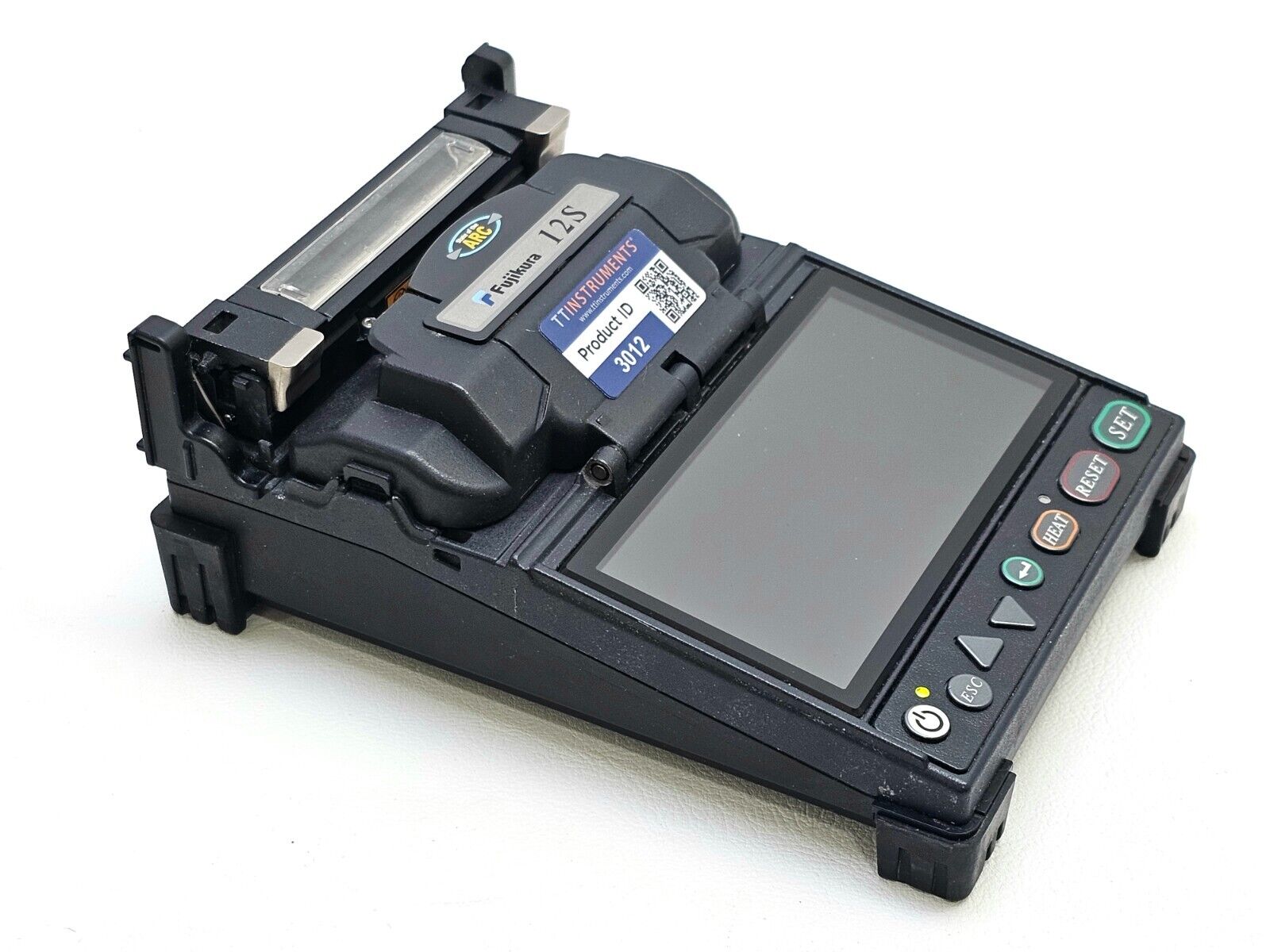

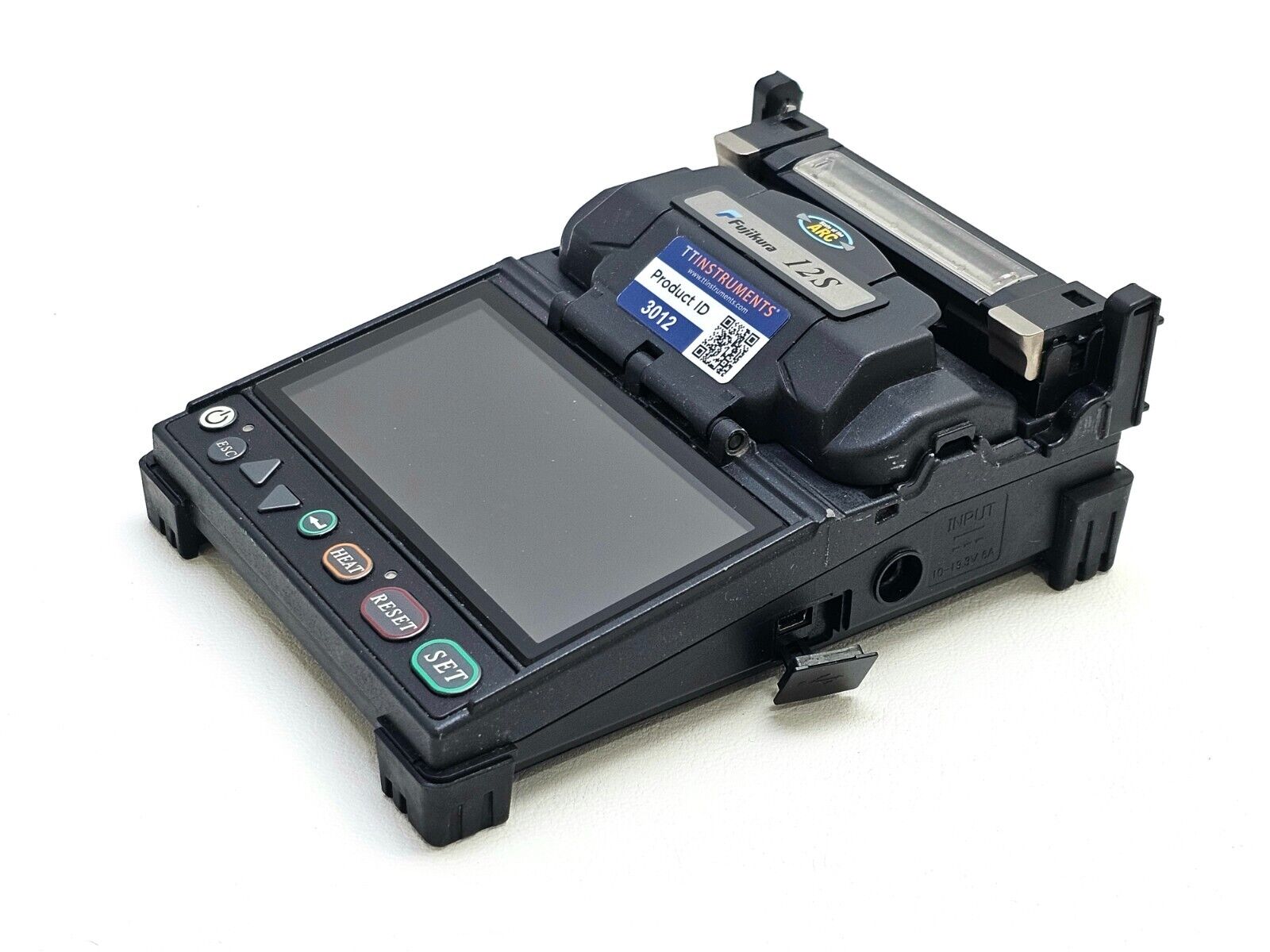

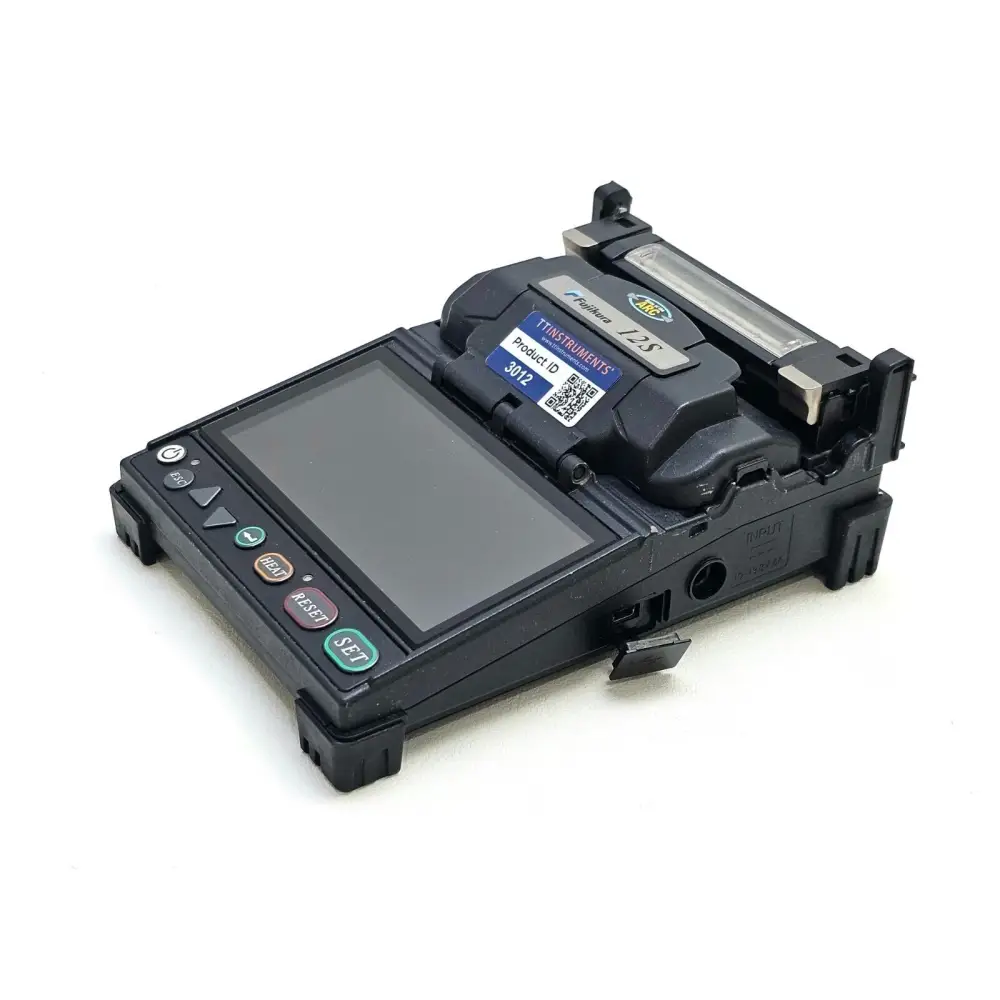

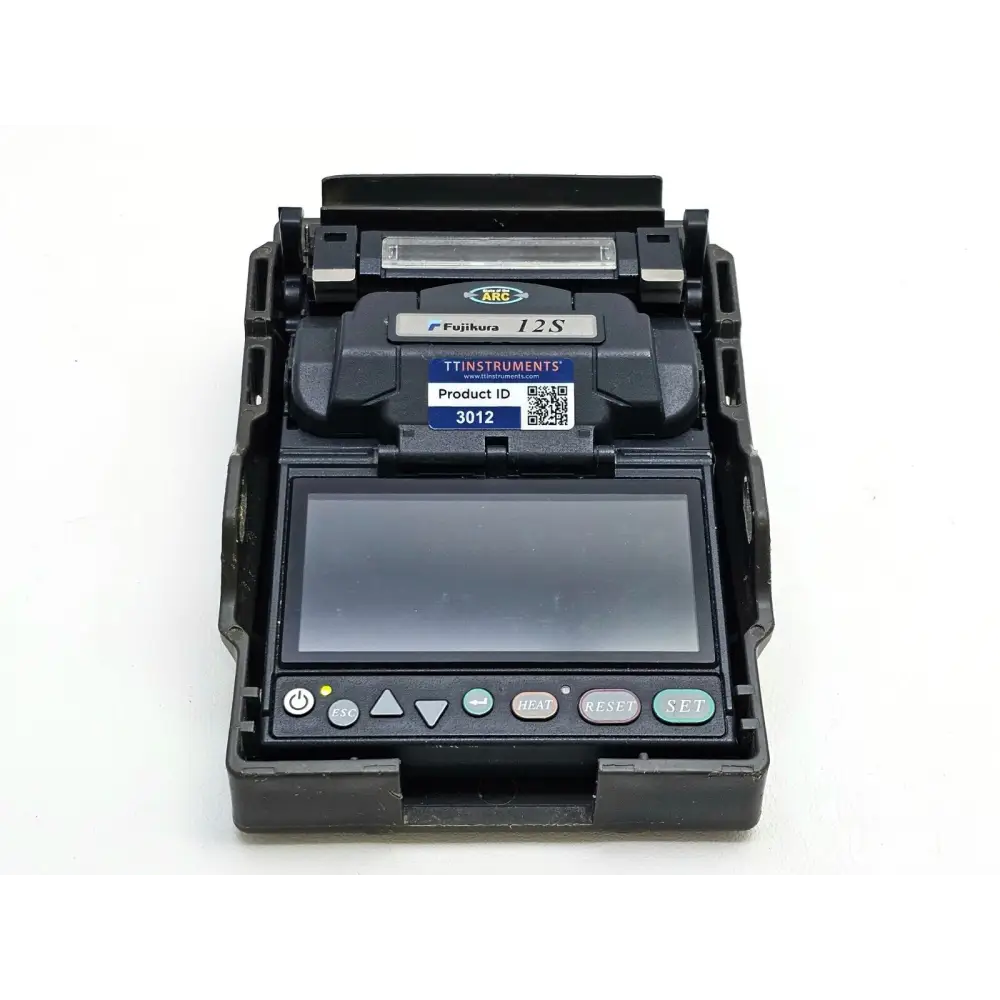

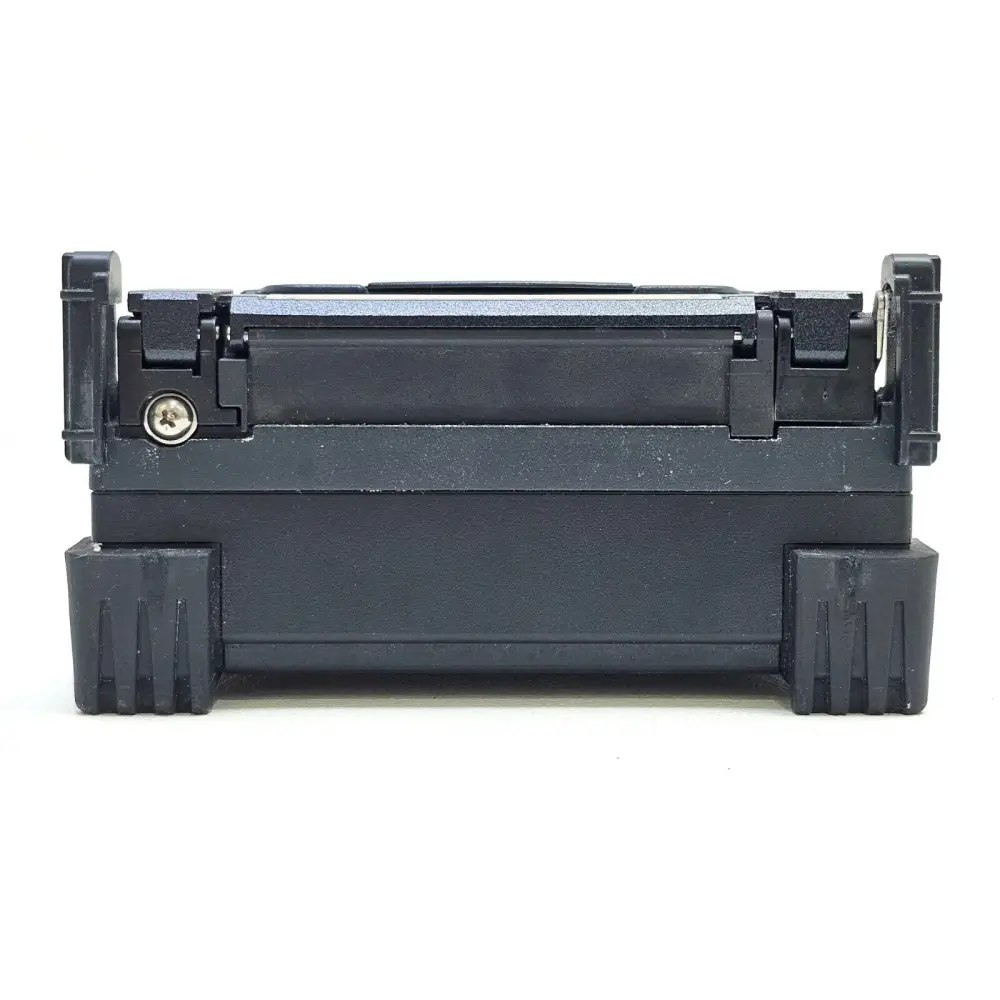

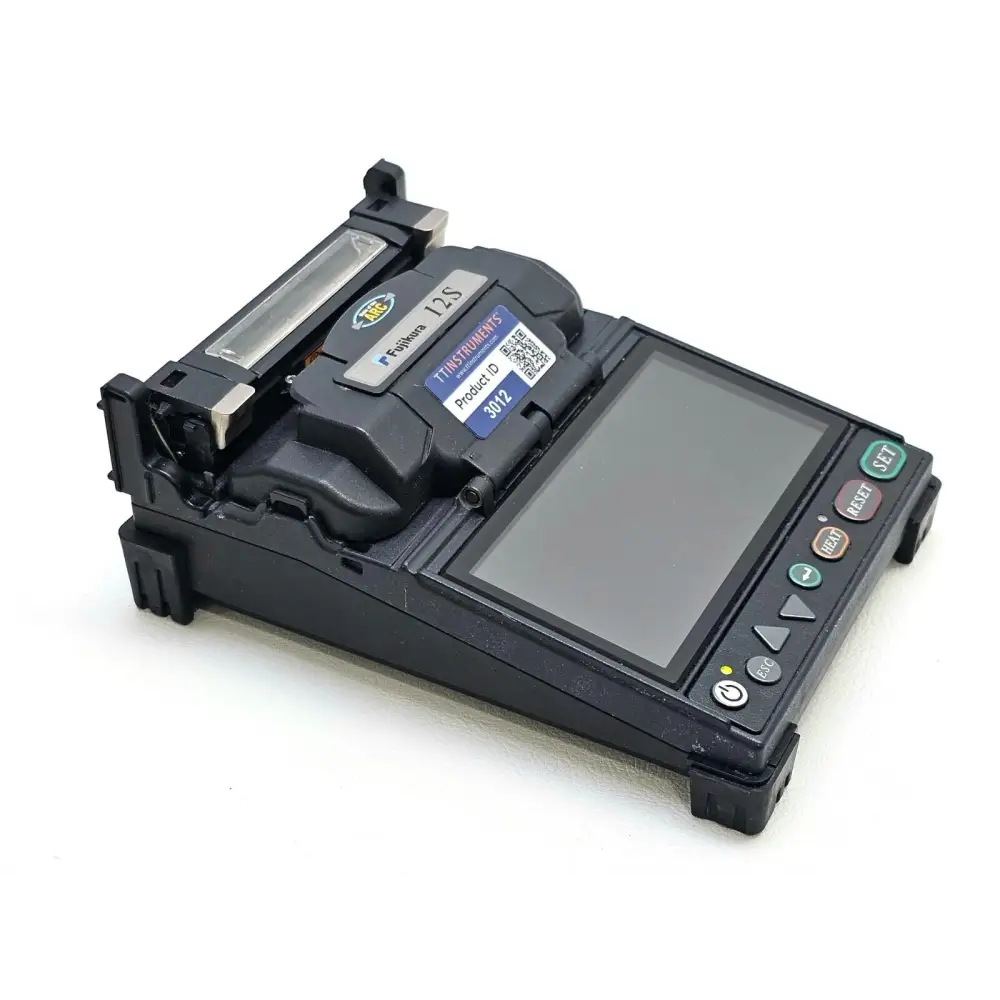

Fujikura 12S SM/MM Fixed V-Groove Fiber Fusion Splicer

The Fujikura 12S is the world's smallest, lightest and most portable fusion splicer available. Despite its incredibly compact size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments. The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 100 splice cycles including application of the splice protection sleeve.

The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" monitor delivers a crystal-clear image even in the brightest sunlight, enabling accurate splice quality evaluation. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programmes as new options become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system delivers accurate fibre alignment and loss estimation. The Fujikura 12S is also fully compatible with the FuseConnect line of fusion-installable connectors.

Key Features:
World's smallest splicer at 4.76"W x 6.38"D x 2.24"H
Fully ruggedised for shock, moisture and dust resistance
Transit case converts to an easy-to-use workstation

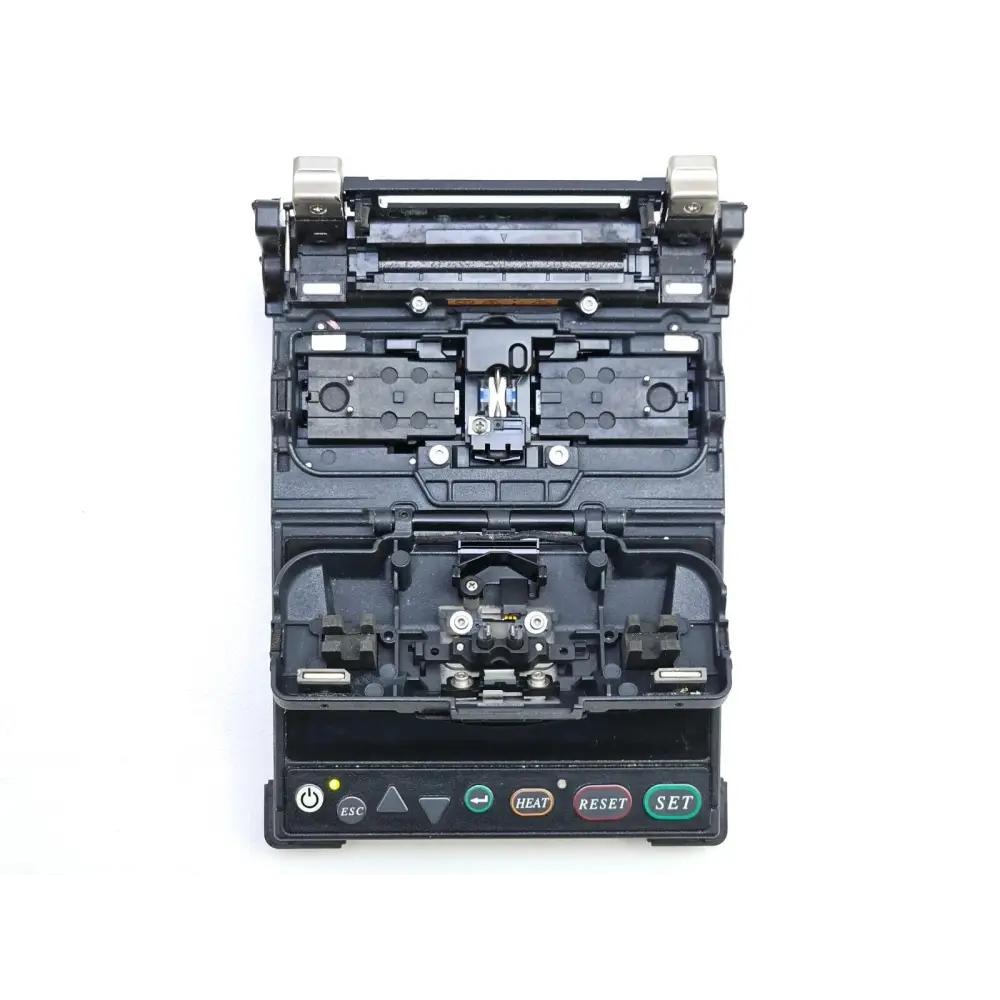

Dual camera, fixed V-groove alignment technology
Extended life electrodes (3,000 splices)
Long-life battery — 100 splices/shrinks per charge
Internet-based software updates
Compatible with FuseConnect fusion-installable connectors

Applications: FTTx, remote locations, field installation and maintenance

Specifications:

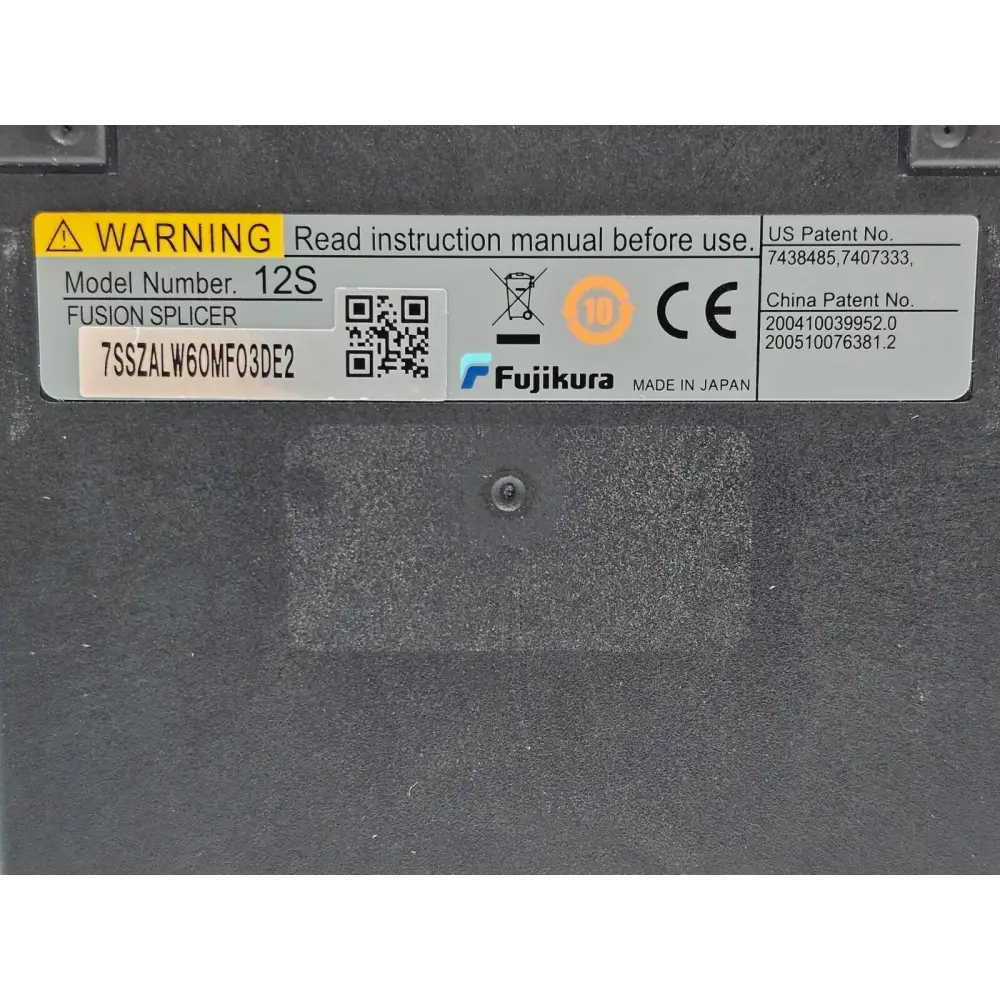

Model: Fujikura 12S
Applicable Fibres: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter: 125 µm
Coating Diameter: 250 µm or 900 µm
Fibre Cleave Length: 5 mm to 13 mm
Typical Average Splice Loss: 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.08 dB (NZDS)
Splicing Time: Typical 15 sec with SM
Arc Calibration: Automatic, real-time; manual arc calibration also available
Splicing Modes: 100 total splice modes
Splice Loss Estimate: Based on dual-camera cladding alignment data
Storage of Splice Results: Last 2,000 splices
Fibre Display: 4.5 inch TFT colour LCD — X, Y, or simultaneous X and Y view
Magnification: 100X for X/Y view
Viewing Method: 2-axis CMOS camera
Operating Conditions: Altitude 0–3,660 m, Temperature 10°C to 50°C, Humidity 0–95% RH non-condensing
Mechanical Proof Test: 1.96 N
Tube Heater: 30 heating modes
Tube Heating Time: Typical 30 sec with FP-03 (60 mm) sleeve
Protection Sleeve Length: 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery: Typical 100 cycles with BTR-10
Electrode Life: 3,000 splices
Power Supply: Auto-select 100–240 V AC adapter; 14.8 V DC with installed battery

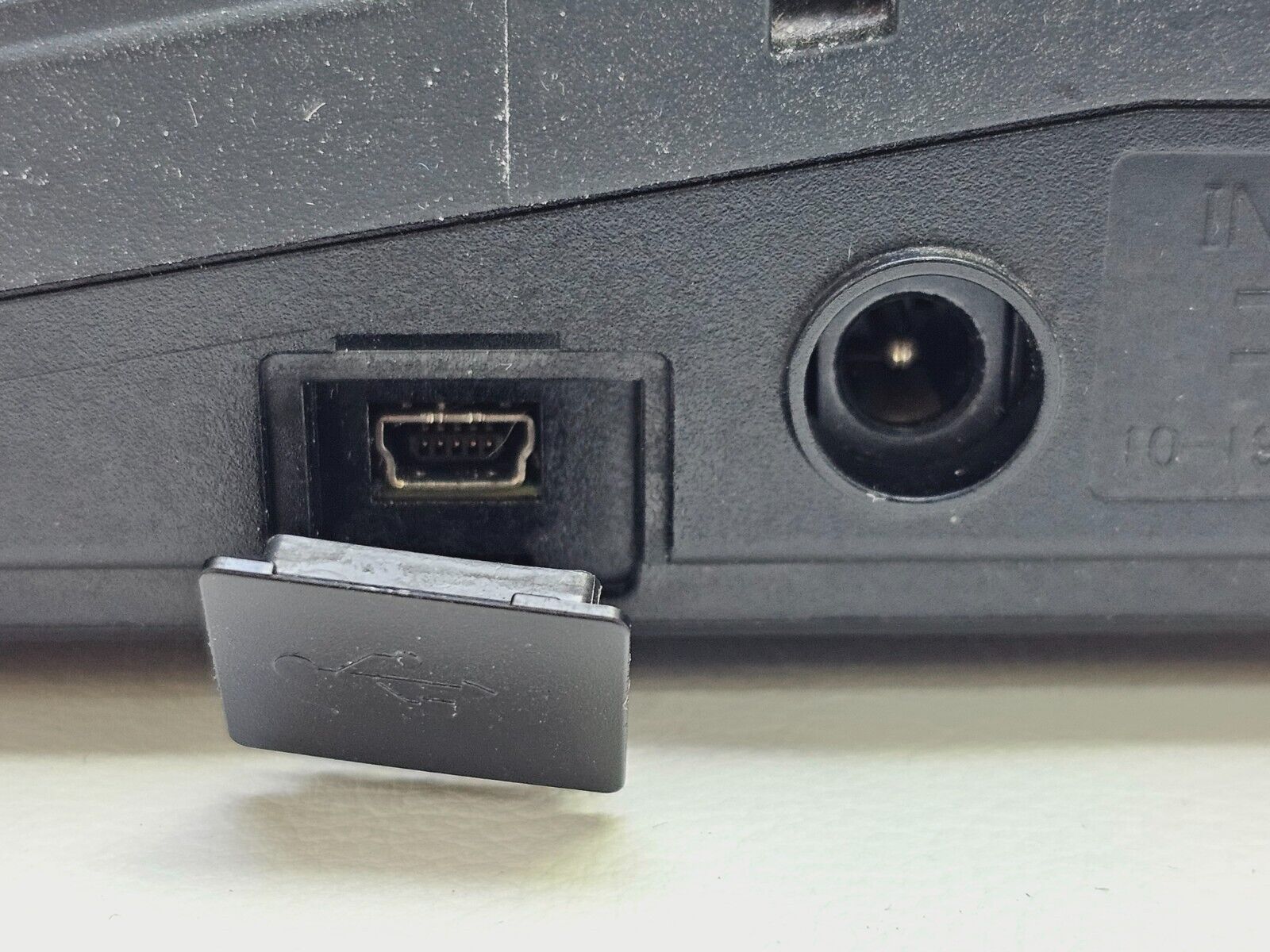

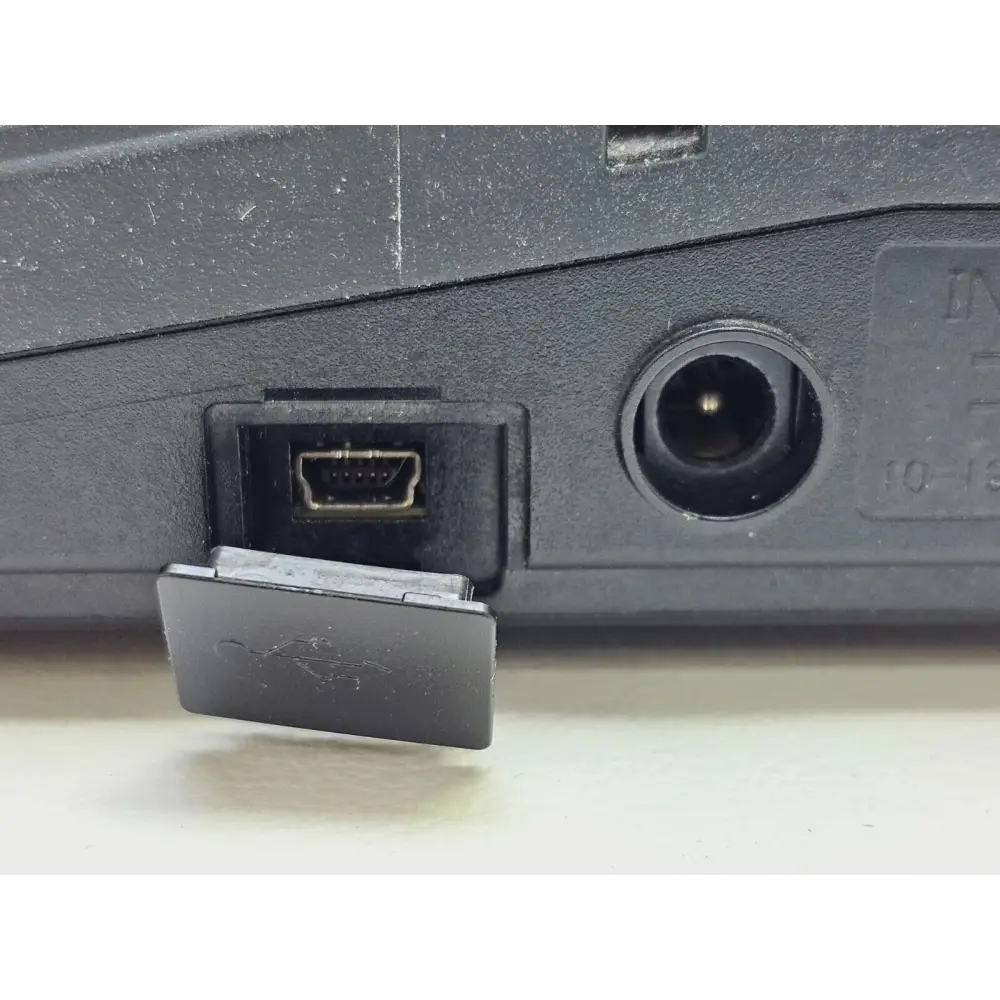

Terminals: USB 2.0
Wind Protection: Maximum wind velocity 15 m/s (34 mph)
Dimensions: 121 x 162 x 57 mm / 4.76 x 6.38 x 2.24 inches
Weight: 0.776 kg (1.71 lbs) with battery

Fujikura 12S Fusion Splicer Product Datasheet (PDF): Download PDF
