Condition: Used

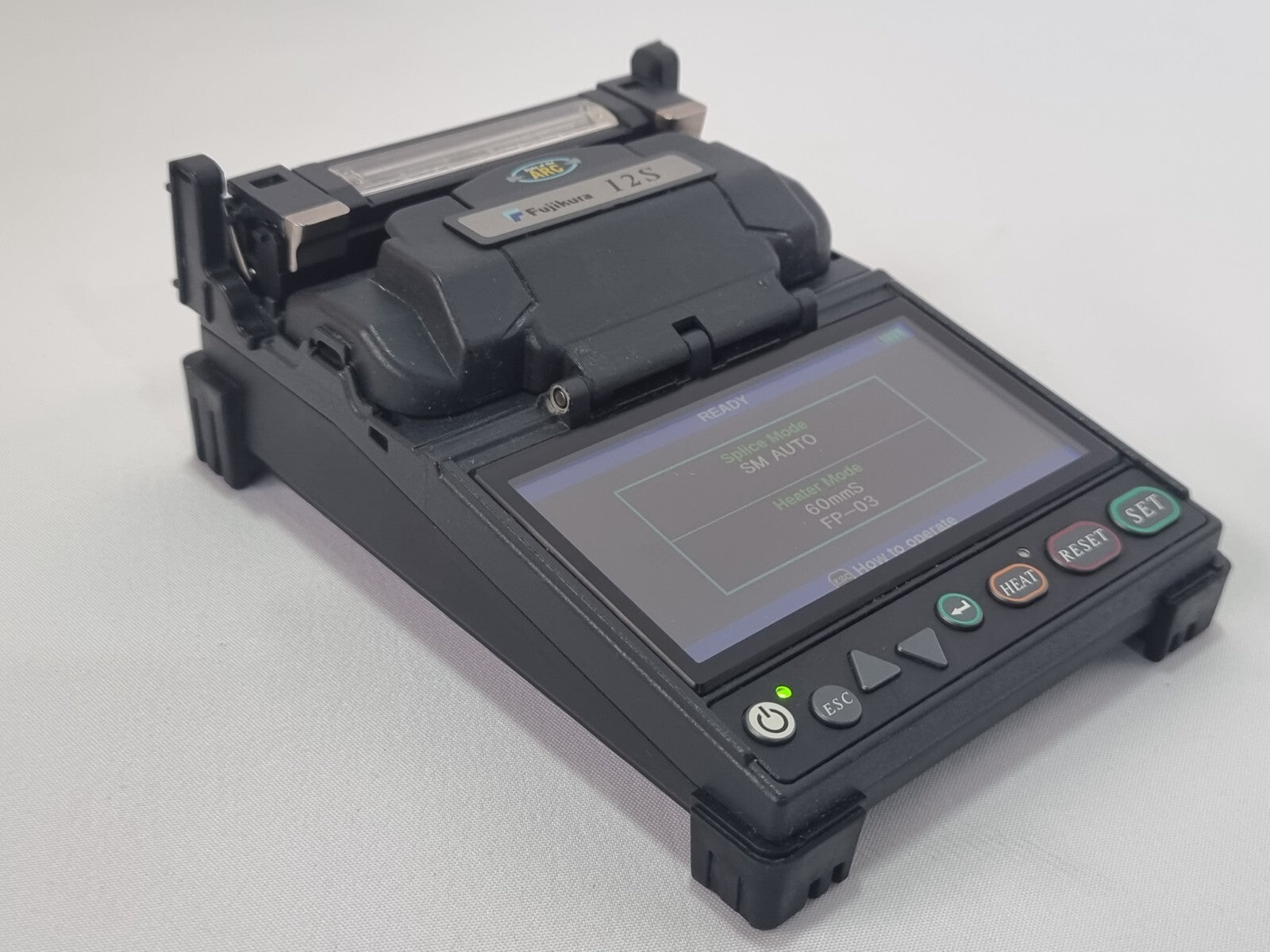

The Fujikura FSM-12S is a single-mode and multimode arc fusion splicer suited to field and workshop fibre optic splicing applications. This used unit has an arc count that will vary but will not exceed 2000 arcs.

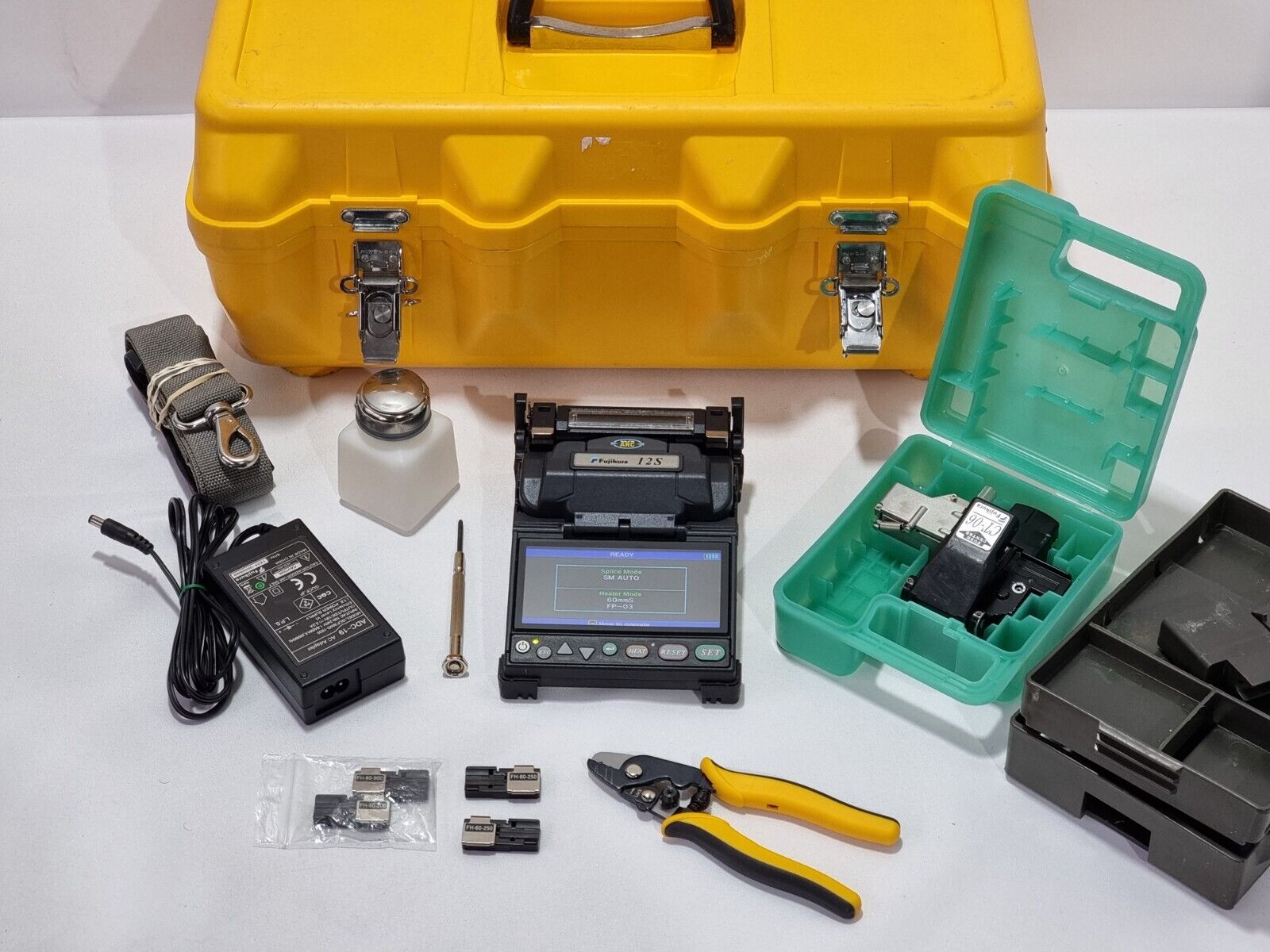

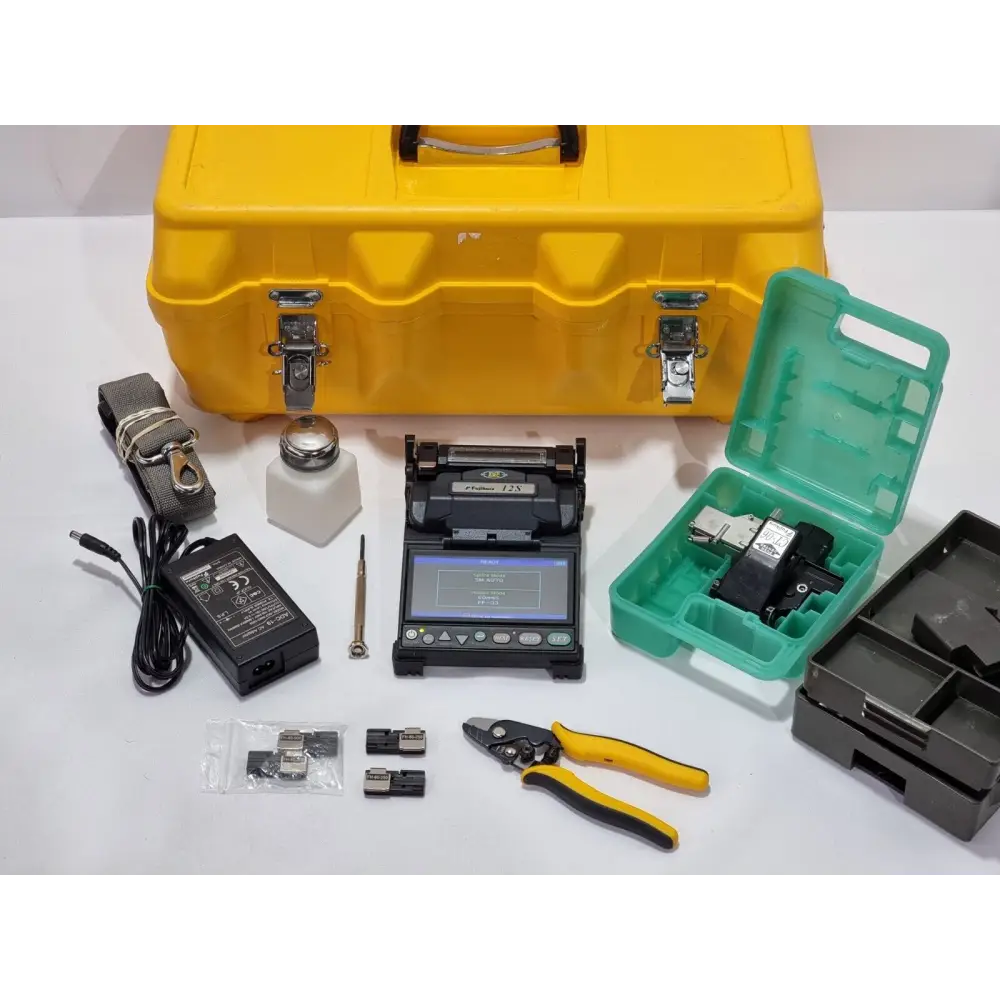

Included in the sale:

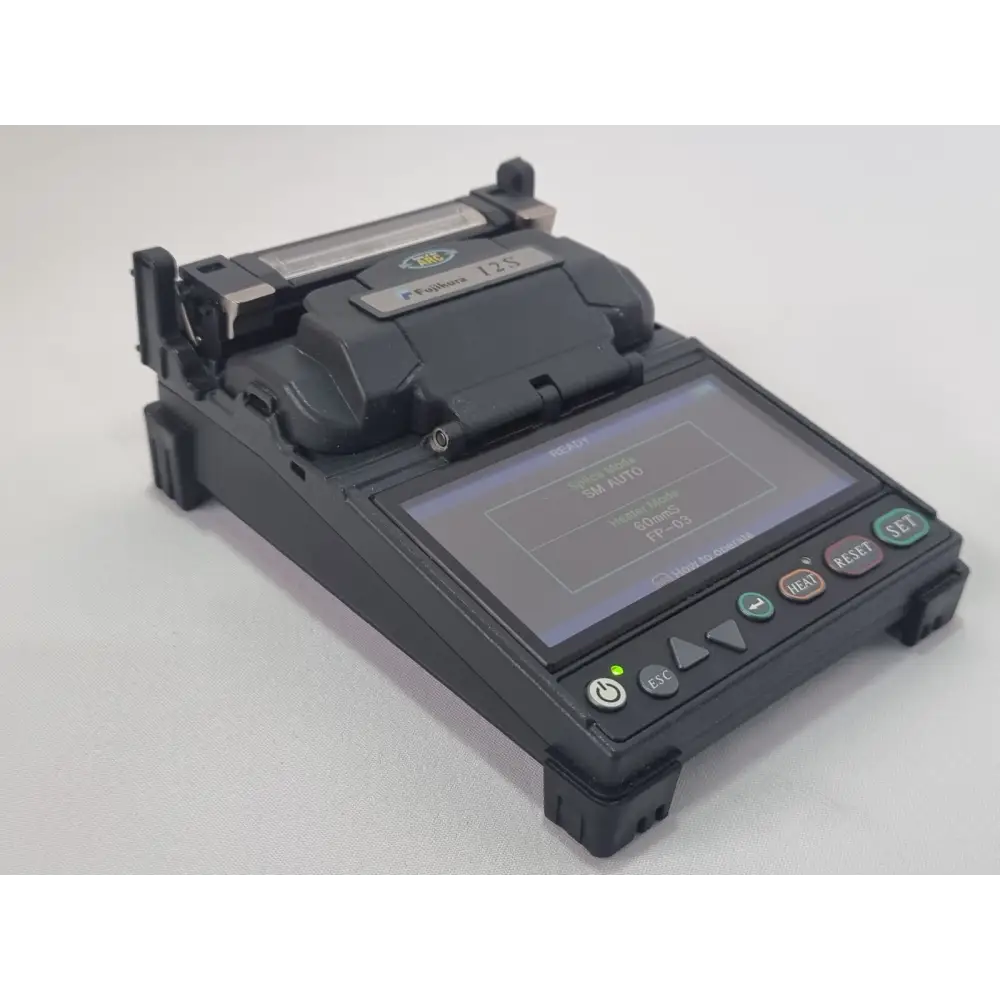

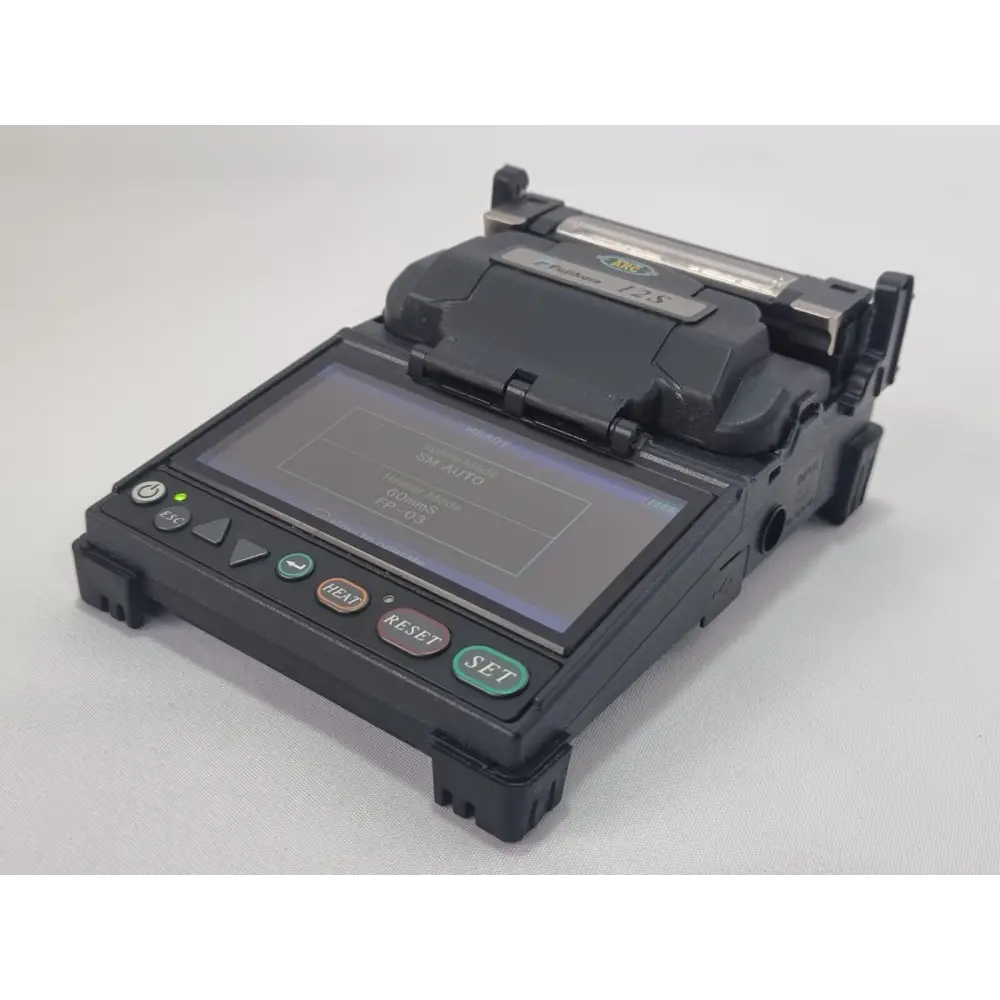

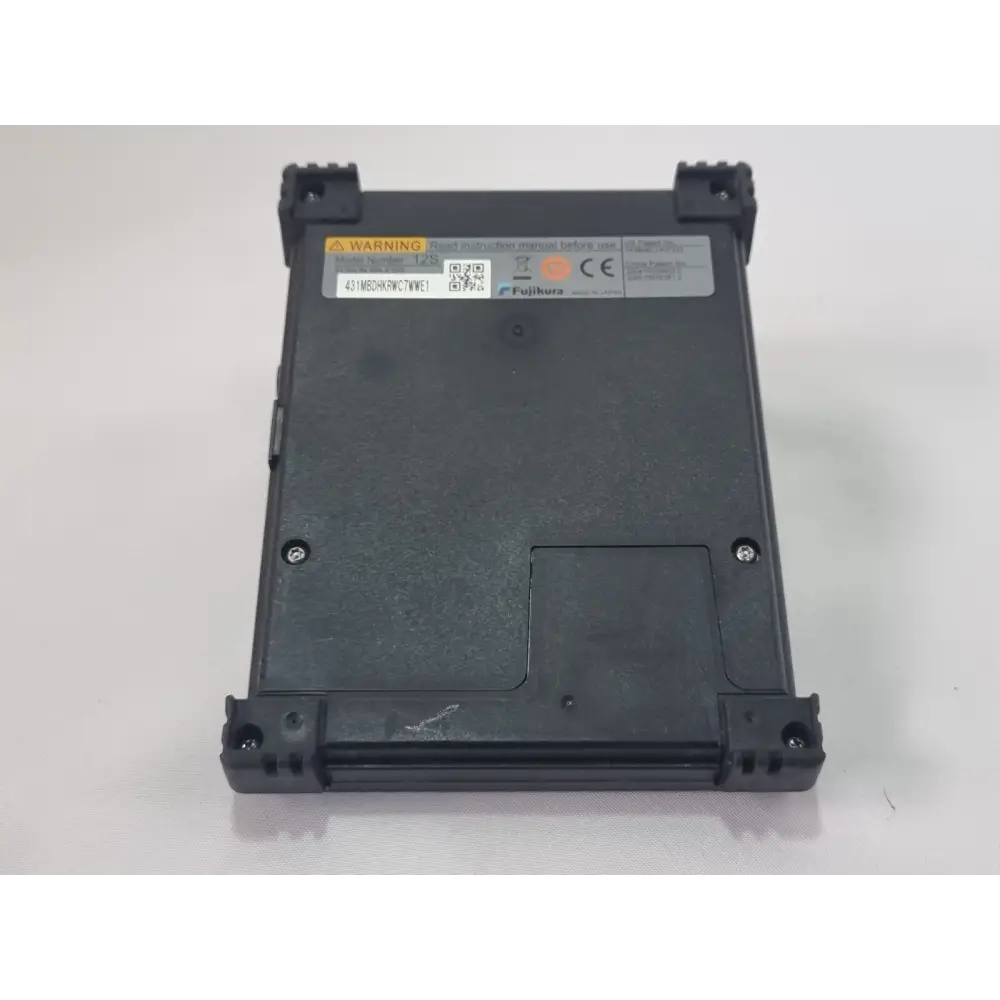

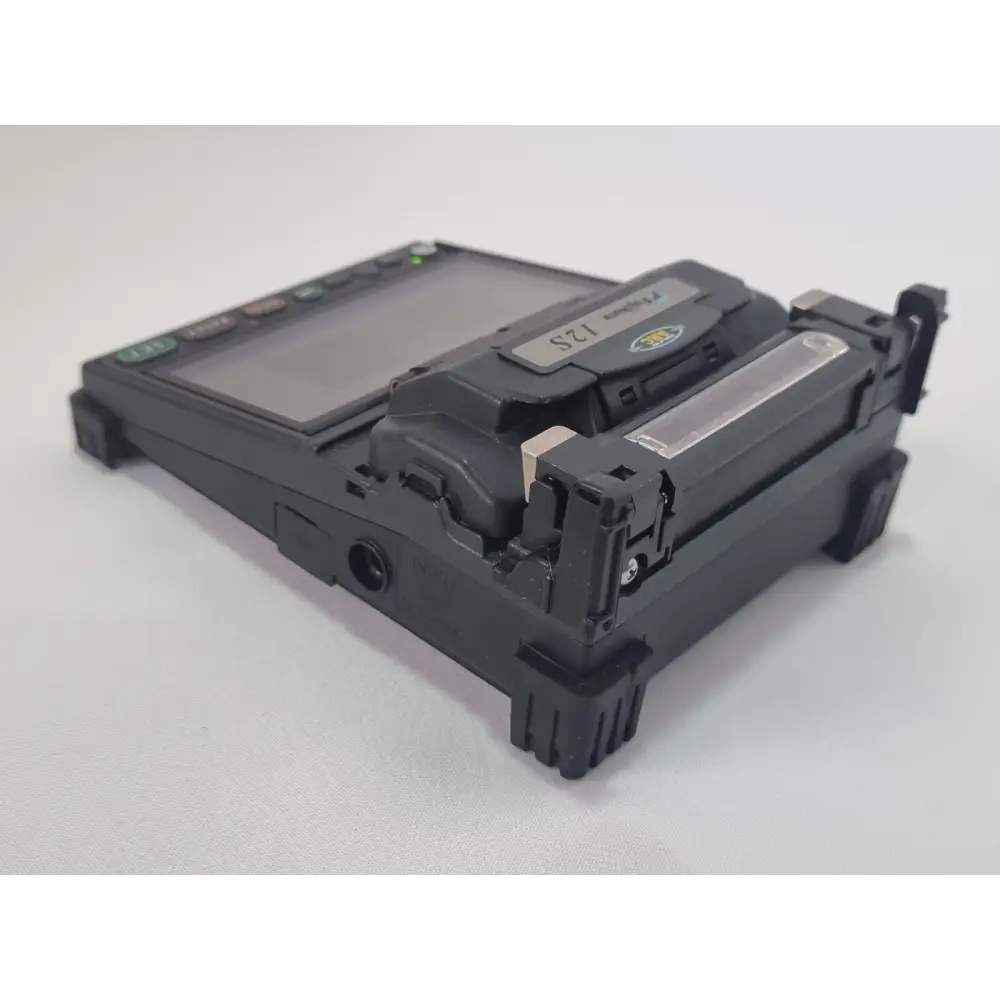

• Fujikura FSM-12S SM/MM Arc Fusion Splicer

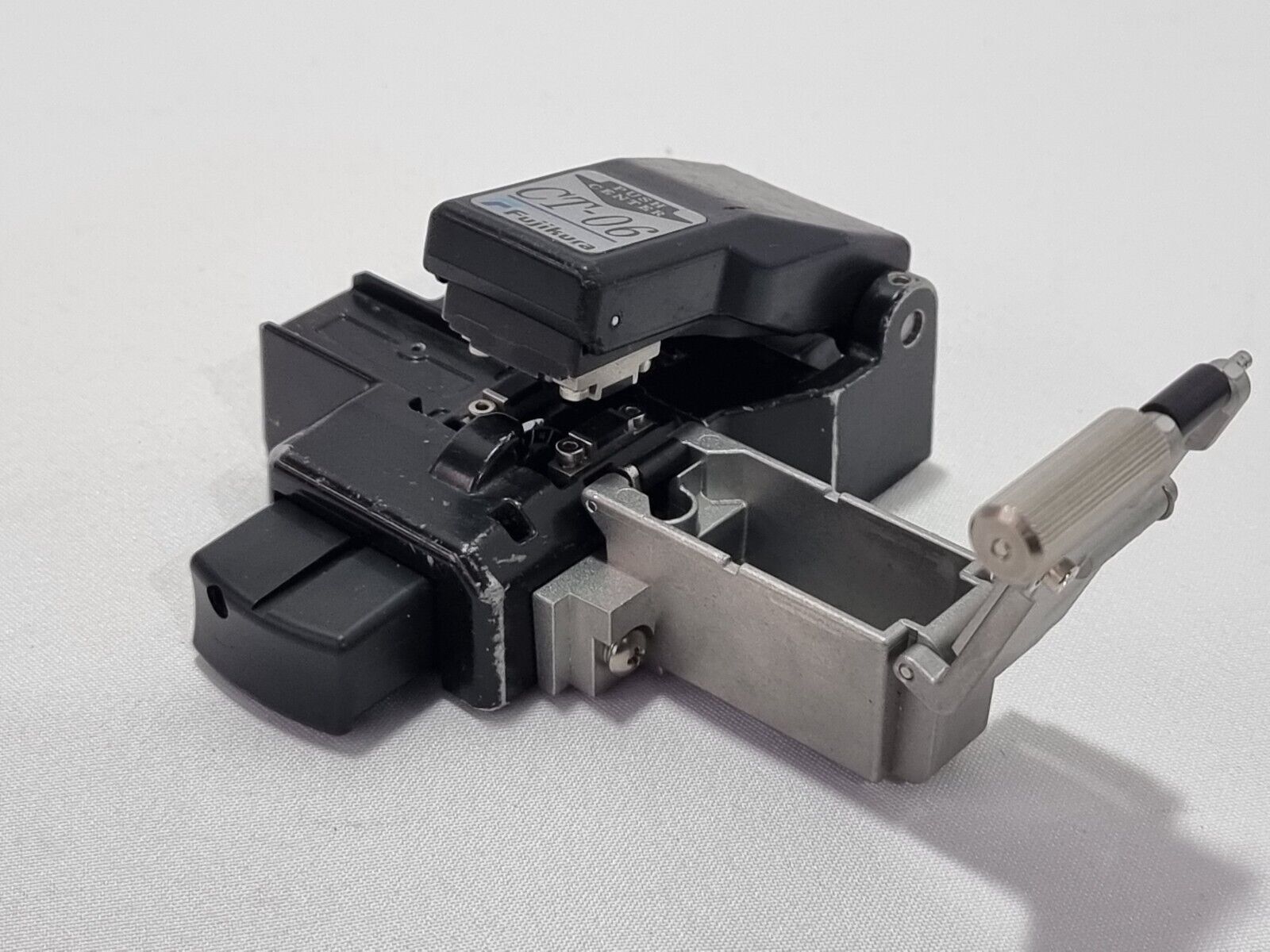

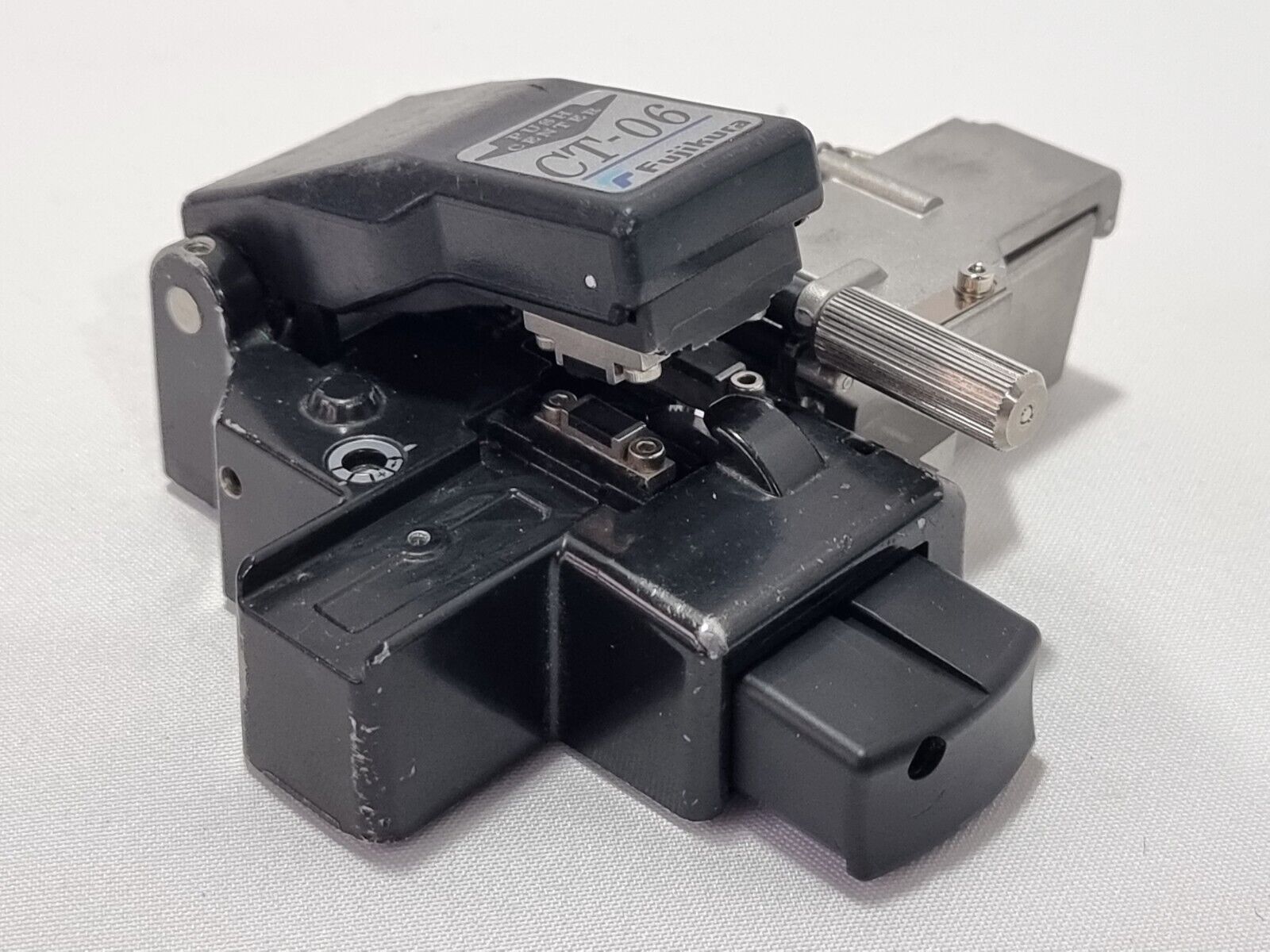

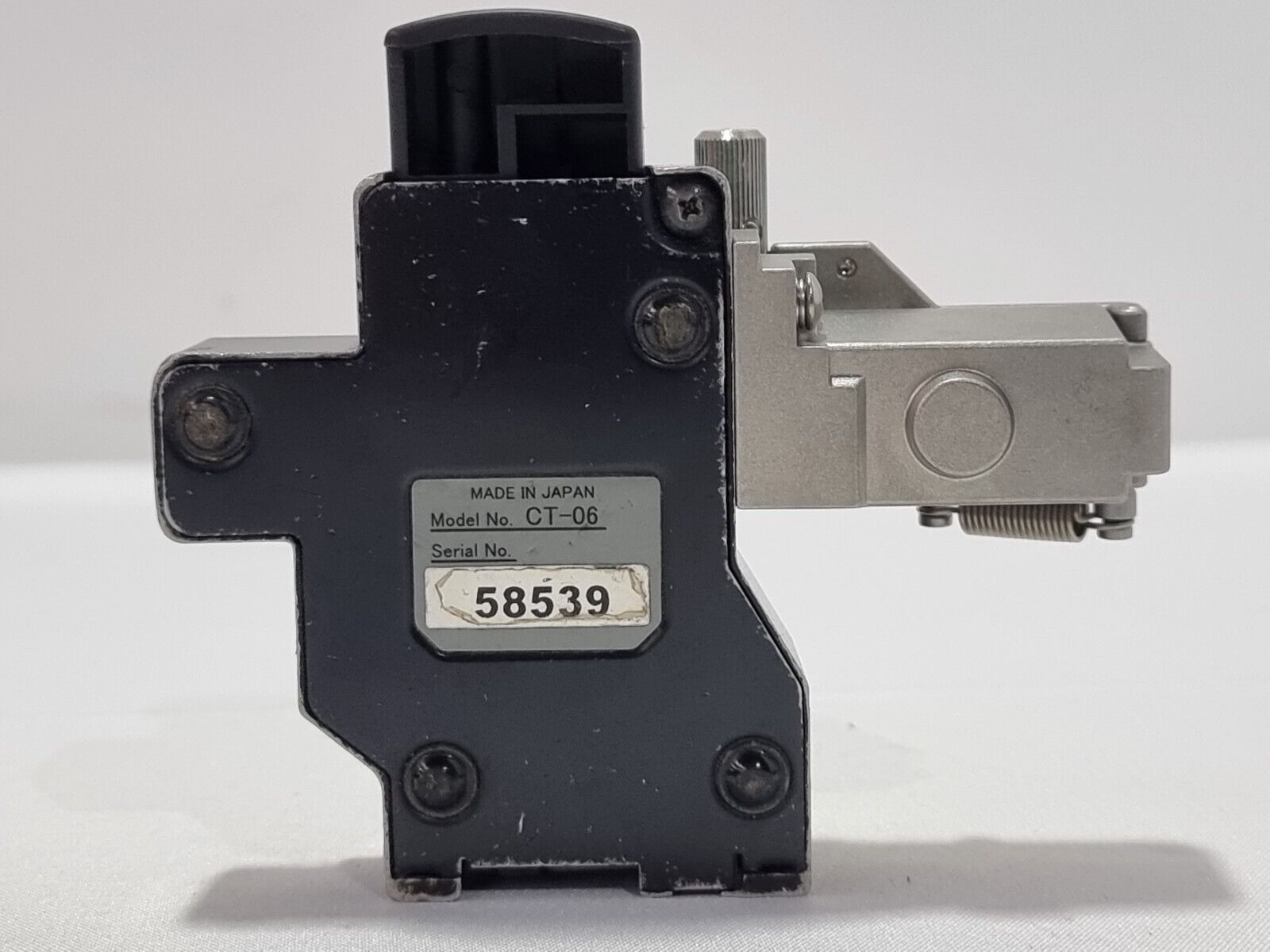

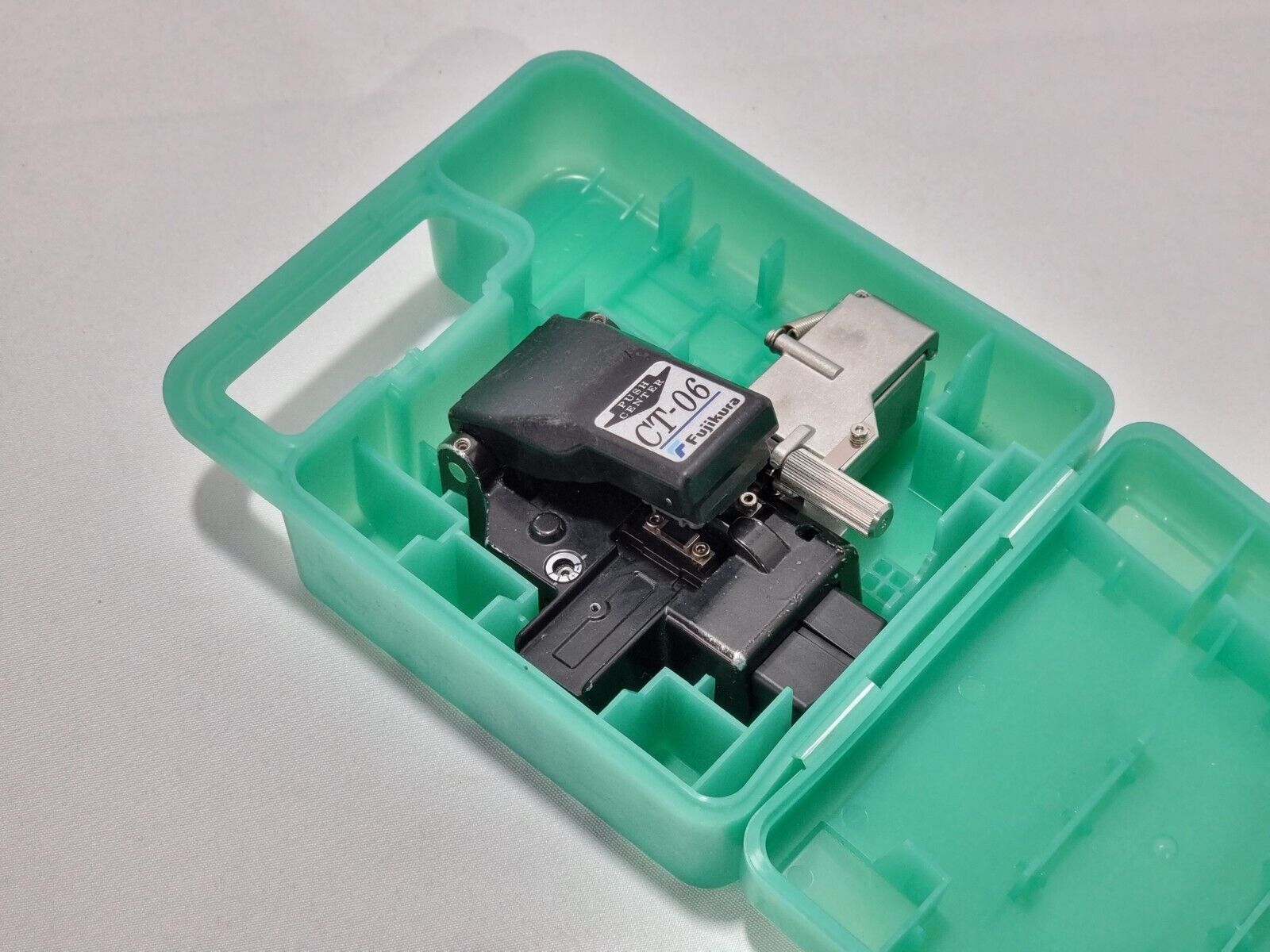

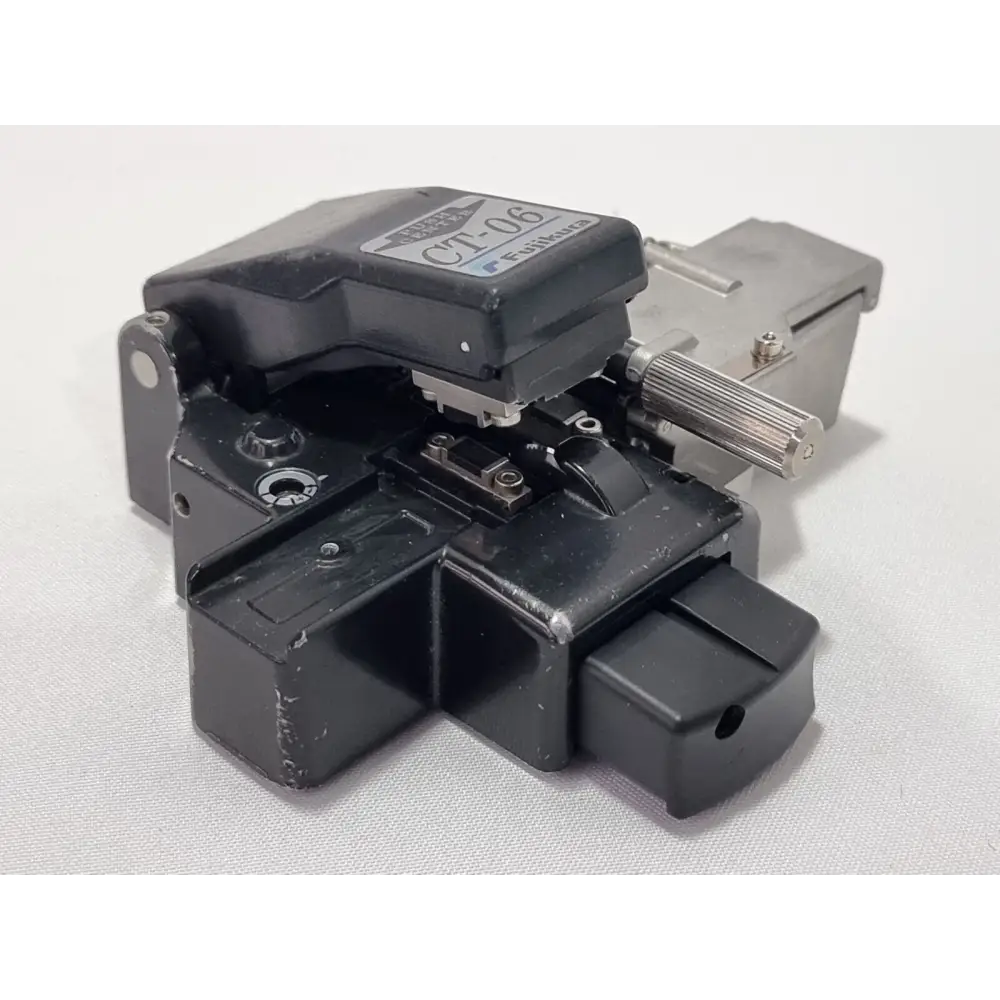

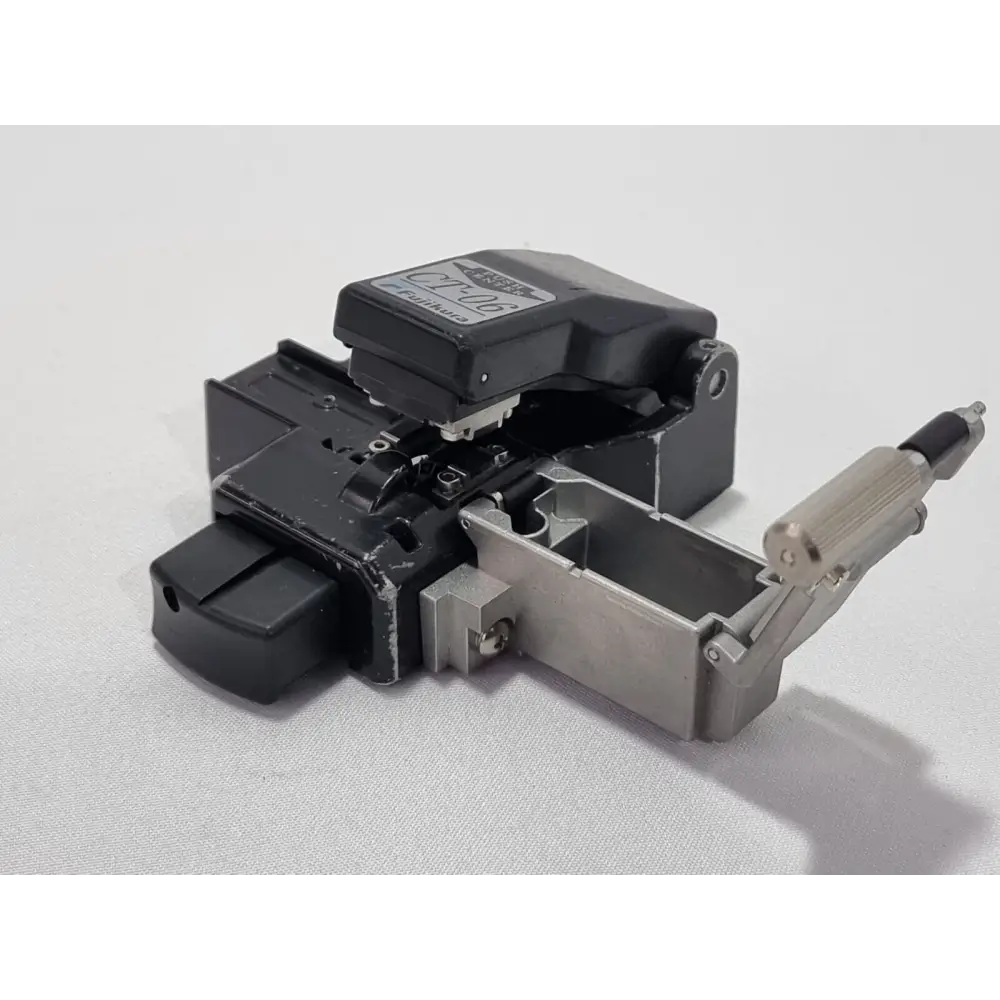

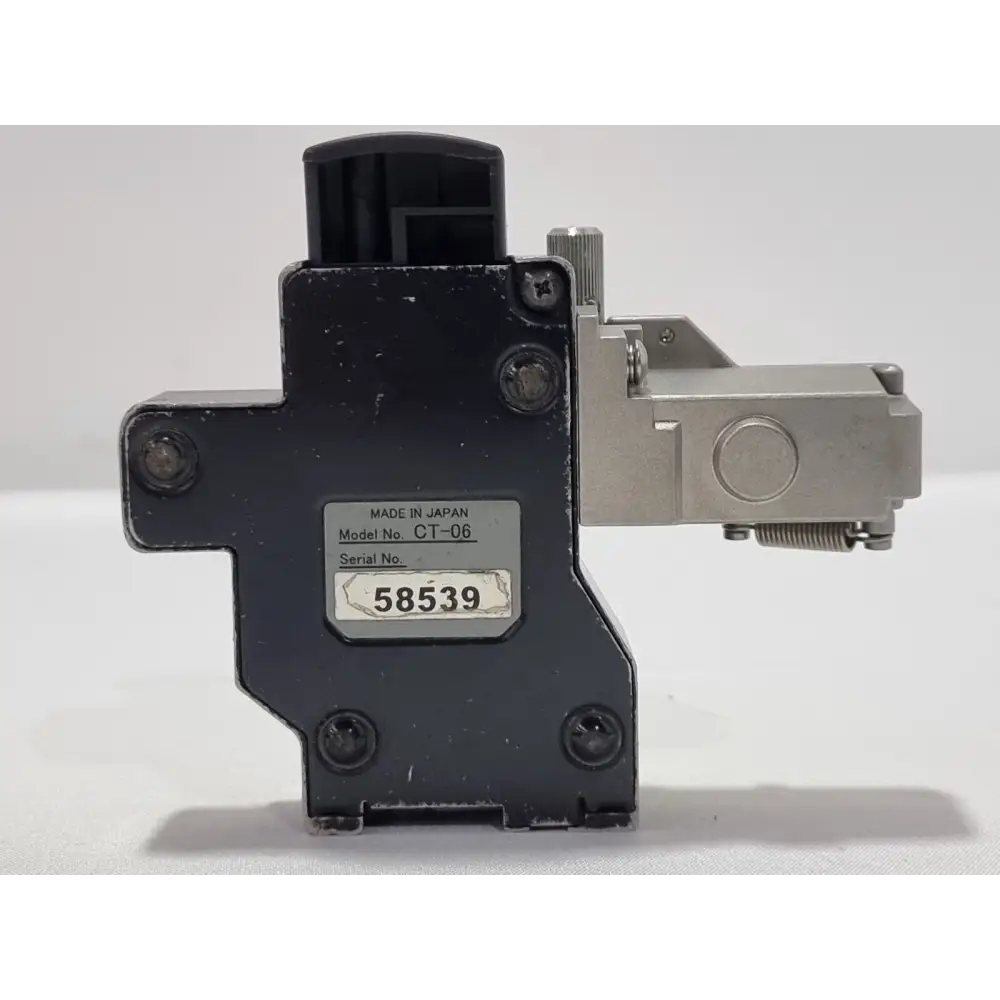

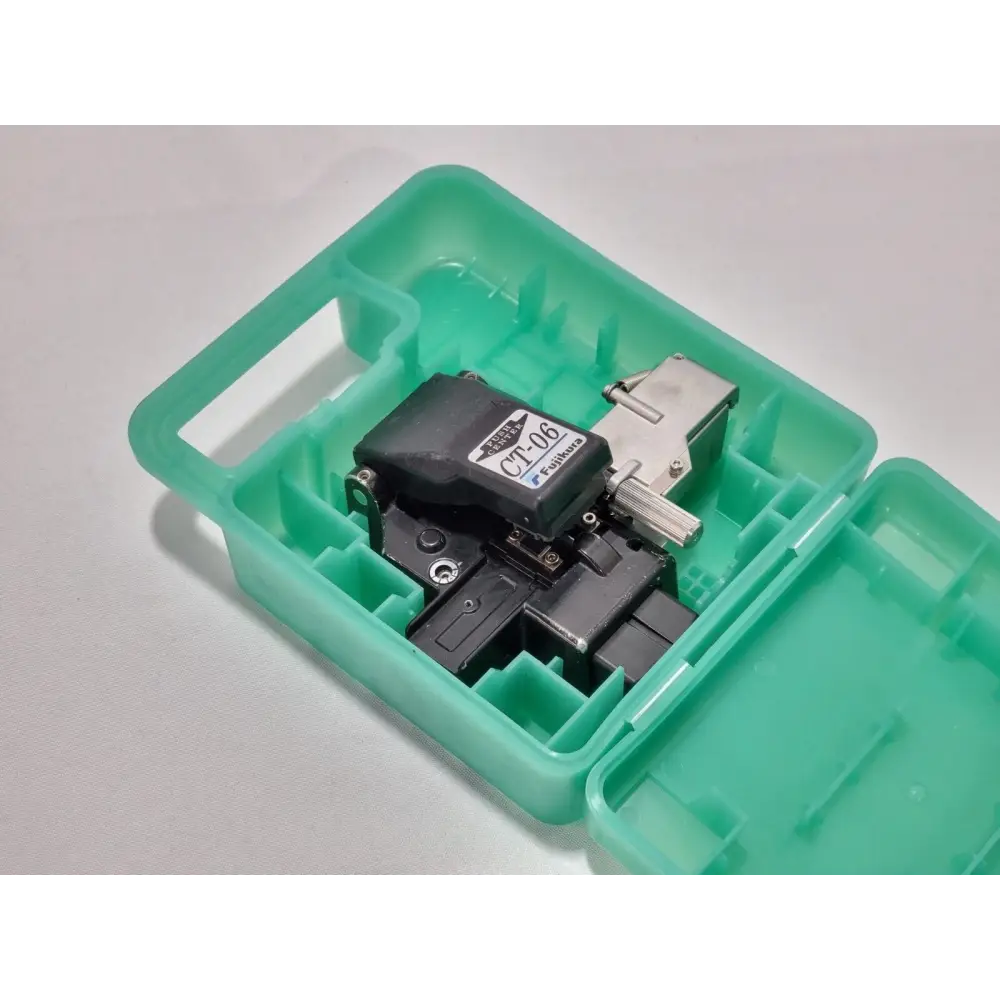

• Fujikura CT-06 High Precision Fiber Cleaver with Case

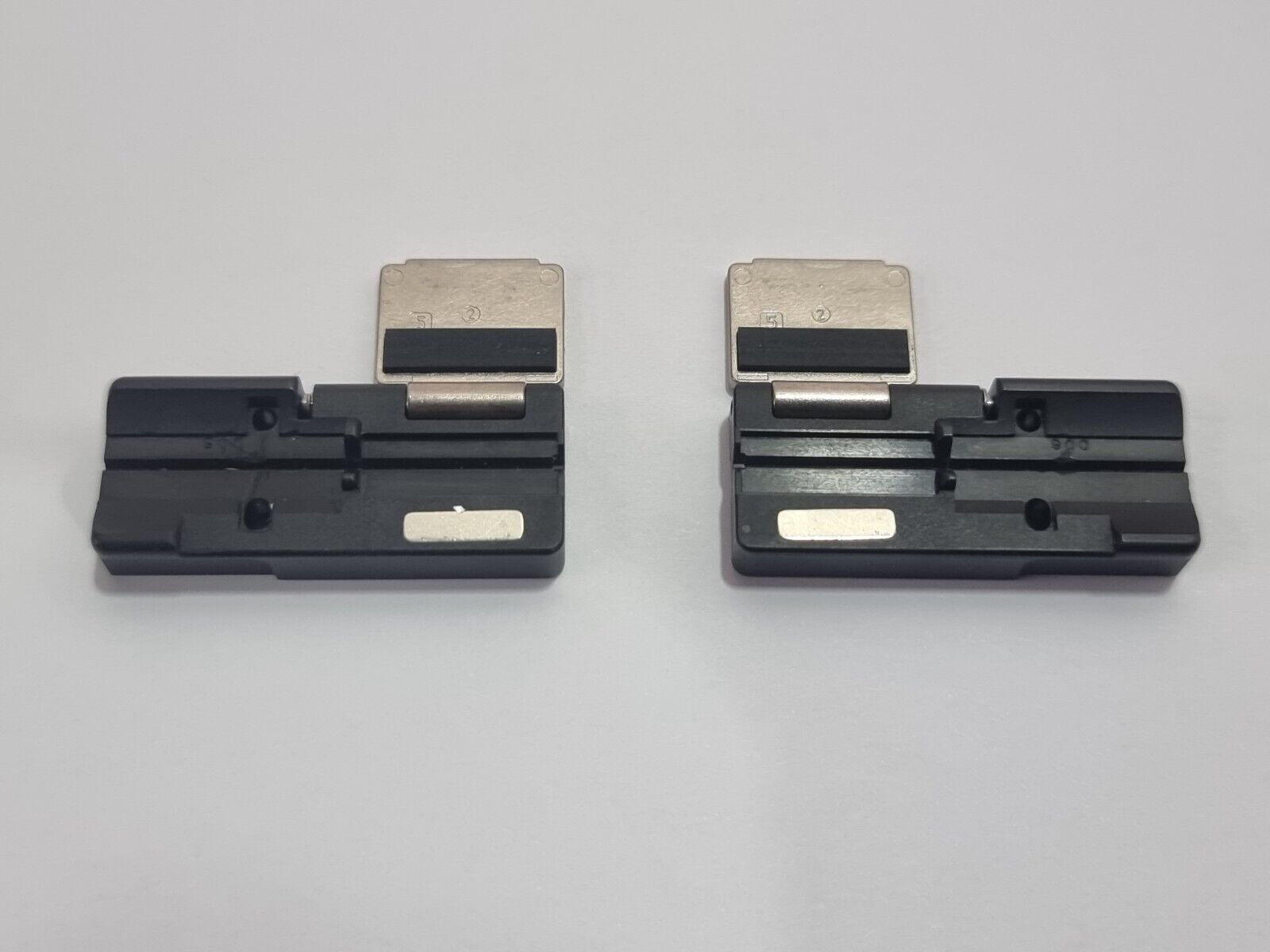

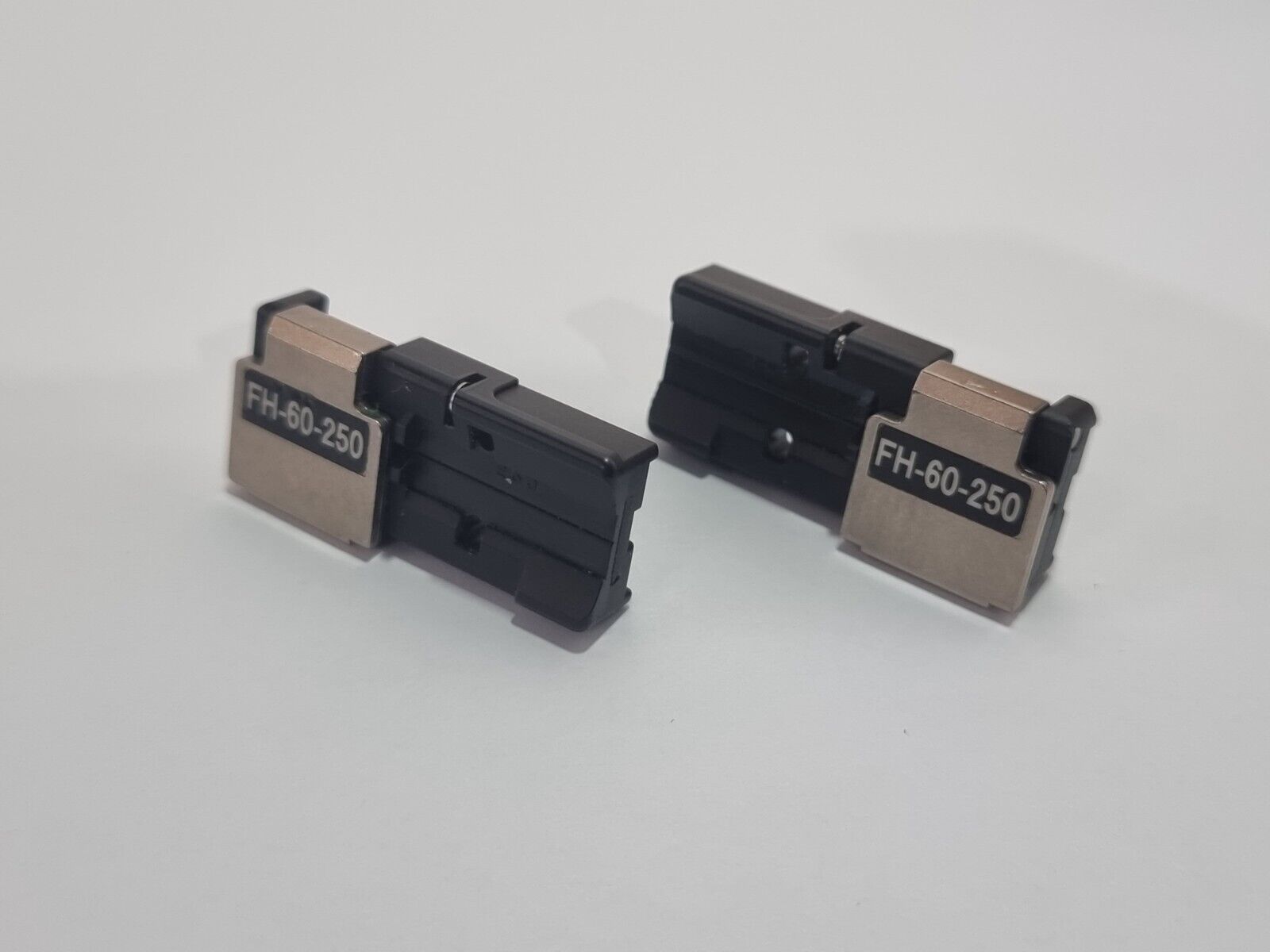

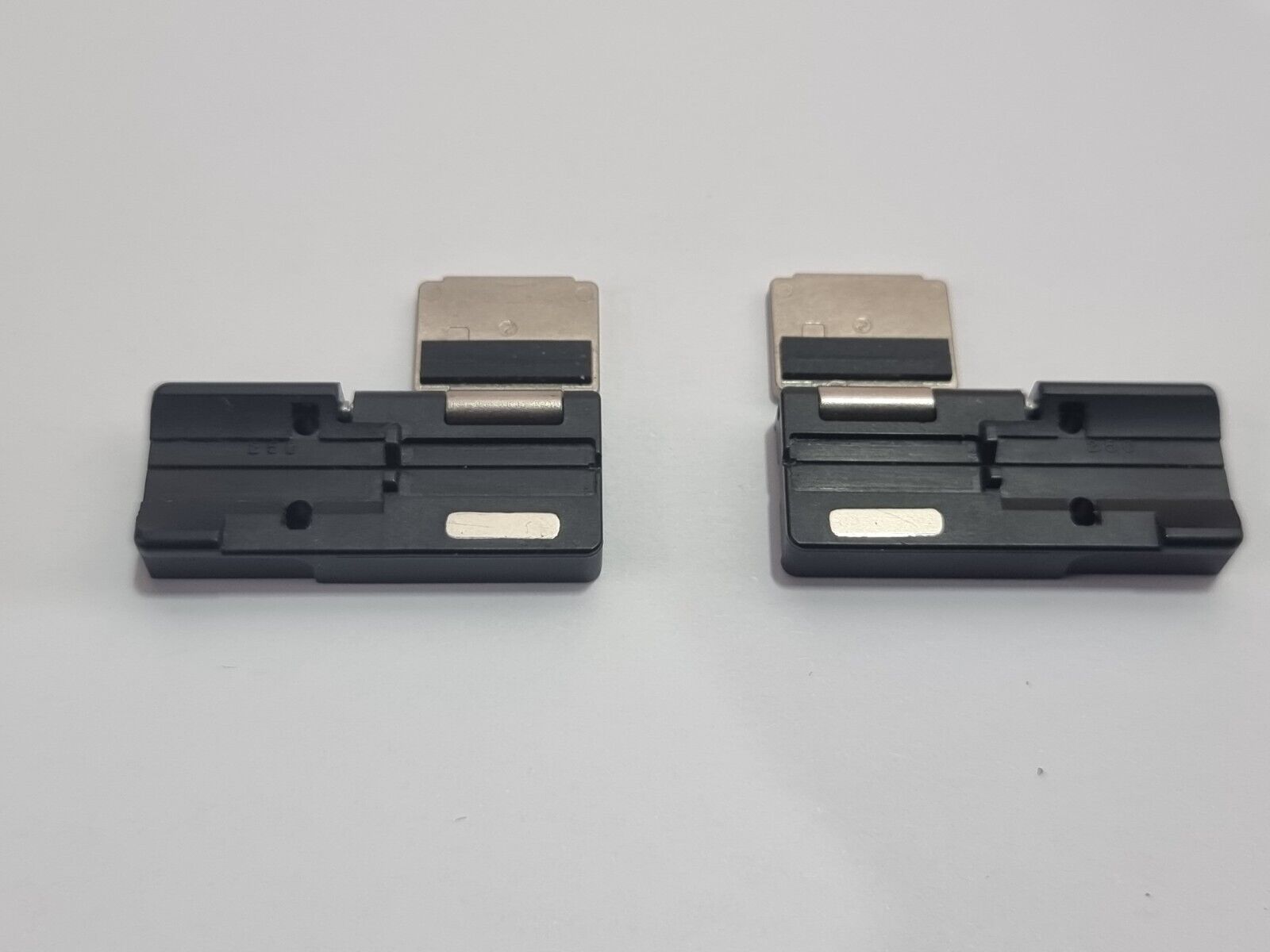

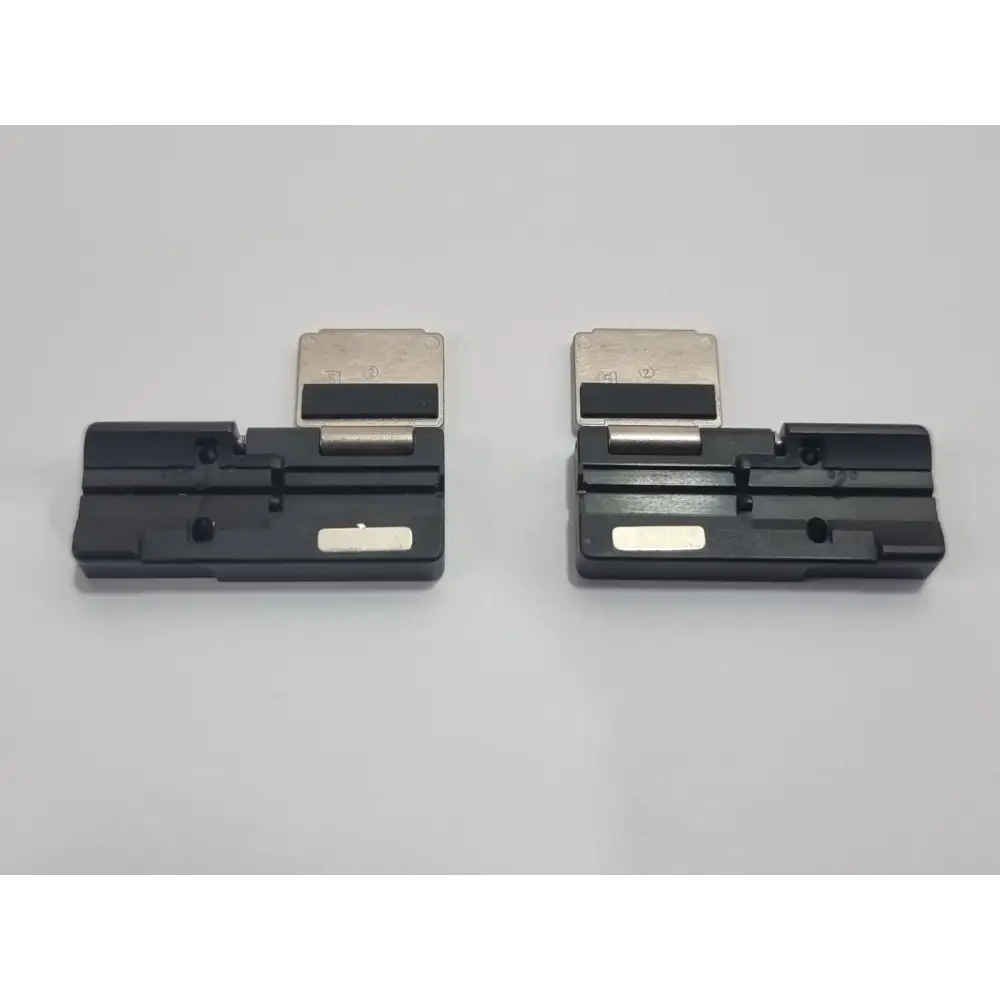

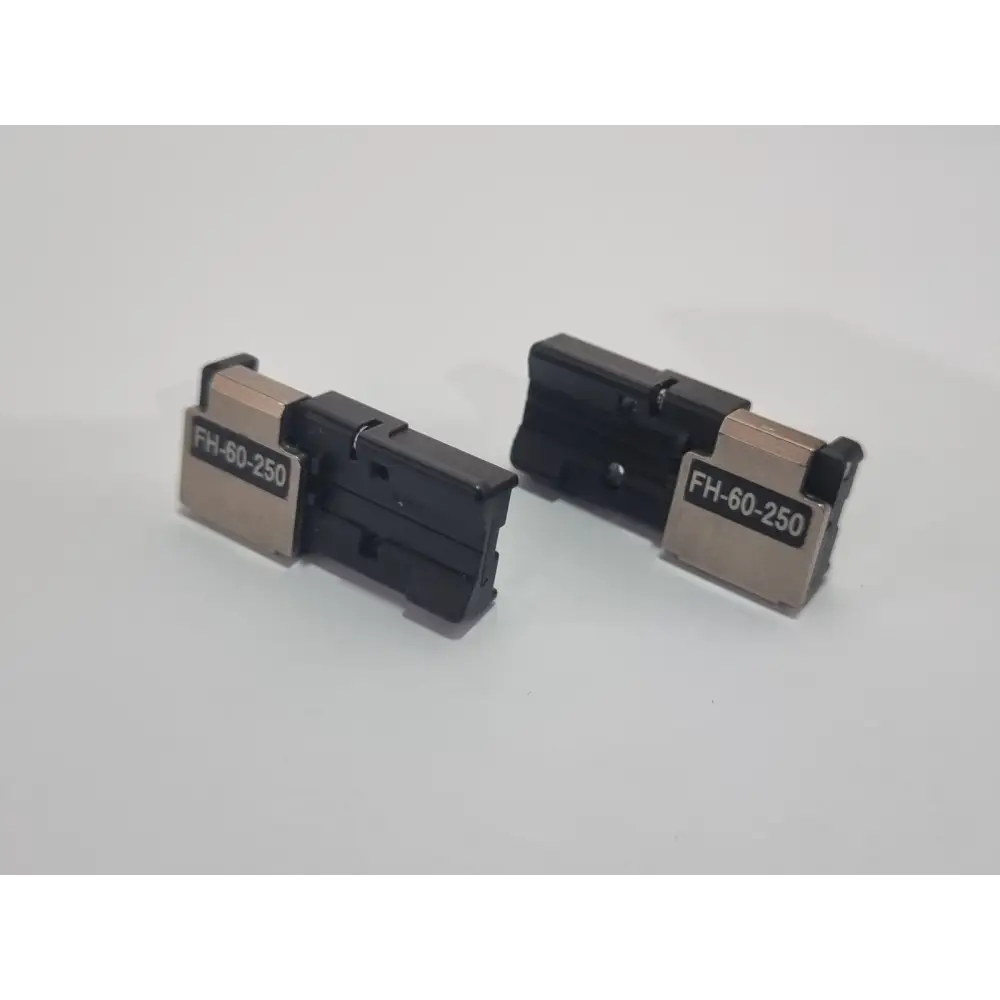

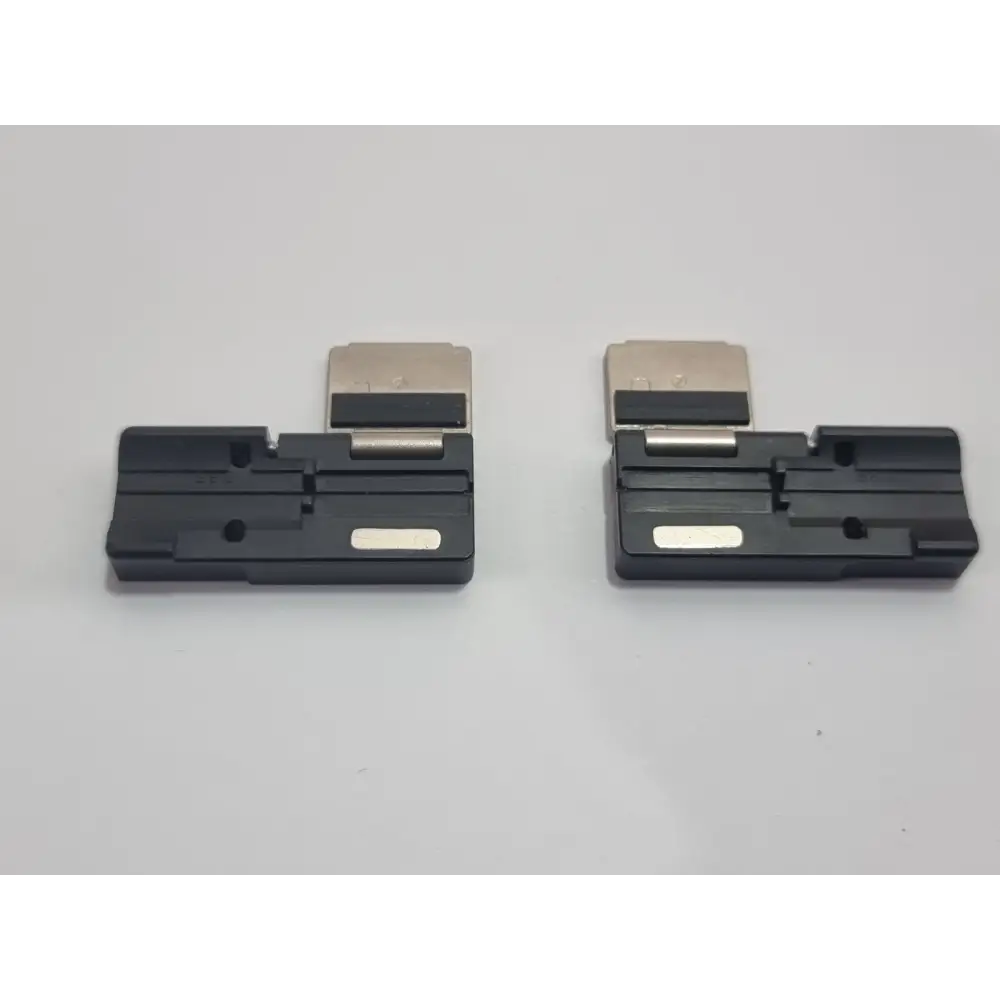

• FH-60-250 Fiber Holder Set

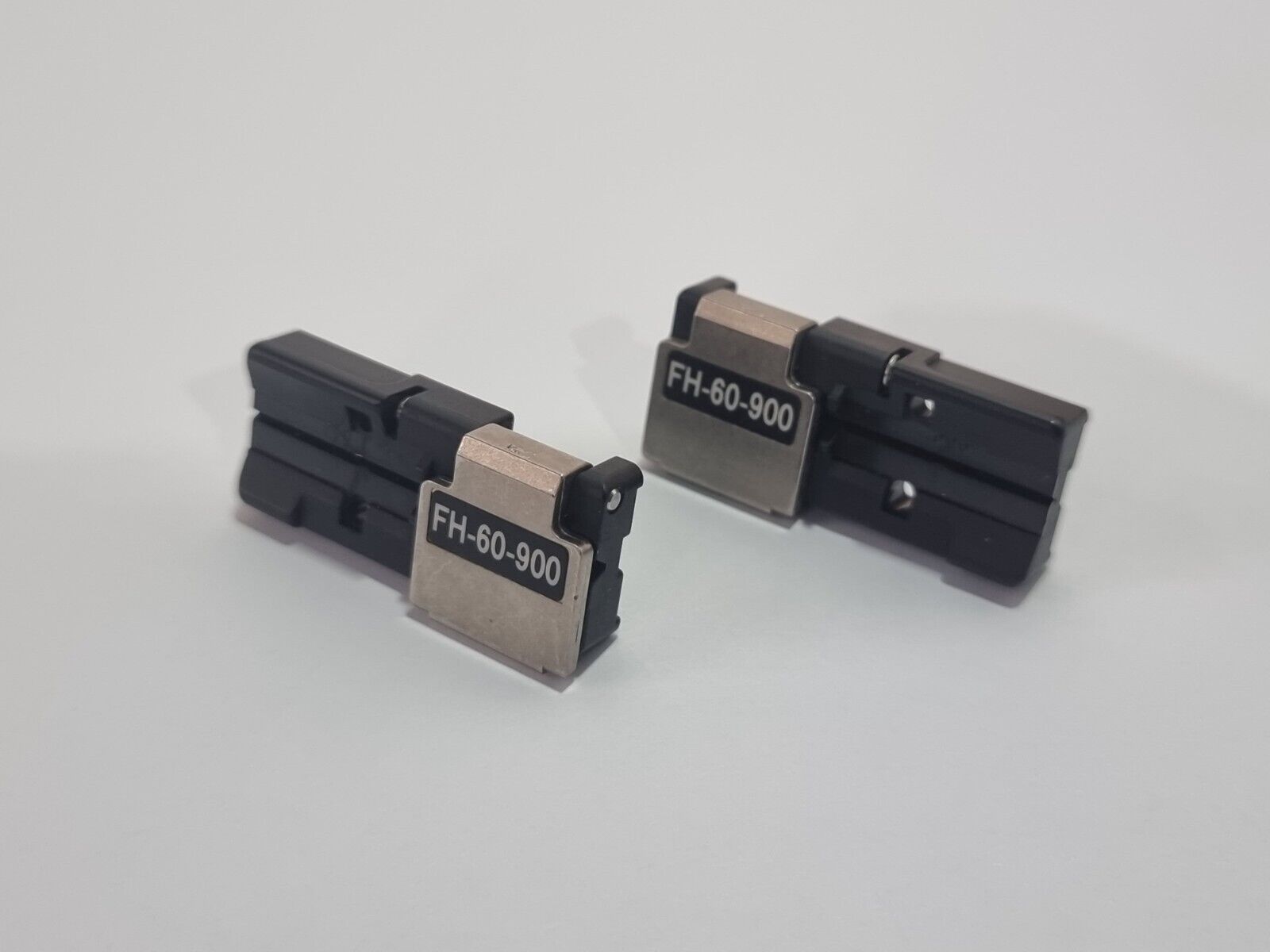

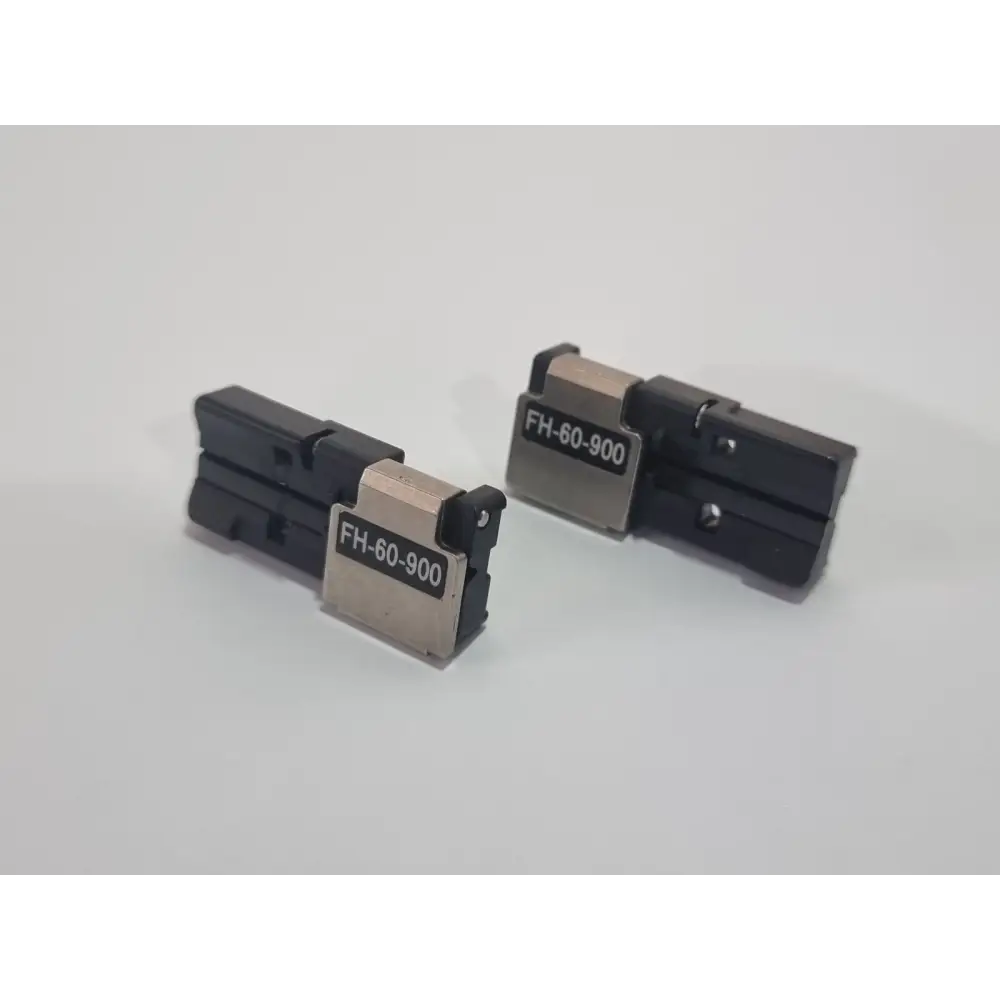

• FH-60-900 Fiber Holder Set
• AC Adapter/Charger

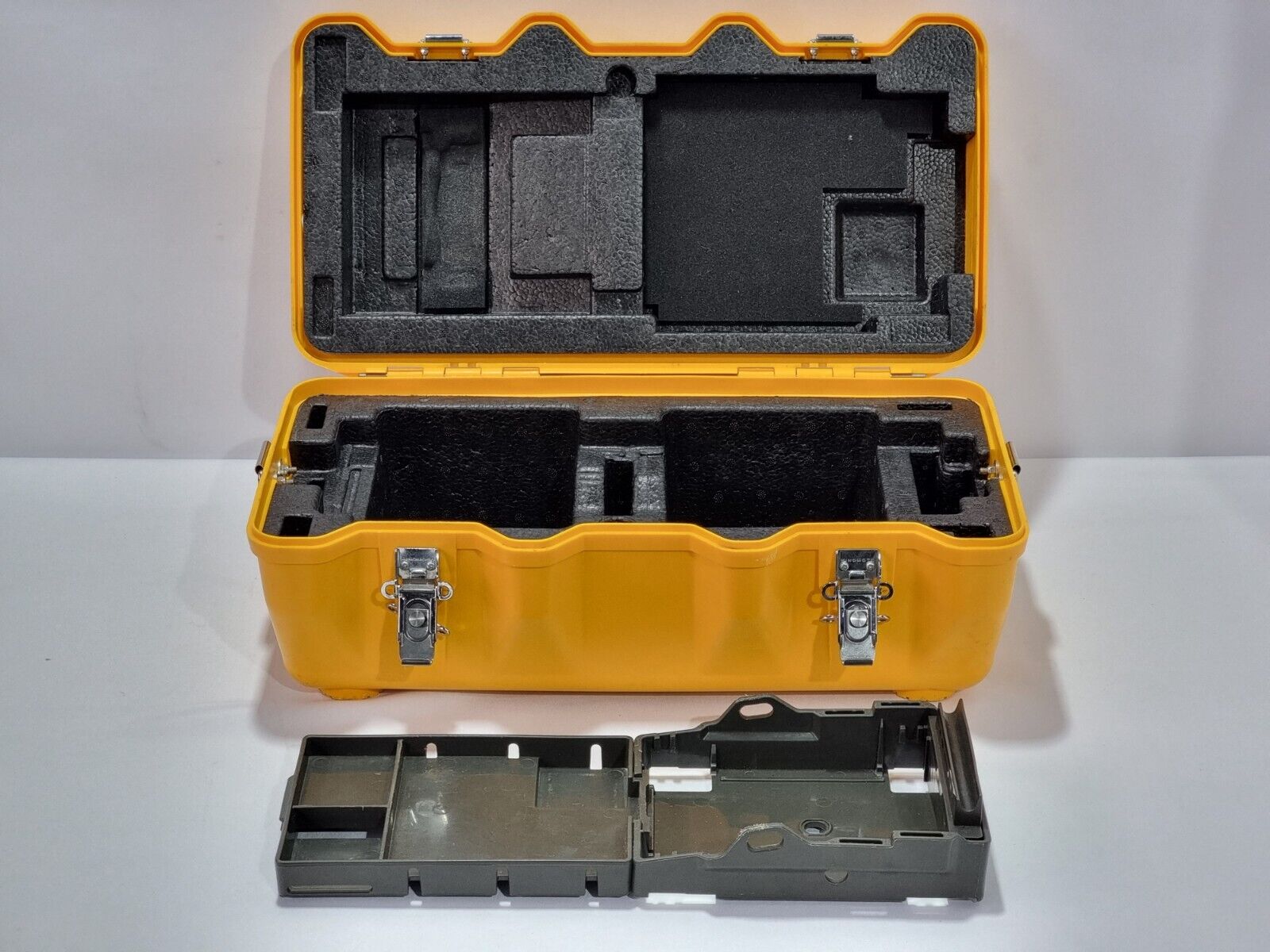

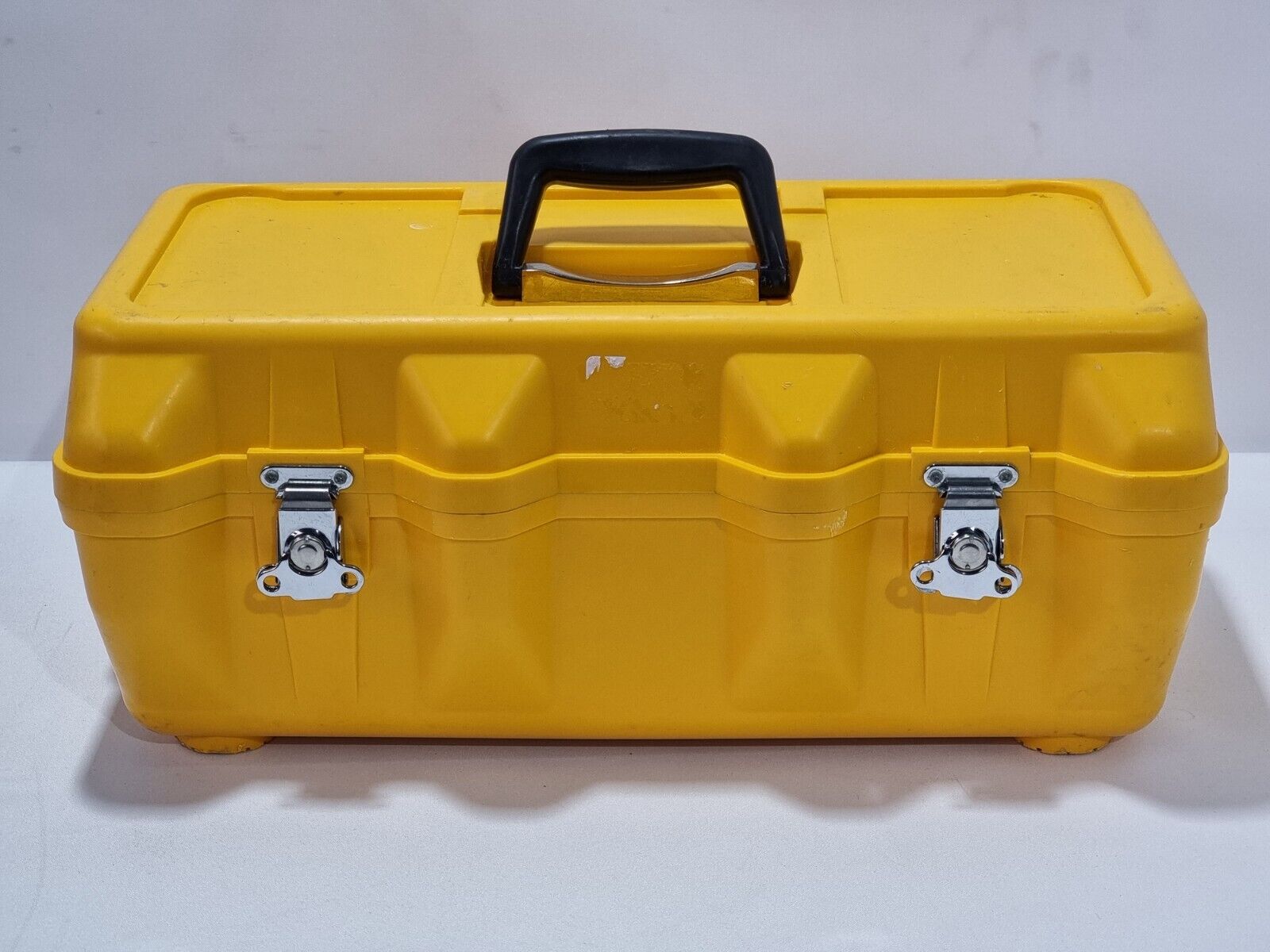

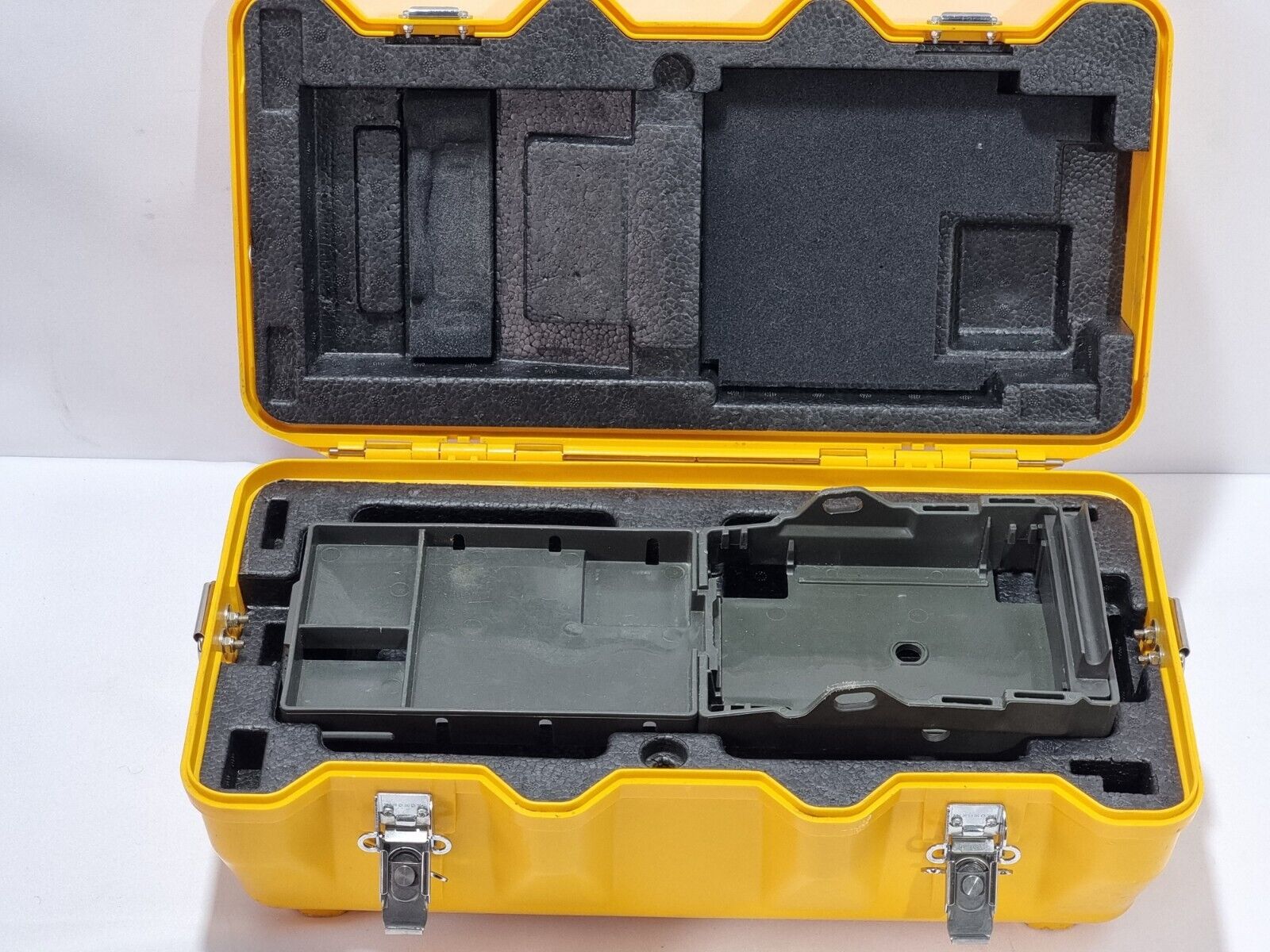

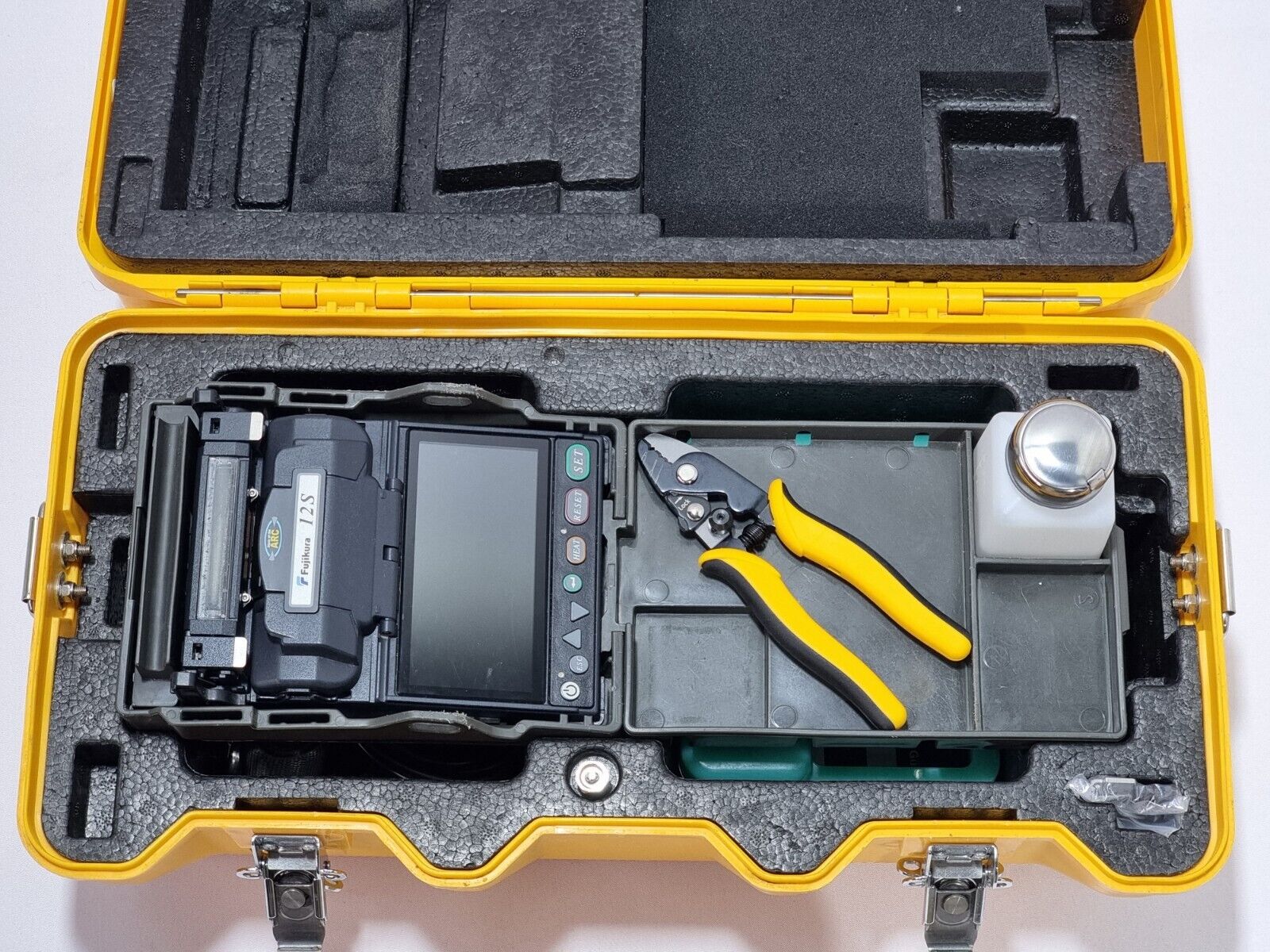

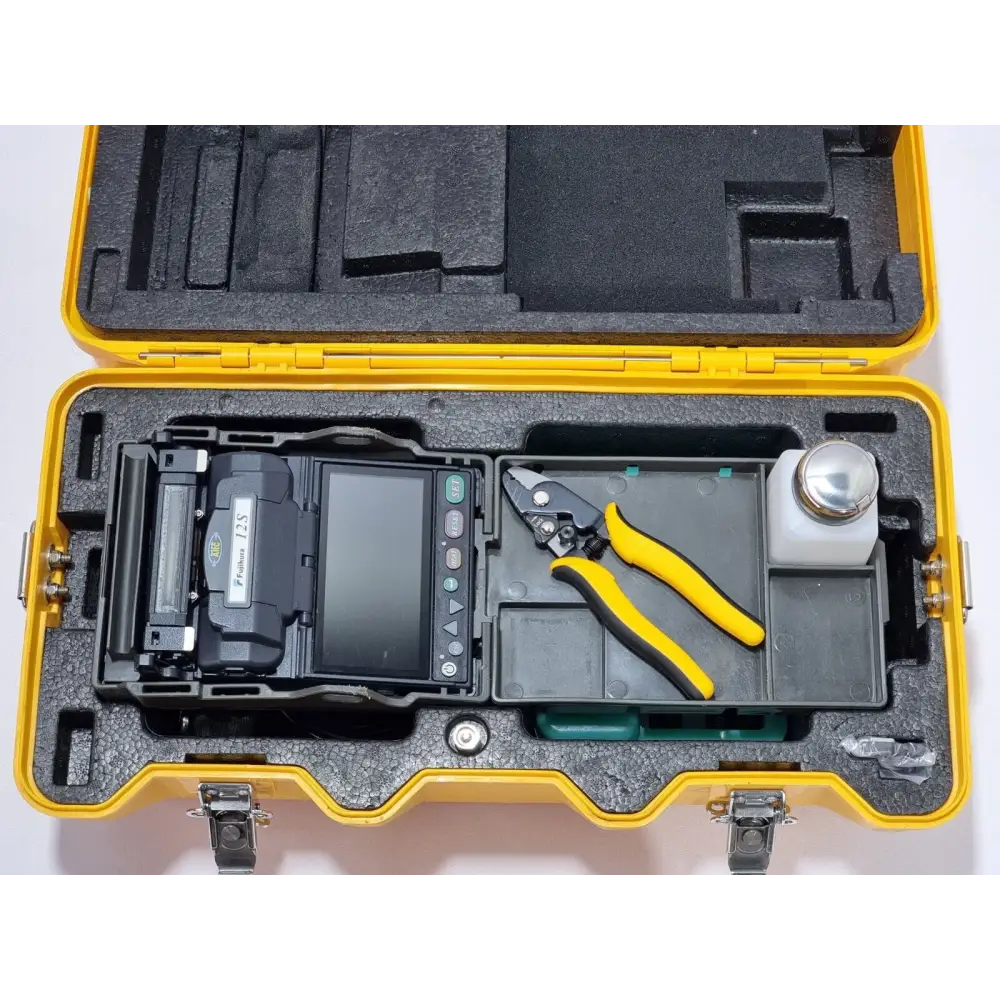

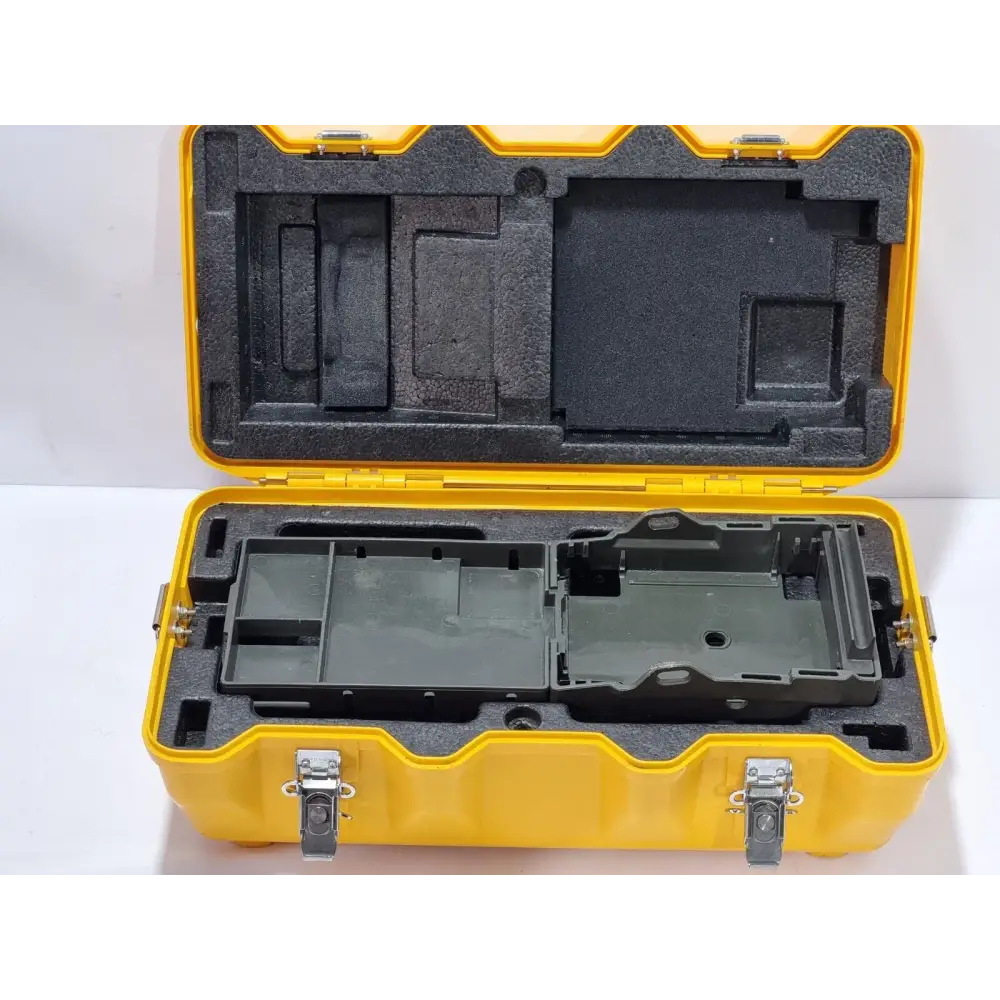

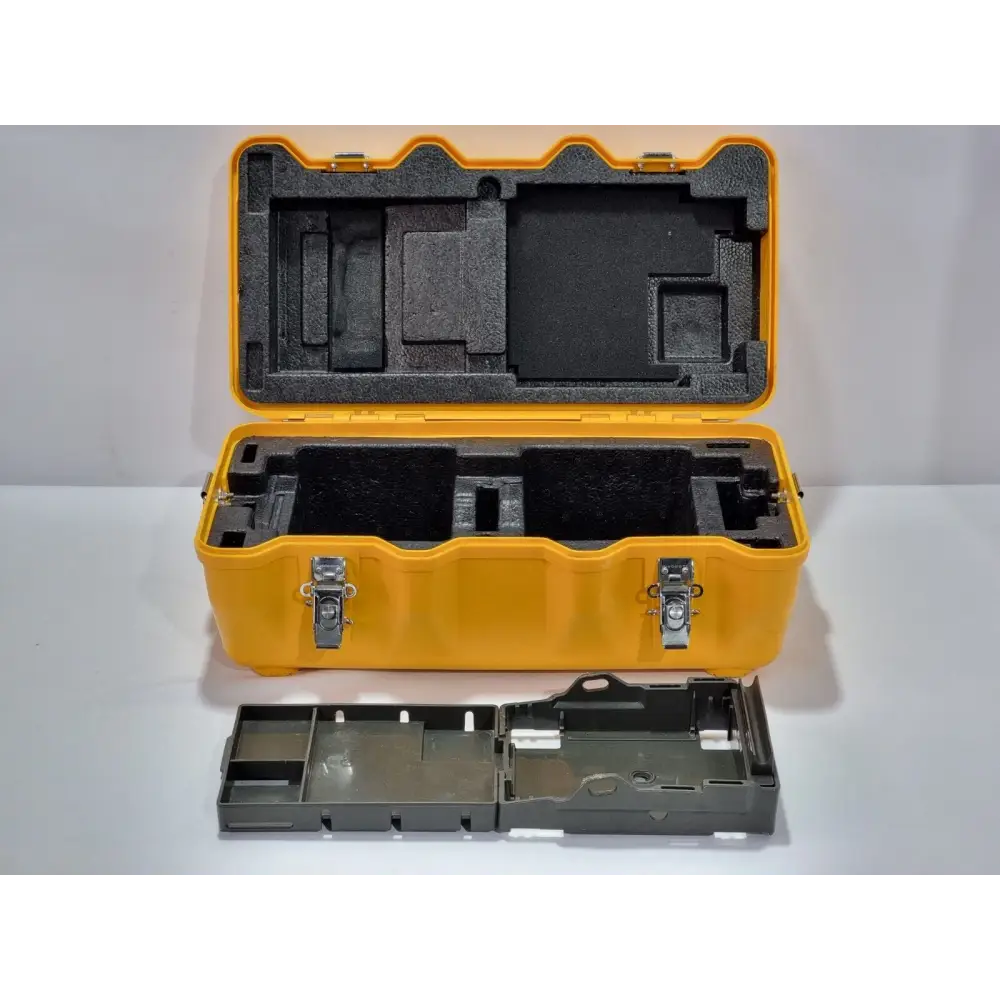

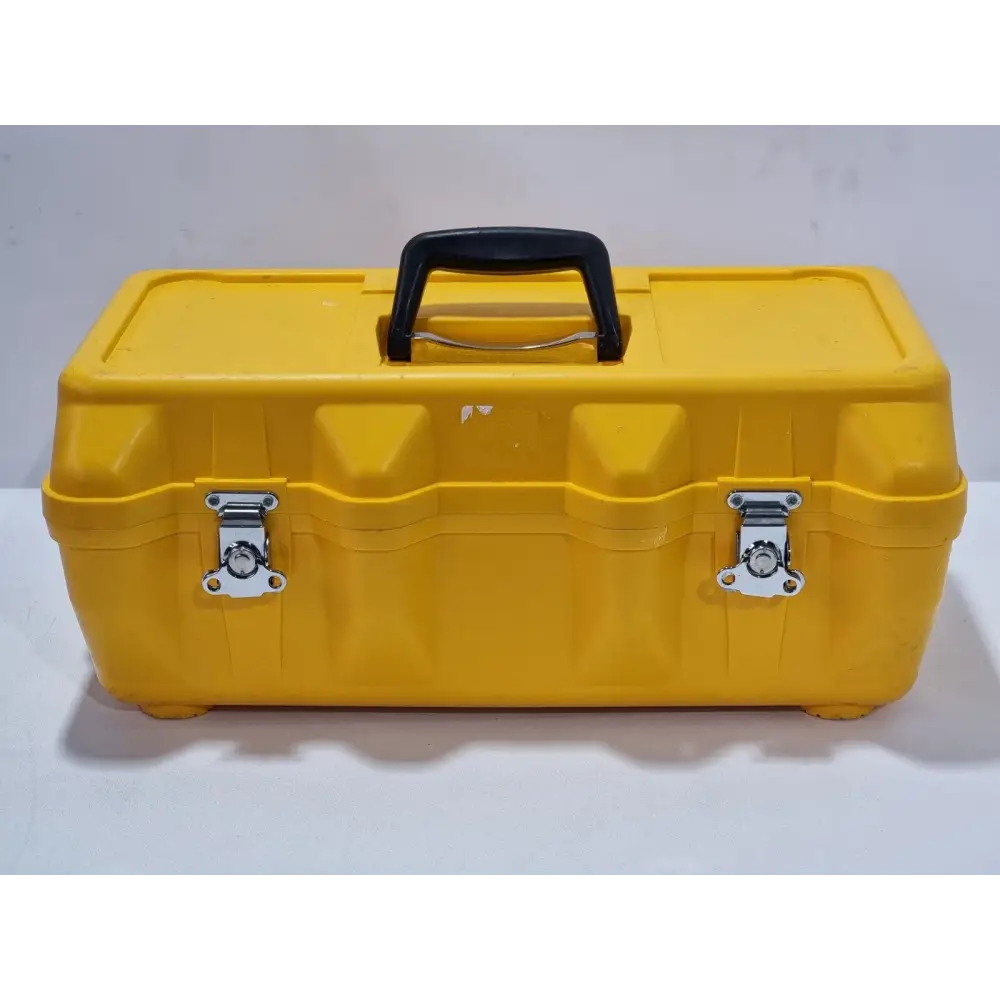

• Hard Carrying Case with Strap
• Work Tray
• Fiber Stripper
• Screwdriver
• 12S Quick Reference Guide

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

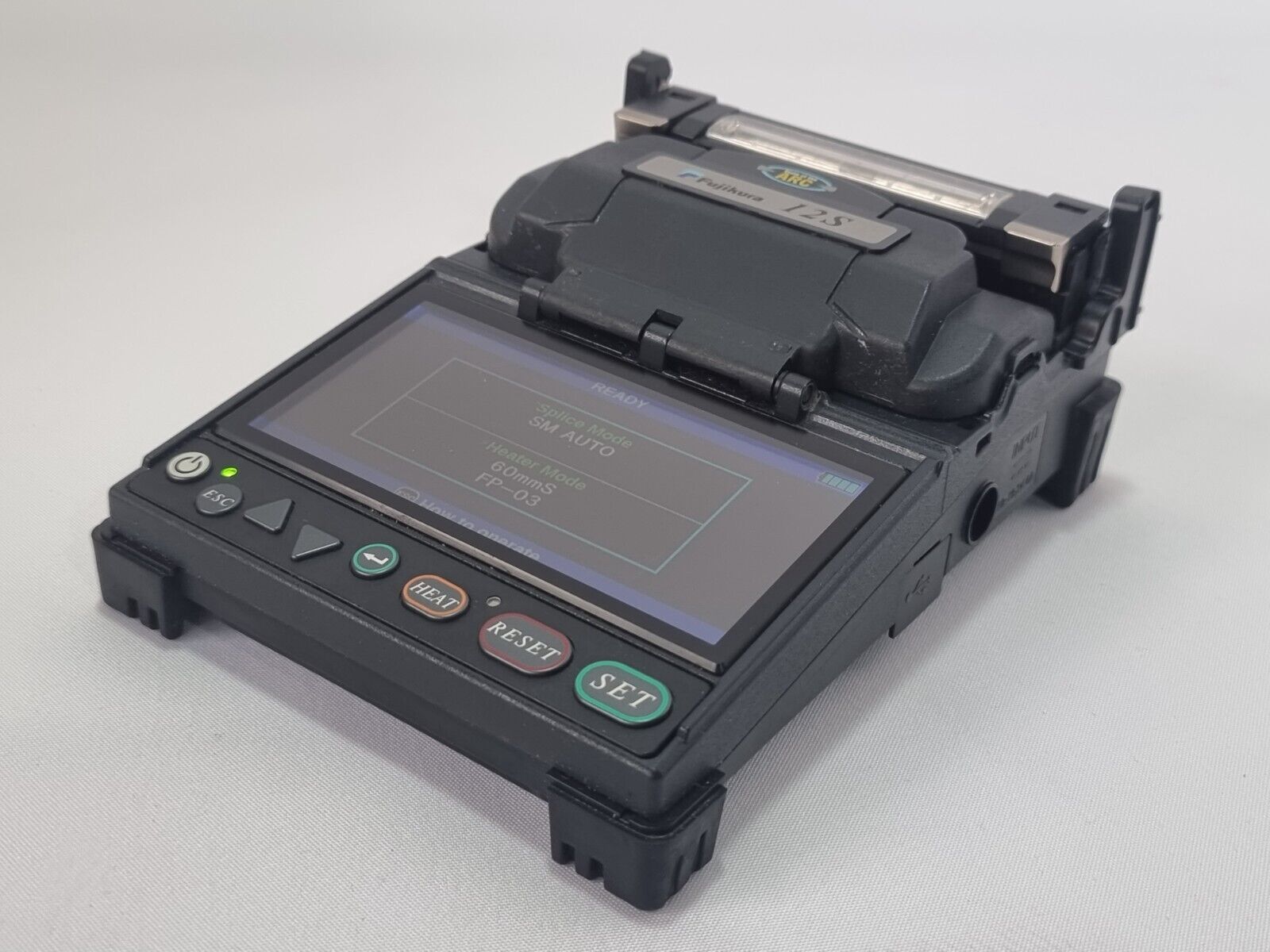

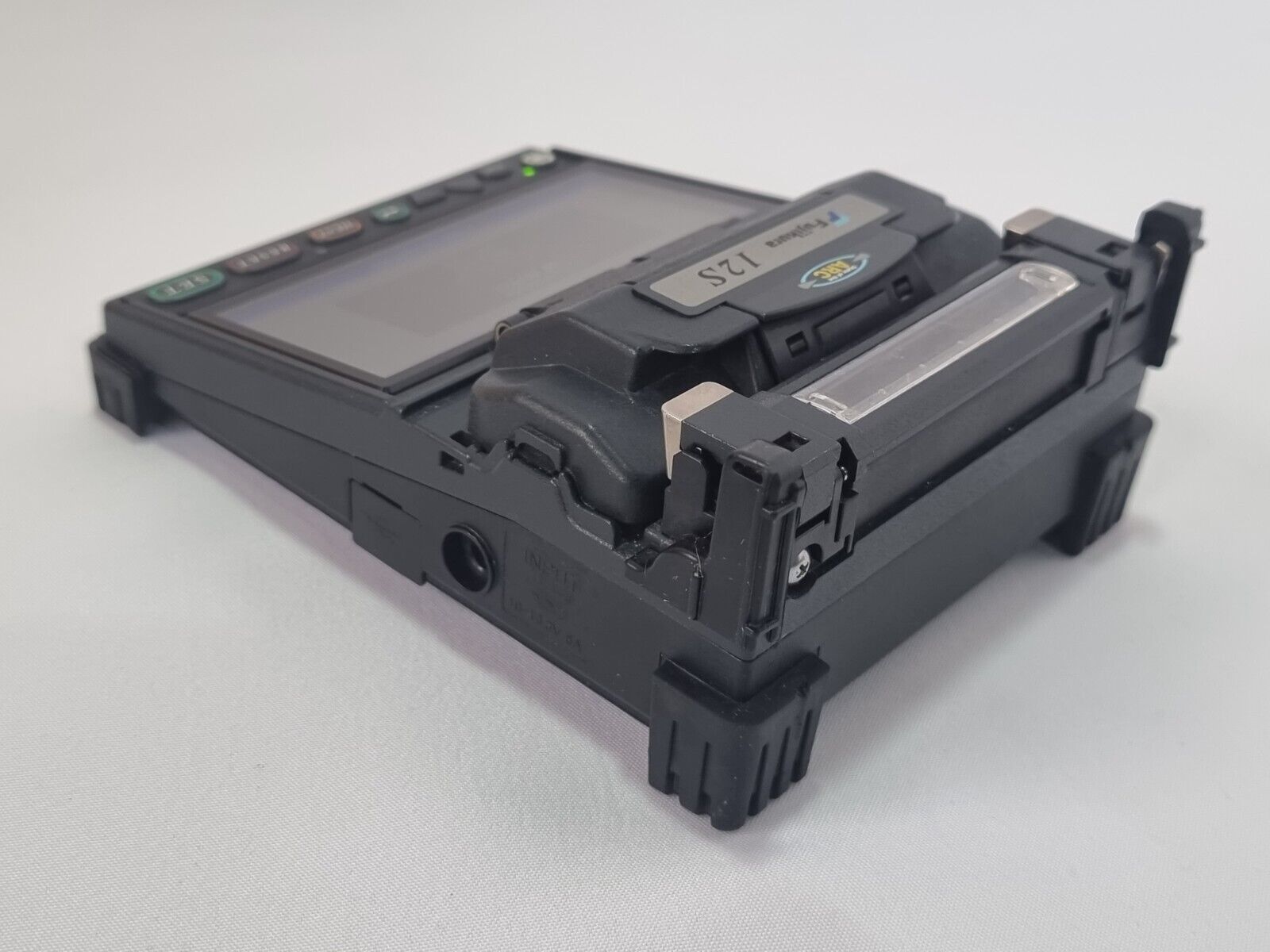

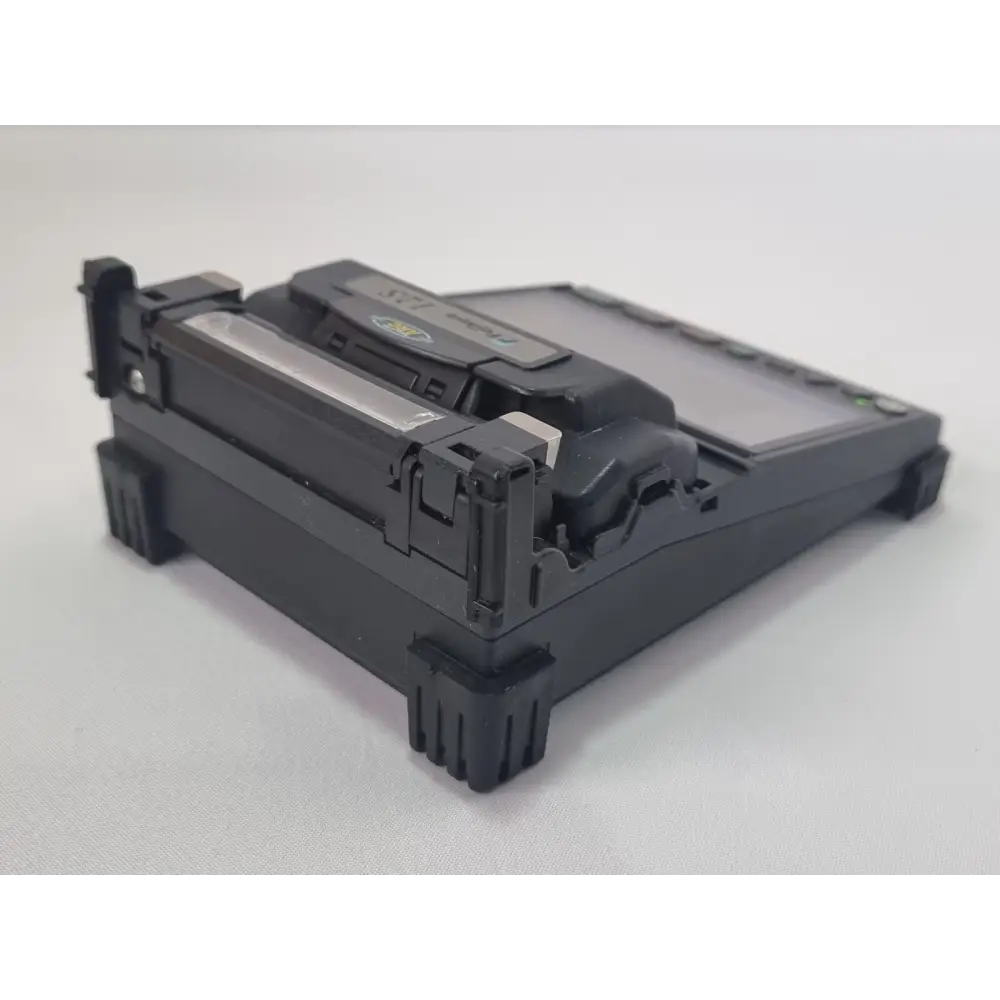

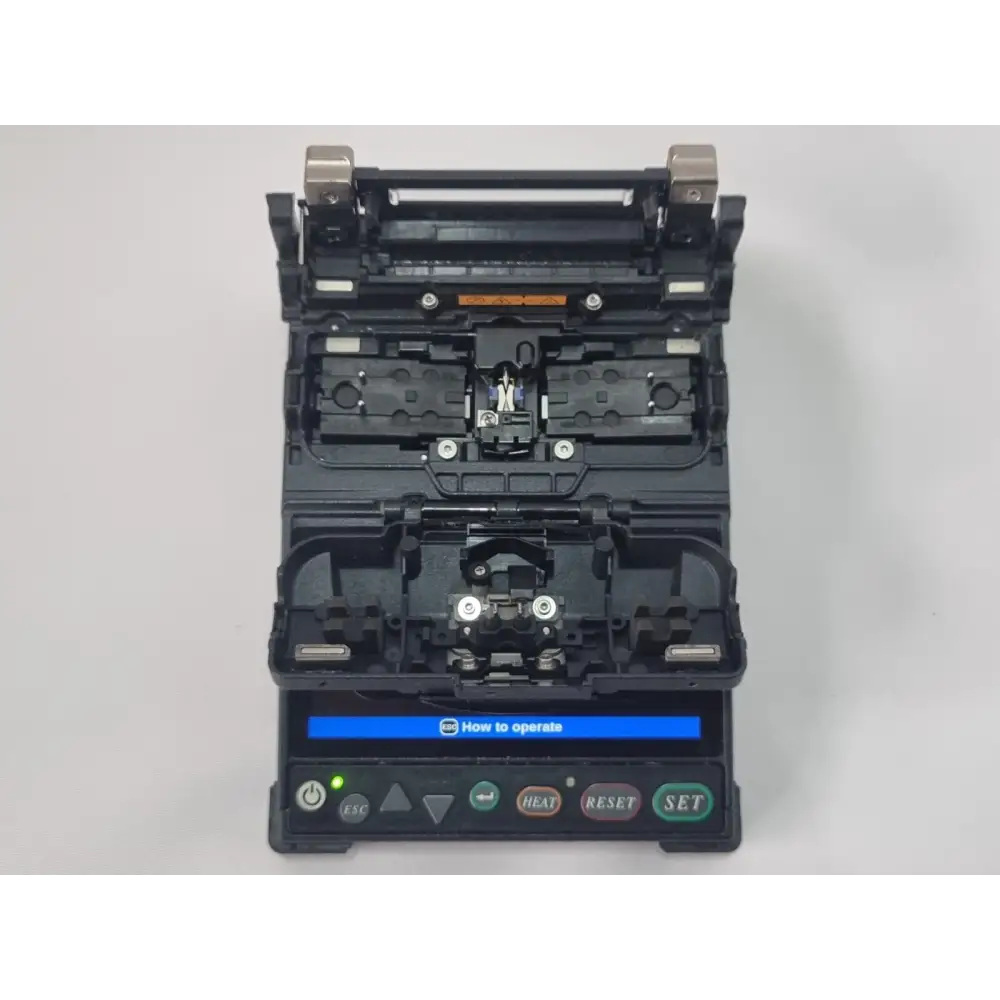

The Fujikura FSM-12S is a compact, field-ready fusion splicer designed for splicing both single-mode and multimode optical fibres. Built for telecommunications engineers and fibre optic network installers, it combines ease of use with reliable splice performance in a portable, rugged form factor.

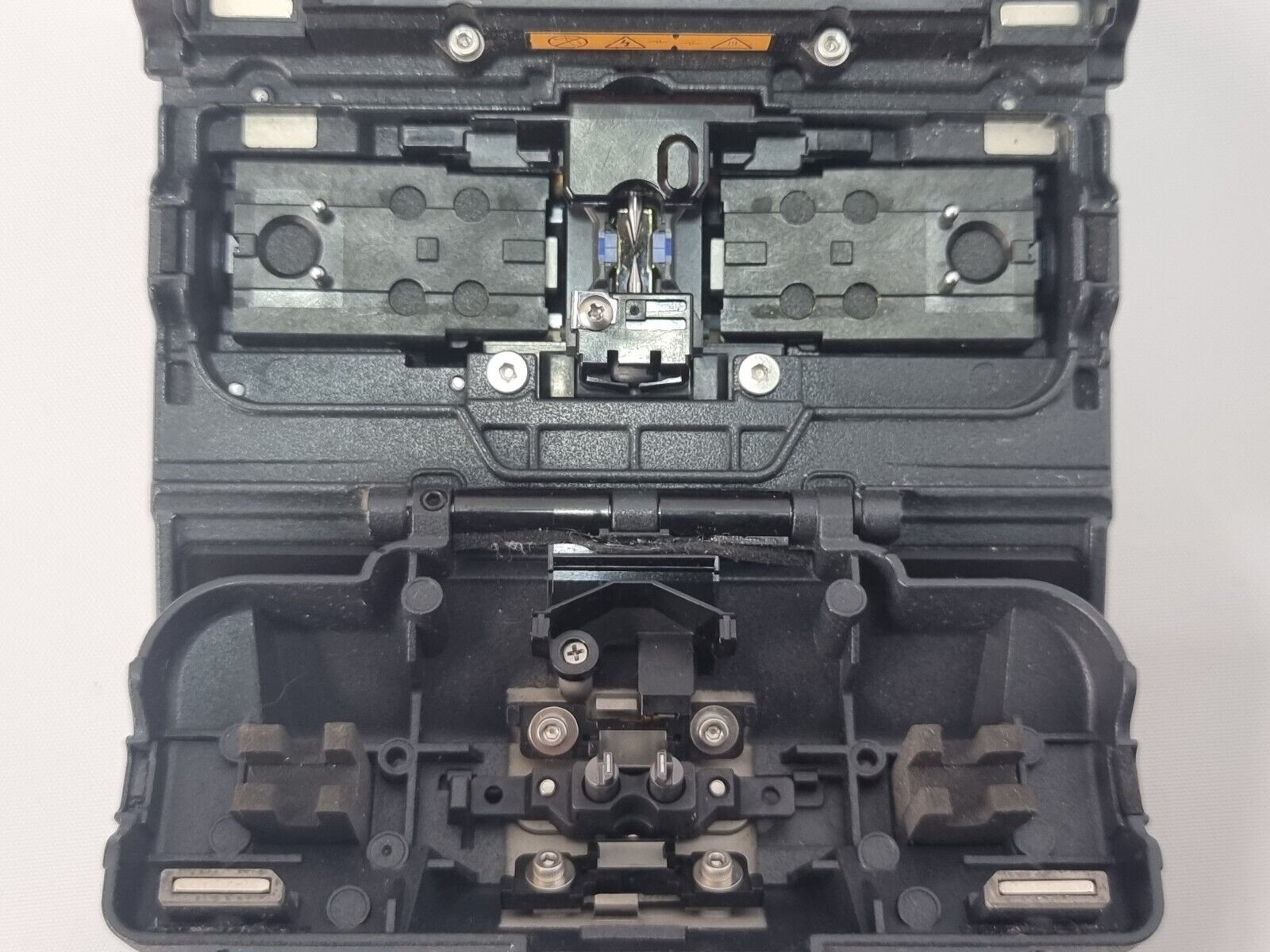

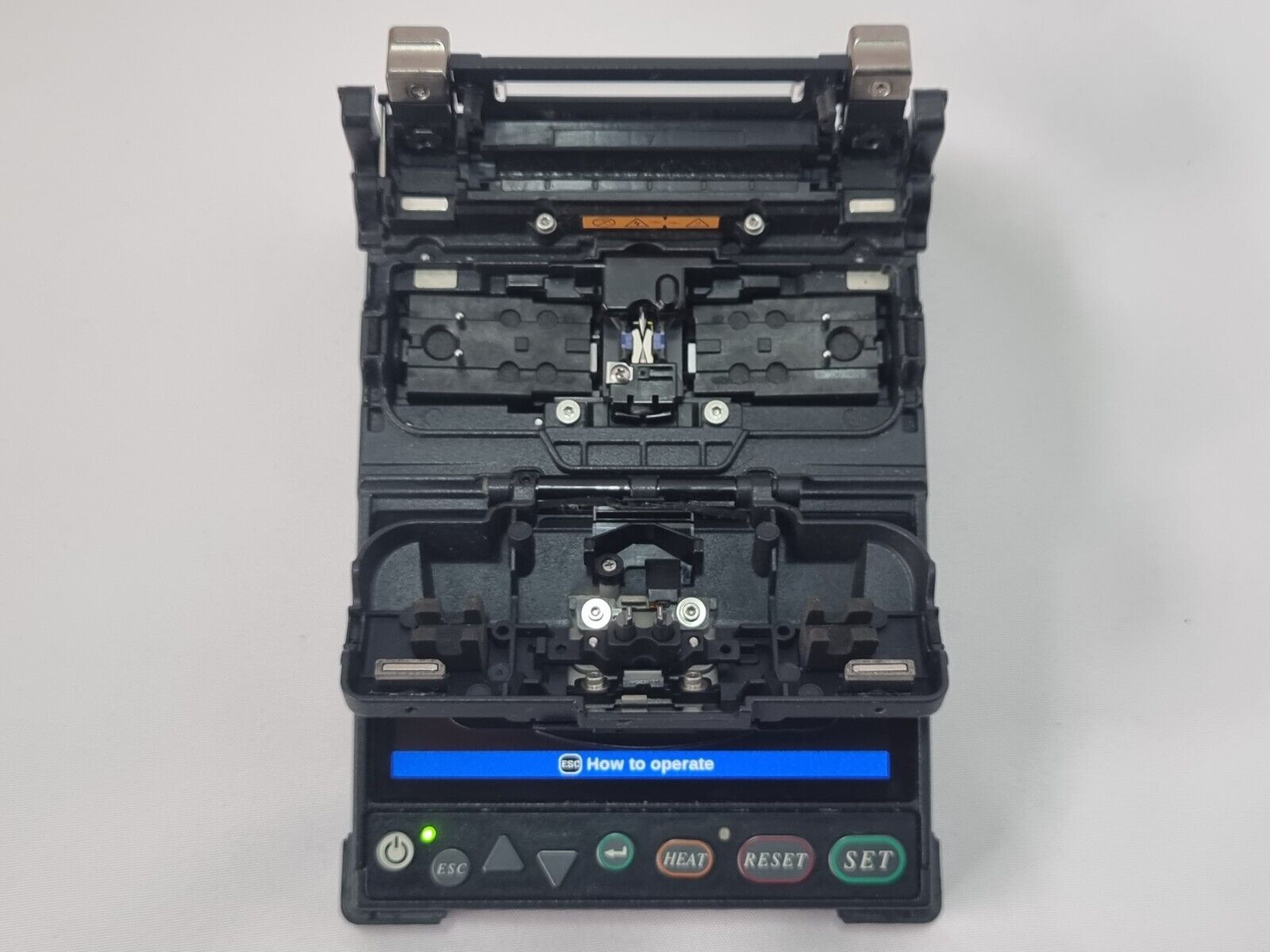

The FSM-12S features automatic fibre alignment using precision arc fusion technology, enabling consistently low-loss splices. Its intuitive interface and fast splice and heat cycle times make it well suited to high-volume installation work in the field or in a workshop environment.

The unit is compatible with a range of fibre holder sets to accommodate different fibre jacket diameters, including 250 µm bare fibre and 900 µm tight-buffered configurations.

Key Specifications:
Splicer Type: Arc fusion, single-fibre
Fibre Compatibility: Single-mode (SM), Multimode (MM)

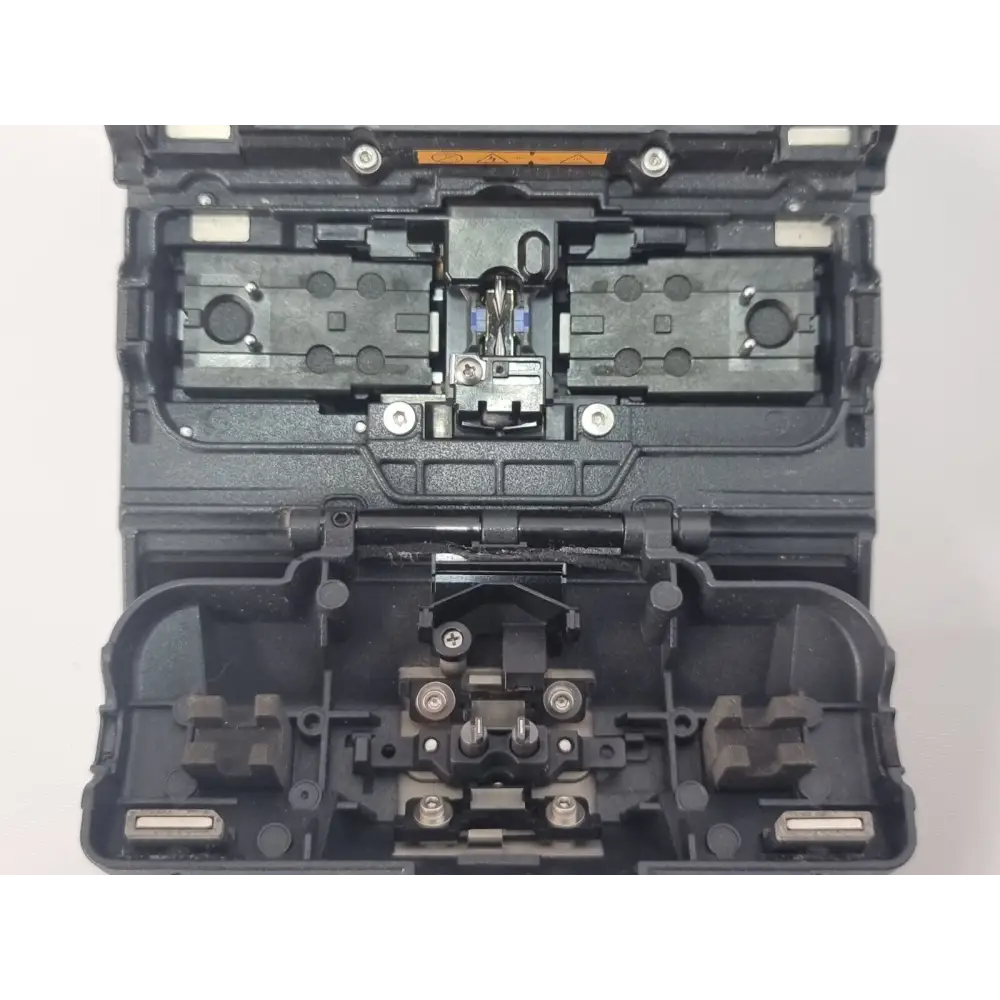

Alignment Method: Fixed V-groove with arc fusion
Typical Splice Loss (SM): 0.02 dB (typical)
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Battery: Rechargeable Li-ion, approximately 200 splice and heat cycles per charge
Display: Colour LCD monitor
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +80°C
Dimensions: Approximately 121 × 160 × 132 mm
Weight: Approximately 2.1 kg (with battery)

Please refer to the Fujikura manufacturer website for full and up-to-date product specifications.
