Fujikura 12S SM MM Fiber Fusion Splicer + CT-06 Cleaver & Fiber Holders ARC 1792

Condition: Used — ARC count 1,792 (electrode life rated to 3,000 splices). This Fujikura 12S single-mode and multimode fixed V-groove fusion splicer is in used condition with a low arc count, making it well within its operational lifespan. The unit supports automatic arc calibration, stores up to 2,000 splice results, and is compatible with FuseConnect fusion installable connectors.

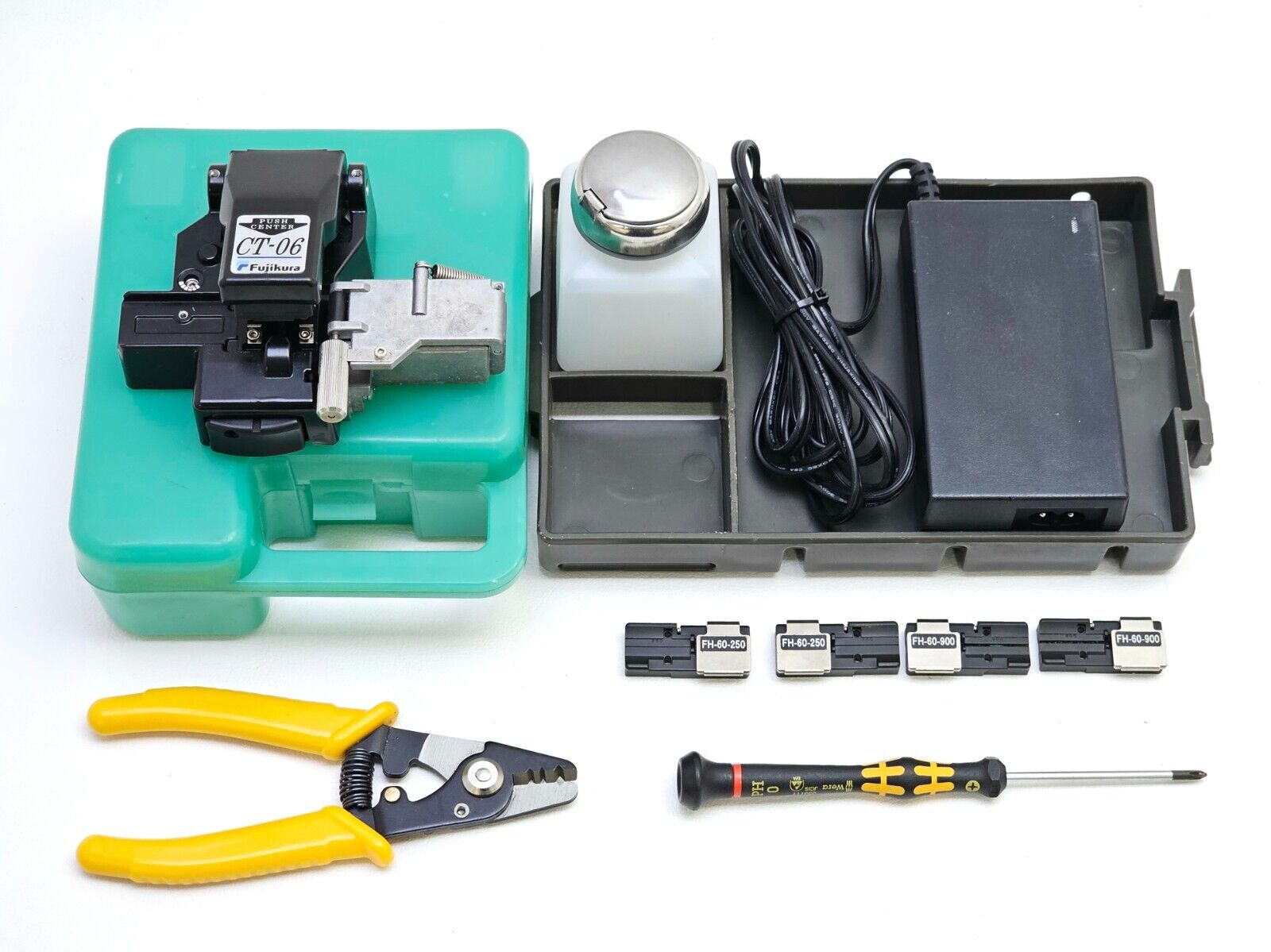

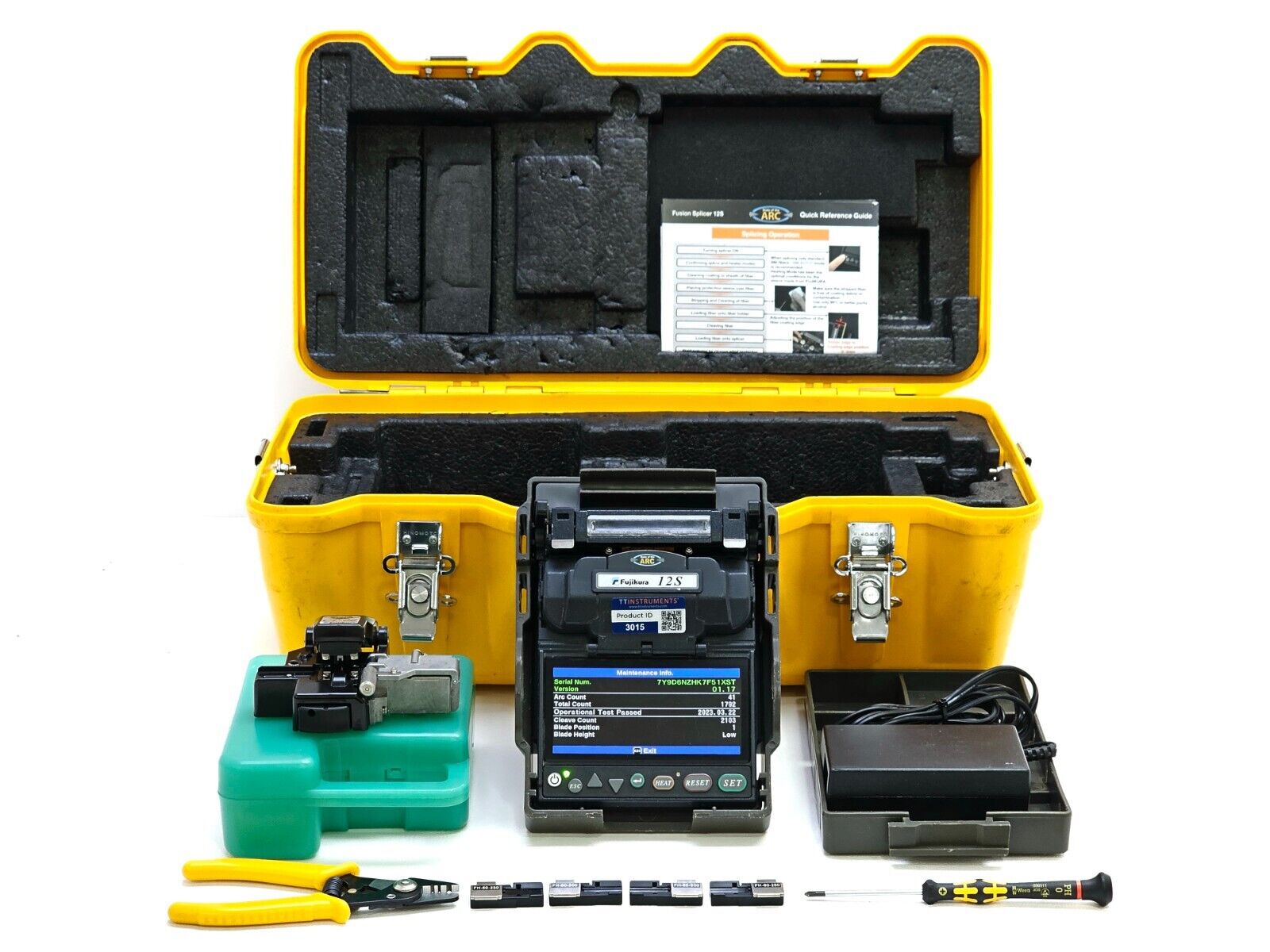

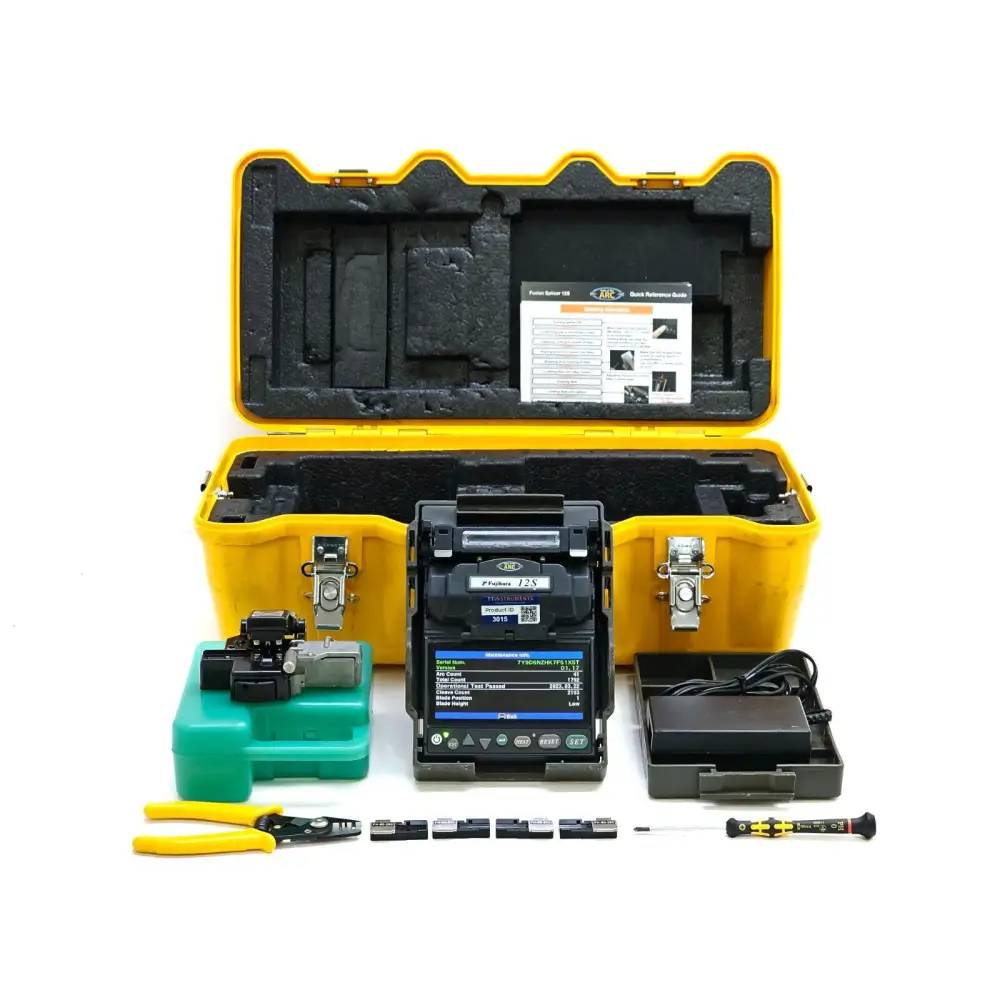

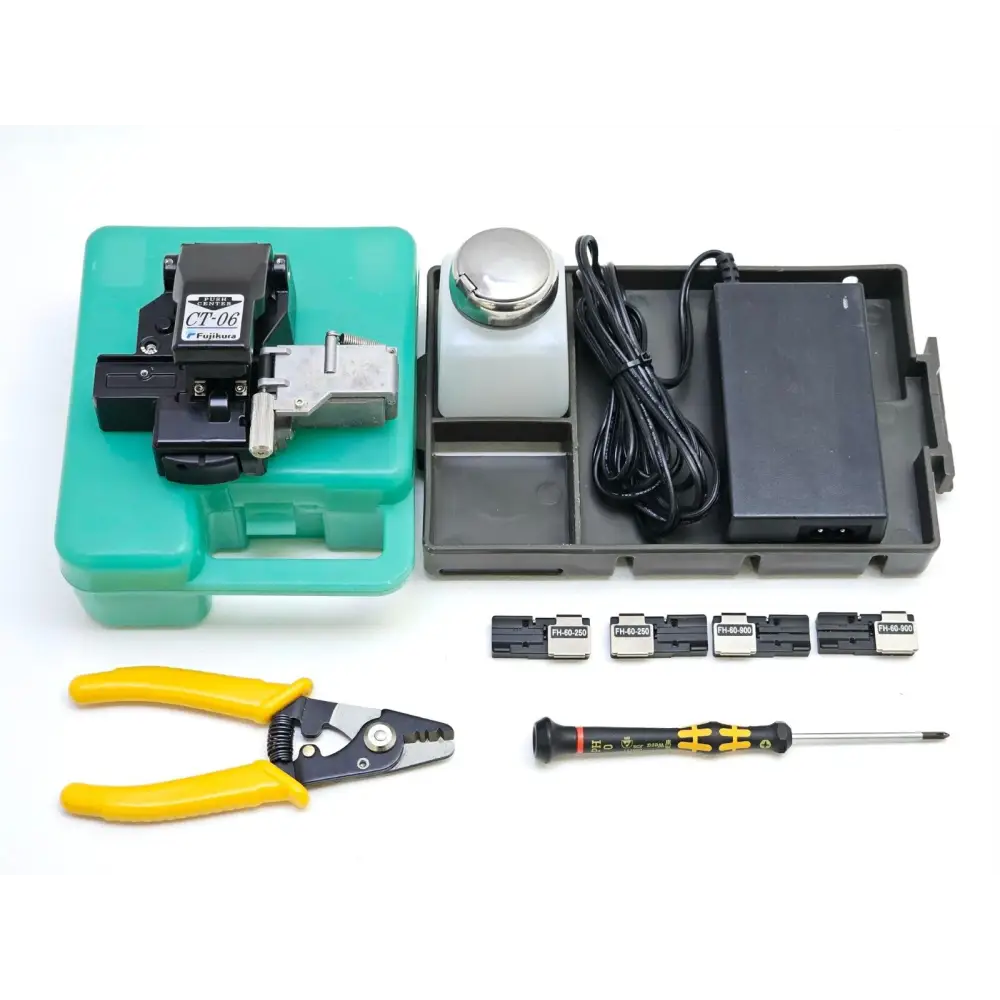

Included in the sale:
• Fujikura 12S SM/MM Arc Fiber Fusion Splicer (ARC count 1,792)

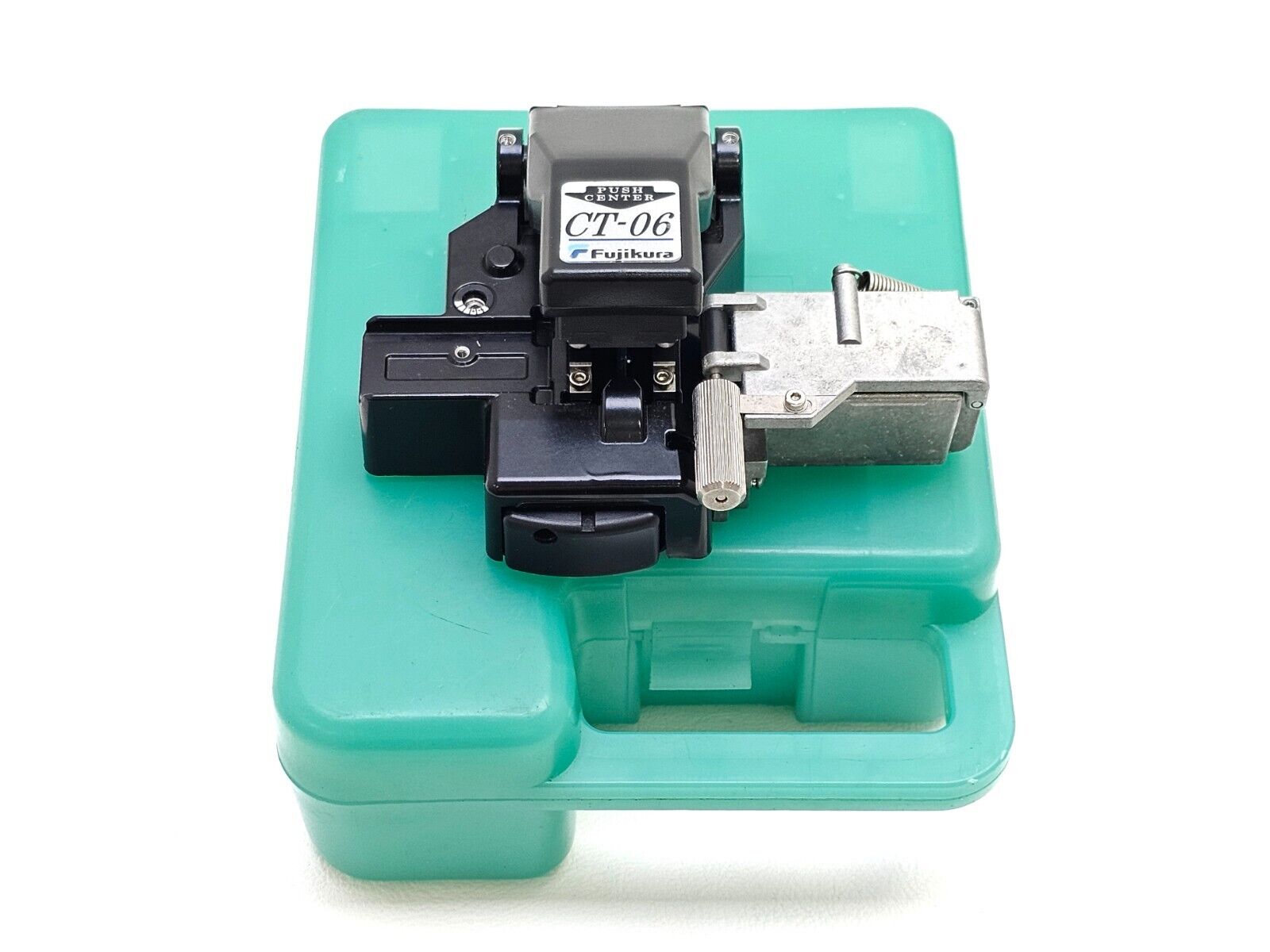

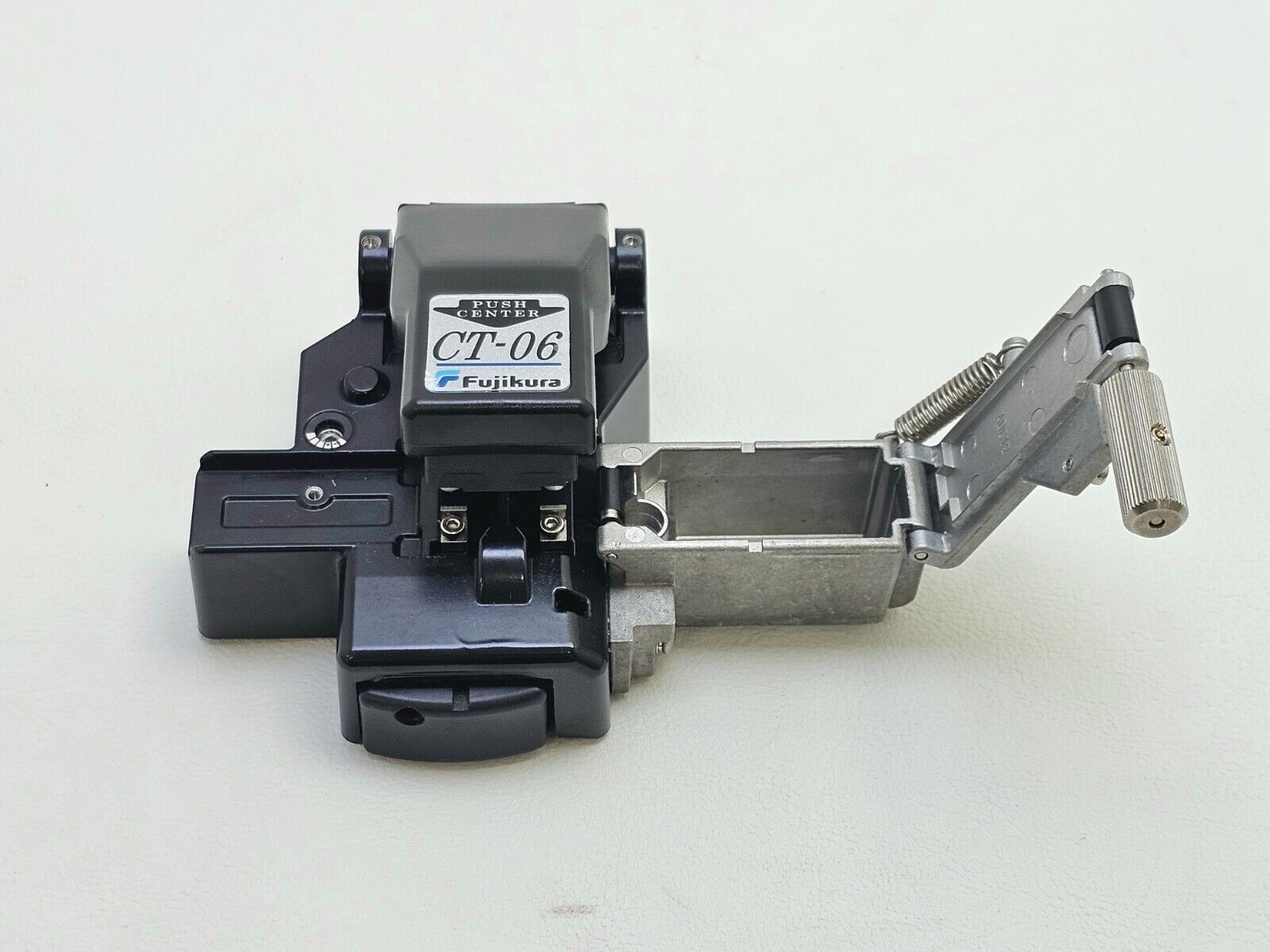

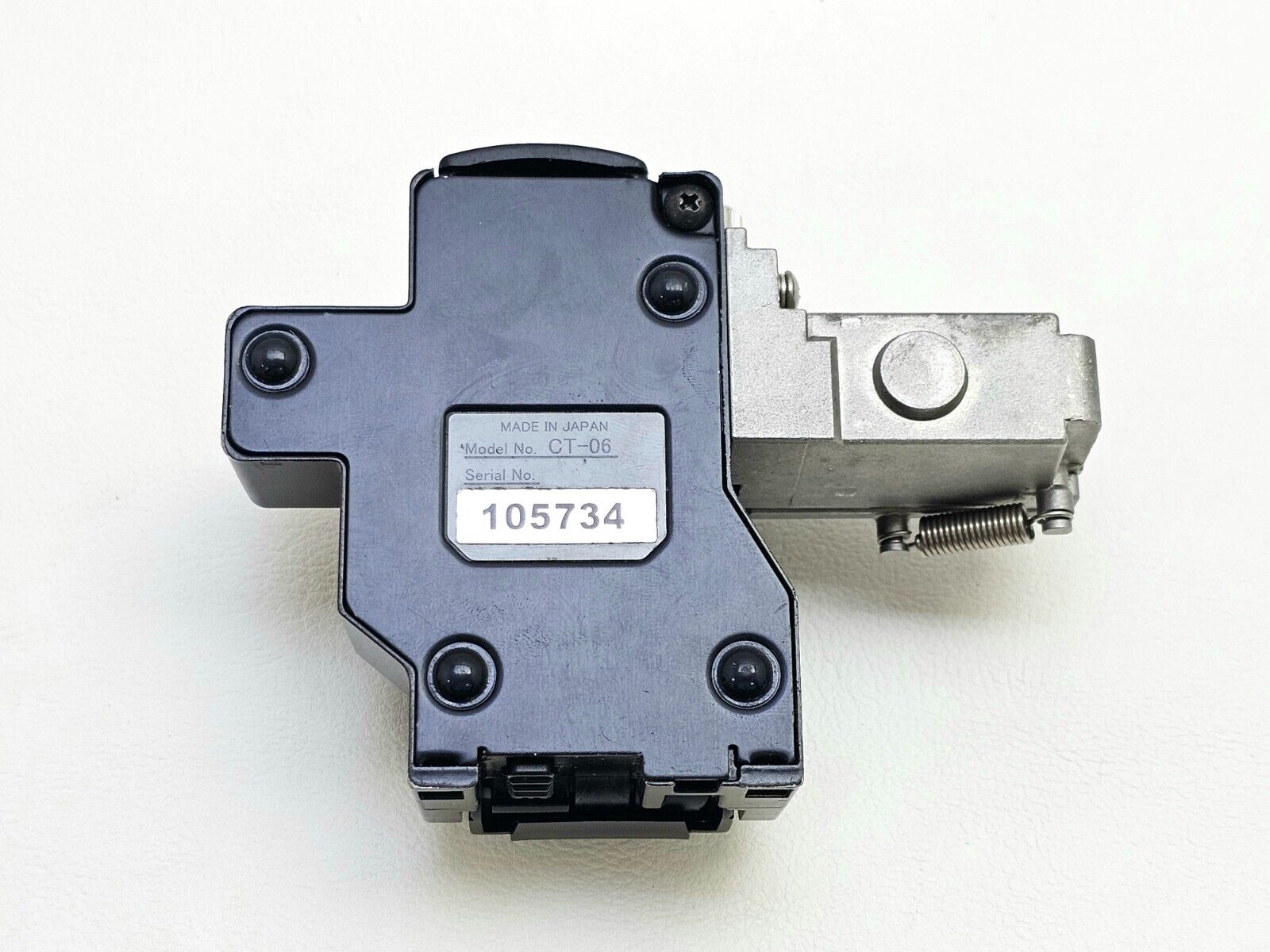

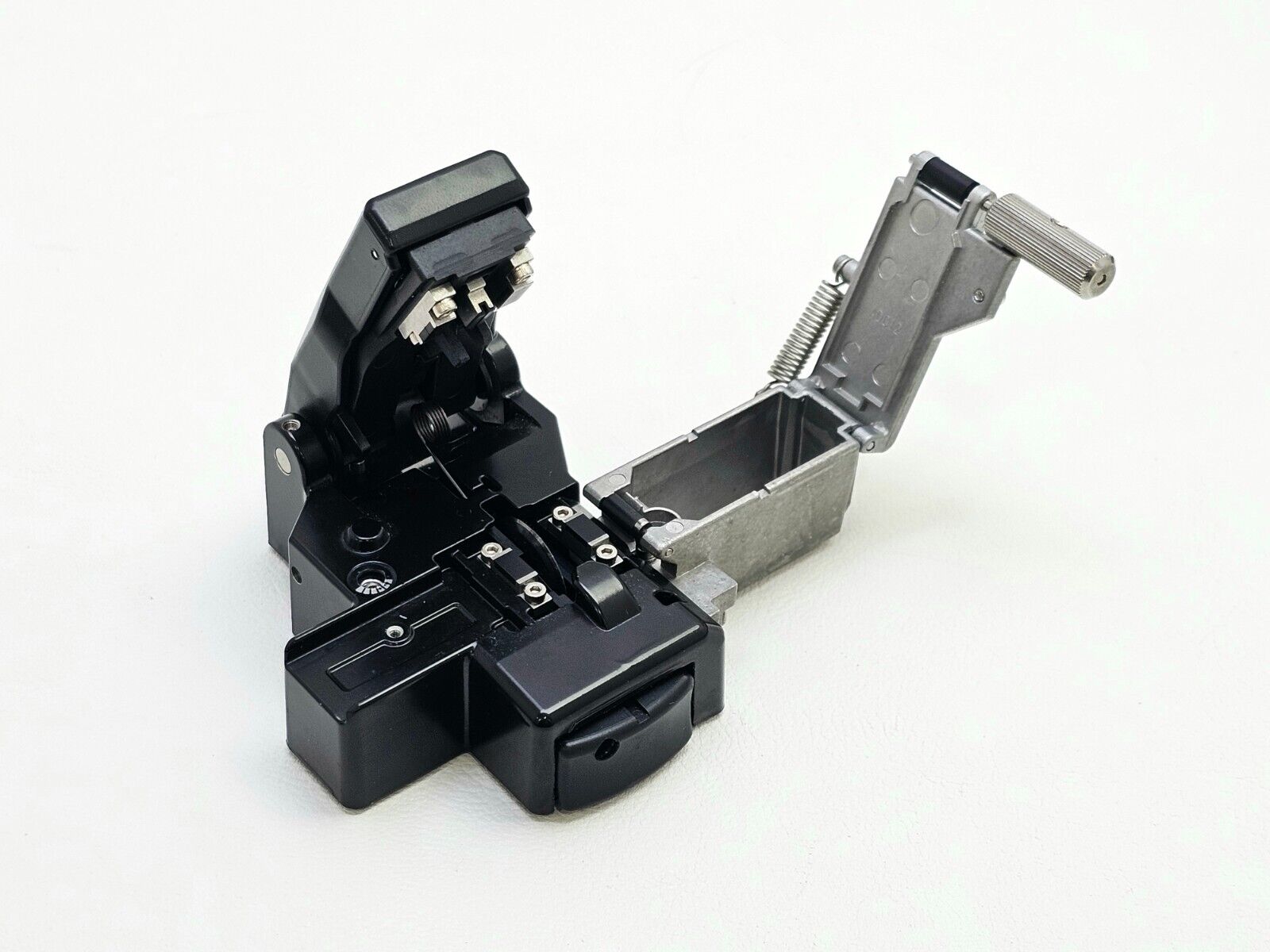

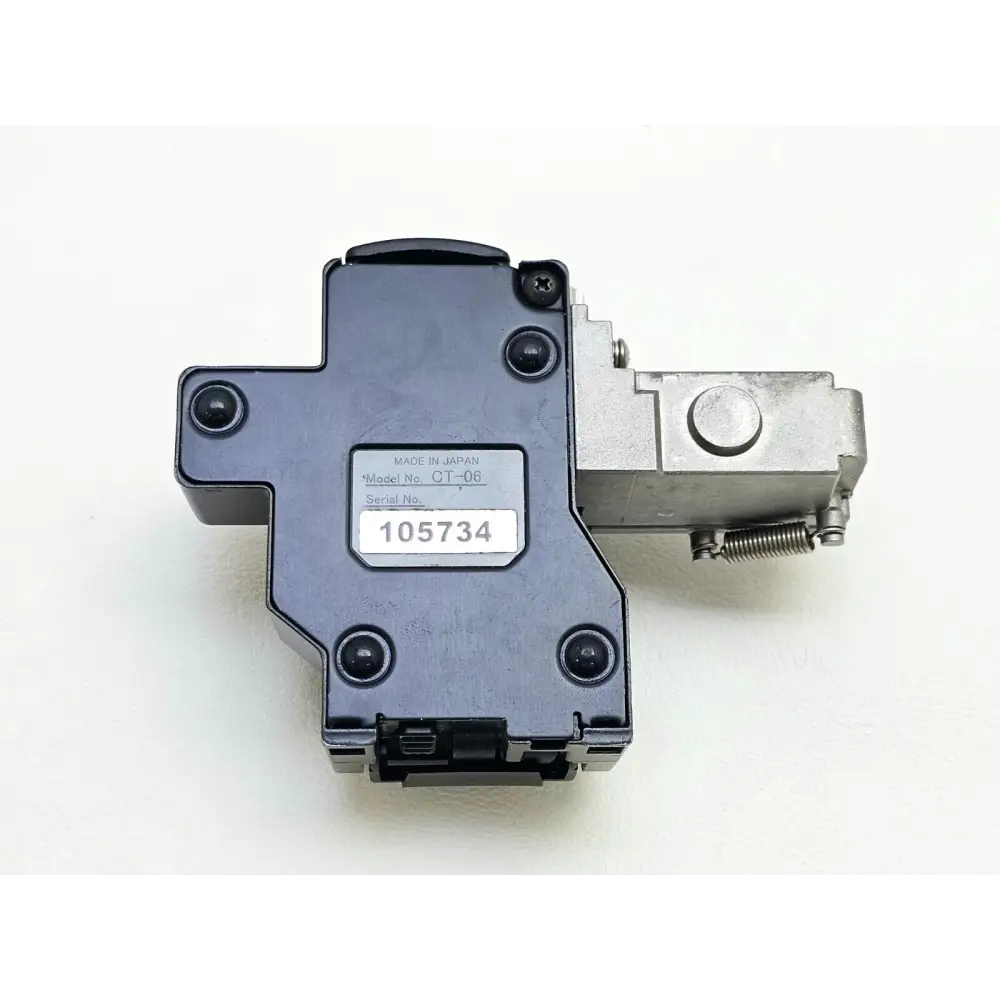

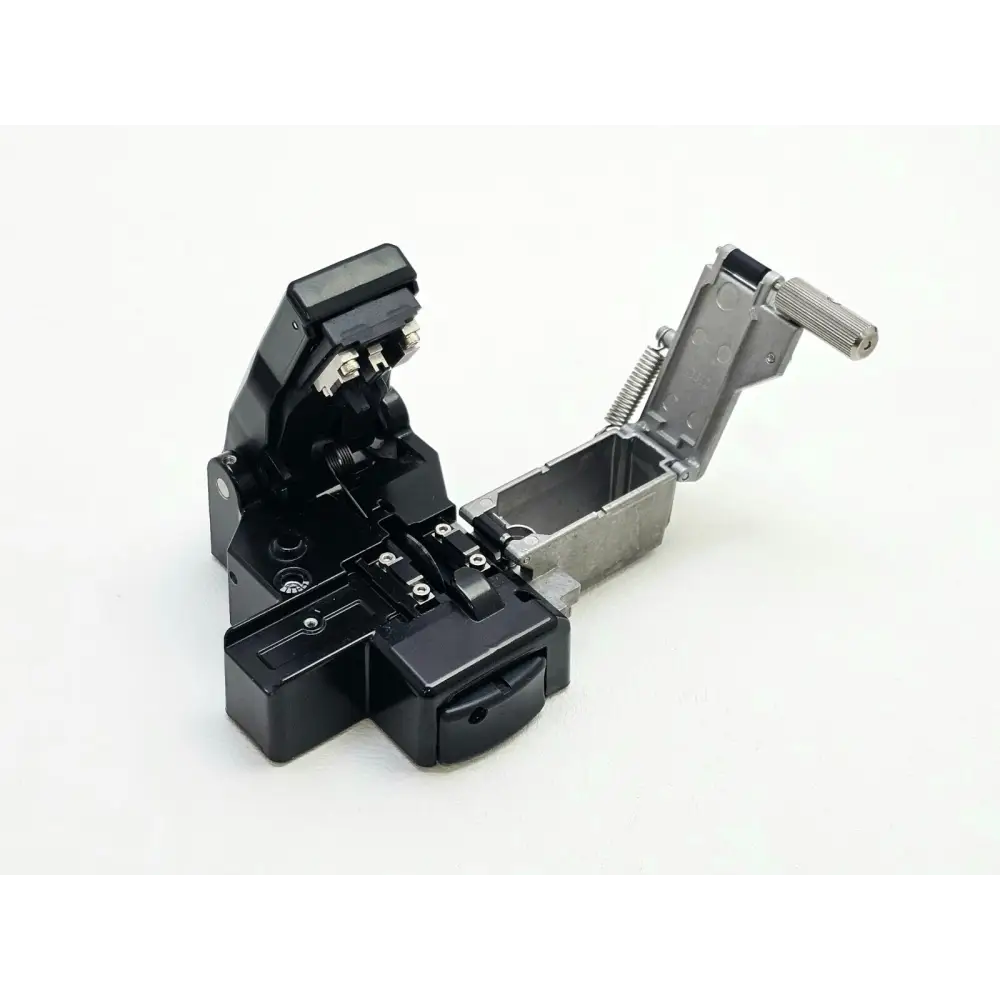

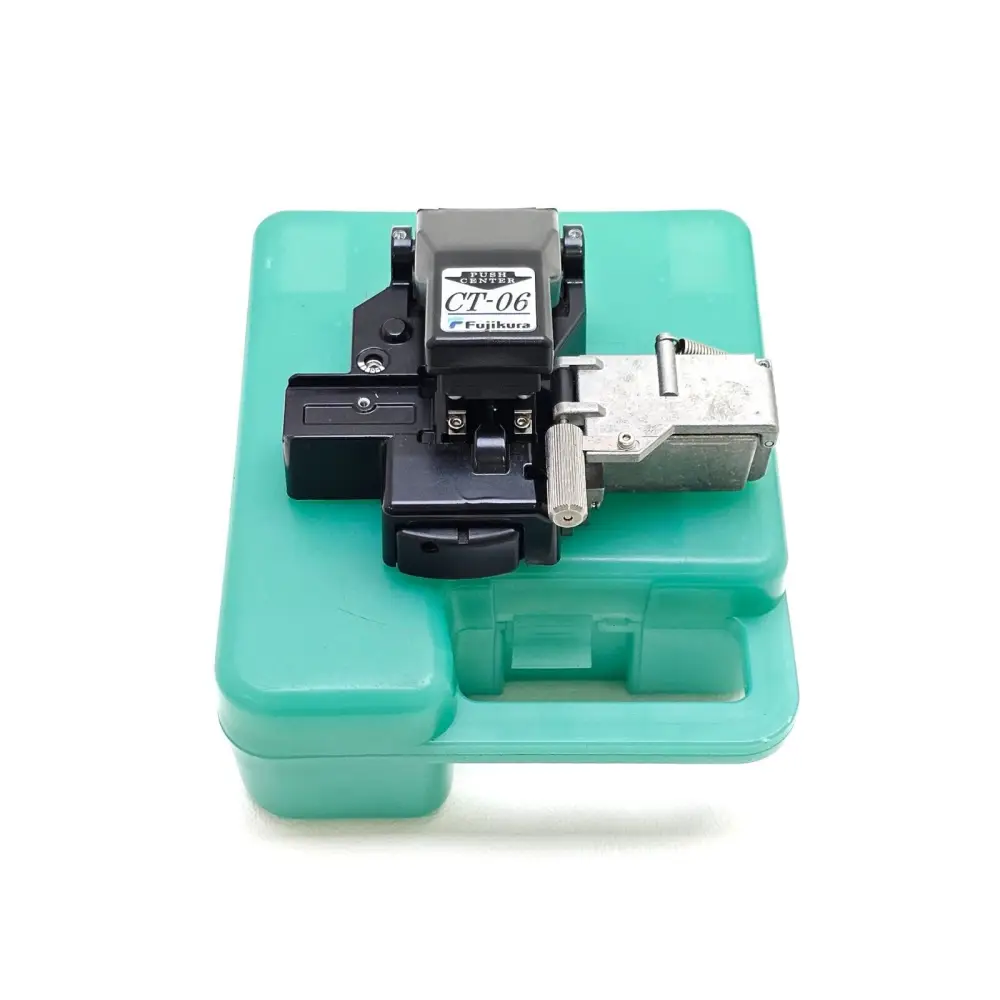

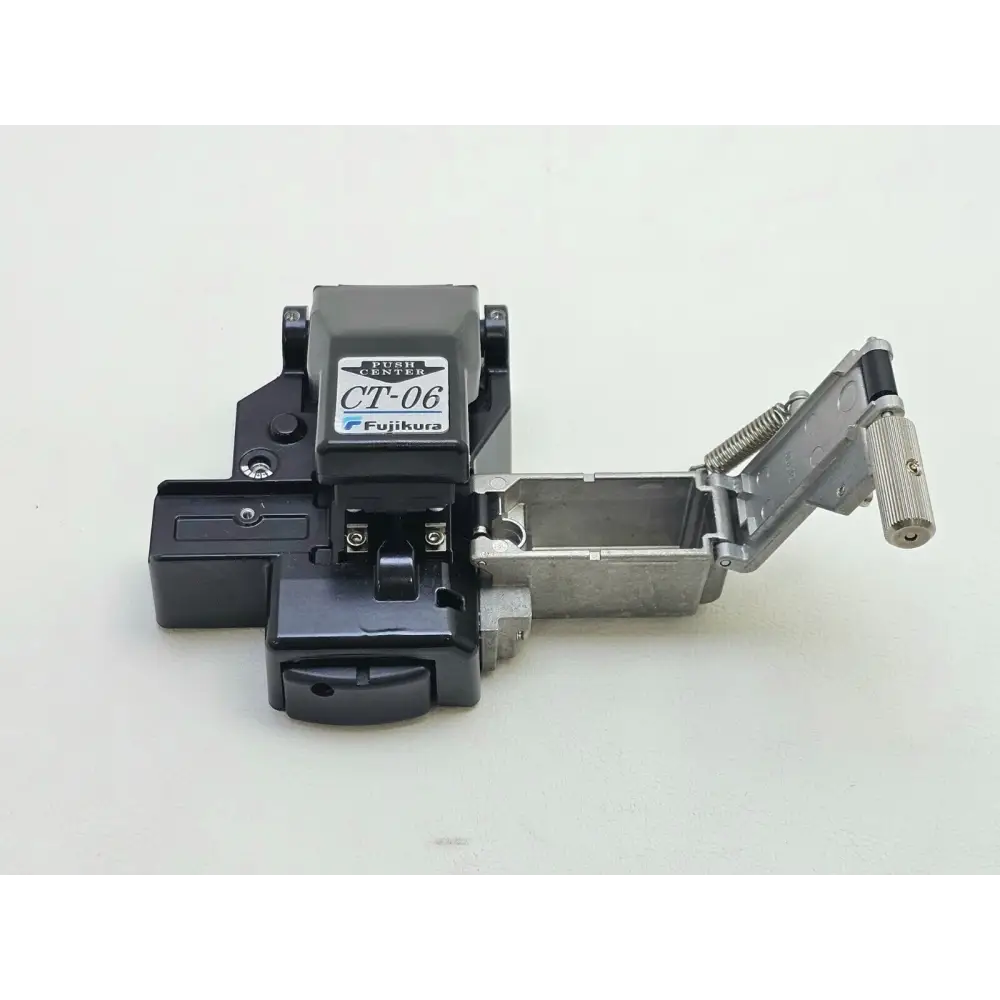

• Fujikura CT-06 High Precision Fiber Cleaver with Case
• FH-60-250 Fiber Holder Set
• FH-60-900 Fiber Holder Set
• AC Adapter/Charger

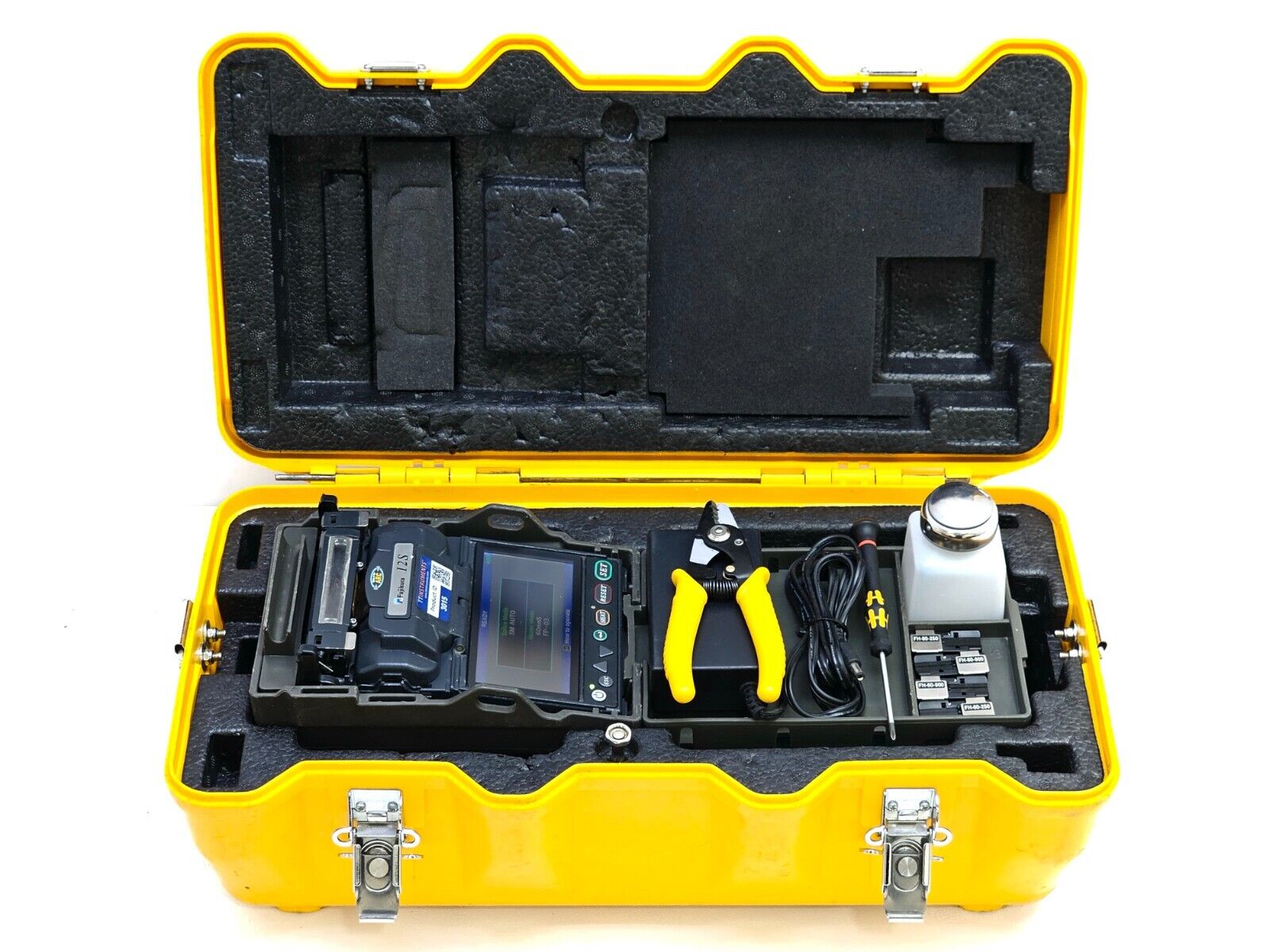

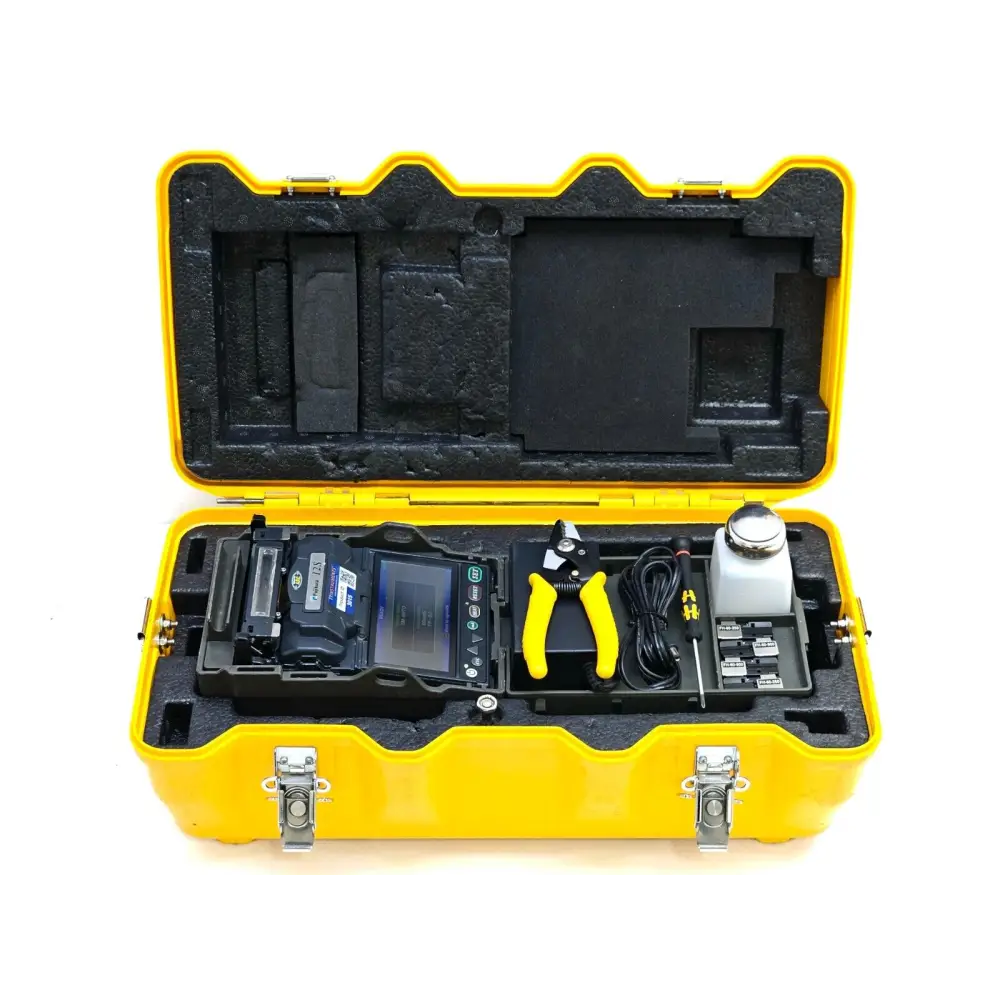

• Hard Carrying Case
• Work Tray
• Fiber Stripper
• Screwdriver

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

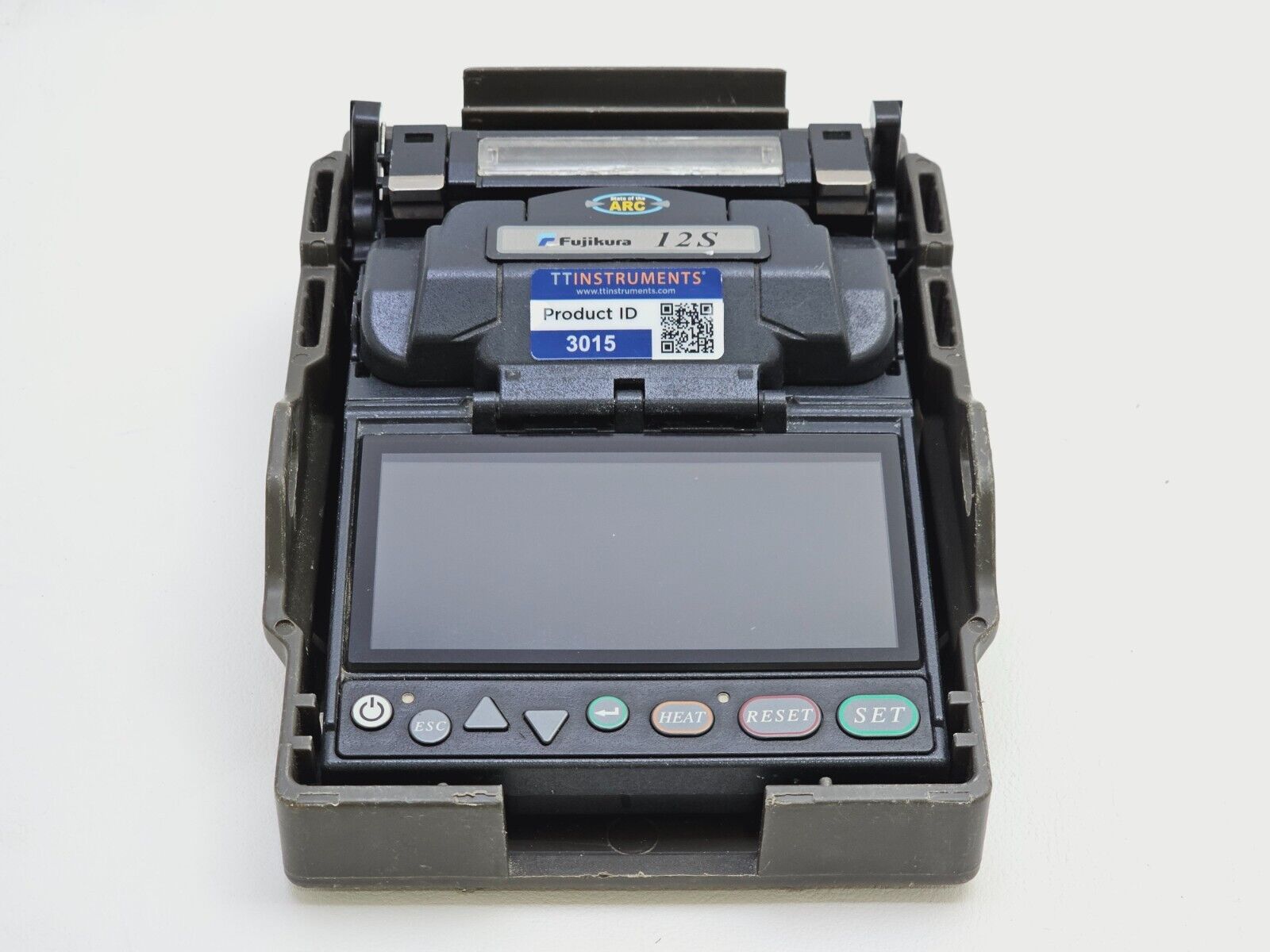

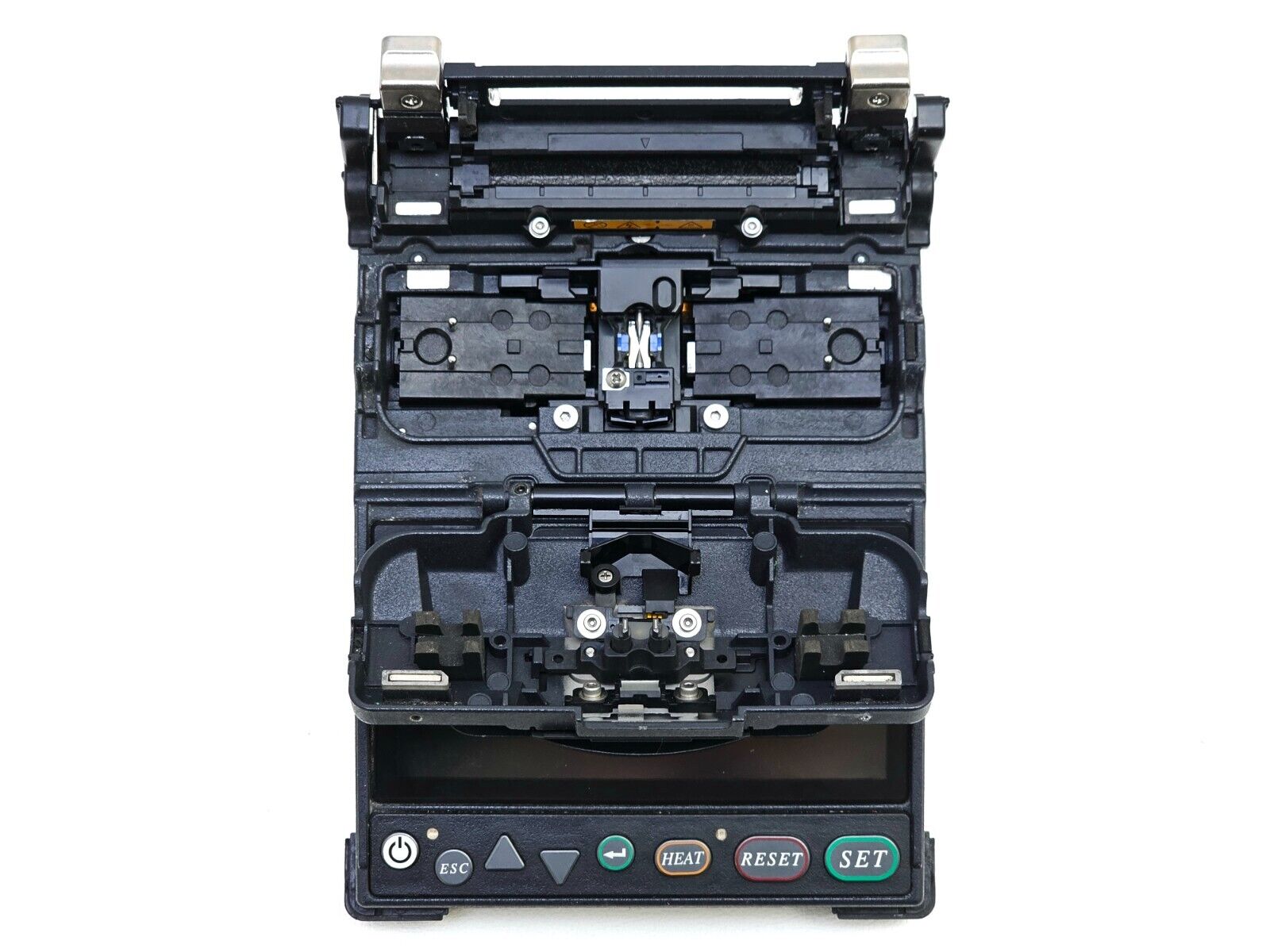

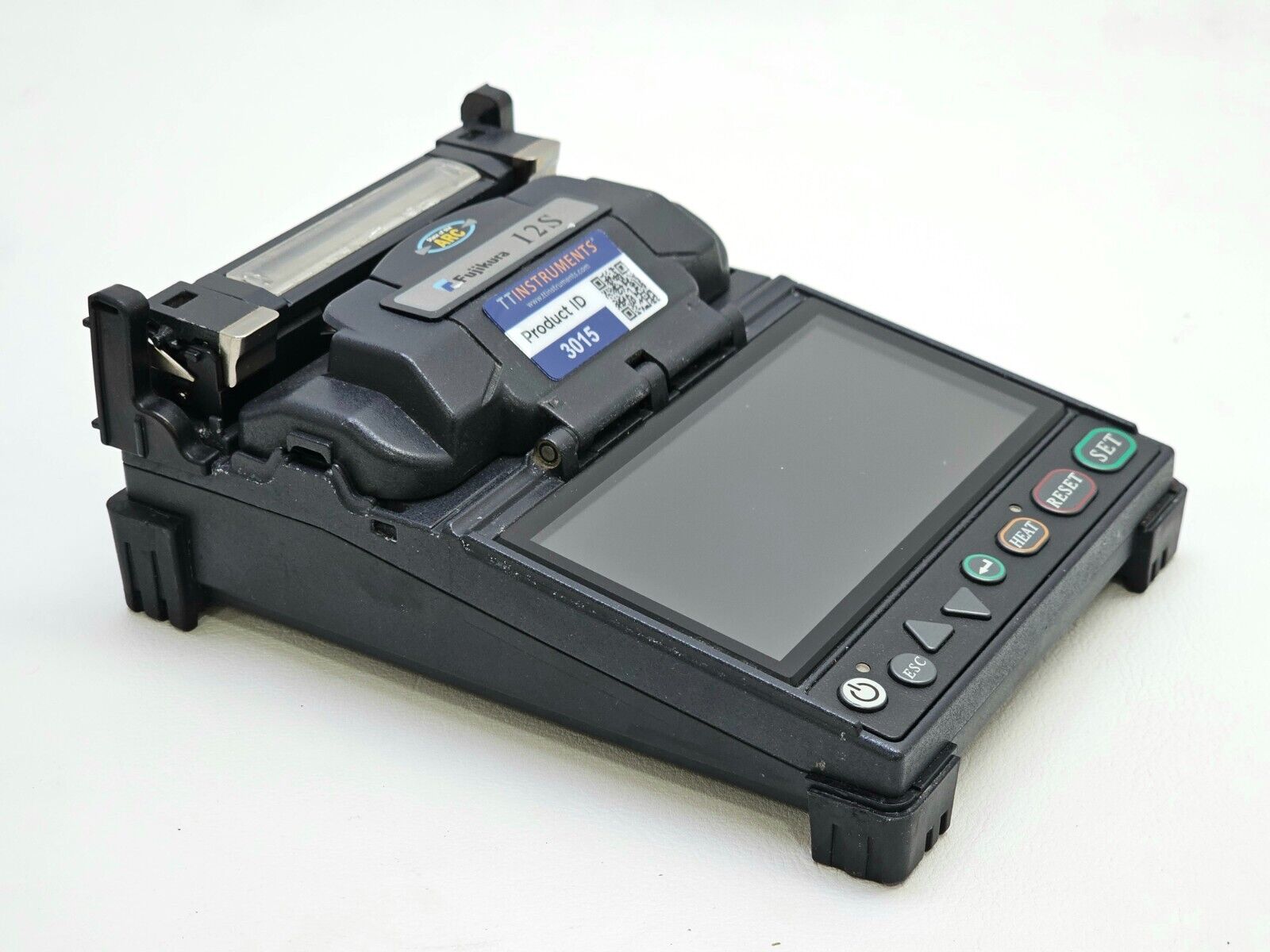

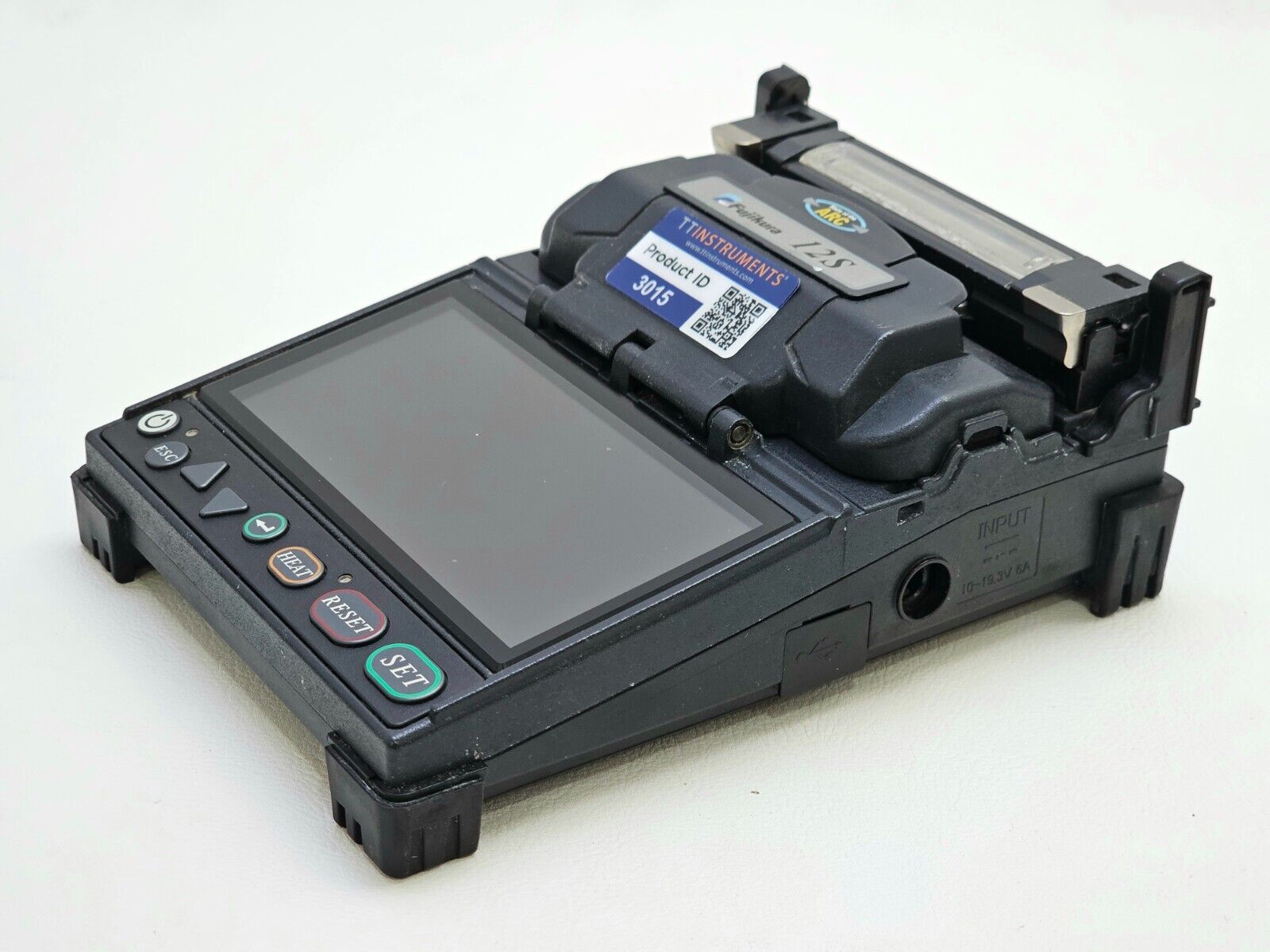

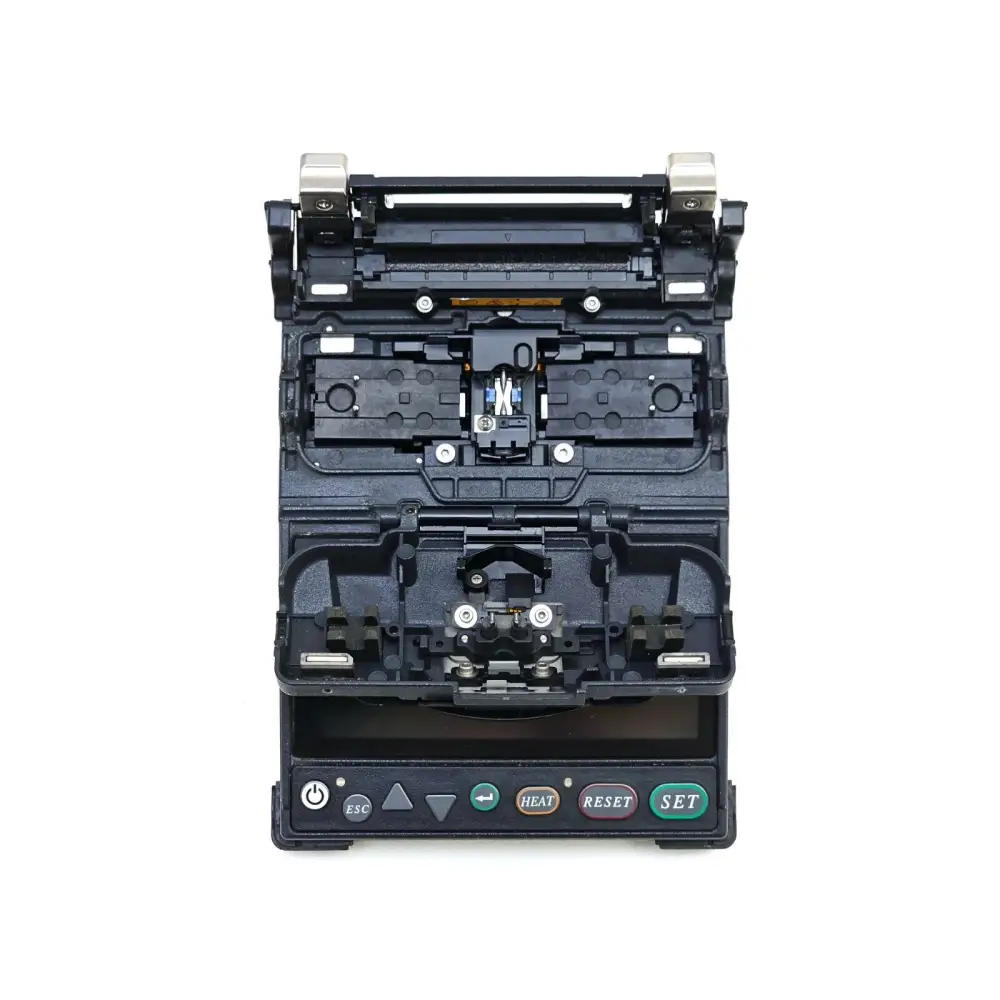

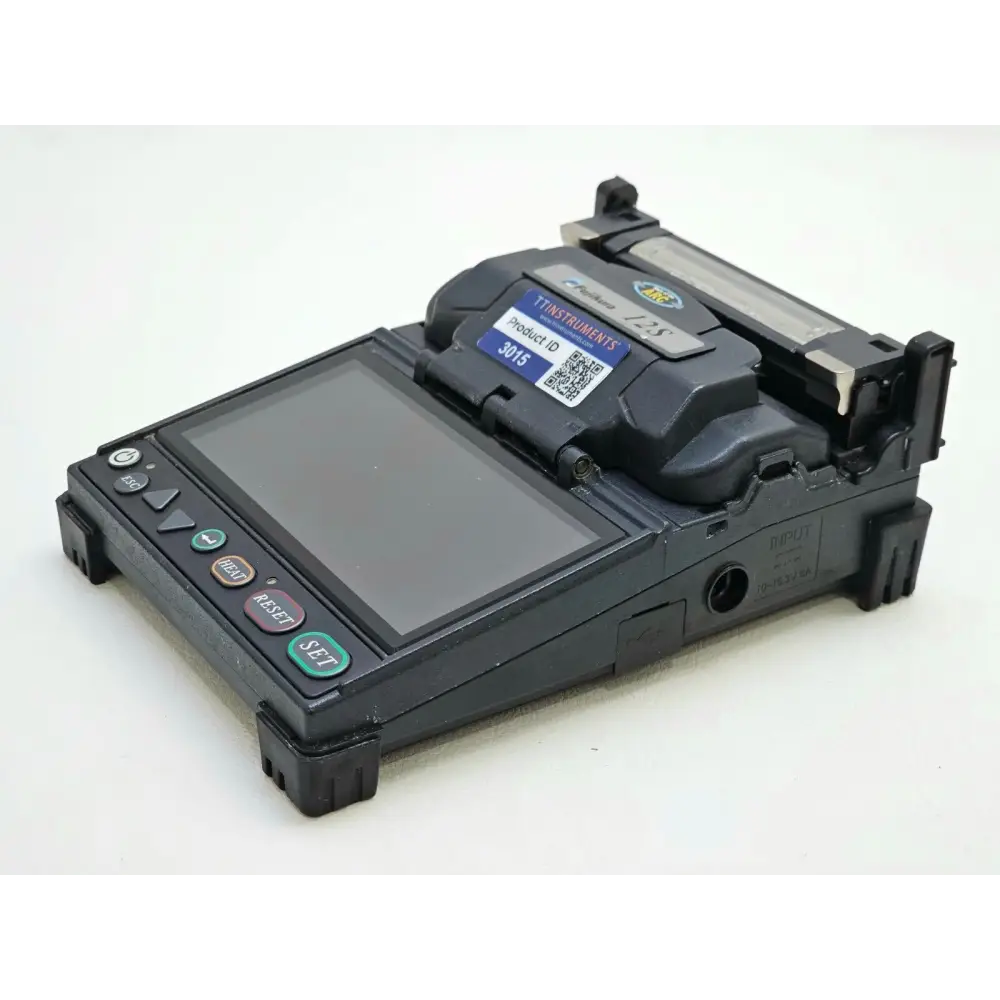

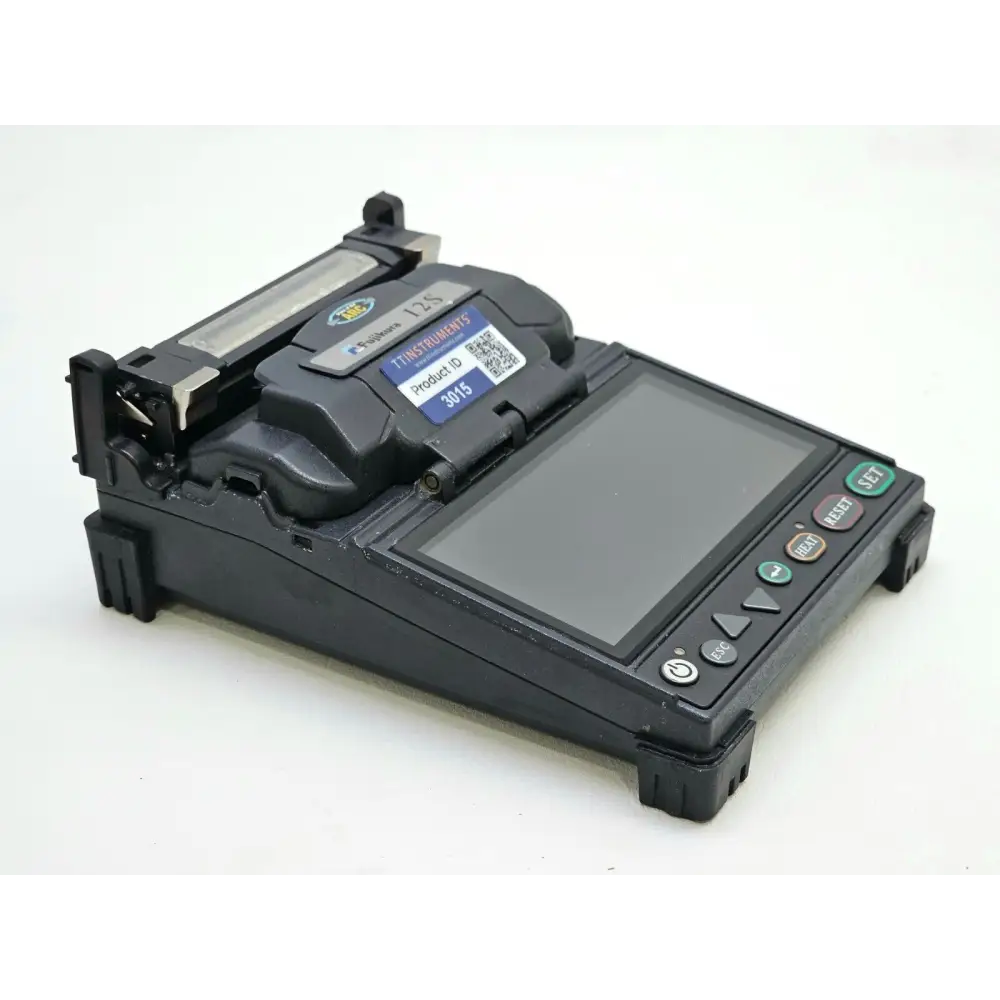

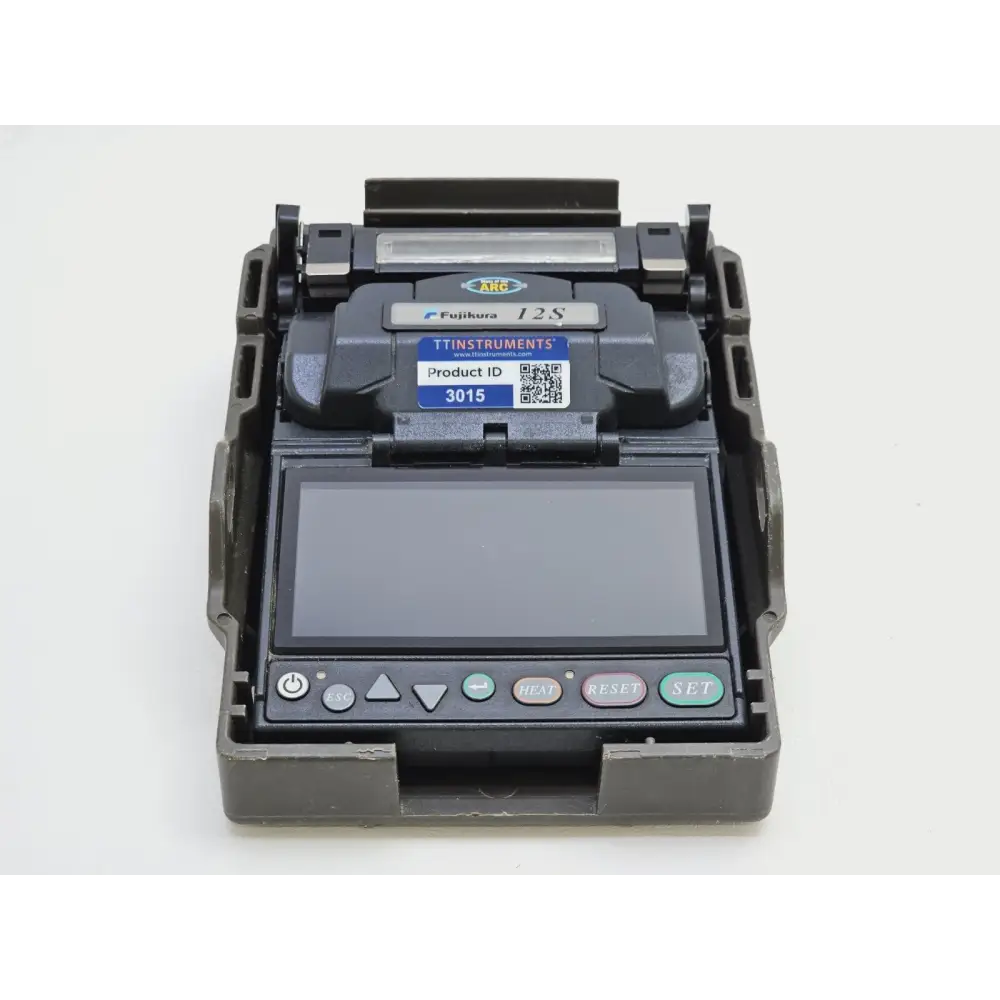

Fujikura 12S SM/MM Fixed V-Groove Fiber Fusion Splicer

The Fujikura 12S is the world's smallest, lightest and most portable fusion splicer available. Despite its incredibly compact size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging field environments. The innovative transit case and work tray provide multiple configurations for efficient use of available workspace, while the long-life battery delivers power for up to 100 splice cycles including heat shrink sleeve application.

The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" TFT colour monitor provides a crystal-clear image even in direct sunlight, enabling accurate evaluation of splice quality. Extended-life electrodes are rated to 3,000 splices, minimising downtime for replacement. Software updates are delivered via the internet, allowing users to stay current with new splice programmes. The fully ruggedised chassis offers shock, dust and moisture protection, while the dual-camera observation system provides precise fibre alignment and accurate loss estimation. The 12S is also fully compatible with the FuseConnect line of fusion installable connectors.

Specifications:
Model: Fujikura 12S
Applicable Fibres: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter: 125 µm
Coating Diameter: 250 µm or 900 µm
Fibre Cleave Length: 5 mm to 13 mm
Typical Average Splice Loss: 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.08 dB (NZDS)
Splicing Time: Typical 15 sec (SM)
Arc Calibration: Automatic real-time, result-based (AUTO mode), manual available
Splicing Modes: 100 total splice modes
Splice Loss Estimate: Dual-camera cladding alignment
Splice Result Storage: Last 2,000 splices
Fibre Display: 4.5" TFT colour LCD — X, Y, or simultaneous X/Y view
Magnification: 100X (X/Y view)
Viewing Method: 2-axis CMOS camera
Operating Conditions: 0–3,660 m altitude, 10–50°C, 0–95% RH non-condensing
Mechanical Proof Test: 1.96 N
Tube Heater: 30 heating modes
Tube Heating Time: Typical 30 sec (FP-03 60 mm sleeve)
Protection Sleeve Lengths: 60 mm, 40 mm, micro
Splice/Heat Cycles per Charge: Typical 100 cycles (BTR-10 battery)
Electrode Life: 3,000 splices
Power Supply: 100–240 V AC (auto-select), 14.8 V DC (battery)

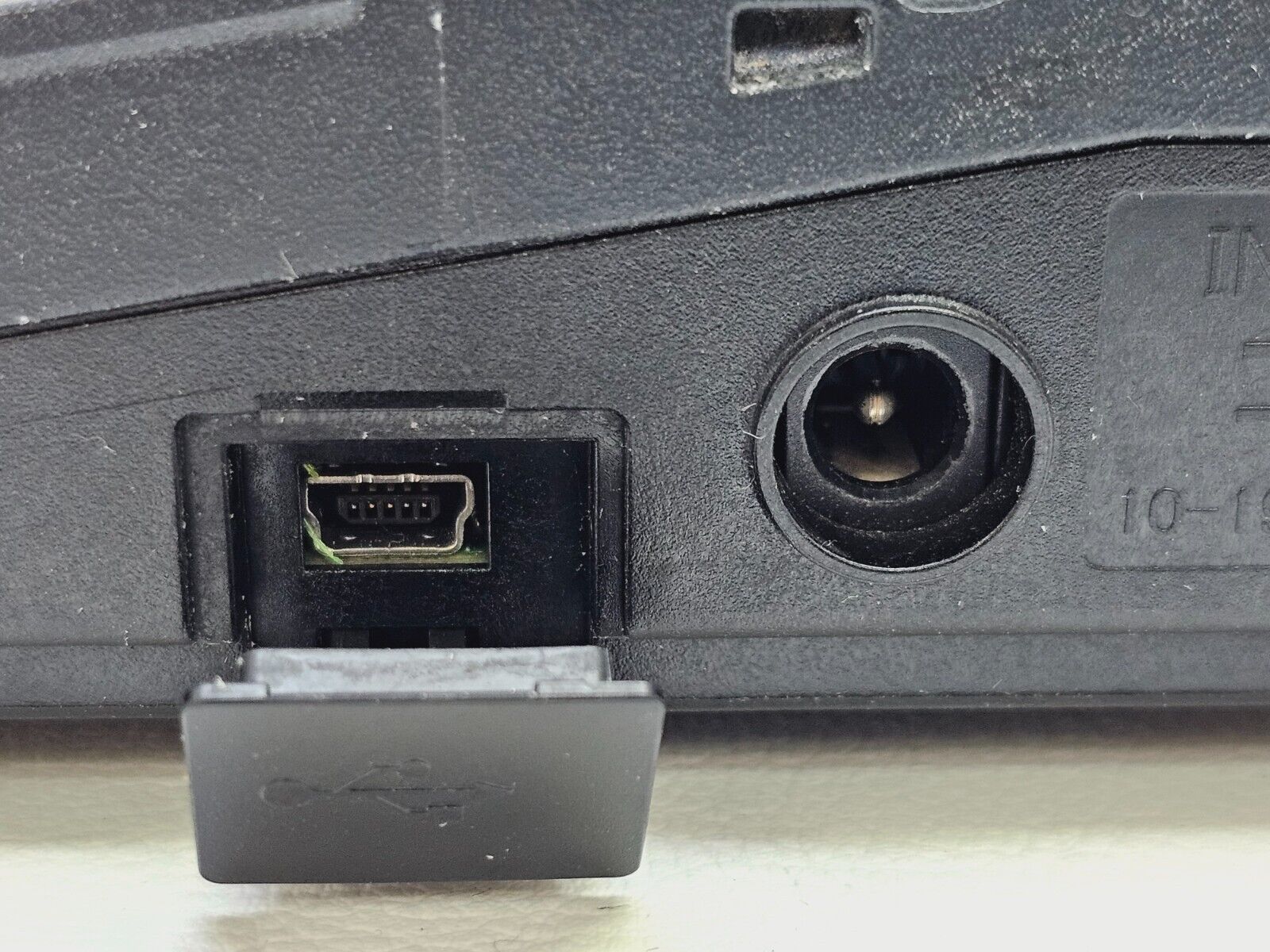

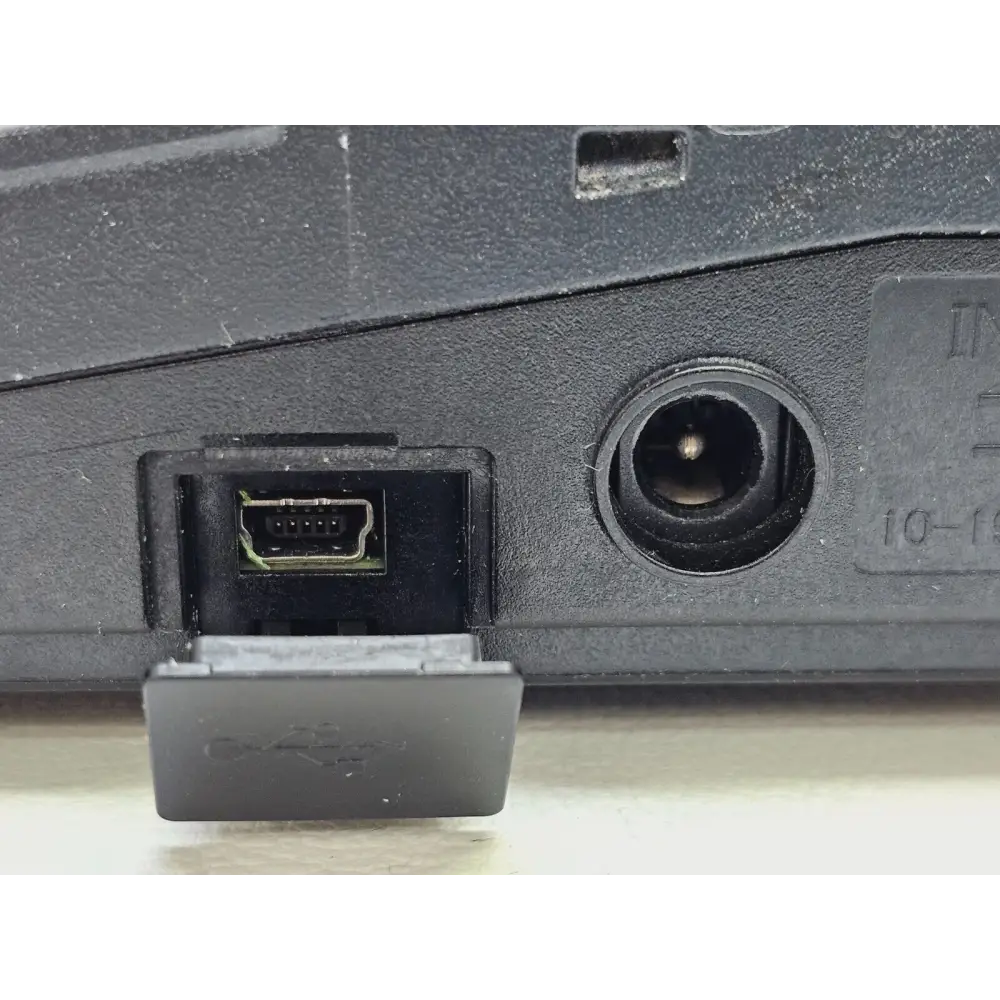

Terminals: USB 2.0
Wind Protection: Up to 15 m/s (34 mph)
Dimensions: 121 × 162 × 57 mm (4.76 × 6.38 × 2.24 in)
Weight: 0.776 kg (1.71 lbs) with battery
