Fujikura 12S SM MM Fiber Fusion Splicer + CT-06 Cleaver & Fiber Holders ARC 1548

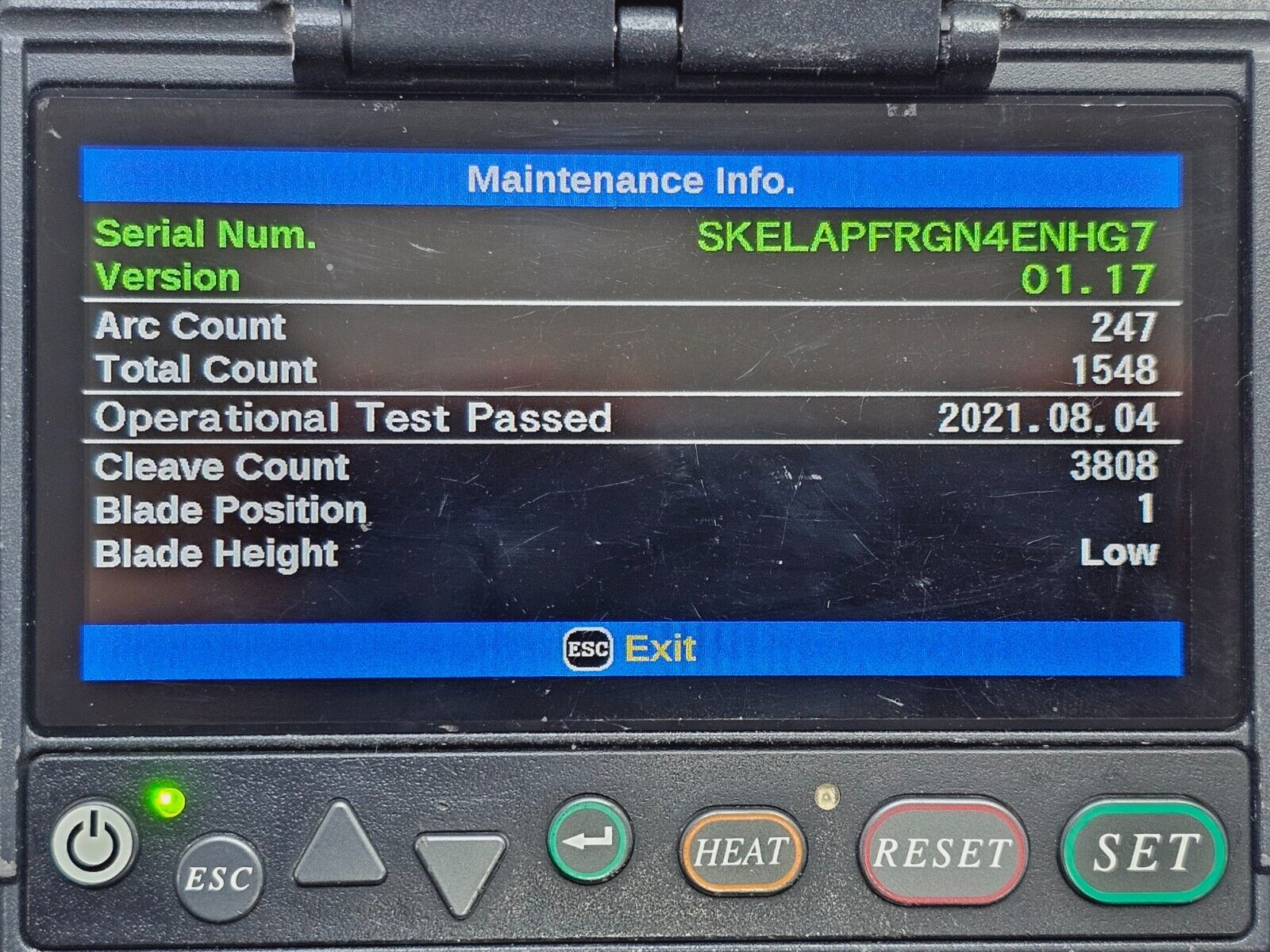

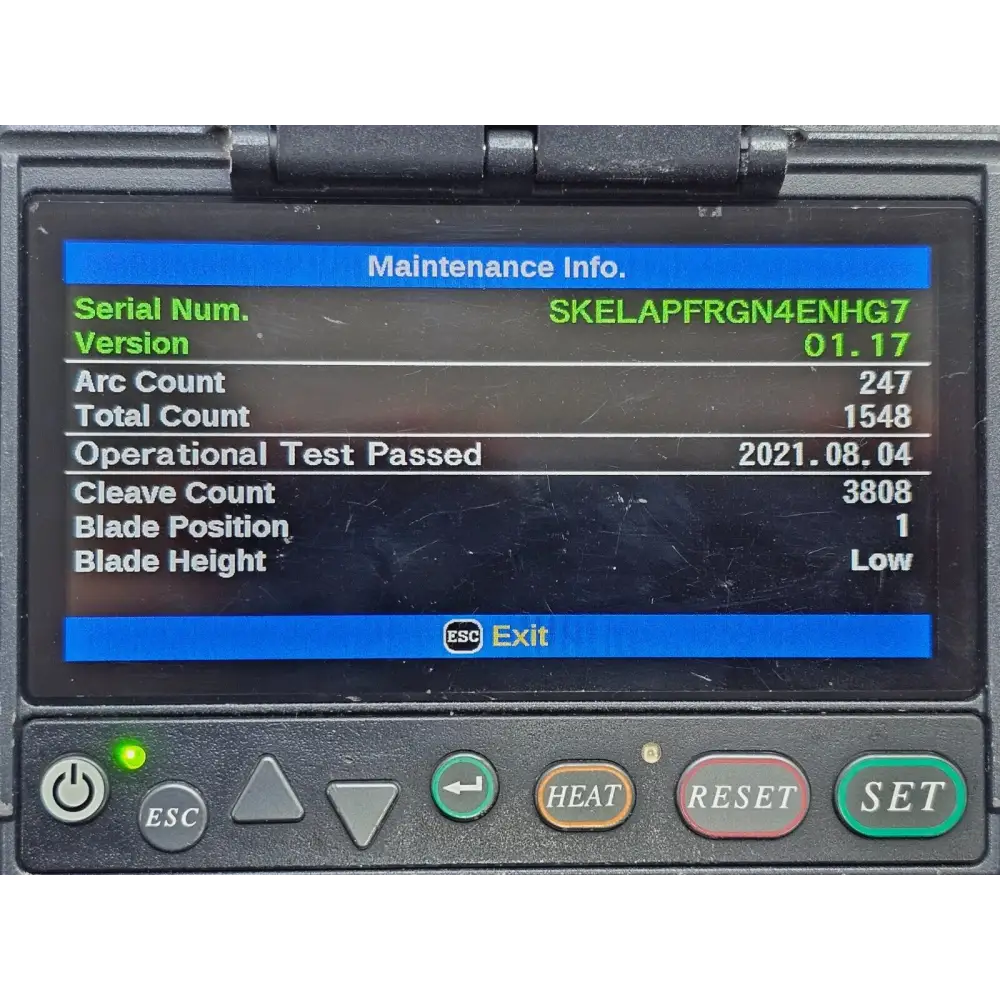

Condition: Used — ARC Count: 1548.

This is a used Fujikura 12S SM/MM Fixed V-Groove Fiber Fusion Splicer with an arc count of 1548, supplied with a comprehensive set of accessories including the Fujikura CT-06 High Precision Fiber Cleaver and fibre holders. The unit supports single-mode and multimode fibre splicing with automatic arc calibration and stores the last 2,000 splice results.

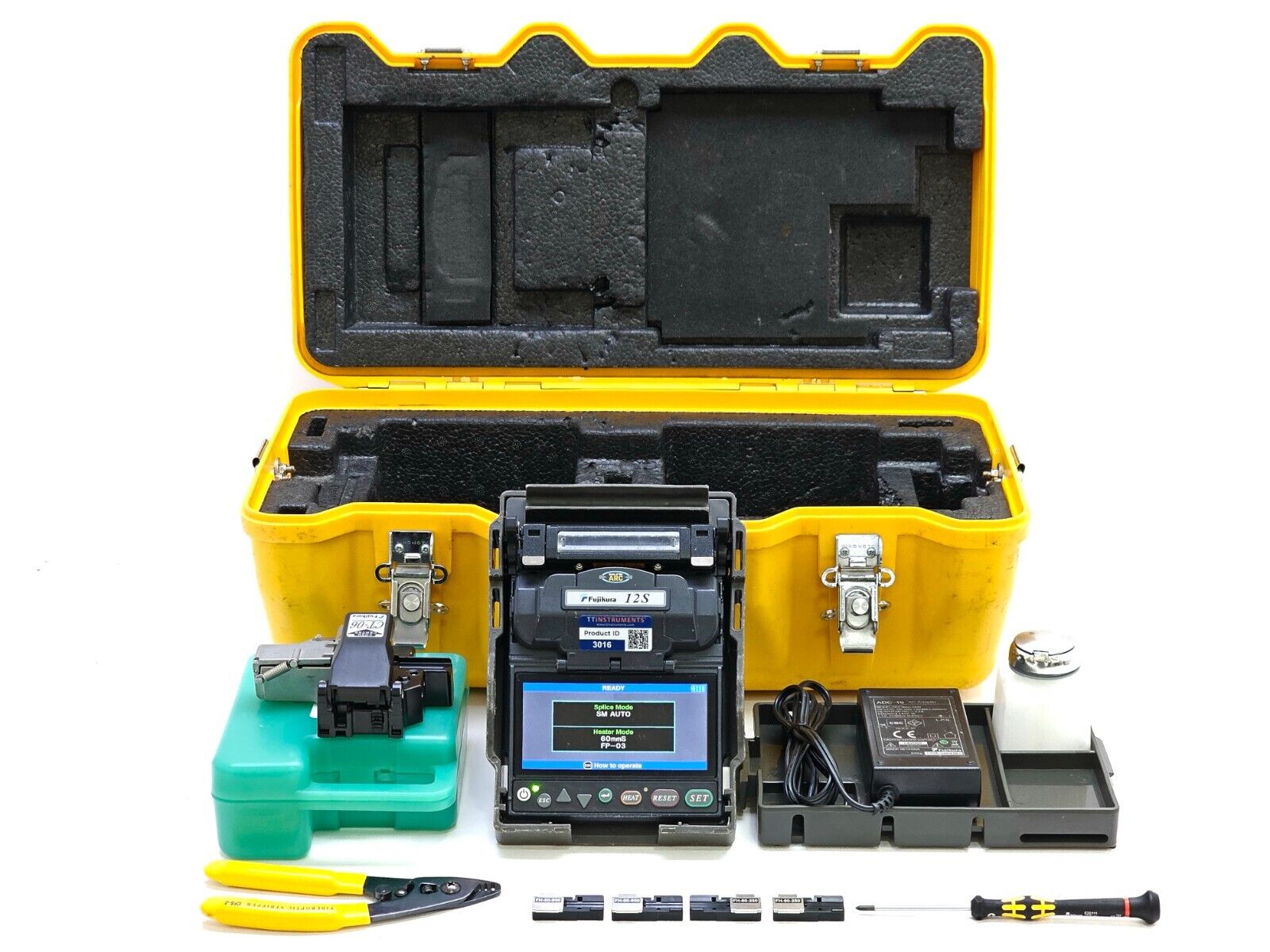

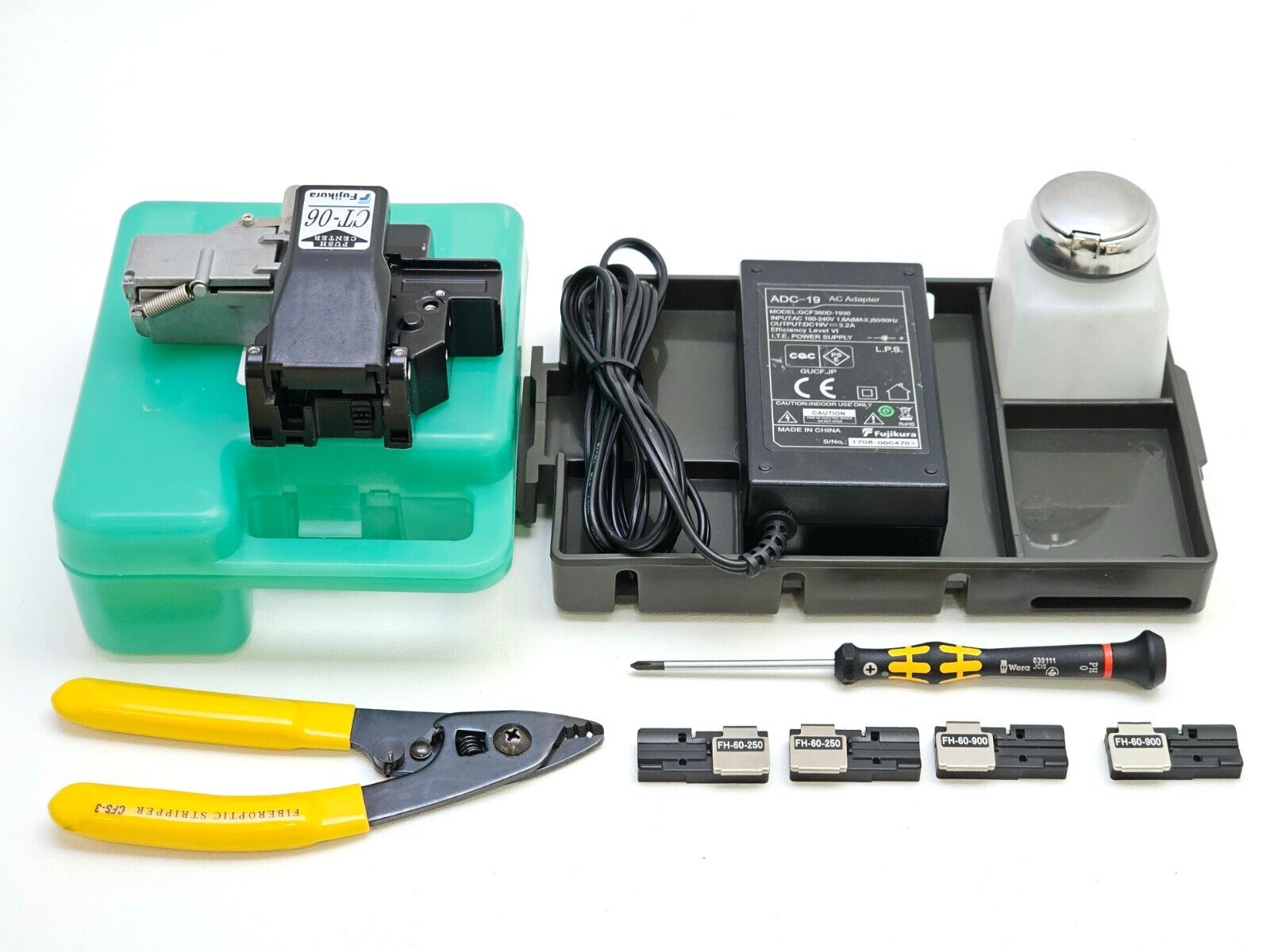

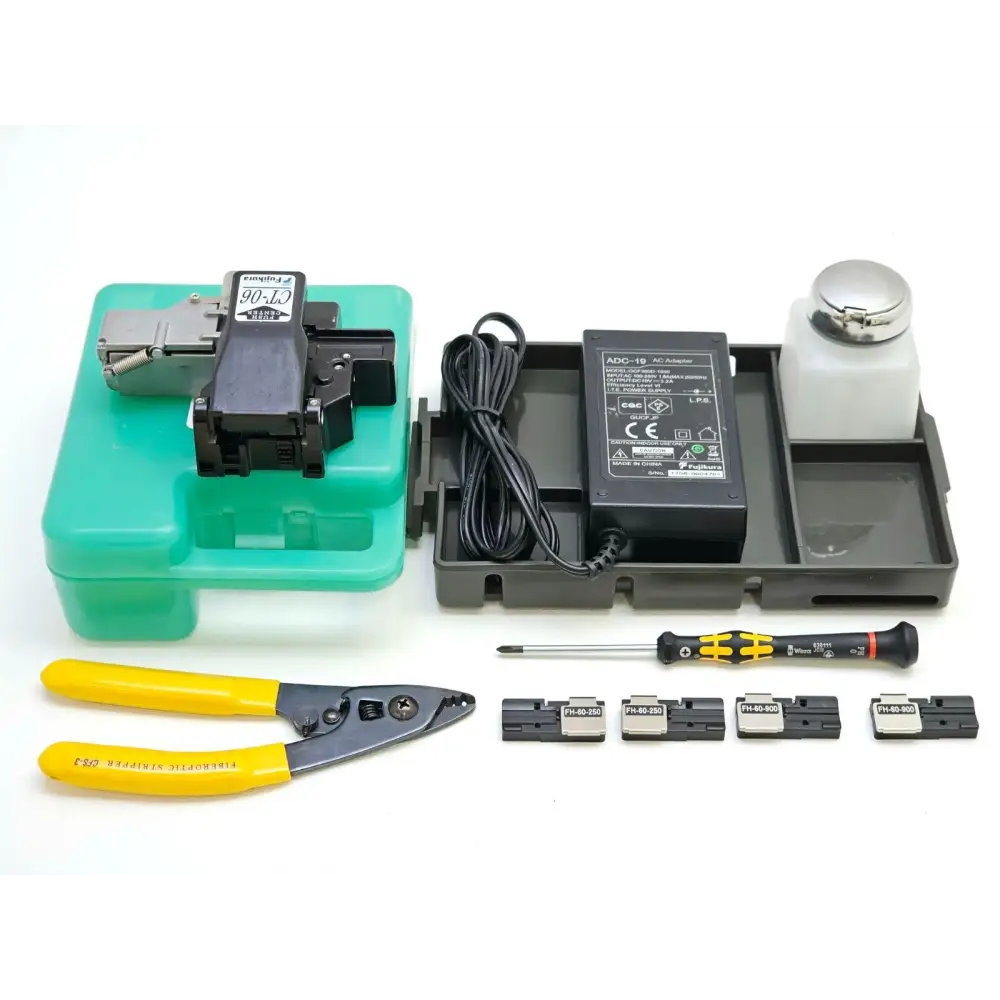

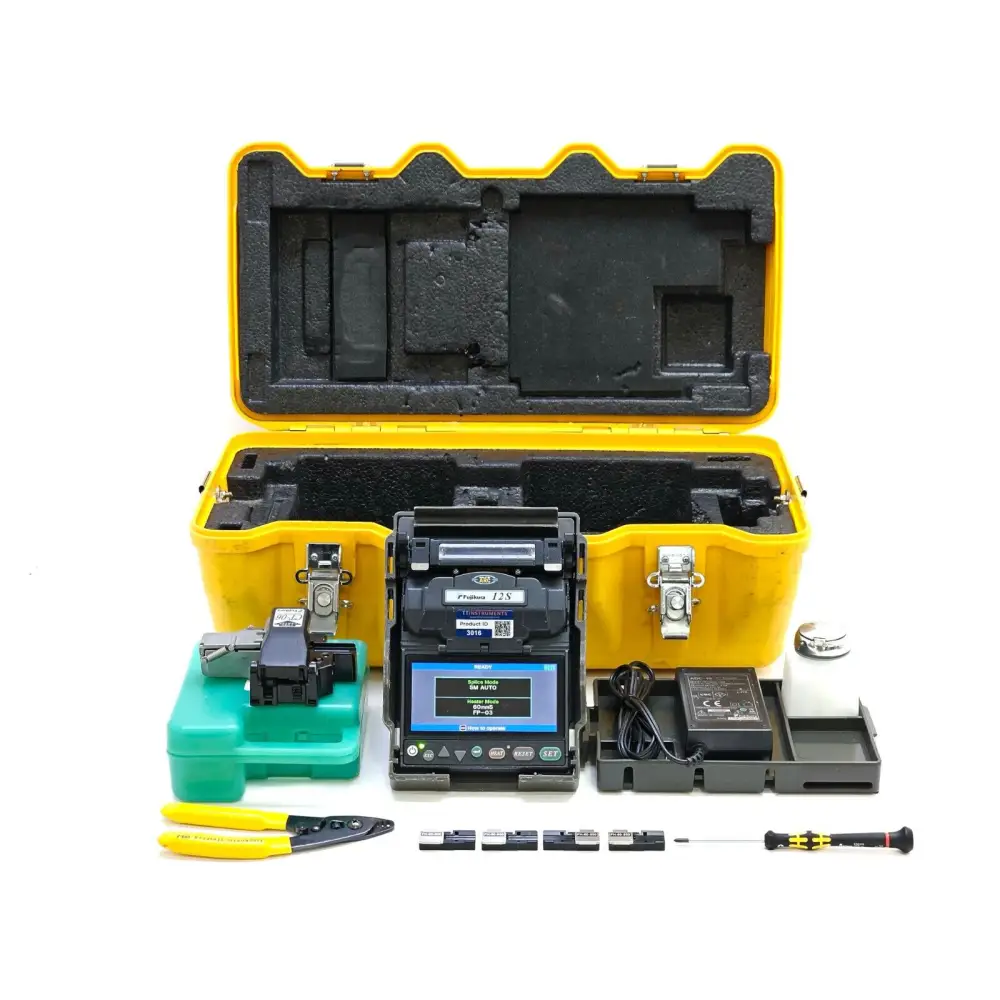

Included in the sale:
• Fujikura 12S SM/MM Arc Fibre Fusion Splicer (ARC count 1548)

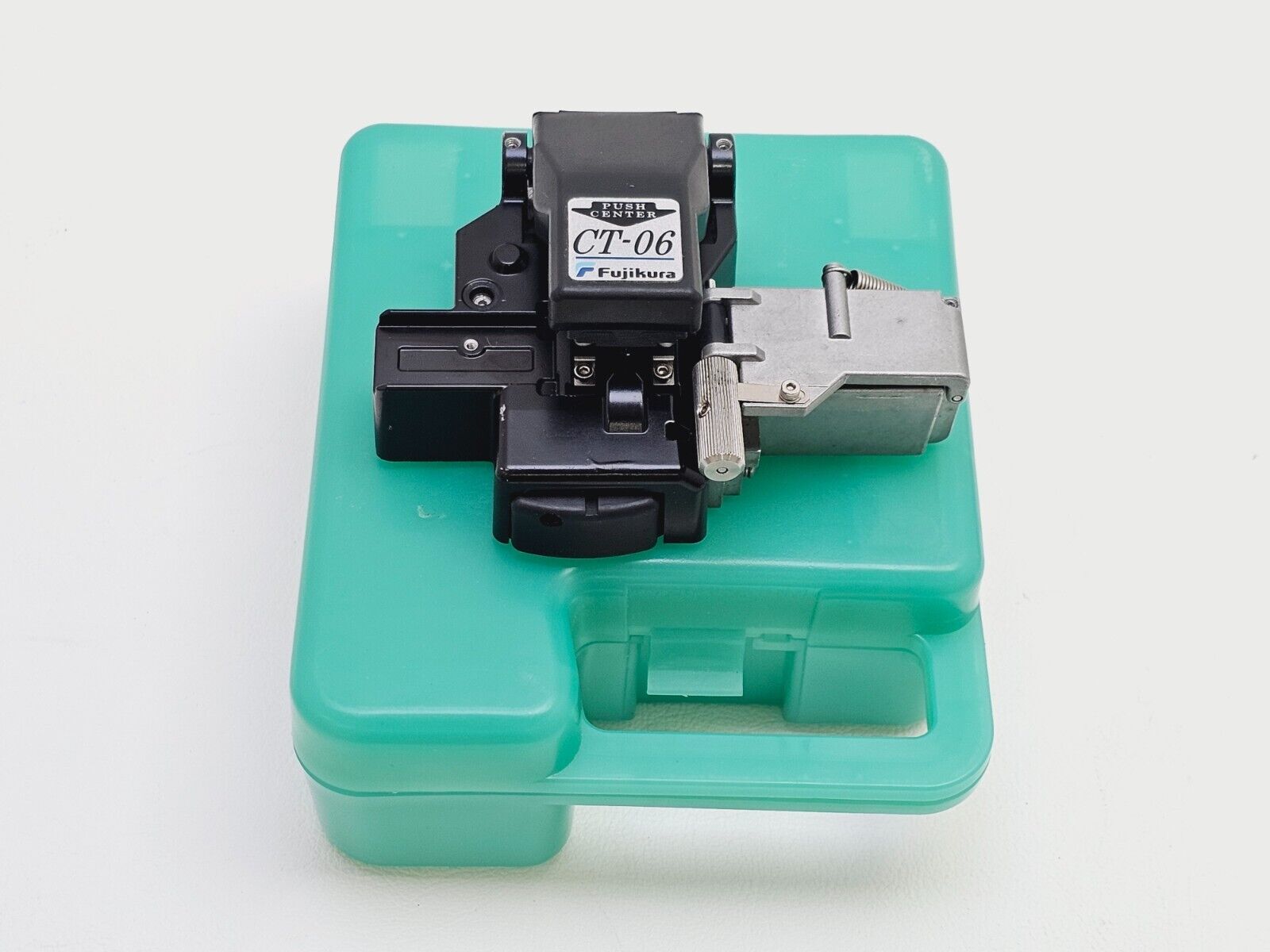

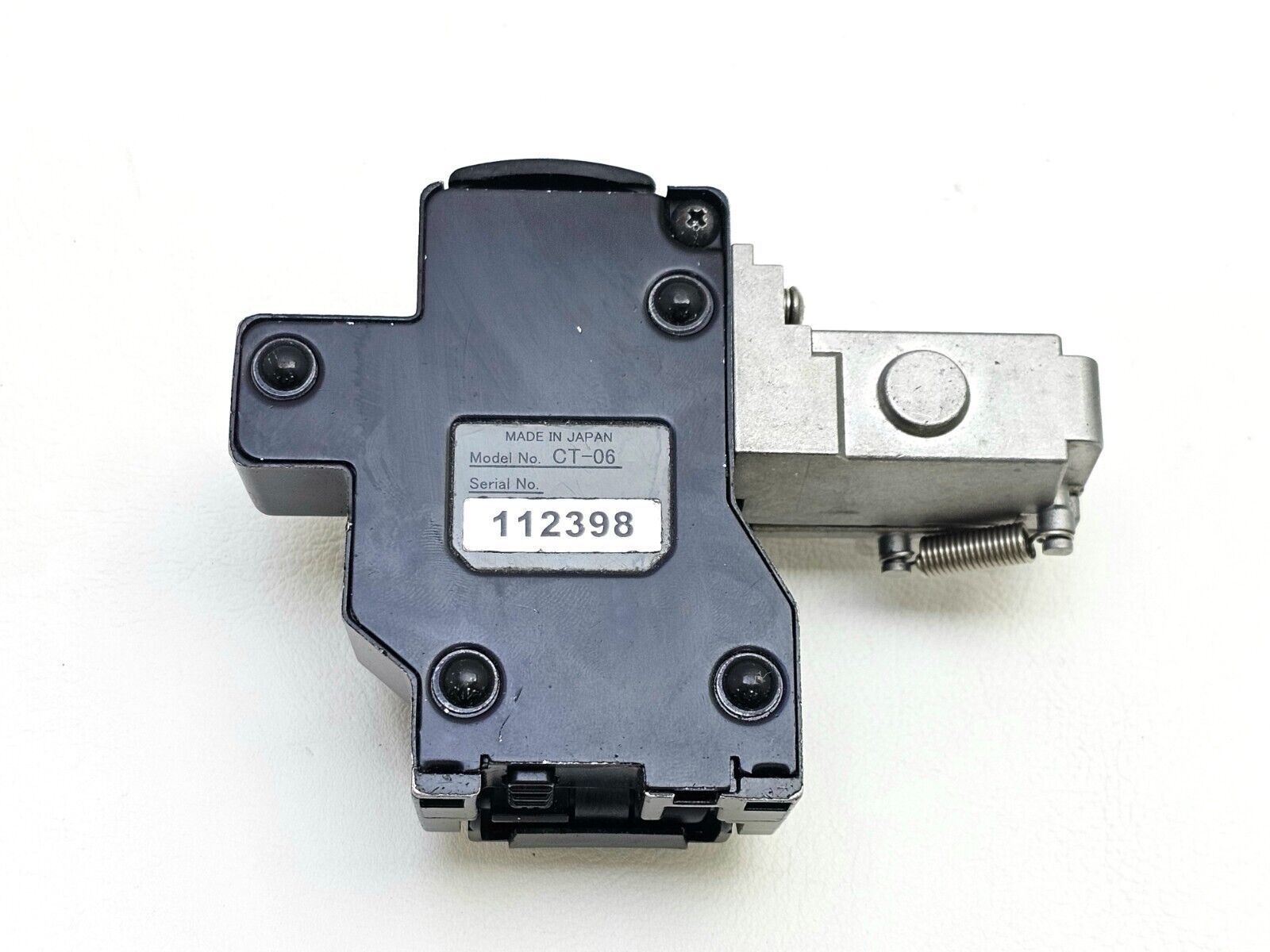

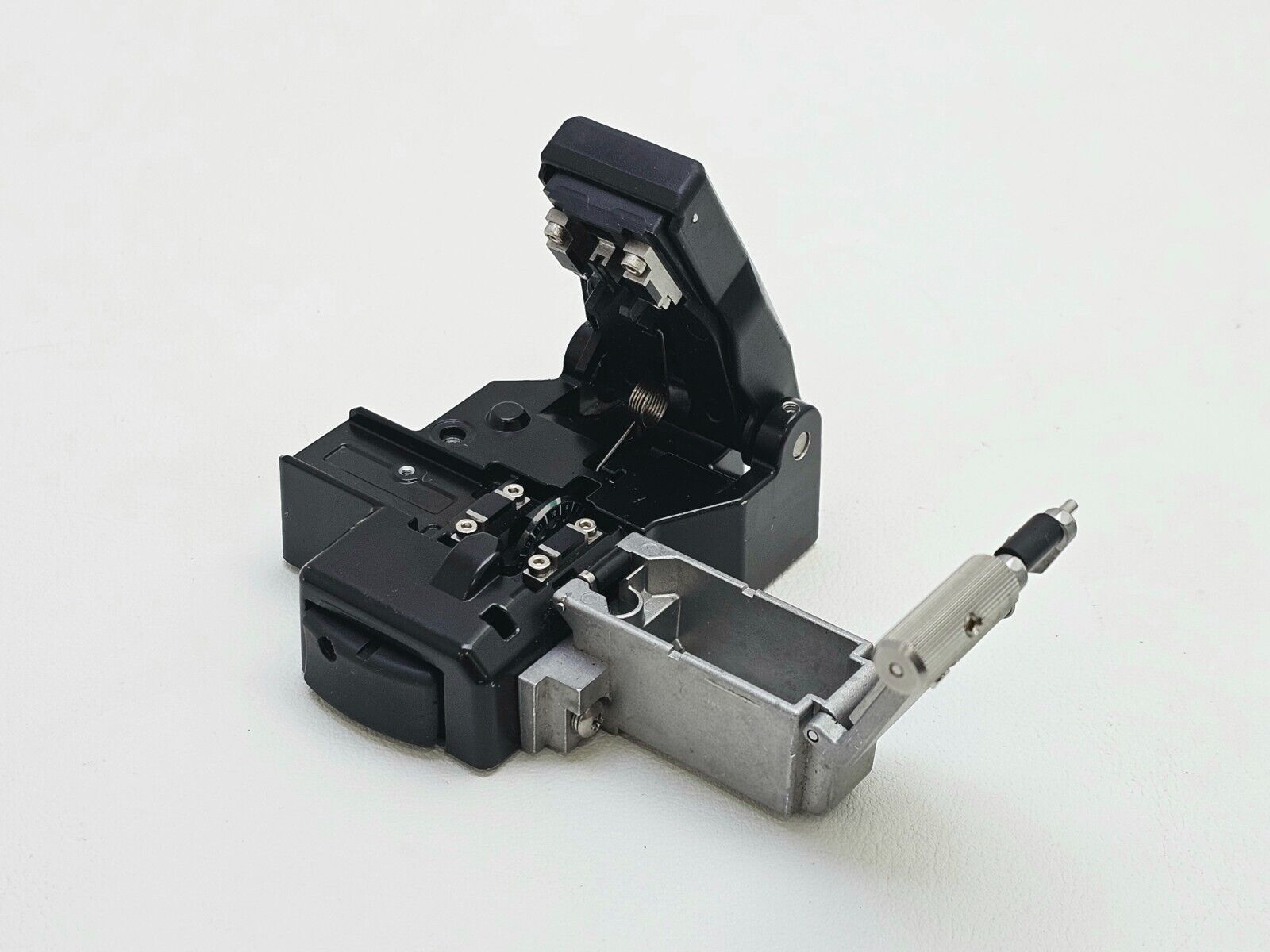

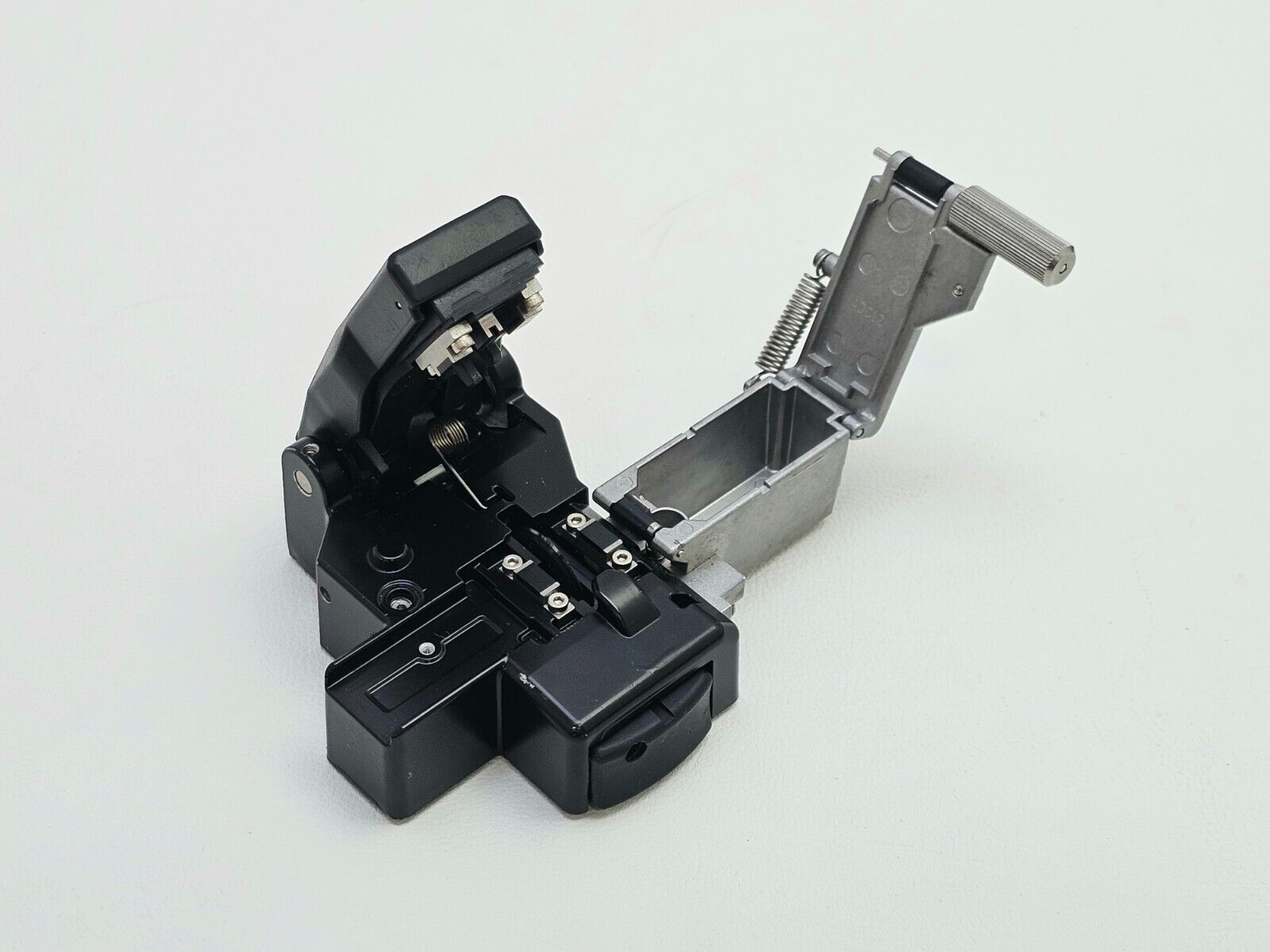

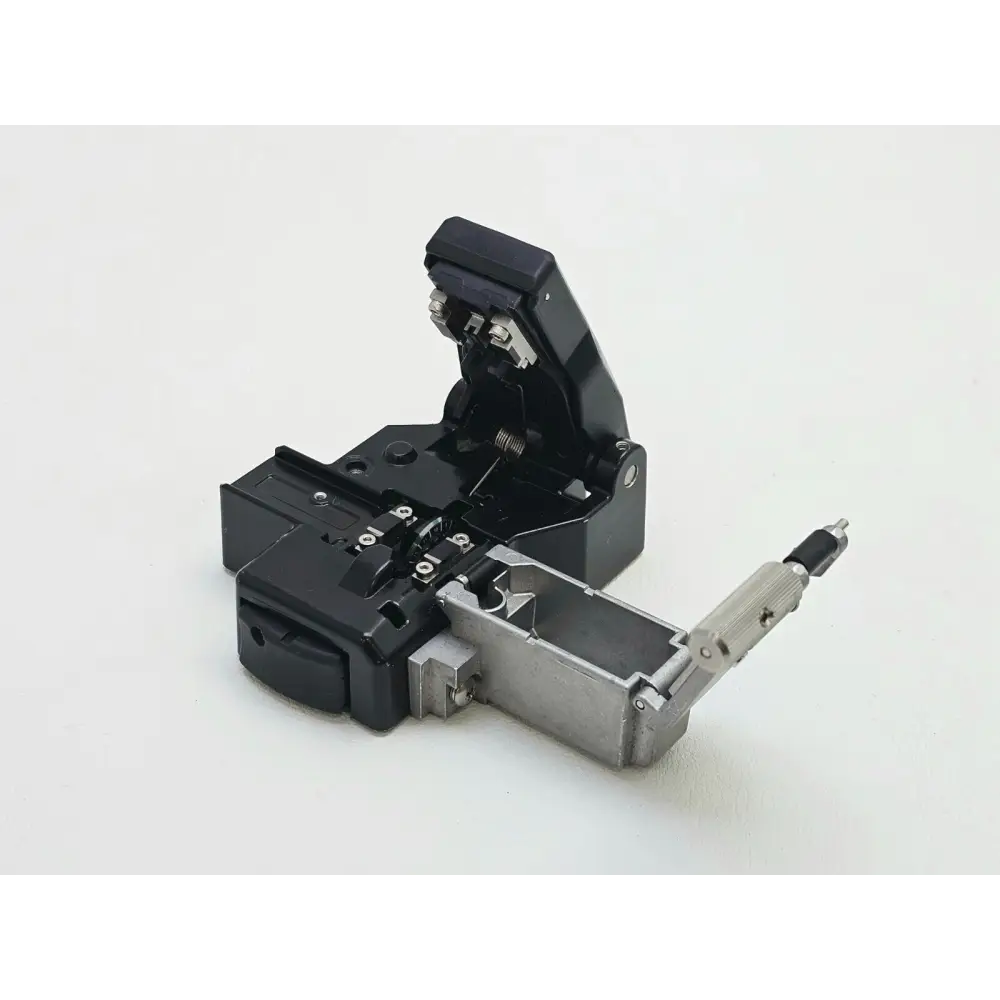

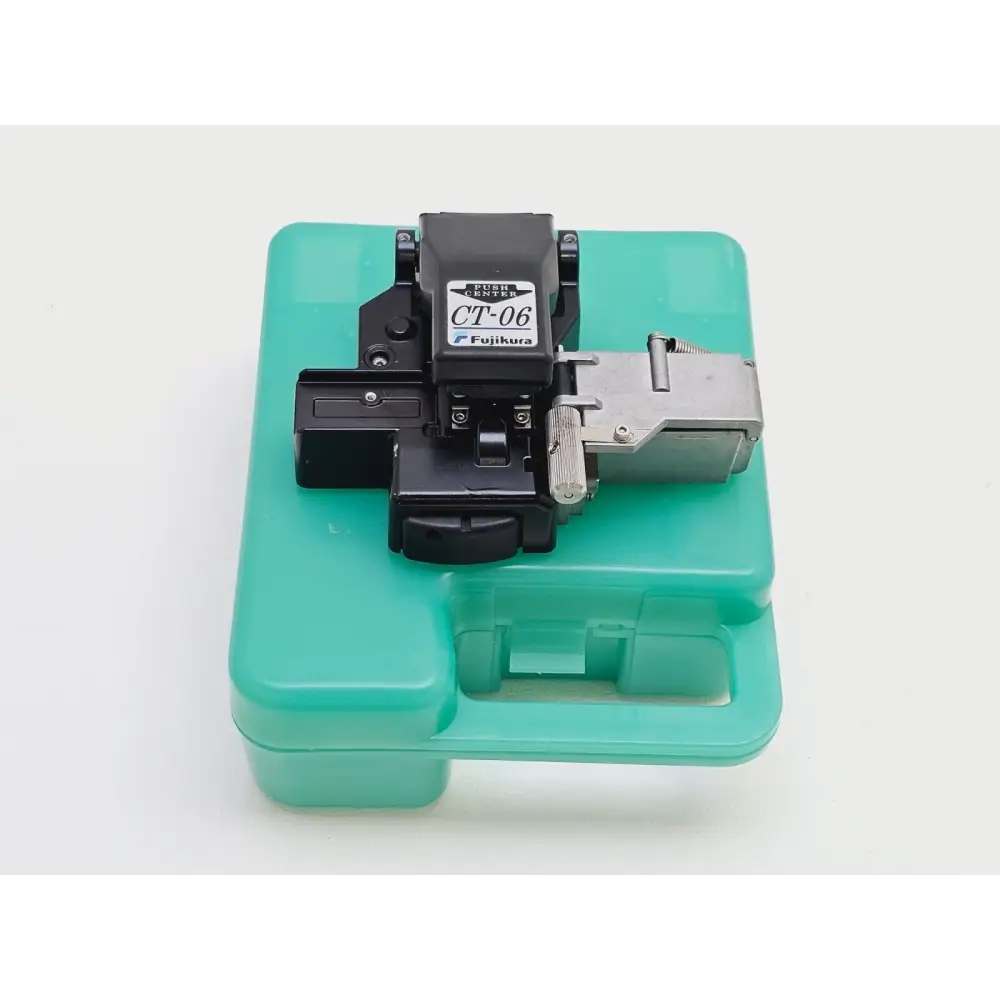

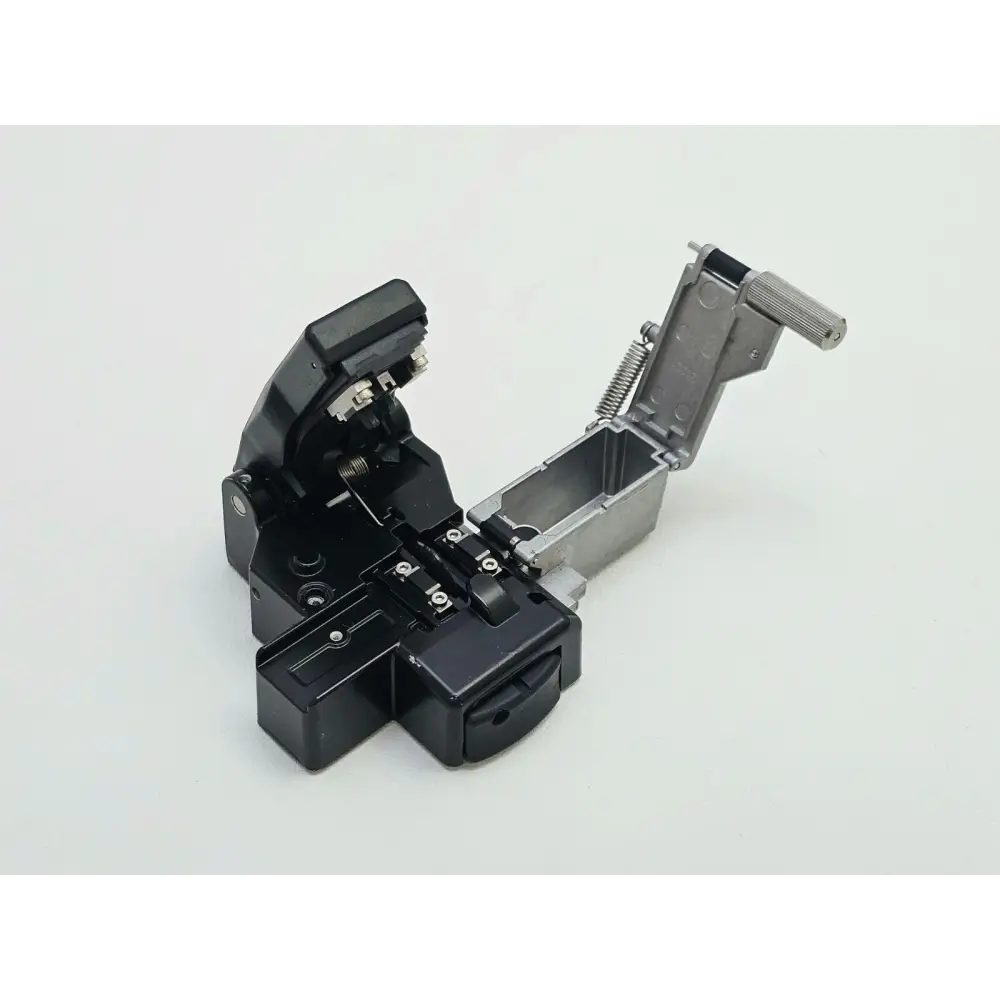

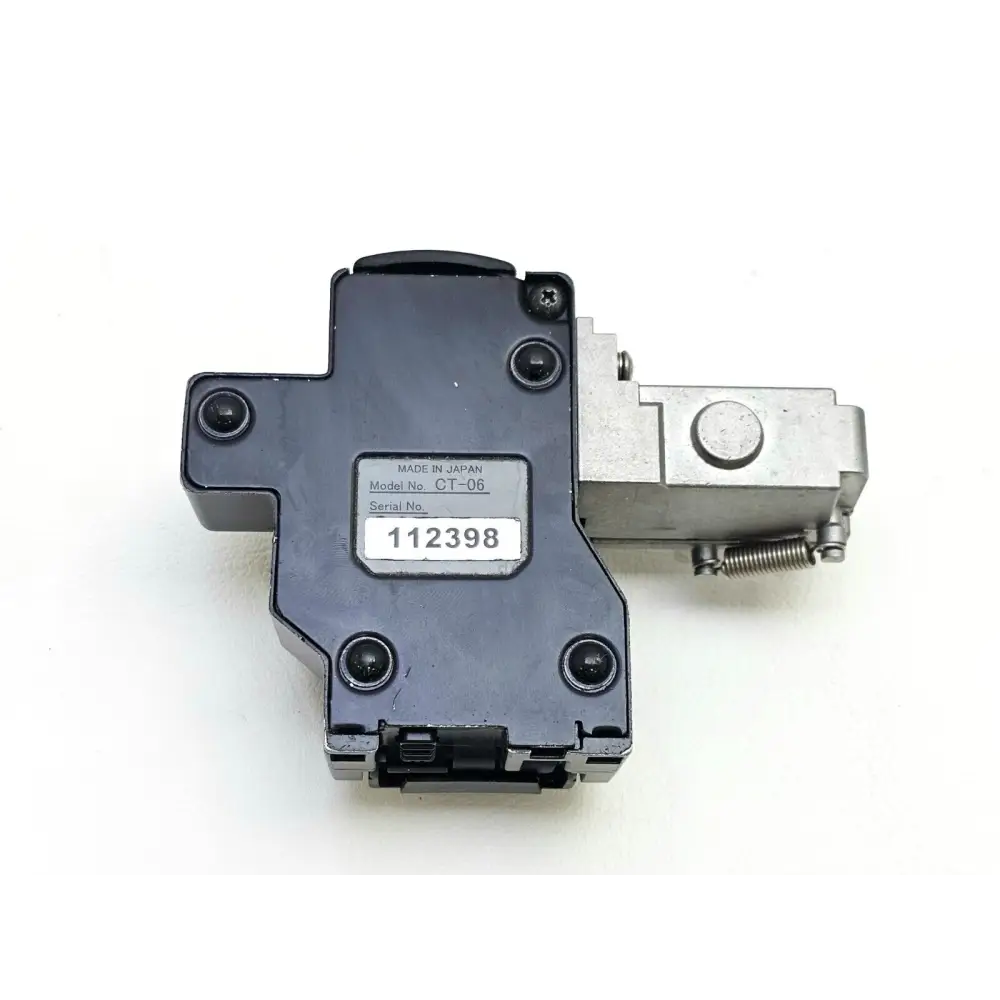

• Fujikura CT-06 High Precision Fibre Cleaver with Case
• FH-60-250 Fibre Holder Set
• FH-60-900 Fibre Holder Set
• AC Adapter/Charger

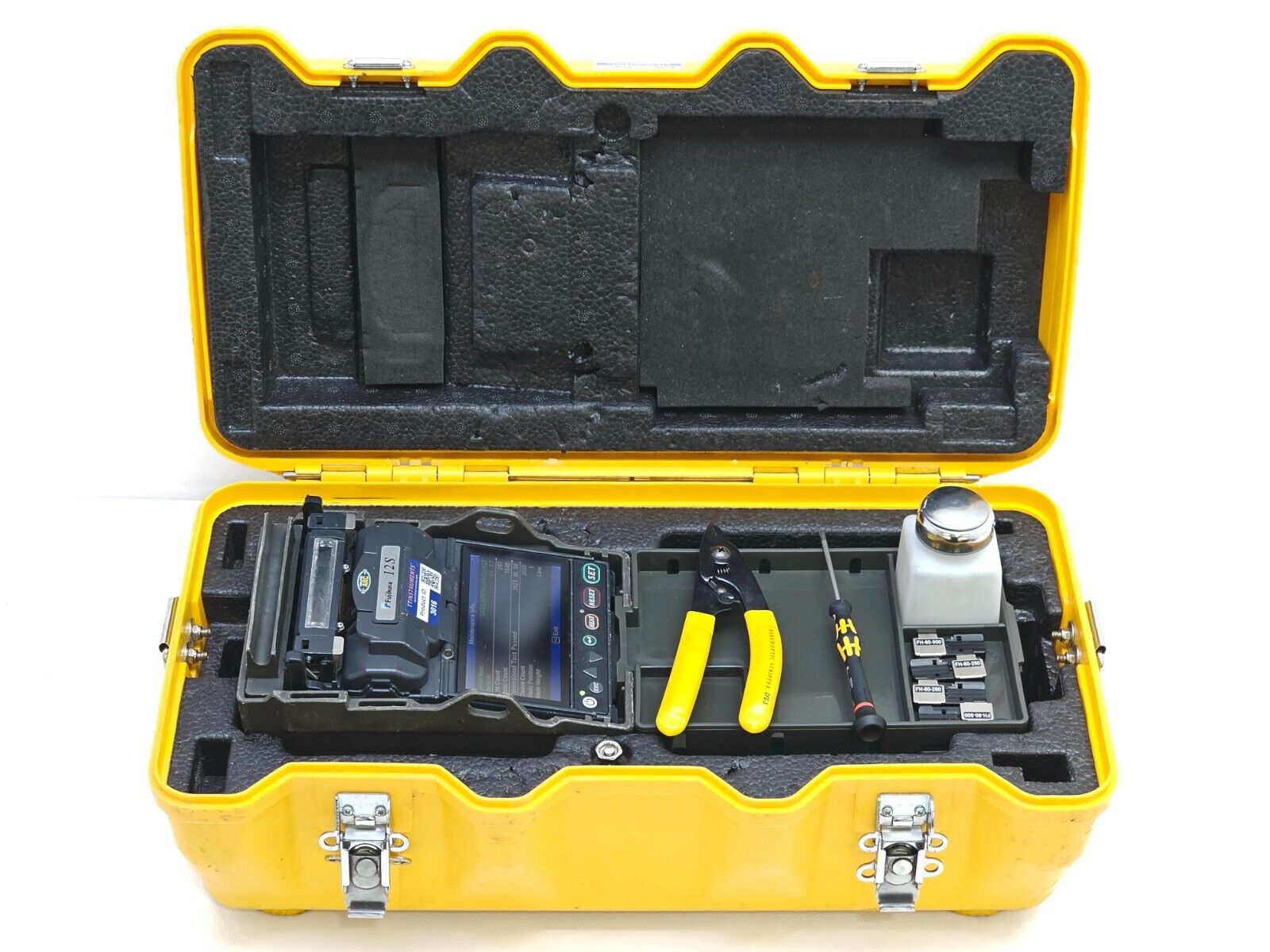

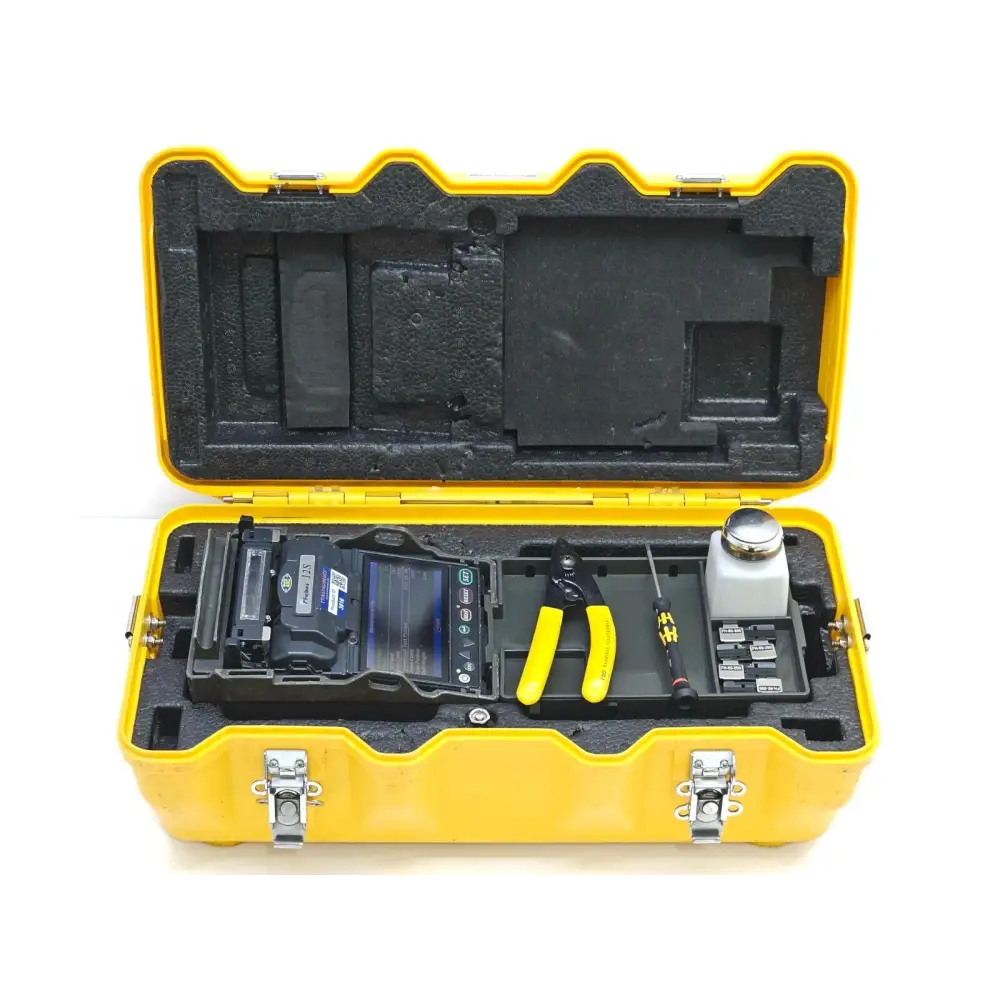

• Hard Carrying Case
• Work Tray
• Fibre Stripper
• Screwdriver

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

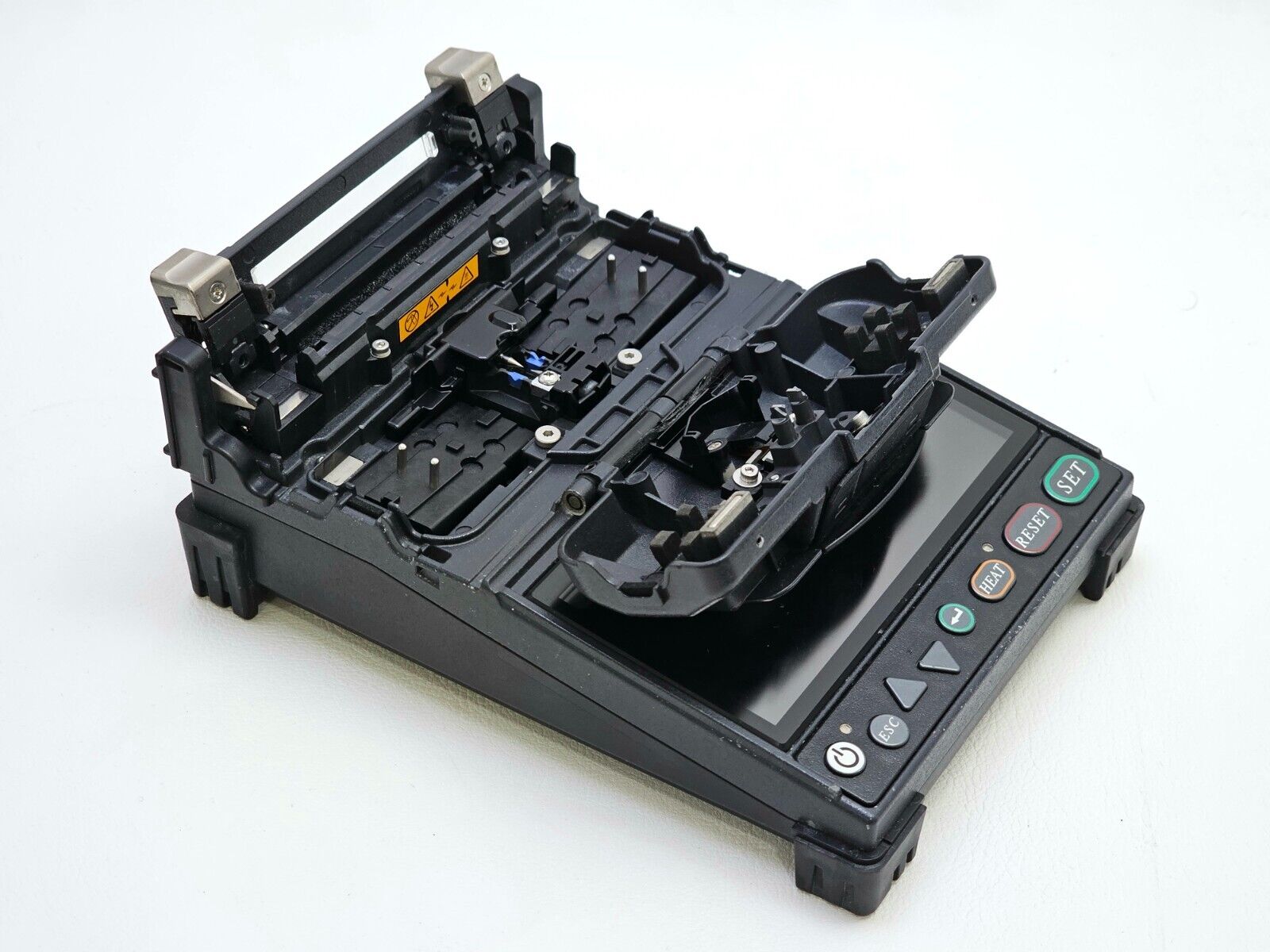

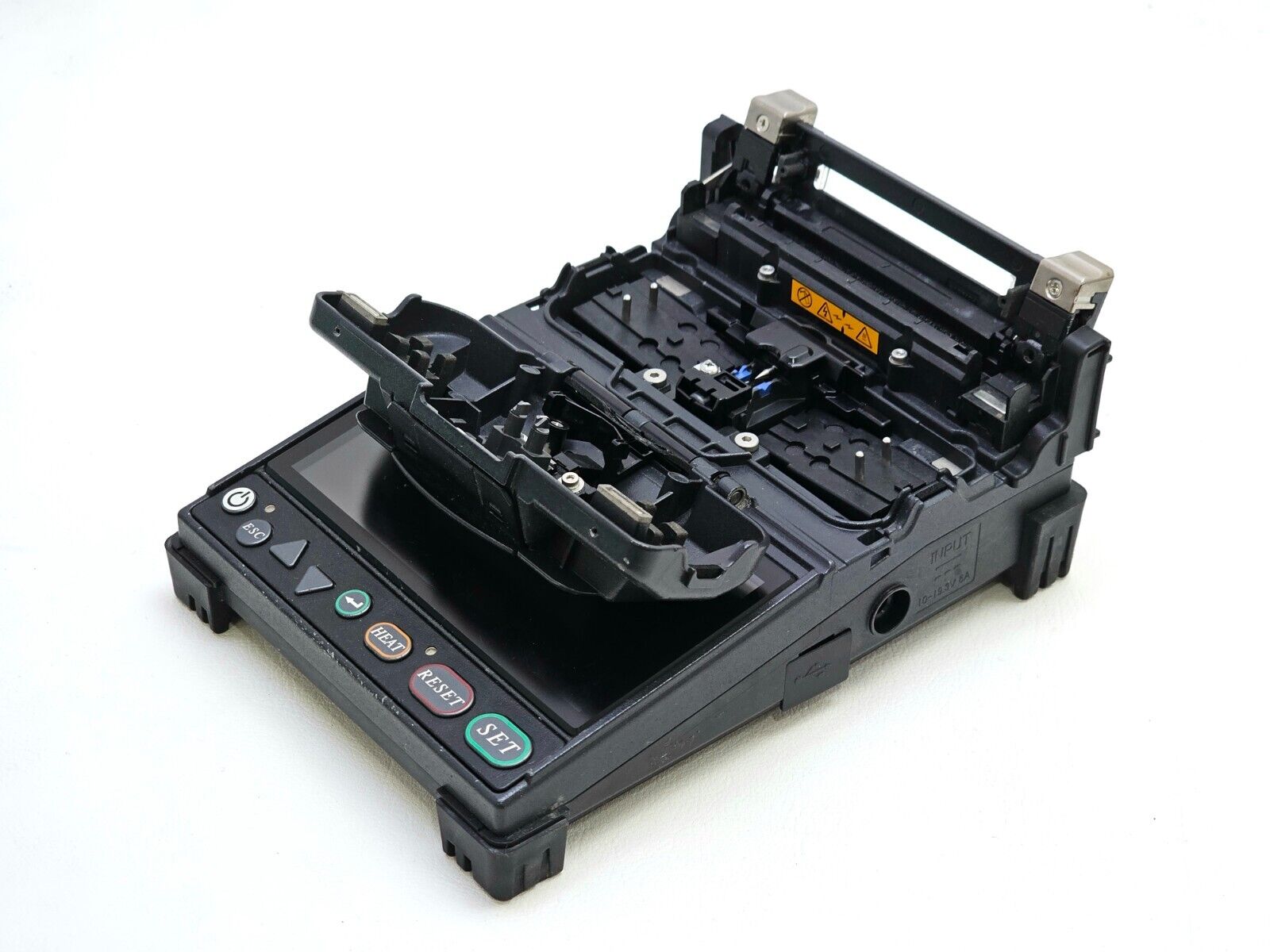

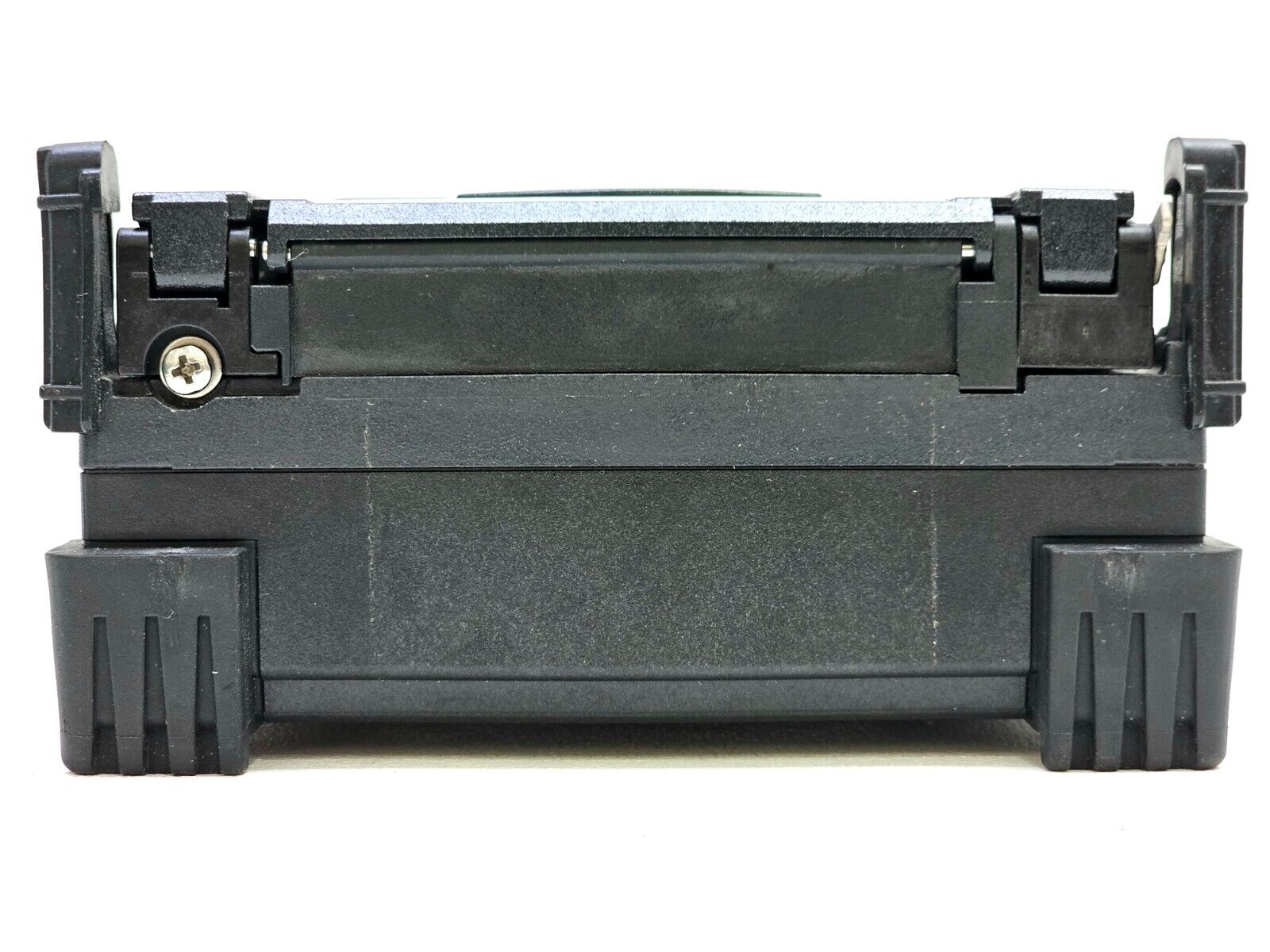

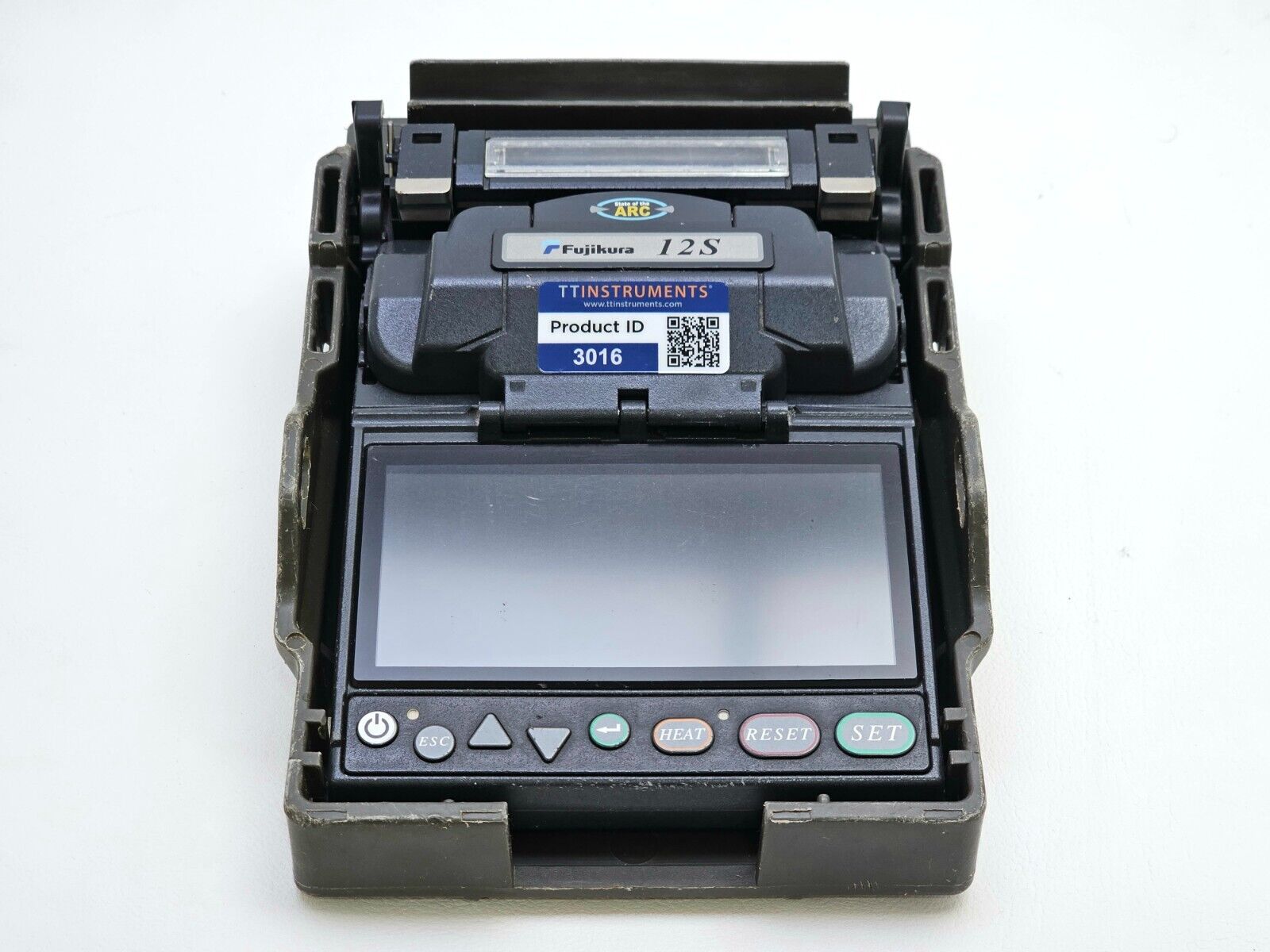

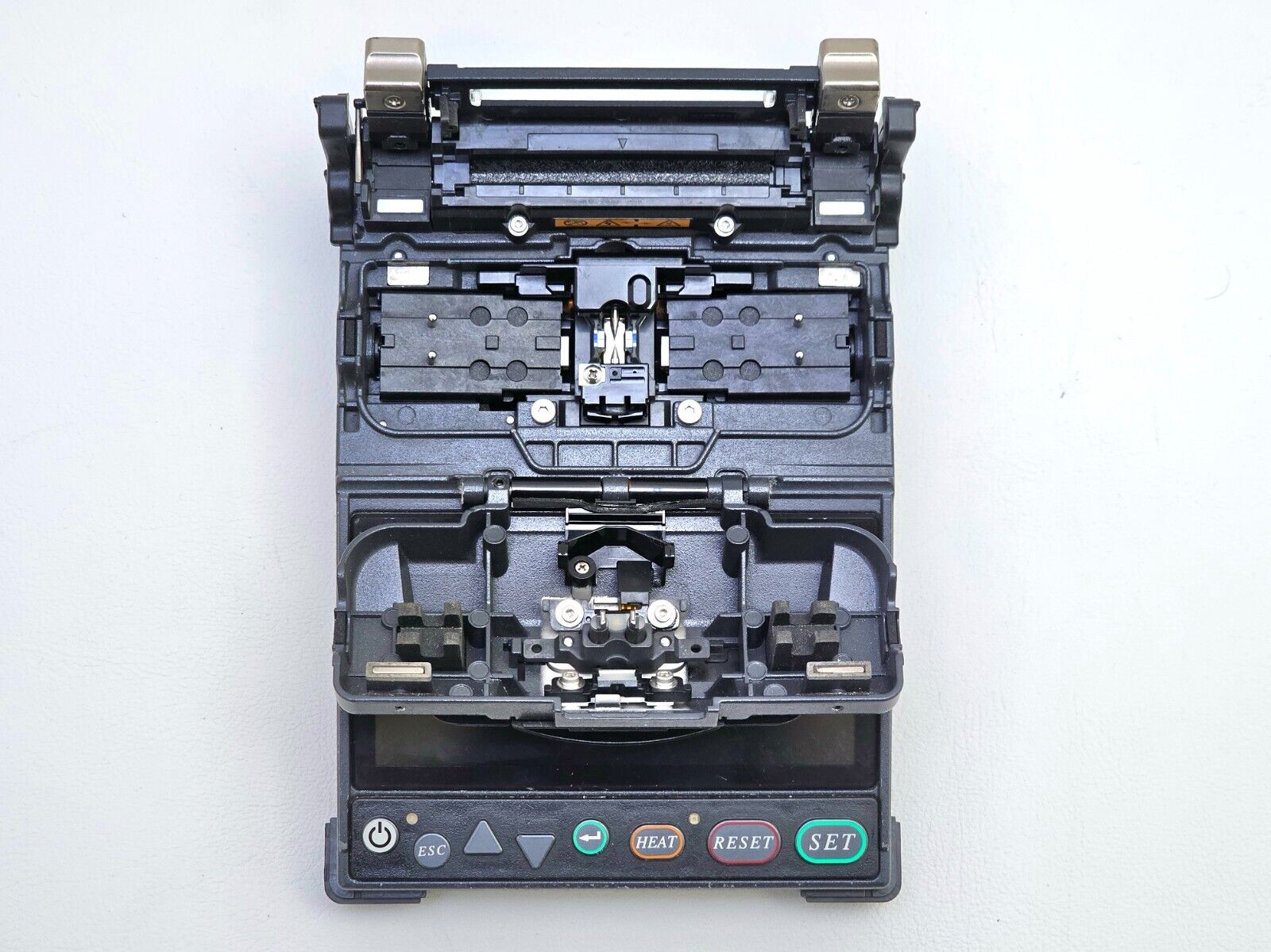

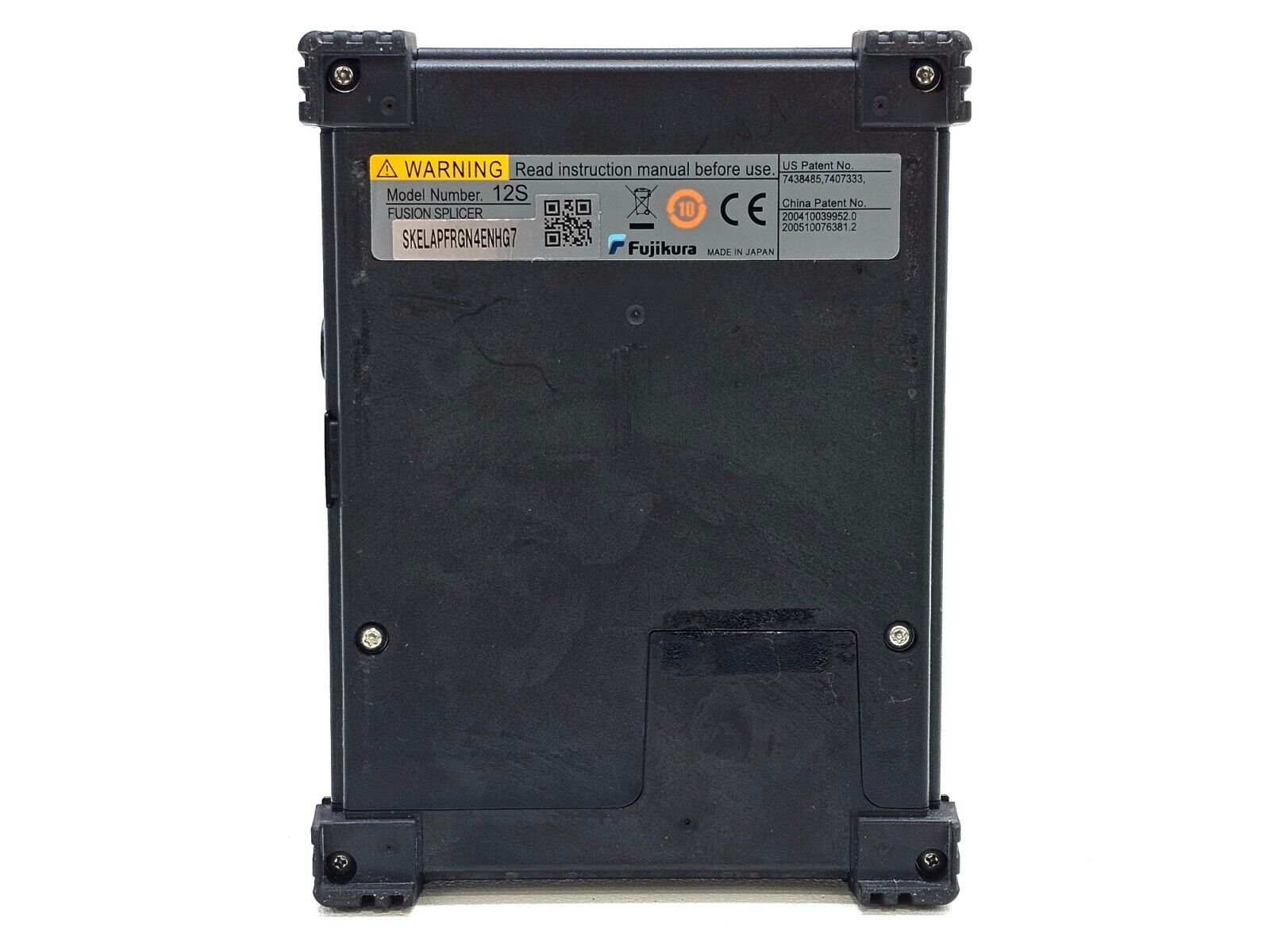

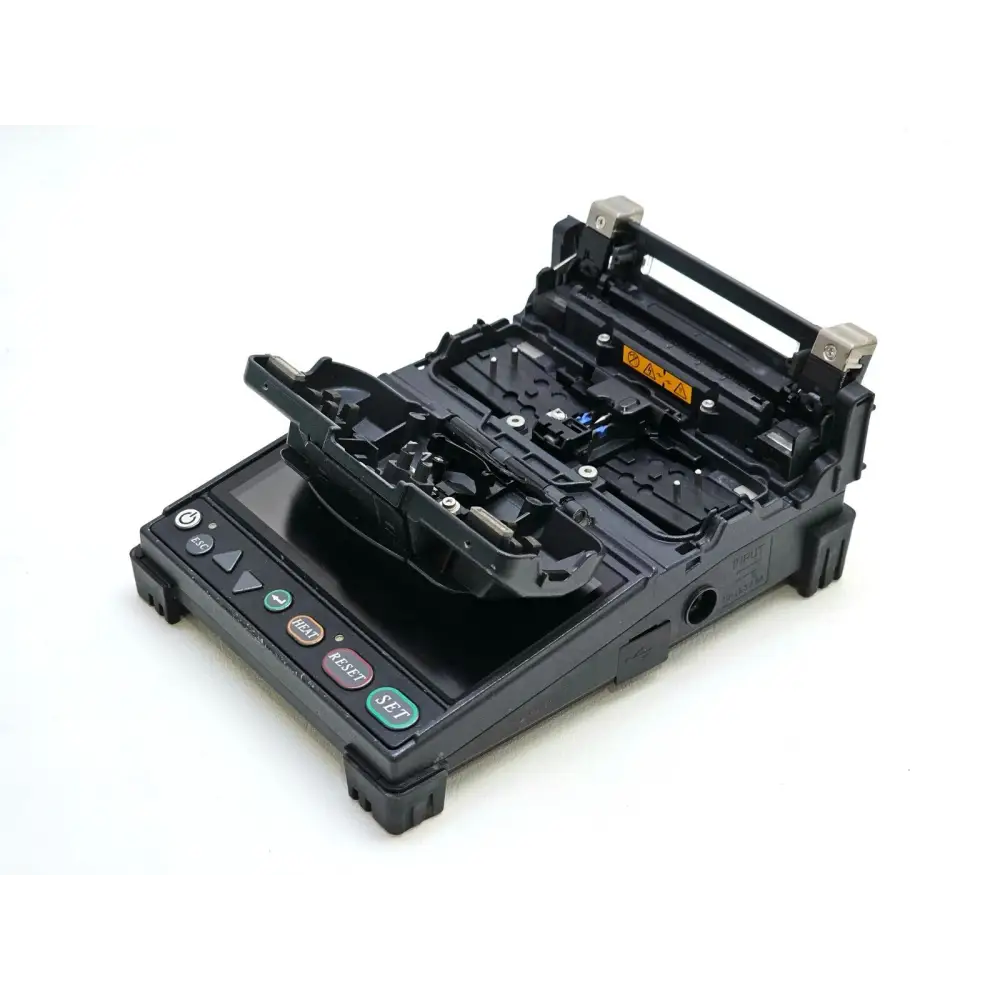

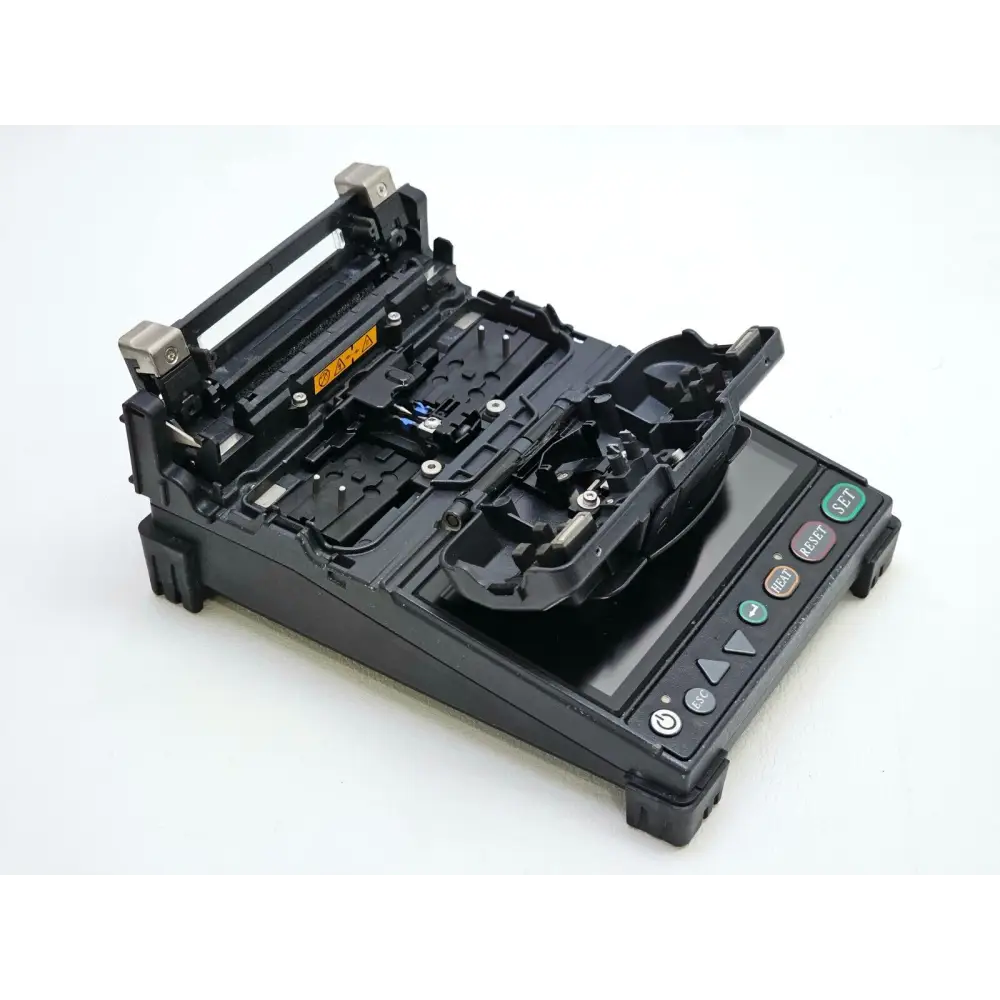

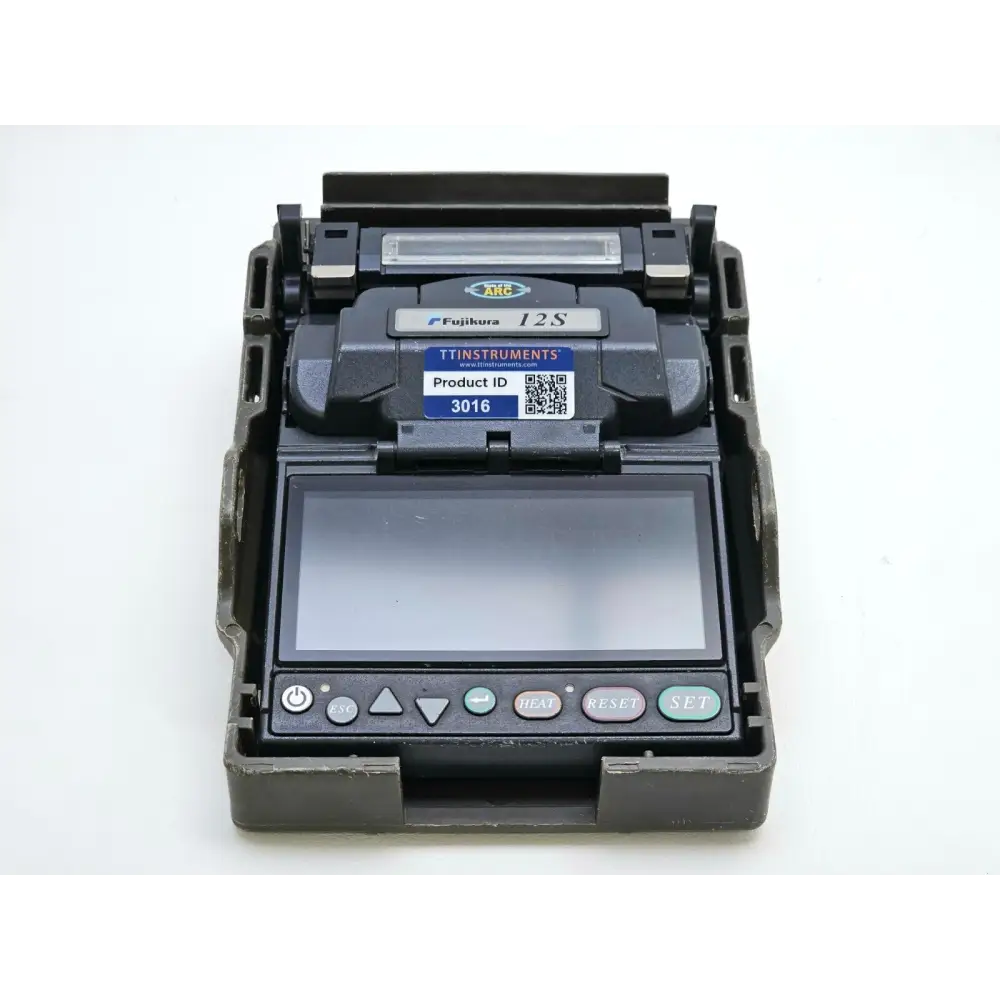

Fujikura 12S SM/MM Fixed V-Groove Fibre Fusion Splicer

The Fujikura 12S is the world's smallest, lightest and most portable fusion splicer available. Despite its incredibly compact form factor, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging field environments. The innovative transit case and work tray provide multiple options for best utilisation of available workspace, while the long-life battery delivers power for up to 100 splice cycles including application of the splice protection sleeve.

The Fujikura 12S incorporates features typically found only in more expensive models. The large 4.5" TFT colour monitor provides a crystal-clear image even in bright sunlight, allowing accurate evaluation of splice quality. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programs as they become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the dual-camera observation system provides accurate fibre alignment and loss estimation. The Fujikura 12S is also fully compatible with the FuseConnect line of fusion installable connectors.

Key Features:
- World's smallest fusion splicer: 4.76" W x 6.38" D x 2.24" H
- Fully ruggedised for shock, moisture and dust resistance
- Transit case converts to an easy-to-use workstation

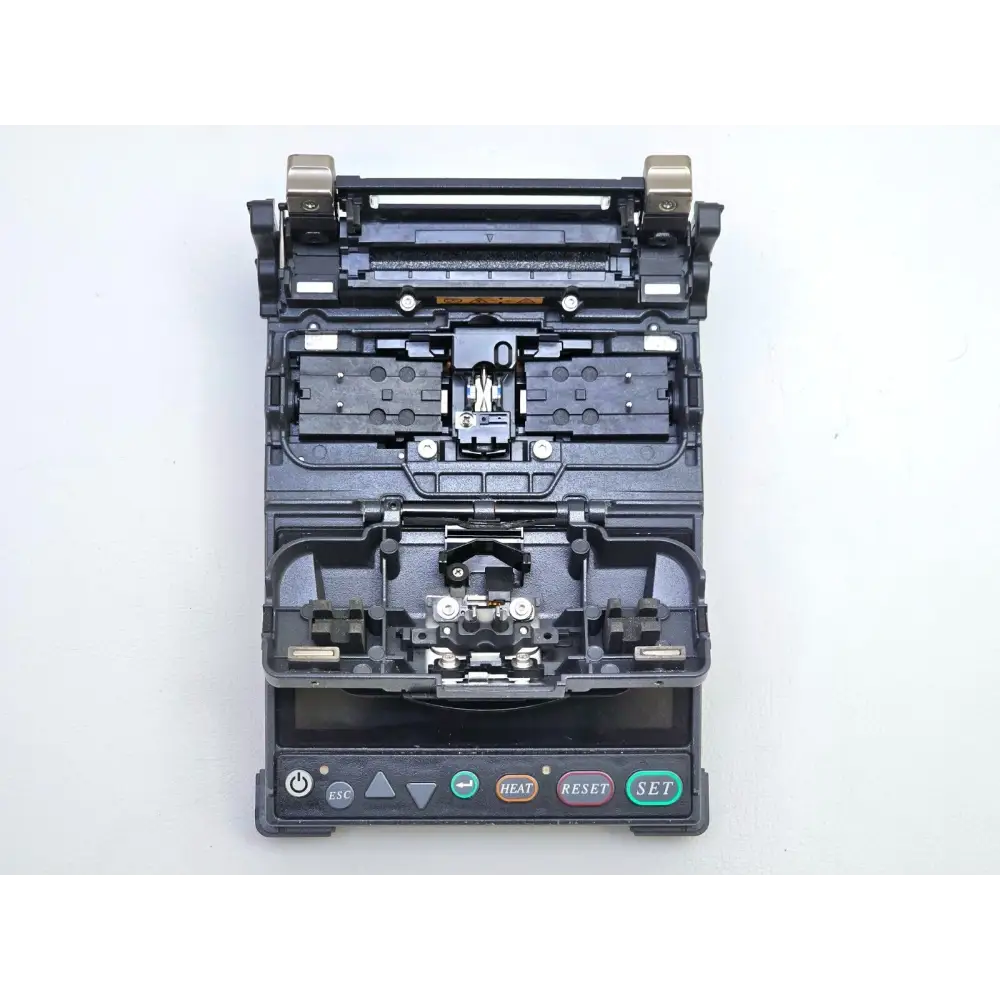

- Dual camera, fixed V-groove alignment technology
- Extended life electrodes (3,000 splices)
- Long life battery (100 splices/shrinks per charge)
- Internet-based software updates

Applications: FTTx, remote locations, field installation and maintenance

Specifications:
Model: Fujikura 12S Fusion Splicer
Applicable Fibres: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter: 125 µm
Coating Diameter: 250 µm or 900 µm
Fibre Cleave Length: 5 mm to 13 mm
Typical Average Splice Loss: 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.08 dB (NZDS)
Splicing Time: Typical 15 sec with SM
Arc Calibration Method: Automatic, real-time; manual arc calibration also available
Splicing Modes: 100 total splice modes
Splice Loss Estimate: Based on dual camera cladding alignment data
Storage of Splice Results: Last 2,000 splices
Fibre Display: 4.5 inch TFT colour LCD, X or Y view or simultaneous X and Y
Magnification: 100X for X/Y view
Viewing Method: 2-axis CMOS camera
Operating Altitude: 0 to 3,660 m above sea level
Operating Temperature: 10°C to 50°C
Humidity: 0 to 95% RH, non-condensing
Mechanical Proof Test: 1.96 N
Tube Heater: 30 heating modes
Tube Heating Time: Typical 30 sec with FP-03 (60 mm) sleeve
Protection Sleeve Length: 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery: Typical 100 cycles with BTR-10
Electrode Life: 3,000 splices
Power Supply: Auto-select 100 V to 240 V AC via adapter; 14.8 V DC with battery

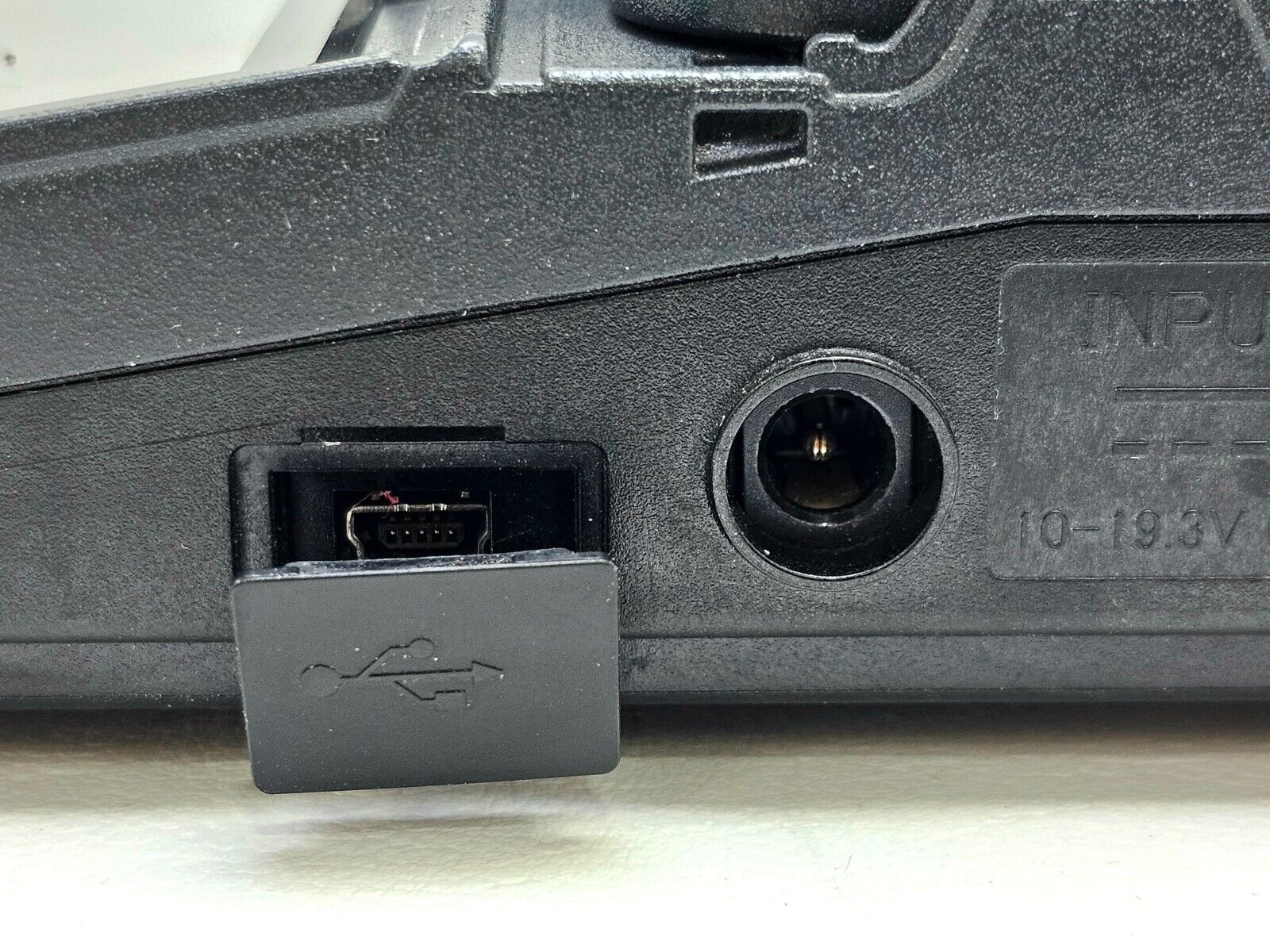

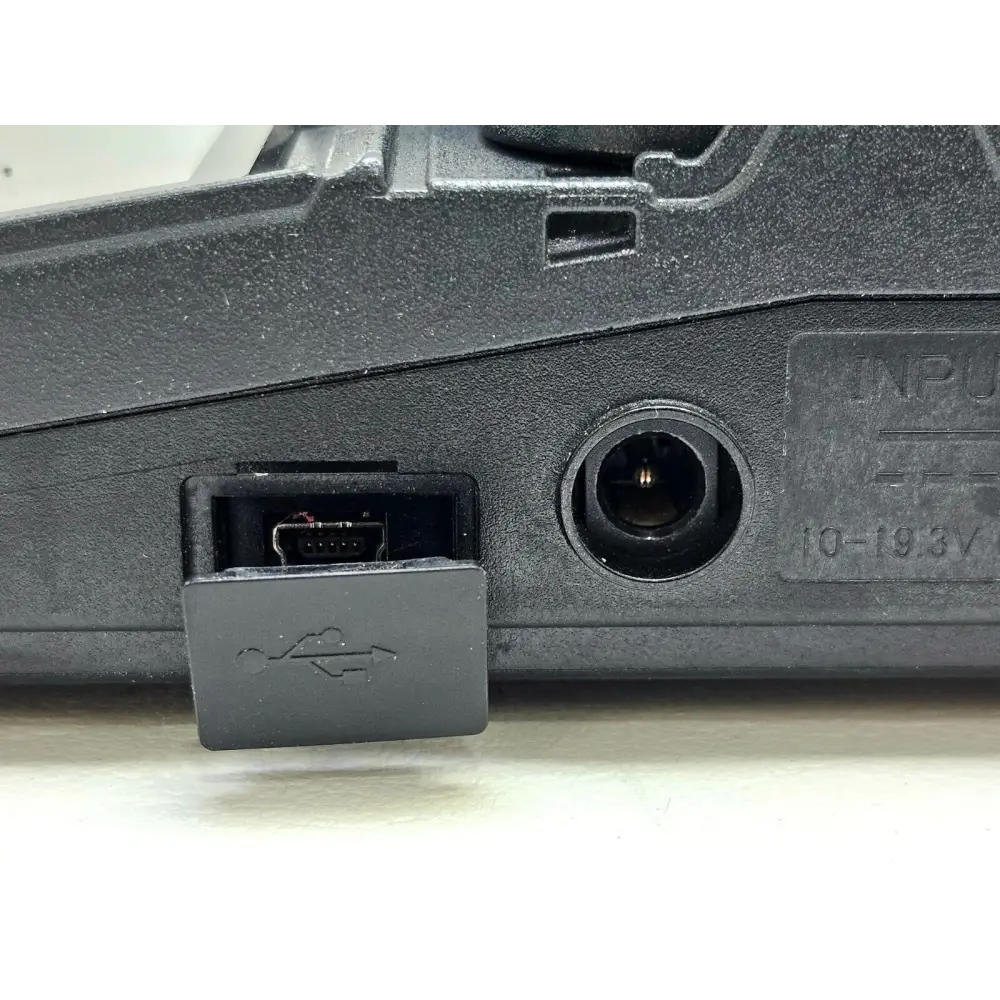

Terminals: USB 2.0
Wind Protection: Maximum wind velocity 15 m/s (34 mph)
Dimensions: 121 x 162 x 57 mm / 4.76 x 6.38 x 2.24 inches
Weight: 0.776 kg (1.71 lbs) with battery
