Condition: For parts or not working — this unit is faulty and has been previously opened.

Applying power initiates the self-test relay sequence, however the display shows nothing beyond the backlight. The front control panel power indicator does not illuminate and the power button is unresponsive. The suspected fault is with the 5V rail, with a possible short circuit on the main power PCB assembly board. Sold strictly as-is for parts or repair with no returns accepted.

Included in the sale:

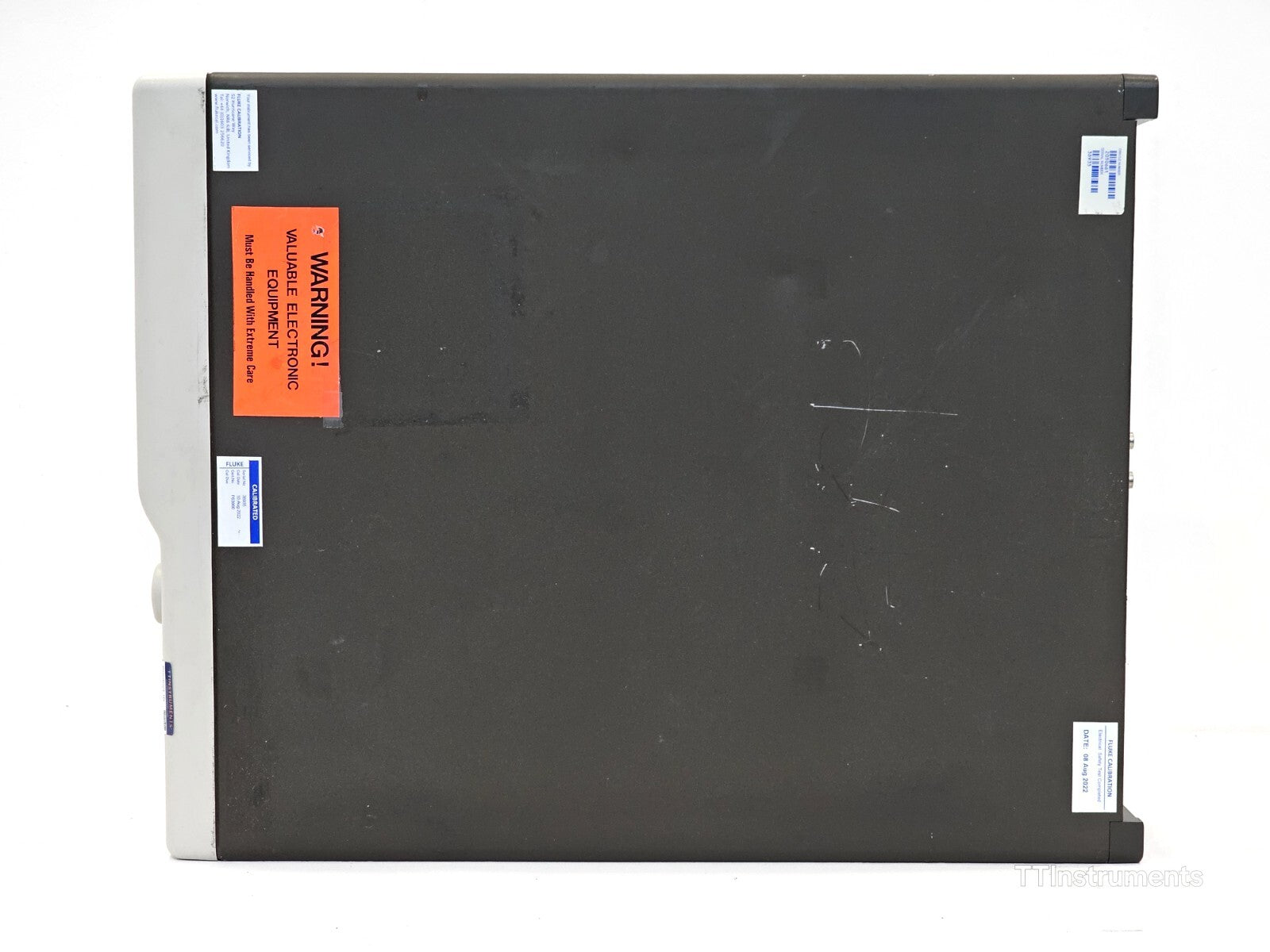

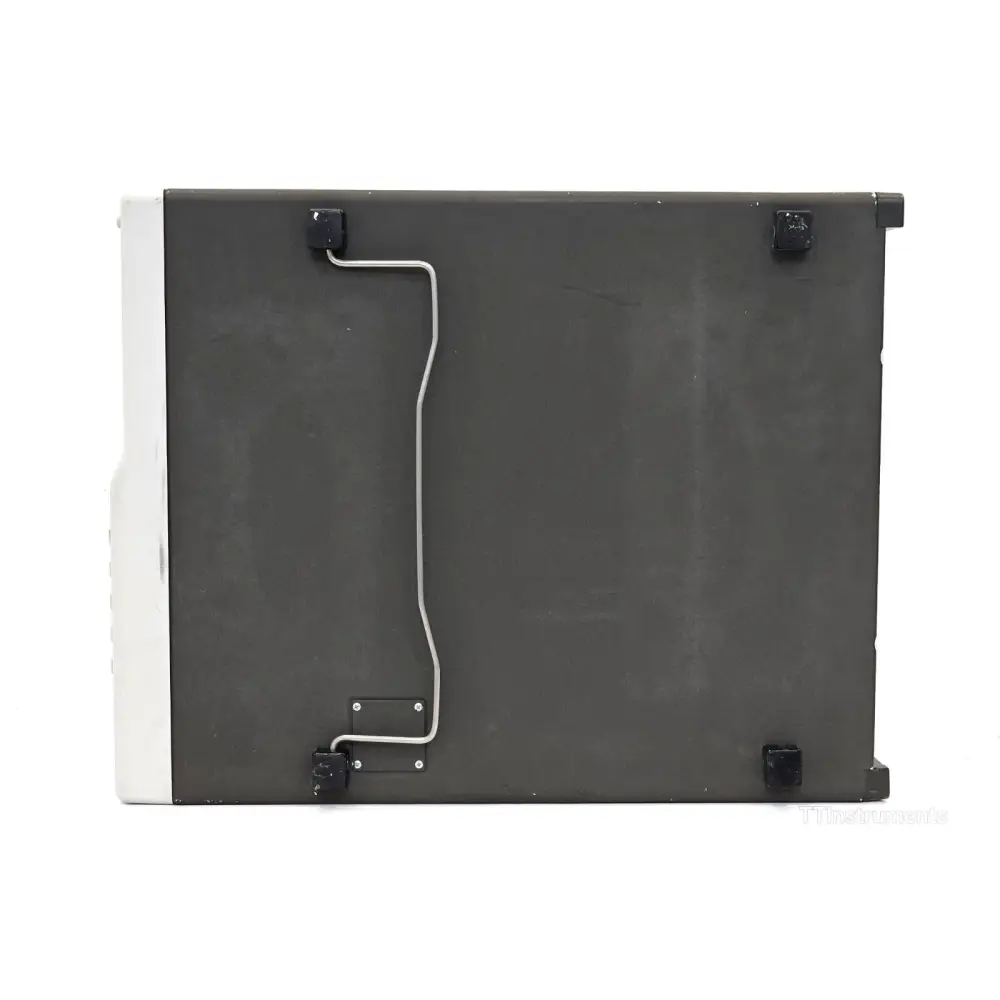

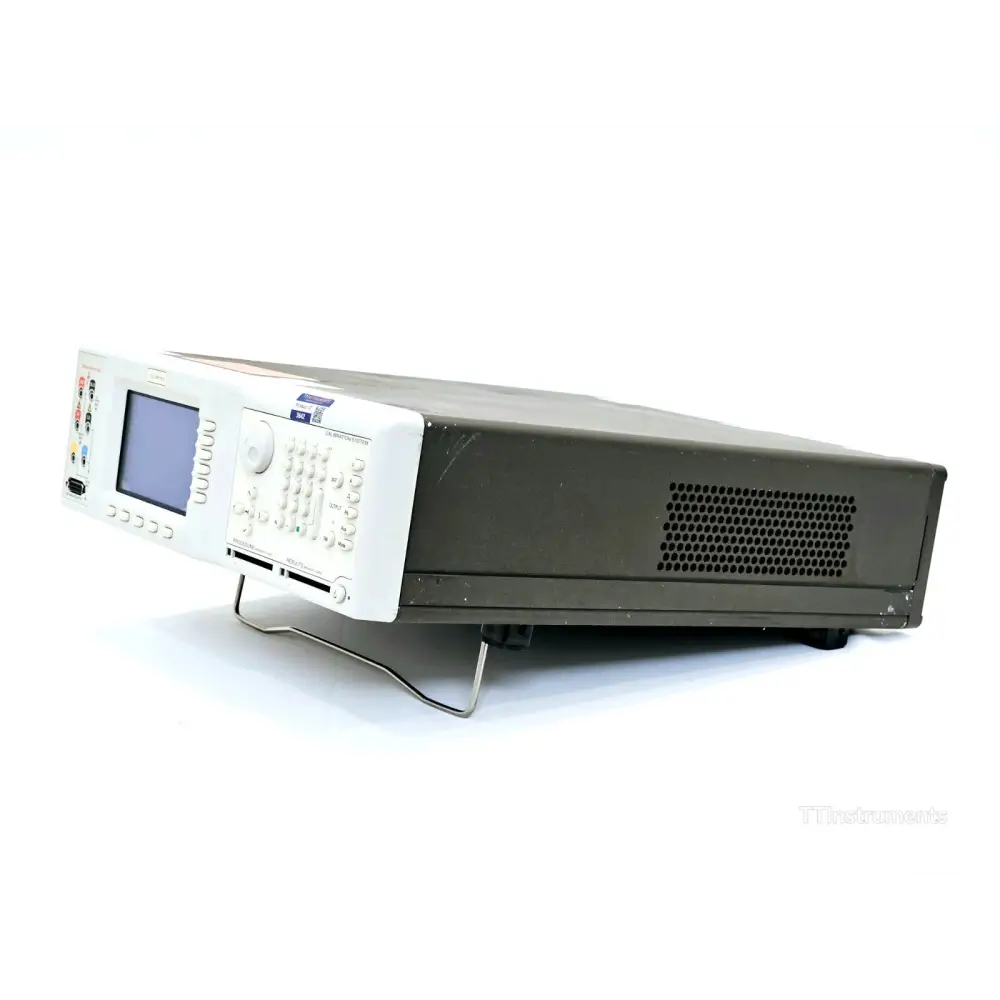

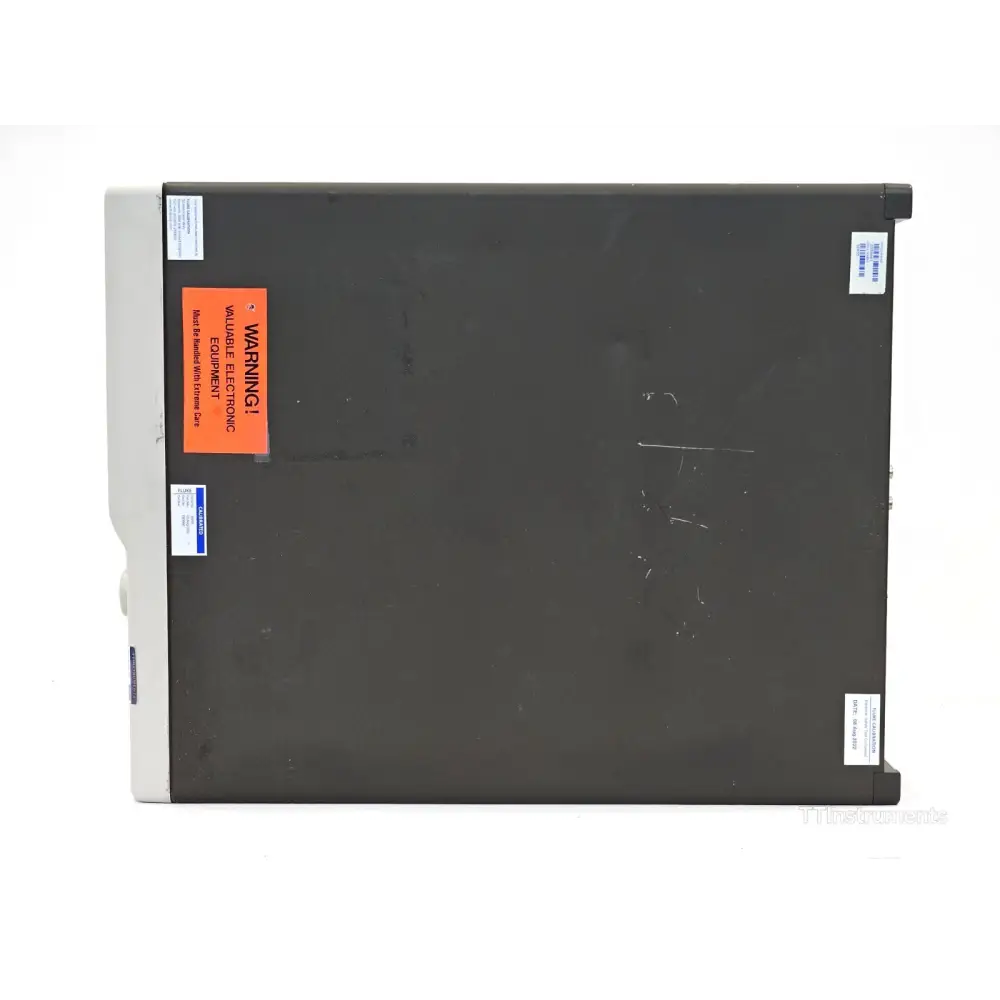

• Wavetek 9100 Calibration System main unit

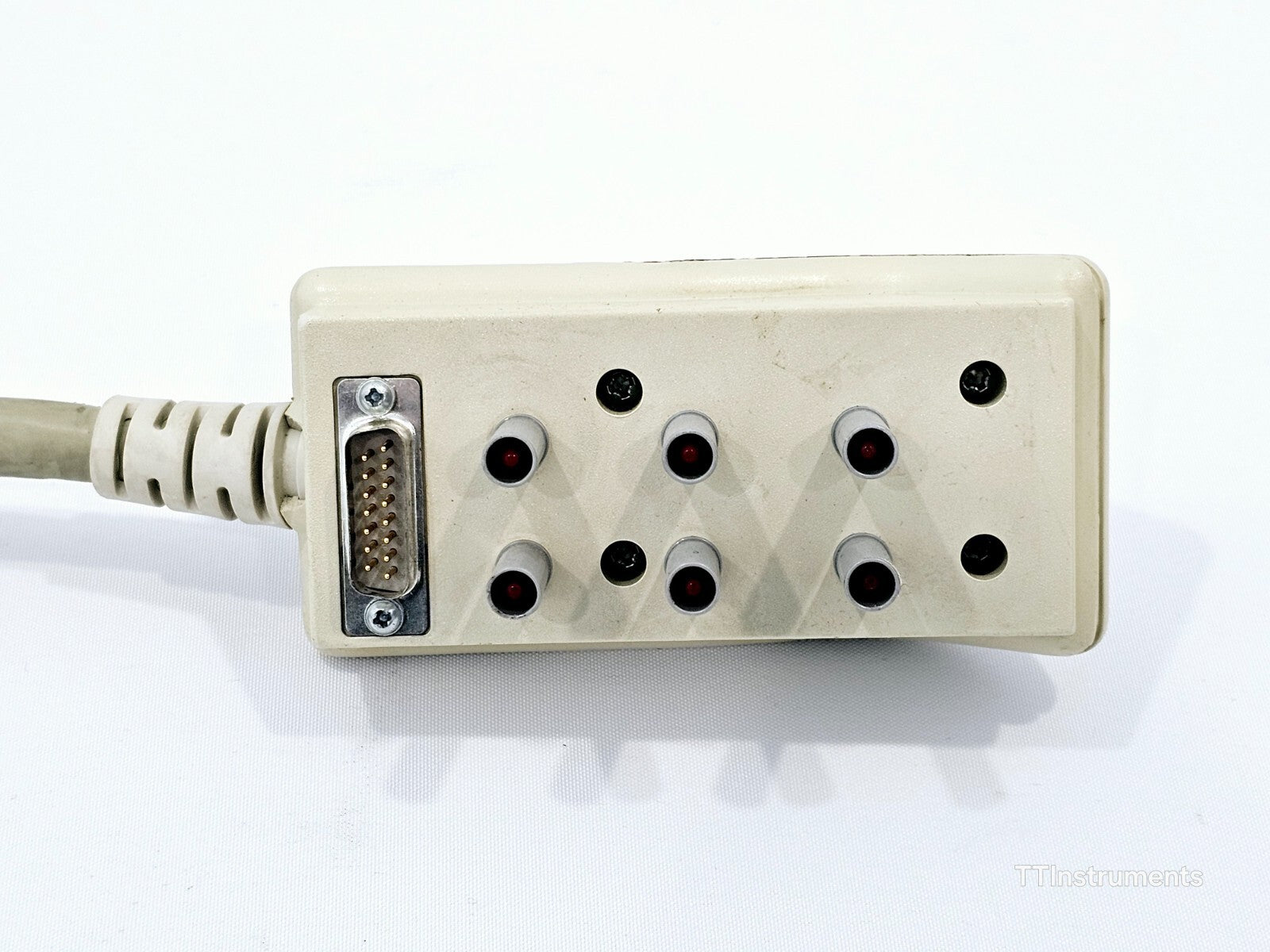

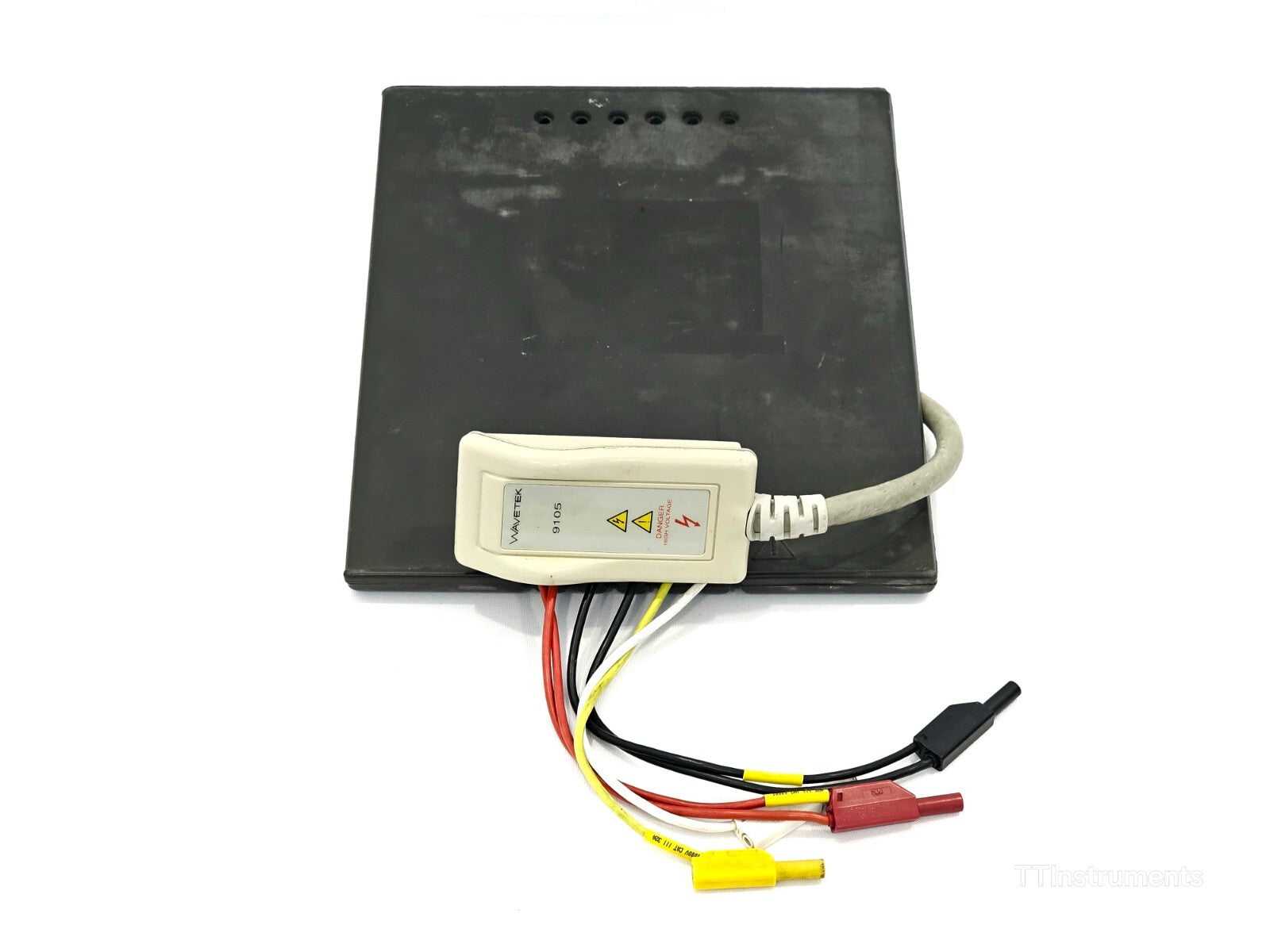

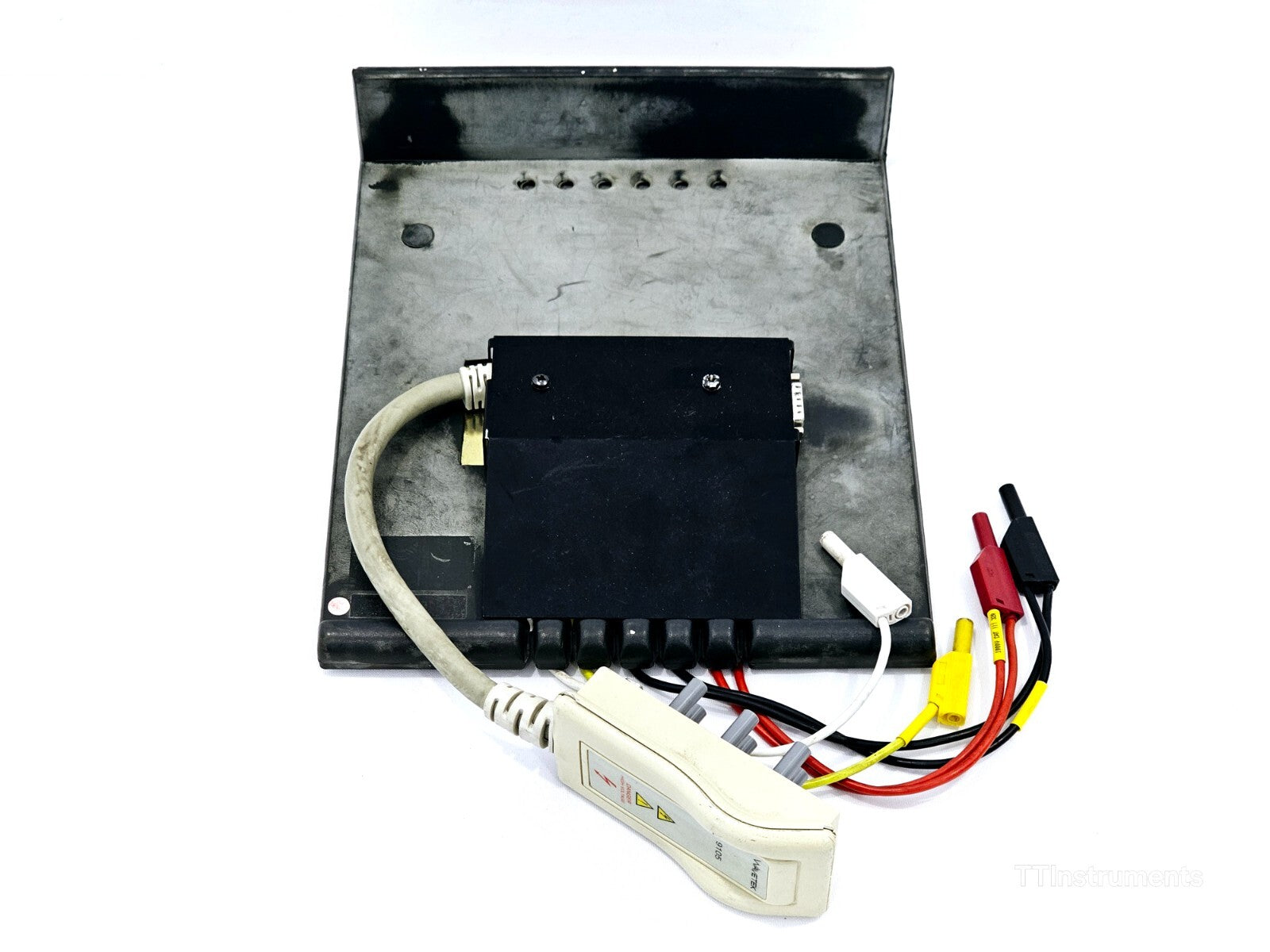

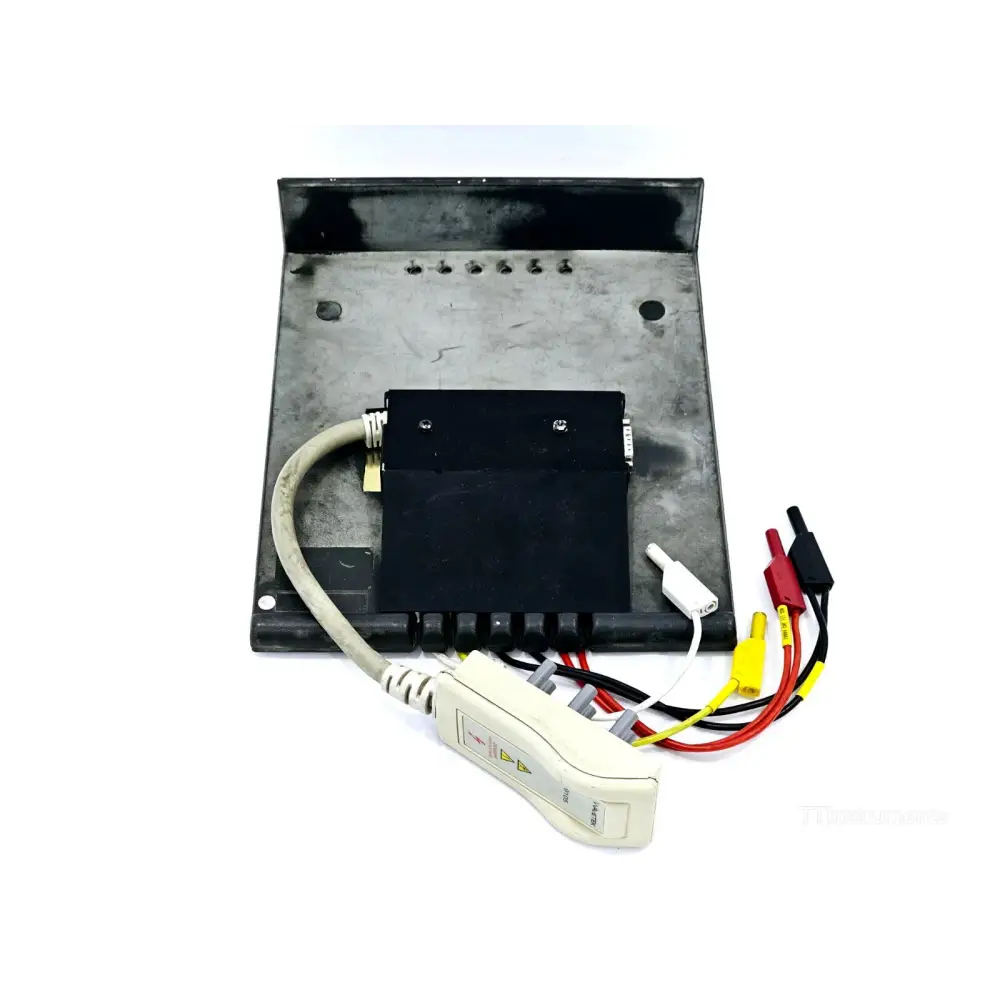

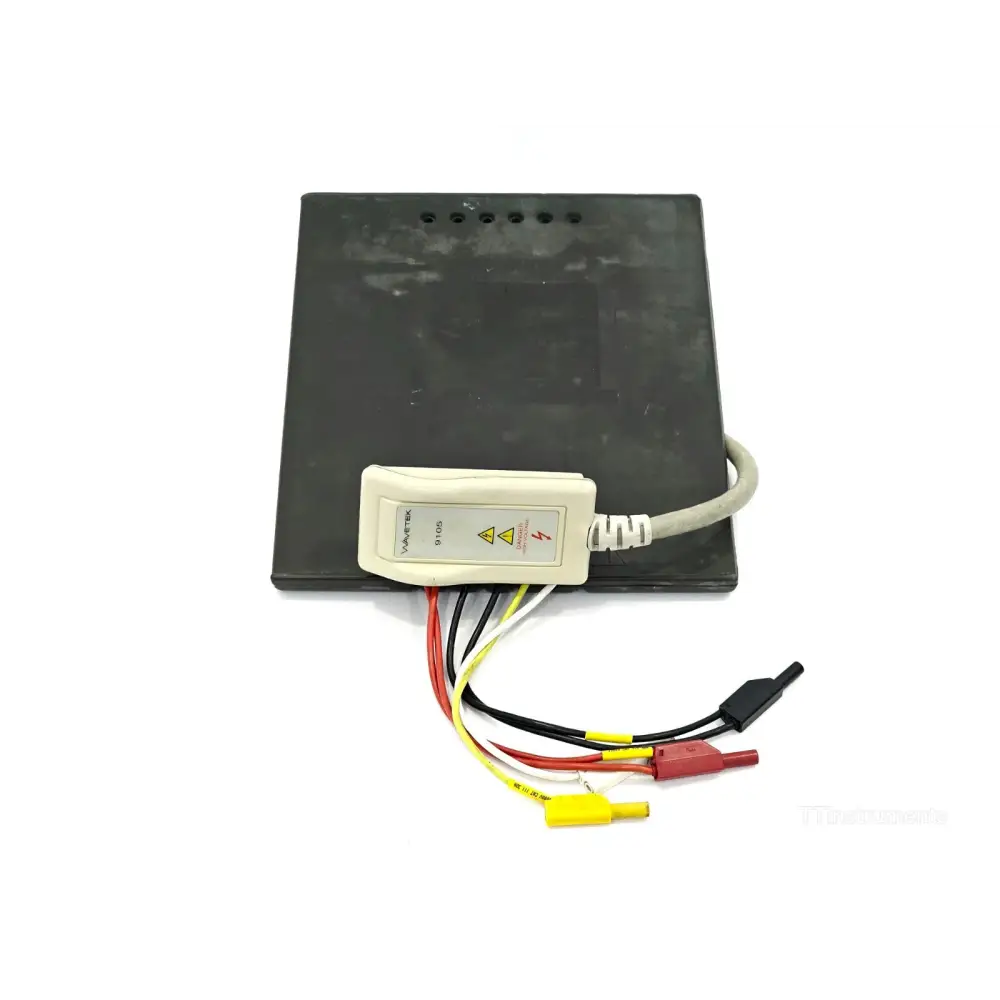

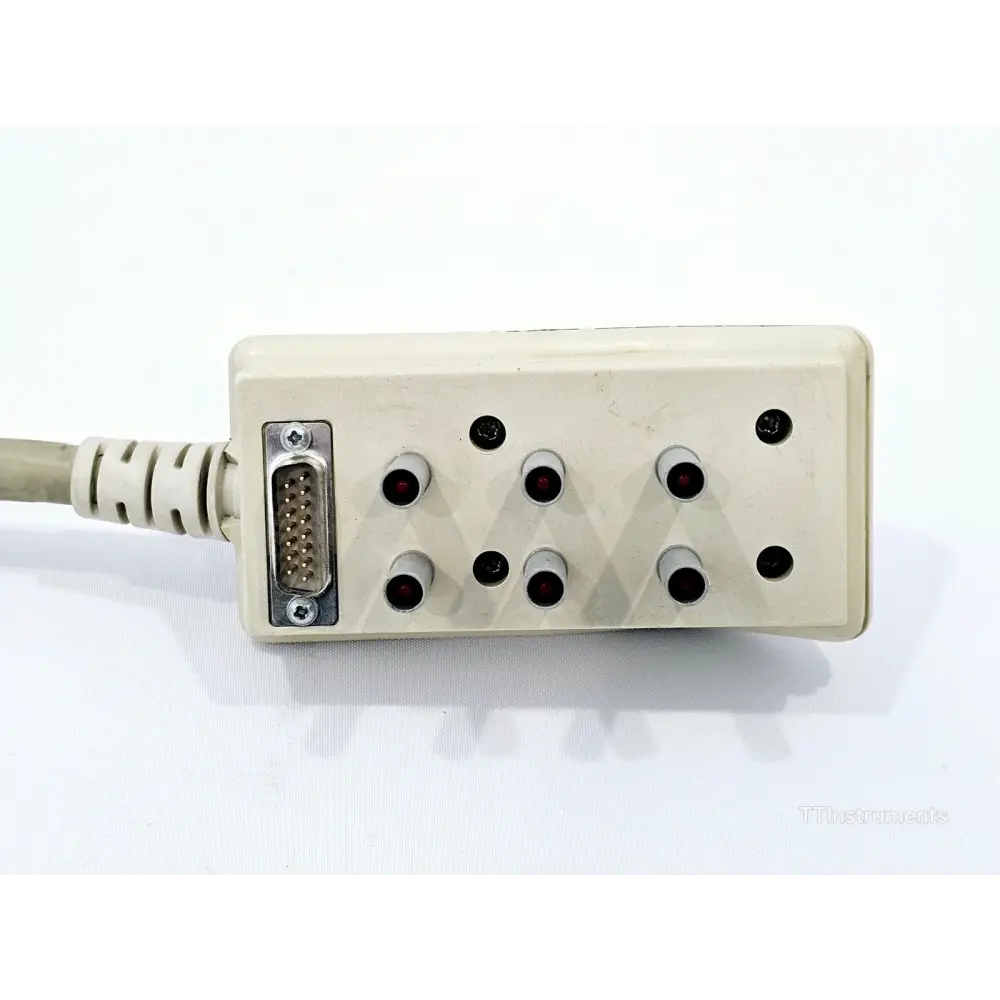

• Wavetek 9105 module
• Options 100, 35, and 600

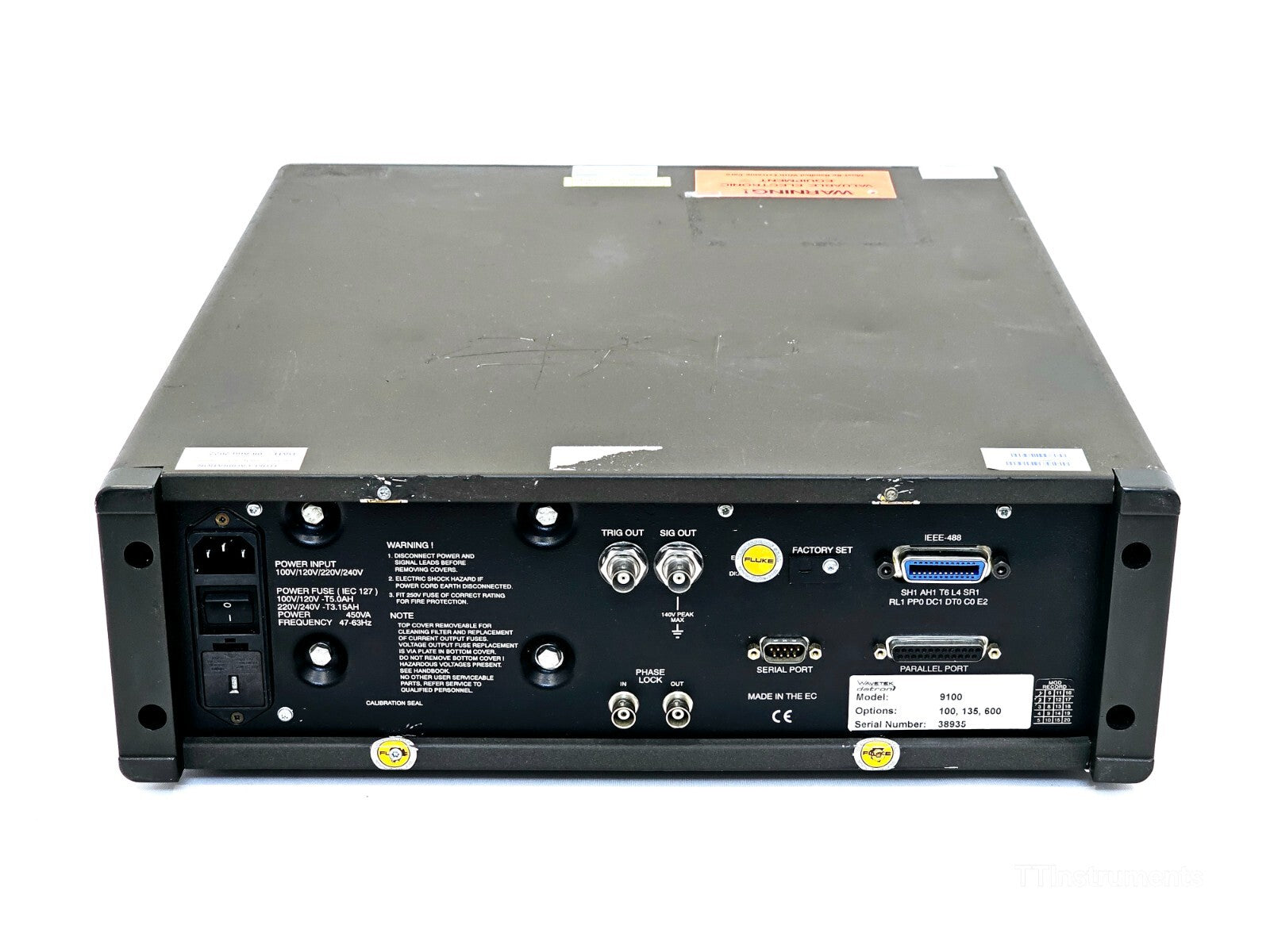

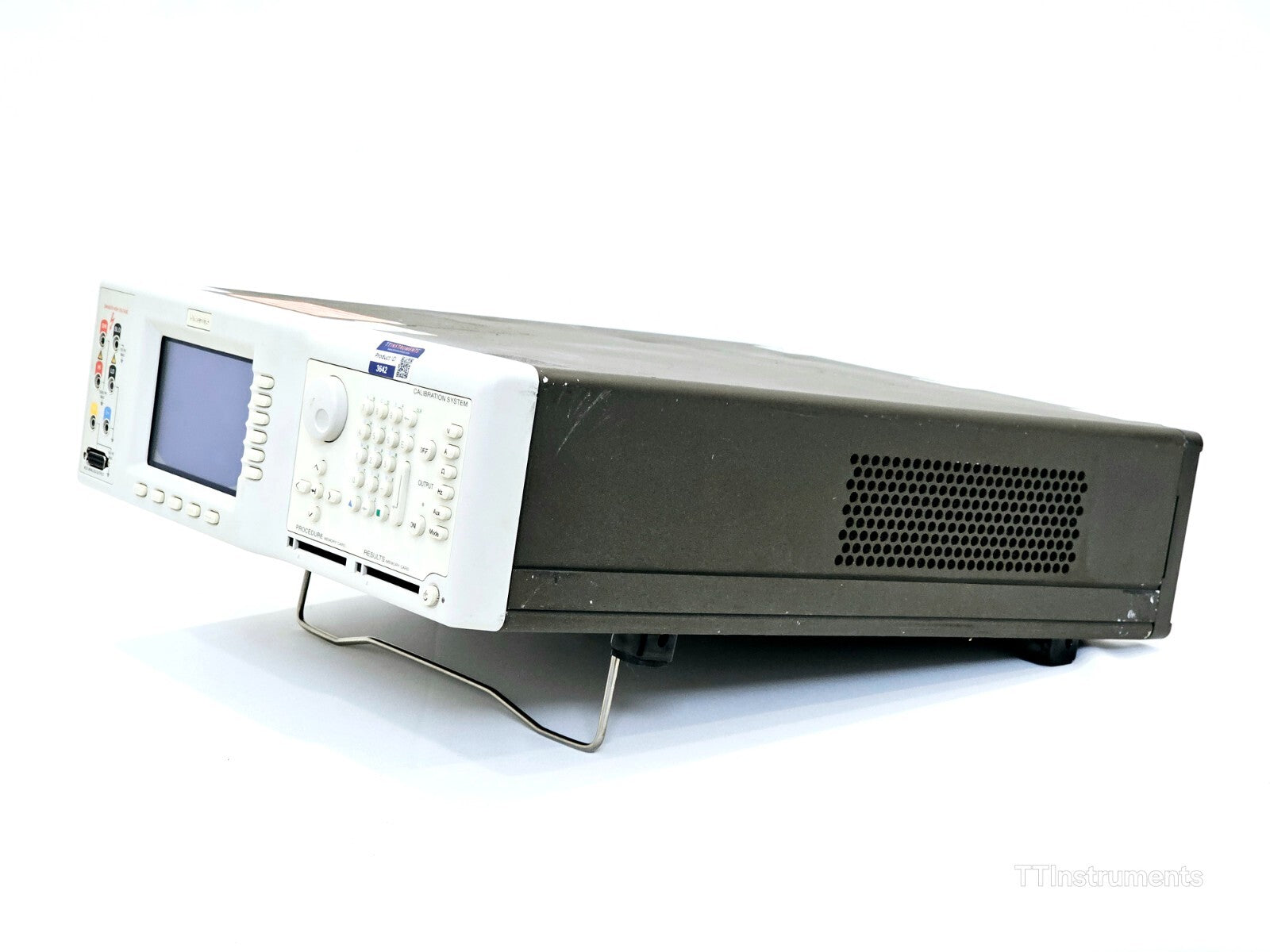

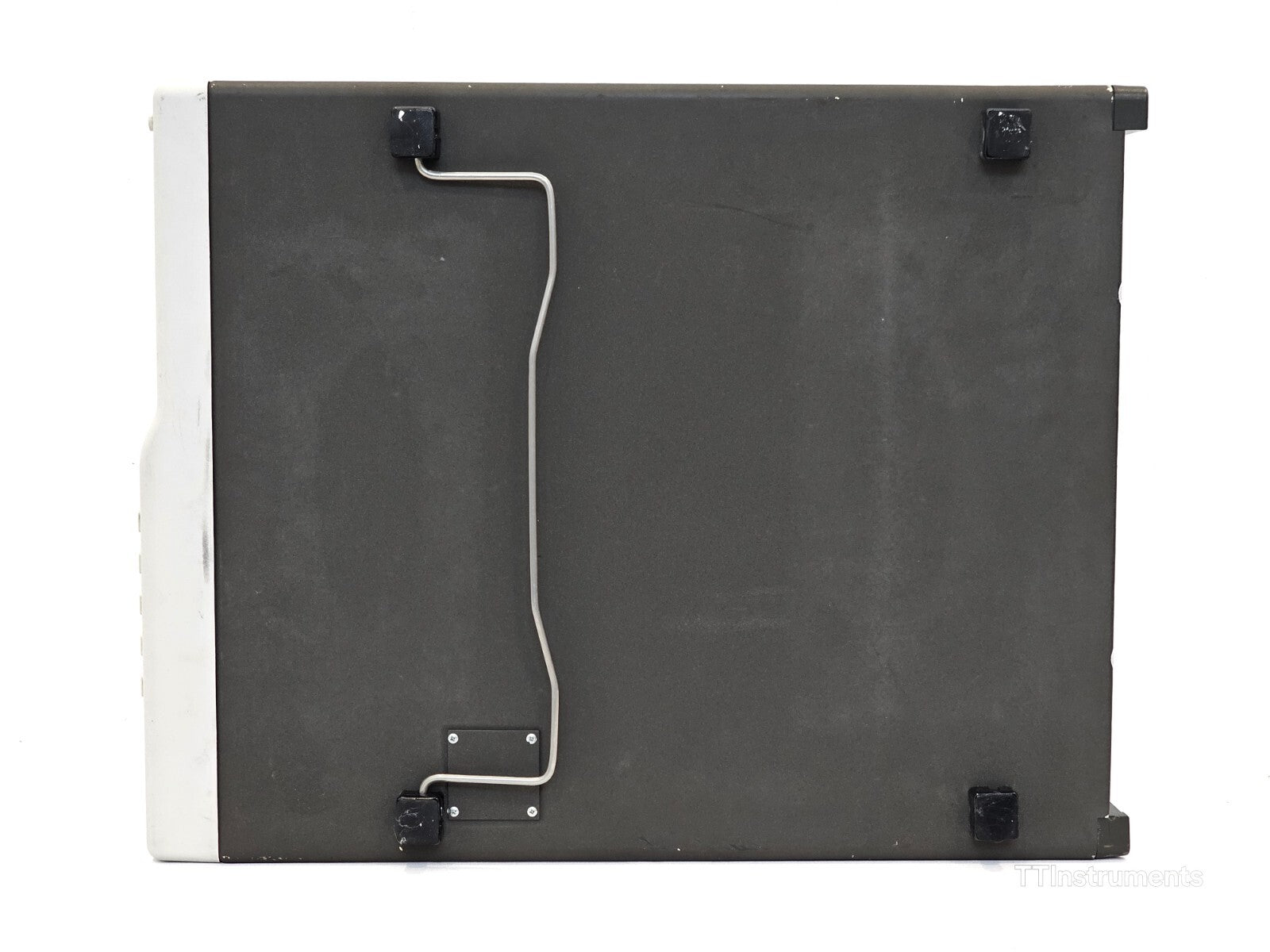

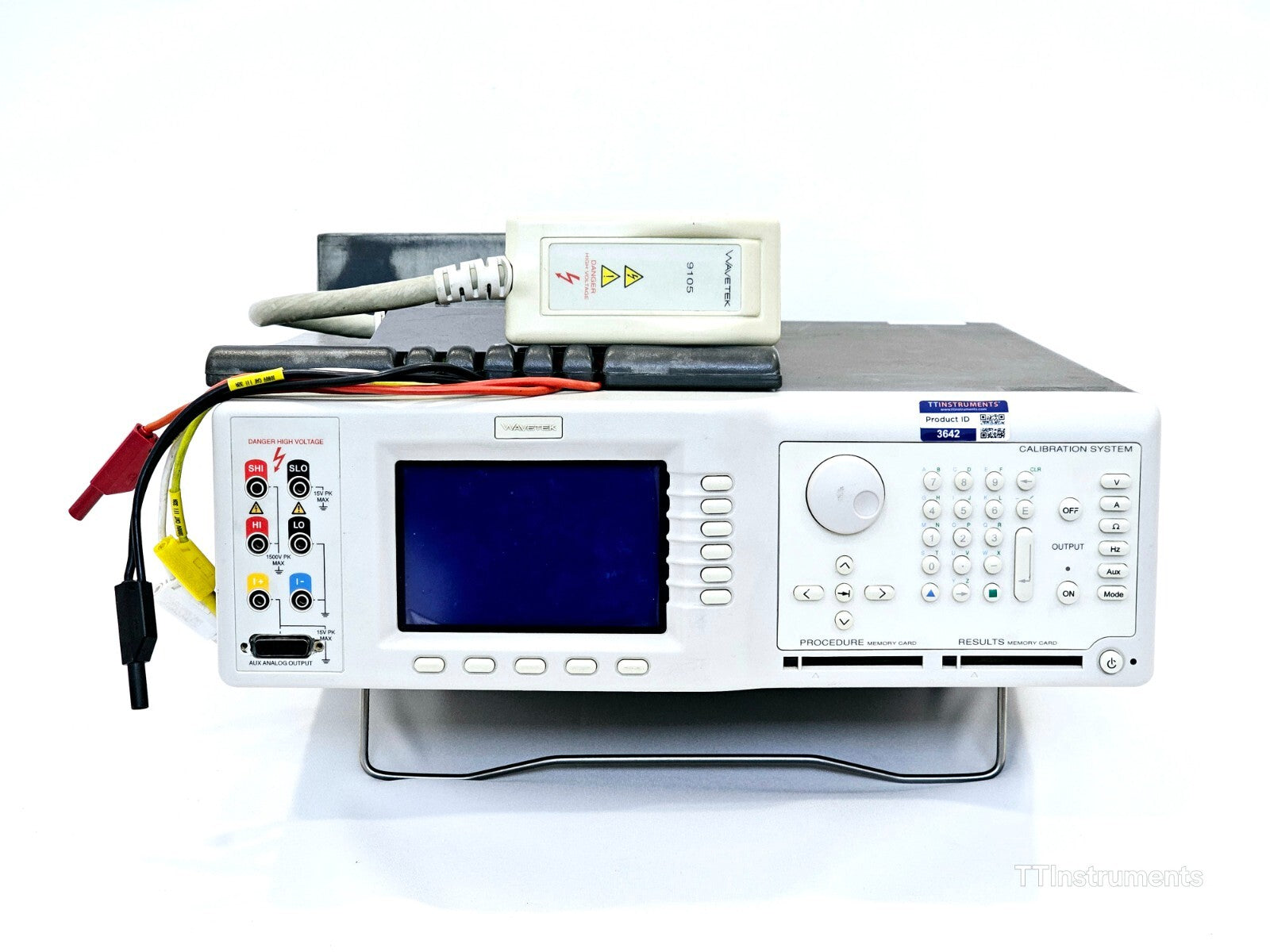

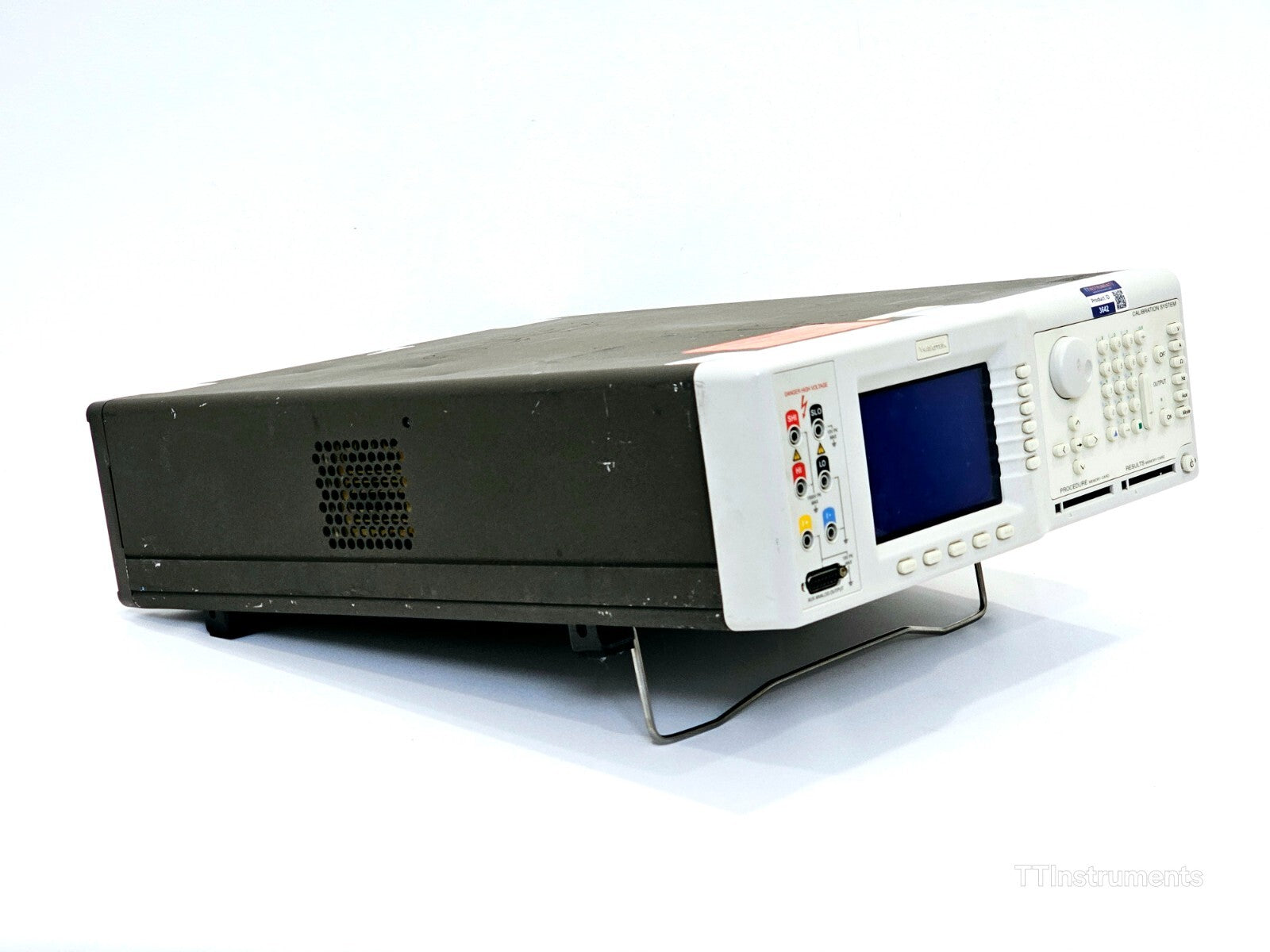

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Wavetek 9100 is a high-performance multifunction calibration system designed for precision calibration of electrical test and measurement equipment. It provides a wide range of electrical output and measurement functions from a single integrated platform, making it suitable for calibration laboratories and service centres requiring traceable, accurate signal generation and measurement.

The 9105 is an associated plug-in module that extends the 9100's functionality. Optional software and hardware packages further expand capability across different calibration disciplines.

Key specifications (Wavetek 9100):
DC Voltage Output: Up to 1000 V
AC Voltage Output: Up to 1000 V (various frequency ranges)
DC Current Output: Up to 20 A
AC Current Output: Up to 20 A
Resistance Output: Up to 100 MΩ
Frequency Range: Up to 1 MHz (AC functions)
Basic DC Voltage Uncertainty: 8 ppm
Basic AC Voltage Uncertainty: 50 ppm (typical)
Temperature Coefficient: Specified over 18–28 °C

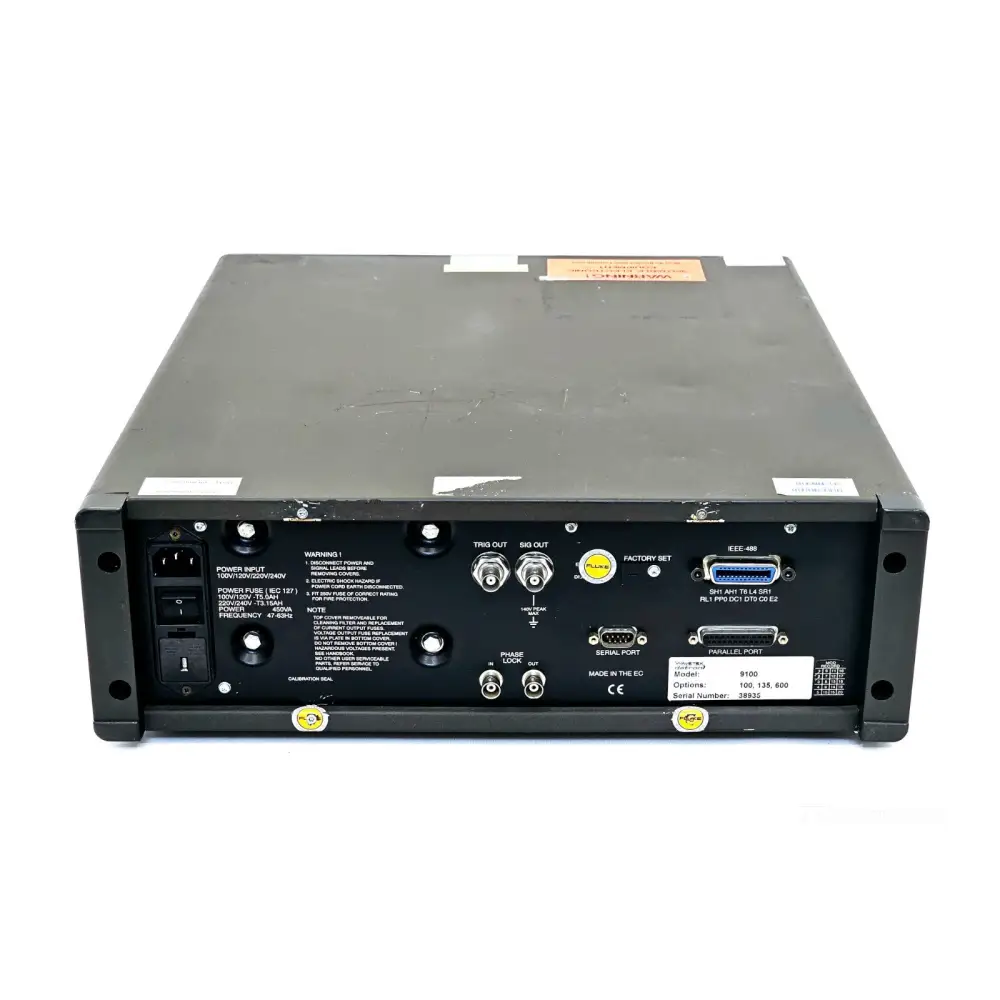

Interface: IEEE-488 (GPIB), RS-232

Option 100 extends the resistance and capacitance output ranges. Option 35 provides extended AC low-frequency performance. Option 600 adds oscilloscope calibration capability. Please refer to the Wavetek 9100 datasheet and operating manual for full specifications and option details.
