Condition: For parts or not working.

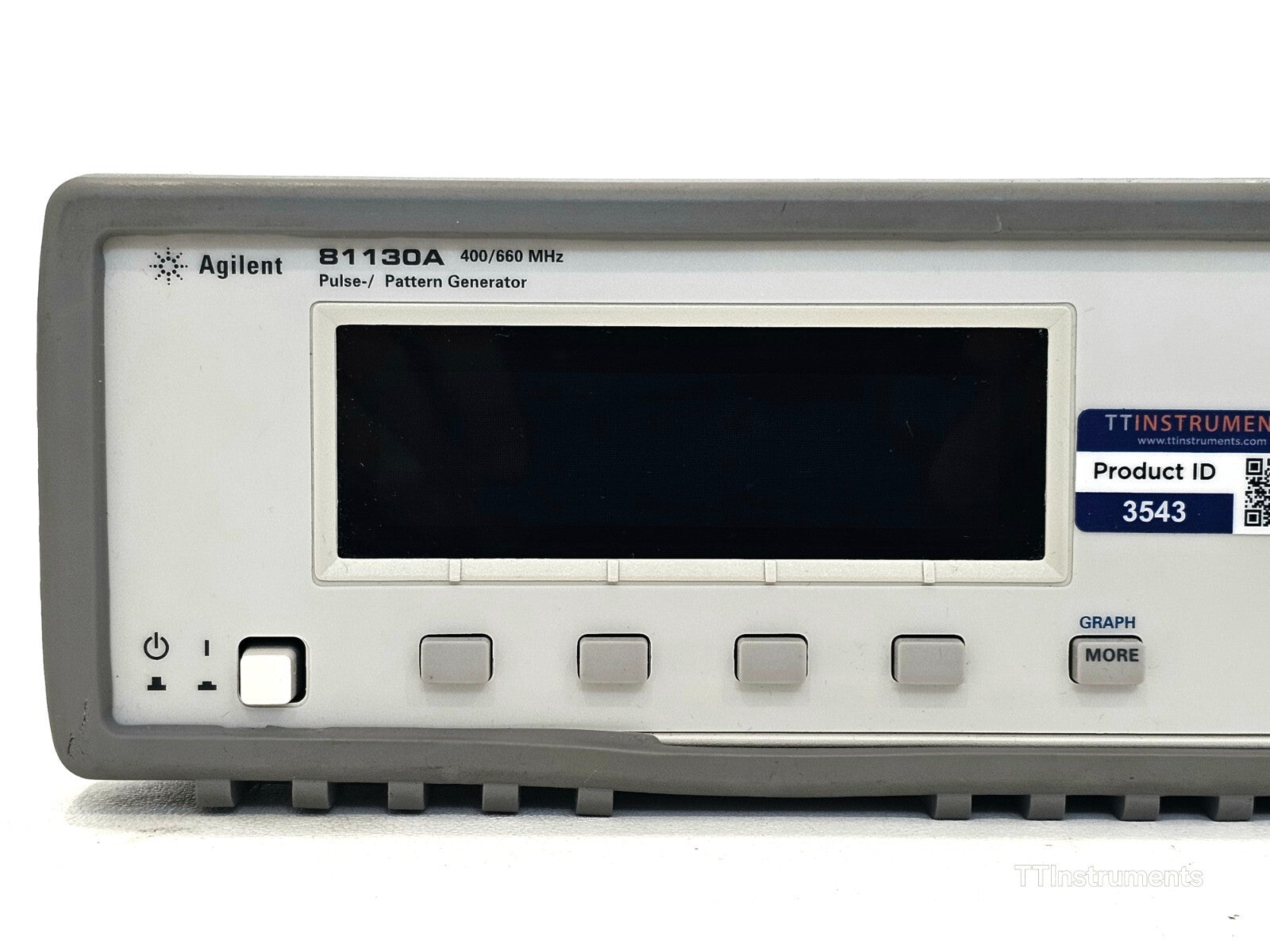

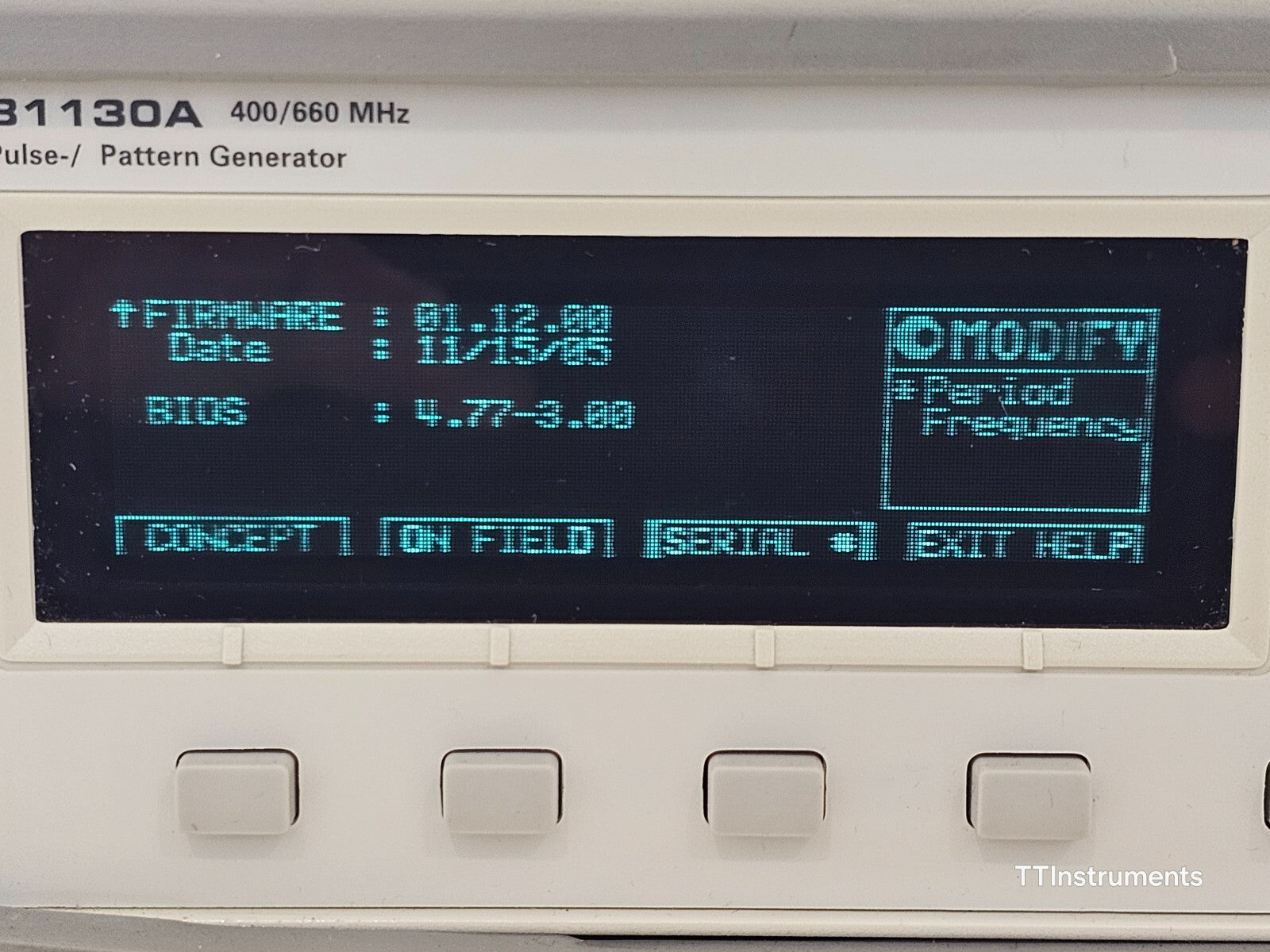

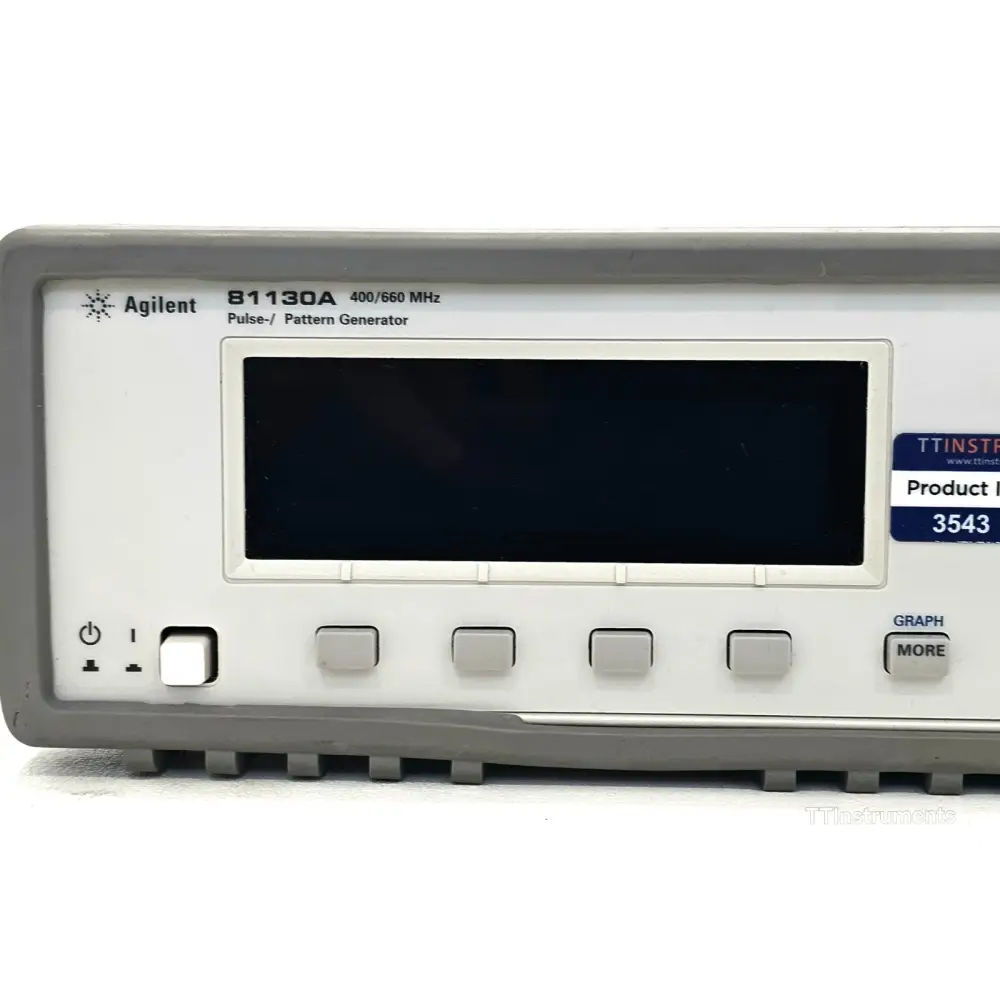

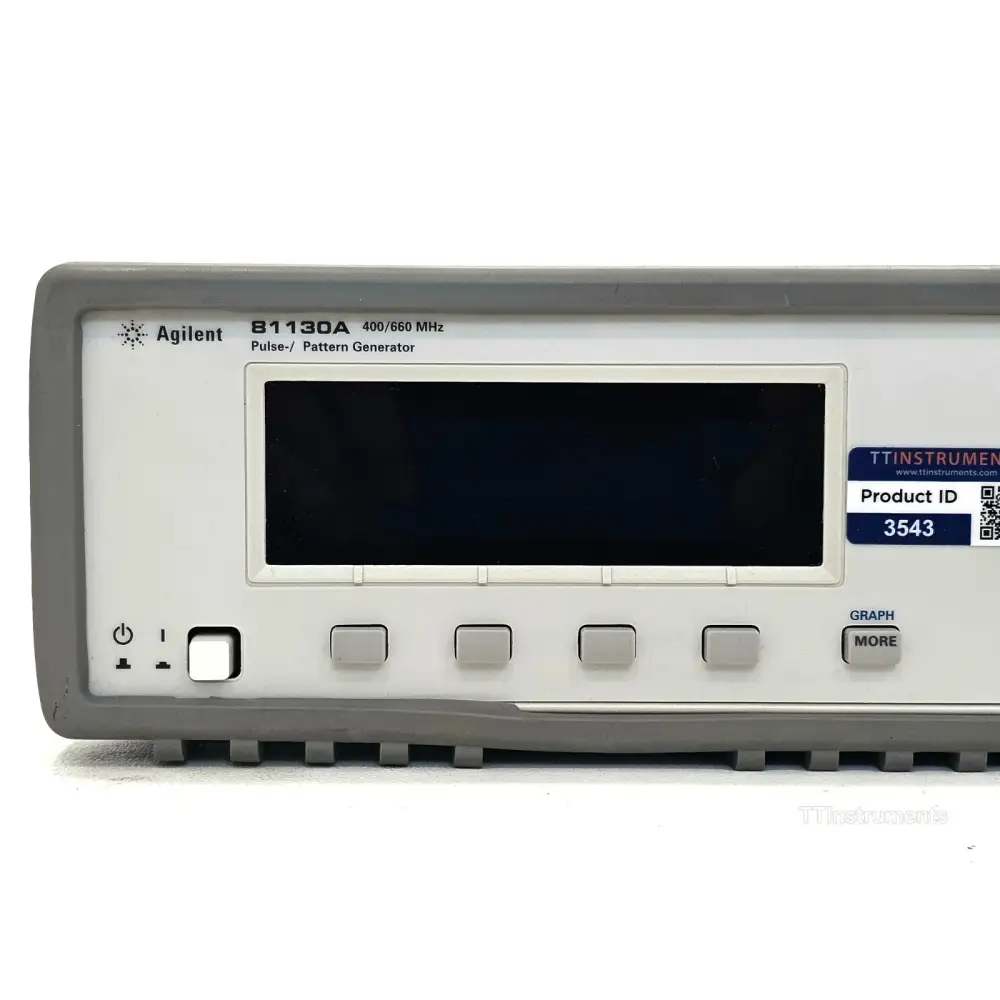

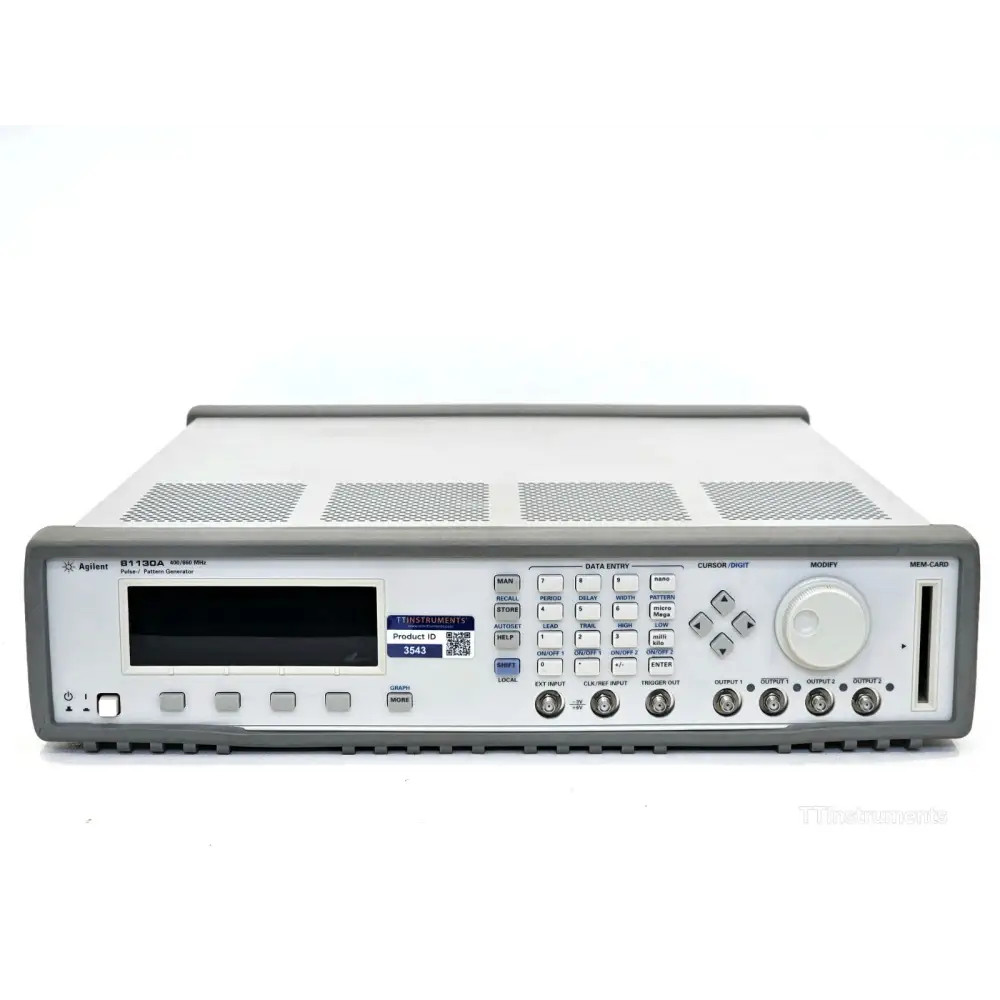

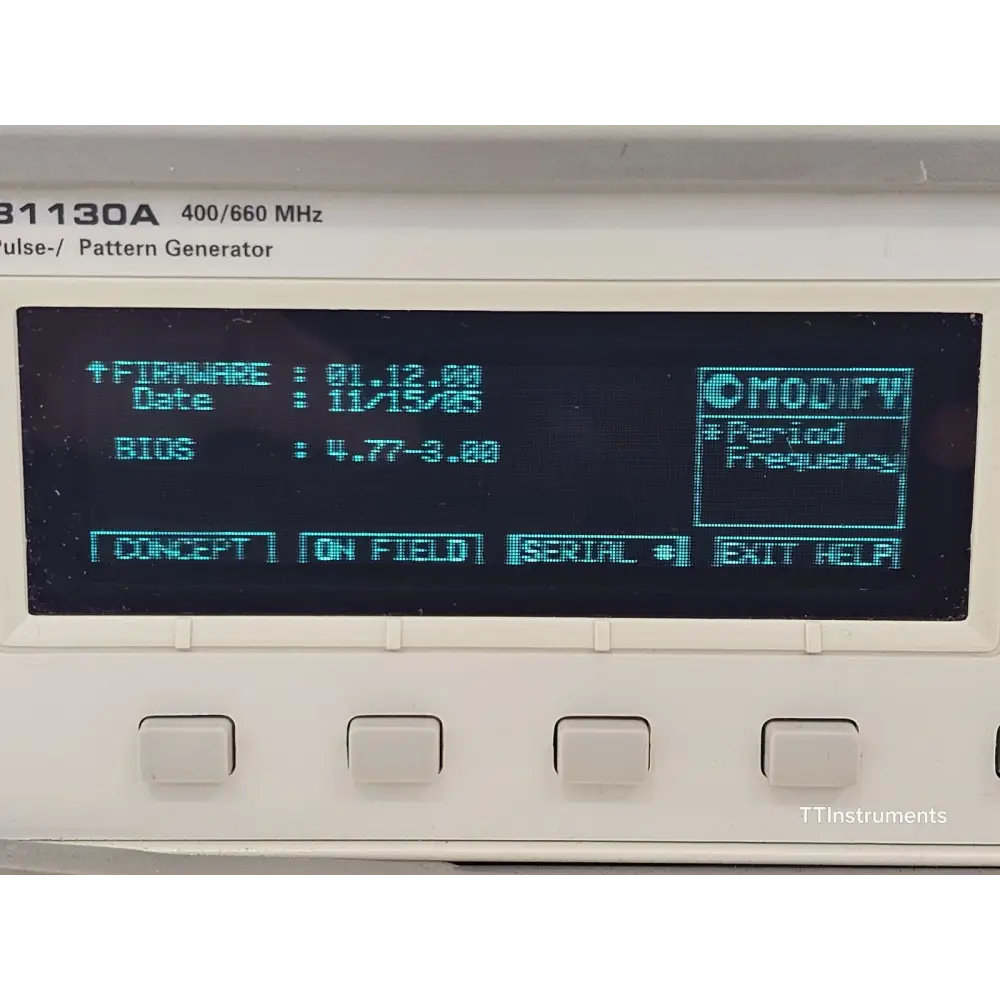

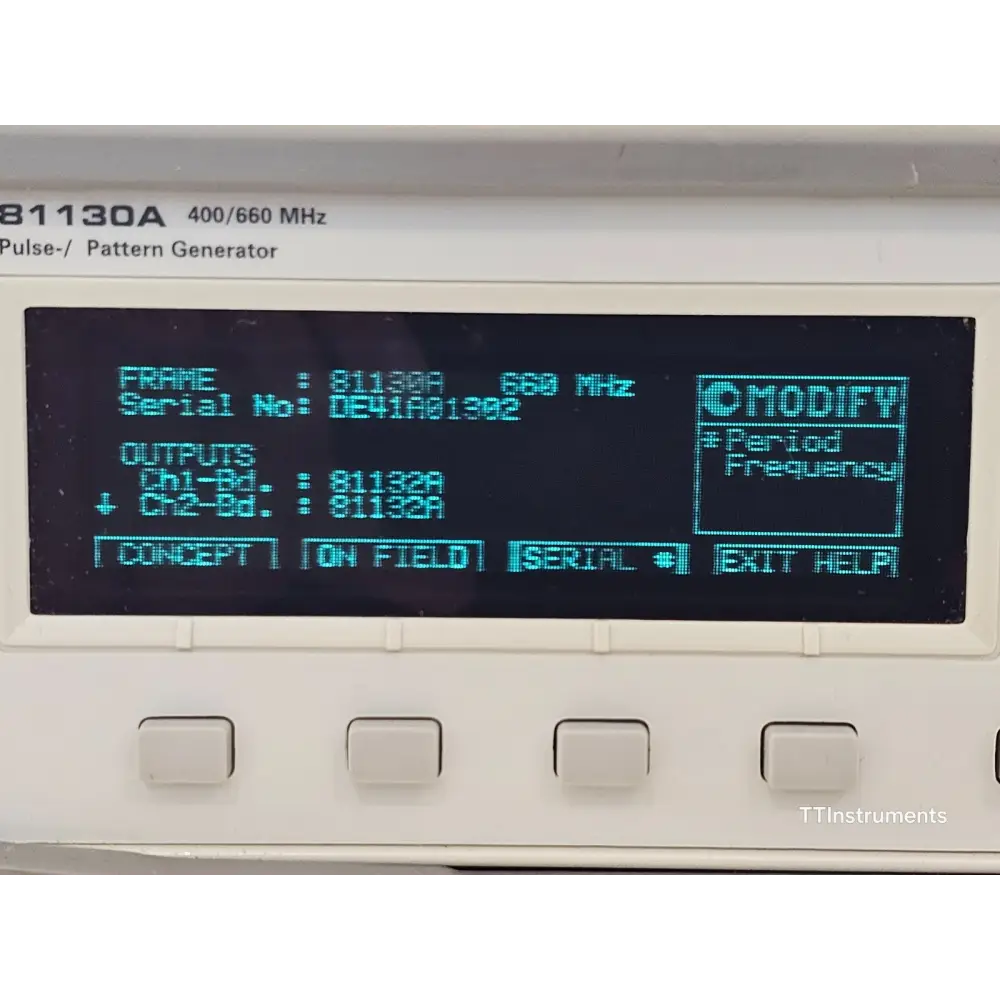

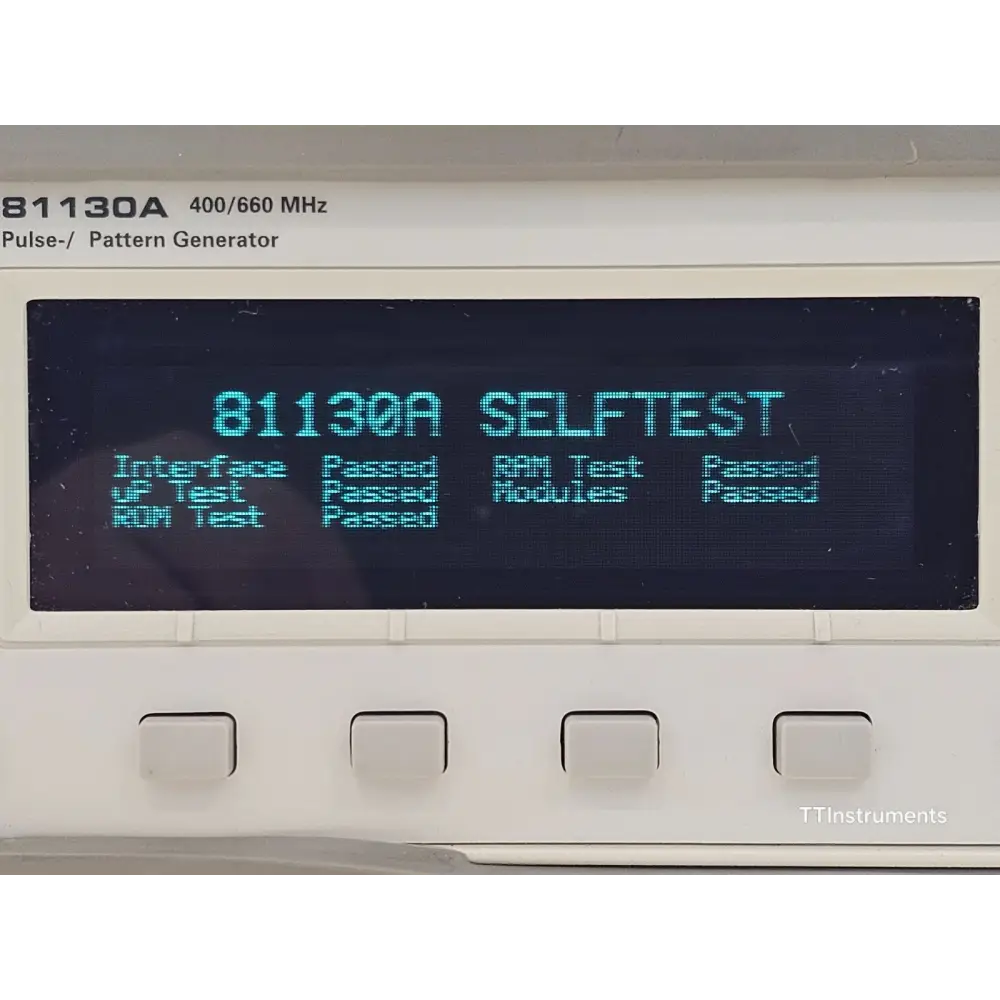

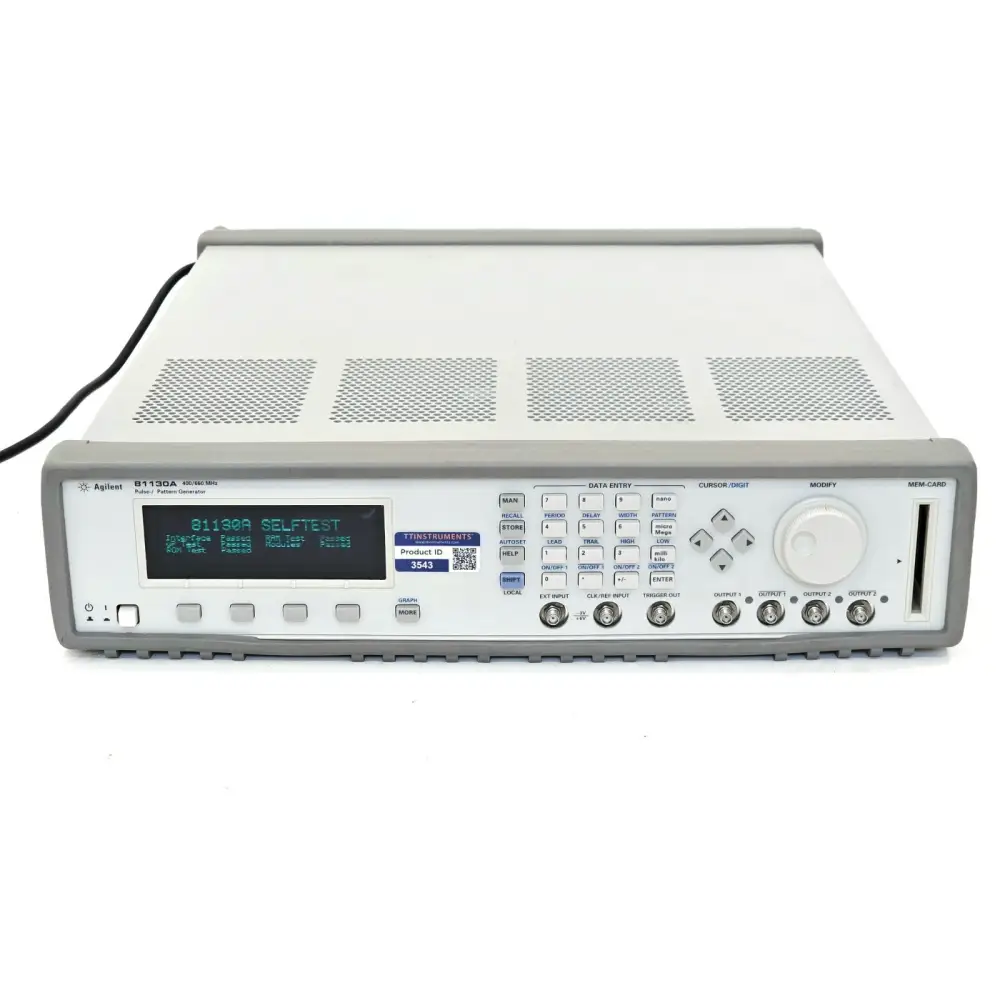

This Agilent 81130A 400/660 MHz Pulse/Pattern Generator is being sold for repair or parts. The unit is fitted with two 81132A output modules. The screen is in poor condition, however the self-test passes. Measurements do not appear to read correctly, suggesting a fault beyond the display alone. This unit is suitable for those looking to repair, use for spares, or undertake fault diagnosis.

Included in the sale:
• Agilent 81130A mainframe

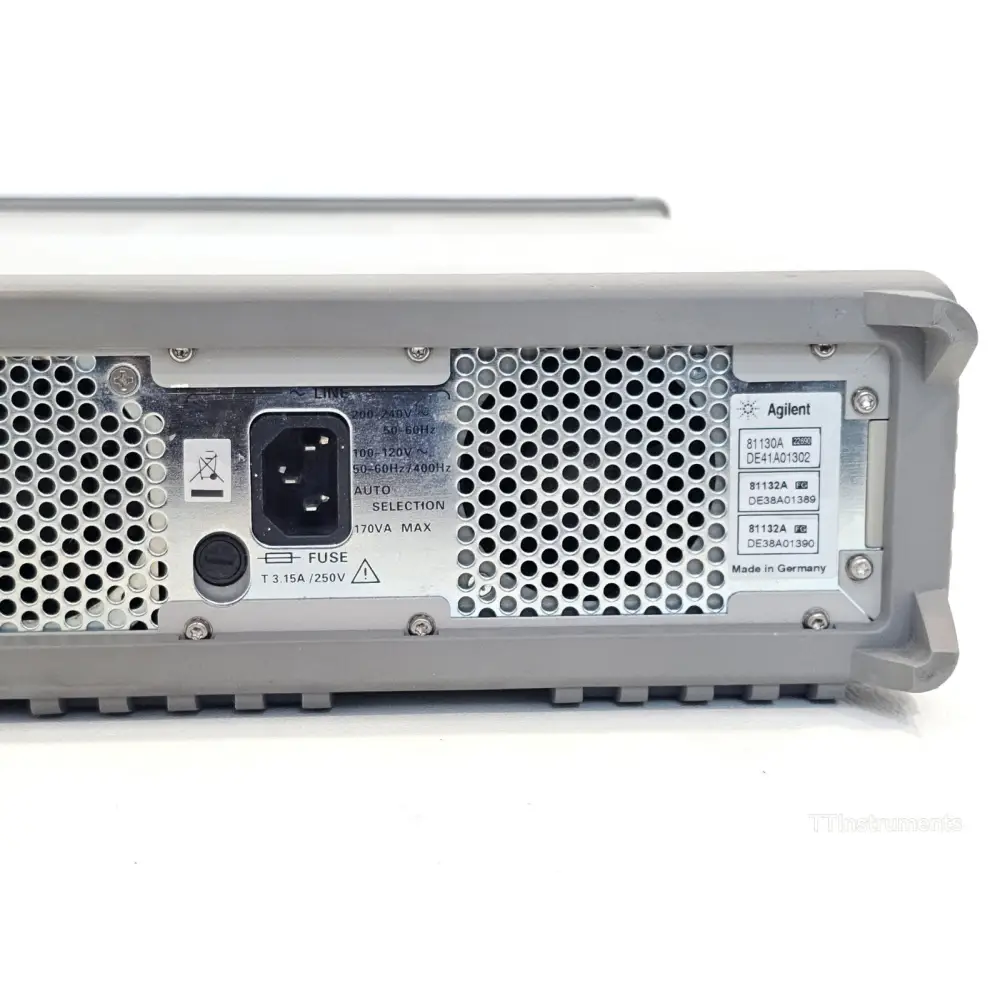

• Two 81132A output modules (x2)

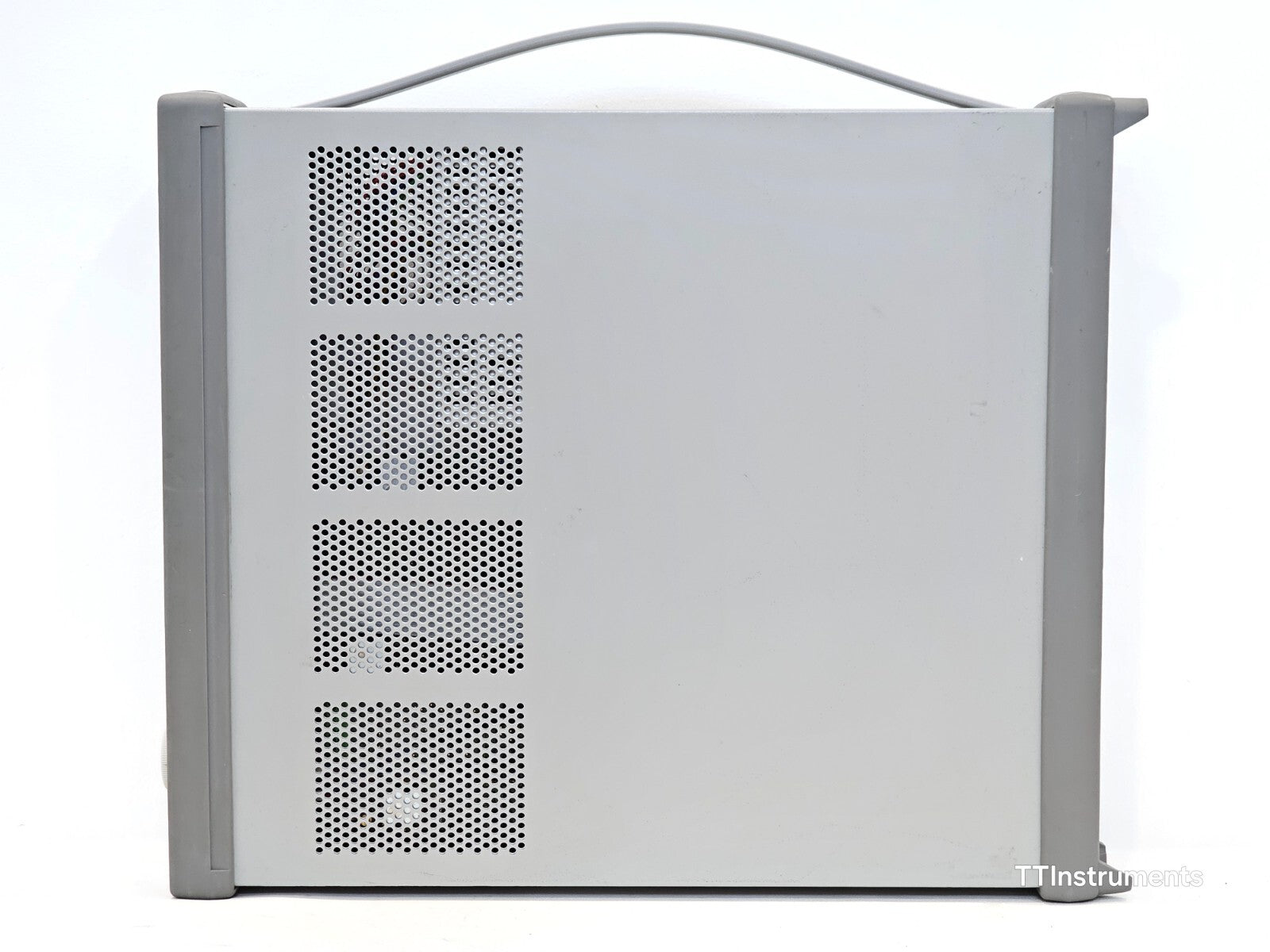

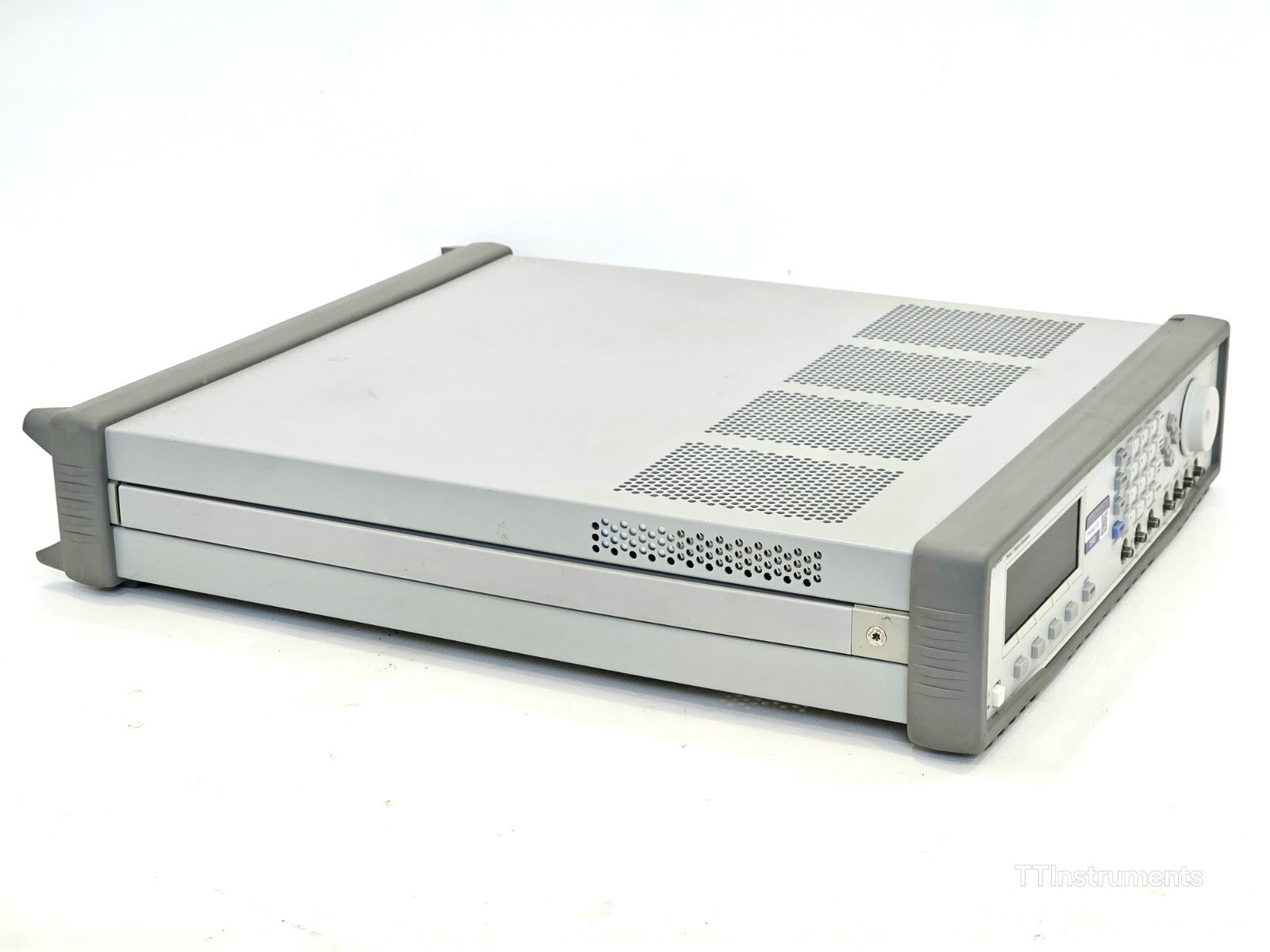

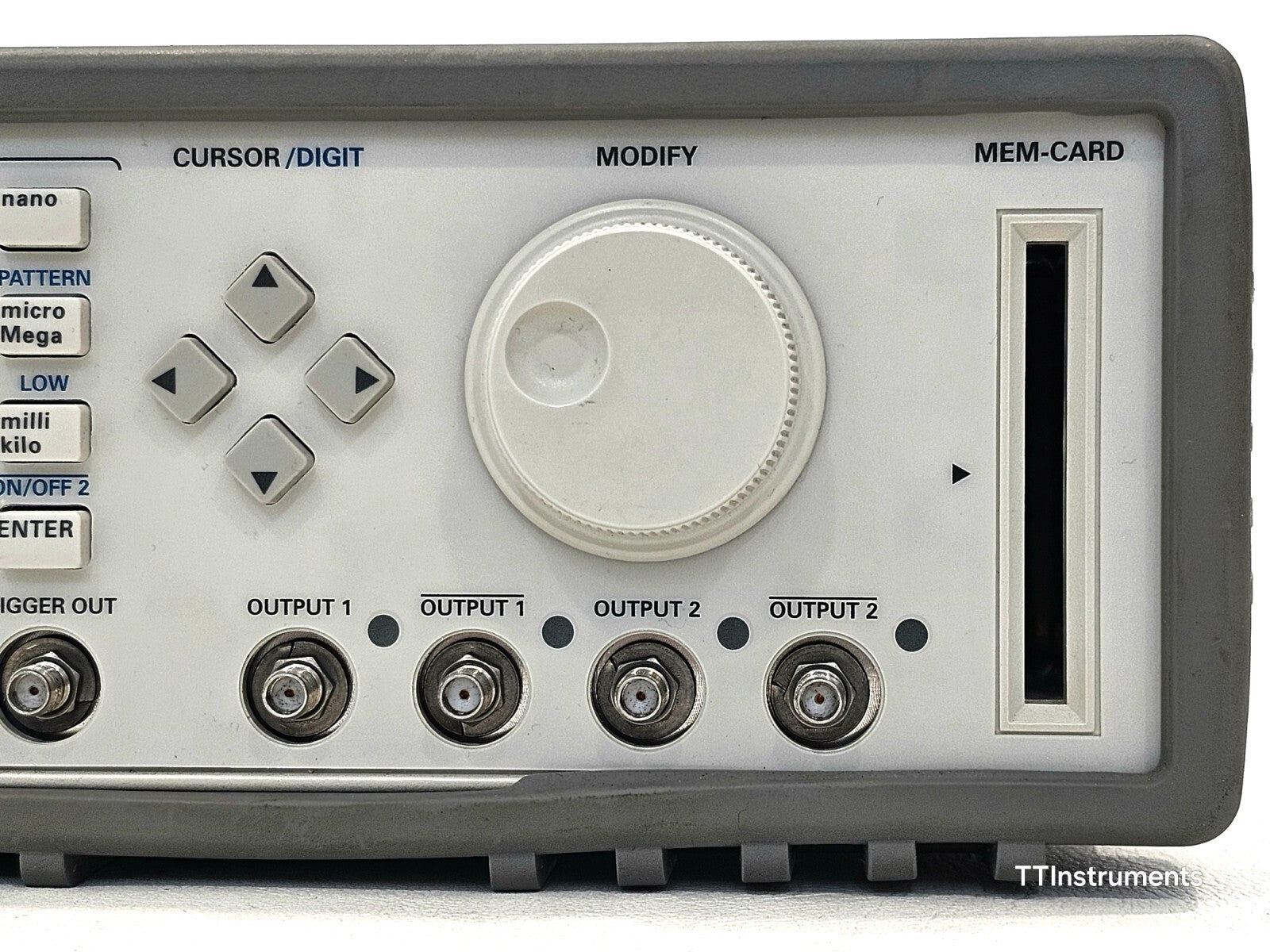

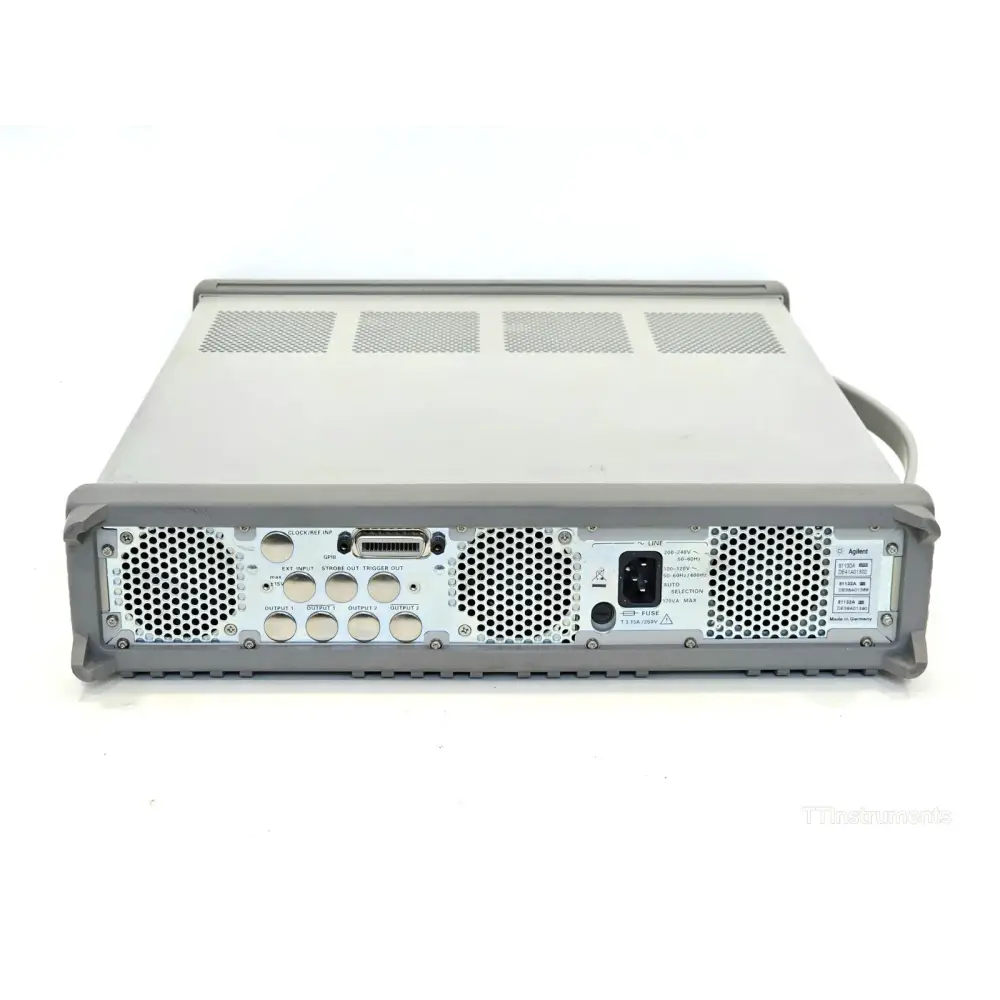

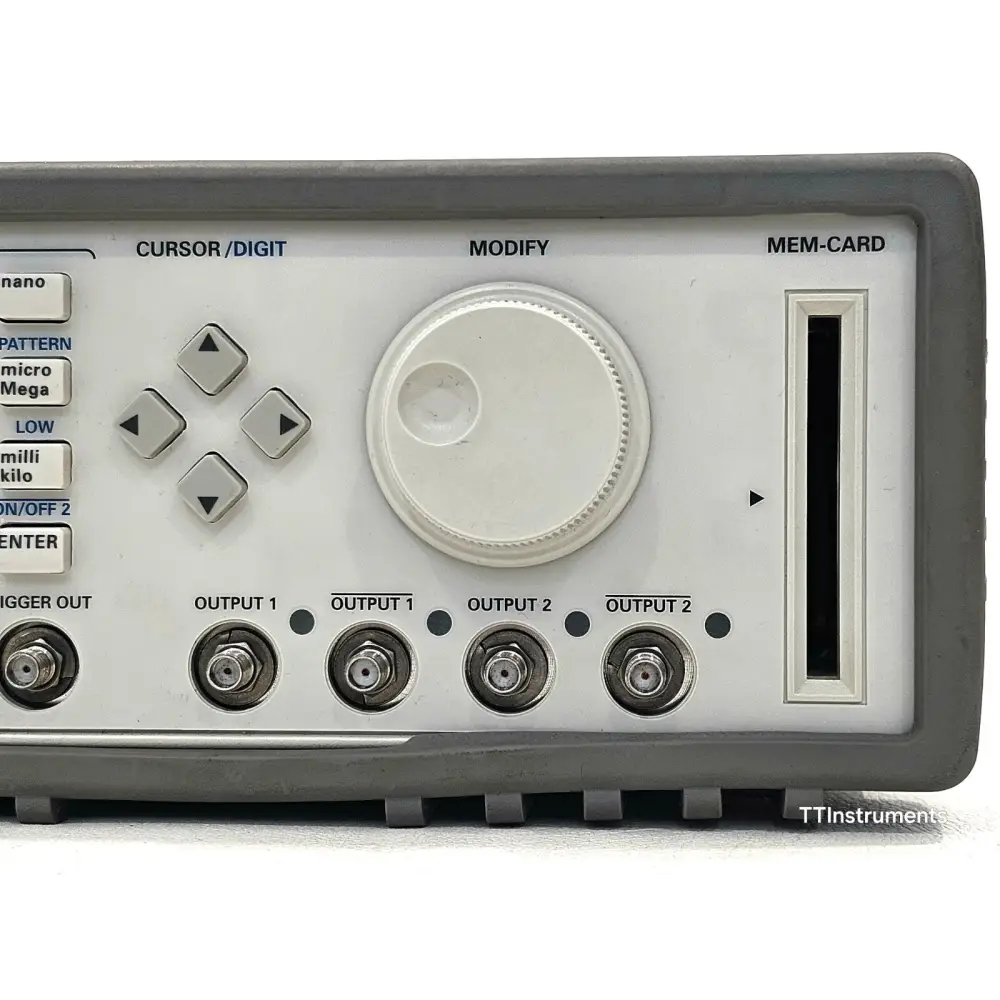

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Agilent (now Keysight) 81130A is a dual-channel pulse and pattern generator designed for testing and characterising digital devices, semiconductors, and high-speed serial interfaces. The 81130A mainframe accepts plug-in output modules, including the 81132A, which provides output frequencies up to 660 MHz with precise timing and level control. It is widely used in R&D and production environments for generating clean, accurate pulse and pattern signals.

Mainframe Model: Agilent 81130A
Output Modules: 81132A (up to 660 MHz)
Maximum Frequency: 660 MHz (with 81132A modules)
Channels: 2 (with dual 81132A configuration)
Output Voltage Range: Variable, module dependent
Pattern Depth: Up to 256 Kbit (module dependent)
Timing Resolution: Typically 10 ps
Interface: GPIB
Form Factor: Benchtop modular mainframe

Please refer to the Keysight/Agilent manufacturer website for full and current specifications.
