FOR PARTS/REPAIR Tektronix TCP0030 120 MHz 30A Current Probe

Condition: For parts or not working.

This Tektronix TCP0030 120 MHz 30A current probe is being sold for parts or repair. The unit is faulty and is supplied as pictured. No returns are accepted on this item.

• Tektronix TCP0030 current probe (faulty, for parts or repair only)

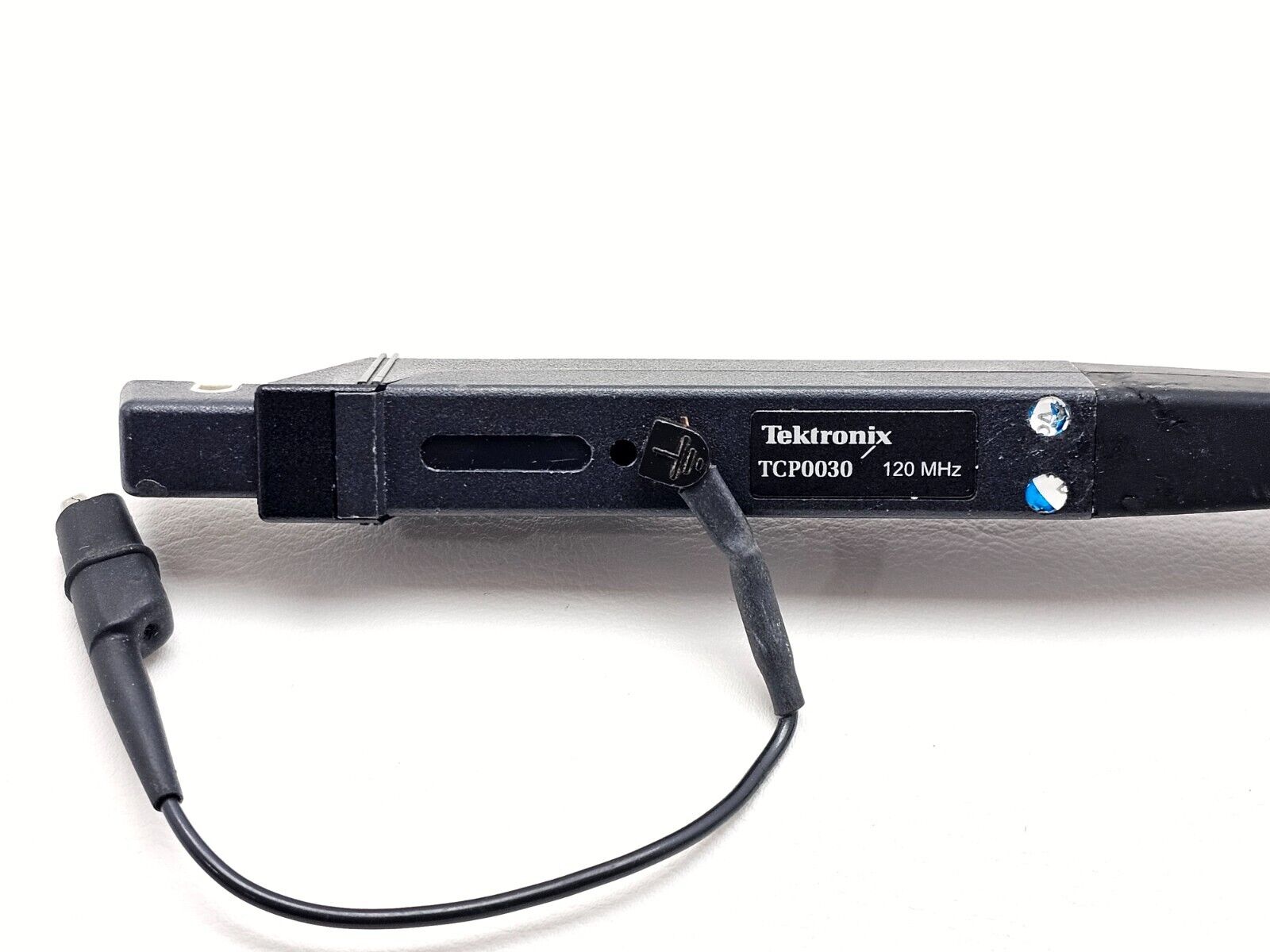

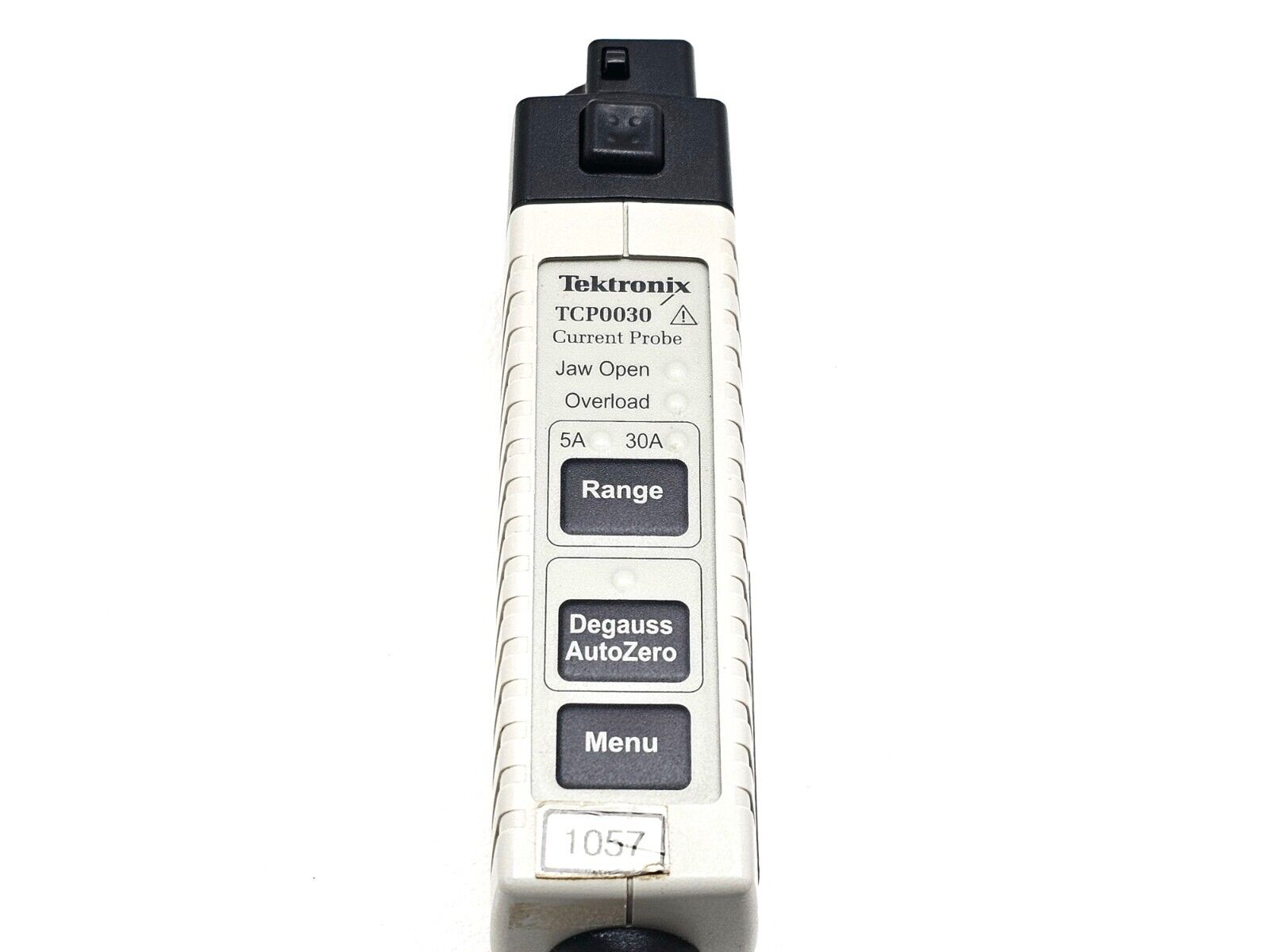

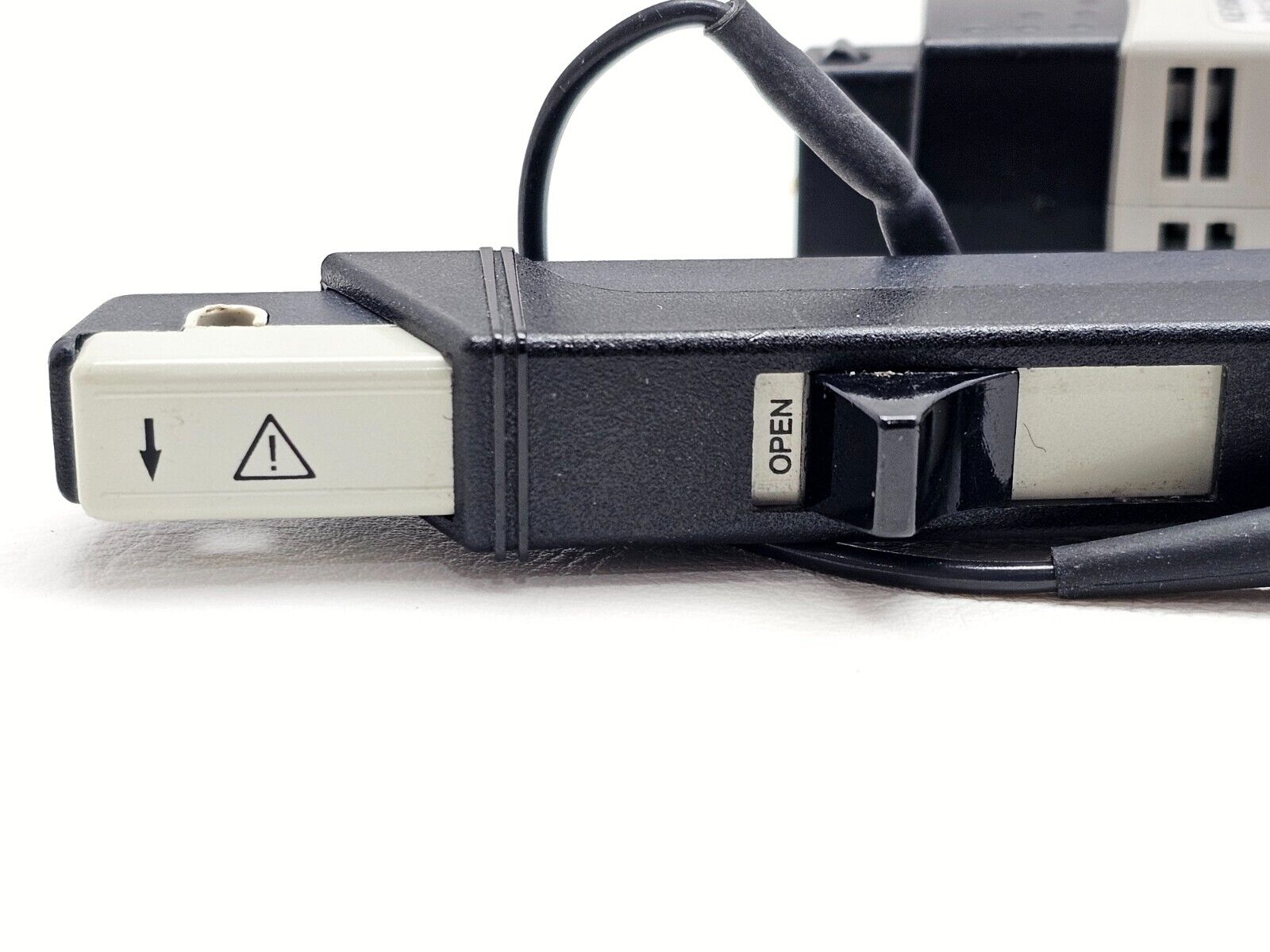

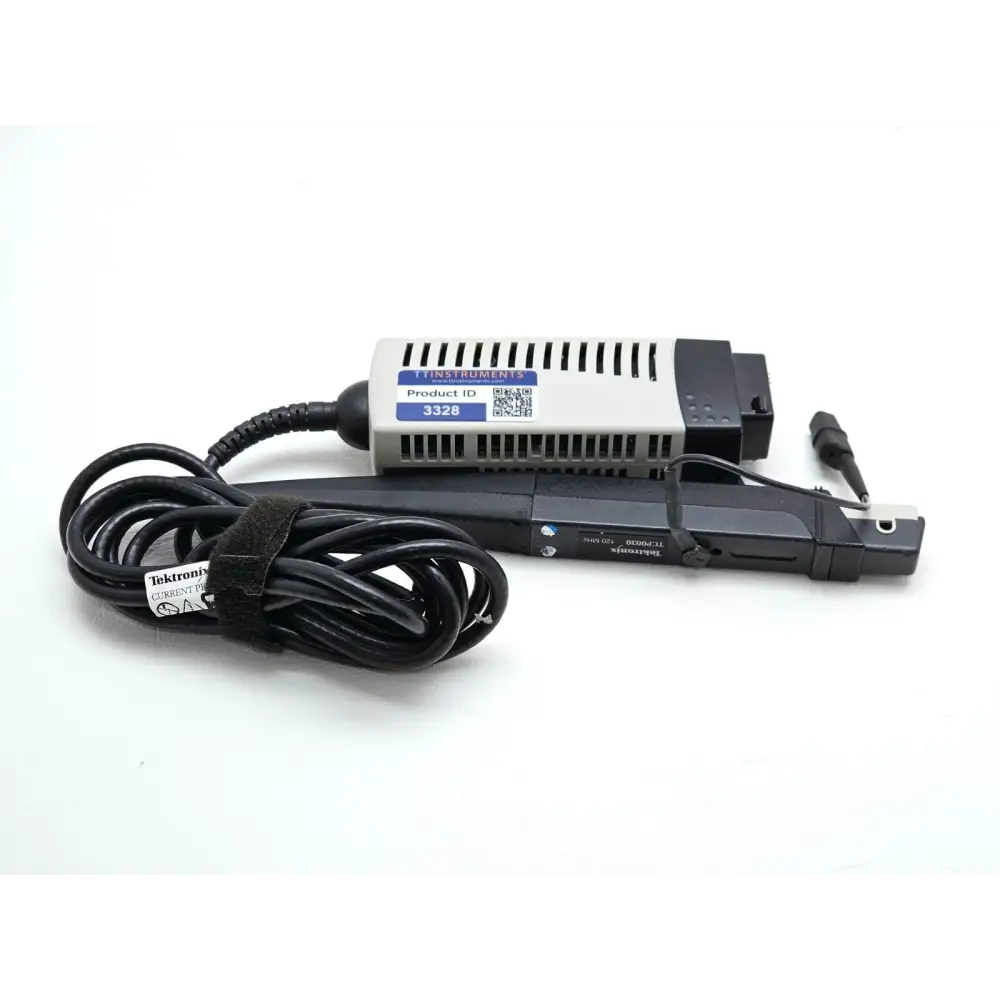

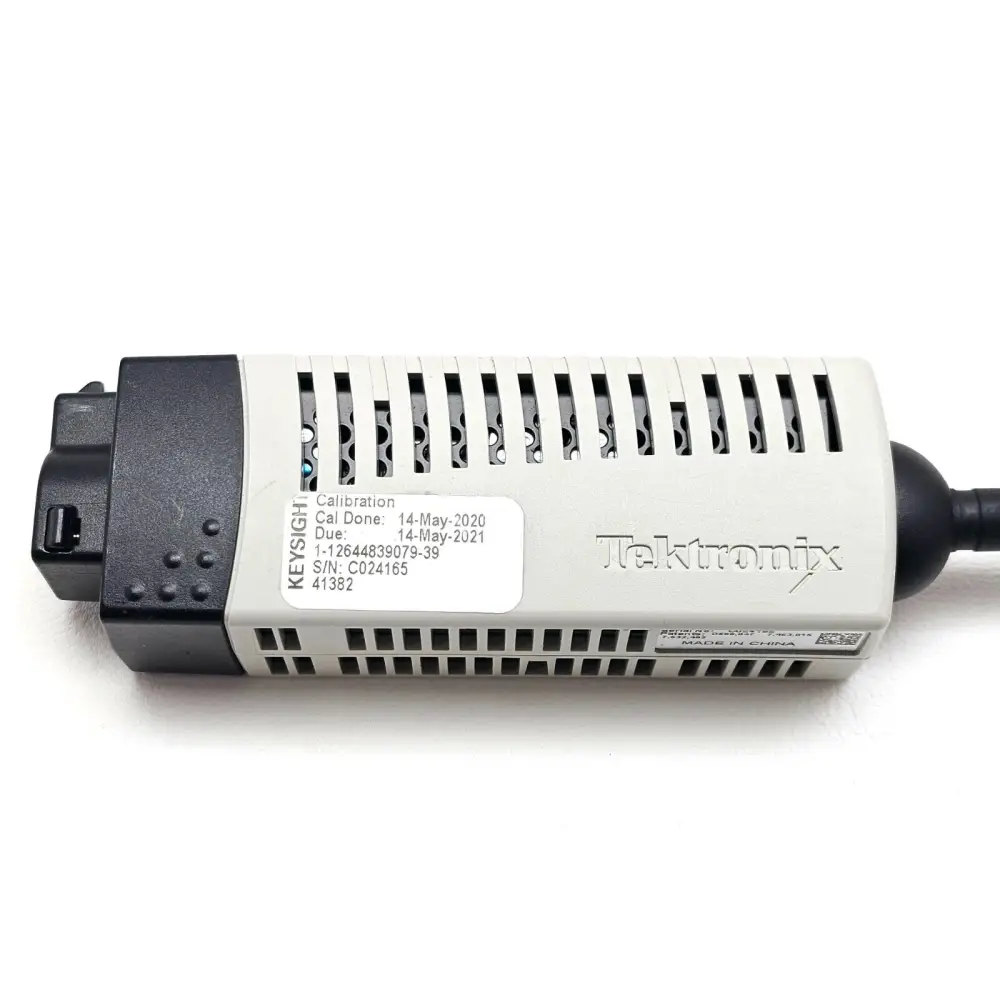

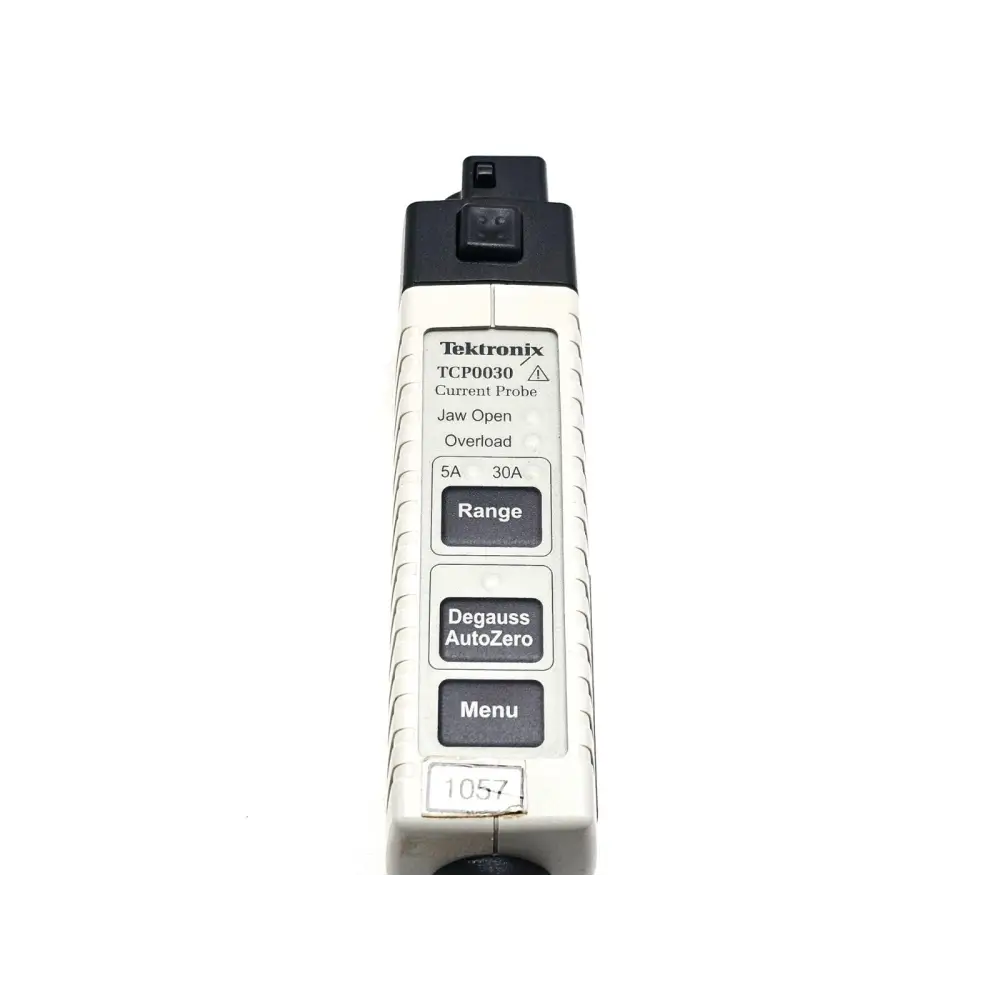

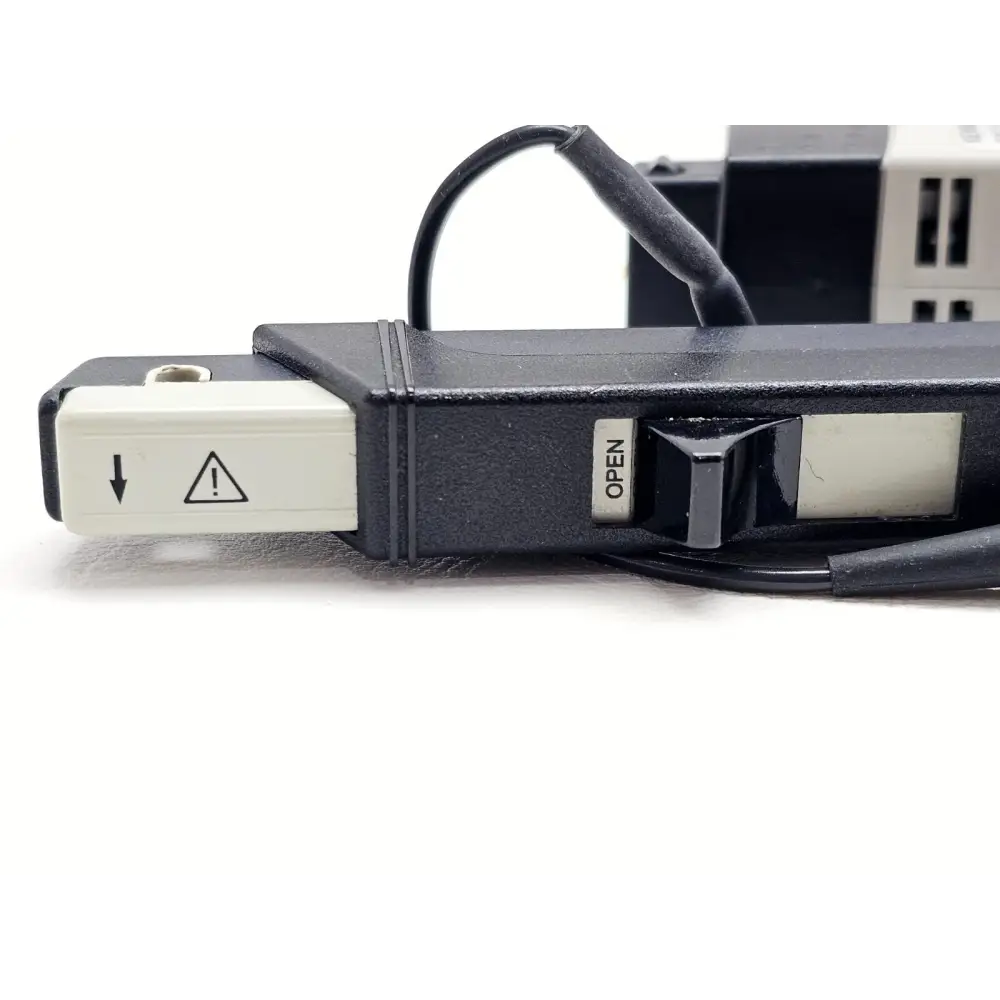

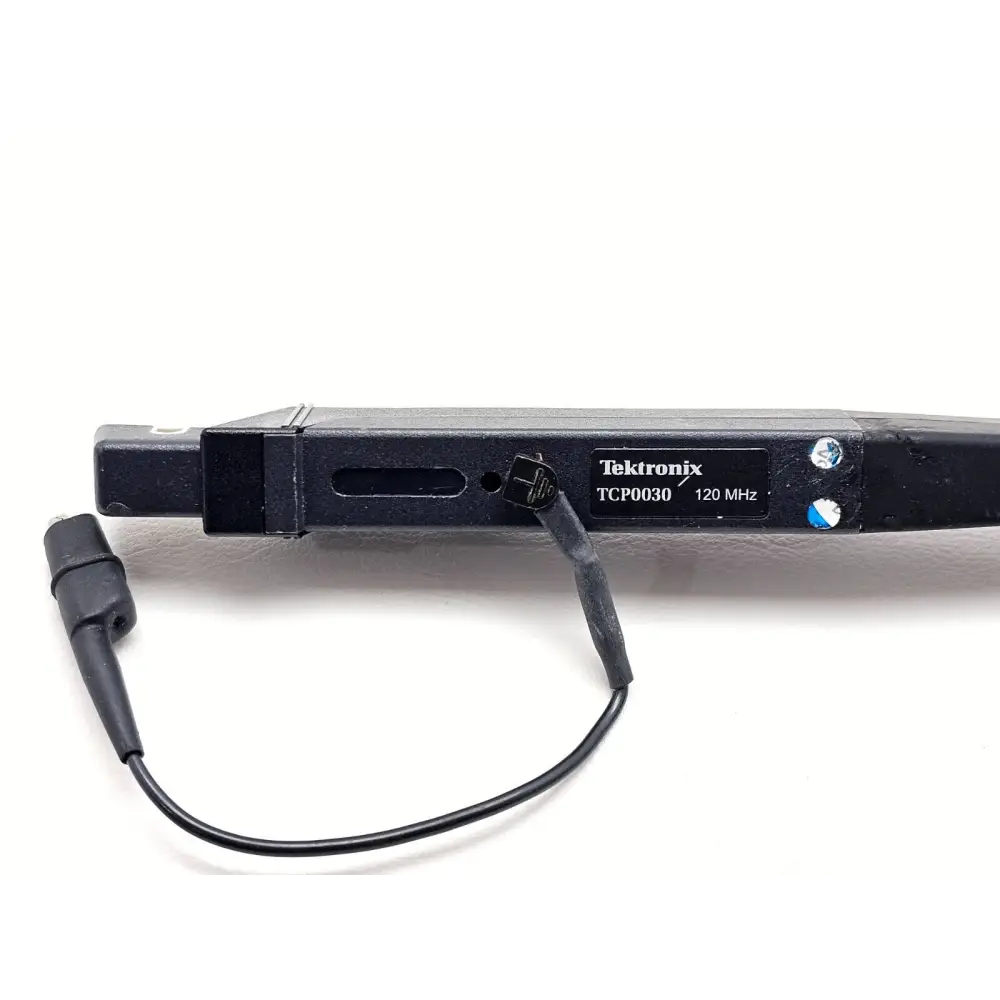

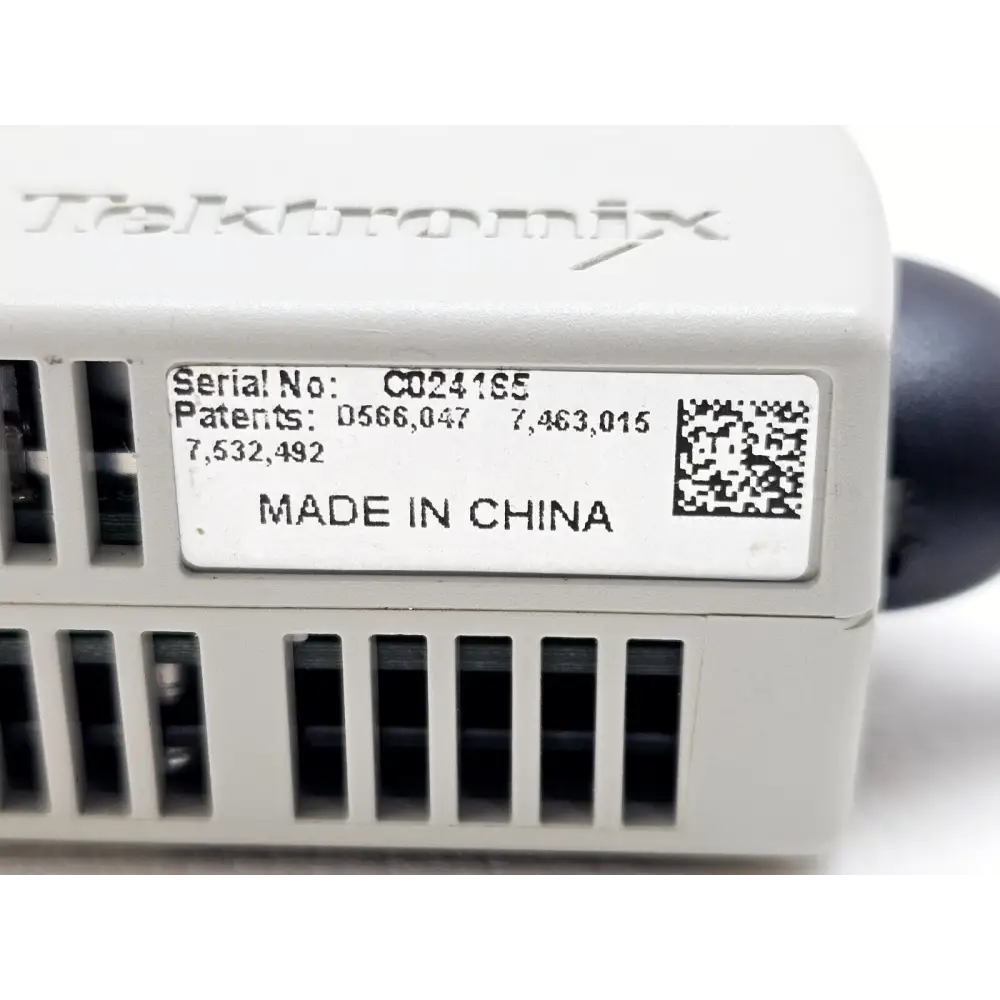

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Tektronix TCP0030 is a wide-bandwidth AC/DC current probe offering 120 MHz bandwidth and up to 30A continuous current measurement. It is designed for use with Tektronix oscilloscopes equipped with a TCPA300 or compatible amplifier, providing accurate non-invasive current measurements for power electronics, motor drives, and general-purpose circuit analysis.

Bandwidth: 120 MHz
Continuous Current: 30A RMS
Peak Current: 500A (pulse)
Sensitivity: 10 mA/div minimum
Rise Time: <2.9 ns
Insulation Voltage: 300V RMS CAT II
Compatible Amplifier: TCPA300, TCPA400

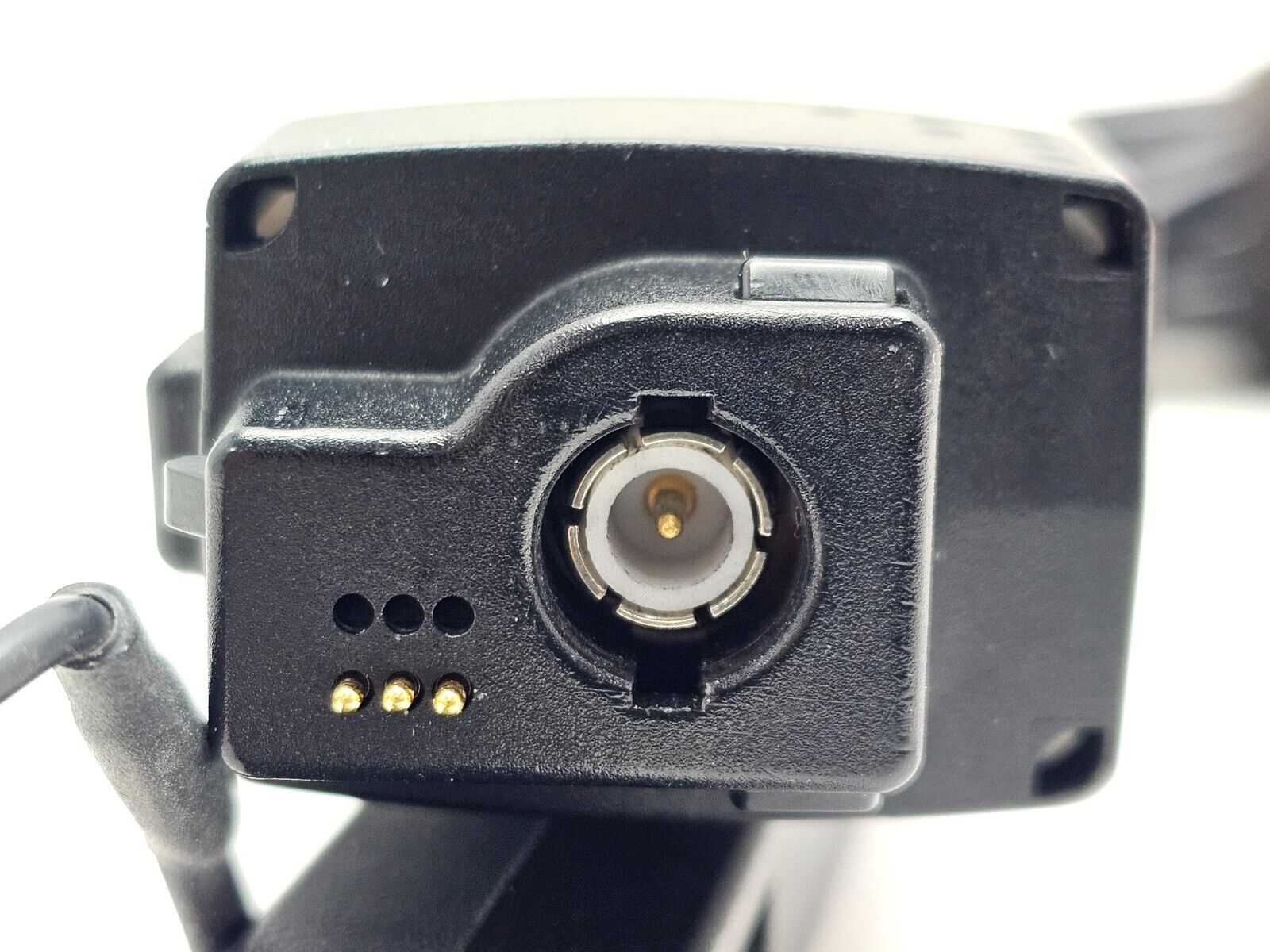

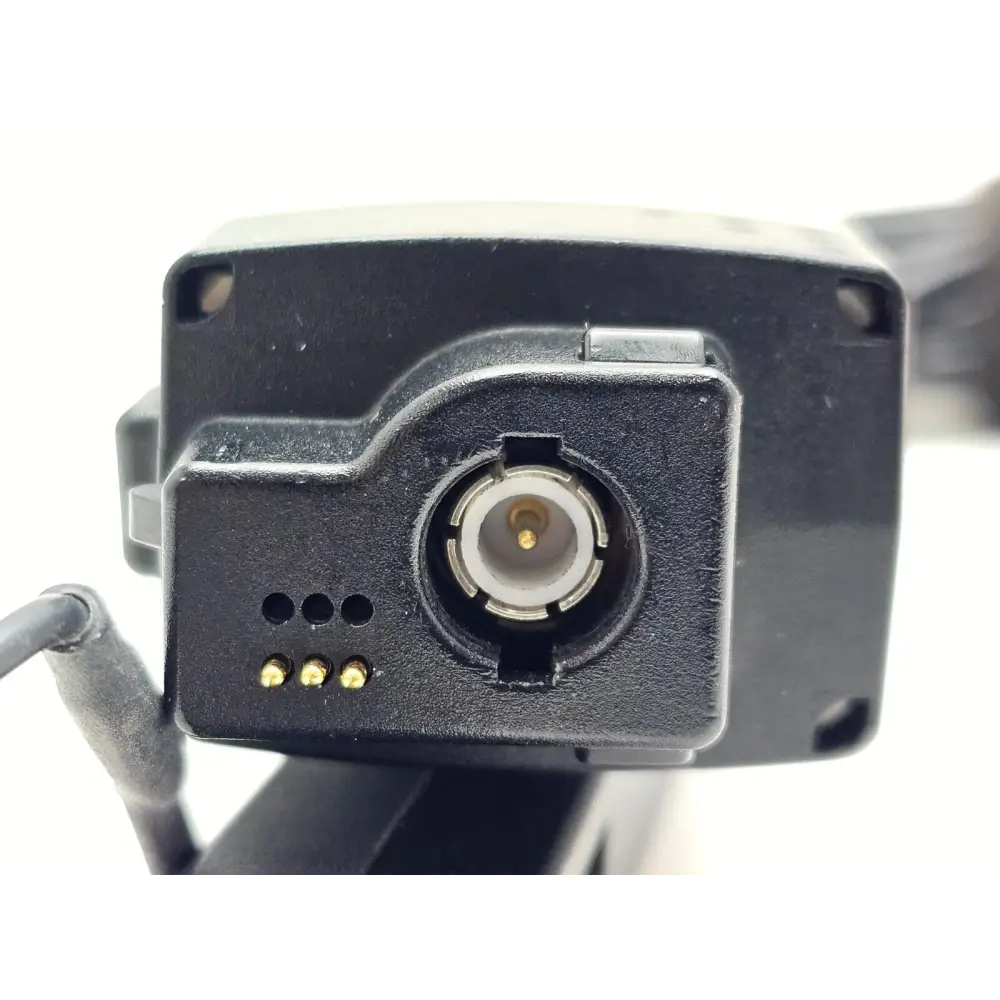

Connector: Proprietary Tektronix probe interface

The TCP0030 is well suited to applications including switching power supply analysis, motor control, and inverter testing where both high frequency and high current measurement are required simultaneously.
