Condition: Used

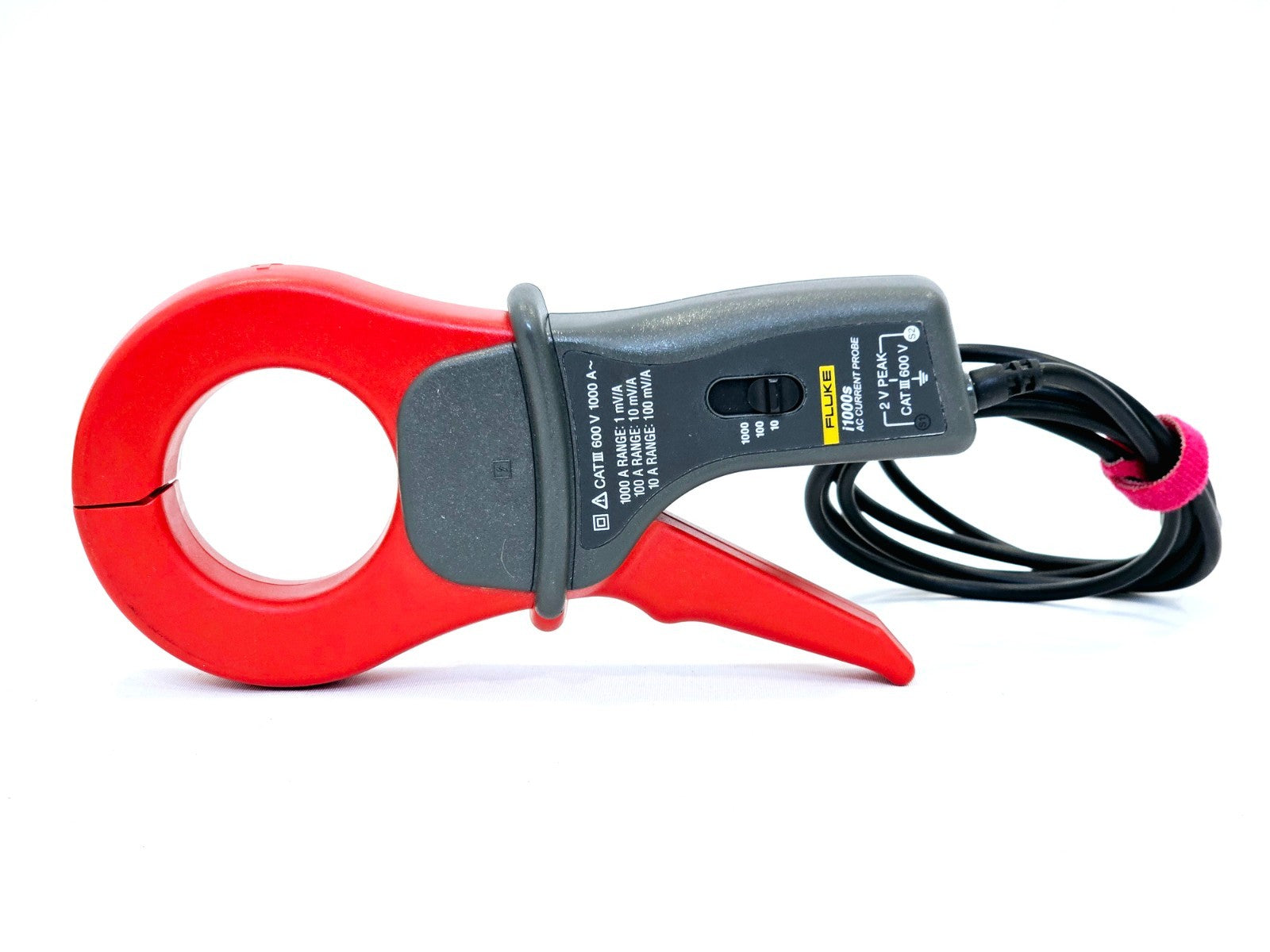

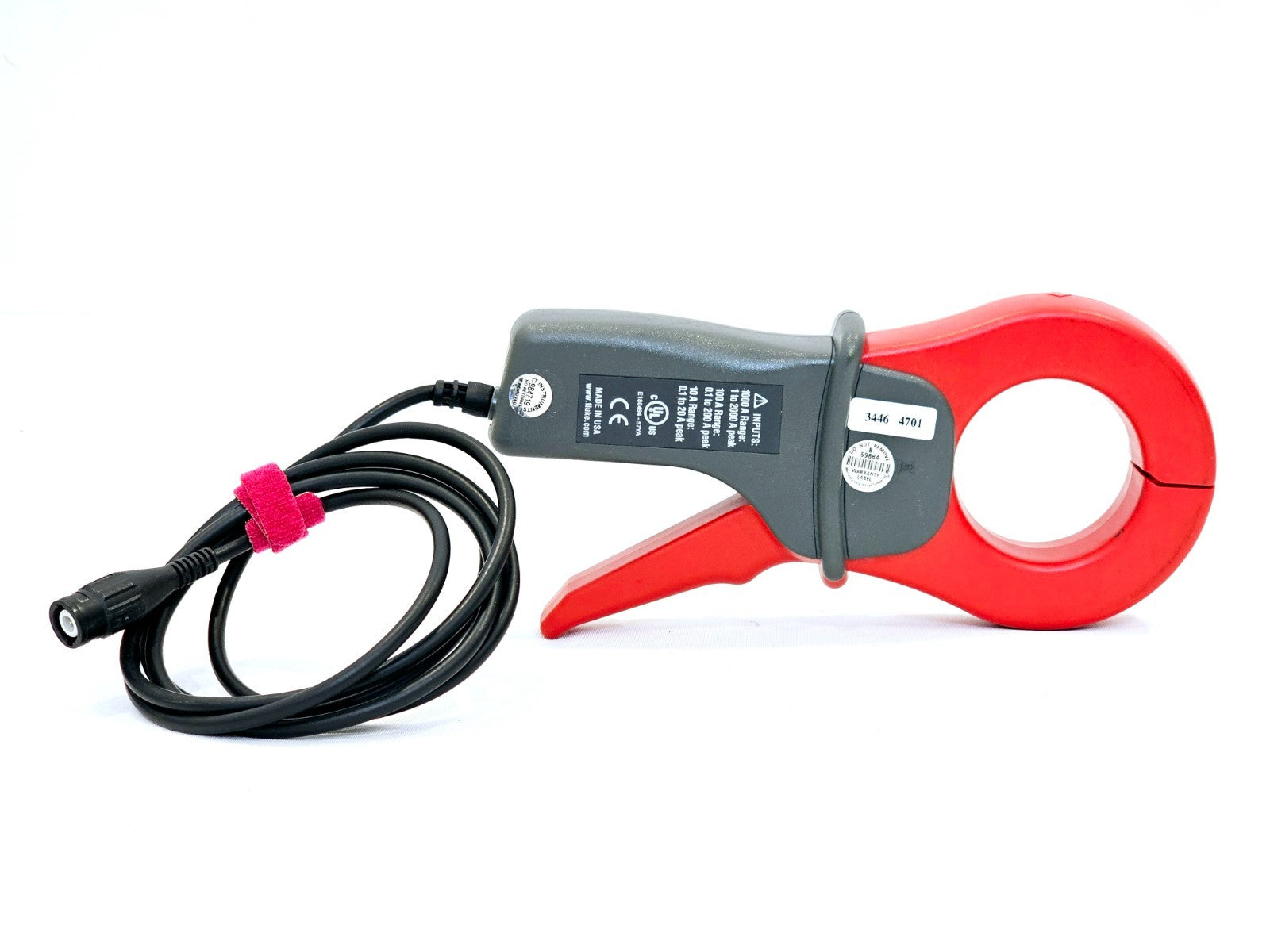

The Fluke i1000s is a clamp-on AC current probe designed for use with oscilloscopes in industrial and power measurement environments. It features three selectable current ranges and a 54 mm jaw opening suitable for large conductors.

Included in the sale:

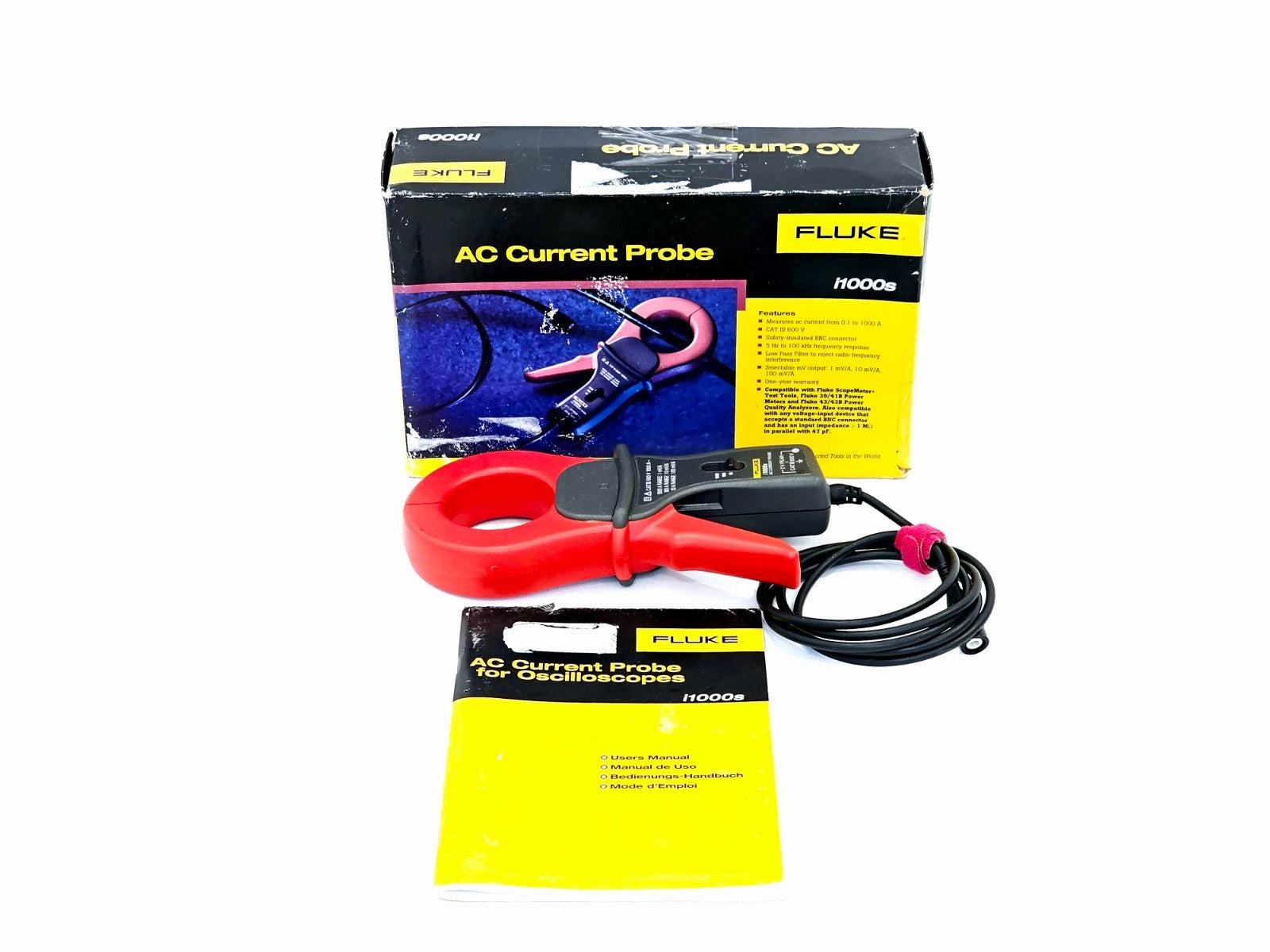

• Fluke i1000s AC Current Probe

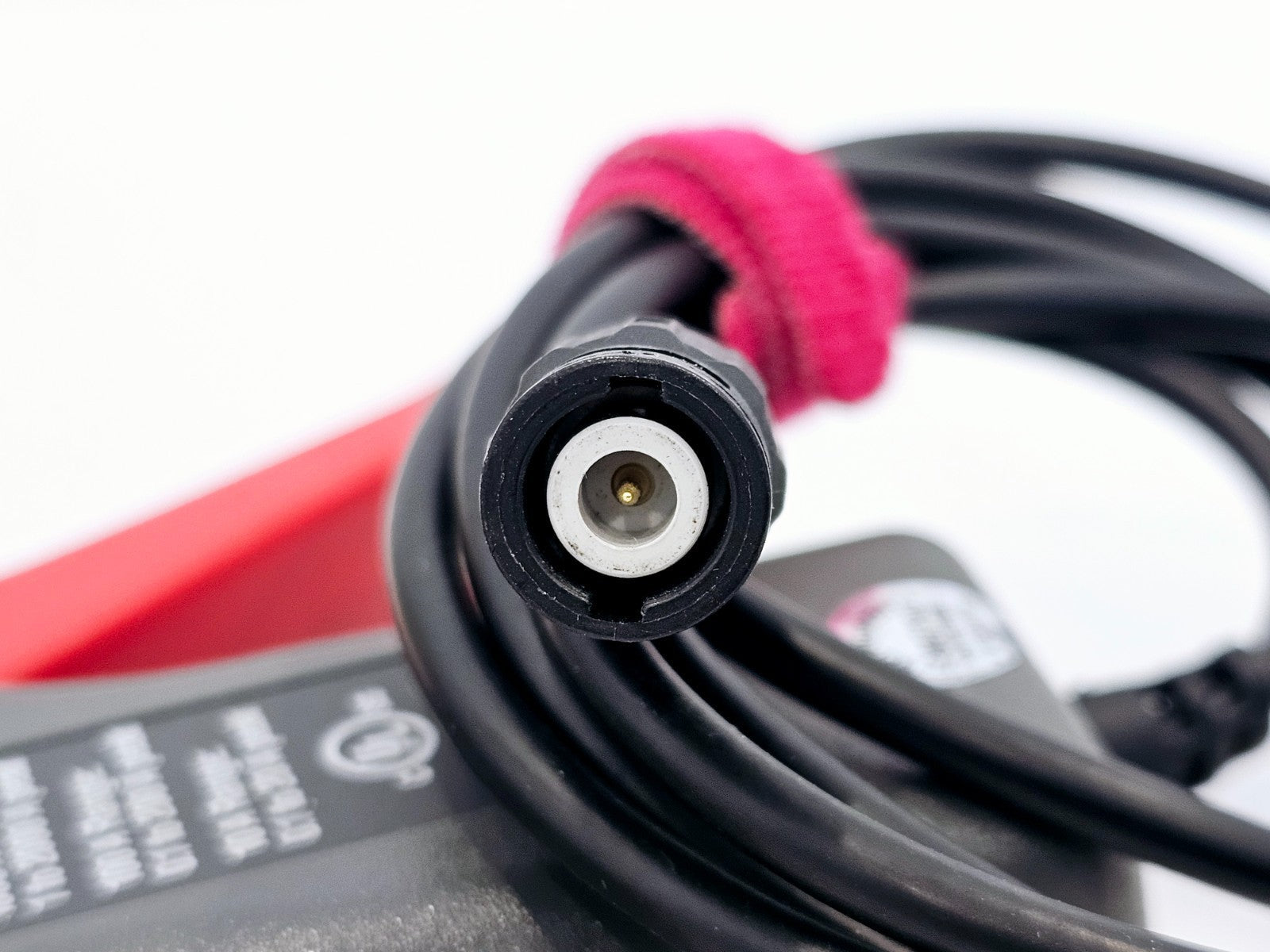

The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments. It is ideal for measuring distorted current waveforms, harmonics, and power quality signals without breaking the circuit under test. The probe connects directly to an oscilloscope via BNC and provides three selectable output levels corresponding to three nominal current ranges.

Nominal Current Ranges: 10 A, 100 A, 1000 A
Continuous Current Range: 0.1 A – 10 A / 0.1 A – 100 A / 1 A – 1000 A
Maximum Non-Destructive Current: 2000 A
Lowest Measurable Current: 0.1 A
Basic Accuracy: 1% + 1 A (48–65 Hz, % reading + floor spec)
Usable Frequency Range: 5 Hz – 100 kHz
Output Levels: 100 mV/A / 10 mV/A / 1 mV/A
Safety Rating: CAT III 600 V, CAT IV 300 V
Maximum Voltage: 600 V AC
Maximum Conductor Diameter: 54 mm
Output Cable Length: 1.6 m
BNC Adapter: Included
Warranty: 1 year

Fluke i1000s AC Current Probe Datasheet (PDF): Download PDF
