Condition: Used

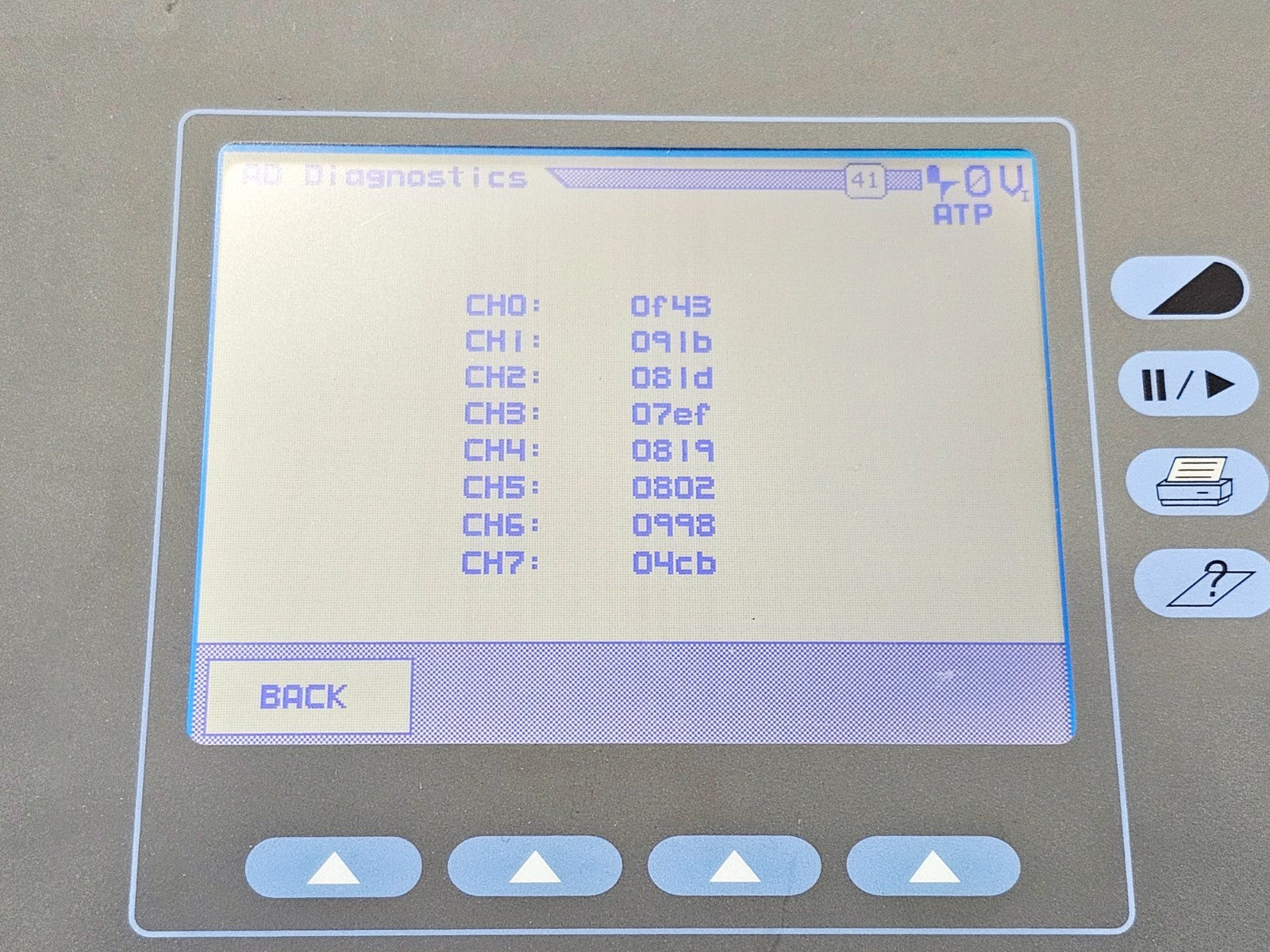

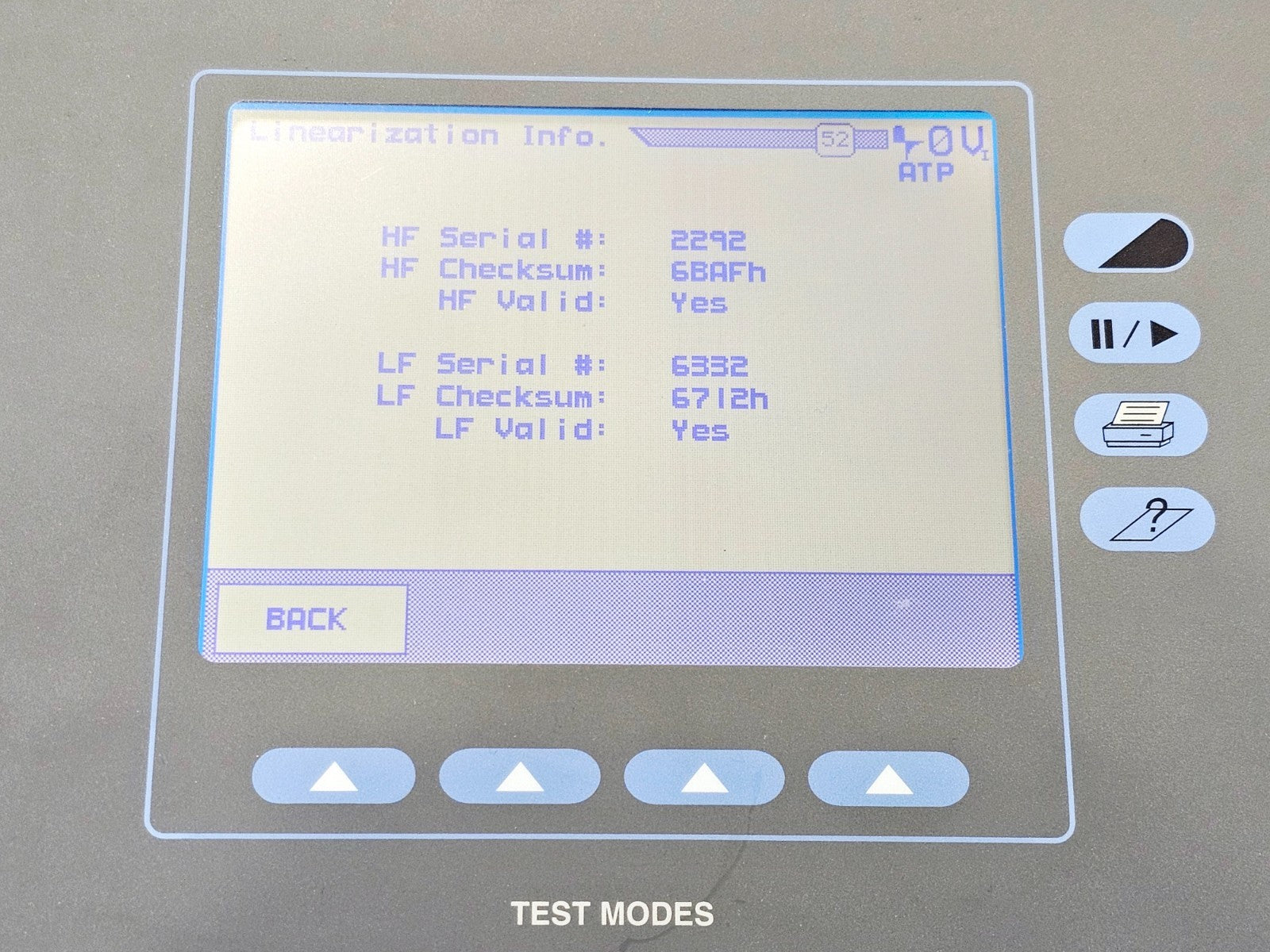

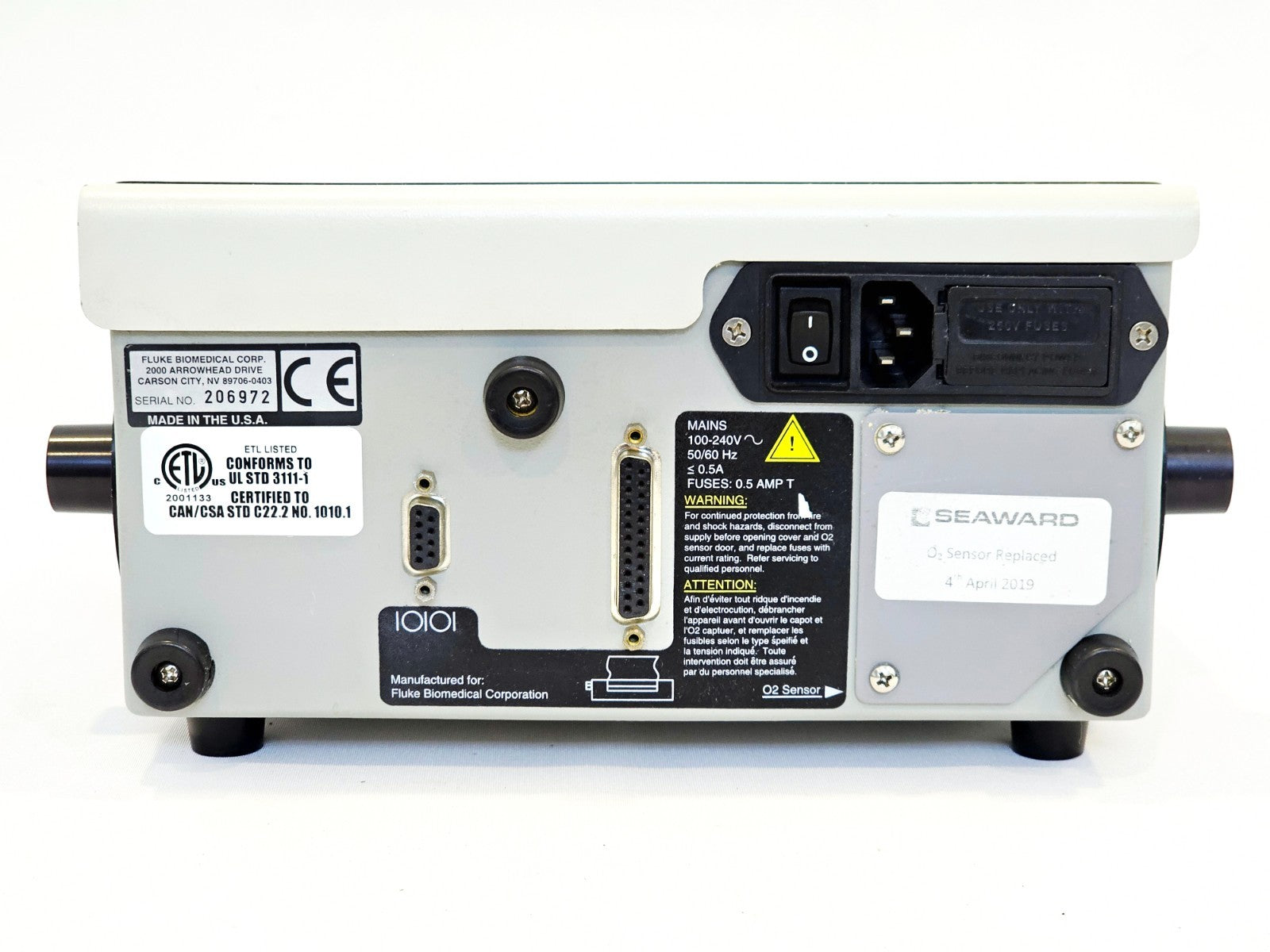

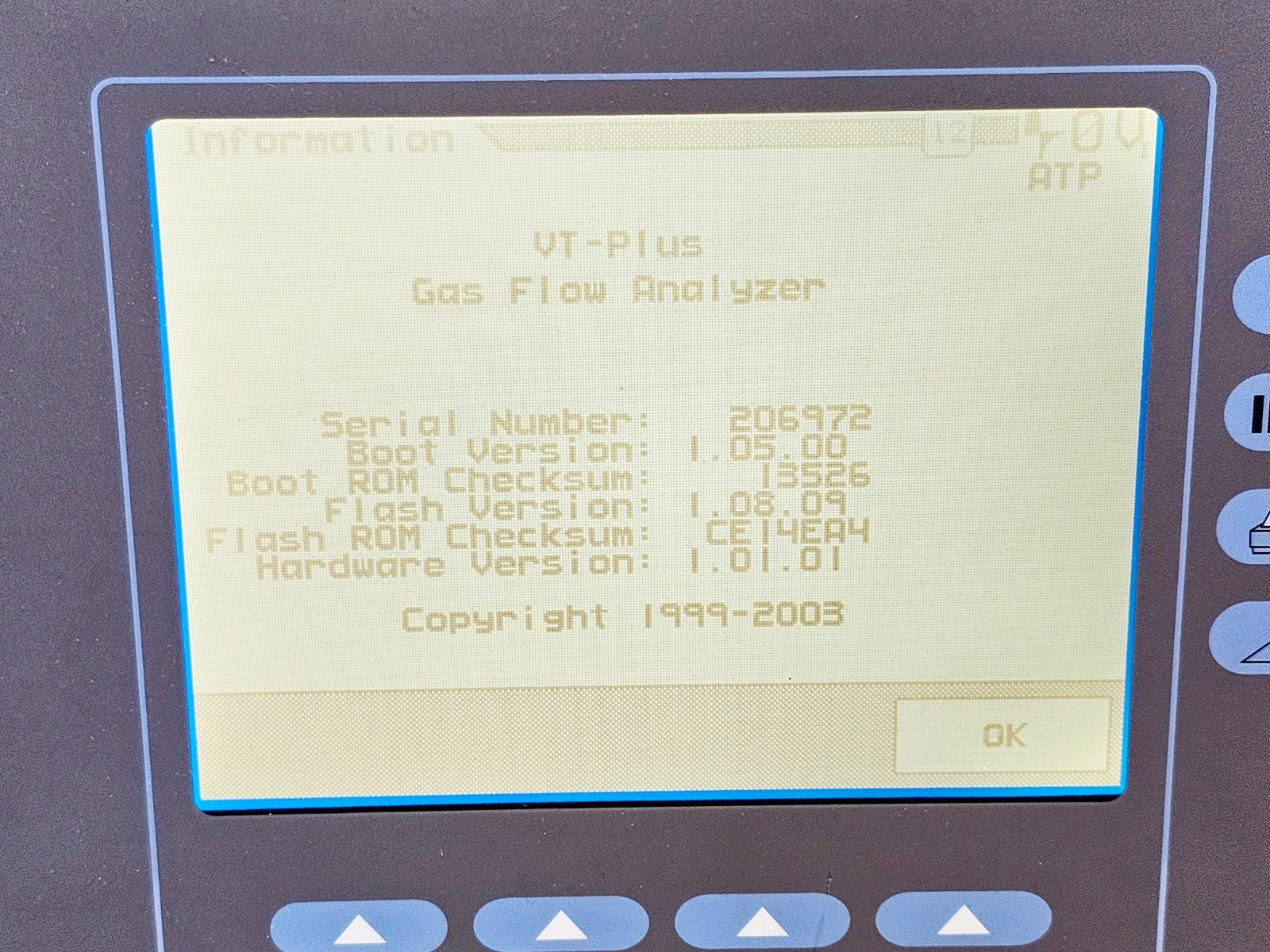

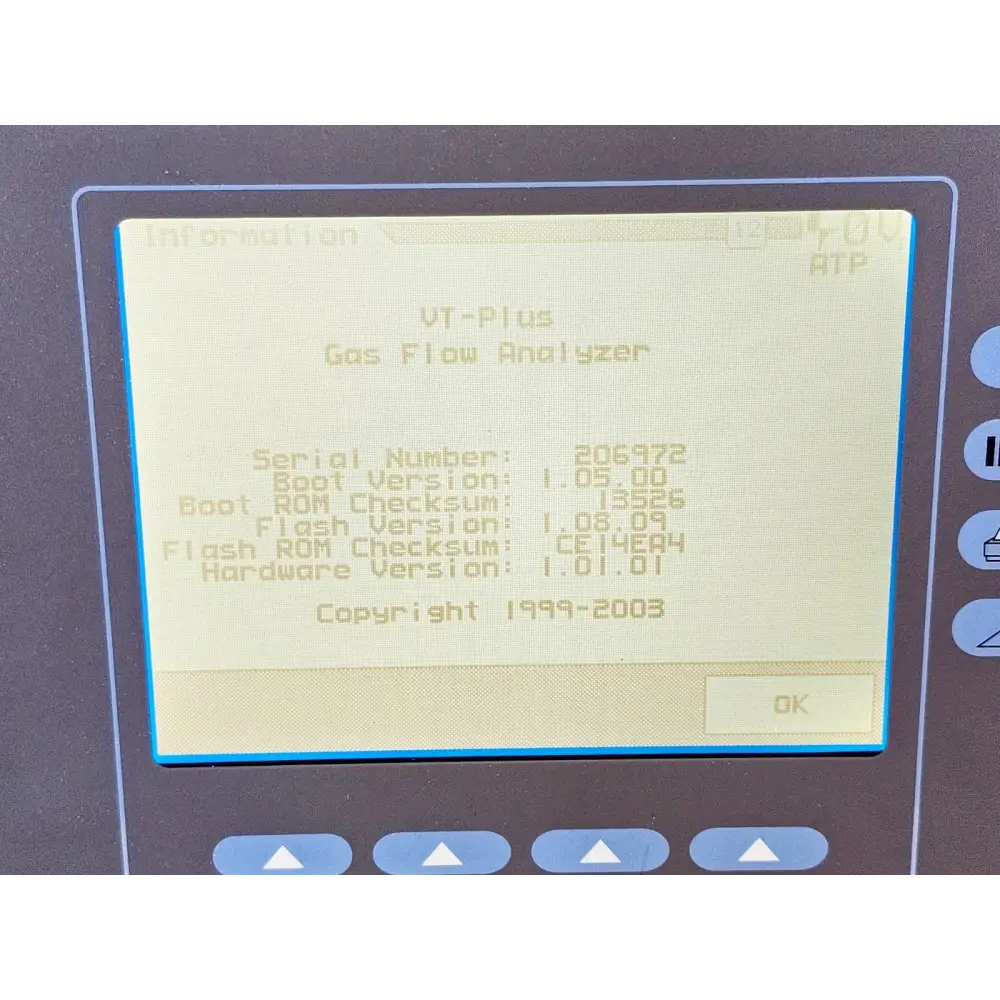

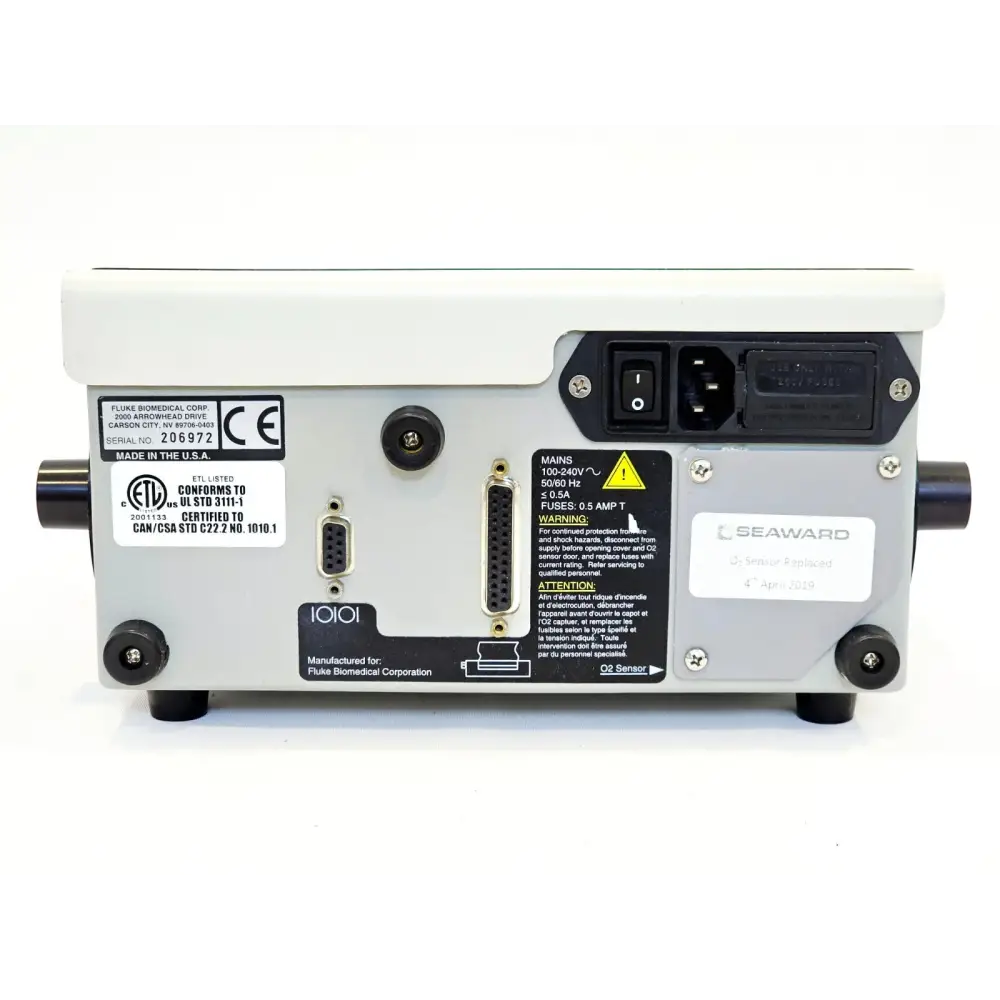

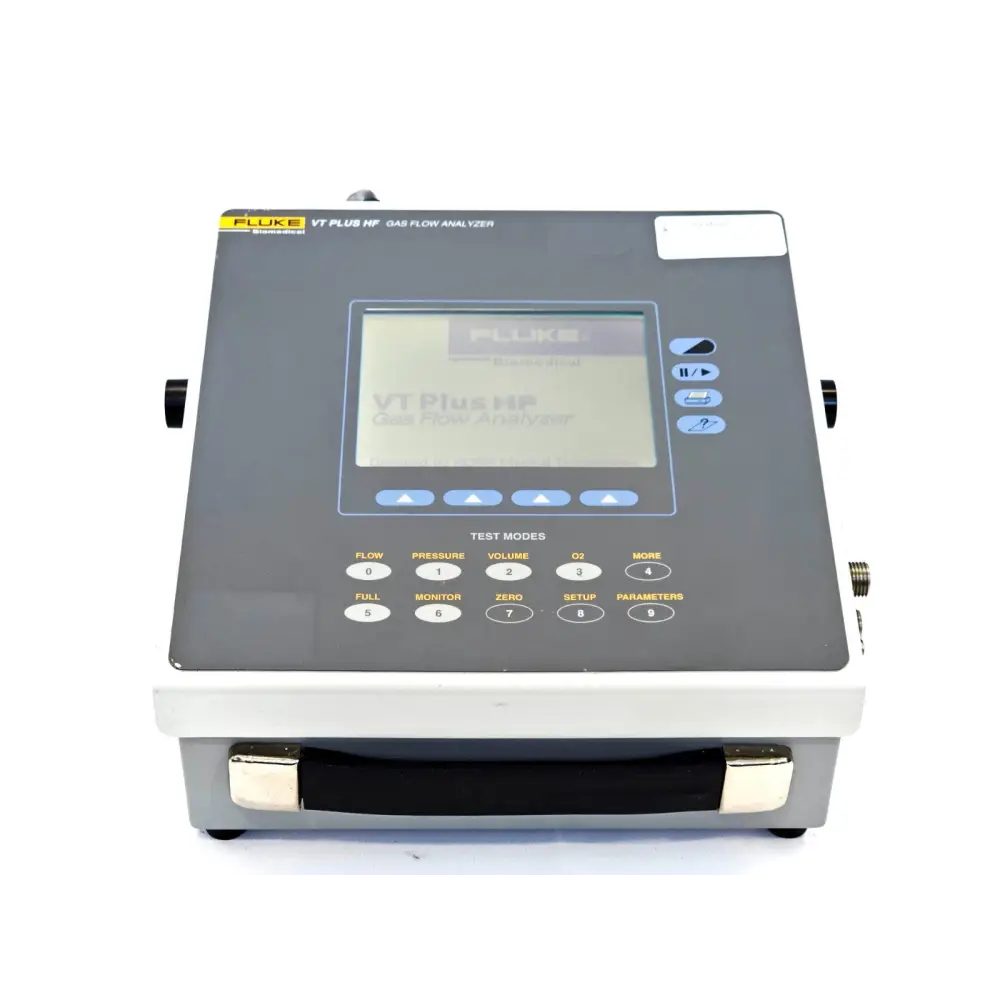

Fluke Biomedical VT Plus HF Gas Flow Analyzer, serial number 206972. Powers on and displays the VT Plus HF startup menu. A Seaward service label on the rear panel notes that the O2 sensor was replaced on 4th April 2019. No further functional testing has been carried out.

Included in the sale:
• Fluke Biomedical VT Plus HF Gas Flow Analyzer (main unit only)

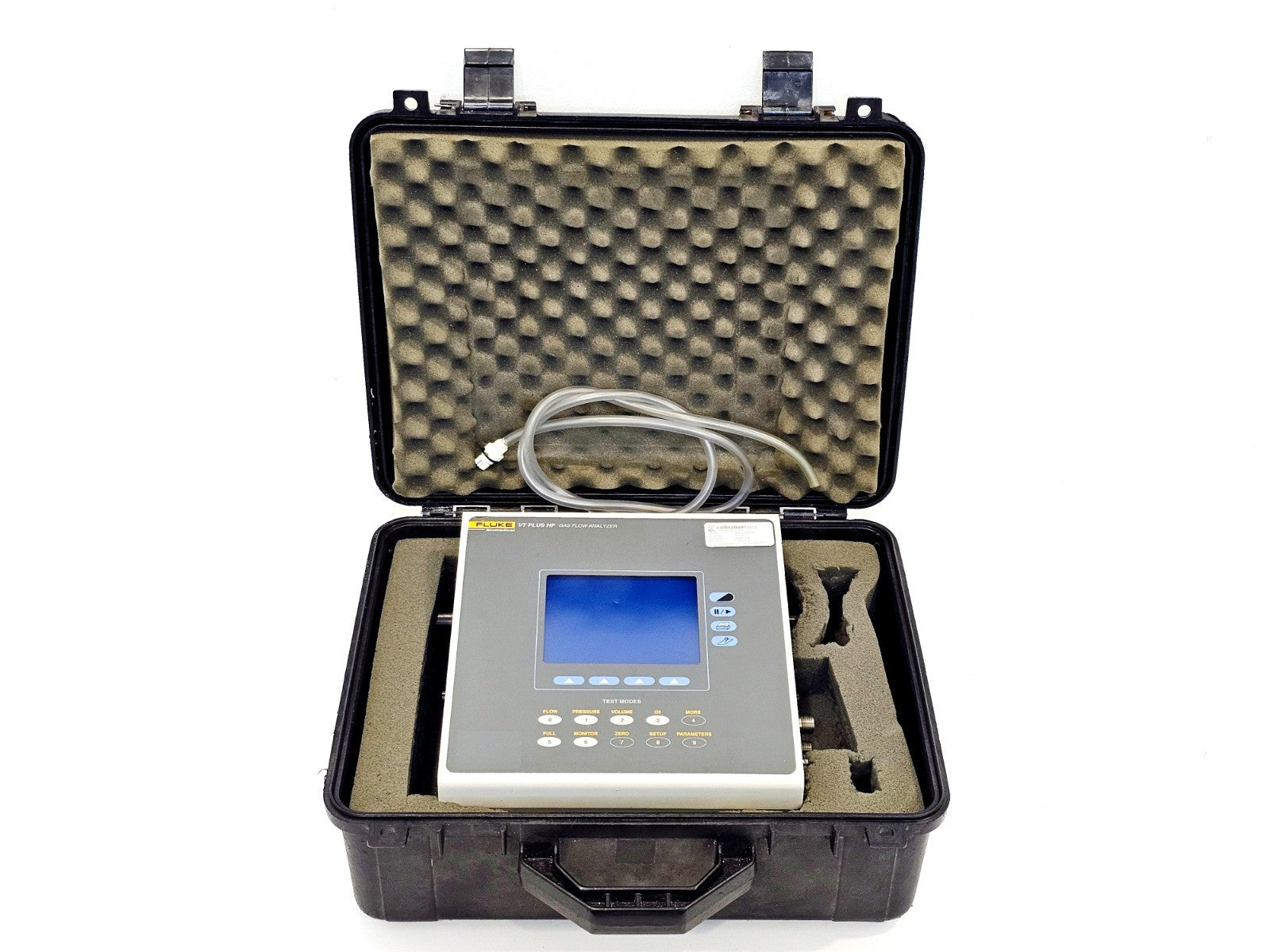

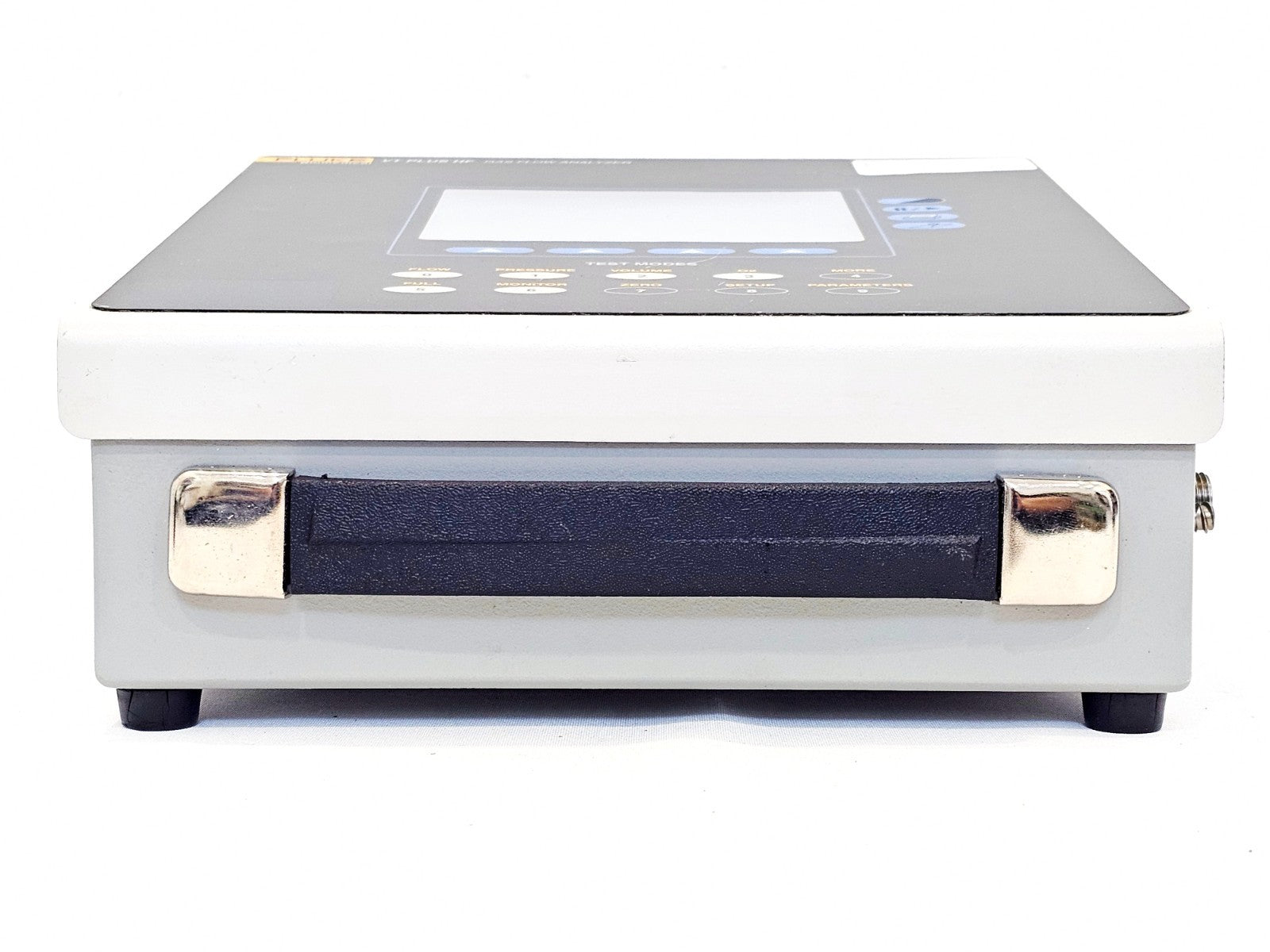

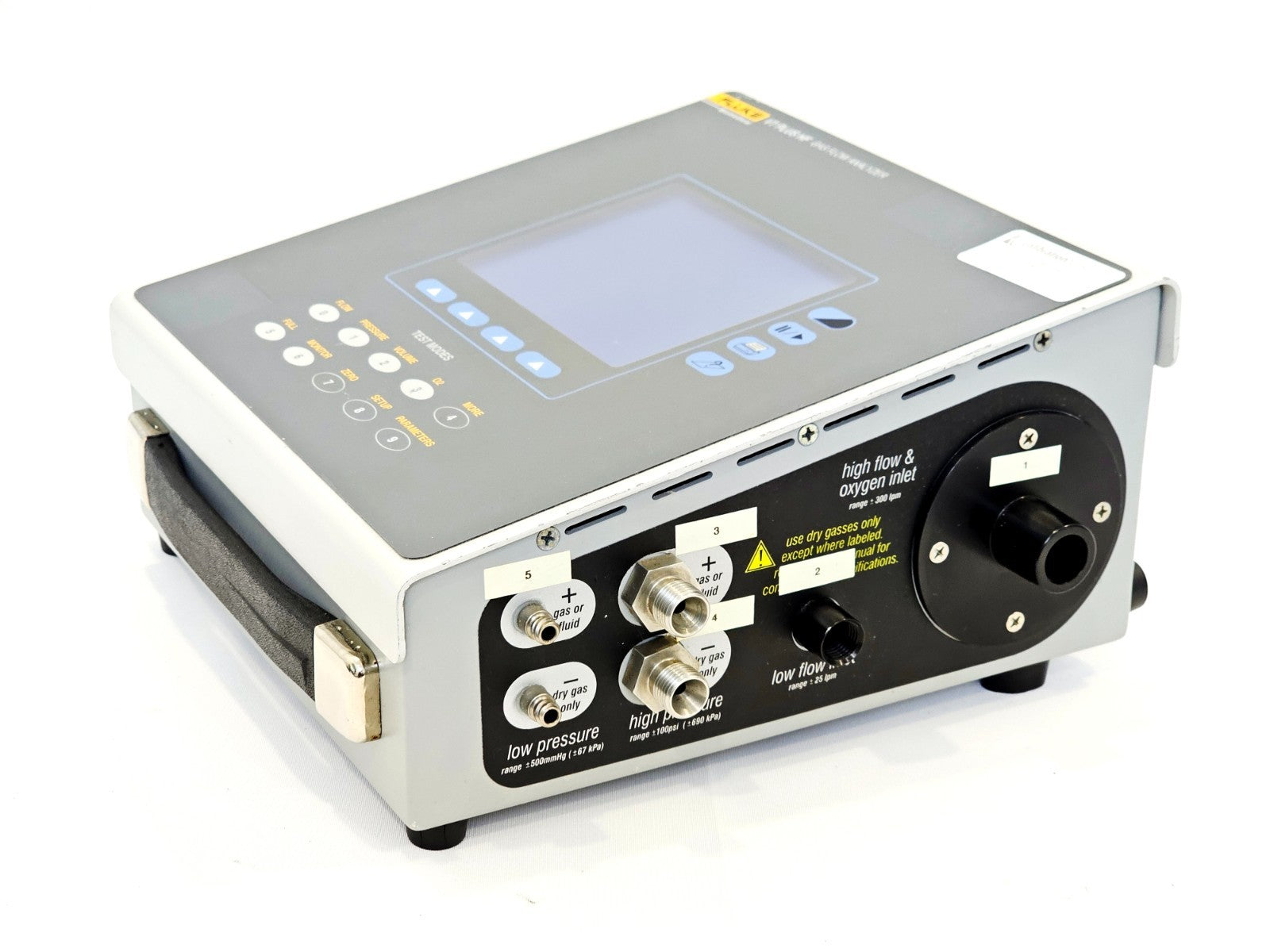

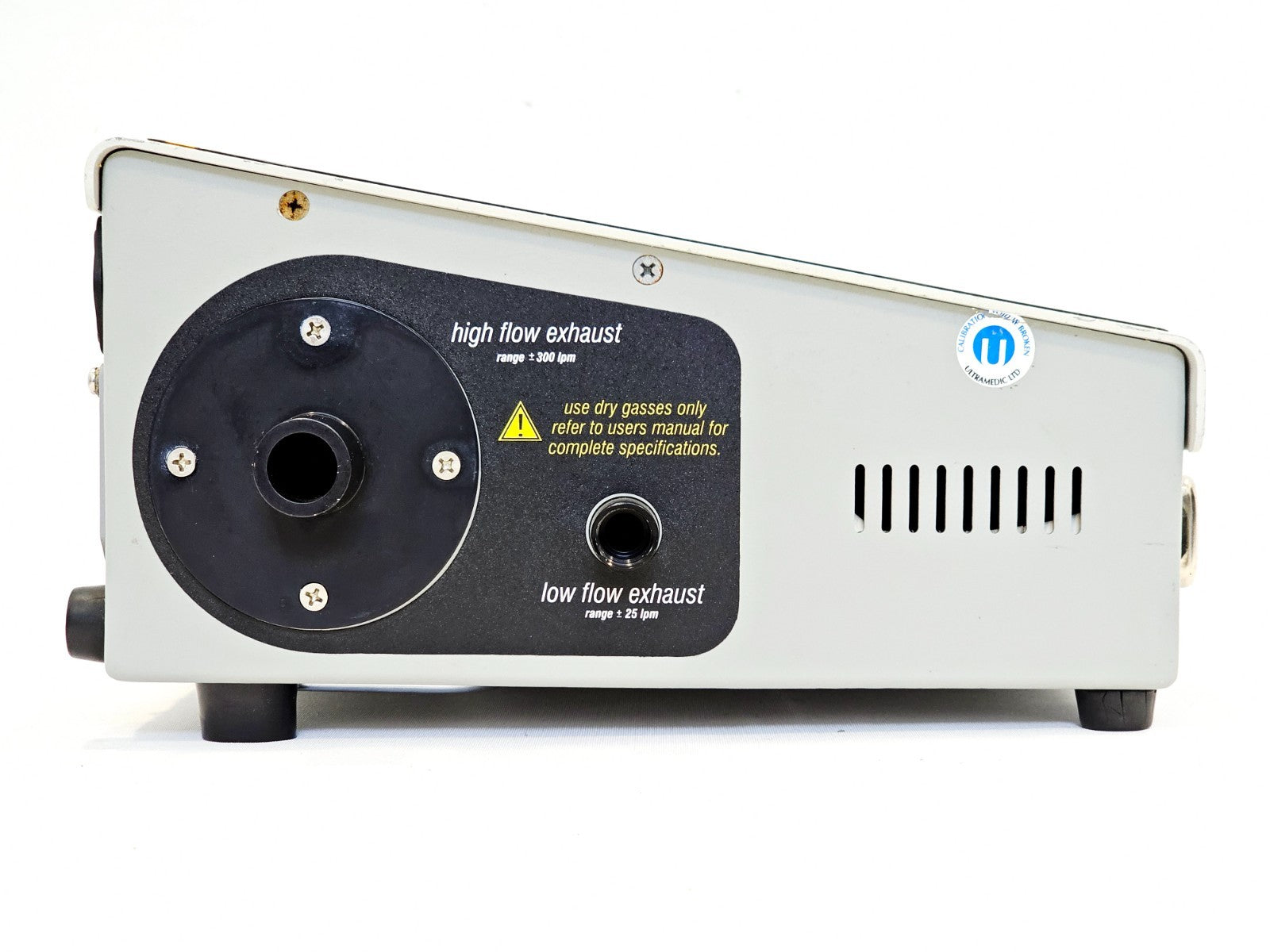

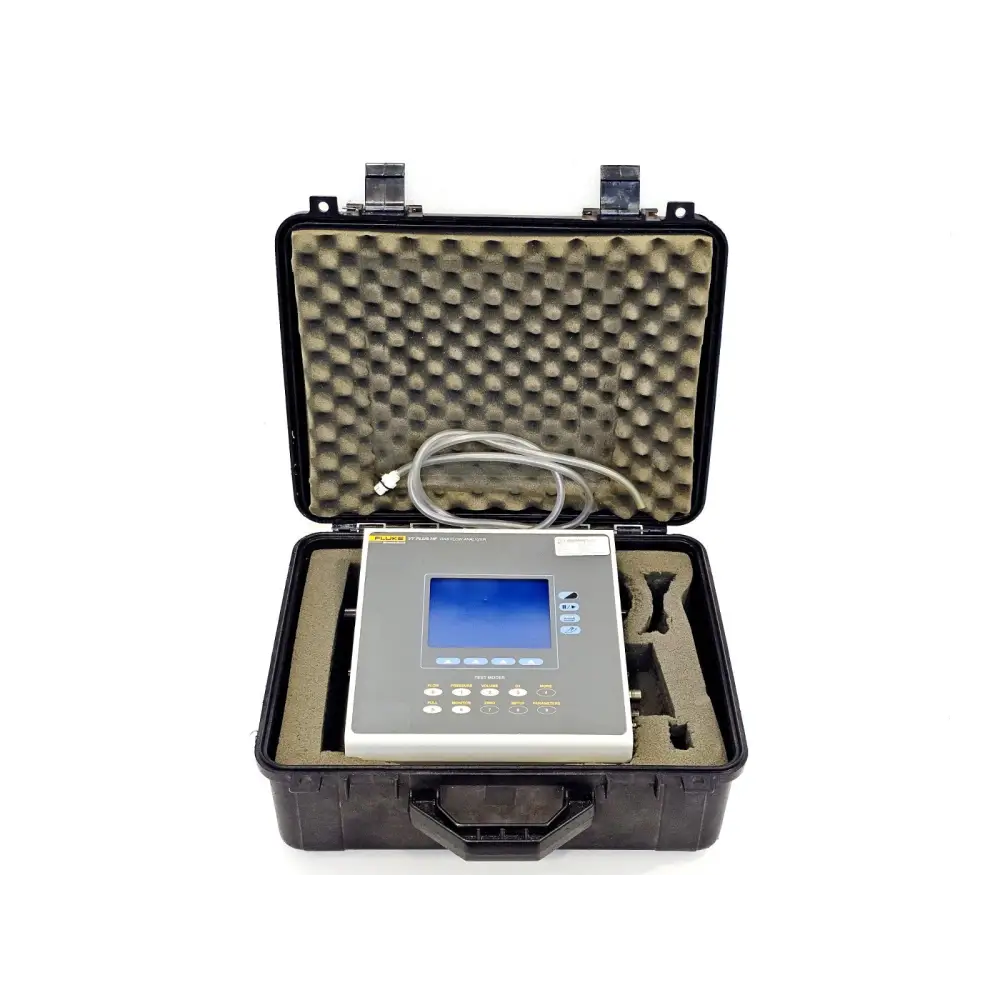

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

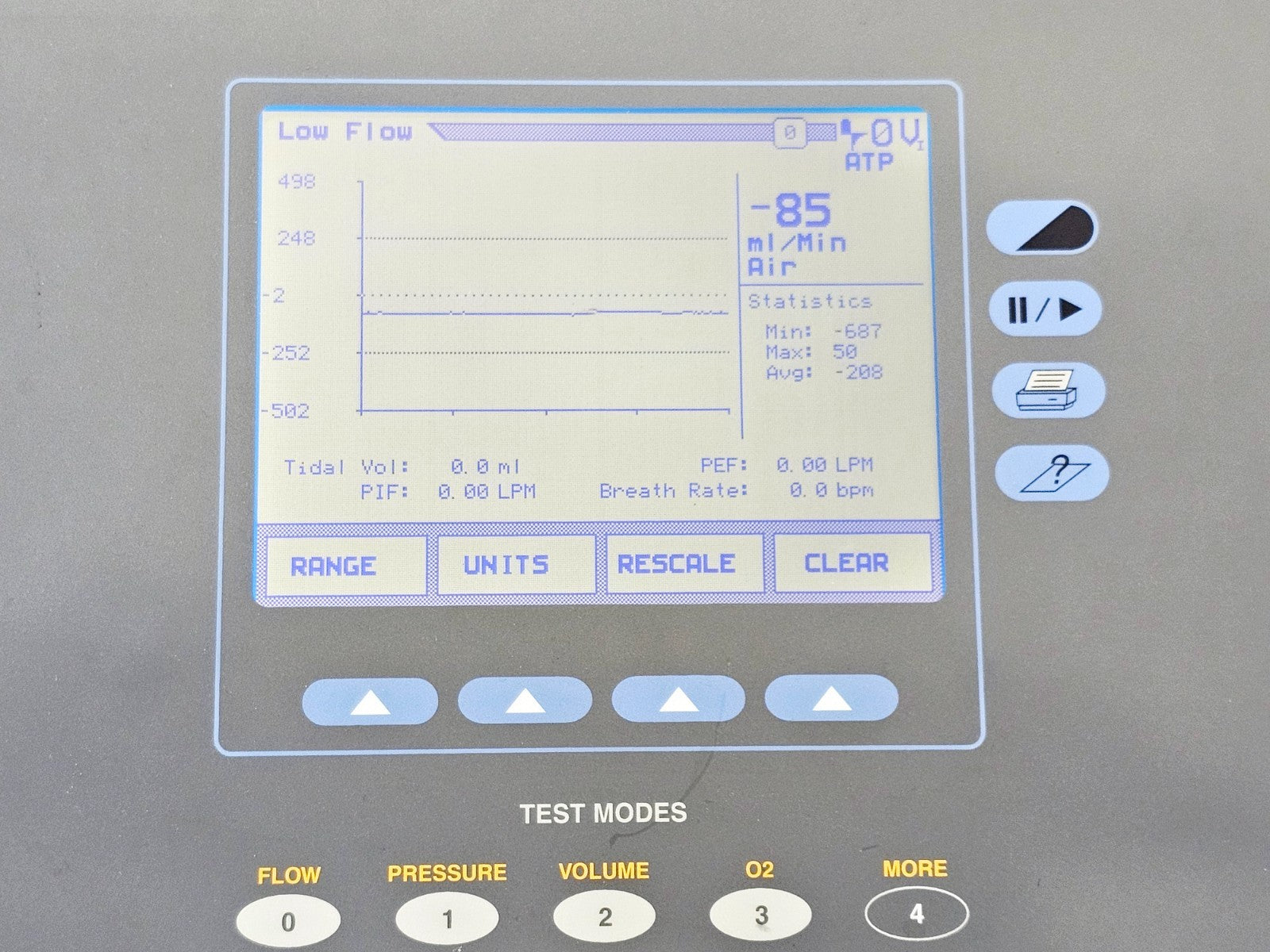

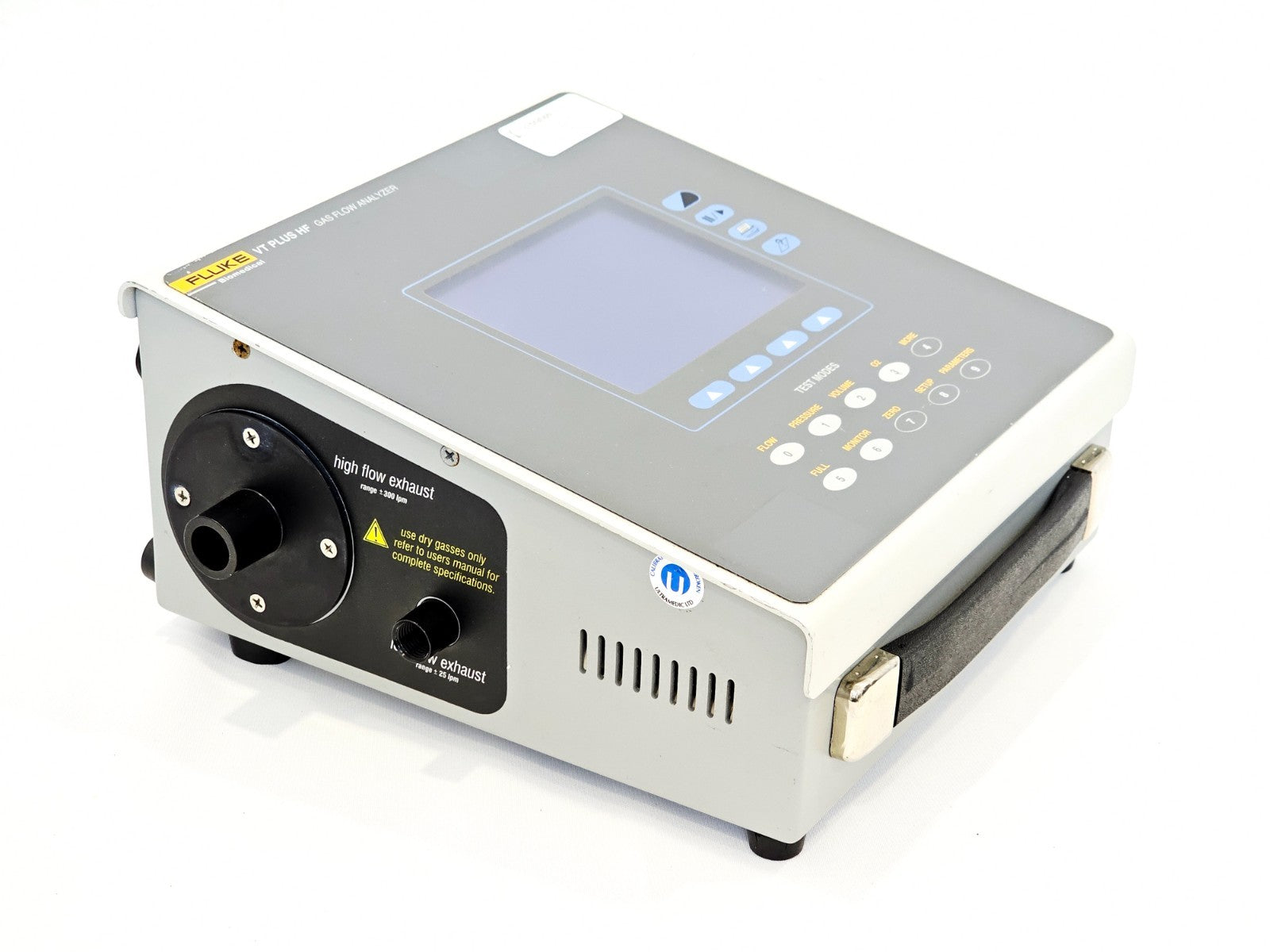

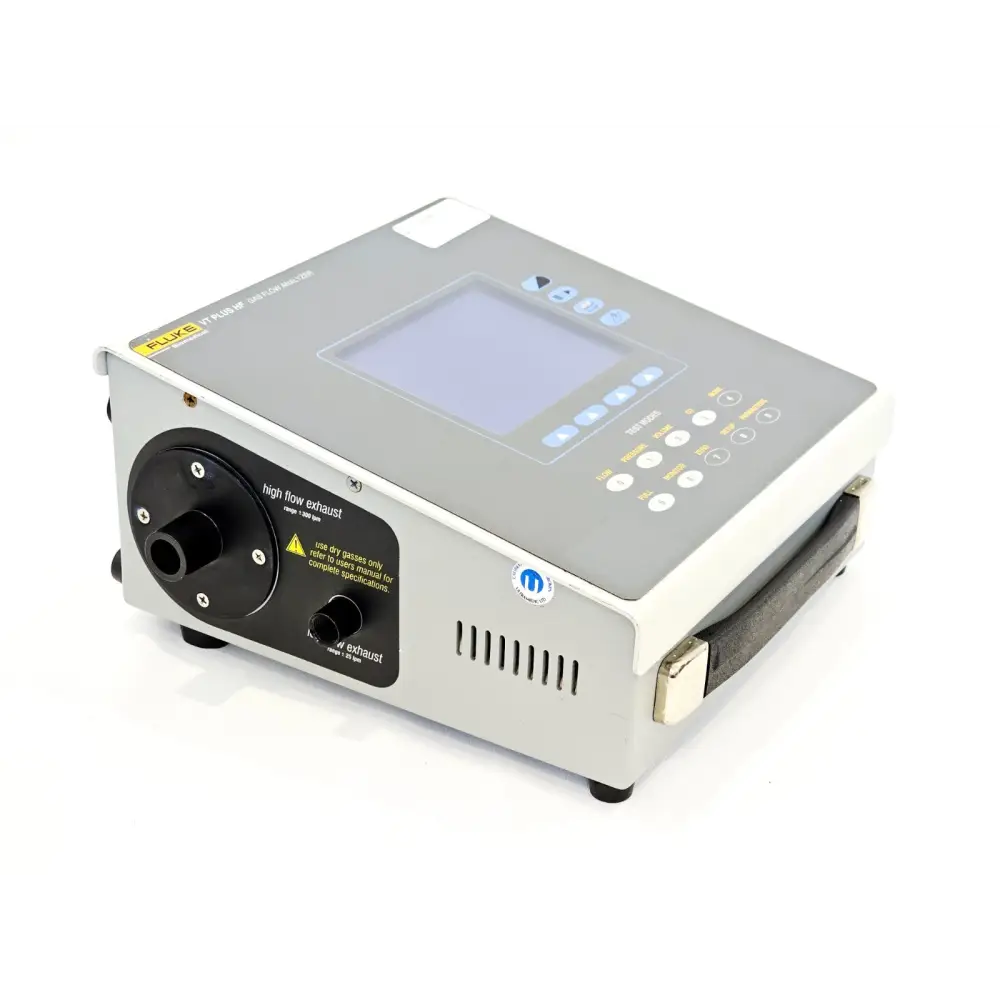

The Fluke Biomedical VT Plus HF is a general-purpose gas flow analyzer designed for testing both conventional mechanical ventilators and high-frequency ventilators. It measures bi-directional flow and supports simultaneous display of all 21 ventilator parameters on a single screen. Special display modes and bi-directional flow capability make it ideal for testing high-frequency ventilators at rates up to 900 BPM (15 Hz). The unit replaces the need for separate pressure gauges and flow meters by combining high- and low-flow and pressure measurement in one instrument. Results can be printed directly from the unit via a parallel printer port or captured to a PC using the included Windows-compatible graphics software. Onboard graphing displays minimum, maximum, average, and absolute measurements for all parameters. The unit supports RT-200 emulation mode for compatibility with legacy ventilator testing workflows, and can be operated with a variety of NIST-traceable precision simulation test lungs.

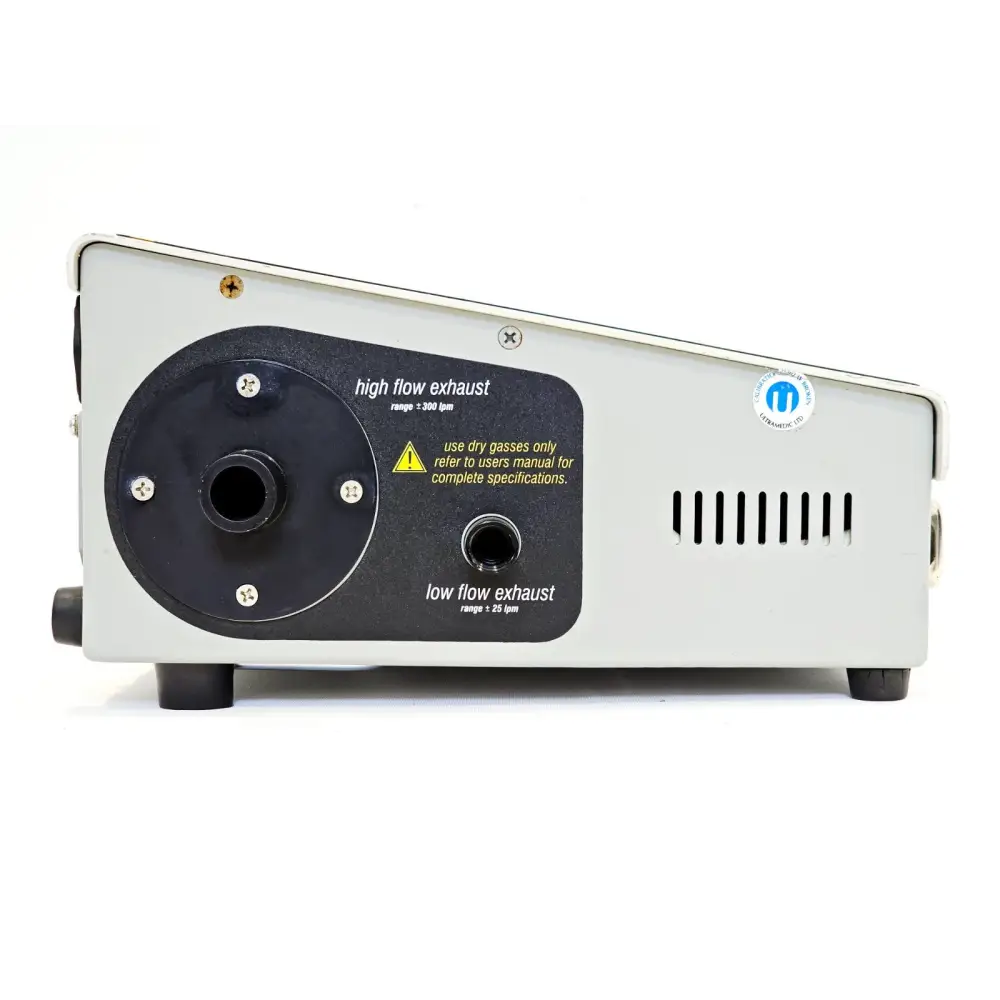

Volumetric Flow (High-Flow):
Range: ±300 lpm (bidirectional)
Accuracy: ±2% of reading or ±0.5 lpm, whichever is greater
Frequency Response: >25 Hz
High-Flow Dropout: 25 lpm
Breath-Detect Threshold: 2 lpm
Maximum Flow Rate: 500 lpm
Sample Rate: 100 Hz
Resolution: 0.01 lpm
Fittings: 22 mm OD / 15 mm ID conical per ASTM F-1054

Tidal Volume:
Range: >±60 L
Accuracy: ±3% of reading or ±10 ml, whichever is greater (tested to 7 litres)
Dynamic Resistance: <2 cmH2O @ 60 lpm

Low Pressure:
Range: ±500 mmHg (±10 psi)
Accuracy: ±0.8% of reading or ±1.5 mmHg, whichever is greater
Frequency Response: >10 Hz
Resolution: 0.1 mmHg
Fittings: Luer lock, stainless steel

High Pressure:
Range: 0–1100 psi (0–7600 kPa)

Oxygen Measurement:

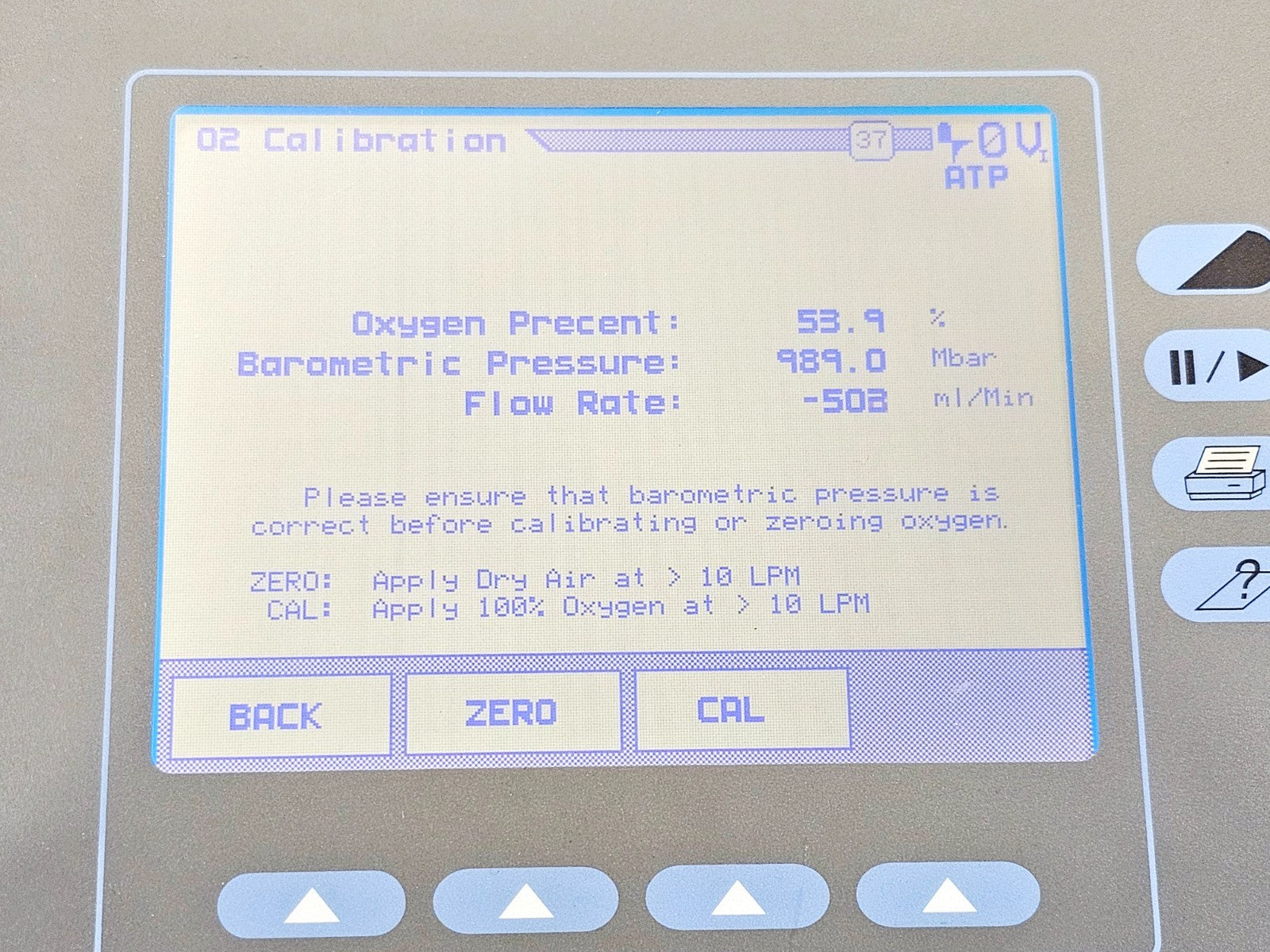

Method: Galvanic oxygen cell on the high-flow port
Range: 0–100% O2

High-Frequency Mode:
Rate: Up to 900 BPM (15 Hz)

Communications:
RS-232 serial port
Parallel printer port

Power Supply:
Mains: 100–240 V AC, 50/60 Hz
Fuse: 0.5 A T

Compliance:
ETL Listed — conforms to UL STD 3111-1
Certified to CAN/CSA STD C22.2 No. 1010.1
CE marked

Manufactured by: Fluke Biomedical Corporation, USA

VT Plus HF Gas Flow Analyzer product datasheet — technical specifications and key features: Download PDF

VT Plus HF Operators Manual (Rev. 1, May 2008) — full user and setup guide: Download PDF

VT Plus HF Operators Manual (Rev. 2) — updated operators manual from Fluke Biomedical: Download PDF

VT Plus HF Gas Flow Analyzer technical data sheet (English) — from Blue Panther distributor: Download PDF
