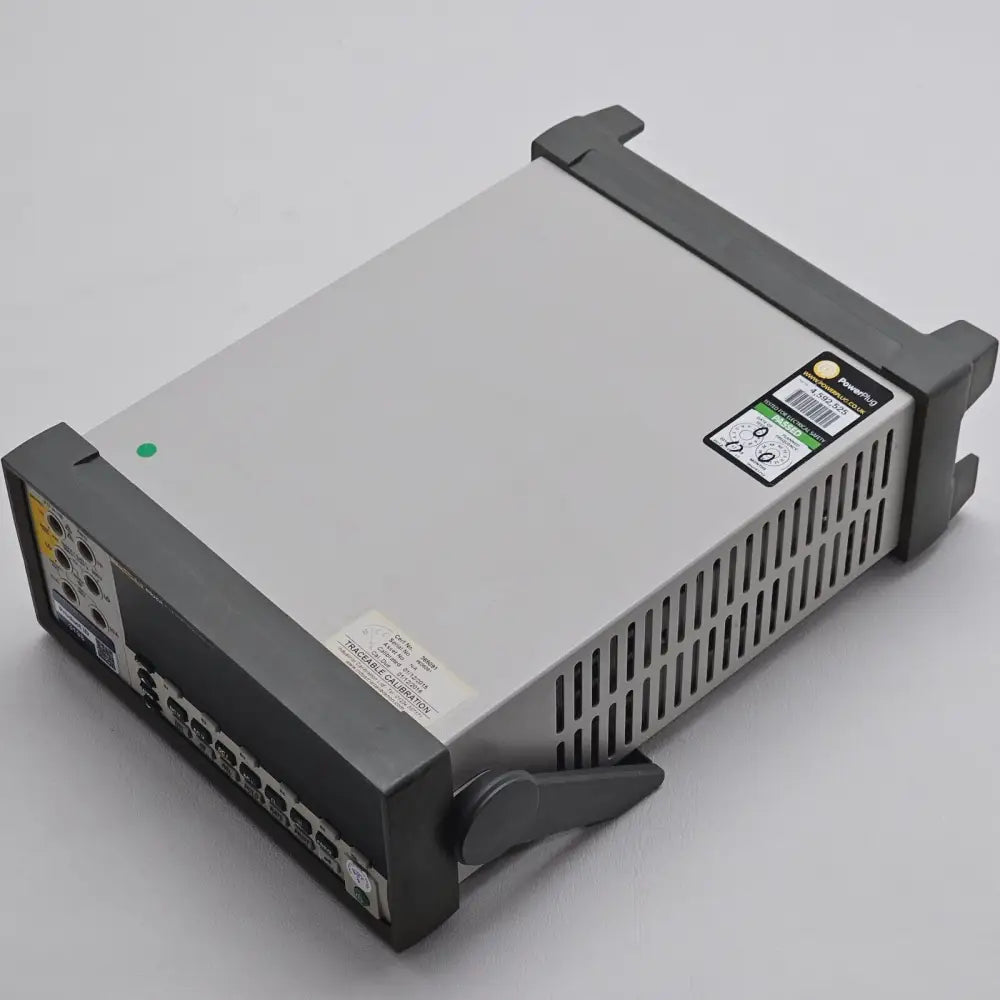

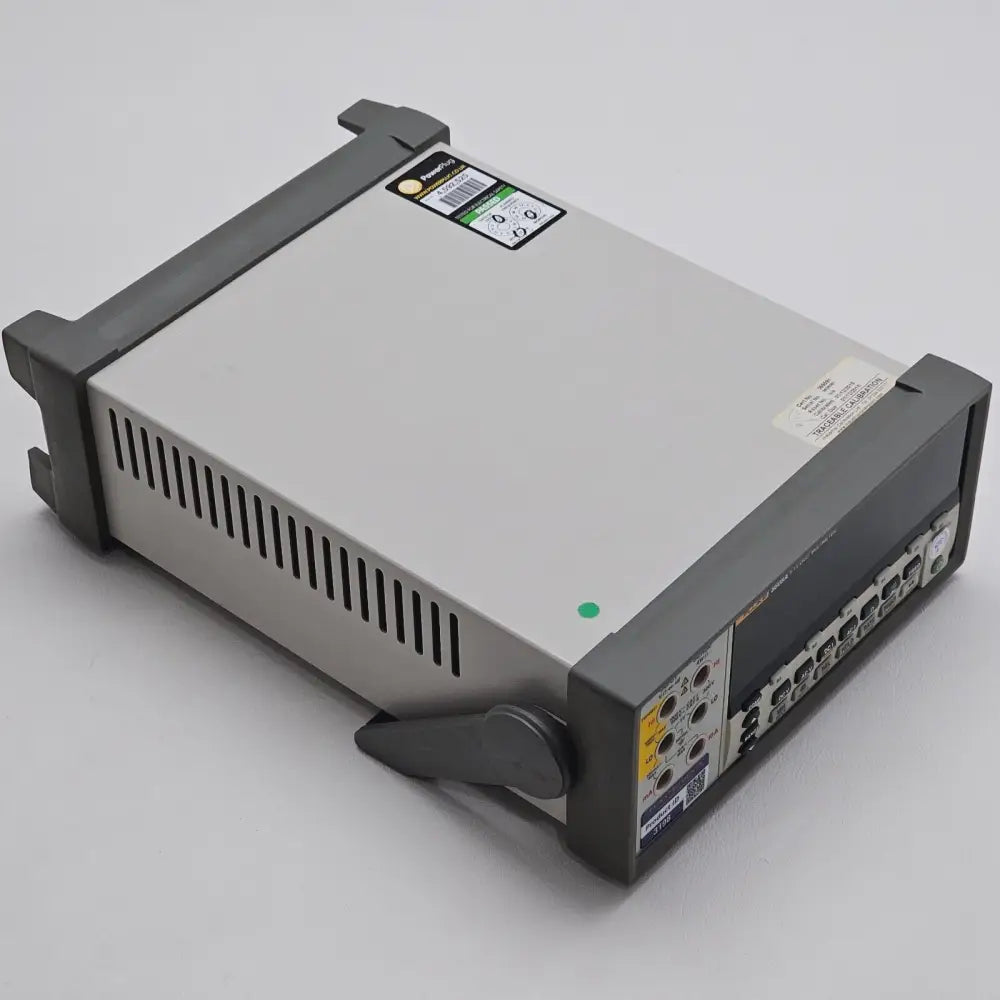

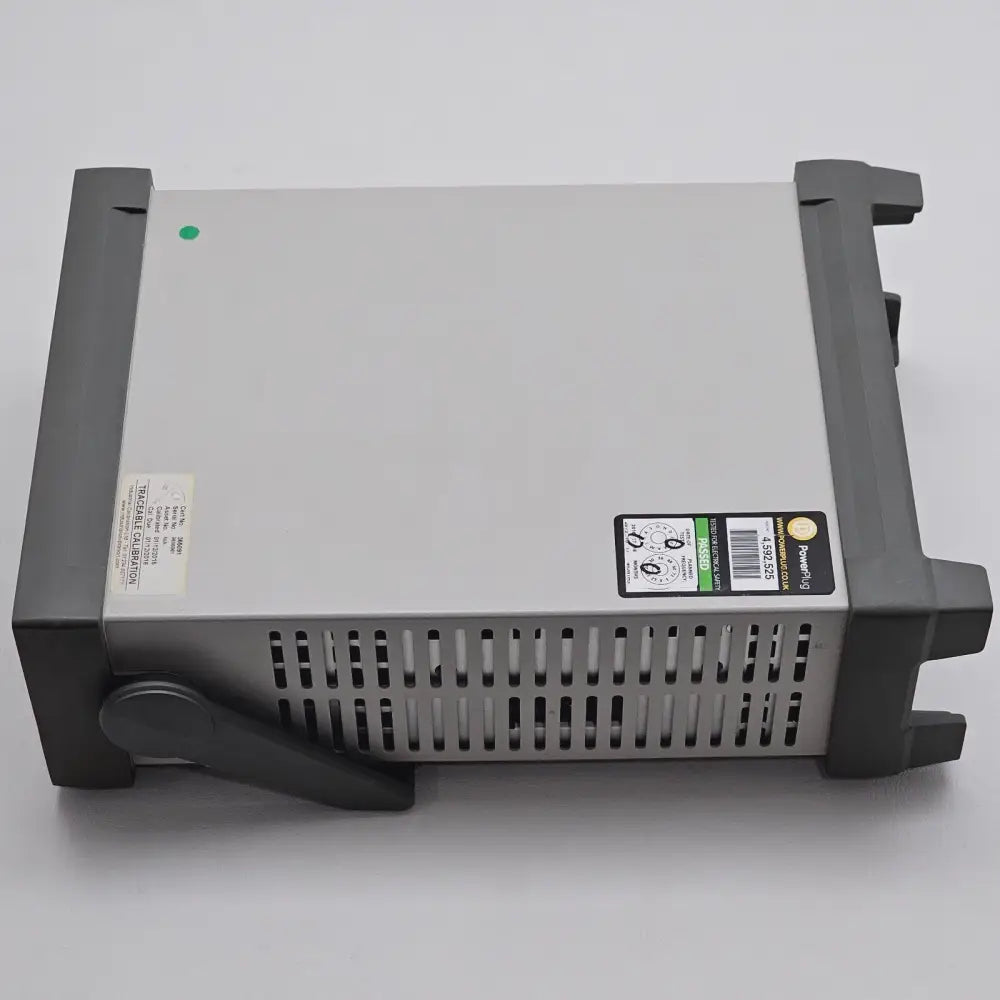

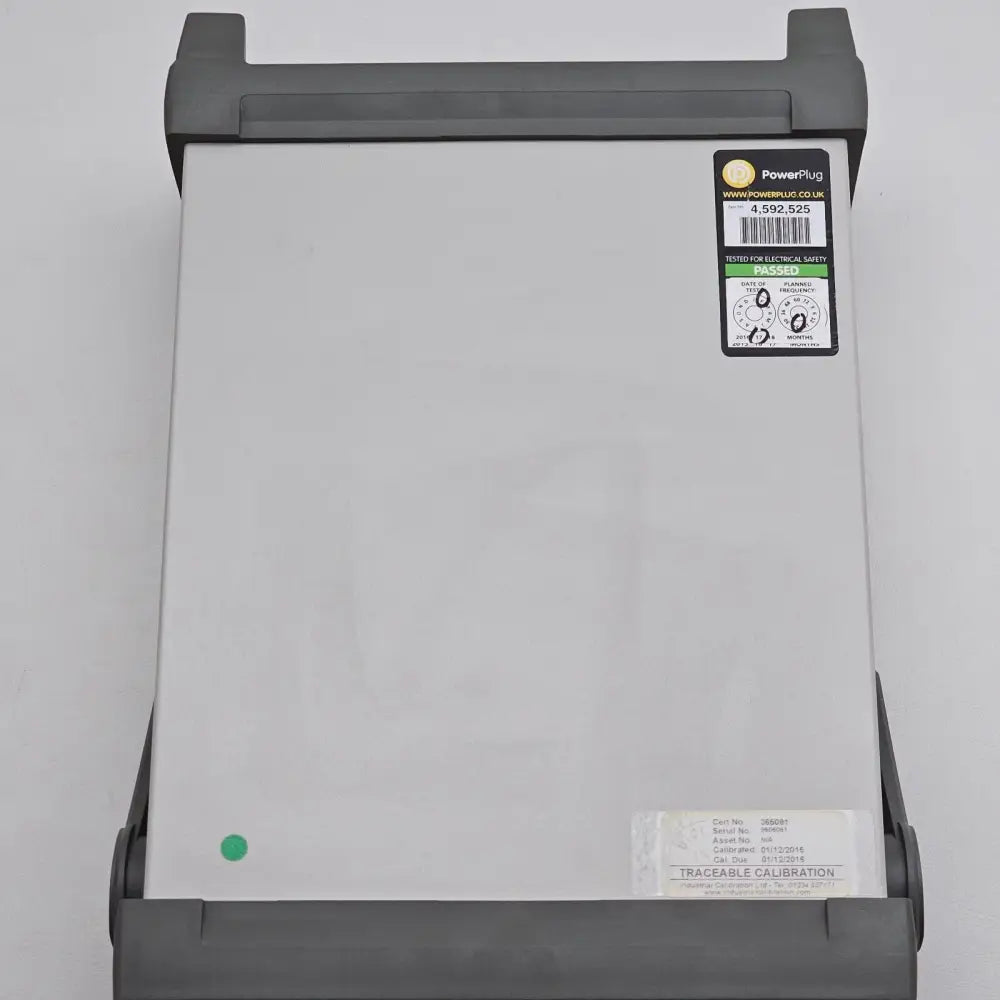

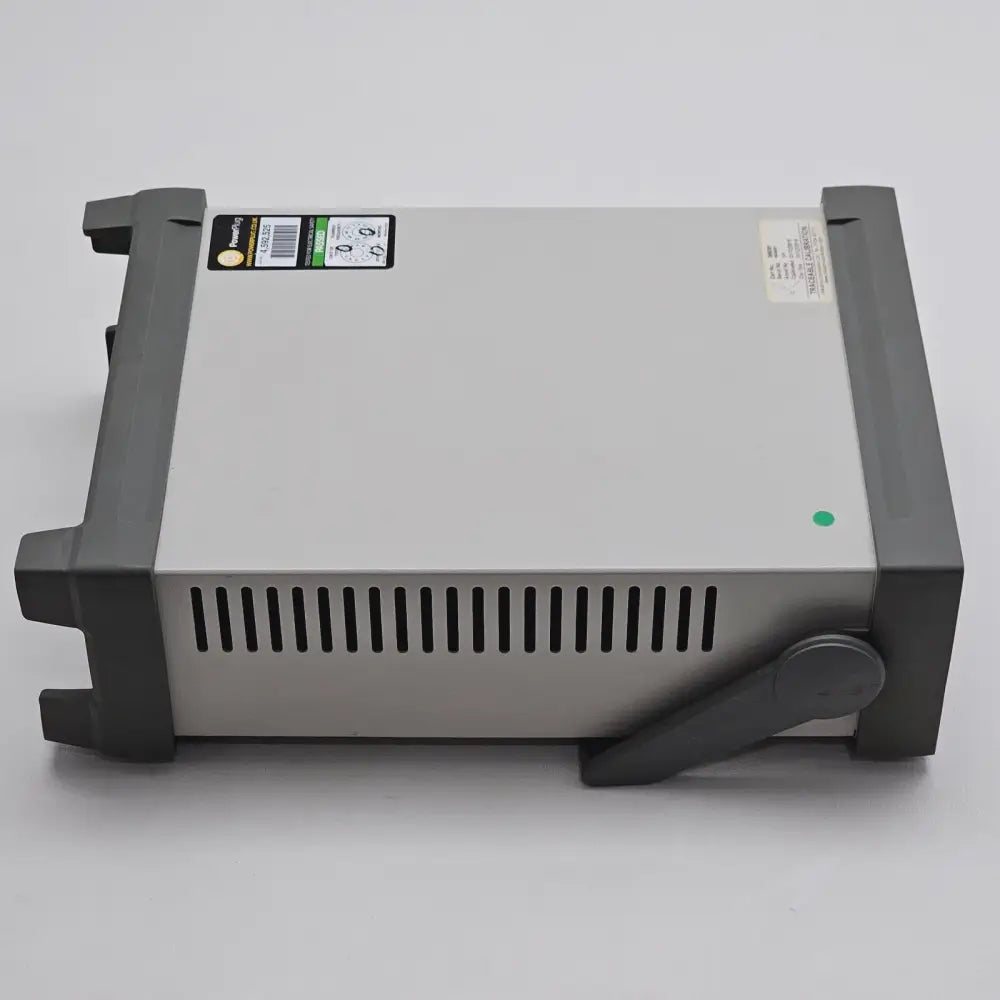

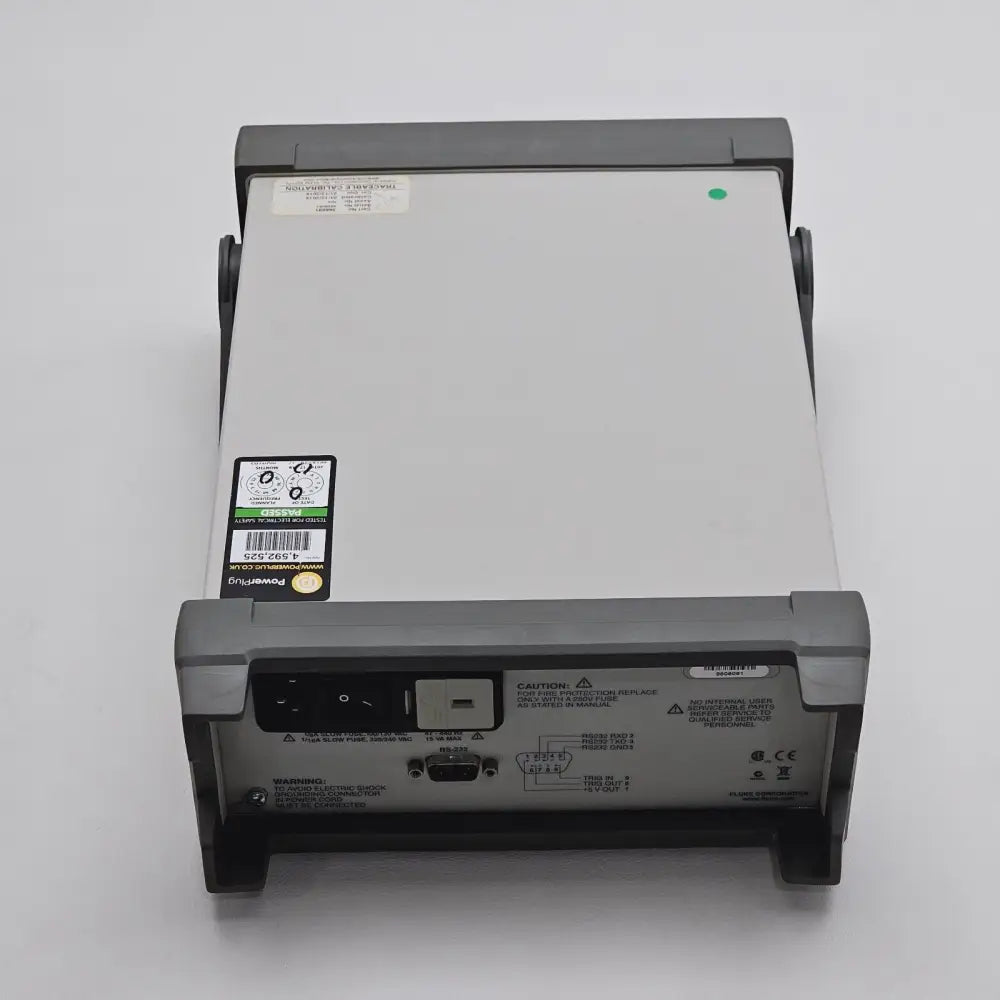

Fluke 8808A 5.5 Digit Multimeter

Condition: Used

The Fluke 8808A is a 5.5-digit bench multimeter in good used condition, suitable for precision measurement tasks in laboratory or production environments.

Typically includes:
• Fluke 8808A main unit
• Test leads
• Power cord

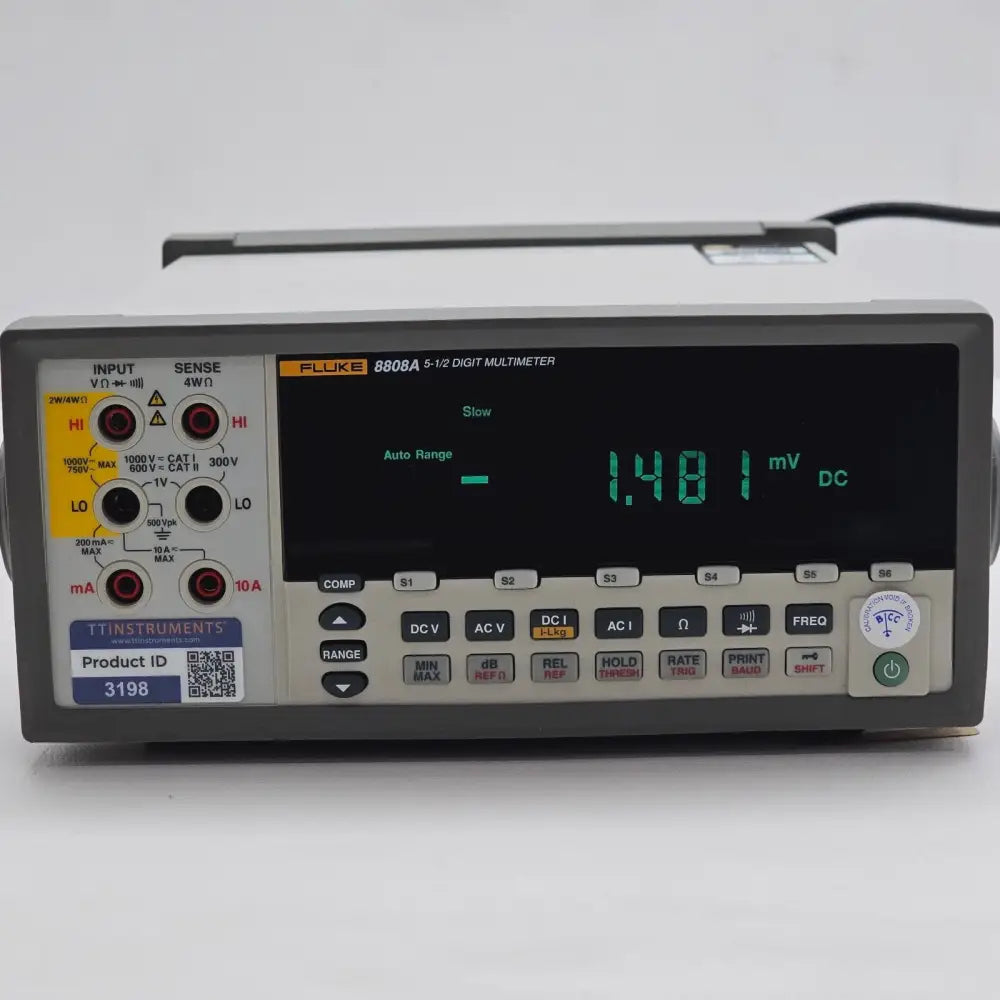

The Fluke 8808A is a 5.5-digit precision bench digital multimeter intended for production testing, quality control, and general laboratory use. It combines high accuracy with a dual-display design, allowing users to monitor two parameters simultaneously — for example, AC voltage and frequency at the same time.

The 8808A offers a wide range of measurement functions including DC and AC voltage, DC and AC current, resistance (2-wire and 4-wire), frequency, continuity, and diode test. Its 0.015% basic DC voltage accuracy makes it suitable for demanding applications where measurement confidence is critical.

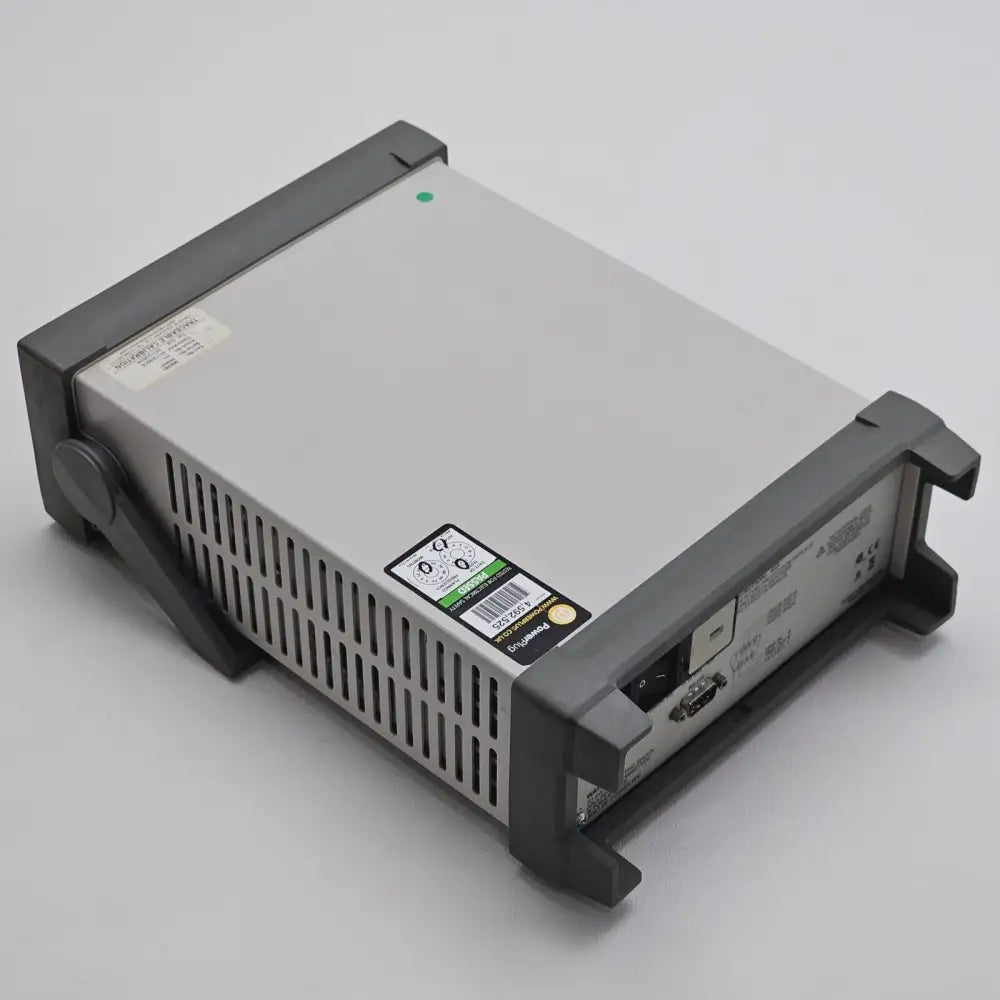

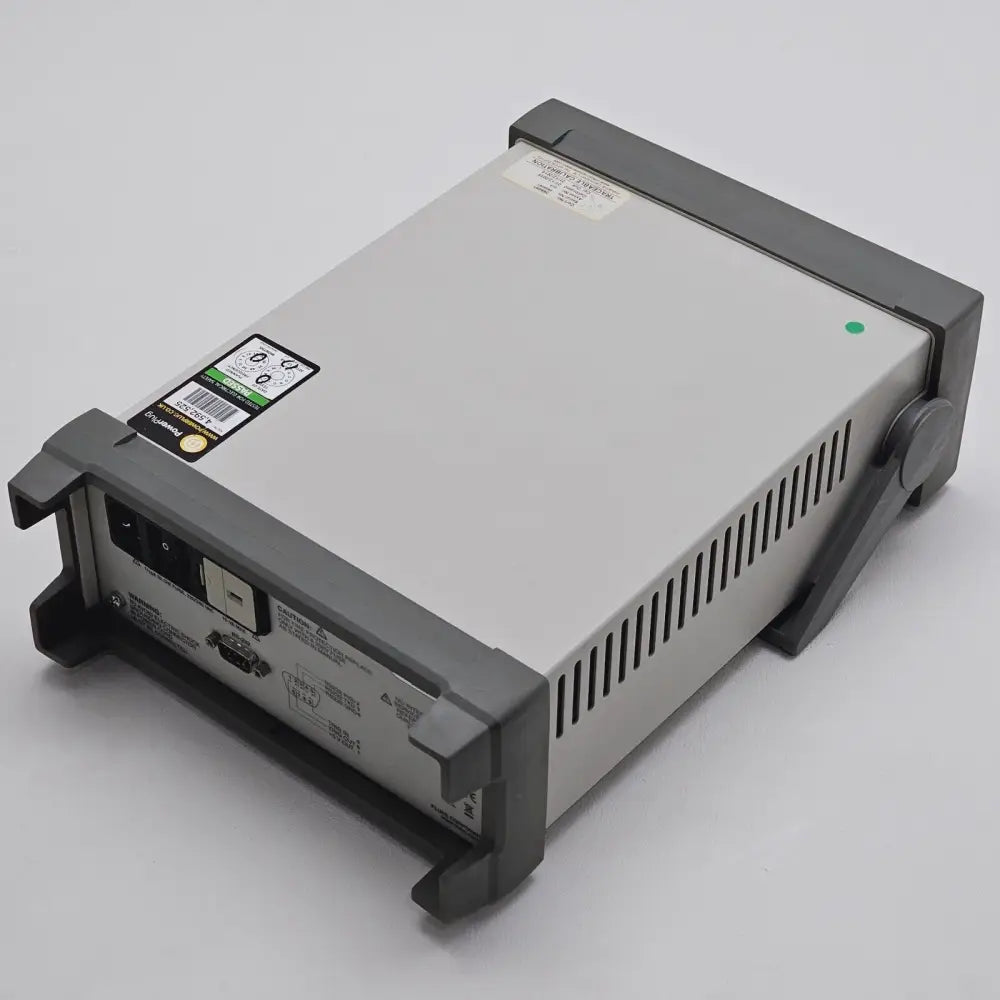

A built-in RS-232 serial interface enables remote control and data logging, making it easy to integrate into automated test systems or to record measurements over time. The front-panel design is clean and straightforward, with a large, easy-to-read display.

Key Specifications:
Display: 5.5-digit dual display
Basic DC Voltage Accuracy: 0.015%
DC Voltage Ranges: 100 mV to 1000 V
AC Voltage Ranges: 100 mV to 750 V
DC Current Ranges: 100 µA to 10 A
AC Current Ranges: 100 µA to 10 A
Resistance Ranges: 100 Ω to 100 MΩ
4-Wire Resistance: Yes
Frequency Measurement: Yes
Continuity and Diode Test: Yes
Interface: RS-232
Power: 115/230 V AC selectable
Dimensions: 89 mm H x 214 mm W x 294 mm D
Weight: Approximately 2.7 kg
