Condition: New other (see details)

Excellent condition, like new, no signs of usage.

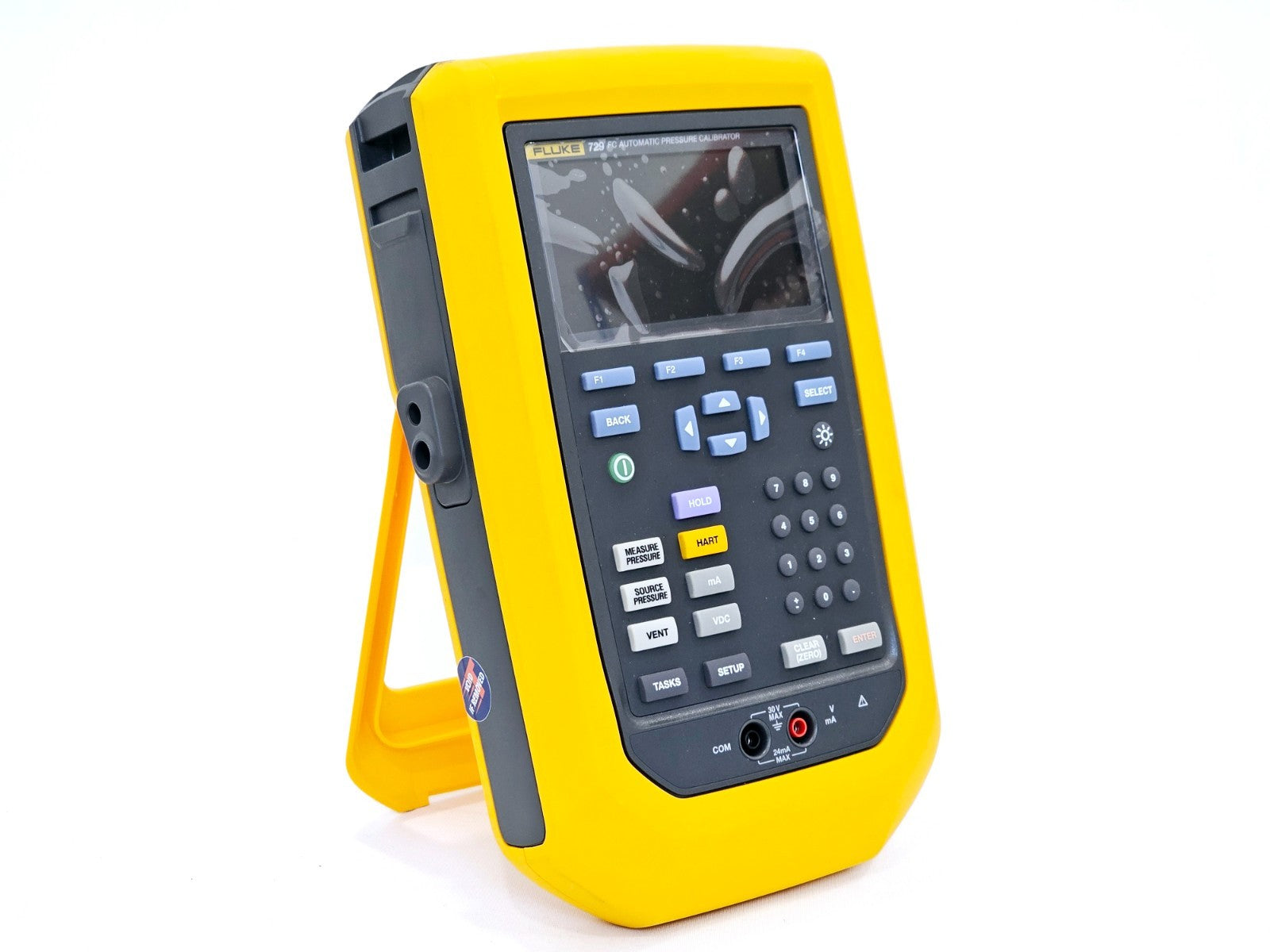

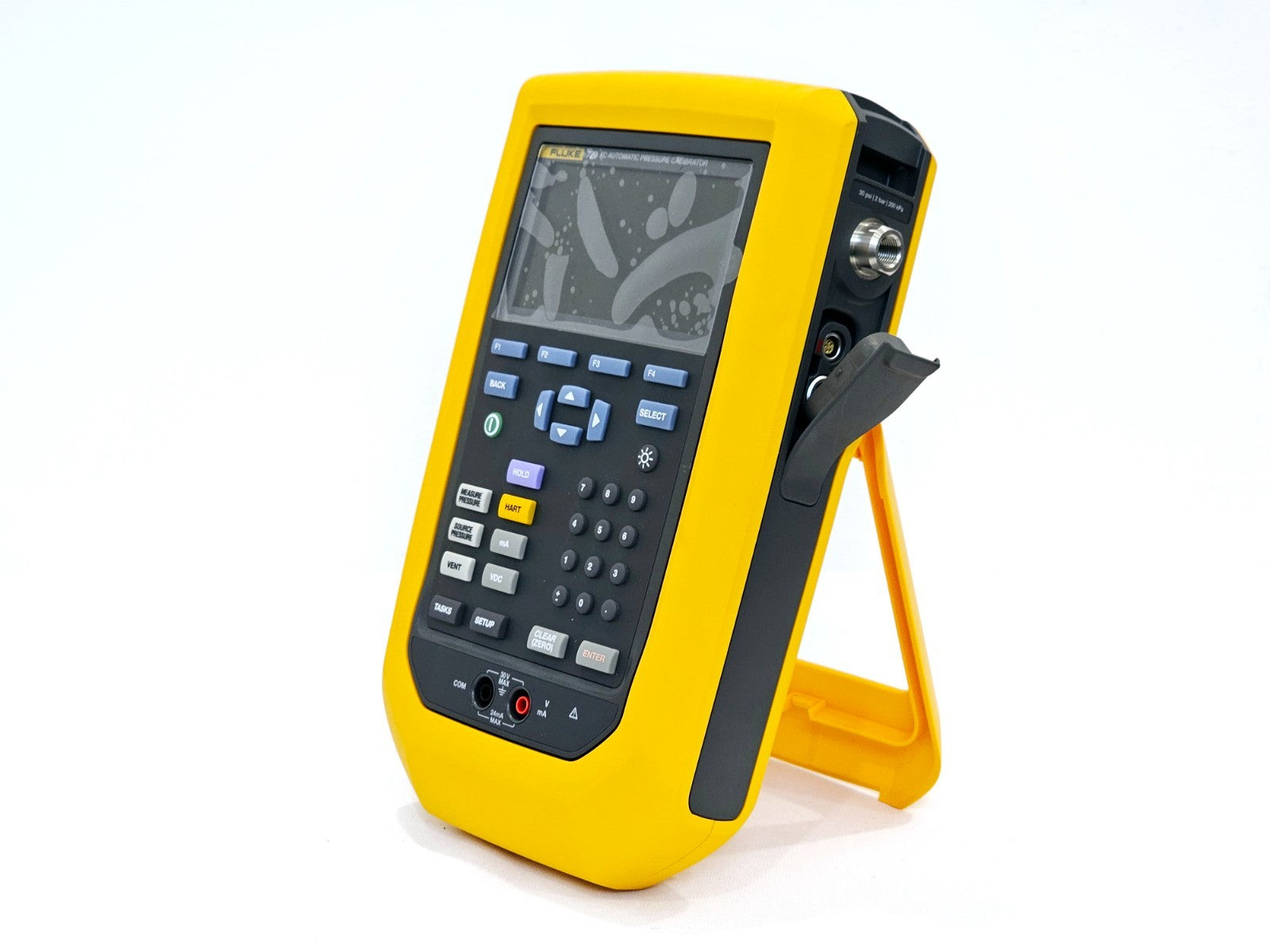

The Fluke 729FC Automatic Pressure Calibrator with Wi-Fi for Fluke Connect® can be used to calibrate pressure measuring instruments. It is available in three models which differ in regards to their pressure ranges. For more information, please see the table below.

PRODUCT CODE: FLK-729 30G FC

PRODUCT NAME: Fluke 729FC Automatic Pressure Calibrator with Wi-Fi for Fluke Connect® - 2 Bar

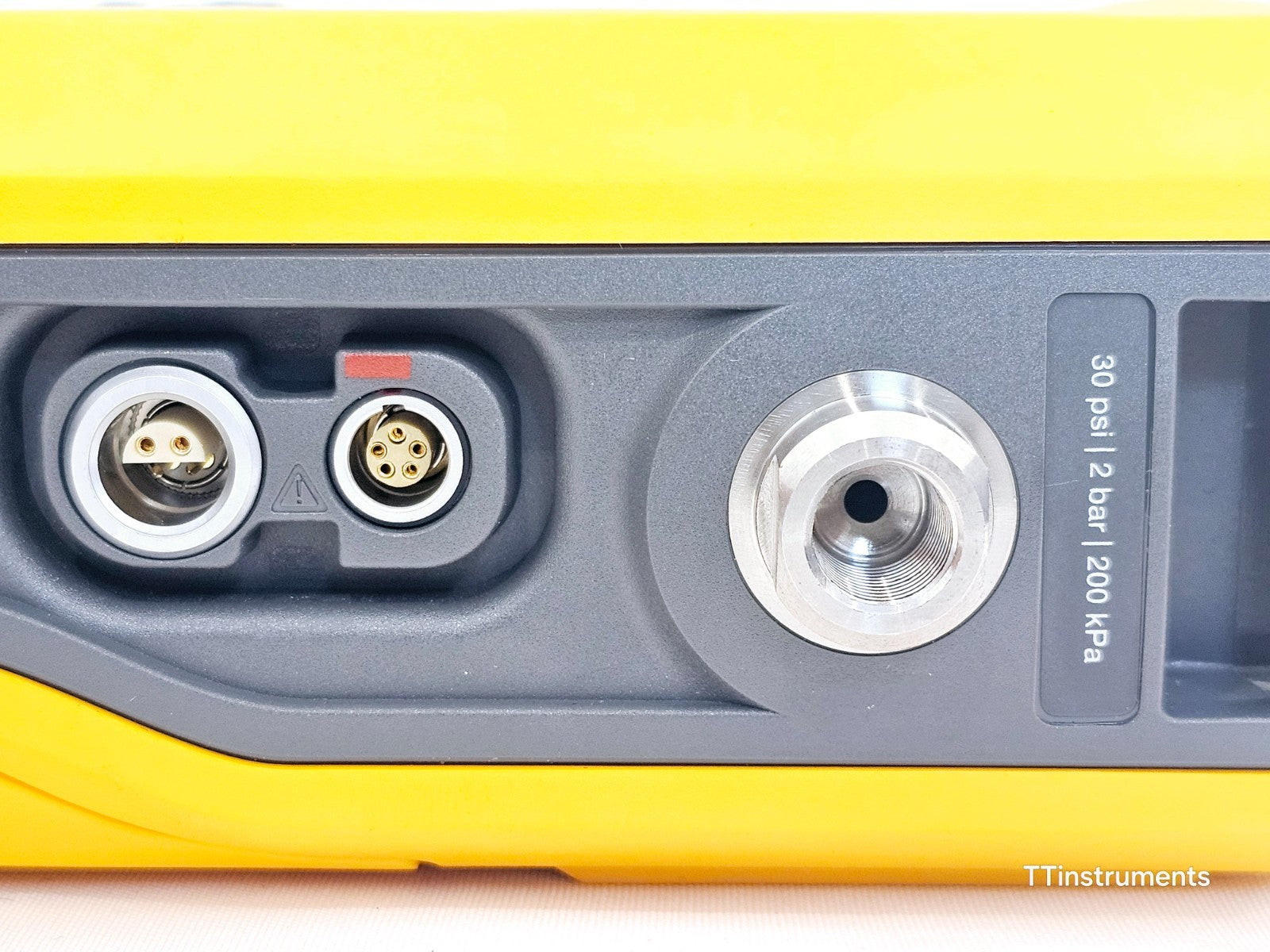

PSI RANGE: -12.0000 to 30.0000 psi

BAR RANGE: -0.82737 to 2.06842 bar

KPA RANGE: -82.737 to 206.843 kPa

Unlike its sister product, the Fluke 729 Automatic Pressure Calibrator, the Fluke 729FC Automatic Pressure Calibrator includes wireless capabilities which allow it to be connected to the Fluke Connect® app. This app facilitates the user’s ability to send measurement information to individuals in his/her team, allowing teams to make real-time, in-the-field decisions. For further information regarding this app, please see the Fluke Connect® description below.

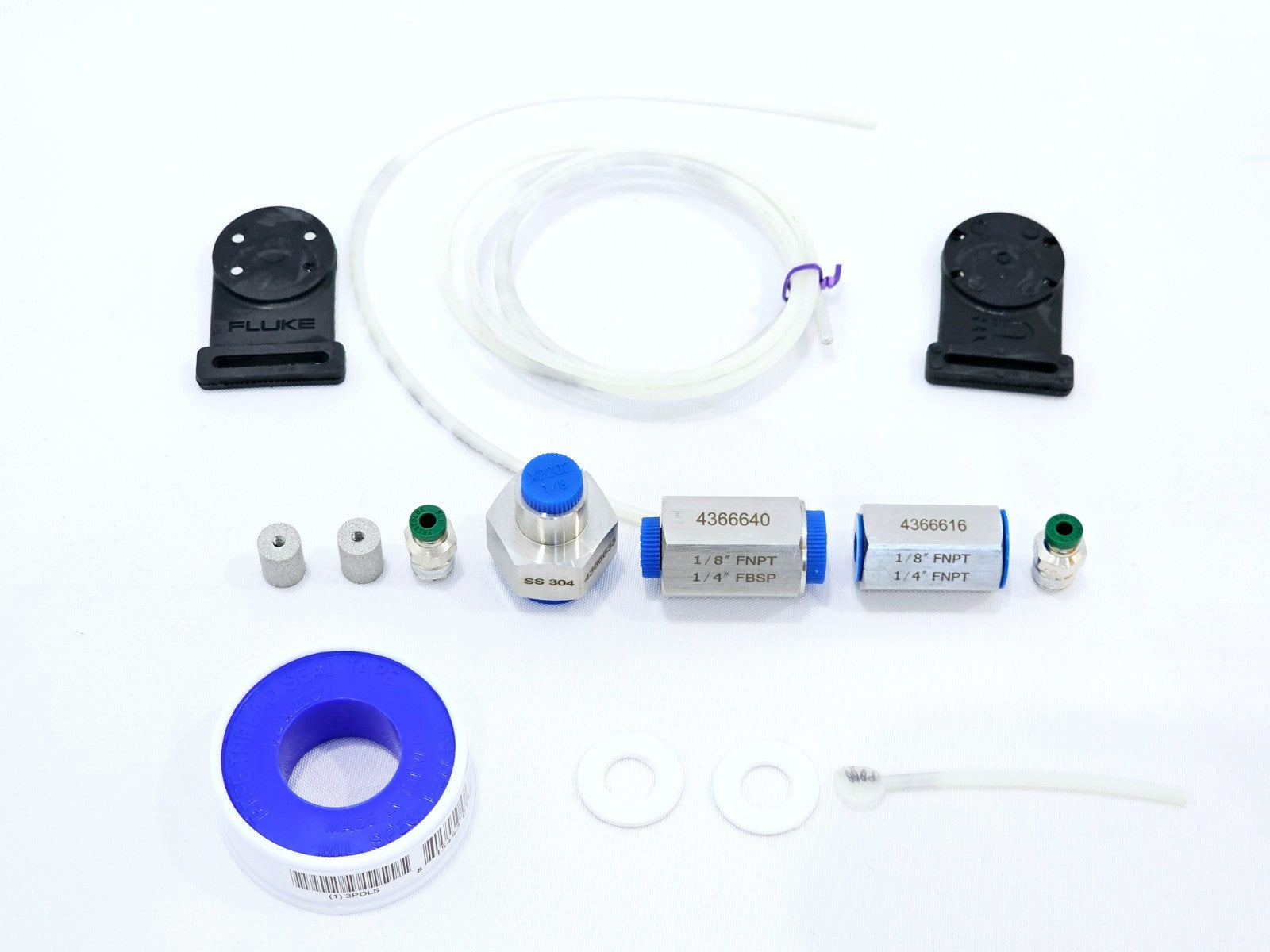

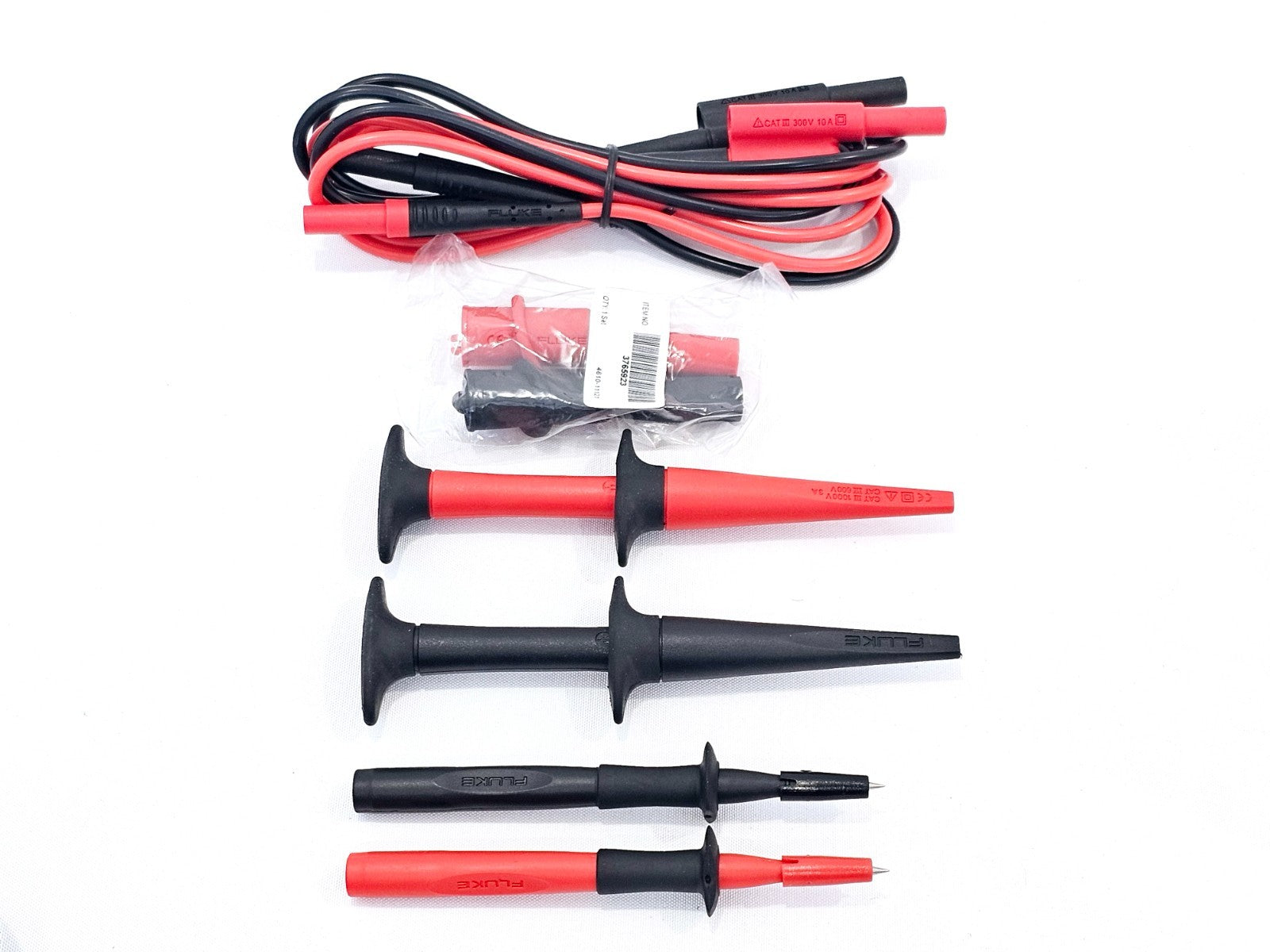

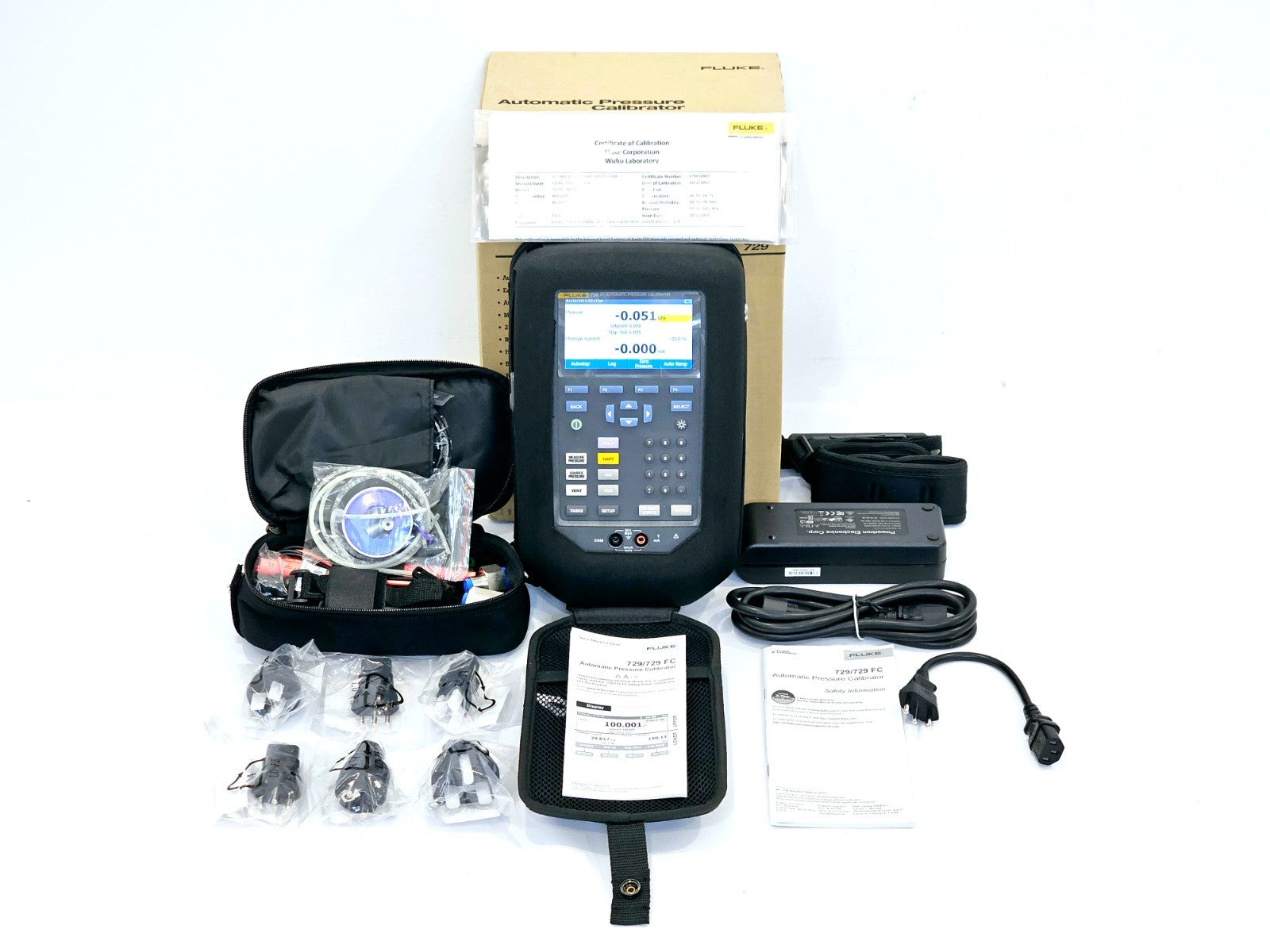

However, like its sister product, the Fluke 729FC Automatic Pressure Calibrator has been optimised for field use. To this end, it features a robust casing, has been drop tested from 1m and is supplied with a semi-rigid carrying case ensuring that the calibrator, test hoses, fittings, test leads and small hand tools can be transported safely and securely across and between sites.

In addition to its practicality, this sophisticated instrument also includes extensive measurement capabilities and can be used to conduct multiple-point pressure calibration tests. Each model includes an electric pump which is able to generate pressure to the maximum psi value within the model's range, for example, the Fluke 729FC Automatic Pressure Calibrator with Wi-Fi for Fluke Connect® - 20 bar can produce pressure up to 300 psi.

In order to create the desired pressure, the user need only enter the pressure he/she requires and the Fluke 729FC Automatic Pressure Calibrator will automatically produce and maintain this pressure. Furthermore, the Fluke 729FC Automatic Pressure Calibrator will automatically run leak tests in order to detect any minor faults with the equipment used to perform the calibration, for instance, leaks in test hoses. Should the calibrator detect a minor leak in a test hose, it will automatically compensate for this by finely altering the pressure generated.  This automatic pressure generation and adjustment system removes the need for the user to manually adjust the test setup and generate pressure or pressure adjustments via a pump or vernier.

Adding the efficiency and sophistication of this product is its ability to perform pressure calibrations at multiple points, as mentioned above. To perform multiple-point tests, the user needs only complete a test template, entering the start and end points and as many test points as desired into the Fluke 729FC Automatic Pressure Calibrator. Once completed, the calibrator will perform pressure calibration tests at all these points, recording the pressure applied, the measured mA and the % error for each test point. Any anomalous, or out-of-tolerance, readings will be indicted on the instrument’s bright, dual/triple channel, graphical, colour display.

The Fluke 729FC Automatic Pressure Calibrator is able to measure, source and simulate current signals between 4 and 20mA, making it suitable for testing I/Ps and mA loop modules; whilst its ability to generate a 24V loop power supply makes it suitable for powering transmitters during standalone tests in which the transmitter is disconnected from the control system.

Moreover, this calibrator includes a HART communication feature which allows it to perform the following tests on HART smart pressure transmitters:

• mA output trim: facilitates the trimming to applied values and pressure zero trimming
• Light configuration: change transmitter tags, measurement units and ranges
• Set fixed mA outputs for troubleshooting
• Read device configuration and variables
• Read device diagnostics

All commands issued by the HART communication function will be in English; however, other menu options, functions and commands may be displayed in the user’s preferred language.

The Fluke 729FC Automatic Pressure Calibrator is a rugged, comprehensive and adaptable instrument. It is compatible with Fluke’s 700 and 750 Series Pressure Modules (NOT included) which can be used to alter the pressure ranges and resolutions available using the Fluke 729FC Automatic Pressure Calibrator.

In addition to this, the Fluke 729FC Automatic Pressure Calibrator can be used with the Fluke 720RTD Probe (NOT included), in order to measure temperature for the purposes of custody transfer calibrations.

Measurements taken with the Fluke 729FC Automatic Pressure Calibrator can be uploaded to and managed using Fluke’s DPCTrack™ Calibration Management Software (NOT included). This software can be used to create reports (with the uploaded data), as well as scheduled tests.

The Fluke 729FC Automatic Pressure Calibrator w/ Wi-Fi for Fluke Connect® is designed to be adaptable, comprehensive, sophisticated and practical. It is the ideal tool for pressure technicians.

Fluke 729FC Automatic Pressure Calibrator w/ Wi-Fi for Fluke Connect® Key Features

• Calibrate pressure measuring instruments
• Available in three models with varying pressure ranges
• Includes wireless capabilities facilitating a connection to Fluke Connect®
• Optimised for field use
• Robust casing
• Drop tested from 1m
• Supplied with a semi-rigid carrying case
• Semi-rigid carrying case can contain the calibrator and accessories
• Electric pump automatically generates pressure to the user-specified value
• Each model can generate pressure to the maximum psi value in the model's range
• Automatically runs leak test to detect any minor leaks in the test equipment
• Will automatically compensate for minor leaks by finely adjusting the pressure generated
• Perform multiple-point pressure calibration tests
• Complete a test template detailing  the start and end point and as many test points as necessary
• Calibrator will then run multiple-point pressure tests, recording the pressure applied, the measured mA and the % error for each test point
• Anomalous readings will be indicated on the display
• Bright, dual/triple channel, graphical, colour display
• Measure, source and simulate current signals between 4 and 20mA
• Suitable for testing I/Ps and mA loop modules
• Generate a 24V loop power supply
• Suitable for powering transmitters during standalone tests
• HART communication feature for testing HART smart pressure transmitters
• HART communication commands are always in English
• Other menu options, features and commands are displayed in the user’s preferred language
• Compatible with Fluke’s 700 and 750 Series Pressure Modules (NOT included)
• Can be used with Fluke’s 720RTD Probe (NOT included) to take temperature measurements
• Measurements can be uploaded to and managed using Fluke’s DPCTrack™ Calibration Management Software (NOT included)
• Optimised for pressure technicians
