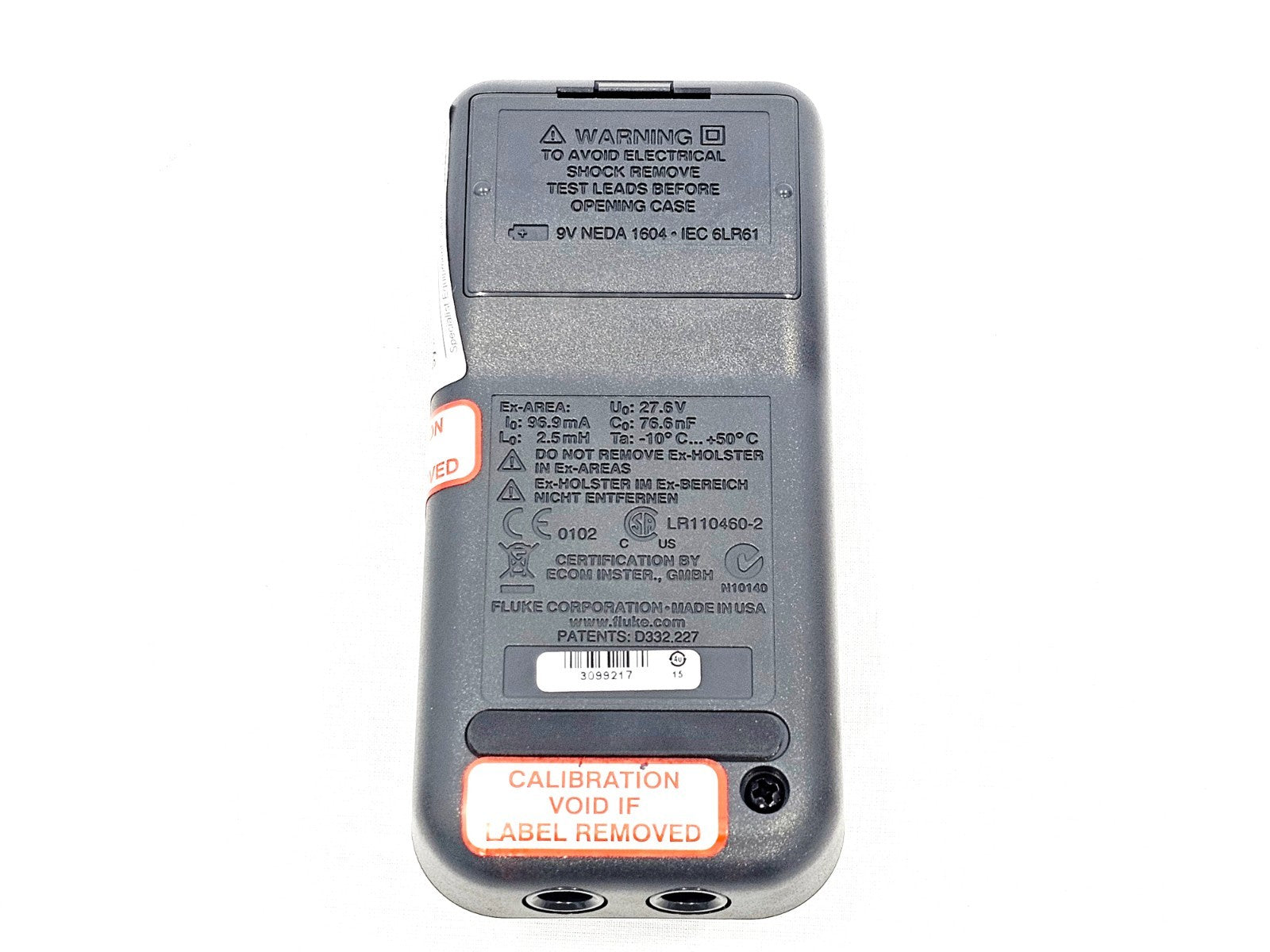

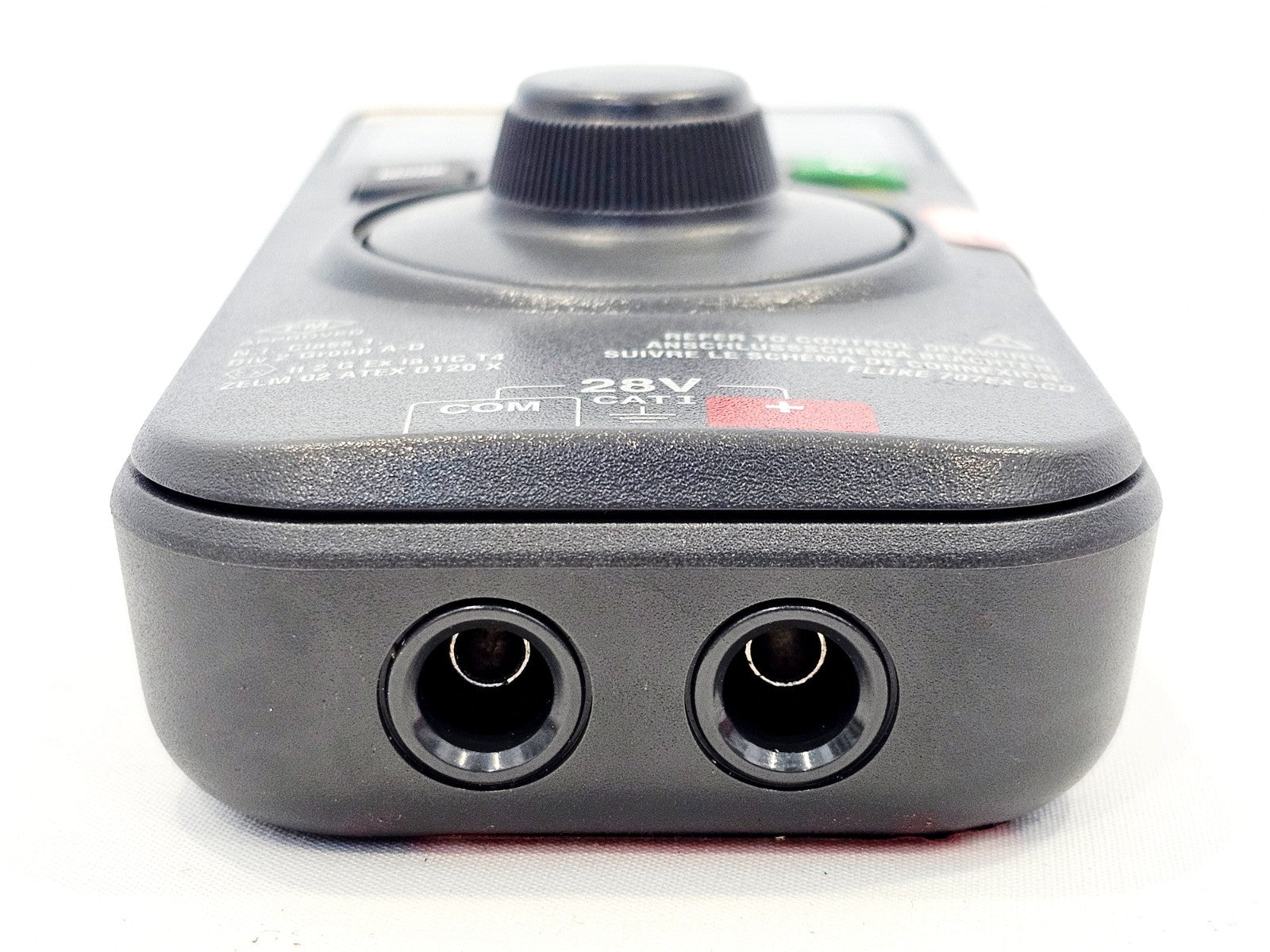

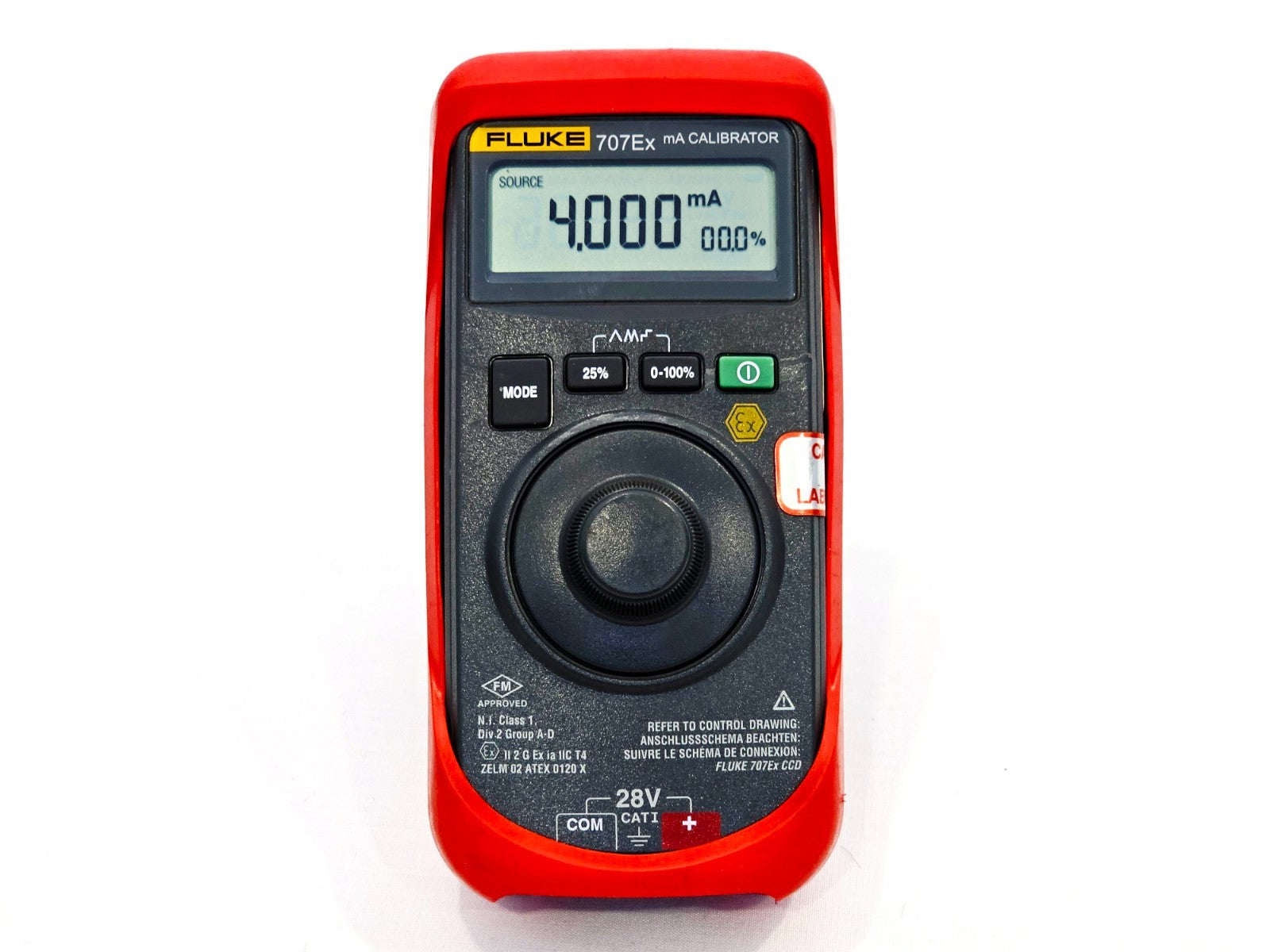

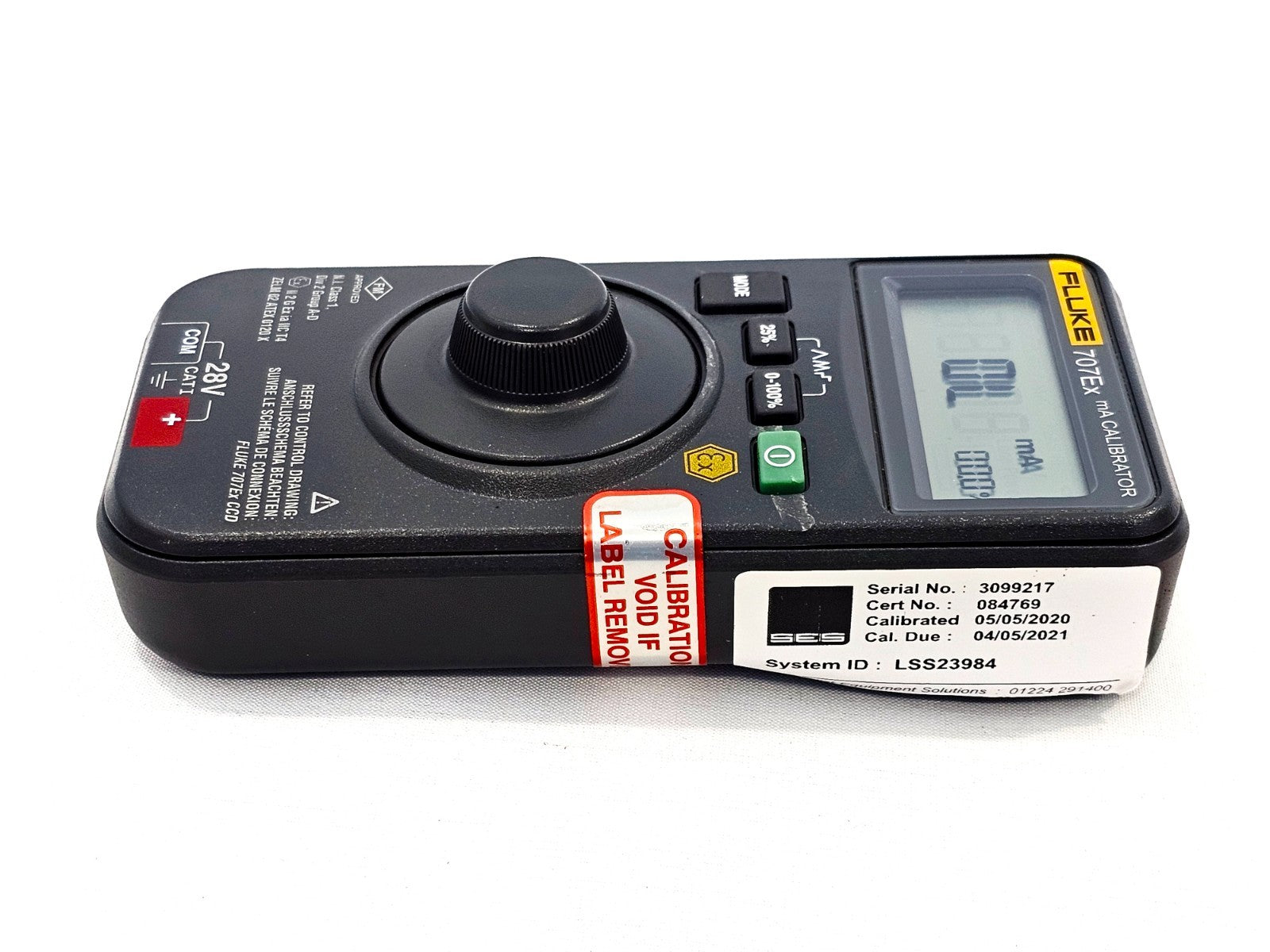

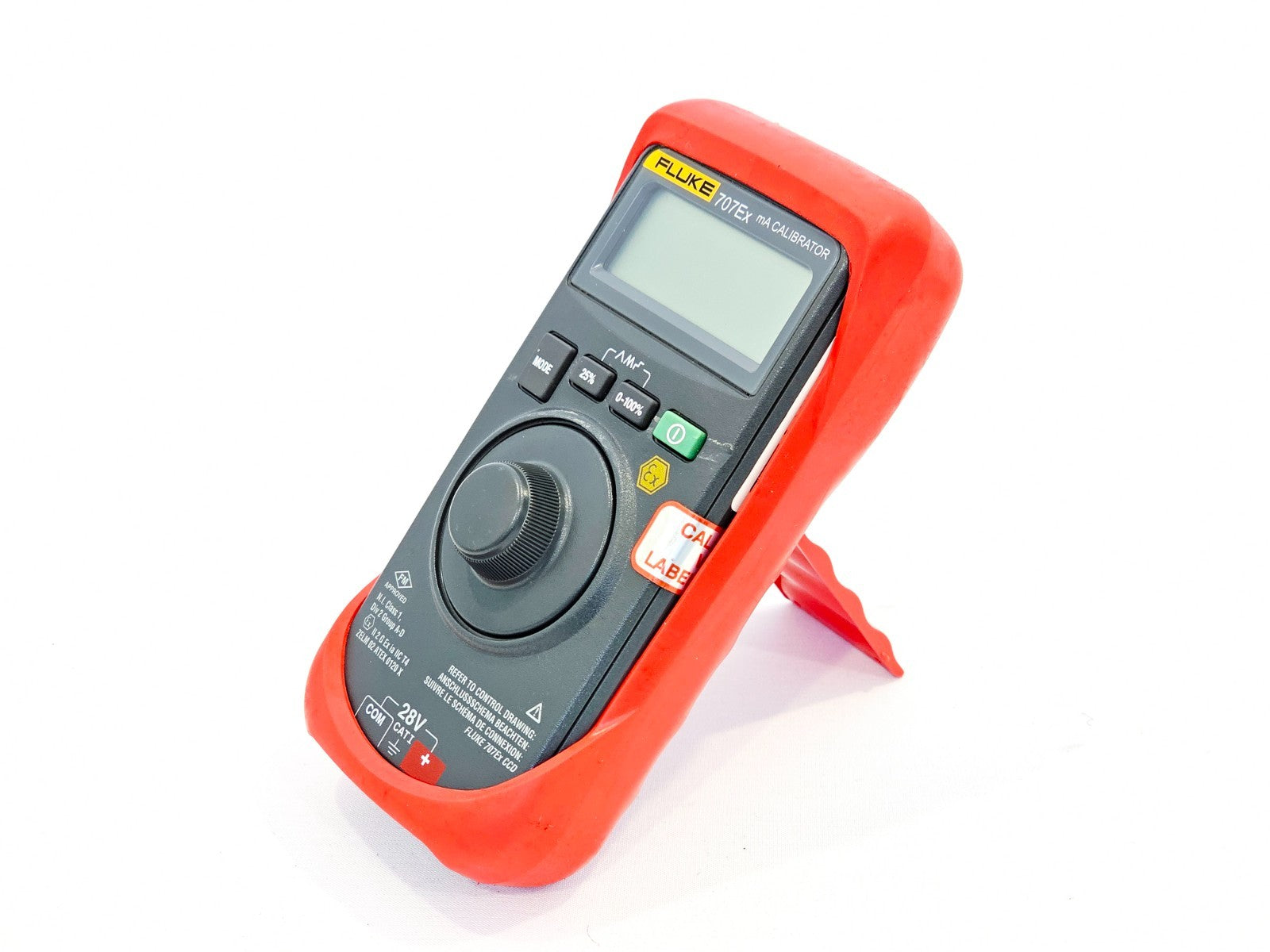

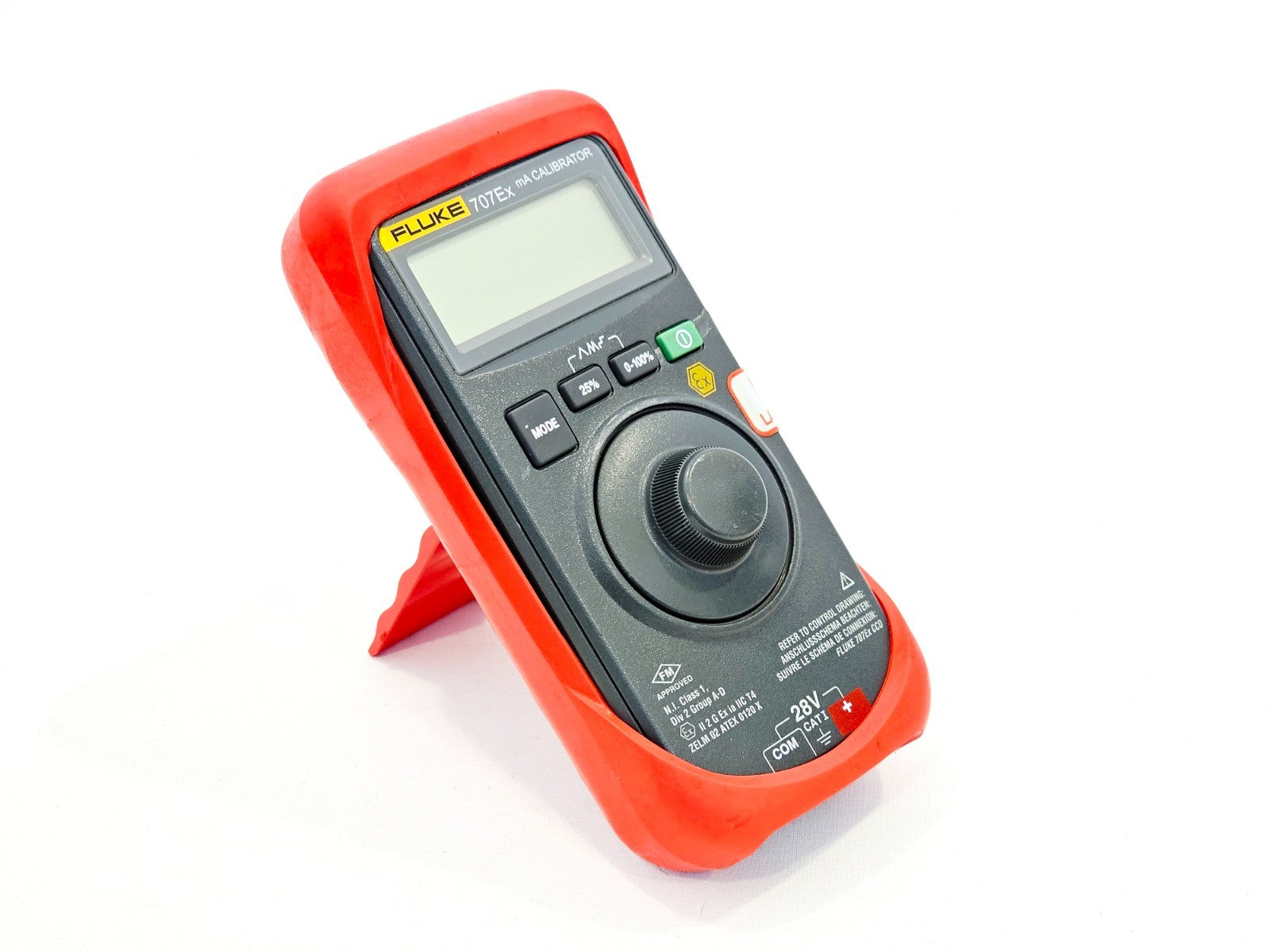

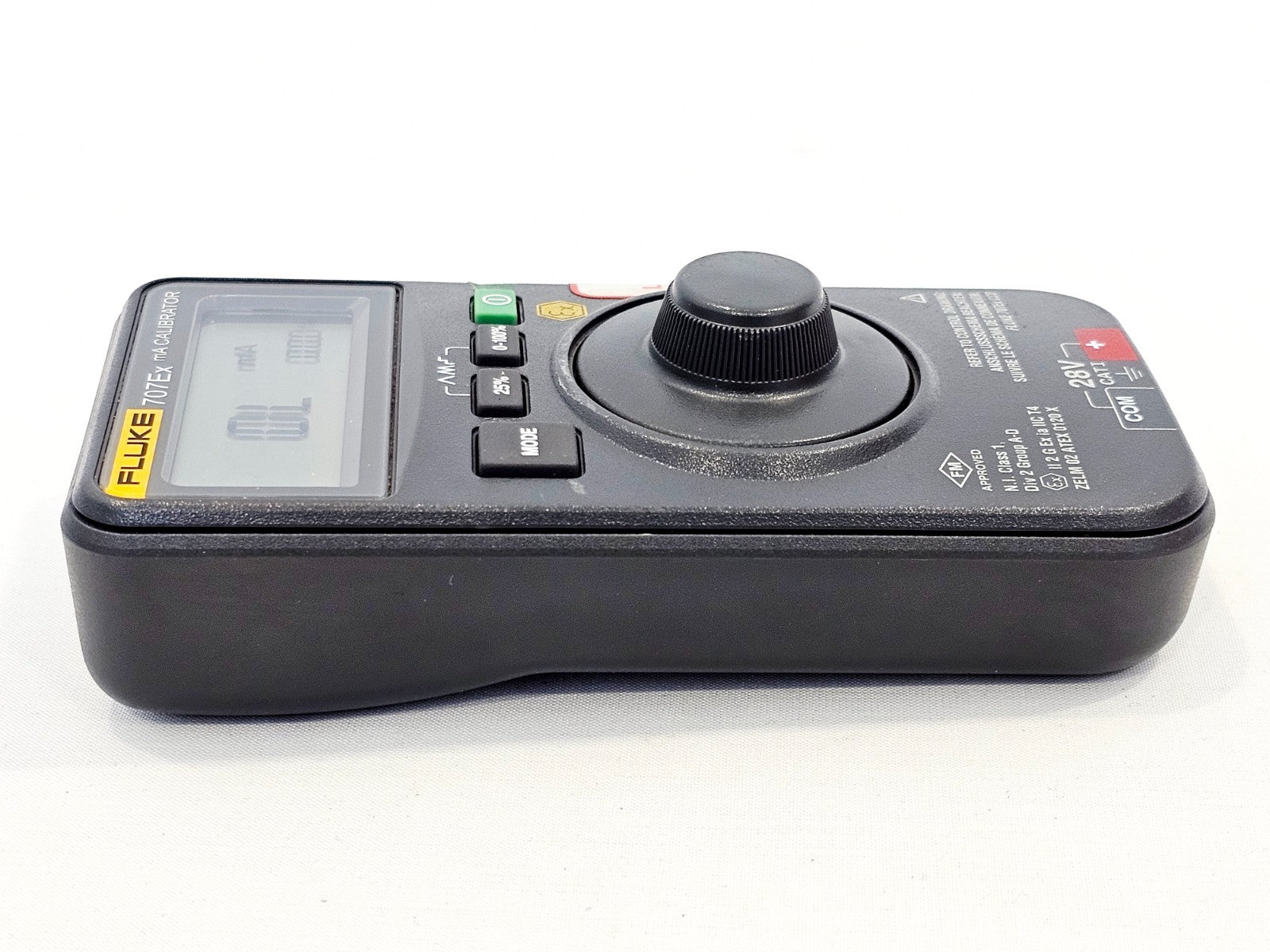

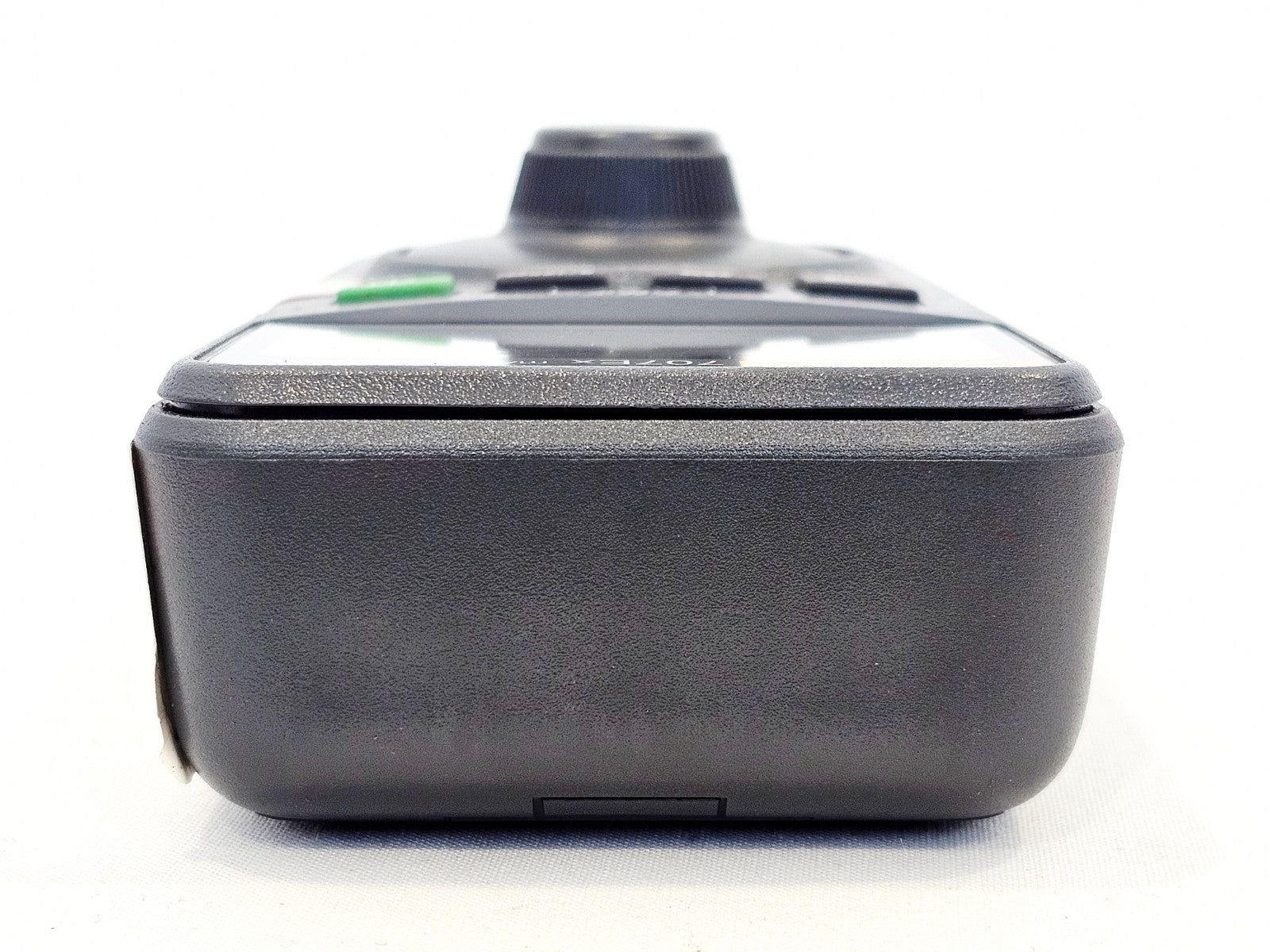

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Fluke 707Ex mA Loop Calibrator is in used, very good cosmetic condition. The unit has passed all self-checks and is fully functional.

The calibrator sources, simulates and measures 4–20 mA and 0–20 mA current loops with 0.015% accuracy, and measures DC voltage to 28 V. It carries full ATEX certification (Ex II 2 G Ex ia IIC T4, Zones 1 and 2) and Factory Mutual N.I. Class 1, Division 2 Group A–D approval for use in hazardous and explosive environments.

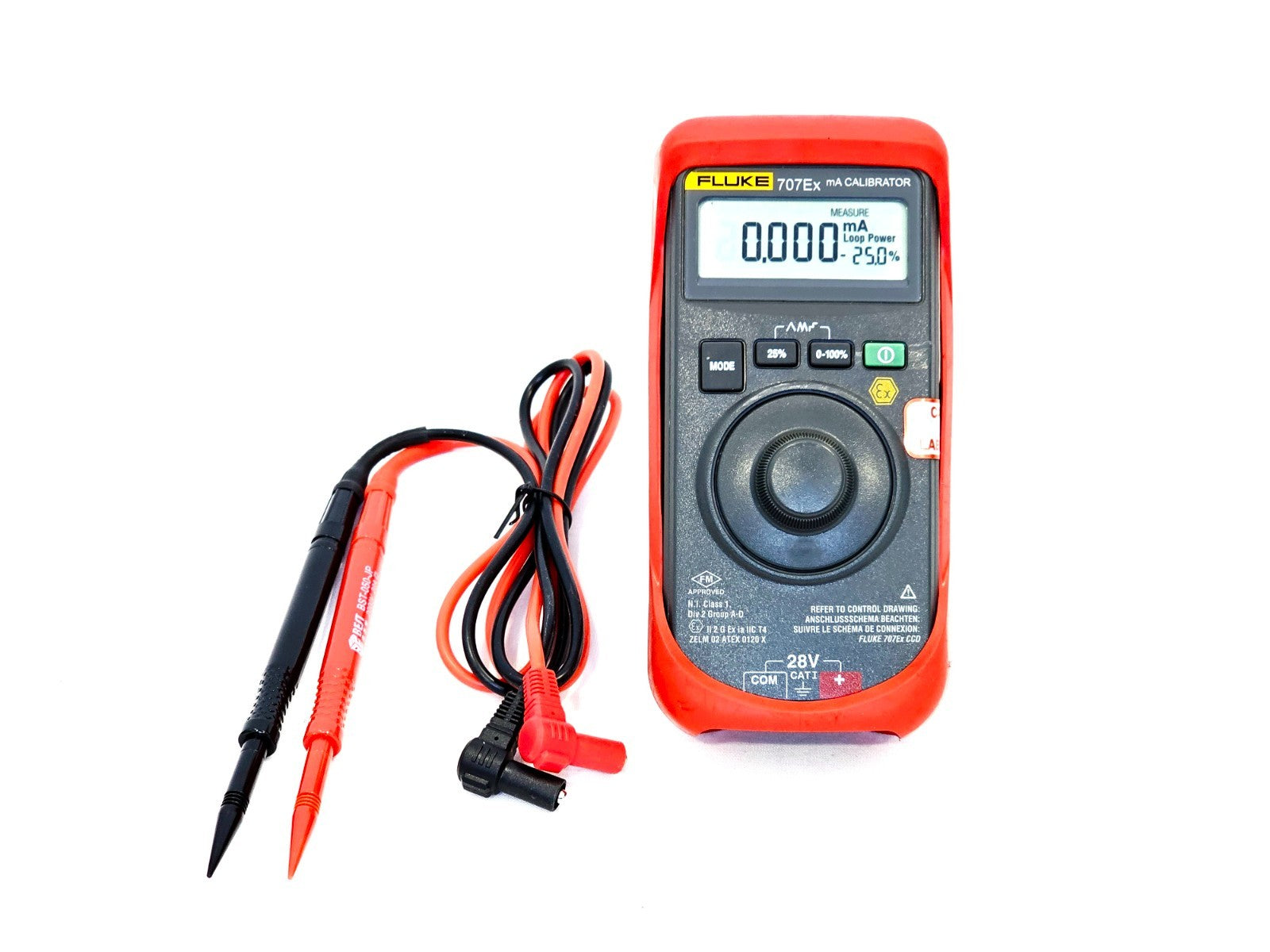

The following items are included:
• Fluke 707Ex mA Calibrator unit
• High quality aftermarket test leads (banana plug with probe tips)

The Fluke 707Ex is an intrinsically safe mA loop calibrator designed for use in potentially explosive environments. It is certified to the ATEX directive (Ex II 2 G Ex ia IIC T4) for Zones 1 and 2, and to Factory Mutual N.I. Class 1, Division 2 Groups A–D, making it one of the most widely trusted hazardous area loop calibrators available.

The 707Ex combines the best features of push-button and knob-based loop calibrators for extremely fast, accurate, one-handed operation. The large display provides simultaneous mA and percentage-of-span readout. An internal 24 V loop supply allows the user to power and read a transmitter simultaneously without a separate DMM. HART-compatible resistance is connected in series with the loop supply for use with HART communicators. Selectable slow, fast, and step ramp outputs support valve slewing and loop functional testing. Push-button 25% steps enable fast linearity checks, and a 0–100% span check confirms zero and span rapidly. The 9 V battery can be replaced without breaking the calibration seal.

Current Measurement Range: 0 to 24 mA
Current Measurement Resolution: 0.001 mA
Current Measurement Accuracy: 0.015% Rdg + 2 LSD
Current Sourcing Range: 0 to 20 mA or 4 to 20 mA
Current Sourcing Accuracy: 0.015% Rdg + 2 LSD
Drive Capability: 700 Ω at 20 mA
Internal Loop Supply: 24 V DC (while measuring mA)
Voltage Measurement Range: 0 to 28 V DC
Voltage Measurement Accuracy: 0.015% Rdg + 2 LSD
ATEX Certification: Ex II 2 G Ex ia IIC T4, Zones 1 & 2
Operating Temperature: -10°C to +50°C
Dimensions: 152 x 70 x 41 mm
Weight: 224 g
Battery: 9 V alkaline (IEC 6LR61)

Fluke 707Ex datasheet: Download PDF
