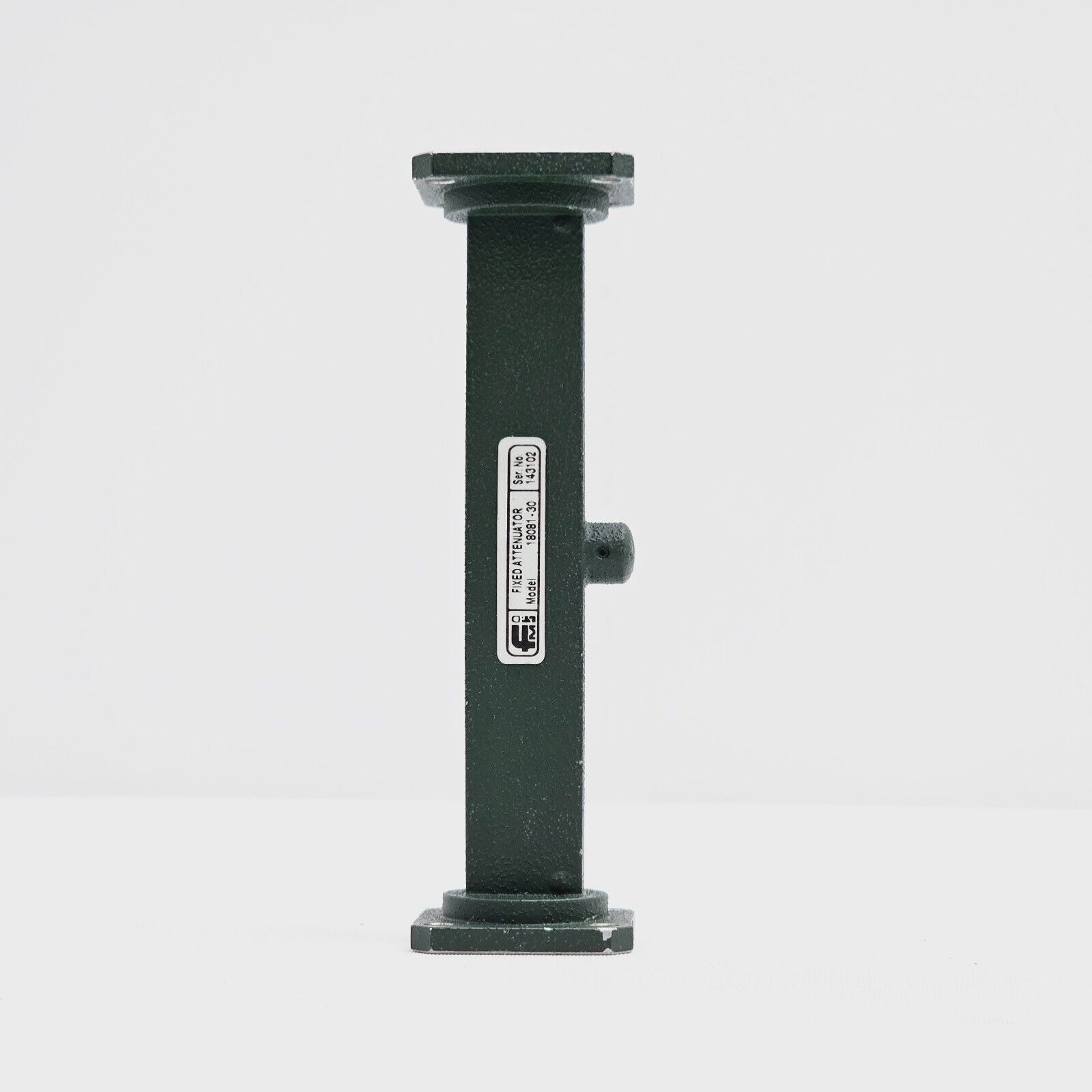

Flann Microwave 18081-30 fixed waveguide attenuator, front view showing label, model and serial no. 143102

Flann Microwave 18081-30 WR62 waveguide attenuator, close-up of UBR140 flange port and rectangular aperture

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Flann Microwave Attenuator Fixed 18081-30 11.9 - 18.0 GHz 30 dB

Name: Flann Microwave Attenuator Fixed 18081-30 11.9 - 18.0 GHz 30 dB
Brand: Flann Microwave
SKU: 5443 7D05 ER50
Price: 34.0 GBP
Availability: OutOfStock

The Flann Microwave 18081-30 is a WG18 (WR62) waveguide fixed attenuator delivering a precise 30 dB attenuation across the full 11.9–18.0 GHz Ku-band.
• 30 dB fixed attenuation — within ±10% of nominal value across the full waveguide band
• Low VSWR (better than 1.2) — UBR140 flanges for reliable system integration
• Compact, passive design — no power required, ideal for benchtop and in-line use

Manufacturer

Flann Microwave

Model

18081-30

Condition

Used

In stock

SKU

5443 7D05

£34.00

Loads Amplifiers & Attenuators
RF & Microwave
RF Components

Make an Offer

Condition: Used

The Flann Microwave 18081-30 is a Series 081 WG18 (WR62 / R140) waveguide fixed attenuator rated at 30 dB across the 11.9–18.0 GHz frequency band. Serial number 143102 is visible on the label. The body shows typical used cosmetic wear consistent with lab use. UBR140 flanges are fitted at both ends with a 120 mm flange-to-flange length and a mean power handling of 0.5 W.

What's included:
• Flann Microwave 18081-30 fixed waveguide attenuator (unit only)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

What's included:
• Flann Microwave 18081-30 fixed waveguide attenuator (unit only)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

Flann Microwave Series 081 Fixed Waveguide Attenuators

Flann Microwave Limited, founded in 1956 and based in Bodmin, Cornwall, UK, are leaders in the design and manufacture of precision waveguide components, microwave components, antennas and assemblies. The Series 081 Fixed Attenuators are passive, low VSWR waveguide devices designed for full-band operation across a wide range of waveguide sizes from WG11 up to millimetre-wave bands.

The Series 081 attenuators are widely used in RF and microwave laboratories, defence systems, telecommunications, space, metrology, and R&D applications where a stable, known level of signal attenuation is required in a waveguide transmission path.

Key Features:
- Full waveguide band coverage
- Low VSWR across the operating band
- Absolute attenuation within ±10% of nominal value
- Standard models available from 3 dB to 30 dB attenuation
- Units with 40 dB and 50 dB attenuation available on special order
- Custom higher attenuation values available on request

Model 18081-30 Specifications:
Waveguide Size: WG18 / WR62 / R140
Frequency Range: 11.9 GHz to 18.0 GHz
Attenuation: 30 dB (±10% of nominal value, i.e. ±3 dB)
VSWR (3–25 dB models): Better than 1.1
VSWR (30 dB model): Better than 1.2
Mean Power Handling: 0.5 W
Flange Type: UBR140
Flange-to-Flange Length: 120 mm
Construction: Precision machined metal body with painted finish

Resources

Flann Microwave Series 081 Fixed Attenuators — product datasheet with specifications and model table: Download PDF
