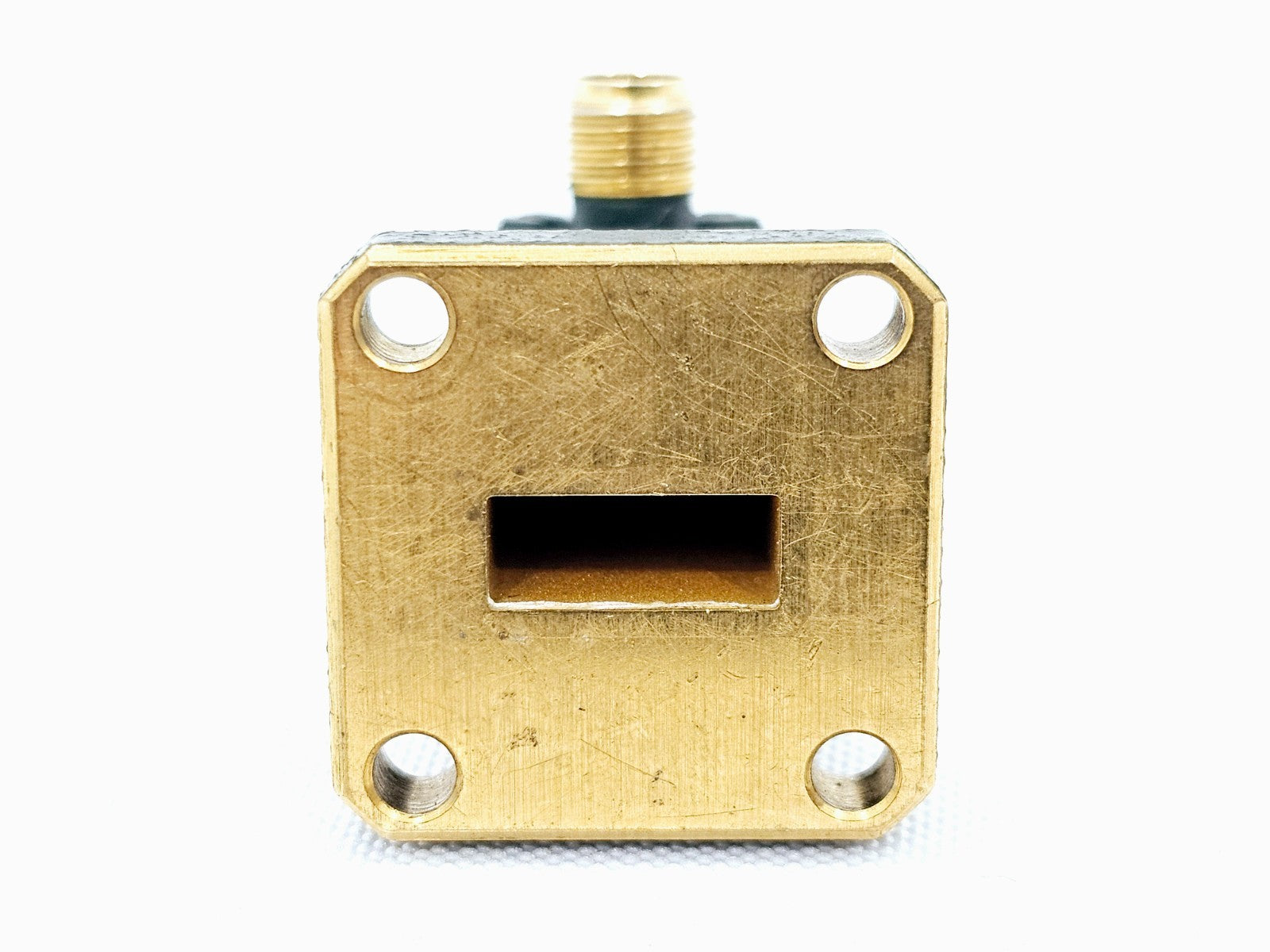

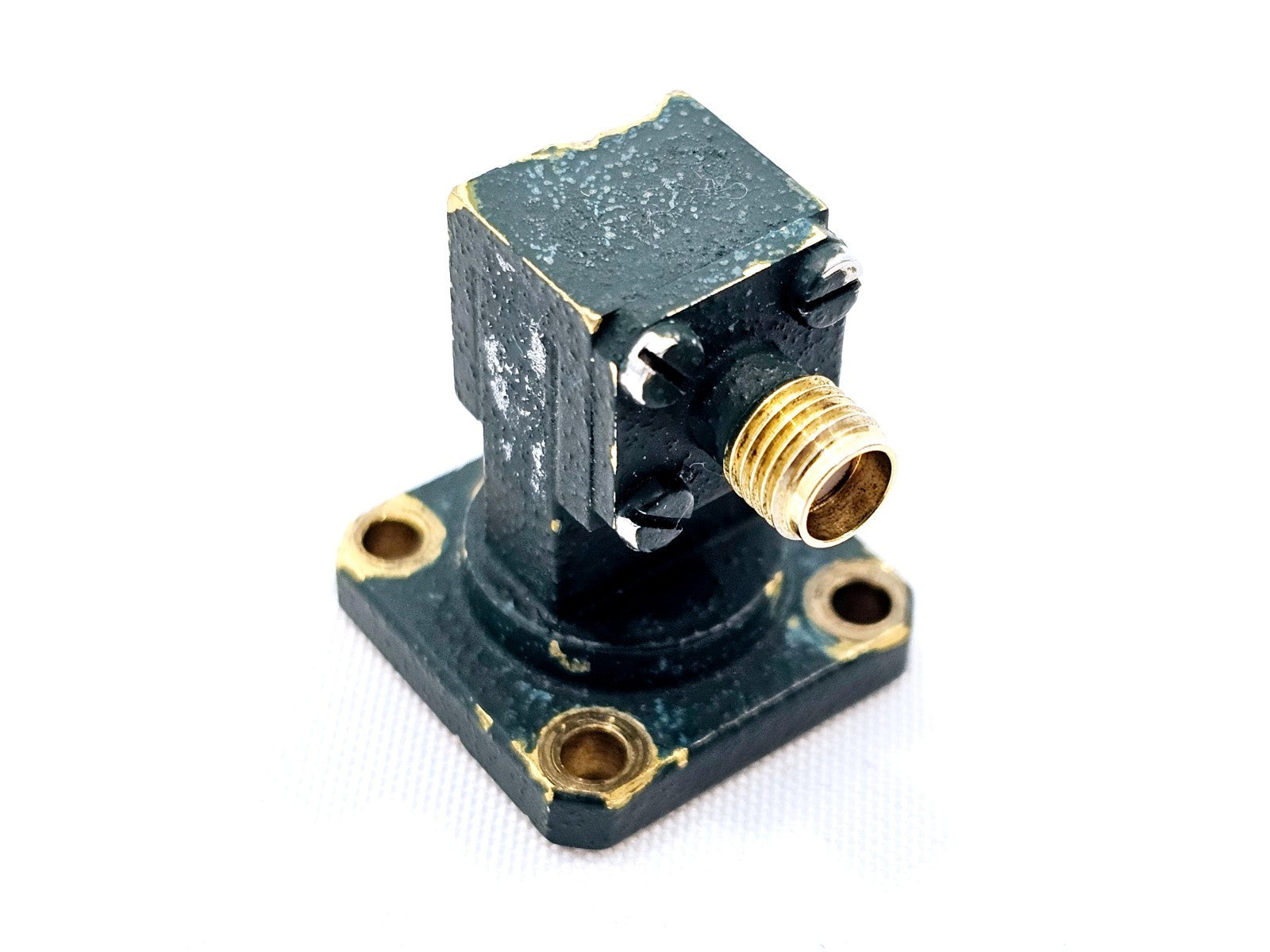

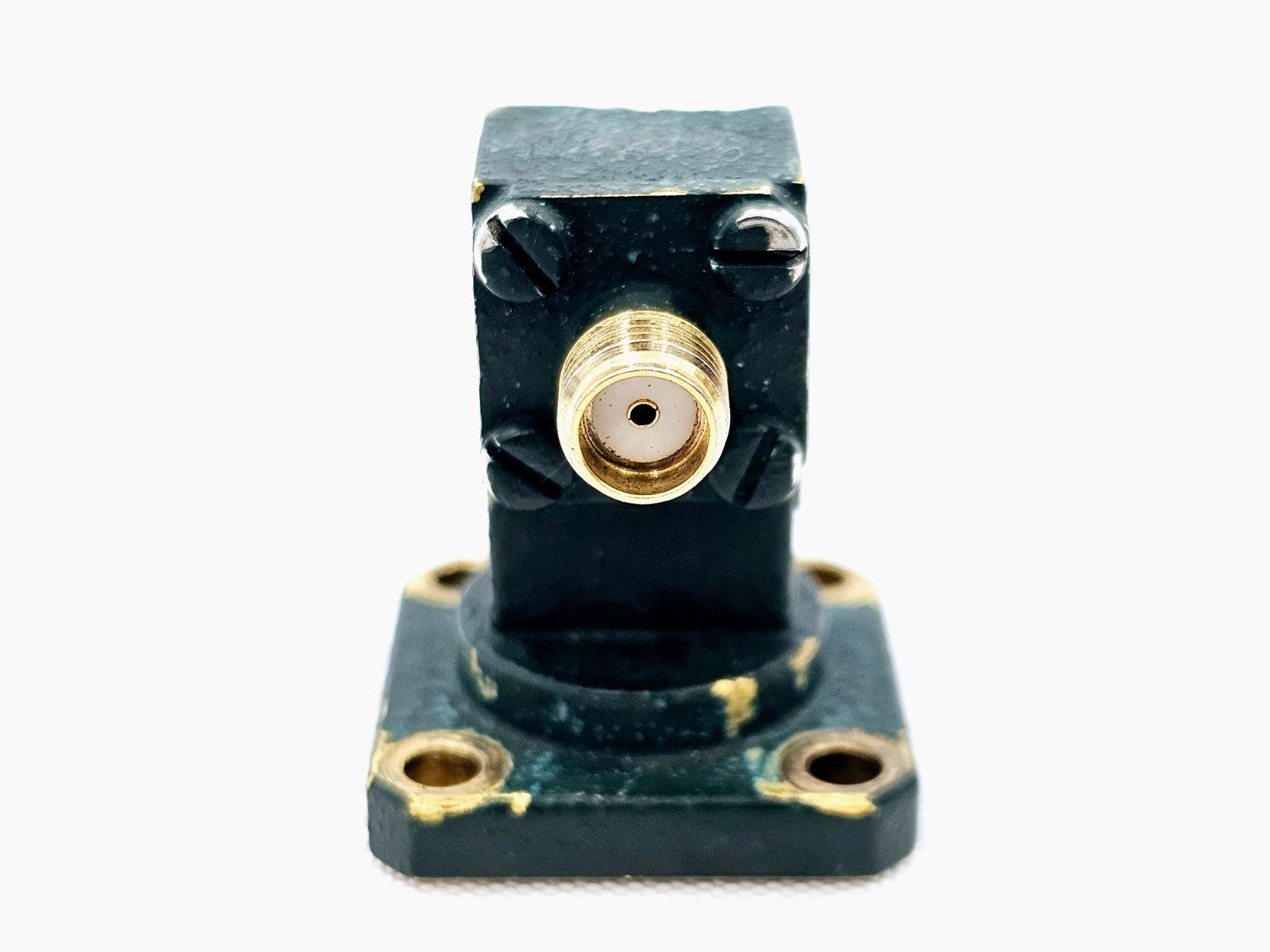

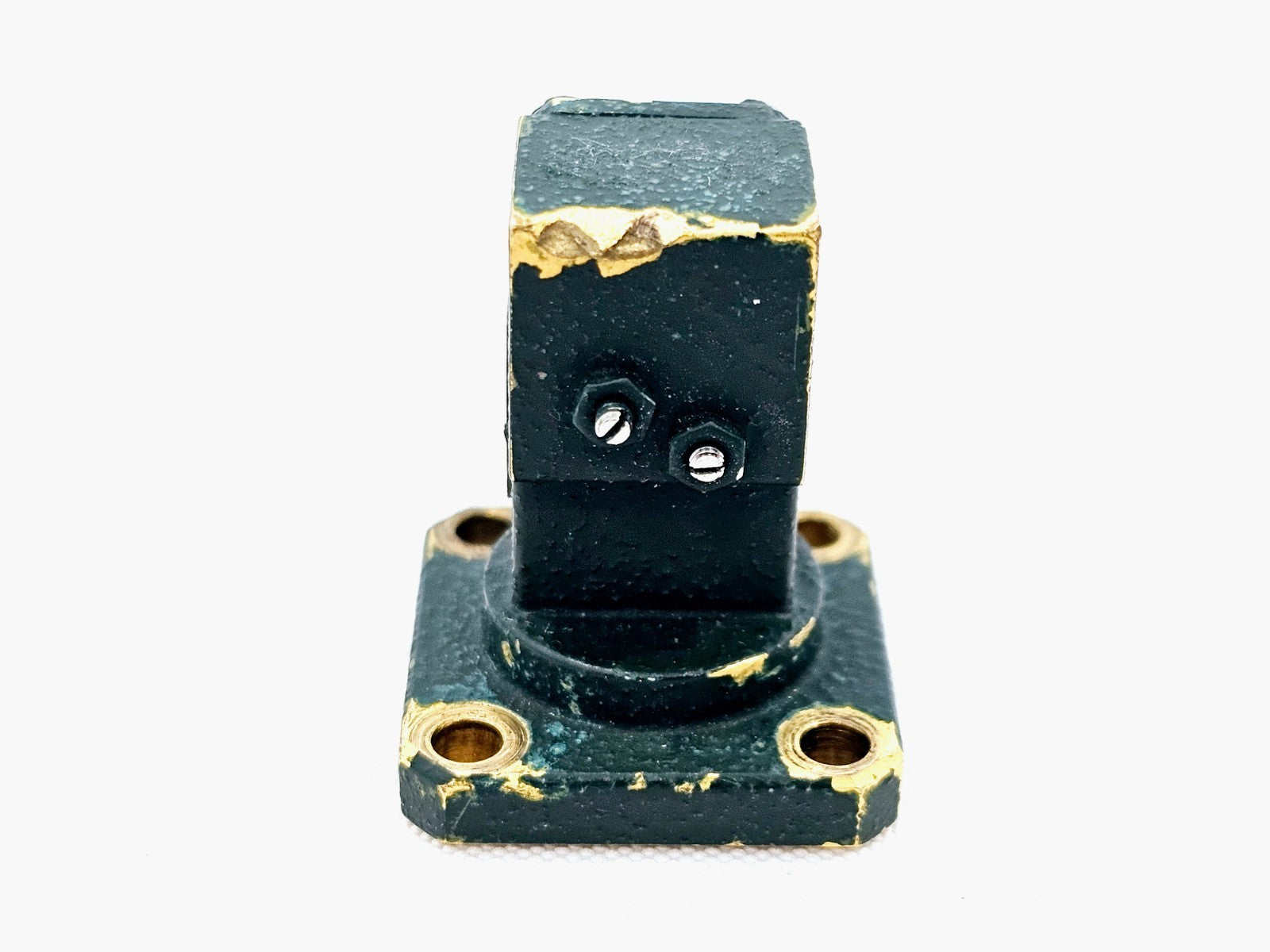

Flann Microwave 20094-SF40 broadband waveguide-to-SMA coax adaptor operating across 17.6–26.7 GHz (WR-42 / WG20 band). The unit shows cosmetic wear with paint chipping and oxidation to the body, but the SMA female connector and waveguide flange face appear structurally intact.

Included in the sale:
• 1x Flann Microwave 20094-SF40 Waveguide to SMA Coax Adaptor

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Flann Microwave Series 094-SF40 are broadband waveguide to SMA coaxial adaptors designed to offer enhanced VSWR performance across the full waveguide frequency band. The 20094-SF40 model is specific to the WR-42 (WG20) waveguide band.

Key Features:
- Full-band broadband operation with enhanced VSWR performance
- SMA Female connector fitted as standard
- Four-hole square mounting flange for secure panel or system mounting
- Brass construction
- Narrowband models (covering typically 20% of the full waveguide band) with a VSWR of 1.05 are also available separately under Series 094-SF**

Specifications (20094-SF40):
Frequency Range: 17.6 – 26.7 GHz
Waveguide Standard: WG20 / WR-42
Waveguide Number (WG): 20
Waveguide Number (WR): 220 (EIA WR designation: WR-42)
VSWR (better than): 1.2
Coaxial Connector: SMA Female (standard)
Flange Type: Four-hole square flange
Dimension A: 21.5 mm
Dimension B: 27.9 mm
Dimension C: 15.1 mm
Material: Brass

Typical Applications:
- RF and microwave test and measurement
- Laboratory and production line signal routing
- Defence, telecommunications, space, and R&D systems
- Connecting waveguide-based instruments to coaxial test equipment

Flann Microwave Series 094-SF40 Waveguide to SMA Coax Adaptors — official datasheet with specifications and dimensions: Download PDF
