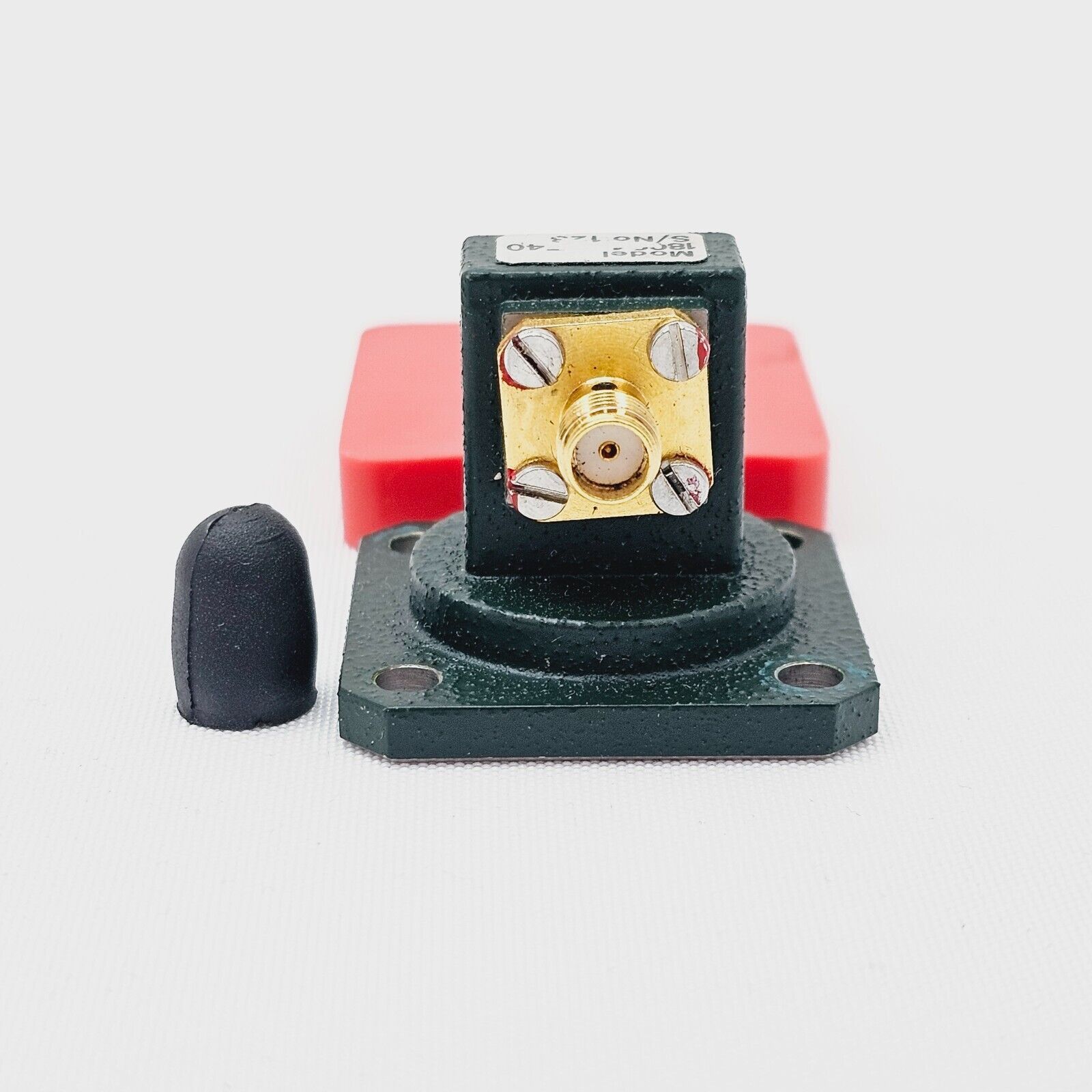

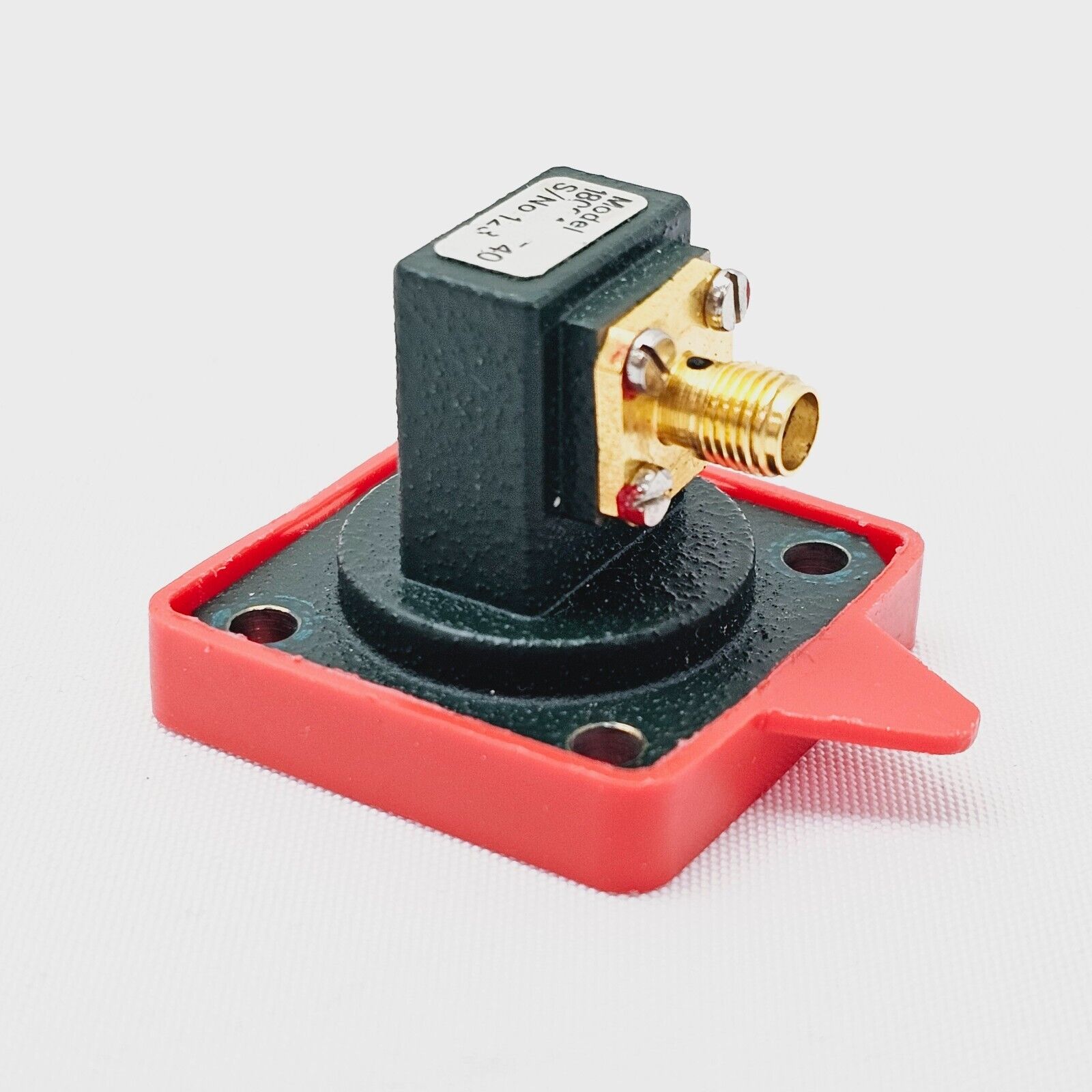

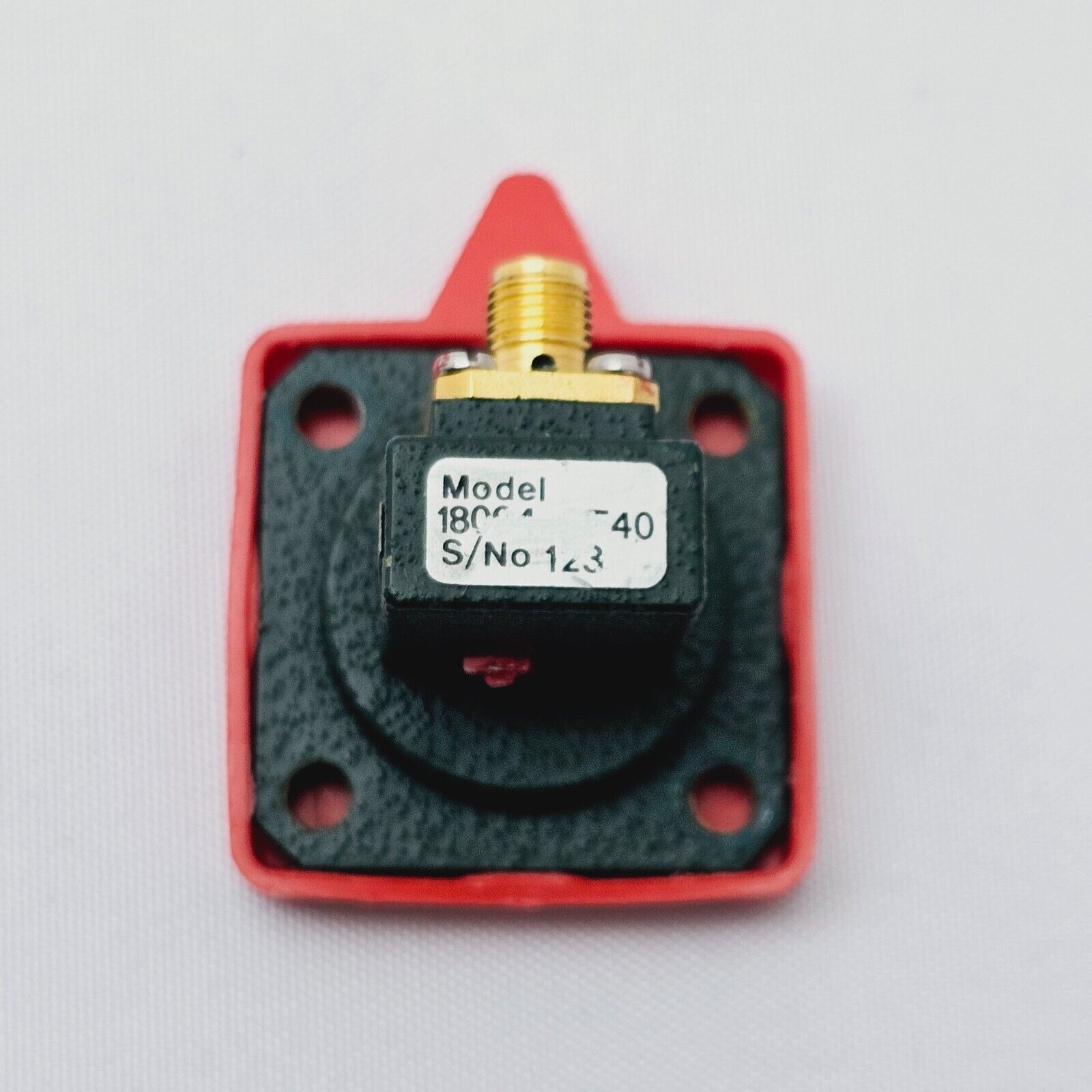

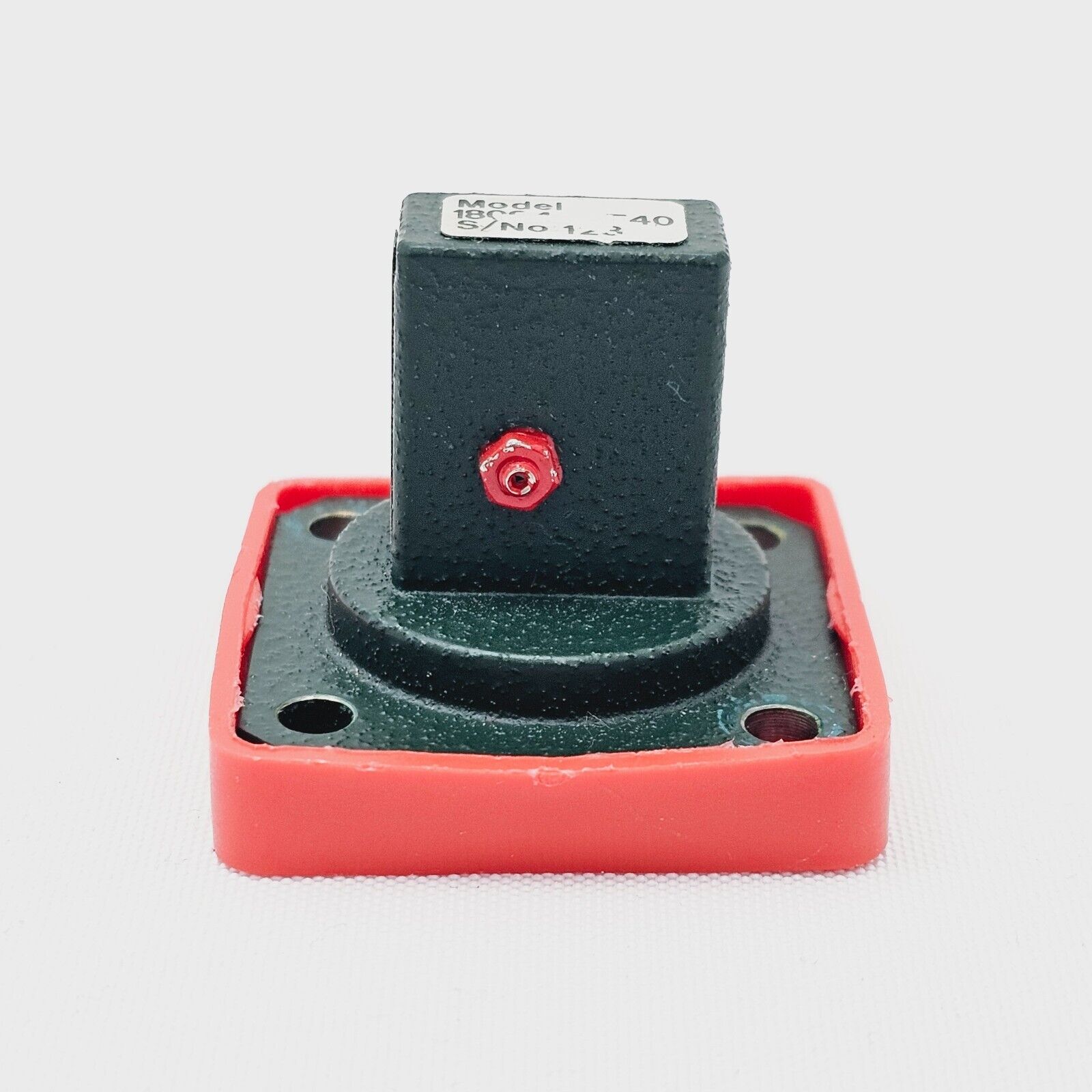

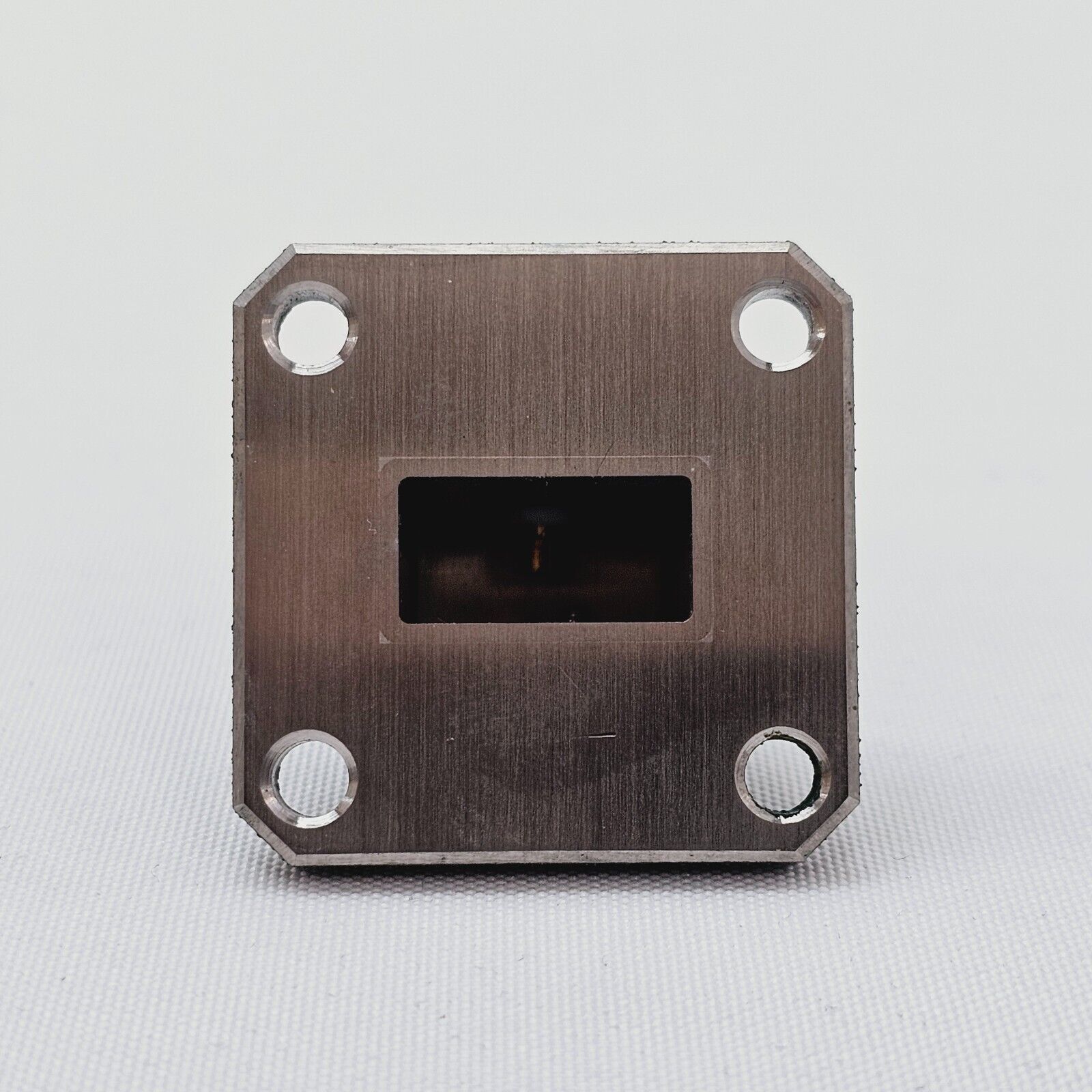

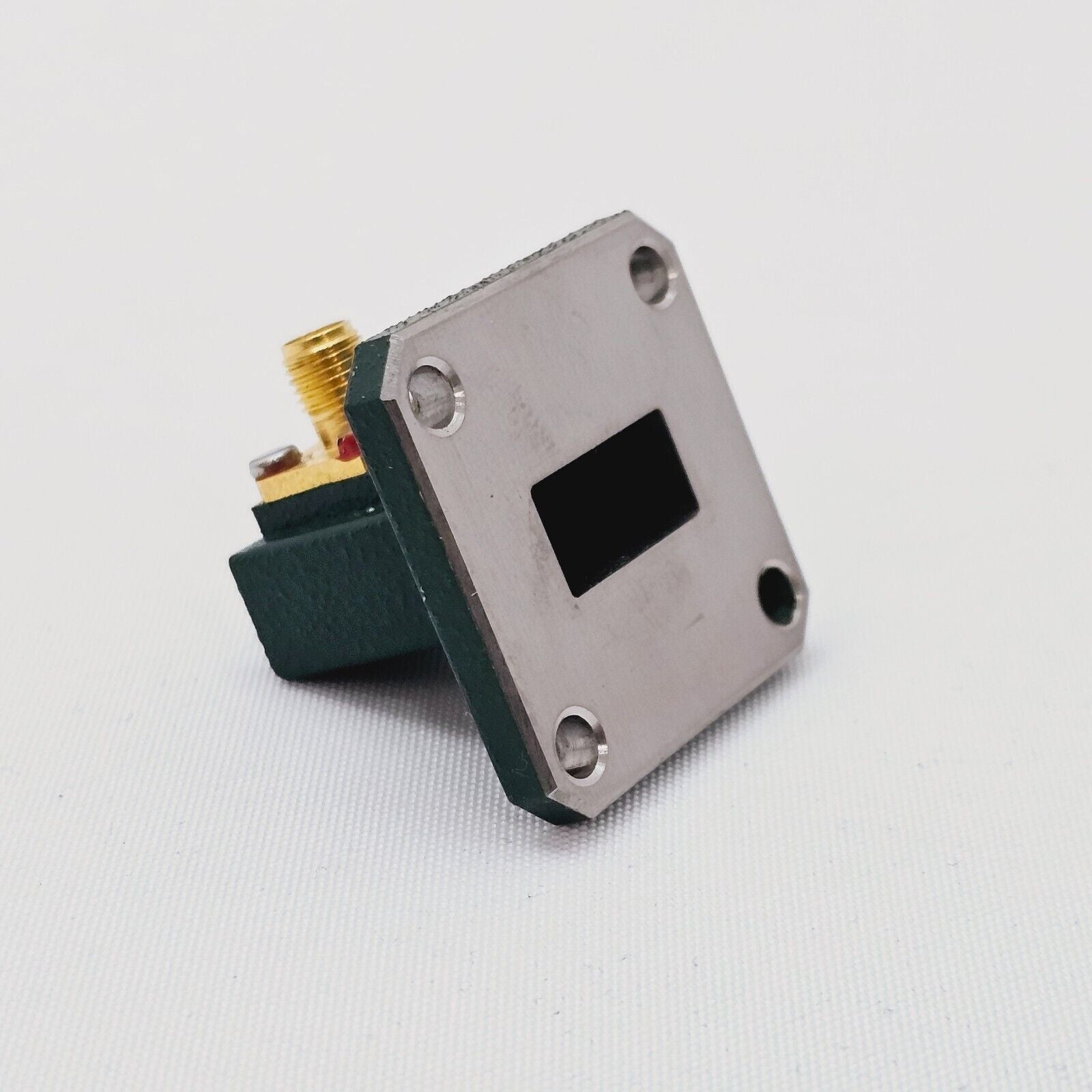

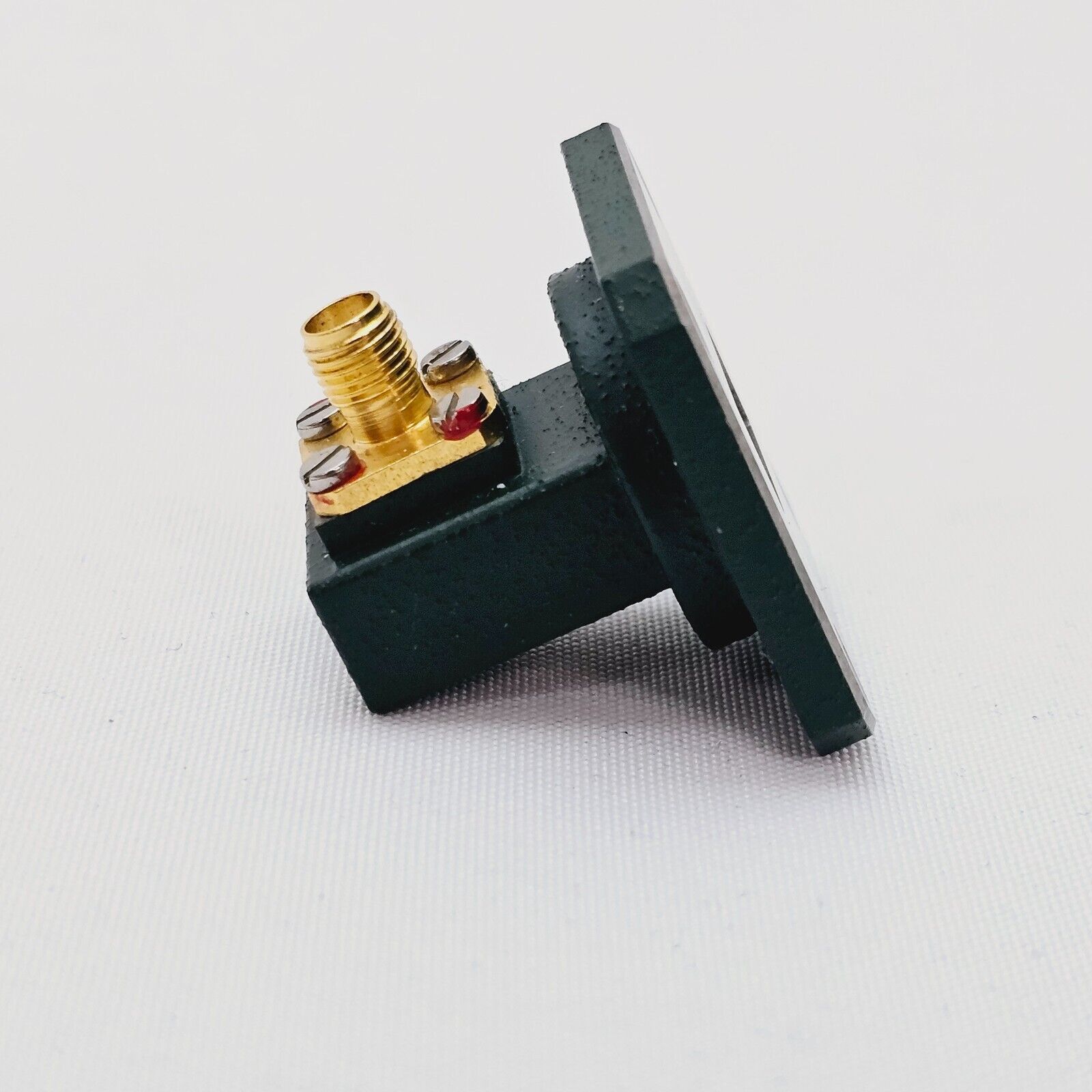

Flann Microwave 18094-SF40 Waveguide to Coax Adapter 11.9 - 18.0 GHz WR62

Model: 18094-SF40

Condition: Used

In stock: 1

SKU: 5969/5970 7D04

Sale price£80.75
  • Connectors & cables
  • RF & Microwave
  • RF Components
Product Overview



Waveguide to SMA Coax Adaptors Series 094-SF40


Features

Very Low VSWR

Full Waveguide Band models

Manufactured from Brass or *Aluminium

The Flann Series 094-SF waveguide to coax adaptors offer enhanced VSWR performance over the full waveguide frequency band.

The adaptors are fitted with SMA Female connectors as standard. However, models are optionally available with male connectors, please contact our sales team for further details.

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available.


Part Number

18094-SF40

Manufacturer

Flann Microwave

Description

Waveguide to SMA Coax Adapter

General Parameters

Waveguide Size

WR62 / WG18 / R140

Waveguide WG

WG18

Waveguide R

R140

Waveguide WR

WR62

Connector

SMA

Geometry

Right Angle

Frequency

11.90 to 18.0 GHz

VSWR

1.12:1

Dimension

38.5 x 47.3 x 16.9 mm
