Condition: Used

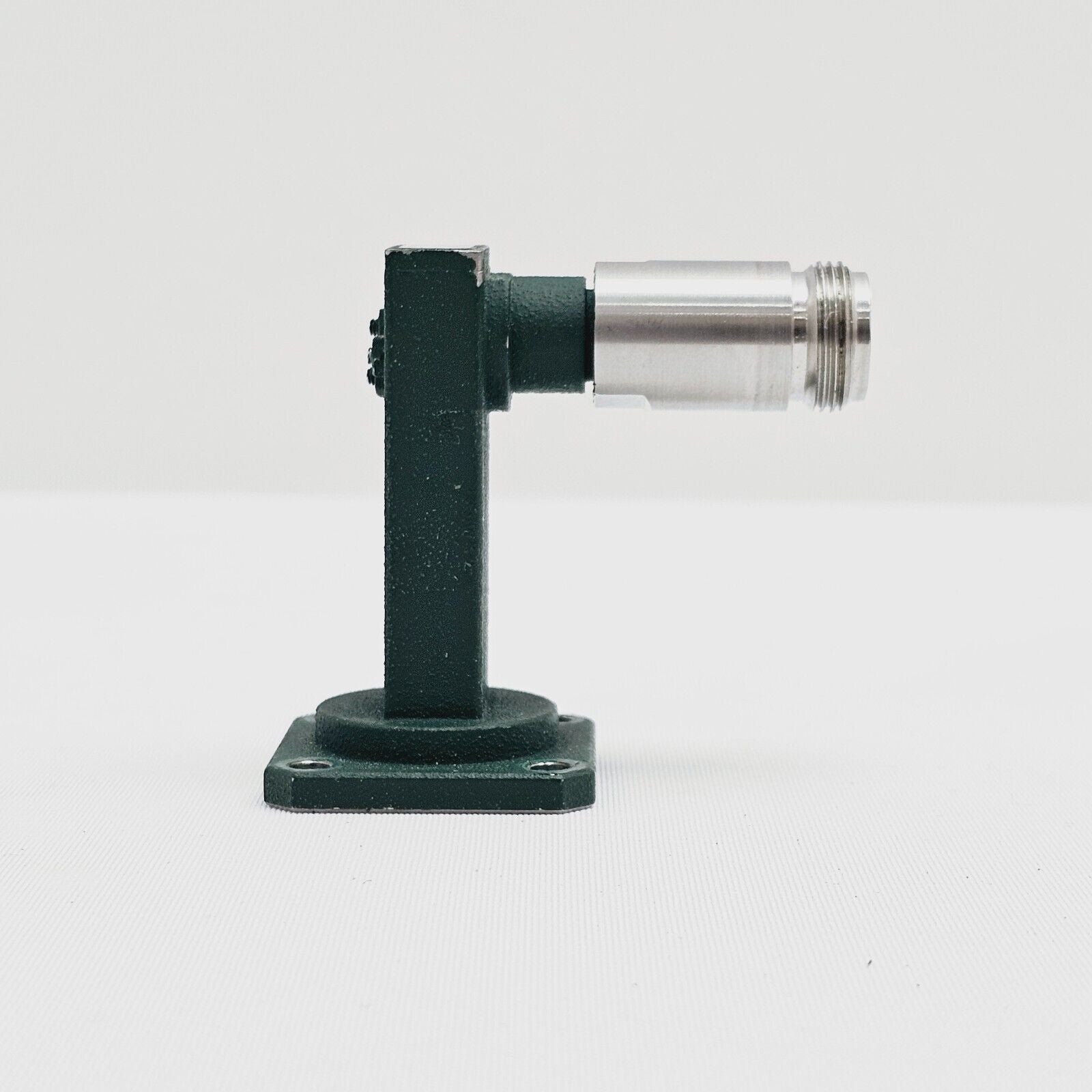

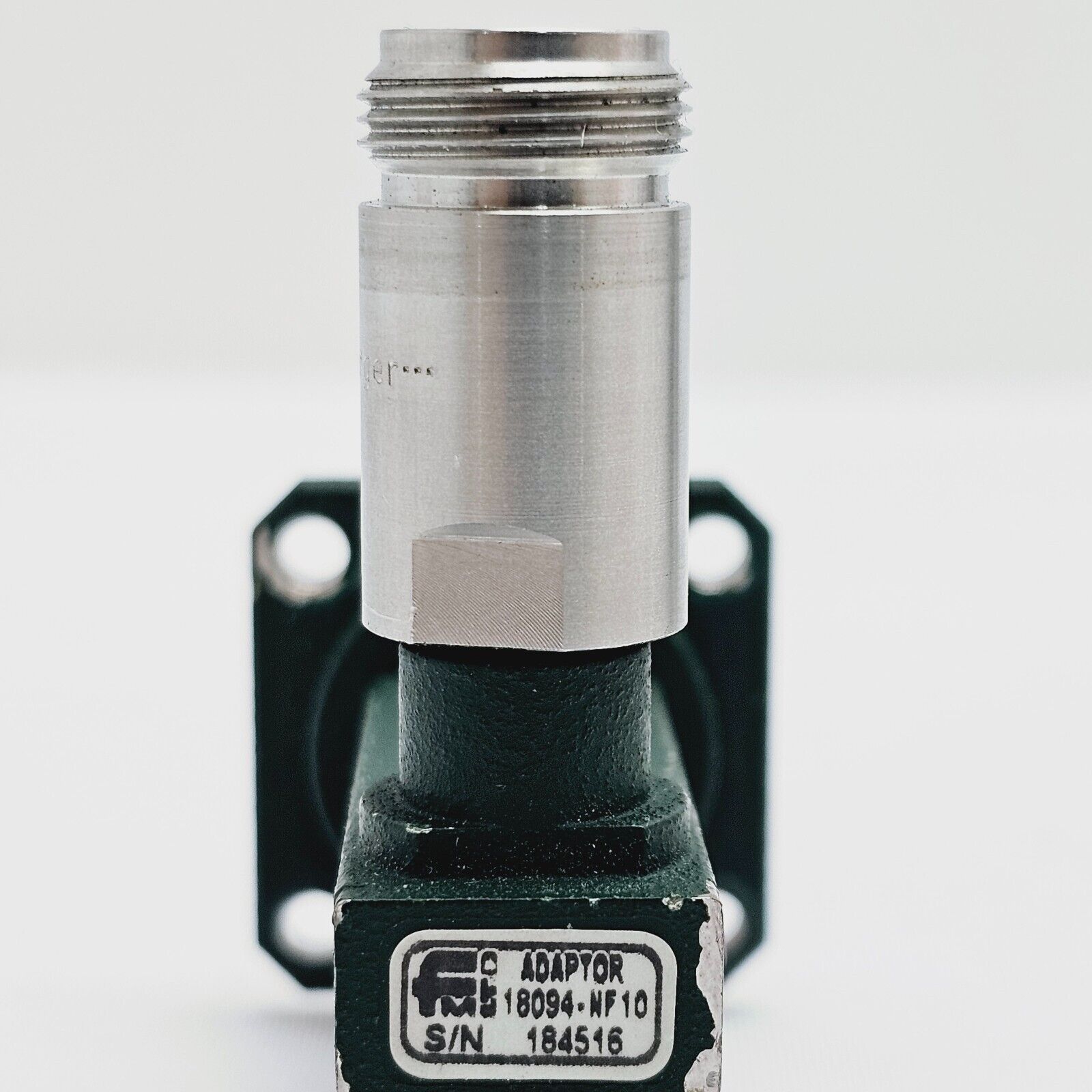

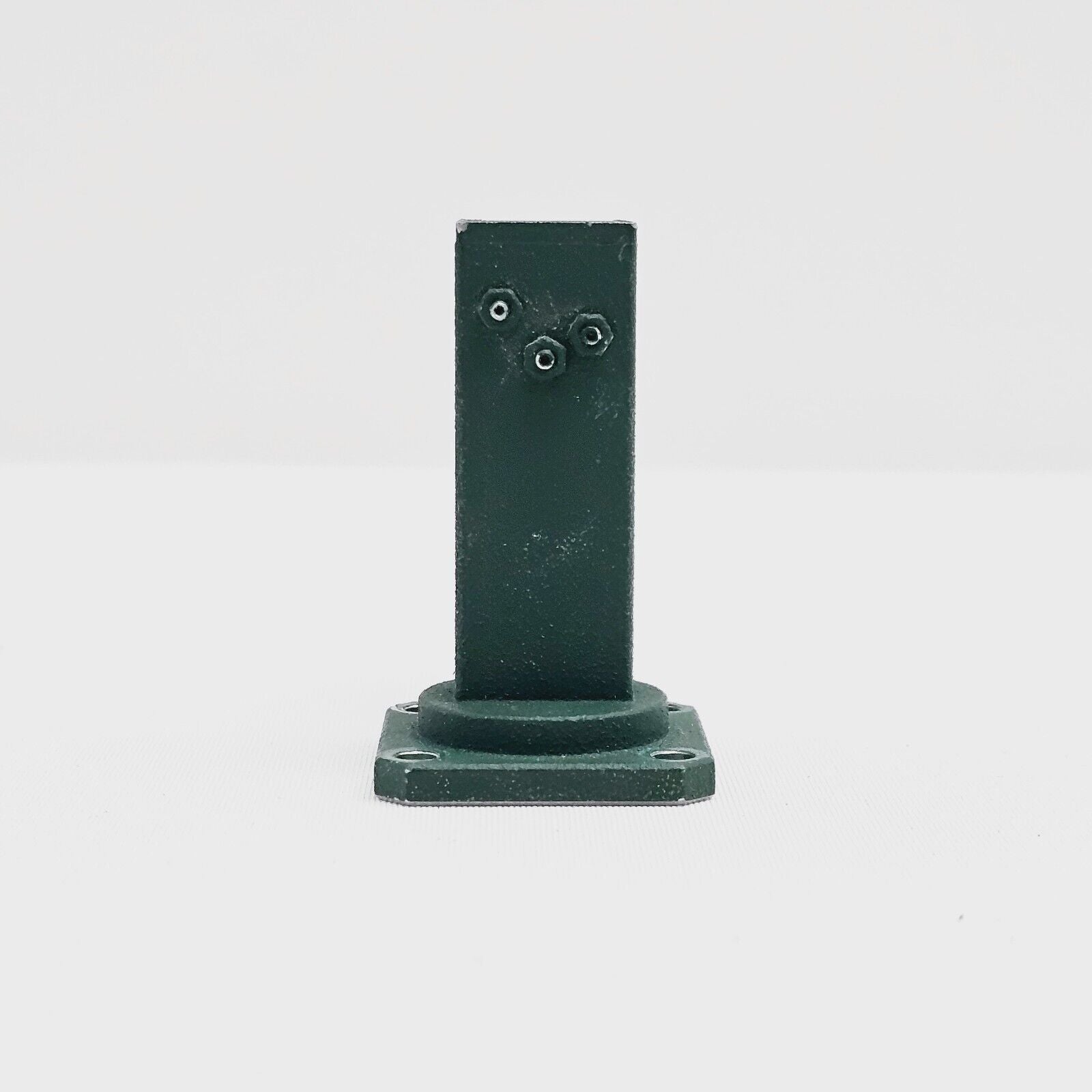

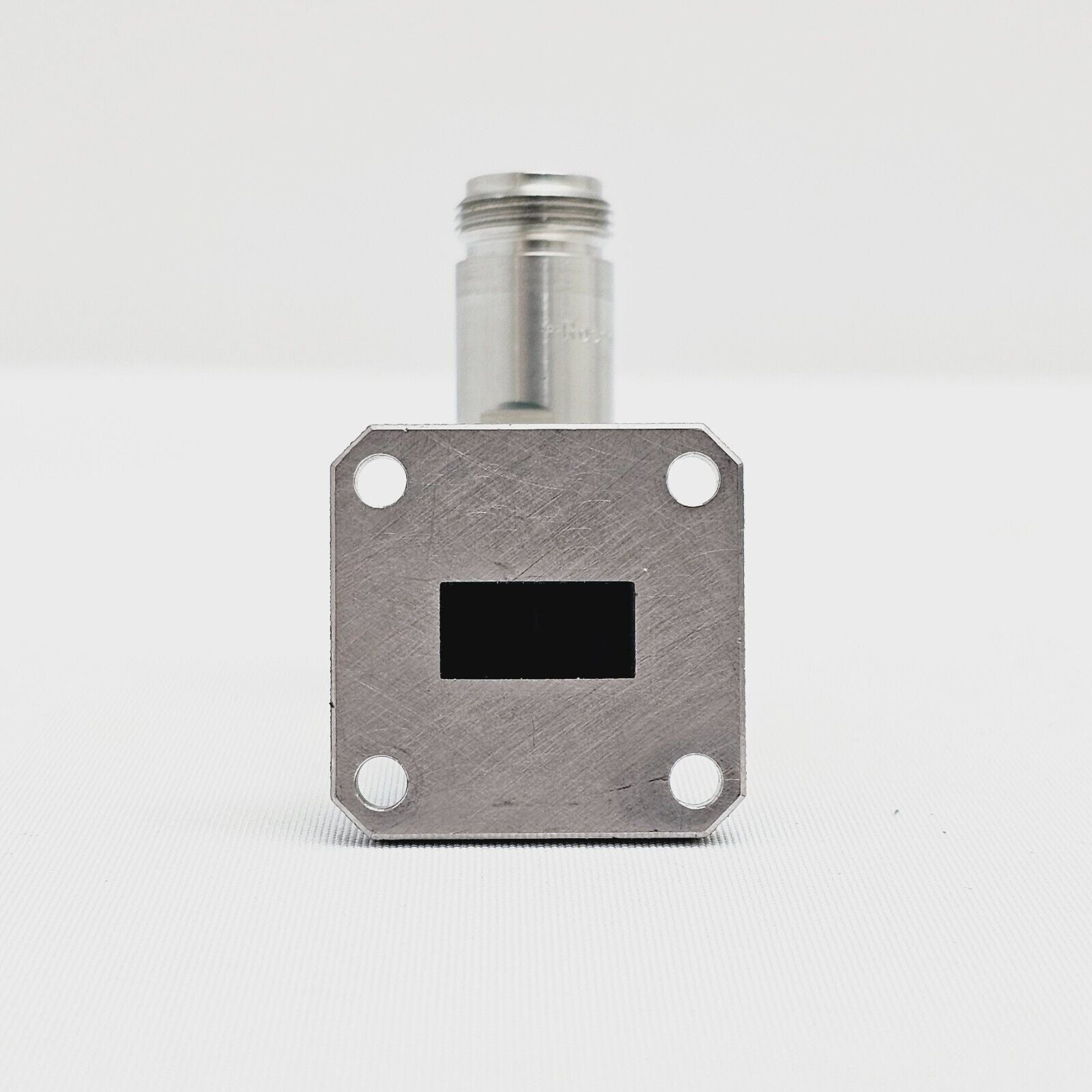

The Flann Microwave 18094-NF10 is a used broadband waveguide-to-coax adaptor operating over 11.9–18.0 GHz on WG18 (WR62) waveguide. Fitted with a Type N female connector as standard, it offers enhanced VSWR performance across the full waveguide band in a robust brass construction.

What is typically included:
• Flann Microwave 18094-NF10 waveguide-to-coax adaptor (brass)

The Flann Microwave 18094-NF10 is a precision broadband waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular WG18 waveguide and a Type N female coaxial connector, suitable for use in microwave test, measurement, and system integration applications across the Ku-band frequency range.

The Series 094-NF broadband Waveguide-to-Coax Adaptors are designed to offer enhanced VSWR performance over the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design offering greater durability and reliability whilst maintaining existing high-performance specifications. Adaptors are fitted with Type N female connectors as standard; Type N male connector variants are available to special order.

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available in the Series 093-NF and 094-NF range.

Specifications:
Model: 18094-NF10
Frequency Range: 11.9–18.0 GHz
Waveguide Size: WG18
Waveguide Designation (R): R40
Waveguide Designation (WR): WR62
VSWR (better than): 1.12
Connector Type: Type N Female
Dimension A (Brass): 47.2 mm
Dimension B (Brass): 56 mm
Dimension C (Brass): 44 mm
Weight (Brass): 0.12 kg
Material: Brass (standard)

Flann Microwave Series 094-NF Broadband Waveguide-to-Coax Adaptors Datasheet: Download PDF
