Condition: Used

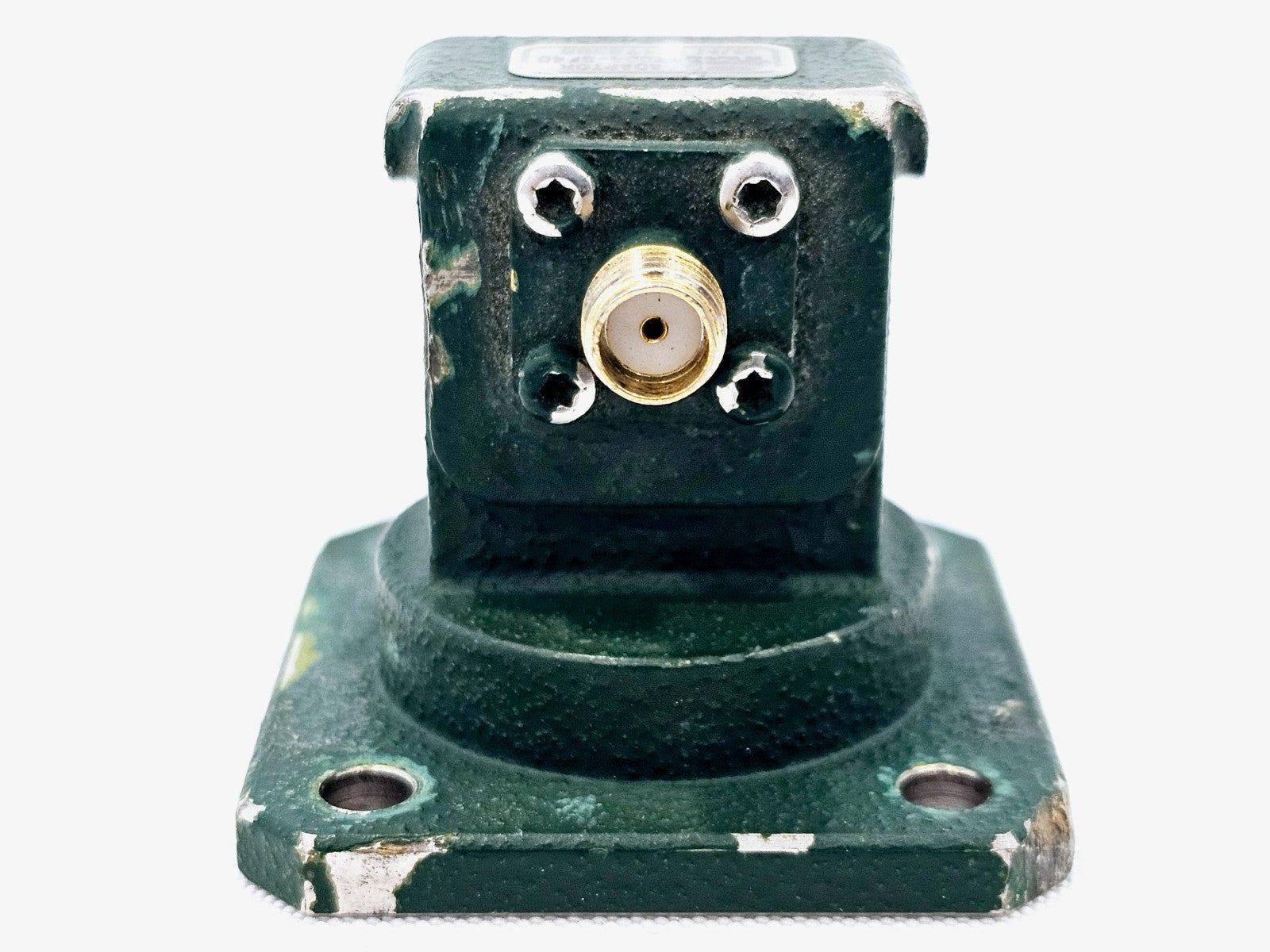

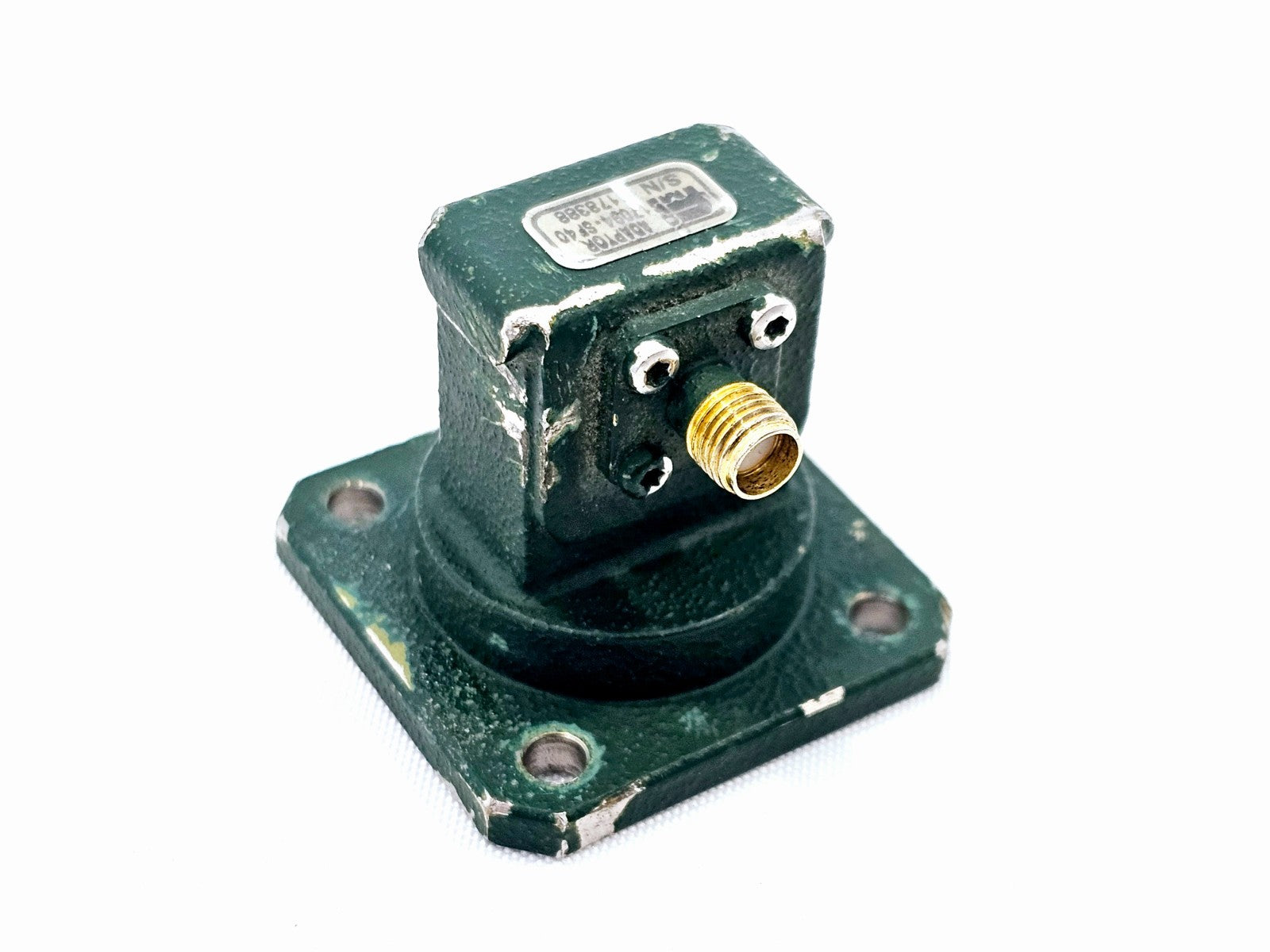

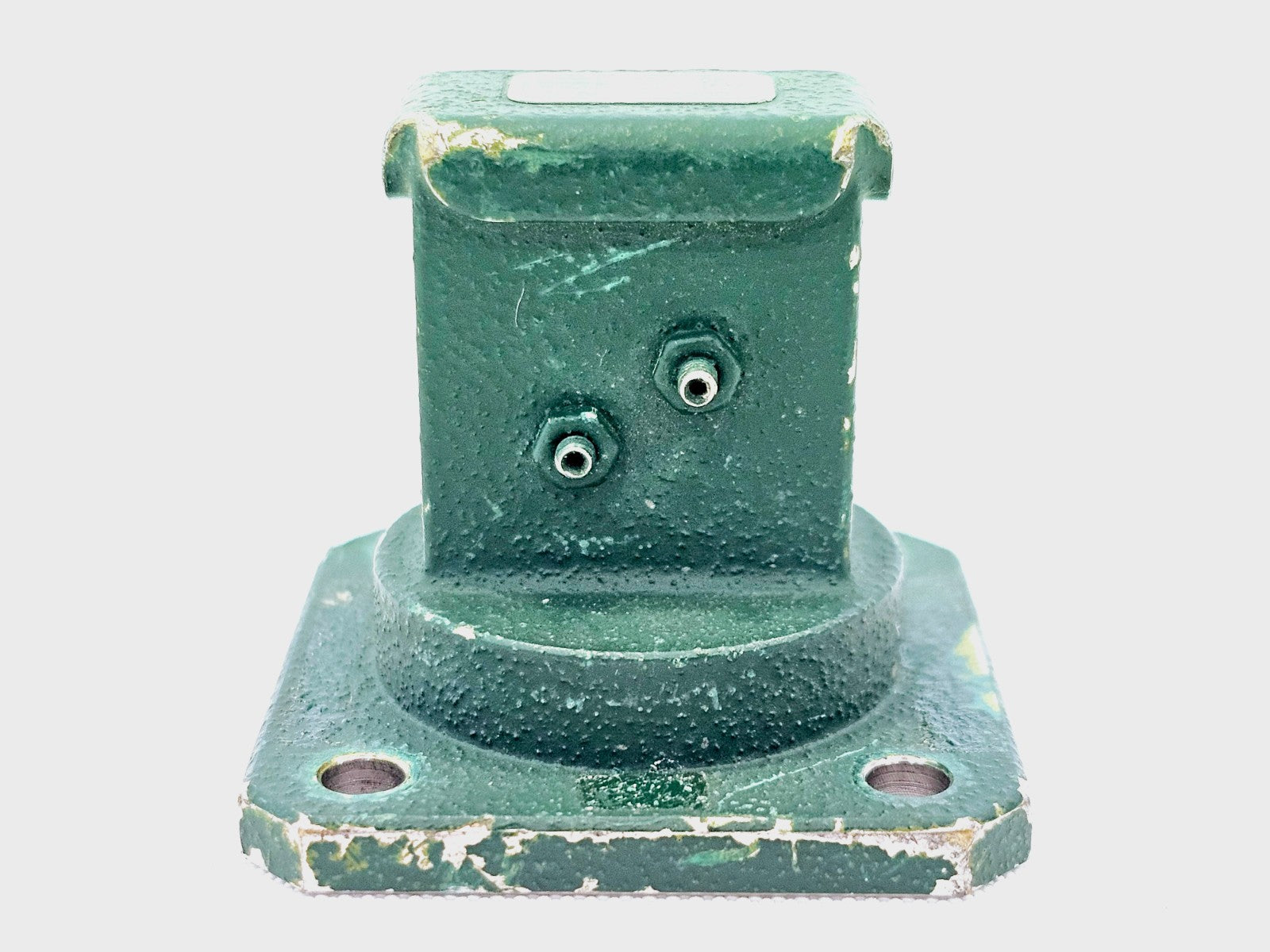

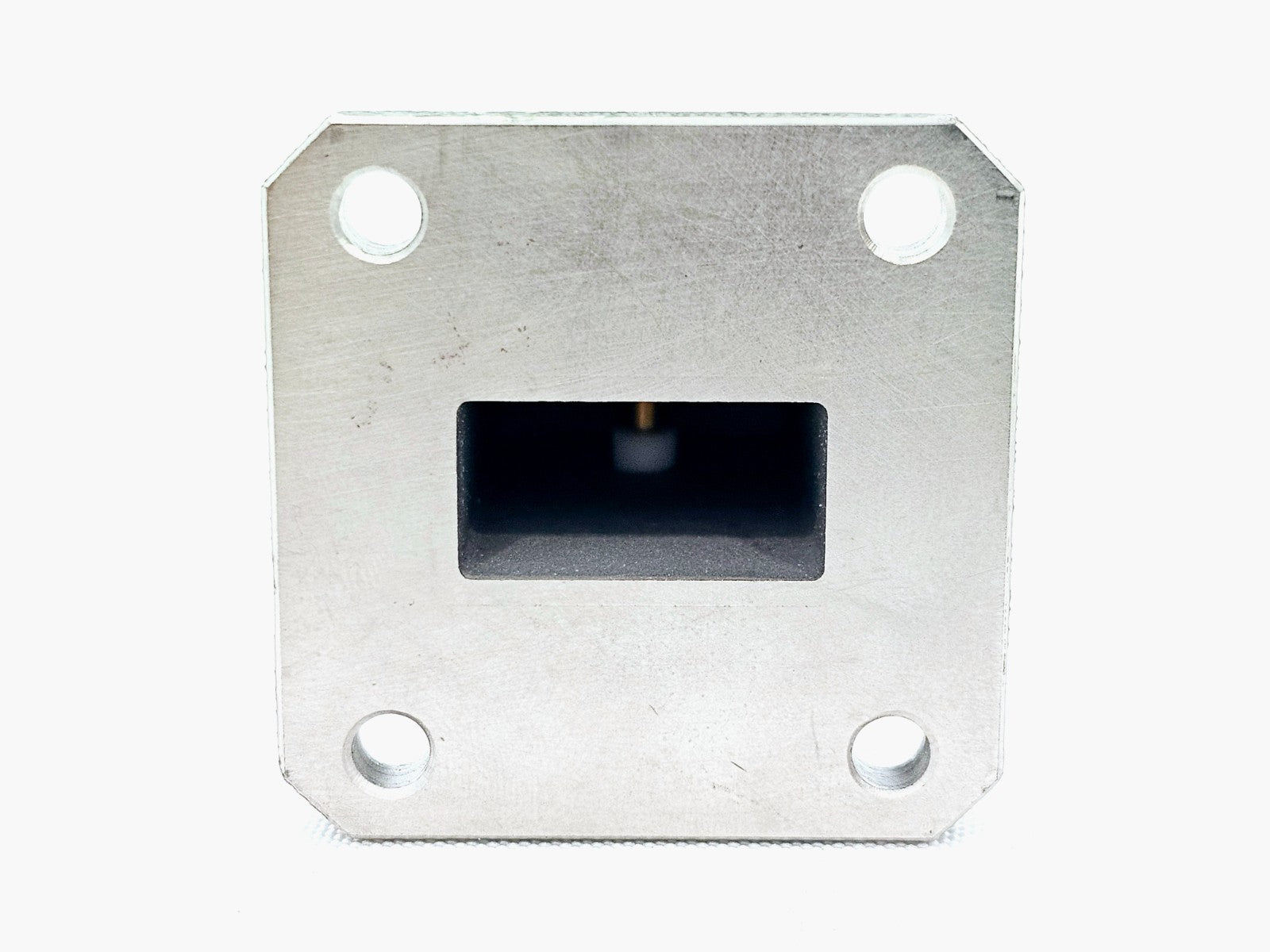

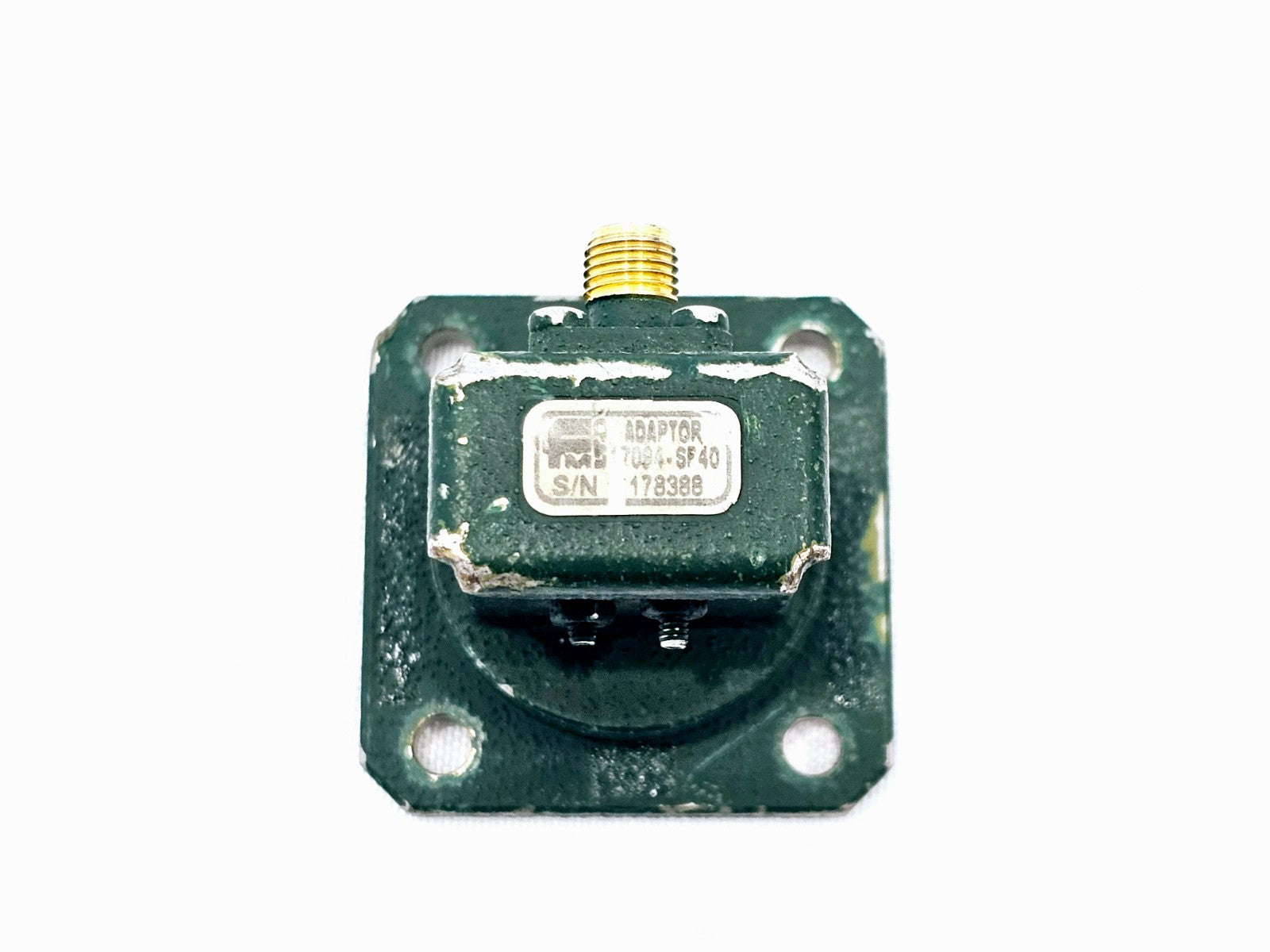

The Flann Microwave 17094-SF40 is a broadband Series 094-SF waveguide-to-coaxial adaptor operating from 9.84 to 15.0 GHz, offering enhanced VSWR performance across the full waveguide frequency band with an SMA female connector fitted as standard.

Included in the sale:
• 1x Flann Microwave 17094-SF40 Broadband Waveguide to SMA Coax Adaptor

The Flann Microwave 17094-SF40 is a precision waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. Part of the Series 094-SF range, this adaptor provides a low-reflection transition between rectangular waveguide and a coaxial SMA connector, suitable for use in microwave test, measurement, and system integration applications across the X-band to Ku-band frequency range.

The Series 094-SF adaptors are designed to deliver enhanced VSWR performance over the full waveguide frequency band, making them well-suited for use with vector network analysers, signal generators, spectrum analysers, and other RF/microwave instrumentation. SMA female connectors are fitted as standard, with male connector options available on request. Narrowband models covering approximately 20% of the full waveguide band with a VSWR of 1.05 are also available in the Series 094-SF** range.

Specifications:
Model: 17094-SF40
Frequency Range: 9.84–15.0 GHz
Coaxial Connector: SMA Female
VSWR Performance: Enhanced broadband VSWR across the full waveguide band
Connector Options: SMA Male available on request
Narrowband Option: Series 094-SF** (VSWR 1.05, ~20% of band)
Manufacturer: Flann Microwave Ltd, UK

Flann Microwave Series 094-SF Waveguide to Coax Adaptors Product Datasheet: Download PDF
