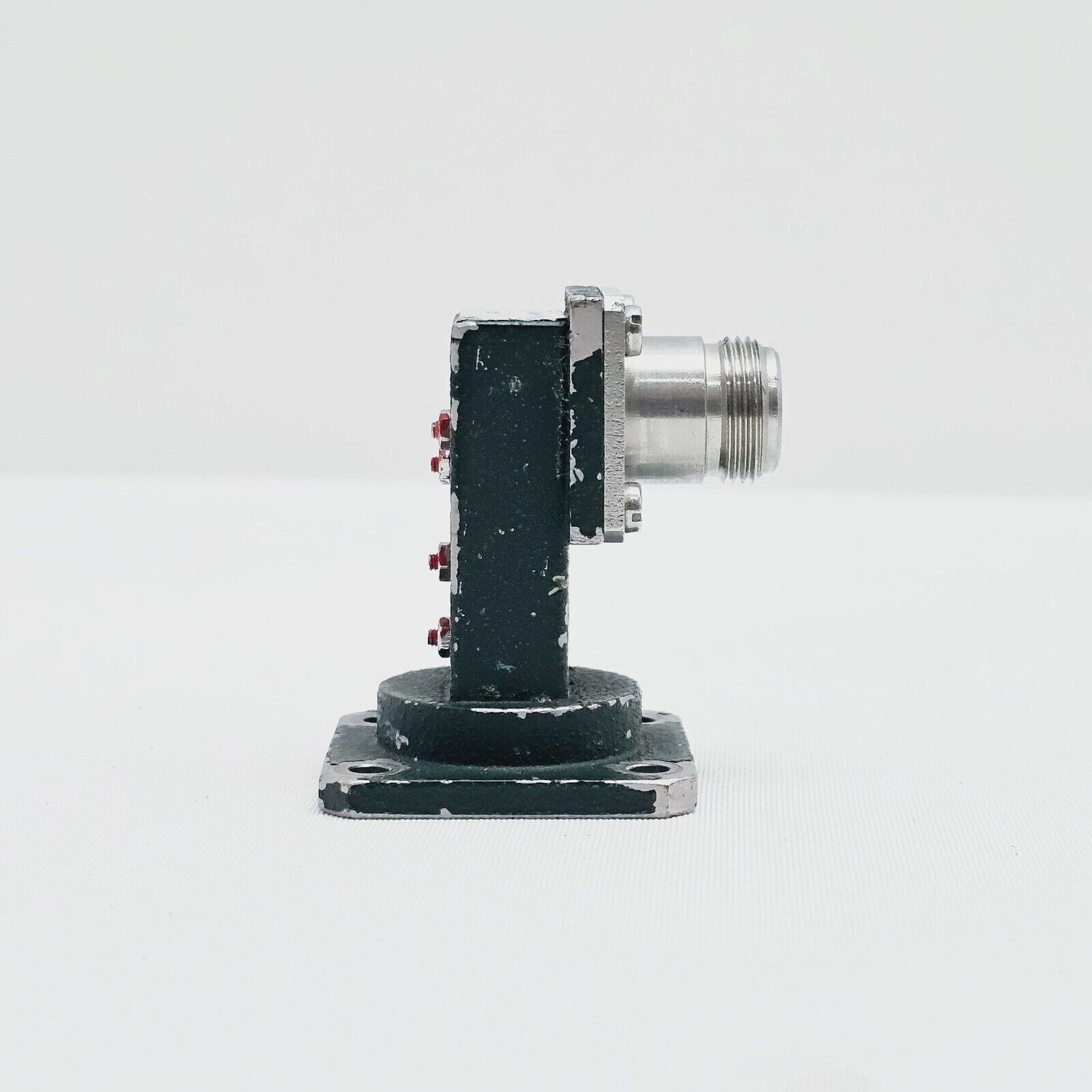

Flann Microwave 17094-NF10 waveguide to coax adaptor front view with red N-type dust cap alongside

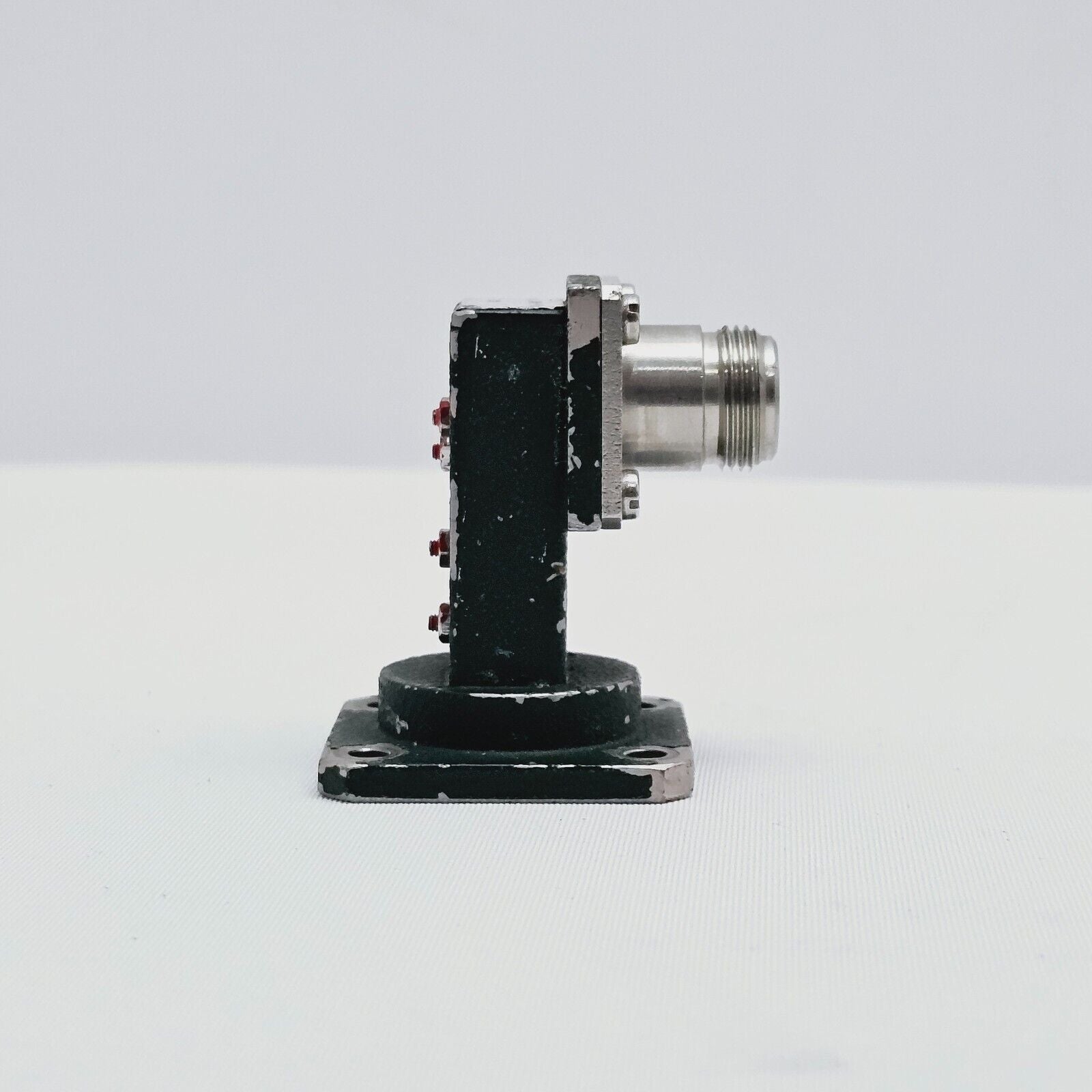

Flann Microwave 17094-NF10 opposite side view showing N-type female connector and chipped paint on body

Flann Microwave 17094-NF10 rear three-quarter view showing N-type port, red screws and worn paint finish

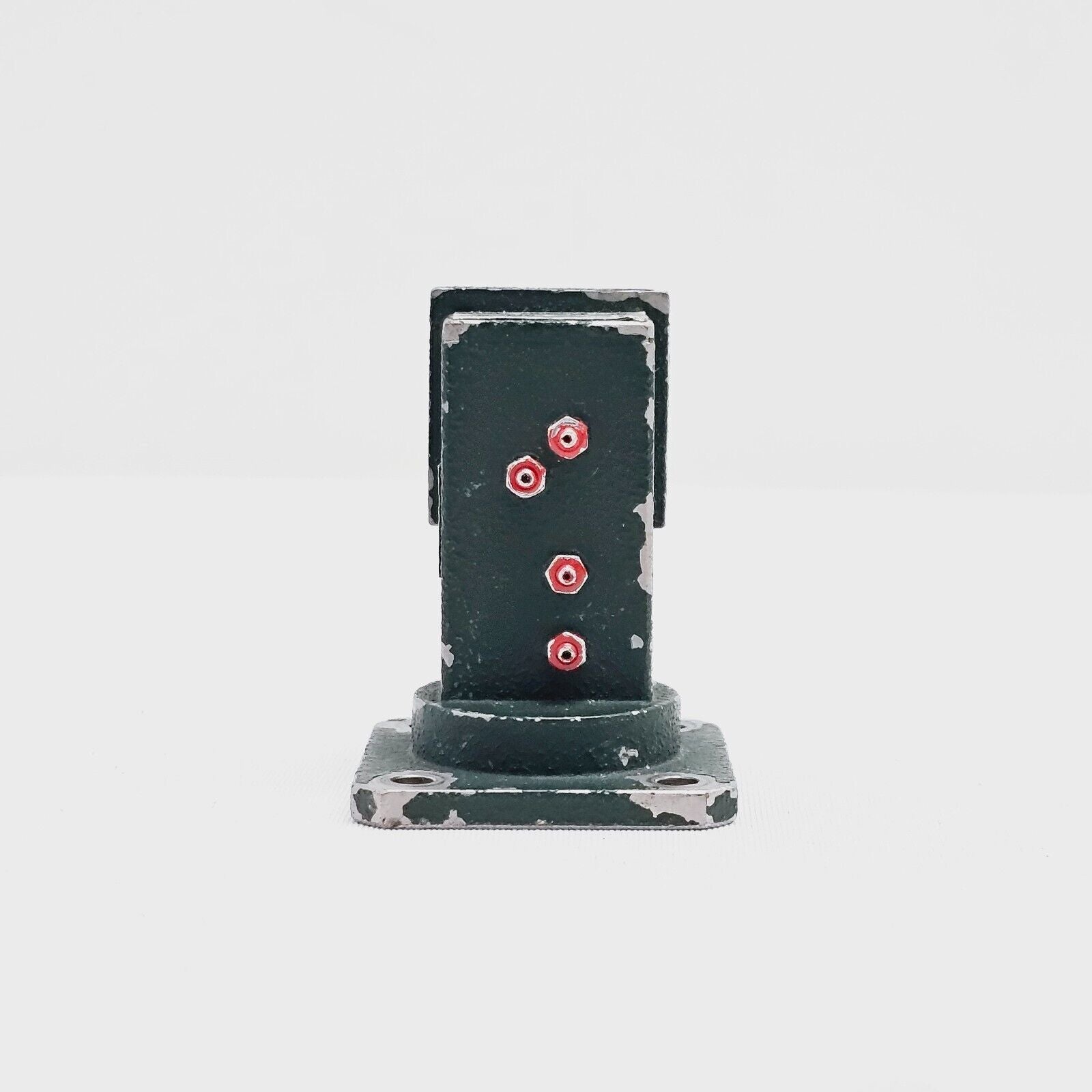

Flann Microwave 17094-NF10 rear panel showing four red-capped screws on dark green painted body

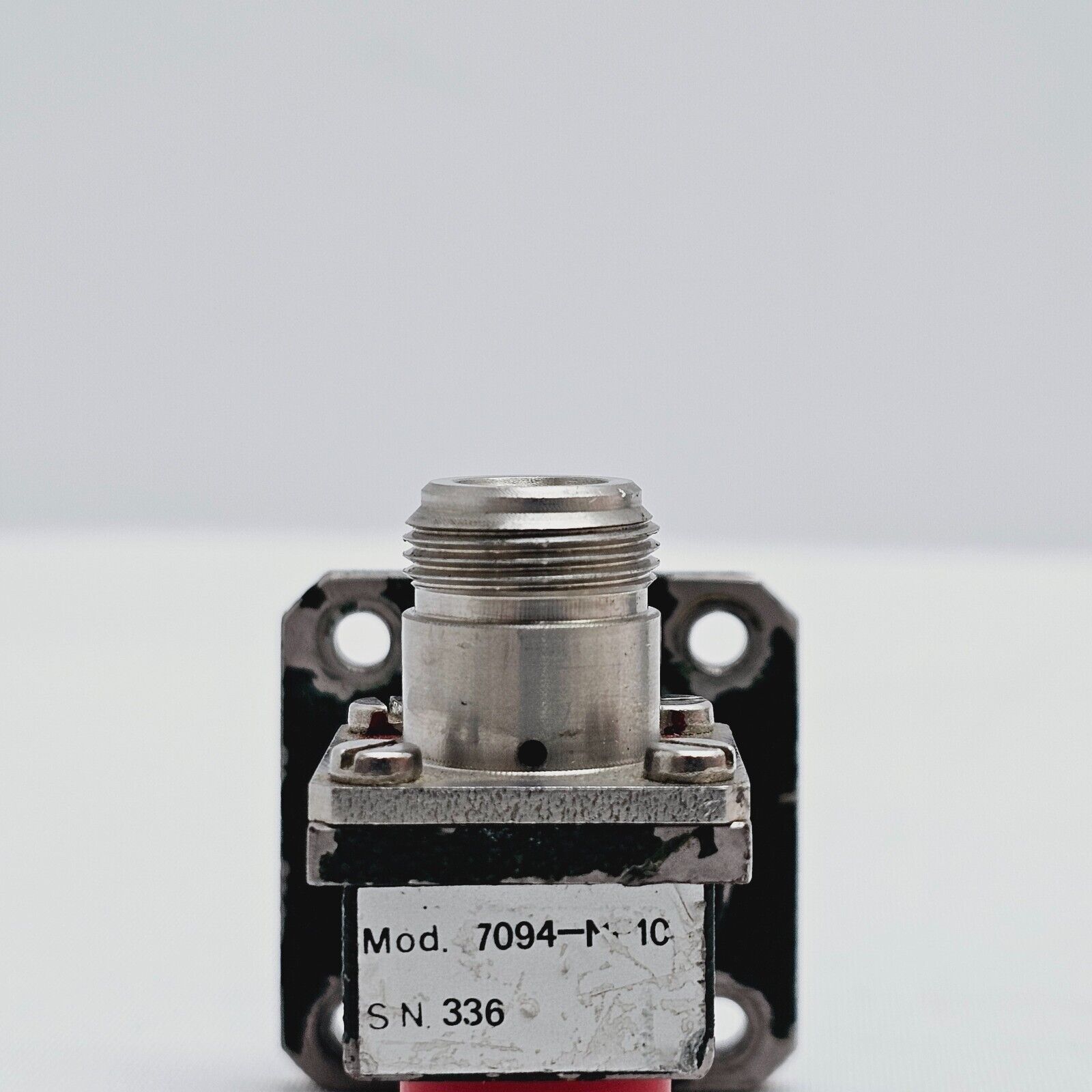

Flann Microwave 17094-NF10 model label showing Mod. 7094-NF10 and SN 336 with N-type female port above

Flann Microwave 17094-NF10 close-up of waveguide flange face showing gold centre pin and four fixing screws

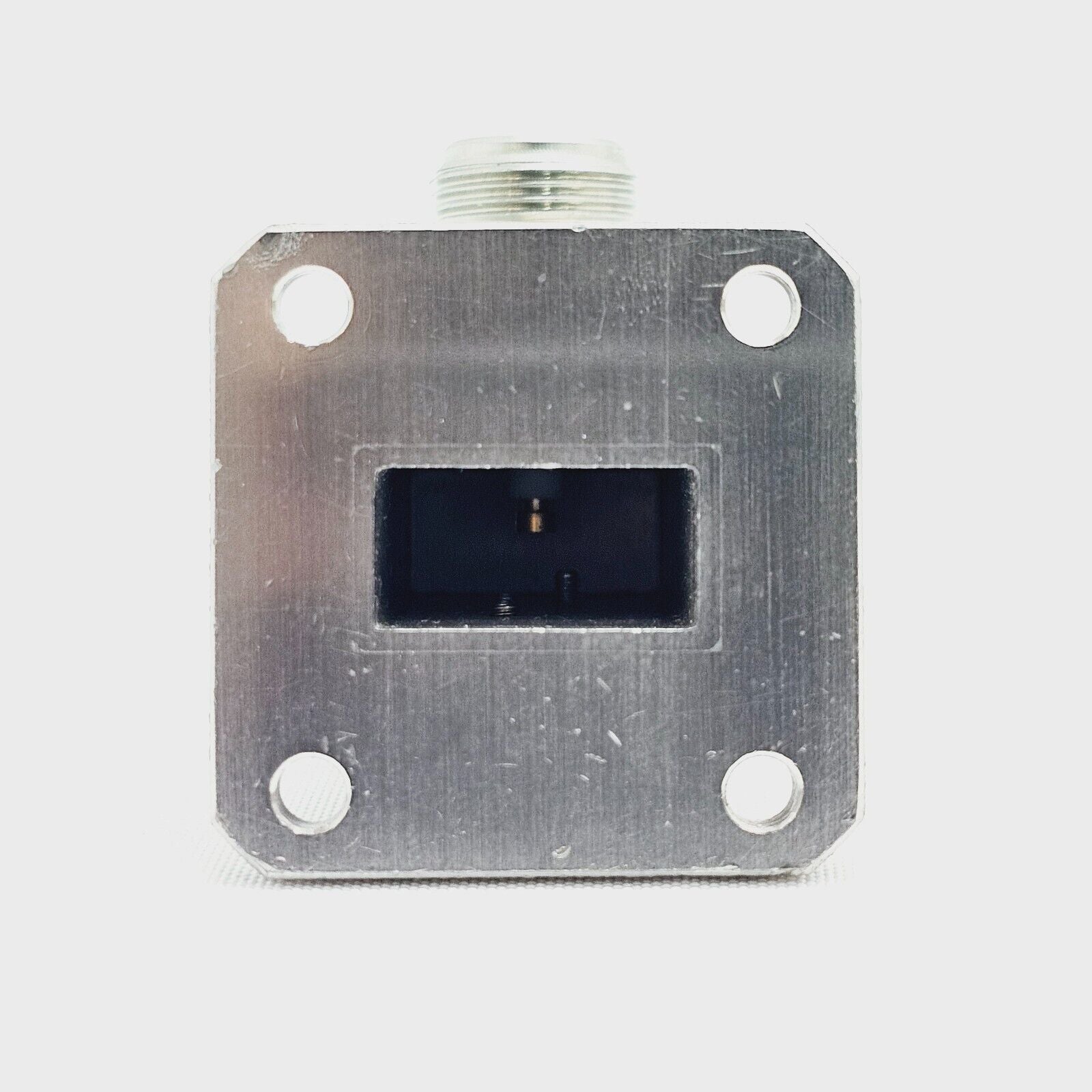

Flann Microwave 17094-NF10 bottom flange face showing rectangular waveguide aperture and four mounting holes

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Flann Microwave 17094-NF10 Broadband Waveguide - Coax N Type Adaptor 9.84 - 15.0

Name: Flann Microwave 17094-NF10 Broadband Waveguide - Coax N Type Adaptor 9.84 - 15.0
Brand: Flann Microwave
SKU: 5440 7D05 ER50
Price: 34.0 GBP
Availability: OutOfStock

The Flann Microwave 17094-NF10 is a broadband waveguide-to-coaxial adaptor covering 9.84–15.0 GHz (WG17/WR75), fitted with a Type N Female connector for precision RF signal interfacing.
• Covers full WG17 waveguide band — 9.84 to 15.0 GHz
• Very low VSWR of better than 1.12 across the full band
• Robust brass construction with four-hole flange mounting

Manufacturer

Flann Microwave

Model

17094-NF10

Condition

Used

In stock

SKU

5440 7D05

£34.00

Connectors & cables
RF & Microwave
RF Components

Make an Offer

Condition: Used

The Flann Microwave 17094-NF10 is a broadband WG17 (WR75) waveguide-to-coaxial adaptor with a Type N Female connector, covering 9.84–15.0 GHz. Serial number 336 is visible on the label. The unit shows cosmetic wear including paint chipping to the body, consistent with prior use.

What's included:
• 1x Flann Microwave 17094-NF10 Broadband Waveguide to Coax N-Type Adaptor
• 1x Red protective dust cap (for N-type port)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: Used

What's included:
• 1x Flann Microwave 17094-NF10 Broadband Waveguide to Coax N-Type Adaptor
• 1x Red protective dust cap (for N-type port)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Flann Microwave 17094-NF10 is part of the Series 093/094-NF range of broadband Waveguide-to-Coaxial Adaptors. These adaptors are designed to offer enhanced VSWR performance across the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design providing greater durability and reliability while maintaining existing high performance specifications. The adaptors are fitted with Type N Female connectors as standard; models with Type N Male connectors are available to special order. Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available (Series 093-NF and 094-NF narrowband variants).

Model: 17094-NF10
Frequency Range: 9.84 – 15.0 GHz
Waveguide Size: WG17
Waveguide Designation (R): R120
Waveguide Designation (WR): WR75
VSWR (better than): 1.12
Coaxial Connector: Type N Female
Dimension A (Brass): 42.2 mm
Dimension B (Brass): 52.0 mm
Dimension C (Brass): 44.2 mm
Weight (Brass): 0.15 kg
Material: Brass (standard); Aluminium available
Manufacturer: Flann Microwave Limited, Bodmin, Cornwall, UK
