Flann Microwave 17094-NF10 Broadband Waveguide - Coax N Type 9.84 - 15.0 GHz

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Flann Microwave 17094-NF10 Broadband Waveguide - Coax N Type 9.84 - 15.0 GHz

Name: Flann Microwave 17094-NF10 Broadband Waveguide - Coax N Type 9.84 - 15.0 GHz
Brand: Flann Microwave
SKU: 5441 7D05 ER50
Price: 34.0 GBP
Availability: OutOfStock

The Flann Microwave 17094-NF10 is a broadband waveguide-to-coaxial adaptor covering 9.84–15.0 GHz (WG17, WR75), converting rectangular waveguide signals to a Type N Female coaxial interface.

• Full waveguide band coverage (9.84–15.0 GHz) with VSWR better than 1.12
• Rugged brass construction with a pedestal-style mounting base for bench or panel use
• Type N Female coaxial output — industry-standard interface for test and measurement

Manufacturer

Flann Microwave

Model

17094-NF10

Condition

Used

In stock

SKU

5441 7D05

£34.00

Connectors & cables
RF & Microwave
RF Components

Make an Offer

Condition: Used

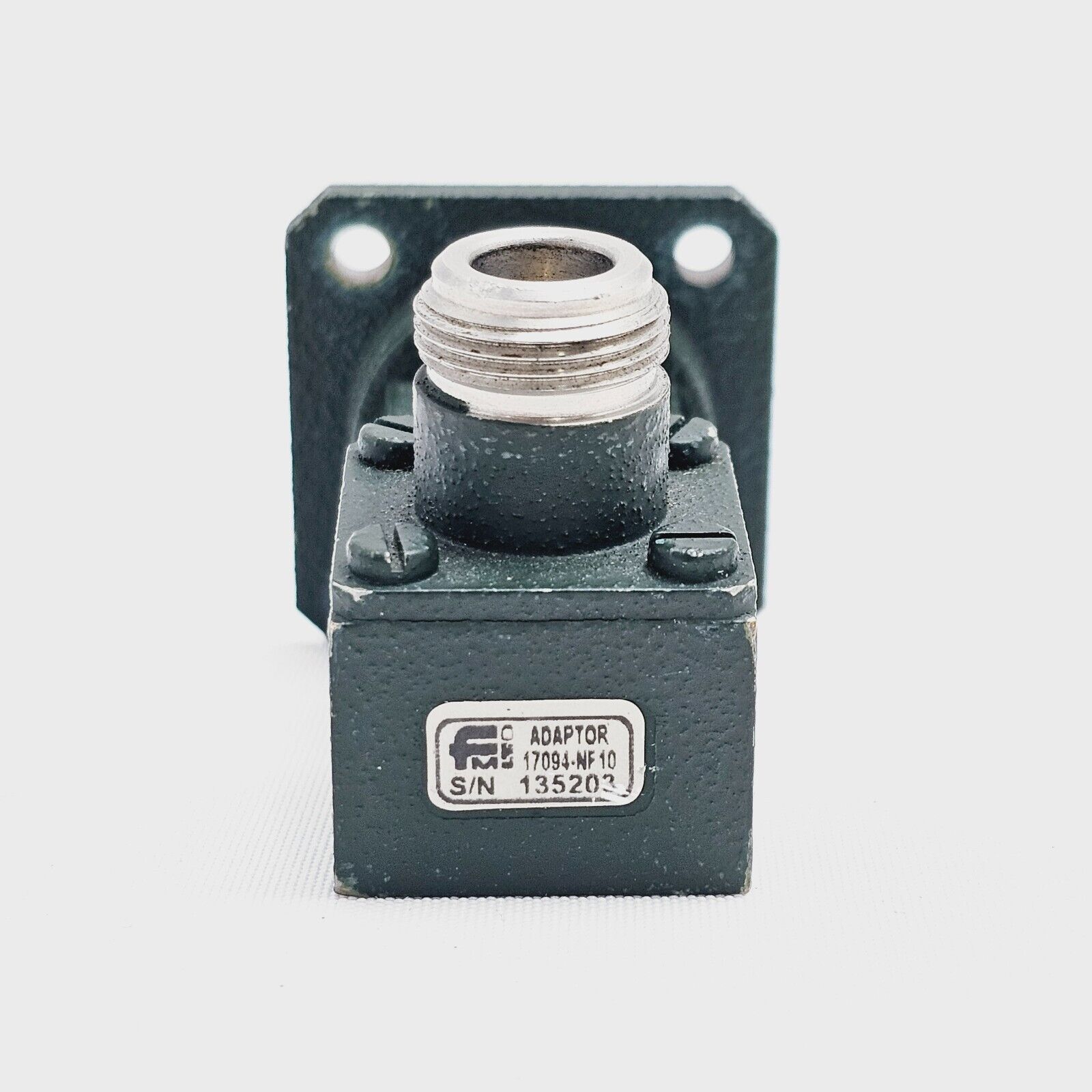

Flann Microwave 17094-NF10 Broadband Waveguide-to-Coax Adaptor covering 9.84–15.0 GHz, WG17 (WR75, R120). Brass construction with a pedestal mount base. Serial number 135203 is visible on the label. The unit includes the protective cap for the Type N Female port.

Included in the sale:
• Flann Microwave 17094-NF10 waveguide-to-coax adaptor (x1)
• Protective cap for Type N Female connector port

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: Used

Included in the sale:
• Flann Microwave 17094-NF10 waveguide-to-coax adaptor (x1)
• Protective cap for Type N Female connector port

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Flann Microwave 17094-NF10 is part of the Series 093/094-NF range of broadband Waveguide-to-Coaxial Adaptors. These adaptors are designed to offer enhanced VSWR performance across the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design providing greater durability and reliability while maintaining existing high performance specifications. The adaptors are fitted with Type N Female connectors as standard; models with Type N Male connectors are available to special order. Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available (Series 093-NF and 094-NF narrowband variants).

Model: 17094-NF10
Frequency Range: 9.84 – 15.0 GHz
Waveguide Size: WG17
Waveguide Designation (R): R120
Waveguide Designation (WR): WR75
VSWR (better than): 1.12
Coaxial Connector: Type N Female
Dimension A (Brass): 42.2 mm
Dimension B (Brass): 52.0 mm
Dimension C (Brass): 44.2 mm
Weight (Brass): 0.15 kg
Material: Brass (standard); Aluminium available
Manufacturer: Flann Microwave Limited, Bodmin, Cornwall, UK

Resources

Flann Microwave Series 094-SF40 Waveguide to SMA Coax Adaptors datasheet — related series technical reference with model table and specifications: Download PDF
