Condition: Used

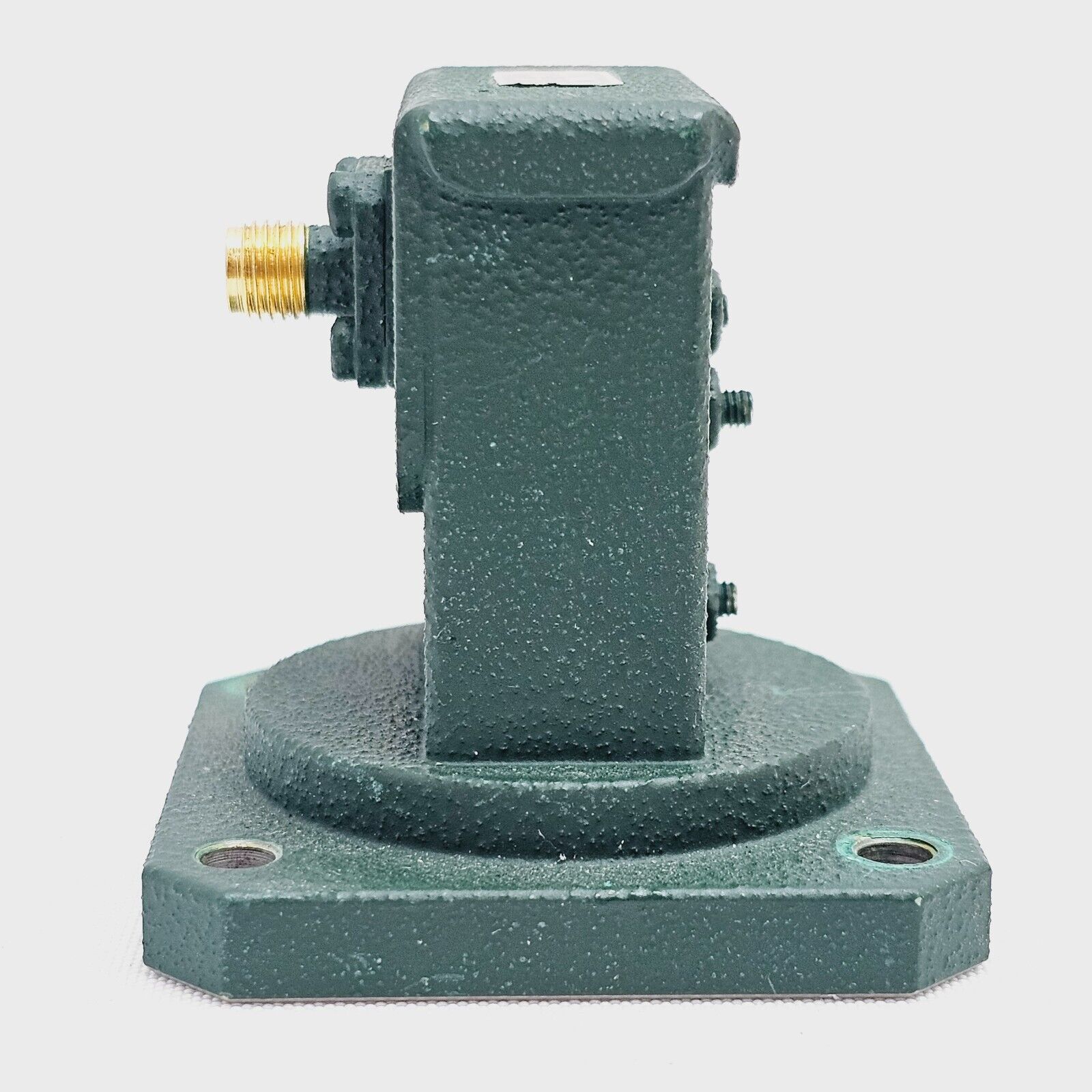

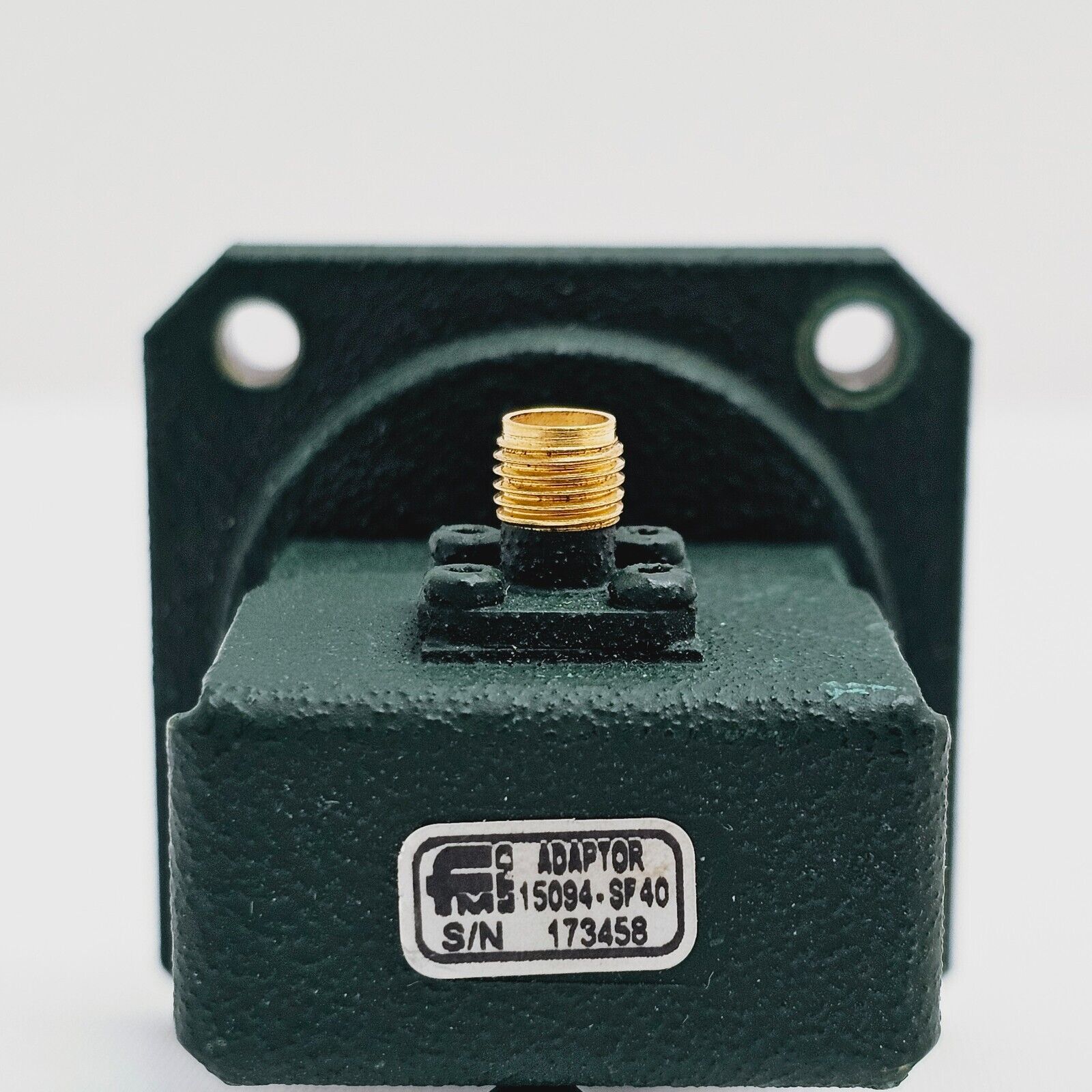

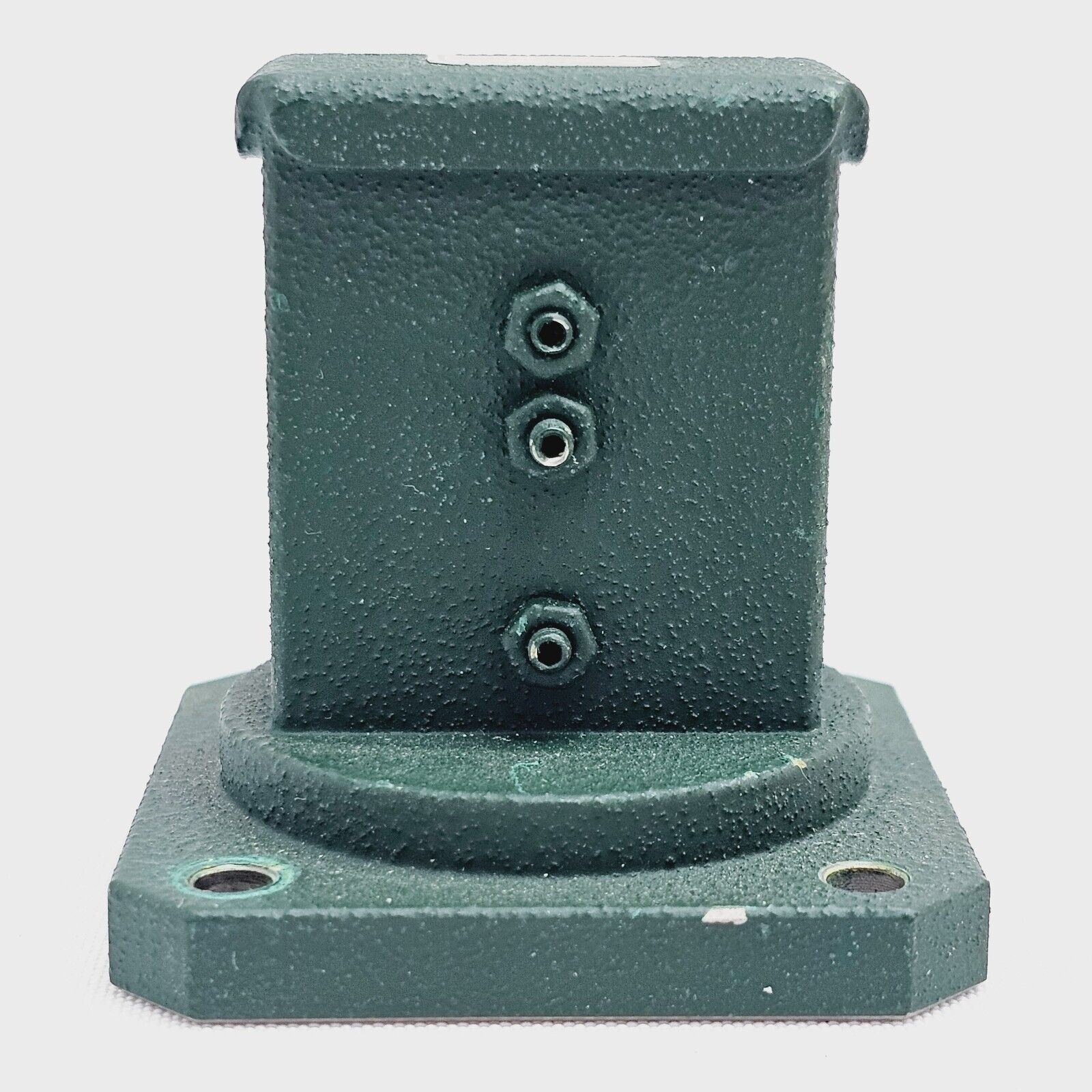

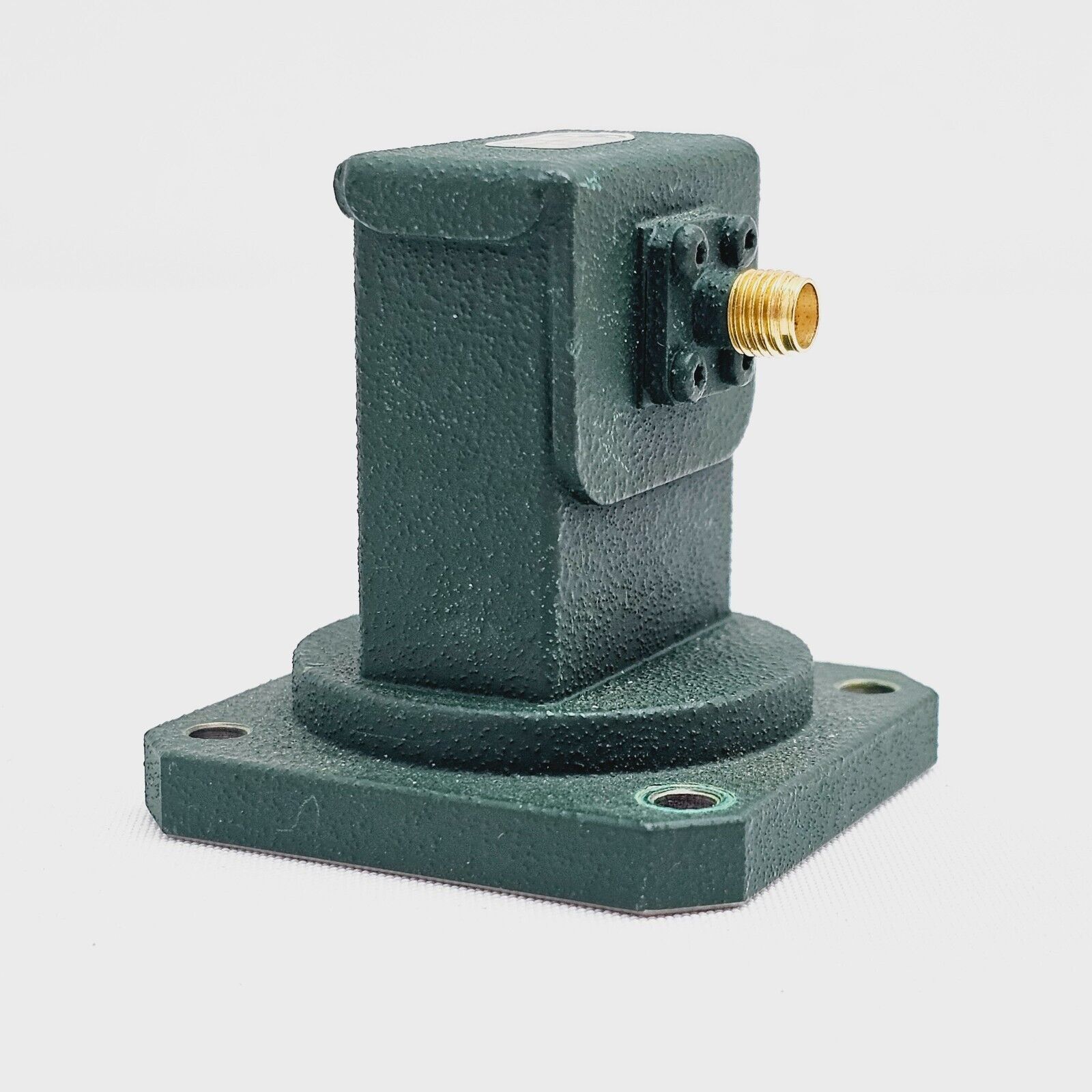

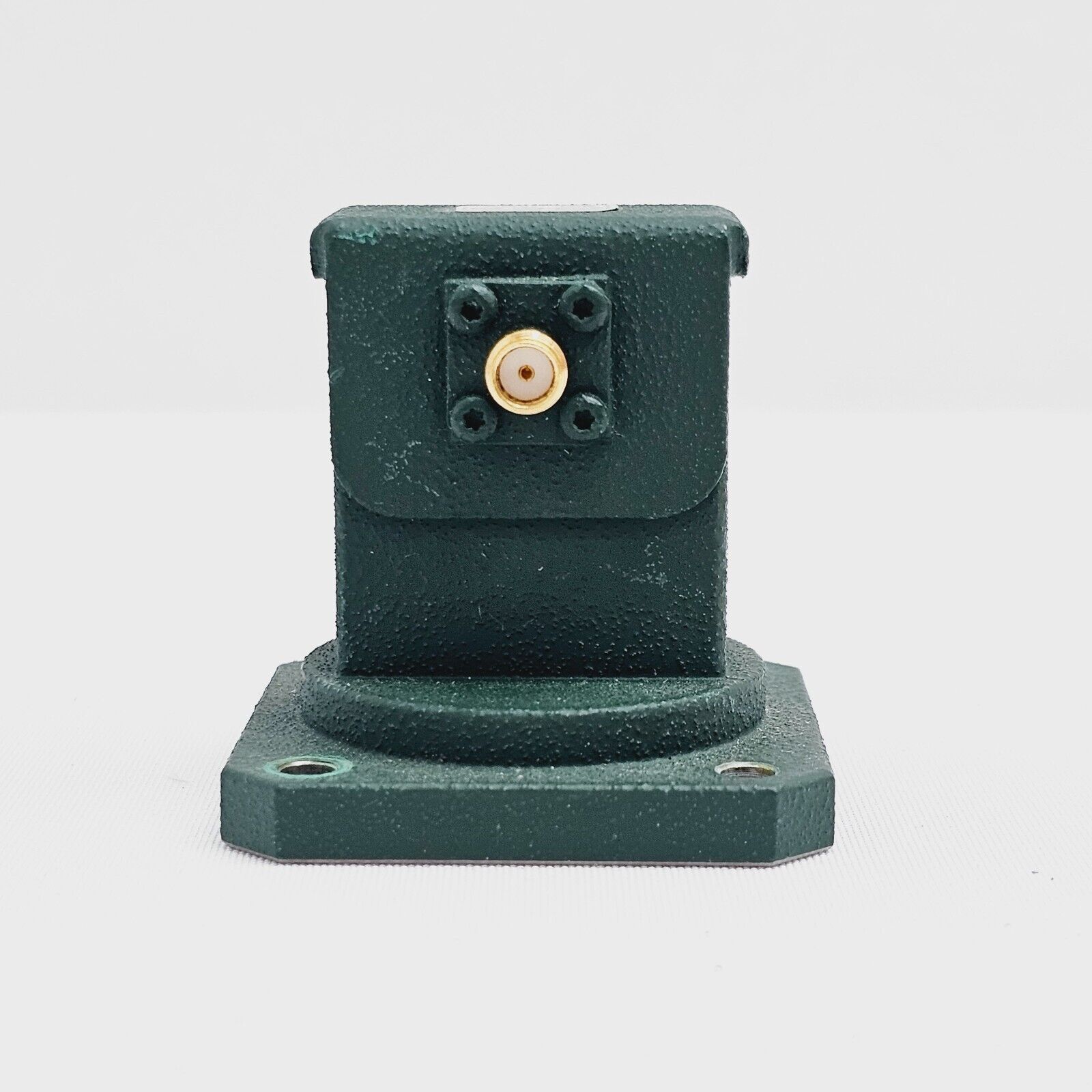

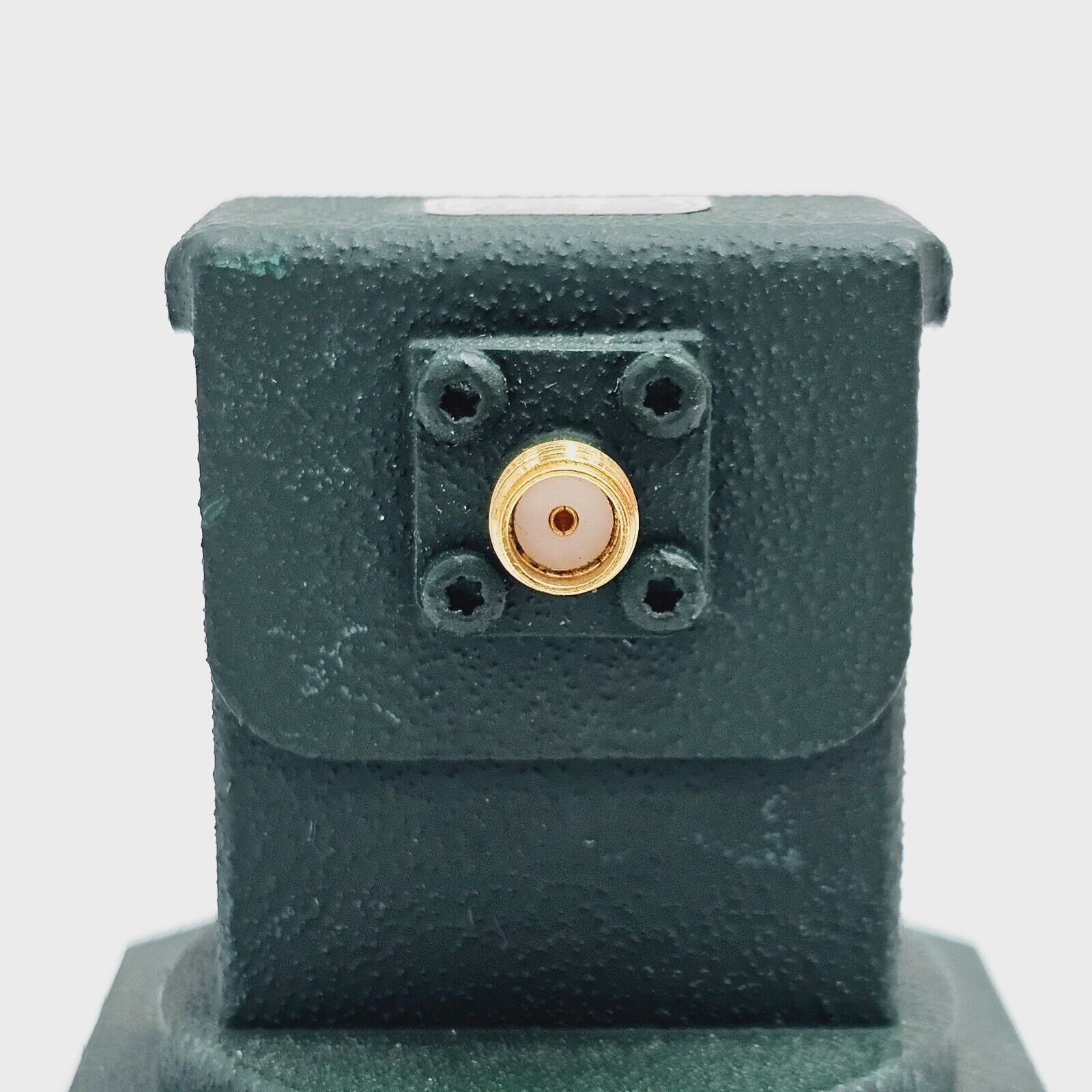

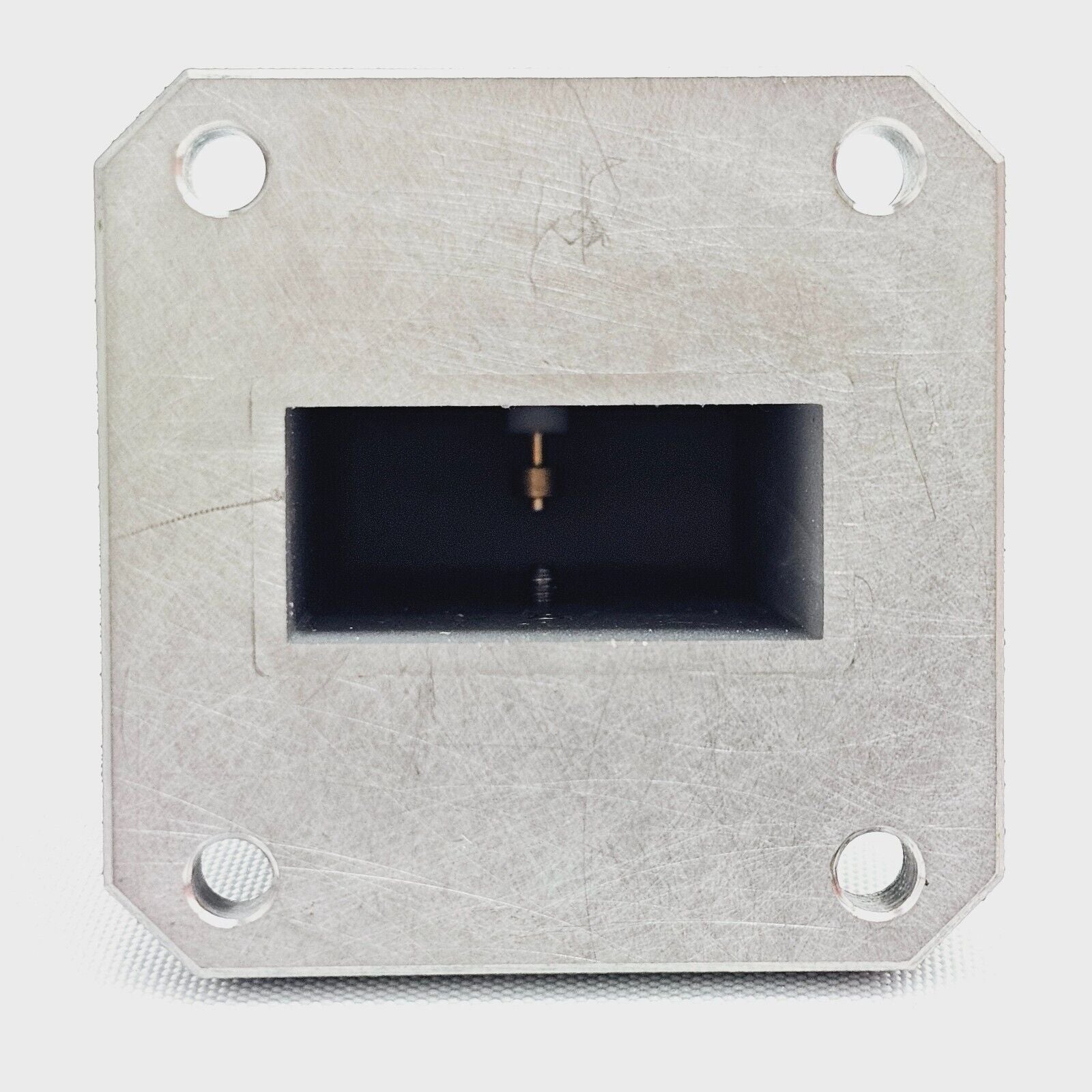

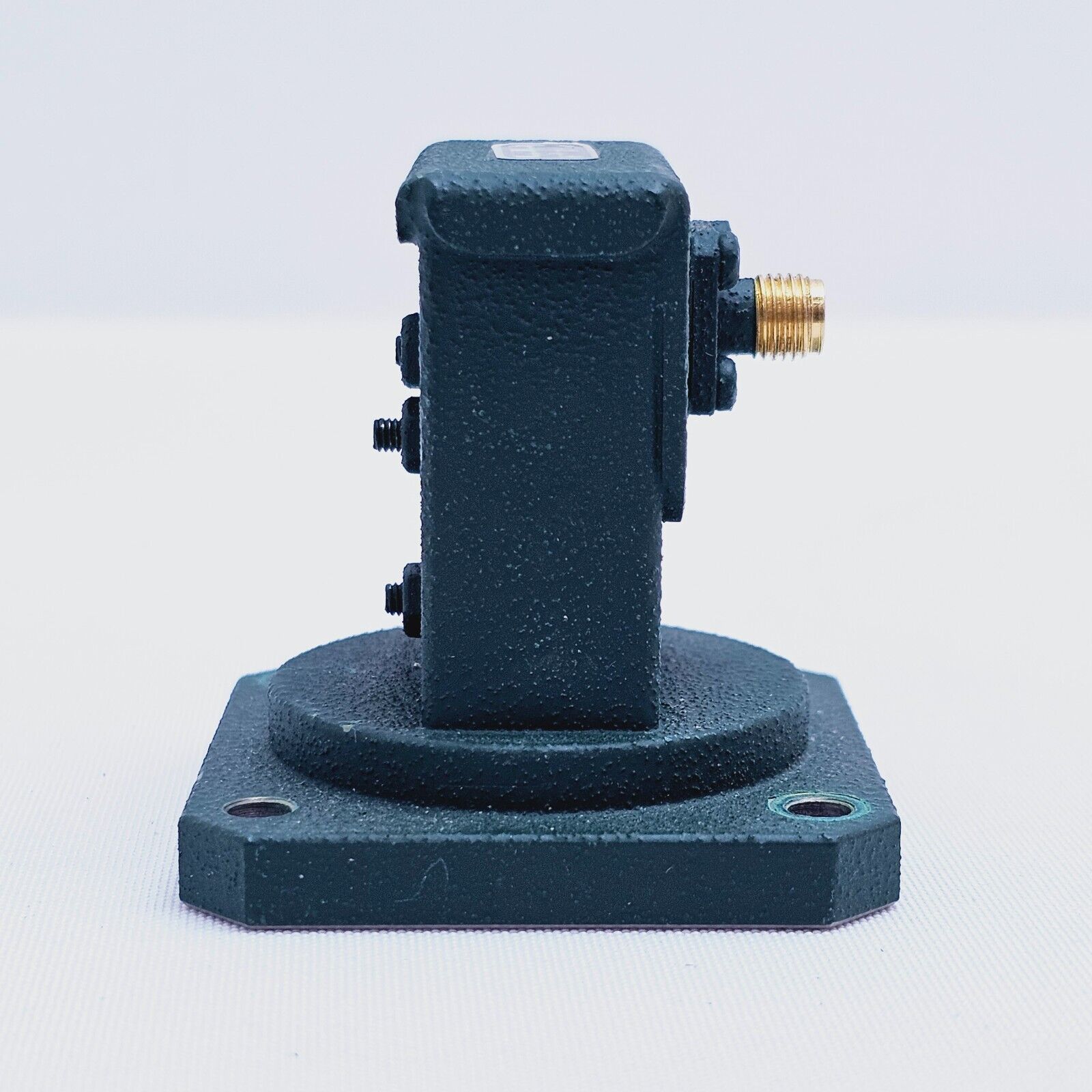

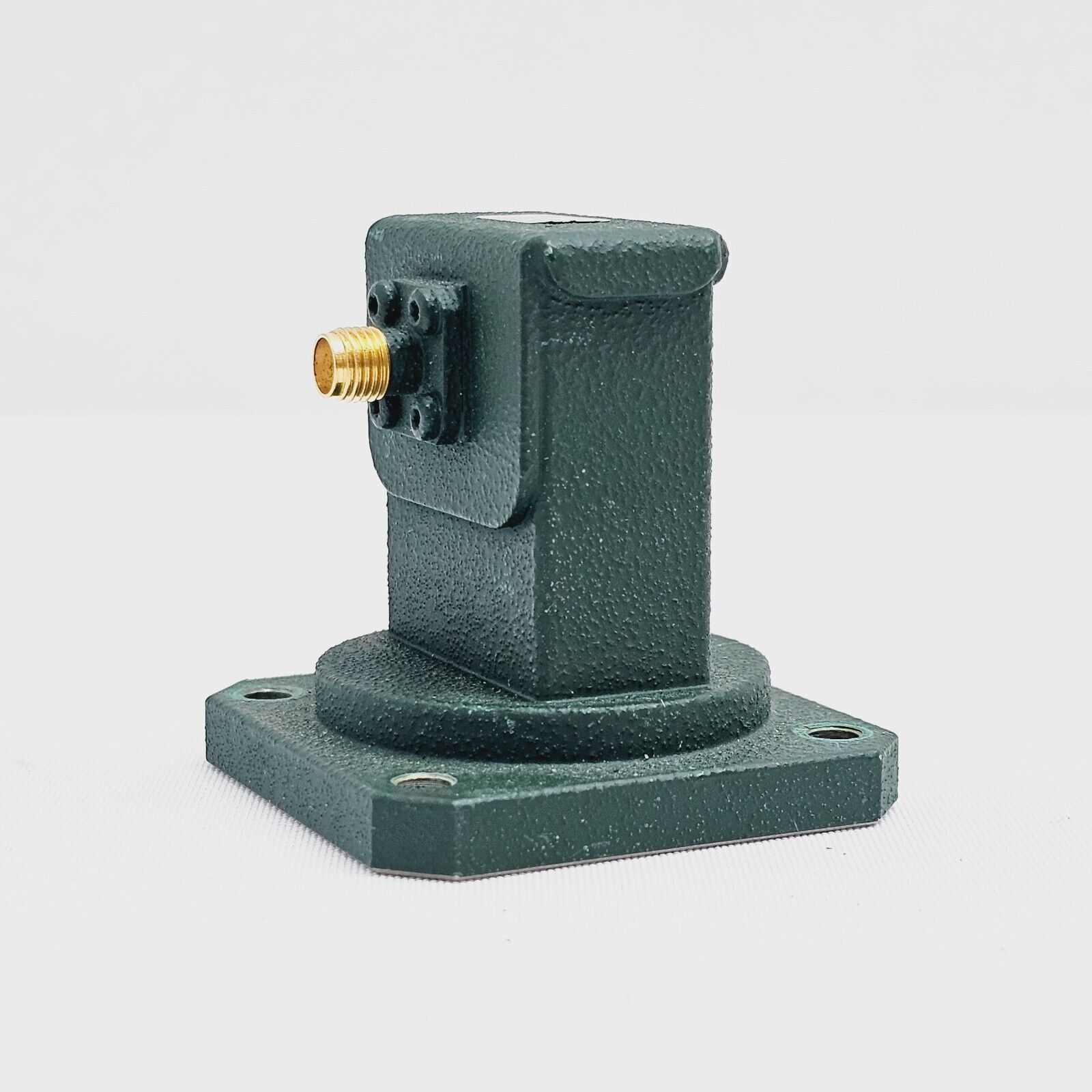

The Flann Microwave 15094-SF40 is a brass-bodied waveguide to SMA coax adaptor covering the full WG15 (WR112) waveguide band from 6.58 to 10.0 GHz. It delivers enhanced VSWR performance of better than 1.12 across the complete frequency range and is fitted with an SMA female connector as standard.

Typically supplied with:
• Flann Microwave 15094-SF40 waveguide to SMA coax adaptor

The Flann Microwave 15094-SF40 is a precision waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular WG15 waveguide and an SMA female coaxial connector, suitable for use in microwave test, measurement, and system integration applications.

The Series 094-SF adaptors are designed to offer enhanced VSWR performance over the full waveguide frequency band. They are manufactured from brass as standard, with aluminium variants also available. SMA female connectors are fitted as standard; male connector variants are available on request. Narrowband models covering approximately 20% of the full waveguide band with a VSWR of 1.05 are also available in the Series 094-SF** range.

Flann waveguide-to-coax adaptors are manufactured to tight tolerances to ensure repeatable, low-VSWR performance, making them well-suited for use with network analysers, signal generators, spectrum analysers, and other RF/microwave instrumentation.

Specifications:
Model: 15094-SF40
Frequency Range: 6.58–10.0 GHz
Waveguide Size: WG15
Waveguide Designation (R): R84
Waveguide Designation (WR): WR112
VSWR: Better than 1.12
Coaxial Connector: SMA Female
Body Material: Brass (aluminium option available)
Dimension A: 37.5 mm
Dimension B: 48.5 mm
Dimension C: 19.8 mm

Flann Microwave Series 094-SF Waveguide to Coax Adaptors Datasheet: Download PDF
