Condition: Used

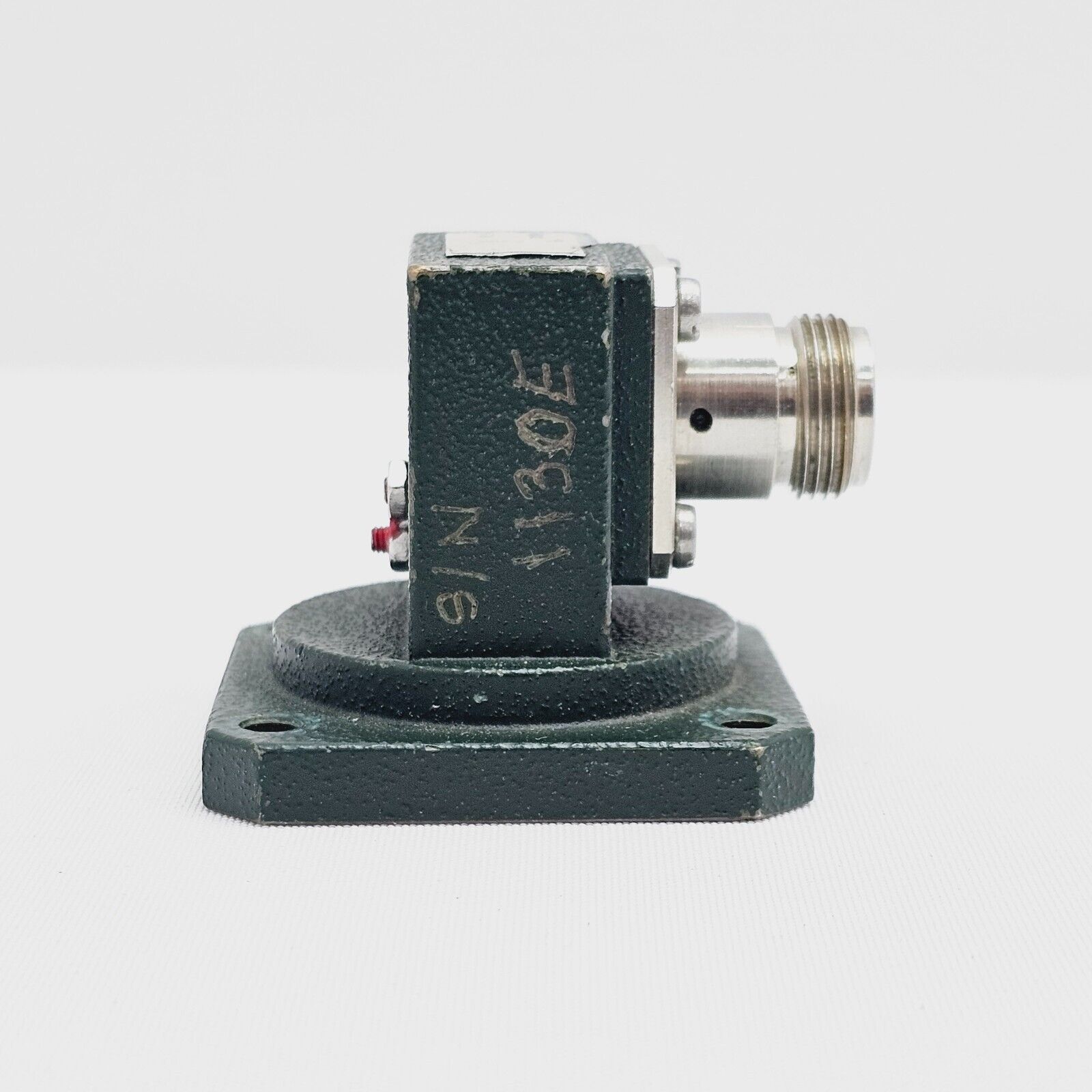

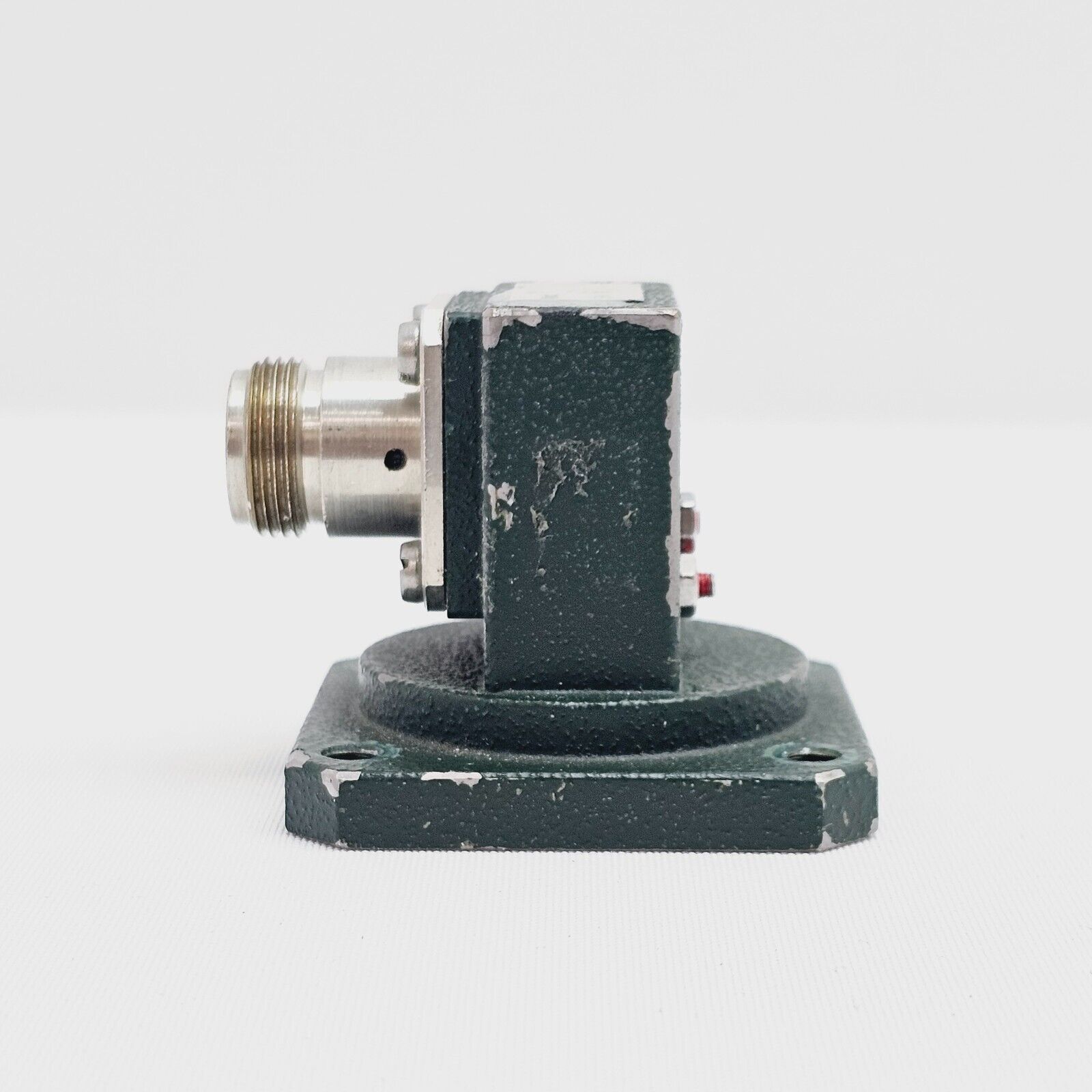

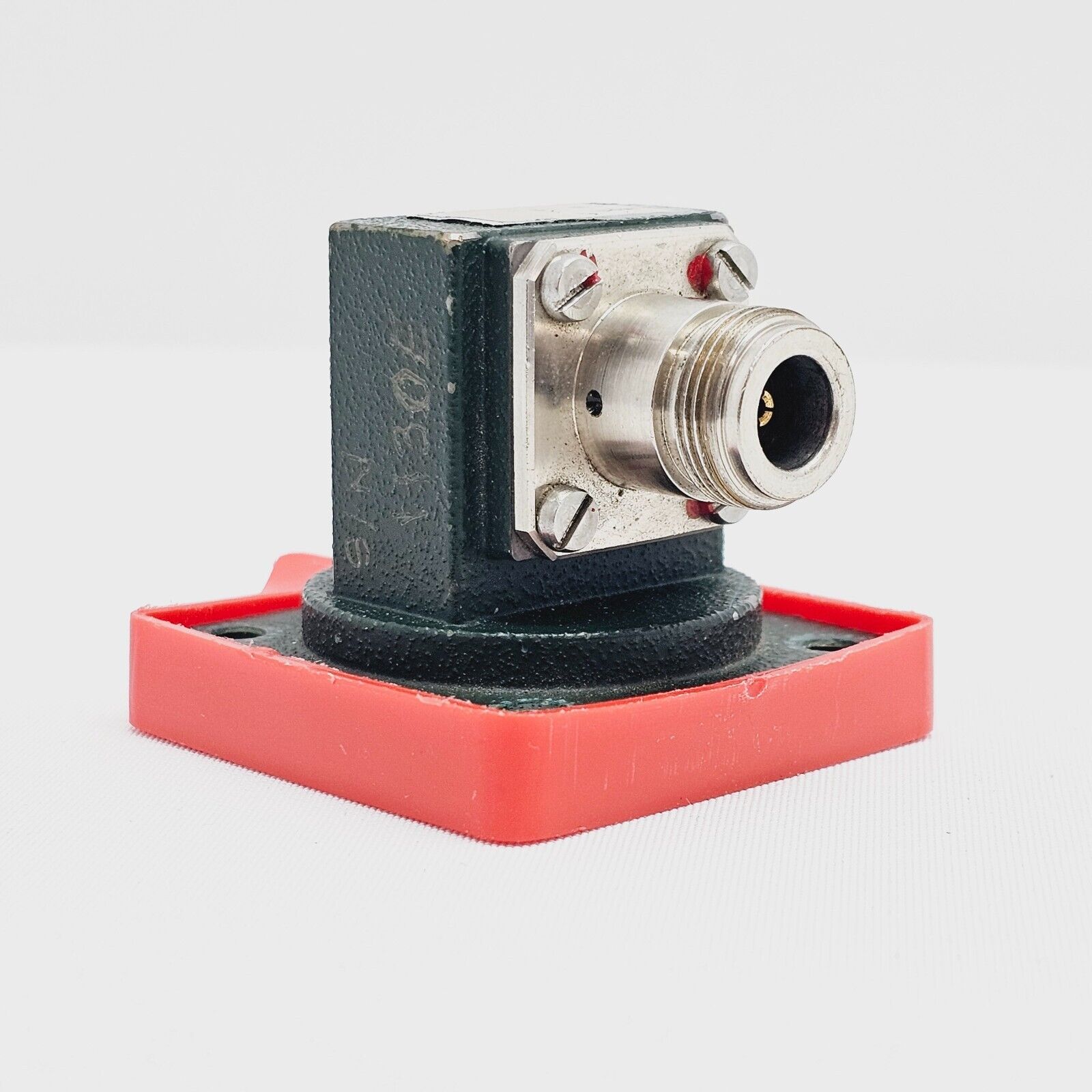

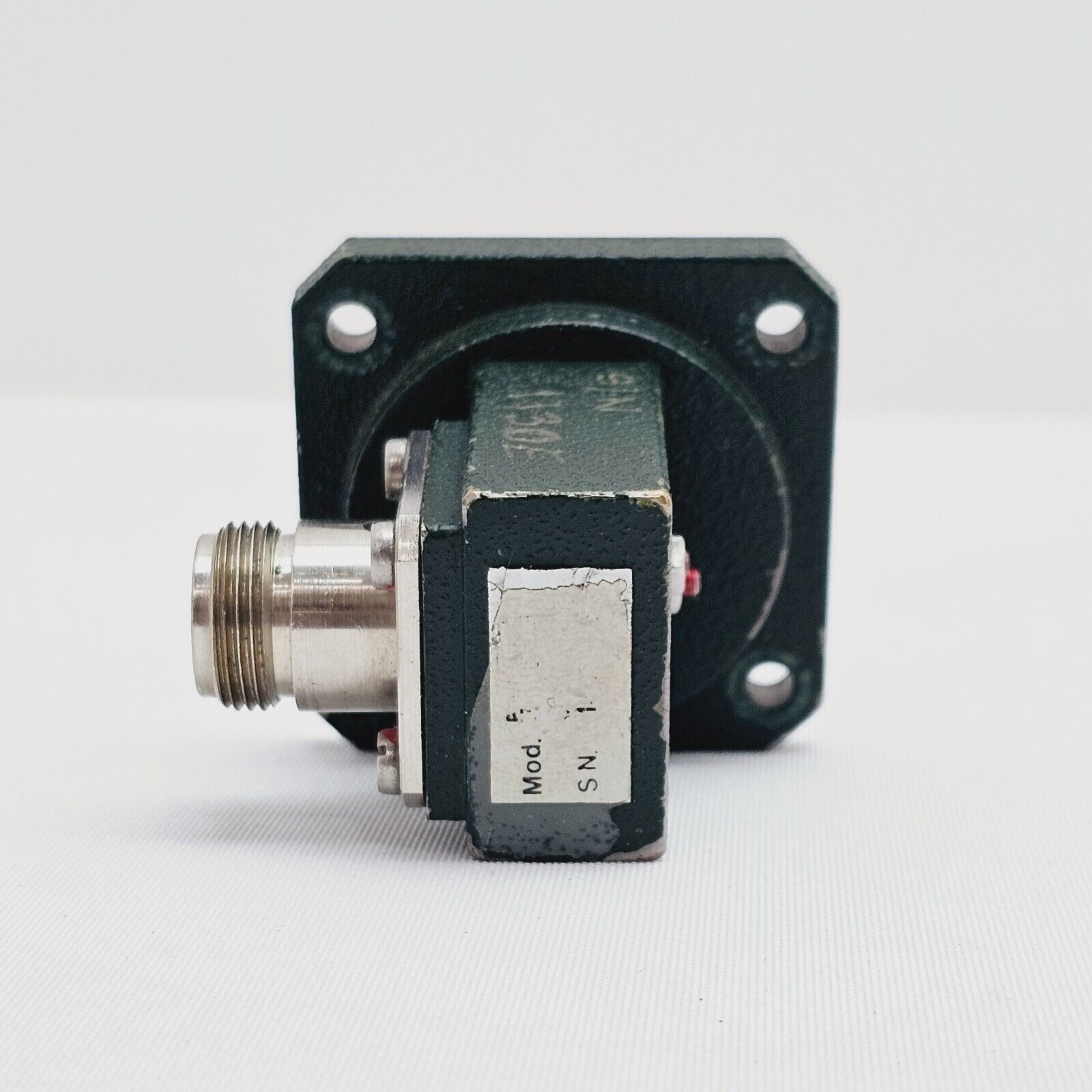

The Flann Microwave 15094-NF10 is a used waveguide-to-coaxial adaptor offering a broadband right-angle transition between WR112 / WG15 / R84 rectangular waveguide and an N female coaxial connector, covering 6.58 to 10.0 GHz with a low VSWR of 1.12:1.

• Flann Microwave 15094-NF10 Waveguide to Coax Adaptor

The Flann Microwave 15094-NF10 is a precision broadband waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular waveguide and a coaxial N female connector, suitable for microwave test, measurement, and system integration applications across the X-band frequency range.

The 094-NF series broadband waveguide-to-coax adaptors offer enhanced VSWR performance over the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design offering greater durability and reliability whilst maintaining existing high performance specifications. The adaptors are fitted with Type N female connectors as standard.

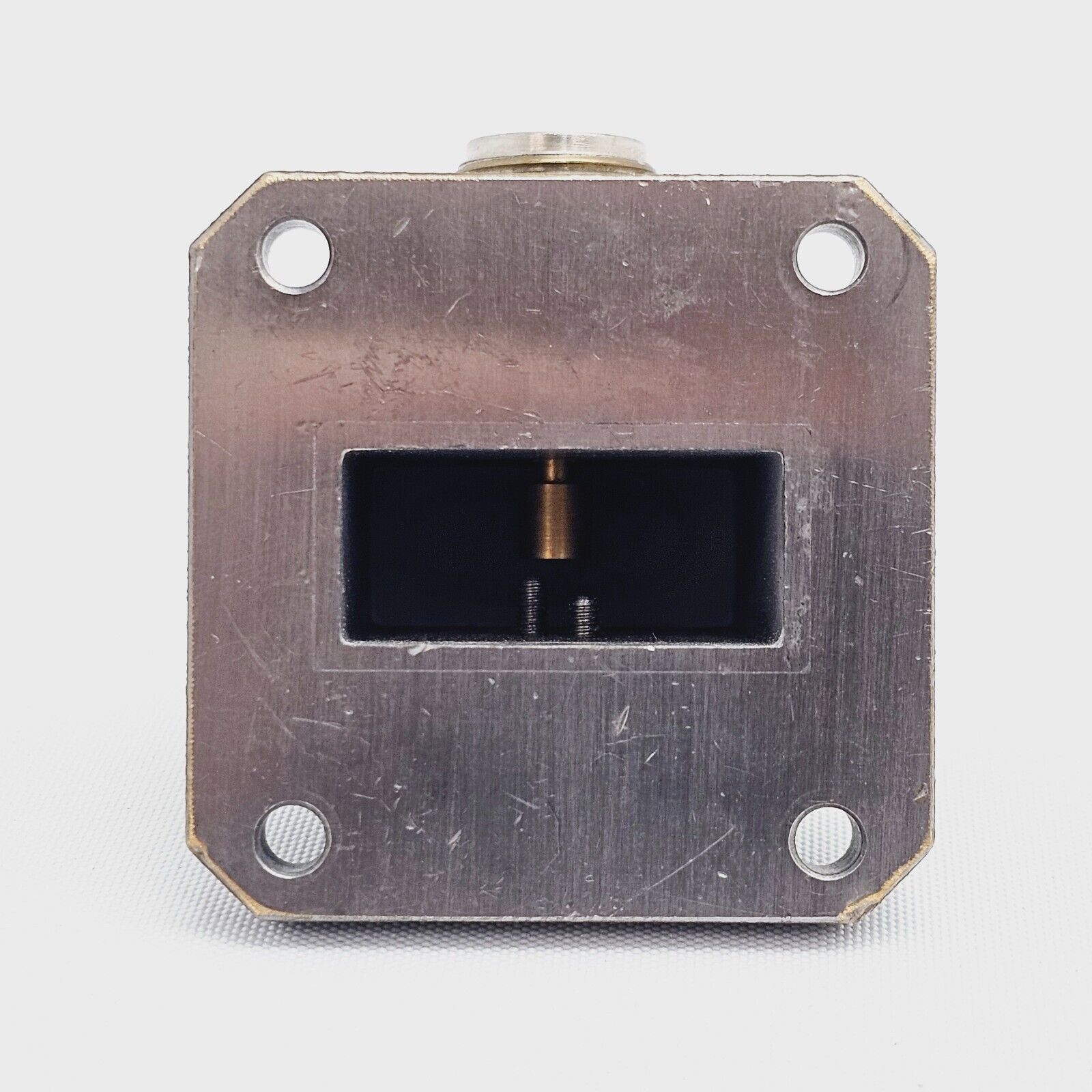

Waveguide Size: WR112 / WG15 / R84

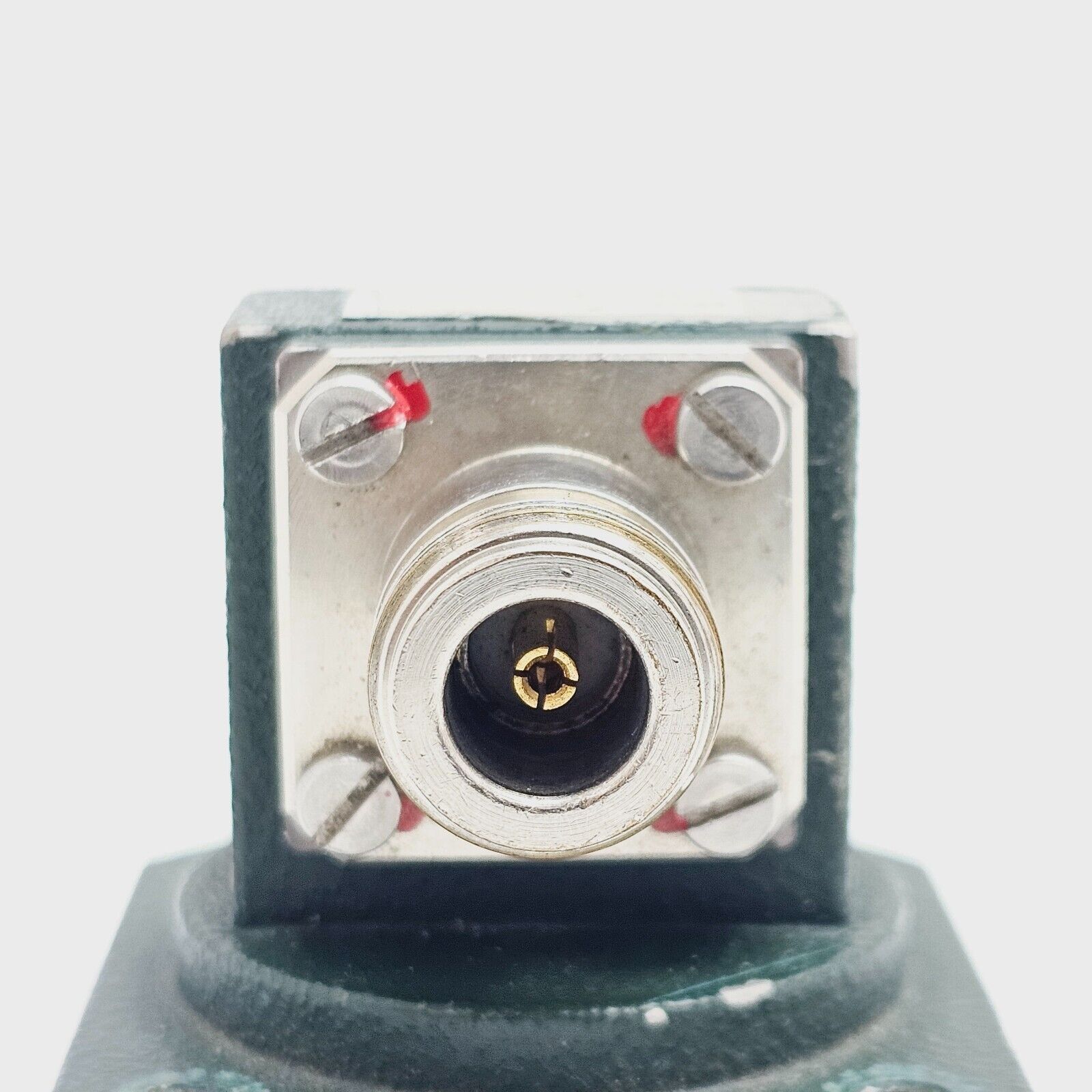

Connector Type: N Female
Geometry: Right Angle
Frequency Range: 6.58 to 10.0 GHz
VSWR: 1.12:1
Dimensions: 45.8 x 59.9 x 31.6 mm
Weight: 0.3 kg

Flann Microwave 094-NF Series Broadband Waveguide to Coax Adaptor Datasheet: Download PDF
