Condition: Used

The Flann Microwave 15094-NF10 is a broadband waveguide-to-coax adaptor from Flann Microwave's 094-NF series, covering 6.58–10.0 GHz. It features an N female connector and is designed for enhanced VSWR performance across the full waveguide frequency band.

Included in the sale:

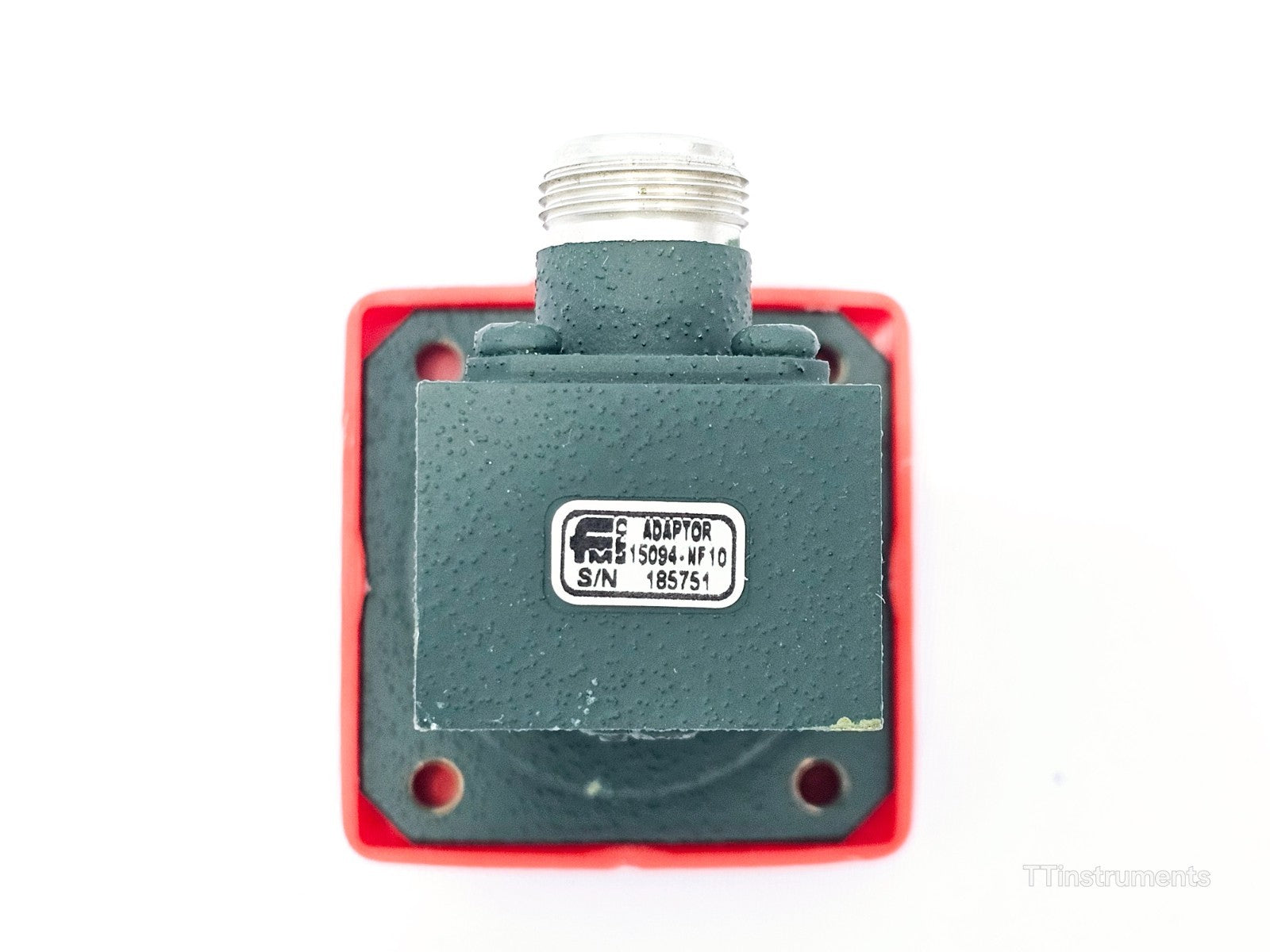

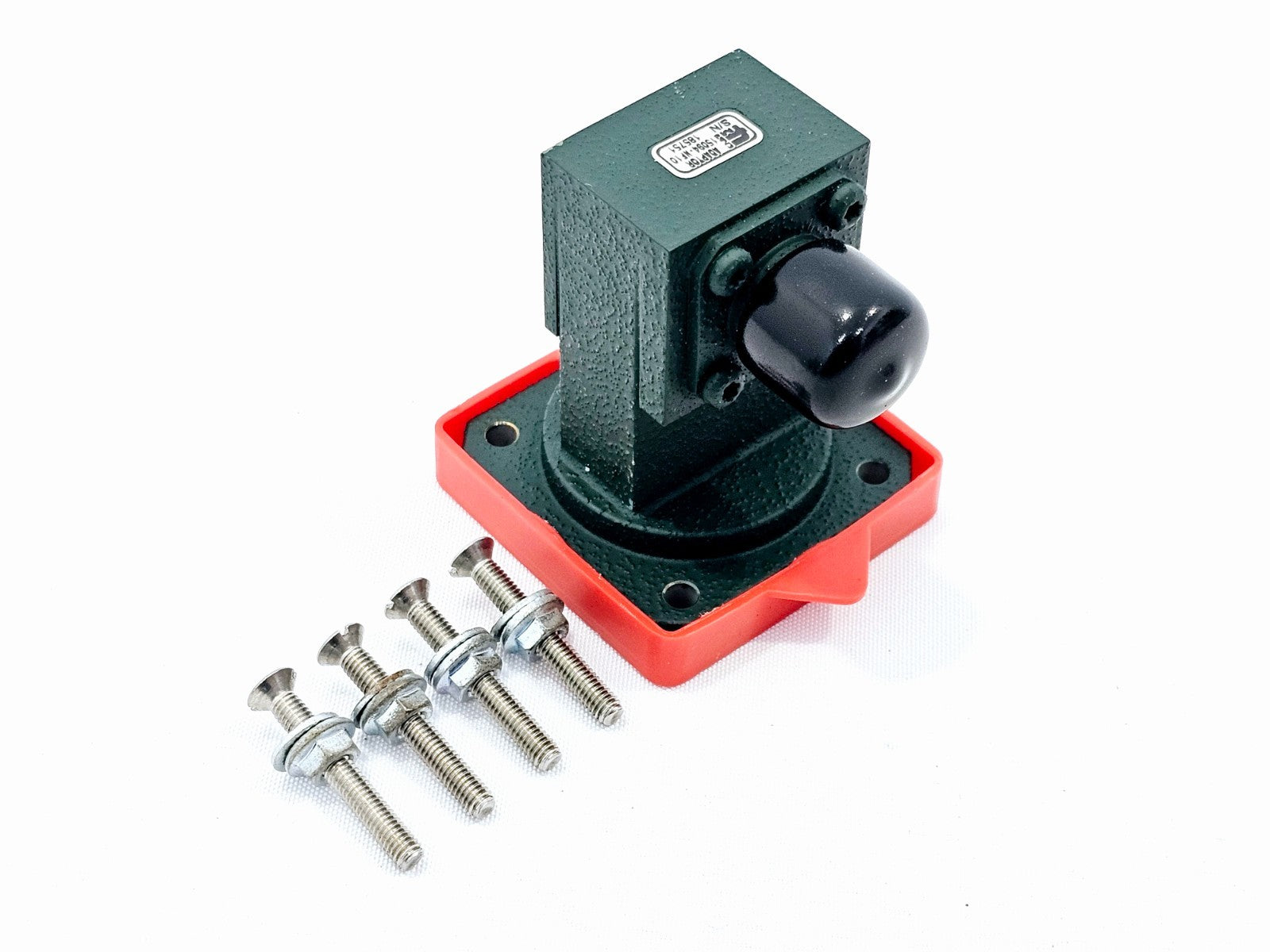

• 1x Flann Microwave 15094-NF10 Waveguide to Coax Adaptor (N Female)

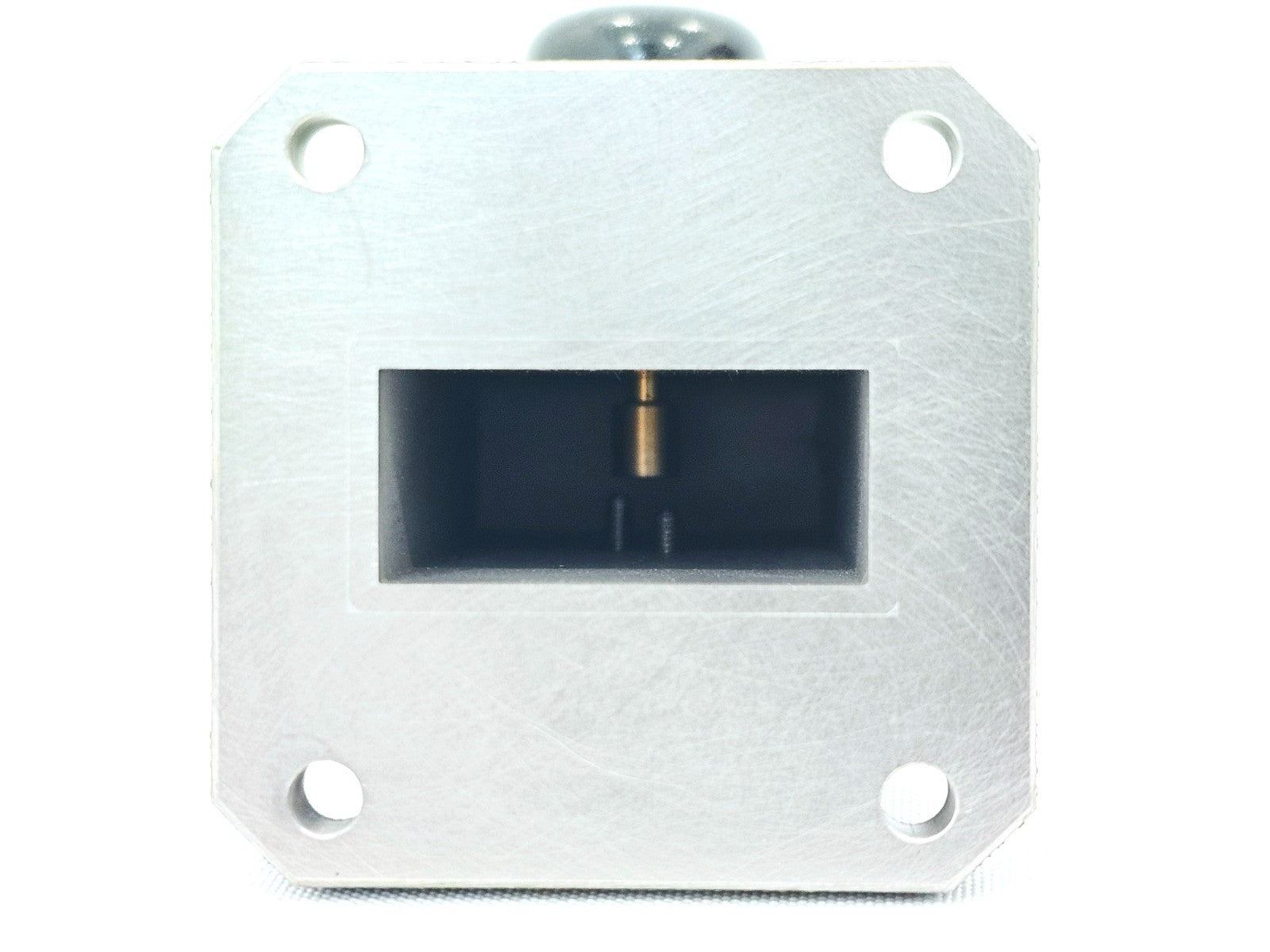

The Flann Microwave 15094-NF10 is a precision broadband waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular waveguide and a coaxial N female connector, suitable for microwave test, measurement, and system integration applications across the X-band frequency range.

The series 093/094-NF broadband waveguide-to-coax adaptors offer enhanced VSWR performance over the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design offering greater durability and reliability whilst maintaining existing high performance specifications. The adaptors are fitted with Type N female connectors as standard; adaptors fitted with Type N male connectors are available to special order.

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available in the 093-NF and 094-NF series.

Flann waveguide-to-coax adaptors are manufactured to tight tolerances to ensure repeatable, low-VSWR performance across their specified frequency bands, making them well-suited for use with network analysers, signal generators, spectrum analysers, and other RF/microwave instrumentation.

Specifications:
Model: 15094-NF10
Frequency Range: 6.58–10.0 GHz

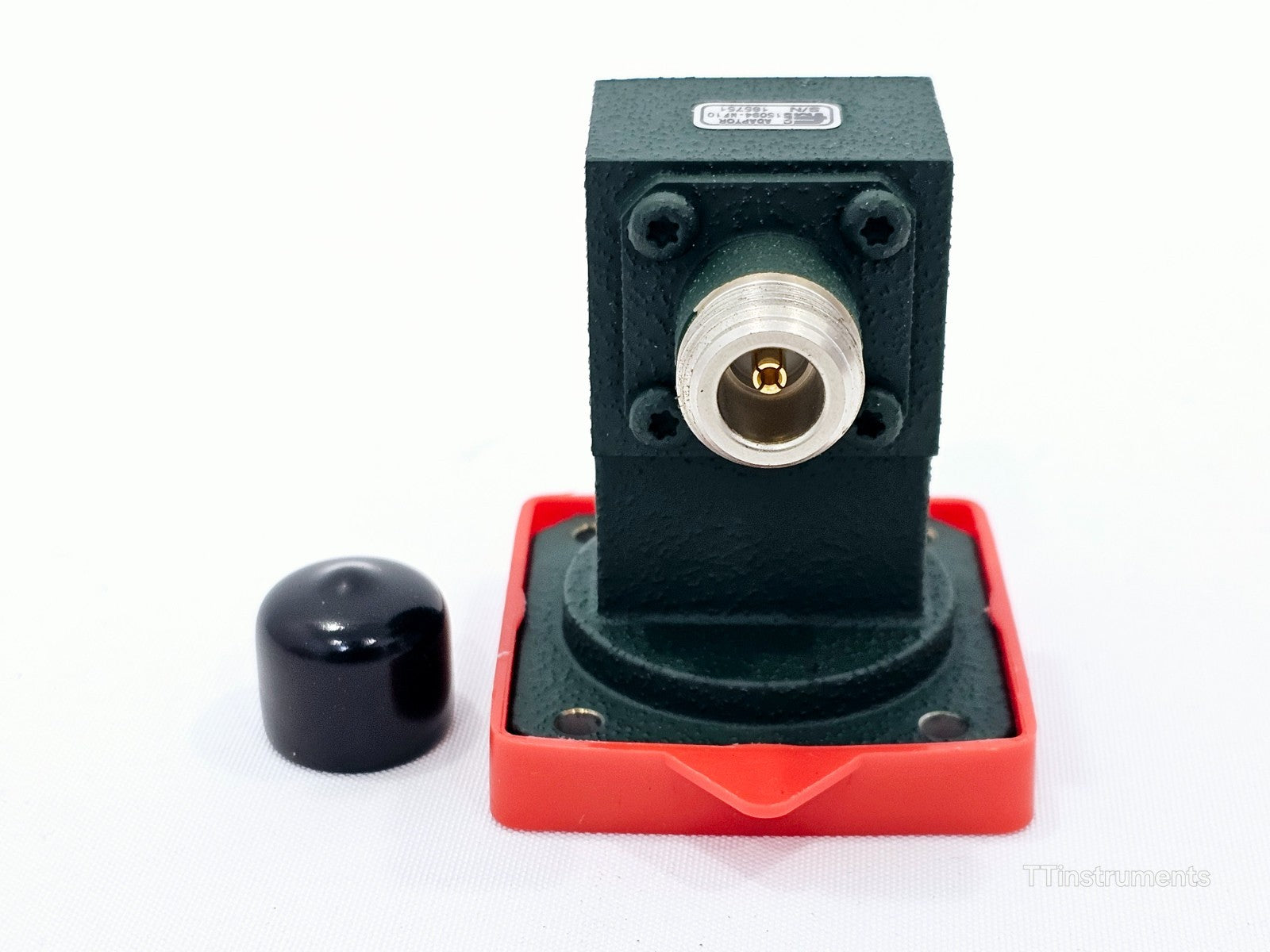

Connector Type: Type N Female (standard)
Design: Broadband waveguide-to-coaxial adaptor
Series: 094-NF
Performance: Enhanced VSWR across full waveguide band
Mechanical: Improved design for greater durability and reliability

Flann Microwave 094-NF Series Broadband Waveguide to Coax Adaptors Datasheet: Download PDF
