Condition: Used

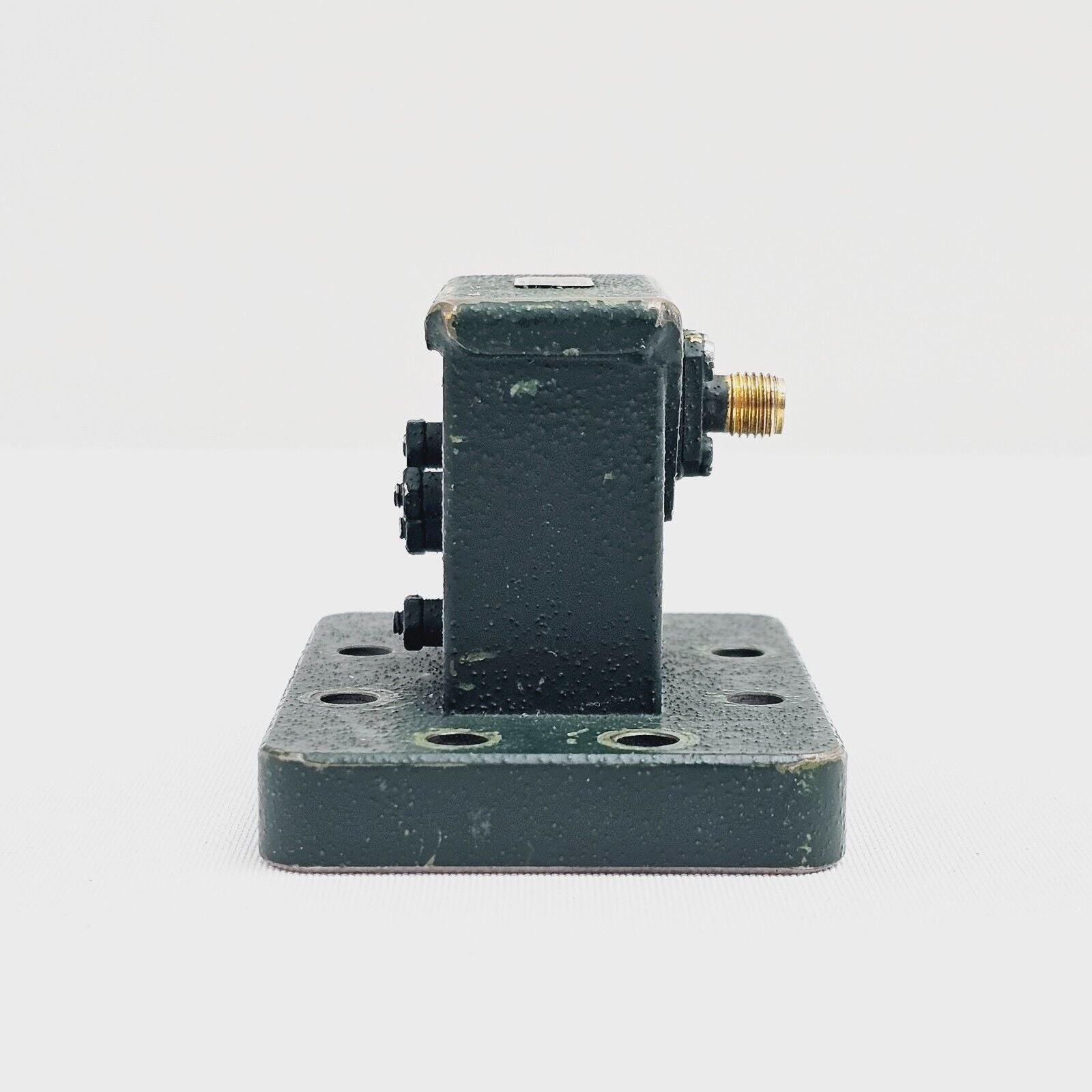

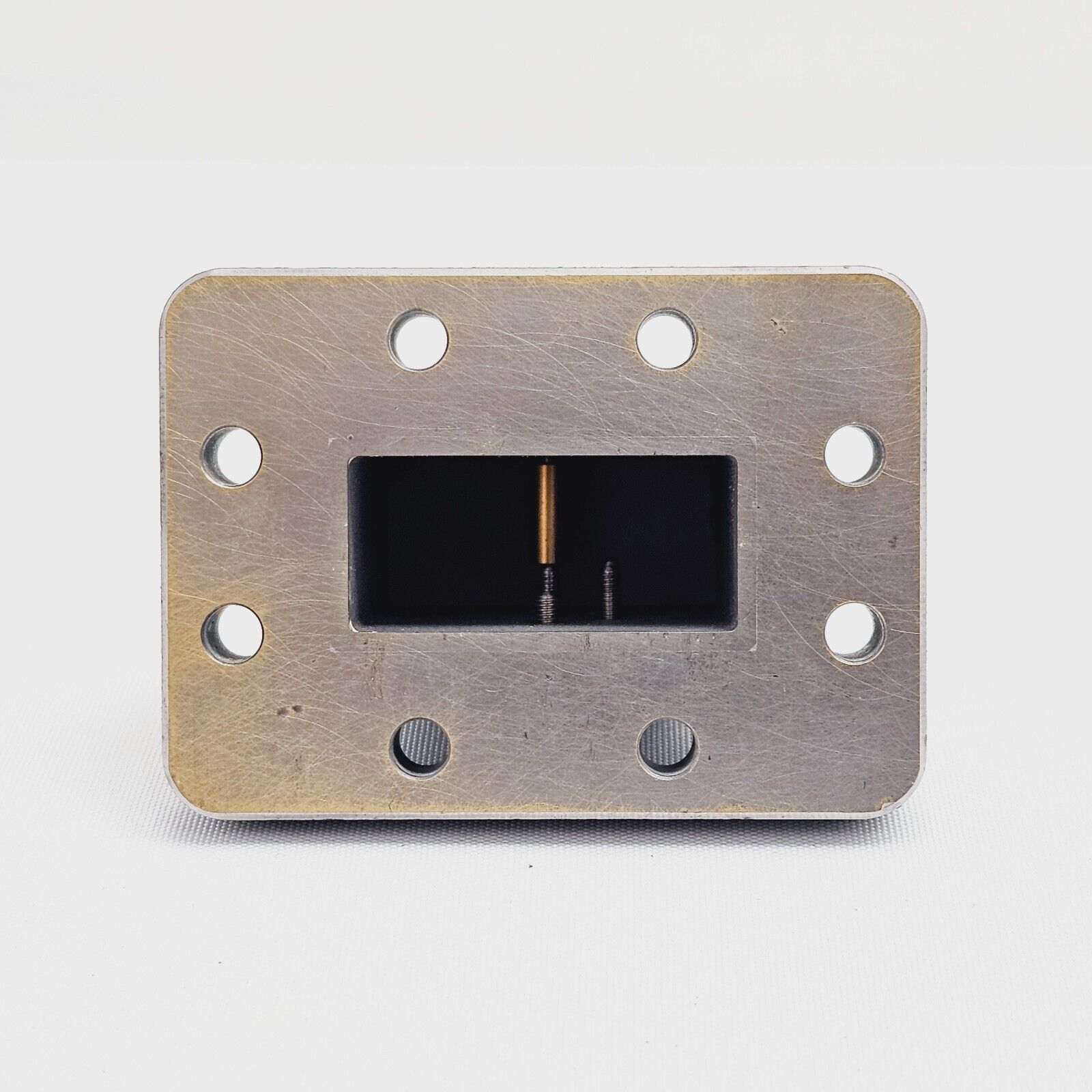

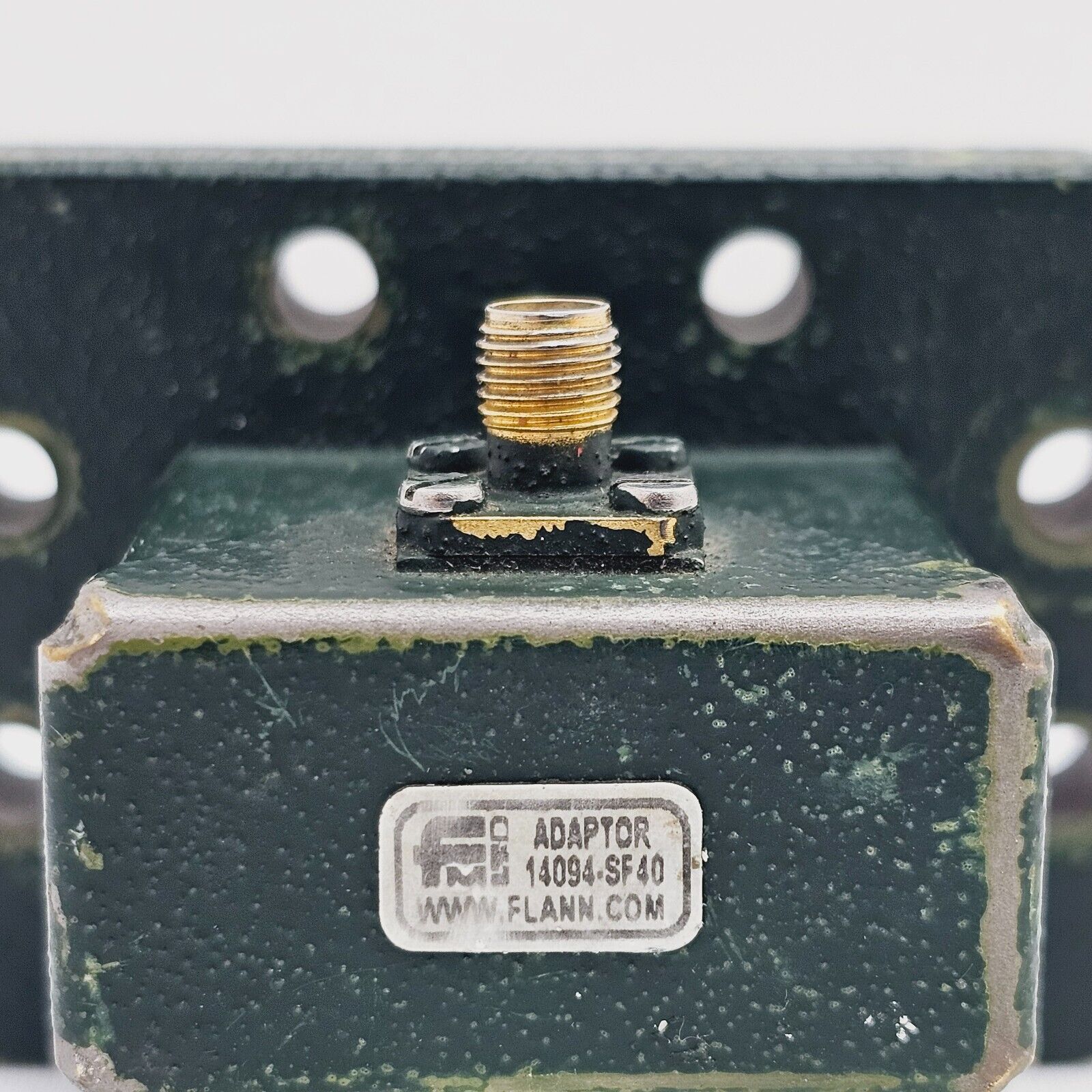

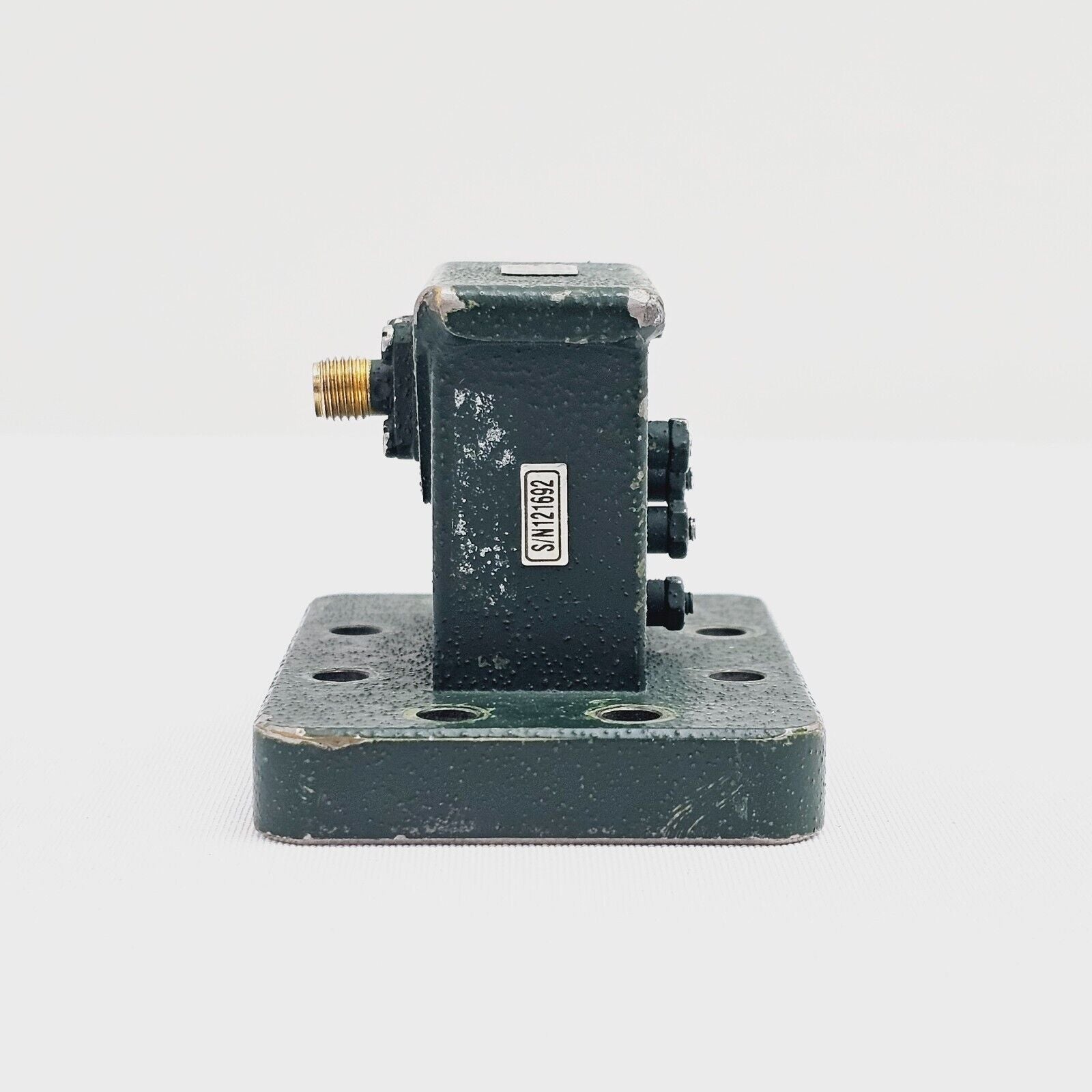

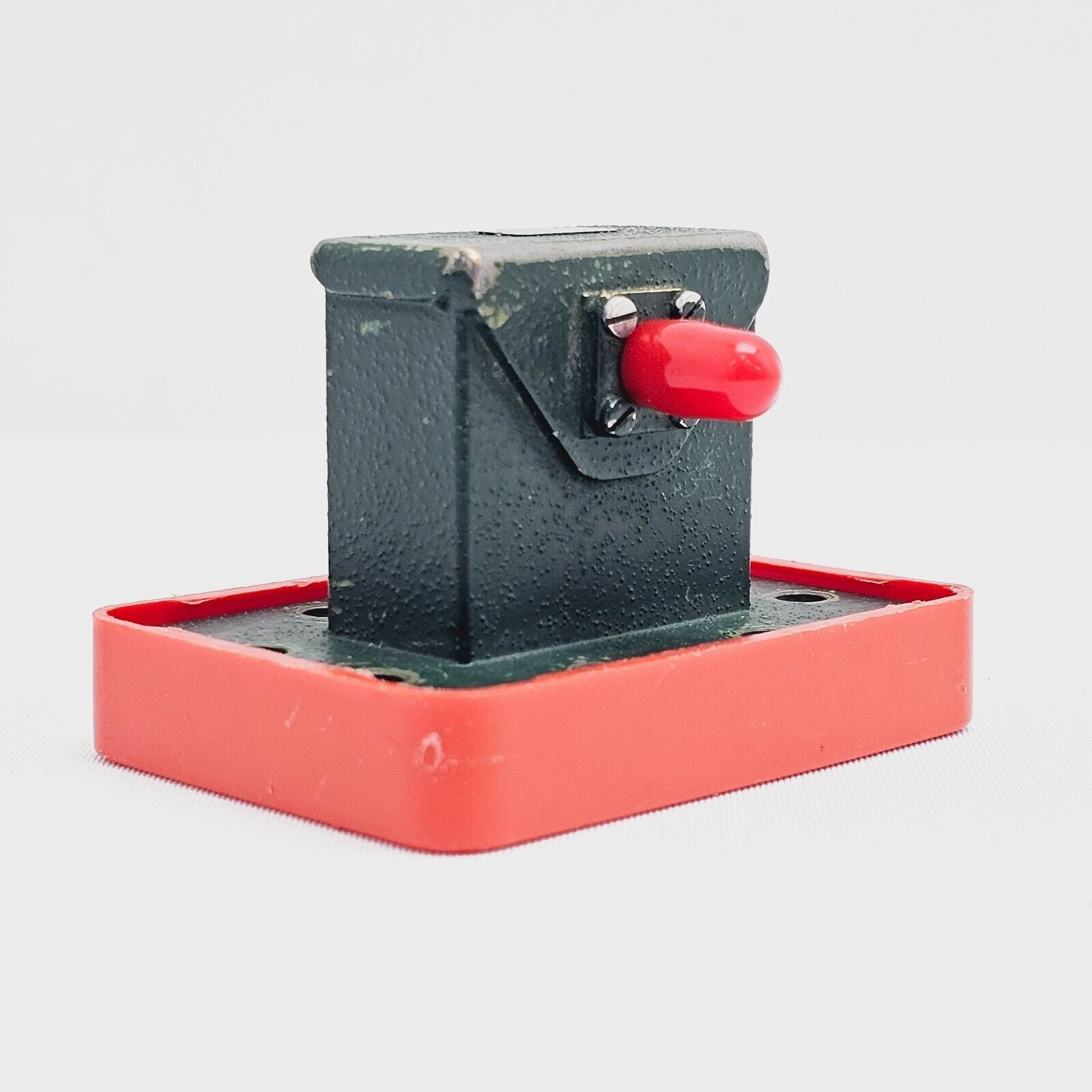

The Flann Microwave 14094-SF40 is a used waveguide-to-SMA coaxial adaptor operating across the 5.38–8.18 GHz band. It interfaces WG14 (WR137) rectangular waveguide to an SMA female connector, offering enhanced VSWR performance over the full waveguide frequency band.

What is typically included:
• Flann Microwave 14094-SF40 waveguide to SMA coax adaptor

The Flann Microwave 14094-SF40 is a precision waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular waveguide and an SMA female coaxial connector, suitable for use in microwave test, measurement, and system integration applications.

Flann Series 094-SF waveguide-to-coax adaptors are designed to deliver enhanced VSWR performance over the full waveguide frequency band. They are manufactured from brass as standard, with aluminium construction available. SMA female connectors are fitted as standard, with male connector variants available on request. Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available in the Series 094-SF** range.

Specifications:
Model: 14094-SF40
Frequency Range: 5.38–8.18 GHz
Waveguide Size: WG14
Waveguide Designation (R): R70
Waveguide Designation (WR): WR137
VSWR (better than): 1.15
Coaxial Connector: SMA Female
Material: Brass (aluminium option available)
Dimension A: 35.8 mm
Dimension B: 46.5 mm
Dimension C: 21.4 mm

Flann Microwave Series 094-SF Waveguide to Coax Adaptors Datasheet: Download PDF
