Condition: Used

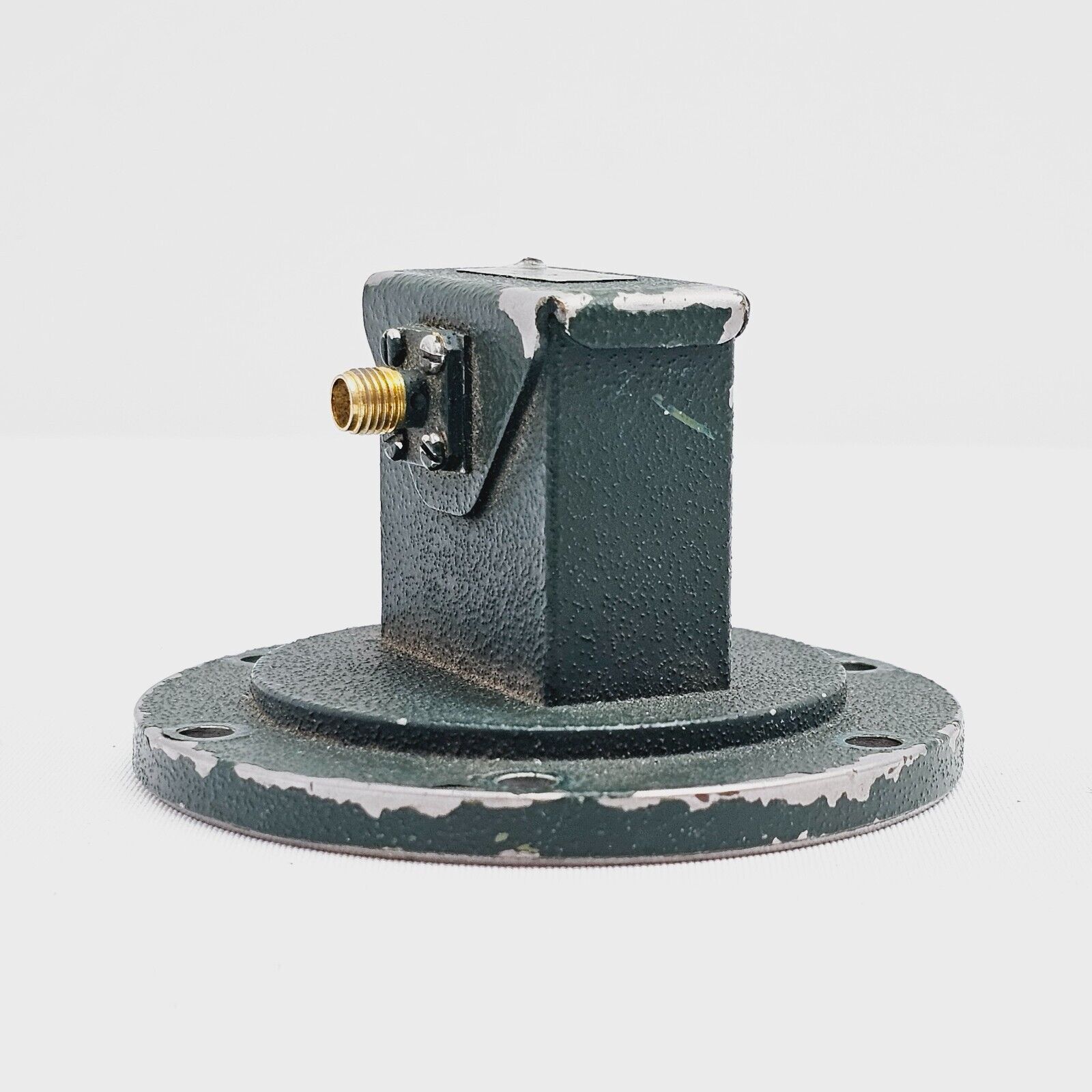

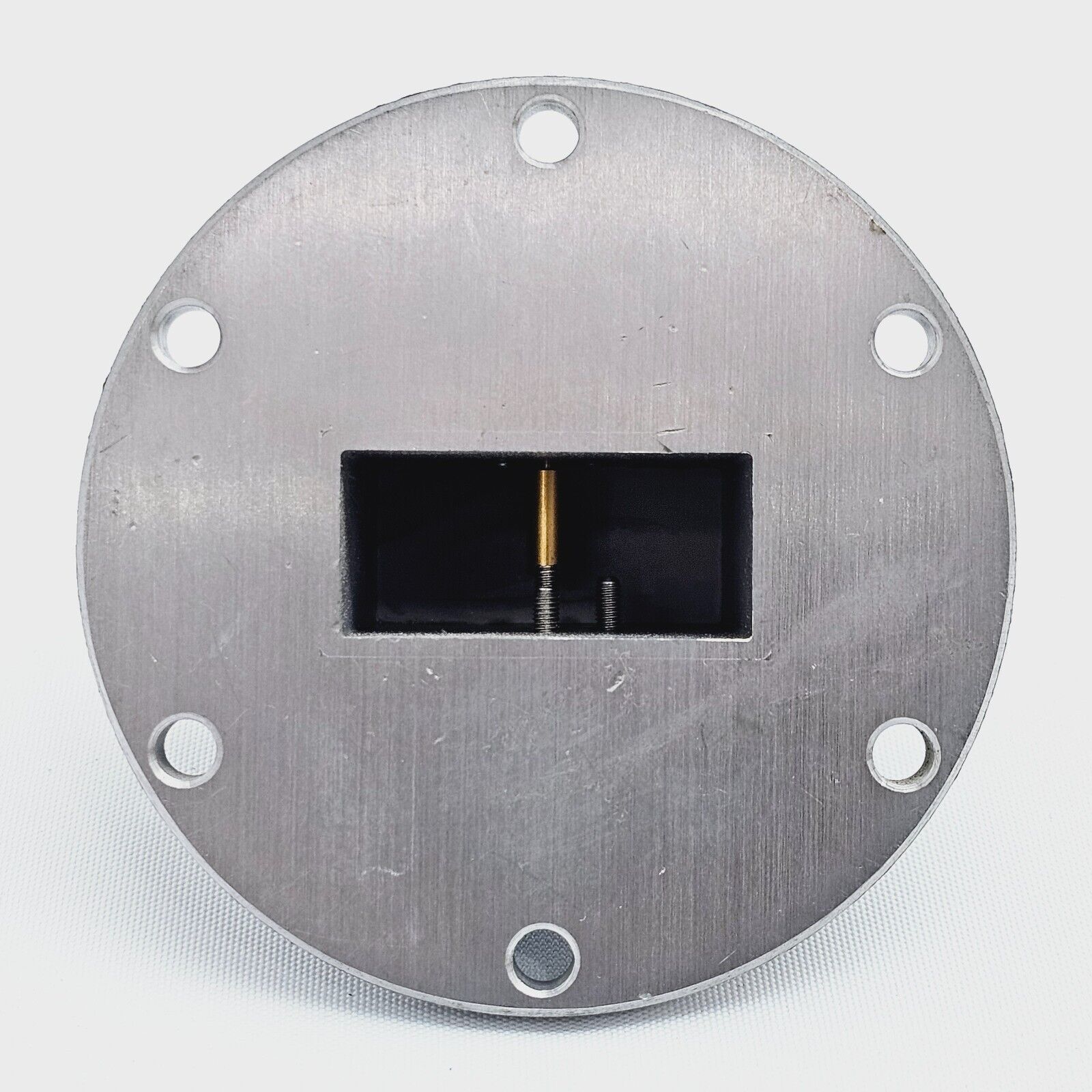

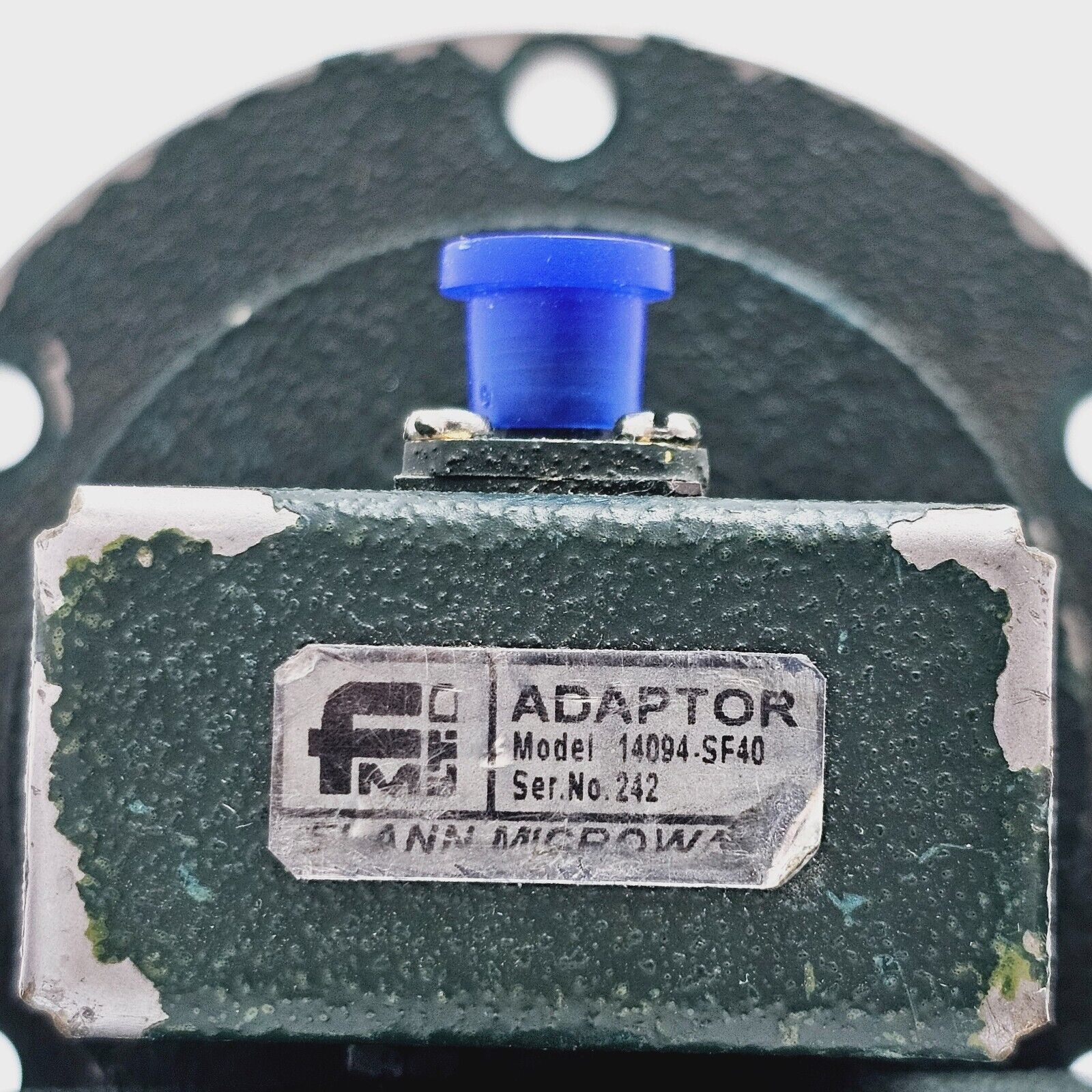

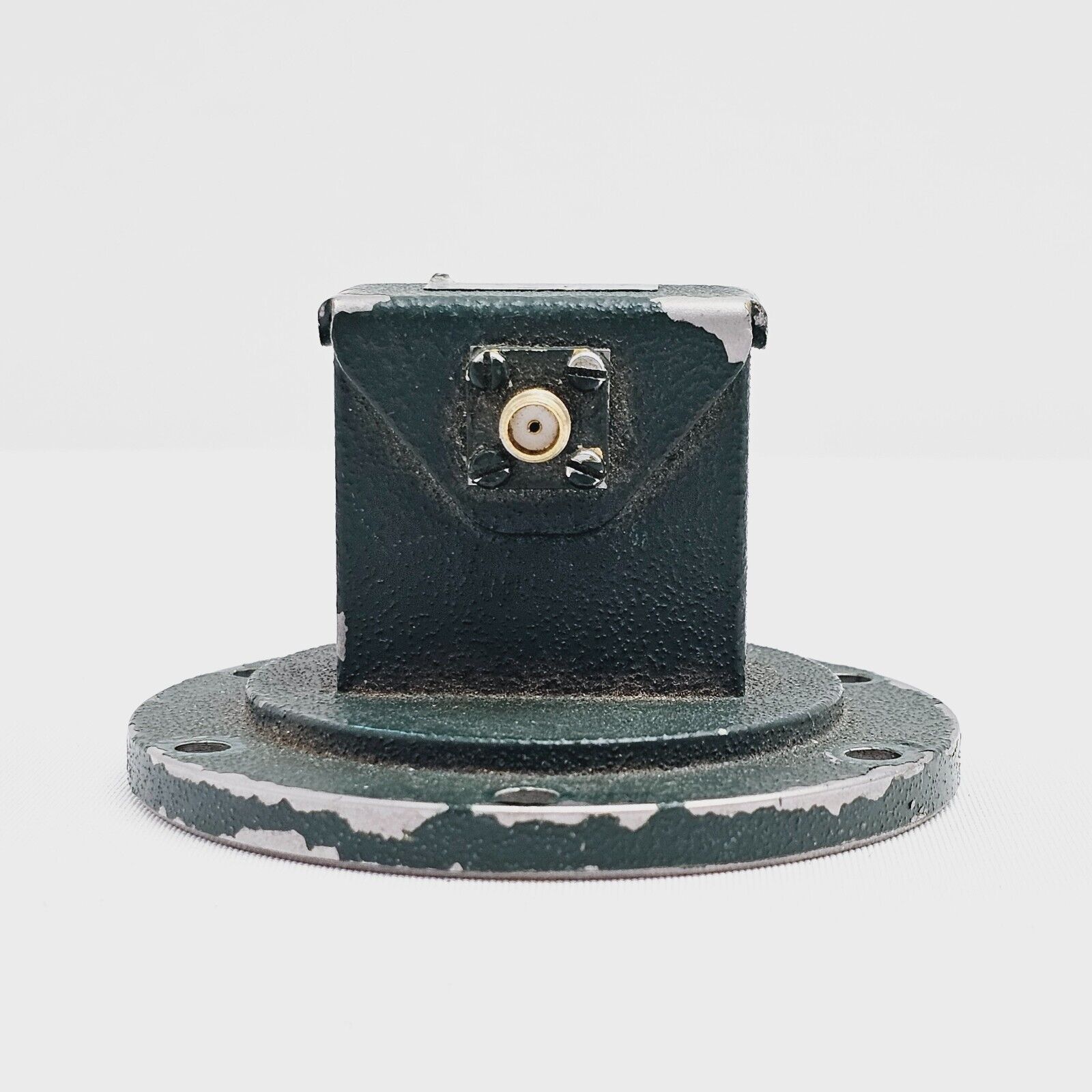

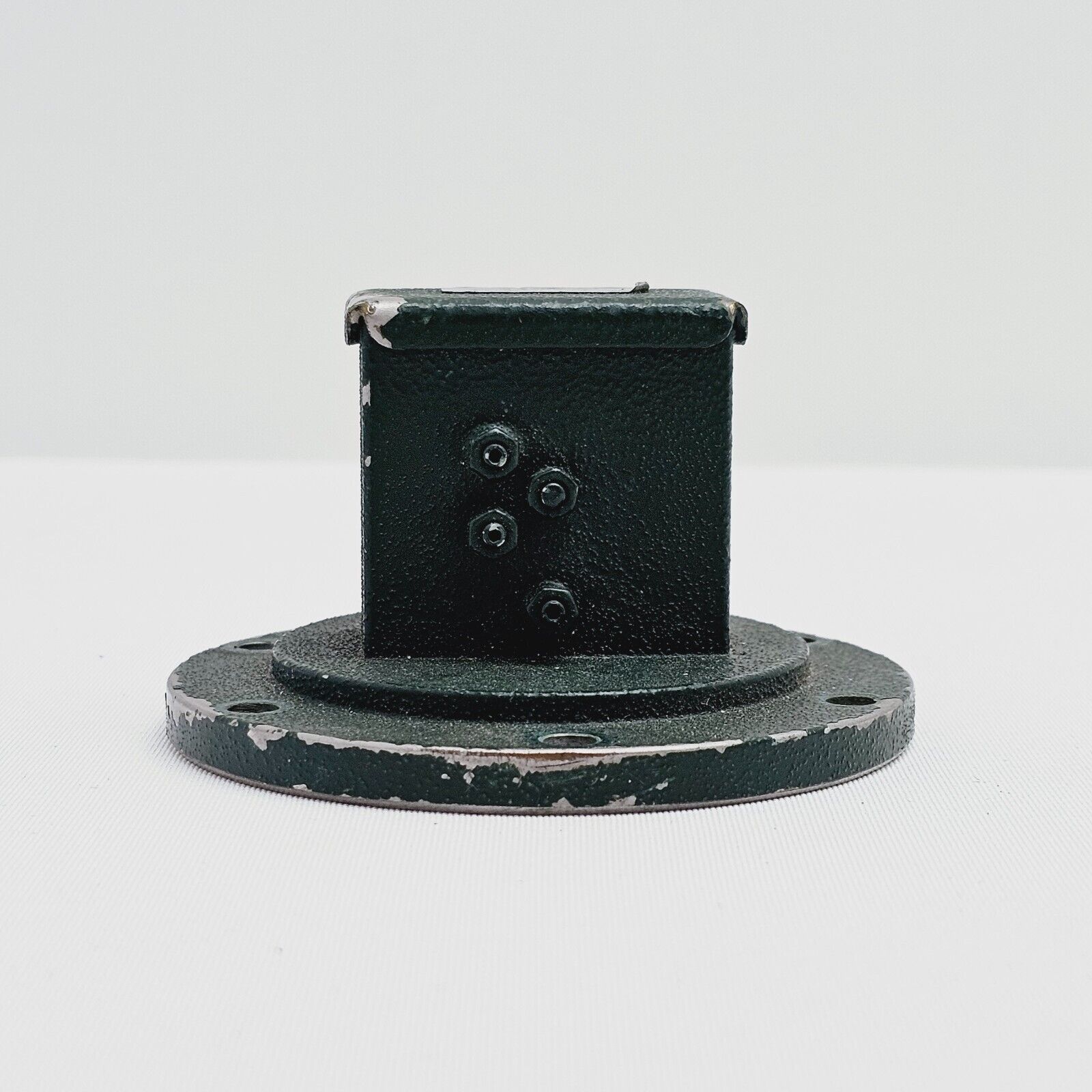

Flann Microwave 14094-SF40 Waveguide to SMA Coax Adaptor 5.38 - 8.18 GHz

Model         14094-SF40

Frequency Range (GHz) 5.38 - 8.18

Waveguide WG 14

Waveguide R 70

Waveguide WR 137

VSWR (better than) 1.15

Dimensions (Brass)

A 35.8

B 46.5

C 21.4

Features

Very Low VSWR

Full Waveguide Band models

Manufactured from Brass or *Aluminium

The Flann Series 094-SF waveguide to coax adaptors offer enhanced VSWR performance over the full waveguide frequency band.

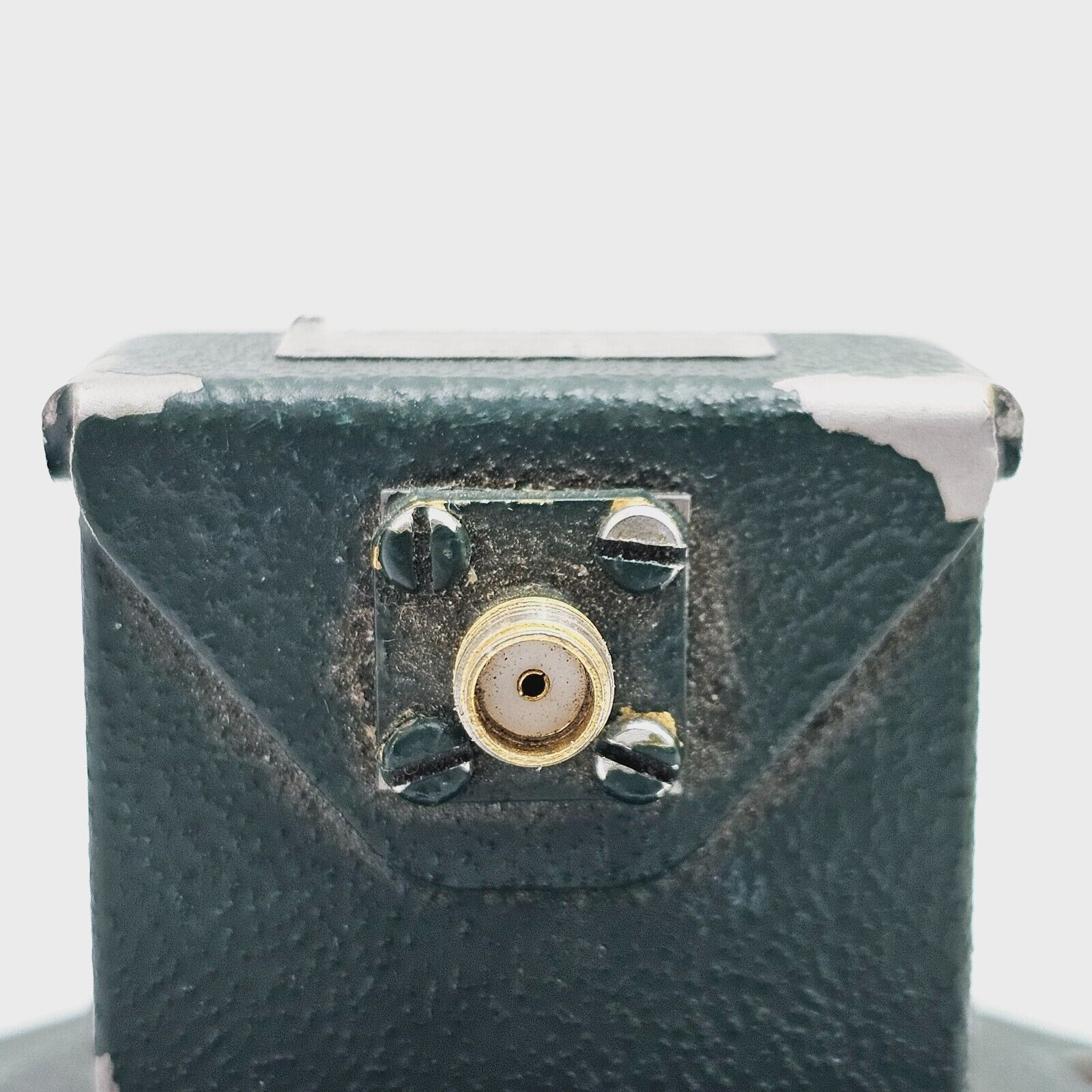

The adaptors are fitted with SMA Female connectors as standard. However, models are optionally available with male connectors, please contact our sales team for further details.

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available.

Please see Series 094-SF** for details.

Please refer to the manufacturer’s website for further information on this product.
