Condition: Used

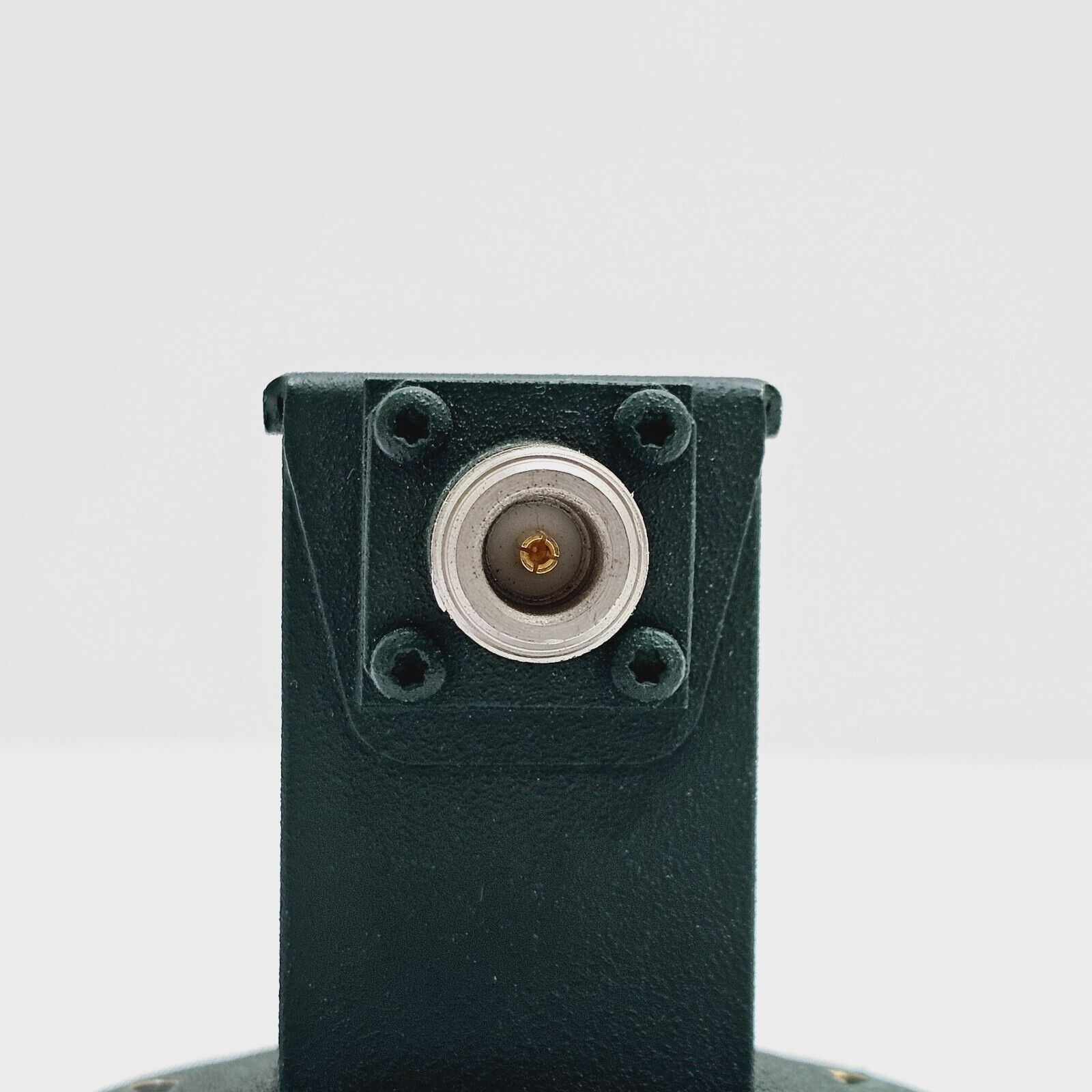

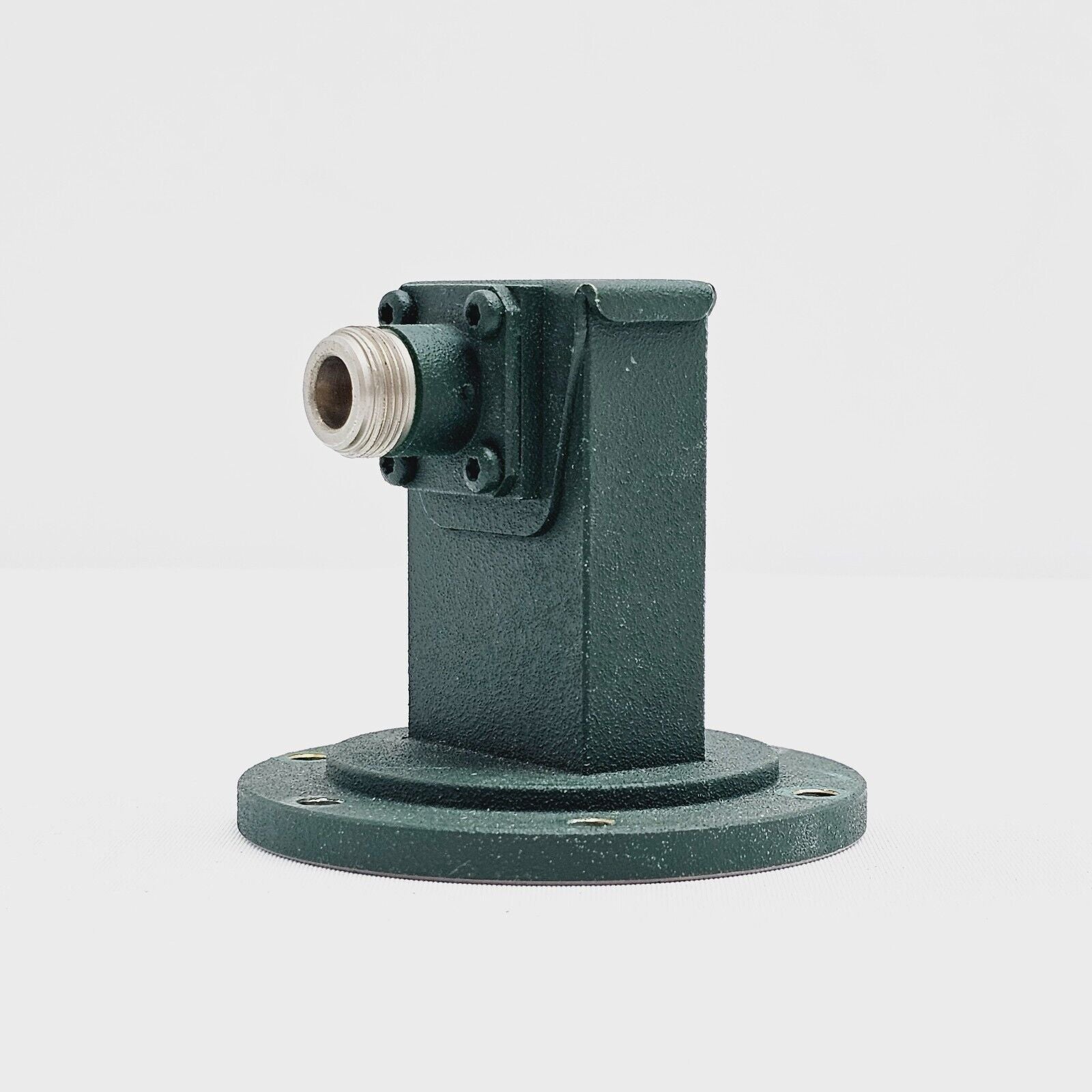

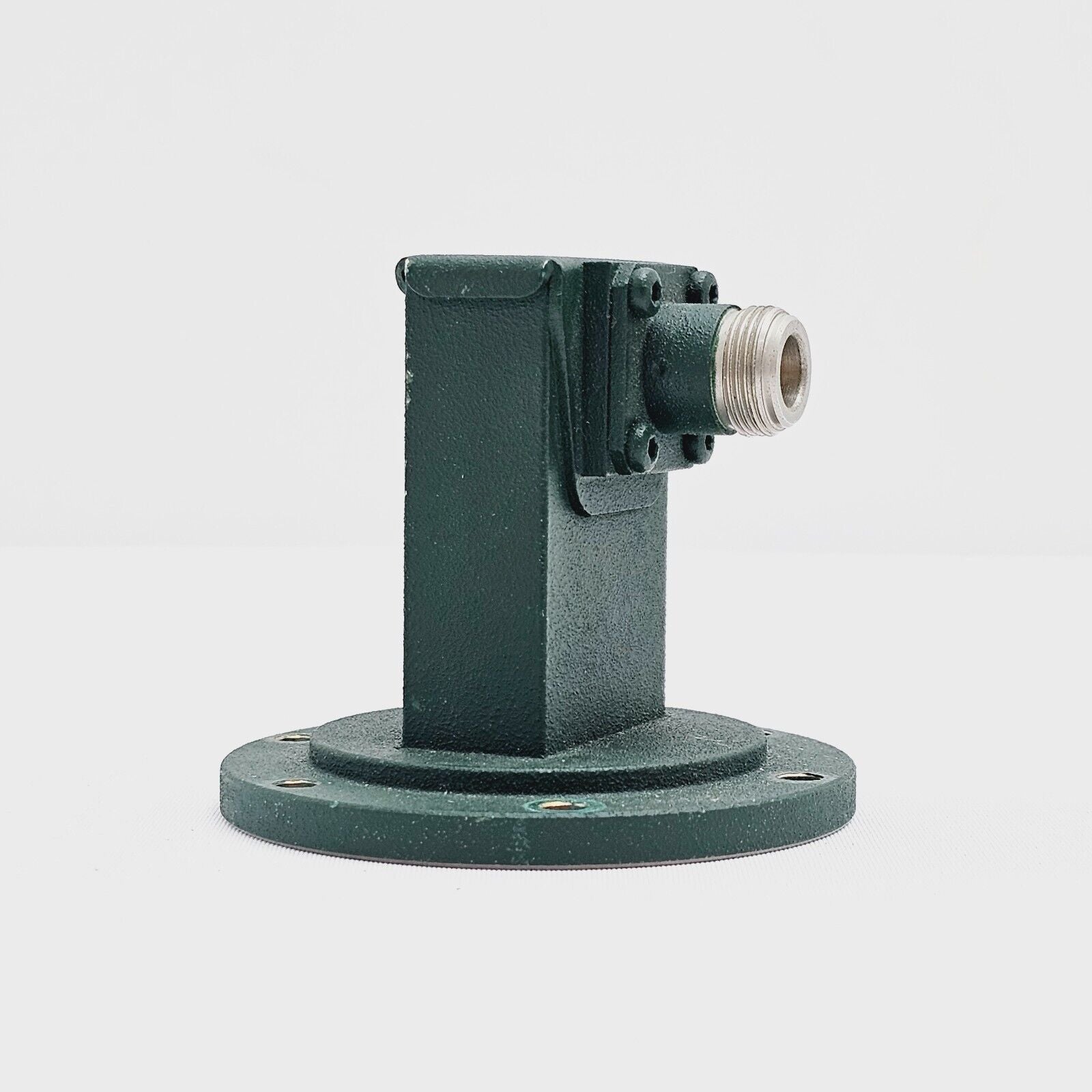

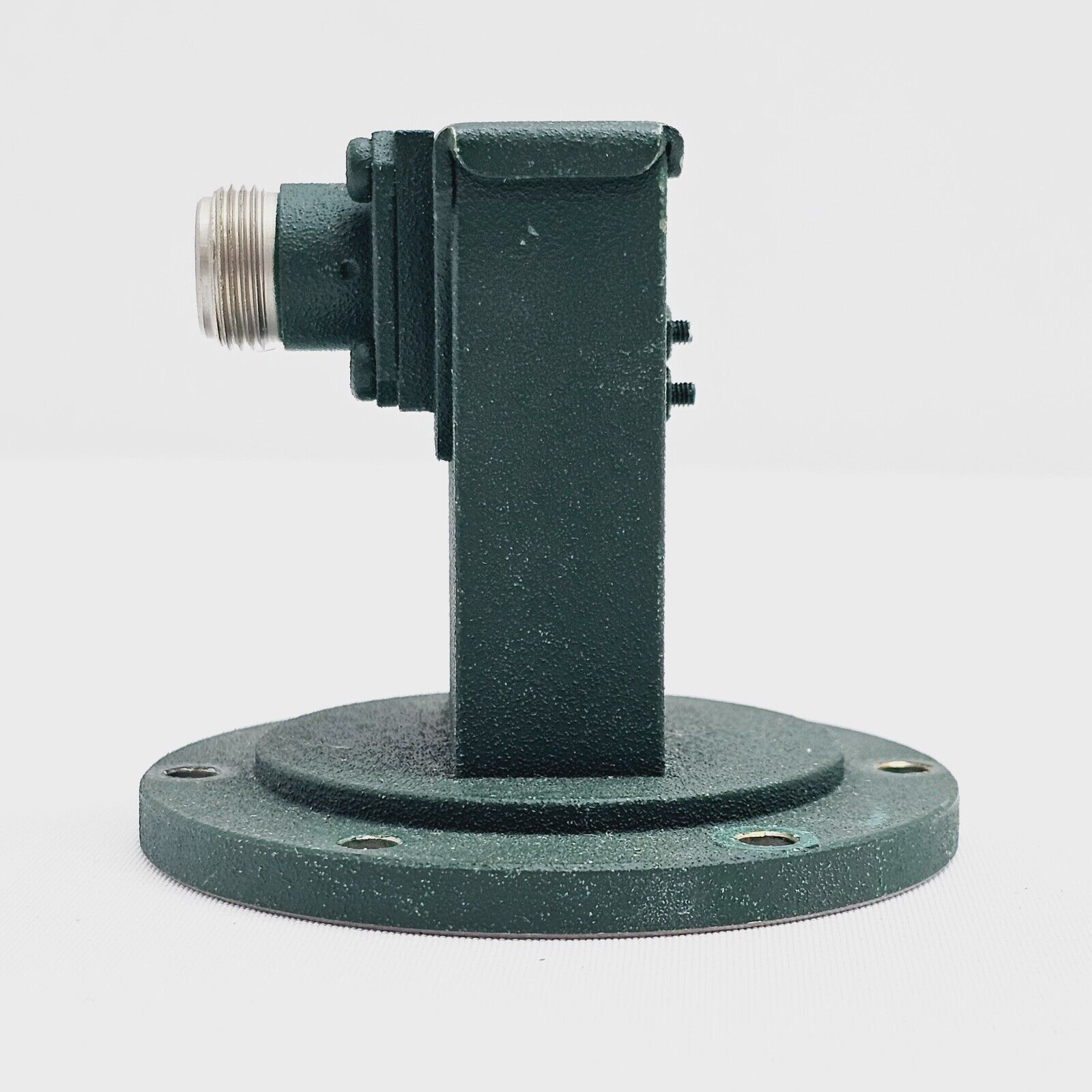

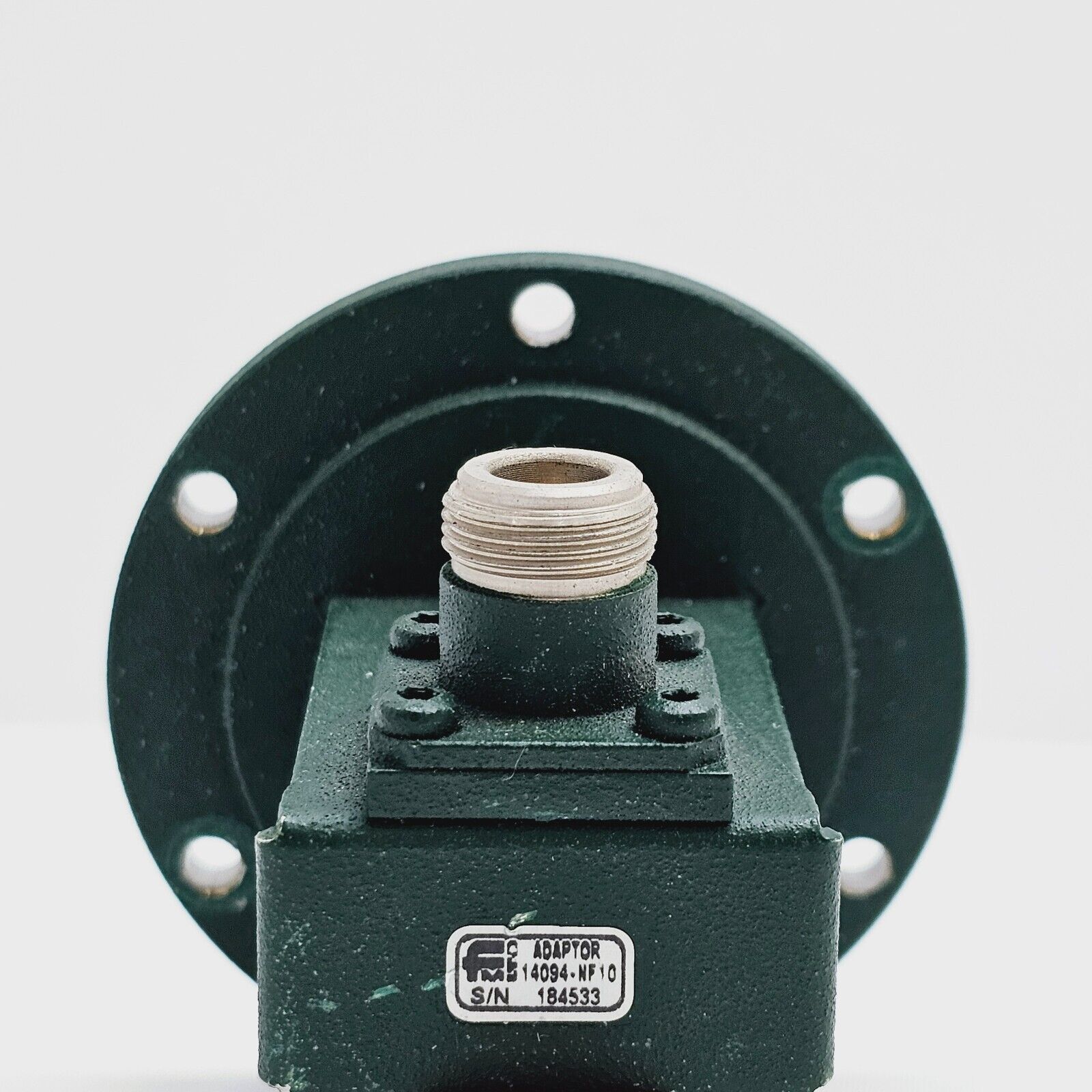

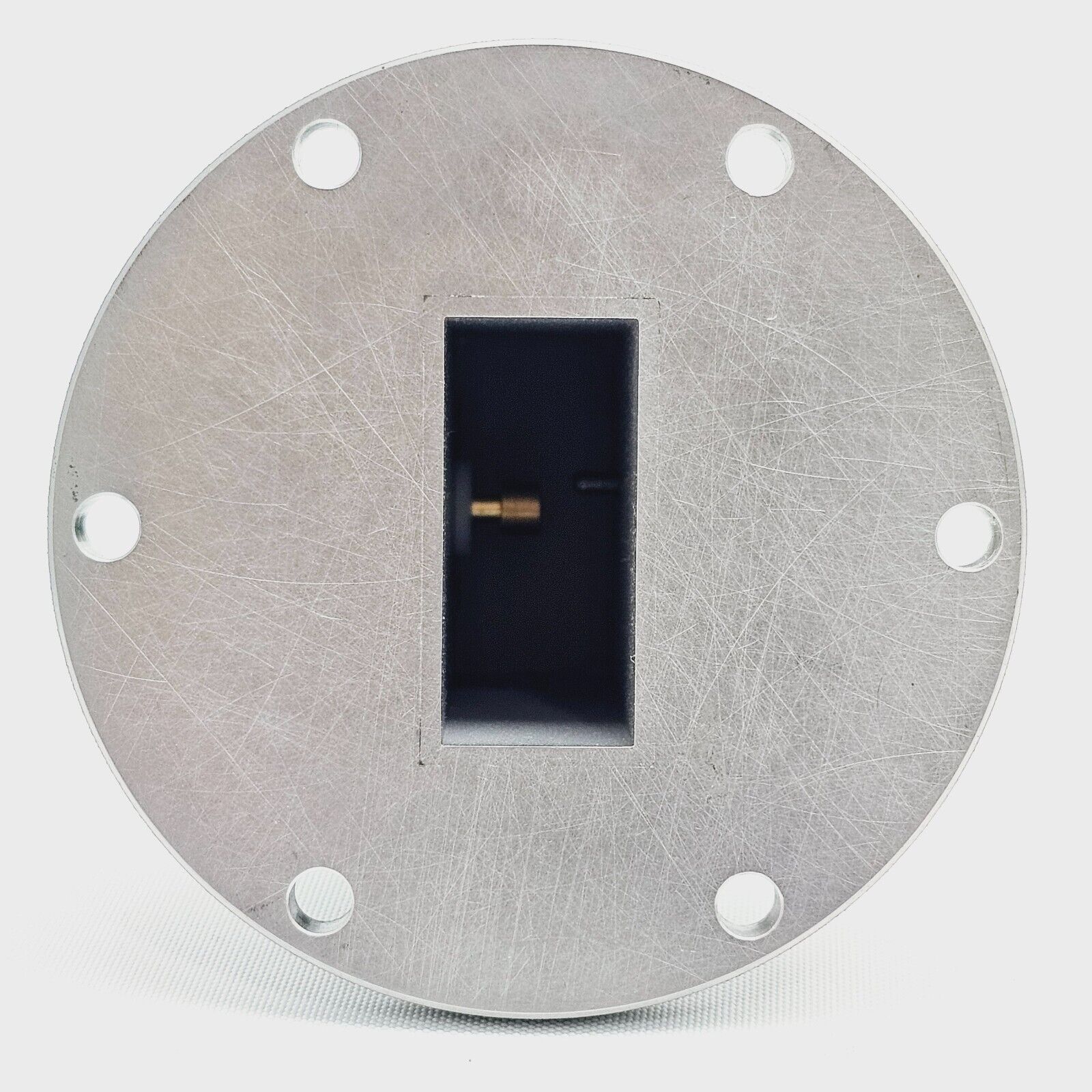

The Flann Microwave 14094-NF10 is a used broadband waveguide-to-coax adaptor providing a precision transition between WG14 rectangular waveguide and a Type N female coaxial connector across the full 5.38–8.18 GHz band. Constructed in brass, it weighs 0.38 kg.

What is typically included:
• Flann Microwave 14094-NF10 waveguide-to-coax adaptor

The Flann Microwave 14094-NF10 is a precision waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular waveguide and a coaxial Type N female connector, suitable for use in microwave test, measurement, and system integration applications.

The Series 093/094-NF broadband Waveguide to Coax Adaptors offer enhanced VSWR performance over the full waveguide frequency band. Models in WG14 to WG18 feature an improved mechanical design offering greater durability and reliability whilst maintaining existing high performance specifications. The adaptors are fitted with Type N female connectors as standard; adaptors fitted with Type N male connectors are available to special order. Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available under the Series 093-NF and 094-NF designations.

Flann waveguide-to-coax adaptors are manufactured to tight tolerances to ensure repeatable, low-VSWR performance across their specified frequency bands, making them well-suited for use with network analysers, signal generators, and other RF/microwave instrumentation.

Specifications:
Model: 14094-NF10
Frequency Range: 5.38–8.18 GHz
Waveguide Size: WG14
Waveguide Designation (R): R70
Waveguide Designation (WR): WR137
Coaxial Connector: Type N Female
VSWR (better than): 1.1
Dimension A (Brass): 55.8 mm
Dimension B (Brass): 69 mm
Dimension C (Brass): 33.2 mm
Weight (Brass): 0.38 kg
Material: Brass (aluminium variants available)
Coverage: Full waveguide band

Flann Microwave Series 094-NF Broadband Waveguide to Coax Adaptors Datasheet: Download PDF
