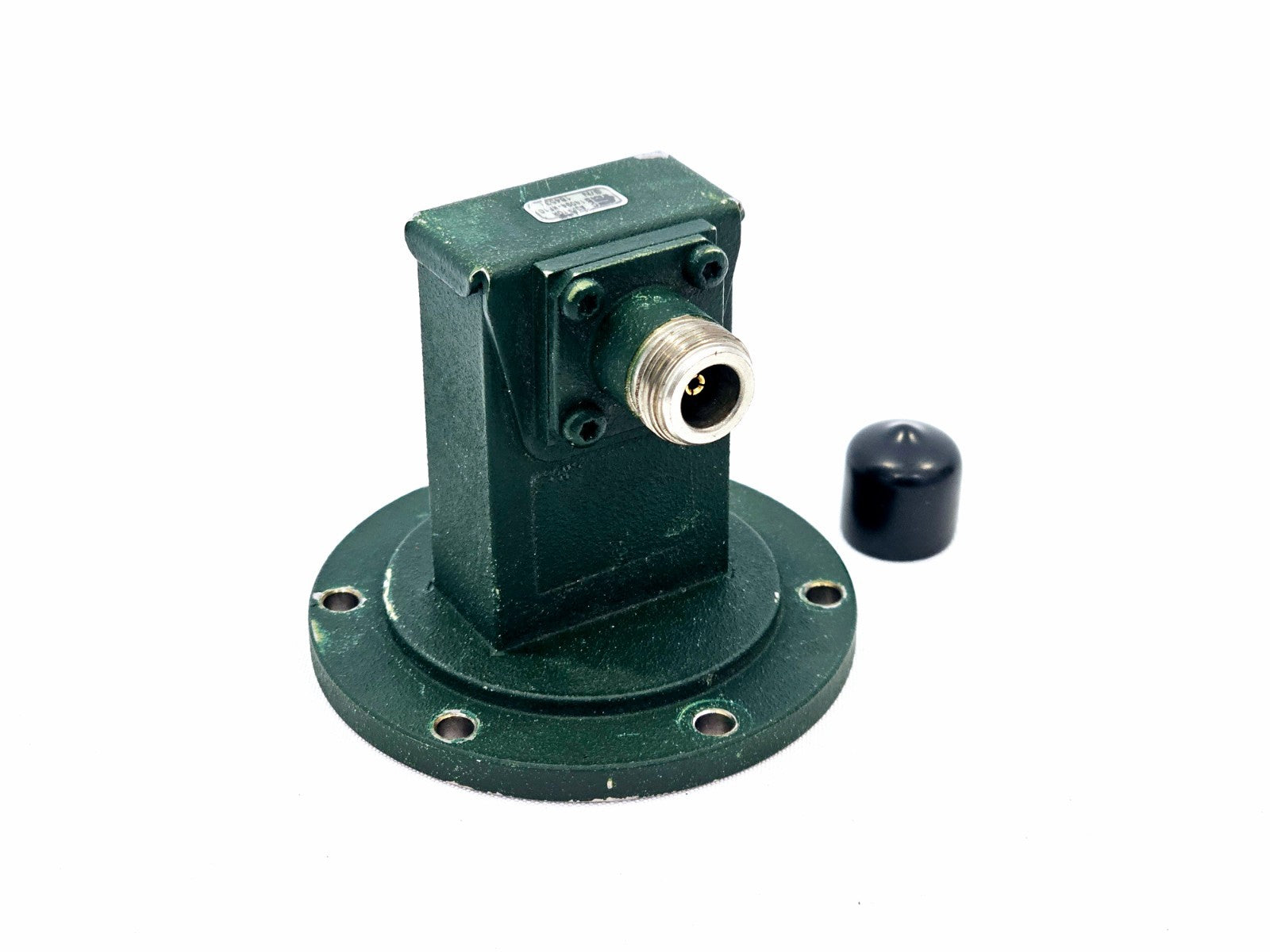

Flann Microwave 14094-NF10 WG14 waveguide-to-coax adaptor, green brass body, circular flange, N-type connector with protective cap alongside

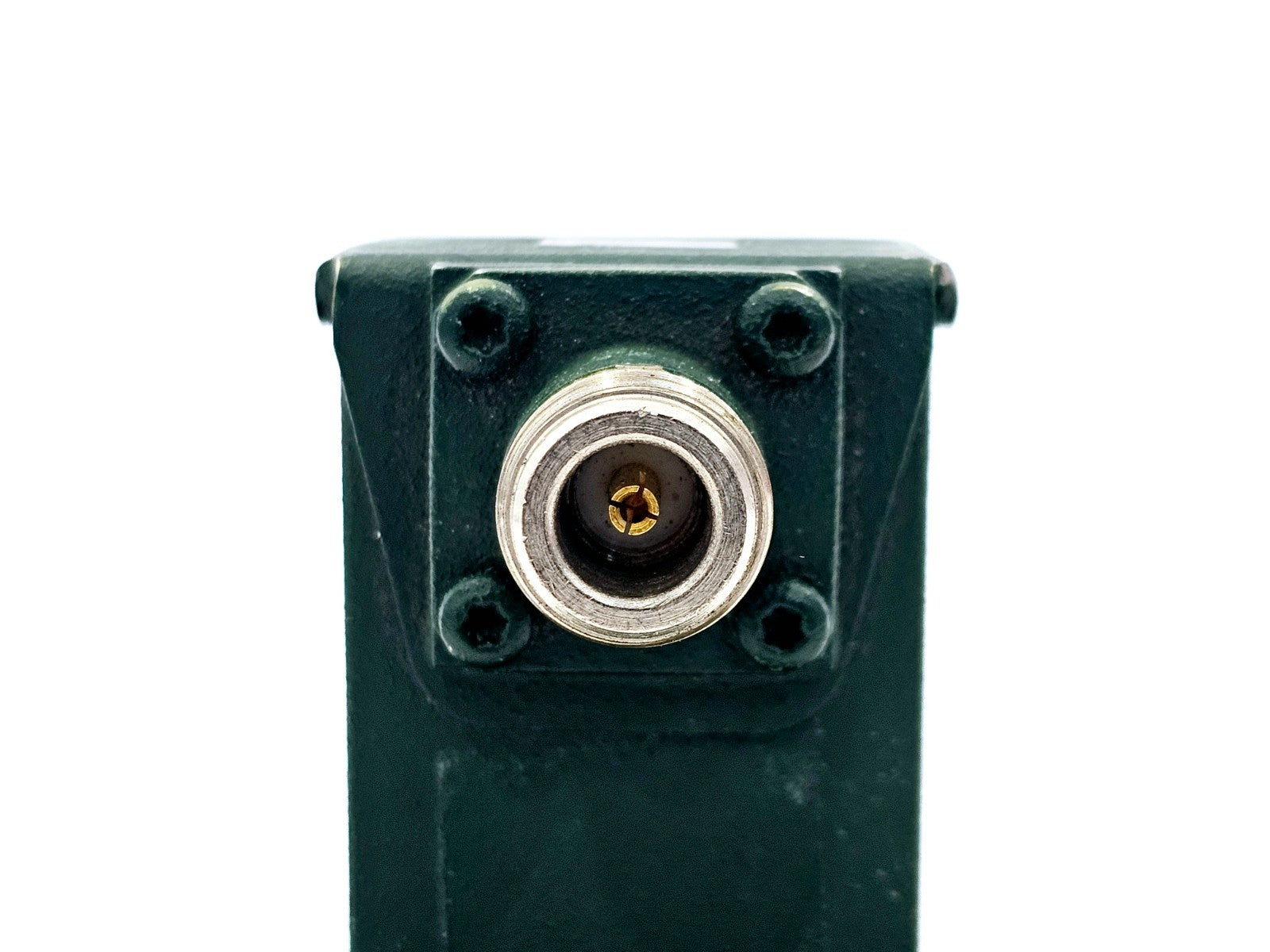

Flann Microwave 14094-NF10 close-up of Type N Female coaxial connector face with four fixing screws, green painted brass housing

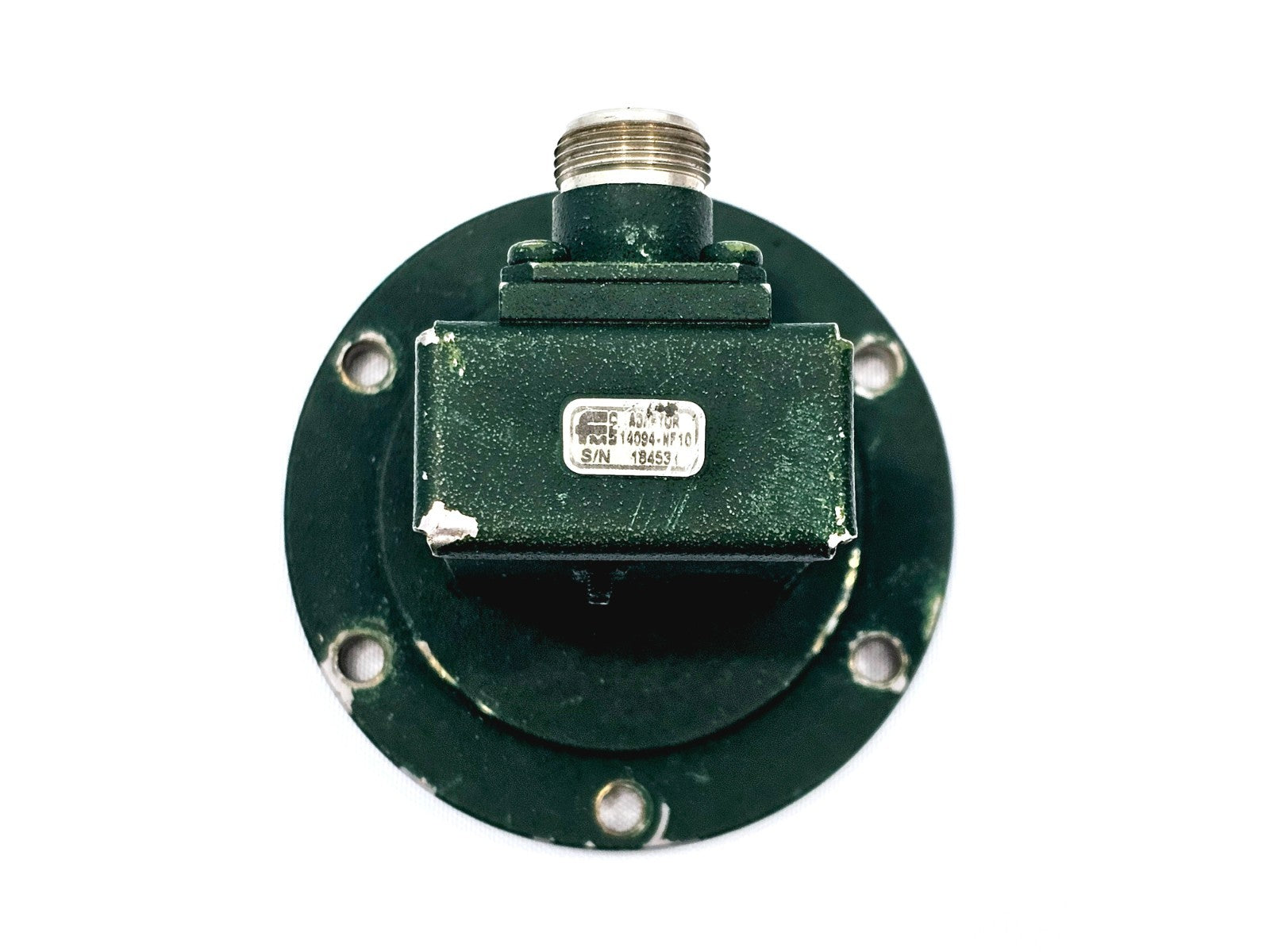

Flann Microwave 14094-NF10 rear label showing model 14094-NF10 and serial number 18453, green circular mounting flange base

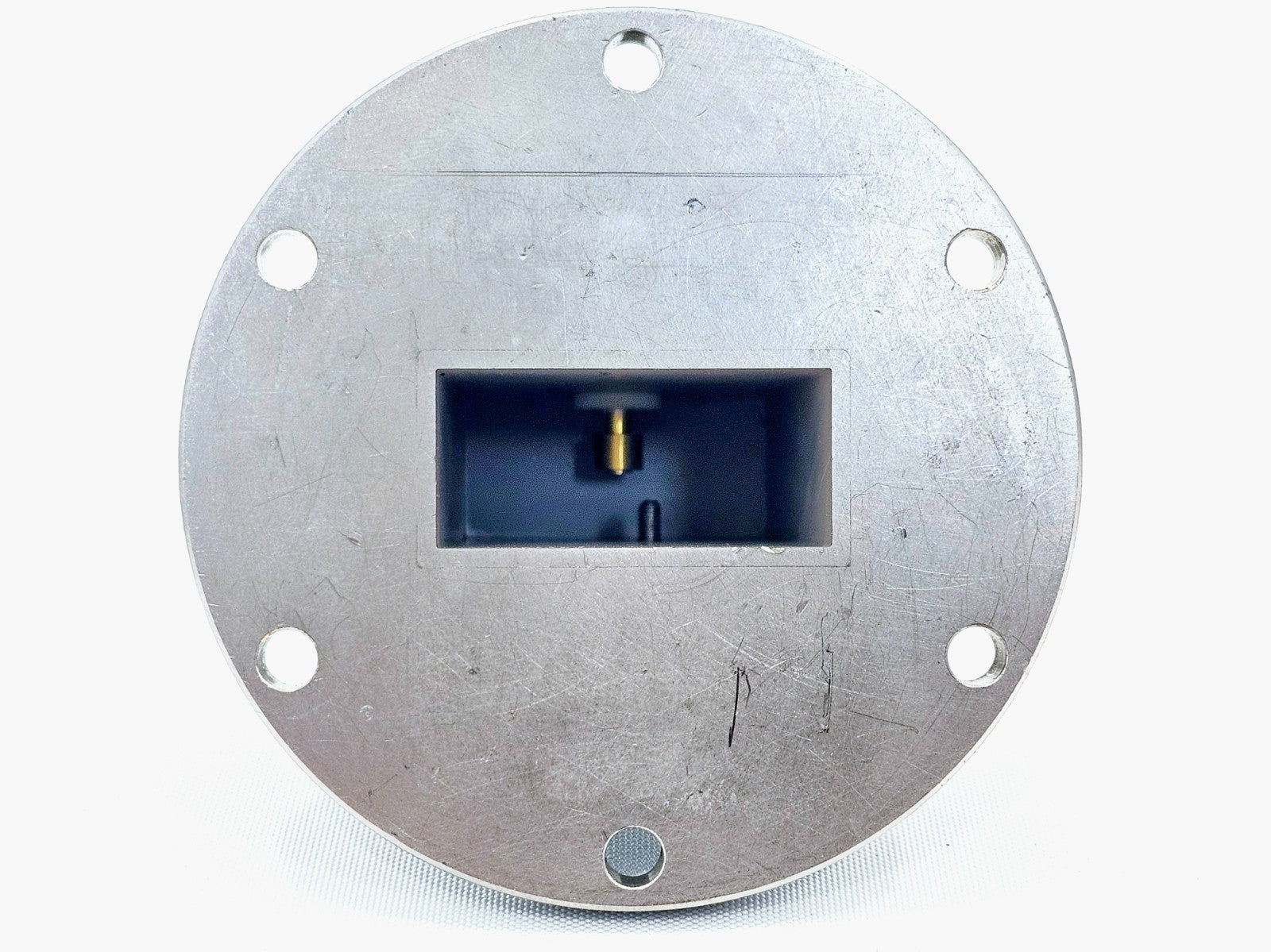

Flann Microwave 14094-NF10 WR137 waveguide aperture view from below, showing rectangular waveguide opening and centre probe pin on metal flange

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Flann Microwave 14094-NF10 Broadband Waveguide - Coax N Type 5.38 - 8.18 GHz

Name: Flann Microwave 14094-NF10 Broadband Waveguide - Coax N Type 5.38 - 8.18 GHz
Brand: Flann
SKU: 3794 4F01 ER88
Price: 34.0 GBP
Availability: OutOfStock

The Flann Microwave 14094-NF10 is a broadband WG14 (WR137/R70) waveguide-to-coax adaptor covering the full 5.38–8.18 GHz band with a Type N Female output connector.

• Broadband full-band coverage: 5.38–8.18 GHz with VSWR max 1.10
• WG14 / WR137 / R70 waveguide interface with UDR70 or UAR70 flange
• Precision brass construction for durability and consistent RF performance

Manufacturer

Flann

Model

14094-NF10

Condition

Used

In stock

SKU

3794 4F01

£34.00

Connectors & cables
RF & Microwave
RF Components

Make an Offer

Condition: Used

Flann Microwave 14094-NF10 broadband waveguide-to-coax adaptor for WG14 (WR137/R70), covering 5.38–8.18 GHz. The unit is finished in green-painted brass with a Type N Female coaxial output and a circular mounting flange. Serial number 18453 is visible on the rear label. A protective cap for the N connector is included.

Included in the sale:
• 1x Flann Microwave 14094-NF10 Broadband Waveguide-to-Coax Adaptor
• 1x Protective cap for N-type connector

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: Used

Included in the sale:
• 1x Flann Microwave 14094-NF10 Broadband Waveguide-to-Coax Adaptor
• 1x Protective cap for N-type connector

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Flann Microwave 14094-NF10 is part of the Series 094-NF10 broadband waveguide-to-coaxial adaptor range. These adaptors are designed to interface WG14 rectangular waveguide to a Type N Female coaxial connector, covering the full waveguide frequency band with enhanced VSWR performance. Models in WG14 to WG18 feature an improved mechanical design offering greater durability and reliability whilst maintaining existing high performance specifications. The NF10 suffix denotes a broadband unit. Adaptors are available in brass (standard) or aluminium.

Key Specifications:
Model: 14094-NF10
Frequency Range: 5.38 GHz to 8.18 GHz
Waveguide Size: WG14 / WR137 / R70
Connector Type: Type N Female
VSWR (Broadband): 1.10 MAX
Flange Type: UDR70 or UAR70
Material: Brass (standard); Aluminium available on request
Suffix NF10: Broadband full-band unit

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available (Series 093-NF** and 094-NF**). Male N-type connector variants are available to special order. Flann Microwave Limited, founded in 1956, specialise in precision high-performance microwave components from 320 MHz to 500 GHz, serving Defence, Telecommunications, Space, Metrology, and R&D markets.

Resources

Flann Microwave Series 094-NF N-Type Waveguide to Coax Adaptors — product page with ordering and specification information: Download PDF
