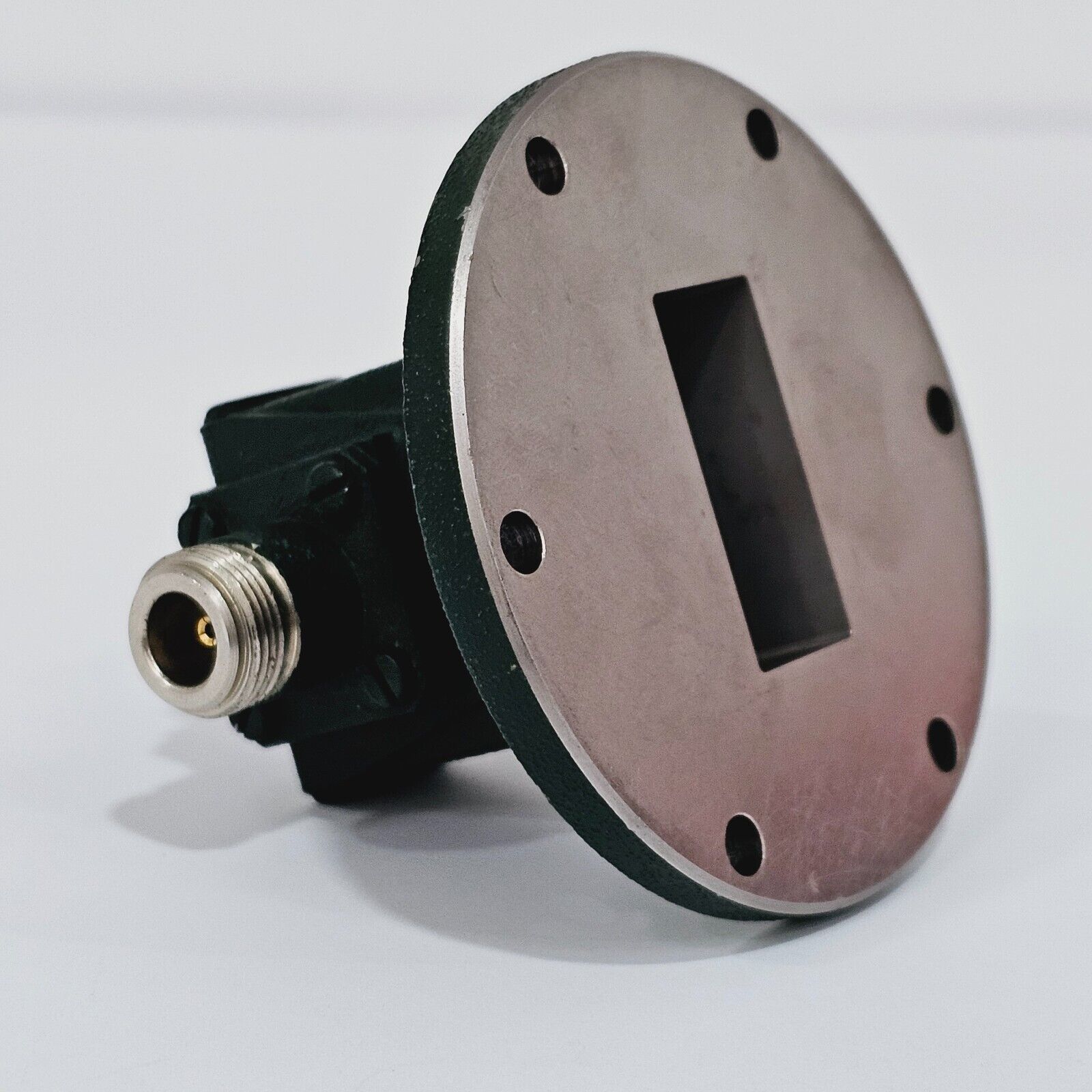

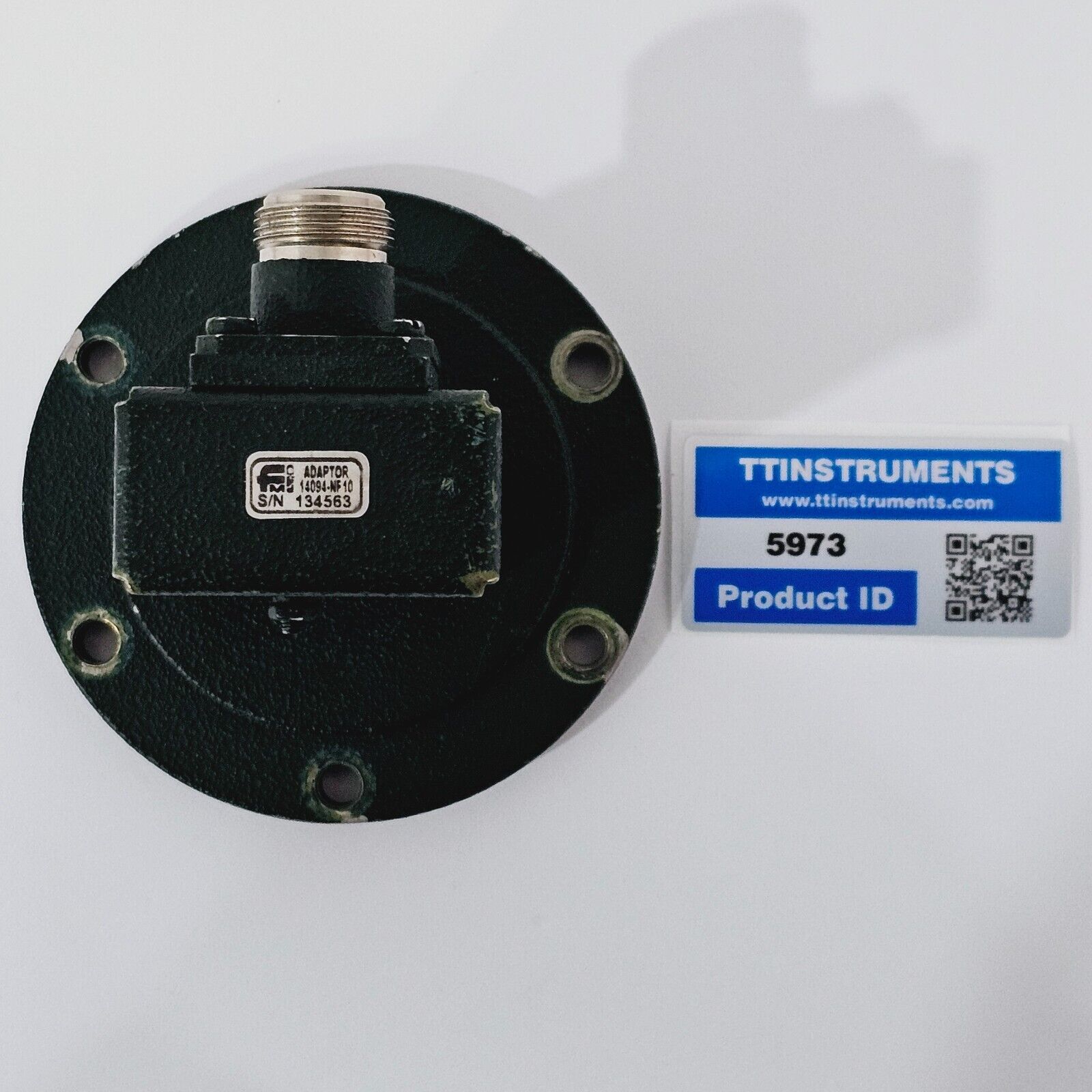

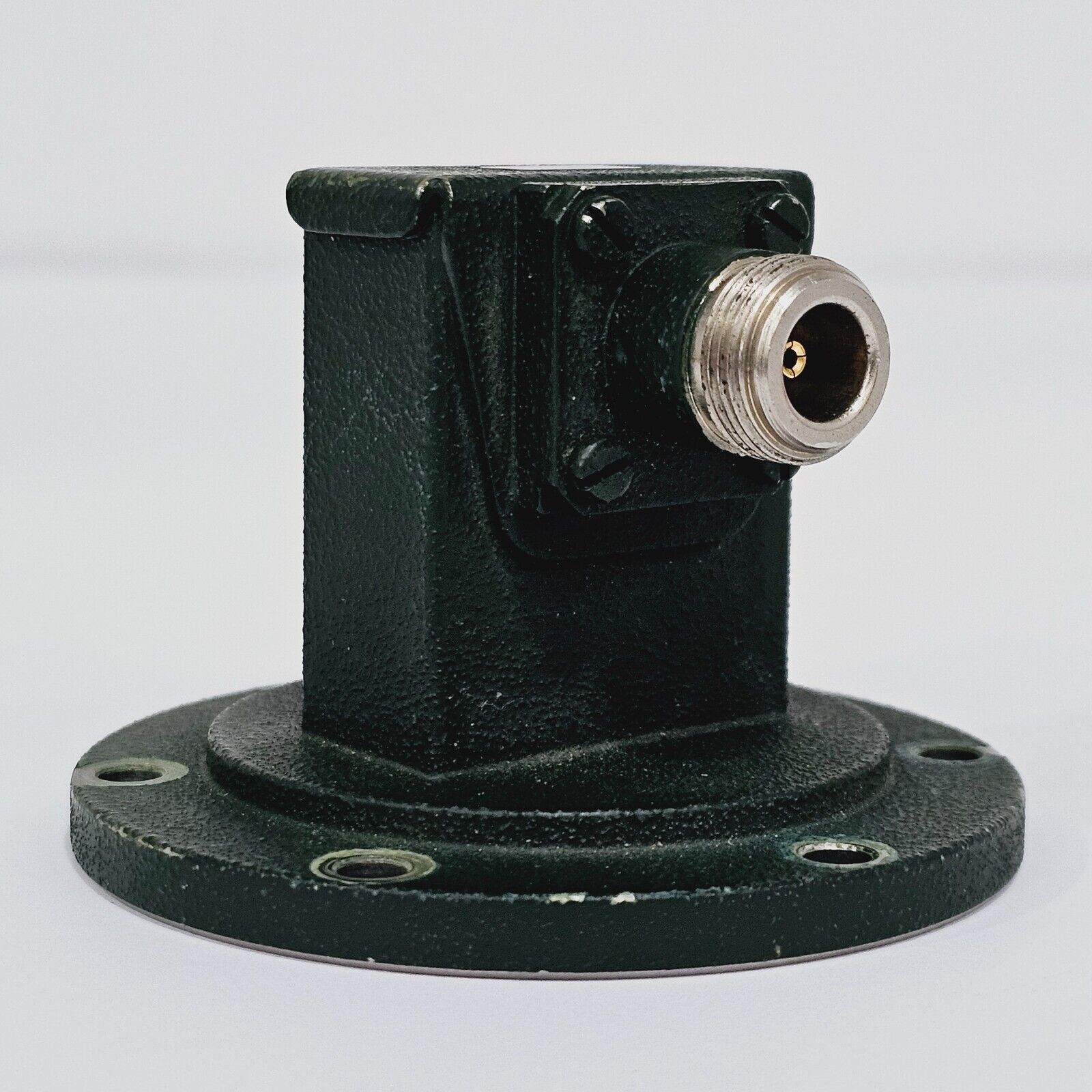

Flann Microwave 14094-NF10 5.380 - 8.180 GHz WG14 Adaptor Waveguide to Coax N f)

Condition: Used

The Flann Microwave 14094-NF10 is a used waveguide-to-coaxial adaptor designed to transition microwave signals between WG14 (WR137) rectangular waveguide and an N female coaxial connector across the 5.38–8.18 GHz frequency band.

• Flann Microwave 14094-NF10 waveguide-to-coax adaptor

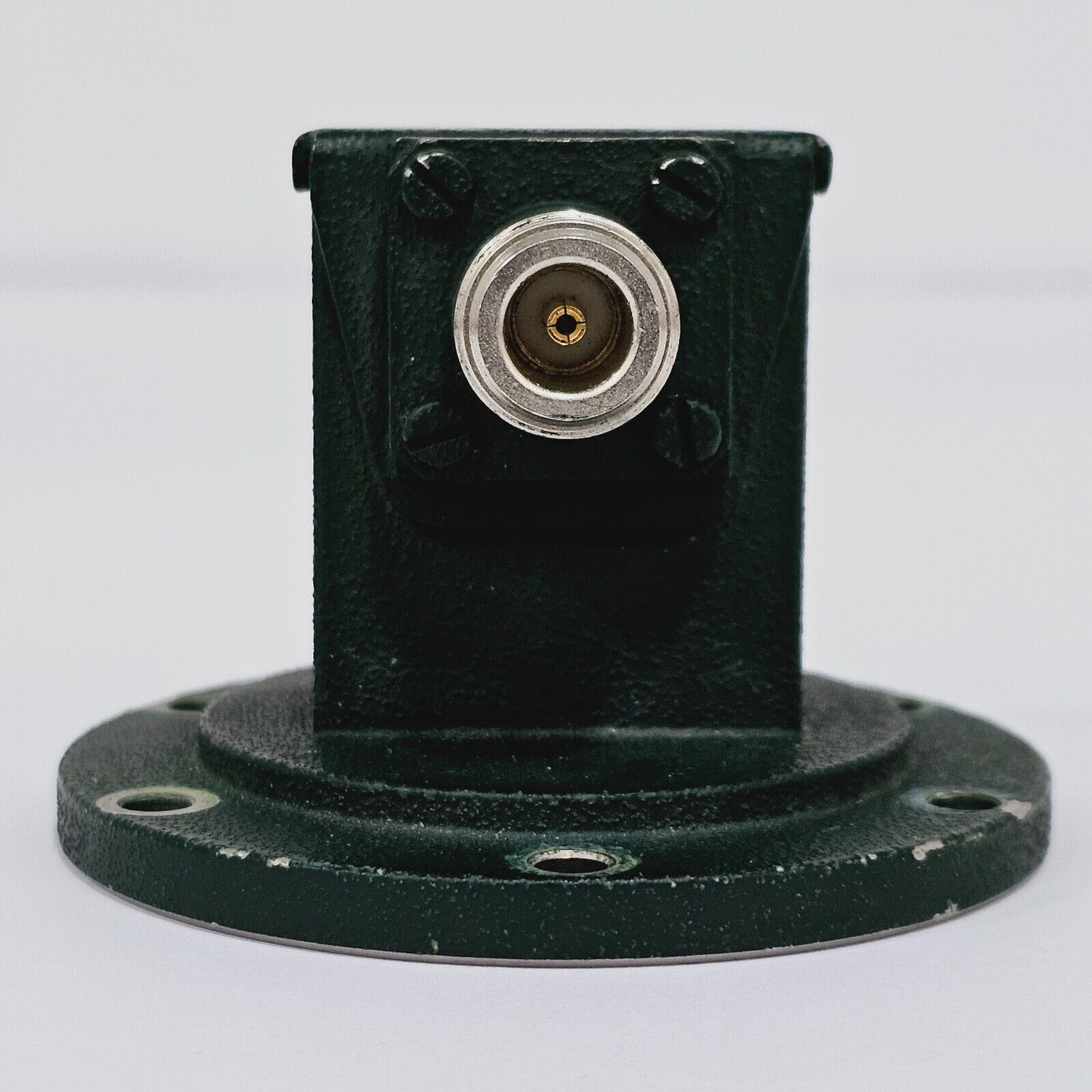

• N female (NF) coaxial connector

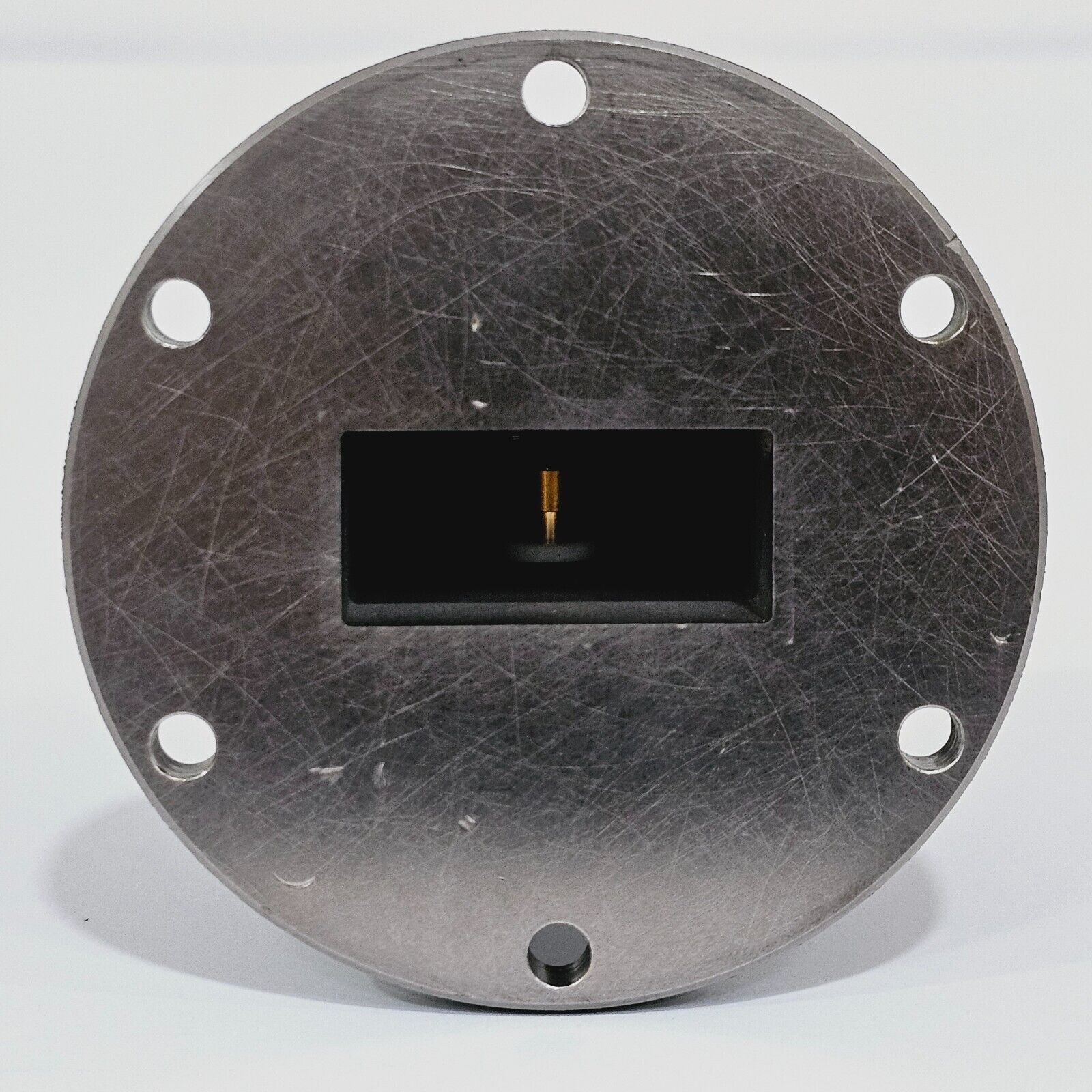

• WG14 / R70 / WR137 waveguide flange interface

The Flann Microwave 14094-NF10 is a precision waveguide-to-coaxial adaptor manufactured by Flann Microwave Ltd, a UK-based specialist in waveguide components and subsystems. This adaptor provides a low-reflection transition between rectangular waveguide and a coaxial N female connector, suitable for use in microwave test, measurement, and system integration applications.

Flann waveguide-to-coax adaptors are manufactured to tight tolerances to ensure repeatable, low-VSWR performance across their specified frequency bands, making them well-suited for use with network analysers, signal generators, and other RF/microwave instrumentation.

Specifications:
Model: 14094-NF10
Frequency Range: 5.38–8.18 GHz
Waveguide Size: WG14
Waveguide Designation (R): R70
Waveguide Designation (WR): WR137
Coaxial Connector: N female
VSWR: Better than 1.1
Manufacturer: Flann Microwave Ltd, UK
