Condition: Used

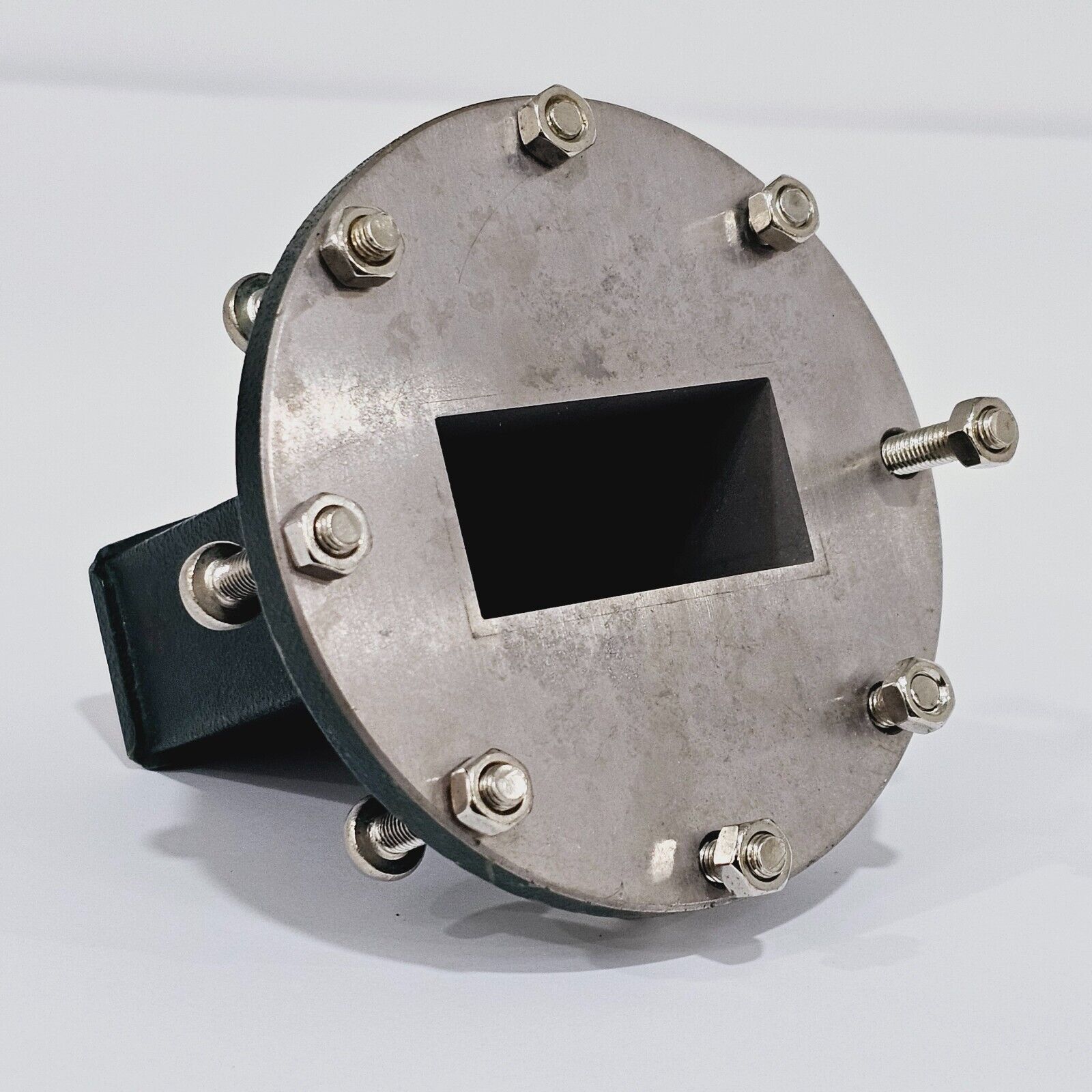

Waveguide to SMA Coax Adaptors Series 094-SF40

Features

Very Low VSWR

Full Waveguide Band models

Manufactured from Brass or *Aluminium

The Flann Series 094-SF waveguide to coax adaptors offer enhanced VSWR performance over the full waveguide frequency band.

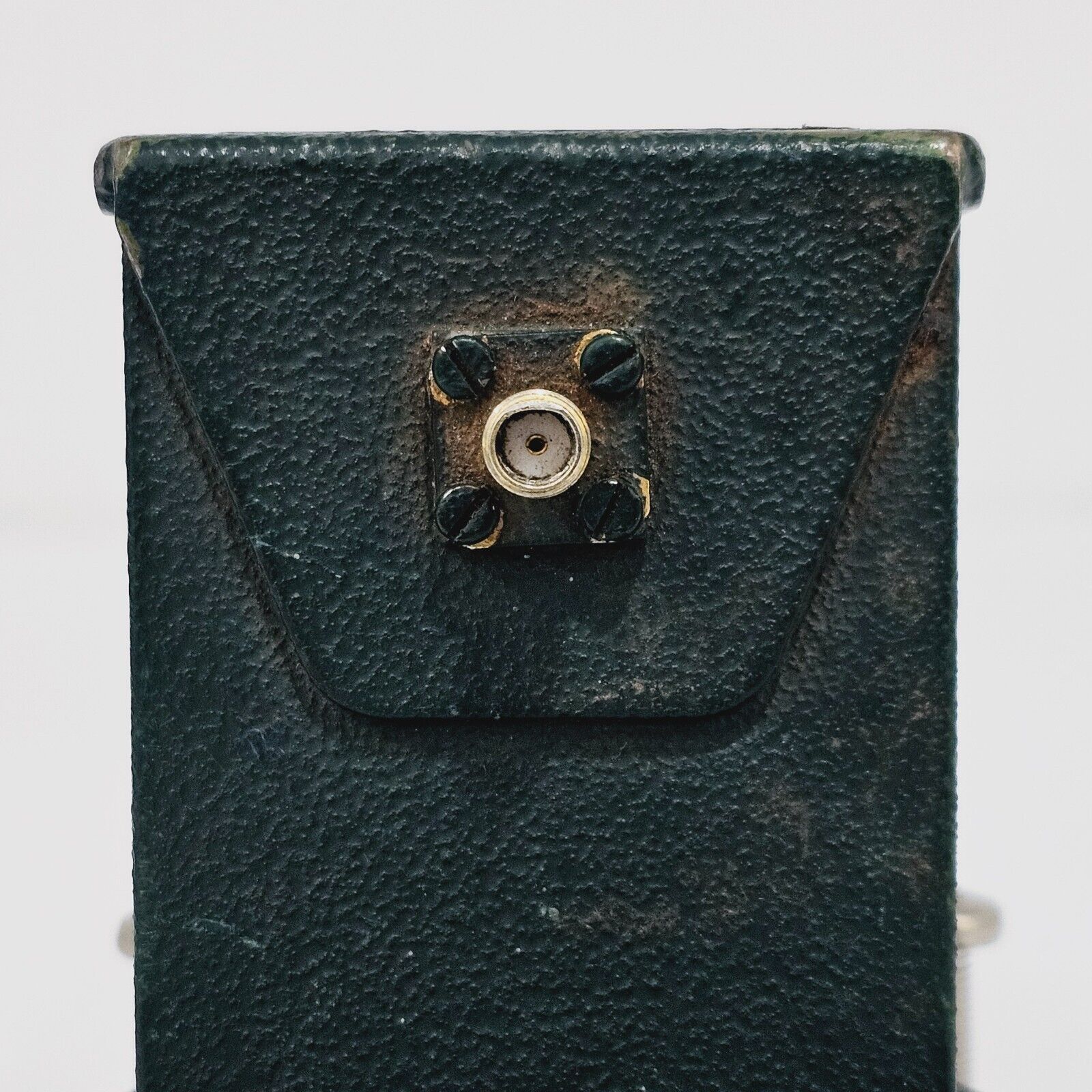

The adaptors are fitted with SMA Female connectors as standard. However, models are optionally available with male connectors, please contact our sales team for further details.

Narrowband models covering typically 20% of the full waveguide band with a VSWR of 1.05 are also available.

Part Number

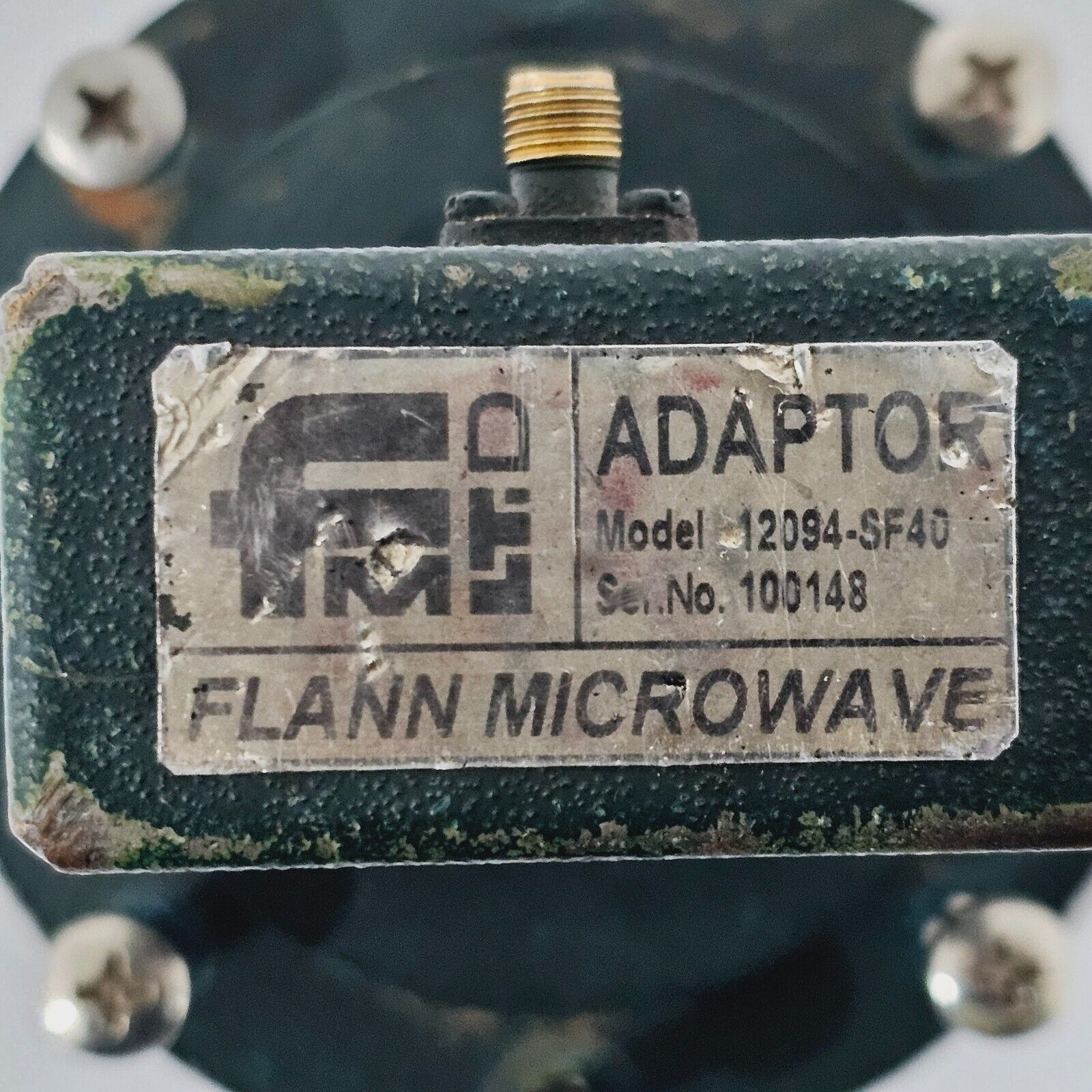

12094-SF40

Manufacturer

Flann Microwave

Description

Waveguide to SMA Coax Adapter

General Parameters

Waveguide Size

WR187 / WG12 / R48

Waveguide WG

WG12

Waveguide R

R48

Waveguide WR

WR187

Connector

SMA

Connector Gender

Female / Jack

Geometry

Right Angle

Frequency

3.940 to 5.990 GHz

VSWR

1.15:1

Dimension

60.2 x 78.5 x 24.5 mm
