Condition: Used

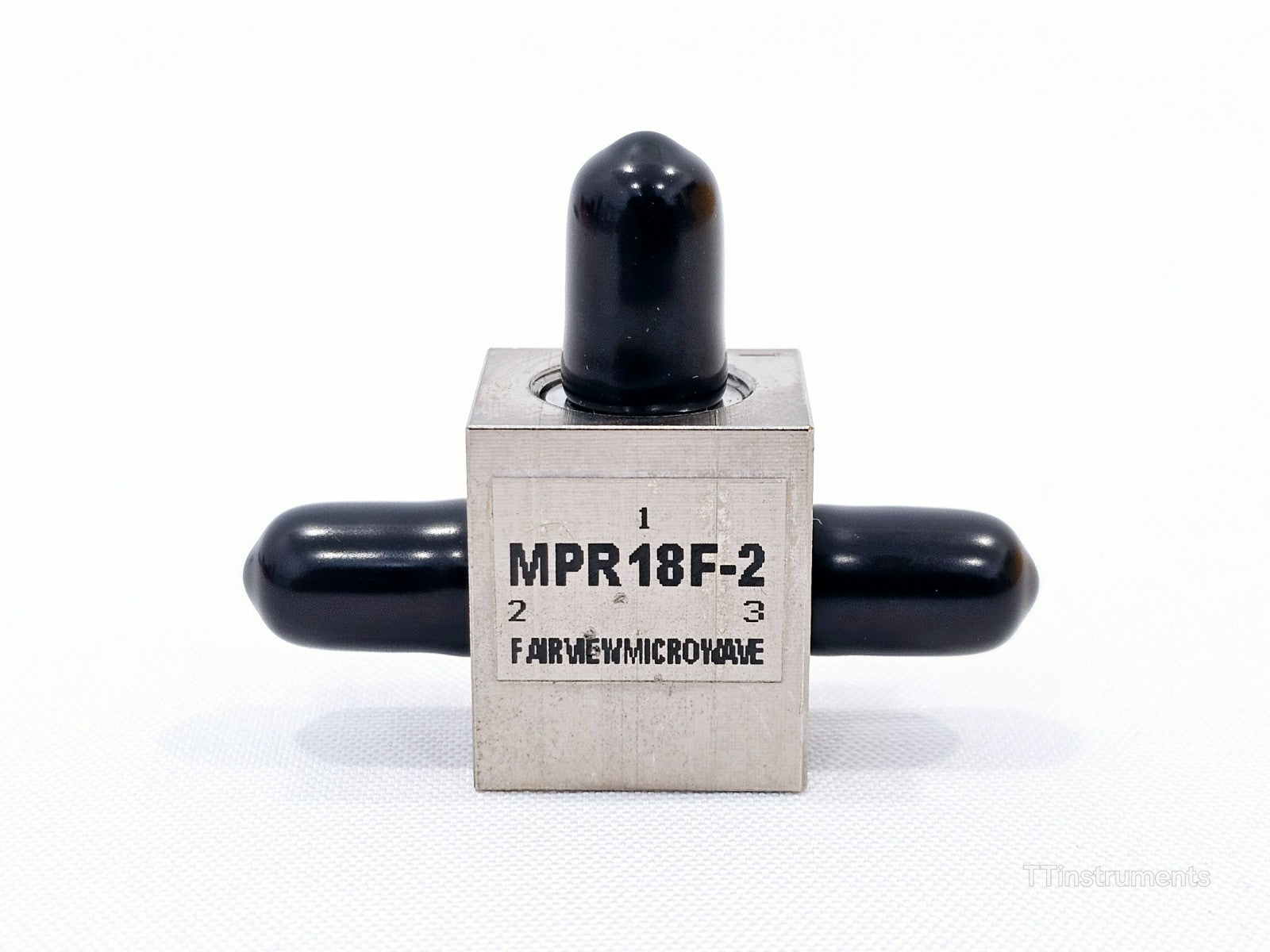

The Fairview Microwave MPR18F-2 is a 2-way resistive SMA power divider/combiner operating from DC to 18 GHz with a maximum input power of 1 W and 50 Ω impedance. It features three SMA female ports (port 1 input, ports 2 and 3 outputs) in a compact, solid metal body.

Included in the sale:
• Fairview Microwave MPR18F-2 2-way power divider/combiner

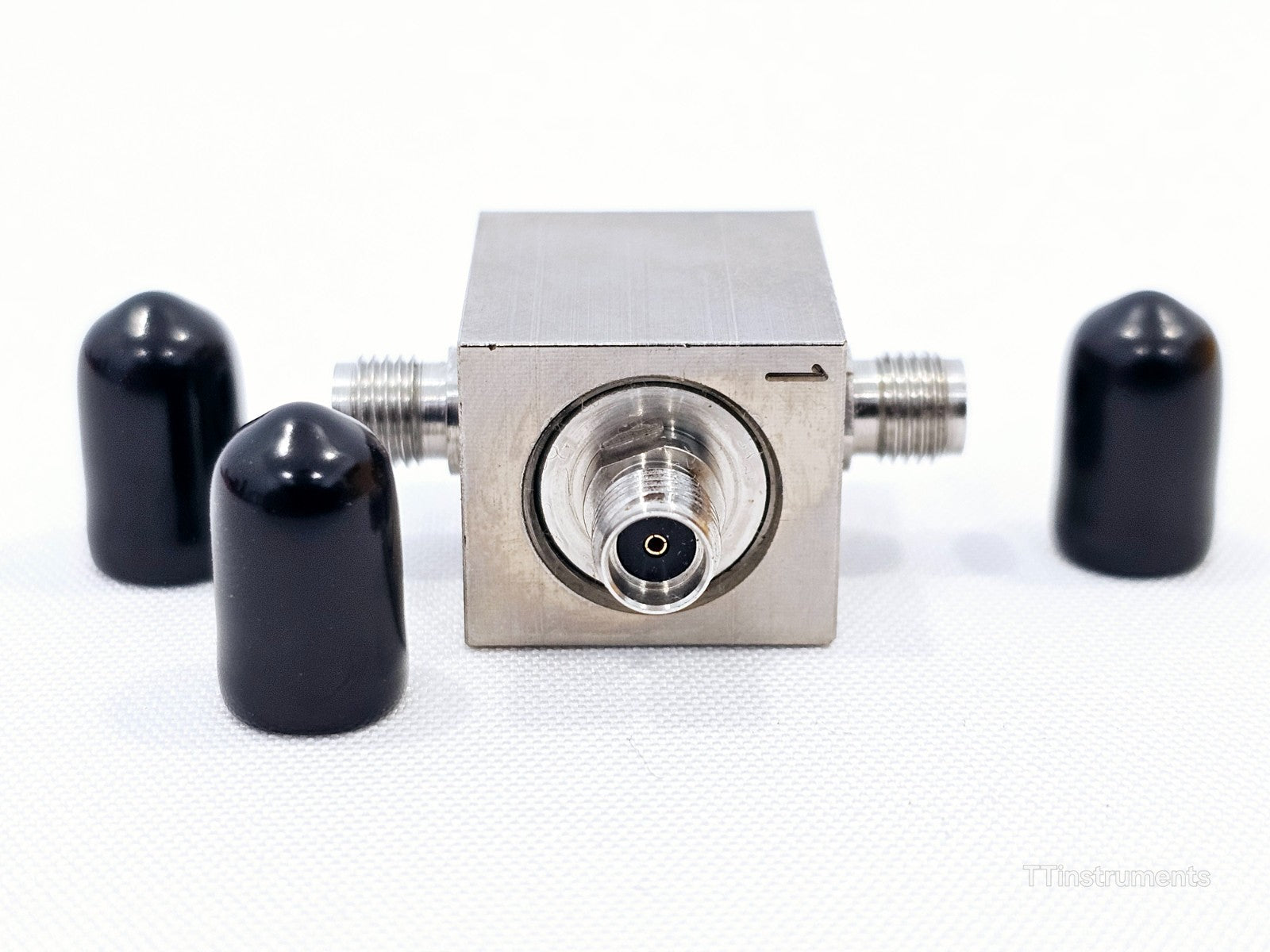

• 4 × black protective SMA port caps (fitted)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

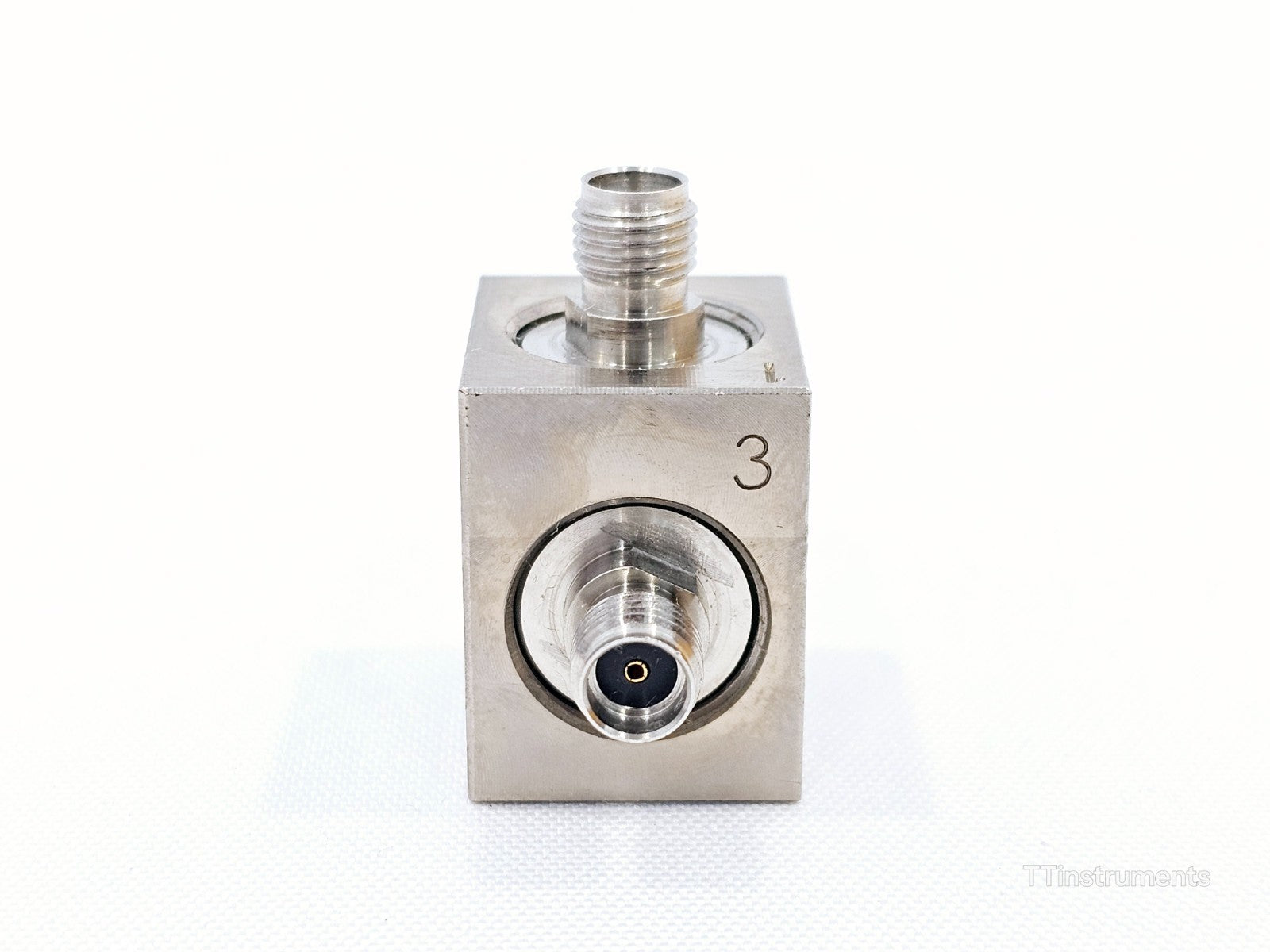

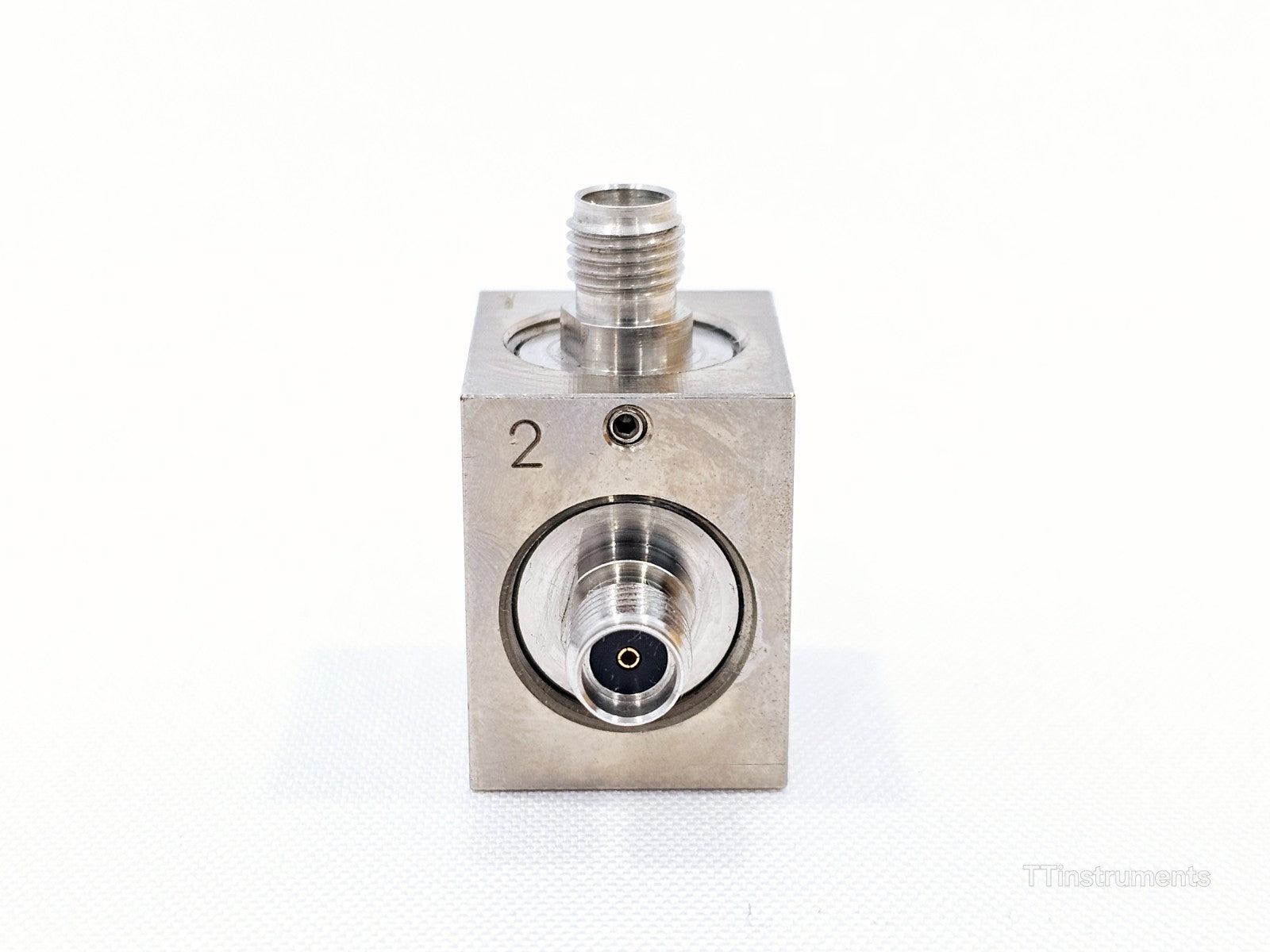

The Fairview Microwave MPR18F-2 is a 2-way resistive RF power divider and combiner designed for broadband applications from DC to 18 GHz. The resistive topology provides exceptionally wide bandwidth coverage, including operation down to DC — a capability unique to resistive designs — making it well-suited for use with network analysers, signal generators, power sensor calibration, and general laboratory signal distribution tasks. The unit features three SMA female connectors: one input port (port 1) and two output ports (ports 2 and 3), all housed within a compact stainless-steel body.

As a resistive (lossy) divider, each output port receives nominally 6 dB below the input power level, which includes the inherent 3 dB split loss plus an additional 3 dB resistive loss. This design ensures excellent impedance matching at all ports and a flat frequency response across the full operating band.

Manufacturer: Fairview Microwave (an Infinite Electronics brand)
Part Number: MPR18F-2
Product Type: 2-Way Resistive Power Divider / Combiner
Frequency Range: DC to 18 GHz
Number of Ways: 2
Connector Type: SMA Female (all ports)
Impedance: 50 Ohm
Maximum Input Power: 1 Watt
Divider Topology: Resistive
Port Configuration: 1 Input (Port 1), 2 Outputs (Ports 2 and 3)
Typical Insertion Loss: ~6 dB (includes theoretical 6 dB resistive split loss)
Operating Temperature: -55°C to +100°C (typical for series)
Body Material: Stainless Steel

Typical Applications:
- Network analyser reference splitting
- Power sensor calibration
- Signal distribution in test and measurement systems
- Multi-receiver signal routing in RF and microwave laboratories
- Broadband signal combining

Fairview Microwave MPR18F-2 product datasheet — technical specifications and performance data: Download PDF

Fairview Microwave MPR18F-2 product datasheet (alternate hosted version) — specifications and product details: Download PDF
