Condition: Used

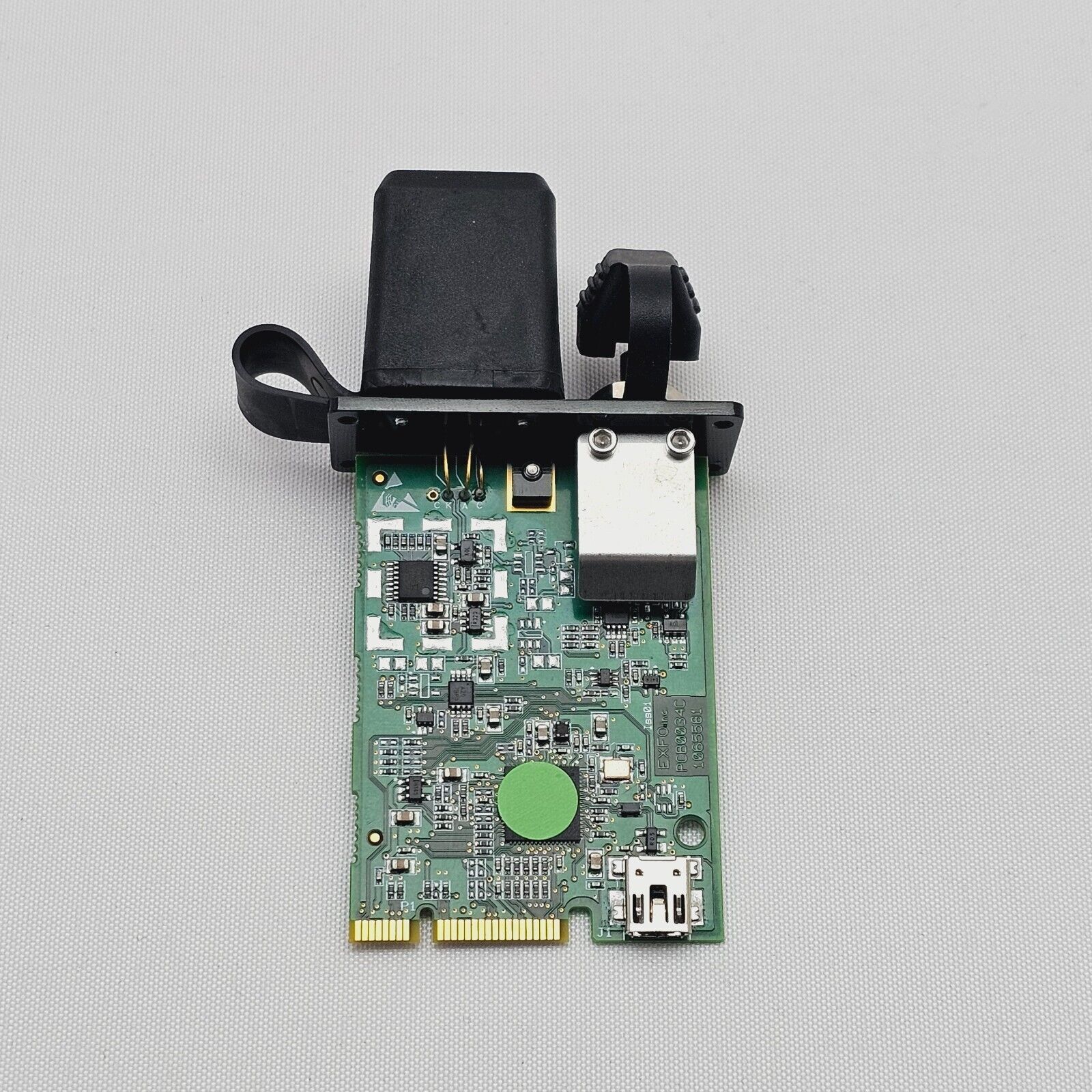

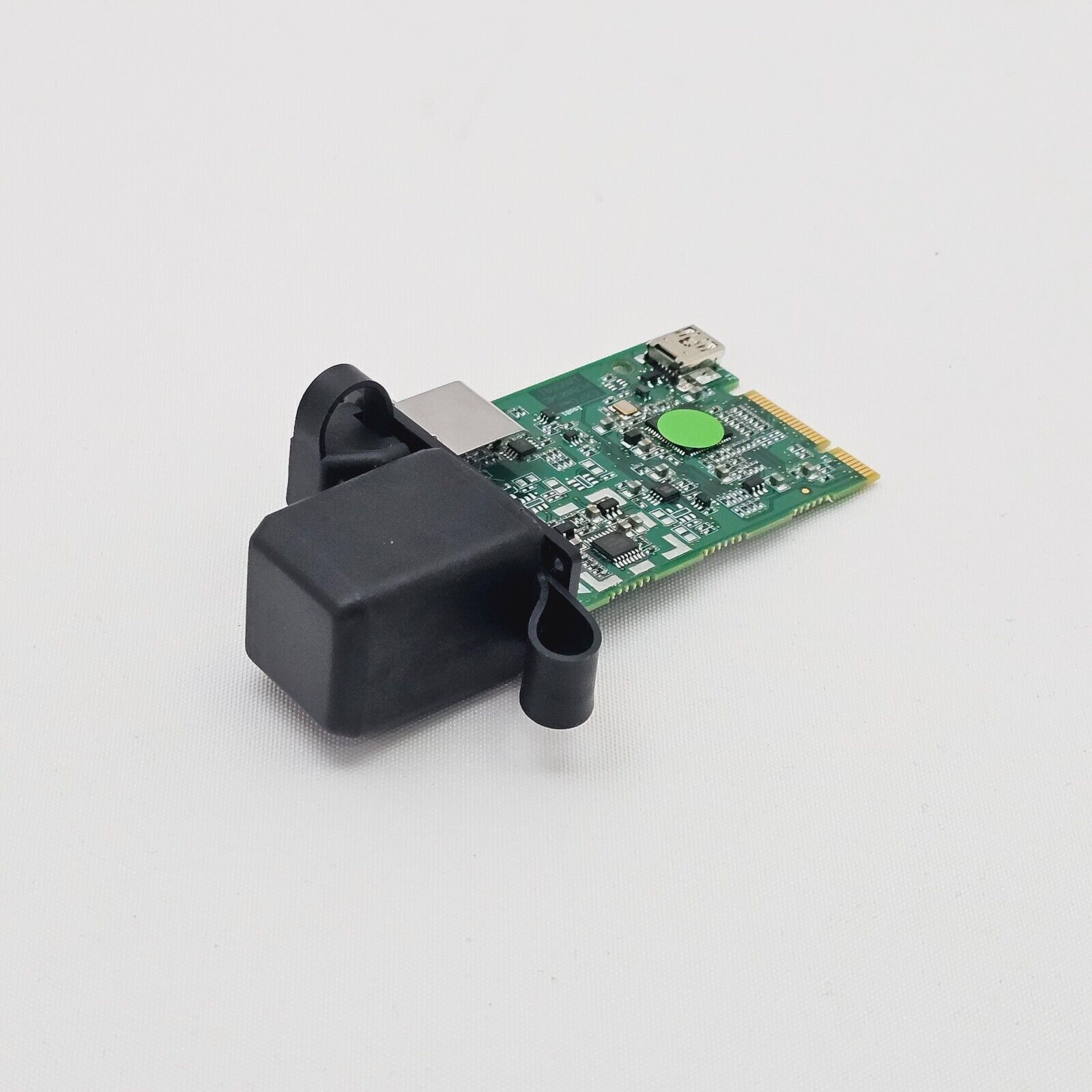

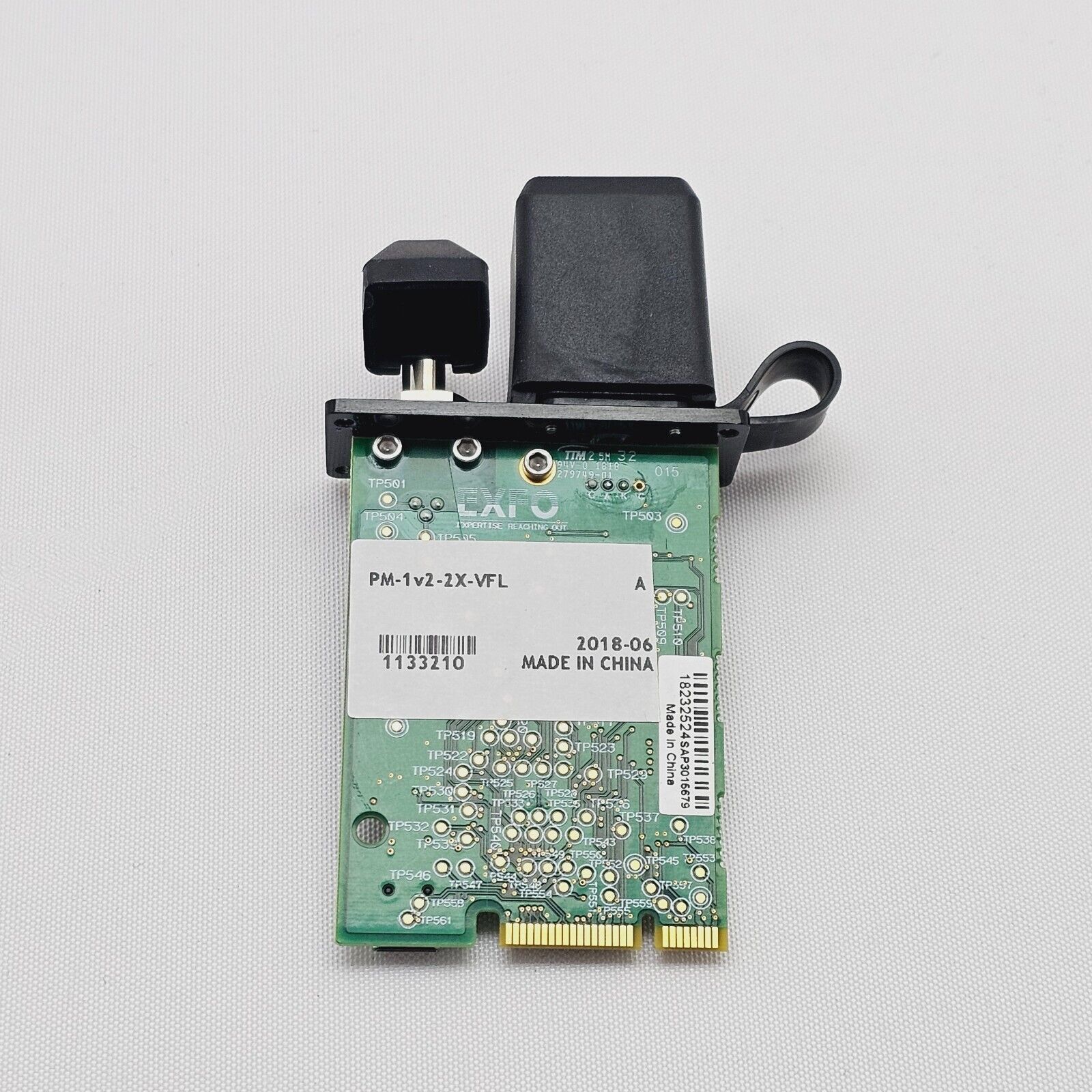

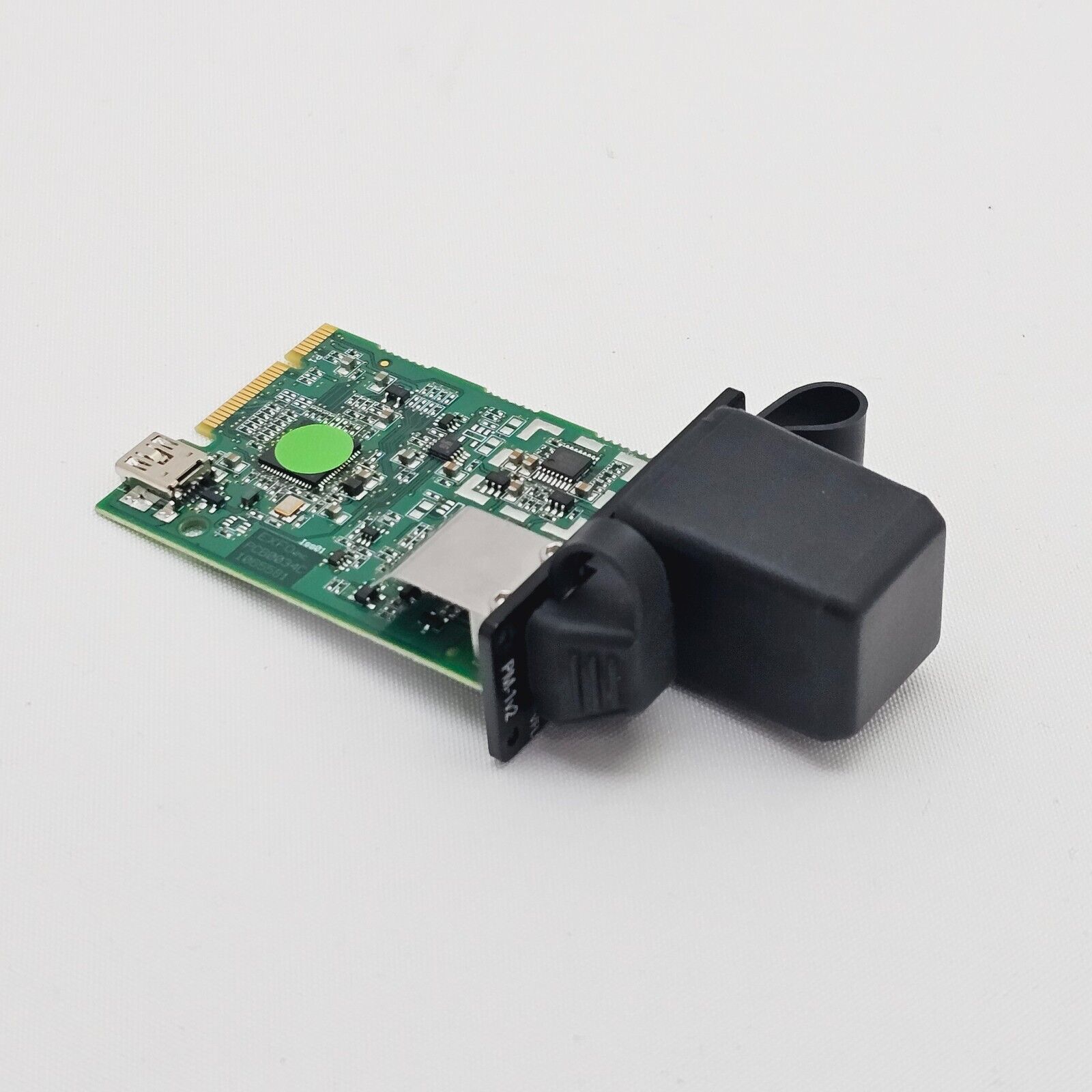

This is an EXFO PM-1v2-2X-VFL power meter and visual fault locator module removed from an EXFO FTB-1 Pro platform. The power meter port does not include a connector — a suitable connector (LC, ST, FC, etc.) can be purchased separately to match your fibre type. The VFL port is fitted with a 2.5mm connector.

Included with this module:
• PM-1v2-2X-VFL module

Please note: no optical connector is fitted to the power meter port. The VFL is equipped with a 2.5mm connector.

The EXFO PM-1v2 is an optical power meter module designed for integration into the EXFO FTB-1 Pro modular test platform. It combines passive optical power measurement with a built-in visual fault locator (VFL), providing field technicians with two essential fibre optic test functions in a single compact module.

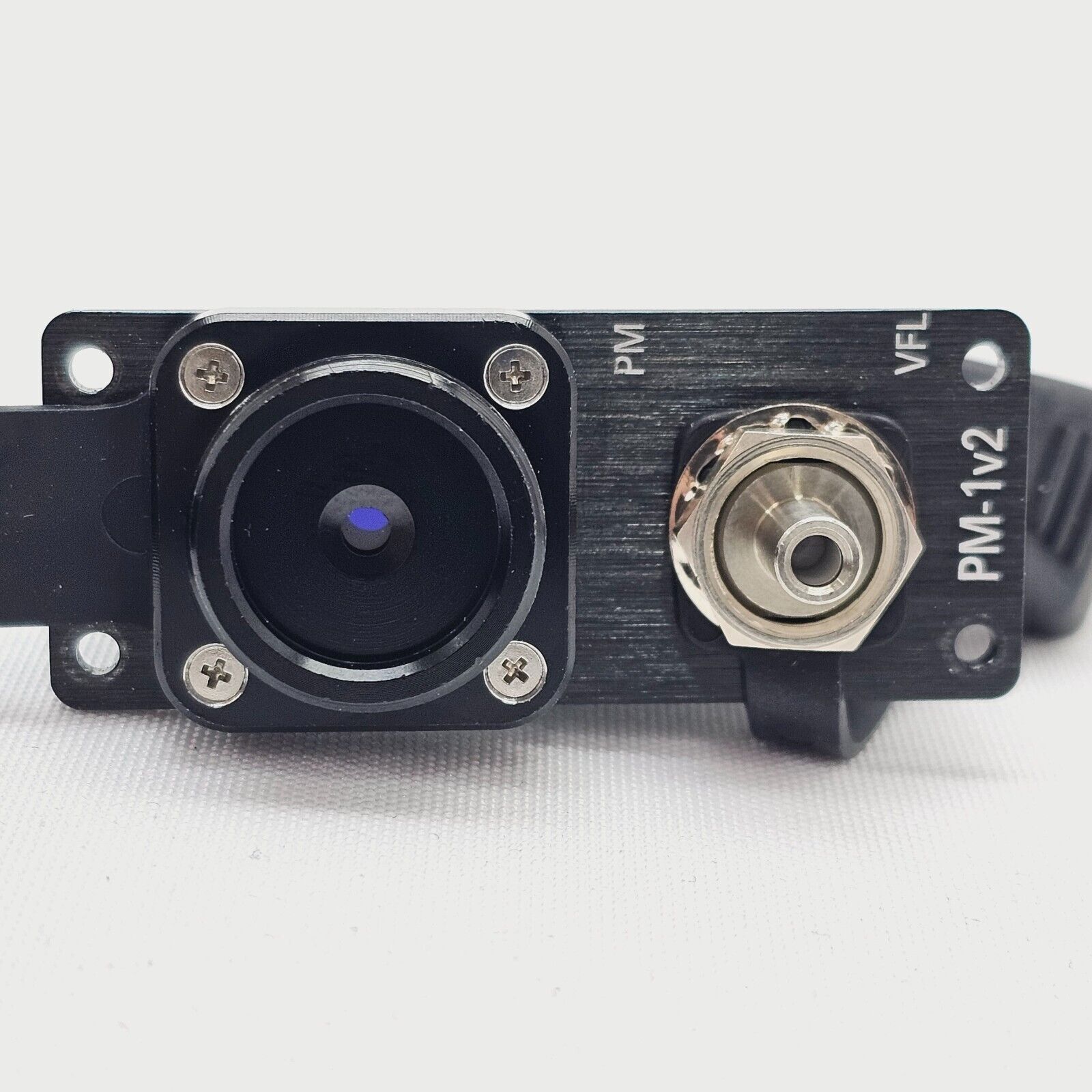

The power meter accepts interchangeable optical connectors, allowing adaptation to LC, ST, FC, SC, and other common connector types depending on the network under test. The integrated VFL operates at 650 nm (visible red light) and uses a standard 2.5mm universal connector, making it compatible with most common fibre patch cords and adaptors.

Typical applications include fibre optic installation verification, optical loss measurement, fault localisation, and routine network maintenance. When installed in the FTB-1 Pro mainframe, the module integrates fully with the platform's software and user interface.

Key Features:
• Integrated optical power meter and VFL in a single FTB-1 Pro module
• Interchangeable connector interface on the power meter port
• VFL with 2.5mm universal connector operating at 650 nm
• Compatible with EXFO FTB-1 Pro modular platform
• Suitable for singlemode and multimode fibre testing

Specifications (typical for PM-1v2 series):
Platform Compatibility: EXFO FTB-1 Pro
VFL Connector: 2.5mm universal
VFL Wavelength: 650 nm (visible red)
Power Meter Connector: Field-selectable (LC, SC, FC, ST and others)
Measurement Type: Optical power (passive)

Please refer to the EXFO manufacturer website for full and confirmed specifications.

EXFO PM-1v2 Product Page and Datasheet — EXFO official product information: Download PDF
