Condition: Used

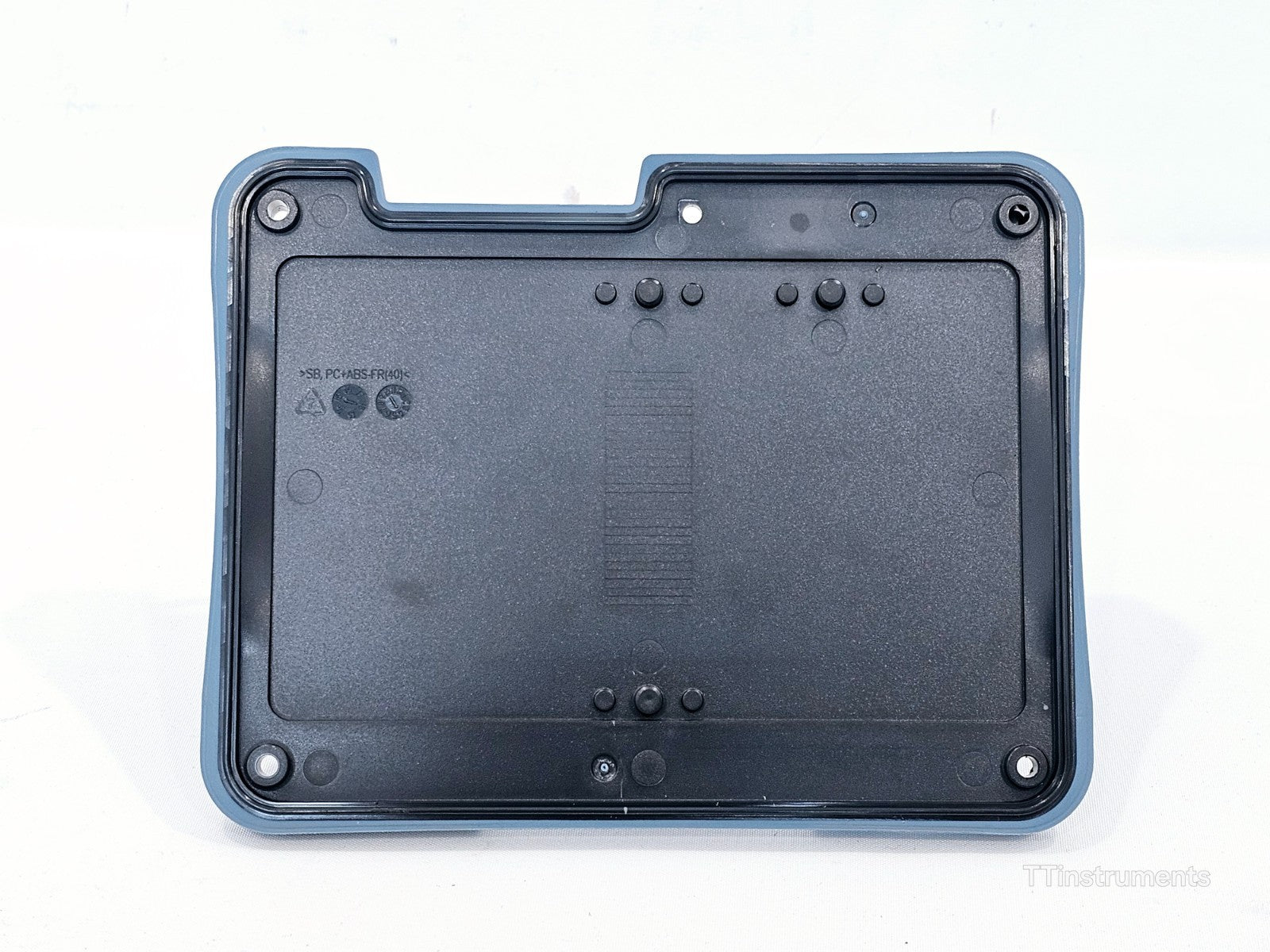

Genuine EXFO replacement back panel for the MAX-FIP fibre inspection scope viewer (P/N MAX-FIP). Important: this panel is specific to the MAX-FIP scope viewer only — screw-hole positioning differs from the MAX OTDR and OLTS platforms. Verify compatibility against your unit before purchasing.

Included in the sale:

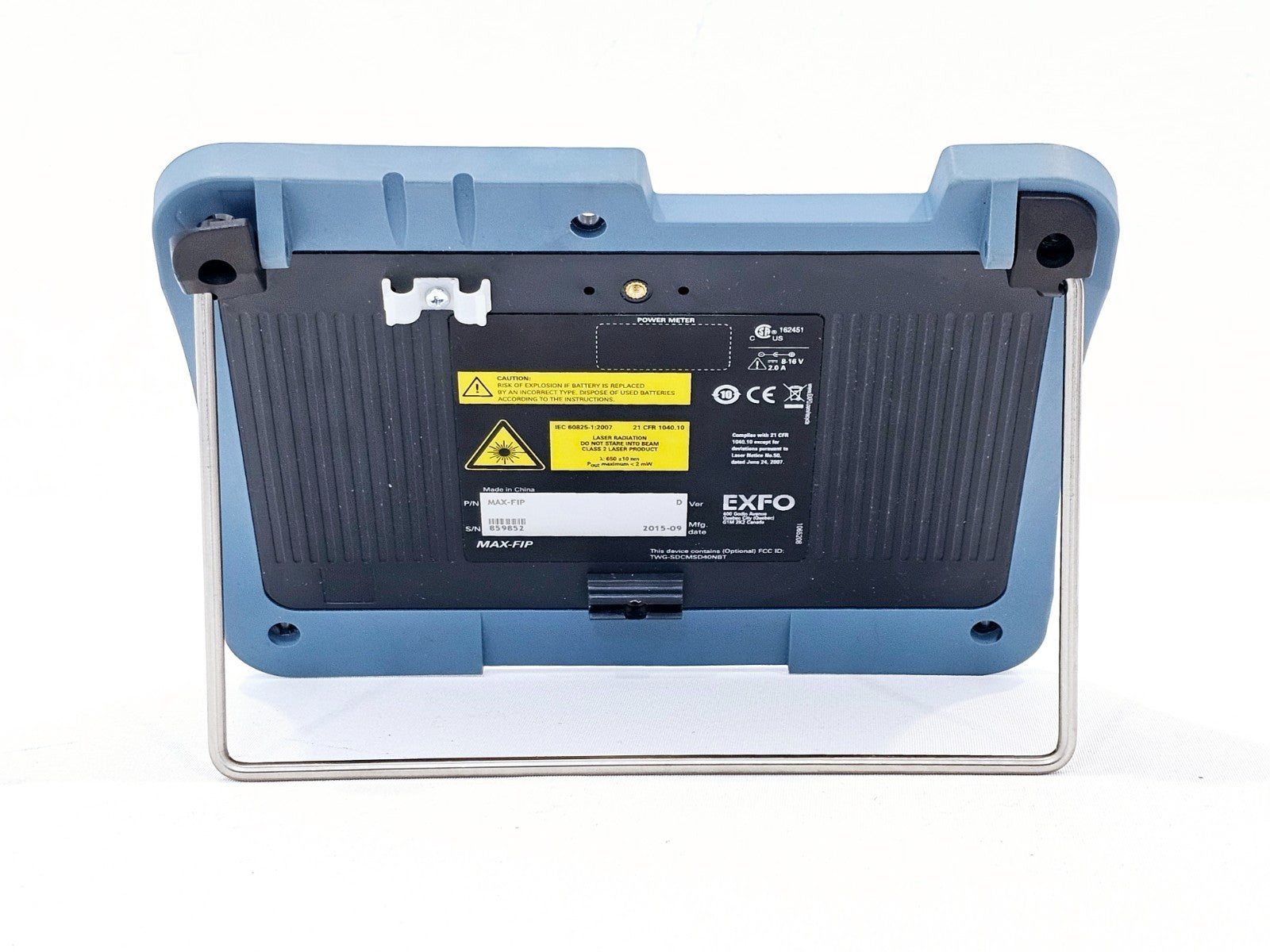

• EXFO MAX-FIP replacement back panel (used)
• Metal kickstand/prop stand (attached)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The EXFO MAX-FIP is an intelligent connector and fibre certifier designed for automated inspection and analysis of fibre optic connectors. It features a rugged, compact, tablet-inspired form factor purpose-built for field use during network construction, commissioning, and maintenance.

The MAX-FIP display unit is the dedicated host platform for the FIP-400B series of fibre inspection probes, running EXFO's ConnectorMax2 software for automated pass/fail connector endface certification against IEC, IPC, or user-defined standards.

Key Features:
- Bright 7-inch colour touchscreen TFT display — largest screen in its class for maximum magnification
- Rugged, compact, tablet-inspired form factor
- Full-day rechargeable Li-ion battery (up to 8 hours operation)
- Internal memory: 2 GB standard, storing up to 4,000 fibre certification results
- Memory expandable via USB memory sticks
- Wi-Fi and Bluetooth connectivity (plug-and-play options)
- Power meter and visual fault locator (VFL) available as plug-and-play options
- Compatible with FIP-410B, FIP-420B, FIP-425B, FIP-430B, and FIP-435B inspection probes
- RJ-45 interface: up to 1 Gigabit built-in
- USB 2.0 interfaces

ConnectorMax2 Software:
- Automatic fibre-connection detection
- Automatic image centring
- Automatic focus adjustment and optimisation
- Automatic capture, pass/fail analysis, and reporting
- Onboard connector endface analysis (IEC/IPC or custom standards) including MPO/MTP

Compatibility:
- Compatible with EXFO FTB ecosystem, MaxTester 700B OTDR Series, PCs and laptops

Optical Power Meter (optional):
- Power meter range: up to +27 dBm
- GeX detector

Visual Fault Locator (optional):
- Wavelength: 650 nm
- Fault detection range: up to 5 km
- Maximum output power: < 2 mW
- Class 2 laser product (IEC 60825-1:2007, 21 CFR 1040.10)

Note: The back panel component itself carries no individual datasheet. Refer to the EXFO MAX-FIP platform documentation for full system specifications.

EXFO MAX-FIP spec sheet — technical specifications and key features (hosted by Fiber Instrument Sales): Download PDF

EXFO FIP-400B Fiber Inspection Scope Series spec sheet — full technical specifications (EXFO official): Download PDF

EXFO FIP-400B Series and ConnectorMax2 user guide — operation and setup manual (PDF): Download PDF
