Condition: Used

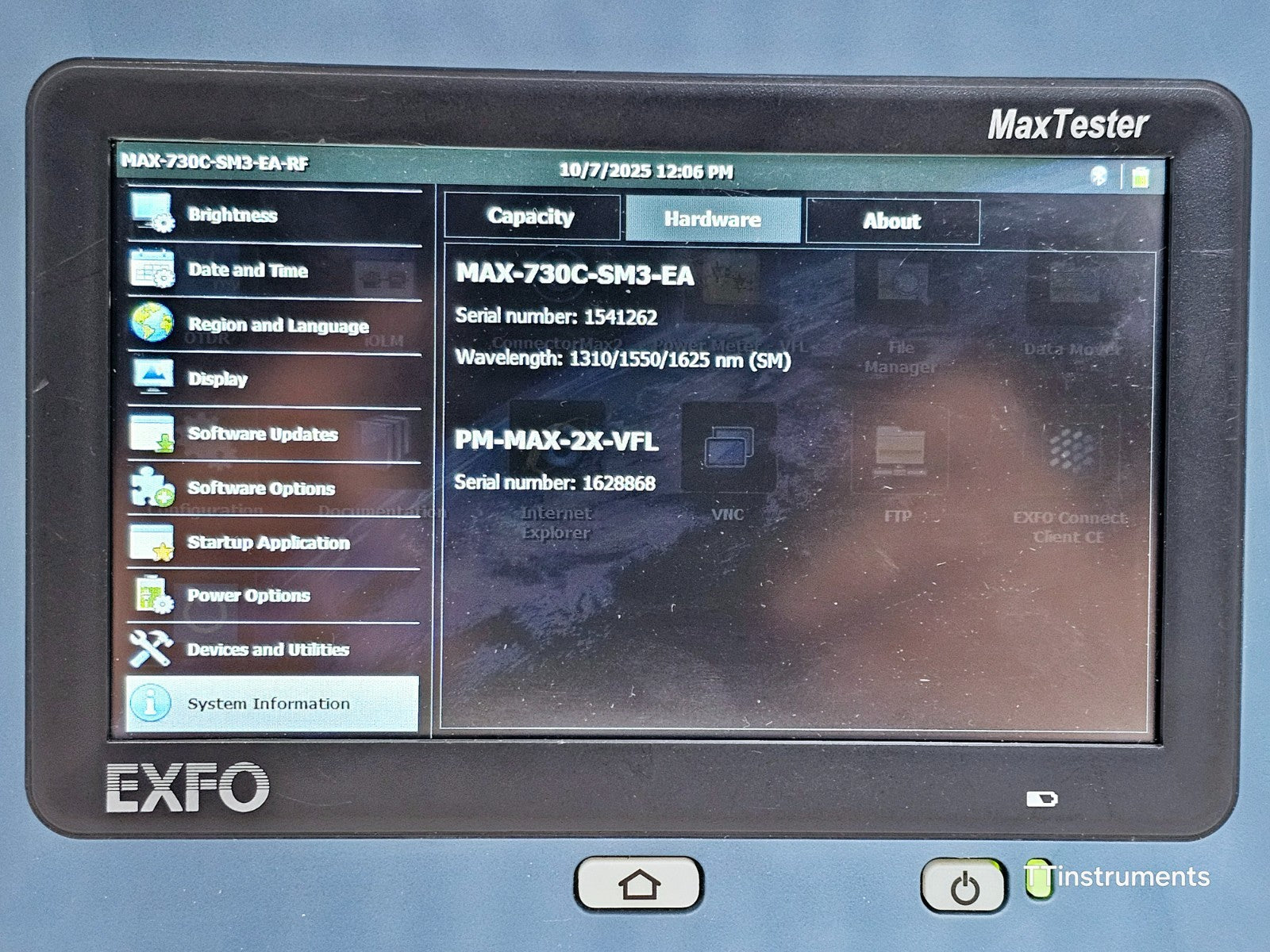

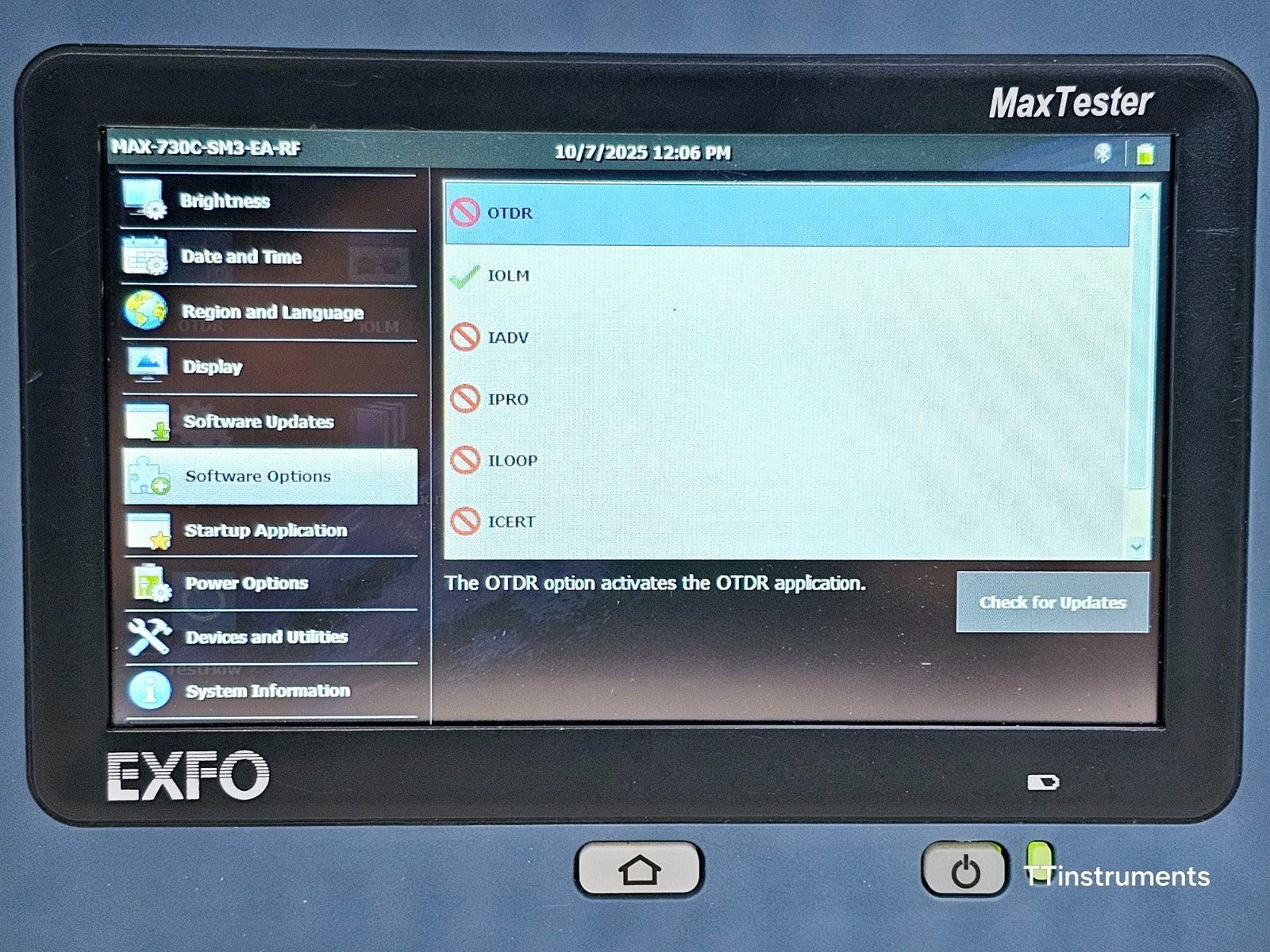

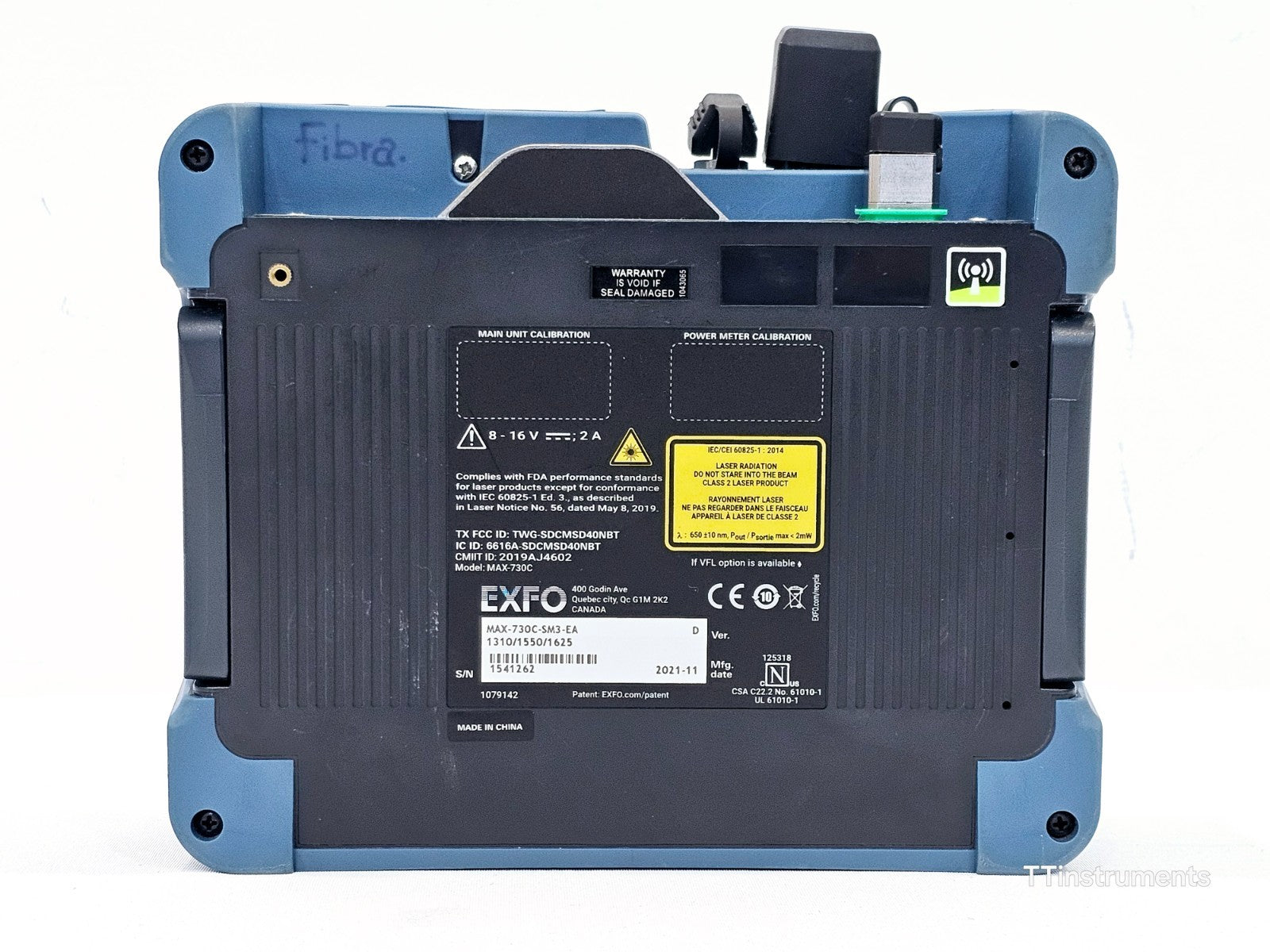

This MAX-730C-SM3 is in good working condition and is configured with iOLM software, a built-in power meter, and a visual fault locator (VFL). The unit is supplied with a launch box for accurate near-end event testing.

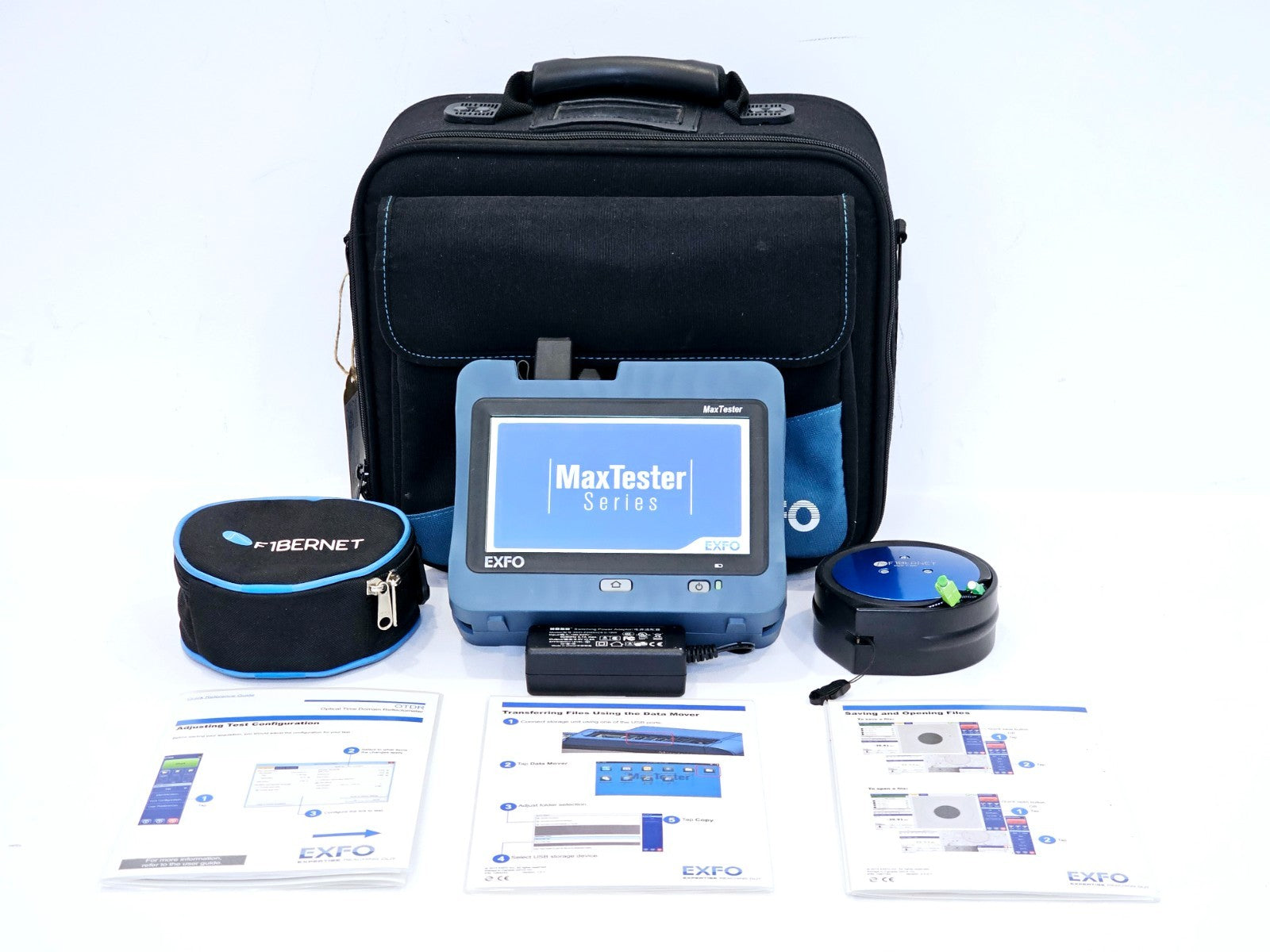

Typically included:
• EXFO MAX-730C-SM3 iOLM MaxTester unit

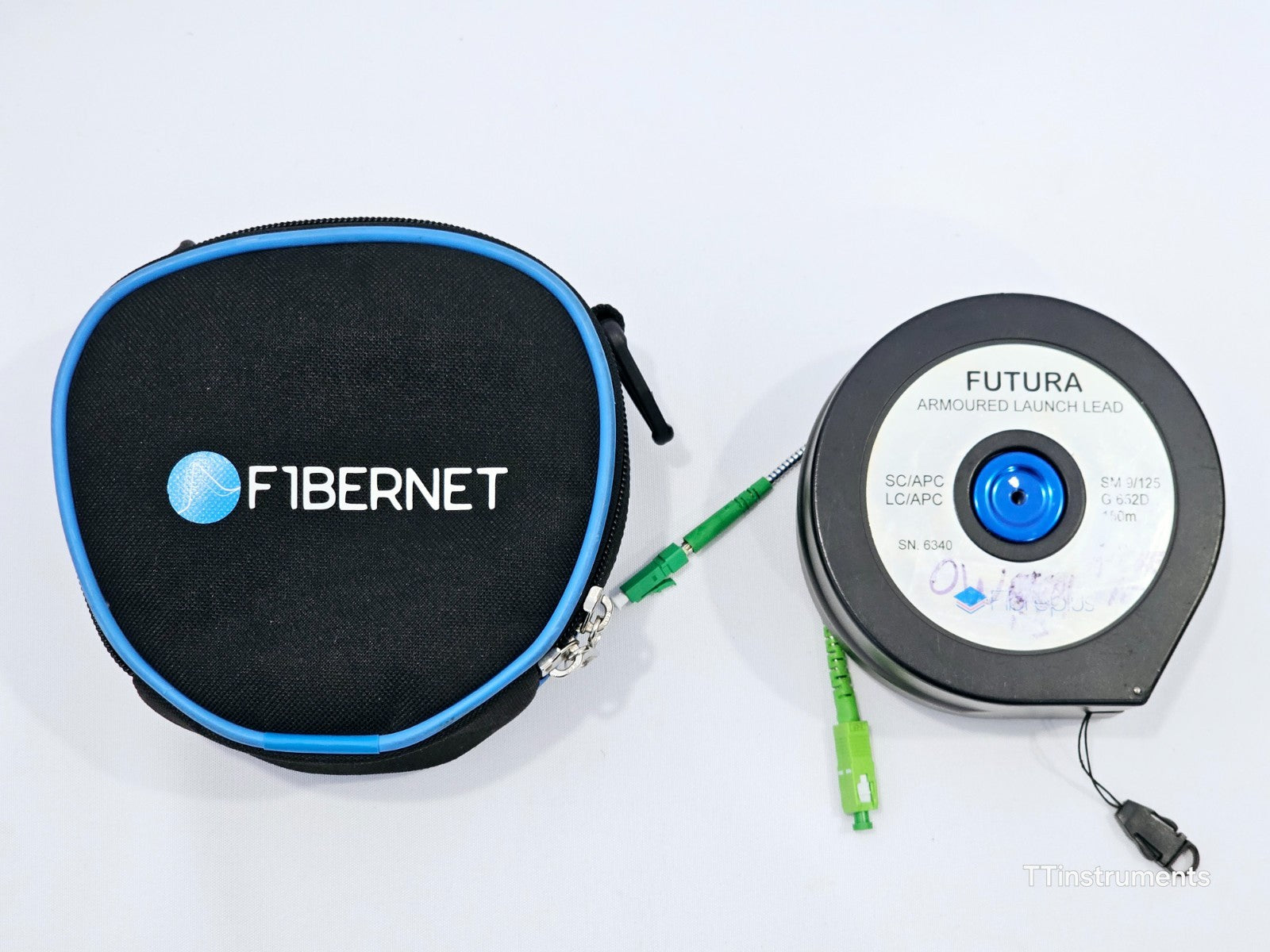

• Launch box

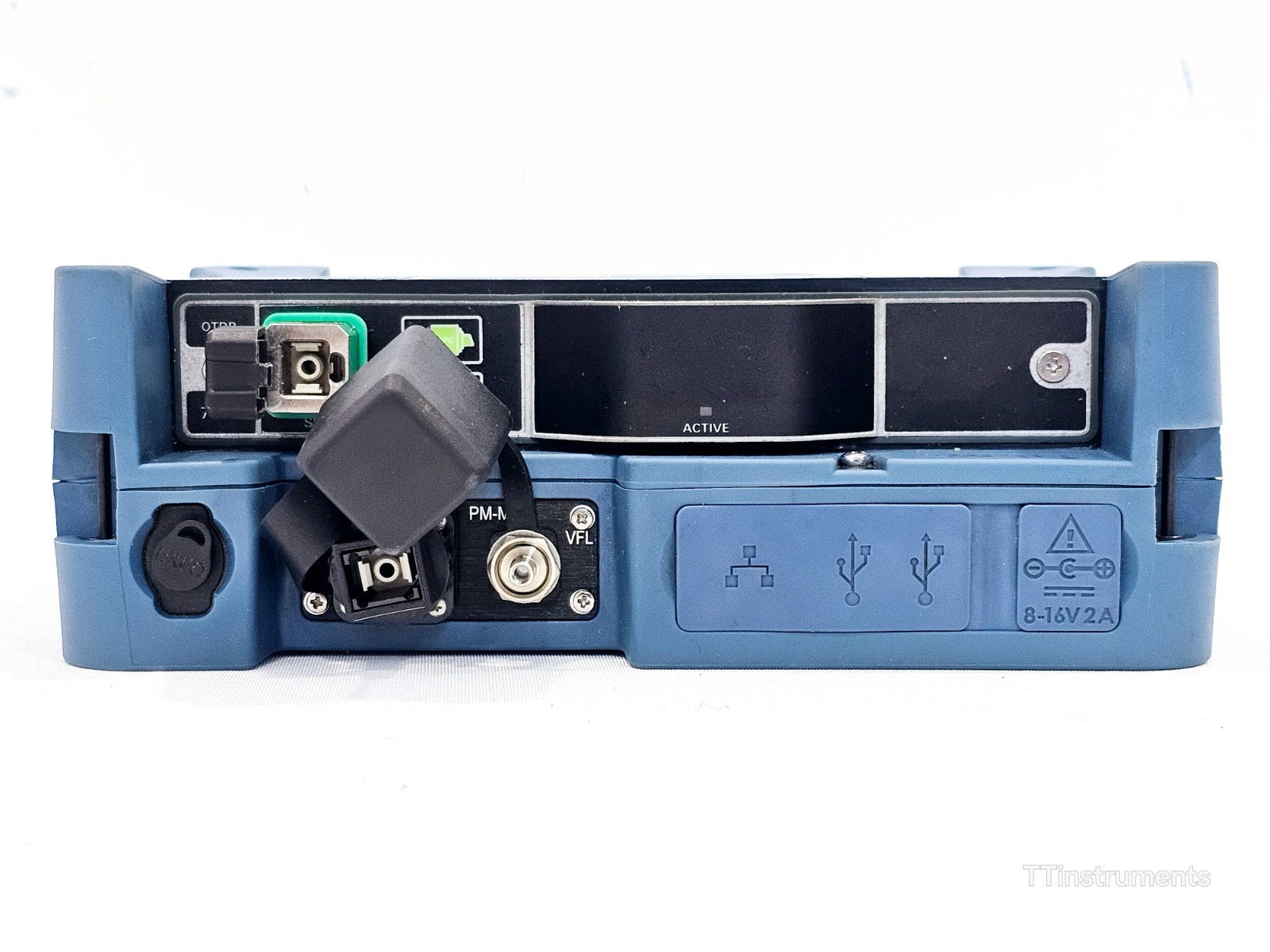

• Built-in power meter (no additional module required)

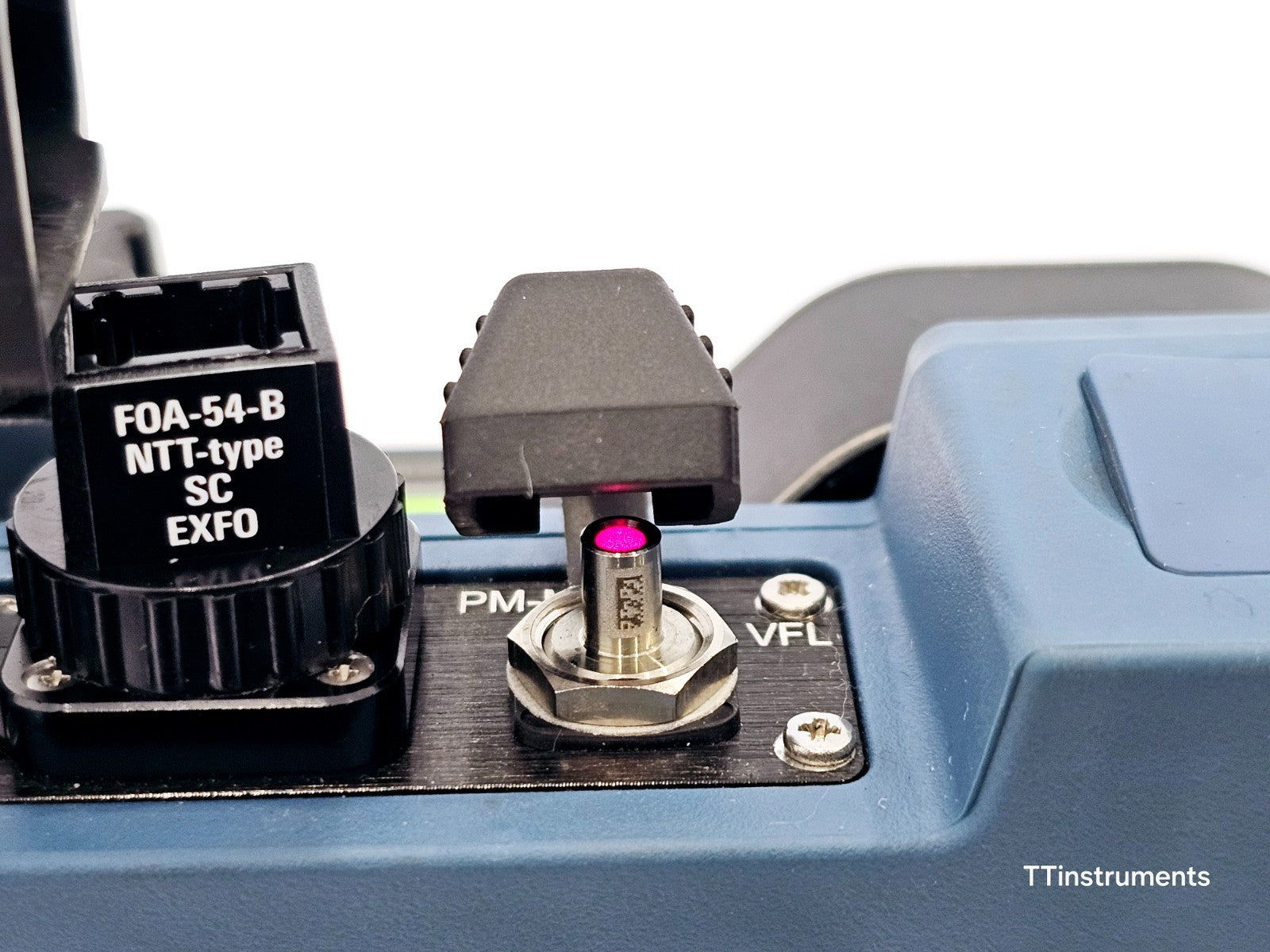

• Built-in VFL (no additional module required)

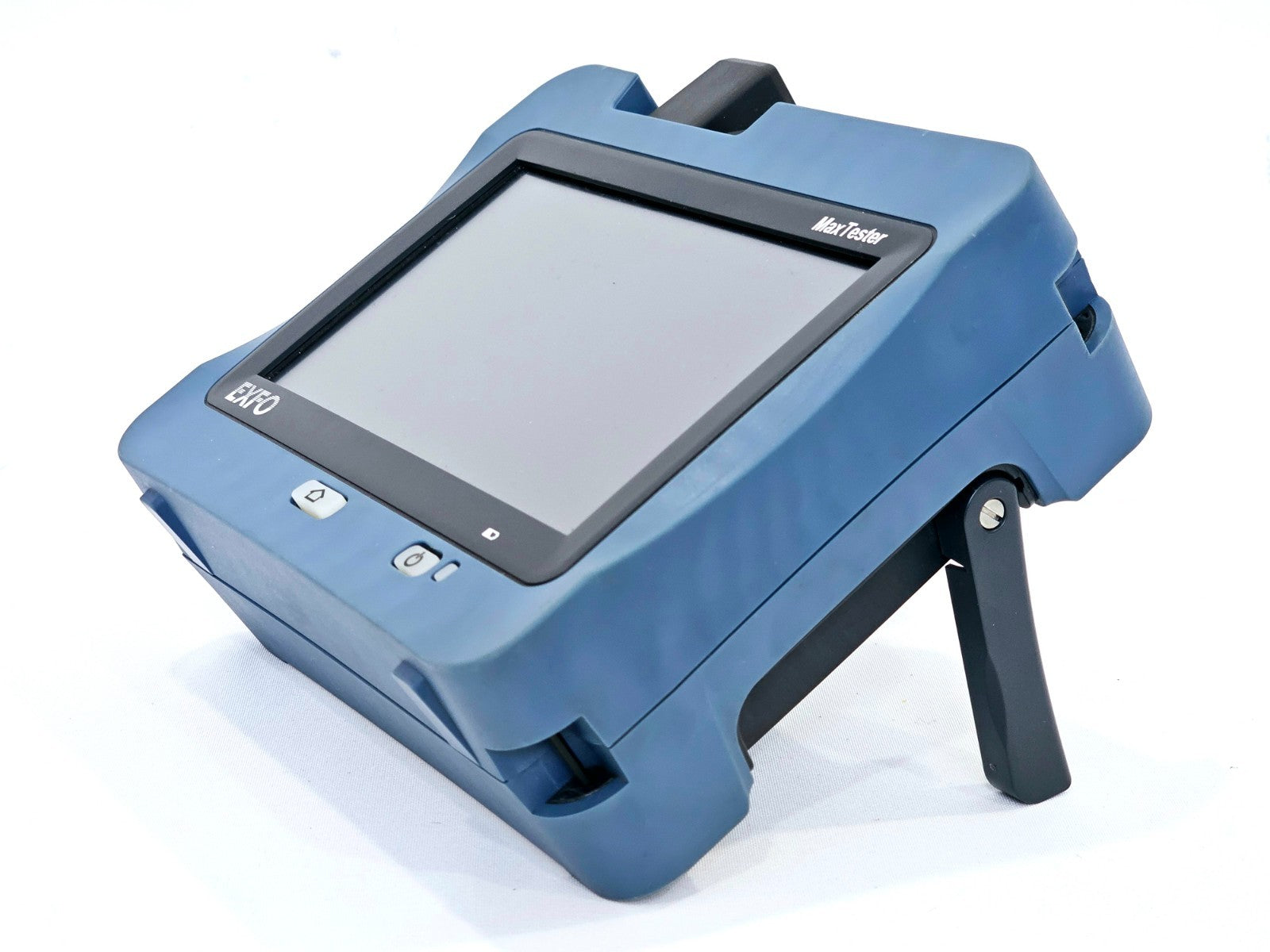

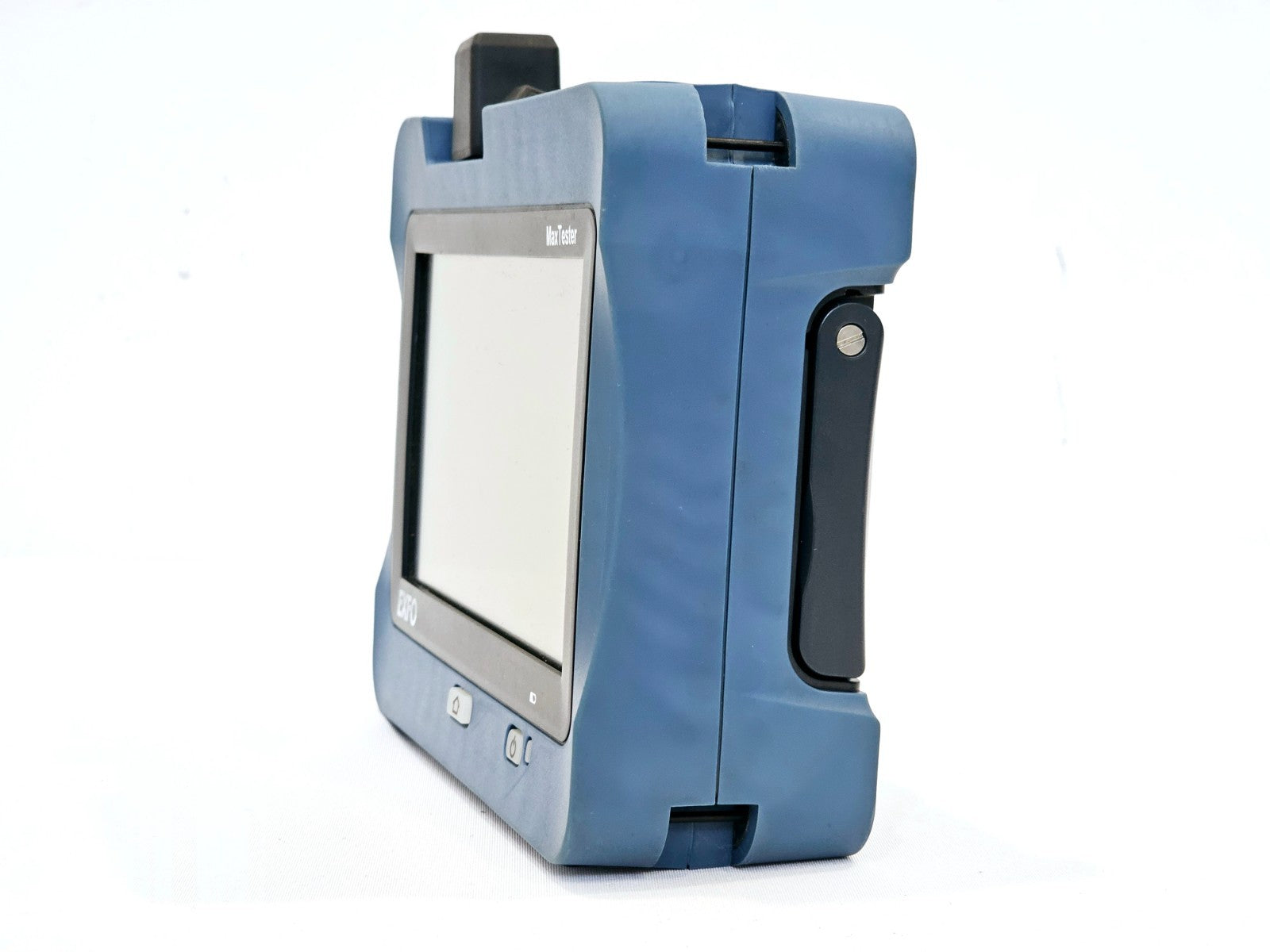

The EXFO MaxTester 730C (MAX-730C) is a tablet-inspired, handheld PON/metro OTDR designed for complete end-to-end FTTH/PON fibre characterisation and troubleshooting. The SM3 optical configuration provides singlemode OTDR capability at 1310 nm, 1550 nm, and 1625 nm — making it well suited for standard singlemode fibre qualification across FTTx access networks, point-to-point metro links, and passive optical networks through splitters up to 1x128.

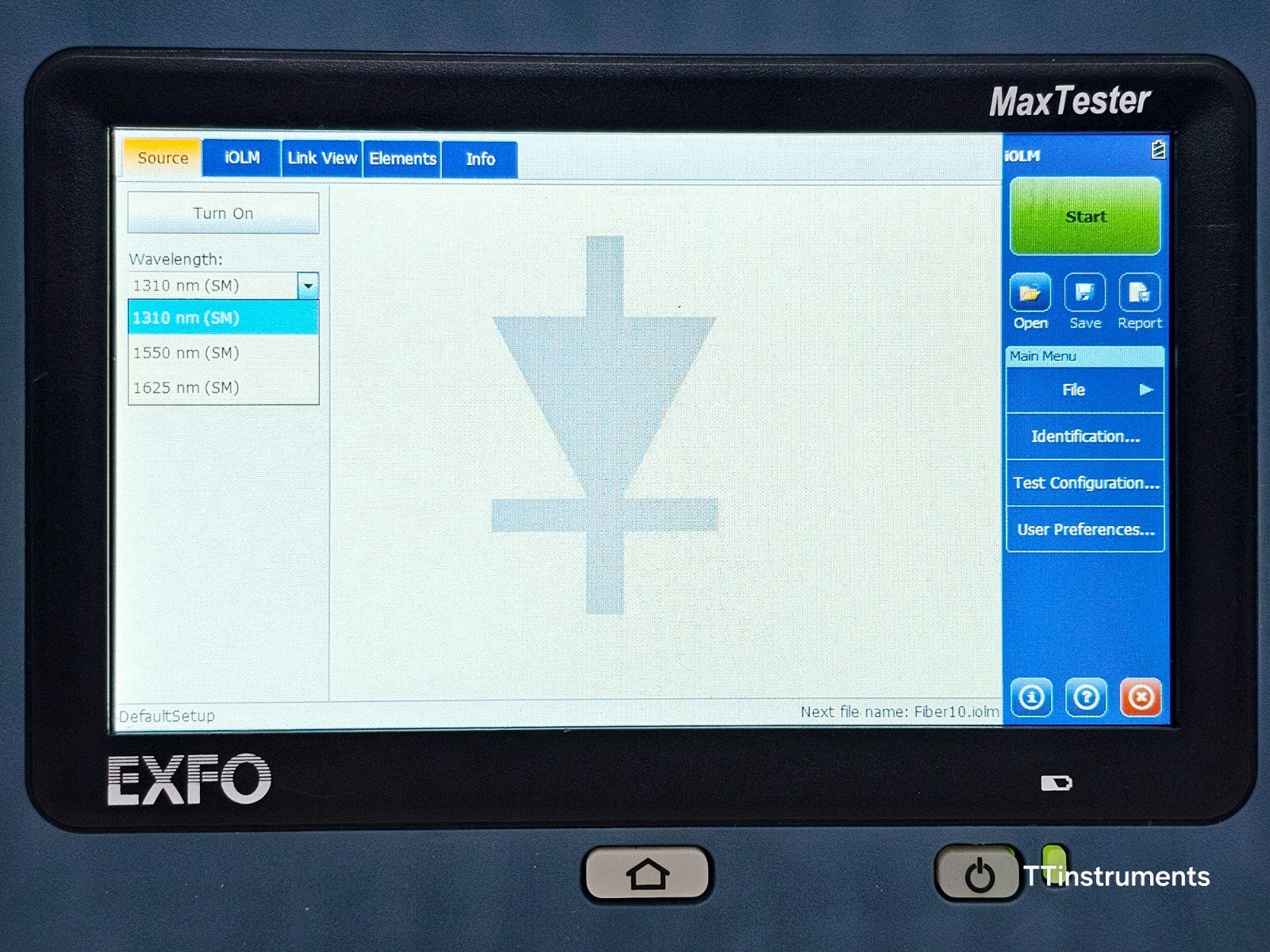

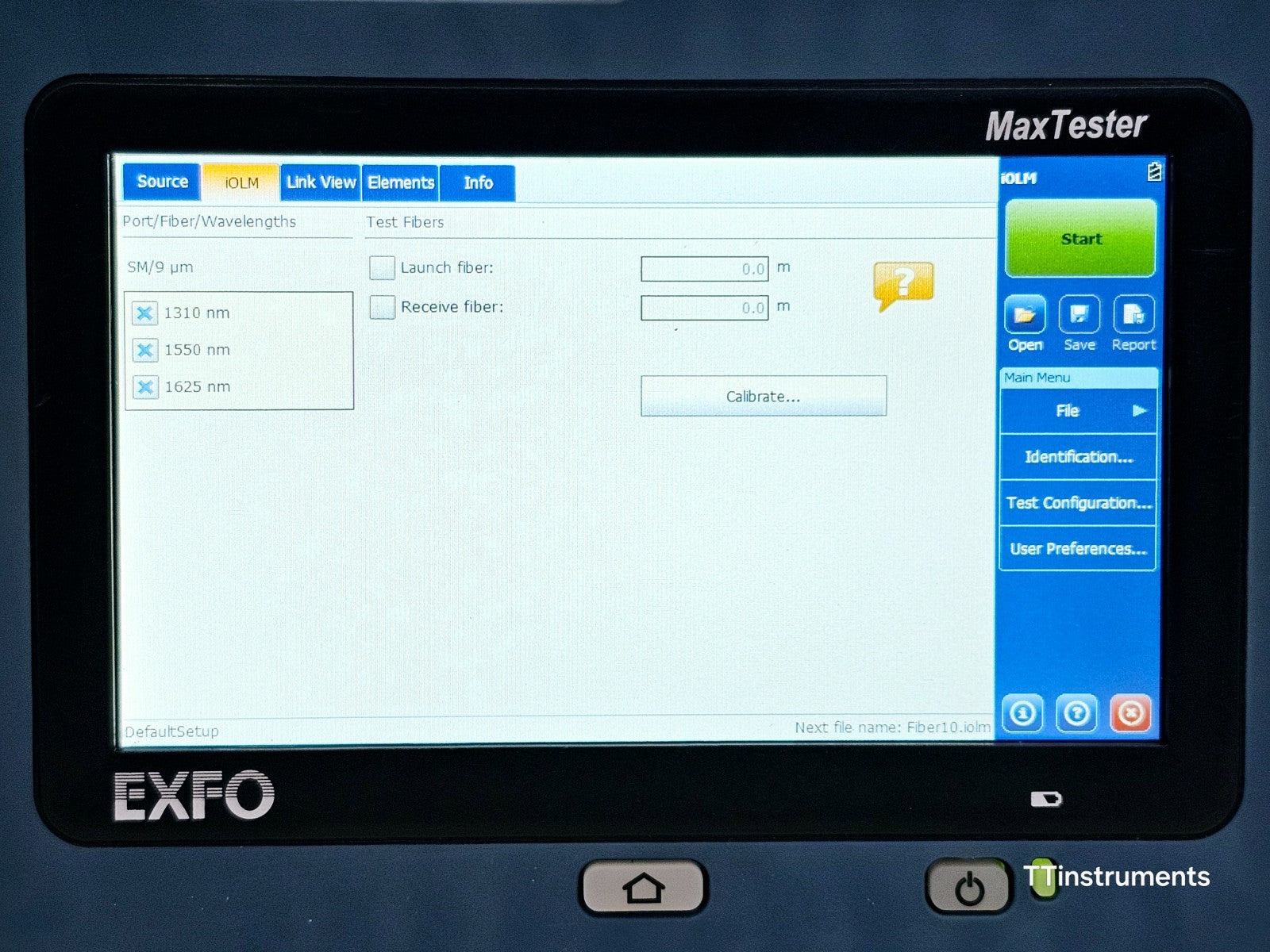

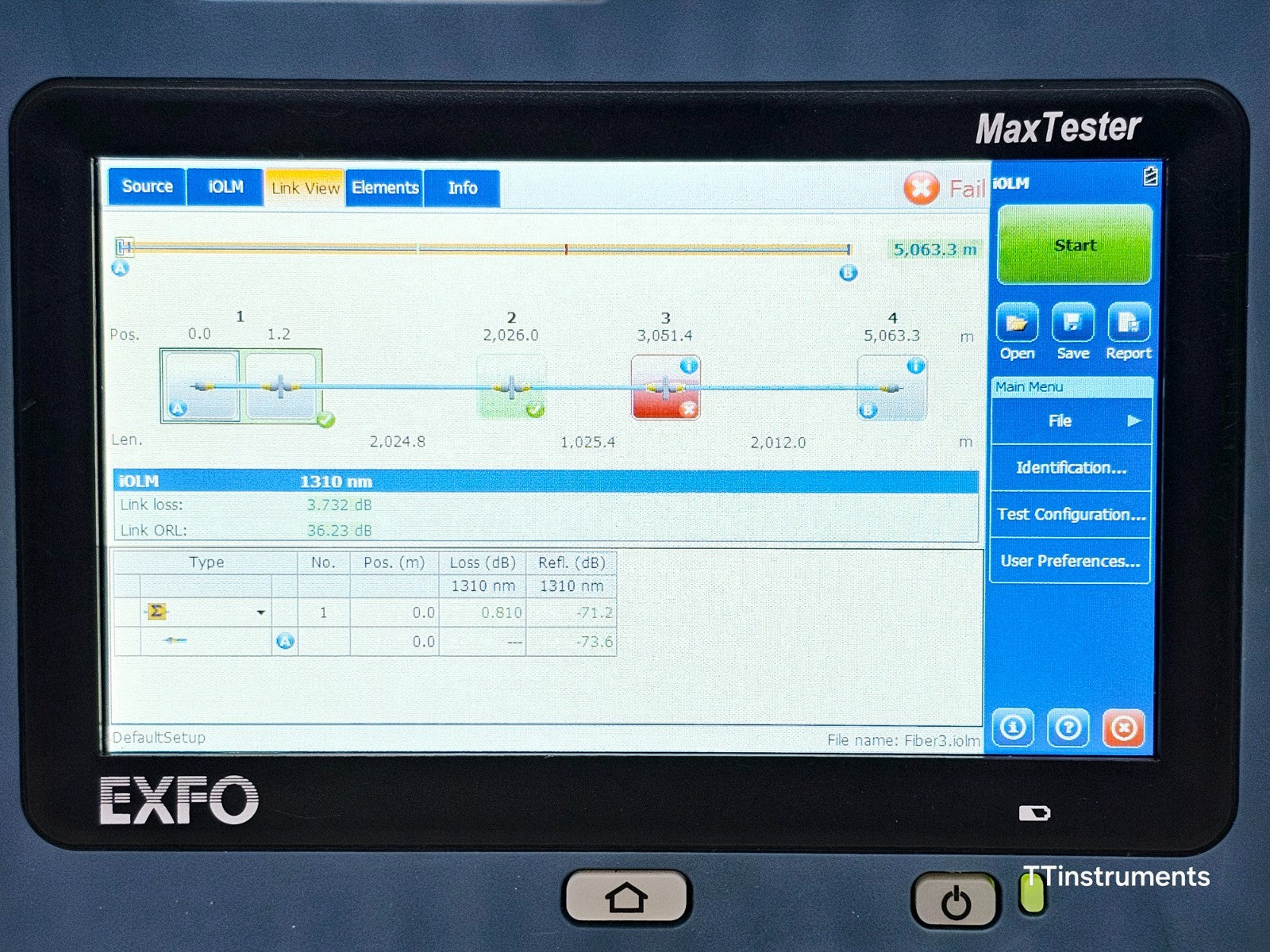

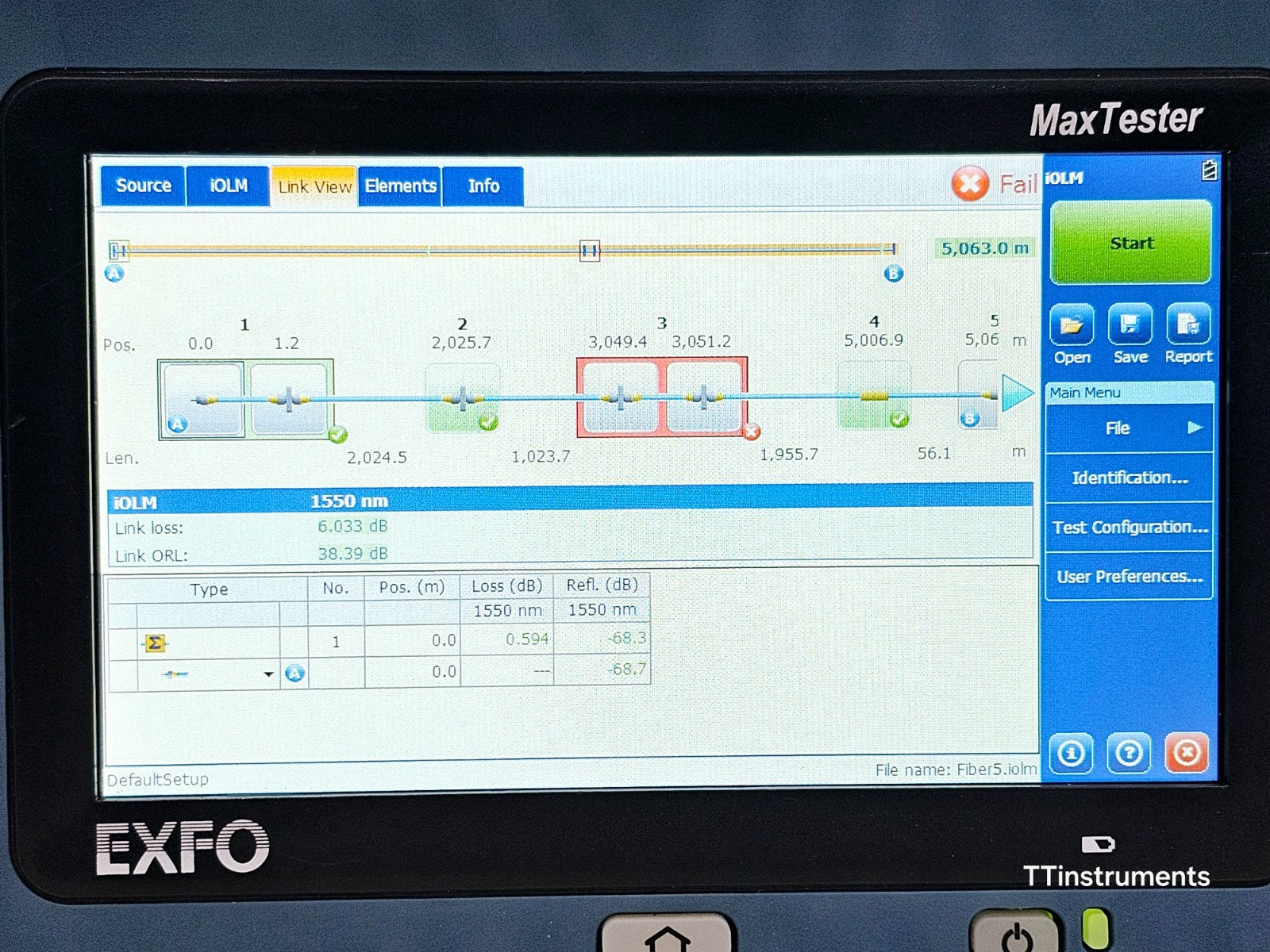

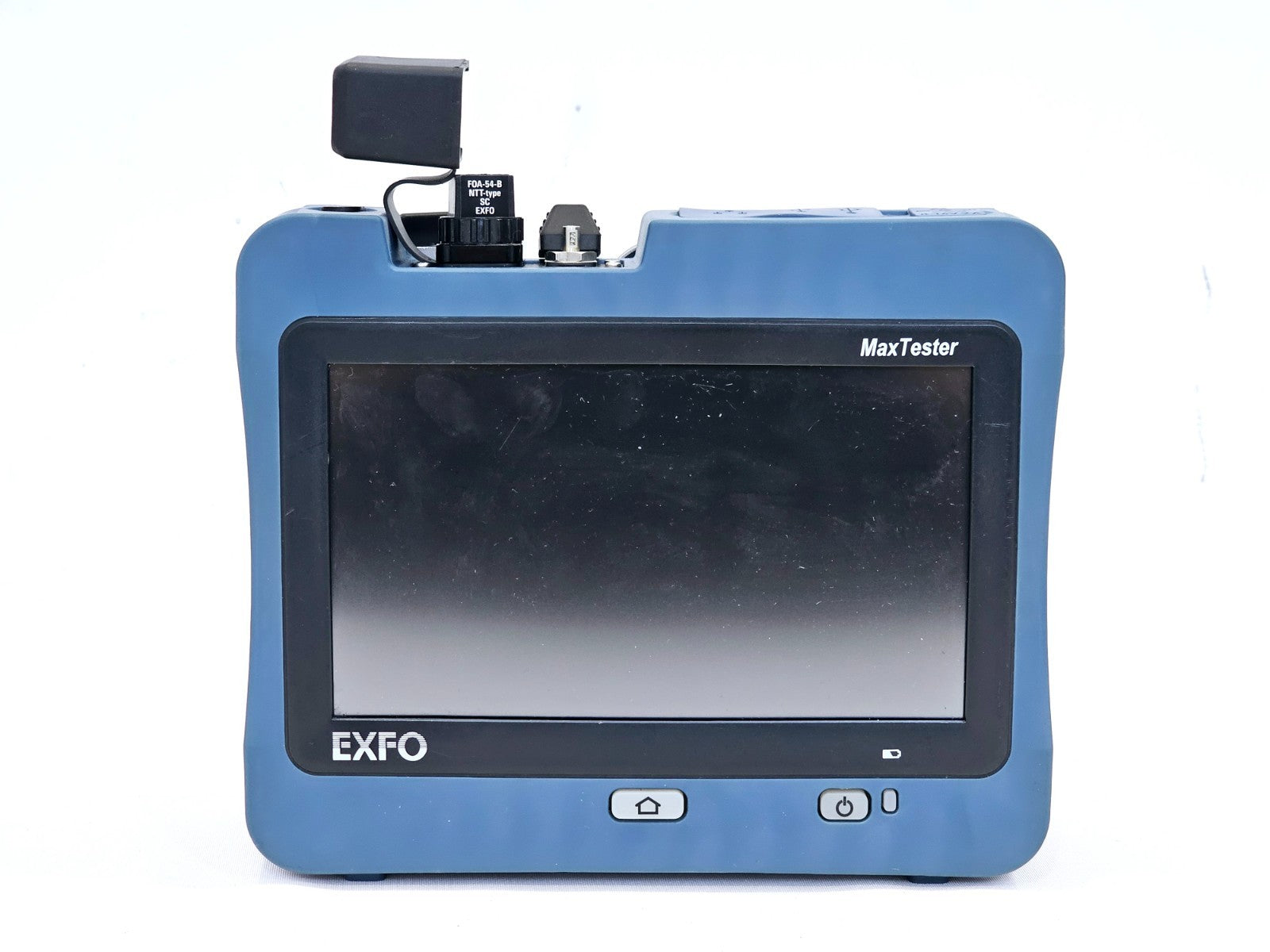

The MaxTester 730C features a 7-inch outdoor-enhanced touchscreen — the largest display in its class — housed in a rugged, lightweight form factor optimised for field deployment. The intelligent Optical Link Mapper (iOLM) application automates multi-pulse OTDR acquisitions and presents results as a simplified, colour-coded link map with clear pass/fail event identification, reducing the skill level required for testing in the field.

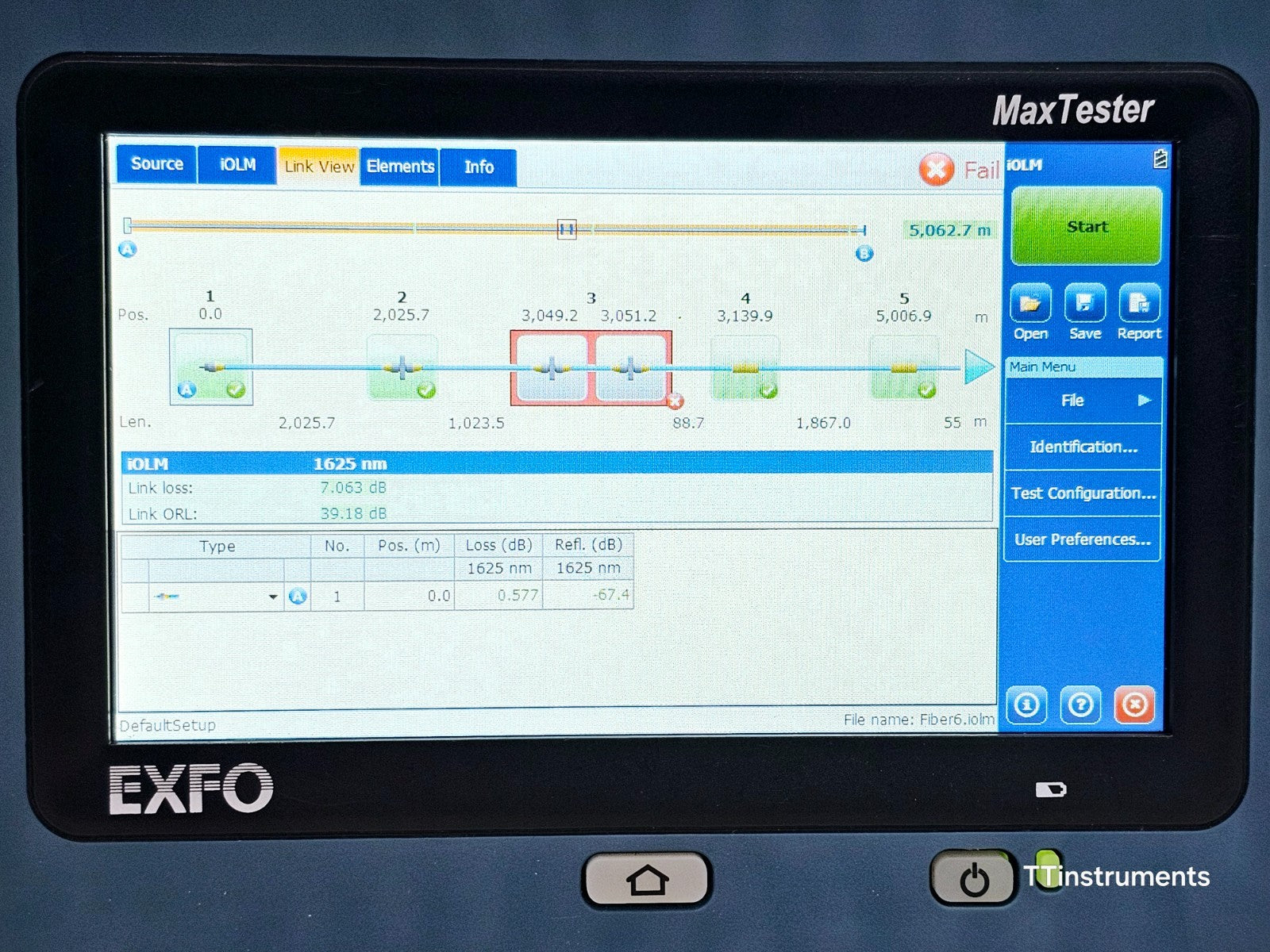

The 1625 nm wavelength enables live fibre testing without disrupting traffic, making the MAX-730C-SM3 particularly effective for in-service characterisation and fault diagnosis on active PON networks.

Key Specifications:
Wavelengths: 1310 nm, 1550 nm, 1625 nm
Dynamic Range: 39 dB (1310 nm), 38 dB (1550 nm), 39 dB (1625 nm)
Connector Type: APC (angled physical contact)
Fibre Type: Singlemode
Application: FTTx, PON, metro access networks
Display: 7-inch outdoor-enhanced touchscreen
Software: iOLM (Intelligent Optical Link Mapper)

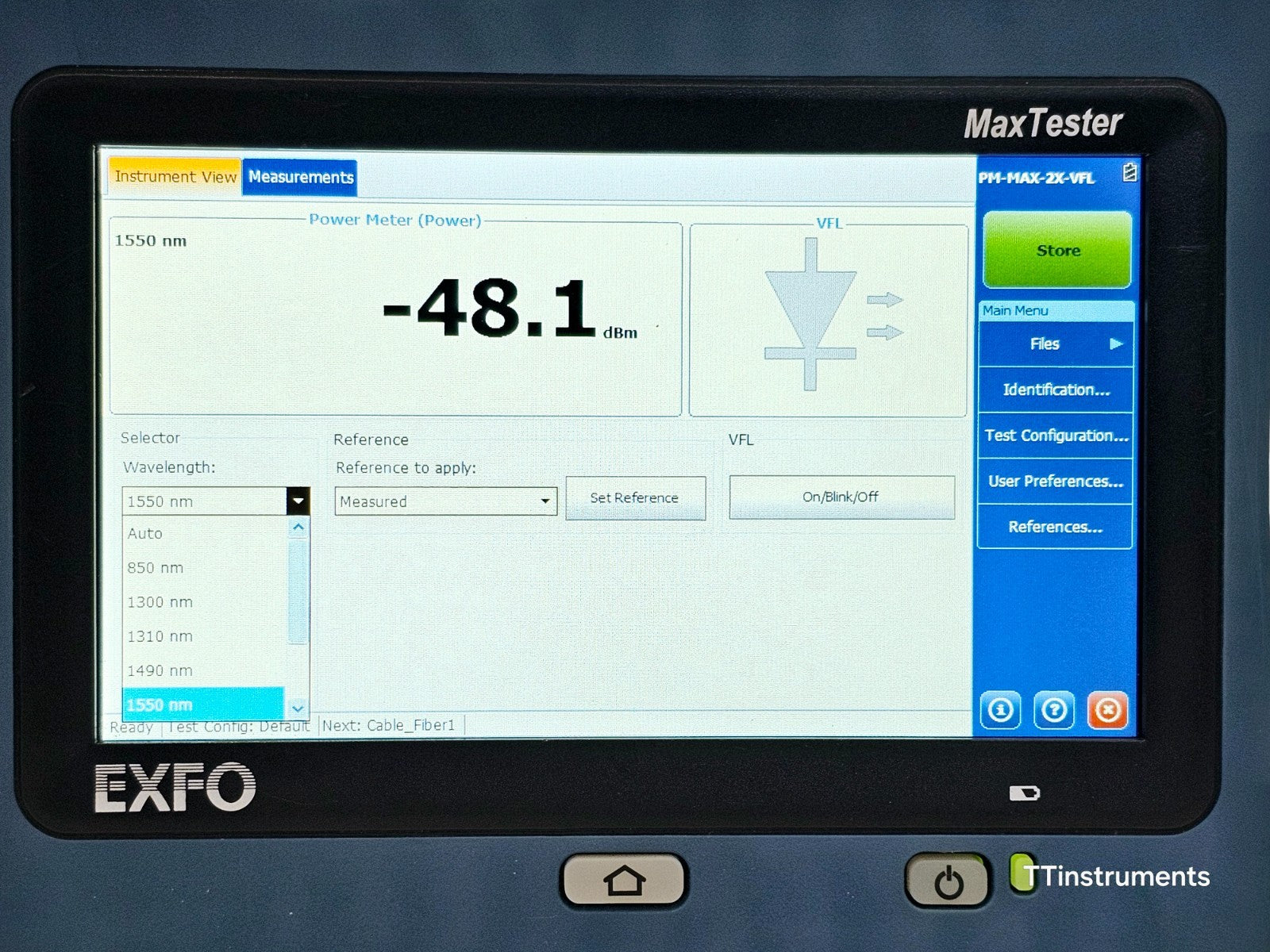

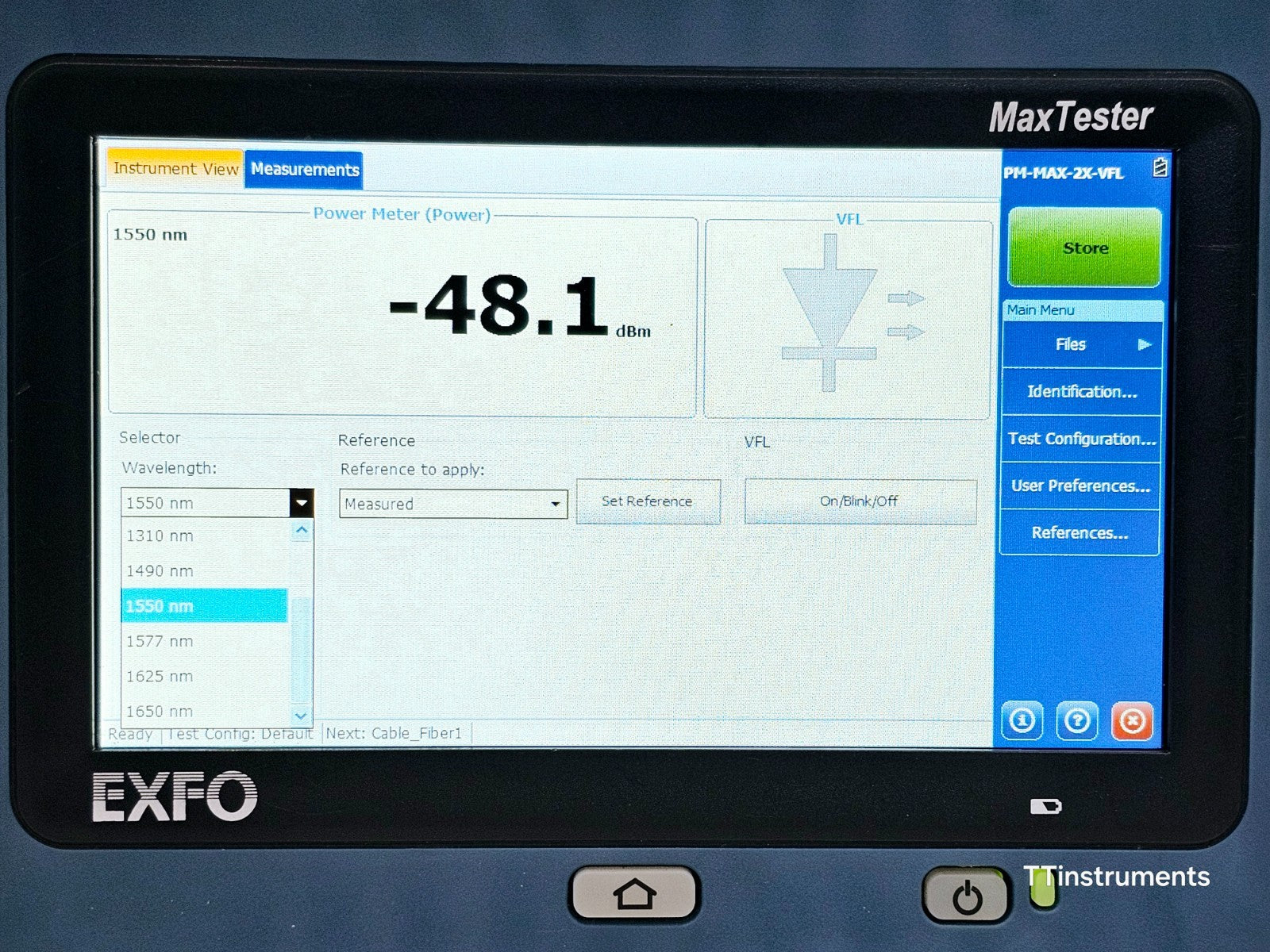

Built-in Power Meter: Yes
Built-in VFL: Yes
PON Splitter Support: Up to 1x128

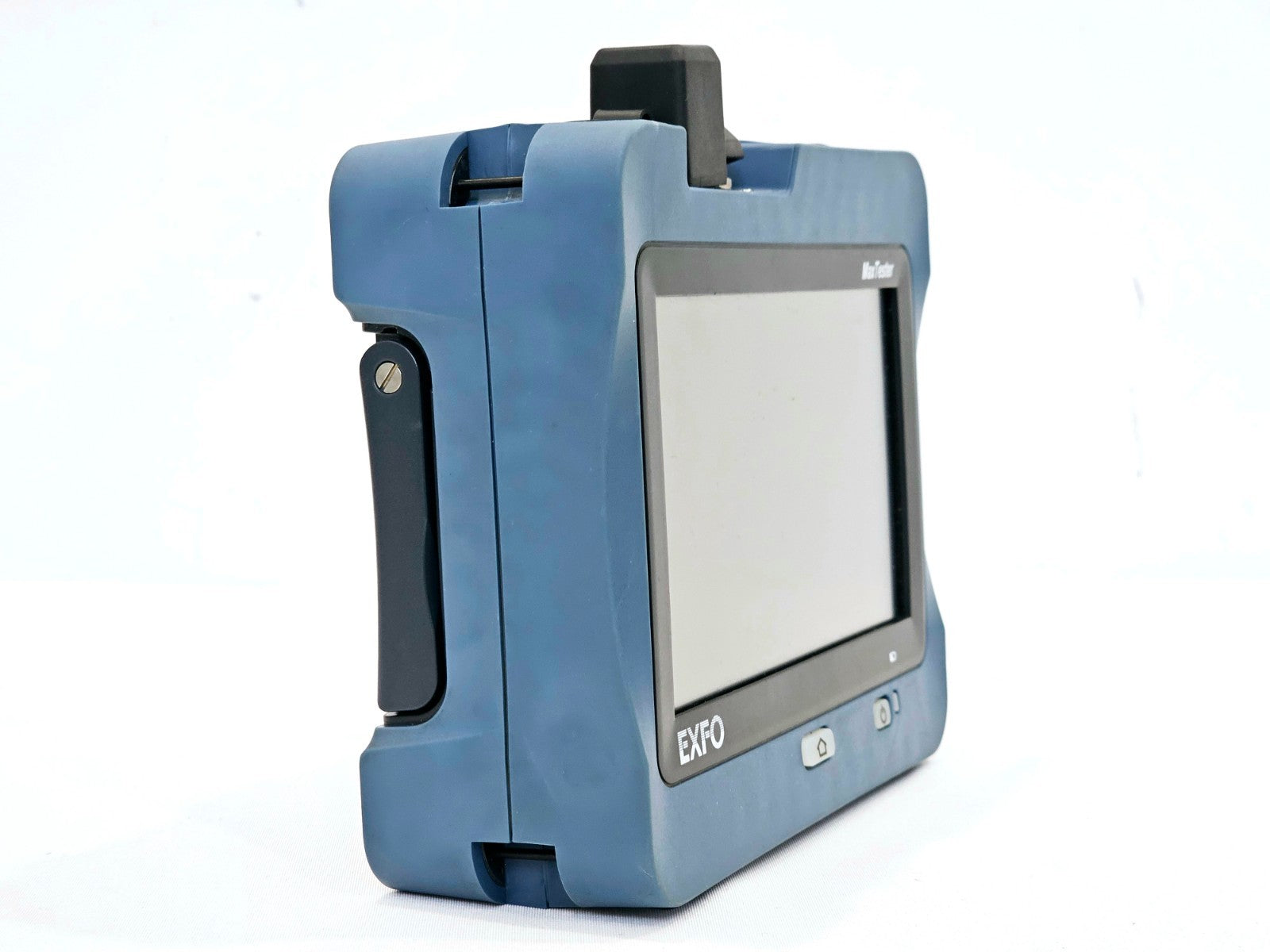

Form Factor: Handheld, tablet-inspired
Operating Standard: IEC, ITU-T G.984/G.987/G.989

EXFO MaxTester 730C Spec Sheet (EN): Download PDF
