Condition: Used

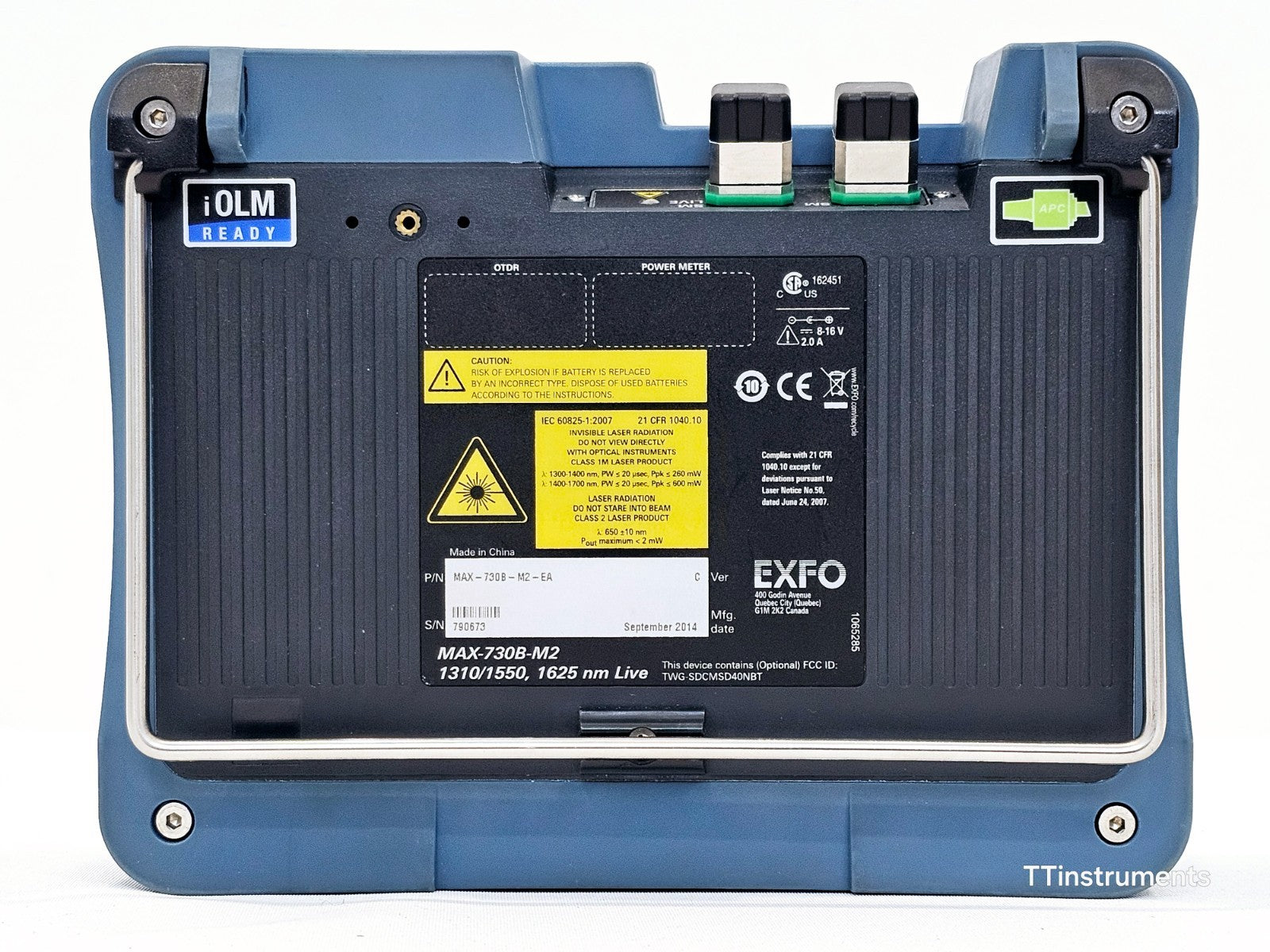

This EXFO MAX-730B-M2 MaxTester is in good working condition and is equipped with iOLM (intelligent Optical Link Mapping) and IADV (advanced diagnostics) software modules. It supports triple-wavelength operation at 1310/1550/1625 nm with dynamic ranges of 39/37/37 dB and includes Live PON and metro network testing capability.

Included with this unit:

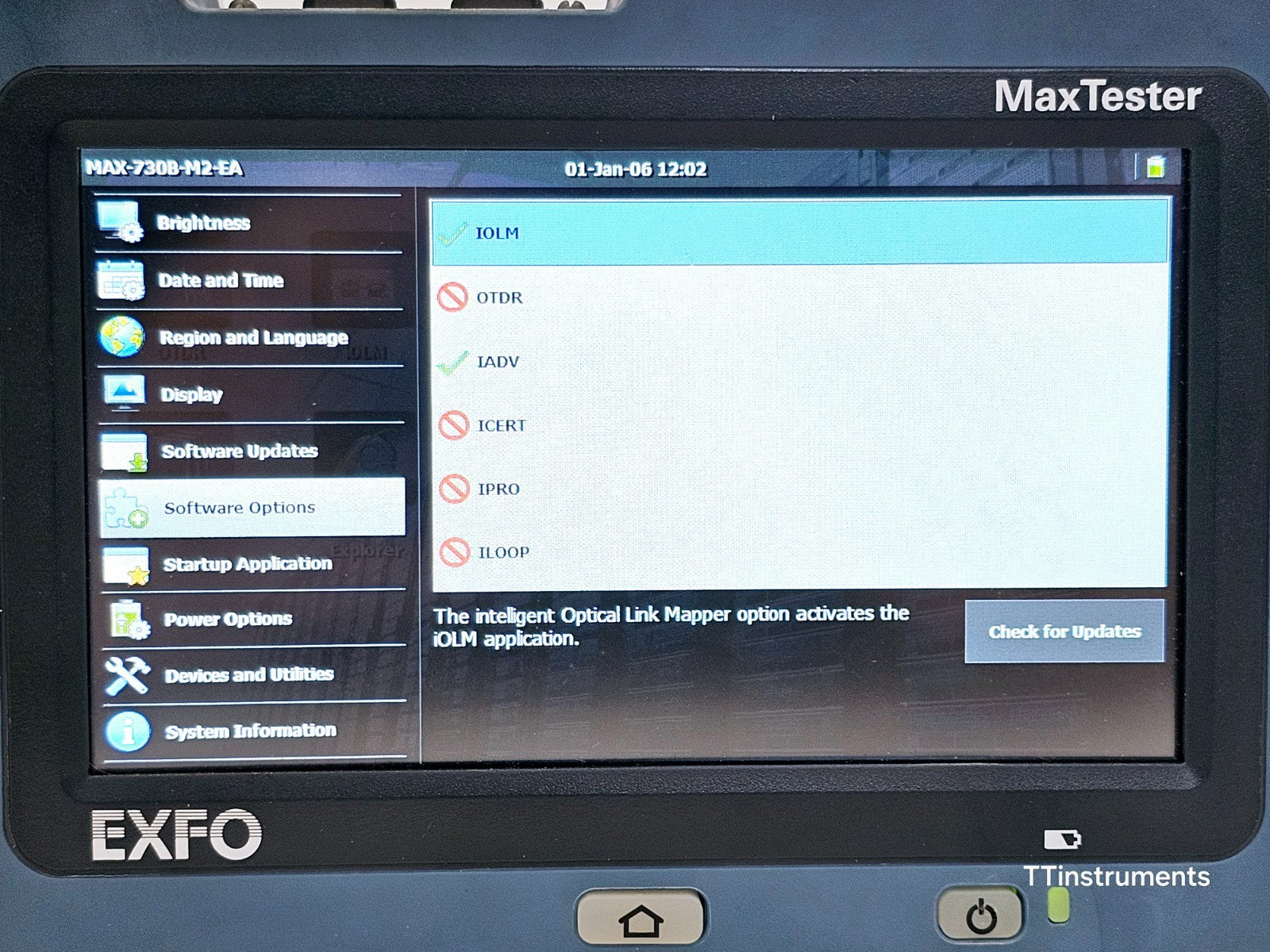

• iOLM software licence
• IADV software licence

The EXFO MAX-730B is part of the MaxTester series, a family of compact, field-optimised optical testing platforms designed for fibre optic network installation, commissioning, maintenance, and troubleshooting. The MAX-730B integrates traditional OTDR functionality with EXFO's proprietary iOLM (intelligent Optical Link Mapping) technology into a single ruggedised handheld device.

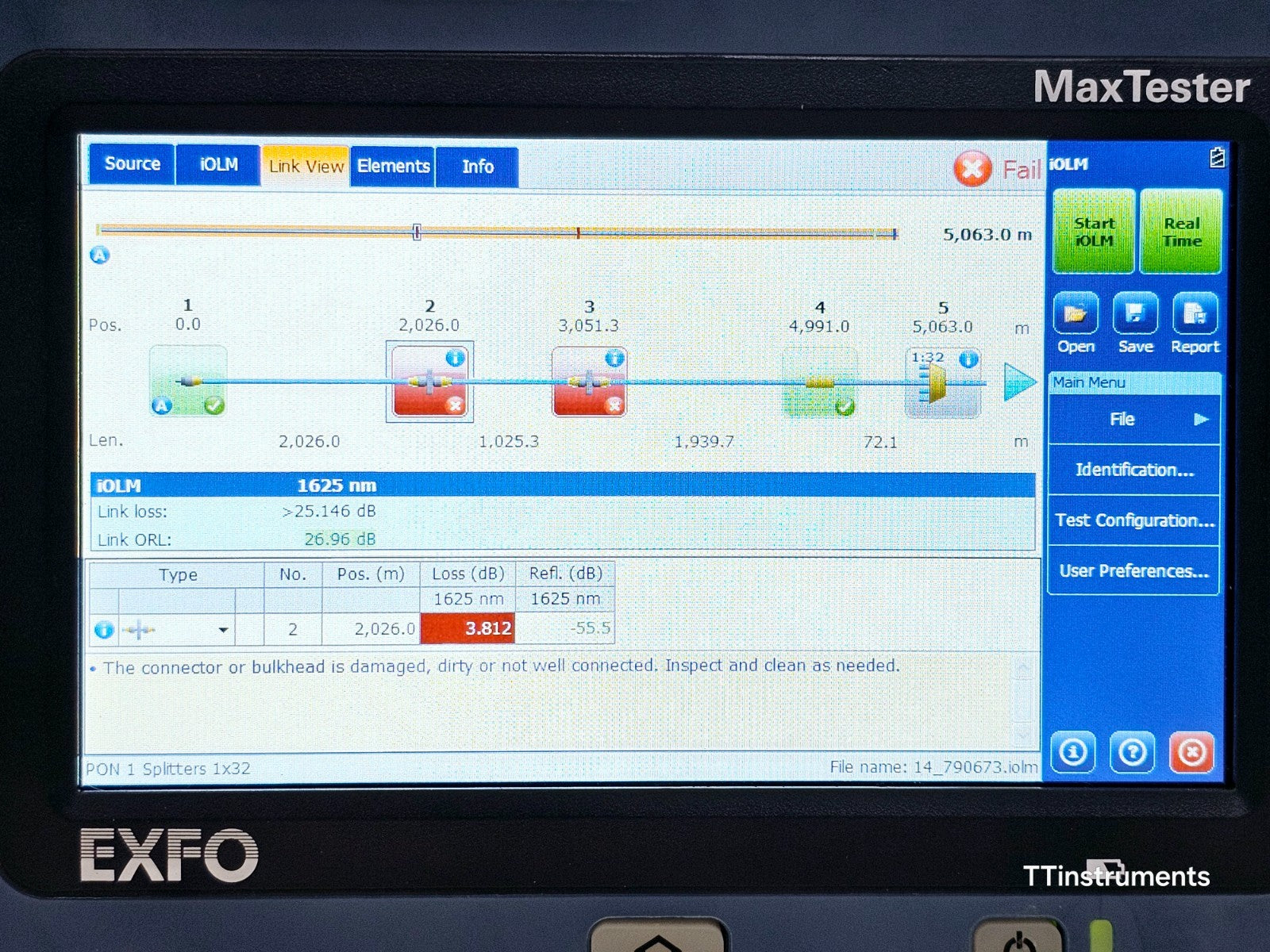

iOLM simplifies fibre characterisation by automatically detecting and identifying all events along a fibre link — including connectors, splices, bends, and breaks — and presenting results as a clear, intuitive link map rather than a conventional OTDR trace. This makes the instrument accessible to technicians of all skill levels without requiring expert-level OTDR trace interpretation.

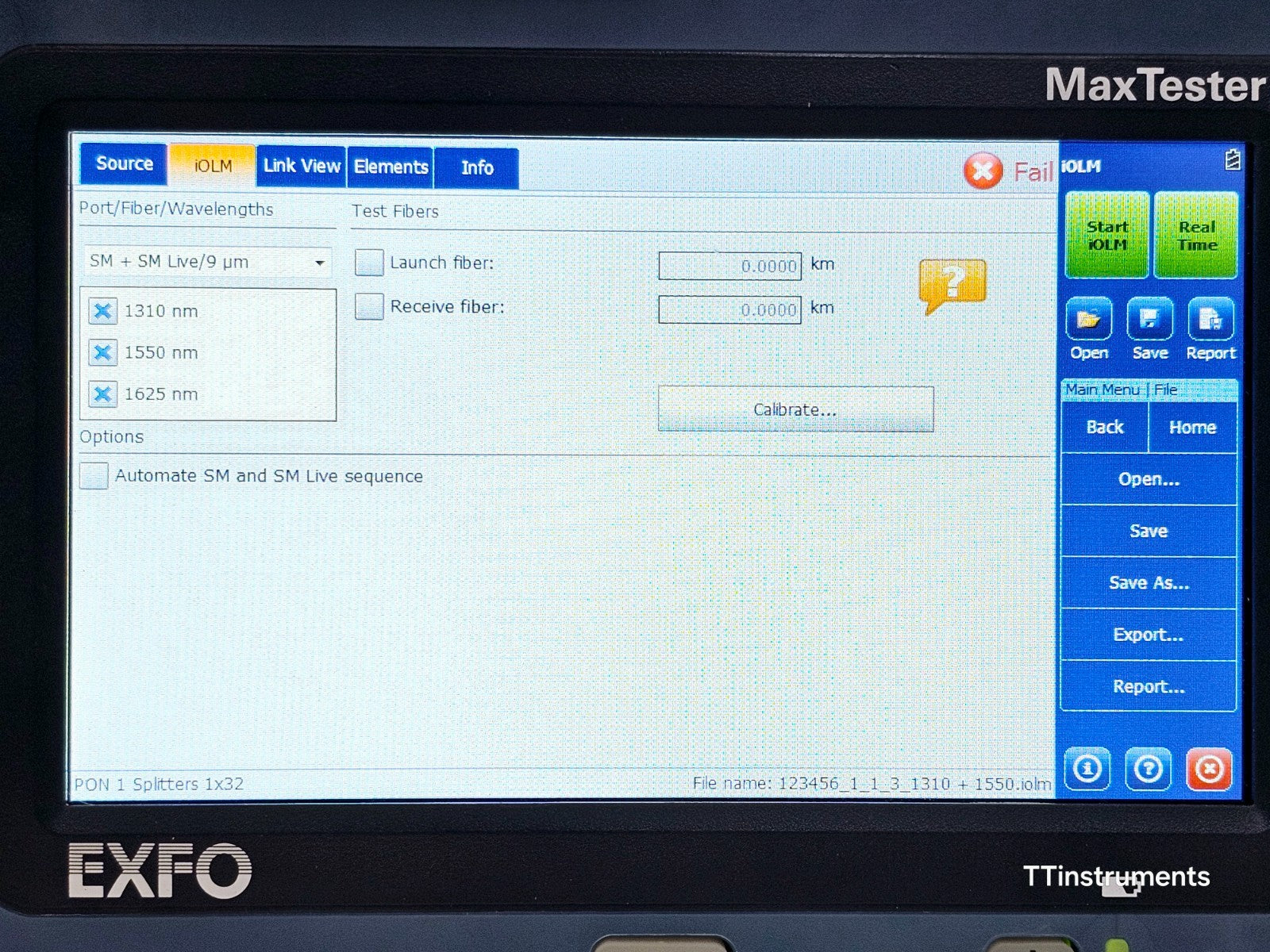

The MAX-730B-M2 operates across three wavelengths (1310/1550/1625 nm) and features a high dynamic range optimised for long-haul and metro network applications. The 1625 nm wavelength enables live fibre testing on active PON (Passive Optical Network) infrastructures without service interruption, making it particularly valuable for FTTx deployment and maintenance.

With the optional IADV (advanced diagnostics) module, users gain access to enhanced measurement capabilities including more detailed event characterisation and reporting tools suited to demanding network environments.

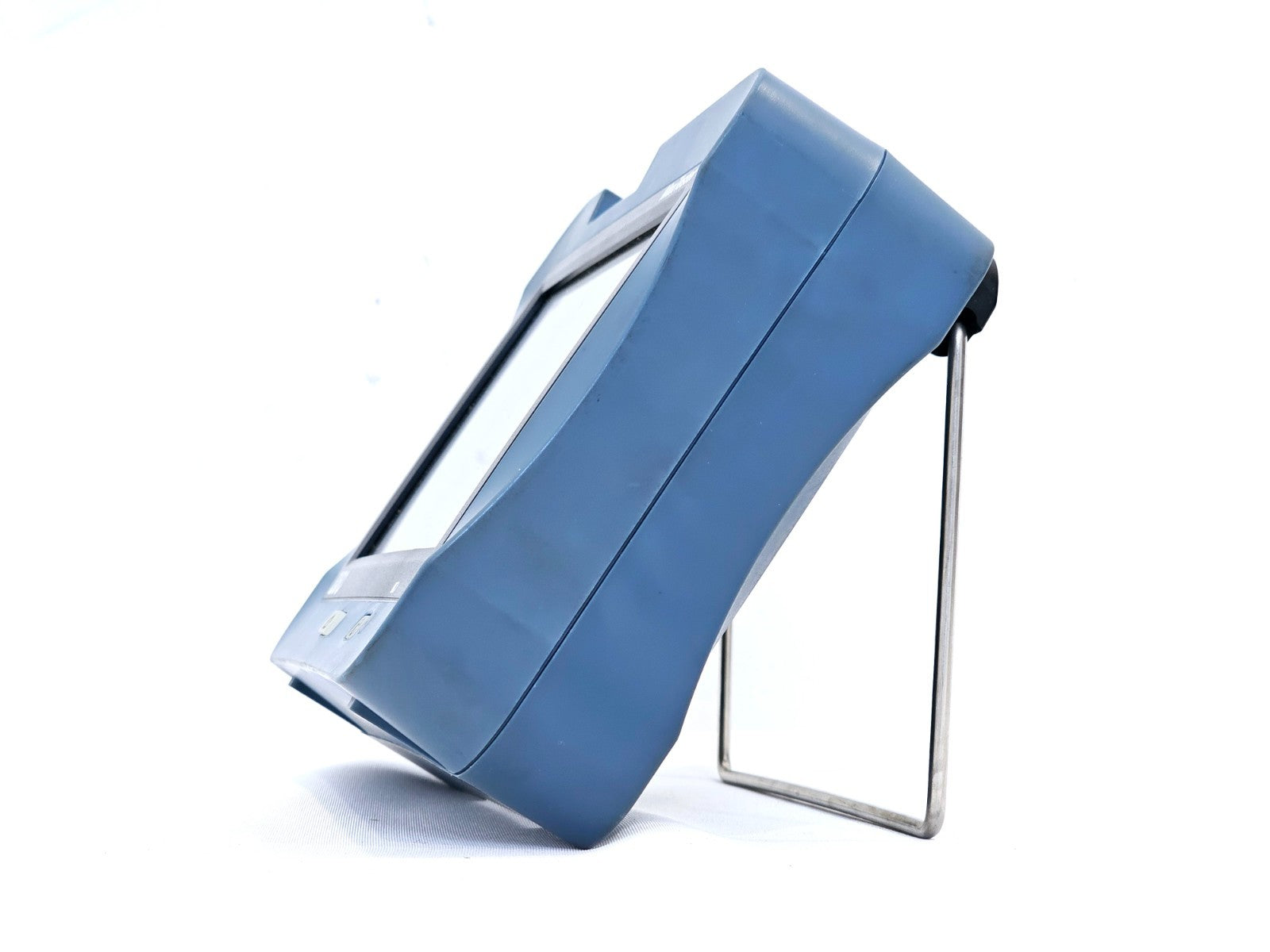

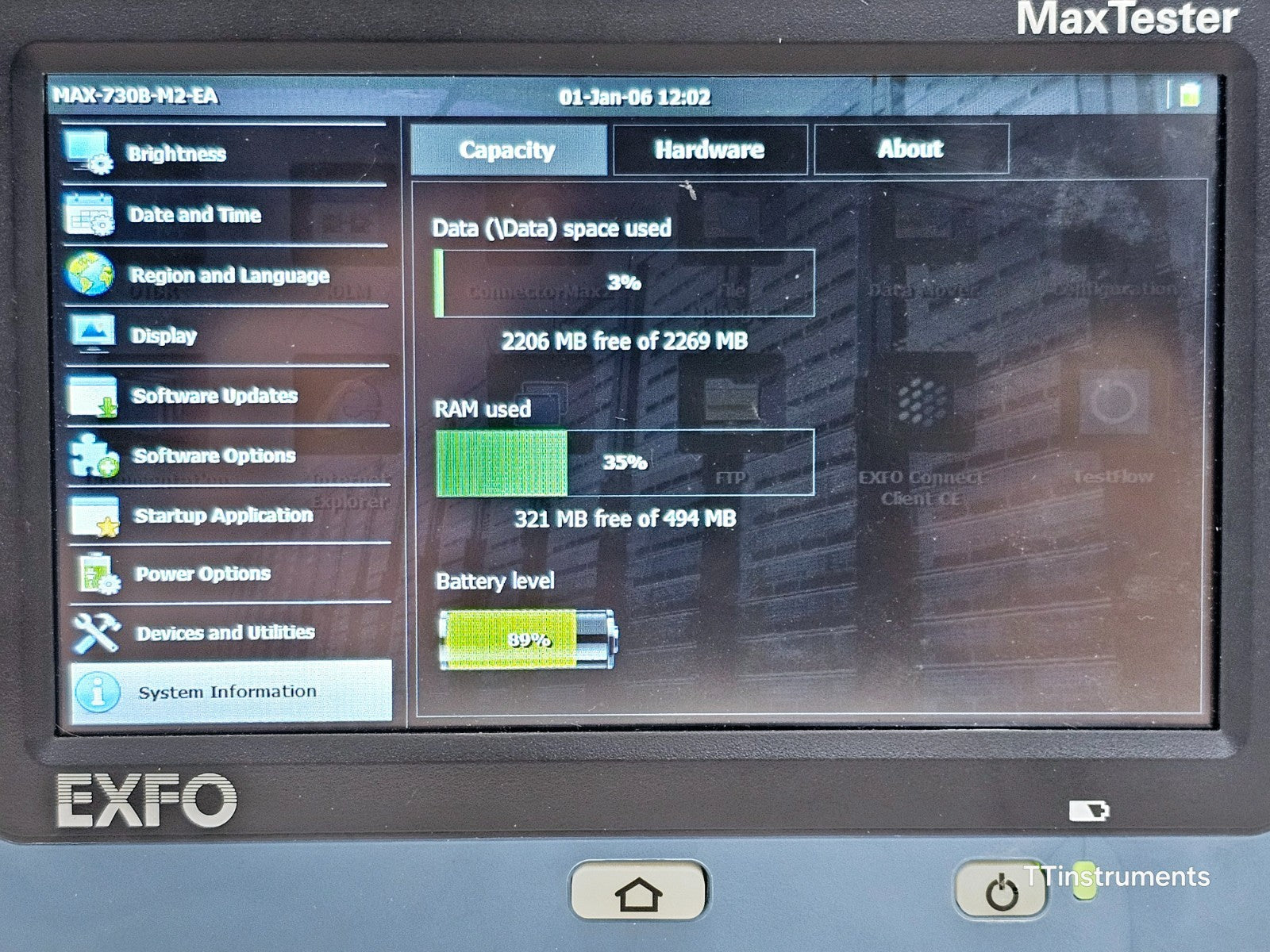

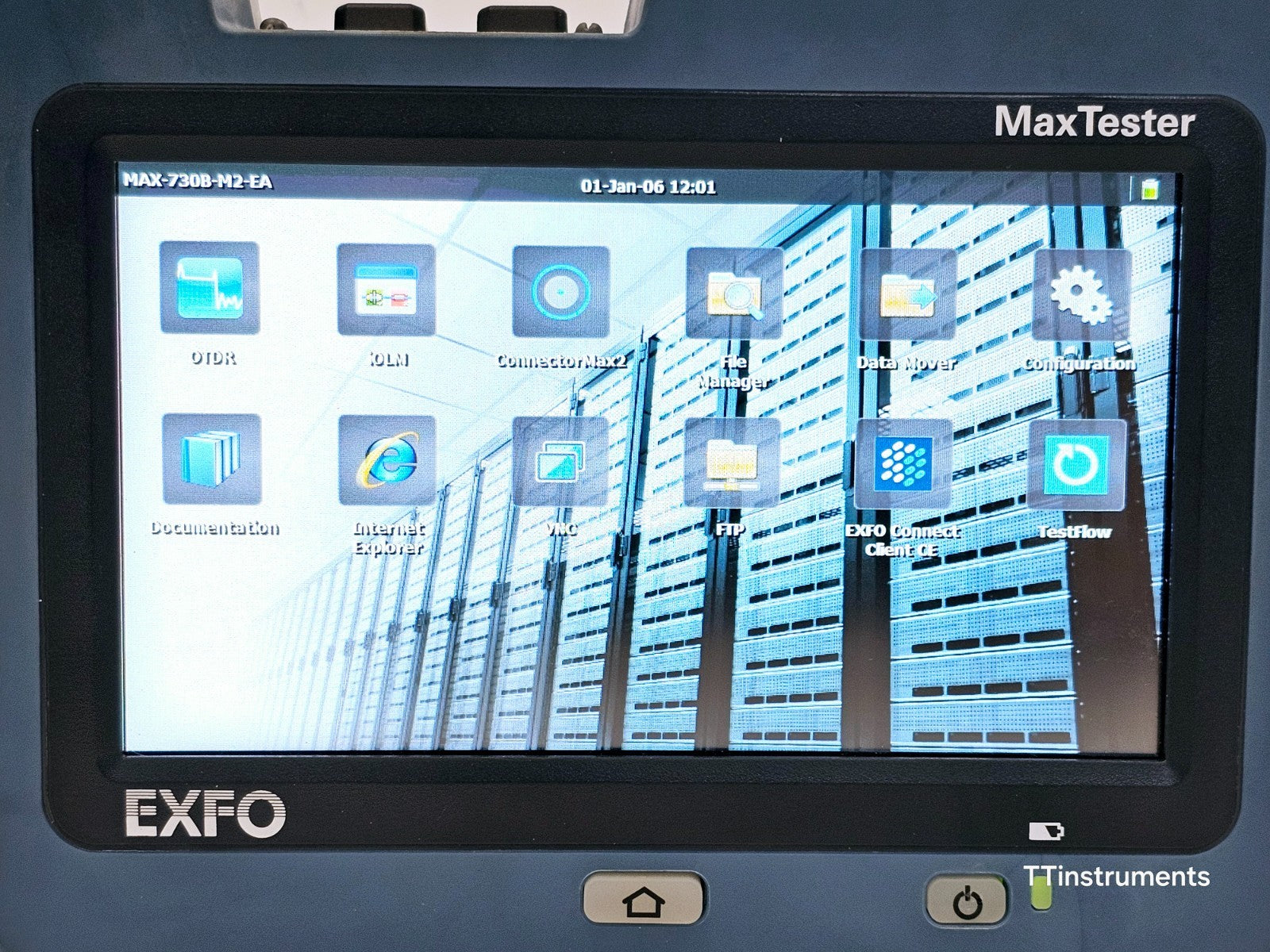

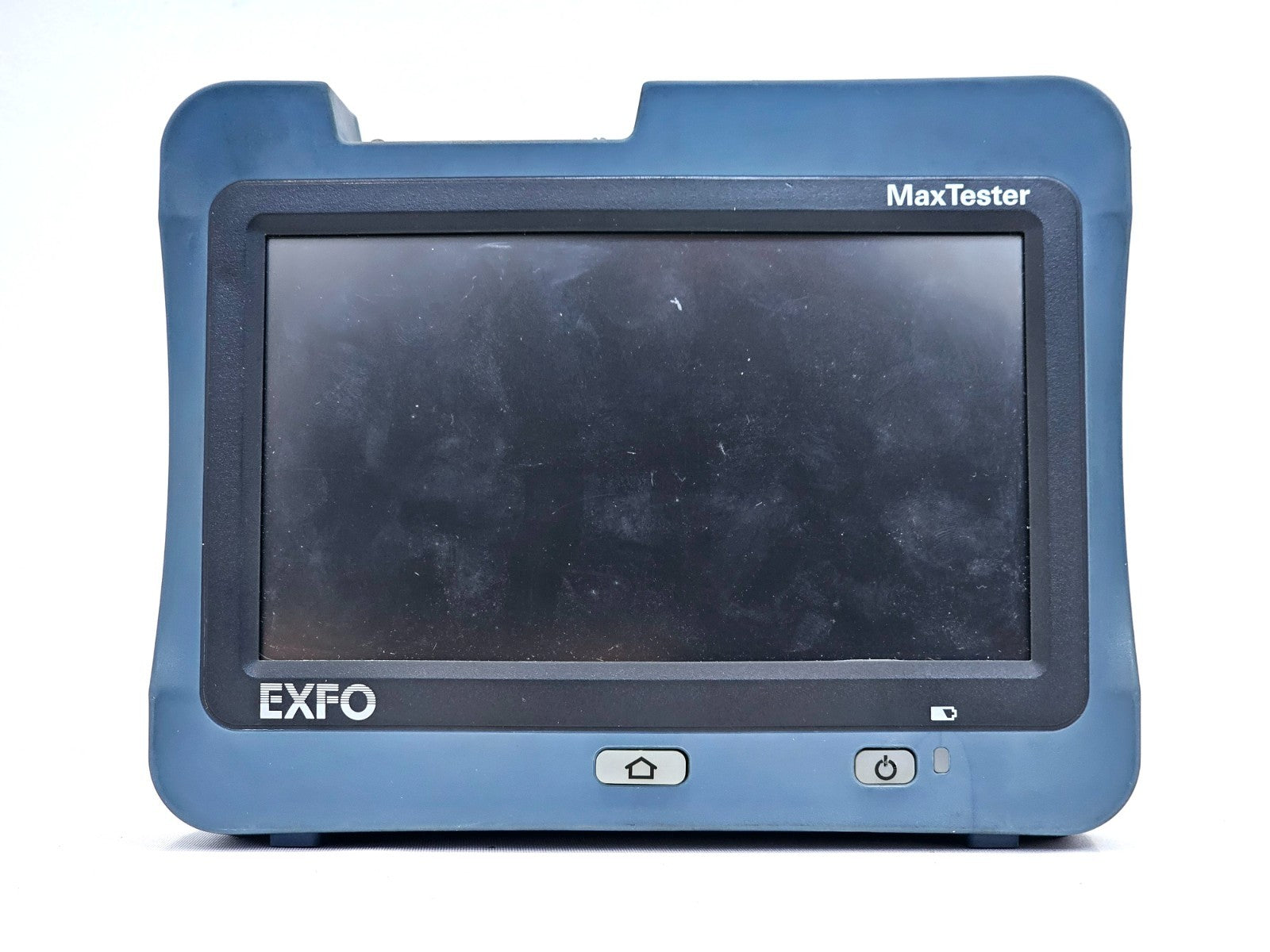

The MaxTester platform features a large touchscreen display, long battery life, and a rugged housing designed to withstand field deployment conditions.

Key Specifications:

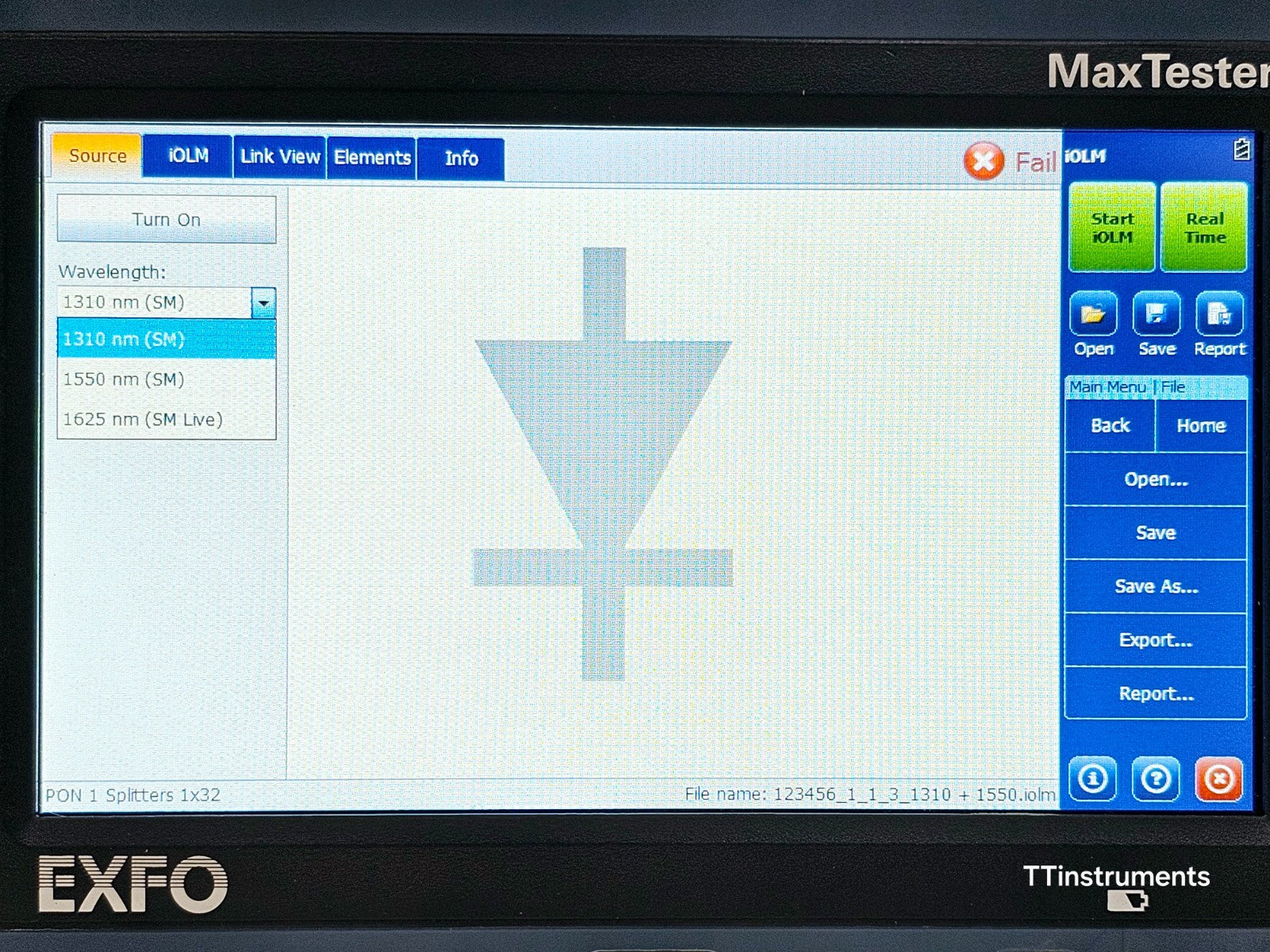

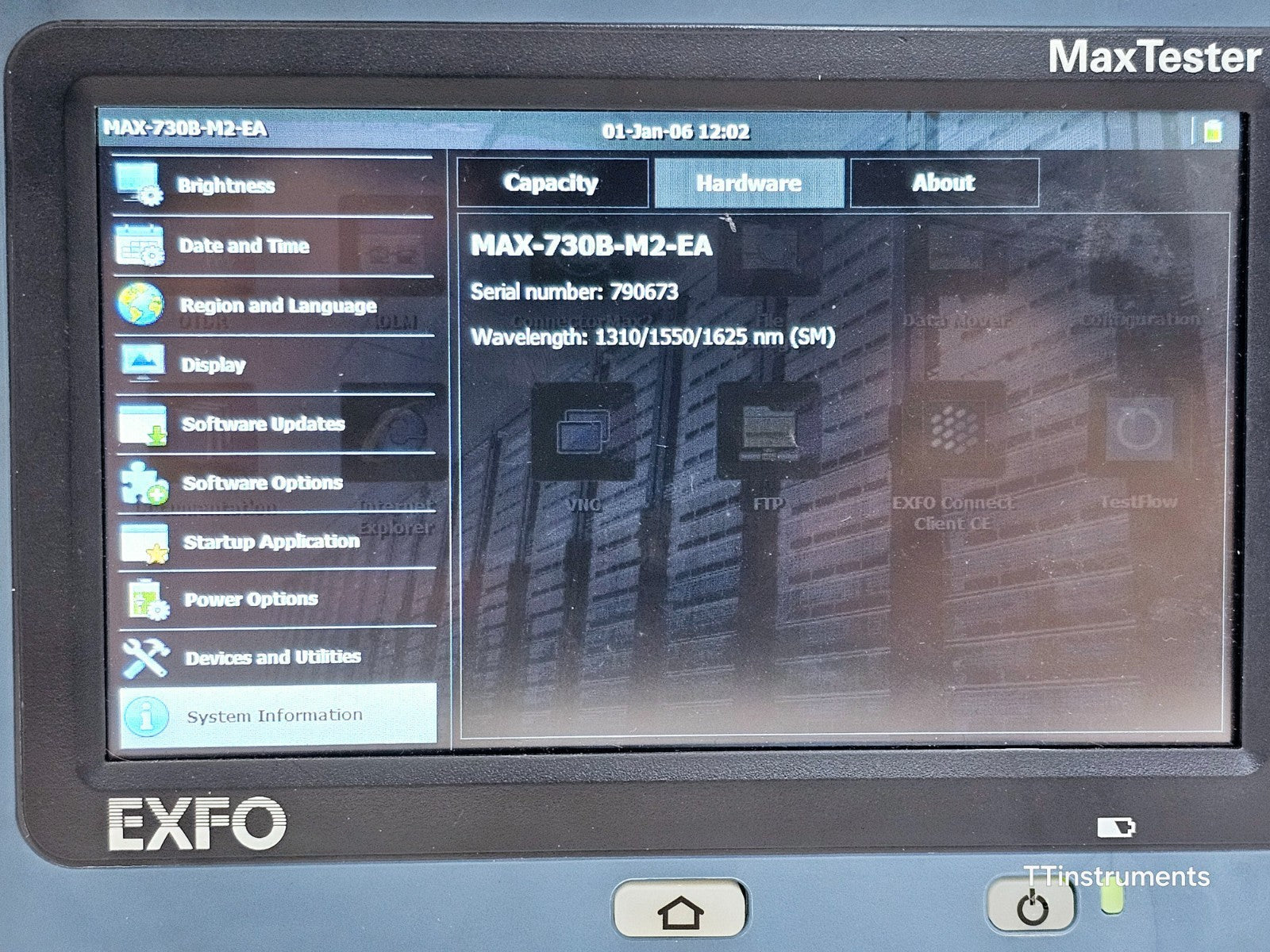

Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range: 39 dB (1310 nm) / 37 dB (1550 nm) / 37 dB (1625 nm)
Fibre Type: Singlemode
Live PON Testing: Yes (1625 nm)
Network Applications: Metro, access, FTTx, PON
Software Modules: iOLM (intelligent Optical Link Mapping), IADV (advanced diagnostics)

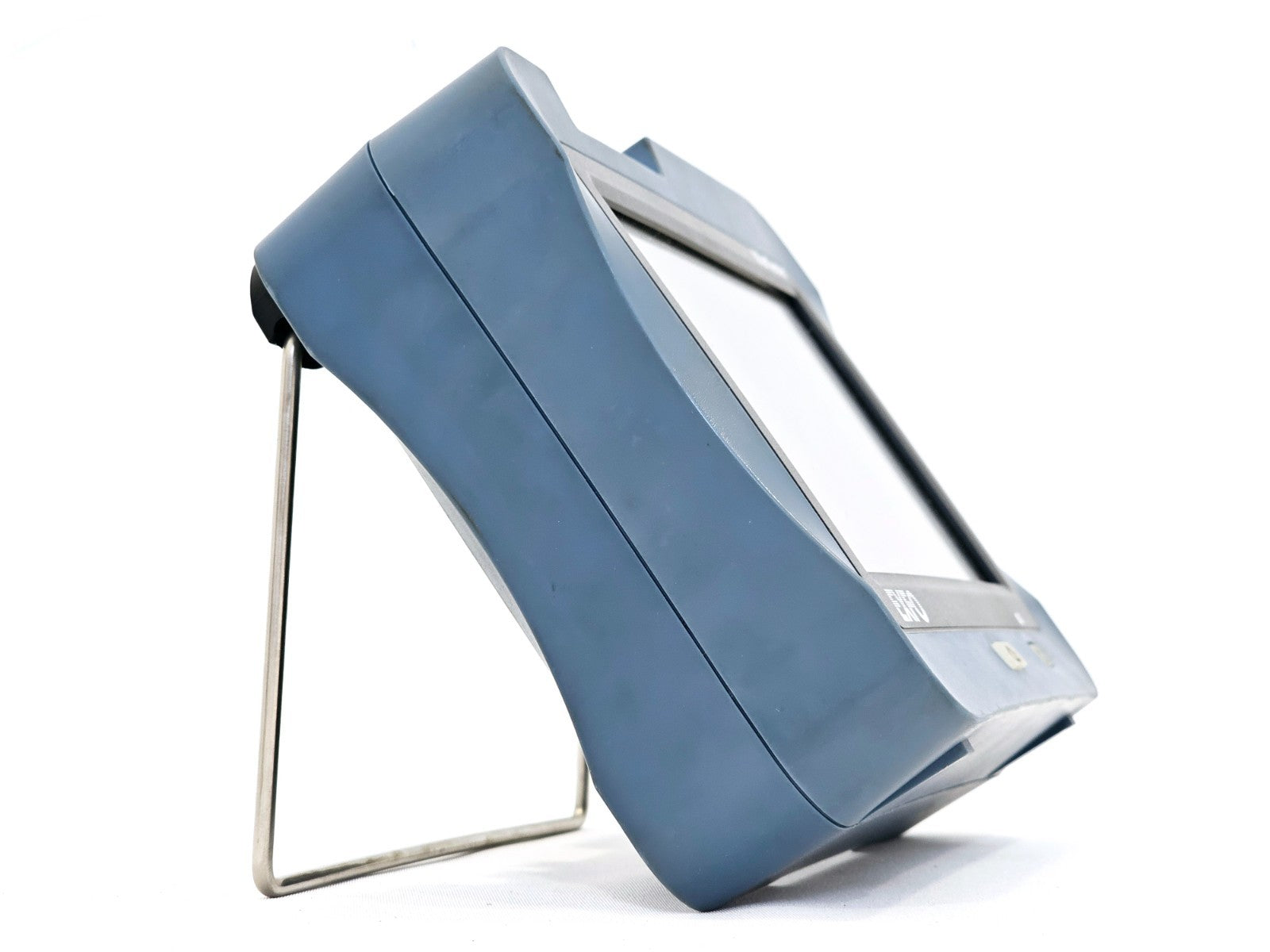

Form Factor: Handheld, field-portable
Display: Colour touchscreen
Platform: EXFO MaxTester series

EXFO MAX-730B MaxTester OTDR Datasheet (manufacturer product page): Download PDF
