The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

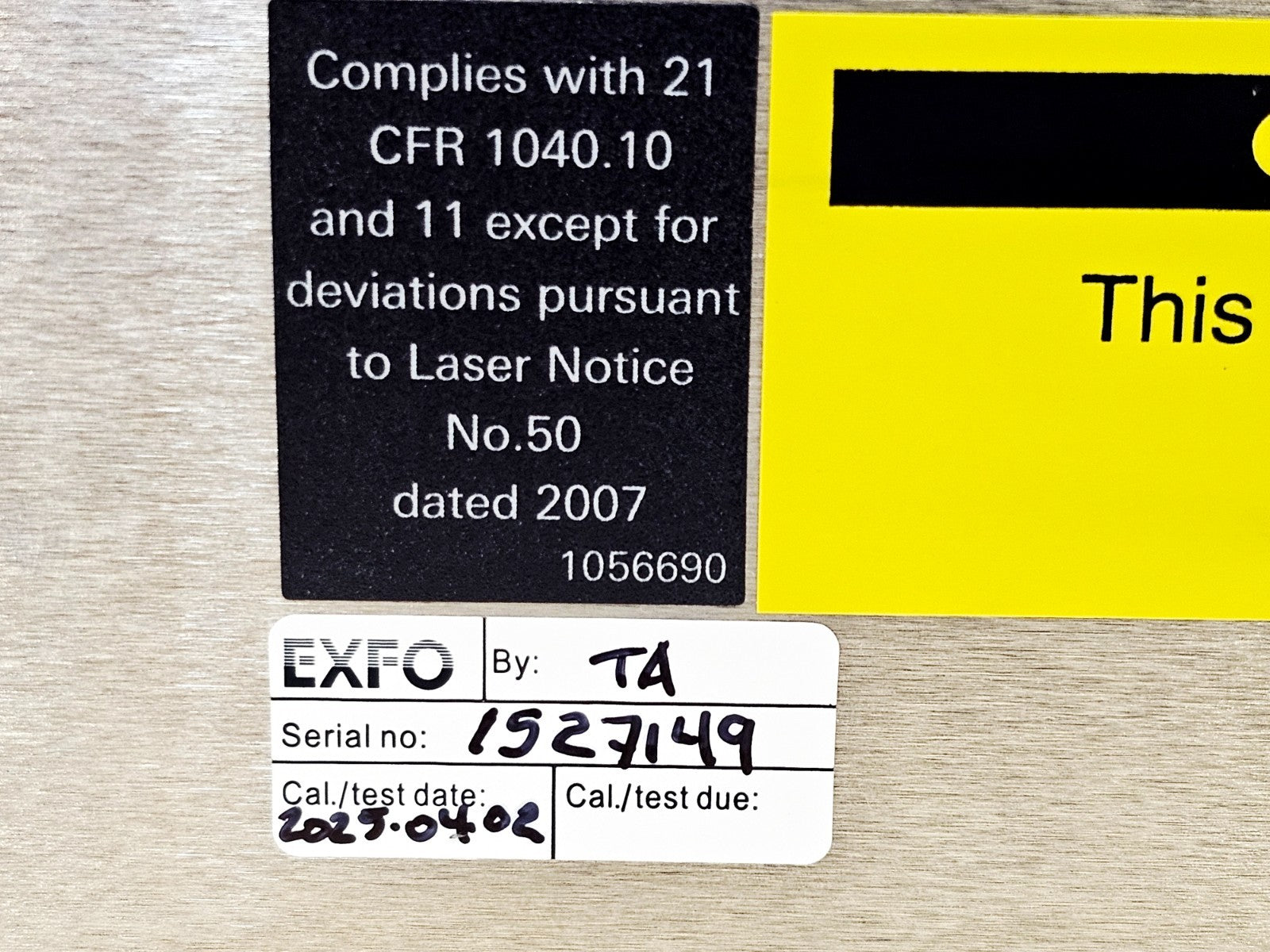

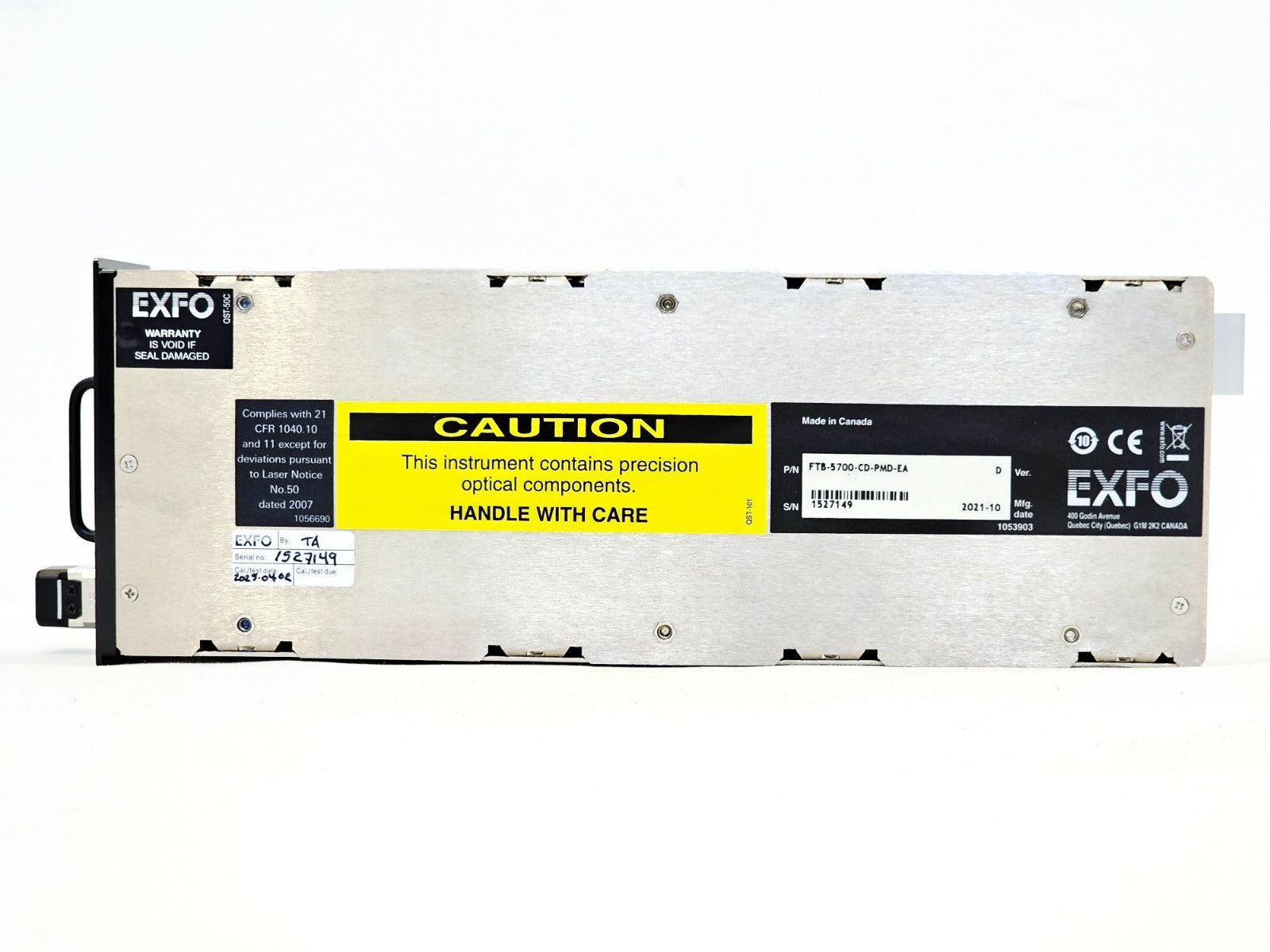

This EXFO FTB-5700-CD-PMD-EA module is in used condition and is cosmetically excellent. The unit has been used once since its last calibration by EXFO in April 2025, and was manufactured in 2021, making it a relatively new model with minimal use. The unit has been tested and is confirmed working. The calibration/test date recorded on the unit is 2025-04-02.

The module carries the following active measurement capabilities:
• CD Analyser (Chromatic Dispersion)
• PMD Analyser (Polarisation Mode Dispersion)

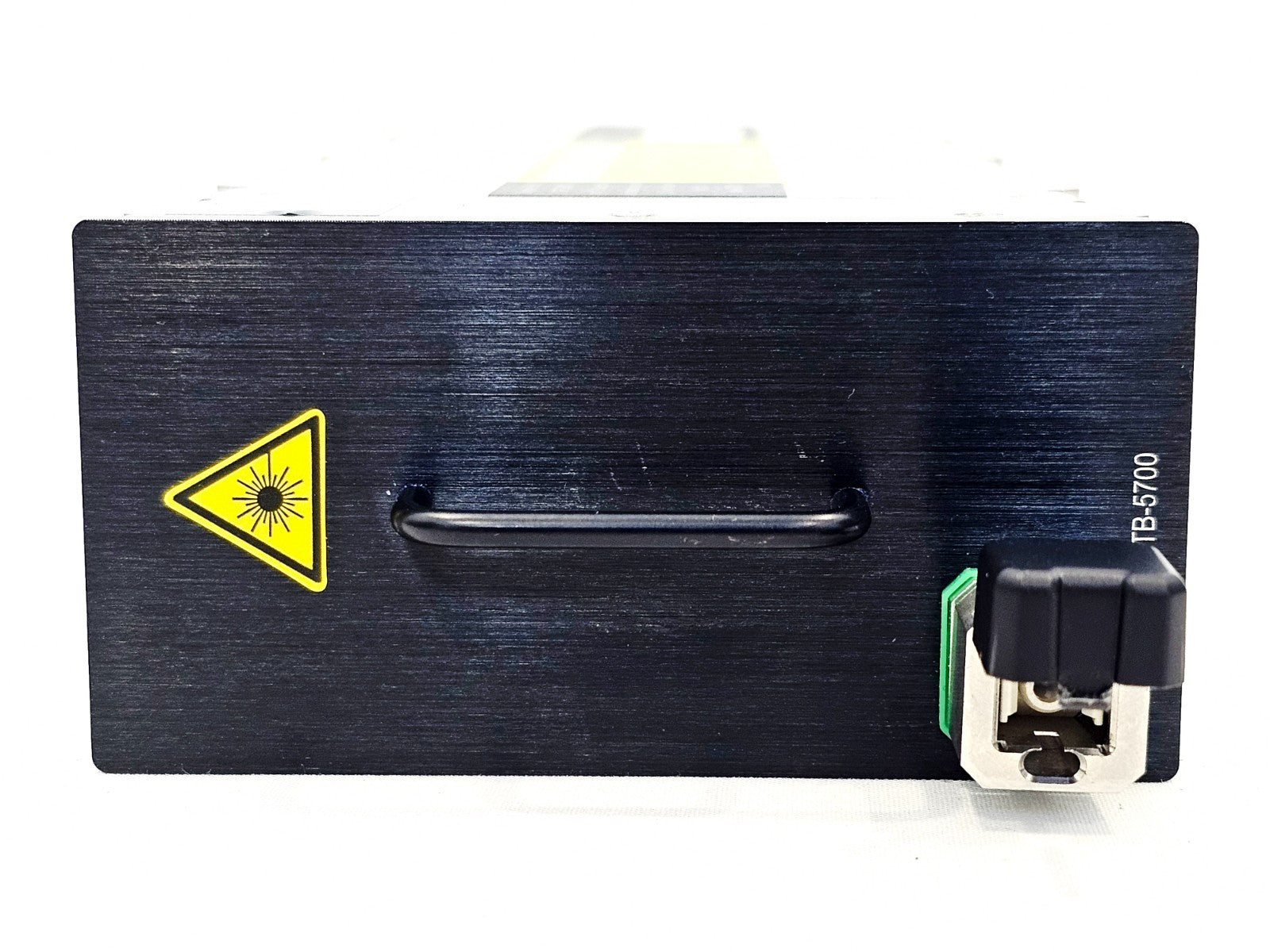

The optical connector interface is APC (angled PC) via EXFO's EUI connector system. The module is compatible with EXFO FTB-200, FTB-400, and FTB-500 series modular platforms.

This listing is for the EXFO FTB-5700-CD-PMD-EA module only.

The EXFO FTB-5700 Single-Ended Dispersion Analyzer is the ultimate chromatic dispersion (CD) and polarisation mode dispersion (PMD) characterisation solution, combining both measurements into a single highly automated module.

Building on EXFO's market-proven dispersion testing expertise, the FTB-5700 offers the true advantage of one-ended testing — one module, one connector, one-step test setup — delivering a single combined results file that dramatically reduces the cost of ownership and test cycle times. A single technician can test both CD and PMD from one location without requiring a second technician at the far end of the link.

Key highlights:
- Single-ended CD and PMD measurement — market-exclusive capability
- Fully automated, highly intelligent interface with pass/fail results
- Standards-compliant: CD per EIA/TIA FOTP-175B; PMD per EIA/TIA FOTP-243 and IEC 61282-9
- Suitable for 10 Gbit/s, 40 Gbit/s and 100 Gbit/s network qualification
- Metro, core, long-haul and mobile backhaul network testing
- Effective fibre-type identification using lambda zero, CD slope and coefficient for Raman deployments
- EXFO Connect-compatible for automated asset management via cloud database
- Compatible with FTB-200, FTB-400 and FTB-500 modular platforms

Measured wavelength range: 1475 nm to 1626 nm
Dynamic range: 25 dB (32 dB with reflector)
Max fibre length: 120 km (140 km with reflector)
CD test points: 8
CD uncertainty: ±10 ps/nm
CD test time: 40 s
PMD display range: up to 50 ps
PMD range (strong mode coupling): 0.1 ps to 20 ps
PMD uncertainty: ±(0.2 + 5% × PMD) ps
PMD test time: <180 s
Size (H × W × D): 96 mm × 50 mm × 281 mm
Weight: 1.3 kg
Operating temperature: 0 °C to 50 °C
Relative humidity: 0% to 95% non-condensing

EXFO FTB-5700-CD-PMD-EA datasheet: Download PDF
