EXFO FTB-5500B PMD Analyser polarision Mode Dispersion 1260–1675 nm

Precision PMD analyser module for evaluating optical fibre transmission performance
Designed for high-speed telecom networks and long-distance fibre link testing

• Covers a broad wavelength range of 1260–1675nm for fibre characterisation
• Provides rapid polarisation mode dispersion measurements for efficient testing
• Suitable for assessing dispersion performance in high-speed and amplified fibre networks
Manufacturer
EXFO
Model
FTB-5500B
Condition
Used
In stock
1
SKU
0021 CB02
Sale price £3,395.75
  • Fiber Optics
  • Newly-Listed
  • OSA/OCA/CD/PMD Analysers
EXFO FTB-5500B PMD Analyser polarision Mode Dispersion 1260–1675 nm0
EXFO FTB-5500B PMD Analyser polarision Mode Dispersion 1260–1675 nm Sale price £3,395.75
Product Overview

The EXFO FTB-5500B Polarisation Mode Dispersion (PMD) Analyser is a specialised optical test module designed to measure polarisation mode dispersion in optical fibres across a wide wavelength range from 1260 nm to 1675 nm, covering the O to U bands.

Designed for fibre characterisation and certification, the FTB-5500B uses an interferometric measurement method to deliver fast, accurate PMD measurements. With a measuring time of approximately 4.5 seconds, it is suitable for testing optical fibre links in high-capacity telecommunications networks.

The analyser supports measurements through cascaded erbium-doped fibre amplifiers (EDFAs) and can estimate second-order PMD for DWDM fibre certification. Its wide wavelength coverage and high dynamic range make it suitable for advanced optical network testing and fibre qualification.

Key Features

  • Wide wavelength range from 1260 nm to 1675 nm, covering O to U bands.
  • PMD measurement range from 0 to 115 ps.
  • High dynamic range of over 50 dB typical.
  • Fast measurement time of approximately 4.5 seconds.
  • High sensitivity of –45 dBm.
  • Interferometric measurement method compliant with IEC and TIA requirements, as specified.
  • Supports PMD measurement through cascaded EDFAs.
  • Second-order PMD estimation for DWDM fibre certification.

Key Technical Specifications

Wavelength Range: 1260–1675 nm (O to U band)

Measurement Range: 0–115 ps

Sensitivity: –45 dBm

Dynamic Range: Greater than 50 dB typical; 47 dB typical with the FLS-5800

Measuring Time: 4.5 seconds for any PMD value

Absolute Measurement Uncertainty: ±(0.020 + 2% of PMD) ps under strong mode coupling conditions

Measurement Through EDFAs: Supported, including more than 120 EDFAs in cascade, as specified

Measurement Method: Interferometric

Second-Order PMD: Estimated for DWDM fibre certification

Part Number: FTB-5500B-EI

Product Overview

The EXFO FTB-5500B PMD Analyser is in used condition and is cosmetically very good.

The module has been tested, with measurement results passing within specification across the 1260–1675 nm wavelength range. All optical connectors passed fibre inspection checks.

What's Included

  • EXFO FTB-5500B PMD Analyser Module
  • Wavelength range: 1260–1675 nm
  • Part number: FTB-5500B-EI

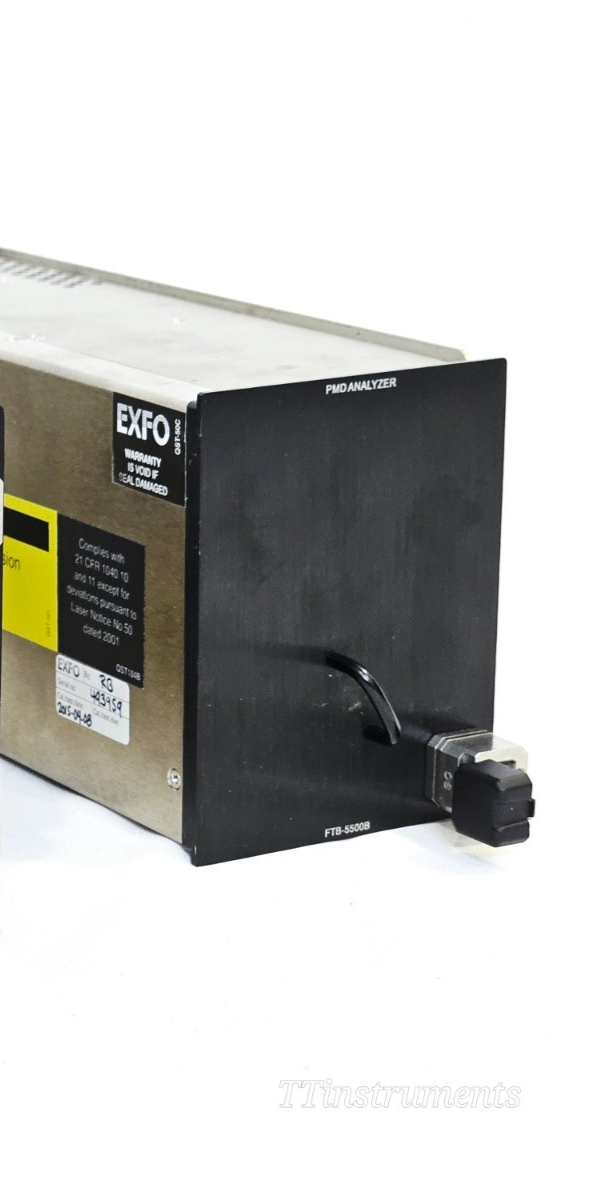

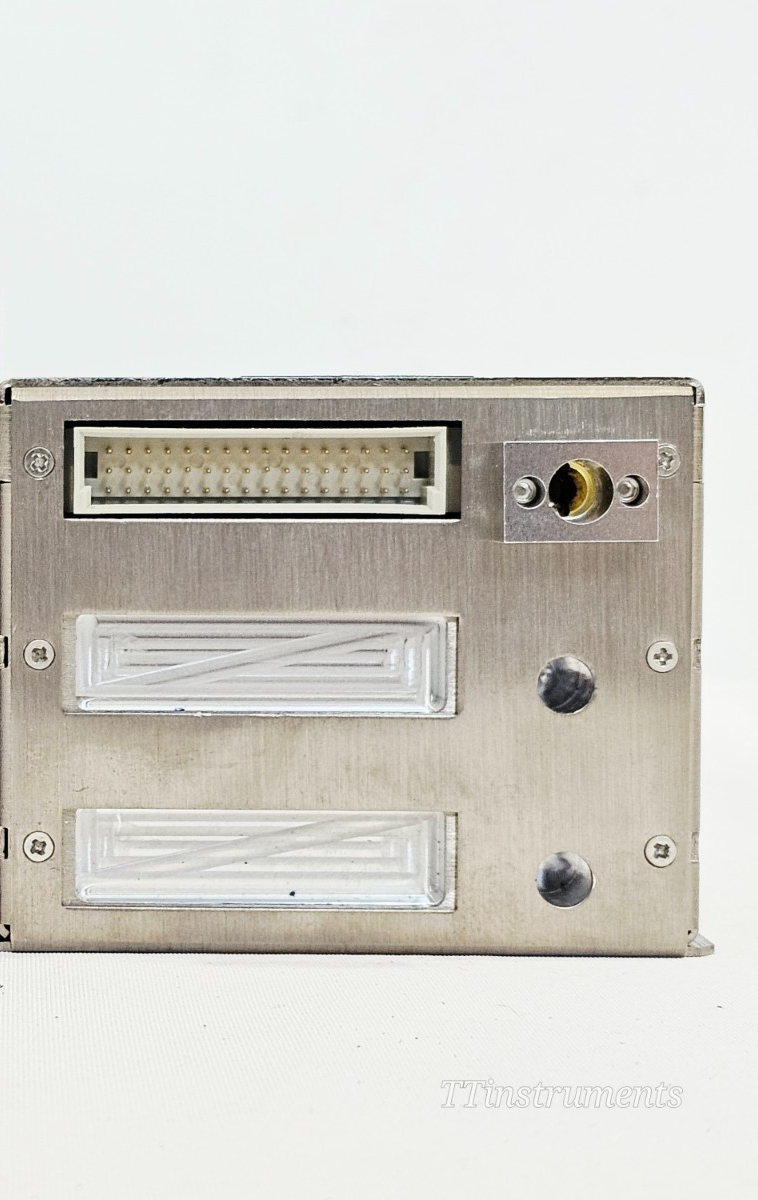

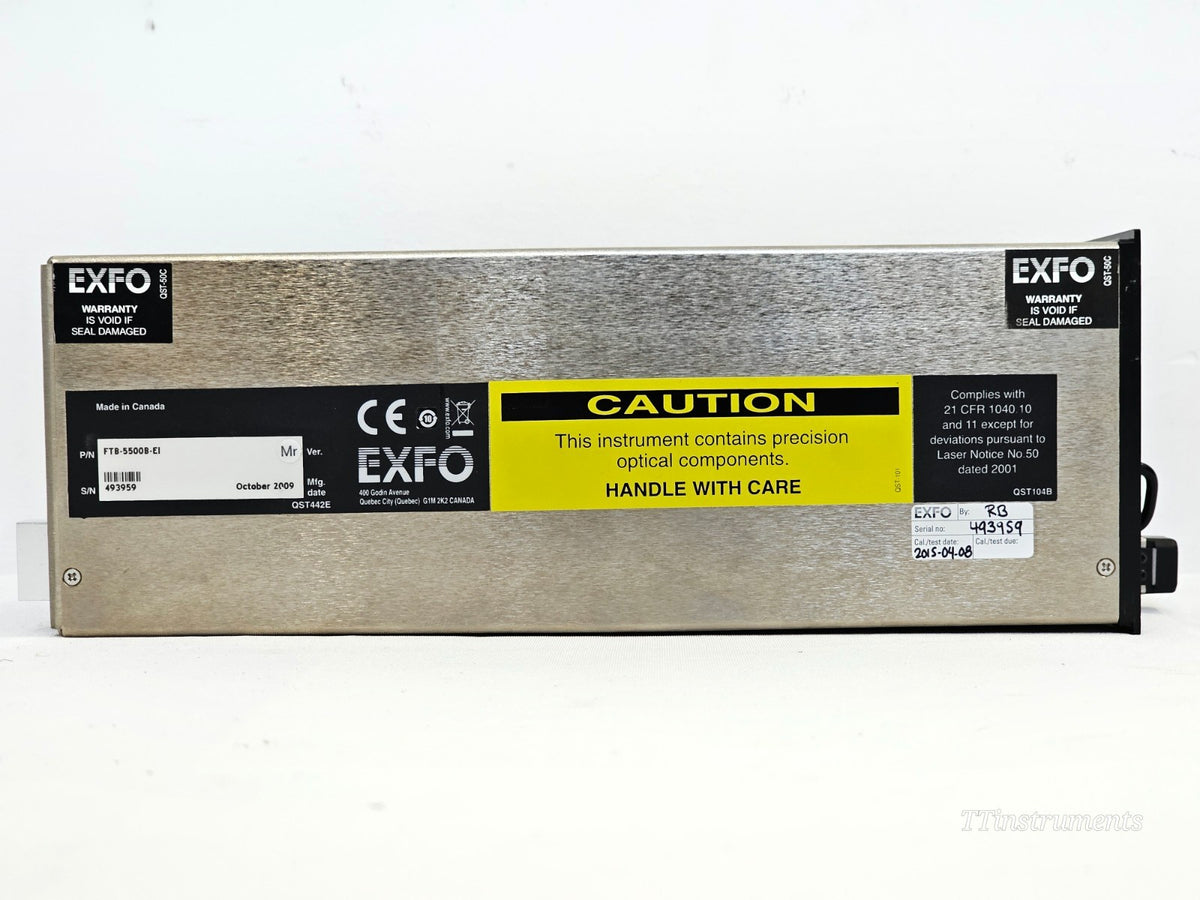

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.
