EXFO FTB-5240S-P OSA Optical Spectrum Analyzer 1250-1650nm INB In-Band OSNR Opt.

Condition: Used

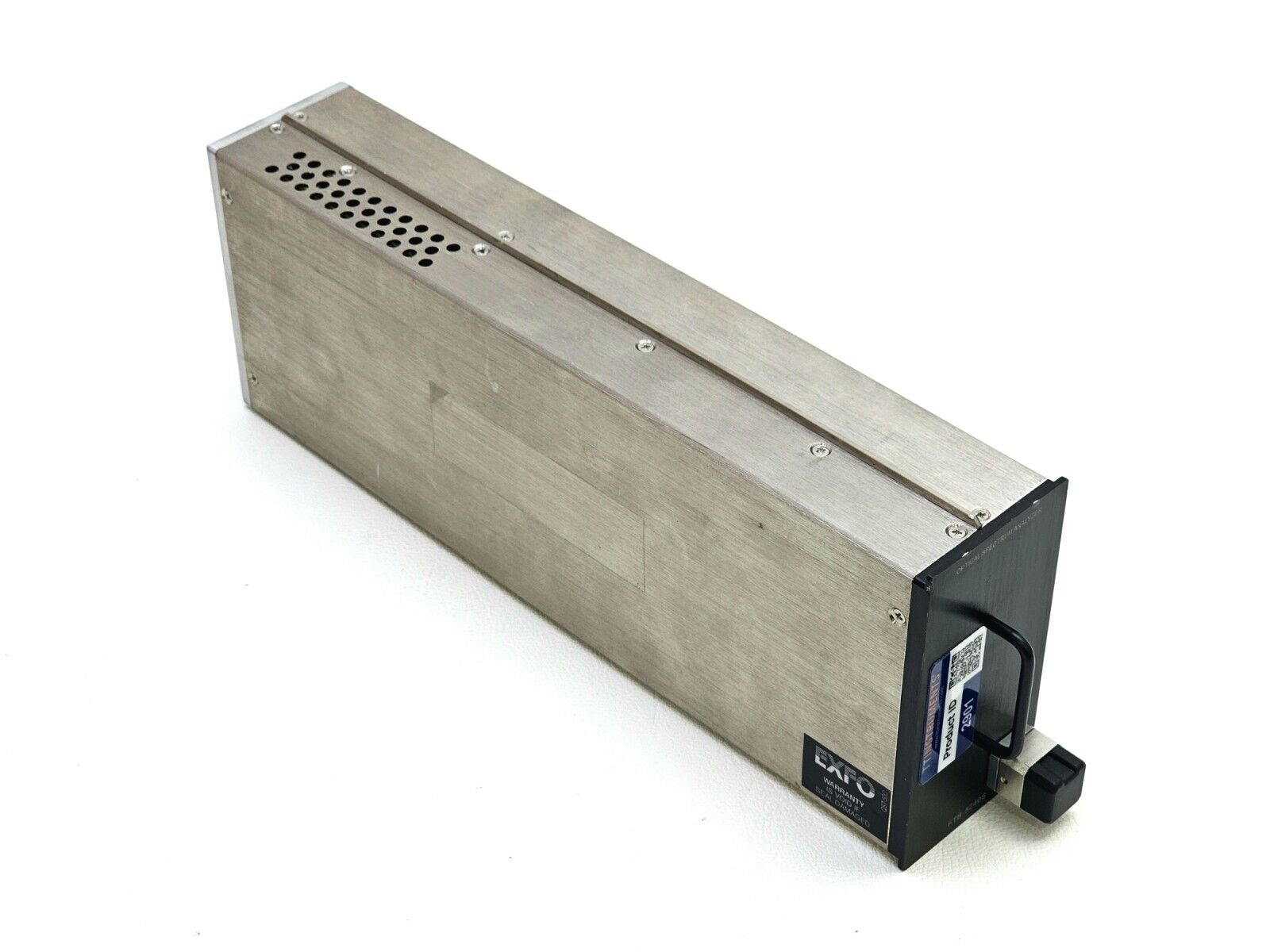

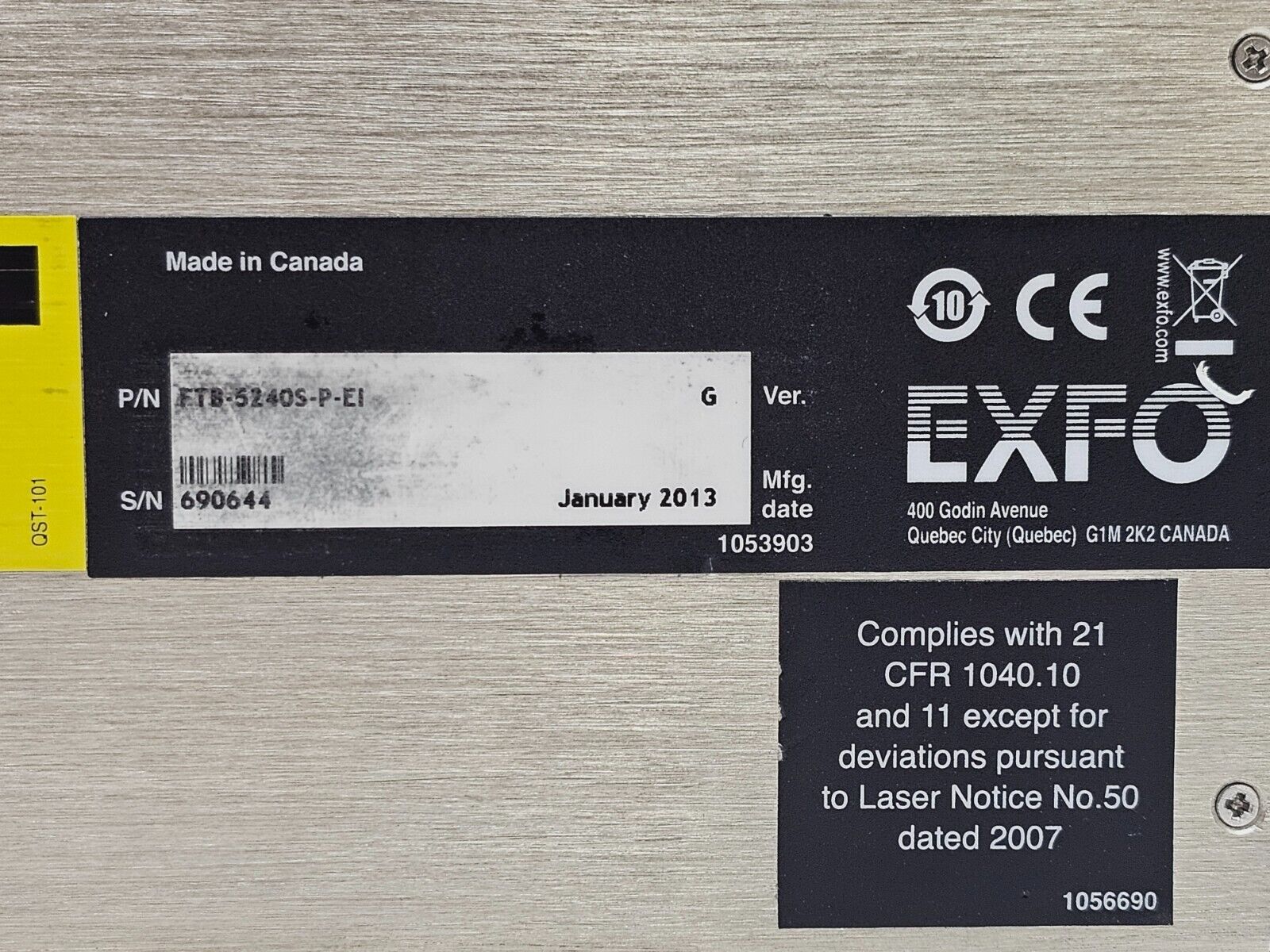

Tested and working example of the EXFO FTB-5240S-P OSA module, manufactured in 2013. Bulkhead is in good condition and measurements are confirmed within specification. Compatible with the FTB-200, FTB-2, FTB-2 Pro, FTB-4 Pro and FTB-500 platforms.

Active options:
• INB — In-Band OSNR measurement enabled

Included with this product:
• FTB-5240S-P OSA module (with integrated polarisation controller)
• FC connector

The EXFO FTB-5240S-P is a lab-quality, field-portable optical spectrum analyser (OSA) module designed for comprehensive analysis of CWDM and DWDM optical networks. Housed within EXFO's modular FTB platform ecosystem, it combines high-accuracy spectral measurement with an integrated polarisation controller, enabling advanced in-band OSNR characterisation of polarisation-multiplexed coherent transceivers — including 40G and 100G systems — where traditional out-of-band OSNR methods are unreliable.

The INB (In-Band OSNR) option leverages the polarisation controller to resolve true signal OSNR on live channels, making the FTB-5240S-P essential for commissioning, maintenance and troubleshooting of modern coherent optical networks.

Key Features:
- Lab-quality portable optical spectrum analyser
- Wide spectral range: 1250 nm to 1650 nm
- High optical rejection ratio (ORR): up to 50 dBc at 0.2 nm
- Wavelength accuracy: down to 15 pm (external calibration, C+L band)
- Wavelength uncertainty: ±30 pm (internal calibration, C+L band)
- Internal reference light source for maintained wavelength calibration
- Integrated polarisation controller for in-band OSNR on coherent channels
- One-button operation with intuitive touchscreen graphical user interface
- Compatible with FTB-200, FTB-2, FTB-2 Pro, FTB-4 Pro and FTB-500 platforms
- Suitable for CWDM and DWDM network manufacturing, installation, commissioning, maintenance and troubleshooting

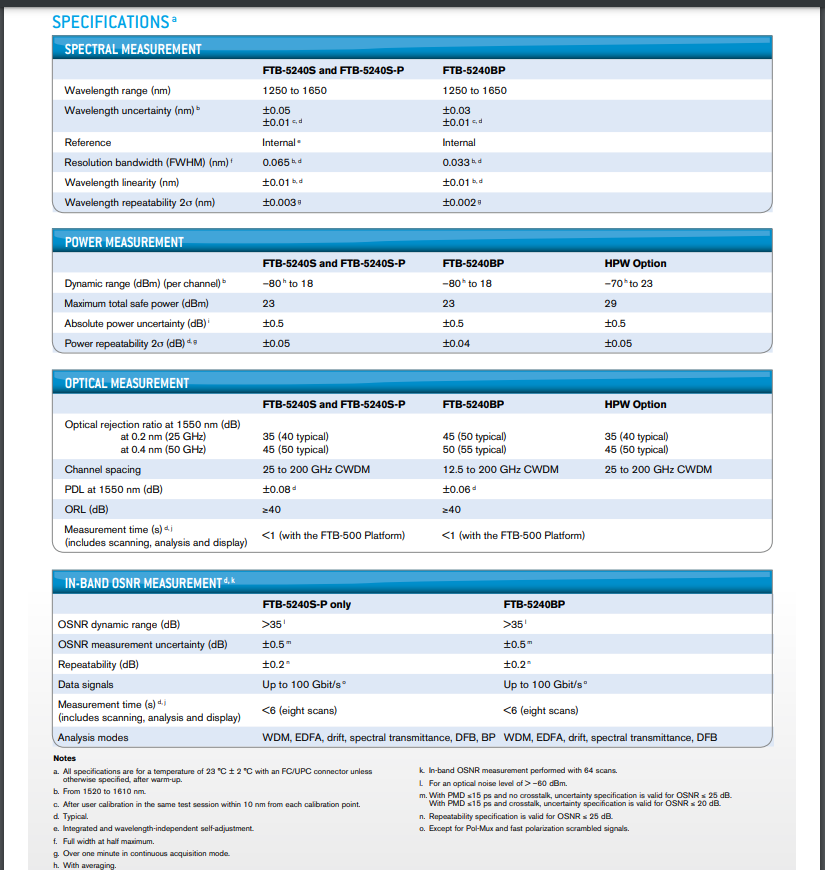

Specifications:
Spectral Range: 1250 nm to 1650 nm
Optical Rejection Ratio (ORR): Up to 50 dBc at 0.2 nm
Wavelength Accuracy (external calibration): Down to 15 pm (C+L band)
Wavelength Uncertainty (internal calibration): ±30 pm (C+L band)
Polarisation Controller: Integrated
In-Band OSNR: Supported via INB option

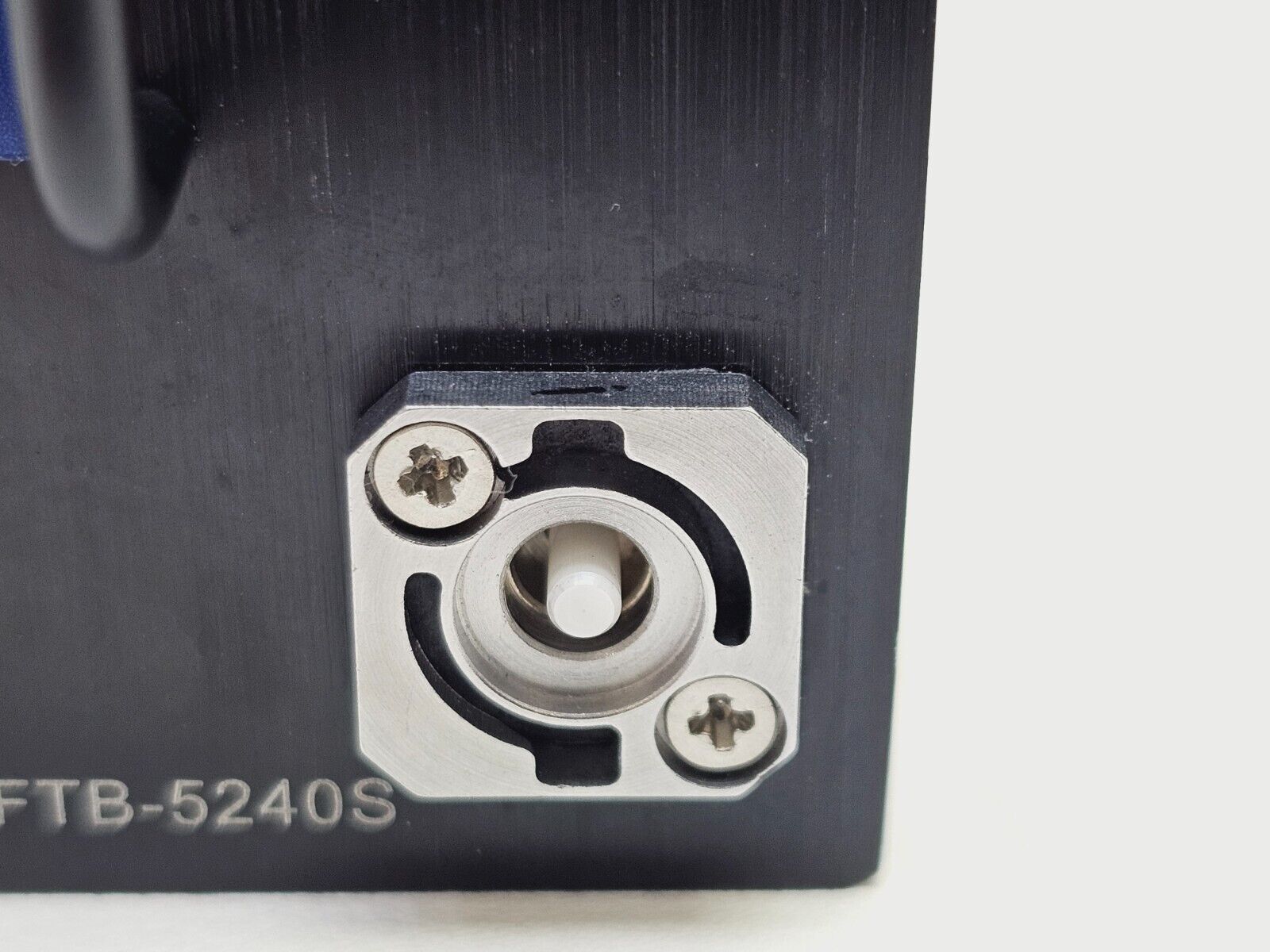

Connector Type: FC
Platform Compatibility: FTB-200, FTB-2, FTB-2 Pro, FTB-4 Pro, FTB-500

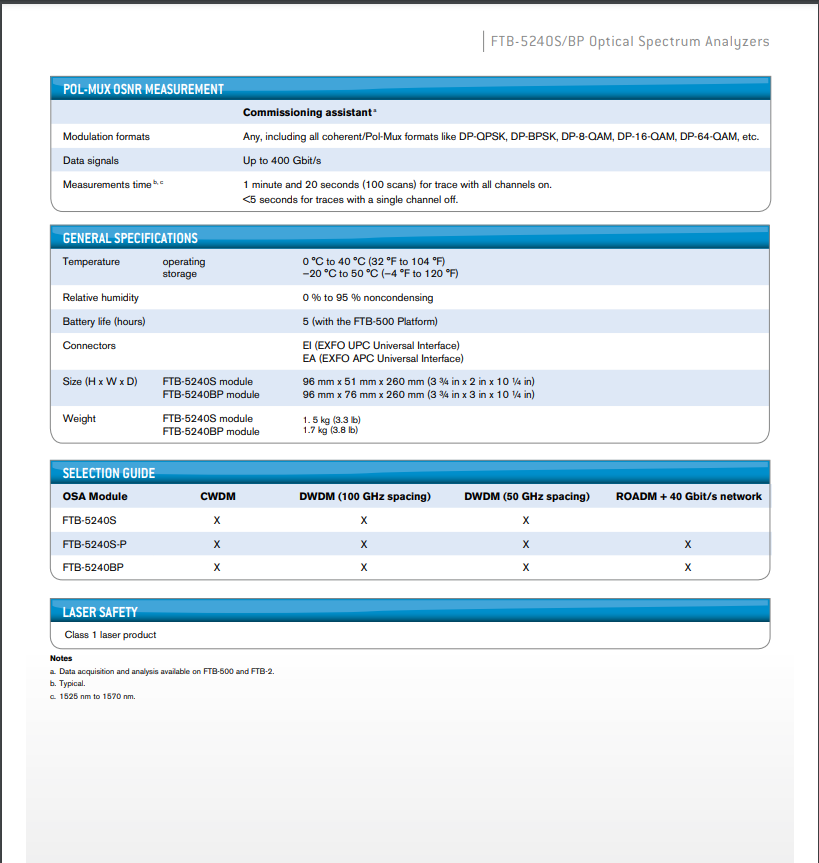

Please refer to the EXFO manufacturer datasheet for full specifications.

EXFO FTB-5240S Optical Spectrum Analyser Datasheet: Download PDF
