Condition: Used

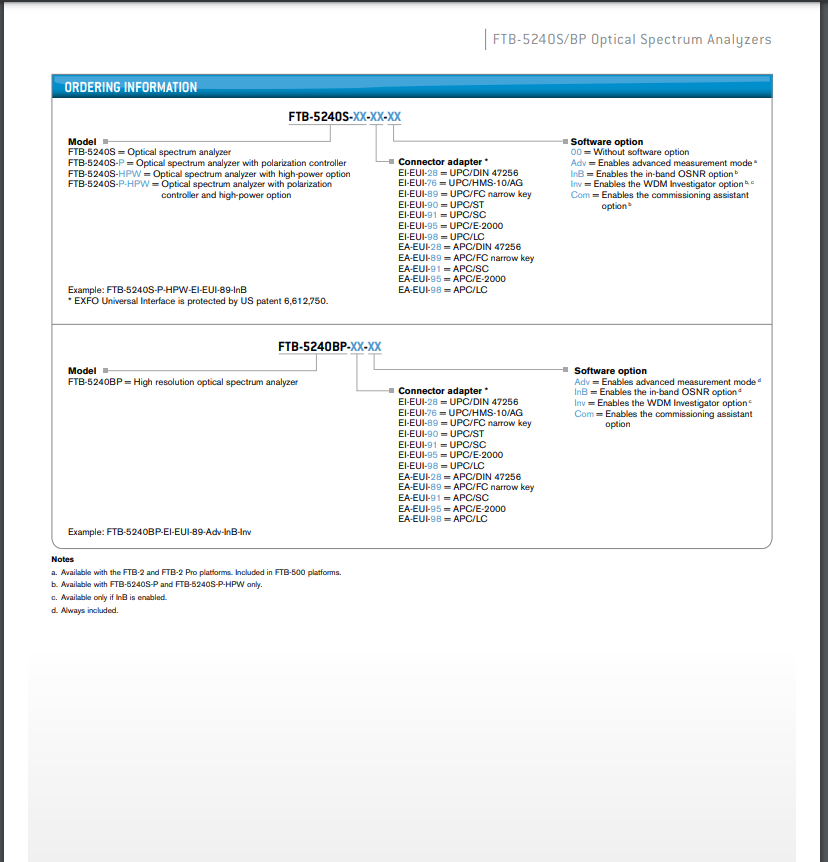

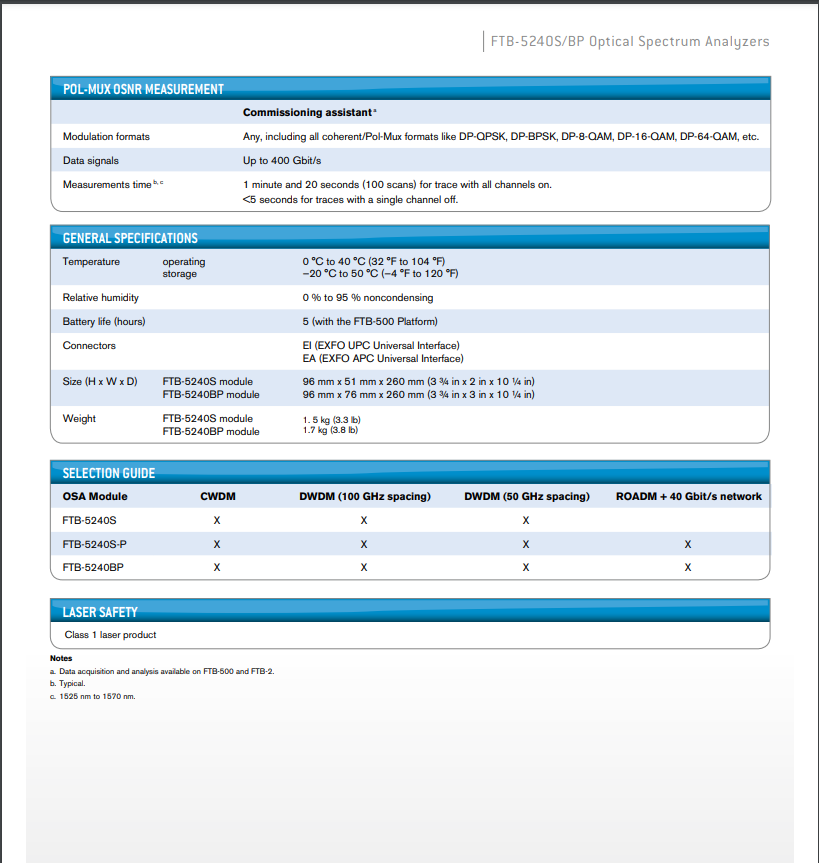

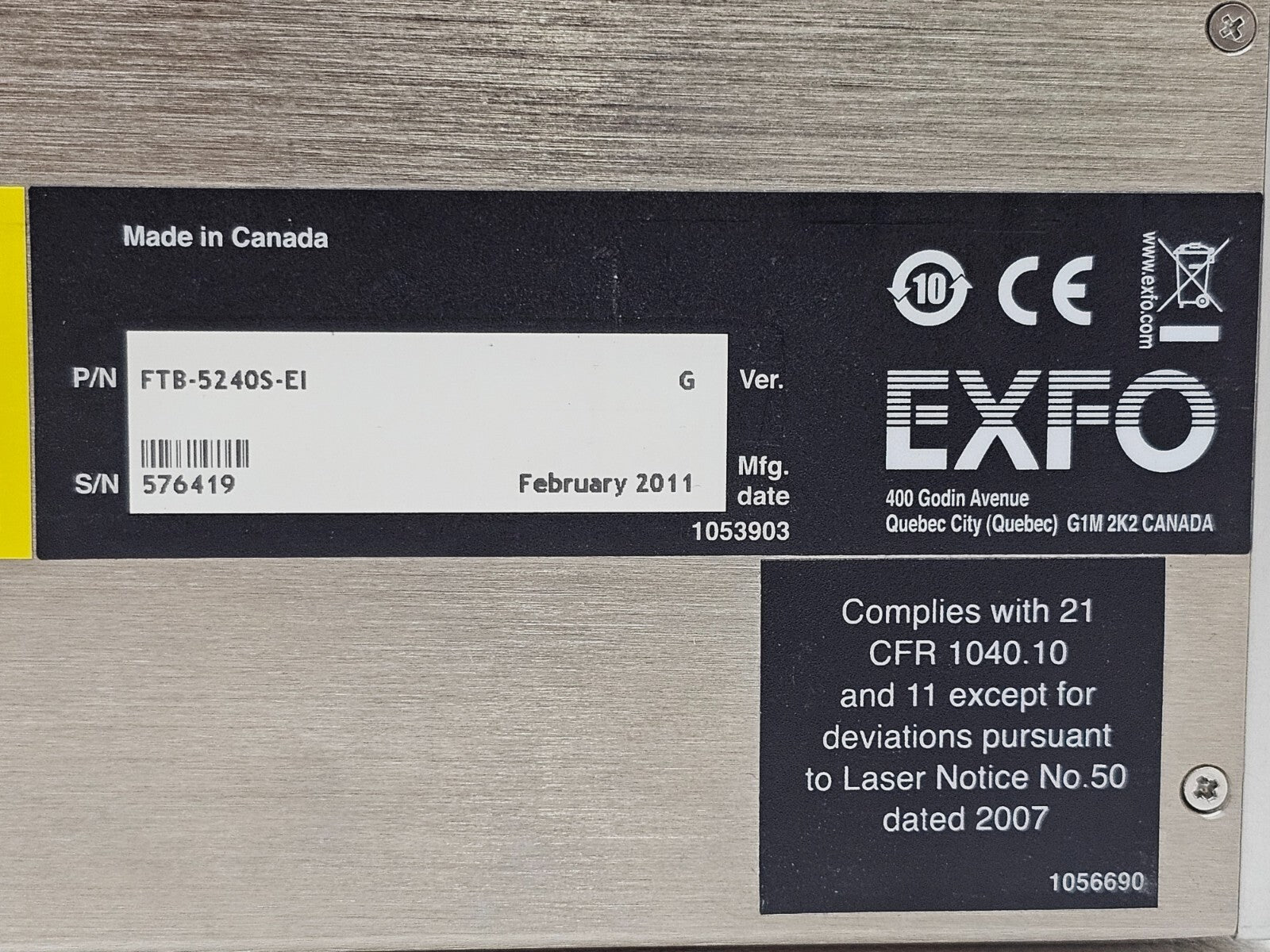

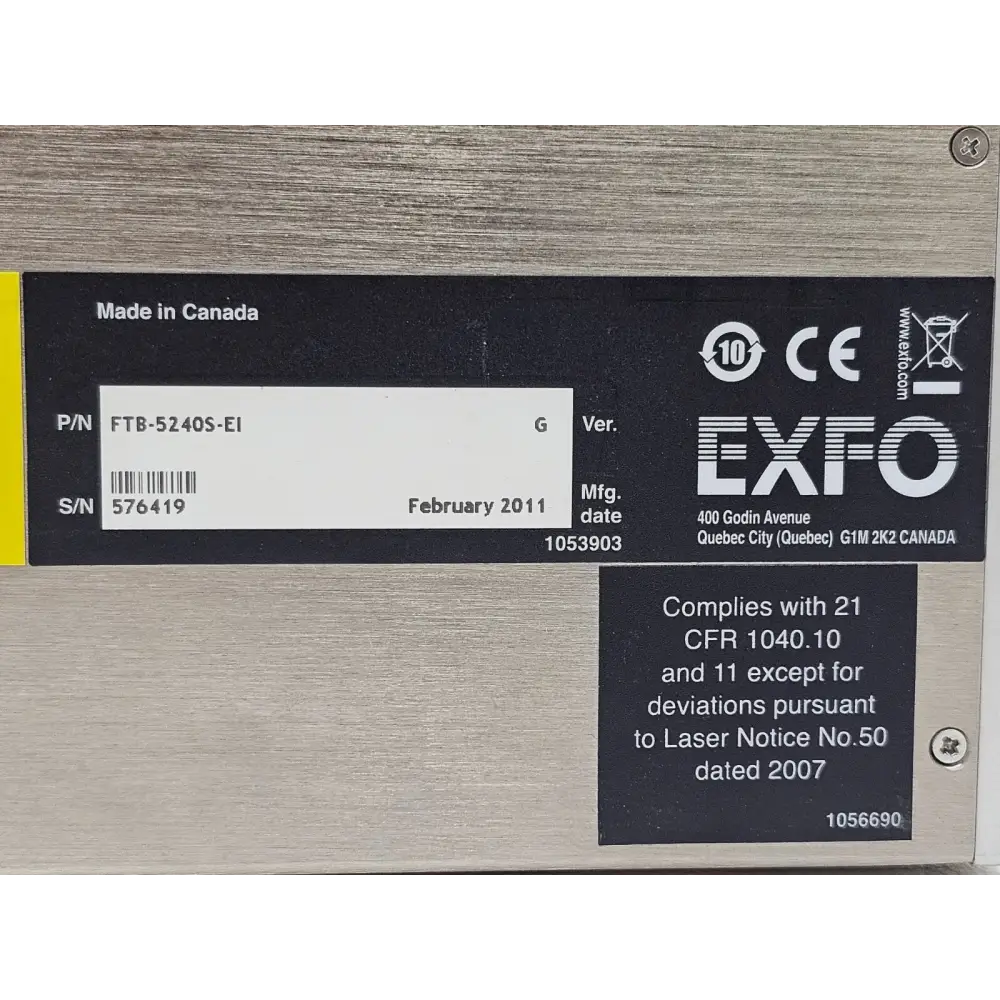

Tested and working, bulkhead is good, measurements are within spec. MFD 2011Compatible with the FTB-200, FTB-2, FTB-2 Pro, FTB-4 Pro and FTB-500 platforms.Please refer to the manufacturer datasheet or the images for detailed specifications .

Included in the sale:

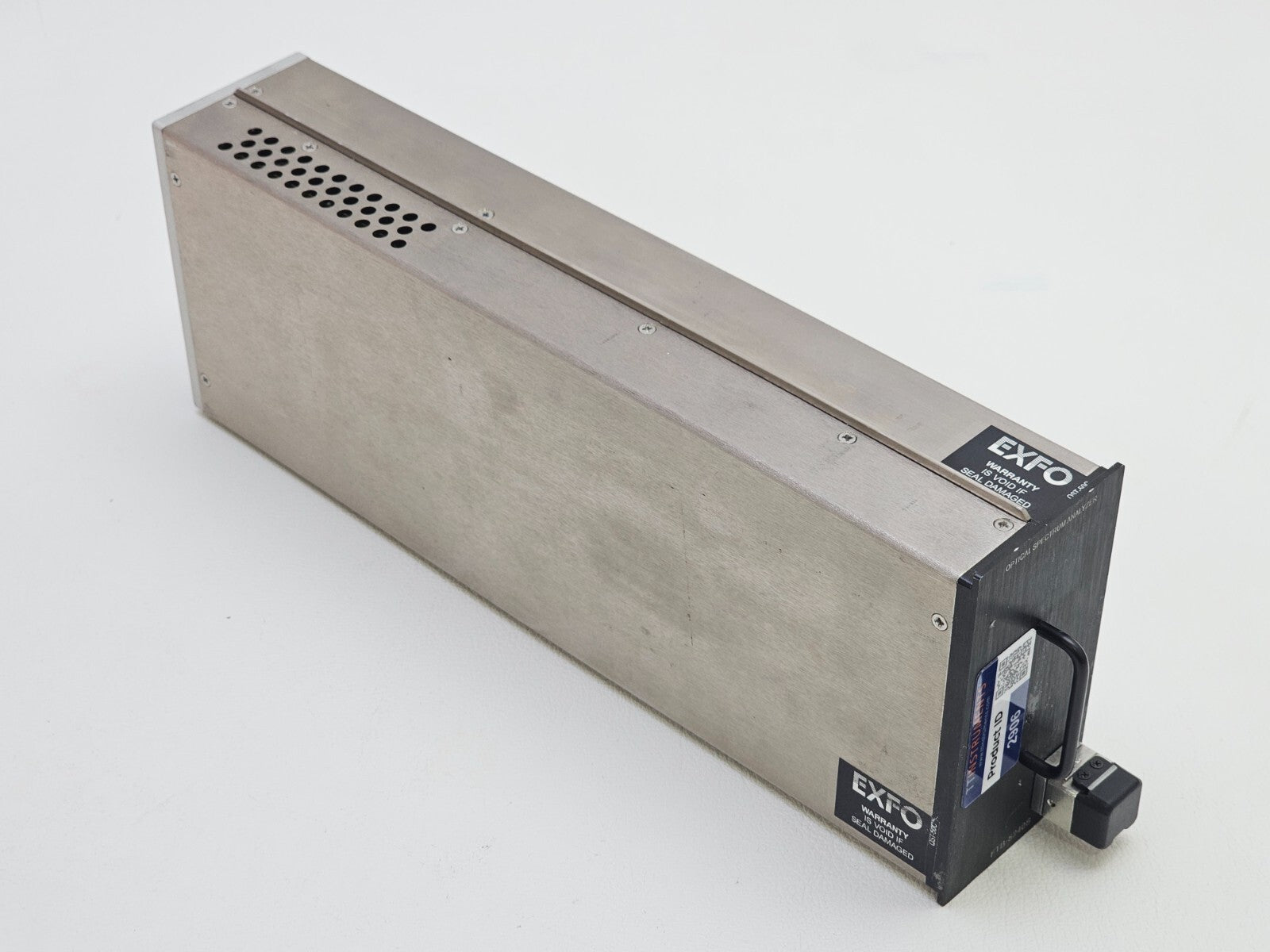

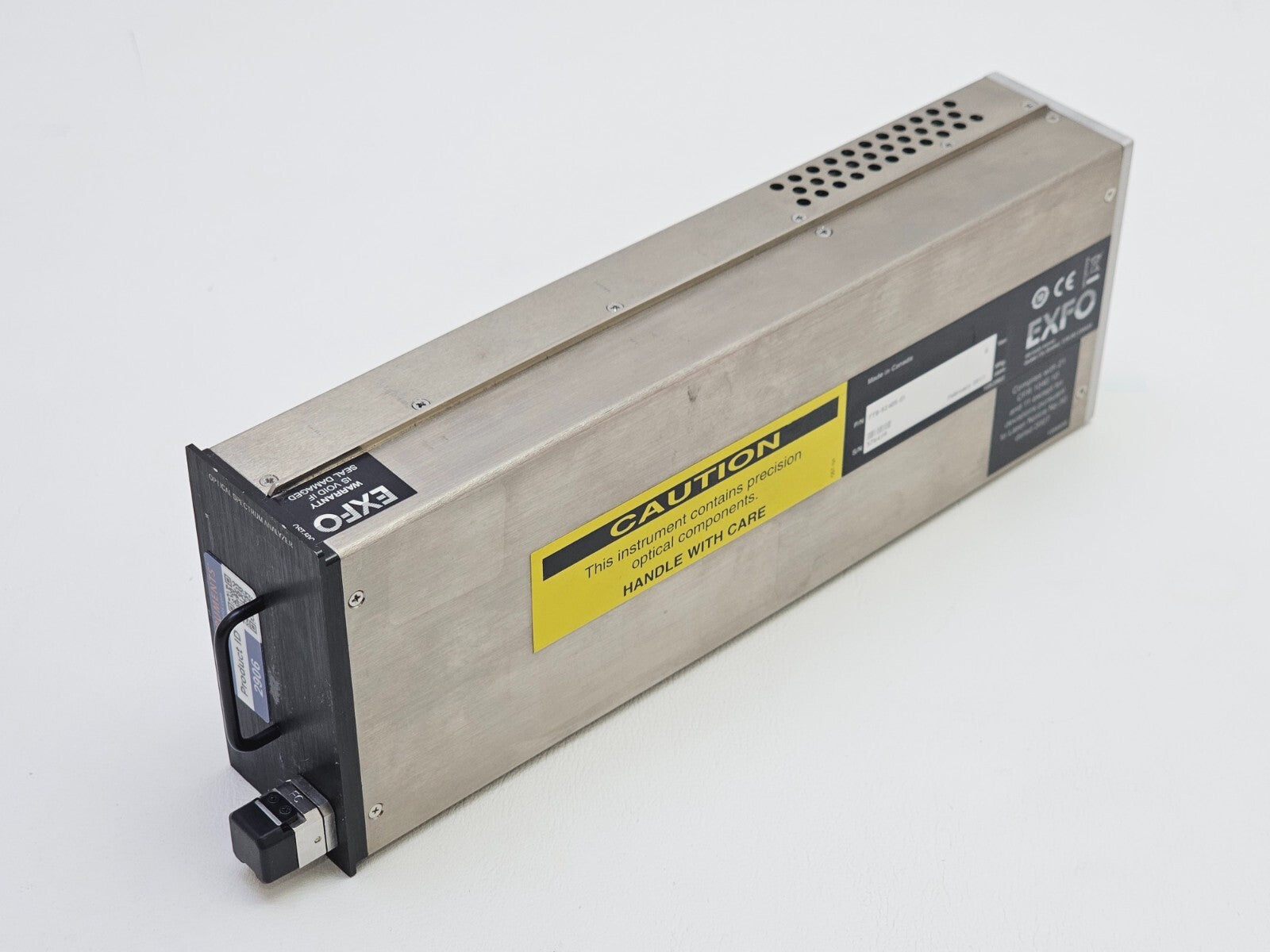

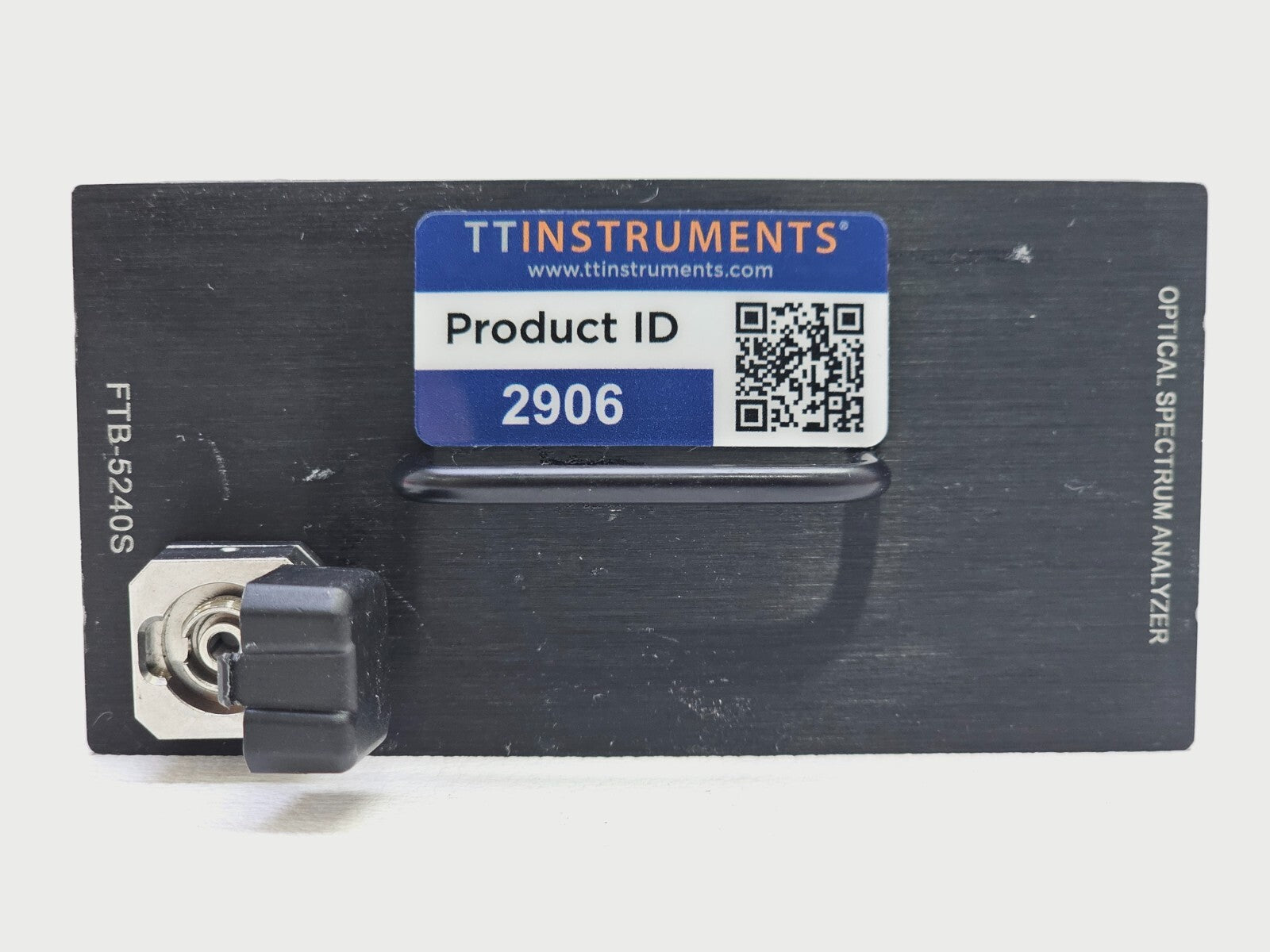

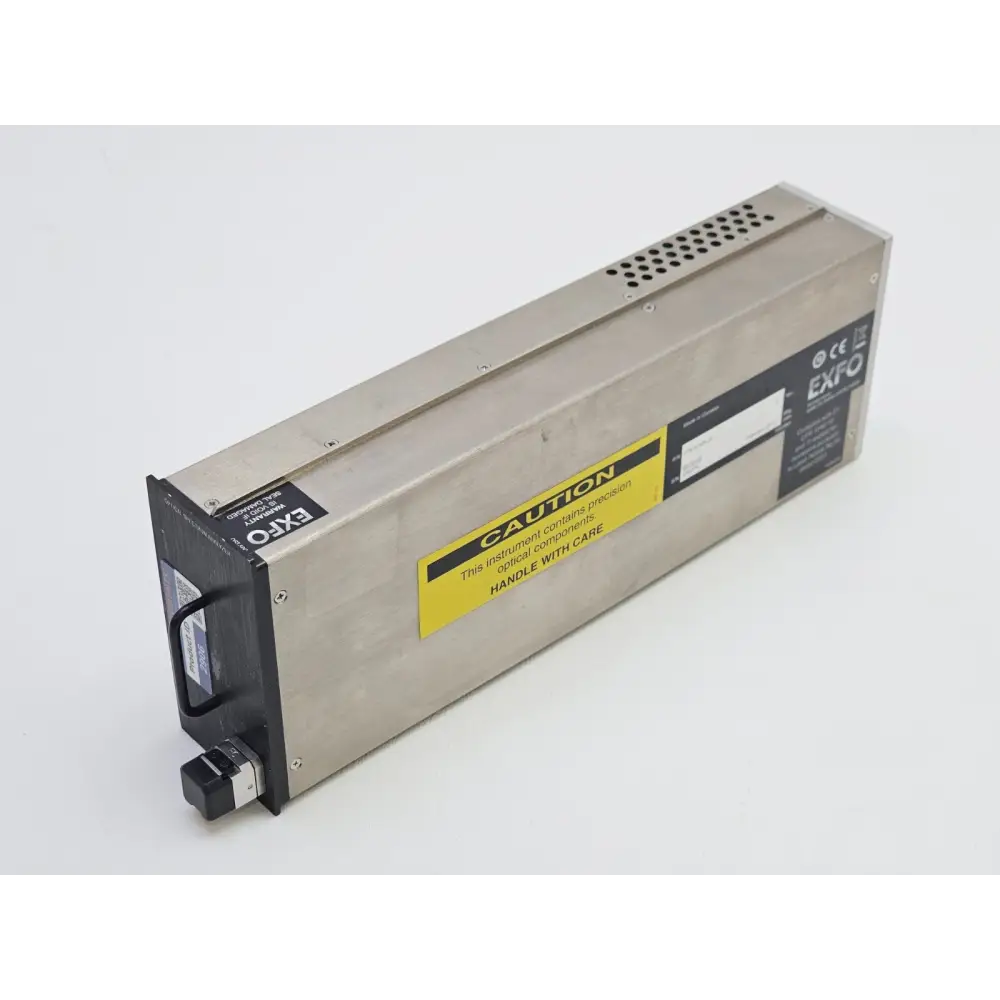

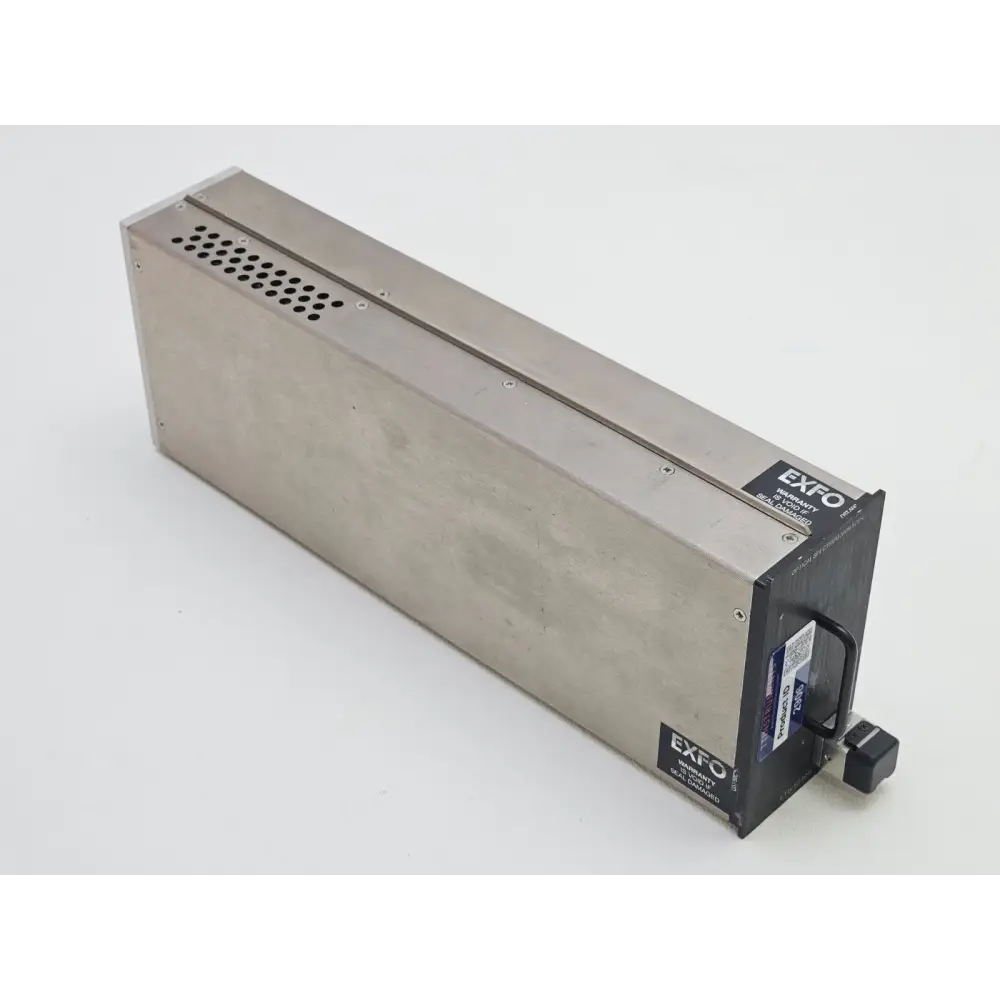

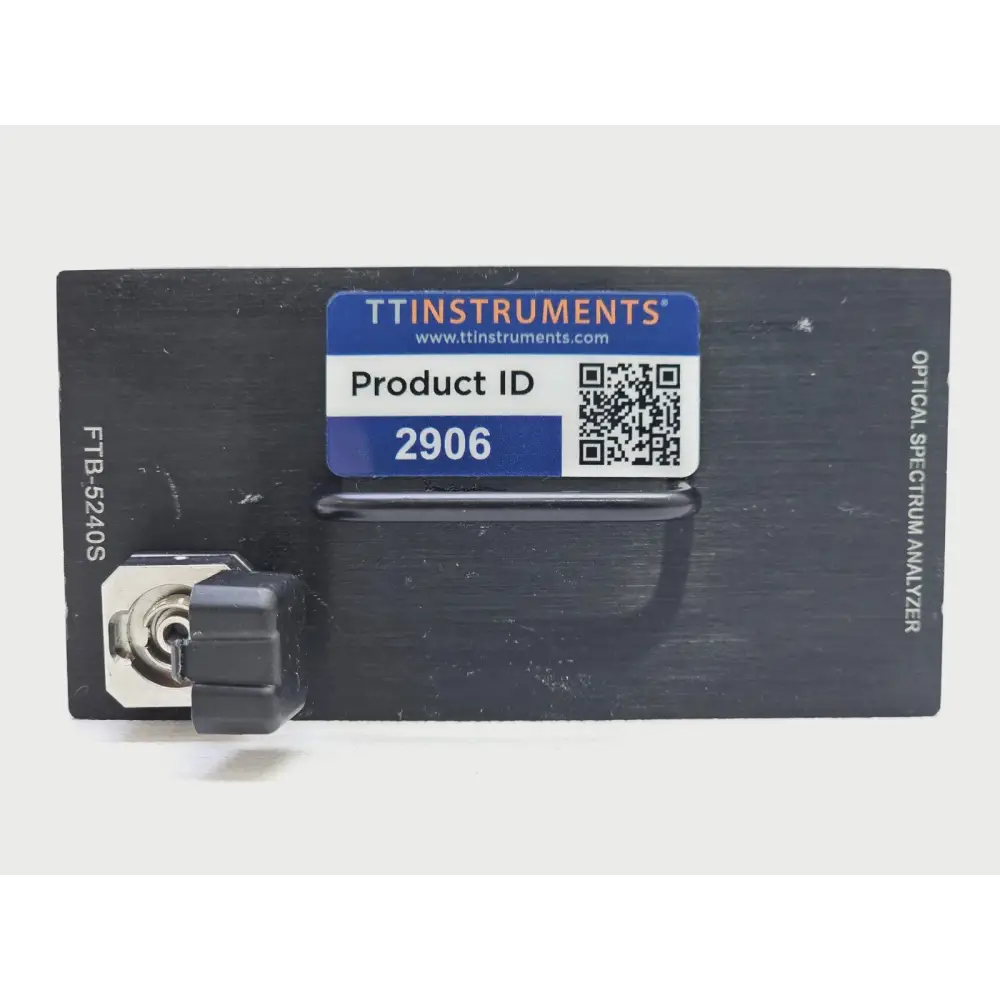

• FTB-5240S Module - (FC connector)

From the manufacturer:

FTB-5240S/BP - Optical Spectrum Analyzers

Highly accurate, easy-to-use intelligent optical spectrum analyzers (OSAs) for analysis of CWDM and DWDM networks.

With the increasing sophistication of communication networks comes the need for equally powerful test and measurement equipment designed to meet the challenges of DWDM. Whether testing involves manufacturing, installing and commissioning network fiber, or managing, maintaining, monitoring and troubleshooting performance elements, EXFO FTB-5240 and FTB-5240B Optical Spectrum Analyzers (OSAs) are ready to handle any situation. In addition, the FTB-5240B OSA gives you the best of two worlds: the impressive specifications of a lab-quality instrument in a state-of-the-art, field-ready modular unit for fast, accurate and efficient fiber characterization.

KEY FEATURES

Lab-quality, portable optical spectrum analyzer

Wide spectral range: 1250 nm to 1650 nm

High ORR: up to 50 dBc at 0.2 nm

Wavelength accuracy: down to 15 pm

Powerful DWDM Specifications: With excellent ORR, resolution bandwidth, wavelength range and dynamic range, the FTB-5240 OSA provides flexibility and power. With even better ORR and high resolution, the FTB-5240B is ready for the next generation of ultra dense WDM.

Easy to Use: One-button operation. Automated functions are accessed through a simple, intuitive touchscreen interface. The graphical user interface provides easy access to menus and functions.

Rugged Portability: Housed in a tough, lightweight magnesium shell and rubber-bumpered FTB-400 UTS, EXFO OSA will survive bumps and drops in the field or from a lab bench.

Best-in-Class ORR Option: The new FTB-5240B option provides unmatched accuracy for OSNR measurements, thanks to the best ORR in the industry: up to 40 dBc at 0.1 nm, 50 dBc at 0.2 nm and 55 dBc at 0.4 nm.

Internal Calibration: The new FTB-5240B has an internal reference light source that maintains wavelength uncertainty at ± 30 pm in the C+L band.

External Calibration: Use an external source to recalibrate your OSA prior to test sessions and achieve wavelength uncertainty as good as 15 pm in the C+L band.

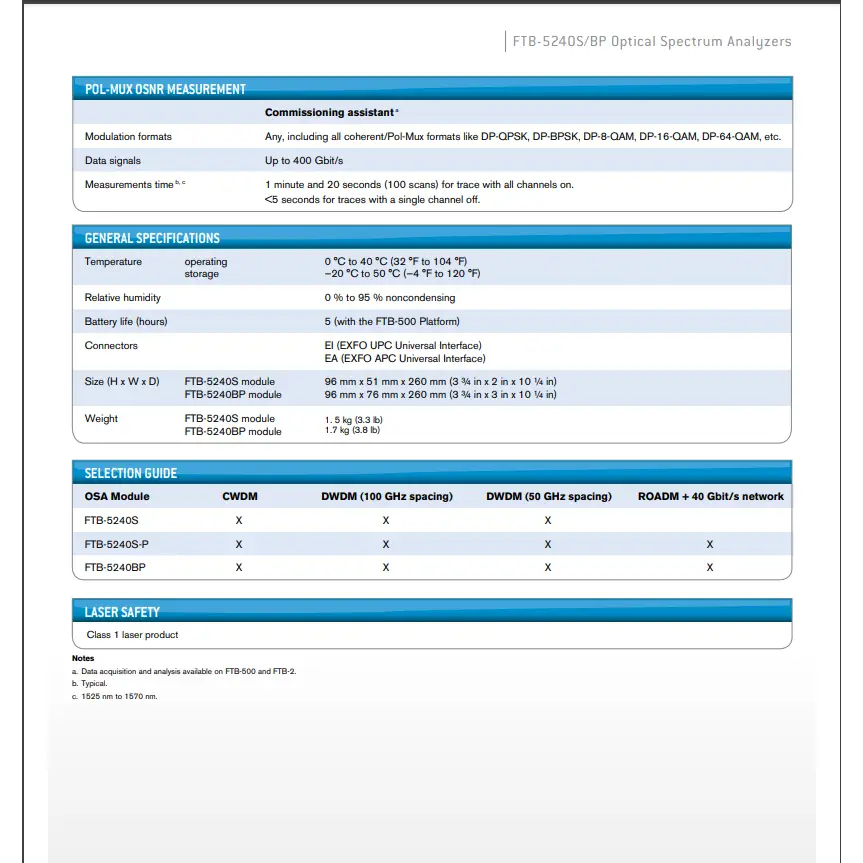

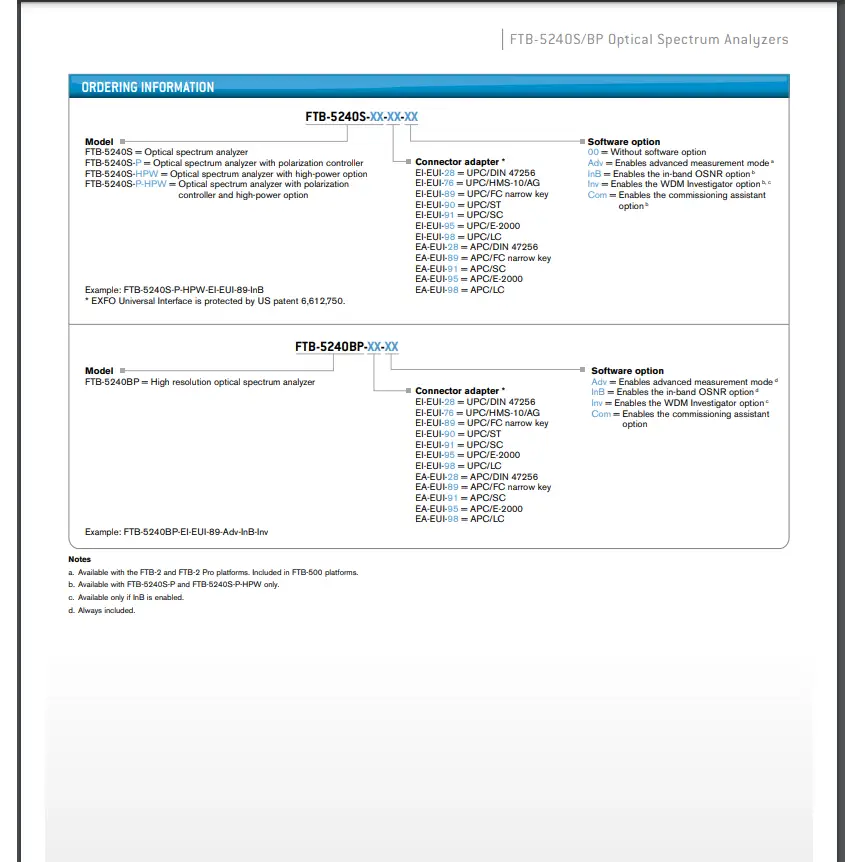

Please refer to the manufacturer spec sheet for detailed information.

Please refer to manufacturer's website for more information
