Condition: Used

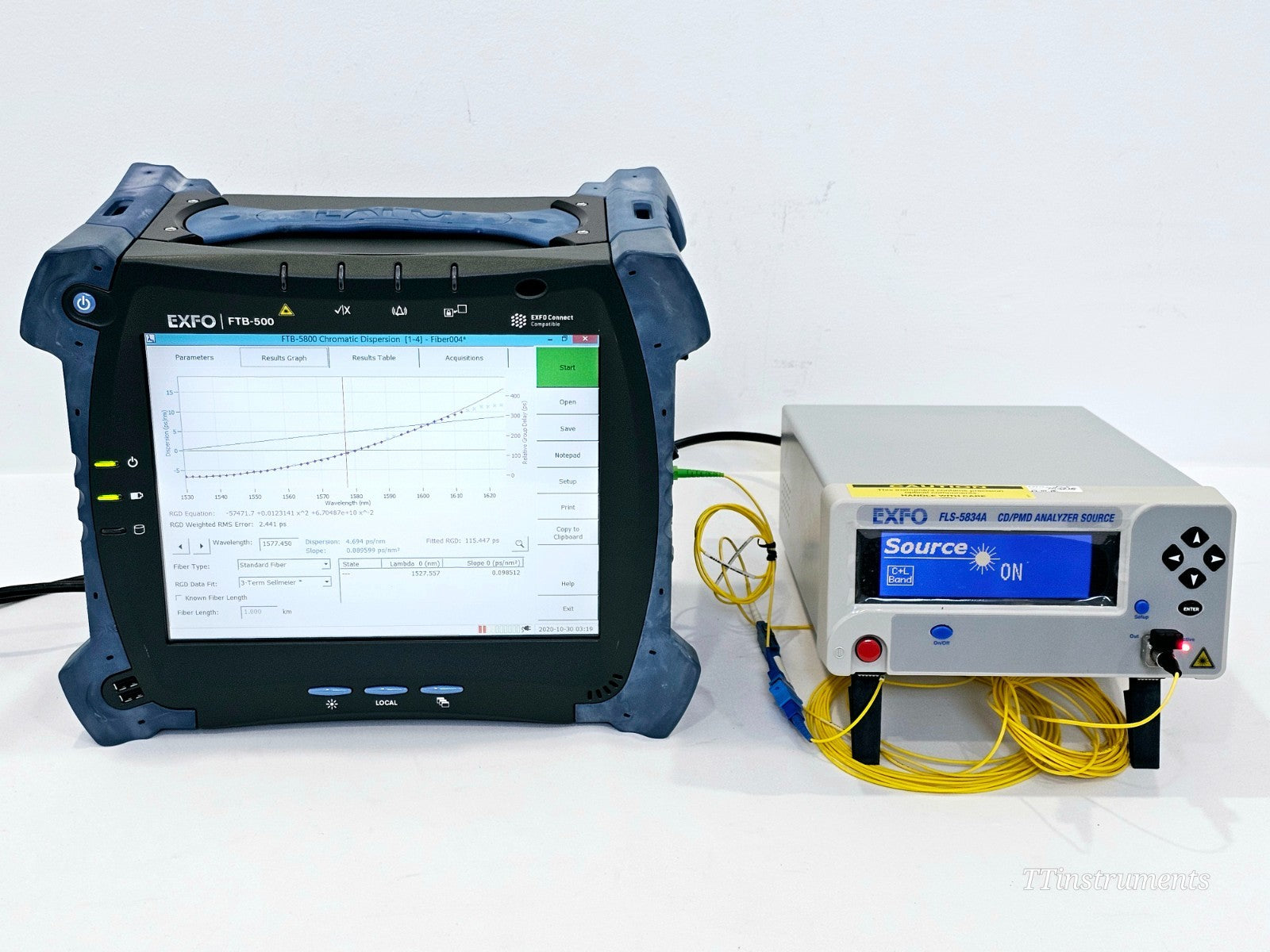

An excellent-condition, 2020-manufactured EXFO FTB-500 OCT platform configured as a complete CD and PMD fibre characterisation system. Supplied in protective cases and ready for immediate field deployment.

Included in the sale:

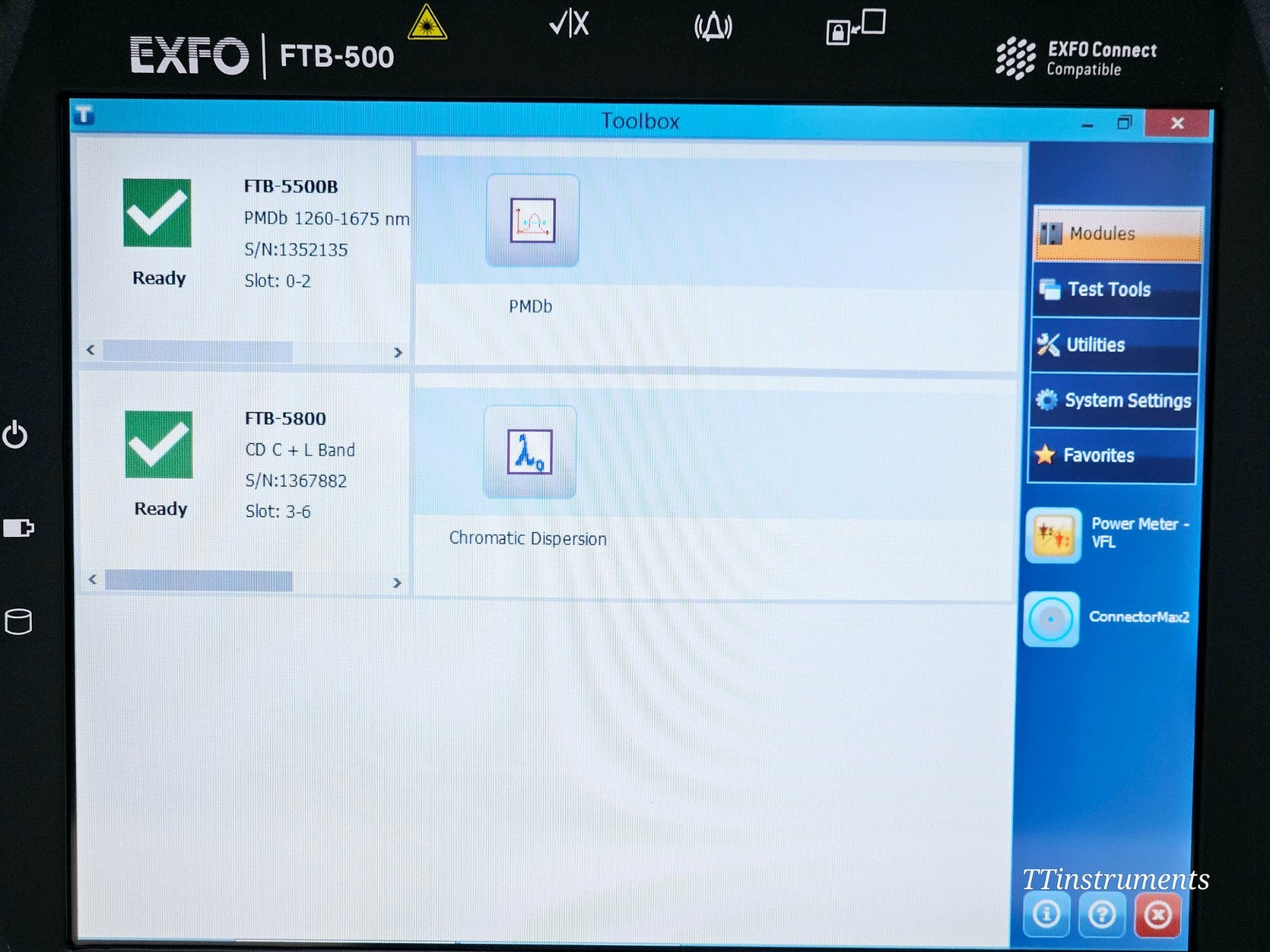

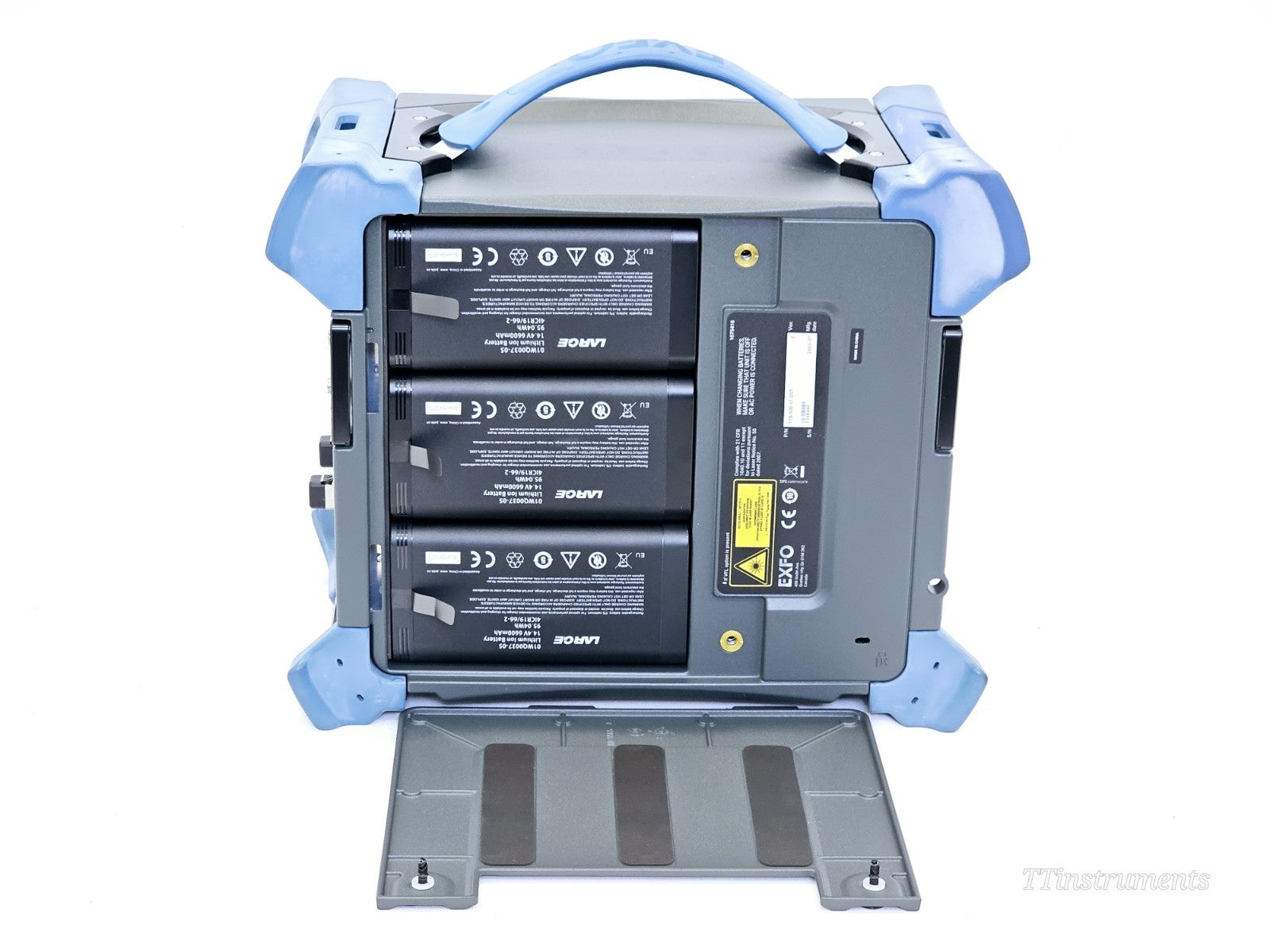

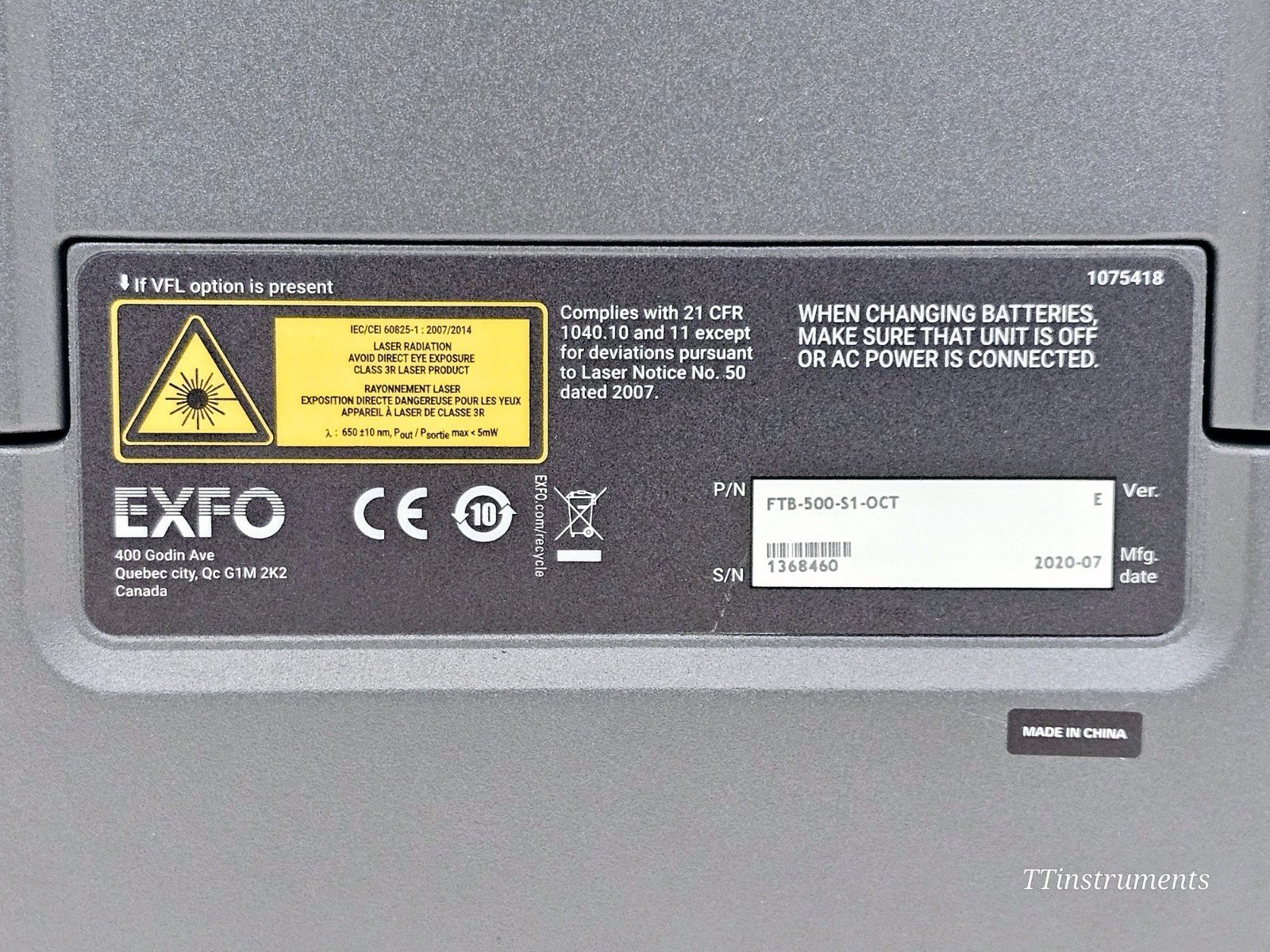

• FTB-500-S1-OCT Mainframe with 3 batteries and protective carry case

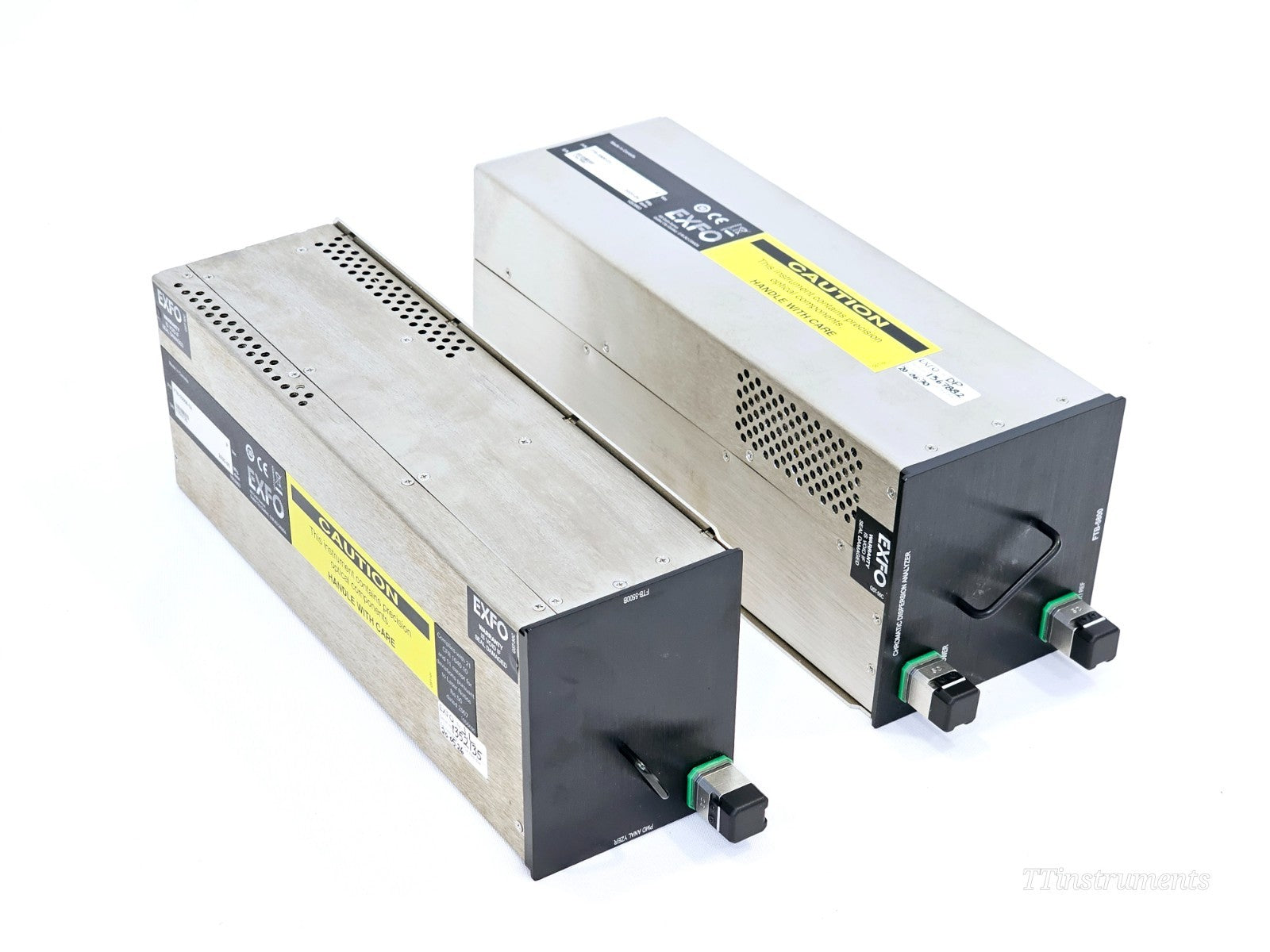

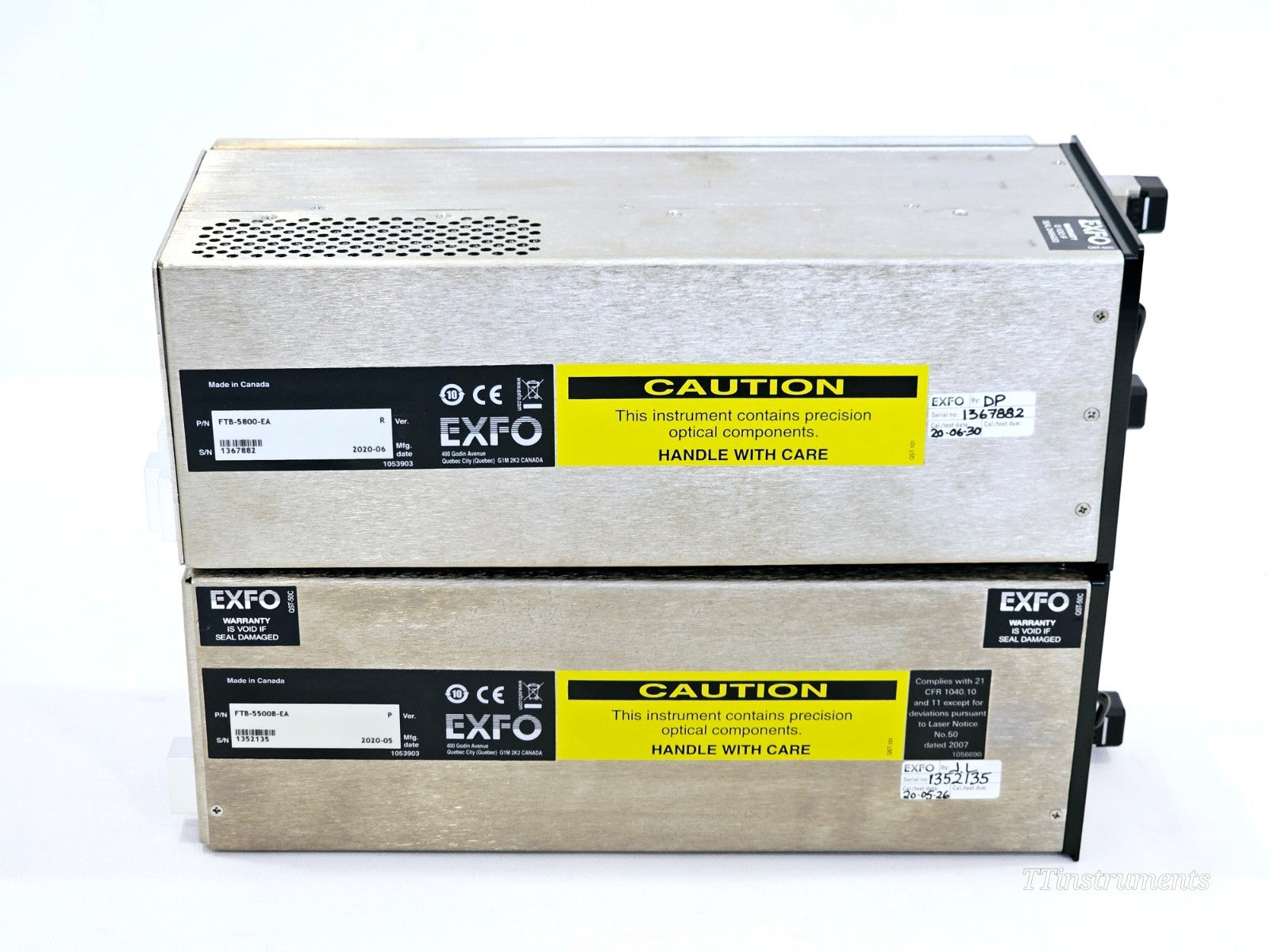

• FTB-5800 C+L Band CD Analyzer module (APC connectors)
• FTB-5500B PMDb Analyzer 1260–1675 nm (APC connectors)
• FLS-5834A CD/PMD Analyzer Source with carry case (2014)

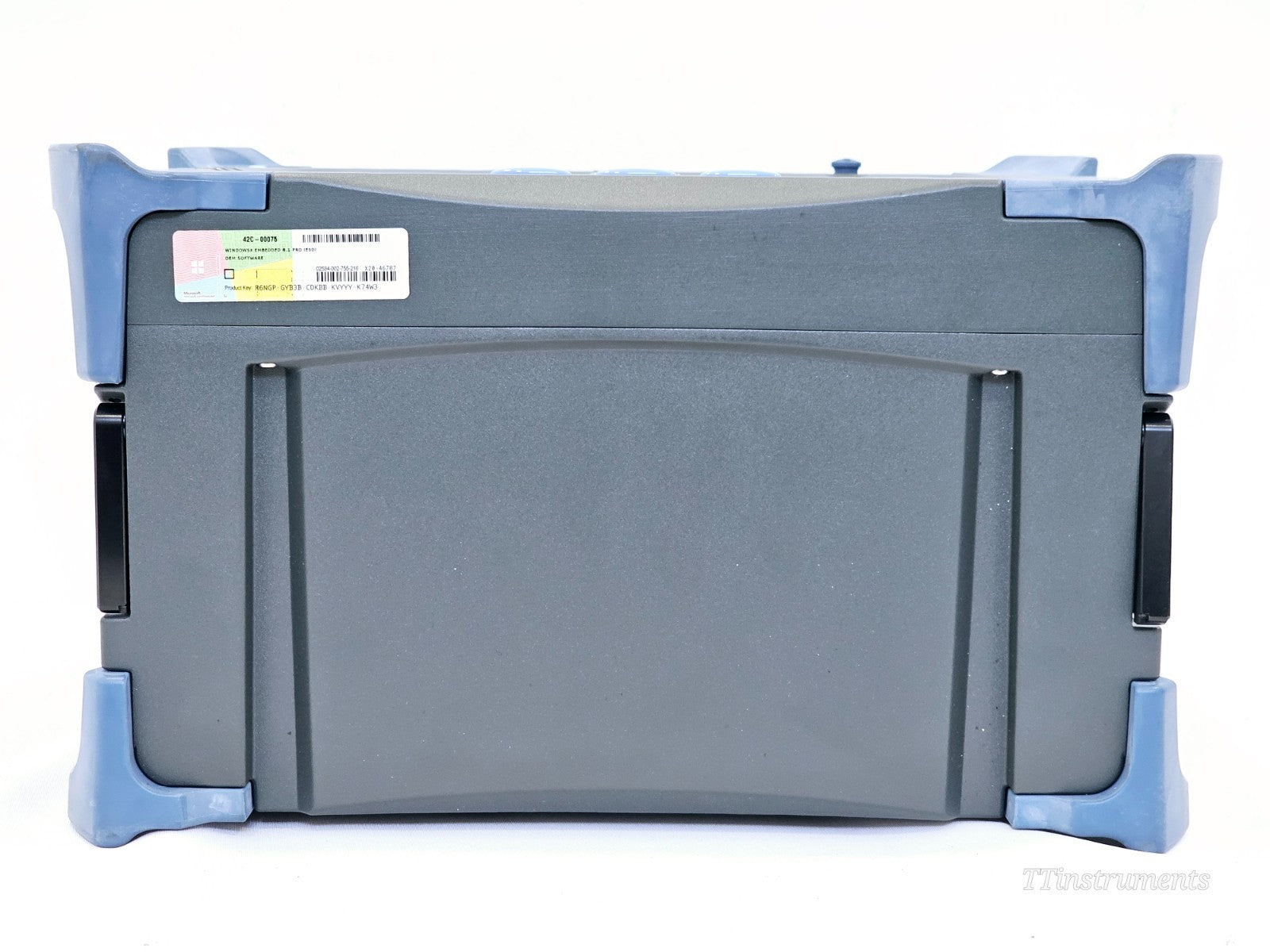

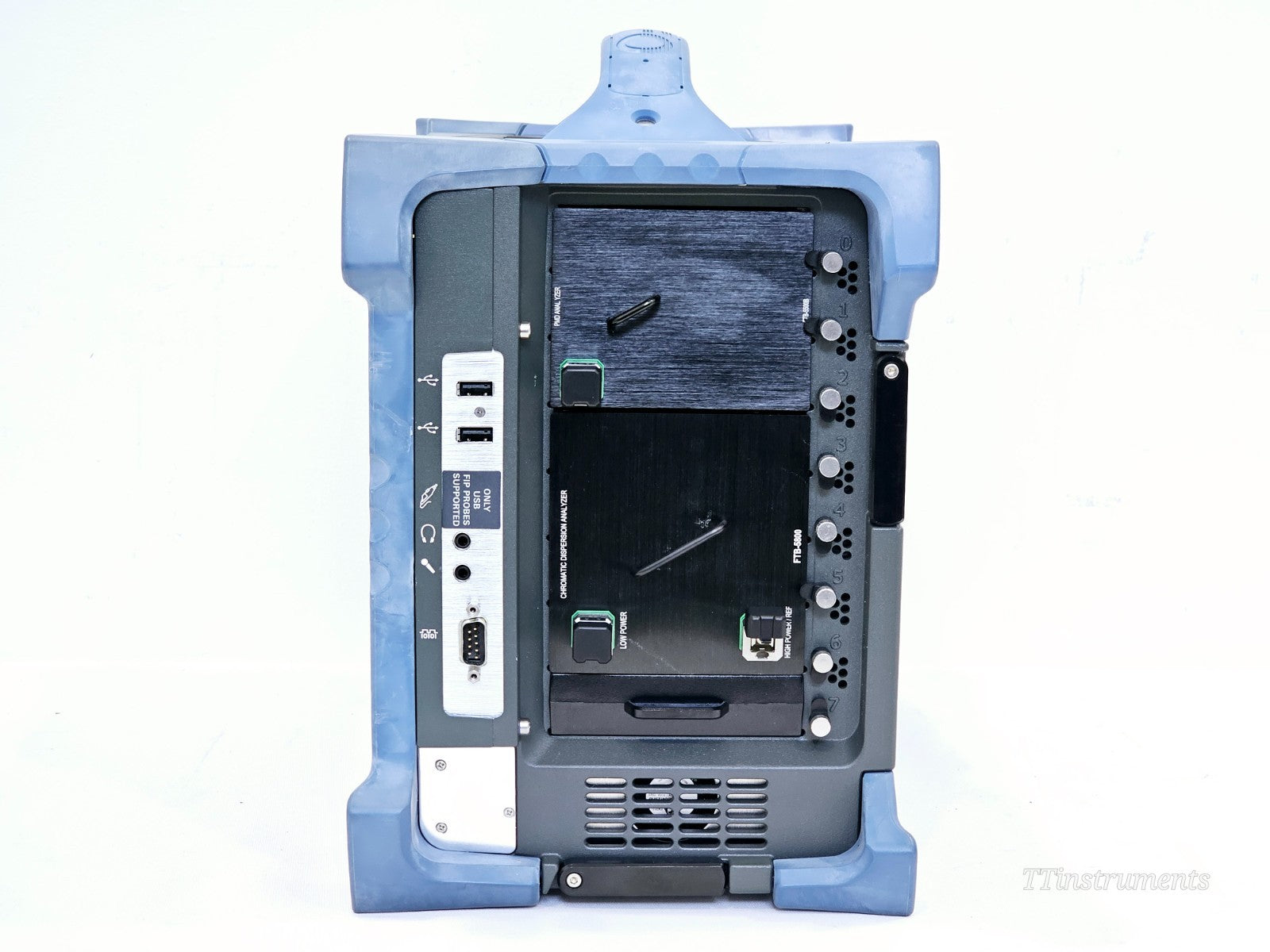

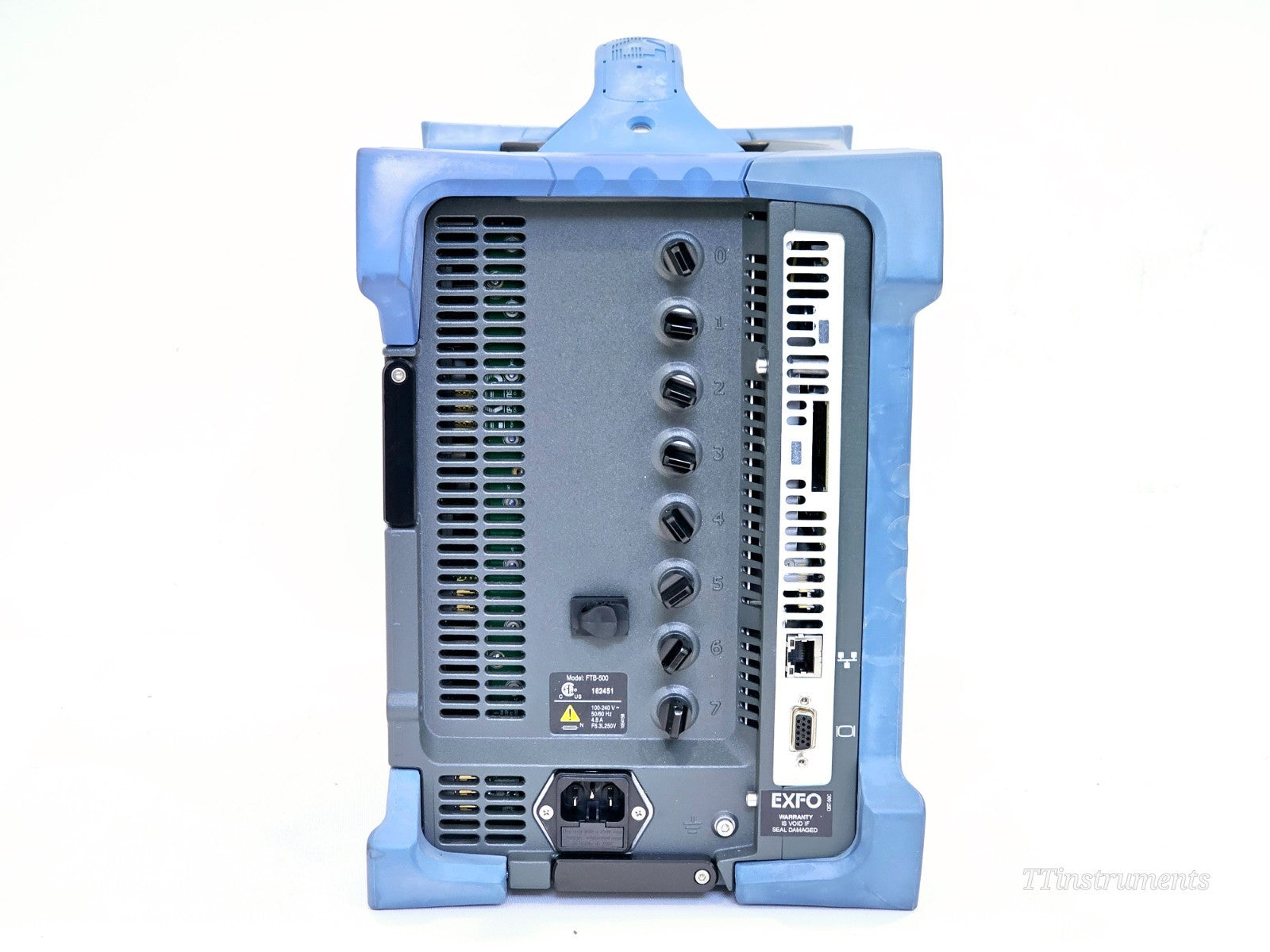

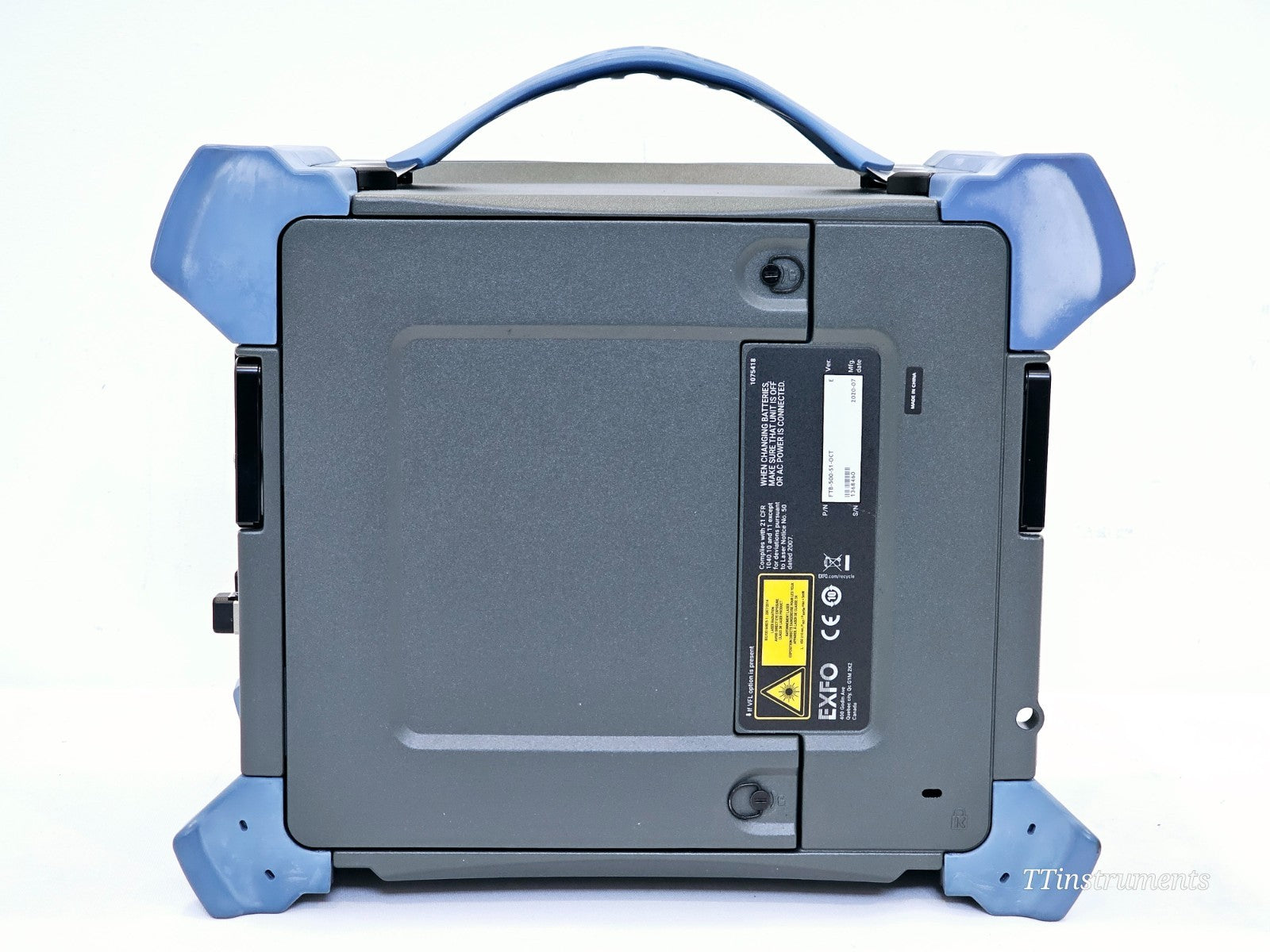

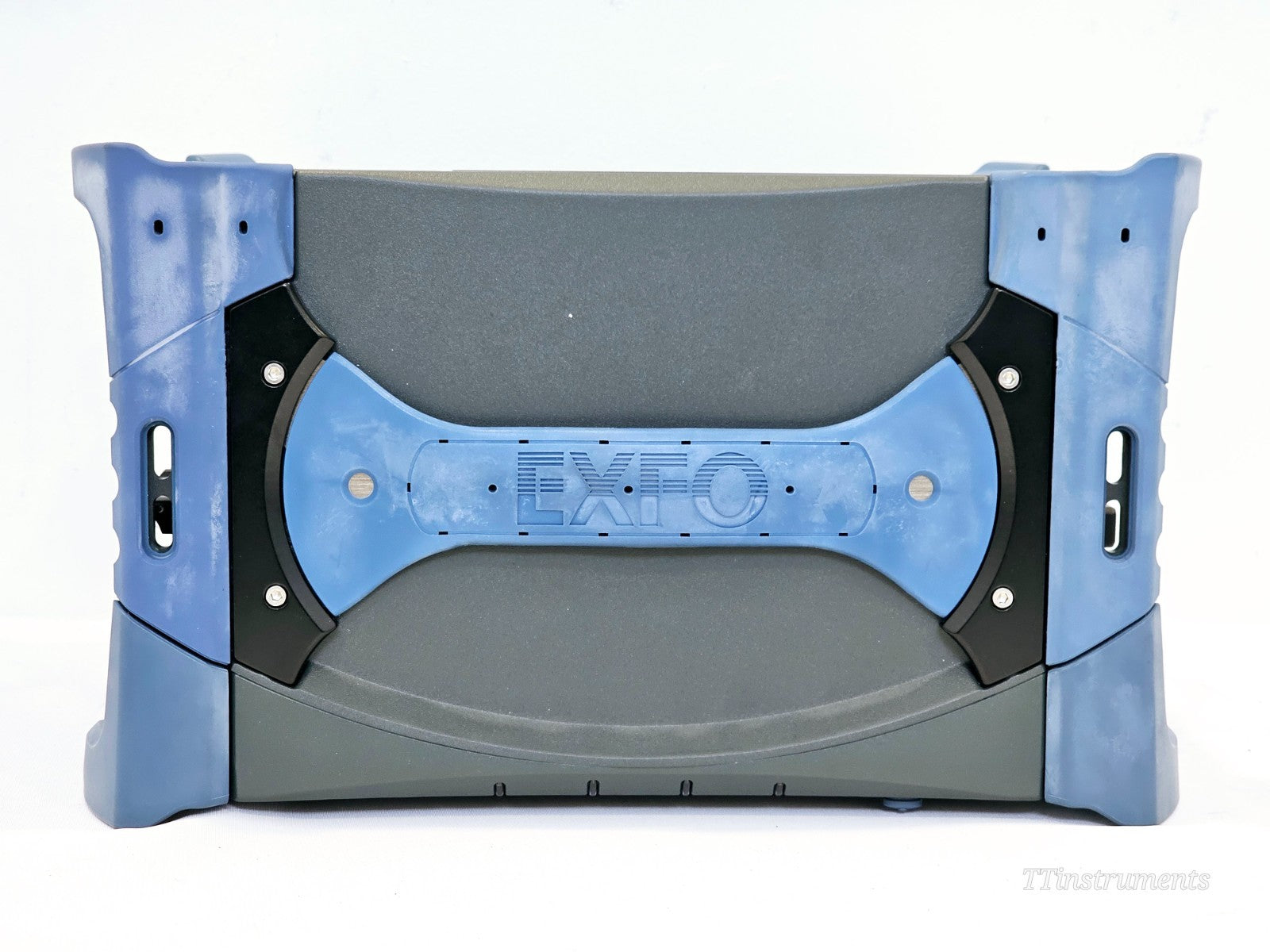

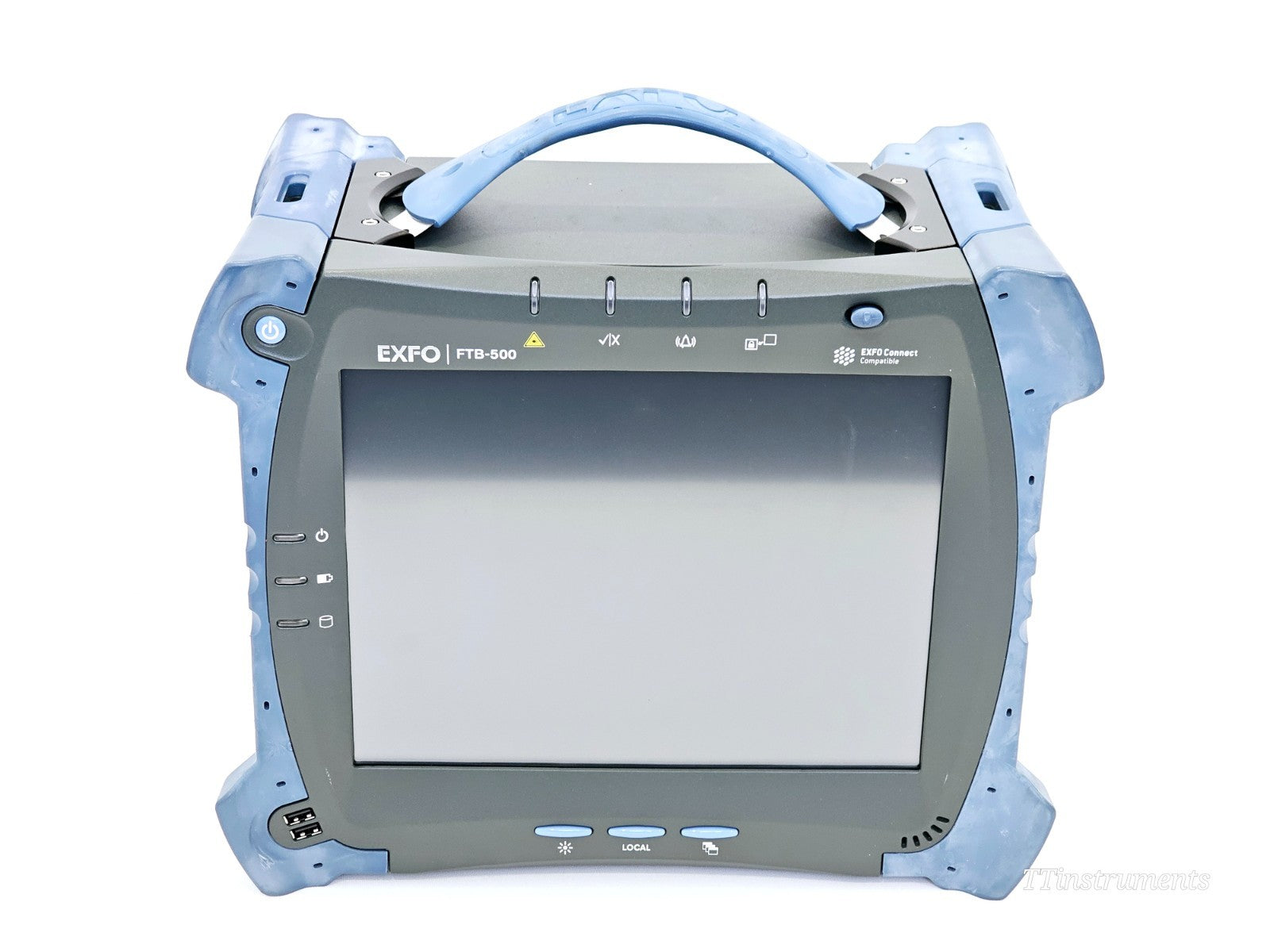

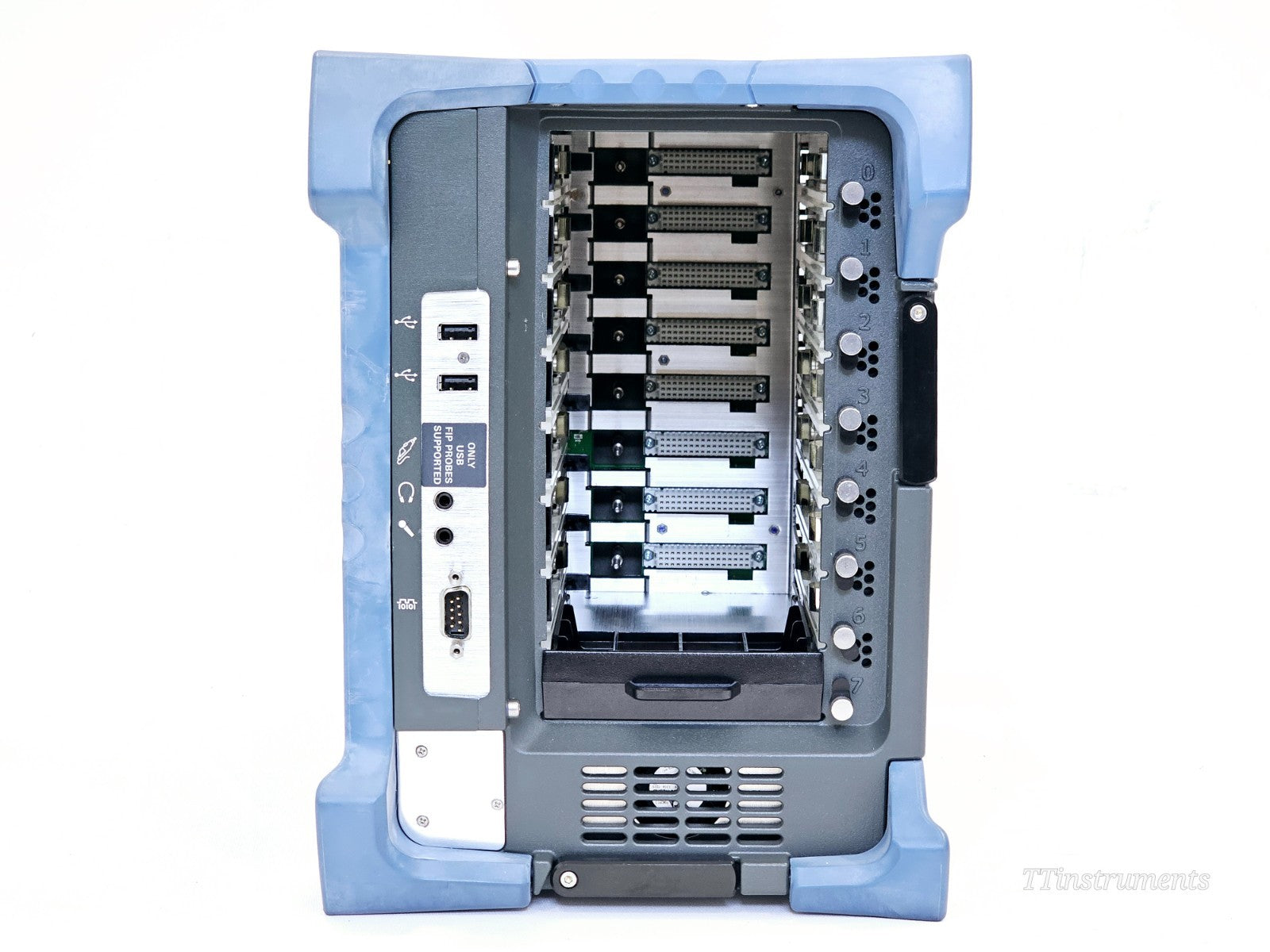

EXFO FTB-500 Platform
The FTB-500 is EXFO's advanced modular test platform, available in four-slot (QTR) and eight-slot (OCT) configurations. It houses any of EXFO's FTB plug-and-play modules, enabling users to combine physical and optical characterisation applications with transport and datacom test modules covering 10G, 40G and 100G network analysis. The platform runs a Windows-based OS on an Intel processor, features a colour touchscreen display, and connects via USB, Wi-Fi, 3G, VPN and Bluetooth. It is compatible with EXFO Connect for cloud-based asset management and GPS-enabled location tracking.

FTB-500 Platform Key Specifications:
Slot Capacity: 4-slot (QTR) or 8-slot (OCT)
Display: Colour touchscreen TFT, 800 x 600, 307 mm (12.1 in)
OS: Windows 8.1 Pro / Windows Embedded Standard

FTB-5800 CD Analyzer

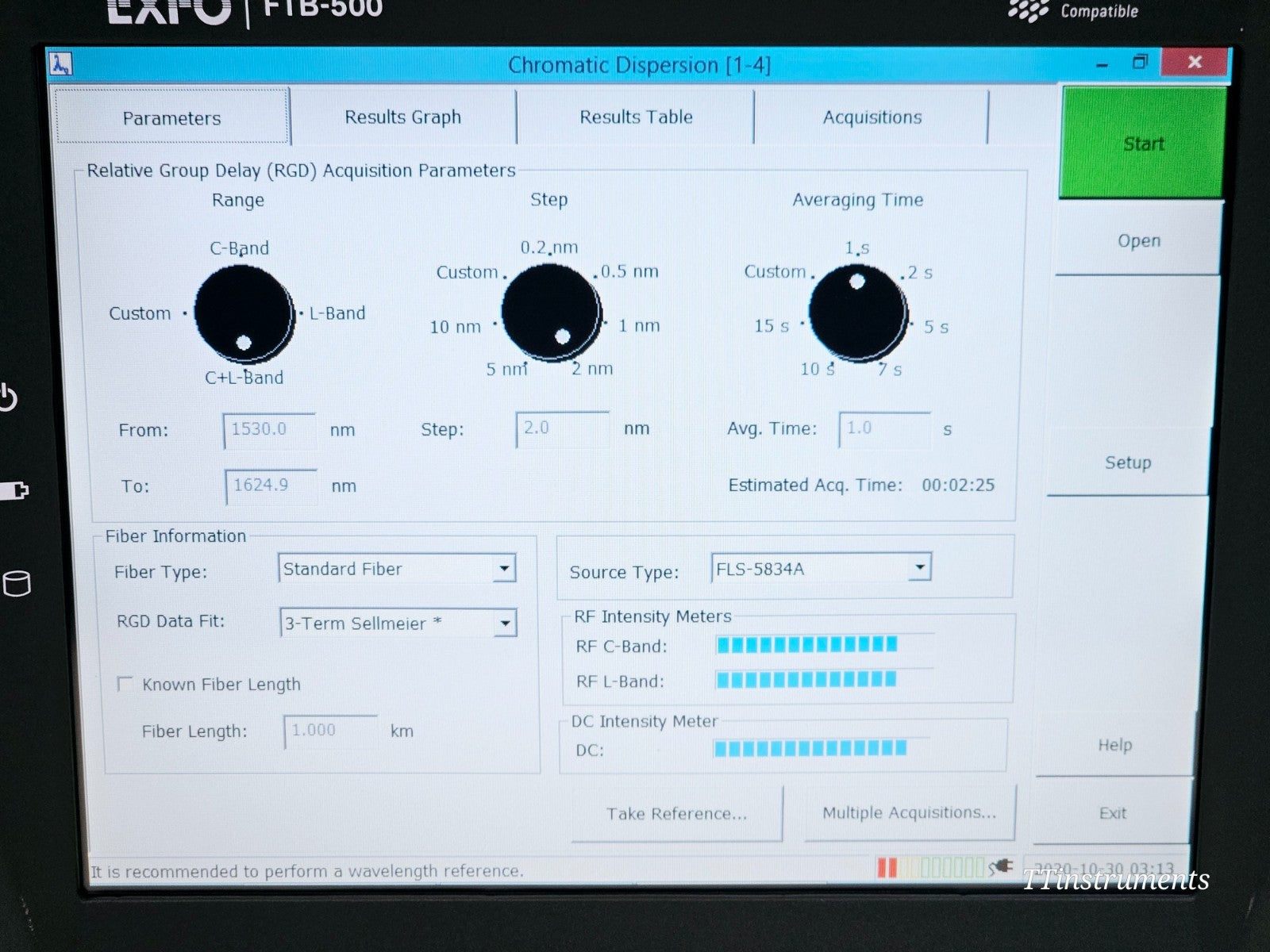

The FTB-5800 is a chromatic dispersion (CD) analyser module for the FTB-500 platform. Using the phase-shift method, it delivers fast and accurate CD measurements across the C and L bands. It is designed for 100 Gbit/s-ready network characterisation, supporting in-service and out-of-service testing on both single-mode and dispersion-shifted fibres. It pairs with the FLS-5834A light source for complete two-ended CD measurement.

FTB-5800 Key Specifications:
Measurement Method: Phase-shift
Wavelength Coverage: C+L Band
Connector Type: APC
Application: Chromatic dispersion measurement for high-speed networks

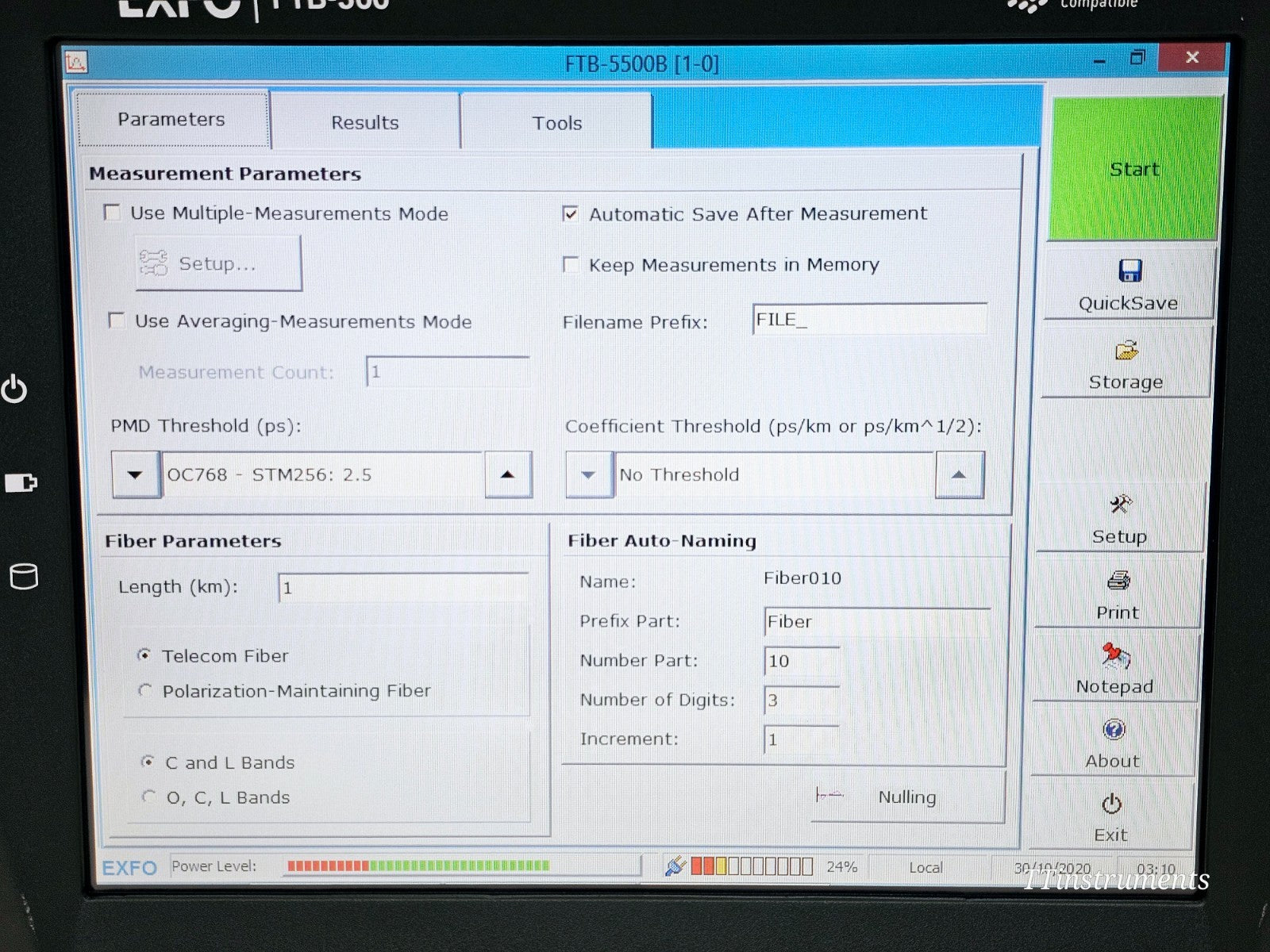

FTB-5500B PMD Analyzer
The FTB-5500B is a polarisation mode dispersion (PMD) analyser module for the FTB-500 platform. It measures PMD across a wide wavelength range using the Jones Matrix Eigenanalysis (JME) and Fixed Analyser methods. It is suitable for characterising installed fibres, cables, and components to assess their suitability for high-bit-rate transmission.

FTB-5500B Key Specifications:
Wavelength Range: 1260–1675 nm
Connector Type: APC
Measurement Methods: JME, Fixed Analyser
Application: PMD characterisation of fibres, cables and passive components

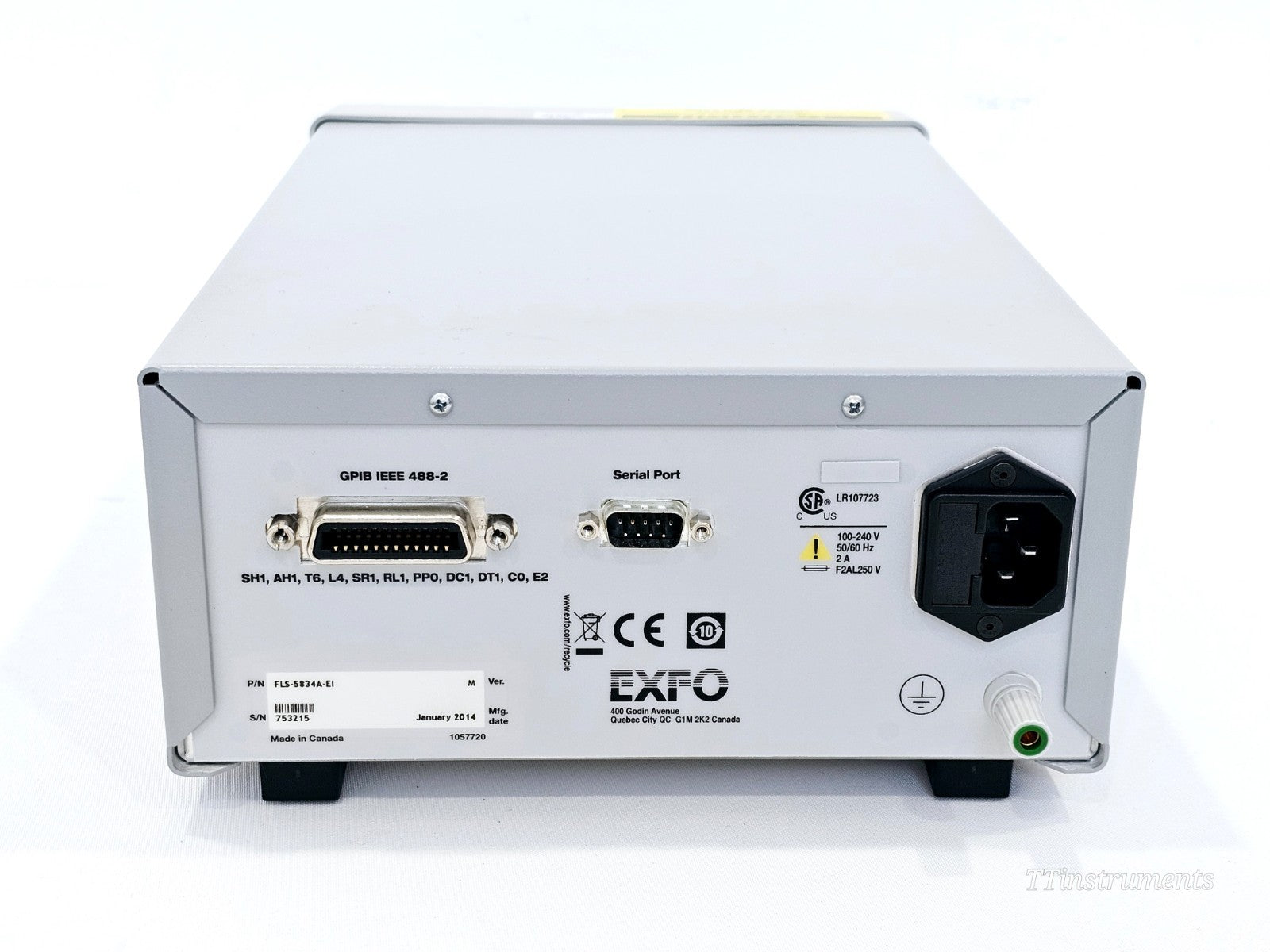

FLS-5834A CD/PMD Analyzer Source

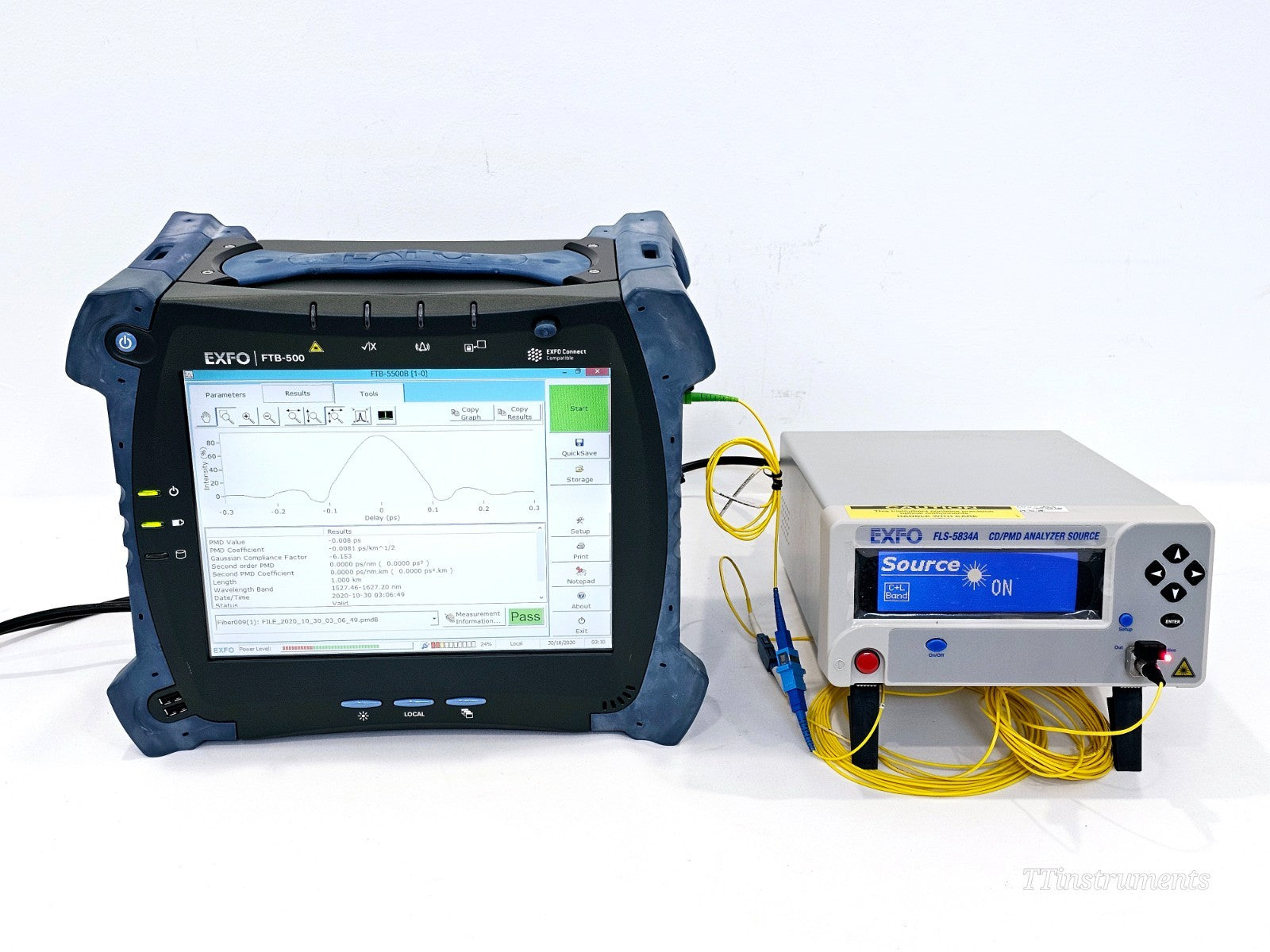

The FLS-5834A is a dedicated broadband light source designed to work in conjunction with the FTB-5800 and FTB-5500B modules for complete two-ended CD and PMD measurements in the field. It provides the illumination required for phase-shift CD and PMD analysis across the supported wavelength ranges.

Application Areas:
Long-haul and regional fibre network characterisation
100G and beyond network deployment and maintenance
Installed fibre PMD and CD acceptance testing
Field-based fibre quality assurance

EXFO FTB-5500B and FTB-5800 PMD and CD Analyzers Specifications Sheet: Download PDF
