The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

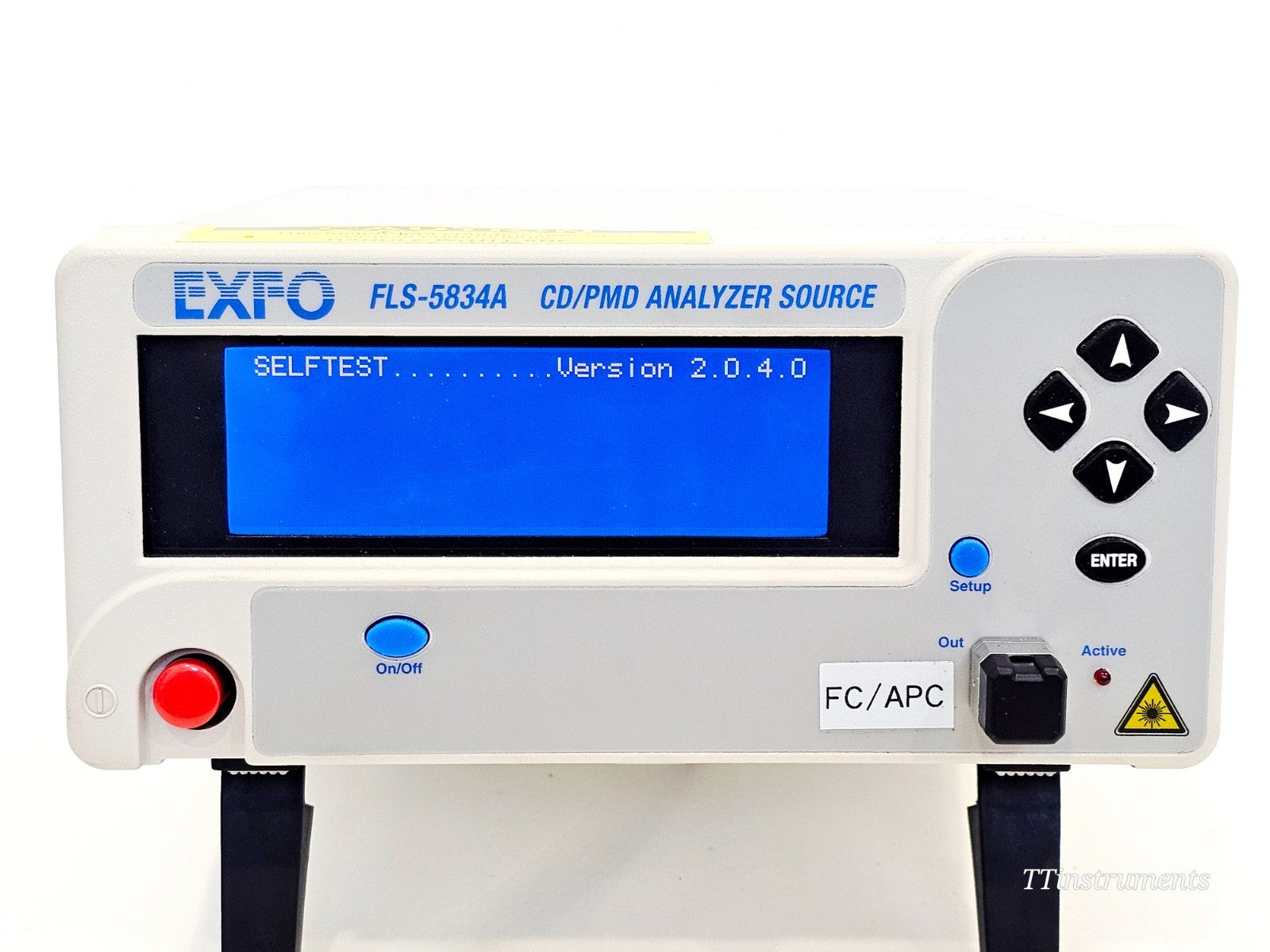

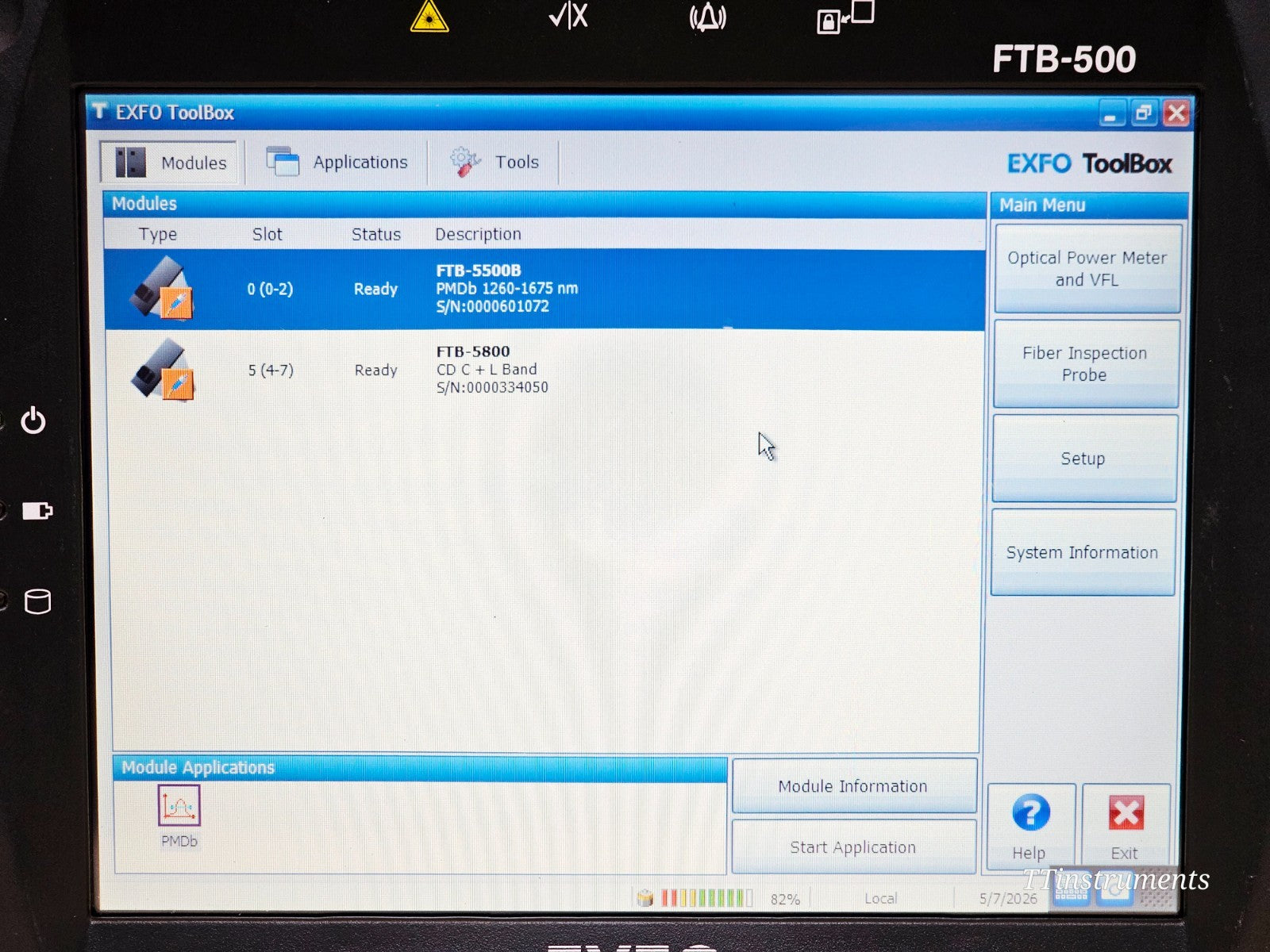

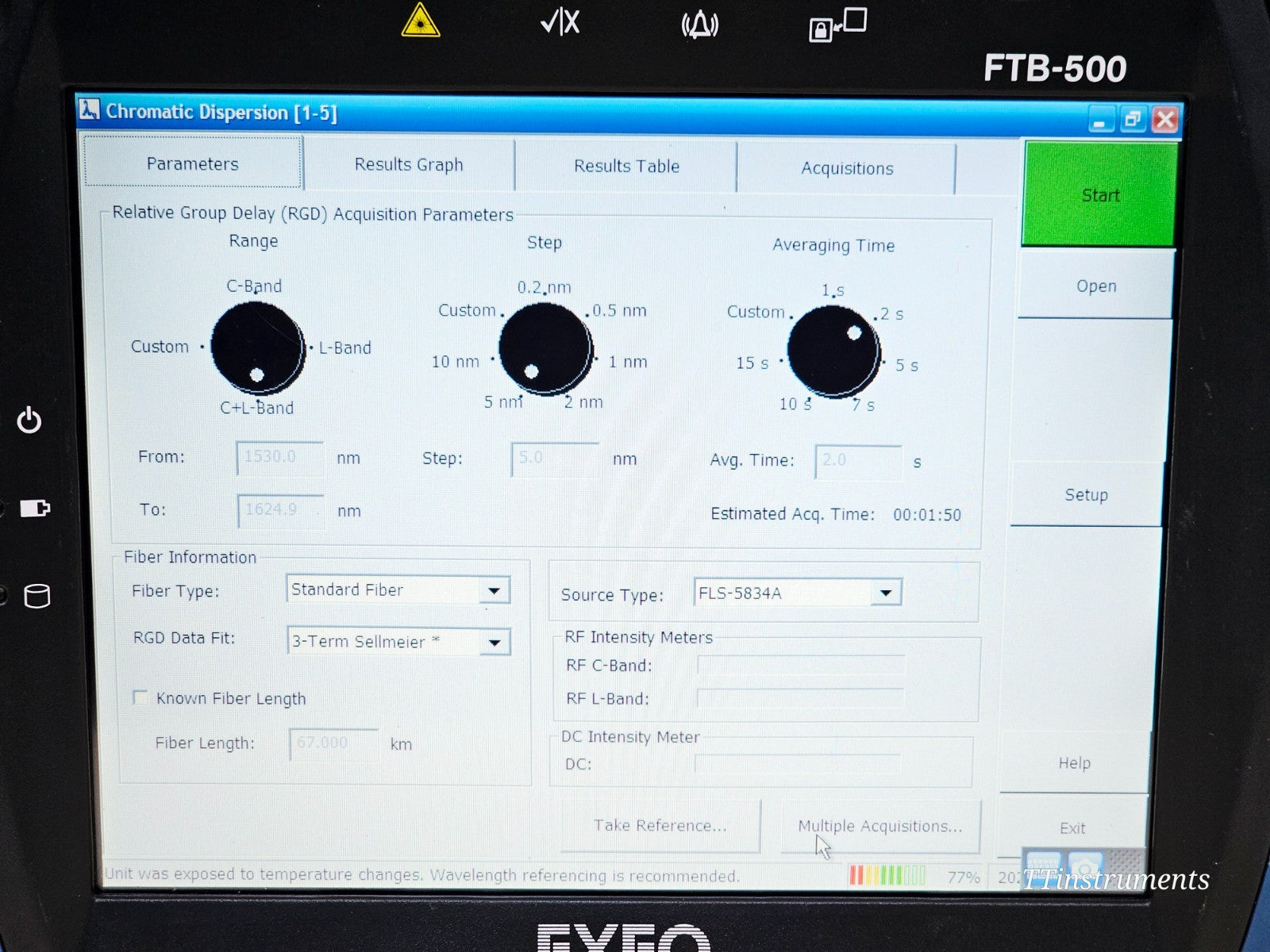

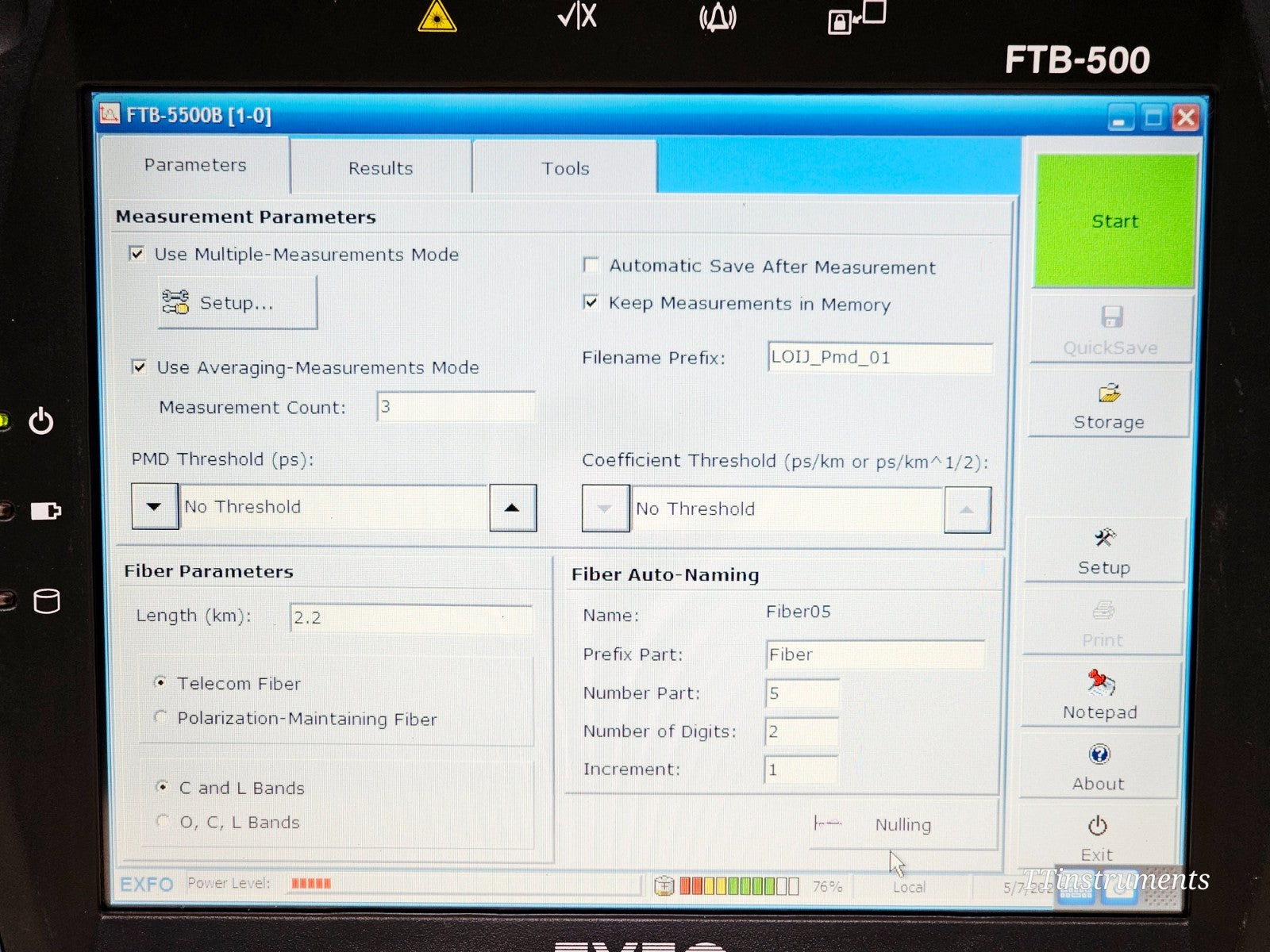

This system is in used condition and is in very good cosmetic condition throughout. The FTB-500 mainframe, both test modules, and the FLS-5834A source have all been tested and confirmed working. The FTB-500 boots into EXFO ToolBox, the FTB-5500B PMD Analyzer and FTB-5800 CD Analyzer modules are both detected with Ready status, and PMD and CD measurement applications operate correctly. The FLS-5834A CD/PMD Analyzer Source powers on and completes self-test successfully.

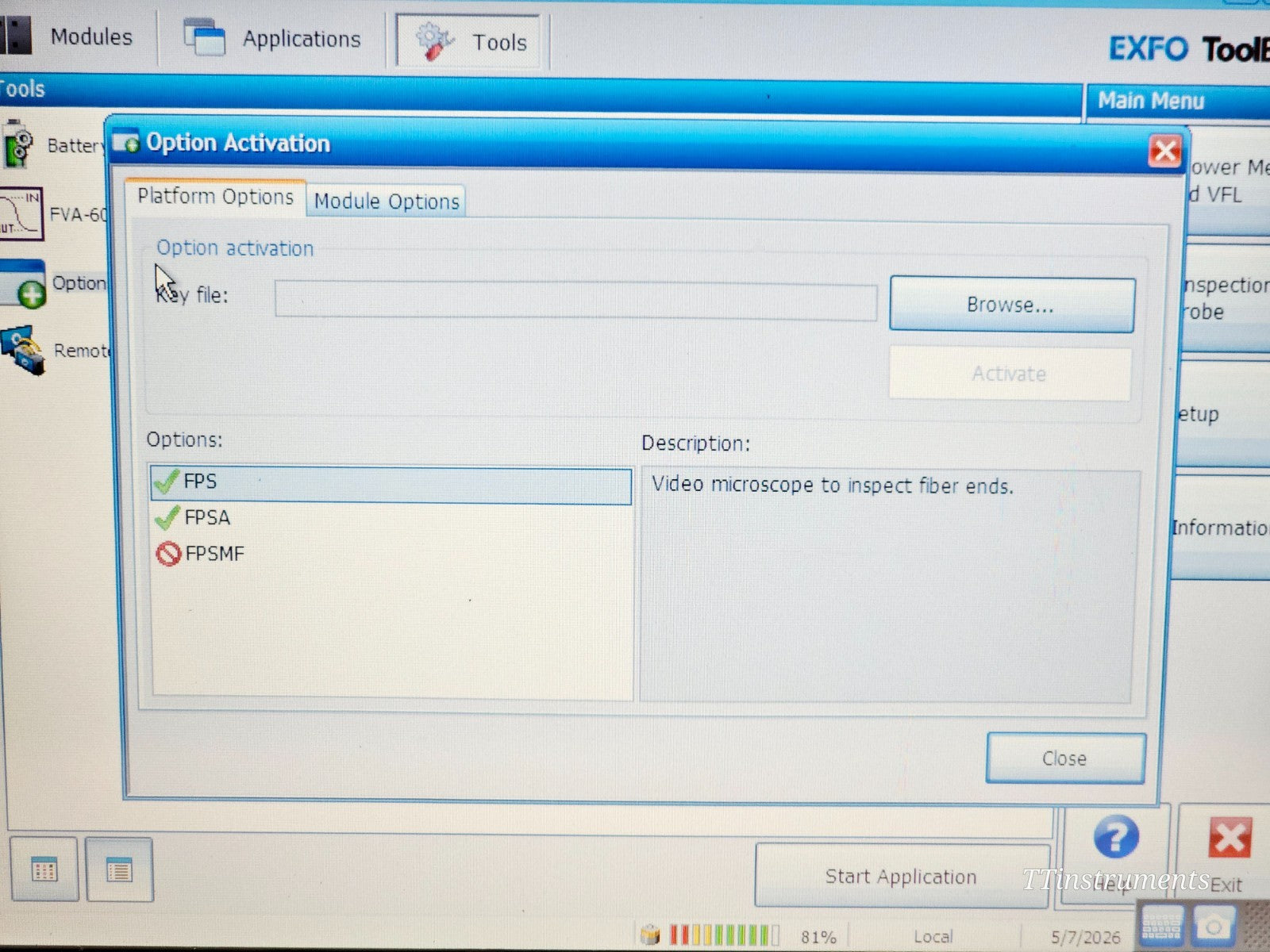

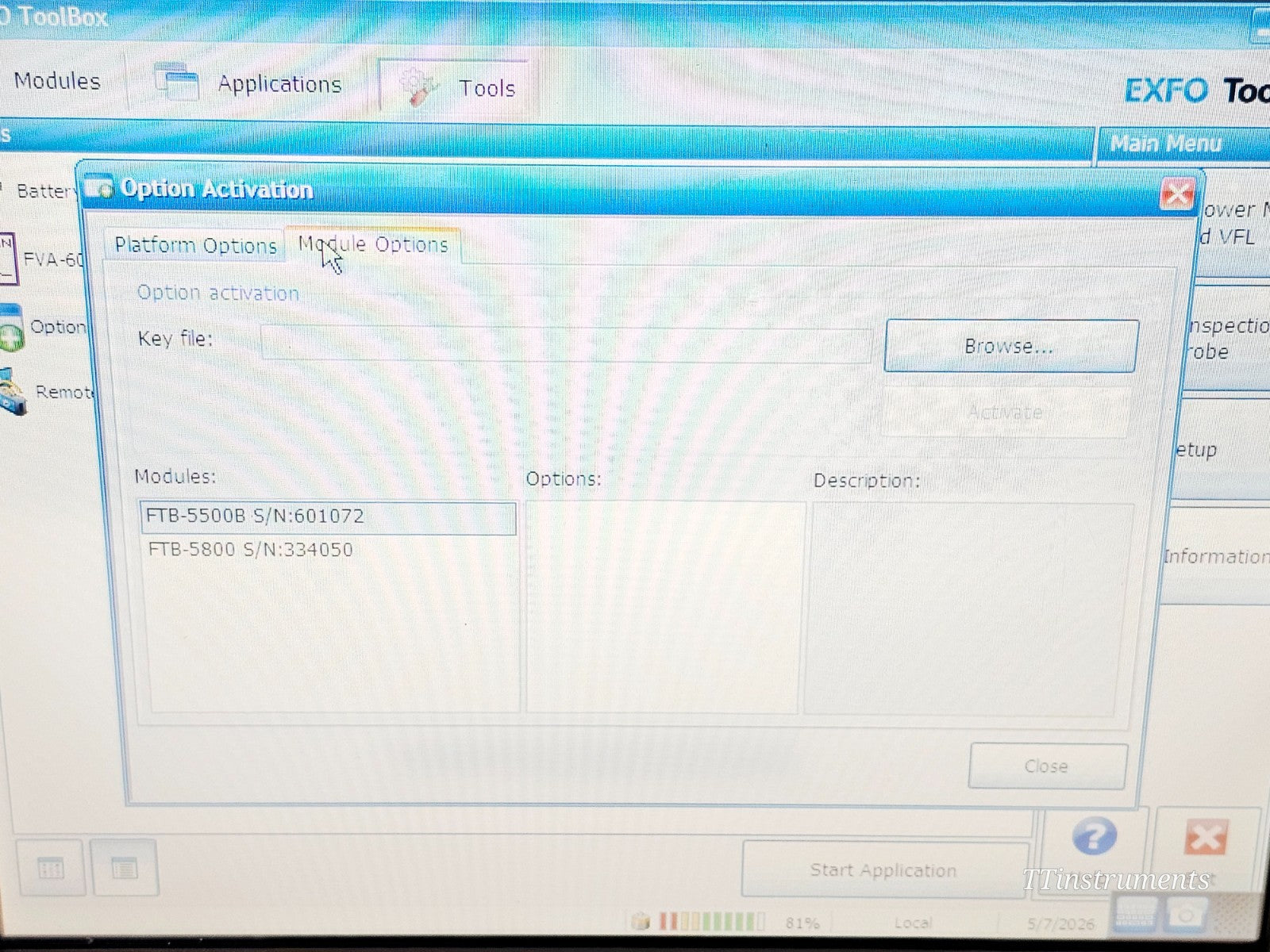

Active platform options (as confirmed in the Option Activation screen):
• FPS — Fiber Probe Software (video microscope fibre end inspection)
• FPSA — Fiber Probe Software with automatic pass/fail analysis

The FTB-5500B PMD Analyzer module is configured for 1260–1675 nm (O to U band) with C and L band measurement capability. The FTB-5800 CD Analyzer module covers C + L band (1530–1624.9 nm). The FLS-5834A source provides 1550 nm and 1625 nm SuperLED outputs via FC/APC connector.

This listing includes:

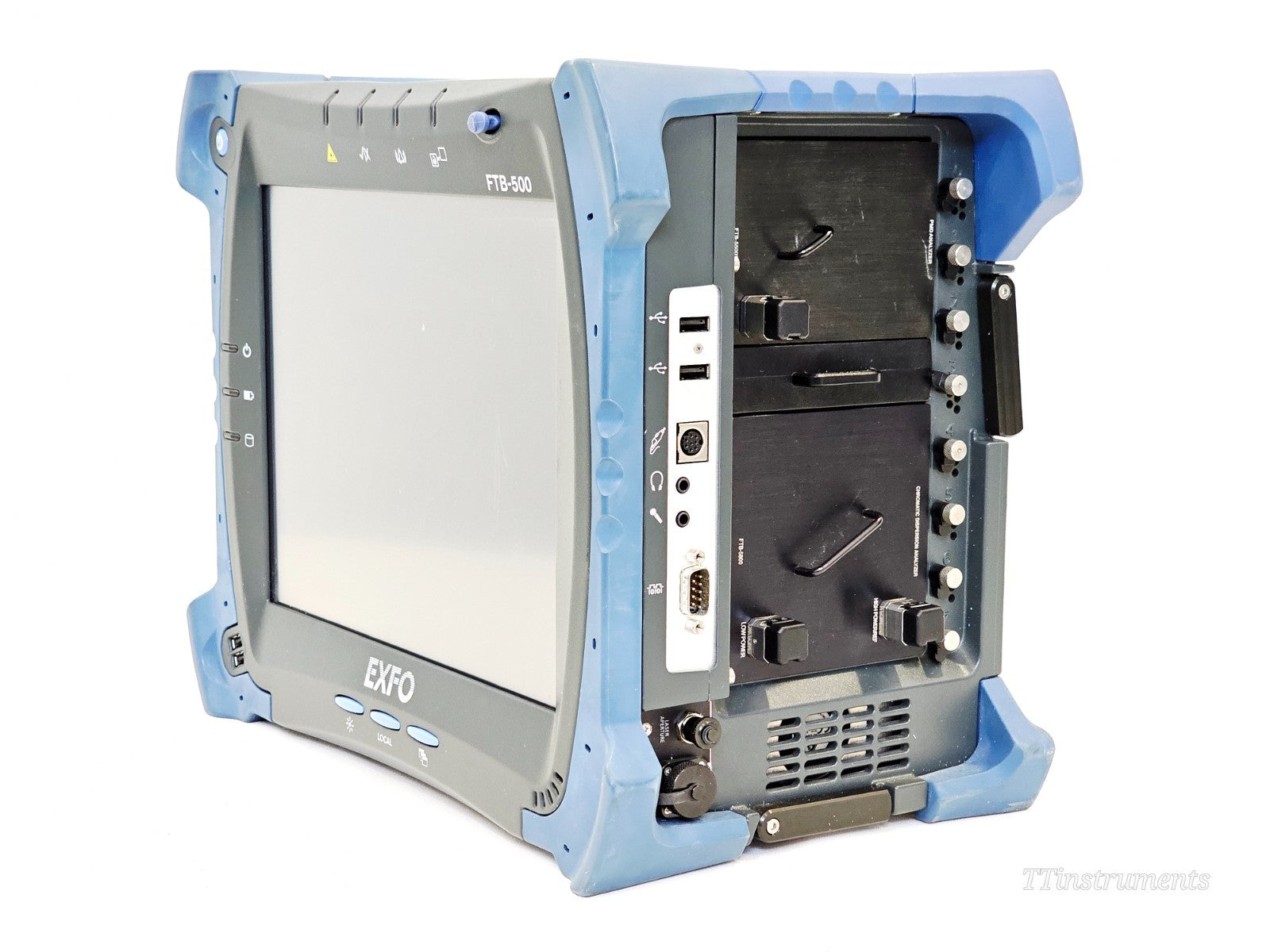

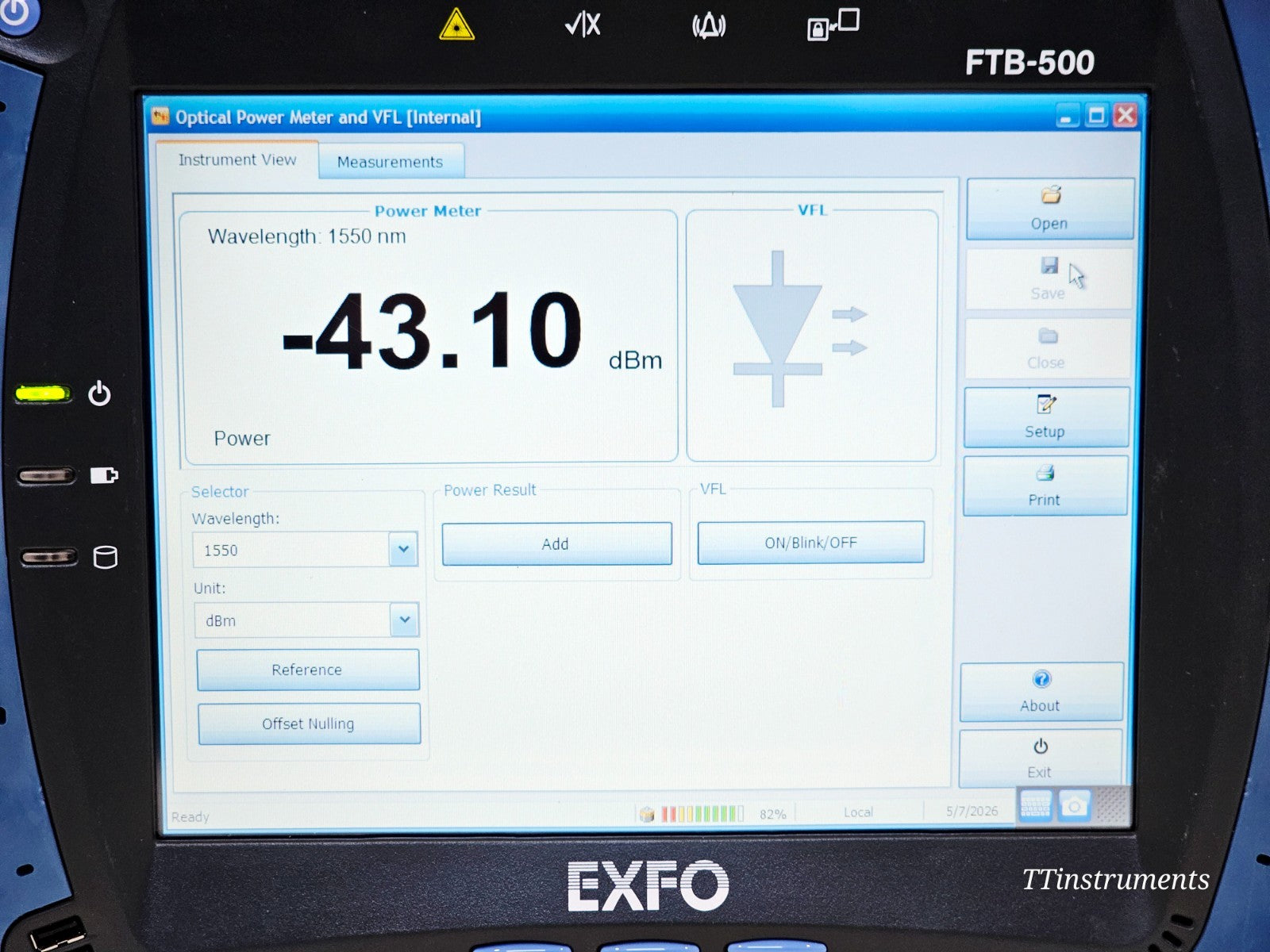

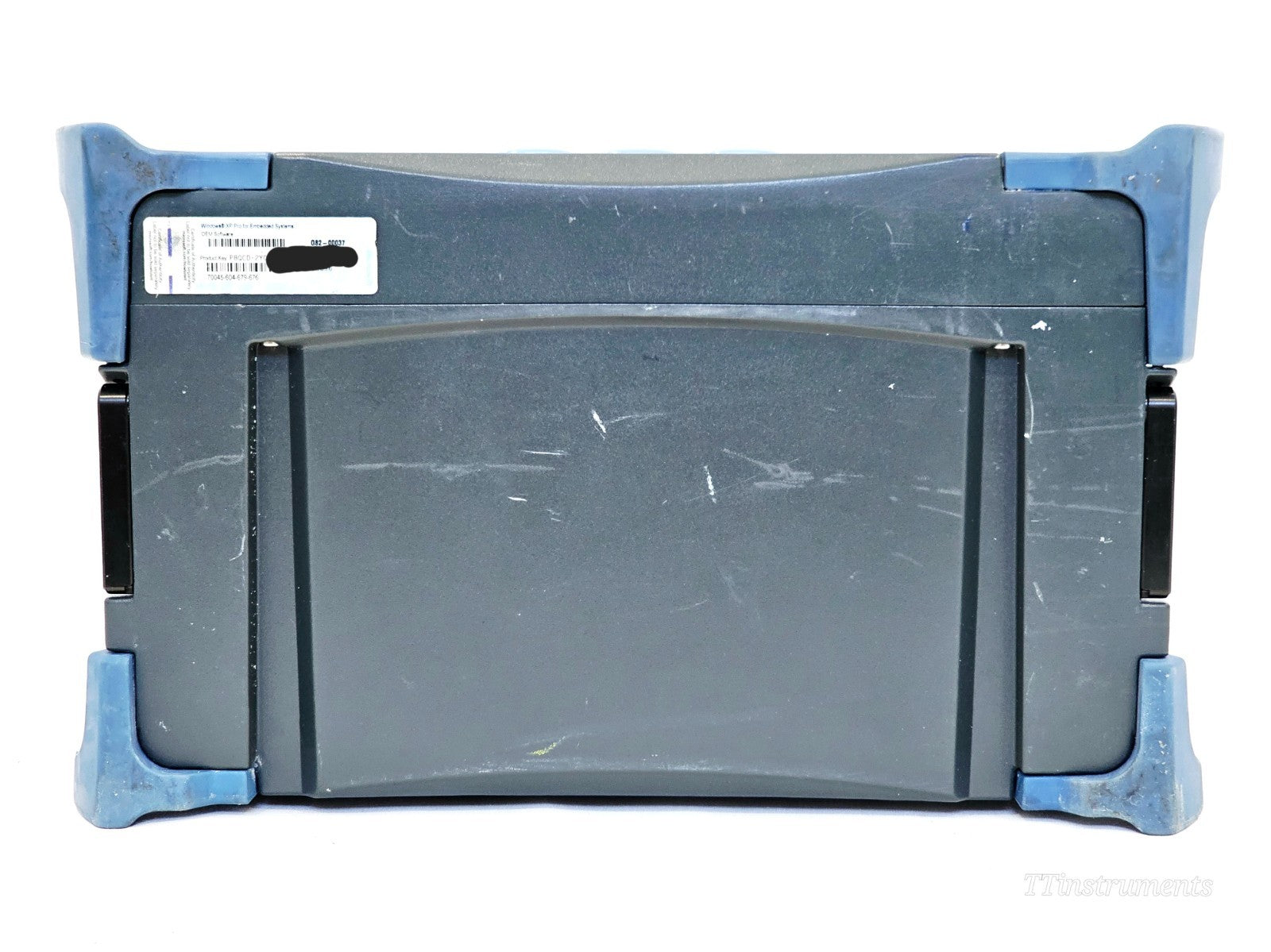

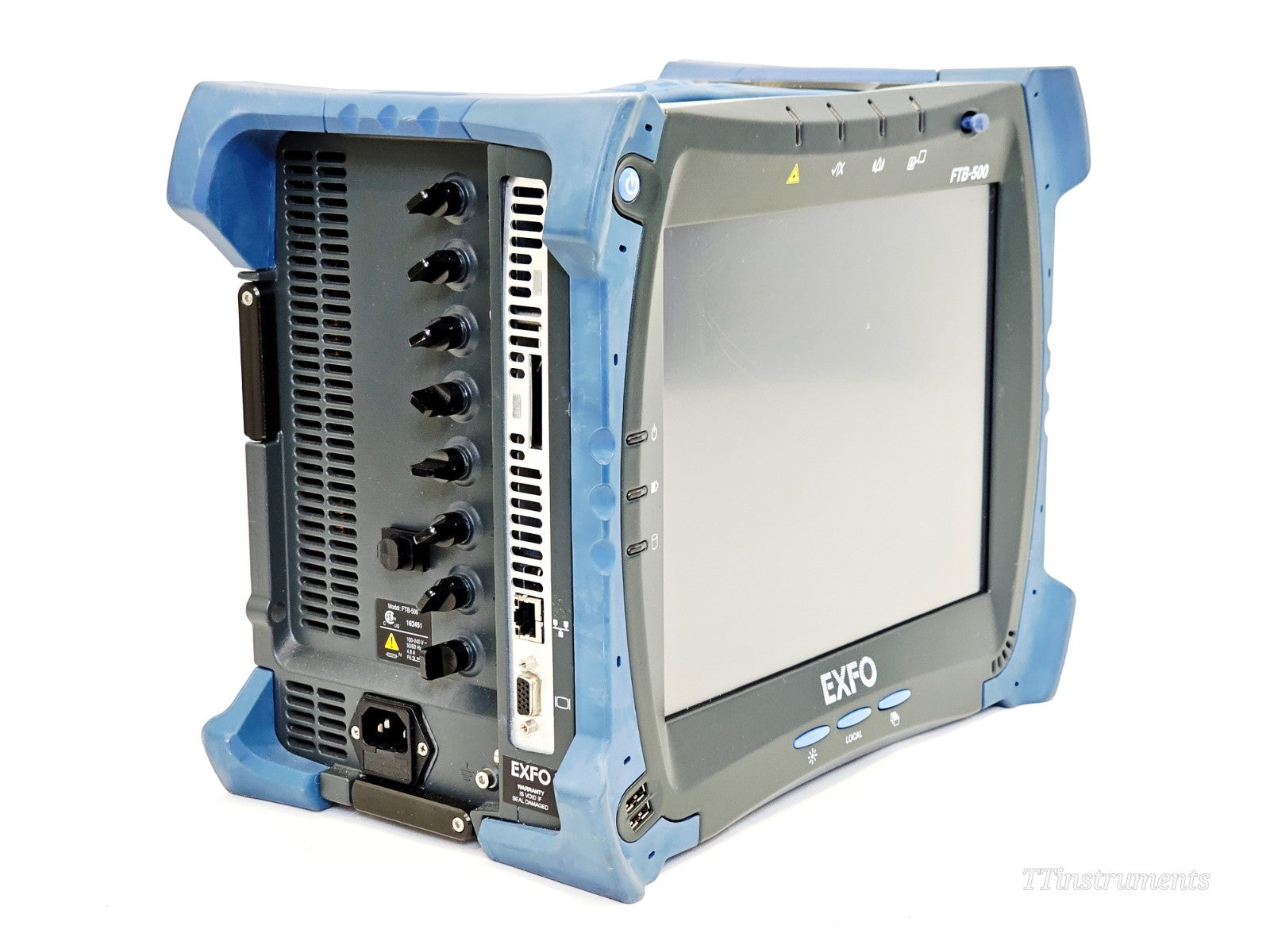

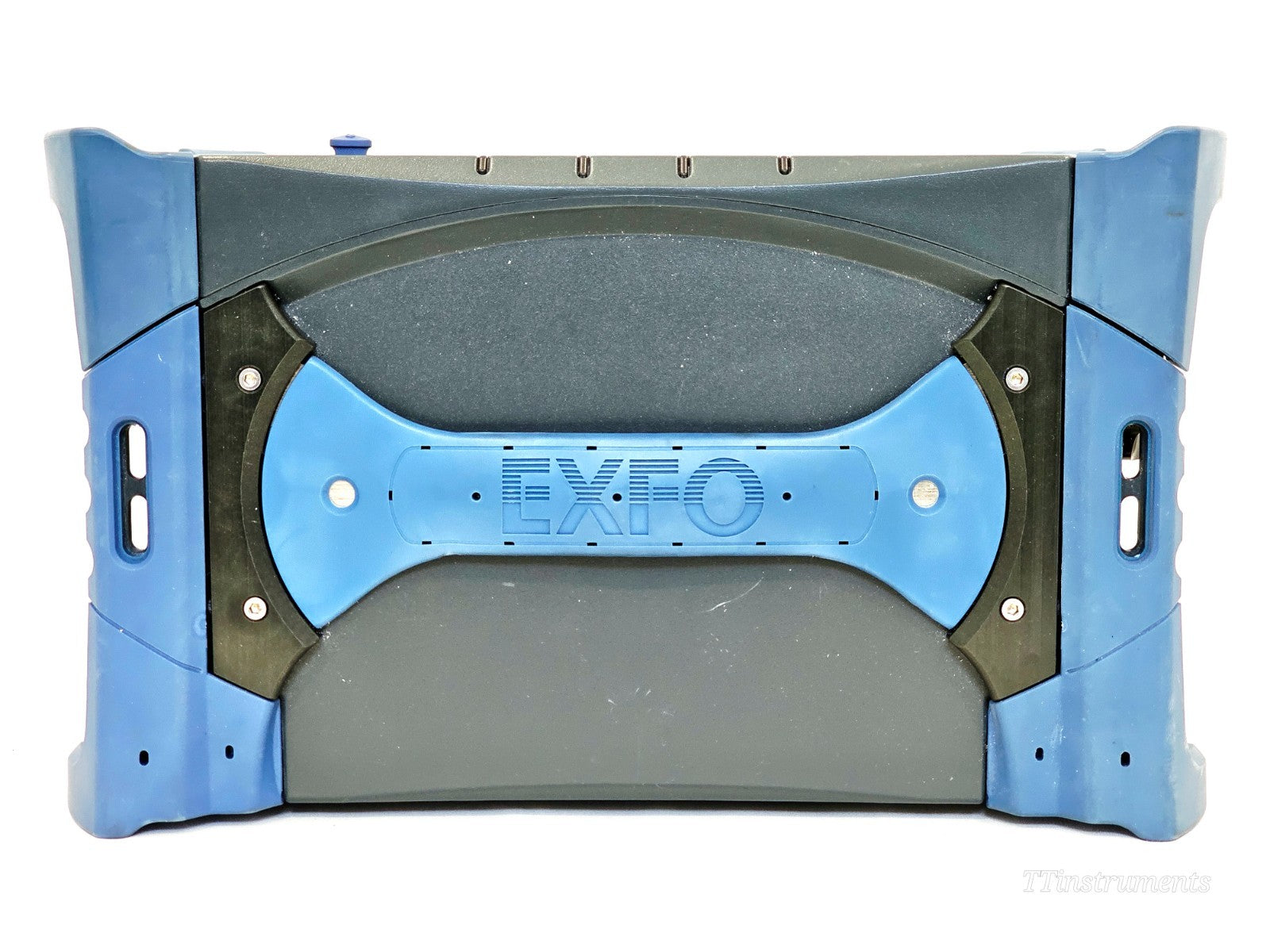

• EXFO FTB-500 modular mainframe (with built-in Power Meter and VFL)

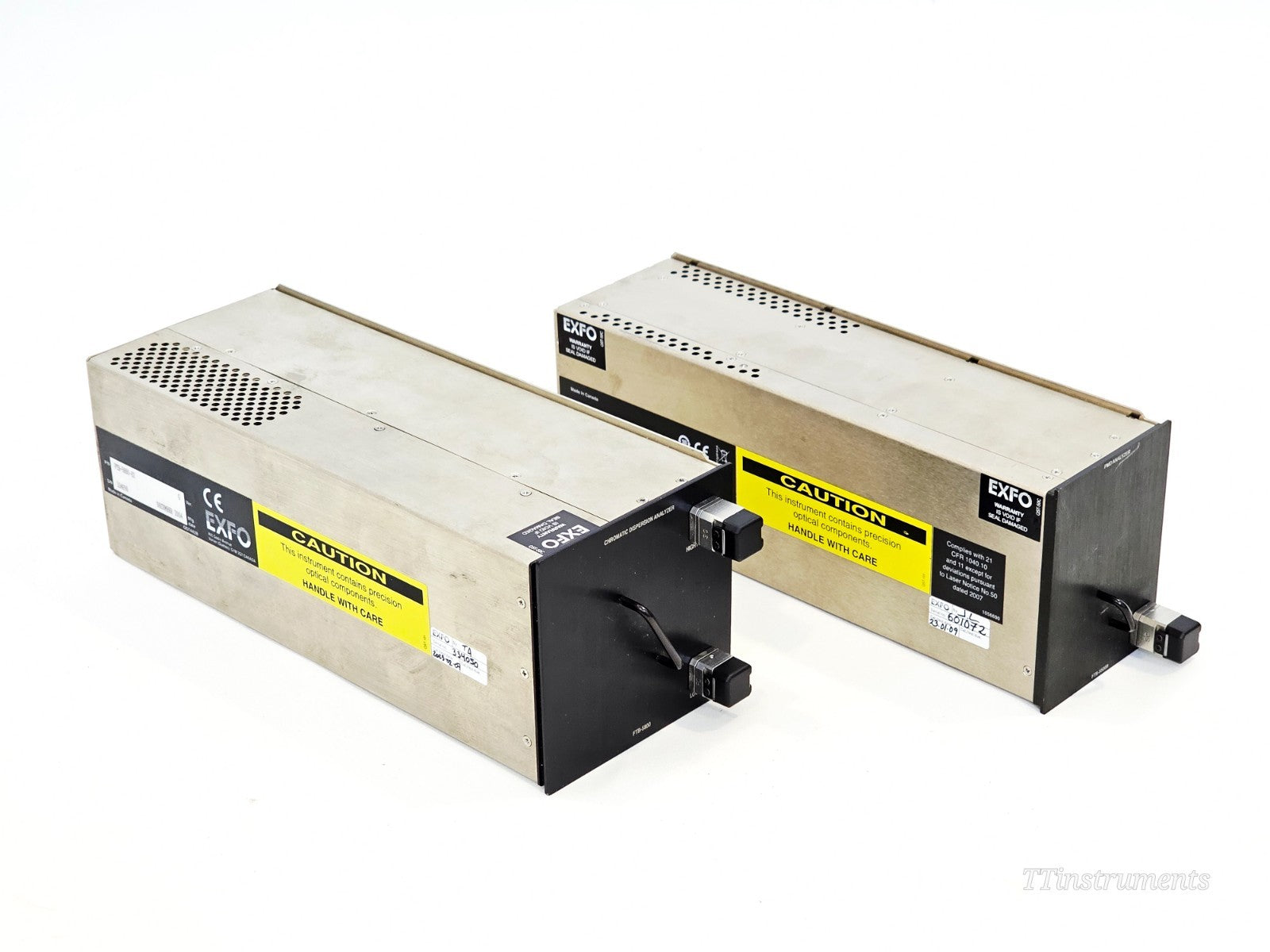

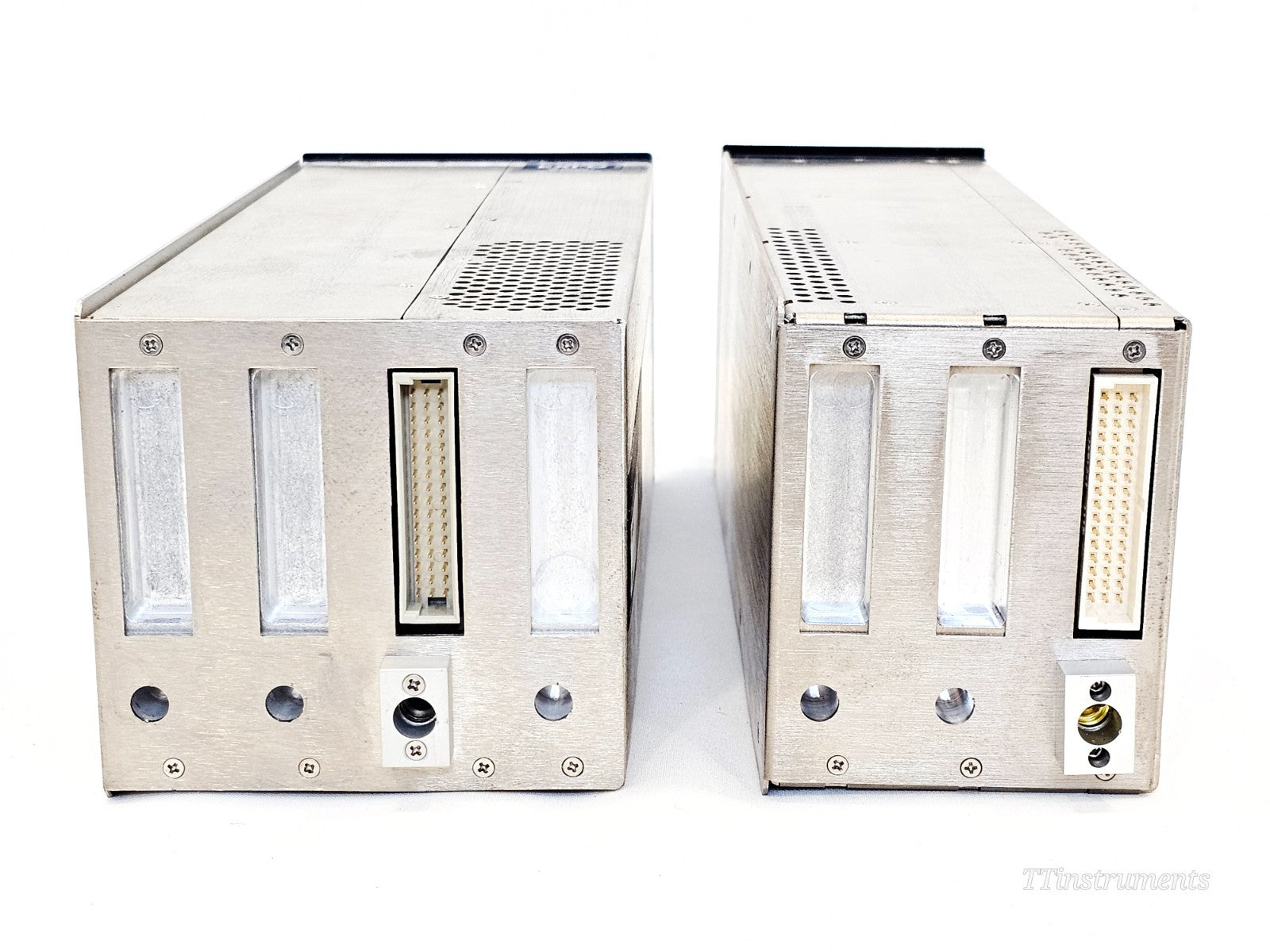

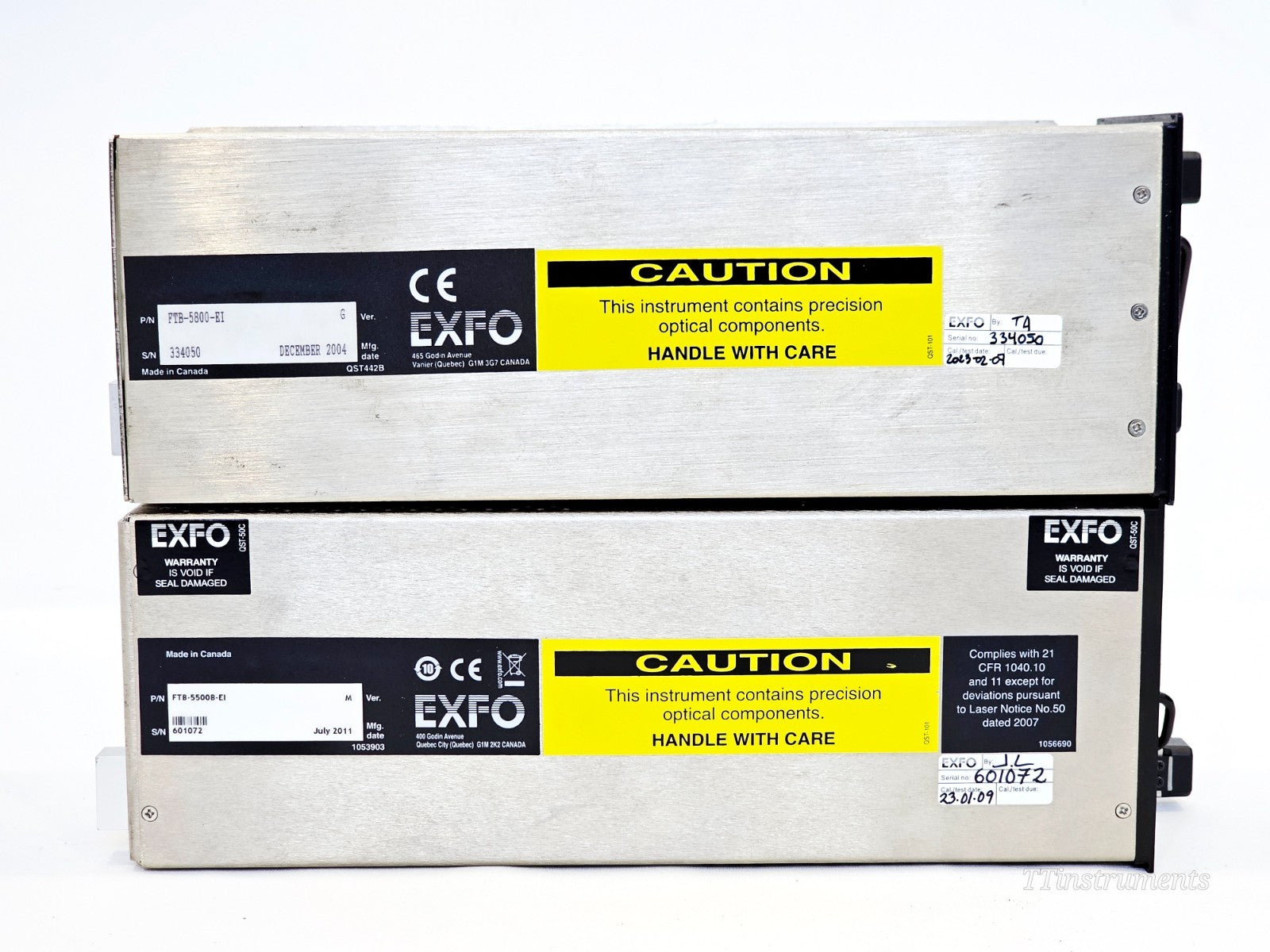

• EXFO FTB-5500B PMD Analyzer module (P/N FTB-55008-EI)
• EXFO FTB-5800 Chromatic Dispersion Analyzer module (P/N FTB-5800-EI)

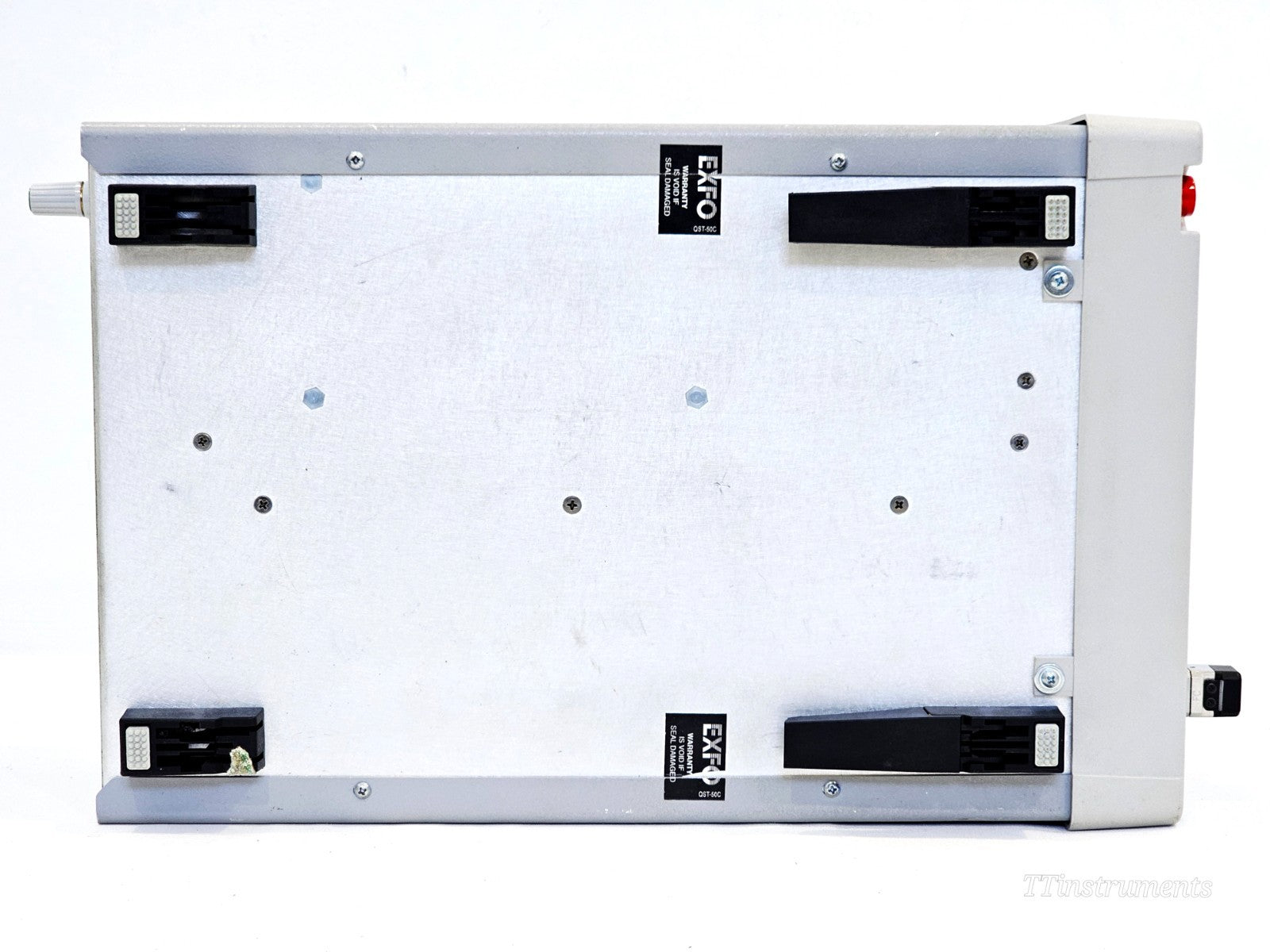

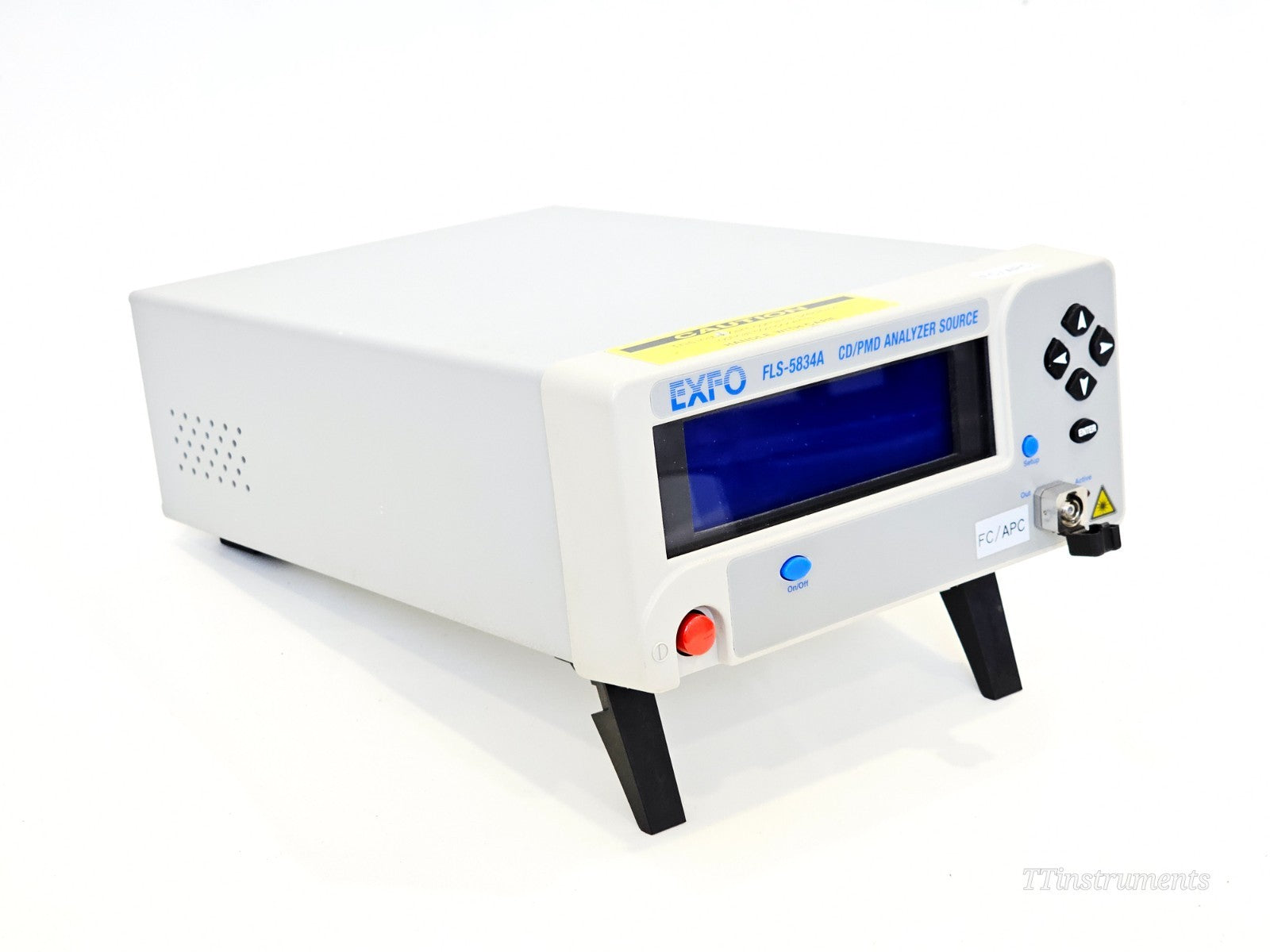

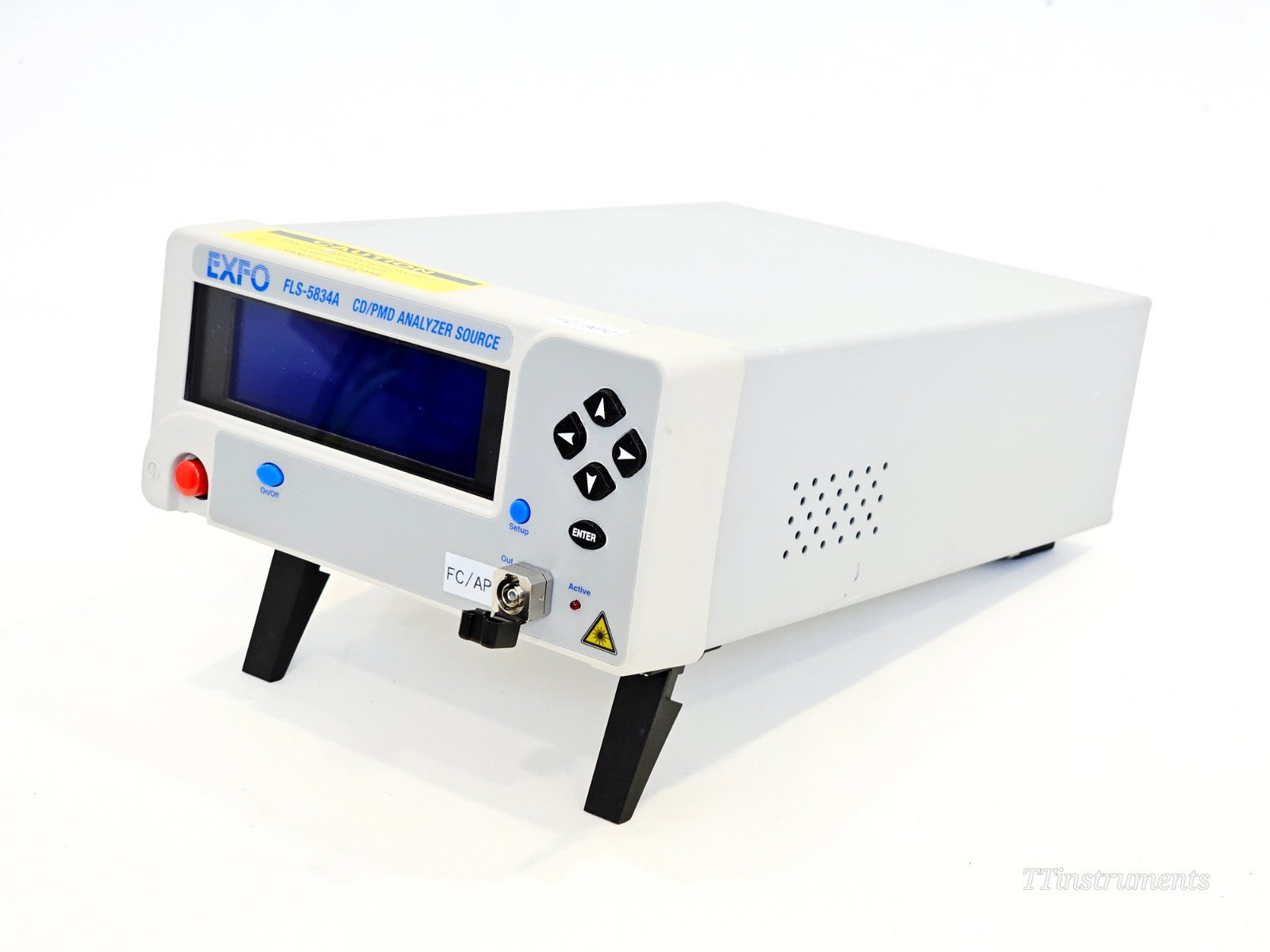

• EXFO FLS-5834A CD/PMD Analyzer Source (P/N FLS-5834A-EI, FC/APC)

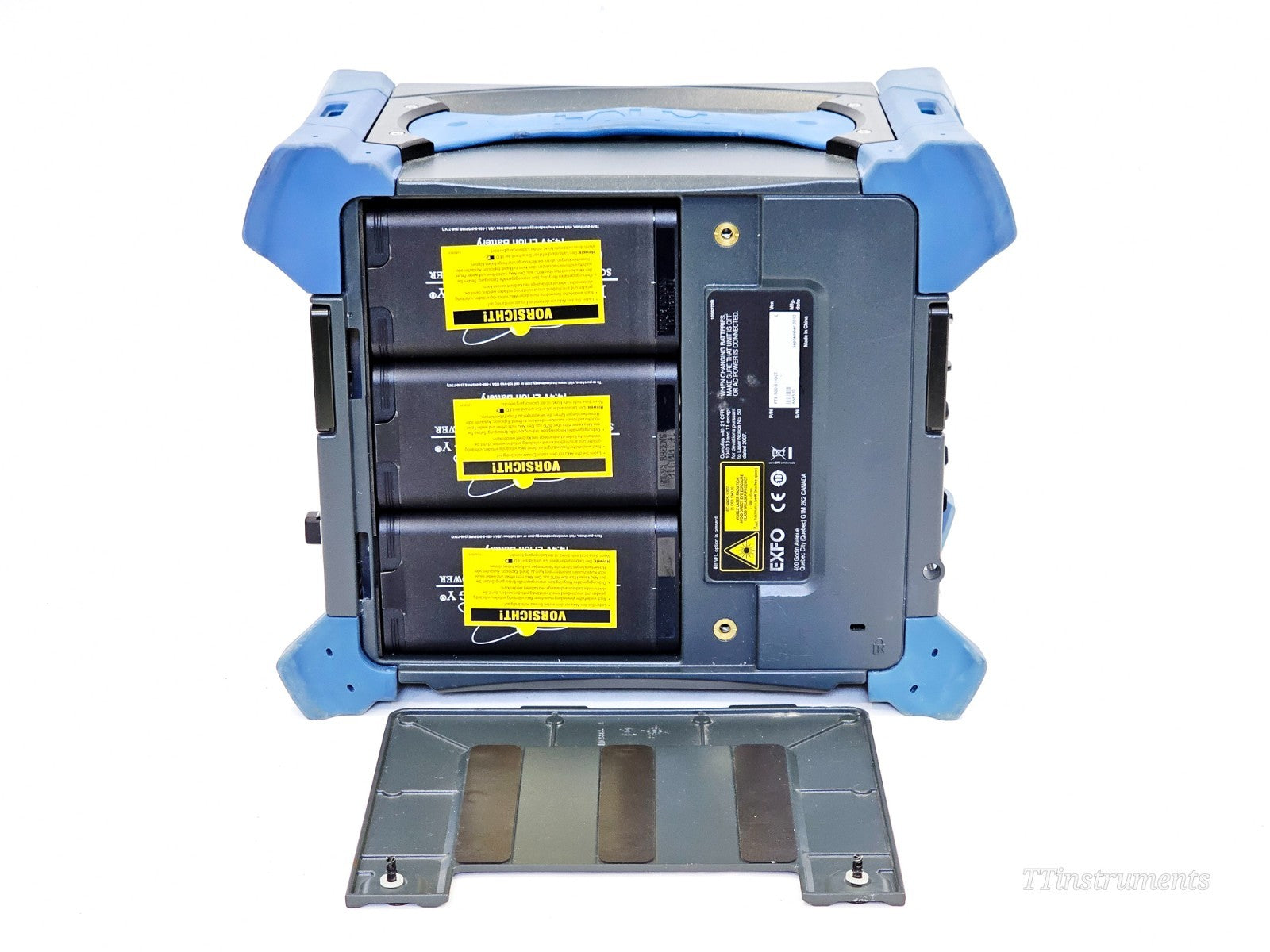

• 3× Li-Ion battery packs
• Mini USB keyboard
• Software/data CD
• USB dongle
• Assorted fibre connector adapters
• EXFO soft wheeled trolley carry bag
• Hard carry case

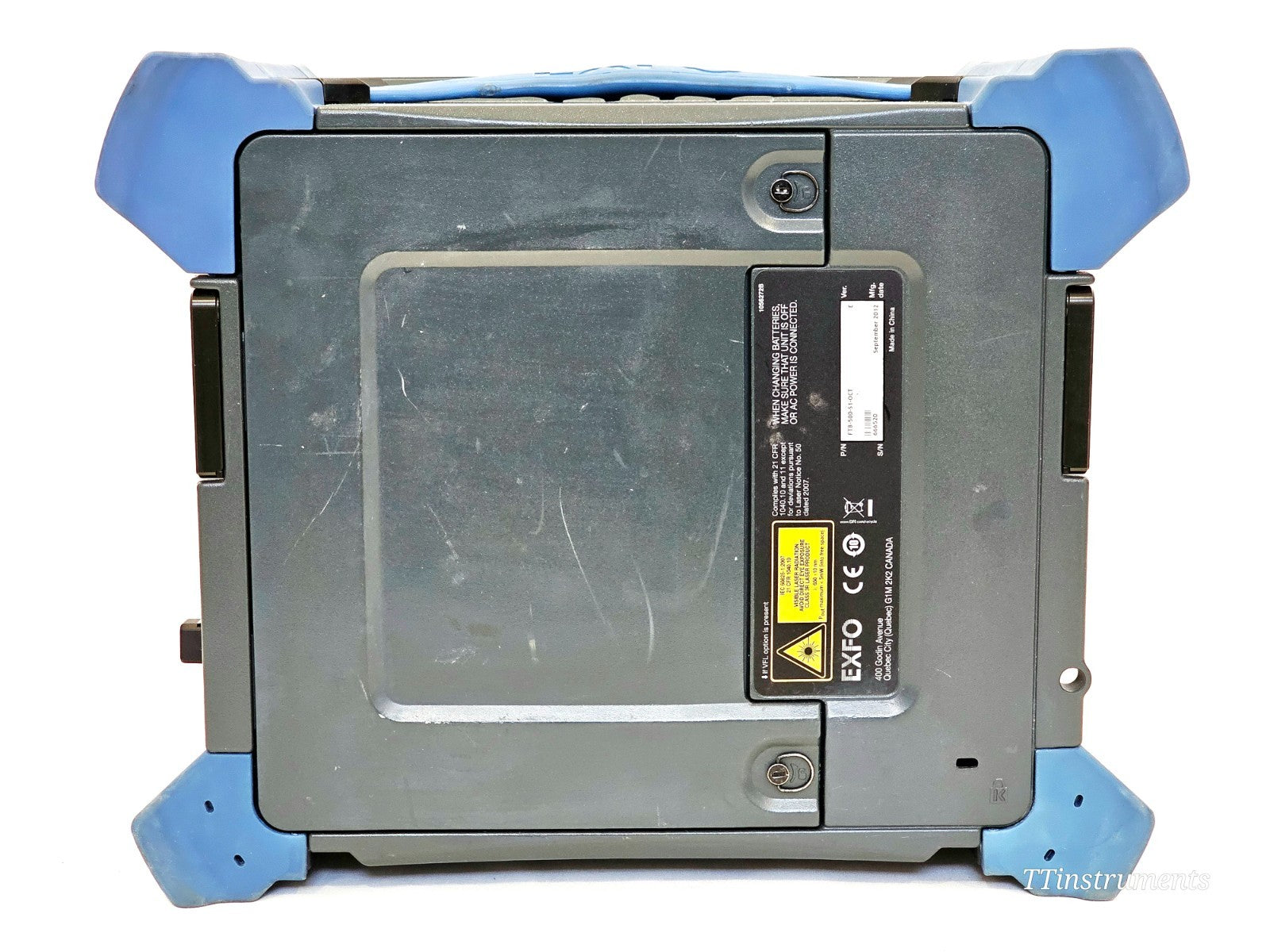

• Battery cover / stand plate

The EXFO FTB-5500B and FTB-5800, housed in the FTB-500 platform, form the industry's definitive combined PMD and CD fibre characterisation solution, designed for ultra-long-haul and 40/100 Gbit/s network qualification. The FLS-5834A CD/PMD Analyzer Source is a modulated, polarised, high-power SuperLED broadband source specifically designed for use with the FTB-5800 and FTB-5500B.

The FTB-5500B measures PMD using the IEC/TIA-approved interferometric method in under 5 seconds for any PMD value, with no auto-correlation peak for enhanced accuracy, and supports testing through more than 120 cascaded EDFAs. The FTB-5800 uses the approved phase-shift method to measure chromatic dispersion across the C and L bands with no communication required between source and receiver, making it ideal for testing through isolators and EDFAs. The FLS-5834A delivers broadband, polarised, modulated light in the C+L band and also serves as a high-power broadband source for DWDM channel and component testing.

FTB-5500B PMD Analyzer:
Wavelength range: 1260 to 1675 nm (O to U band)
Measurement range: 0 to 115 ps
Sensitivity: -45 dBm (typical, C band)
Dynamic range: >50 dB (47 dB typical with FLS-5834A)
Measuring time: 4.5 s (any PMD value)
Absolute uncertainty: ±(0.020 + 2% of PMD) ps
EDFA testing: Yes (above 120 EDFAs)
Operating temperature: 0 °C to 40 °C

FTB-5800 CD Analyzer:
Wavelength range: 1530 to 1625 nm (C + L band)
Dynamic range: 42 dB
Measurement method: Phase-shift (TIA-FOTP-169)
EDFA testing: Yes
Network readiness: 100 Gbit/s

FLS-5834A CD/PMD Analyzer Source:
Source type: Modulated, polarised SuperLED (SLED)
Wavelengths: 1550 nm and 1625 nm
Connector: FC/APC (EXFO Universal Interface)

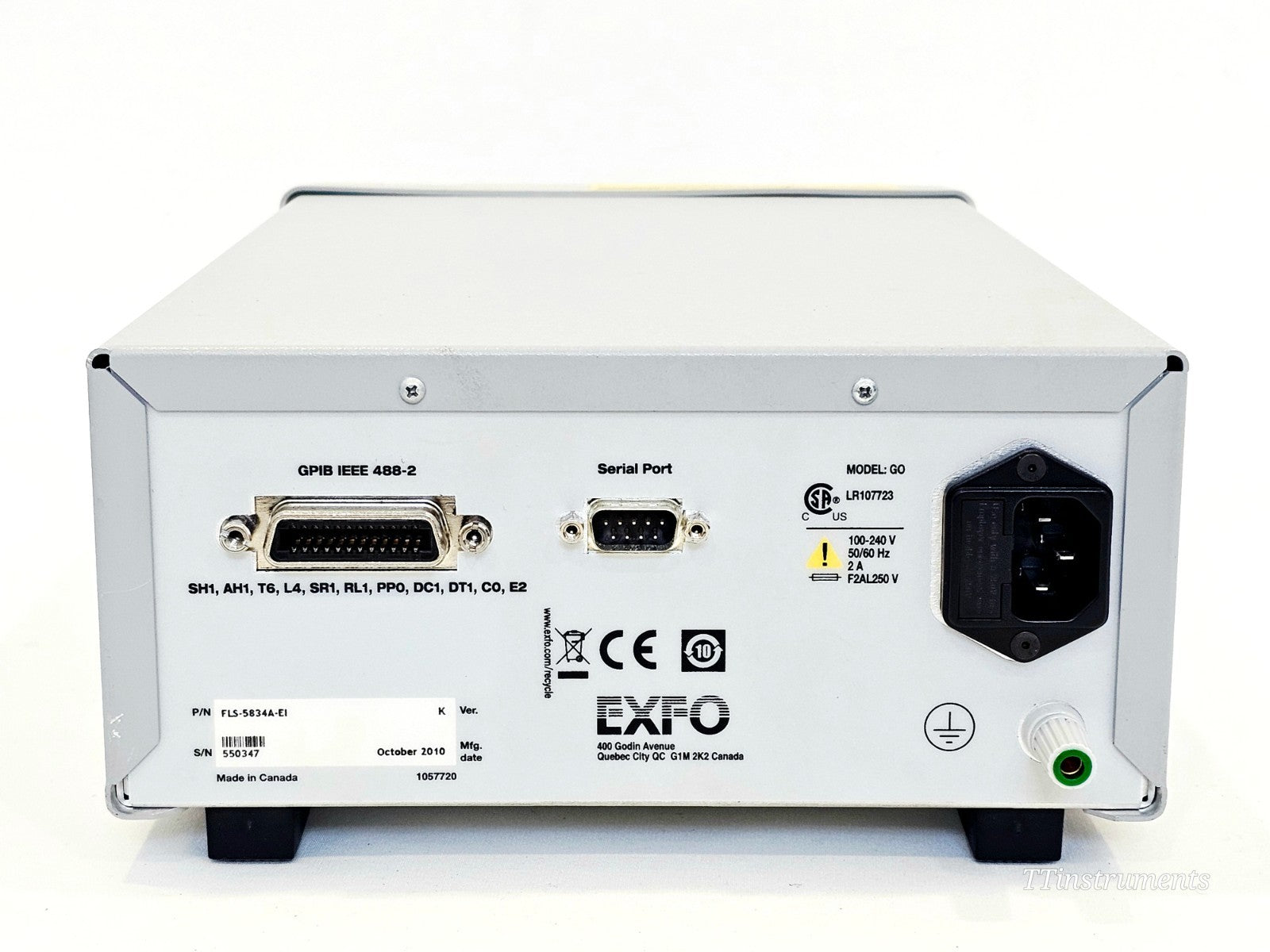

Remote interfaces: GPIB IEEE 488-2, RS-232
Power input: 100–240 V AC, 50/60 Hz, 2 A

EXFO FTB-500 datasheet: Download PDF
