EXFO FTB-500 Platform + FTB-5240S-P Optical Spectrum Analyzer 1250-1650nm ADV
Model: FTB-500 FTB-5240S-P
Condition: Used
In stock: 0
SKU: 2930 3B04
- Fiber Optics
- OSA/OCA/CD/PMD Analysers
Choose options
Condition: Used

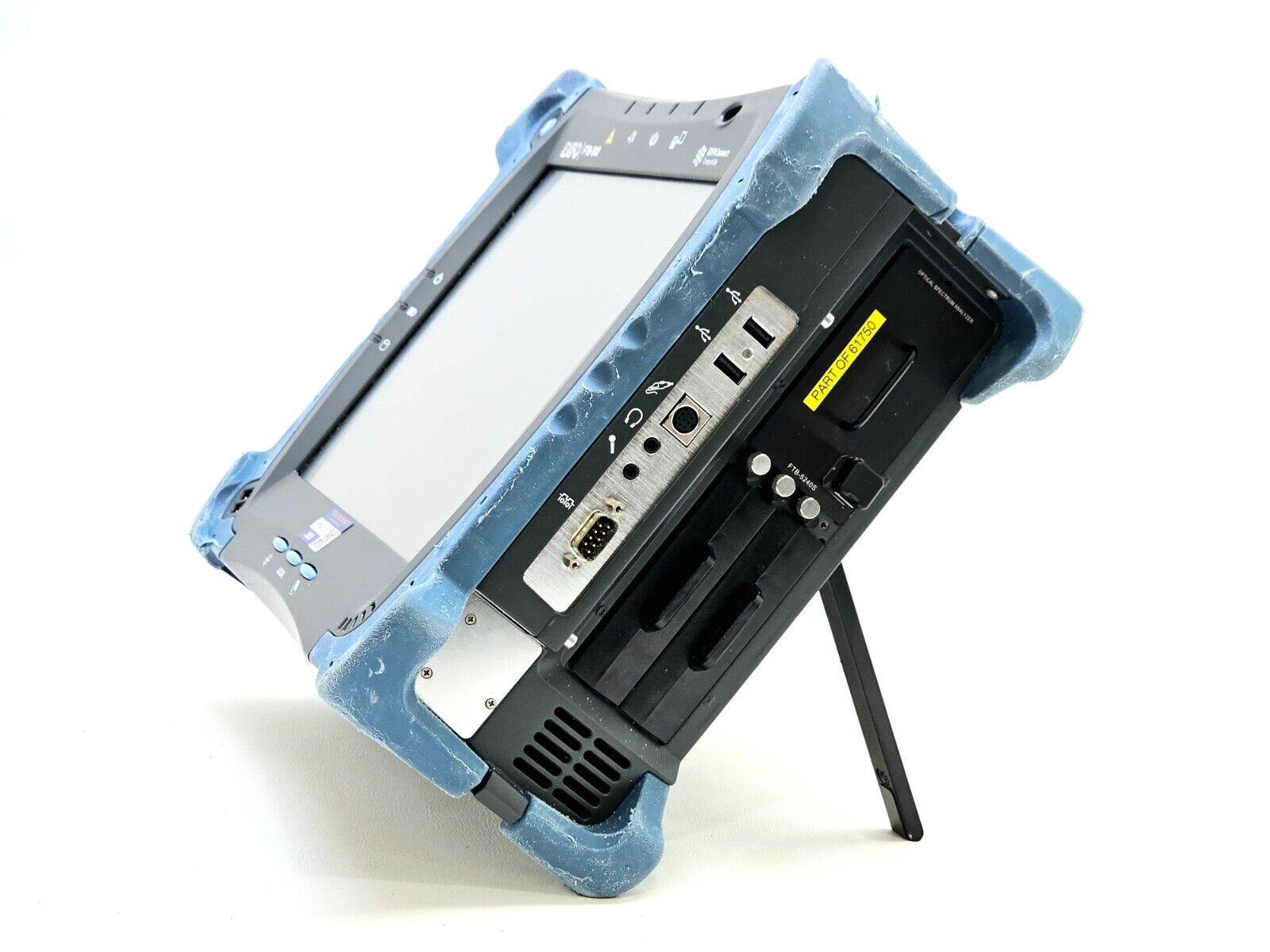

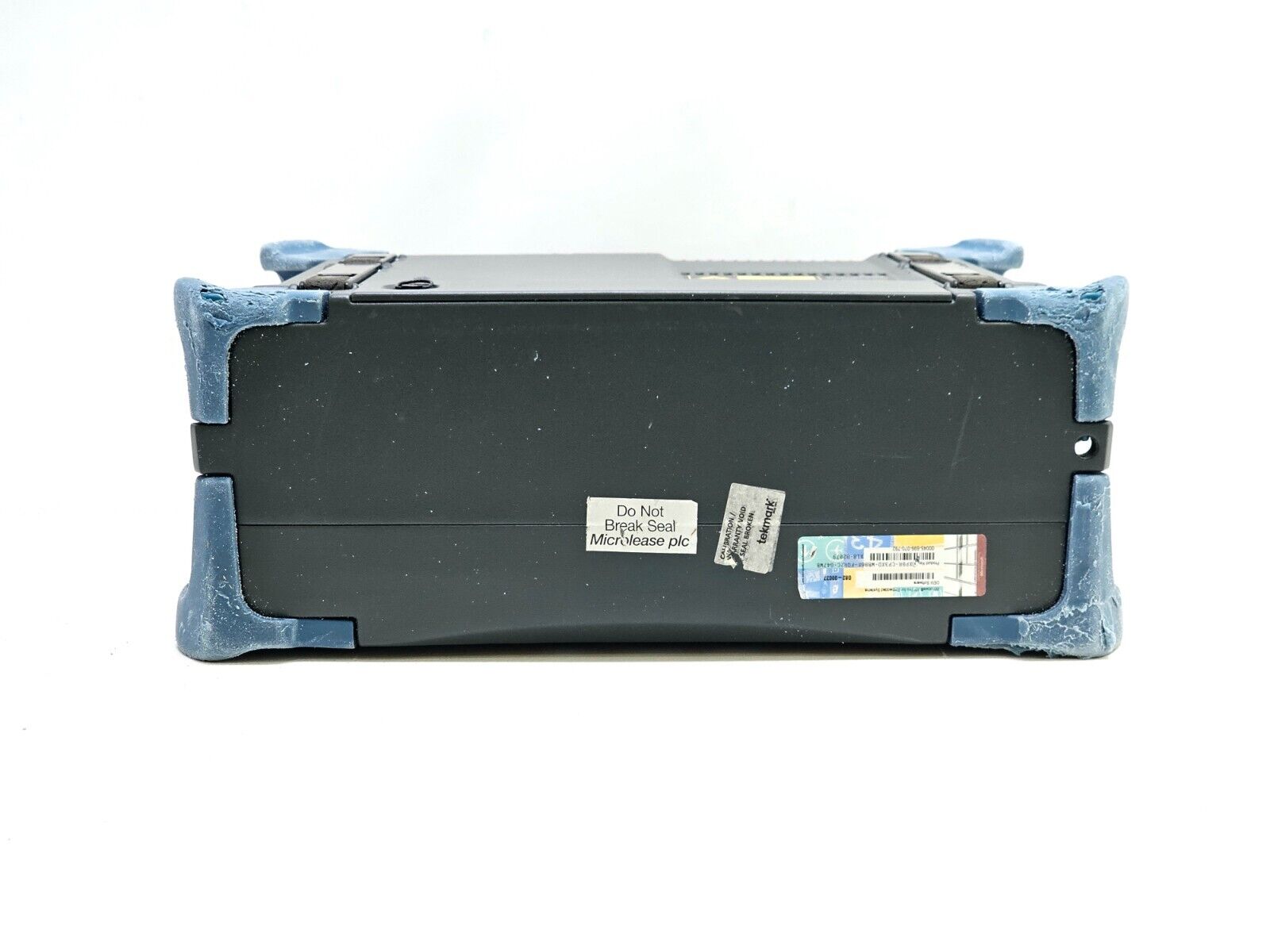

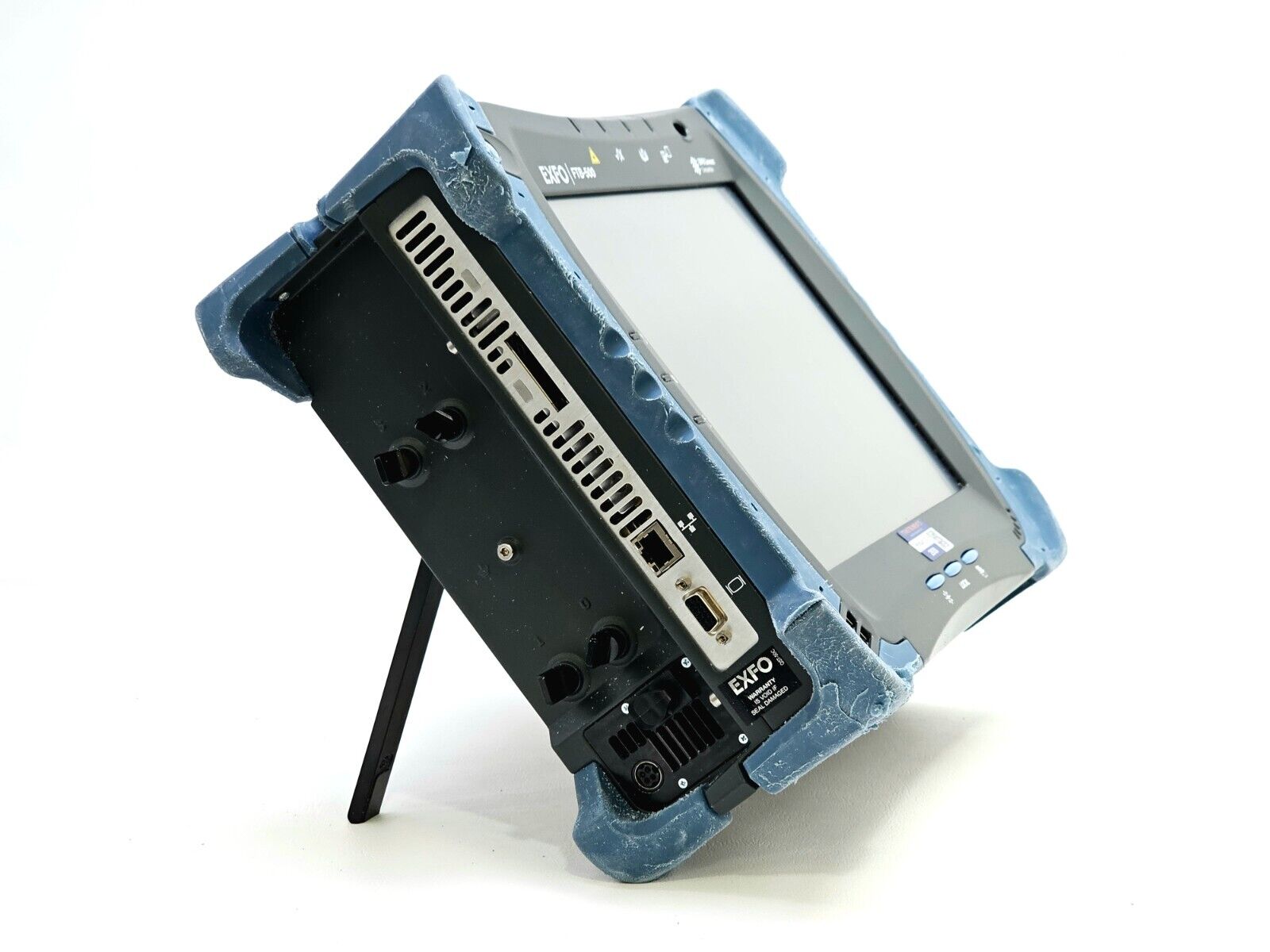

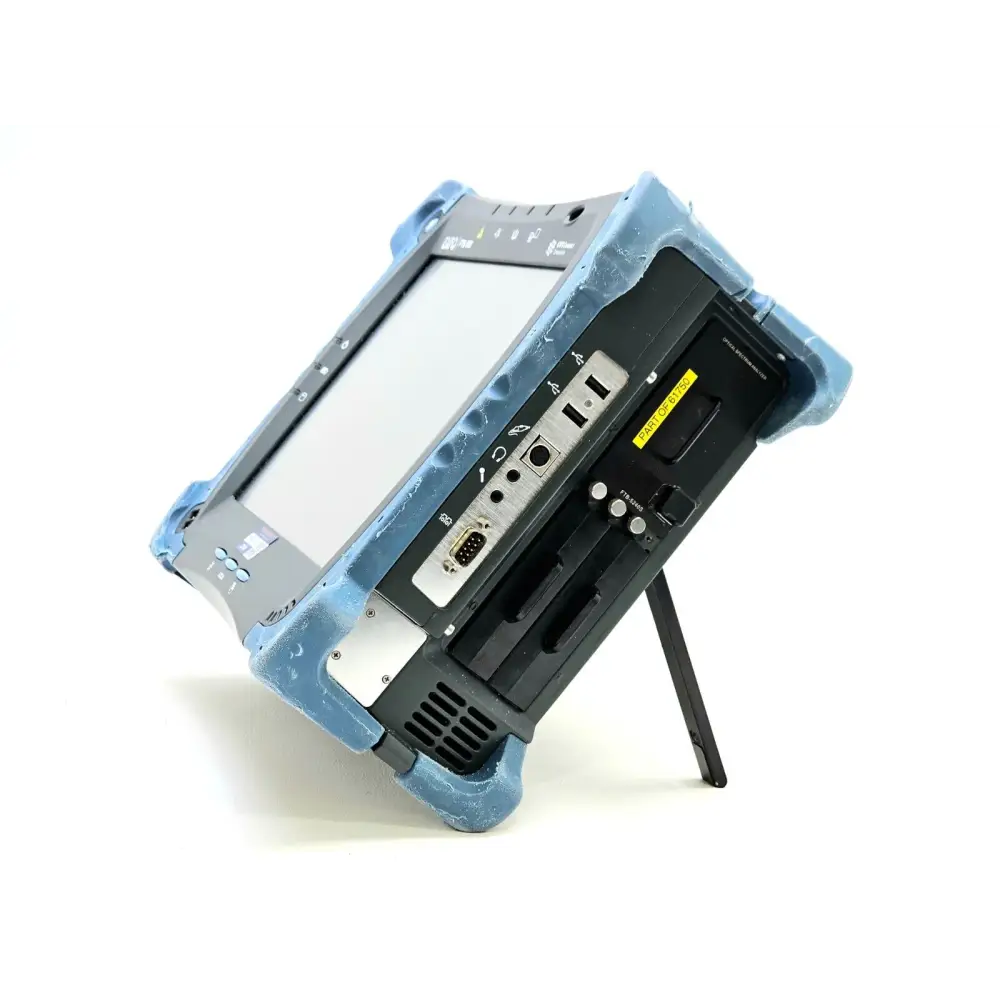

The EXFO FTB-500 mainframe (FTB-500-S1-QTR, 4-slot configuration) paired with the FTB-5240S-P optical spectrum analyser module offers powerful CWDM and DWDM analysis in a portable, field-ready platform. This unit includes the ADV option enabling advanced test mode and the polarisation controller. Note: no batteries are present — mains power use only.
Included in the sale:

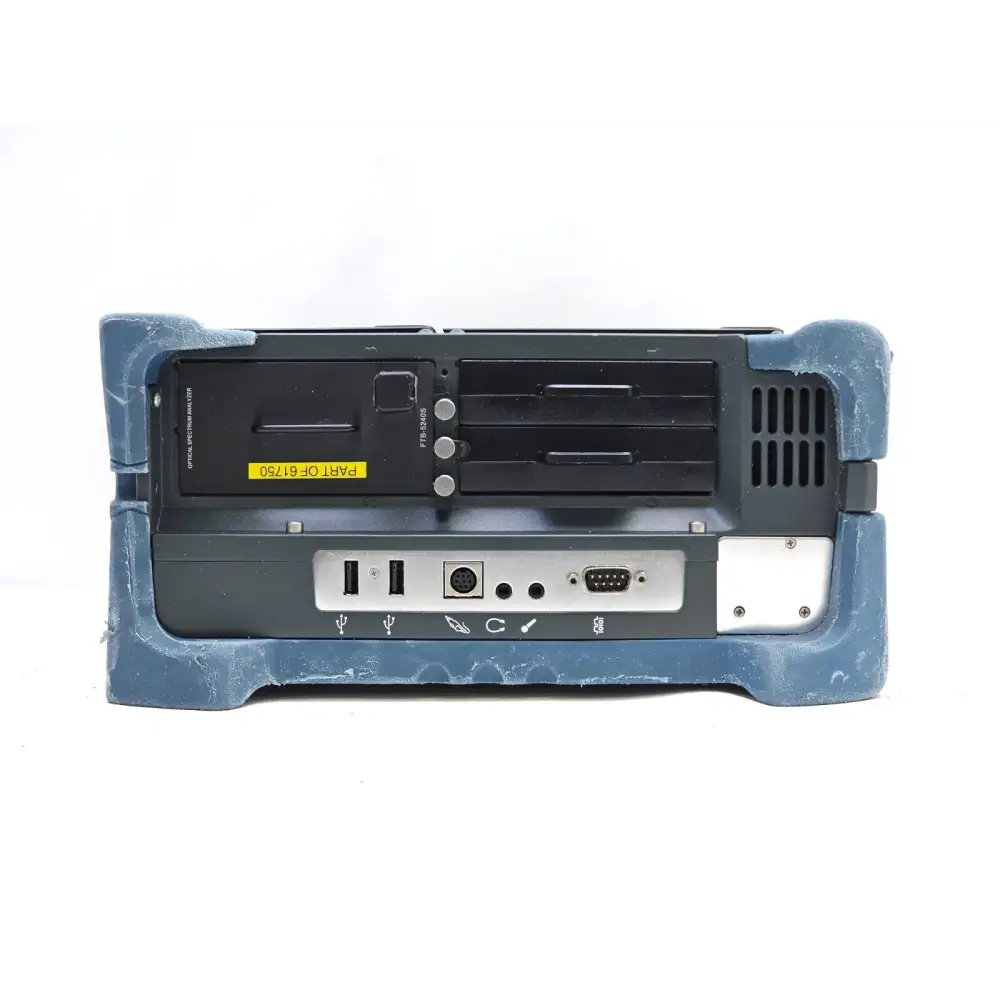

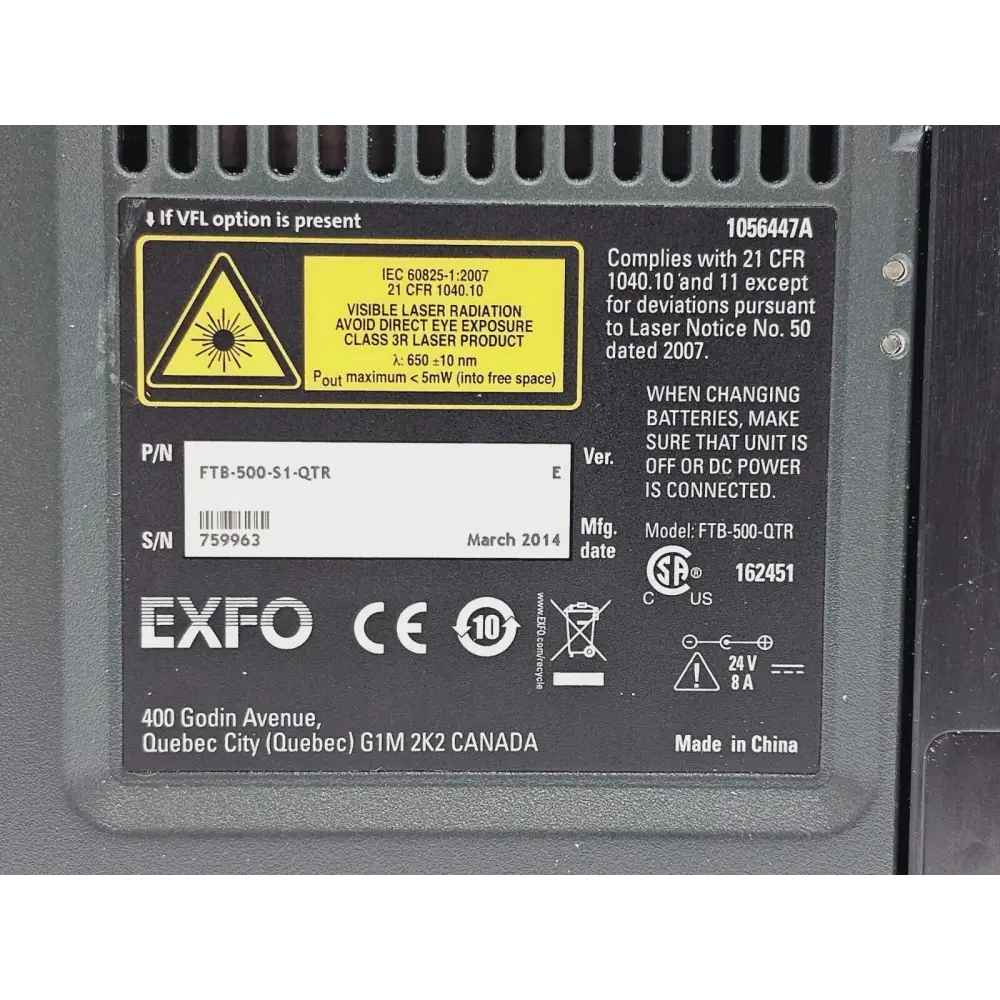

• FTB-500-S1-QTR Mainframe (no batteries, mains power use only)
• FTB-5240S-P Module (with polarisation controller)

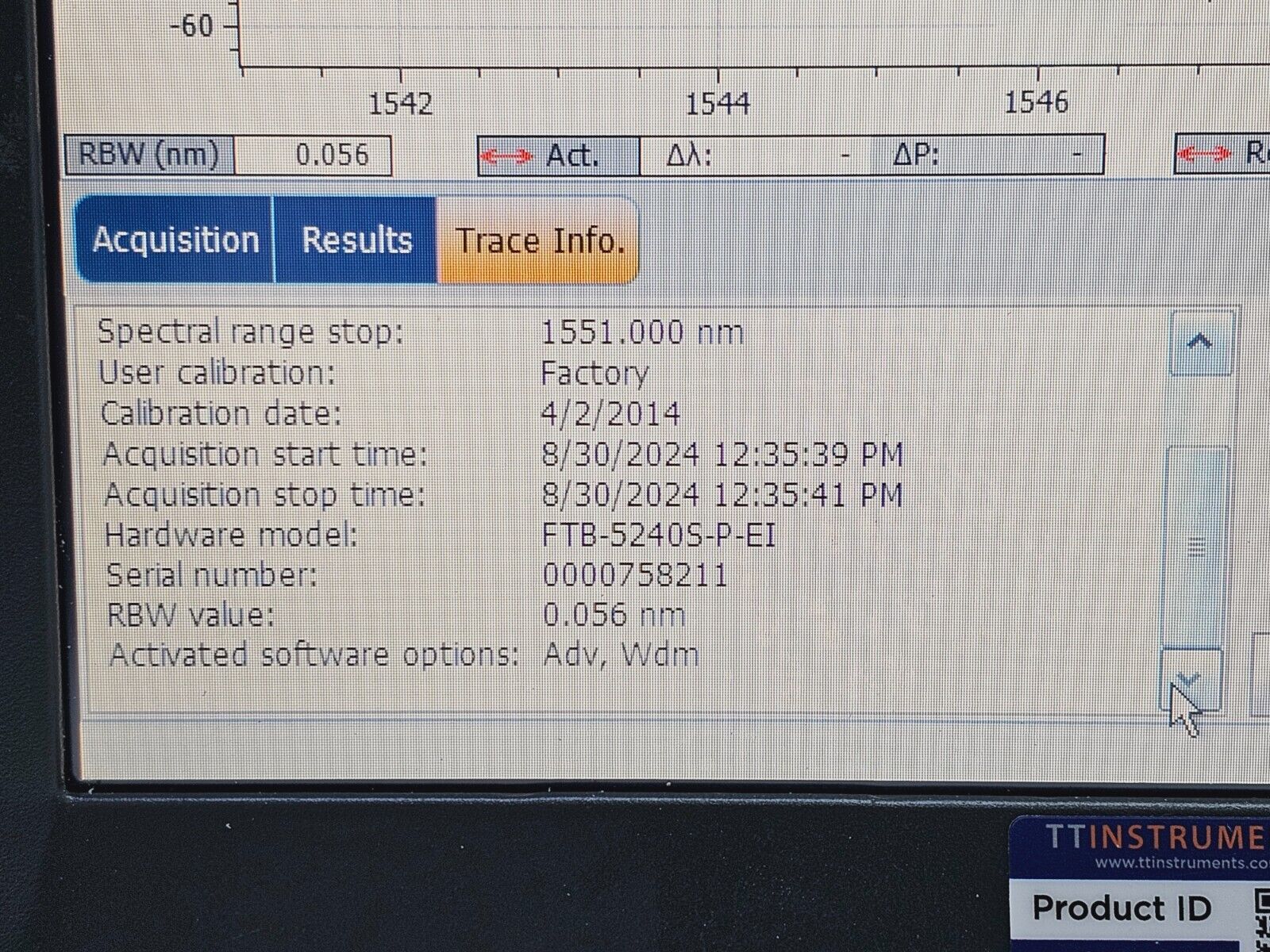

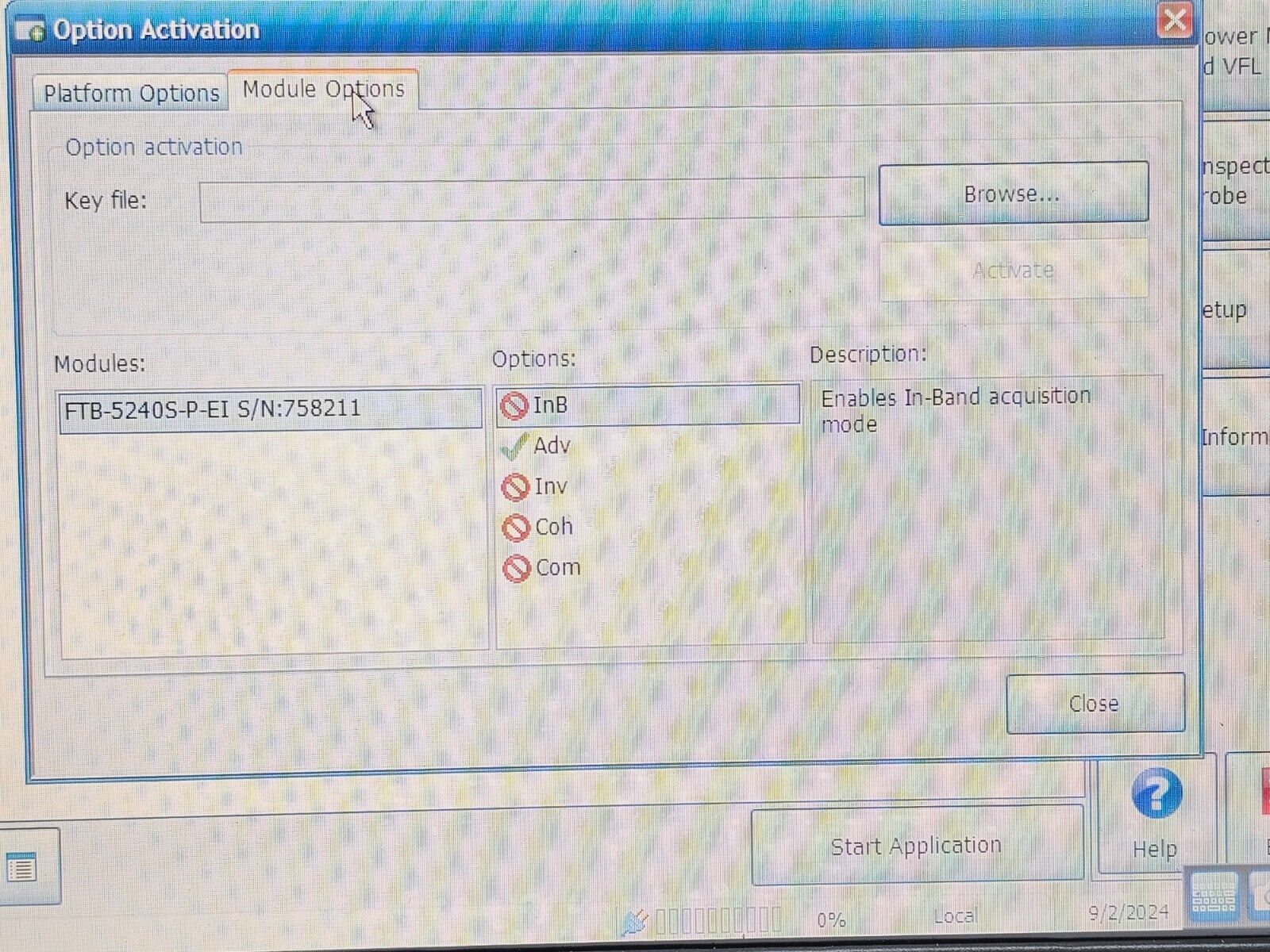

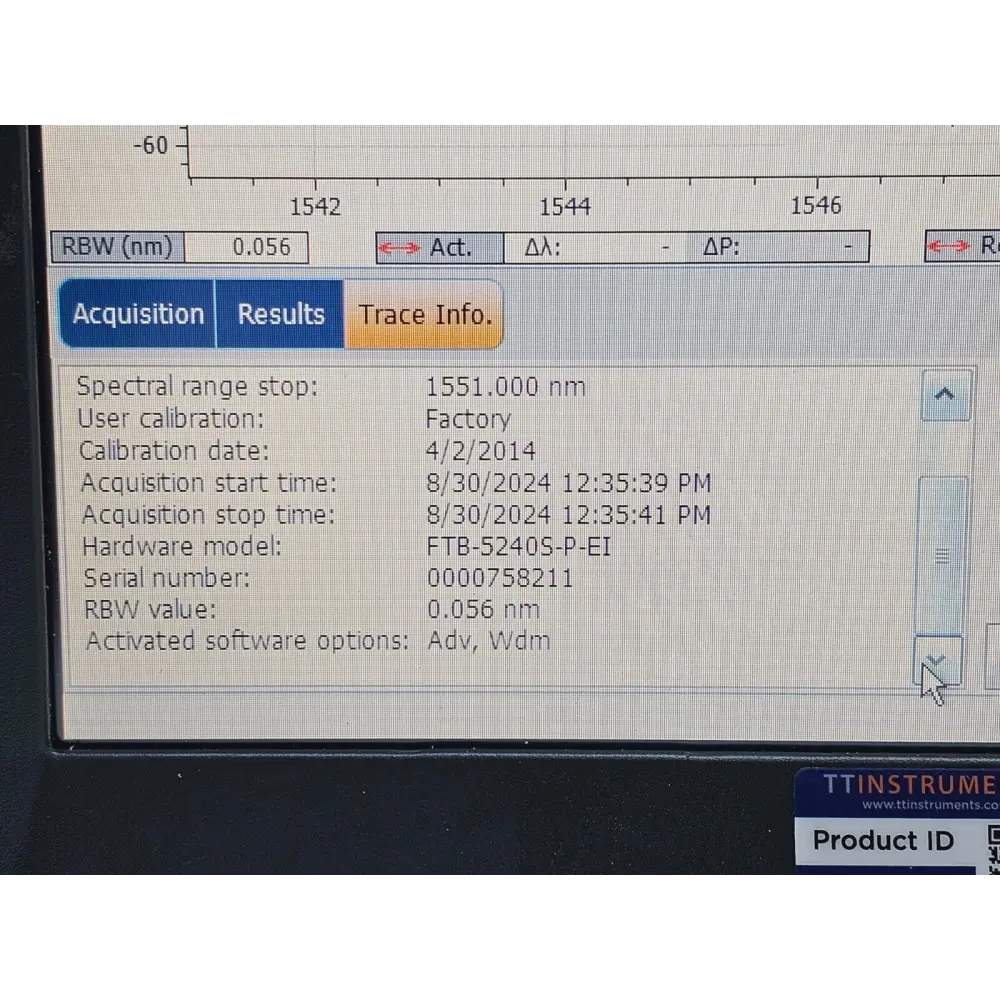

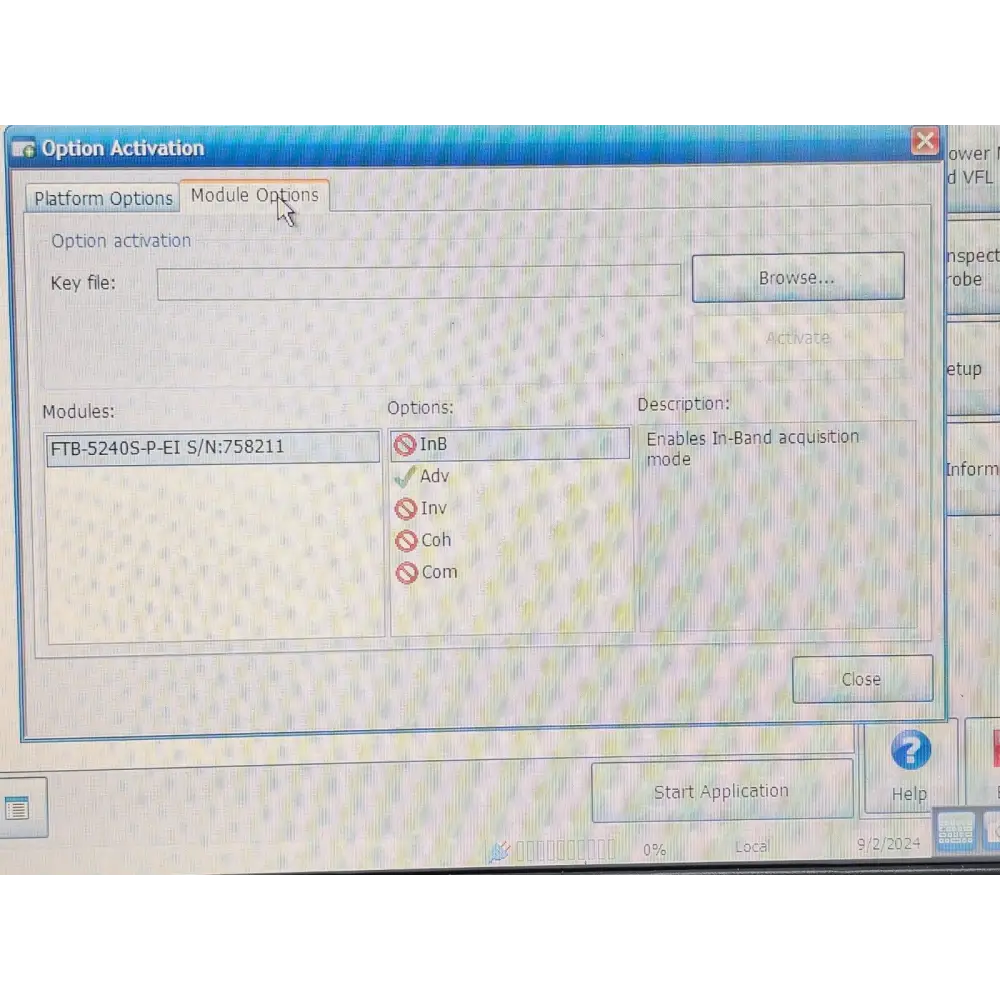

• ADV Option (enables advanced test mode)

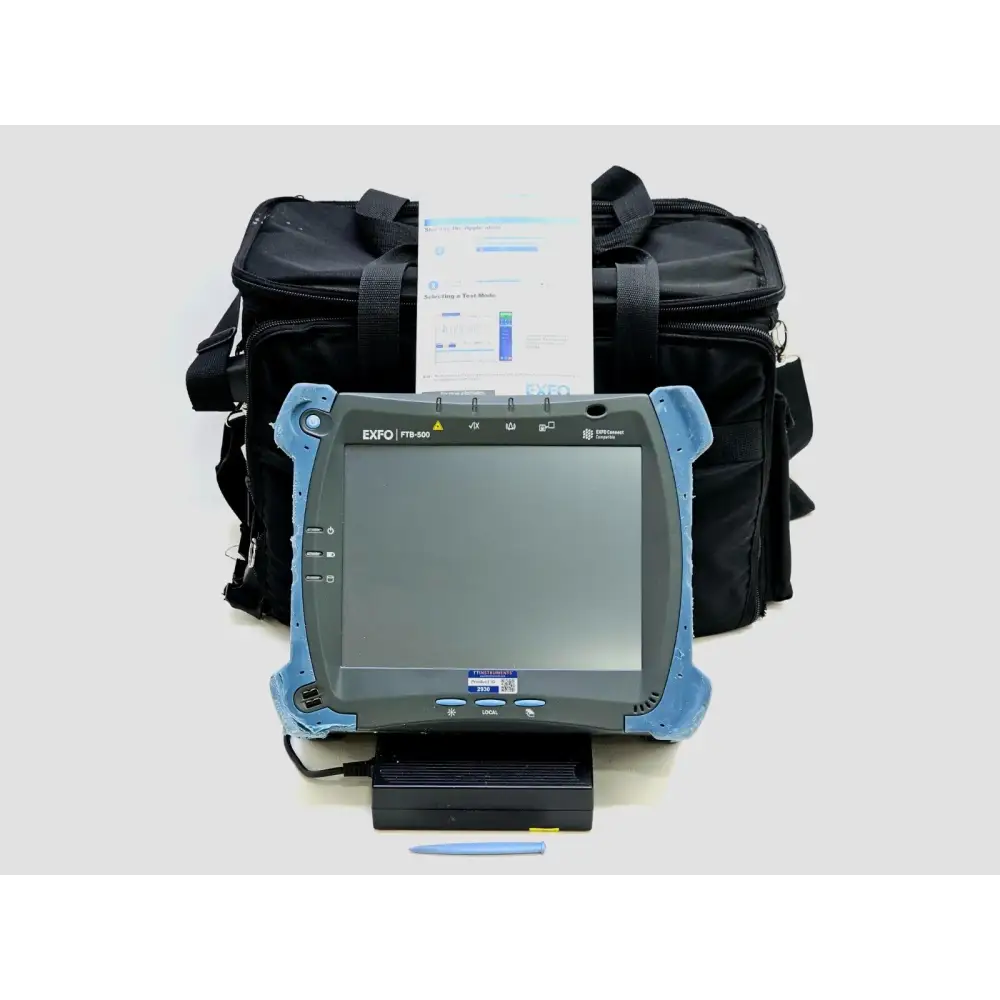

• Carry case (fair wear and tear)
• Power adapter

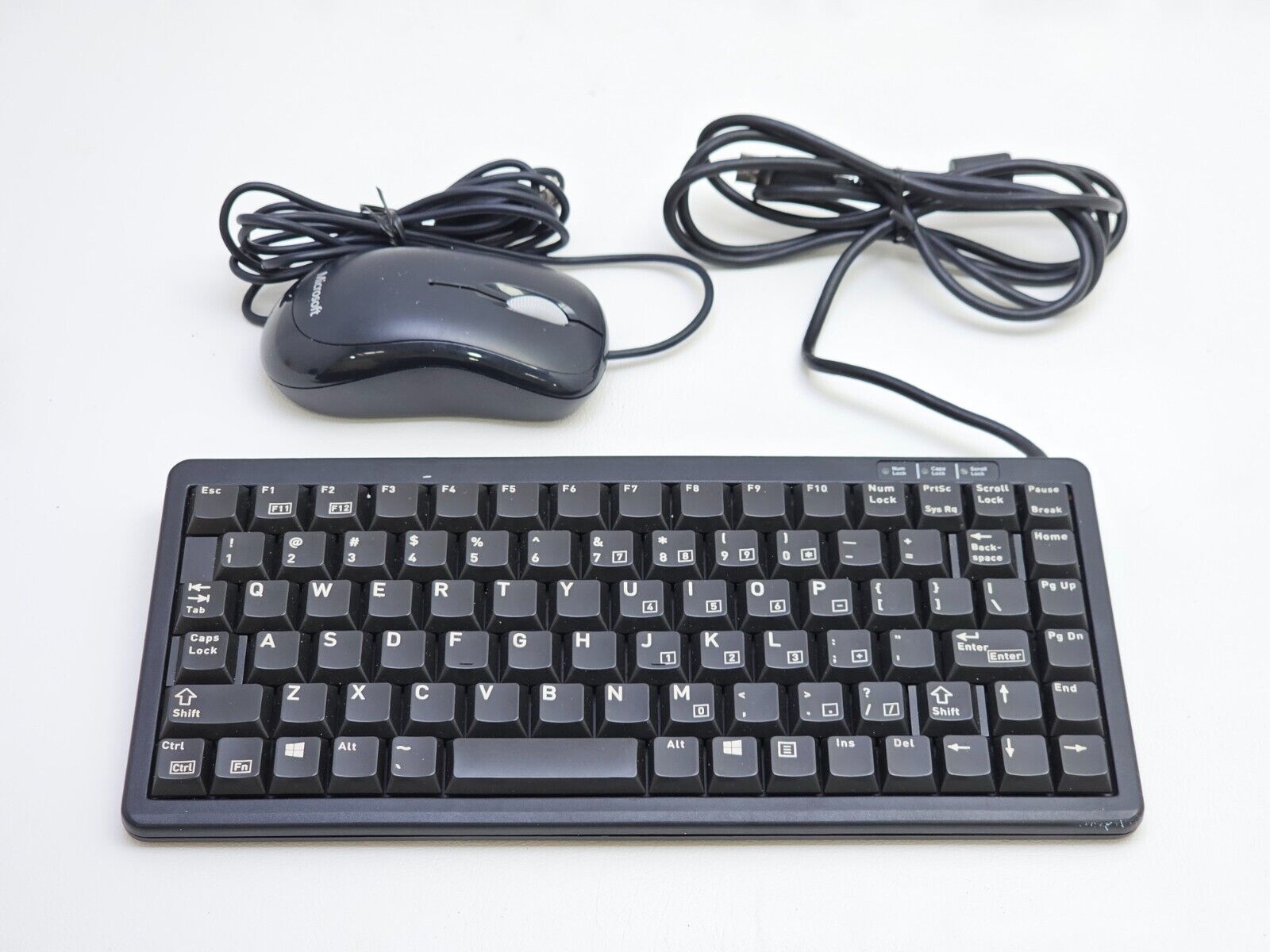

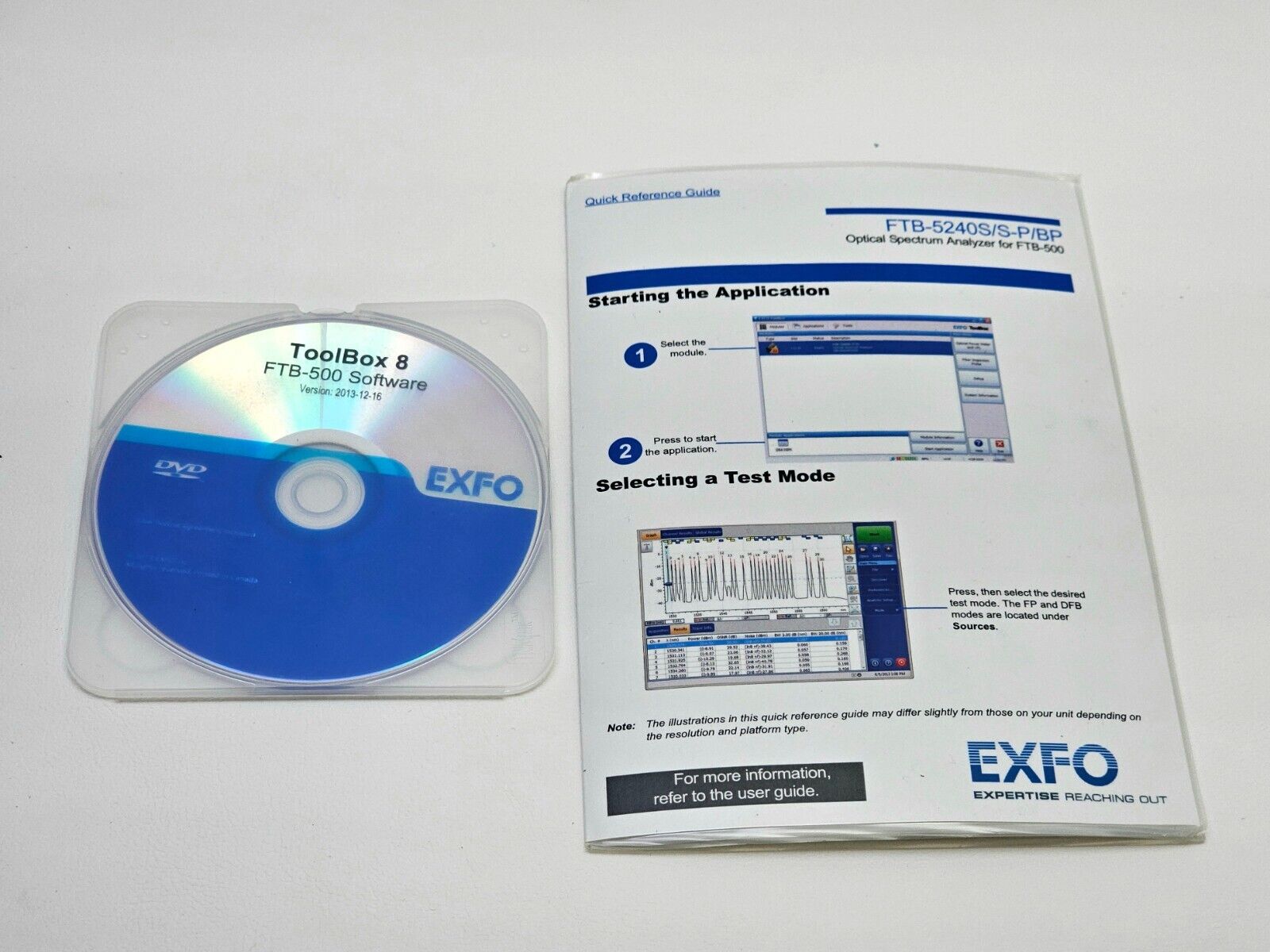

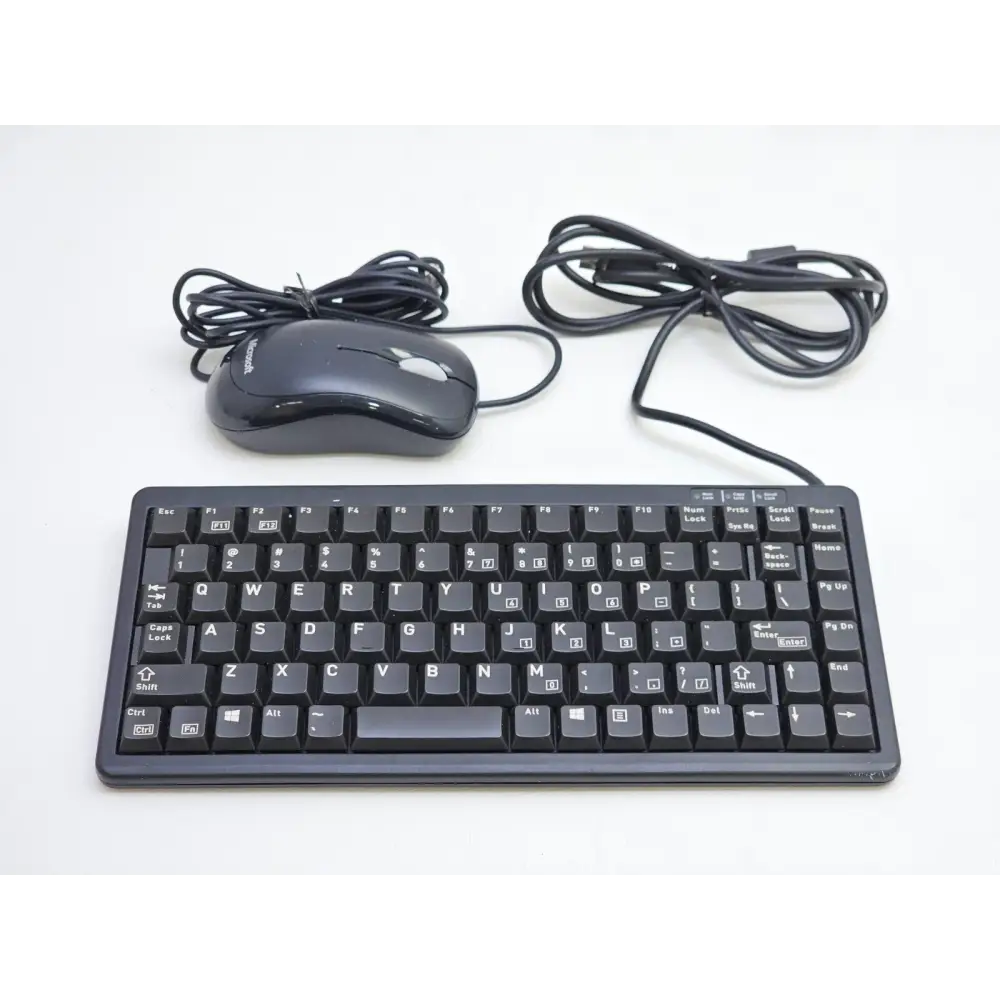

• Other accessories as pictured

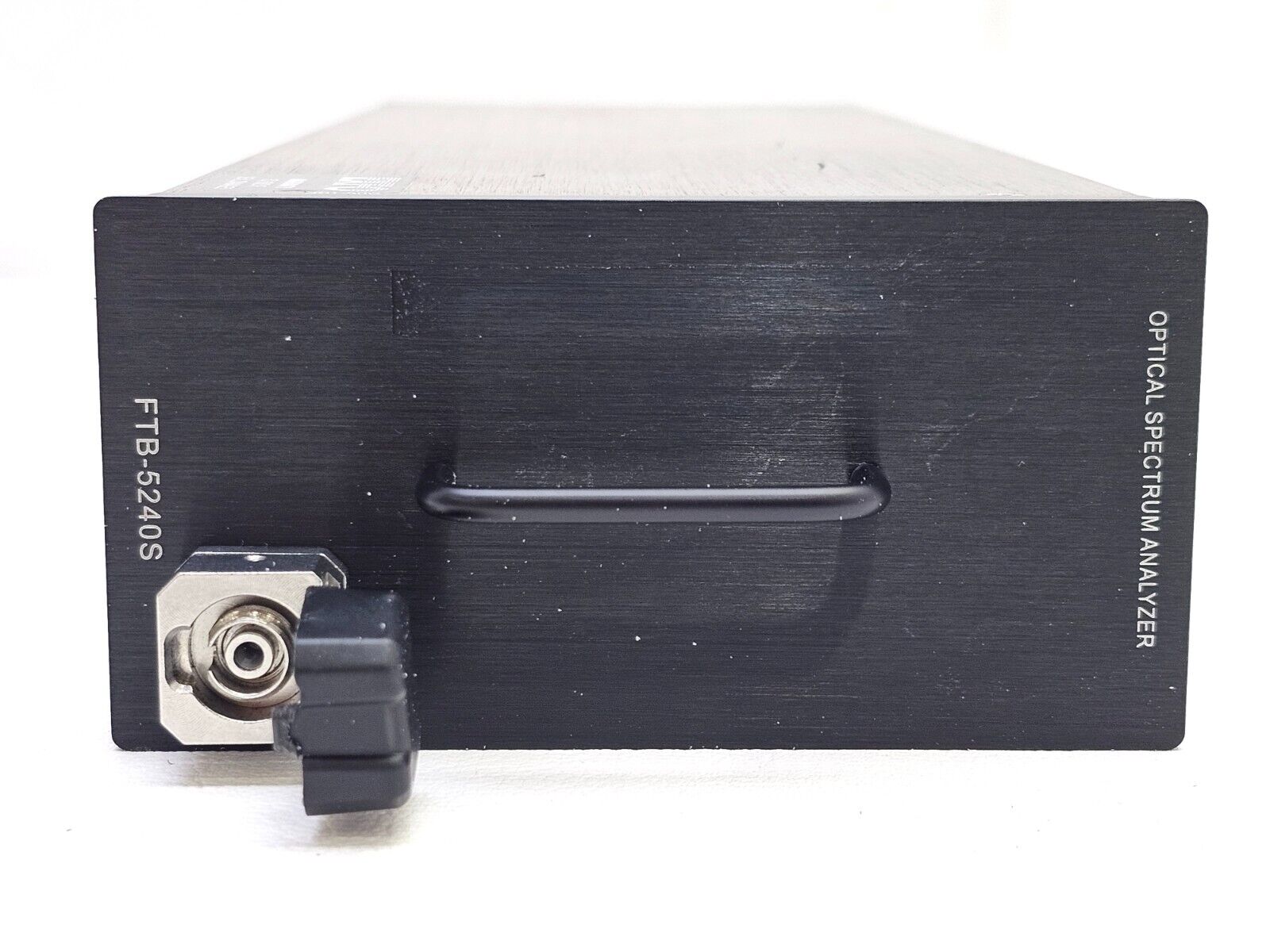

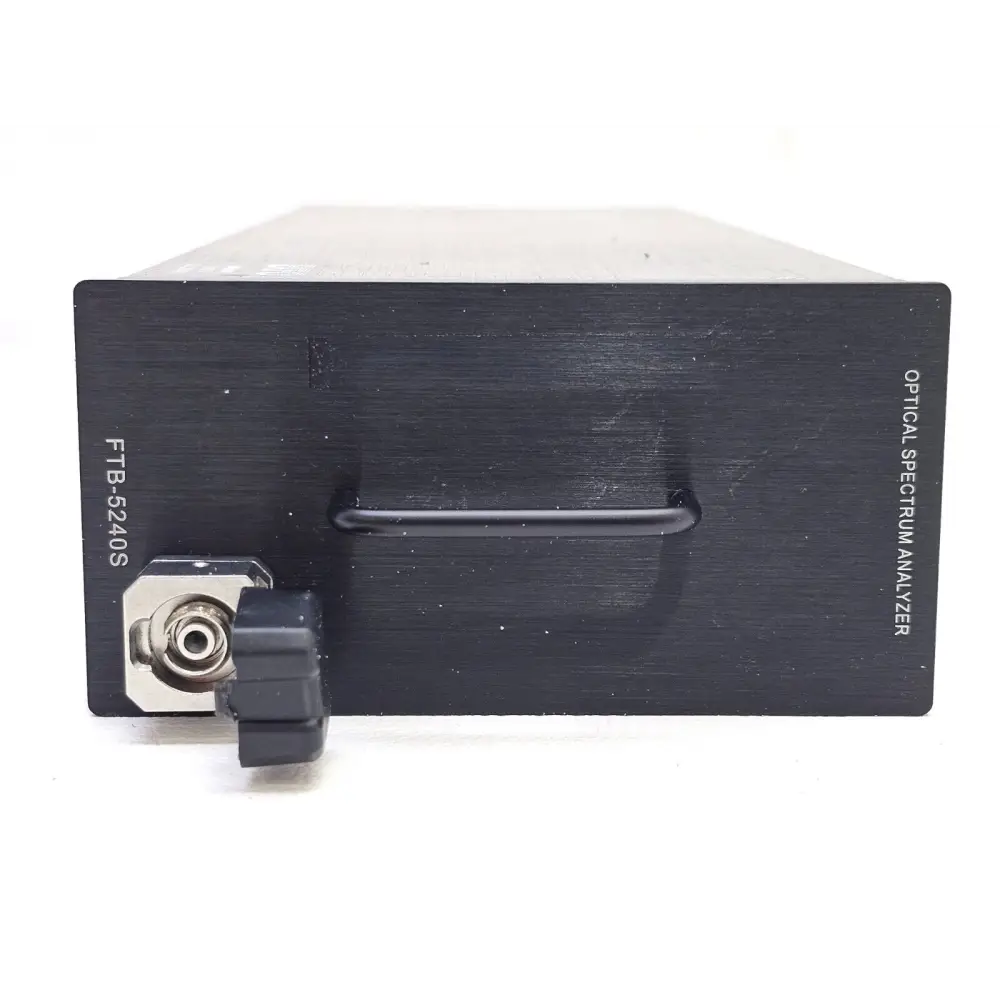

EXFO FTB-5240S-P — Optical Spectrum Analyzer
The FTB-5240S is a highly accurate, easy-to-use intelligent optical spectrum analyser (OSA) designed for analysis of CWDM and DWDM networks. It plugs into the EXFO FTB-500 modular platform, combining lab-quality performance with field-ready portability. The -P variant includes an integrated polarisation controller for polarisation-dependent measurements.
The FTB-5240S provides the flexibility and power required for manufacturing, installing, commissioning, managing, maintaining, monitoring and troubleshooting DWDM network elements. With excellent optical rejection ratio (ORR), resolution bandwidth, wavelength range and dynamic range, the FTB-5240S OSA is suited to any DWDM test challenge.

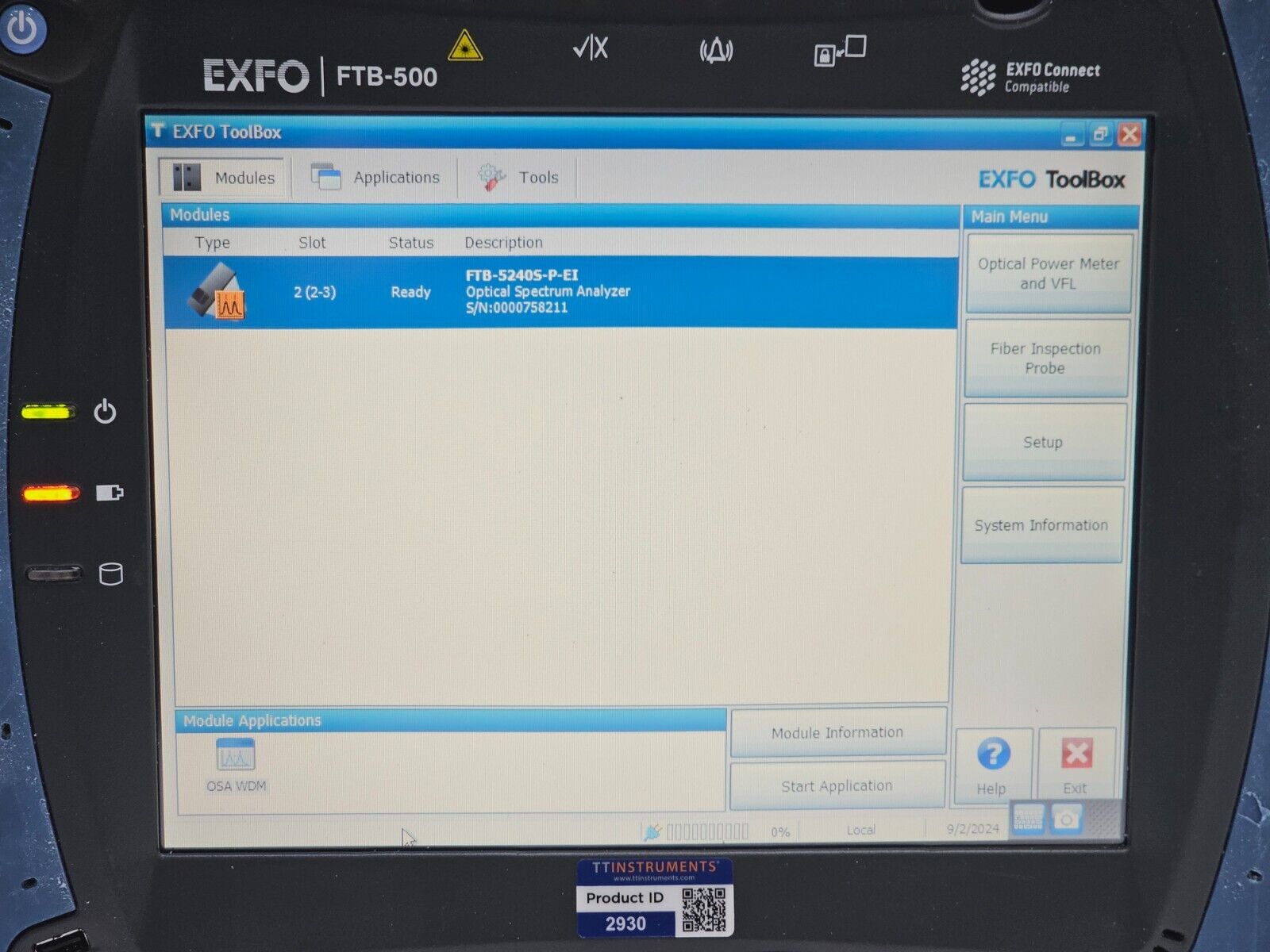

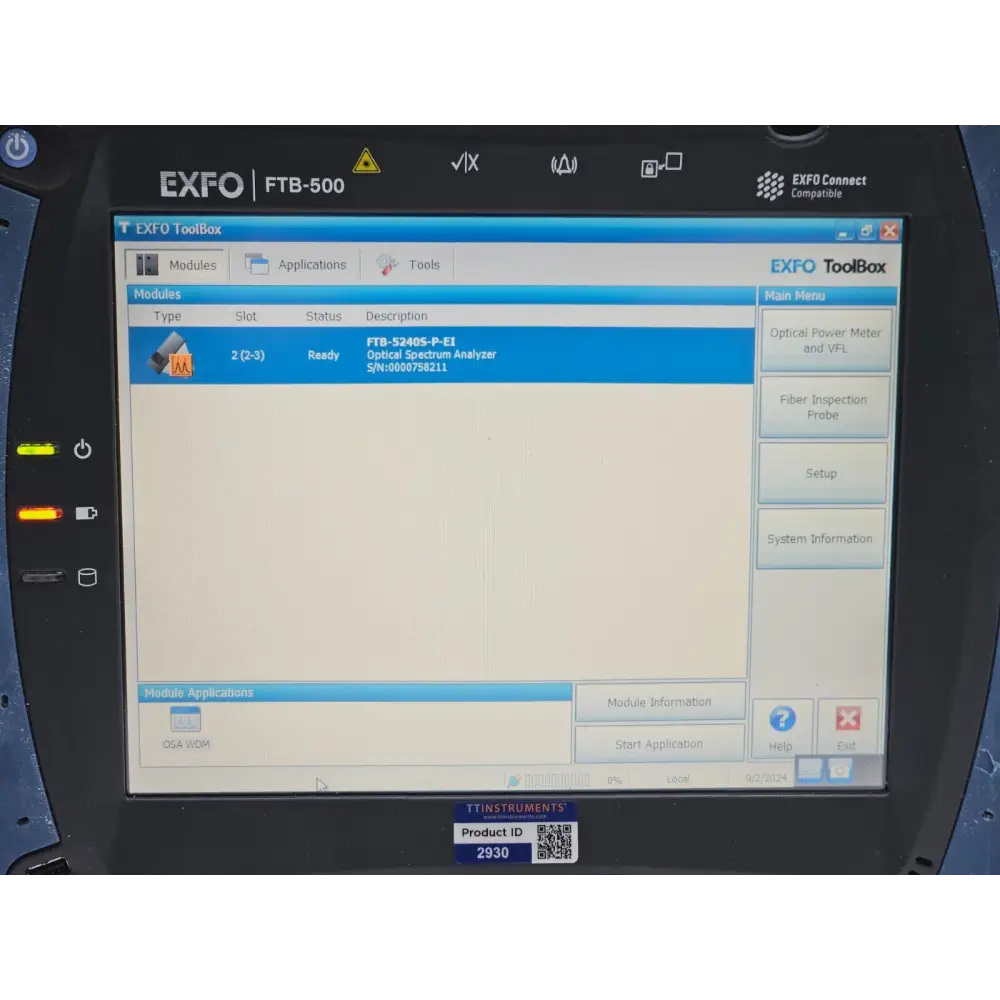

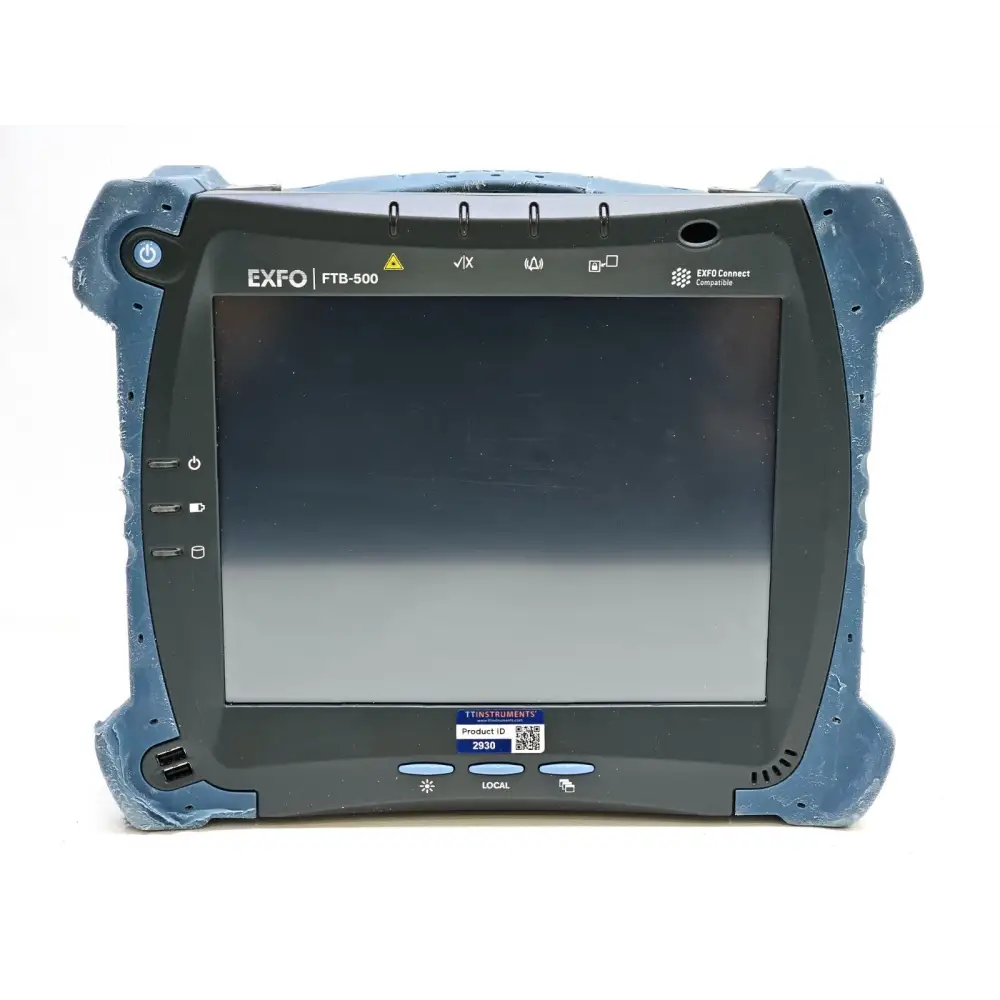

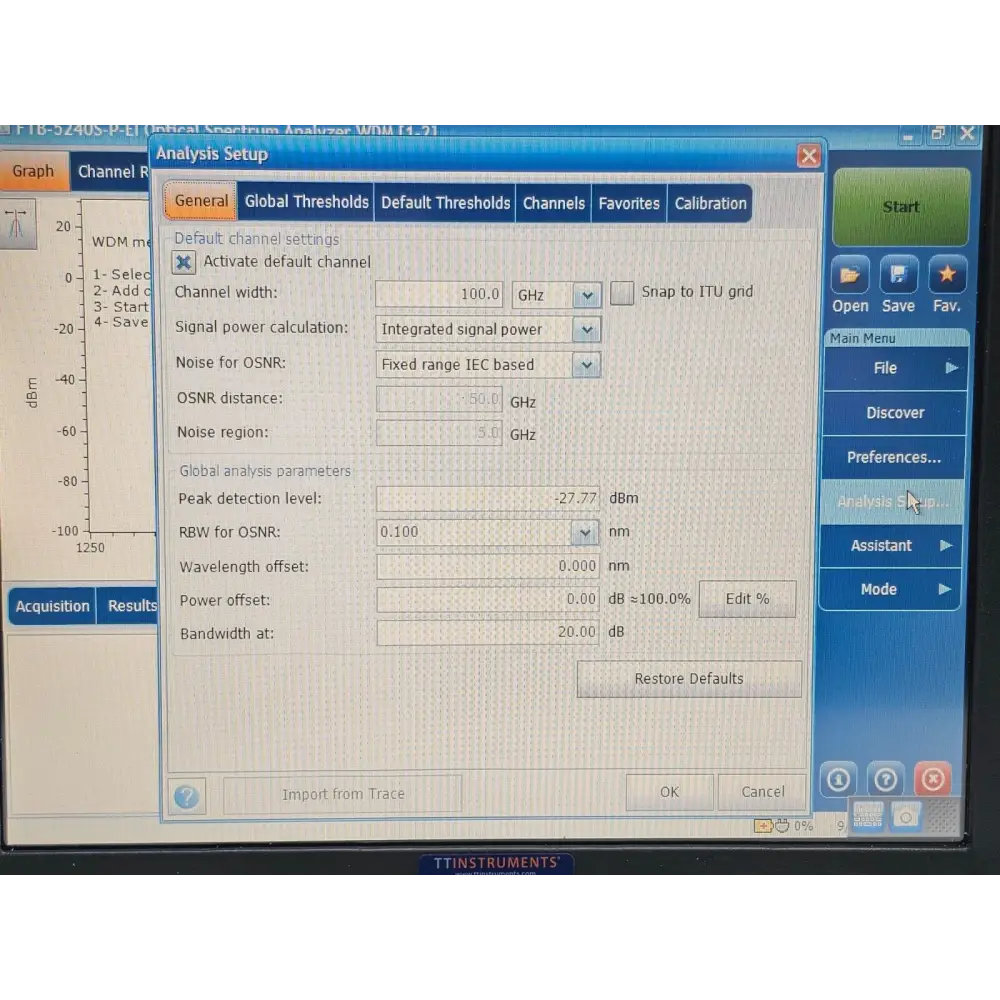

The FTB-500 platform runs a Windows-based OS on an Intel processor, features a 12.1-inch colour touchscreen display (800 x 600), and supports USB, Wi-Fi, Bluetooth and 3G connectivity. It is available in 4-slot (QTR) and 8-slot (OCT) configurations.
Key Specifications:
Spectral Range: 1250 nm to 1650 nm
Wavelength Accuracy (external calibration): ±15 pm
Wavelength Accuracy (internal calibration): ±30 pm (C+L band)
Optical Rejection Ratio (ORR): Up to 50 dBc at 0.2 nm
Optical Rejection Ratio (ORR): Up to 55 dBc at 0.4 nm
Platform Slot Capacity: 4-slot (QTR) or 8-slot (OCT)
Display: 12.1 in colour touchscreen TFT, 800 x 600
OS: Windows-based
Special Features: Polarisation controller (P variant), ADV advanced test mode option, internal reference light source, one-button operation
Form Factor: Modular plug-in for FTB-500 platform
Key Features:
- Lab-quality portable optical spectrum analyser
- One-button operation with intuitive touchscreen interface
- Internal calibration via built-in reference light source
- External calibration for highest wavelength accuracy

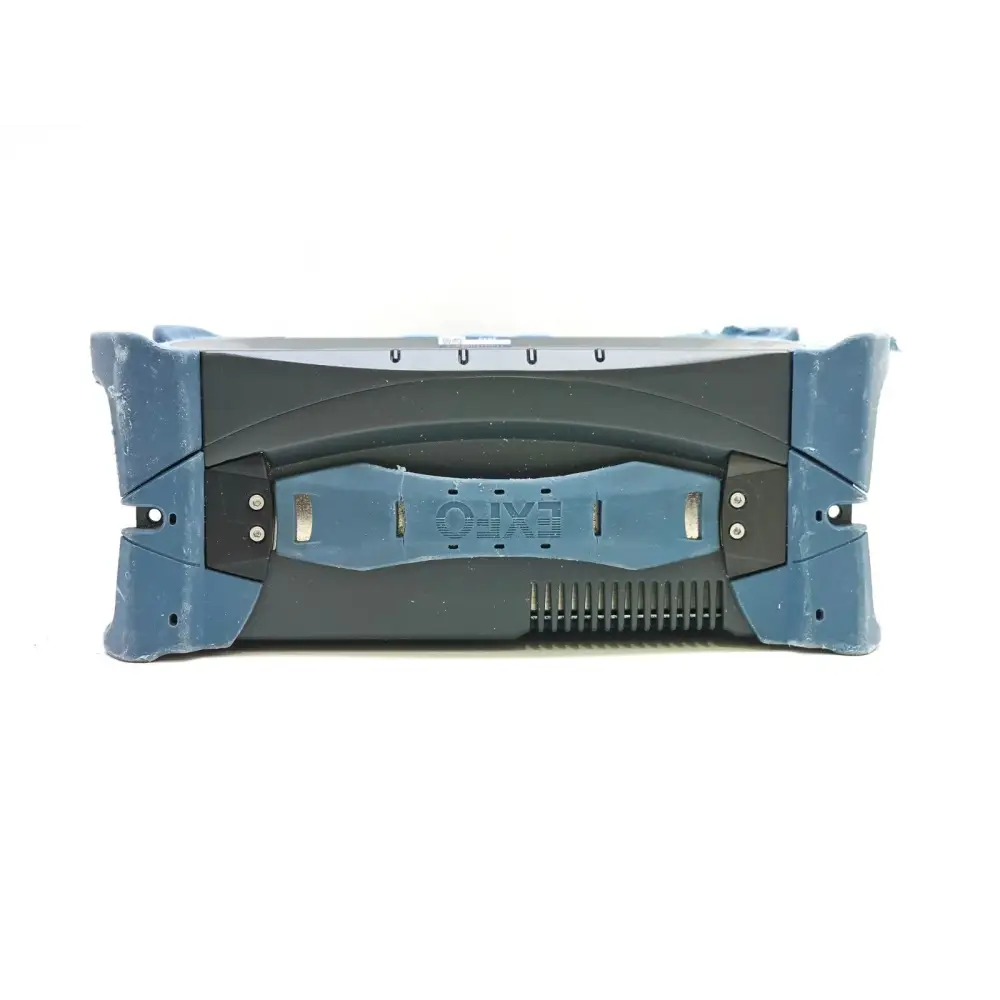

- Rugged magnesium shell housing with rubber bumpers for field use
- Compatible with EXFO Connect for cloud-based asset management
EXFO FTB-5240S/B Optical Spectrum Analyzer Specifications Sheet: Download PDF
Product Overview
Condition: Used
The EXFO FTB-500 mainframe (FTB-500-S1-QTR, 4-slot configuration) paired with the FTB-5240S-P optical spectrum analyser module offers powerful CWDM and DWDM analysis in a portable, field-ready platform. This unit includes the ADV option enabling advanced test mode and the polarisation controller. Note: no batteries are present — mains power use only.
Included in the sale:
• FTB-500-S1-QTR Mainframe (no batteries, mains power use only)
• FTB-5240S-P Module (with polarisation controller)
• ADV Option (enables advanced test mode)
• Carry case (fair wear and tear)
• Power adapter
• Other accessories as pictured
Manufacturer's Description
EXFO FTB-5240S-P — Optical Spectrum Analyzer
The FTB-5240S is a highly accurate, easy-to-use intelligent optical spectrum analyser (OSA) designed for analysis of CWDM and DWDM networks. It plugs into the EXFO FTB-500 modular platform, combining lab-quality performance with field-ready portability. The -P variant includes an integrated polarisation controller for polarisation-dependent measurements.
The FTB-5240S provides the flexibility and power required for manufacturing, installing, commissioning, managing, maintaining, monitoring and troubleshooting DWDM network elements. With excellent optical rejection ratio (ORR), resolution bandwidth, wavelength range and dynamic range, the FTB-5240S OSA is suited to any DWDM test challenge.
The FTB-500 platform runs a Windows-based OS on an Intel processor, features a 12.1-inch colour touchscreen display (800 x 600), and supports USB, Wi-Fi, Bluetooth and 3G connectivity. It is available in 4-slot (QTR) and 8-slot (OCT) configurations.
Key Specifications:
Spectral Range: 1250 nm to 1650 nm
Wavelength Accuracy (external calibration): ±15 pm
Wavelength Accuracy (internal calibration): ±30 pm (C+L band)
Optical Rejection Ratio (ORR): Up to 50 dBc at 0.2 nm
Optical Rejection Ratio (ORR): Up to 55 dBc at 0.4 nm
Platform Slot Capacity: 4-slot (QTR) or 8-slot (OCT)
Display: 12.1 in colour touchscreen TFT, 800 x 600
OS: Windows-based
Special Features: Polarisation controller (P variant), ADV advanced test mode option, internal reference light source, one-button operation
Form Factor: Modular plug-in for FTB-500 platform
Key Features:
- Lab-quality portable optical spectrum analyser
- One-button operation with intuitive touchscreen interface
- Internal calibration via built-in reference light source
- External calibration for highest wavelength accuracy
- Rugged magnesium shell housing with rubber bumpers for field use
- Compatible with EXFO Connect for cloud-based asset management
Resources
EXFO FTB-5240S/B Optical Spectrum Analyzer Specifications Sheet: Download PDF
