The EXFO FTB-5700-CD-PMD-EA Single-Ended Dispersion Analyser Module is in used condition and is in cosmetically excellent condition.

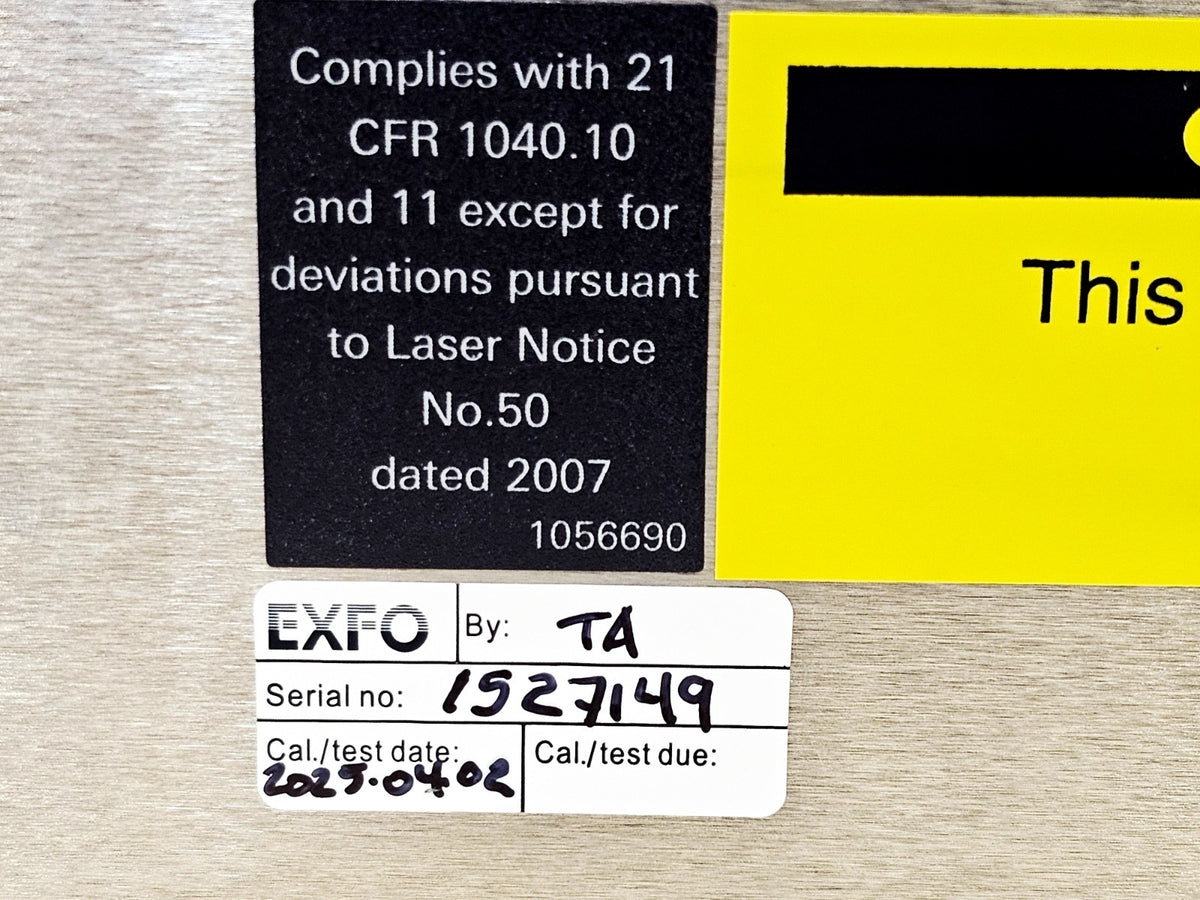

The module has been tested and confirmed working. It was last calibrated and tested by EXFO on 2 April 2025 and has reportedly been used only a couple of times since then.

Manufactured in October 2021, this is a relatively recent model with limited use since its last calibration.

Unit Configuration

Part Number: FTB-5700-CD-PMD-EA

Revision: D

CD Analyser: Active

PMD Analyser: Active

Optical Connector: APC, EUI interface

Platform Included: EXFO FTB-4 Pro mainframe

What's Included

• EXFO FTB-5700-CD-PMD-EA dispersion analyser module

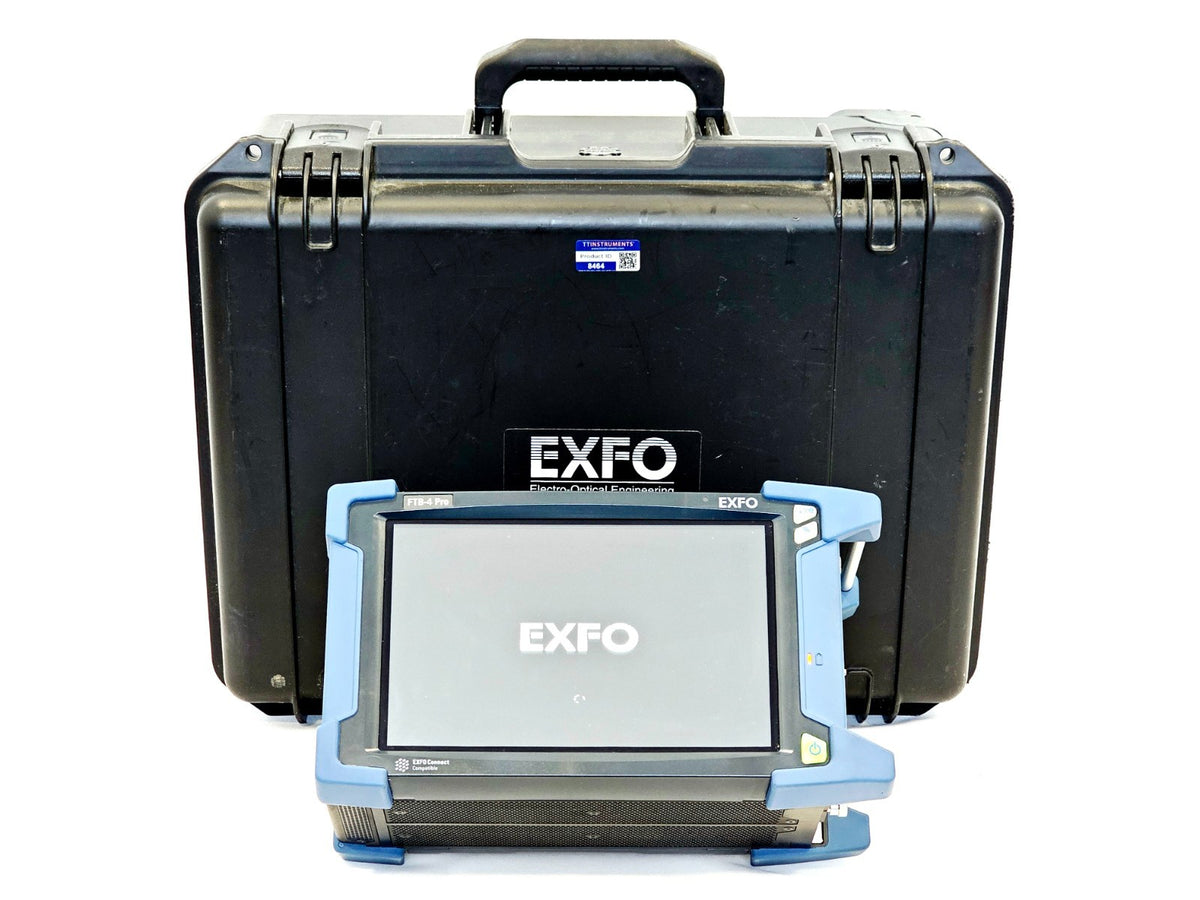

• EXFO FTB-4 Pro mainframe

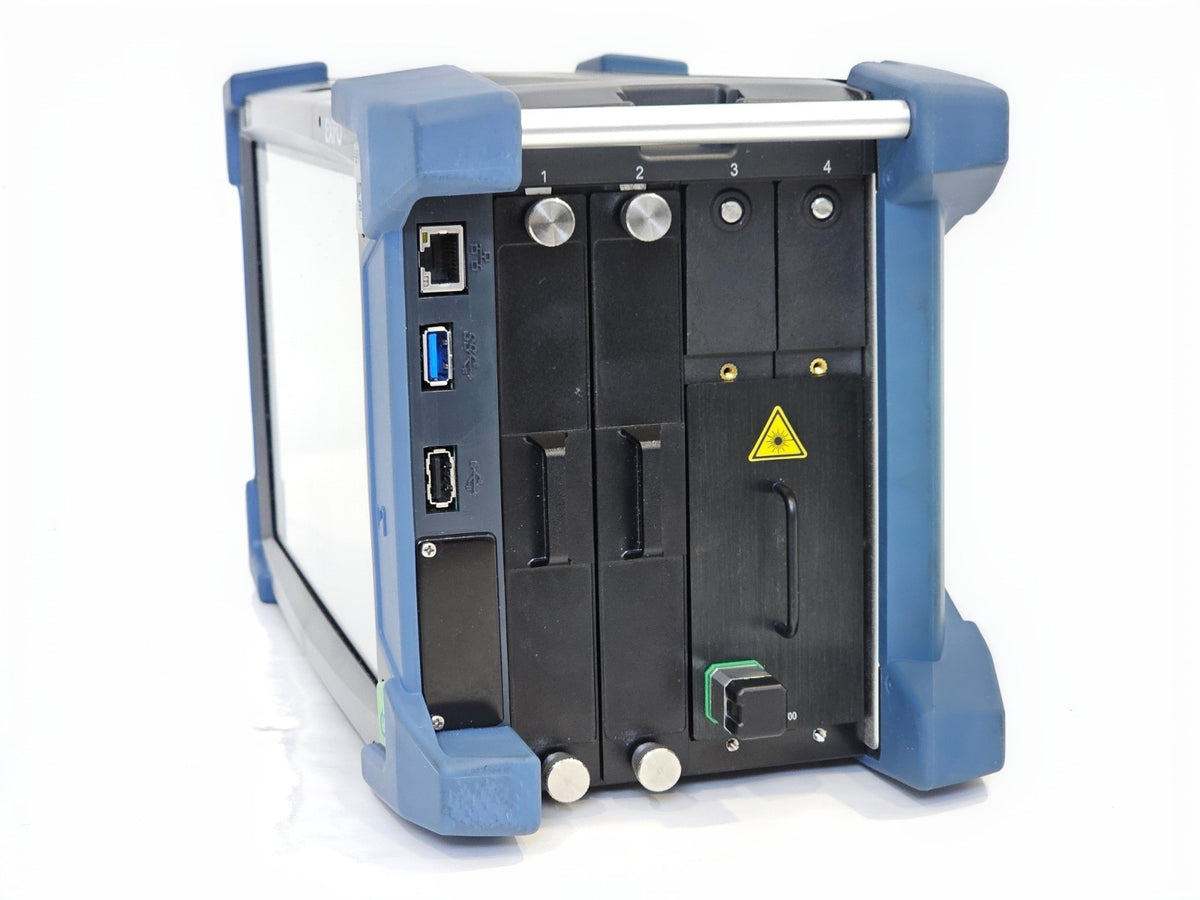

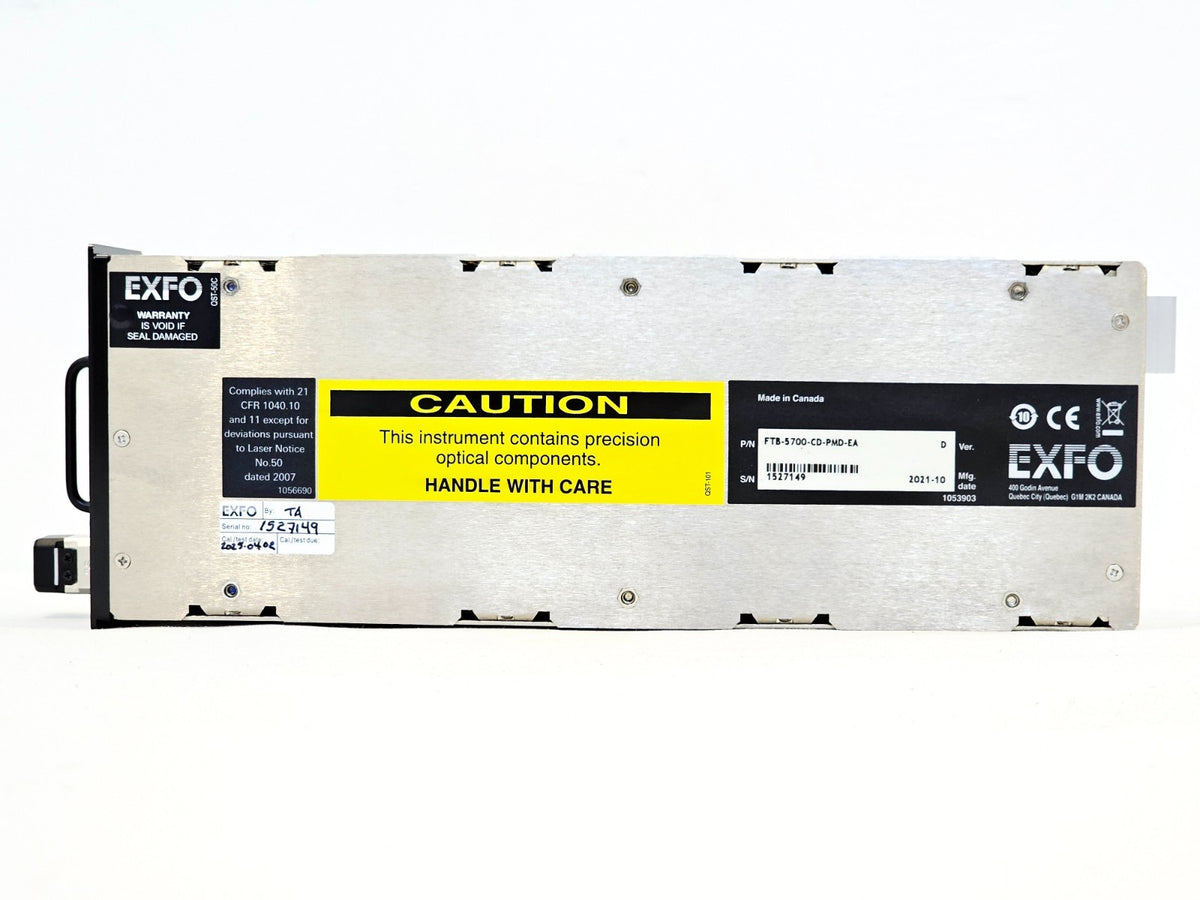

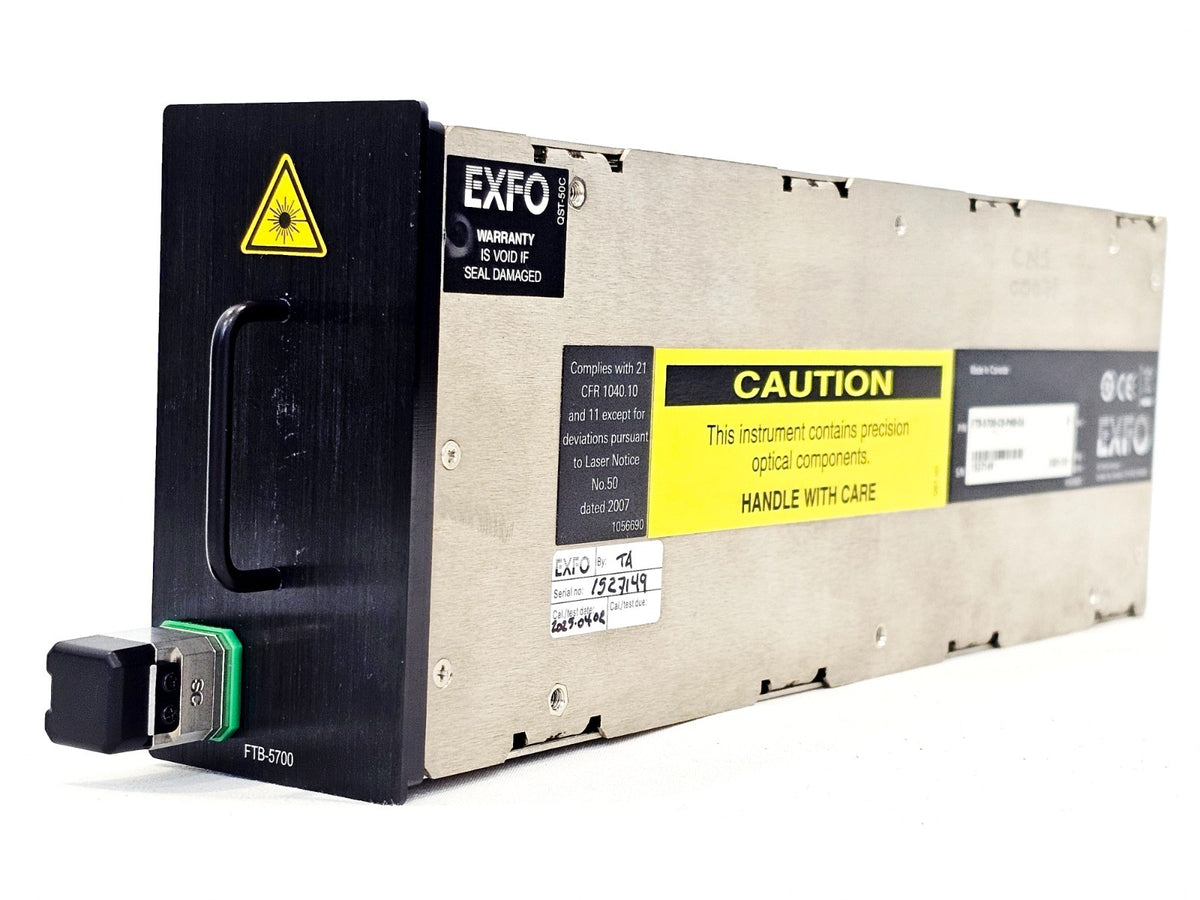

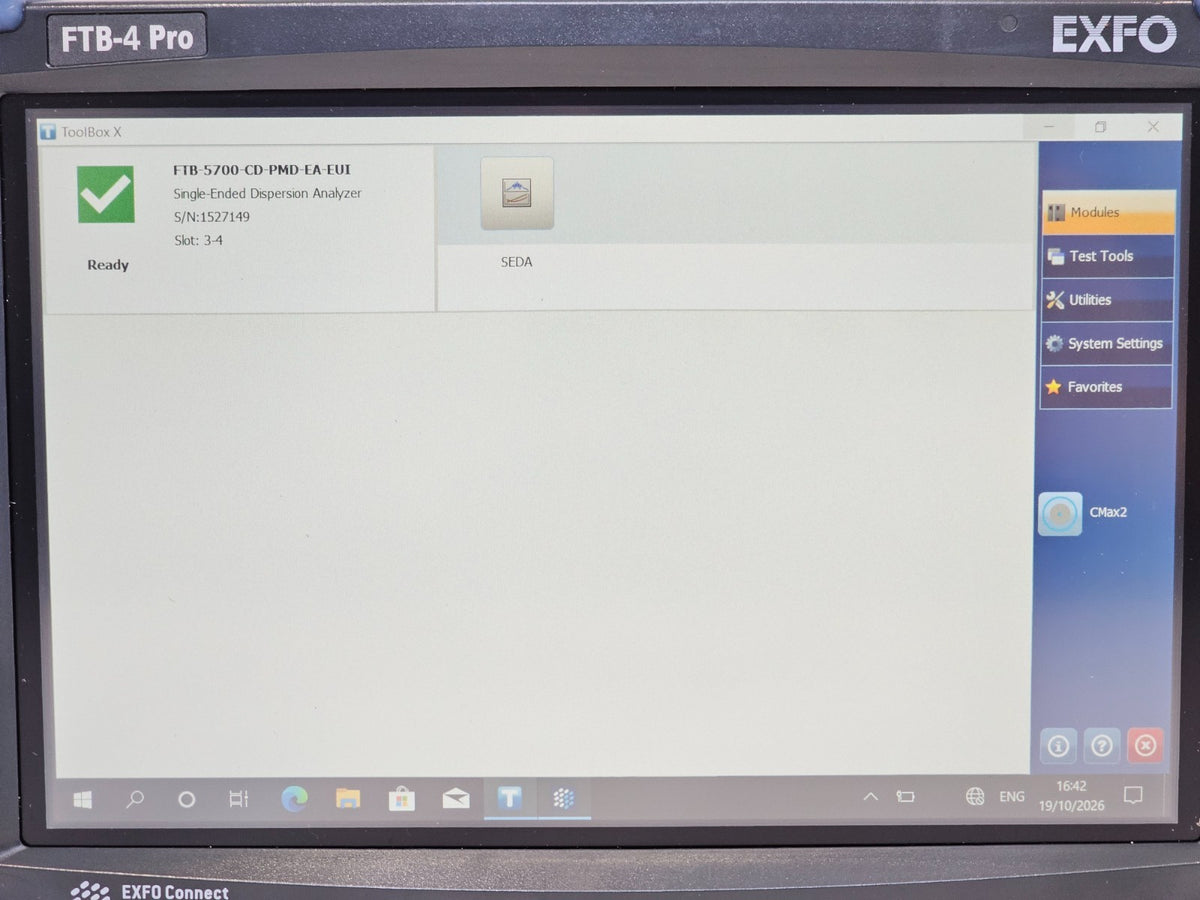

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

The EXFO FTB-5700-CD-PMD-EA is a single-ended dispersion analyser module designed to measure chromatic dispersion (CD) and polarisation mode dispersion (PMD) in optical fibre networks. Combining both measurement capabilities in one automated solution, it allows a single technician to perform CD and PMD characterisation from one end of the fibre, reducing the need for a second technician at the far end.

Designed for fibre qualification and high-capacity telecommunications networks, the module supports measurements across a wavelength range of 1475 nm to 1626 nm. It is suitable for qualifying optical links used in 10 Gbit/s, 40 Gbit/s and 100 Gbit/s transmission systems.

The FTB-5700-CD-PMD-EA features active CD and PMD analyser options and an angled physical contact (APC) optical connector interface. It is compatible with selected EXFO modular platforms, including the FTB-200, FTB-400 and FTB-500 series.

Key Features

• Combined chromatic dispersion and polarisation mode dispersion analysis.
• Single-ended testing from one end of the fibre.
• Automated CD and PMD measurements.
• Wavelength coverage from 1475 nm to 1626 nm.
• Dynamic range of 25 dB, increasing to 32 dB with a reflector.
• Supports fibre lengths up to 120 km, or 140 km with a reflector.
• Designed for qualifying 10 Gbit/s, 40 Gbit/s and 100 Gbit/s networks.
• Active CD Analyser and PMD Analyser options.
• APC optical connector interface.
• Compatible with EXFO FTB-200, FTB-400 and FTB-500 series platforms.

Key Technical Specifications

Part Number: FTB-5700-CD-PMD-EA

Revision: D

Measurement Type: Single-ended chromatic dispersion (CD) and polarisation mode dispersion (PMD)

Wavelength Range: 1475–1626 nm

Dynamic Range: 25 dB; 32 dB with reflector

Maximum Fibre Length: 120 km; 140 km with reflector

Chromatic Dispersion (CD)

• Number of test points: 8
• Uncertainty: ±10 ps/nm
• Test time: Approximately 40 seconds

Polarisation Mode Dispersion (PMD)

• Display range: Up to 50 ps
• Range under strong mode coupling: 0.1–20 ps
• Uncertainty under strong mode coupling: ±(0.2 + 5% × PMD) ps
• Test time: Less than 180 seconds

Distance Uncertainty: ±(0.01 + 1% × distance) km

Standards Compliance:

• CD: EIA/TIA FOTP-175B
• PMD: EIA/TIA FOTP-243 and IEC 61282-9

Network Qualification: 10 Gbit/s, 40 Gbit/s and 100 Gbit/s

Optical Connector: APC (angled physical contact), EUI interface

Platform Compatibility: EXFO FTB-200, FTB-400 and FTB-500 series

Dimensions (H × W × D): 96 × 50 × 281 mm

Weight: 1.3 kg

Operating Temperature: 0°C to 50°C

Relative Humidity: 0–95%, non-condensing

Country of Manufacture: Canada
