Condition: Used

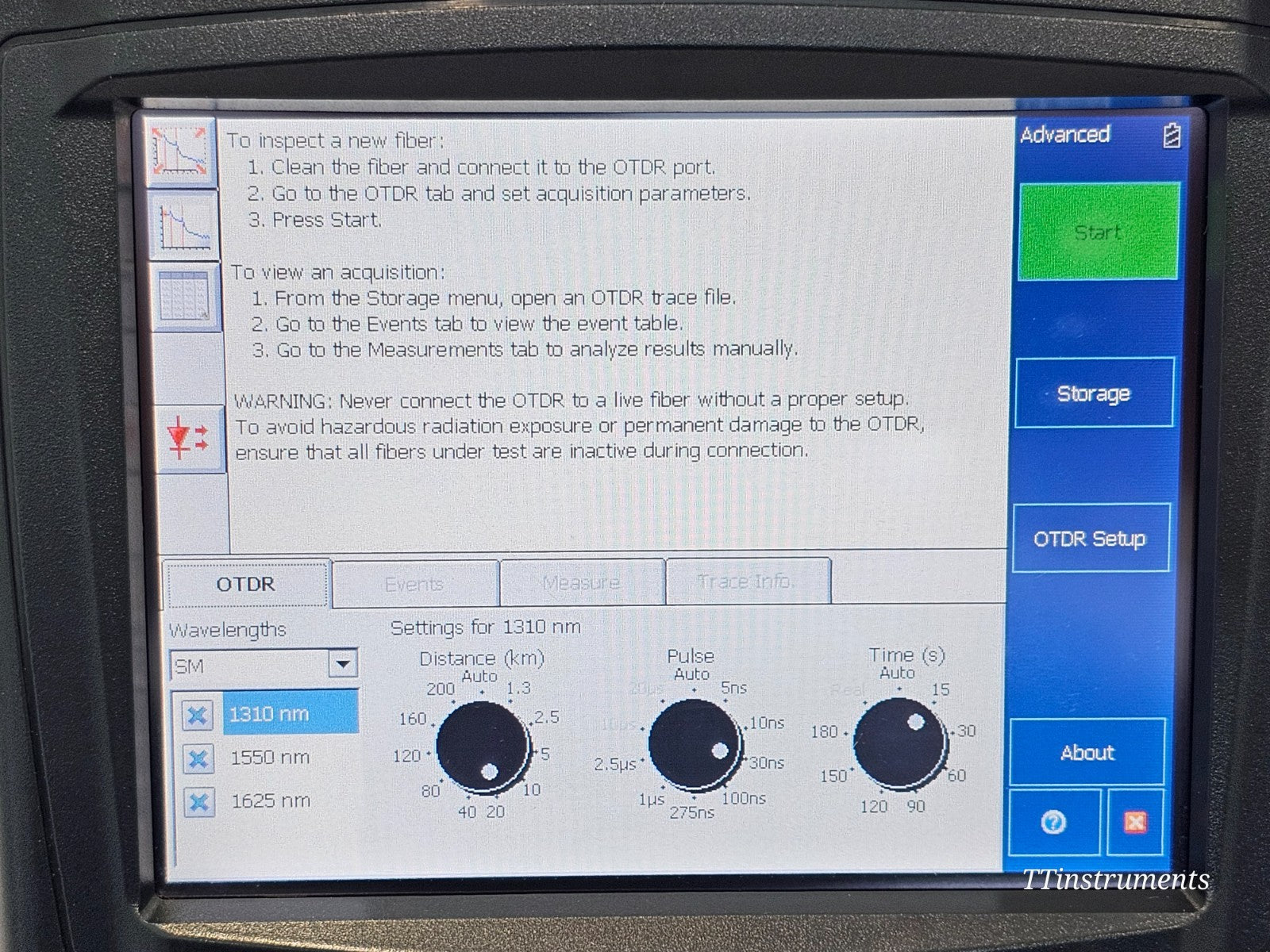

In good working condition. This is a tri-band OTDR module (FTB-7300D) installed in an FTB-200 mainframe, supporting 1310, 1550, and 1625 nm wavelengths with dynamic ranges of 38/37/35 dB and an SC/PC connector interface.

Included in the sale:
• FTB-200 mainframe with battery
• FTB-7300D OTDR module (1310/1550/1625 nm, SC/PC connector)
• OTDR software (38/37/35 dB)
• Power adapter
• Stylus
• Carry bag

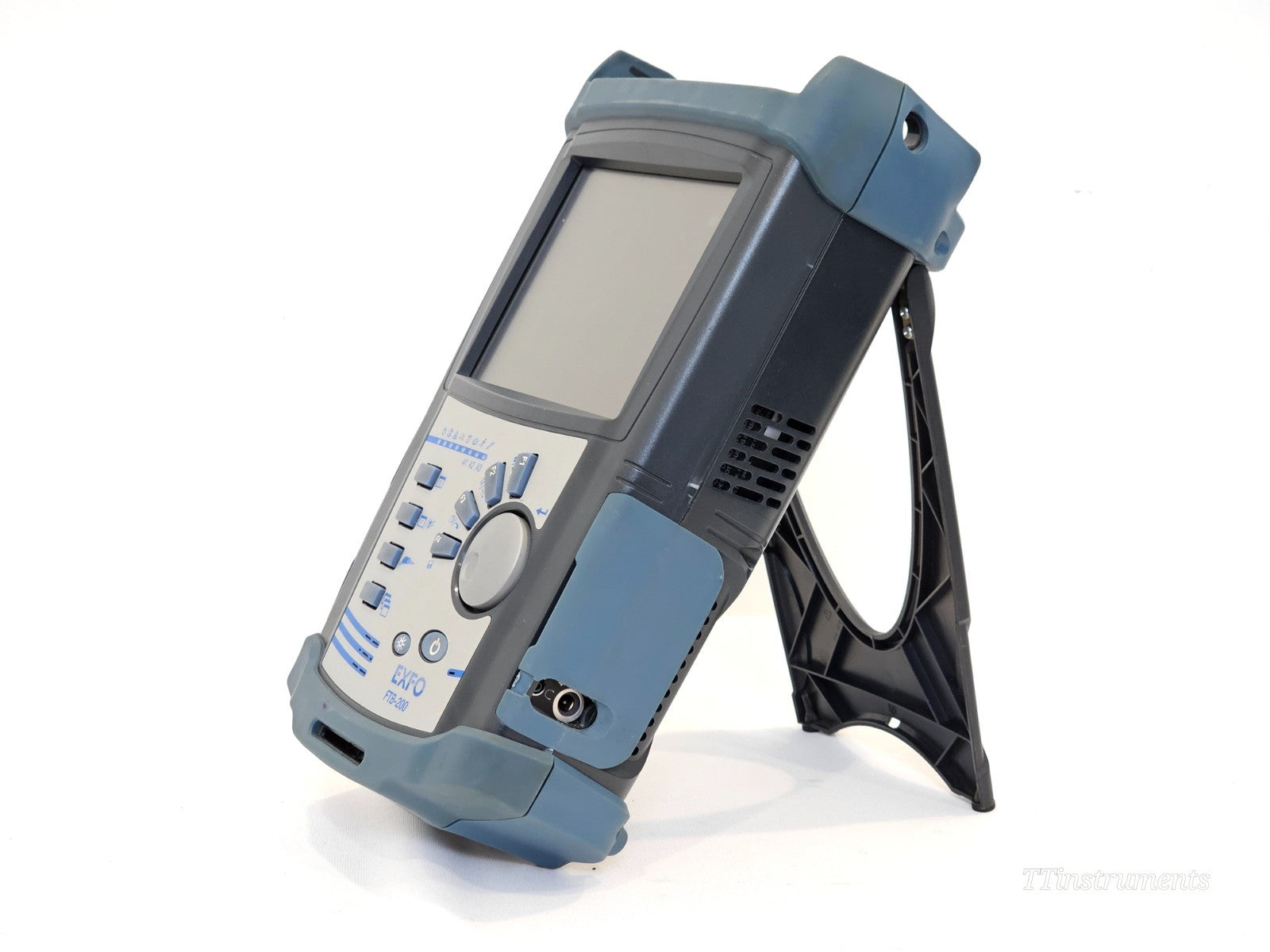

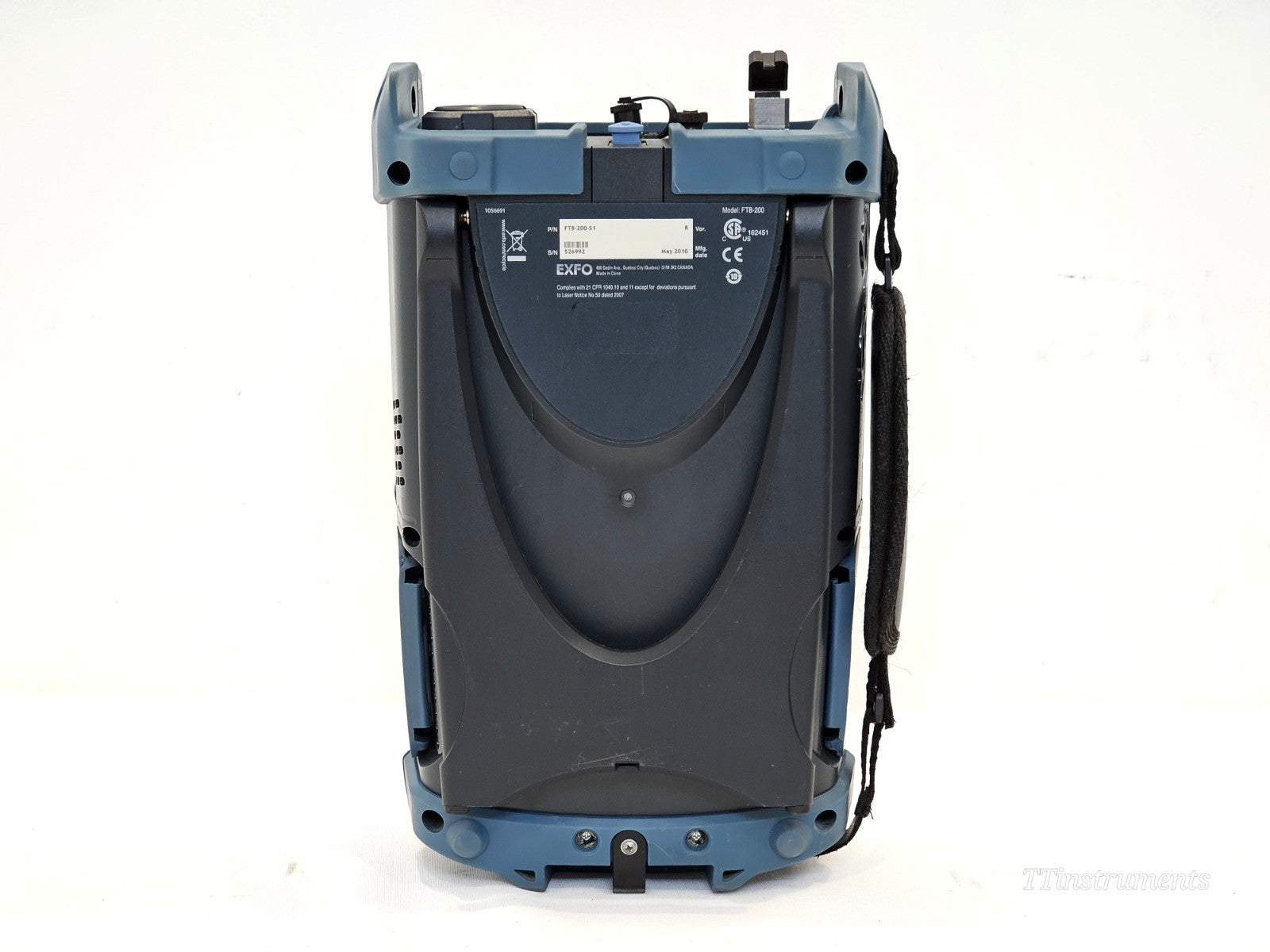

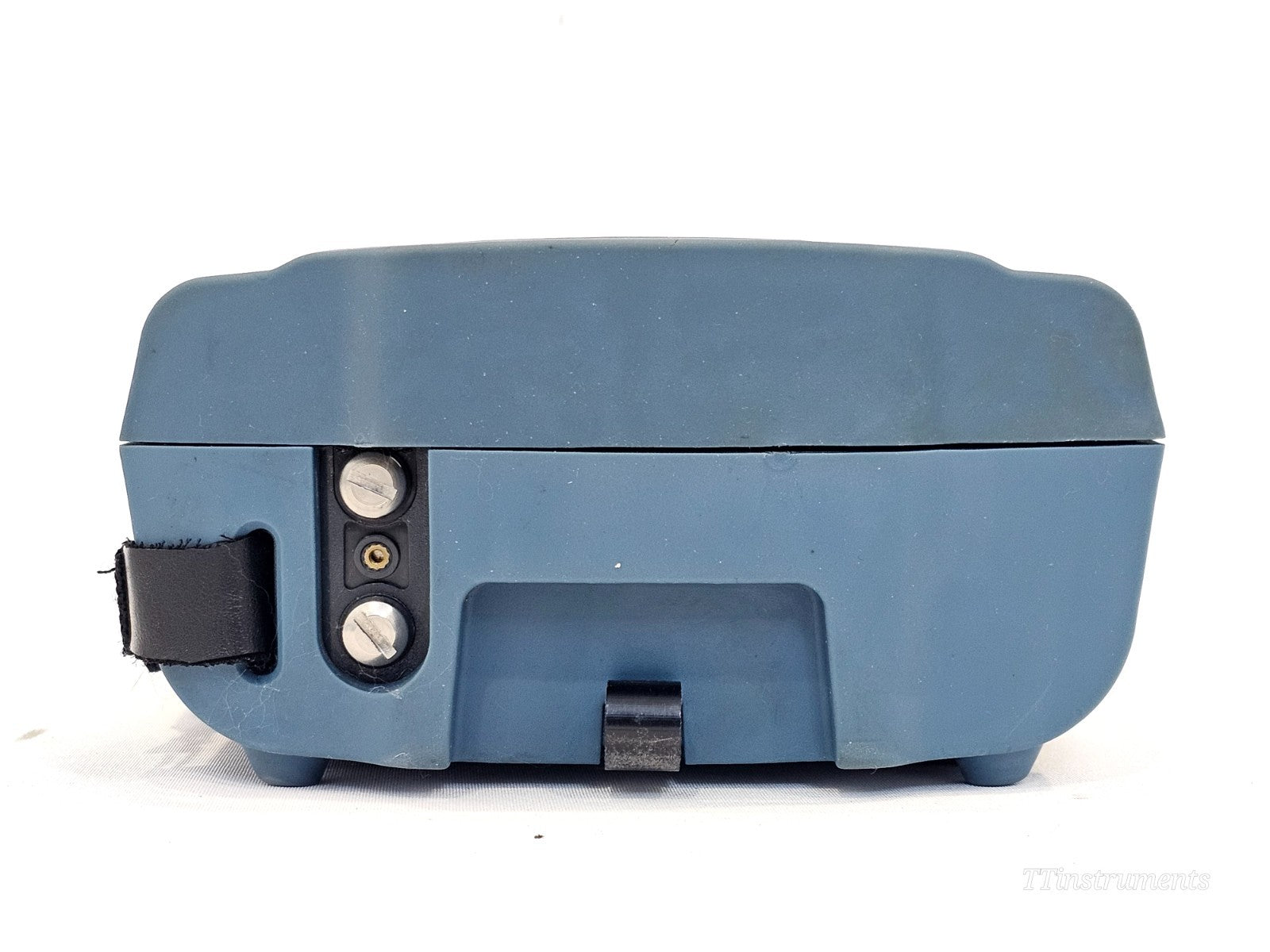

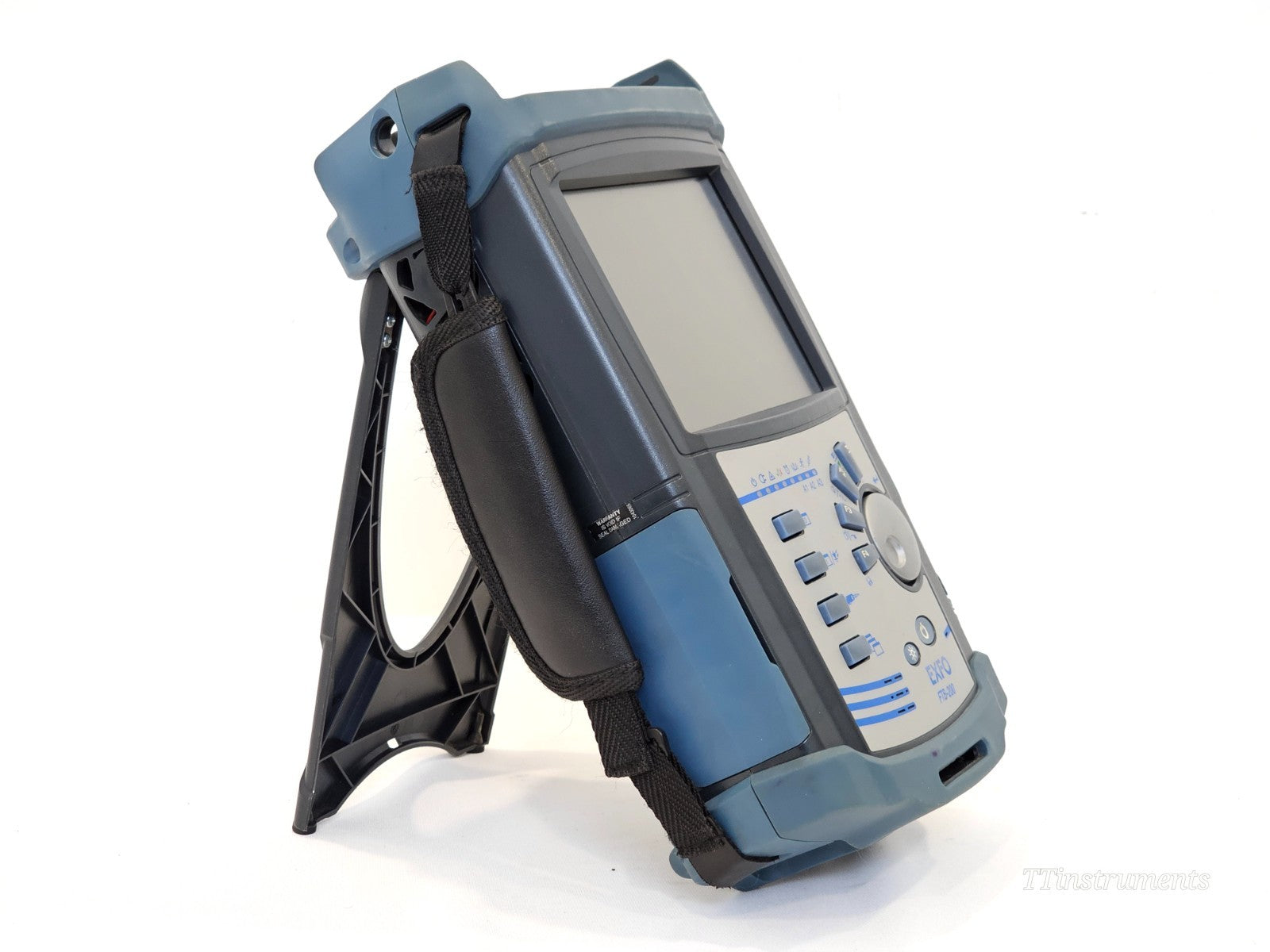

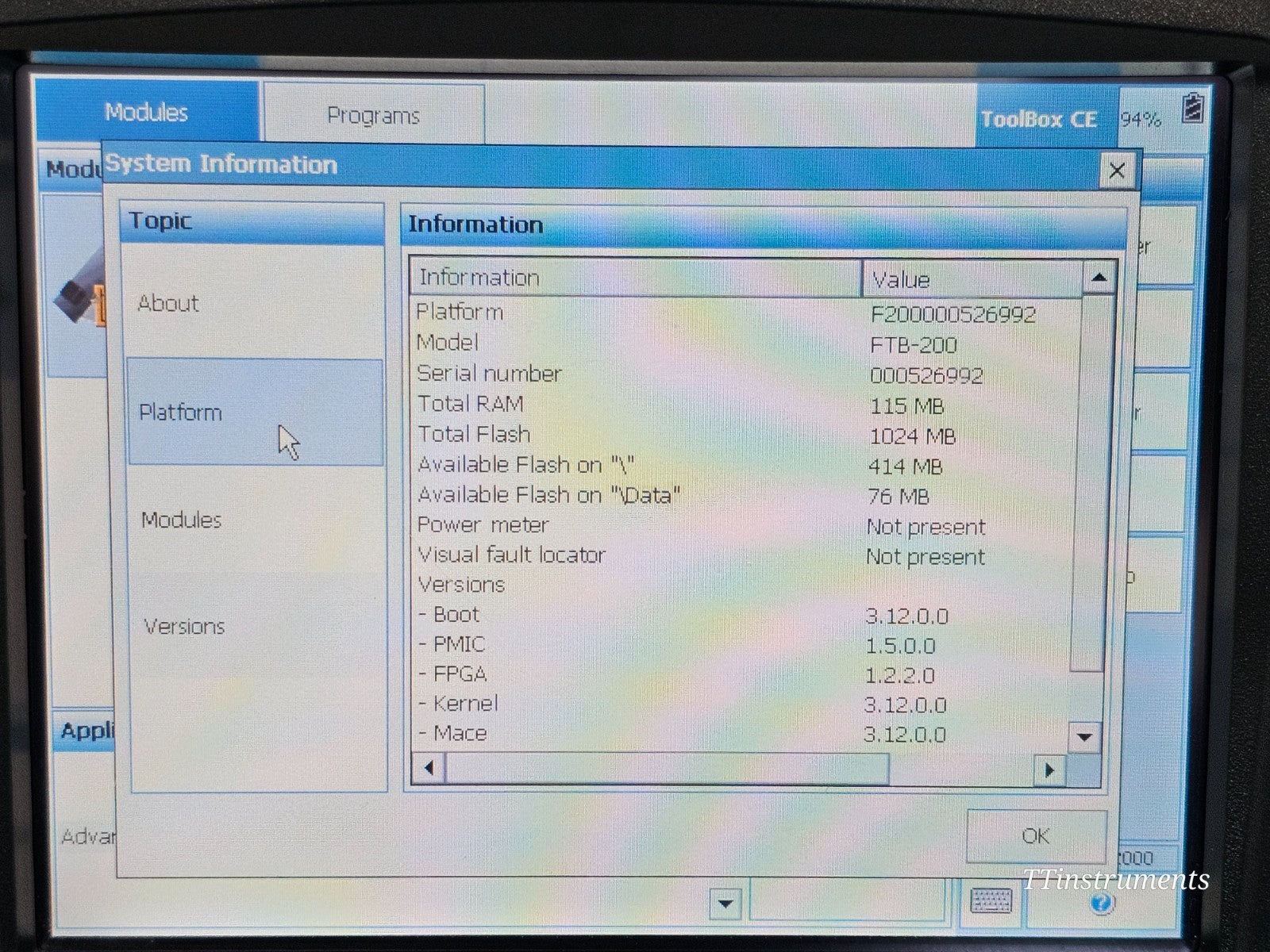

The EXFO FTB-200 is a compact, portable modular test platform designed for field technicians working on fibre optic networks. The mainframe accepts interchangeable test modules and features a colour touchscreen display, rugged enclosure suitable for field deployment, and an integrated battery for extended portable use.

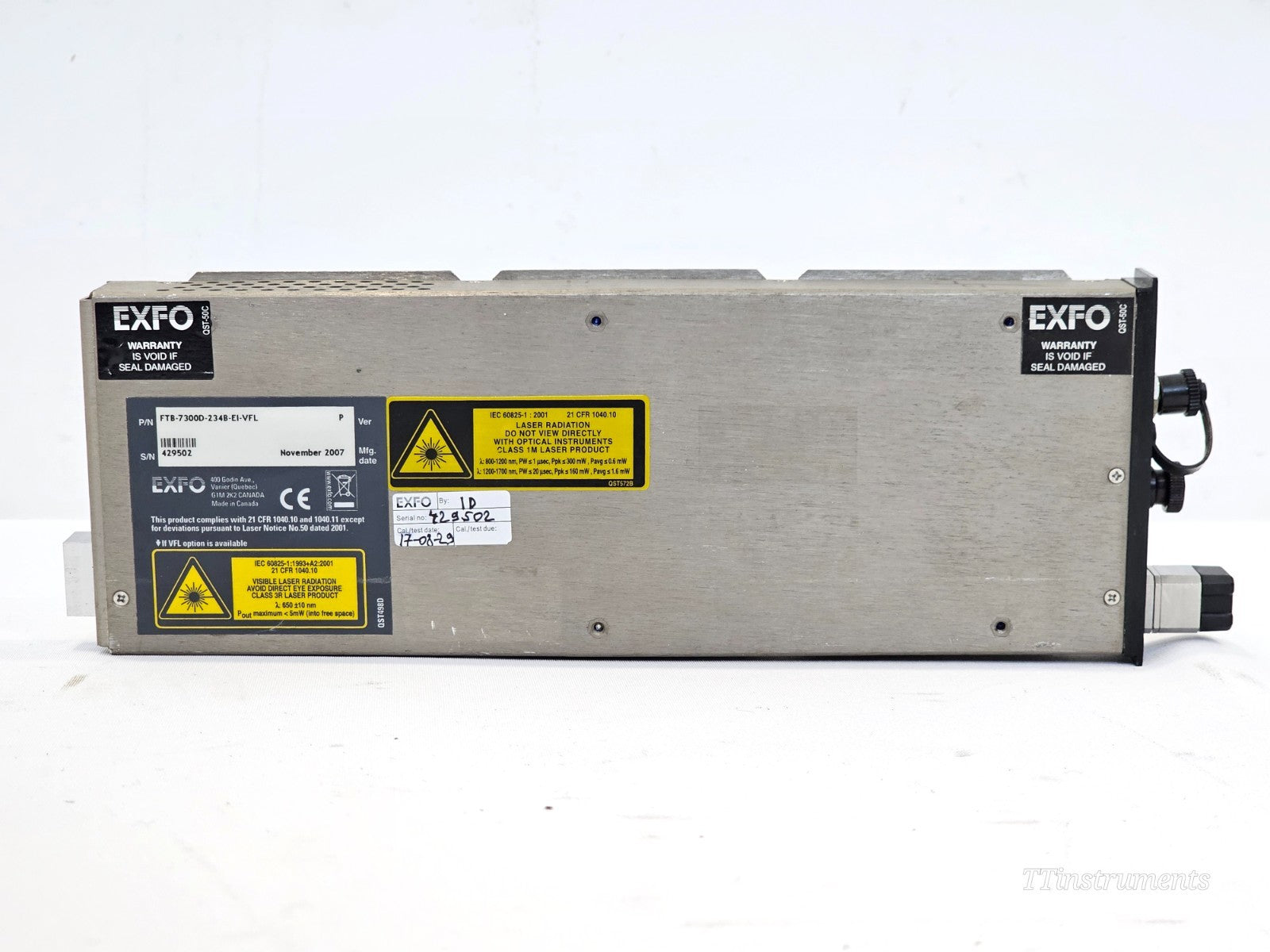

The FTB-7300D is an OTDR module for the FTB-200 platform, providing tri-band operation at 1310, 1550, and 1625 nm. The 1625 nm wavelength is specifically intended for live-fibre testing, allowing technicians to characterise and troubleshoot in-service fibres without interrupting traffic. The module is well suited for installation, acceptance testing, maintenance, and fault location on single-mode fibre optic networks.

Key features include:
• Three-wavelength operation: 1310 nm, 1550 nm, and 1625 nm
• High dynamic range for testing long-haul and passive optical network (PON) infrastructures

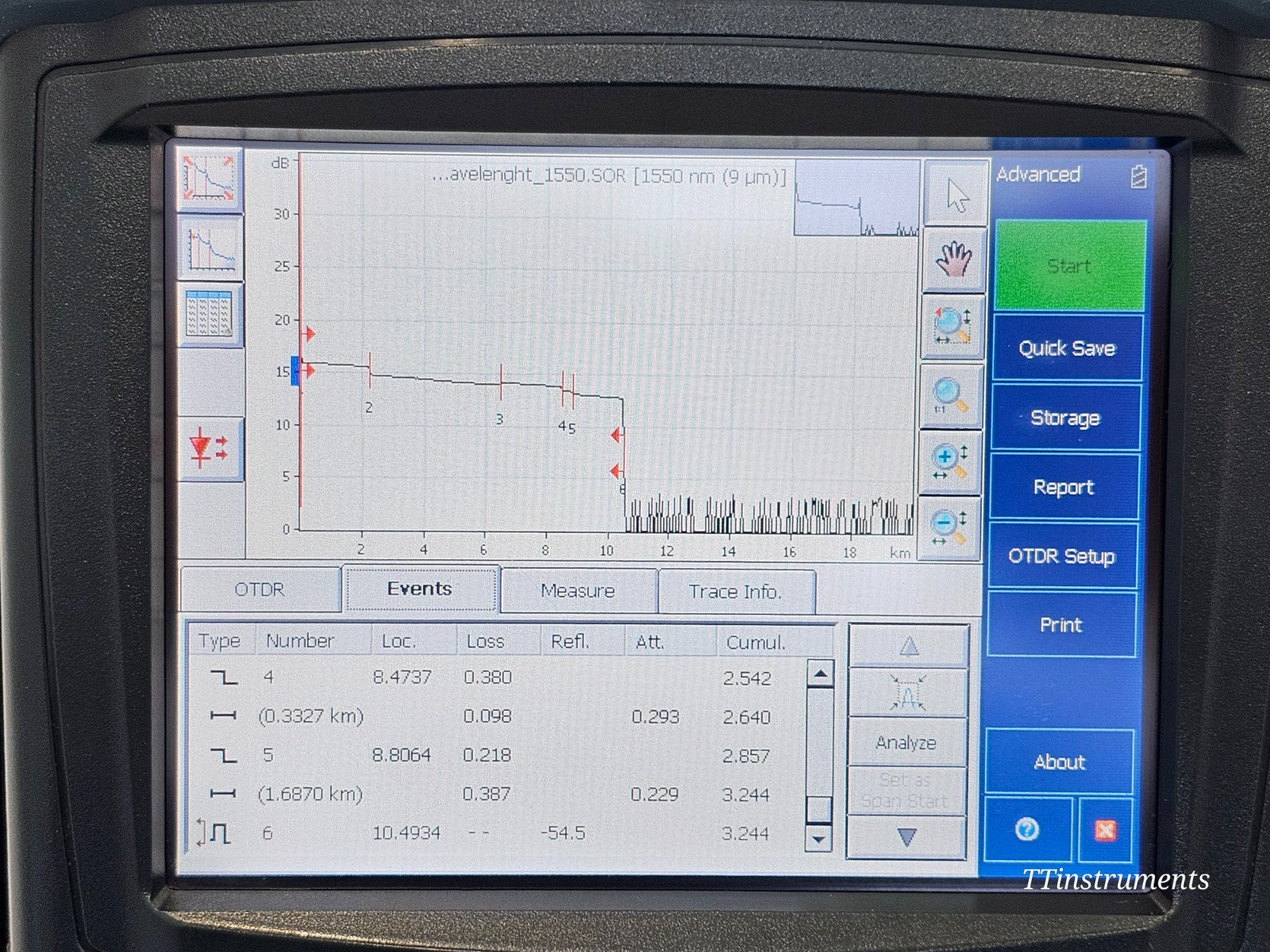

• Accurate measurement of splice loss, connector loss, fibre attenuation, and reflectance
• Fault location and event identification along the fibre link

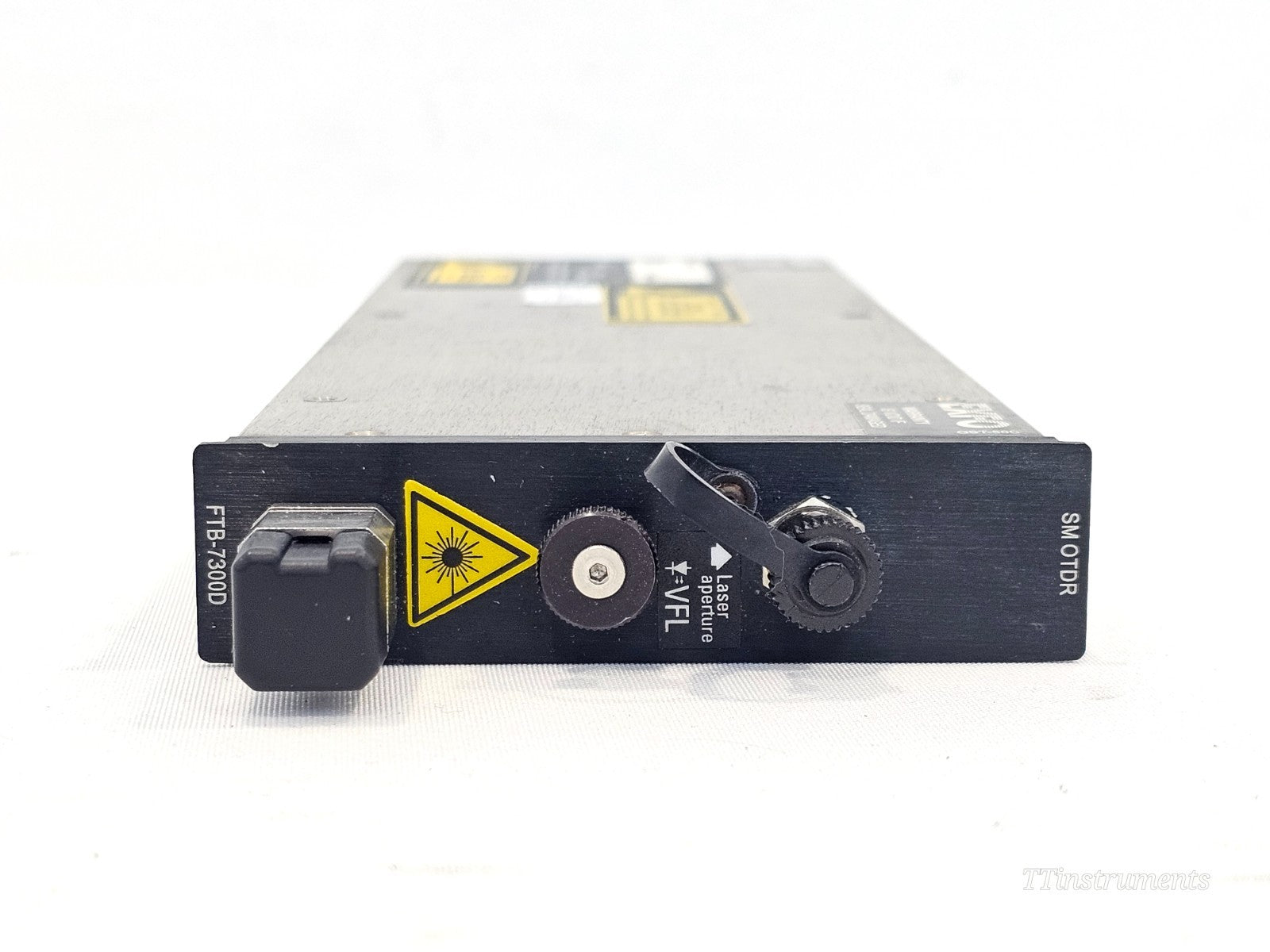

• SC/PC optical connector interface

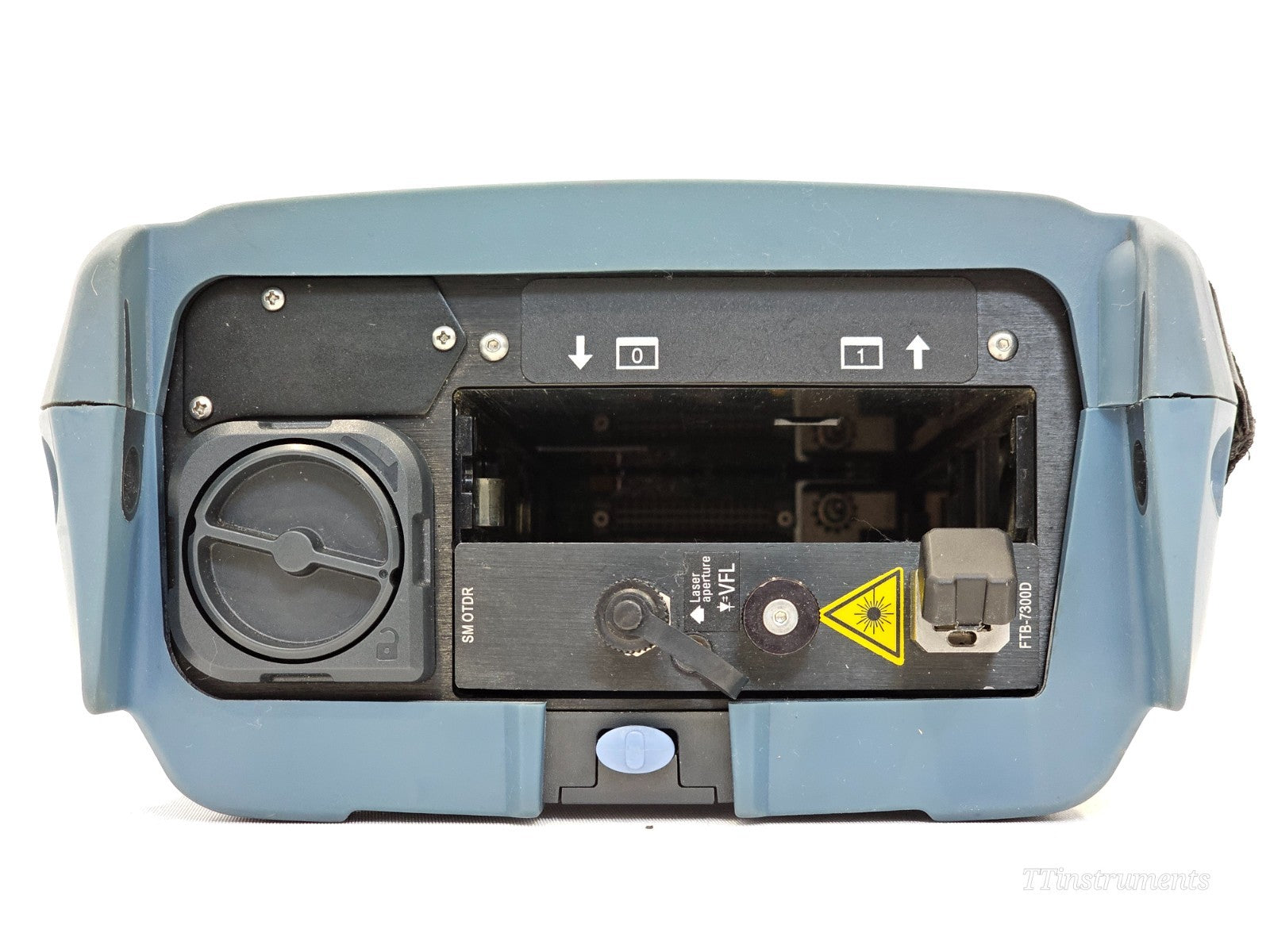

• Modular design compatible with the FTB-200 mainframe platform

Specifications (FTB-7300D-234B):
Wavelengths: 1310 nm / 1550 nm / 1625 nm
Dynamic Range: 38 dB / 37 dB / 35 dB
Connector Type: SC/PC
Fibre Type: Single-mode
Platform: EXFO FTB-200
Typical Applications: Fibre installation, maintenance, live-fibre testing, PON testing, fault location

EXFO FTB-7300D OTDR Module Datasheet: Download PDF

EXFO FTB-200 Platform User Guide: Download PDF
