The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

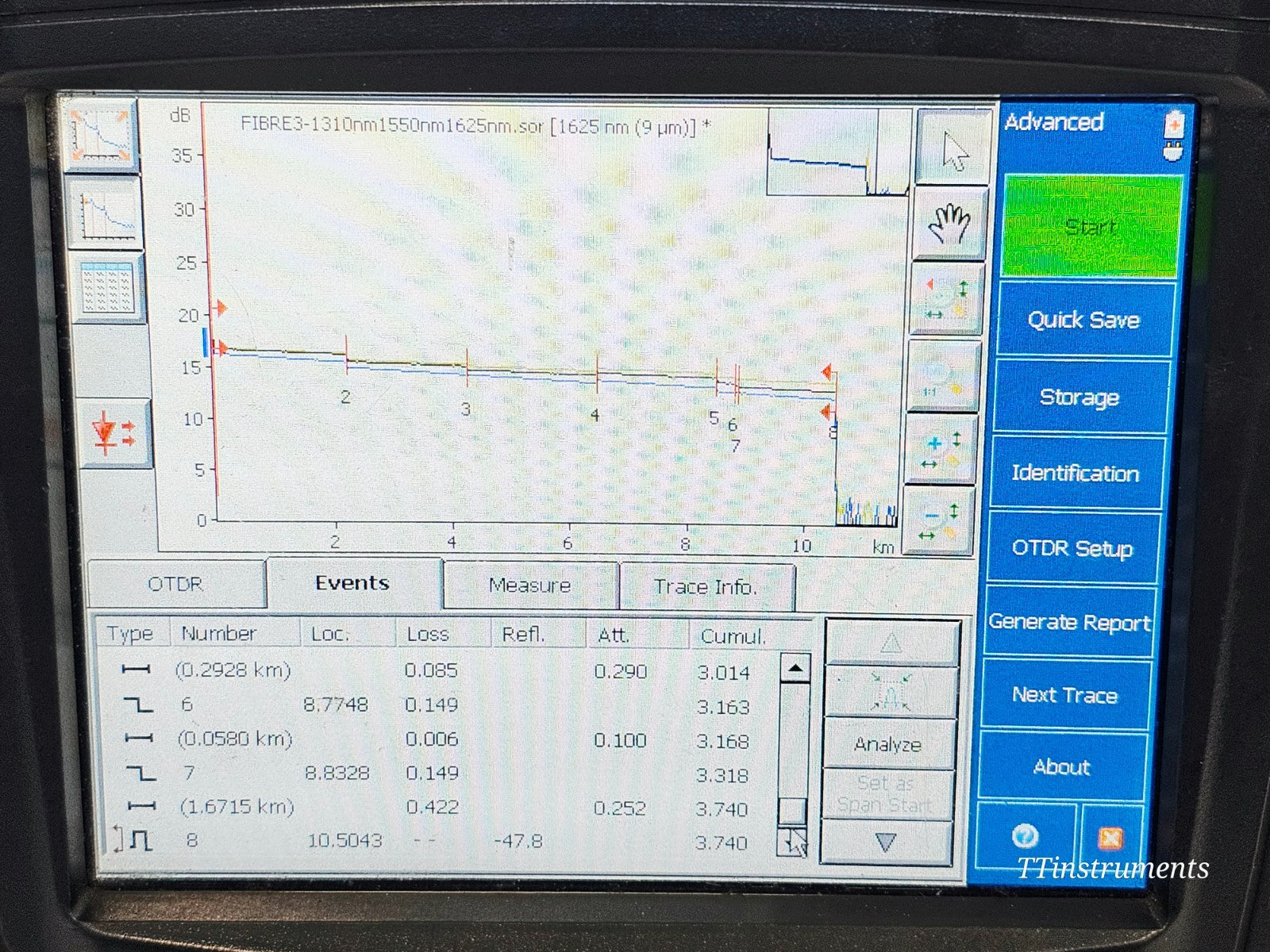

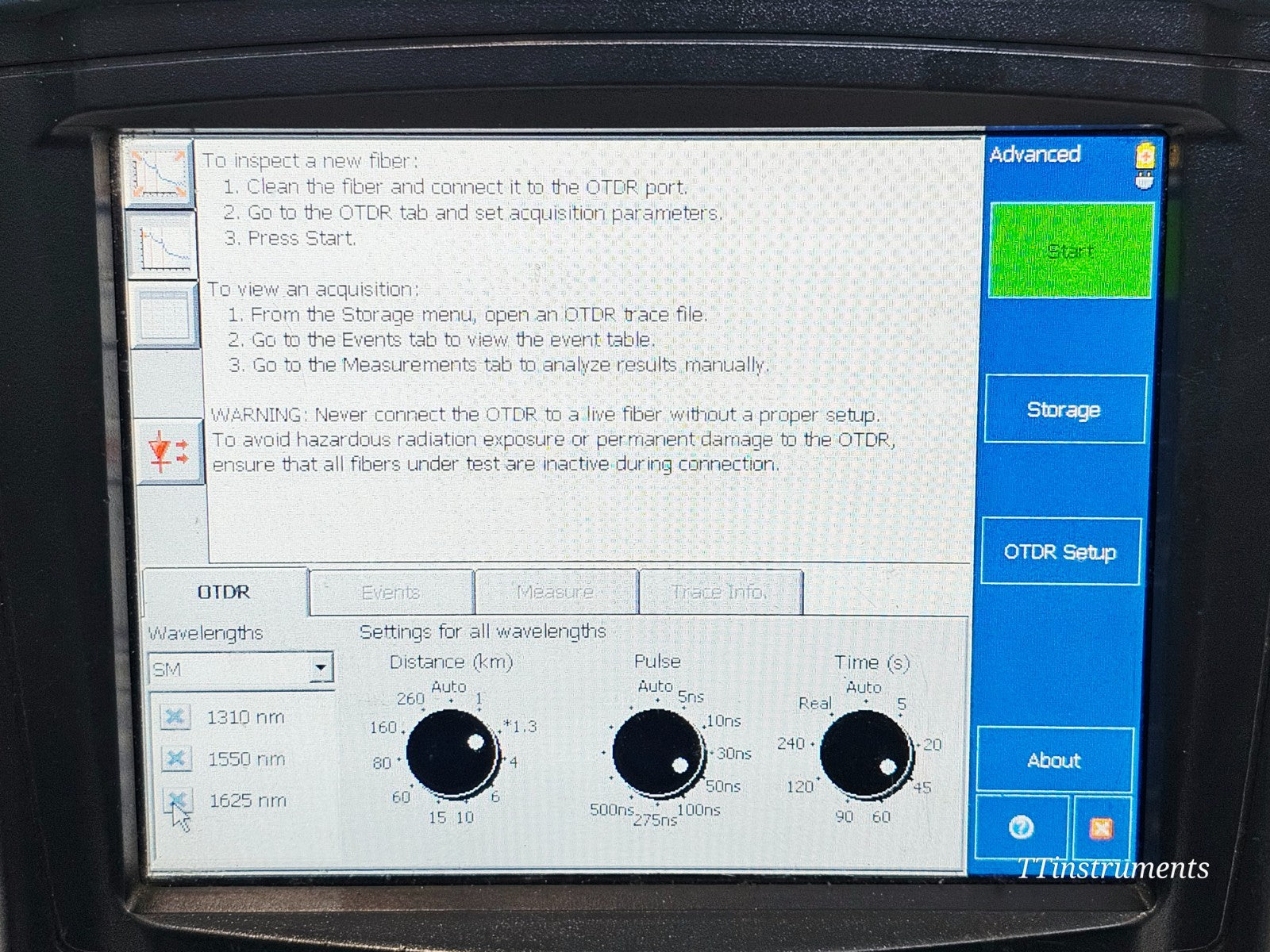

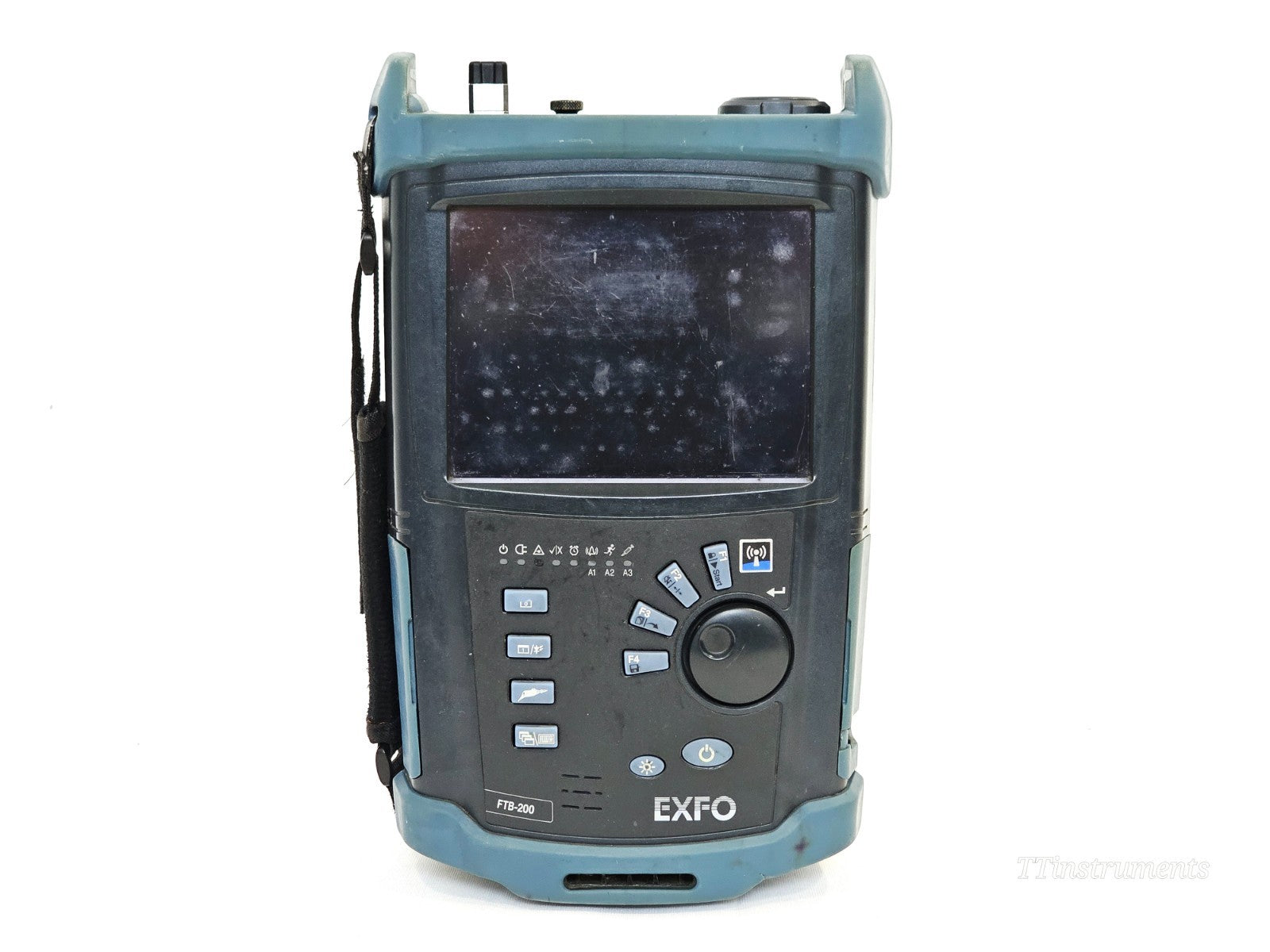

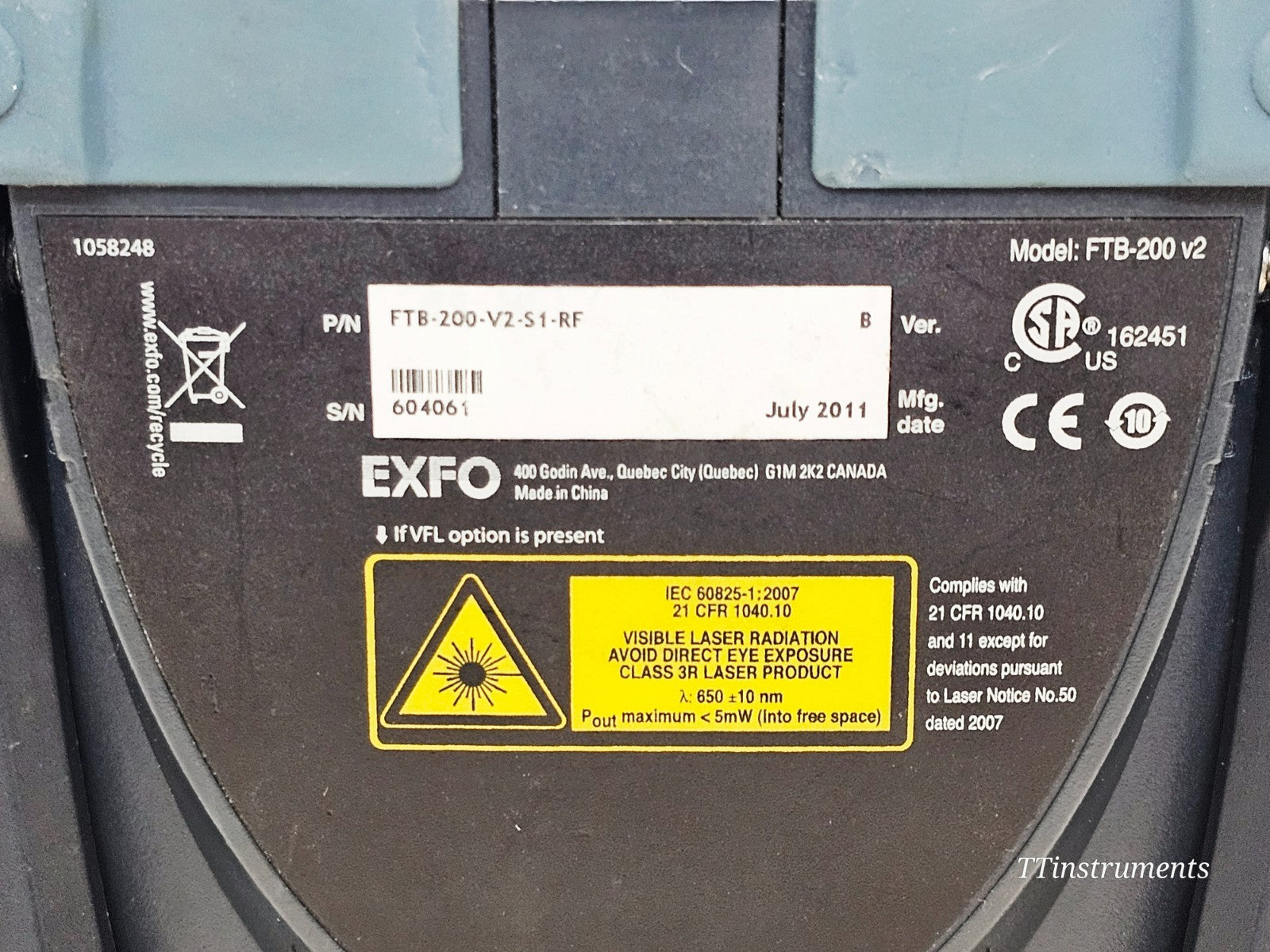

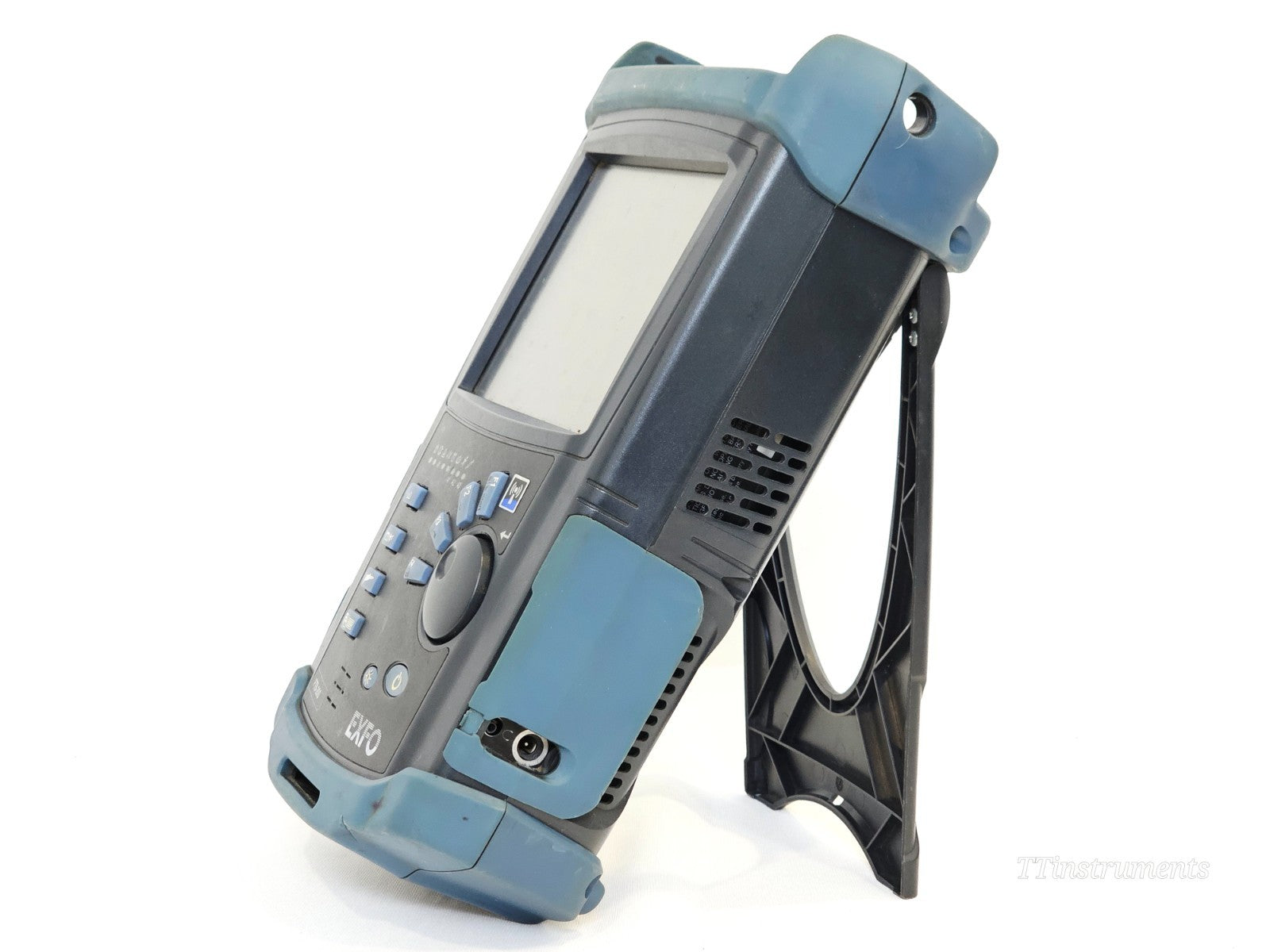

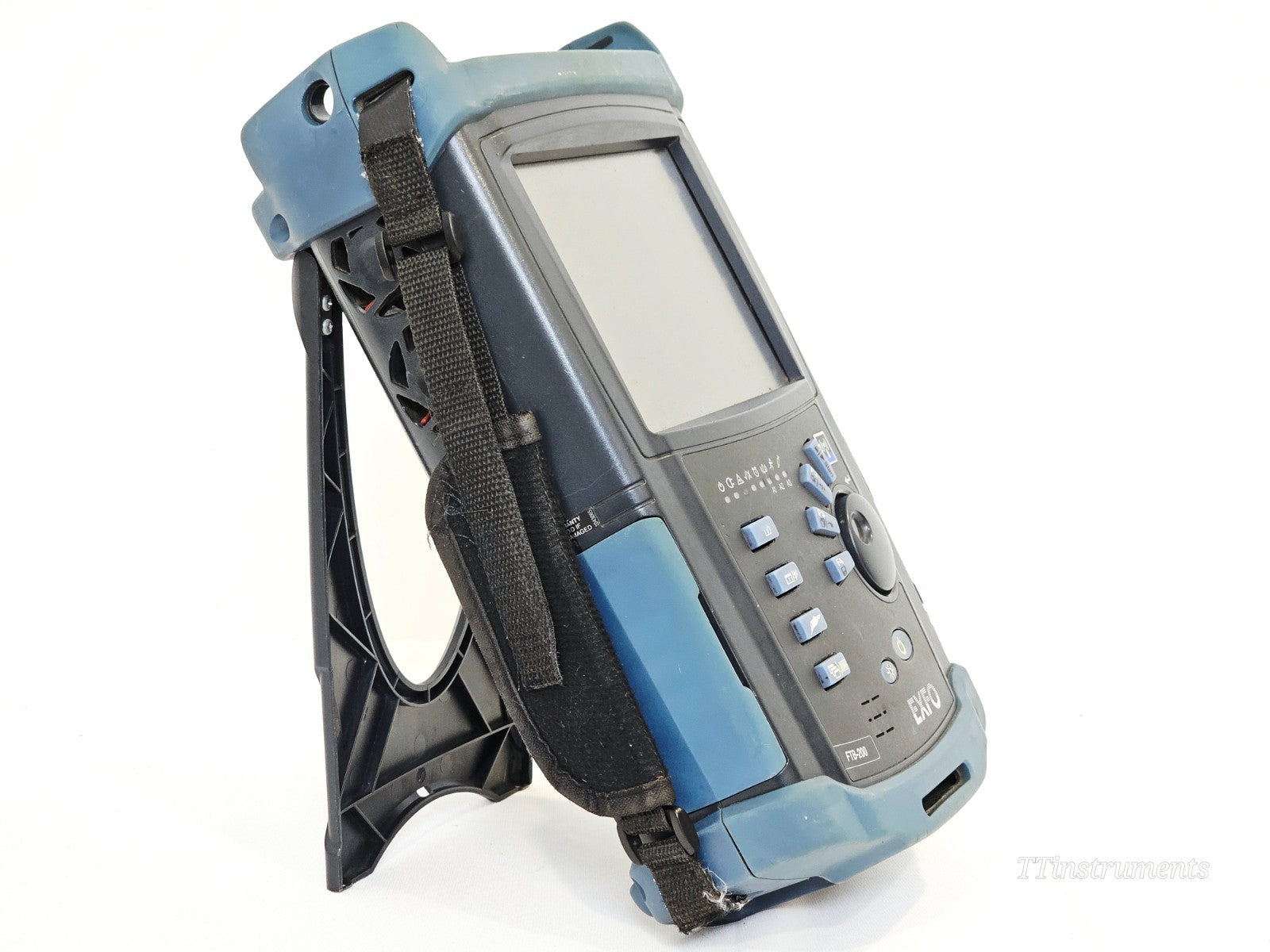

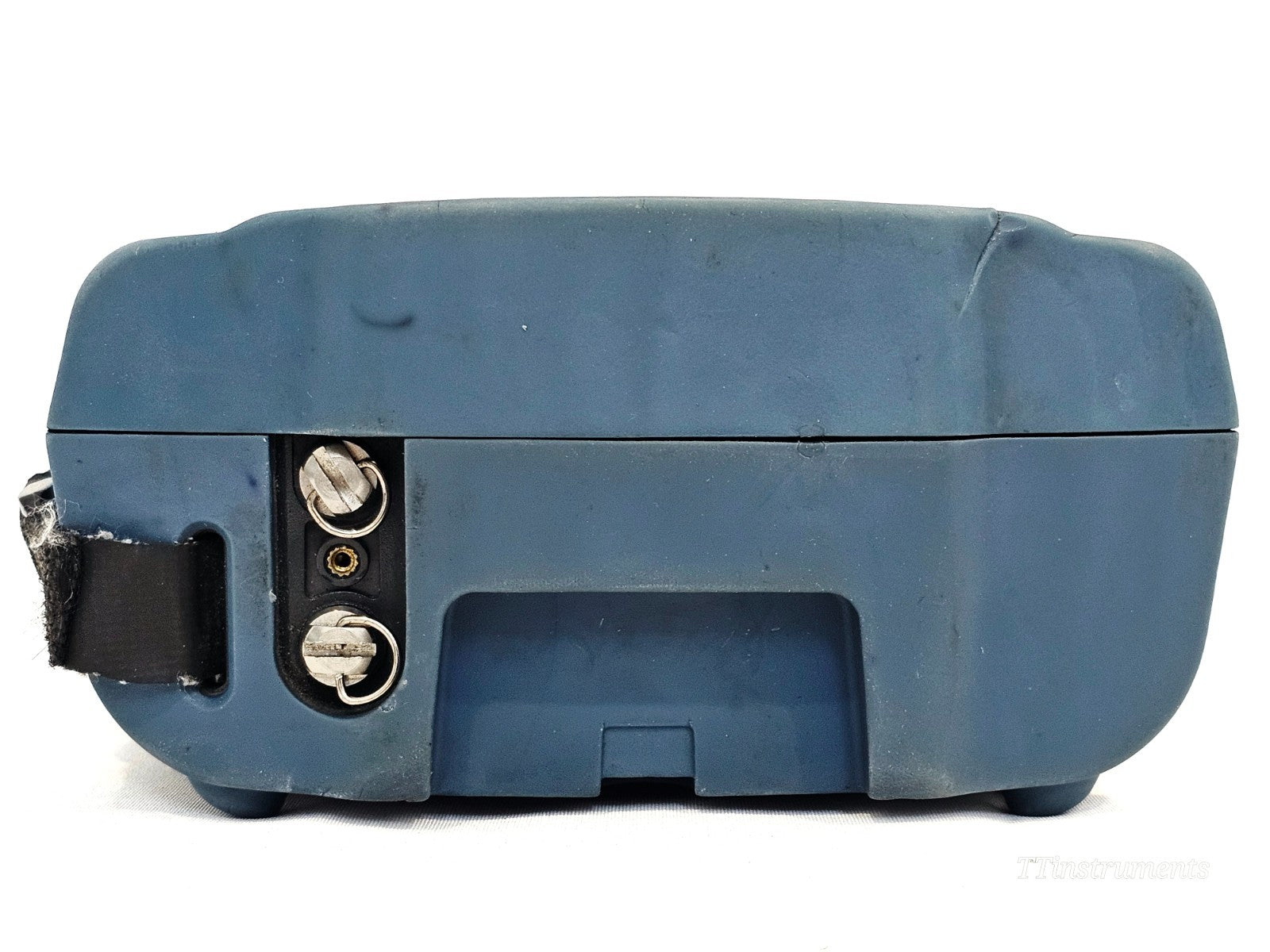

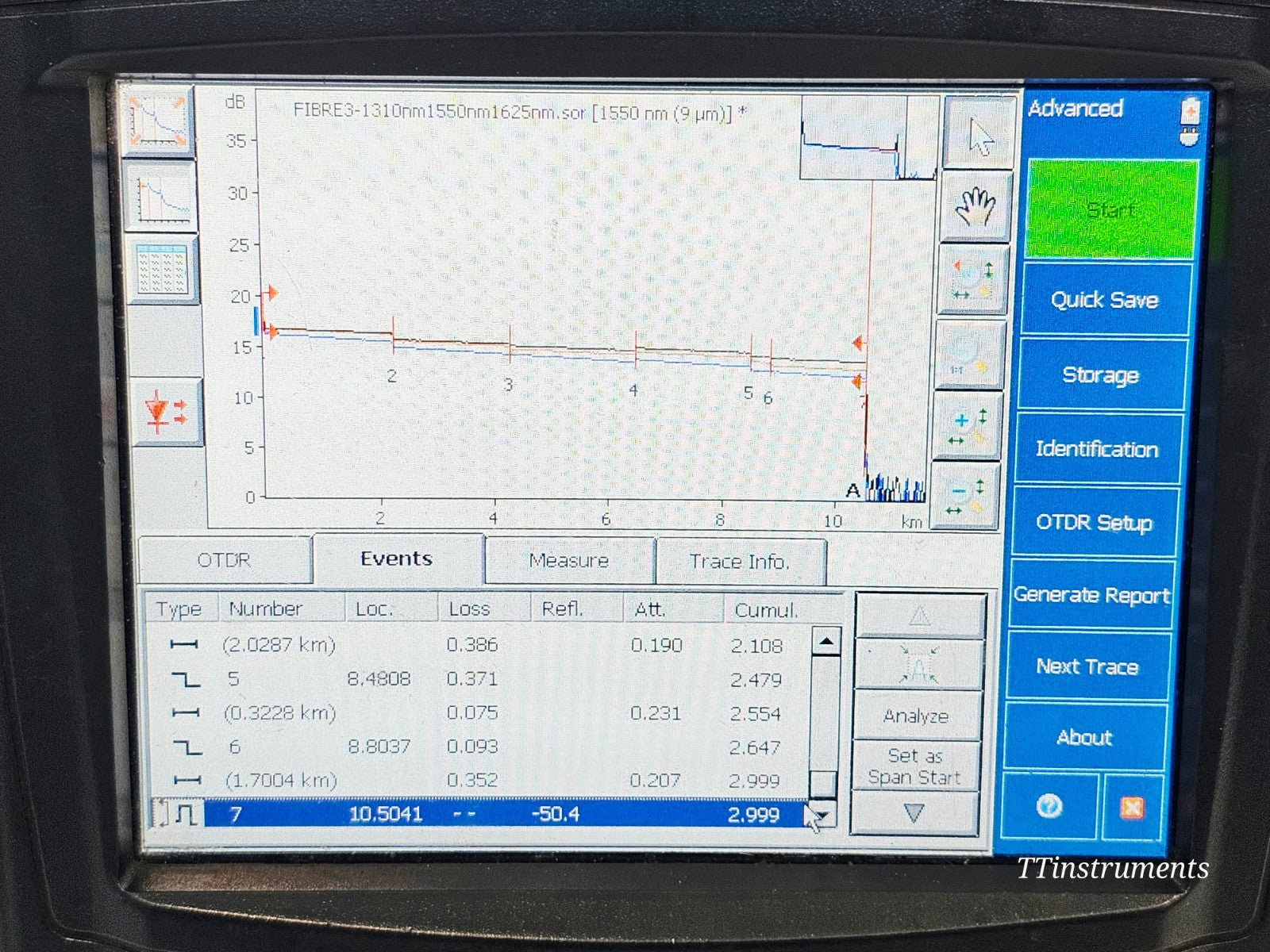

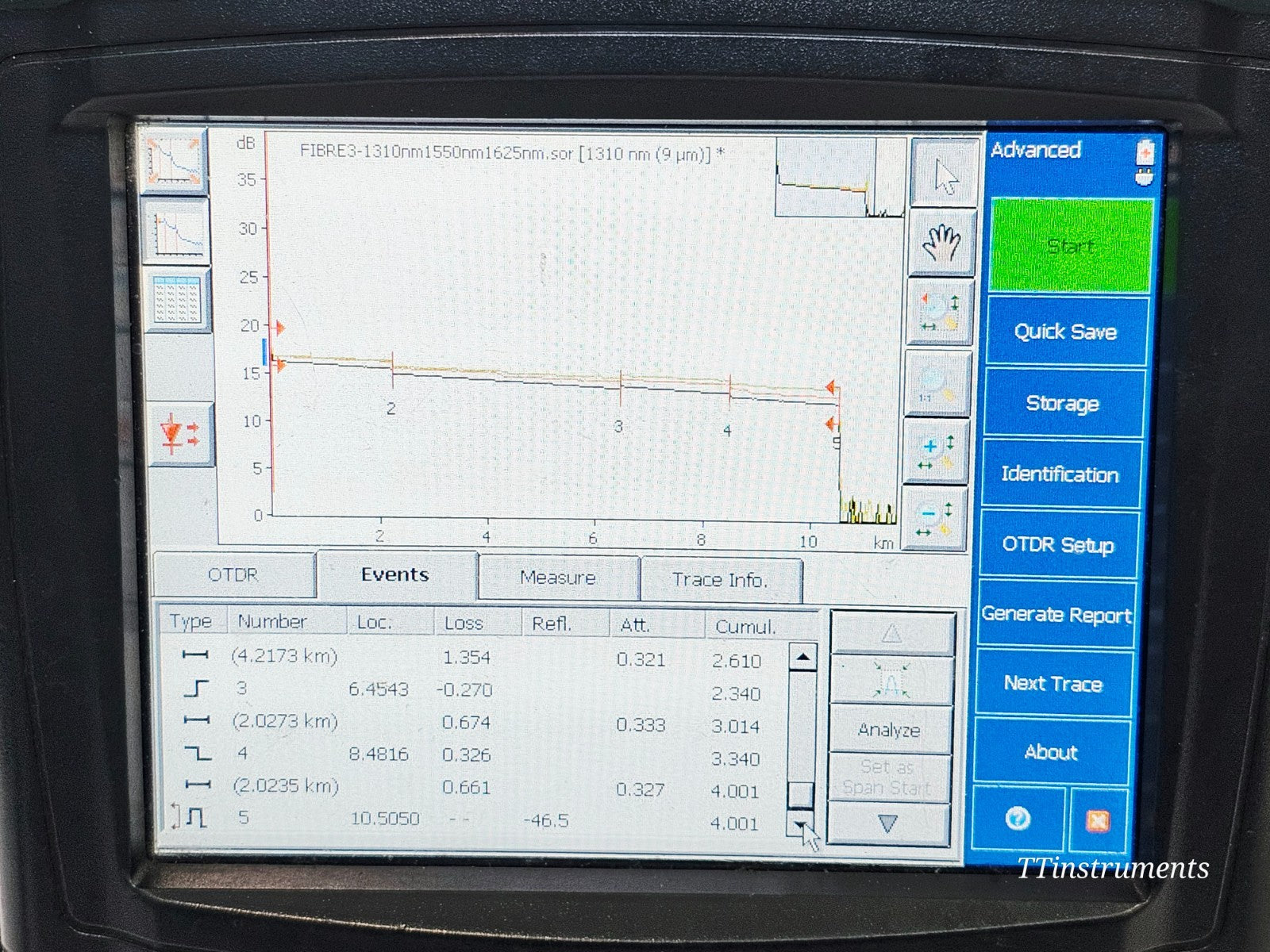

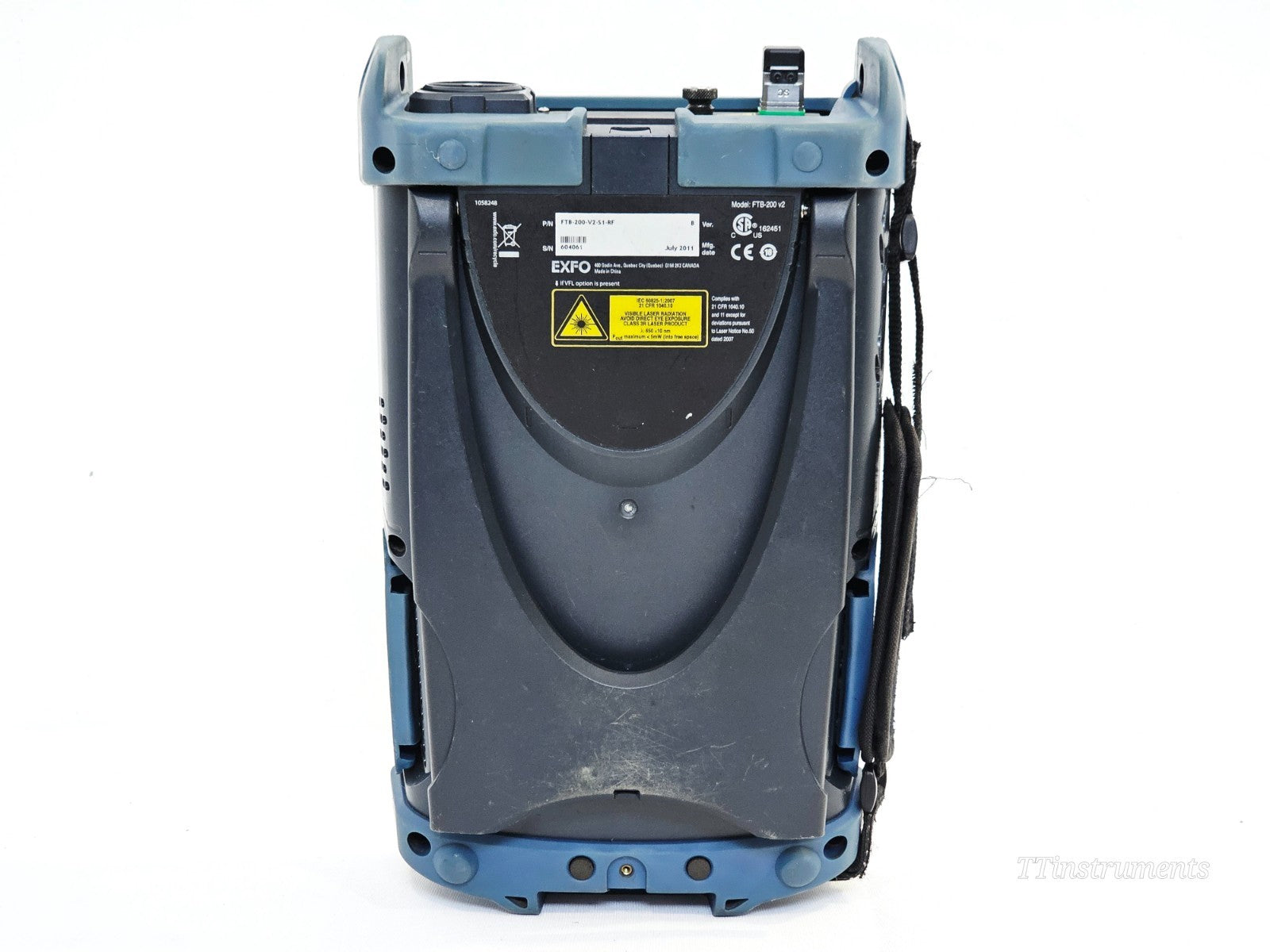

This EXFO FTB-200 v2 (P/N FTB-200-V2-S1-RF) is a used unit in fair cosmetic condition with light signs of field use, including some light scratches on the touchscreen. It has been fully tested and confirmed working within manufacturer specifications. The OTDR has been tested at all three wavelengths — 1310, 1550, and 1625 nm — with passing results.

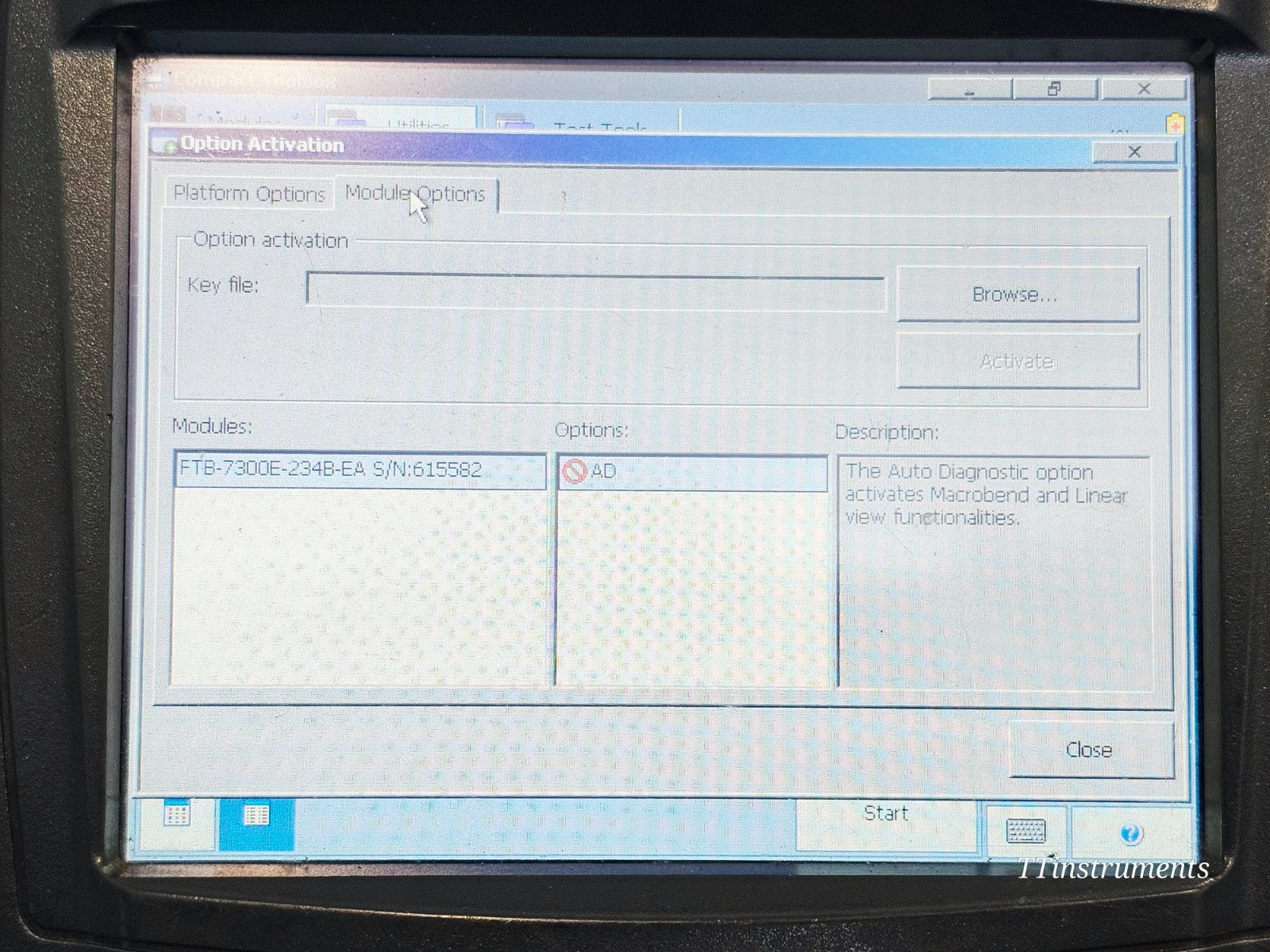

Active licensed options:
• Platform RF option (built-in Wi-Fi and Bluetooth) — active

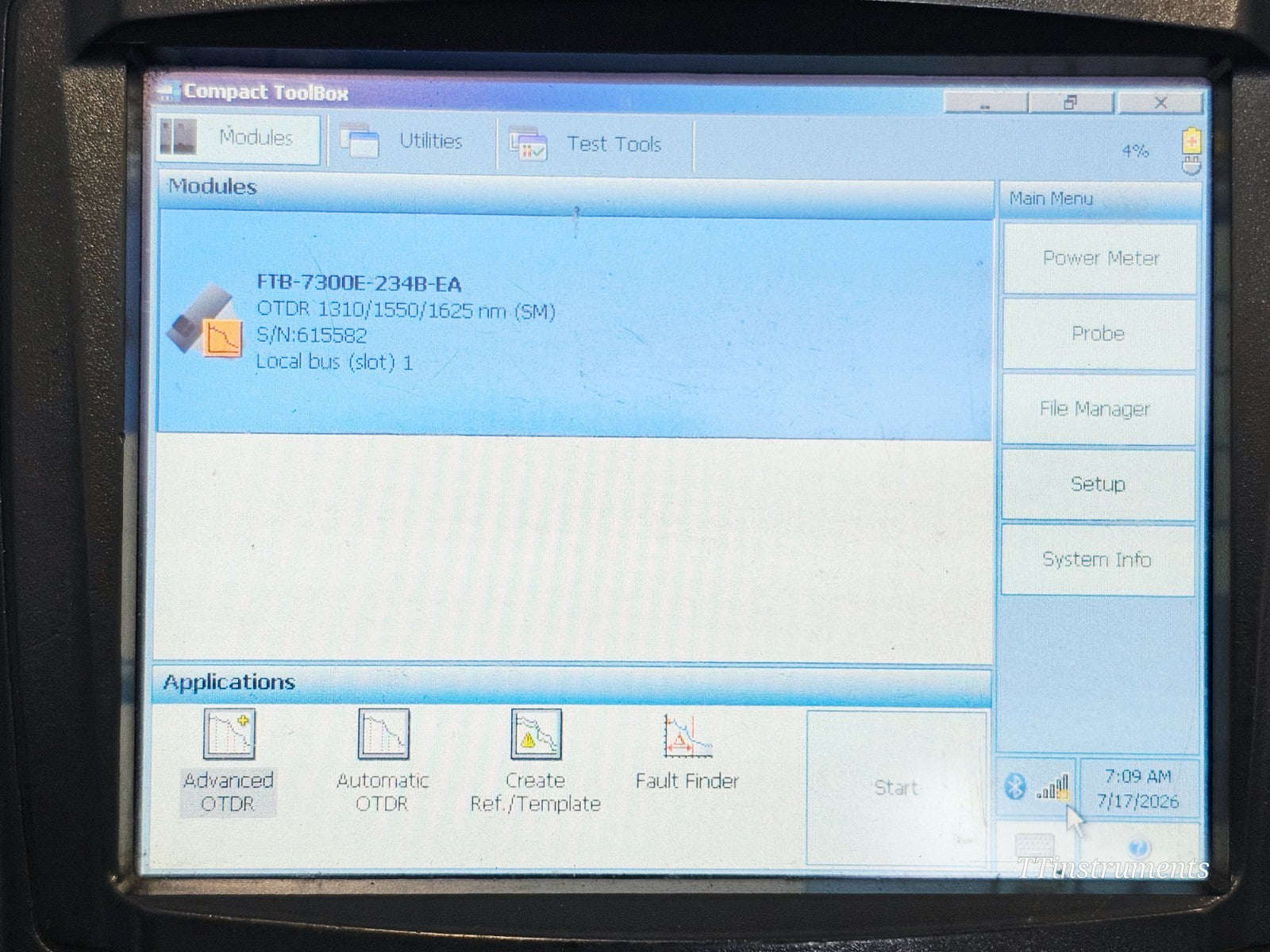

• OTDR base software (Advanced OTDR, Automatic OTDR, Fault Finder, Create Ref./Template) — active
• iOLM (intelligent Optical Link Mapper) — not activated
• Auto Diagnostic (Macrobend & Linear View) — not activated

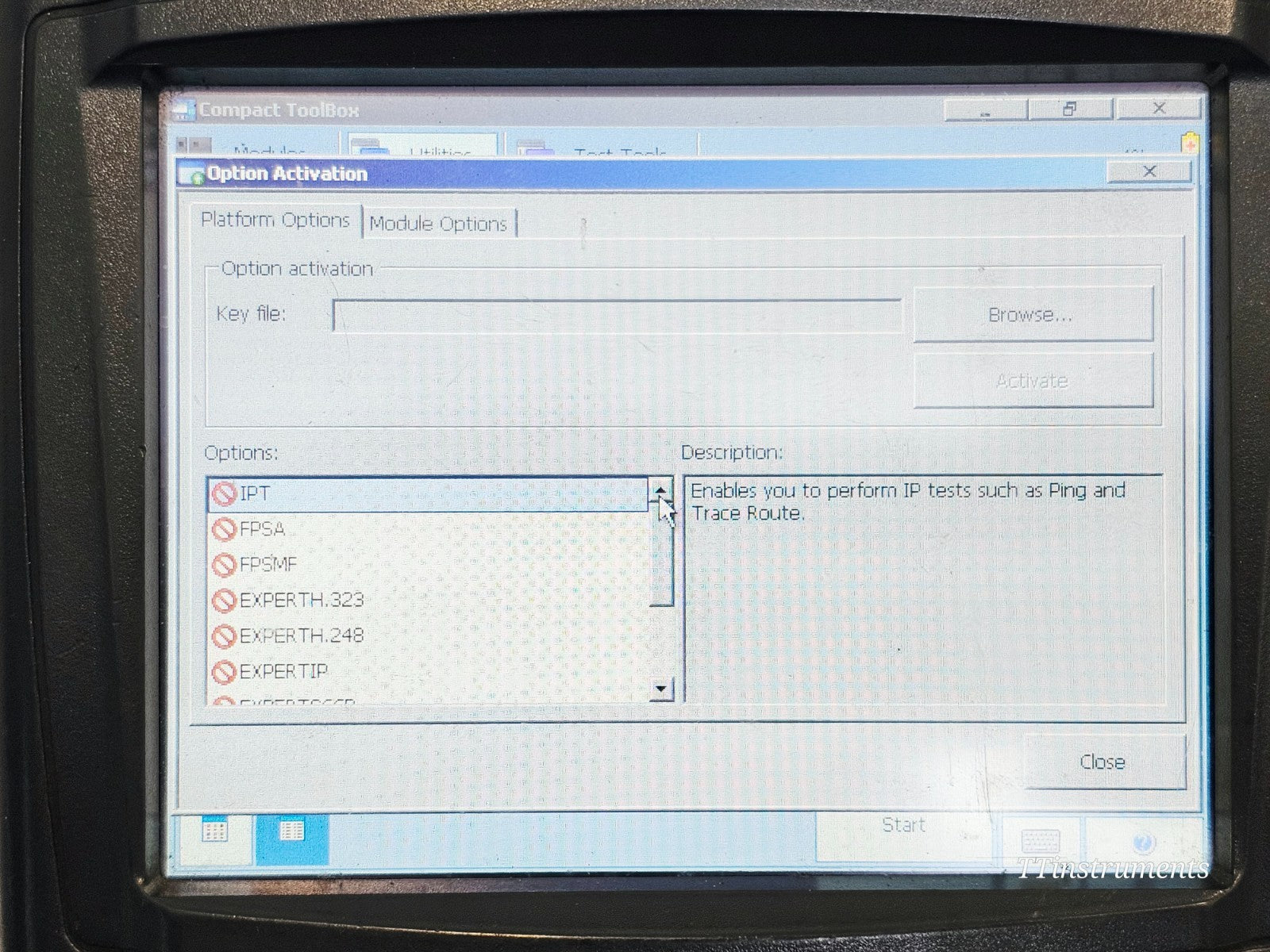

• Platform options (IPT, FPSA, FPSMF, EXPERTH, EXPERTIP, etc.) — not activated

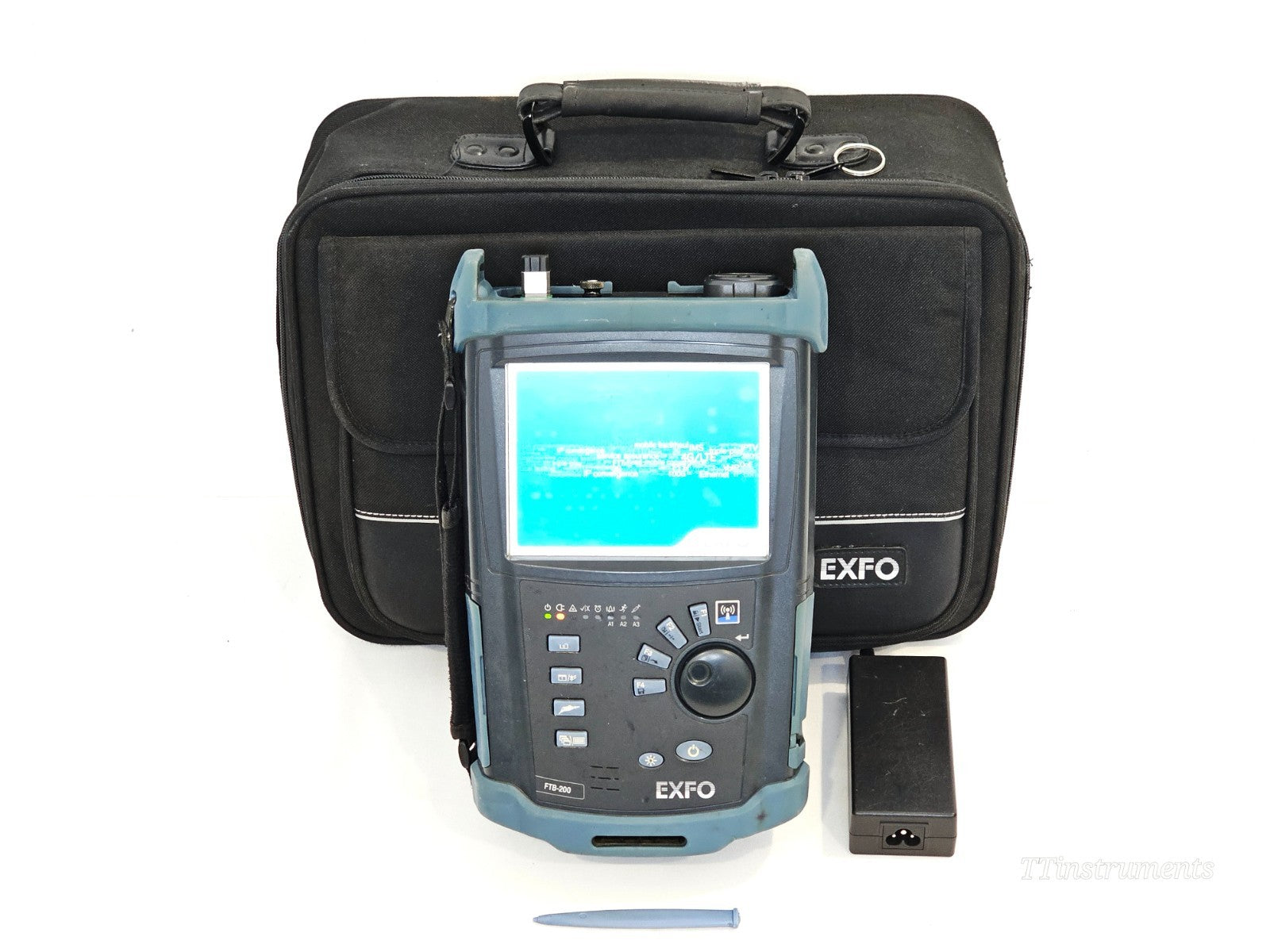

The unit is supplied with:

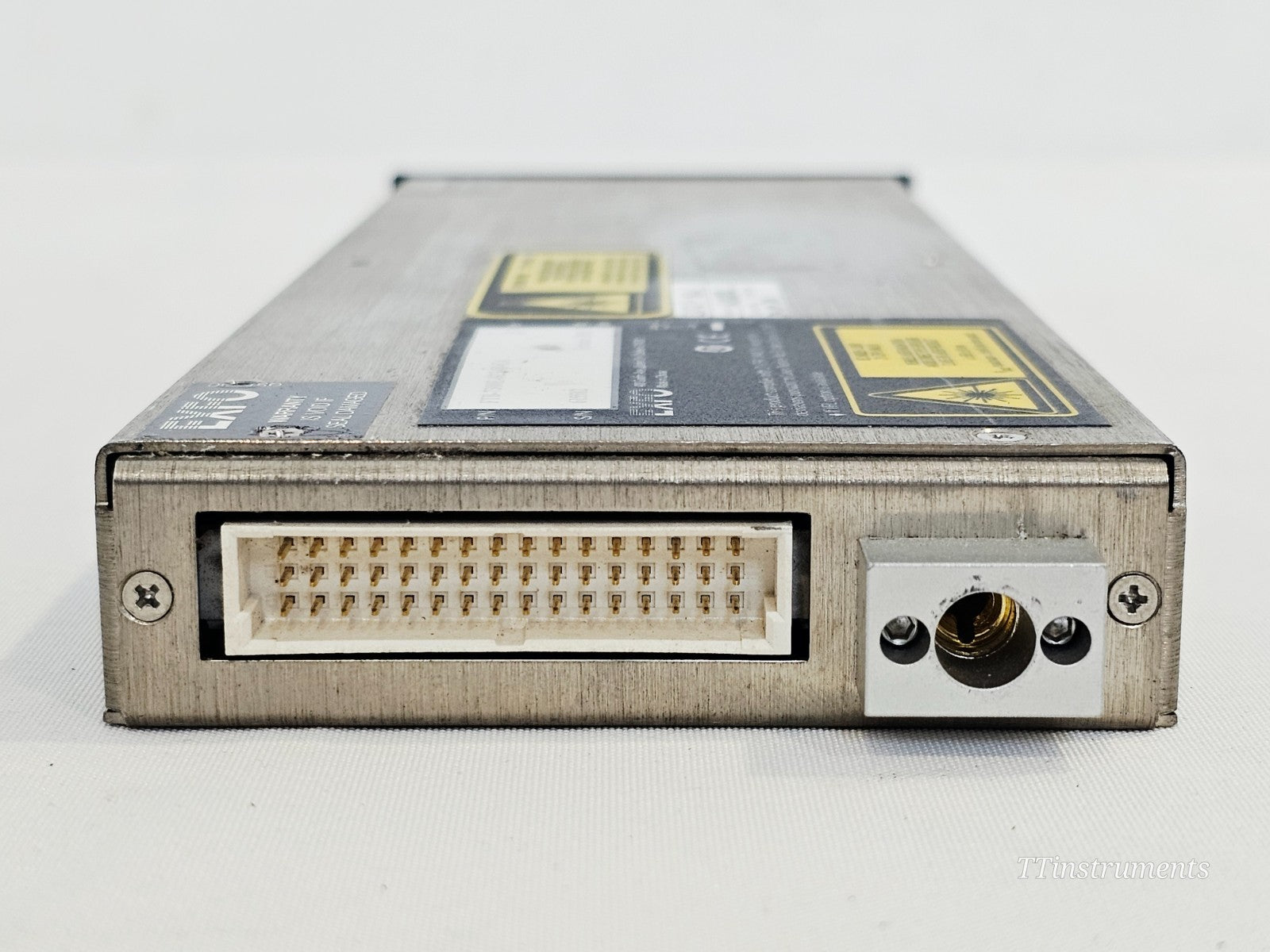

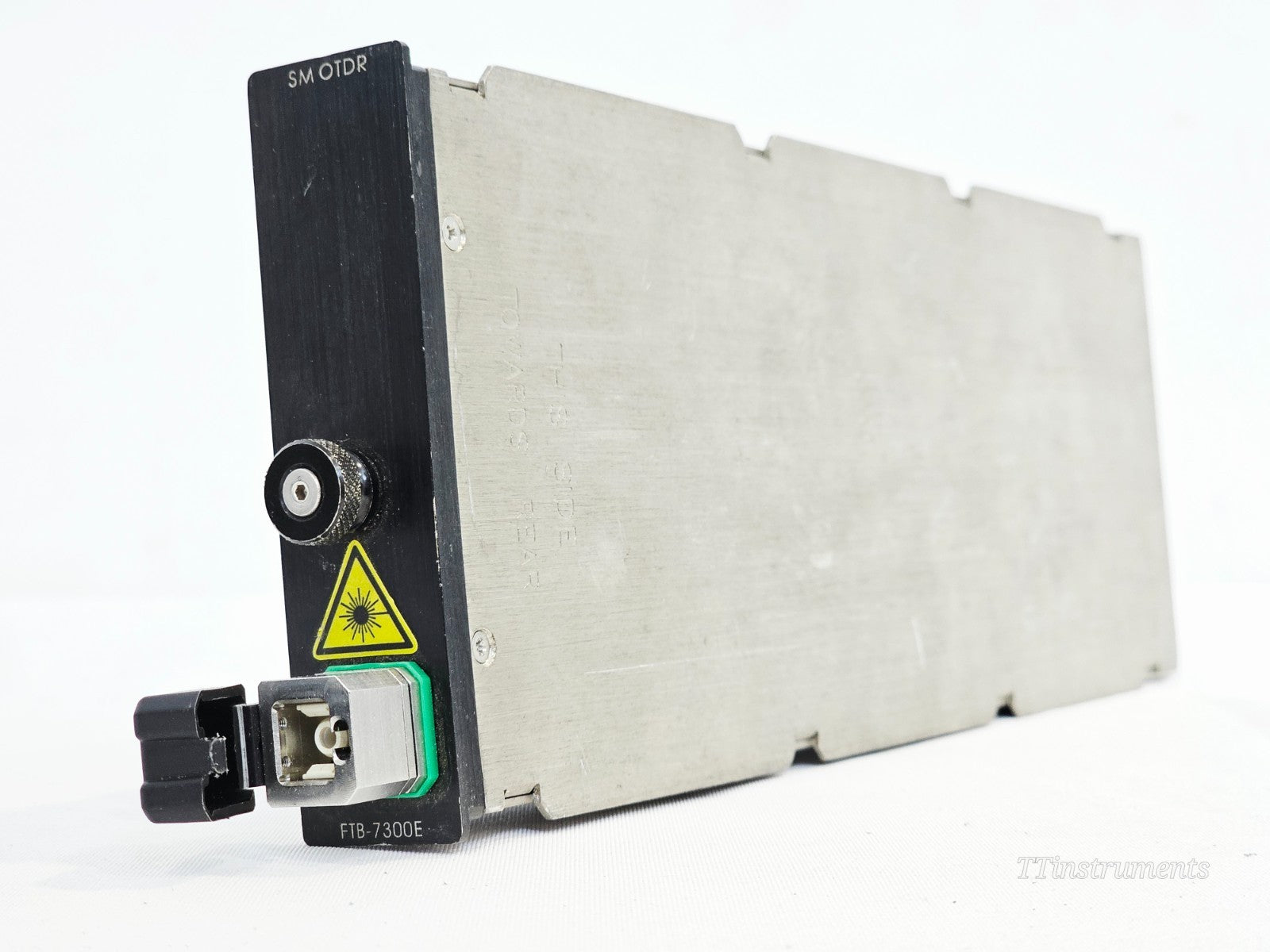

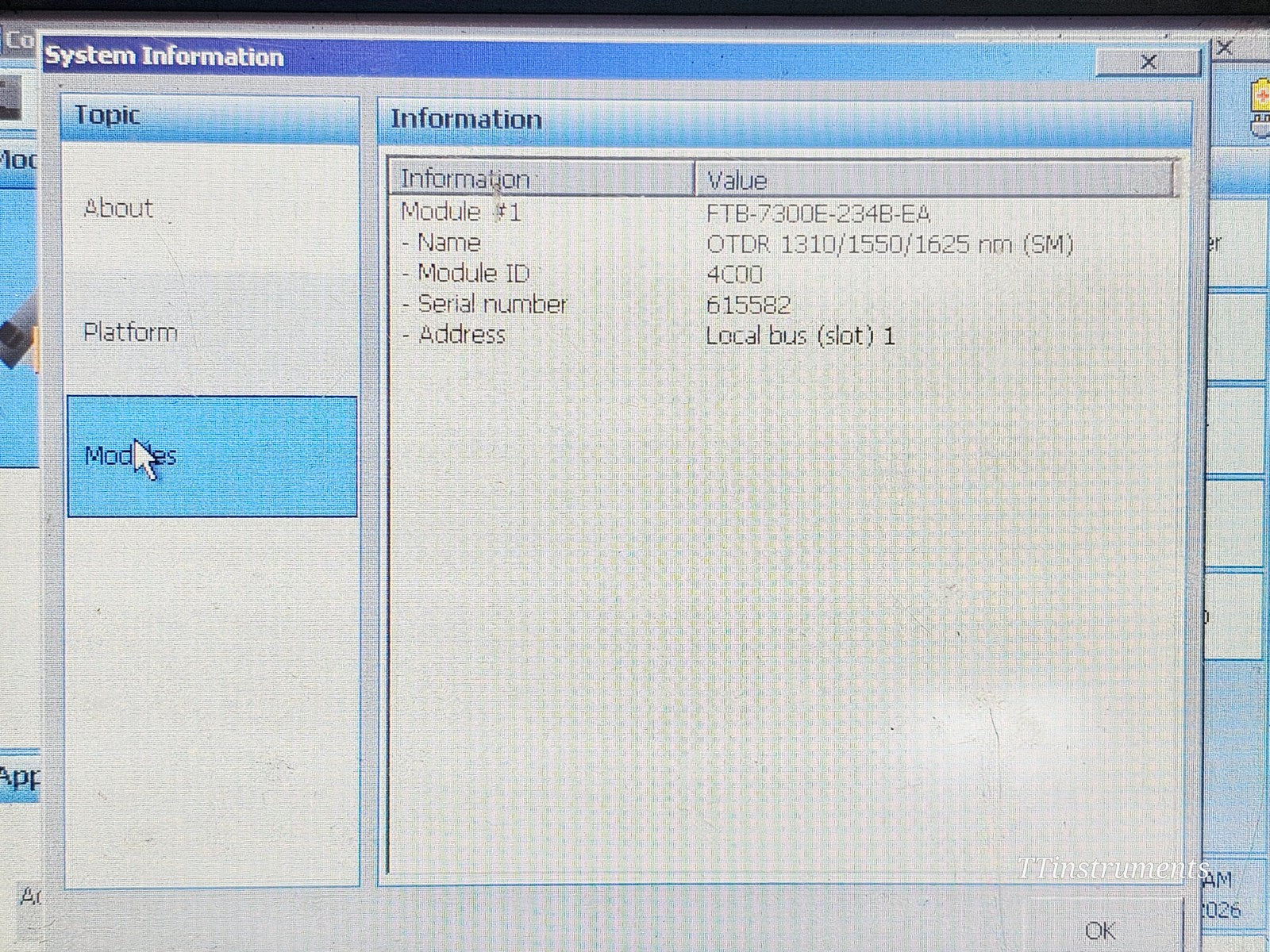

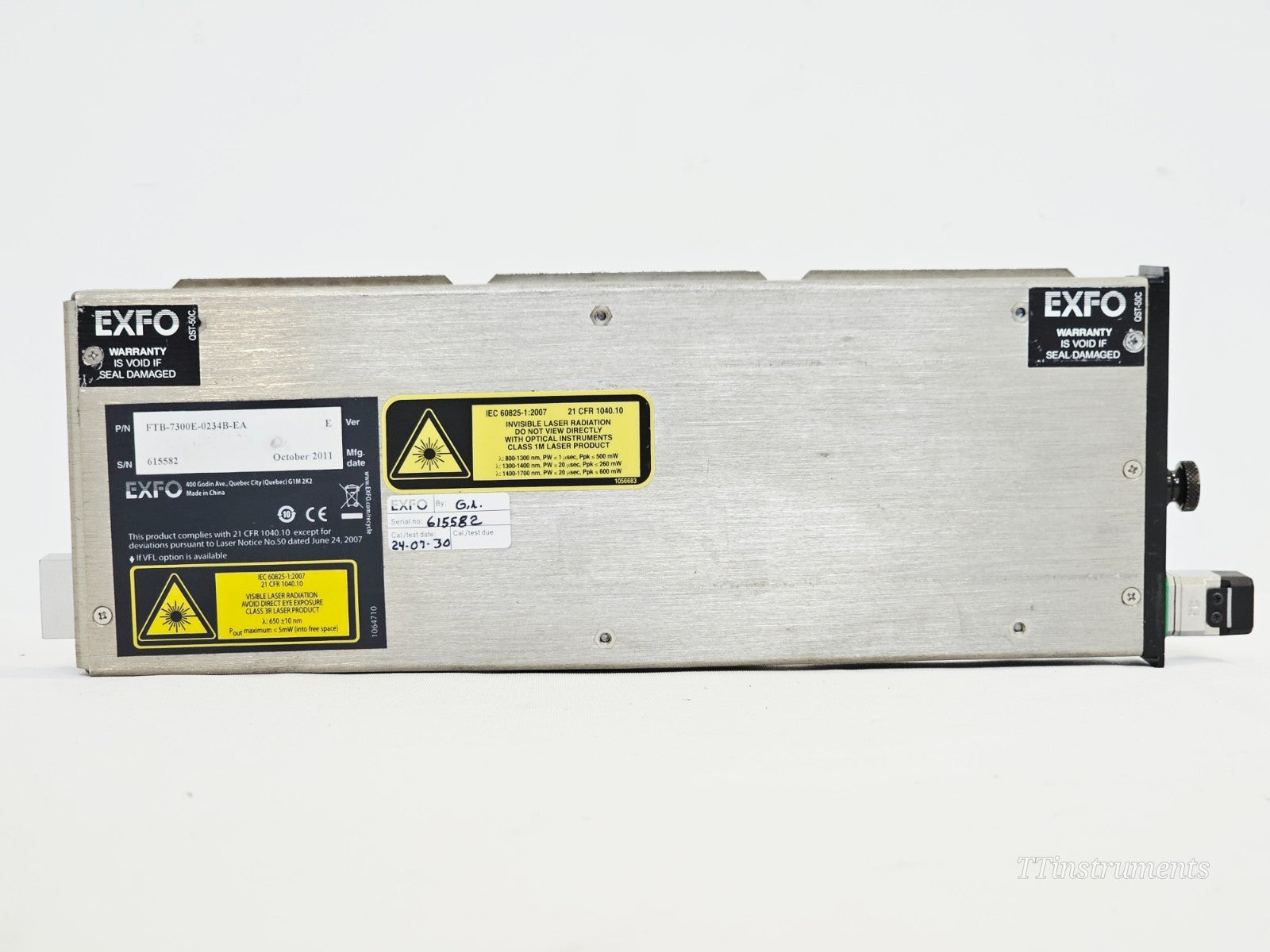

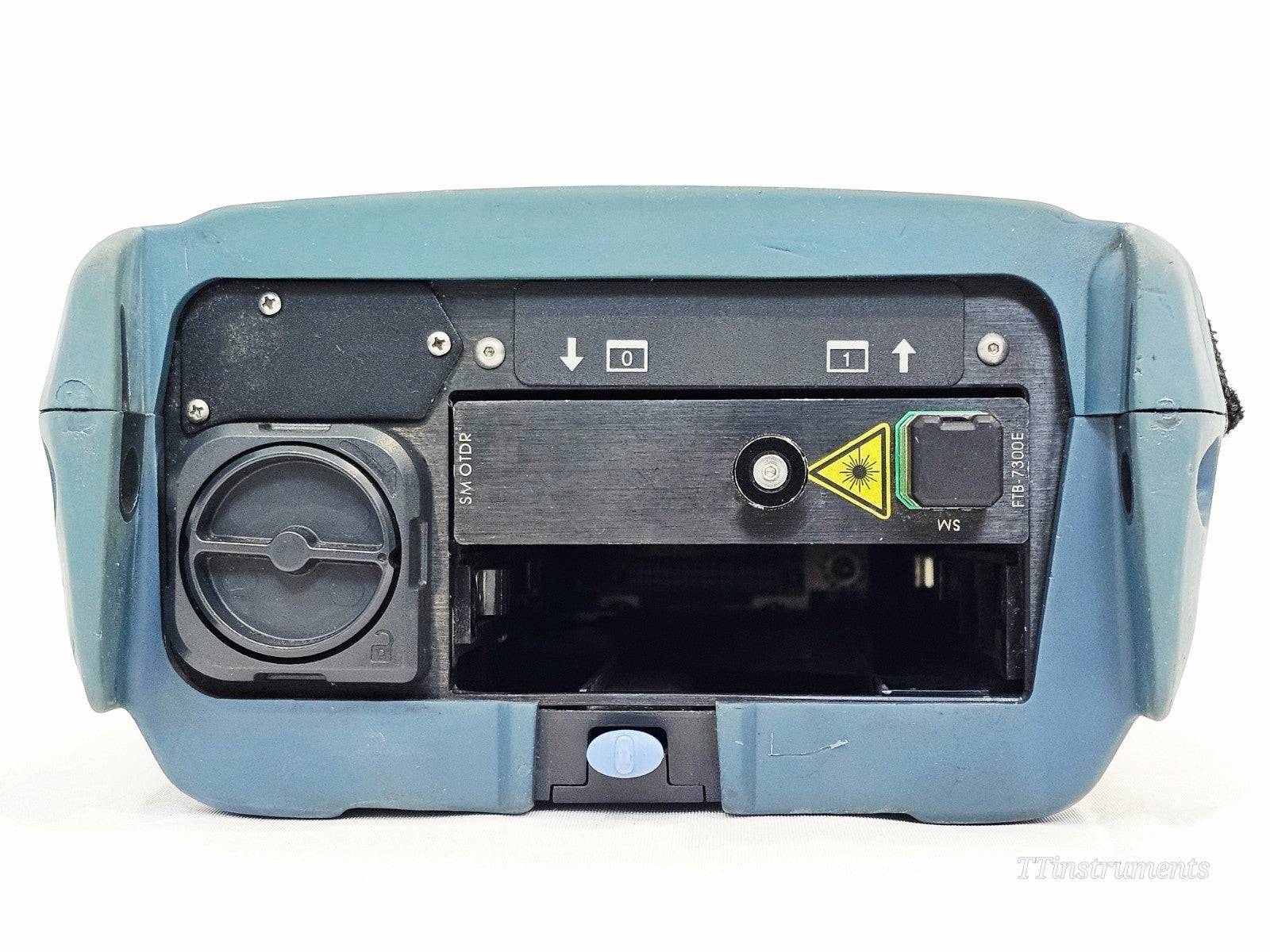

• EXFO FTB-7300E-234B-EA SM OTDR module (installed in Slot 1, FC/APC connector)
• AC power adapter / mains charger
• Stylus
• Soft carry case

The EXFO FTB-200 v2 is a compact, modular test platform designed for multi-technology fibre testing across metro, access, and FTTx/PON networks. It houses field-interchangeable modules — in this configuration the FTB-7300E-234B-EA singlemode OTDR module — and runs on an Intel ATOM processor with Windows Embedded Standard, delivering fast acquisition, processing, and reporting in a rugged handheld form factor.

The FTB-7300E is EXFO's PON/FTTx/MDU OTDR module, optimised for passive optical network testing. It enables simultaneous testing at 1310, 1550, and 1625 nm with a dynamic range of up to 39 dB, and supports testing through high-port-count splitters of up to 1×128. Key features include an industry-leading 0.8 m event dead zone, Fault Finder, bi-directional analysis, template matching, and real-time trace monitoring. The platform includes built-in Bluetooth and Wi-Fi (RF option), Gigabit Ethernet, and USB connectivity.

FTB-7300E-234B-EA OTDR Module:
Fibre Type: Singlemode (9/125 µm)
Wavelengths: 1310 / 1550 / 1625 nm
Dynamic Range (at 20 µs): 39 / 37 / 37 dB
Event Dead Zone: 0.8 m (typical)
Attenuation Dead Zone: 4 / 4.5 / 4.5 m
Distance Range: 1.25 to 400 km
Pulse Widths: 5 to 20,000 ns
Sampling Points: Up to 256,000
Loss Resolution: 0.001 dB
Linearity: ±0.03 dB/dB
Connector: FC/APC

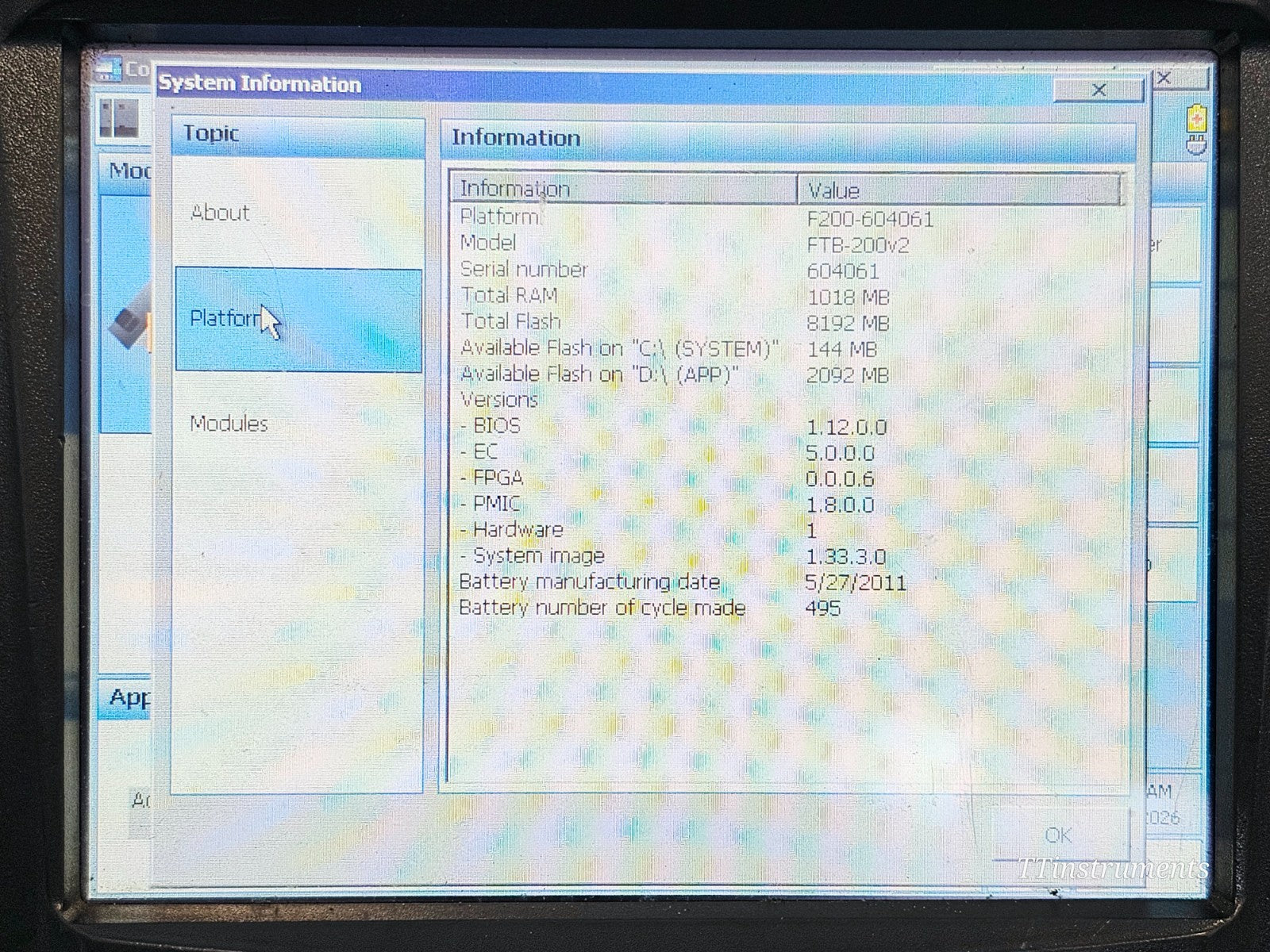

FTB-200 v2 Platform:
Display: 6.5 in colour touchscreen, 640 × 480 TFT
Processor: Intel ATOM
Operating System: Windows Embedded Standard
Storage: 8 GB internal flash

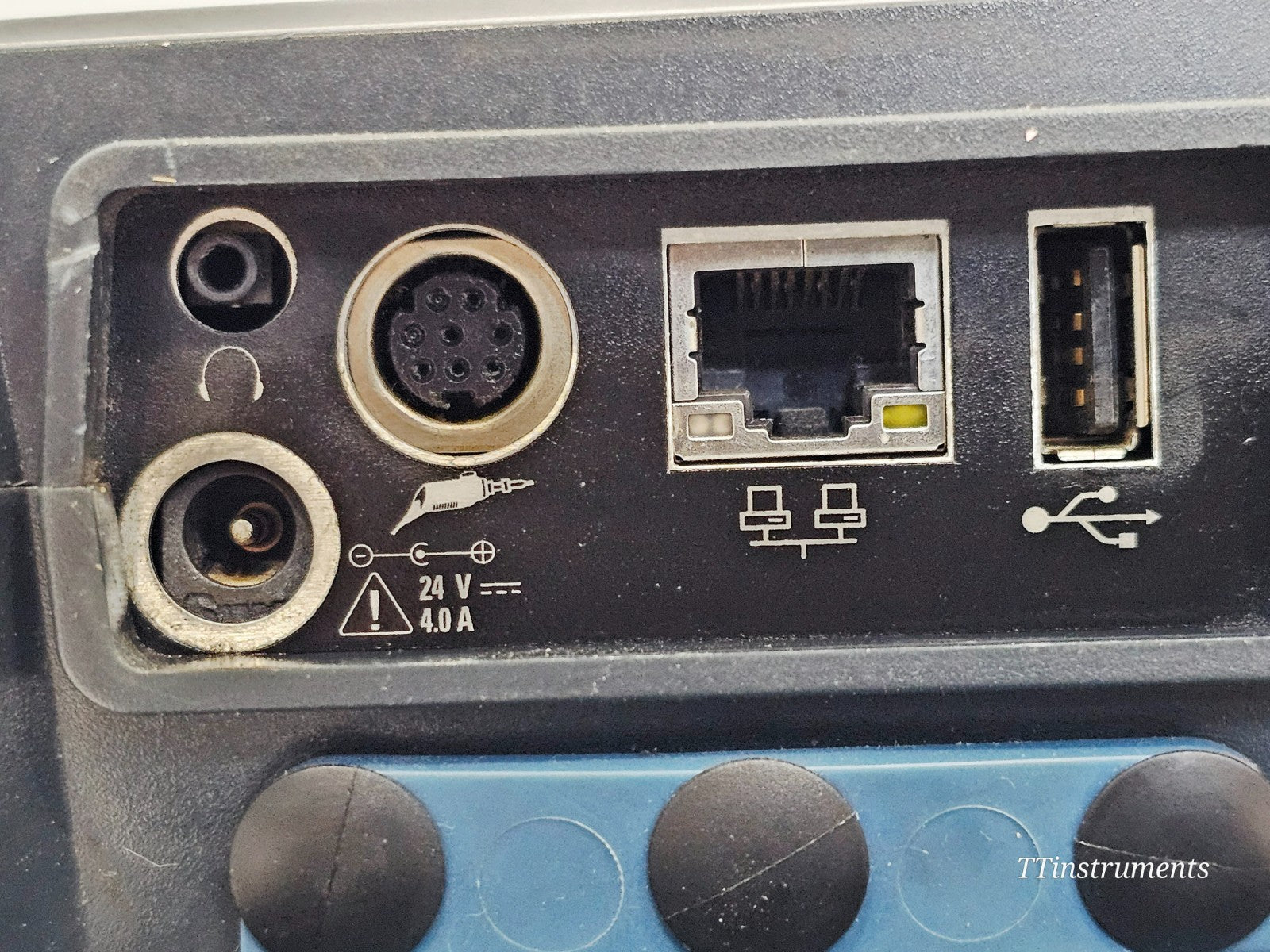

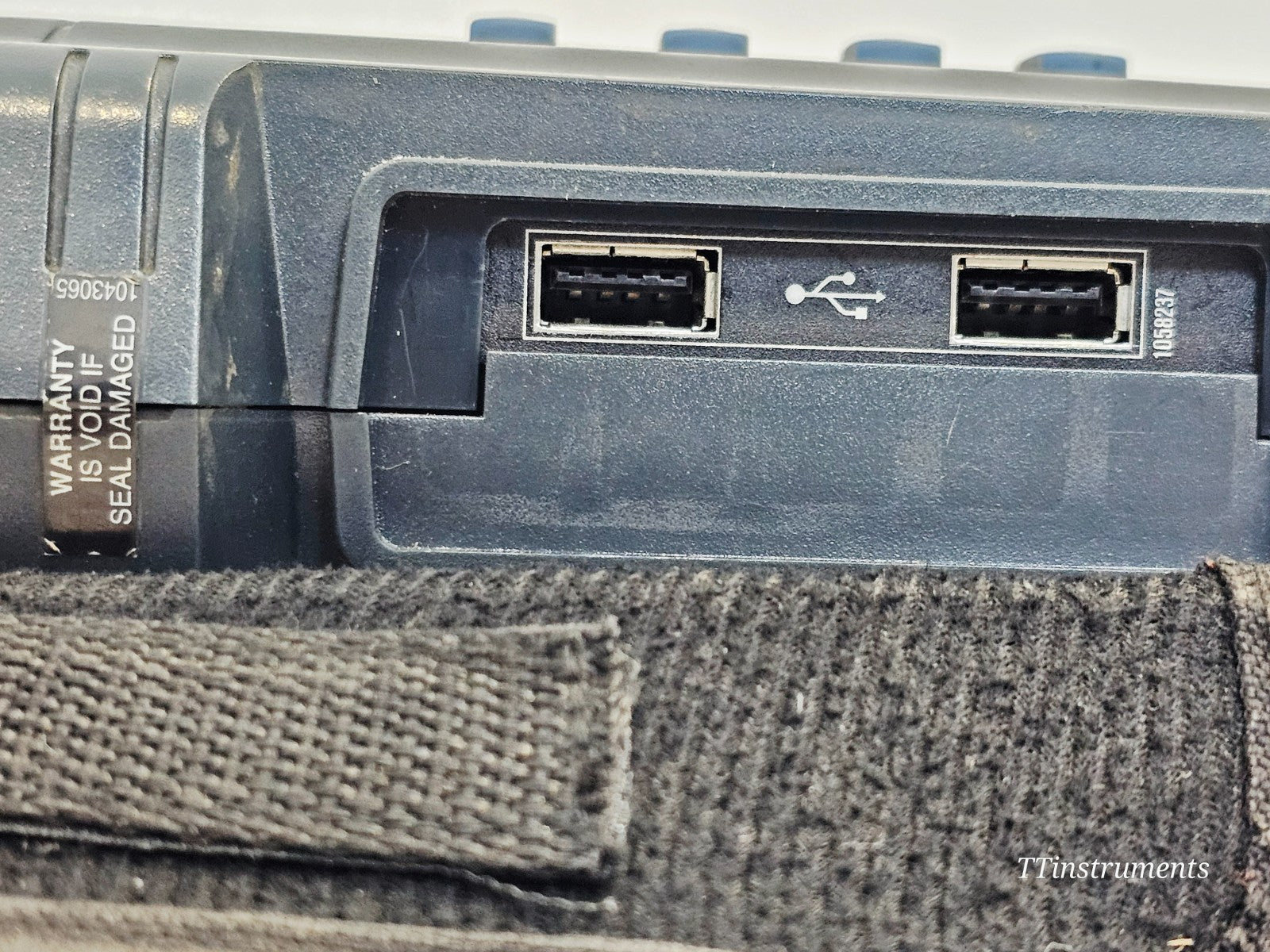

Interfaces: RJ-45 Gigabit LAN, 2× USB 2.0, 24 V DC power input
Wireless: Built-in Bluetooth and Wi-Fi (RF option)
Battery: Lithium-ion, up to 8 hours operation

EXFO FTB-200 datasheet: Download PDF
